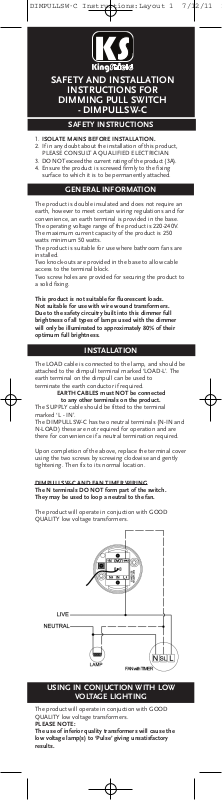

AFETY AND INSTALLATION
S
NSTRUCTIONS FOR
I
IMMING PULL SWITCH
D
DIMPULLSW-C
-
SAFETY INSTRUCTIONS
. ISOLATE MAINS BEFORE INSTALLATION.
1
. If in any doubt about the installation of this product,
2
PLEASE CONSULT A QUALIFIED ELECTRICIAN.
. DO NOTexceed thecurrentratingof theproduct(3A).
3
4. Ensure the product is screwed firmly to the fixing
urface to which it is to be permanently attached.
s
GENERAL INFORMATION
The product is double insulated and does not require an
arth, however to meet certain wiring regulations and for
e
convenience, an earth terminal is provided in the base.
he operating voltage range of the product is 220-240V.
T
The maximum current capacity of the product is 250
atts minimum 50 watts.
w
he product is suitable for use where bathroom fans are
T
installed.
wo knock-outs are provided in the base to allow cable
T
access to the terminal block.
wo screw holes are provided for securing the product to
T
a solid fixing.
his product is not suitable for fluorescent loads.
T
Not suitable for use with wire wound transformers.
ue to the safety circuitry built into this dimmer full
D
brightness of all types of lamps used with the dimmer
ill only be illuminated to approximately 80% of their
w
optimum full brightness.
INSTALLATION
The LOAD cable is connected to the lamp, and should be
ttached to the dimpull terminal marked ‘LOAD-L’. The
a
earth terminal on the dimpull can be used to
terminate the earth conductor if required.
EARTH CABLES must NOT be connected
to any other terminals on the product.
The SUPPLY cable should be fitted to the terminal
marked ‘L - IN’.
The DIMPULLSW-C has two neutral terminals (N-IN and
N-LOAD) these are not required for operation and are
there for convenience if a neutral termination required.
Upon completion of the above, replace the terminal cover
using the two screws by screwing clockwise and gently
tightening. Then fix to its normal location.
DIMPULLSW-C AND FAN TIMER WIRING
The N terminals DO NOT form part of the switch.
They may be used to loop a neutral to the fan.
The product will operate in conjuction with GOOD
QUALITY low voltage transformers.
USING IN CONJUCTION WITH LOW
VOLTAGE LIGHTING
The product will operate in conjuction with GOOD
QUALITY low voltage transformers.
PLEASE NOTE:
The use of inferior quality transformers will cause the
low voltage lamp(s) to ‘Pulse’ giving unsatisfactory
results.
The maximum load capacity at 12V is 175W.
he minimum load is 50W.
T
The maximum and minimum load of both the
witch and the transformer being used should be
s
trictly observed. Where a low voltage transformer
s
s used the LOAD cable should be connected to the
i
UPPLY - IN terminal of the transformer. Cable(s)
S
from the ‘LOAD-OUT’ terminal of the transformer
re then connected to the light fittings.
a
All other instructions set out above should also be
bserved.
o
PERATION
O
hen turned on, the product will always attain full
W
rightness.
b
o turn on: Pull cord downwards once &
T
To turn off at any time: Pull cord downwards & release.
o dim lighting: Pull cord downwards & hold
T
o adjust lighting level
T
hen already on: Pull cord downwards and hold
w
NOTE: The product is of robust construction, but
amage could result if excessive strain is placed on
d
the Pull Cord.
Where applicable this product complies with EMC
& LVD Directive EN55015.
No Responsibility can be accepted for the compatibility
f this equipment with that of other manufacturers, but
o
this in no way affects statutory rights.
release.
until required light level is
chieved, then release.
a
ntil required adjusted level is
u
achieved.
GUARANTEE
Your GreenBrook Dimmable Pull Switch is
guaranteed for 12 months from the date of purchase.
This does not affect your statutory rights.
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sa les @g ree nb roo k. co .uk
W W W. G R E E N B R O O K . C O . U K
Issue No: 702763
