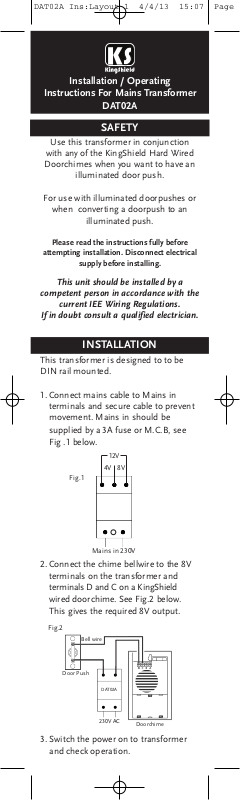

Installation / Operating
Instructions For Mains Transformer
AT02A
D
SAFETY
Use this transformer in conjunction
ith any of the KingShield Hard Wired
w
Doorchimes when you want to have an
illuminated door push.
For use with illuminated doorpushes or
when converting a doorpush to an
illuminated push.
Please read the instructions fully before
attempting installation. Disconnect electrical
supply before installing.
This unit should be installed by a
competent person in accordance with the
current IEE Wiring Regulations.
If in doubt consult a qualified electrician.
INSTALLATION
This transformer is designed to to be
DIN rail mounted.
1. Connect mains cable to Mains in
terminals and secure cable to prevent
movement. Mains in should be
supplied by a 3A fuse or M.C.B, see
Fig .1 below.
12V
Fig.1
4V 8V
Mains in 230V
2. Connect the chime bellwire to the 8V
terminals on the transformer and
terminals D and C on a KingShield
wired doorchime. See Fig.2 below.
This gives the required 8V output.
Fig.2
Bell wire
Door Push
DAT02A
230V AC
Doorchime
3. Switch the power on to transformer
and check operation.
TECHNICAL INFORMATION
Input: 230V, 50Hz
Output: 4,8,12V AC, 1A
GUARANTEE
Your Mains Transformer
is guaranteed for 12 months.
Please retain receipt as
proof of purchase.
PLEASE KEEP THESE
INSTRUCTIONS SAFE
FOR FUTURE REFERENCE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sa le s@ green br oo k.co.u k
W WW . G R E EN B R OO K . C O . U K
Issue no: 703148
