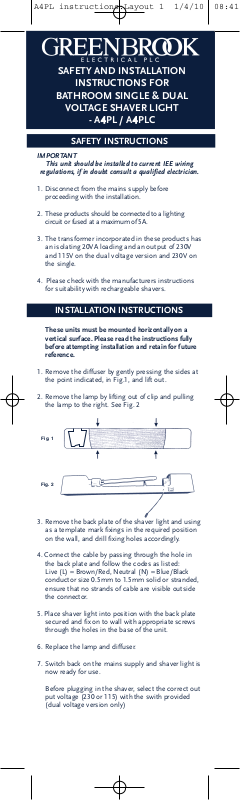

SAFETY AND INSTALLATION
INSTRUCTIONS FOR
ATHROOM SINGLE & DUAL
B
VOLTAGE SHAVER LIGHT
4
4
- A
SAFETY INSTRUCTIONS
IMPORTANT
his unit should be installed to current IEE wiring
T
regulations, if in doubt consult a qualified electrician.
. Disconnect from the mains supply before
1
proceeding with the installation.
2. These products should be connected to a lighting
ircuit or fused at a maximum of 5A.
c
3. The transformer incorporated in these products has
n isolating 20VA loading and an output of 230V
a
and 115V on the dual voltage version and 230V on
he single.
t
. Please check with the manufacturers instructions
4
for suitability with rechargeable shavers.
INSTALLATION INSTRUCTIONS
These units must be mounted horizontally on a
vertical surface. Please read the instructions fully
before attempting installation and retain for future
reference.
1. Remove the diffuser by gently pressing the sides at
the point indicated, in Fig.1, and lift out.
2. Remove the lamp by lifting out of clip and pulling
the lamp to the right. See Fig. 2
PL / A
4
4
PLC
Fig. 1
Fig. 2
3. Remove the back plate of the shaver light and using
as a template mark fixings in the required position
on the wall, and drill fixing holes accordingly.
4. Connect the cable by passing through the hole in
the back plate and follow the codes as listed:
Live (L) = Brown/Red, Neutral (N) = Blue/Black
conductor size 0.5mm to 1.5mm solid or stranded,
ensure that no strands of cable are visible outside
the connector.
5. Place shaver light into position with the back plate
secured and fix on to wall with appropriate screws
through the holes in the base of the unit.
6. Replace the lamp and diffuser.
7. Switch back on the mains supply and shaver light is
now ready for use.
Before plugging in the shaver, select the correct out
put voltage (230 or 115) with the swith provided
(dual voltage version only)
TECHNICAL DATA
Power Rating: 230V 50Hz supply
IP Rating: IP20
F Marked: Can be mounted on flammable
Transformer: 20VA overload protected
Insulation: Double insulated class II
Lamp Type: 11W PL lamp (supplied)
115/230V output
surfaces
transformer
GUARANTEE
Your GreenBrook Shaver Light is guaranteed
for 12 months from the date of purchase. This
does not affect your statutory rights.
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sales @g re enbr oo k. co.u k
W WW .G R EE N BR O OK . CO . UK
Issue No: 702072
