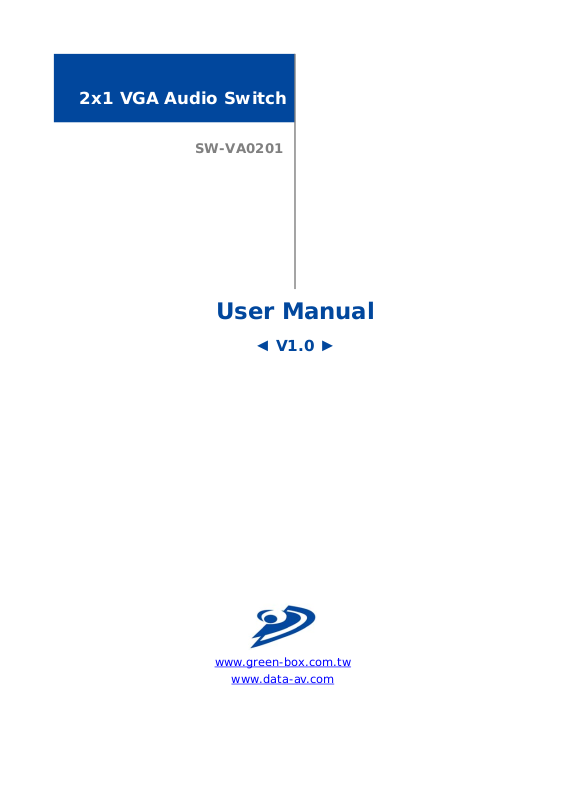

Page 1
2x1 VGA Audio Switch
SW-VA0201
User Manual
◄ V1.0 ►
www.green-box.com.tw
www.data-av.com
Page 2
1. Package Content
SW-VA0201 VGA Audio Switch:
2x1 VGA Audio Switch x 1
Control Button Cable x 1
Rack Mounting Kit x 1
User Manual x 1
Optional Accessories (Sold Separately)
DC 5V Power Adapter
VGA Cable
Audio Cable
2x1 VGA Audio Switch
2. Product Introduction
2xl VGA Audio Switch allows easy switching between two video/audio sources
to one set of display and speaker. Switching between two machines can easily
be done by just a click of a button without sacrificing any downgrade on
picture quality.
3. Product Features
Switches Video and Audio from two sources to one set of display monitor
and speakers
Easy switching- External select button switch between two channels
Purely hardware implementation- free from installation software and driver
User-friendly- frontal LED indicates active channel status
Conveniently designed- no external power adaptor required
Neat installation- built-in magnetic plate attachment to any metal surfaces
4. System Requirement
PC with VGA HDB-15 interface
Monitor with VGA HDB-15 interface
Widescreen monitor recommended
Installation in conjunction with TV boxes, switches and splitters are not
recommended
2 / 8
Page 3
4. Product Descriptions
Front and Rear Panel
2x1 VGA Audio Switch
Audio Input I Video Input I
Video Input II Audio Input II
CTRL- Control Button Cable Port
Video Output
Audio Output Power Adaptor
Rack Mounting kit with Magnet
Control Button Cable
Rack Mounting Kit
3 / 8
Page 4
2x1 VGA Audio Switch
5. Installation
STEP 1
Set the power off to all connecting devices (eg. PC, monitor, speaker)
STEP 2
Connect VGA (HDDB-1S) cable from your video source (eg. PC) to 2x1 VGA
Audio Switch "Video Input Port"
STEP 3
Repeat STEP 2 for your second video source
STEP 4
Connect audio cable from your audio source (eg. PC) to 2x1
VGA Audio Switch "Audio Input Port" (this step is optional only if audio is
required)
STEP 5
Repeat STEP 4 for your second audio source
4 / 8
Page 5
2x1 VGA Audio Switch
STEP 6
Connect VGA (HDDB-15) cable from VGA monitor to 2x1 VGA Audio Switch
"Video Output Port"
STEP 7
Connect audio cable from speaker or earphone to 2x1 VGA Audio Switch "Audio
Output Port"
STEP 8
Connect Control Cable (included) to "Control Port"
STEP 9
Connect Power Adaptor to power input and power supply socket (this step is
optional, usually device power is drawn from PC via VGA cable)
STEP 10
Turn on all connecting devices
STEP 11
Switching between two sources by pressing Control Button
5 / 8
Page 6
2x1 VGA Audio Switch
6. Specifications
Model No. 2x1 VGA Audio Switch
Model Name SW-VA0201
Input VGA Female x 2 / Audio Female x 2
Output VGA Female x 1 / Audio Female x 1
Resolution 1920x1200*
Audio Stereo
Selection Method
Automatic detection switch
Manual select button
Power Input No external power adaptor required
Frontal Switched channel LED indication
Housing Metal
Dimension (LxWxH) 133x62x27 mm
* PC Connection
* The specifications and pictures are subject to change without notice.
6 / 8
Page 7
2x1 VGA Audio Switch
7. Remarks
I. Please read this operation manual carefully before installing the system.
II. Please use correct power adapter and use high quality cable for optimum
broadcasting.
III. To prevent potential power damage do not use 2-wire extension cords.
Ensure DC outlets at PCs and displays are on the same phase and have
correct and common grounding.
IV. Limited Warranty:
(1) In no events shall the vendor’s liability for direct or indirect, special,
incidental or consequential damages, loss of profit, loss of business, or
financial loss which hay be caused by the use of the product exceeds
the price paid for the product.
(2) The vendor makes no warranty or representation, expressed or implied
with respect to the contents or use of this documentation, and
especially disclaims its quality, performance, merchantability, or fitness
for any particular purpose.
(3) The vendor also reserv es the right to revise or update the product or
documentation without obligation to notify any user of such revisions
or updates. For further information please contact your vendor.
8. Notice
1. All other company or product names mentioned herein are trademarks
or registered trademarks of their respective companies.
2. Specifications are subject to change without notice.
3. Please read user manual carefully before operating the device
4. Please use the power adaptor accompanied with this product. Warranty
does not cover for damages caused by pairing other power adaptor
5. Please check all connecting devices are properly grounded to avoid
electric failure
6. This product has limited warranty for one year from defects in material
and workmanship. Items that are physically damaged, misused,
tempered with or altered are void of warranty. For further details please
contact your distributor. In case warranty sticker is damaged or missing,
warranty is void. For further details please contact your distributor.
7 / 8
Page 8
2x1 VGA Audio Switch
Certifications
FCC
This equipment has been tested and found to comply with Part 15 of the FCC
Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference
that may cause undesired operation.
CE
This equipment is in compliance with the requirements of the following
regulations:
EN 55022: CLASS B
RoHS
All contents of this package, including products, packing materials and
documentation comply with RoHS.
© 2009 by Green-Box
Green-Box Technology Co. Ltd. reserves the right to make changes in the hardware, packaging, and any
accompanying documentation without prior written no tic e.
No part of this document may be reproduced or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without prior writ ten permission of Green-Box Technology Co. Ltd.
P/N: CDDMSWVA0200A0
8 / 8
