Green-Box Technology EP-HC0416, EP-HC0408 User Manual
HDMI Expander Family
EP-HC0408
EP-HC0416
EP-HC0408/EP-HC0416 User Manual Version 1.0
Last Updated: March 2008
1
Table of Content
3 Notice
4 Package Content
5 Product Introduction
5 Product Features
6 Panel Description

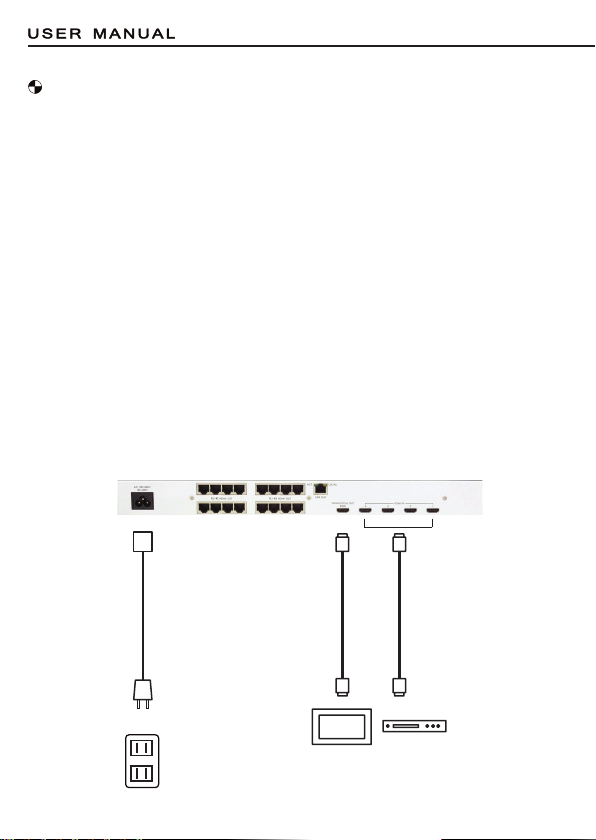

7 Local Source Installation

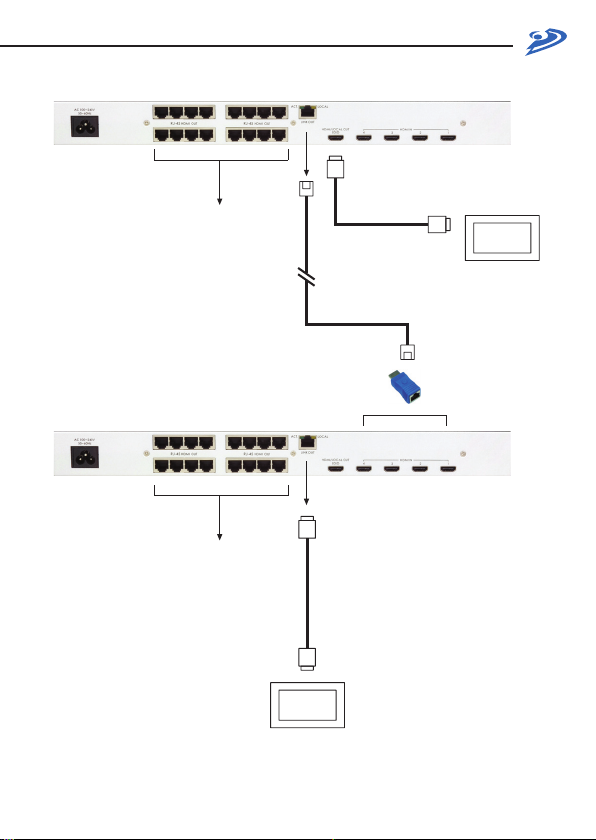

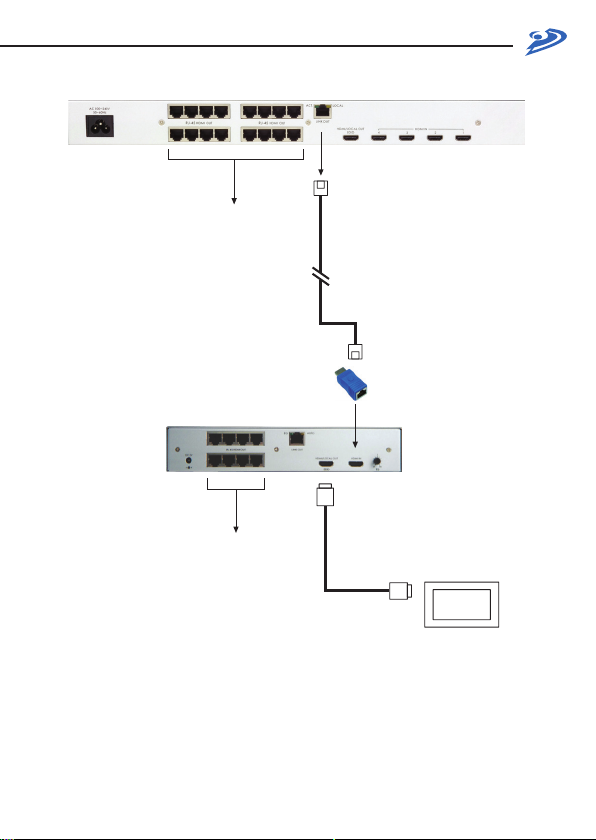

8 Remote Display Installation

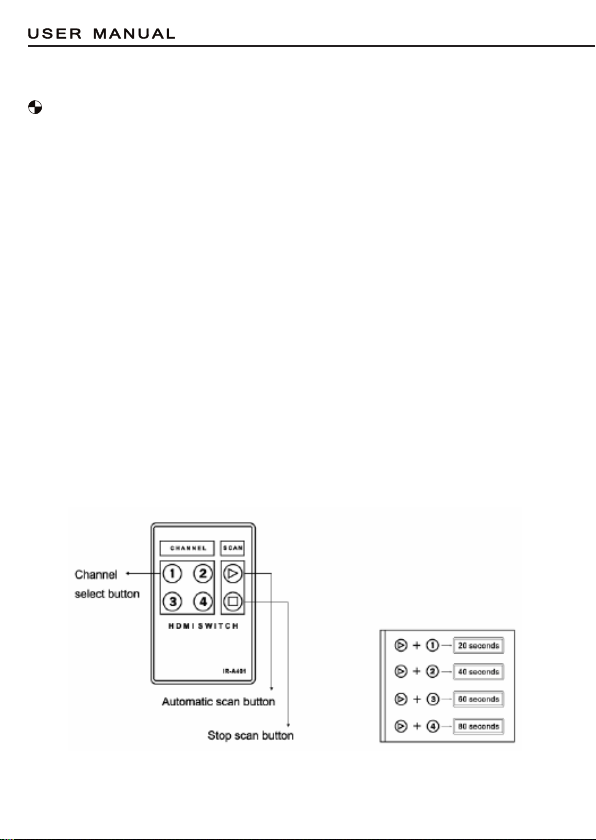

17 Product Operation
19 Frequently Asked Questions
2
3
1. Please read user manual carefully before operating the device
2. Please check enclosure items listed in Package Content section.
3. Please use the power adaptor accompanied with this product. Warranty does
not cover for damages caused by pairing other power adaptor
4. Please check all connecting devices are properly grounded to avoid electric
failure
5. This product has limited warranty for one year from defects in material and
workmanship. Items that are physically damaged, misused, tempered with or
altered are void of warranty. For further details please contact your distributor.
In case warranty sticker is damaged or missing, warranty is void. For further
details please contact your distributor.
Notice
4
Package Content
• 4x8 HDMI Cat-X Expander (EP-HC0408)
or 4x16 HDMI Cat-X Expander (EP-HC0416) x 1
• 1.8m HDMI cable x 2
• HDMI-RJ45 Receiver (HDMI-HR) x 1
• Power cord x 1
• IR remote control x 1
• User manual x 1
• Rack kit x 1
4x8 HDMI Cat-X Expander [EP-HC0408]
4x16 HDMI Cat-X Expander [EP-HC0416]
5
Product Introduction
These HDMI Cat-X Expanders provides complete solution whether splitting,
switching, and extending is requi red with user-friendly installation and
operation. Users can switch HDMI sources from up to four different devices
such as DVD players, satellite receivers, digital recording devices, digital settop boxes, advanced gaming consoles and many other high definition display
sources (HDMI/DVI output required).
They give full flexibility to suit most HDMI applications. It can be paired with
the “HDMI-RJ45 receiver” (HDMI-HR) for short-range within 15m extension; or
with the “Mini HDMI Cat-X Receiver” (ET-HC0101-R) for max distance extension
of 30m at 1080p high quality multimedia experience.
Product Features
• Switching HDMI from four different sources
• Cat-X cable to supersedes high-cost HDMI cable
• Splitting HDMI video and audio to up to 16 high definition displays
• Extending up to 30 meters without signal quality deduction through Cat-X
cable (with ET-HC0101-R Mini HDMI Cat-X Receiver, packaged separately)
• Two level cascading for high degree expansion flexibility
• Support 1080p resolution
• Compliant with HDMI 1.2
• Easy selection via infrared remote control or front panel buttons
• Auto-scan function to cycle all connecting devices at user-define interval
• Convenient on rack installation with rack-mount kit (included)
• Built-in 8 level signal adjustment to fine-tune picture quality
Panel Description
2 3
1
8 9
1
Manual switch button
2
Switching indicator-blue LED
indicates displaying channel
3
Input indicator-yellow LED
indicates active channel
4
IR remote control receiver
5
EDID activity status indicator
6
Local display connection status
indicator
7
Power connec tion status
indicator
8
Power cord inpu t
4
10 11
6 7
5
12 13
<g. 1>
9
RJ-45 out to HDMI receiver
10
RJ-45 out for cascading (optional)
11
Equalizer status. LED on at auto
adjustment mode; off at manual
adjustment mode
12
HDMI out for local HDMI Display
13
4 HDMI input ports from HDMI
devices
6
