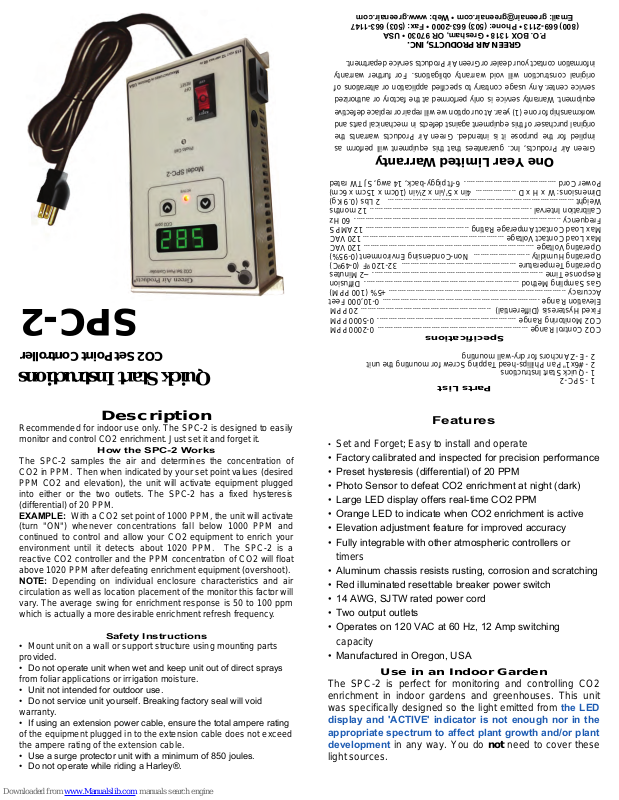

Green Air Products SPC-2 Quick Start Instructions

Quick Start Instructions

CO2 Set Point Controller

SPC-2

Parts List

1 - SPC-2

1 - Quick Start Instructions

2 - #6x1" Pan Phillips-head Tapping Screw for mounting the unit

2 - E-Z Anchors for dry-wall mounting

Specifications

CO2 Control Range ................................................................... 0-2000 PPM

CO2 Monitoring Range .............................................................. 0-5000 PPM

Fixed Hysteresis (Differential) .......................................................... 20 PPM

Elevation Range ...................................................................... 0-10,000 Feet

Accuracy ............................................................................... +5% (100 PPM)

Gas Sampling Method ..................................................................... Diffusion

Response Time ............................................................................ ~2 Minutes

Operating Temperature ................................................... 32-120 ºF (0-49ºC)

Operating Humidity ......................... Non-Condensing Environment (0-95%)

Operating Voltage ............................................................................ 120 VAC

Max Load Contact Voltage ............................................................... 120 VAC

Max Load Contact Amperage Rating .............................................. 12 AMPS

Frequency ............................................................................................ 60 Hz

Calibration Interval ........................................................................ 12 months

Weight ................................................................................... 2 Lbs (0.9 Kg)

Dimensions: W x H x D .................. 4in x 5

7

/8in x 2¼in (10cm x 15cm x 6cm)

Power Cord ......................................... 6-ft piggy-back, 14 awg, SJTW rated

One Year Limited Warranty

Green Air Products, Inc. guarantees that this equipment will perform as

implied for the purpose it is intended. Green Air Products warrants the

original purchaser of this equipment against defects in mechanical parts and

workmanship for one (1) year. At our option we will repair or replace defective

equipment. Warranty service is only performed at the factory or authorized

service center. Any usage contrary to specified application or alterations of

original construction will void warranty obligations. For further warranty

information contact your dealer or Green Air Products service department.

GREEN AIR PRODUCTS, INC.

P.O. BOX 1318 • Gresham, OR 97030 • USA

[phone] • Phone: [phone] • Fax: [phone]

Email: [e-mail] • Web: www.greenair.com

Features

• Set and Forget; Easy to install and operate

• Factory calibrated and inspected for precision performance

• Preset hysteresis (differential) of 20 PPM

• Photo Sensor to defeat CO2 enrichment at night (dark)

• Large LED display offers real-time CO2 PPM

• Orange LED to indicate when CO2 enrichment is active

• Elevation adjustment feature for improved accuracy

• Fully integrable with other atmospheric controllers or

timers

• Aluminum chassis resists rusting, corrosion and scratching

• Red illuminated resettable breaker power switch

• 14 AWG, SJTW rated power cord

• Two output outlets

• Operates on 120 VAC at 60 Hz, 12 Amp switching

capacity

• Manufactured in Oregon, USA

Use in an Indoor Garden

The SPC-2 is perfect for monitoring and controlling CO2
enrichment in indoor gardens and greenhouses. This unit
was specifically designed so the light emitted from the LED

display and 'ACTIVE' indicator is not enough nor in the
appropriate spectrum to affect plant growth and/or plant

development in any way. You do not need to cover these

light sources.

Description

Recommended for indoor use only. The SPC-2 is designed to easily
monitor and control CO2 enrichment. Just set it and forget it.

How the SPC-2 Works

The SPC-2 samples the air and determines the concentration of
CO2 in PPM. Then when indicated by your set point values (desired
PPM CO2 and elevation), the unit will activate equipment plugged
into either or the two outlets. The SPC-2 has a fixed hysteresis
(differential) of 20 PPM.
EXAMPLE: With a CO2 set point of 1000 PPM, the unit will activate
(turn "ON") whenever concentrations fall below 1000 PPM and
continued to control and allow your CO2 equipment to enrich your
environment until it detects about 1020 PPM. The SPC-2 is a
reactive CO2 controller and the PPM concentration of CO2 will float
above 1020 PPM after defeating enrichment equipment (overshoot).
NOTE: Depending on individual enclosure characteristics and air
circulation as well as location placement of the monitor this factor will
vary. The average swing for enrichment response is 50 to 100 ppm
which is actually a more desirable enrichment refresh frequency.

Safety Instructions

• Mount unit on a wall or support structure using mounting parts
provided.

• Do not operate unit when wet and keep unit out of direct sprays

from foliar applications or irrigation moisture.

• Unit not intended for outdoor use.

• Do not service unit yourself. Breaking factory seal will void

warranty.

• If using an extension power cable, ensure the total ampere rating

of the equipment plugged in to the extension cable does not exceed
the ampere rating of the extension cable.

• Use a surge protector unit with a minimum of 850 joules.

• Do not operate while riding a Harley®.

Installation

1. Mount your SPC-2 eye level 4 to 6 feet from any CO2 enrichment
equipment or bottled CO2. With adequate air circulation this location
should respond quickly and represent the average environment for your
area.

2. Plug the power cord into the CO2 outlet of your atmospheric controller or
desired electrical outlet (see diagram below).

3. Plug your CO2 generator or bottled CO2 solenoid into the SPC-2 outlet
using an extension cord if necessary.

4. Flip the power (red) switch to the 'ON' position. Allow a minimum of 1
minute of reading to stabilize.

Please Note:

The SPC-2 may take up to one minute to activate
after any adjustments, or after an exhaust function, or after being
defeated or turned .

**Note**:

You should see a lit decimal point in the bottom right
hand corner of the LED during any adjustments. 5-10 seconds after
adjustments are complete the SPC-2 will return to normal operating
mode and the decimal point will disappear.

Adjust Set Point

1. To select your desired set point value, hold both the  and  buttons

simultaneously for 5-7 seconds. The LED should read 'r.SEL'.

2. Press either the  or  button once to display current set point value.

Use the  and  buttons to set your target (desired) CO2 concentration
(PPM). Maximum set point is 2000 PPM. See

**Note**

above.

Adjust Elevation

1. Press

and

hold the



button for 5-7 seconds. The LED should read 'ELE'.

2. Using the  and  buttons, set the SPC-2 to your local elevation using

100 foot increments (0-10,000 ft). If your local elevation is above 10,000
ft, adjust SPC-2 to minimum elevation of 0. See

**Note**

above.

Adjust Calibration

Please note that this unit has been factory calibrated and inspected before
leaving the Green Air Products manufacturing facility. You do not need to
calibrate a new unit out of the box unless the unit will operate above

10,000 ft. Most units will not need to be recalibrated for about 4 or 5 years.

ONLY if you are located above 10,000 ft, will need to recalibrate before use.

1. If your SPC-2 does need calibration, adjust the set point to 0 PPM (see

'Adjust Set Point' above).

2. Take the unit outside and plug it into a standard 110 Volt power outlet.

3. Make sure the unit is in the 'ON' position and allow it to stabilize for 1-2

minutes.

4. Hold down the  button for about 5-7 seconds. The LED display should

read 'U.CAL'. (To abort Calibration, turn the SPC-2 'OFF'.)

5. Press and hold both the  and  buttons simultaneously for 3 seconds.

The current CO2 value will be displayed.

6. Use the  and  buttons to adjust the PPM value to 350-450. After 5-10

seconds the unit will automatically return to normal enrichment mode.

7. Reset your desired 'Set Point' (See 'Adjust Set Point').

8. In some cases, the calibration may need to be repeated.

DO NOT BREATHE DIRECTLY ON THE SPC-2 DURING CALIBRATION

Display LED - This display indicates real-time CO2 PPM concentration in

your controlled space or the adjustment in progress.

' UP' Button - This button is used to adjust the "set point" (desired CO2
PPM concentration), the elevation, and for calibration.

' Down' Button - This button is used to adjust the "set point" (desired
CO2 PPM concentration), the elevation, and for calibration.

'ACTIVE' Indicator Light - The orange LED light is lit when the SPC-2
is active and CO2 enrichment is in progress.

'PHOTO SENSOR' - This sensor deactivates the SPC-2 functions under
its control during periods of darkness.

'ON-OFF/RESET' Power Switch - This switch will turn the power to
the SPC-2 "ON" or "OFF". The SPC-2 has a circuit breaker ON/OFF switch
in the event a surge, short or current overdraw occurs. Wait a couple
minutes and reset breaker switch.

Outlets - Plug equipment to be operated into these two outlets. CO2
generator or emitter and air cooling duct fans.

Power Cord - Plug the male end of this cord into a surge protector
plugged into a wall outlet or power strip.

This diagram demonstrates the optimum installation scenario for
coordinating CO2 enrichment with ventilation. CO2 is produced or
metered upon demand and defeated during exhaust cycles, or when
light is not available. Shown above is the IR-42 CO2 generator and
CT-DH-3 atmospheric controller.

1

2

3

4

5

6

7

1

2

3

4

5

6

8

The LED display
will read 'HI'
when CO2
concentration
exceeds
5000 PPM

SPC-2

8

7
