Page 1
Keypad
User Manual
Green
Point
Green
Point
Green
Point
Green
Point
Page 2
Introduction:
Thank you for purchasing an igh control device.
The igh system is designed to automate home
control and provide easy remote operation of all
your electrical appliances/lights connected to
system. igh products include a variety of
devices to control your home. The products can
be installed in one room, expand to additional
rooms or to the entire house according to your
needs and budgets.
Green Point products are constructed with
careful attention to detail, using only high
quality materials, assuring peak performance
over time.
Warning!!!
Controlling Appliances:
igh systems can control electrical
appliances either remotely or
automatically, allowing electrical
appliances or light to be activated
without the operator presence's in the
room. Extreme caution must be taken
to avoid hazard conditions.
Page 3
Important
Read before installing
1. Install in accordance with all national and
local electrical codes and local regulations
of your country.
2. The products of the igh system range are
designed to be used and installed in
domestic and similar environments where
there is no need for special protections
against the ingress of water.
3. The installer must hand the user manual
over to the user and should stress that the
user become fully familiar with it.
4. In case of a breakdown or malfunction,
please contact an authorized technician or
the igh products support center.
5. Use only Class II power supply with LPS to
charge the Keypad unit.
6. There are no serviceable parts in this unit.
7. Do not paint on the igh Keypad.
8. Operate between temperatures of -10 °C to
50 °C.
9. Clean the igh Keypad only with a soft dry
cloth. Do not use any chemical cleaners.
Page 4
Gateway
Keypad
Sensor
IR
Autonomous Room
Autonomous Room
Dimmer
Switch
Sense
Switch
Shutter
Switch
Power
Switch
Thin
Client
Igh RF protocol Ring
Internet network
General Product Description
System overview
igh is a home automation and power
management system, enabling unified and
automated control over electrical appliances
connected to the system.
The system is composed of 5 main
components:
igh Smart Switch
igh Sensor
igh Keypad
igh IR Bridge
igh Internet Gateway
System Connectivity
Page 5
Keypad
Operating
Three main steps:
1. Turn the keypad ON by pressing the
Activation button.
2. Select the desired appliances/lights.
3. Activate the desired command
Multiple Activation
If more than one appliances/lights are selected,
the activation command will apply to all of them
simultaneously.
Configuration
Building the appliances/light channels is done
through the igh software wizard.
Backlight
The backlight will turn ON automatically when
needed and turn OFF automatically when left
unused to save battery life.
Page 6

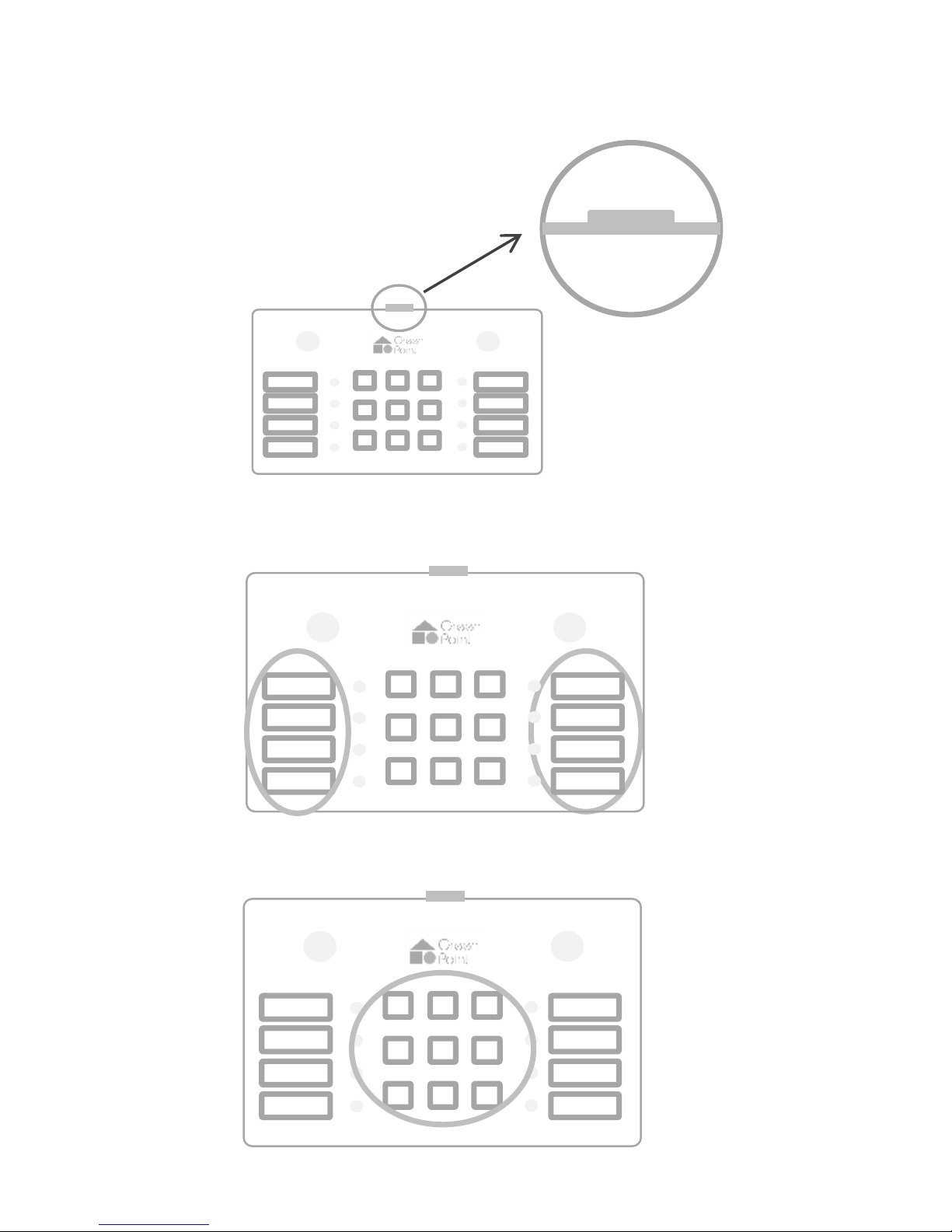

Buttons
Activation Button
Turns the Keypad On/Off.
Appliances/Light Area
Commands Area
Page 7

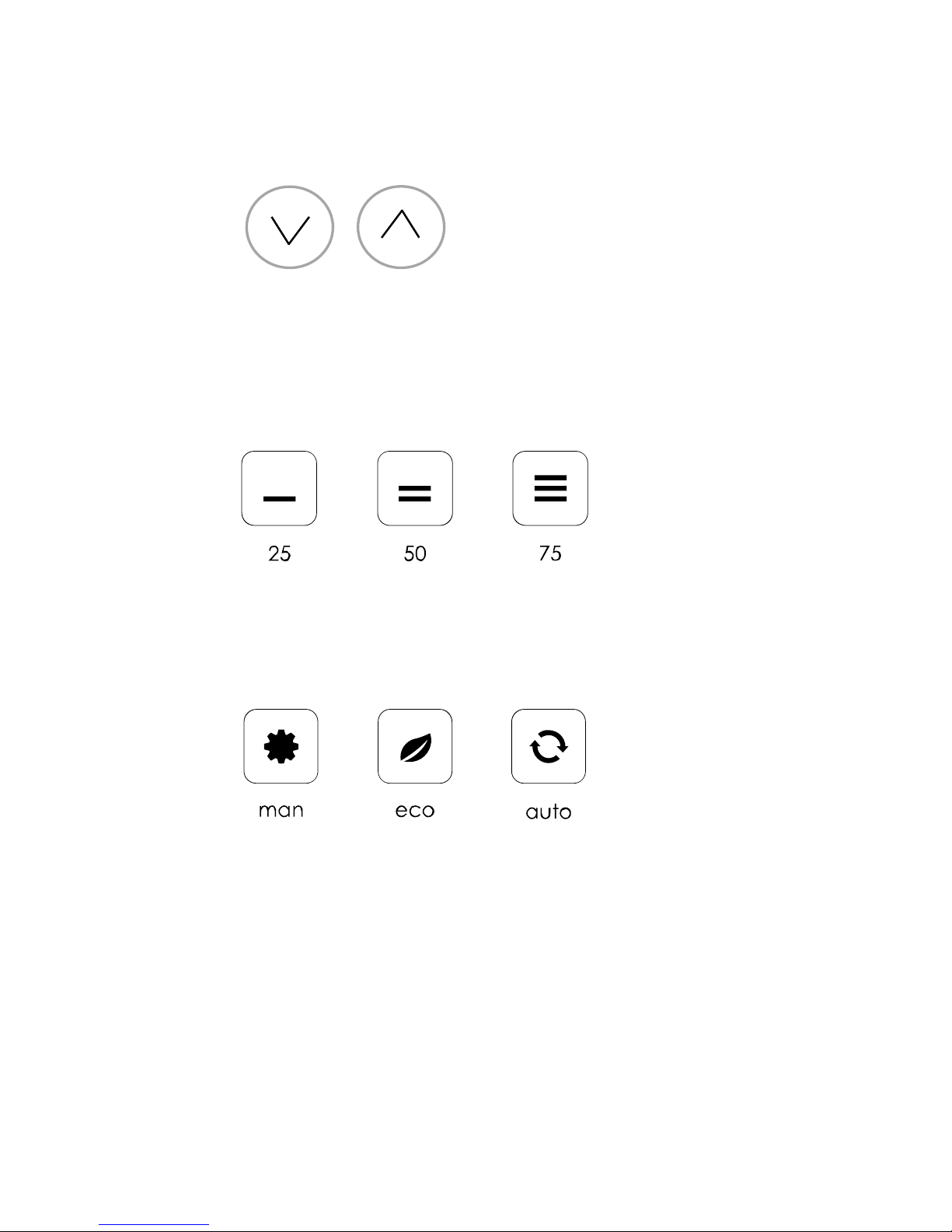

On/Off
Turns the selected unit On/Off
Specific Level
Brings the selected unit to the desired level (25,
50, 75) percent.
Mode
Brings the selected unit to the desired mode.
Page 8

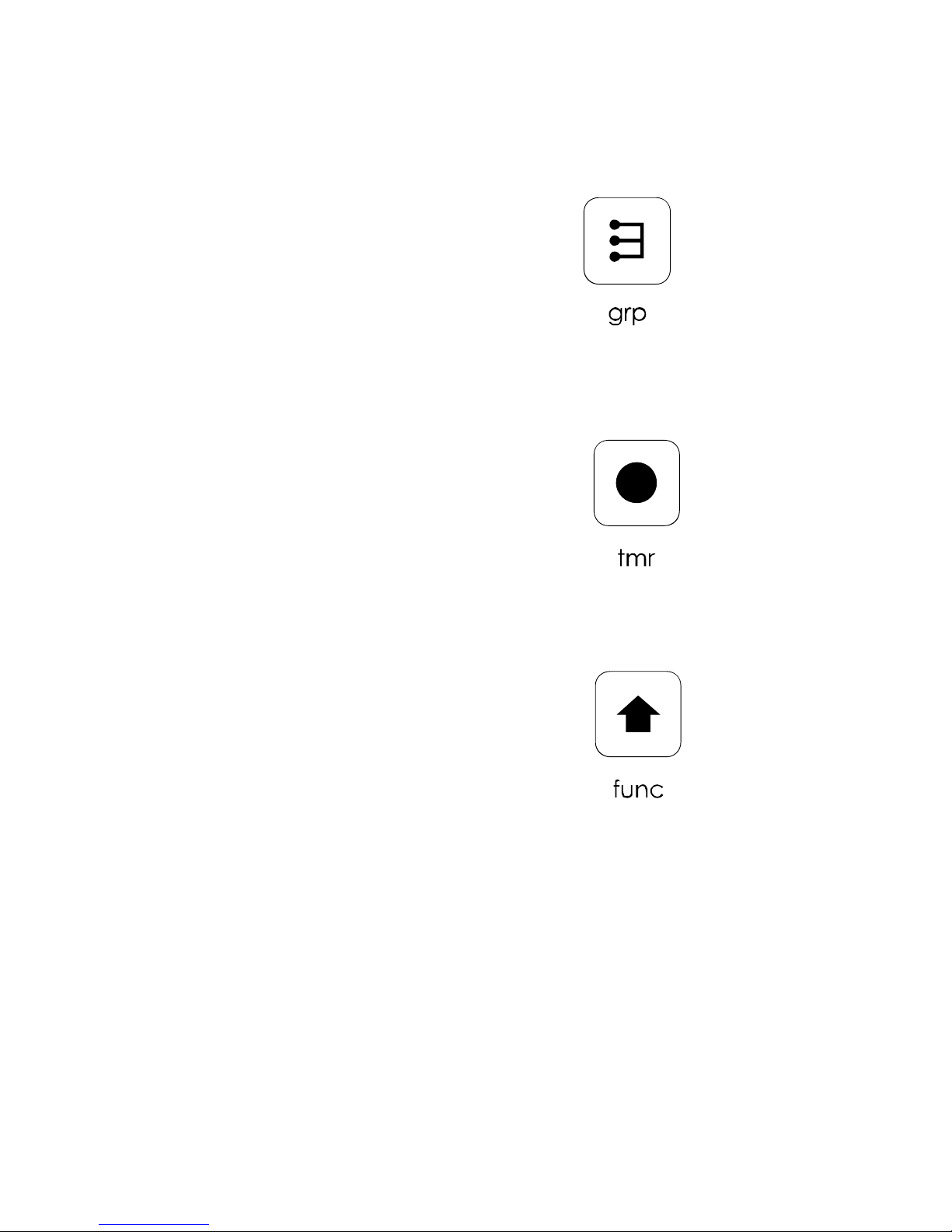

Advanced Buttons
Group
If the group function is the
following command will apply
on the selected groups
simultaneously.
Scheduler
Turns the scheduler on for
the selected light/appliance.
To turn the scheduler OFF,
select the Func in advance.
Function
The function adds extra
commands options.
Page 9
Charging
Battery indication, there are 3 Battery icons:
Low Battery
Charging
Full Battery
When the Low Battery icon is illuminated,
connect the Keypad to the charging cable.
When the Keypad is connected, the charging
icon will be illuminated. The Full Battery icon
will light up when it is fully charged.
Page 10
Mounting
Select a location to install the igh Keypad.
When choosing an appropriate location, the
following should be considered:
• RF range.
• Avoid placing the igh Keypad close to
concrete walls or large metallic objects.
• Avoiding placing the igh Keypad near heat
or cold- producing devices.
Use the installing mold included to mount the
igh Keypad bracket. Select a location to install
the igh Keypad, and with the installing mold in
place, mark the drilling spots with a pencil. Drill
holes in the marked areas. Use a hammer to
tap the dowels into the holes. Place the base
over the dowels, insert the screws and tighten
them to build a base of the igh Keypad. The
Keypad is now ready to be attached to the
bracket.
Installing steps
1. Mount the igh Keypad and bracket to the
wall.
2. Follow the software installation wizard to
install and configure the Keypad.
Page 11
SPECIFICATIONS
Unit Dimensions: 12.2 X 18.5 X 1.1 (cm)
Signal (Frequency): ISM BAND (433.050 -
434.790 MHz)
WARRANTY
Green Point Products warrants this product to
be free from manufacturing defects for a period
of one year from the original date of consumer
purchase. This warranty is limited to the repair
or replacement of this product only and does
not extend to consequential or incidental
damage to other products that may be used
with this product.
Page 12
Regulatory Compliance
The IGHK - igh Keypad unit has been tested
and found to comply with specifications for CE
marking and standards per EMC and radio
communications and safety Compliance.
SAFTEY
EN 60950-1: 2006 + A11: 2009 + A1: 2010 +
A12: 2011. Information technology equipment Safety - Part 1: General requirements.
EMC
ETSI EN301489-1 and EN301489-3
Electromagnetic compatibility and Radio
Spectrum Matters (ERM); Electro-Magnetic
Compatibility (EMC) standard for radio
Equipment and services: Part 1: Common
Technical requirements.
RADIO
ETSI EN 300 220 V2.4.1
Electromagnetic compatibility and Radio
spectrum Matters (ERM); Short Range Devices
(SRD); Radio equipment to be used in the 25
MHz to 1,000 MHz frequency range with power
levels ranging up to 500 mW; Part 1: Technical
characteristics and test methods.
