Gree MULTI36HP230V1CO Specifications

Multi-Room Ductless heat-pump systems

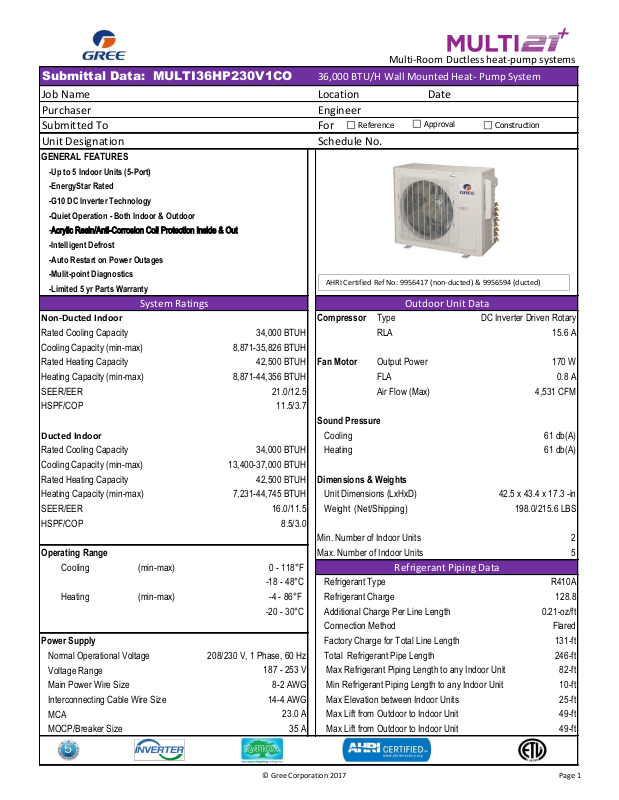

Submittal Data: MULTI36HP230V1CO 36,000 BTU/H Wall Mounted Heat- Pump System

Job Name Location Date Purchaser Engineer Submitted To For Unit Designation Schedule No.

GENERAL FEATURES

Non-Ducted Indoor Compressor Type DC Inverter Driven Rotary

Rated Cooling Capacity 34,000 BTUH RLA 15.6 A

Cooling Capacity (min-max) 8,871-35,826 BTUH

Rated Heating Capacity 42,500 BTUH Fan Motor Output Power 170 W

Heating Capacity (min-max) 8,871-44,356 BTUH FLA 0.8 A

SEER/EER 21.0/12.5 Air Flow (Max) 4,531 CFM

HSPF/COP 11.5/3.7

Sound Pressure

Ducted Indoor Cooling 61 db(A)

Rated Cooling Capacity 34,000 BTUH Heating 61 db(A)

Cooling Capacity (min-max) 13,400-37,000 BTUH

Rated Heating Capacity 42,500 BTUH Dimensions & Weights

Heating Capacity (min-max) 7,231-44,745 BTUH Unit Dimensions (LxHxD) 42.5 x 43.4 x 17.3 -in

SEER/EER 16.0/11.5 Weight (Net/Shipping) 198.0/215.6 LBS

HSPF/COP 8.5/3.0

Min. Number of Indoor Units 2

Operating Range

Max. Number of Indoor Units 5

Cooling (min-max)

Refrigerant Type R410A

Heating (min-max)

Refrigerant Charge 128.8

Additional Charge Per Line Length 0.21-oz/ft

Connection Method Flared

Power Supply Factory Charge for Total Line Length 131-ft

Normal Operational Voltage

208/230 V, 1 Phase, 60 Hz Total Refrigerant Pipe Length 246-ft

Voltage Range

187 - 253 V Max Refrigerant Piping Length to any Indoor Unit 82-ft

Main Power Wire Size

8-2 AWG Min Refrigerant Piping Length to any Indoor Unit 10-ft

Interconnecting Cable Wire Size

14-4 AWG Max Elevation between Indoor Units 25-ft

MCA

23.0 A Max Lift from Outdoor to Indoor Unit 49-ft

MOCP/Breaker Size

35 A Max Lift from Outdoor to Indoor Unit 49-ft

System Ratings

Outdoor Unit Data

Refrigerant Piping Data

Reference

Approval

Construction

AHRI Certified Ref No: 9956417 (non-ducted) & 9956594 (ducted)

-Up to 5 Indoor Units (5-Port)

-EnergyStar Rated

-G10 DC Inverter Technology

-Quiet Operation - Both Indoor & Outdoor

-Acrylic Resin/Anti-Corrosion Coil Protection Inside & Out

-Intelligent Defrost

-Auto Restart on Power Outages

-Mulit-point Diagnostics

-Limited 5 yr Parts Warranty

0 - 118°F

-18 - 48°C

-4 - 86°F

-20 - 30°C

OUTDOOR UNIT DIMENSIONAL SPECIFICATIONS MULTI36HP230V1CO

Units: inch

36,000 BTUH MODEL

Model # MULTI36HP230V1CO 36,000 BTUH 230V

Port A 3/8-in OD Flared

Port B 3/8-in OD Flared

Port C 3/8-in OD Flared

Port D 3/8-in OD Flared

Port E 3/8-in OD Flared

Factory Supplied Piping Adapters

Adapter P/N Qty

Port A

3/8 (F) to 5/8 (M) 6654100009 2

Port B

3/8 (F) to 1/2 (M) 6654100013 4

Port C

1/4 (F) to 3/8 (M) 6654104 2

Port D

Port E

MINIMUM SPACING REQUIREMENTS

Units: inch (mm)

Notes:

1. Recommended Interconnecting Cable Type Stranded Copper Conductors THHN 600V Unshielded Wire

2. Power wiring cable size must comply with applicable national and local codes.

3. Test conditions are based on AHRI 210/240.

Suction/Gas Line Port Size

Liquid Line Port Size

1/4-in OD Flared

Specifications are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs

1/4-in OD Flared

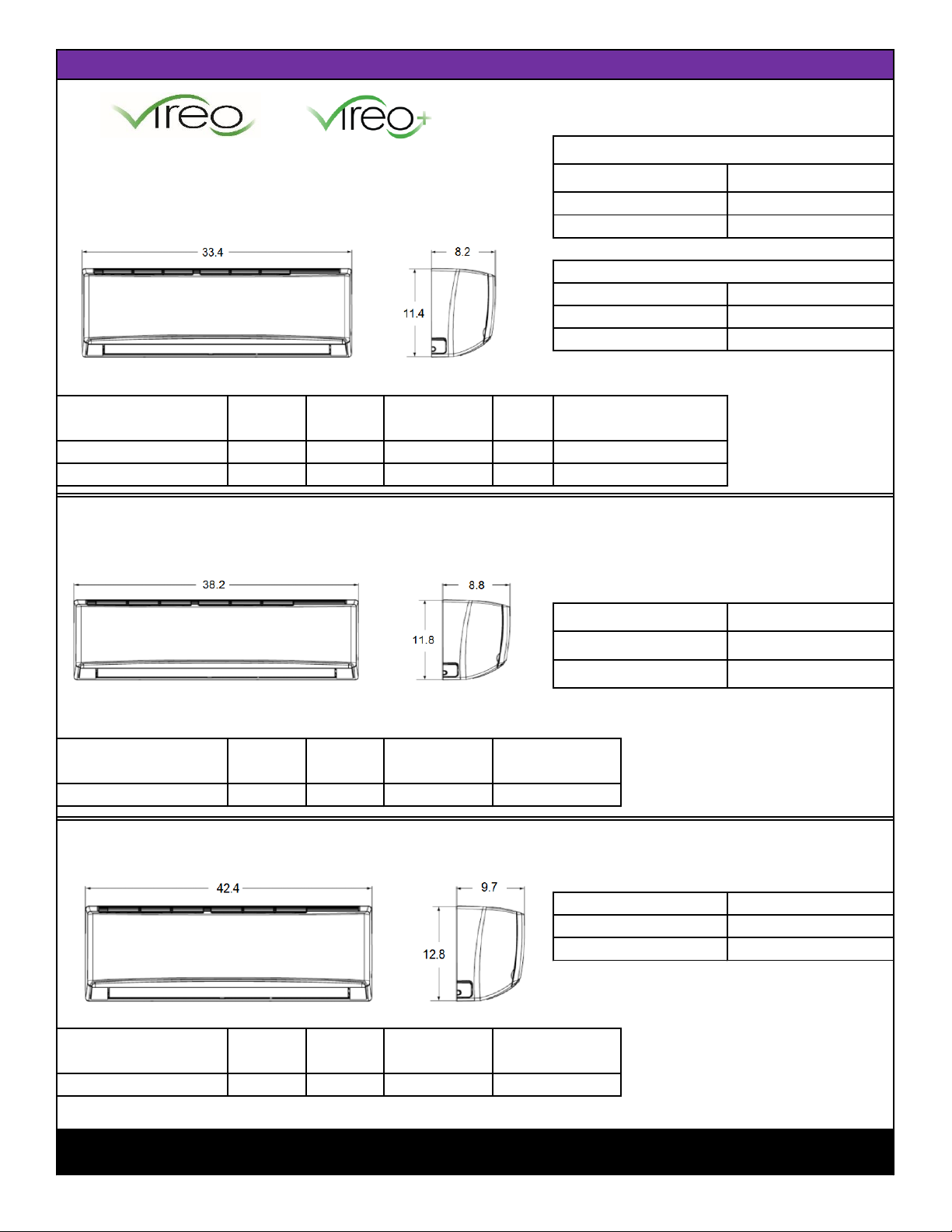

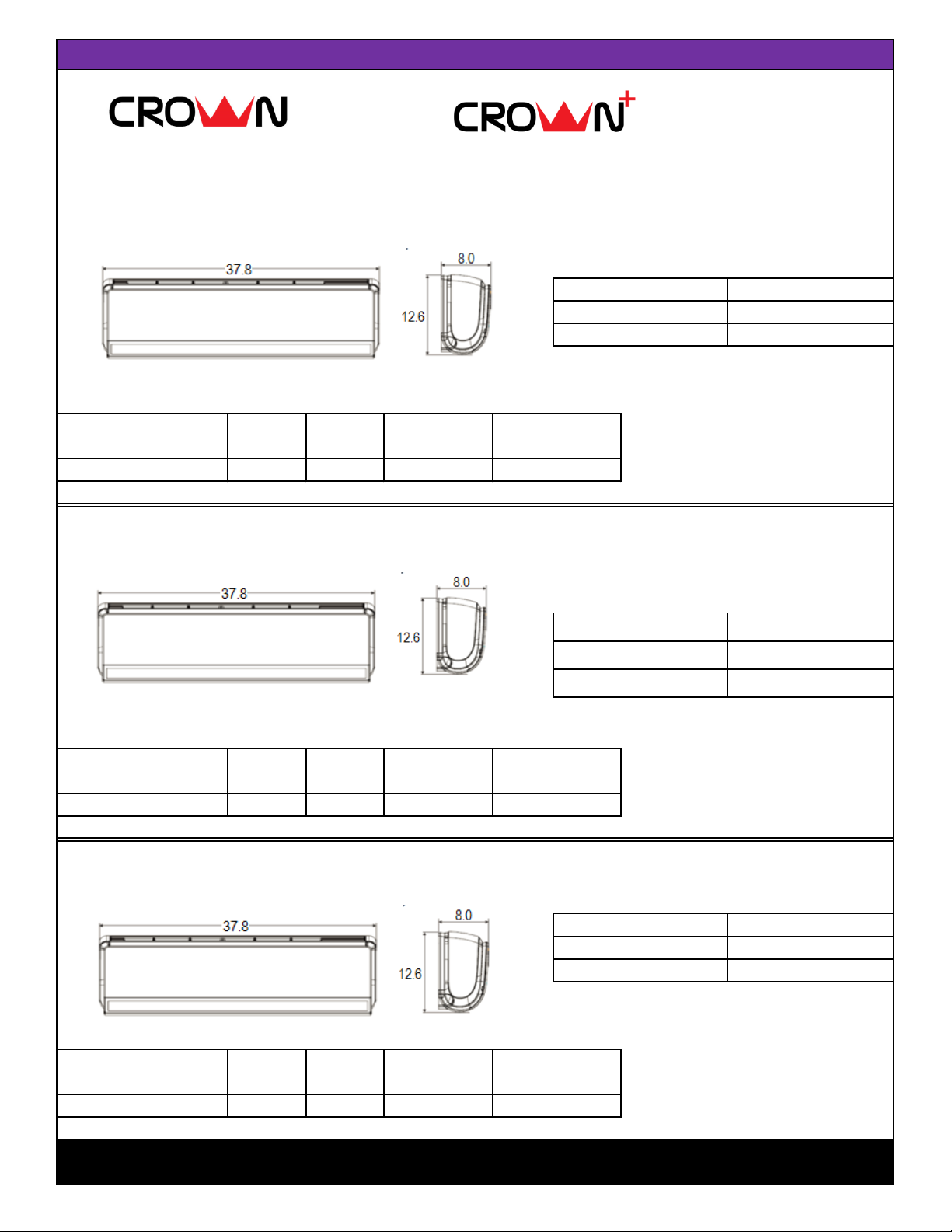

INDOOR DUCTLESS DIMENSIONAL SPECIFICATIONS MULTI36HP230V1CO

Units: inch

Model # LIVS09HP230V1xH 9,000 BTUH 230V

9,000 BTUH MODEL

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 3/8-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

9,000 9,500 318 1.7

Model # LIVS12HP230V1xH 12,000 BTUH 230V

12,000 BTUH MODEL

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 3/8-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

12,000 13,000 400 3.0

Model # LIVS18HP230V1xH 18,000 BTUH 230V

18,000 BTUH MODEL

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 1/2-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

18,000 19,000 471 3.8

Model # LIVS24HP230V1xH 24,000 BTUH 230V

24,000 BTUH MODEL

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 5/8-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

22,000 23,000 706 5.3

**Sound Power ratings are per AHRI 270 and AHRI 350

36/48

Specifications are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs

Rated Heating

(BtuH)

Rated Cooling

(BtuH)

Max. CFM

Dehum (Pt/Hr)

Min/Max Sound

Power dB(A)**

35/46

Rated Cooling

(BtuH)

Rated Heating

(BtuH)

Max. CFM

Dehum

(Pt/Hr)

Min/Max Sound

Power dB(A)**

29/45

Rated Cooling

(BtuH)

Rated Heating

(BtuH)

Max. CFM

Dehum

(Pt/Hr)

Min/Max Sound

Power dB(A)**

28/43

Rated Cooling

(BtuH)

Rated Heating

(BtuH)

Max. CFM

Dehum

(Pt/Hr)

Min/Max Sound

Power dB(A)**

INDOOR DUCTLESS DIMENSIONAL SPECIFICATIONS MULTI36HP230V1CO

Units: inch

9,000 AND 12,000 BTUH MODELS

Model # VIR09HP230V1xH 9,000 BTUH 230V Liquid Line Valve 1/4-in OD Flared

Model # VIR12HP230V1xH 12,000 BTUH 230V Suction/Gas Line Valve 3/8-in OD Flared

Drain Connector 5/8-in OD

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 1/2-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

9,000 BTUH 9,000 11,000 377 1.7

12,000 BTUH 12,000 13,000 400 3.0

18,000 BTUH MODEL

Model # VIR18HP230V1xH 18,000 BTUH 230V

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 5/8-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

18,000 19,800 559 3.8

24,000 BTUH MODEL

Model # VIR24HP230V1xH 24,000 BTUH 230V

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 5/8-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

22,000 23,000 706 4.2

**Sound Power ratings are per AHRI 270 and AHRI 350

Specifications are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs

39/47

Rated Cooling (BtuH)

Rated

Heating

Max. CFM

Dehumid.

(Pt/Hr)

Min/Max Sound

Power dB(A)**

36/48

9,000 BTU

12,000 BTU

Indoor Capacity Size

Rated

Cooling

Rated

Heating

Max. CFM

Dehum

(Pt/Hr)

Min/Max Sound Power

dB(A)**

29/43

29/45

Rated Cooling (BtuH)

Rated

Heating

Max. CFM

Dehumid.

(Pt/Hr)

Min/Max Sound

Power dB(A)**

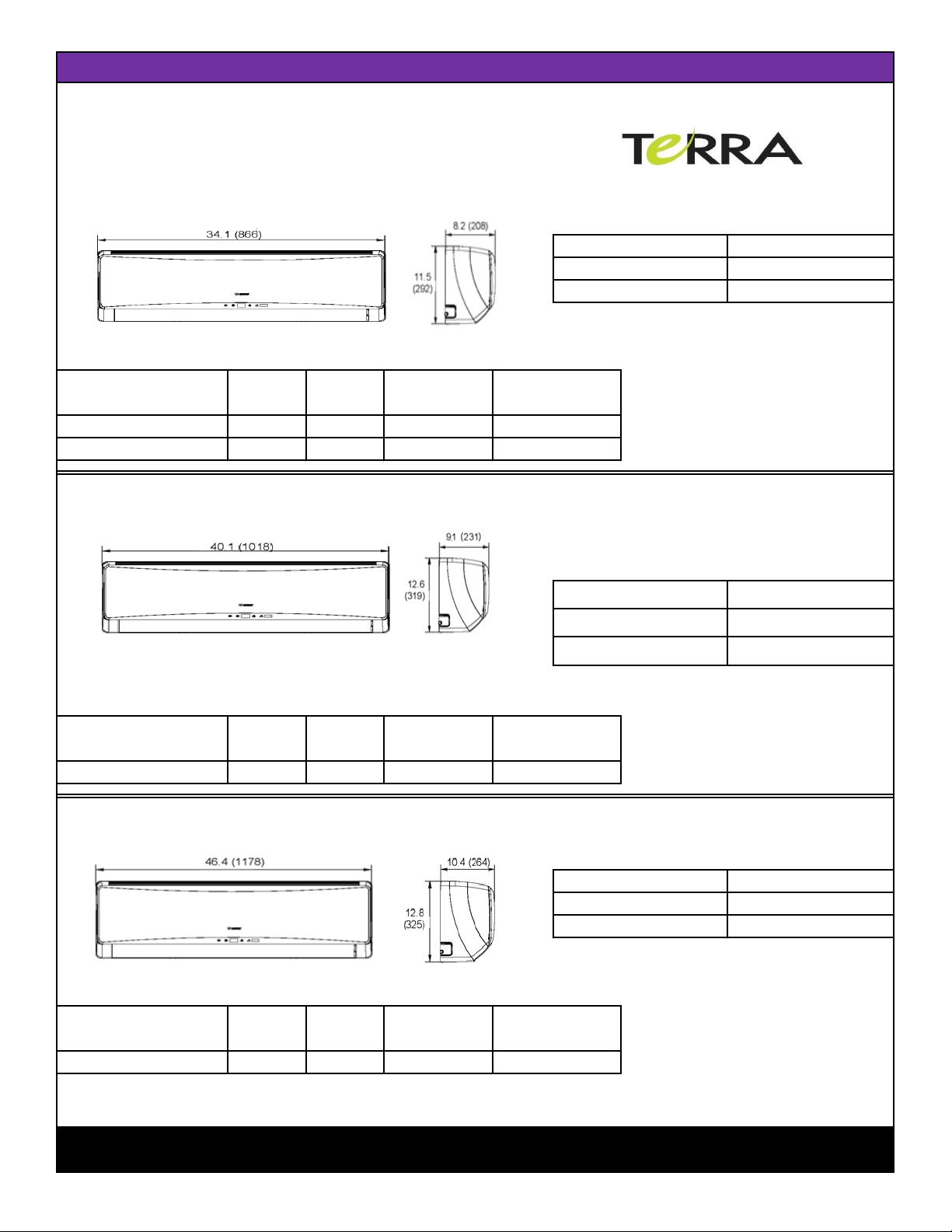

INDOOR DUCTLESS DIMENSIONAL SPECIFICATIONS MULTI36HP230V1CO

Units: inch (mm)

9,000 AND 12,000 BTUH MODELS

Model # TERRA09HP230V1AH 9,000 BTUH 230V

Model # TERRA12HP230V1AH 12,000 BTUH 230V

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 1/2-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

9,000 9,800 418 1.9

12,000 13,000 453 3

18,000 BTUH MODEL

Model # TERRA18HP230V1BH 18,000 BTUH 230V

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 5/8-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

18,000 19,000 559 3.8

24,000 BTUH MODEL

Model # TERRA24HP230V1AH 24,000 BTUH 230V

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 5/8-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

24,000 25,000 647 5.3

**Sound Power ratings are per AHRI 270 and AHRI 350

Min/Max Sound

Power dB(A)**

23/43

24/44

Min/Max Sound

Power dB(A)**

33/51

Rated Cooling (BtuH)

Rated

Heating

Max. CFM

Dehumid.

(Pt/Hr)

Specifications are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs

Min/Max Sound

Power dB(A)**

38/52

Rated Cooling (BtuH)

Rated

Heating

Max. CFM

Dehumid.

(Pt/Hr)

Rated Cooling (BtuH)

Rated

Heating

Max. CFM

Dehumid.

(Pt/Hr)

INDOOR DUCTLESS DIMENSIONAL SPECIFICATIONS MULTI36HP230V1CO

Units: inch

9,000 BTUH MODELS

Model # CROWN09HP230V1xH 9,000 BTUH 230V

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 1/2-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

9,000 9,000 412 1.7

12,000 BTUH MODEL

Model # CROWN12HP230V1xH 12,000 BTUH 230V

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 1/2-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

12,000 13,000 471 3.0

18,000 BTUH MODEL

Model # CROWN18HP230V1xH 18,000 BTUH 230V

Liquid Line Valve 1/4-in OD Flared

Suction/Gas Line Valve 5/8-in OD Flared

Drain Connector 5/8-in OD

Note: Size Refrigerant lines based on

evaporator port sizes.

18,000 19,000 530 3.8

**Sound Power ratings are per AHRI 270 and AHRI 350

Min/Max Sound

Power dB(A)**

22/41

Rated Cooling (BtuH)

Rated

Heating

Max. CFM

Dehumid.

(Pt/Hr)

Min/Max Sound

Power dB(A)**

Rated Cooling (BtuH)

Rated

Heating

Max. CFM

Dehumid.

(Pt/Hr)

Min/Max Sound

Power dB(A)**

Specifications are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs

26/48

23/42

Rated Cooling (BtuH)

Rated

Heating

Max. CFM

Dehumid.

(Pt/Hr)

OPERATIONAL PERFORMANCE SPECIFICATIONS MULTI36HP230V1CO

Indoor Units

Combinations

Rated System

Capacity

Indoor

Unit A

Indoor

Unit B

Indoor

Unit C

Indoor

Unit D

Indoor

Unit E

(BtuH) (BtuH) (BtuH) (BtuH) (BtuH) (BtuH)

9+9

18,000 9,000 9,000 NA NA NA

9+12

21,000 9,000 12,000 NA NA NA

9+18

25,500 8,000 17,500 NA NA NA

9+24

26,300 7,000 19,300 NA NA NA

12+12

24,000 12,000 12,000 NA NA NA

12+18

28,400 11,400 17,000 NA NA NA

12+24

30,000 10,000 20,000 NA NA NA

18+18

30,600 15,300 15,300 NA NA NA

18+24

33,100 14,200 18,900 NA NA NA

24+24

33,600 16,800 16,800 NA NA NA

9+9+9

24,600 8,200 8,200 8,200 NA NA

9+9+12

24,900 7,500 7,500 9,900 NA NA

9+9+18

29,700

7,200 7,200 15,300 NA NA

9+9+24

30,900 6,600 6,600 17,700 NA NA

9+12+12

29,600 8,000 10,800 10,800 NA NA

9+12+18

31,900 7,400 9,800 14,700 NA NA

9+12+24

34,100 6,800 9,100 18,200 NA NA

9+18+18

33,900 6,500 13,700 13,700 NA NA

12+12+12

31,200 10,400 10,400 10,400 NA NA

12+12+18

32,720 9,360 9,360 14,000 NA NA

12+12+24

32,900 8,300 8,300 16,300 NA NA

12+18+18

32,760 8,160 12,300 12,300 NA NA

9+9+9+9

34,000 8,500 8,500 8,500 8,500 NA

9+9+9+12

34,290 7,830 7,830 7,830 10,800 NA

9+9+9+18

34,072

6,824 6,824 6,824 13,600

NA

9+9+12+12

34,040

7,300 7,300 9,720 9,720

NA

9+9+12+18

34,600

6,500 6,500 8,640 12,960

NA

9+12+12+12

34,440

6,840 9,200 9,200 9,200

NA

12+12+12+12

35,040 8,760 8,760 8,760 8,760 NA

9+9+9+9+9

27,600

6,900 6,900 6,900 6,900 6,900

9+9+9+9+12

32,640

6,500 6,500 6,500 6,500 6,640

Note:

1) It is critical to size the outdoor unit for the entire building load and each indoor unit for it's individual zone load.

Specifications are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs

COOLING CAPACITY (BTUH)

OPERATIONAL PERFORMANCE SPECIFICATIONS MULTI36HP230V1CO

Indoor Units

Combinations

Rated System

Capacity

Indoor

Unit A

Indoor

Unit B

Indoor

Unit C

Indoor

Unit D

Indoor

Unit E

(BtuH) (BtuH) (BtuH) (BtuH) (BtuH) (BtuH)

9+9

19,000 9,500 9,500 NA NA NA

9+12

22,500 9,500 13,000 NA NA NA

9+18

27,800 9,300 18,500 NA NA NA

9+24

29,600 8,000 21,600 NA NA NA

12+12

26,000 13,000 13,000 NA NA NA

12+18

29,500 12,000 17,500 NA NA NA

12+24

33,200 11,200 22,000 NA NA NA

18+18

35,000 17,500 17,500 NA NA NA

18+24

36,000 15,000 21,000 NA NA NA

24+24

38,000 19,000 19,000 NA NA NA

9+9+9

27,000 9,000 9,000 9,000 NA NA

9+9+12

28,800 9,000 9,000 10,800 NA NA

9+9+18

35,000

8,800 8,800 17,400 NA NA

9+9+24

36,600 7,800 7,800 21,000 NA NA

9+12+12

33,000 9,000 12,000 12,000 NA NA

9+12+18

35,150 8,650 11,200 15,300 NA NA

9+12+24

37,640 7,900 9,240 20,500 NA NA

9+18+18

37,960 7,560 15,200 15,200 NA NA

12+12+12

36,000 12,000 12,000 12,000 NA NA

12+12+18

37,200 10,600 10,600 16,000 NA NA

12+12+24

38,000 9,500 9,500 19,000 NA NA

12+18+18

38,300 9,300 14,500 14,500 NA NA

9+9+9+9

42,000 10,500 10,500 10,500 10,500 NA

9+9+9+12

42,000 9,600 9,600 9,600 13,200 NA

9+9+9+18

41,940

8,400 8,400 8,400 16,740

NA

9+9+12+12

42,000

9,000 9,000 12,000 12,000

NA

9+9+12+18

42,680

8,000 8,000 10,680 16,000

NA

9+12+12+12

40,800

8,100 10,900 10,900 10,900

NA

12+12+12+12

42,720

10,680 10,680 10,680 10,680

NA

9+9+9+9+9

42,750

8,550 8,550 8,550 8,550 8,550

9+9+9+9+12

42,240

7,920 7,920 7,920 7,920 10,560

Note:

1) It is critical to size the outdoor unit for the entire building load and each indoor unit for it's individual zone load.

HEATING CAPACITY (BTUH)

Specifications are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs

EXTENDED RATINGS MULTI36HP230V1CO

COOLING PERFORMANCE

DB

70oF (21oC) 75oF (24oC) 80oF (27oC) 90oF (32oC)

WB

59oF (15oC) 63oF (17oC) 67oF (19oC) 73oF (23oC)

TC

(BtuH)

SC

(BtuH)

Input

Power

(watts)

TC

(BtuH)

SC

(BtuH)

Input

Power

(watts)

TC

(BtuH)

SC

(BtuH)

Input

Power

(watts)

TC

(BtuH)

SC

(BtuH)

Input

Power

(watts)

-0.4oF (-18oC)

20,420 16,010 1,200 23,030 18,060 1,270 24,340 19,090 1,320 27,430 21,510 1,410

5oF （-15oC）

20,940 16,420 1,200 23,620 18,530 1,280 25,270 19,820 1,320 28,130 22,030 1,410

14oF（-10oC）

21,690 17,010 1,220 24,470 19,190 1,300 25,860 20,280 1,340 29,150 22,860 1,440

23oF（-5oC）

23,770 18,640 1,220 27,080 21,240 1,300 29,130 22,840 1,330 32,040 25,130 1,430

32oF（0oC）

24,979 19,588 1,222 28,455 22,319 1,291 29,261 22,943 1,335 33,681 25,057 1,395

41oF（5oC）

26,260 20,593 1,285 29,914 23,463 1,358 30,762 24,119 1,403 35,409 26,342 1,467

50oF（10oC）

27,355 21,451 1,338 31,161 24,441 1,414 32,043 25,124 1,462 36,884 27,440 1,528

59oF（15oC）

28,820 22,600 1,410 32,830 25,750 1,490 33,760 26,470 1,540 38,860 28,910 1,610

68oF (20oC)

32,620 29,556 2,010 33,422 30,044 1,995 34,582 31,733 2,010 41,526 33,695 2,025

77oF (25oC)

35,145 30,300 2,450 39,240 31,409 2,435 38,796 32,791 2,440 45,040 34,872 2,430

86oF (30oC)

35,486 30,368 3,120 38,438 32,364 3,125 38,984 33,012 3,160 45,211 34,650 3,185

95oF (35oC)

32,176 28,781 3,300 35,827 31,255 3,400 36,083 31,921 3,335 41,014 34,275 3,405

104oF (40oC)

27,451 26,444 3,075 30,095 28,543 3,085 30,795 29,856 3,115 35,452 32,671 3,145

113oF (45oC)

23,544 23,203 2,765 25,642 24,926 2,790 26,956 25,779 2,800 29,686 28,833 2,825

118oF (48oC)

16,382 16,232 1,856 17,504 17,242 1,911 19,040 18,354 1,986 20,186 19,923 2,023

HEATING PERFORMANCE

DB

70oF (21oC) 75oF (24oC) 80oF (27oC) 90oF (32oC)

WB

59oF (15oC) 63oF (17oC) 67oF (19oC) 73oF (23oC)

DB

TC

(BtuH)

SC

(BtuH)

Input

Power

(watts)

TC

(BtuH)

SC

(BtuH)

Input

Power

(watts)

TC

(BtuH)

SC

(BtuH)

Input

Power

(watts)

TC

(BtuH)

SC

(BtuH)

Input

Power

(watts)

-4oF (-20oC)

17,060 17,060 1,500 16,580 16,580 1,530 16,260 16,260 1,580 15,850 15,850 1,620

0oF （-18oC）

18,500 18,500 1,650 17,960 17,960 1,680 17,630 17,630 1,740 17,160 17,160 1,780

5oF（-15oC）

19,510 19,510 1,720 18,950 18,950 1,750 18,590 18,590 1,820 18,110 18,110 1,860

7oF（-14oC）

20,010 20,010 1,750 19,050 19,050 1,790 19,360 19,360 1,870 18,860 18,860 1,920

17oF（-8oC）

20,940 20,940 1,790 20,330 20,330 1,830 19,950 19,950 1,900 19,420 19,420 1,940

28oF（-2oC）

23,660 23,660 1,910 23,040 23,040 1,950 22,380 22,380 2,020 22,110 22,110 2,070

38oF（3oC）

29,420 29,420 2,200 28,800 28,800 2,240 28,140 28,140 2,330 27,870 27,870 2,380

47oF（8oC）

33,250 33,250 2,290 32,240 32,240 2,330 31,600 31,600 2,420 30,730 30,730 2,480

57oF (14oC)

34,350 34,350 2,330 33,310 33,310 2,380 32,650 32,650 2,470 31,740 31,740 2,520

68oF (20oC)

35,750 35,750 2,410 34,660 34,660 2,460 33,970 33,970 2,550 33,030 33,030

2,610

77oF (25oC)

36,580 36,580 2,470 35,470 35,470 2,520 34,760 34,760 2,620 33,800 33,800

2,680

LEGEND DB --- Dry Bulb TC --- Total Net Cooling Capacity (BtuH) WB --- Wet Bulb SC --- Sensible Capacity (BtuH)

Input Power---(Watts)

Indoor Ambient Temperature

Outdoor Ambient Temperature (DB)

Indoor Ambient Temperature

Specifications are subject to change without notice. Manufacturer reserves the right to discontinue or modify specifications or designs
