Change for Life
Split Air Conditioner
Owner's Manual
Residential Air Conditioners
Thank you for choosing Residential Air Conditioners,please read this owner’s
manual carefully before operation and retain it for future reference.

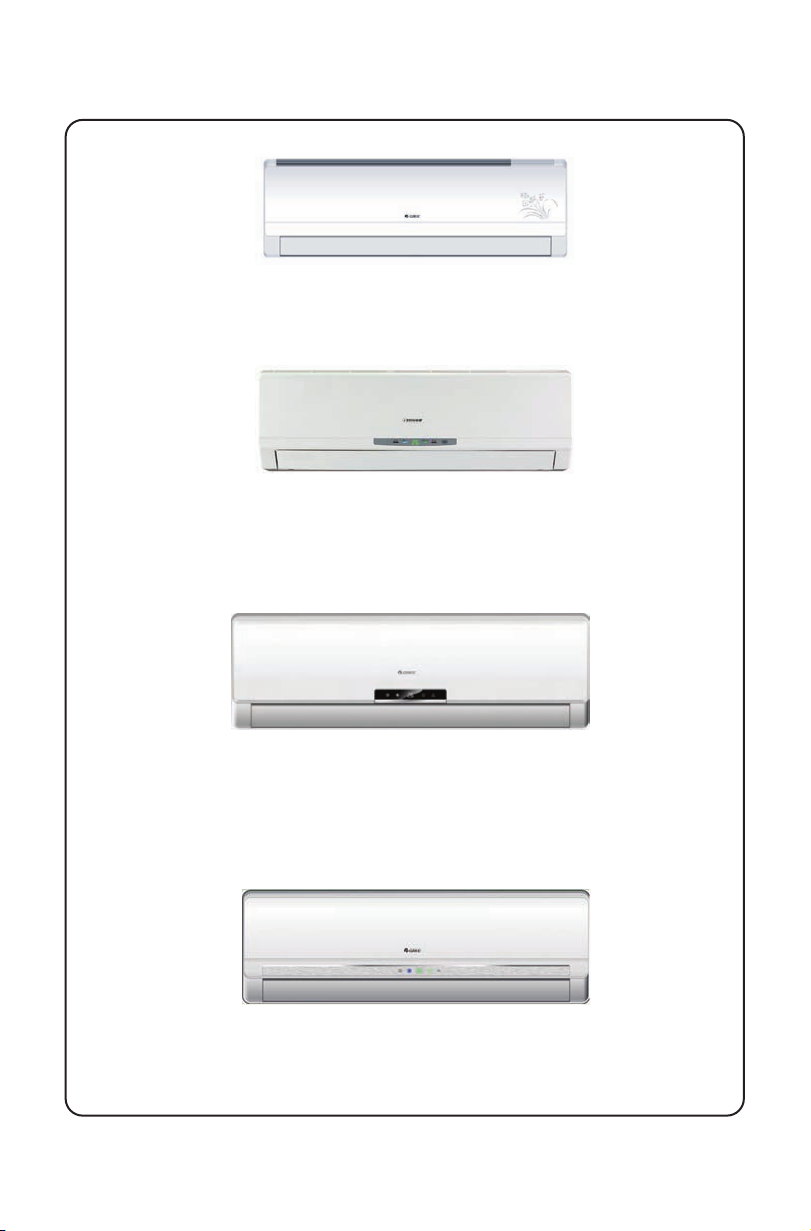

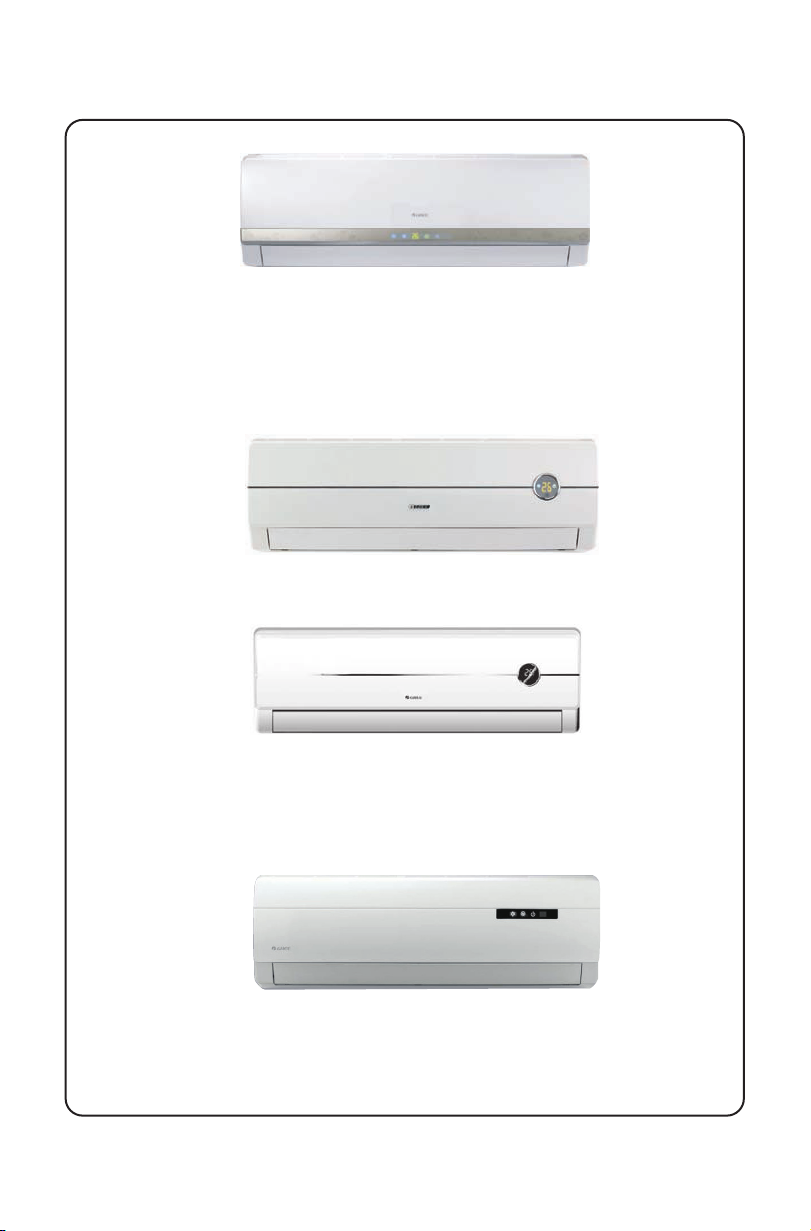

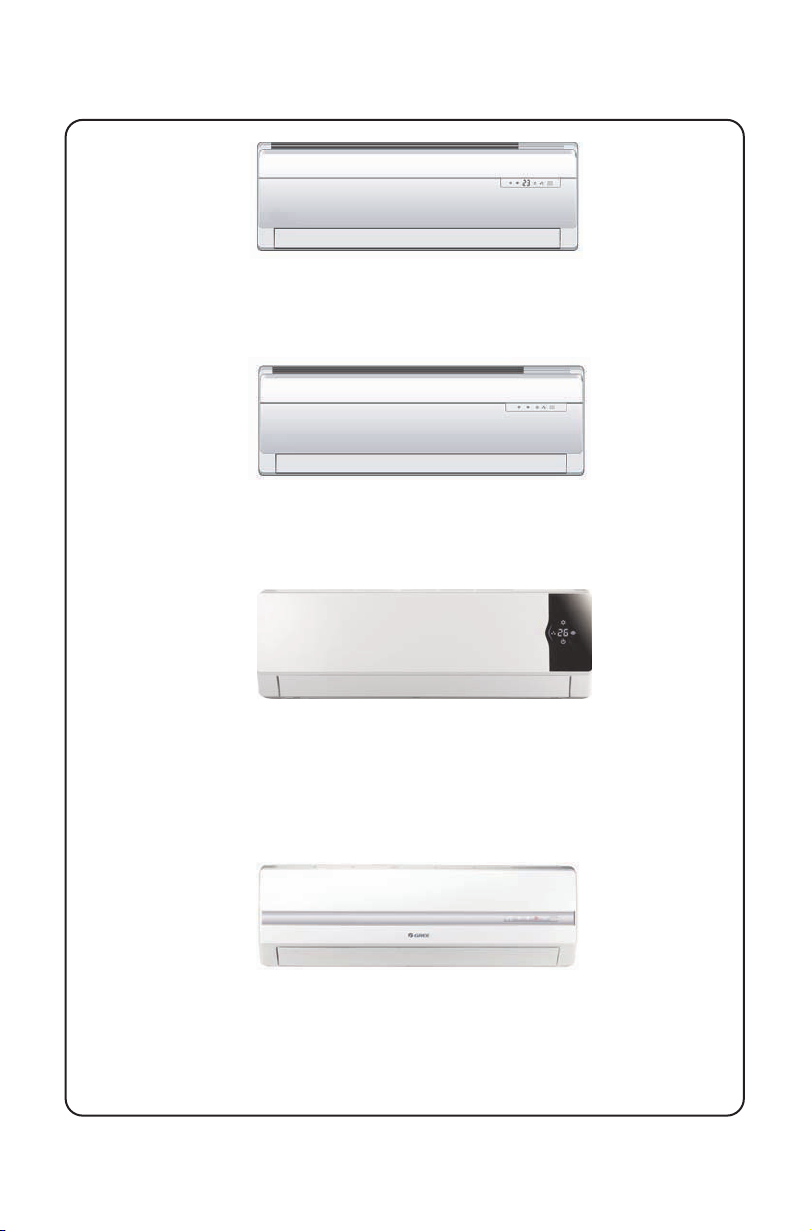

GWC07NA-K3NNB1A
GWC09NA-K3NNB1B
GWC18ND-K3NNB1B
GWC24ND-K3NNB1B
GWH07NA-K3NNB1A
GWC12NB-K3NNB1B
GWH18ND-K3NNB1A
GWC18ND-K3NNB1C
GWH09NA-K3NNB1A
GWH12NB-K3NNB1A
GWH24ND-K3NNB1A
GWC07NA-K3NNB2A
GWH07NA-K3NNB2A
GWC09NA-K3NNB2B GWC12NB-K3NNB2B
GWC18ND-K3NNB2B
GWH18ND-K3NNB2A
GWC24ND-K3NNB2B
GWH07NA-K3NNB3A
GWH09NA-K3NNB3A
GWC12NB-K3NNB3B
GWH18ND-K3NNB3A
GWH24ND-K3NNB3A
GWH07NA-K3NNB4A
GWC18ND-K3NNB4B
GWH09NA-K3NNB3B GWC09NA-K3NNB3C
GWC09NA-K3NNB3B
GWH12NB-K3NNB3A
GWC18ND-K3NNB3B
GWH09NA-K3NNB4A
GWH18ND-K3NNB4A
GWH09NA-K3NNB2A
GWH12NB-K3NNB2A
GWH24ND-K3NNB2A
GWC12MB-K3NNC1A
GWC15NC-E1NNB3A
GWC24ND-K3NNB3B
GWH12NB-K3NNB4A
GWH24ND-K3NNB4A
GWH24ND-K3NNB5A
GWH24ND-K3NNB6A
GWH12NB-K3NND2A
GWH24ND-K3NNB8A
GWH24ND-K3NNB7A
GWH24ND-K3NNA1A
GWH07NA-K3NNA2A
GWH12NB-K3NNA2A
GWC24ND-K3NNA2B
GWH07NA-K3NNA3A
GWC12NB-K3NNA3B
GWH18ND-K3NNA3A
GWH07NA-K3NNA4A GWH09NA-K3NNA4A
GWH24ND-K3NNA4A
GWH09NA-K3NNA2A
GWC12NB-K3NNA2B
GWH24ND-K3NNA2A
GWC09NA-K3NNA3B
GWH12NB-K3NNA3A
GWC24ND-K3NNA3B
GWH18ND-K3NNA4AGWH12NB-K3NNA4A
GWC18ND-K3NNA4B
GWC09NA-K3NNA2B
GWC18ND-K3NNA2B
GWH09NA-K3NNA3A
GWC18ND-K3NNA3B
GWH24ND-K3NNA3A
GWH07NA-K3NNA5A GWH09NA-K3NNA5A
GWH12NB-K3NNA5A GWH18ND-K3NNA5A
GWC18ND-K3NNA5B
GWH24ND-K3NNA5A
GWC09NA-K3NNA5B
GWH24ND-K3NNA7A
GWC09NA-K3NNA8C
GWH18ND-K3NNA8A
GWH09NA-K3NNA8AGWH07NA-K3NNA8A
GWC12NB-K3NNA8B
GWH24ND-K3NNA8A
GWC18ND-K3NNA8B
GWC09NA-K3NNB2C
GWC09NA-K3NNA8B
GWH12NB-K3NNA8A
GWC24ND-K3NNA8B
CONTENTS
Operation and maintenance
Notices for operation
■
Notices for use
■
Specificate Model and Technical Data
■
Names and functions of each part
■
Operation of wireless remote control
■
Emergency Operation
■
■ ................................................................. 13
Clean and care
Troubleshooting
■
............................................................ 1
................................................................... 3
..................................... 5
.......................................... 8
....................................... 9
......................................................... 12
............................................................... 15
Installation service
Notices for installation
■ ........................................................ 18
Installation dimension diagram
■ ............................................. 20
Install indoor unit
■ .............................................................. 21
■
Install outdoor unit
............................................................. 24
Check after installation and test operation
■
Installation and Maintenance of Healthy Filter
■ .......................... 26
Configuration of connection pipe and additional volume of refrigerant............
■
This symbol stands for the items
should be forbidden.
The products in this manual may be different with the real one, according to different
models, some models have displayer and some models without displayer, the position
and shape of the displayer please refer to the real one.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment
is necessary.
.............................. 25
27
This symbol stands for the items
should be followed

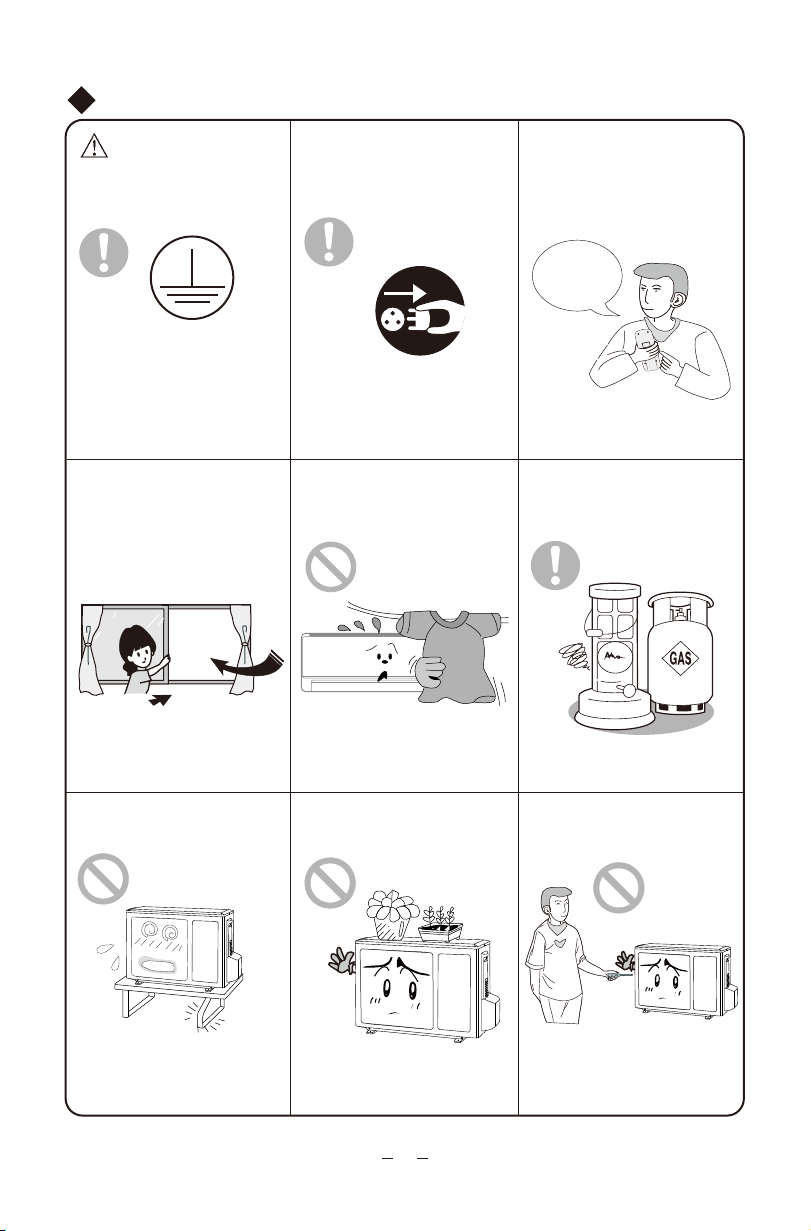

Operation and maintenance-notices for operation
Earth: The ground be
★
connected!
If not, please ask the qualified personnel to install. Furthermore, don't connect each wire to the gas pipe, water
pipe, drainage pipe or any other improper places.
★
Don't leave windows and
doors open for a long time
while operating the air conditioner.
Be sure to pull out the power plug
★
when not using the air conditioner
for a long time.
Otherwise, the accumulated dust
may cause fire or electric shock.
Don't block the air intake or outlet
★
vents of both the outdoor and indoor
units.
★
Select the most appropriate temper-
ature.
Keep room cooler than outside
about 5 degree.
It can preclude the electricity wasted.
★
Keep combustible spray away
from the units more than 1m.
It can decrease the air conditioning
capacity.
Please note whether the installed
★
stand is firm enough or not.
If it is damaged, it may lead to
the fall of the unit and cause
the injury.
It can decrease the air conditioning
capacity or cause a malfunction.
Don't step on the top of the
★
outdoor unit or place something
on it.
As falling off the outdoor unit
can be dangerous.
1
It can cause a fire or explosion.
★
Don't attempt to repair
the air conditioner by yourself.
The wrong repair will lead to
an electric shock or fire, so
you should contact the service
center to repair.

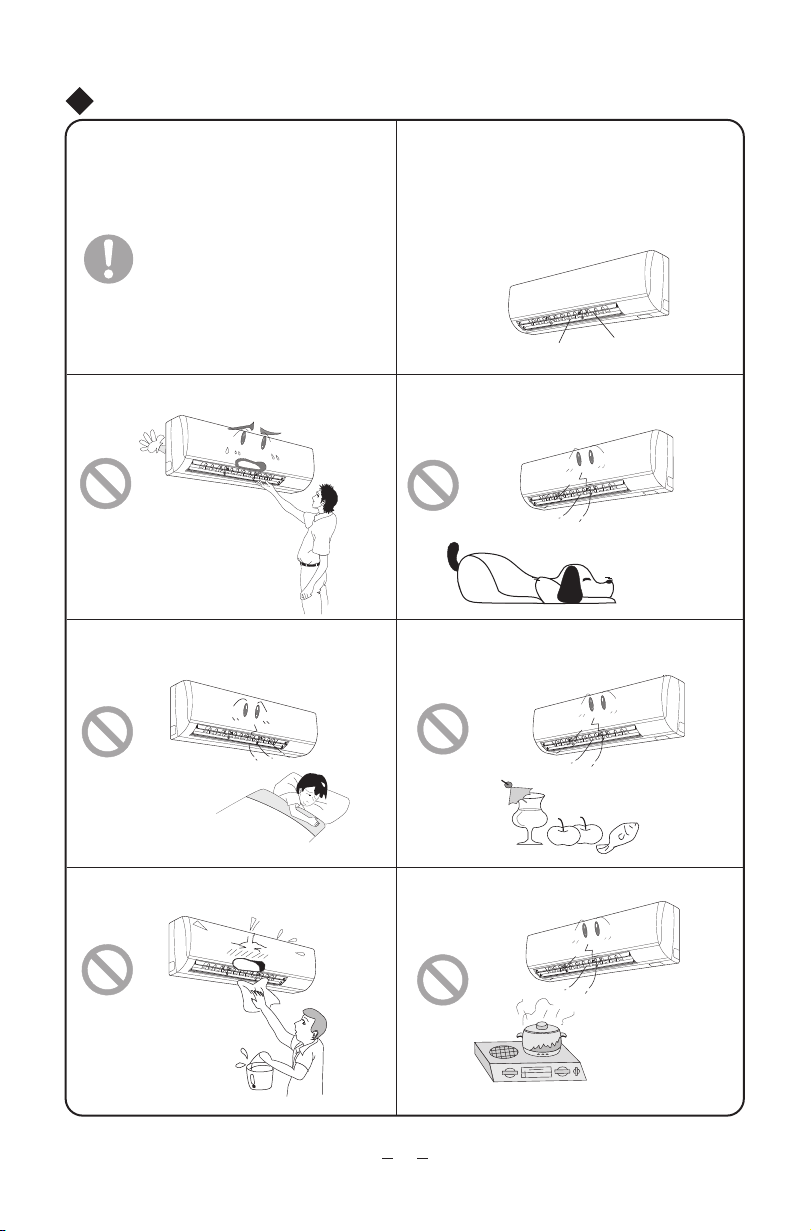

Notices for operation
If the supply cord is damaged, it must be replaced
★
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
The airflow direction can be adjusted appro-
★
priately. At operating, adjust the vertical airflow
direction by adjusting the louvers of upward/downward direction. And then, hold two ends of
left and right louver to adjust the horizontal airflow.
Don't insert your hands or stick into the air
★
intake or outlet vents.
Otherwise it will cause accident.
Don't apply the cold wind to the body for a
★
long time.
It can cause the health problems.
★
Splashing water on the air conditioner can
cause an electric shock and malfunction.
Louver of left/right direction Louver of upward/
Don't blow the wind to animals and plants
★
directly. It can cause a bad influence to them.
Don't use the air conditioner for other purposes,
★
such as drying clothes, preserving foods, etc.
★
Don't place a space heater near the air
conditioner.
downward direction.
Or CO toxicosis may occur for imcomplete
burning.
2
Notices for use
Working principle and special functions for cooling
Principle:
Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that
indoor ambient temperature decreased, its cooling capacity will increase or decrease by
outdoor ambient temperature.
Anti-freezing function:
If the unit is running in COOL mode and in low te
the heat exchanger, when indoor heat exchanger temperature decreased below 0 , the
indoor unit microcomputer will stop compressor running and protect the unit.
Working principle and special functions for heating
Principle:
Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase
*
room temperature. This is the heat pump heating principle, its heating capacity will be
reduced due to outdoor temperature decrease.
If outdoor temperature becomes very low, please operate with other heating equipments.
*
Defrosting:
When outdoor temperature is low but high humidity, after a long while running, frost will
*
form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting
function will act, the heat running will stop for 8-10mins.
During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
*
During the defrosting, the indoor indicator flashes, the outdoor unit may emit
*
This is due to the defrosting, it isn't malfunction.
After defrosting finished,the heating will recover automatically.
*
mperature, there will be frost formed on
vapor.
℃
Anti-cool wind function:
In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't
arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within
2 mins):
1. Heating starts.
2. After Auto Defrost finished.
3. Heating under the low temperature.
3
Notices for use
Gentle Breeze
In the following situation, the indoor unit may blow gentle breeze, and
the guide louver rotate to a certain position:
1. In “Heat” mode, the unit turned on, the compressor doesn’t arrive the starting condition
2. In “Heat” mode, the temperature arrive at the setting value and the compressor stop
running about 1min.
Working temperature range
Maximum cooling
Maximum heating
Indoor sideDB/WB(oC)
32/23
27/---
Outdoor sideDB/WB(oC)
43/26
24/18
.
The operating temperature range (outdoor temperature) for cooling only unit is 18℃~ 43℃
for heat pump unit is -7℃~ 43℃.
;
4
Specificate Model and Technical Data
1004
GWC12NB-K3NNB1B
GWC12NB-K3NNB2B
GWC12NB-K3NNA2B
GWC12MB-K3NNC1A GWC12NB-K3NNB3B
GWC09NA-K3NNB2C
GWC09NA-K3NNA8C
GWC12NB-K3NNA3B
GWC12NB-K3NNA8B
220-240V～
50Hz
1075
821
1450
1500
1000
0.90kg
1.04kg
0.75kg
R410A R410A R410A
Indoor unit:
Indoor unit：
Indoor unit：
Outdoor unit:
790X265X177
Outdoor unit:
790X265X175
Outdoor unit:
730X255X174
776X540X320
848X540X320
776X540X320
GWC09NA-K3NNB1B
GWC09NA-K3NNB2B
GWC09NA-K3NNA2B
GWC09NA-K3NNB3B GWC09NA-K3NNB3C
GWC07NA-K3NNB1A
GWC07NA-K3NNB2A
Model
GWC09NA-K3NNA3B
GWC09NA-K3NNA8B
GWC09NA-K3NNA5B
Cooling Cooling Cooling Cooling Cooling
Function
Rated voltage(V)
778
700
Rated frequency
Cooling power(W)
5
1100
1000
Rated power input(W)
0.64kg
R410A
R410A
Indoor unit:
0.62kg
Indoor unit:
Refrigerant volume(kg)
Outdoor unit:
730X255X174
730X255X174
(Indoor/outdoor) outline
776X540X320
Outdoor unit:
720X428X310
dimension(W X H X D)mm
