Centralized Controller

Model: CE52–24/F(C)

Page 2

To Users

Thank you for selecting Gree’s product. Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our product and achieve expected operating effect, we hereby instruct as below: (1)

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsibility for their safety. Children should be supervised to ensure that they do not play with the appliance.

(2)This instruction manual is a universal manual, some functions are only

applicable to particular product. All the illustrations and information in the instruction manual are only for reference, and control interface should be subject to actual operation.

(3)In order to make the product better, we will continuously conduct improvement

and innovation. We have the right to make necessary revision to the product from time to time due to the reason of sales or production, and reserve the right to revise the contents without further notice.

(4)For personal injury or property loss and damage caused by improper operation

such as improper installation and debugging, unnecessary maintenance, violation of related national laws and rules and industrial standard, and violation of this instruction manual, etc., we will bear no liability.

(5)The final right to interpret for this instruction manual belongs to Gree Electric

Appliances, Inc. of Zhuhai.

Page 3

Contents

1 Safety Notices (Please be sure to abide) .................................................. 1

2 User Notice........................................................................................ 1

3 INSTALLATION ..................................................................................2

3.1 Installation Requirements ................................................................3

3.2 Wiring Instructions ......................................................................... 4

3.2.1 Wiring Ports........................................................................... 4

3.2.2 Power Supply ........................................................................4

3.2.3 Connection Method Of Multi-VRF(CAN Network)........................... 4

3.2.4 Connection Method of Umatch Unit(Modbus network) ....................8

3.3 Installation Procedure .................................................................... 9

3.4 Removal Procedure...................................................................... 11

4 DISPLAY AND WORKING INSTRUCTIONS........................................... 11

4.1 Main Page Display and Buttons ...................................................... 12

4.2 General Buttons.......................................................................... 12

4.3 Buttons Working Instructions .......................................................... 13

5 FUNCTIONS DESCRIPTION............................................................... 14

5.1 Help Info .................................................................................... 14

5.2 Indoor Unit ................................................................................. 14

5.3 Single Unit Control ....................................................................... 15

5.3.1 General Control Parameters ................................................... 16

5.3.2 Advanced Control Parameters ................................................ 17

5.4 All-Control Function...................................................................... 17

5.5 Group Control ............................................................................. 18

5.6 Schedule Management ................................................................. 20

5.7 Umatch Unit................................................................................ 22

5.7.1 Umatch unit Control .............................................................. 22

5.7.2 General Control Parameters ................................................... 23

5.7.3 Advanced Control Parameters................................................. 24

5.8 Local Setting............................................................................... 25

5.9 Engineering Setting ..................................................................... 26

5.10 About....................................................................................... 27

Page 4

1 Safety Notices (Please be sure to abide)

Warning: If not abide strictly, it may cause severe damage to the unit or the people.

Note: If not abide strictly, it may cause slight or medium damage to the unit or the people.

This sign indicates that the operation must be prohibited. Improper operation may cause severe damage or death to people.

This sign indicates that the items must be observed. Improper operation may cause damage to people or property.

WARNING!

This product can’t be installed at corrosive, inflammable or explosive environment or the place with special requirements, such as kitchen. Otherwise, it will affect the normal operation or shorten the service life of the unit, or even cause fire hazard or serious injury. As for above special places, please adopt special air conditioner with anti-corrosive or anti-explosion function.

2 User Notice

(1)All indoor units must be supplied with unified power. (2)Make sure communication cord is connected with the proper port, otherwise there

may occur communication malfunction. (3)Never knock on, throw or frequently detach the centralized controller. (4)Never operate the centralized controller with wet hands. (5)Never scratch the screen of centralized controller by hard or sharp objects. (6)If the centralized controller is connected with the outdoor network or the last indoor

unit of the indoor network, then a matching resistance must be connected between

G1 and G2 ports. (7)the centralized controller Connect with umatch unit,The indoor unit address must

be set within the range from 1 to 36,communication way of umatch unit set long-

distance monitoring mode

Centralized Controller

Page 5

3 INSTALLATION

Parts of Centralized Controller

Figure 3-1 Parts of Centralized Controller

Unit：mm

No.

① ② ③ ④

Nam

Touch screen

Self-tapping screw ST4.2×9.5

MC（used to secure the rear

cover of controller）

Rear cover

of controller

Rubber band

QTY

1 4 1 6

No.

⑤ ⑥ ⑦ ⑧

Nam

Screw M4×12

(used to

secure

earthing wire)

Screw ST4.2×16 FA (used to

secure electric box cover)

Electric box

cover

Matching

resistance

QTY

1 4 1 2

Dimension of Centralized Controller

Figure 3-2 Dimension of Centralized Controller

Centralized Controller

Page 6

Dimension of Electric Box Cover

Figure 3-3 Dimension of Electric Box Cover

3.1 Installation Requirements

(1)Communication cord of the centralized controller and Multi-VRF(CAN Network)

must be selected according to the table below. Never use the cable that is not in

compliance with instructions of this manual.

Network

Cord type

Cord

standard

Cord size

(mm

AWG)

Total

length L(m/

feet)

Remark

Indoor

network

Light/ Ordinary polyvinyl

chloride

sheathed

cord. (60227 IEC 52 /60227

IEC 53)

IEC 60227-

5:2007

2×0.75~

2×1.25 (2×

G18~2×A

WG16)

L≤1000m

(L≤3280-5/

6feet)

If cord size is

2×1mm

(2×AWG16),

communication

cord can be

stretched longer.

But the total length

can’t exceed

1500m(4921-1/

4feet).

Outdoor

network

L≤500

(L≤820-1/

5feet)

Total length of

communication

cord can’t exceed

500m(820-1/

5feet).

Notice:

1) The cord shall be Circular cord (the cores shall be twisted together).

2) If unit is installed in places with intense magnetic field or strong interference, it is necessary to use shielded wire

(2)Communication cord of the centralized controller and Umatch Unit（Modbus net）

must be selected according to the table below

Centralized Controller

Page 7

Cord type

Cord size

(mm2)

Cord

standard

Note

Two_core five twisted pair

24AWG

（2×0.6mm）

TIA/EIA-

568-A

When the communication distance

exceeds 800m,the need to

increase the photoelectric isolation

repeter

(3)Never install the centralized controller in the following places:

1) Places with corrosive gas or serious dust, salt mist or oil smoke.

2) Wet and damp places, with direct sunlight.

3) Places near high temperature objects or places where units might be splashed by water.

3.2 Wiring Instructions

3.2.1 Wiring Ports

Port print

G1, G2 F1, F2 A2, B2 A3, B3 L, N

Meaning

CAN comm.

port

fire alarm port

【reserved

port】

Umatch unit

port

Power

port

3.2.2 Power Supply

(1)The centralized controller shall use independent power supply. (2)The range of input voltage: 100～240 VAC; Frequency range: 50/60Hz (3)Select power cord according to the following table. Never use the power cord that

is not in compliance with instructions of this manual.

Cord type

Cord standard

Cord size

(mm

)

Single-cord soft conductiveunsheathed

cord (60227 IEC 08)

IEC 60227-3:2007 1.5

3.2.3 Connection Method Of Multi-VRF(CAN Network)

There are three methods to connect centralized controller with the air conditioning system.

Centralized Controller

Page 8

Method 1: Connect with indoor network

Figure 3-4 Centralized Controller Connected with Indoor Network

Method 2: Connect with outdoor network

Figure 3-5 Centralized Controller Connected with Outdoor Network

Centralized Controller

Page 9

Method 3: Connect with heat recollection mode converter Network

Figure 3-6 Centralized Controller Connected with Heat Recollection Mode Converter

Network

Wiring Instructions: (1)

The centralized controller is applicable to multi VRF units, connectable with network of indoor units or the network of outdoor units. One centralized controller can control up to 16 sets of outdoor system and up to 255 sets of indoor unit.

(2)If the centralized controller is to be connected with the network of indoor units,

connect according to fig.3–4. The controller can connect with any one indoor unit in series, that is, connect the controller’s G1 and G2 ports with the D1 and D2 ports correspondingly with communication cords. When the controller is connected with the terminal unit of indoor network, a matching resistance needs to be added with the communication cords at the G1 and G2 ports.

(3)If the centralized controller is to be connected with the network of outdoor units,

connect according to fig.3–5. The centralized controller can only be connected with the terminal system of the outdoor network. A matching resistance needs to be added with the communication cords at the G1 and G2 ports.

(4)The centralized control address DIP switch (SA2_Addr-CC) indicates the

centralized control address required when different refrigerating systems are controlled in a centralized manner. The default factory setting is "00000".

(5)If the centralized controller is to be connected with the network of heat recollection,

connect according to Fig.3–6. The method 2 is also applicable to centralized controller switching in heat recollection network. If the centralized controller is to be connected with the network of outdoor units, set the DIP switch according to the following methods:

Centralized Controller

Page 10

1) The DIP switch must be set on the master unit and set the Master Unit Setting DIP Switch(SA8) to "00".Otherwise, the setting is invalid.

2) On the same refrigerating system, the centralized control address DIP switch (SA2_Addr-CC) on a non-master unit is invalid, and it is unnecessary to change the settings.

3) The centralized control address DIP switch (SA2_Addr- CC) on the master unit of a refrigerating system must be set to “0000/”, and this system is the master system.

4) The centralized control address DIP switch (SA2_Addr- CC) on the master unit of other refrigerating systems must be set as follows: Note: The centralized control address switch of DIP5 invalidation

SA2

Address NO.

DIP1 DIP2 DIP3 DIP4 DIP5

1 0 0 0 / 2

0 1 0 0 / 3

1 1 0 0 / 4

0 0 1 0 / 5

1 0 1 0 / 6

0 1 1 0 / 7

1 1 1 0 / 8

0 0 0 1 / 9

1 0 0 1 / 10

0 1 0 1 / 11

1 1 0 1 / 12

0 0 1 1 / 13

1 0 1 1 / 14

0 1 1 1 / 15

1 1 1 1 / 16

5) The centralized control address DIP switch (SA2_Addr- CC) cannot be the same between different refrigerating systems. Otherwise, address conflicts may occur and the unit cannot run properly.

Centralized Controller

Page 11

6) If the address conflict occurs, it will popup the address conflict page. Note:There are three ways to solve address conflict.

①

Enter into an unoccupied address by manually for the conflict address, the address conflict can be solved after it set up success.

② Press and hold the “Save” button for 5 seconds on the address conflict page,

select reset all the IDU’s address in the system, after entering the engineering password, system will reassign all the address.

③ On the master unit of master system, press “SW3” to enter the to-be-selected

status of function settings, press “SW1 (UP) ” or “SW2 (DOWN) ” to select the function of “n5 ”, press “SW7” to enter “n5 ” function settings, press “SW7” again to send the project number offset command.

3.2.4 Connection Method of Umatch Unit(Modbus network)

The centralized controller Connect with Umatch Unit（Modbus network）according to the below.

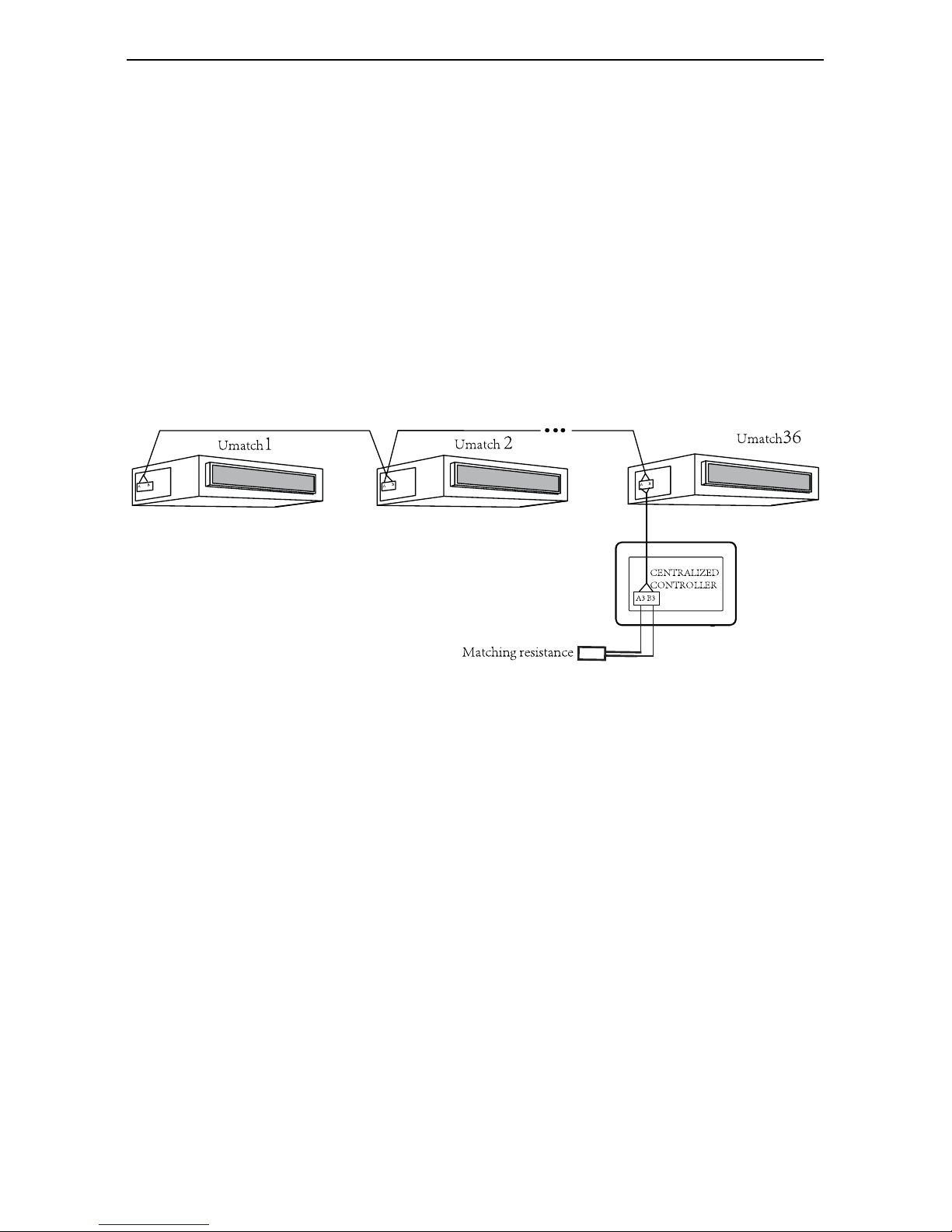

Figure 3-7 Centralized Controller Connected with Umatch Unit

Wiring Instructions: (1)

The centralized controller is applicable to Umatch units, One centralized controller can control up to 36 Umatch units.

(2)If the centralized controller is to be connected with Umatch units, connect

according to fig.3–7. The controller must connect with terminal unit of Umatch unit . connect the controller’s A3 and B3 ports with the A and B ports correspondingly with communication cords.a matching resistance needs to be added with the communication cords at the A3 and B3 ports

(3)The indoor unit address must be set within the range from 1 to 36, and different

from each other. Identicle addresses will lead to communication failure. Below is the address setting method:

1) Under OFF status, press “Function” and “Mode” on the wired controller simultaneously for 5S to enter the address setting. Then the display panel will show its own address number on the temperature display zone. Adjust the number by pressing the “Up” and “Down” buttons.

Centralized Controller

Page 12

2) When setting is over, press “OK/Cancel” or “Swing/Enter” to save the setting and exit. Under the setting status, if no action is taken within 20 seconds, system will exit from the setting and return to the display mode of OFF status. Setting can’t be saved in this case.

(4)Communication method of umatch units must be long-distance monitoring mode,

else can not communicate with centralized controller, set the way as follows.

1) Under OFF status, press “Function” and “Timer” on the wired controller simultaneously for 5S to enter the setting of long-distance monitor. Adjust by pressing the “Up” and “Down” buttons.

3.3 Installation Procedure

Figure 3-8 Installation Diagram

Centralized Controller

Page 13

Figure 3-9 Diagram of Wooden or Plastic Plug

Figure 3-10 Installation Holes of the Electric Box Rear Cover

Fig.3–8 is a simple installation procedure of centralized controller. Please pay attention to the following matters: (1)

Before installation, first cut off the power supply of indoor unit. The power must be

cut off during the whole installation process. (2)During the installation, be careful not to damage to touch screen. (3)Before installation, please make the following preparations:

1) In case that the centralized controller is installed on wall, dig a hole that is the size of 180mm×107mm×62mm and peg 4 wooden or plastic plugs on the wall according to fig.3–9.

2) In case that the centralized controller is installed inside the control cabinet, dig 4 installation holes on the surface of the control cabinet according to fig.3–10.

(4)In step ①, pull out the power core and communication cord, and then lead them

separately from the wire orifice of the electric box rear cover. Never lead the cords through a same orifice.

(5)In step ①, pull out the power core and communication cord, and then lead them

separately from the wire orifice of the electric box rear cover. Never lead the cords through a same orifice.

Centralized Controller

Page 14

(6)In step ⑥ pull out the wire connecting the touch screen and controller’s rear cover.

Put the touch screen on a safe place.

(7)In step ⑦, connect the communication cords to G1, G2 terminals, and connect the

neutral wire and live wire to the N, L terminal; connect the ground wire to position

on the electric box rear cover

. Secure it with screw M4×12.

(8)In step ⑧, locate the controller’s rear cover onto the electric box rear cover with

screw ST4.2×9.5 TC.

(9)In step ⑨, connect the wire between touch screen and controller’s rear cover.

3.4 Removal Procedure

Figure 3-11 Diagram of Removal

4 DISPLAY AND WORKING INSTRUCTIONS

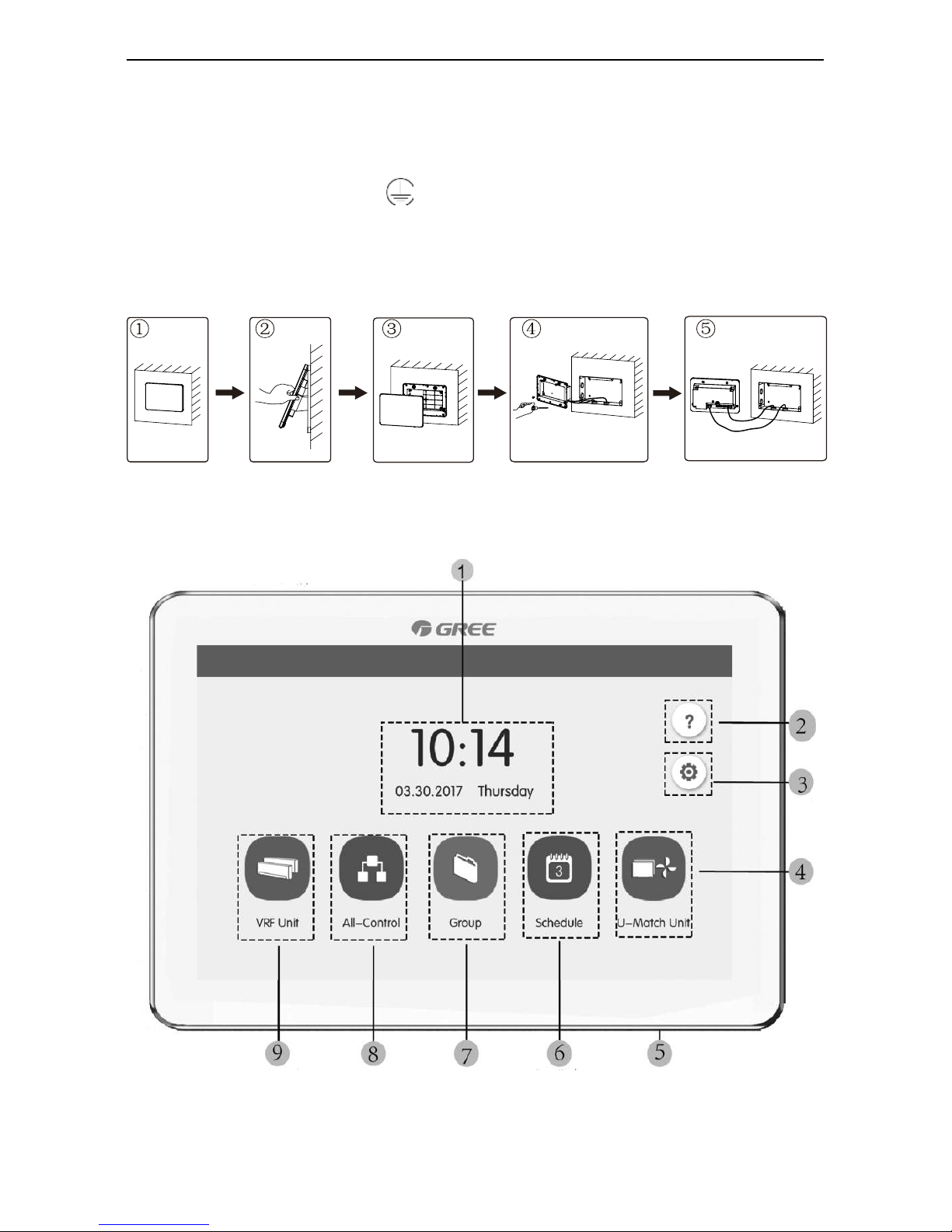

Main Page

Figure 4-1 Main Page

Centralized Controller

Page 15

4.1 Main Page Display and Buttons

No. Name Instructions

1 Time zone

The present date, week and time

Help button

Press this button to enter Help Info page

Setting button

Press this button to enter setting page

Umatch unit button

Press this button to enter Umatch unit page

5 Touch button

Press the Touch Button to turn on/off the screen of centralized controller. Press and hold the Touch Button for 5sec to restart to centralized controller.

Schedule button

Press this button to enter schedule page

Group button

Press this button to enter group page

All-Control button

Press this button to enter All-Control page

Indoor Unit button

Press this button to enter indoor unit page

4.2 General Buttons

Display

Name

Meaning Display

Name

Meaning

Return

Press this button to

return to the previous

page

Cancel

Press this button to

cancel the current

setting and return to

the previous page

Save

Press this button to save

the current setting and

return to the previous

page

Add

Press this button to

add schedule

Group

Control

Press this button to enter Group control

page

IDU Sort

Press this button to

enter IDU sort page

Edit

Press this button to edit

the group or schedule

Delete

Press this button to

delete group or

schedule

Centralized Controller

Page 16

Press this button to

increase value or select

the previous option

Down

Press this button to

decrease value or

select the next option

Left

Press this button to

return back to previous

page

Right

Press this button to the

Forward

Page

Shift

On the IDU sort page,

Press this button to

move the selected IDU

forward one page

Backwar

d Page

Shift

On the IDU sort page,

Press this button to

move the selected IDU

backward one page

Forward

Shift

On the IDU sort page,

Press this button to

move the selected IDU

forward one place

Backwar

d Shift

On the IDU sort page,

Press this button to

move the selected IDU

backward one place

Info

Press this button to

enter Info page

Shield

Press this button to

conduct shield function

of wired controller to

nullify such operation

4.3 Buttons Working Instructions

The centralized controller uses a capacitive touch screen so that user can operate the units by just touching the screen. Buttons on the screen are presented in the following ways: (1)

Icon Icon button can be operated directly. See section 4.2 for more details.

(2)Icon + Text

According to the meaning of words, turn on or off or select a certain function, or enter a certain page. This type of button has 2 or 3 kinds of status based on the specific function. Meaning of status (take Sleep Button as an example):

Thin light indicates invalid/not selectable. Sleep function is invalid and can’t

be selected. Different cases for models.

Light indicates off/not selected. Sleep function is off. Pressing the grey sleep

button can turn on the sleep function.

Dark indicates on/selected. Sleep function is on. Pressing the orange sleep

button can turn off the sleep function.

(3)

Sliding Sliding up/down to slide the group and setting page up&down.

(4)Sliding bar

Press and hold the sliding bar to drag up/down or left/right and to adjust the value. For example the backlight setting, etc.

Centralized Controller

Page 17

(5)Zone button

On the management pages of schedule, as indicated in fig.4–2 (the home page of schedule), each rectangle frame constitutes a zone button. Press the zone button, then the turning on/off of corresponding function or the corresponding page will pop in.

Figure 4-2 Zone Buttons on the Homepage of Schedule

5 FUNCTIONS DESCRIPTION

5.1 Help Info

On the homepage, press to enter into help info page. User can view the information of the simple operation manual.

5.2 Indoor Unit

On the homepage, press to enter into indoor unit page.

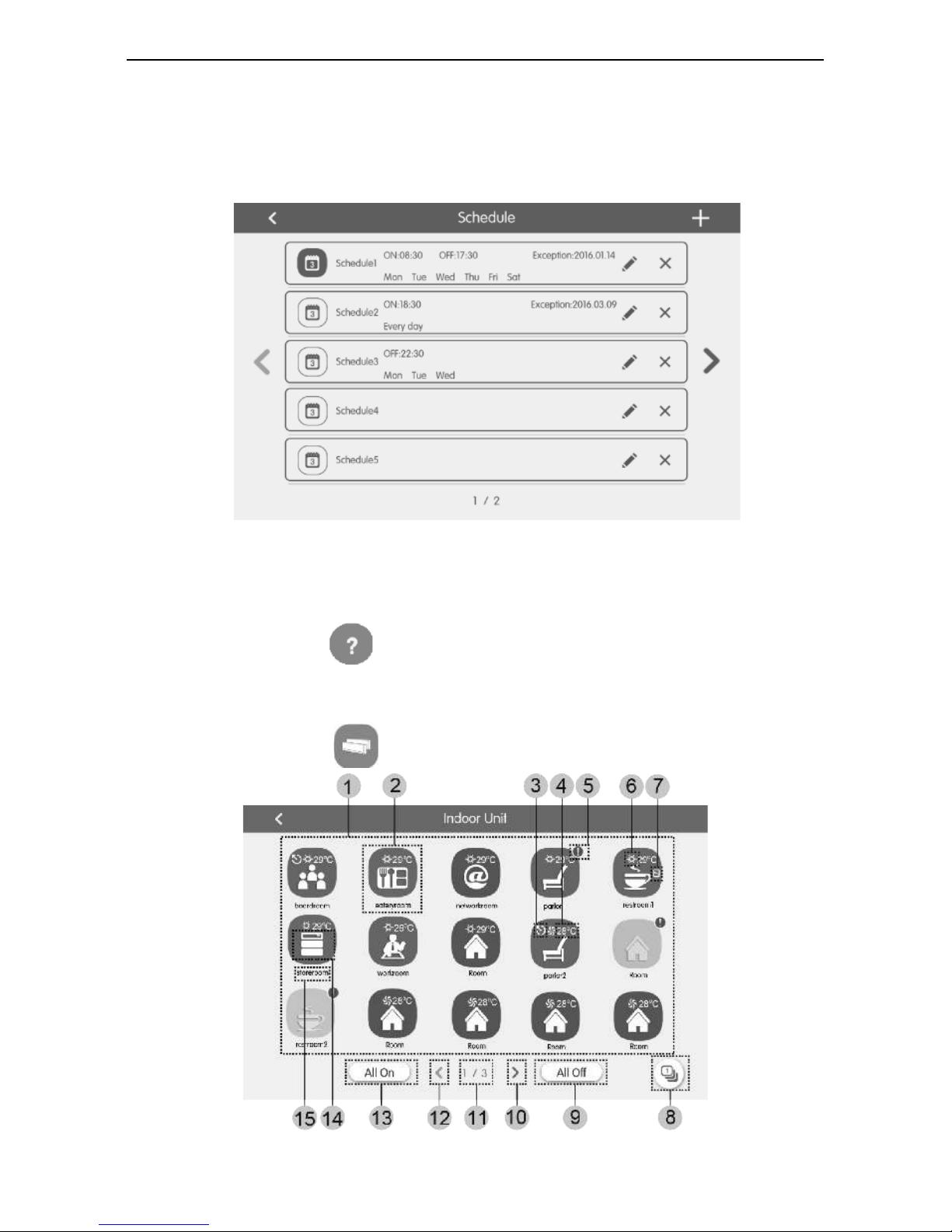

Figure 5-1 Page of Indoor Unit

Centralized Controller

Page 18

No. Name Instructions

IDU display

Display in separate page the list of indoor units that are controlled by the centralized controller.

2 IDU icon

l Press the button to enter the page of indoor unit control.

l Light icon indicates that IDU is on while the dark icon indicated that IDU is off.

3 Master IDU

This icon will be displayed when indoor unit is the master indoor unit of the system.

Set temperature

When indoor unit is on, set temperature will be displayed here.

5 Error status

Error icon will be displayed if indoor unit is malfunctioning.

Operation mode

When indoor unit is on, the current operation mode will

be displayed:

Auto Cooling Dry Fan

Heating Floor heating Space heating 3D heating

7 Shield status

This icon will be displayed when indoor unit is in shield status.

8 IDU Sort

Press the button to enter into the idu sort page.

9 All Off button

Press this button to turn off all air conditioning equipment.

Right page button Press this button to show the next page idu list.

Current page

The total pages of the controlled indoor unit and the current page.

Left page button Press this button to show the previous page idu list.

13 All On button

Press this button to turn on all air conditioning equipment.

14 IDU icon

Display the icon of the indoor unit.

15 IDU name

Display the name of the indoor unit.

Press the button to enter the IDU sort page. Select one indoor unit , press the left or right button at the bottom of the screen to switch the display of the indoor units.

5.3 Single Unit Control

On the indoor unit control page or group page, press the icon of indoor unit to enter the single unit control. Press the icon of indoor unit for 5 seconds to pop up the name set of the selected indoor unit.

Centralized Controller

Page 19

Parameters of single unit control include parameters of general control and advanced control.

5.3.1 General Control Parameters

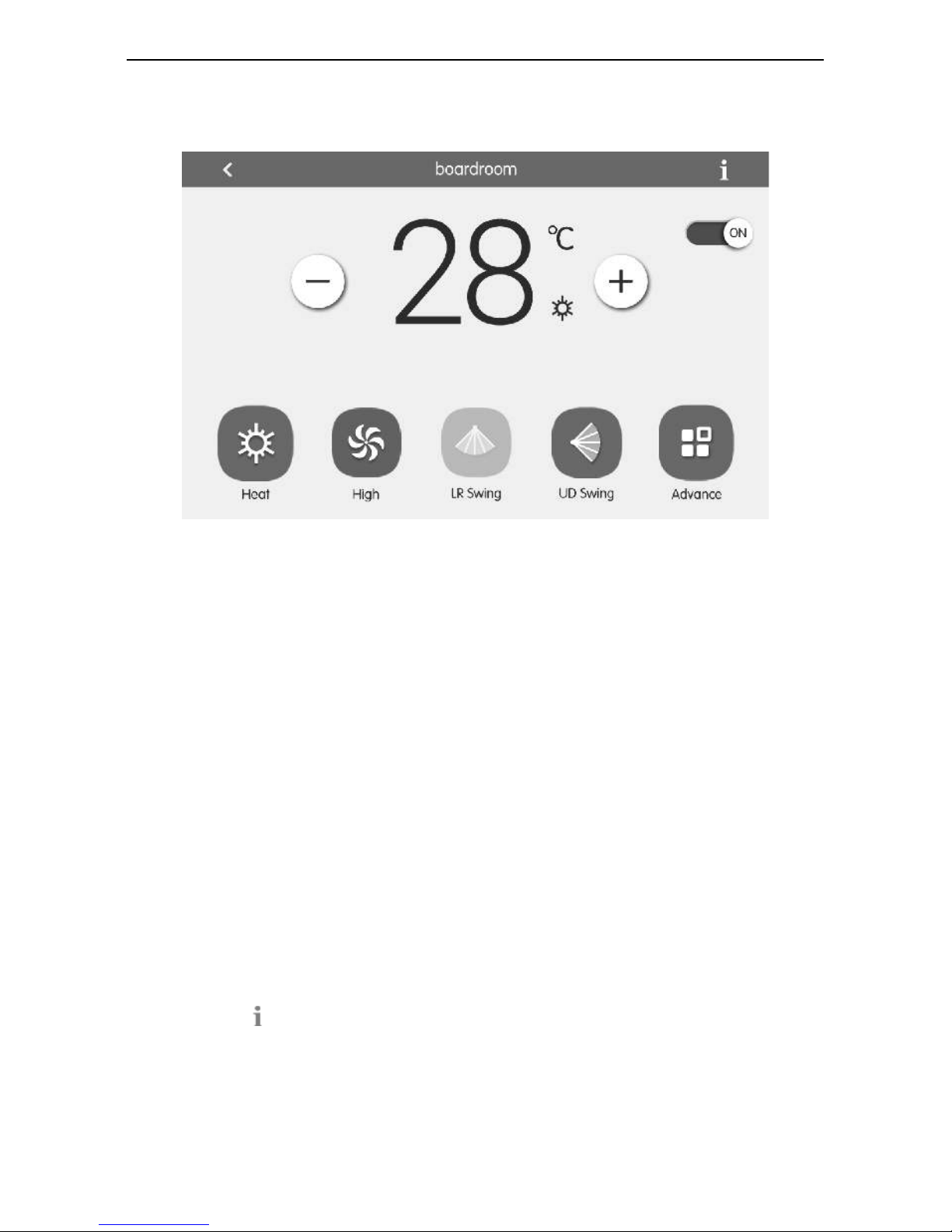

Figure 5-2 Control Page of Single IDU

(1)ON/OFF

Press the on/off button to turn unit on or off. When unit is turned off, mode, temperature, fan speed and swing can’t be set.

(2)

Mode setting Press the Mode buttons to set umatch unit operation mode. Modes for indoor units of different series are not all the same. If a certain mode is not available in the indoor unit, the icon of the corresponding mode cannot be selected. Note:

1) Auto mode can only be set in the master indoor unit.

2) Heat recollection system have no master indoor unit. When the indoor unit of the same branch is connected into one indoor unit, the auto mode can be set; when the quantity of indoor unit in the same branch is more than one set, the auto mode cannot be set; other modes can be freely switched.

(3)Temperature setting

Press the up or down buttons to adjust temperature. Each time pressing the button will increase/decrease the temperature by 1. Holding down the button can increase/decrease temperature continuously. Pressing the

button can display the “indoor temp” and “outdoor temp”.

(4)Fan speed setting

Press the fan speed button to set umatch unit fan speed. Note: Unit defaults to low fan speed in drying mode. Fan speed cannot be set in drying or floor heating mode.

Centralized Controller

Page 20

(5)Swing setting

Pressing the button “Up&Down Swing” or “Left&Right Swing” can turn on or off the swing function. Note: Swing types for indoor units of different series are not all the same.

(6)

Malfunction View When indoor unit fails to function well, the

will turn red. then press the button to

view the information of malfunctions.

5.3.2 Advanced Control Parameters

Press Advance Button to enter the advance page. Press icon buttons to turn on or off the corresponding function.

Figure 5-3 Advance Page

(1)Functions of Sleep, Quiet, Auto Quiet, E-Heater, Absence, Rapid and Save can

only be effective when unit is turned on.

(2)When sleep function is on, auto quiet function will be turned on subsequently.

Sleep function will not be effective under auto, fan or floor heating mode.

(3)Absence function can only be turned on in heating mode. When absence function

is on, set temperature is 8℃.

(4)Rapid cool function can only be effective in cool mode. Likewise, rapid heat

function can only be effective in heat mode. (5)When shield all function is on, other shield buttons will be invalid. (6)Note: When centralized controller is matching with different units, some functions

will also be different for different unit.

5.4 All-Control Function

On the homepage, press enter into the page of All-Control.

Centralized Controller

Page 21

Figure 5-4 All-Control Page

All-Control Function can operate all indoor units as below： (1)

ON/OFF

Press ON/OFF button to turn on or turn off all units.

When turning off the unit, the setting for mode, temperature, fan speed and swing

is unavailable. (2)

Mode setting

Press mode button to set operation mode. (3)Temperature setting

Press UP or Down button to adjust temperature. Press this button once to increase

or decrease temperature 1℃. Press or hole this button and the temperature will

increase or decrease continuously. (4)

Fan speed setting

Press or drag the sliding bar of fan speed to set fan speed.

Note: Fan speed defaults at low speed under drying mode and it can’t be adjusted. (5)

Swing setting

Press “left&right” swing or “up&down” swing button to turn on or turn off swing

function. (6)

Send order

Press button

to send out the All-Control order.

5.5 Group Control

On the homepage, press to enter into the page of group function.

Centralized Controller

Page 22

Figure 5-5 Group Page

No. Name Instructions

①

Group display

Display in separate page the list of groups that are controlled by the centralized controller. Sliding up or down can turn over the page.

②

Group names Display the names of every group.

③

Add group button Press the button to add a group.

④

Group control button

Press the button to enter the group control page.

⑤

Group edit button

Press the button to enter the group edit page.

⑥

IDU sort button

Press the button to enter the group sort page.

(1)Group control

Press the

button to enter the page of group control. Control parameters are the

same as single unit control. (2)

Edit group

Press to enter the page of group editing.

Use can set the group name and add indoor units to the group.

Press

to save the setting.

Note:1 set of indoor unit can be set in up to 5 groups (3)

IDU sort

Press the

button to enter the IDU sort page. Select one indoor unit, press the left of right button at the buttom of the screen to switch the display of the indoor units.

Centralized Controller

Page 23

(4)Add group

Press the

button to add new groups. Then the page of group editing will pop in. User can set the group name and add indoor units to the group.

(5)

Delete group

Press

to delete the selected group.

5.6 Schedule Management

On the homepage，press button to enter into the page of schedule management.

Figure 5-6 Page of Schedule

Figure 5-7 Page of Schedule Editing

Centralized Controller

Page 24

(1)Open the schedule

Press the zone button to open or close the schedule. When the icons and texts turn bule indicating the schedule is open. When the icons and texts turn grey indicating the schedule is closed. . When schedule is open, centralized controller will send out the control order automatically according to the time and parameters set by the schedule.

(2)

Edit schedule

Press

to enter the page of schedule editing.

Press to enter the page of schedule editing.

1) Setting method of schedule control parameters is the same with that of the

single indoor unit control.

2) Add equipment

Press the “Add Unit” button to enter the page of equipment selection. User may set the indoor unit that works according to the current schedule. Note: schedule of Centralizwd Controller can add Umatch units.For a same indoor unit, different schedules can be set at the same time. In this case, unit will work according to the schedule setting that is previously energized.

3) Repeat schedule

Press “Repeat Setting” button to enter the setting page. User can set the schedule work repeatedly according to weeks.

4) Time setting

Press the “ON Time” or “OFF Time” button to enter the page of time setting. User can set the time for unit to turn on/off automatically. Note: The time to activate or stop unit can be set at the same time, but they must not be the same.

5) Add exception

Press the “Exception Setting” button to enter the setting page of schedule exception. The calendar will pop in, user can select the date to activate or cancel exception. Press

to save the selected date. Notes:When schedule exception has been set, air conditioner will not execute the control order on the exception date set by the schedule. User may add several exception dates.

(3)

Add schedule

Press to add new schedules. Then the schedule editing page will pop in for user to set relevant parameters. Note: User may add up to 28 schedules.

(4)

Delete schedule Press

to delete the selected schedule.

Centralized Controller

Page 25

5.7 Umatch Unit

5.7.1 Umatch unit Control

On the homepage, press to enter the Control Page.

Figure 5-8 Umatch unit homepage

No. Name Instructions

Umatch unit display

zone

Display the list of units controlled by the central controller.

Umatch unit icon

buttons

Press the button to enter the control page of a single unit. Bright icon indicates the corresponding unit is ON and dark icon indicates the corresponding unit is OFF Press and hold the icon to enter the page of name and icon settings.

Icon of running mode

When indoor unit is ON, its running mode will be

displayed in the following way

auto cool dry

fan heat

Icon of set temperature

Display when the unit is ON. It means set temperature of the device.

5 Icon of malfunction

If the unit is with trouble, this icon will be shown.

Icon of sheidling status If the unit is in shielding status, this icon will be shown.

Umatch unit registration

icon

Press the icon to enter the registration page for the unit.

8 All off button Press the icon to turn off all the units.

Page turning Press this icon to turn pages.

10 All on button

Press the icon to turn on all the units. Then units will run according to memories.

Centralized Controller

Page 26

11 Umatch unit icon

Display the current umatch unit icon

12 Umatch unit name

Display the current umatch unit name

Before using, press the registration icon and enter the registration page. Register the Umatch units that are going to be controlled. Centralized controller can support the control of 36 units at most. Press and hold umatch unit icon for 5S to enter the page of settings. Then you may set the name and icon for the unit. Umatch unit control parameters include general control parameters and advanced control parameters. Note: (1)

The functions of group control and engineering setting of the Centralized controller are only applicable to multi VRF units. Umatch units do not have the above functions

(2)when in the fuction of All-central control,all the Mulit-VRF unit and umatch unit are

controllered,but umatch unit not controllered by advance seting.

5.7.2 General Control Parameters

Figure 5-9 Control Page of Single umatch unit

(1)ON/OFF

Press the on/off button to turn unit on or off. When unit is turned off, mode, temperature, fan speed and swing can’t be set.

(2)Mode setting

Press the Mode buttons to set umatch unit operation mode. Modes for indoor units of different series are not all the same. If a certain mode is not available in the indoor unit, the icon of the corresponding mode cannot be selected. Note:

1) Auto mode can only be set in the master indoor unit.

Centralized Controller

Page 27

(3)Temperature setting

button can display the “indoor temp” and “outdoor temp”.

(4)

Fan speed setting Press the fan speed button to set umatch unit fan speed. Note: Unit defaults to low fan speed in drying mode. Fan speed cannot be set in drying or floor heating mode.

(5)

Swing setting Pressing the button “Up&Down Swing” or “Left&Right Swing” can turn on or off the swing function. Note: Swing types for indoor units of different series are not all the same.

(6)

Malfunction View When indoor unit fails to function well, the

will turn red. then press the button to

view the information of malfunctions.

5.7.3 Advanced Control Parameters

Press the advanced button to enter the advanced page. Press the icons to turn on or off related functions.

Figure 5-10 Umatch unit advanced page

(1)The functions of Sleep, Quiet, Auxiliary Heating, Absence, Energy Saving are only

effective under ON status.

(2)Absence function can only be enabled in Heat mode. When Absence function is

enabled, set temperature is 8℃.

Centralized Controller

Page 28

(3)When All Shield function is enabled, other shield buttons are ineffective.

5.8 Local Setting

Figure 5-11 Setting Page

On the homepage,press button to enter into the setting page. Press the “Local Setting” button to switch to the setting options of the current unit. Select the needed option at the left side column. Sliding up and down can turn over the page. Set the corresponding content at the right side. Local setting includes: (1)

Sound, temperature unit, time format, mutual exclusion Press the button to select one kind of setting.

(2)Language

Press the button can select system language,such as English Simplified Chinese or Traditional Chinese.

(3)

Time setting Set the date and time of the centralized controller system, can also set the VRF unit time if needed.

(4)

User password Press the button can activate or inactivate user password. When password is activated, it can be set or changed in 4~10 numbers or characters. Original password is blank. Press the button

to save the password. Note: I If user password is activated, user needs to input password to enter the control page when centralized controller is turned on or activated.

Centralized Controller

Page 29

(5)Backlight setting

Pressing this button can set the timeout period of screen backlight. Screen will be shut off and the centralized controller will enter sleep mode when the timeout period is over. Note:When centralized controller is in sleep mode, use can wake it up by touching any part of the touch screen or the touch button at the right bottom of the screen..

(6)

Brightness Pressing or dragging the sliding bar can adjust the backlight degree.

(7)Customer Service

User can set the name and phone number of the local customer service center for the convenience of acquiring immediate solutions and technical support. Press the

button to save the setting.

(8)

Restore default settings Press the “Reset” button to restore local setting, e-Control setting, group setting, schedule setting, names and icons of indoor units, and other relevant ex-factory default settings.

1) When switching between indoor network and outdoor network, or reset unit IP,

restore the ex-factory setting for centralized controller.

2) After debugging for the centralized controller is finished, connect in to the

network. If connect the centralized controller to the network during debugging process, it needs to restore the defaulted ex-factory setting.

5.9 Engineering Setting

On the home page, press to enter into setting page. Press the “Project Setting” button to switch to engineering setting, the operation method is the same as the setting of this unit. (1)

Indoor unit register Enter into the indoor unit register interface, select the chosen indoor unit according to the displayed engineering No. of indoor unit icon, and then press

to save, it will display the registered indoor unit in the indoor unit page. Notes: There are 255 sets of indoor units can be registered at most.

Centralized Controller

Page 30

(2)Name&Icon setting

Switch to name&Icon setting interface to select the engineering No., and set the name and icon of indoor unit

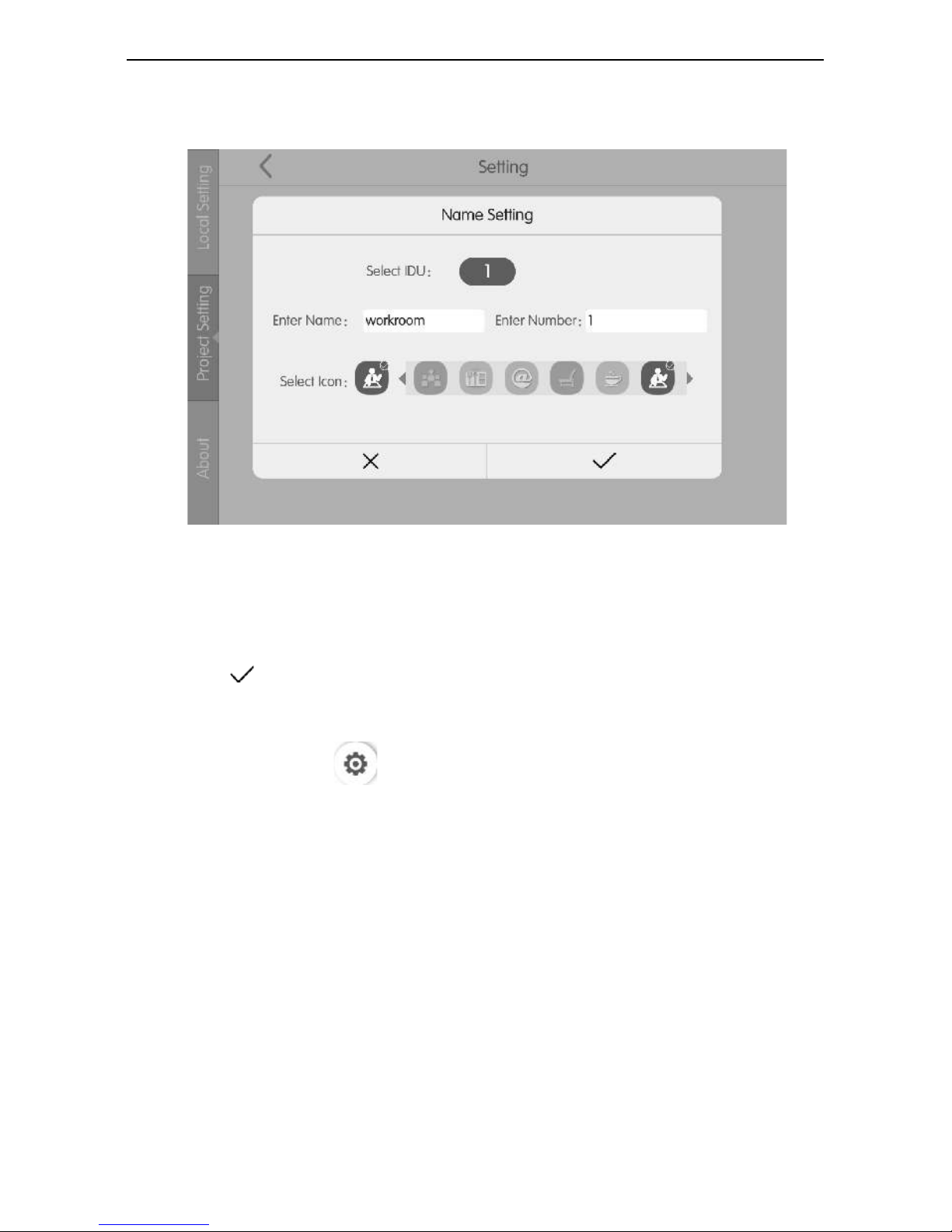

Figure 5-12 Setting Page of Indoor Unit

Press the Engineering No. to select the required indoor unit that needs to be set.

1) Name: can input number or letter (it should not be over 10 letters)

2) Icon: press to select the preset icon.

3) Engineering No.: it can be set to be 1-255.

4) Press

button to successfully save the setting. Then the indoor unit list in the

home page will display the new name and icon of indoor units.

5.10 About

On the home page, press to enter into setting page. Press the “About” button to switch to about page. The operation method is the same with that of the local setting. On the page of about, user can view the information of the local unit, customer service information and other notices.

Centralized Controller

Page 31
