WARRANTY

Great Planes®Model Manufacturing Co. guarantees this kit to be free from defects in both material and workmanship at the date of purchase.
This warranty does not cover any component parts damaged by use or modification. In no case shall Great Planes’ liability exceed the
original cost of the purchased kit. Fur ther, Great Planes reserves the right to change or modify this warranty without notice.

In that Great Planes has no control over the final assembly or material used for final assembly, no liability shall be assumed nor accepted for
any damage resulting from the use by the user of the final user-assembled product.By the act of using the user-assembled product, the user
accepts all resulting liability.

If the buyer is not prepared to accept the liability associated with the use of this product, the buyer is advised to return this kit
immediately in new and unused condition to the place of purchase.

To make a warranty claim send the defective part or item to Hobby Services at the address below:

Hobby Services

3002 N. Apollo Dr., Suite 1

Champaign, IL 61822

USA

Include a letter stating your name, return shipping address, as much contact information as possible (daytime telephone number, fax number,
e-mail address), a detailed description of the problem and a photocopy of the purchase receipt. Upon receipt of the package the problem will
be evaluated as quickly as possible.

READ THROUGH THIS MANUAL BEFORE STARTING
CONSTRUCTION.IT CONT AINS IMPOR T ANT INSTR UCTIONS
AND WARNINGS CONCERNING THE ASSEMBLY AND
USE OF THIS MODEL.

GPMZ0195 for GPMA1062 V1.0Entire Contents © Copyright 2006

Champaign, Illinois

[phone], Ext 5

[e-mail]

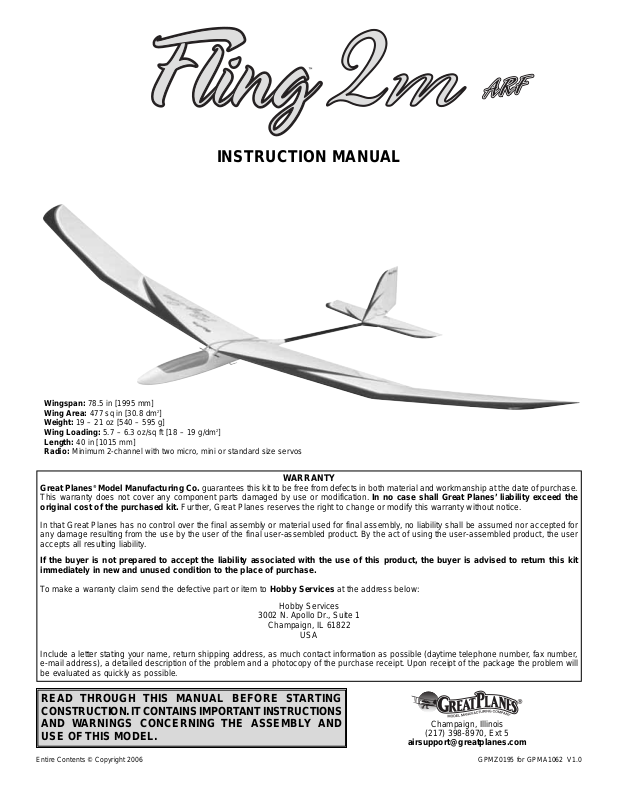

INSTRUCTION MANUAL

Wingspan: 78.5 in [1995 mm]
Wing Area: 477 sq in [30.8 dm2]
Weight: 19 – 21 oz [540 – 595 g]
Wing Loading: 5.7 – 6.3 oz/sq ft [18 – 19 g/dm2]
Length: 40 in [1015 mm]
Radio: Minimum 2-channel with two micro, mini or standard size servos

™

2

INTRODUCTION ...............................................................2

AMA...................................................................................2

SAFETY PRECAUTIONS..................................................2

DECISIONS YOU MUST MAKE........................................3

Radio Equipment .........................................................3

ADDITIONAL ITEMS REQUIRED.....................................3

Adhesives & Building Supplies....................................3

Optional Supplies & Tools ...........................................4

IMPORTANT BUILDING NOTES ......................................4

ORDERING REPLACEMENT PARTS ..............................4

COMMON ABBREVIATIONS............................................4

METRIC CONVERSIONS .................................................4

KIT INSPECTION..............................................................5

KIT CONTENTS ................................................................5

ASSEMBLY INSTRUCTIONS ...........................................6

Canopy Removal.........................................................6

Assemble the Wing......................................................6

Assemble the Tail ........................................................7

Install the Servos & Pushrods.....................................8

Final Installation & C.G..............................................10

Apply the Decals .......................................................11

GET THE MODEL READY TO FLY .................................11

Check the Control Directions ....................................11

Set the Control Throws..............................................11

PREFLIGHT.....................................................................12

Identify Your Model ....................................................12

Charge the Batteries .................................................12

Range Check.............................................................12

AMA SAFETY CODE (excerpts)....................................12

General......................................................................12

Radio Control ............................................................12

CHECK LIST ...................................................................13

FLYING ............................................................................13

Mount the Wing.........................................................13

Preparations..............................................................14

Tr im Flights................................................................14

First Flights ................................................................14

Your First Hi-Star t Launch.........................................14

THERMAL FLYING..........................................................15

Facts About Thermals ...............................................15

Thermal Soaring ........................................................15

Slope Soaring....................................Back Cover Page

Slope Landing ....................................Back Cover page

The Fling™2M ARF is a great way to have fun and try your
hand at R/C soaring flight.The Fling 2M ARF has few parts.
Assembly is quick and easy, and you’ll get to the flying field
fast, whether it is a sports park or a larger flying site. The
Fling 2M ARF can be hand-launched for low-level thermal
hunting fun, or you can use a 2-meter type hi-start and send
your Fling 2M ARF to higher soaring flights. Have a friend
get a Fling 2M ARF too, and you can have “first up / last
down” contests or compete against each other trying to land

the Fling 2M ARF closest to a certain place, a spot landing!
Have fun with your new Fling 2M ARF!

For the latest technical updates or manual corrections to the
Fling 2M ARF visit the Great Planes web site at
www.greatplanes.com.Open the “Airplanes”link, and then
select the Fling 2M ARF. If there is new technical information
or changes to this model a “tech notice” box will appear in
the upper left corner of the page.

We urge you to join the AMA (Academy of Model
Aeronautics) and a local R/C club.The AMA is the governing
body of model aviation and membership is required to fly at
AMA clubs.Though joining the AMA provides many benefits,
one of the primary reasons to join is liability protection.
Coverage is not limited to flying at contests or on the club
field. It even applies to flying at public demonstrations and
air shows.Failure to comply with the Safety Code (excerpts
printed in the back of the manual) may endanger insurance
coverage.Additionally, training programs and instructors are
available at AMA club sites to help you get started the right
way. There are over 2,500 AMA chartered clubs across the
country. Contact the AMA at the address or toll-free phone
number below.

IMPORTANT!!! Two of the most important things you
can do to preserve the radio controlled aircraft hobby
are to avoid flying near full-scale aircraft and avoid
flying near or over groups of people.

1. Your Fling 2M ARF should not be considered a toy, but
rather a sophisticated, working model that functions very
much like a full-size airplane. Because of its performance
capabilities, the Fling 2M ARF, if not assembled and
operated correctly, could possibly cause injury to yourself or
spectators and damage to property.

2. You must assemble the model according to the
instructions. Do not alter or modify the model, as doing so
may result in an unsafe or unflyable model. In a few cases

PRO TECT YOUR MODEL,YOURSELF

& OTHERS...FOLLOW THESE

IMPORTANT SAFETY PRECAUTIONS

Academy of Model Aeronautics

5151 East Memorial Drive

Muncie, IN 47302

Tele: [phone]

Fax [phone]

Or via the Internet at:

http://www.modelaircraft.org

AMA

INTRODUCTION

TABLE OF CONTENTS

the instructions may differ slightly from the photos.In those
instances the written instructions should be considered
as correct.

3.You must take time to build straight, true and strong.

4. You must use an R/C radio system that is in first-class
condition, and correctly sized components (batteries,
hardware, etc.) throughout the building process.

5.You must correctly install all R/C and other components so
that the model operates correctly on the ground and in the air .

6.You must check the operation of the model before every
flight to insure that all equipment is operating and that the
model has remained structurally sound. Be sure to check
clevises or other connectors often and replace them if they
show any signs of wear or fatigue.

7. If you are not an experienced pilot or have not flown this
type of model before, we recommend that you get the
assistance of an experienced pilot in your R/C club for your
first flights.If you’ re not a member of a club, your local hob by
shop has information about clubs in your area whose
membership includes experienced pilots.

8. WARNING: The fuselage included in this kit is made of
fiberglass, the fibers of which may cause eye, skin and
respiratory tract irritation. Never blow to remove fiberglass
dust, as the dust will blow back into your eyes.Always wear
safety goggles, a particle mask and rubber gloves when
grinding, drilling and sanding fiberglass parts. Vacuum the
parts and the work area thoroughly after working with
fiberglass parts.

Remember:Take your time and follow the instructions to
end up with a well-built model that is straight and true.

This is a partial list of items required to finish the Fling 2M ARF
that may require planning or decision making before starting to
build.Order numbers are provided in parentheses.

If purchasing a complete system, the Futaba®3FR single
stick, 3-channel transmitter with R114ZH mini receiver and
two S3003 standard servos is recommended (FUTJ52**).

Replace the “**” with the channel number you wish to order.
(For example, if you wish to order a system on channel 44,
order FUTJ5244).

The 3FR does not come with the battery needed for the
Fling 2M ARF.The Great Planes 4.8V 350mAh NiMH battery
is best suited for this plane and is recommended.

If you are purchasing your components separately, refer to
the following list for guidelines or ordering numbers.

• Any 2-channel (or more) 72 MHz FM transmitter, such
as the Futaba 3FR (FUTJ52**)

• Great Planes ElectriFly™4-channel mini receiver w/o
crystal (GPML0044 for low band, GPML0045 for high
band) or similar lightweight micro receiver.

• Low band receiver crystal for Great Planes mini
receivers (channels 11 to 35, FUTL62**)

• High band receiver crystal for Great Planes mini
receivers (channels 36 to 60, FUTL63**)

• (2) Micro servos, such as the Futaba S3101 micro
precision servos (FUTM0033)

-or-

• (2) Standard servos, such as the Futaba S3003
servo (FUTM0031)

• Great Planes 4.8V 350mAh NiMH receiver
battery (GPMP0950)

• Hobbico®6" [153 mm] Command Extension with Futaba
J-connectors (HCAM2000) (for battery to receiver connection)

Note: An on/off receiver switch is not used. When ready to
fly, the battery is simply connected to the receiver.

This is the list of hardware and accessories required to finish the
Fling 2M ARF. Order numbers are provided in parentheses.

❏ Up-Start 2m (up to 200' launches at sites with 300' or

more launch area) (DYFP8305)

❏ Great Planes Pro

™

30-minute epoxy (GPMR6047) or

Great Planes Pro 6-minute epoxy (GPMR6042)

❏ Hobbico #1 Hobby knife (HCAR0105)
❏ Hobbico #11 Blades (5-pack, HCAR0211)
❏ Hobbico 1/4" [6 mm] R/C foam rubber – (HCAQ1000)
❏ 3/32" [2.4 mm] Drill bit
❏ Great Planes stick-on segmented lead weights (GPMQ4485)

Adhesives and Building Supplies

ADDITIONAL ITEMS REQUIRED

Radio Equipment

DECISIONS YOU MUST MAKE

We, as the kit manuf acturer, provide you with a top quality ,
thoroughly tested kit and instructions, but ultimately the
quality and flyability of your finished model depends on
how you build it; therefore, we cannot in any way
guarantee the performance of your completed model, and
no representations are expressed or implied as to the
performance or safety of your completed model.

3

Here is a list of optional tools mentioned in the manual that
will help you build the Fling 2M ARF.

❏ Great Planes Plan Protector

™

(GPMR6167) or wax paper

❏ Great Planes 2 oz.[57 g] Spray CA activator (GPMR6035)
❏ Great Planes mixing cups (GPMR8056)
❏ Great Planes epoxy brushes (6, GPMR8060)
❏ Hobbico builder’s tr iangle set (HCAR0480)
❏ Great Planes Threadlocker

™

thread-locking

cement (GPMR6060)

❏ Denatured alcohol (for epoxy clean up)
❏ Top Flite

®

Panel Line Pen (TOPQ2510)

❏ Hobbico Z-bend pliers (HCAR2000)
❏ Great Planes AccuThrow

™

deflection gauge (GPMR2405)

❏ Great Planes CG Machine

™

(GPMR2400)

• Whenever just

epoxy

is specified you may use either
30-minute (or 45-minute) epoxy or 6-minute epoxy. When
30-minute epoxy is specified it is highly recommended that
you use only 30-minute (or 45-minute) epoxy, because you
will need the working time and/or the additional strength.

•

Photos

and

sketches

are placed before the step they
refer to. Frequently you can study photos in following steps
to get another view of the same parts.

• The stabilizer and wing incidences have been factory­built into this model. However, some technically-minded
modelers may wish to check these measurements anyway.
To view this information visit the web site at
www.greatplanes.com and click on “Technical Data.” Due
to manufacturing tolerances which will hav e little or no effect
on the way your model will fly, please expect slight
deviations between your model and the published values.

Replacement parts for the Great Planes Fling 2M ARF are
available using the order numbers in the Replacement Parts
List that follows.The fastest, most economical service can be
provided by your hobby dealer or mail-order company.

To locate a hobby dealer, visit the Hobbico web site at
www.hobbico.com. Choose “Where to Buy” at the bottom
of the menu on the left side of the page. Follow the
instructions provided on the page to locate a U.S., Canadian
or International dealer.

Parts may also be ordered directly from Hobby Services by
calling [phone], or via facsimile at [phone],
but full retail prices and shipping and handling charges will

apply. Illinois and Nevada residents will also be charged
sales tax. If ordering via fax, include a Visa®or MasterCard

®

number and expiration date for payment.
Mail parts orders and payments by personal check to:

Hobby Services

3002 N. Apollo Drive, Suite 1

Champaign, IL 61822

Be certain to specify the order number exactly as listed in
the Replacement Parts List. Payment by credit card or
personal check only; no C.O.D.

If additional assistance is required for any reason contact Product
Support by e-mail at [e-mail], or by
telephone at [phone].

Replacement Parts List

Order Number Description How to Purchase

Missing pieces Contact Product Support
Instruction manual Contact Product Support

Full-size plans Not available
GPMA2715 Wing Set Contact Hobby Supplier
GPMA2716 Fuselage Contact Hobby Supplier
GPMA2717 Tail Set Contact Hobby Supplier
GPMA2718 Canopy Contact Hobby Supplier
GPMA2719 Decal Sheet Contact Hobby Supplier

Fuse = Fuselage

Stab = Horizontal Stabilizer

Fin = Ver tical Fin

LE = Leading Edge

TE = Trailing Edge
LG = Landing Gear
Ply = Plywood

" = Inches

mm = Millimeters

SHCS = Socket Head Cap Screw

1" = 25.4 mm (conversion factor)

METRIC CONVERSIONS

COMMON ABBREVIATIONS

ORDERING REPLACEMENT PARTS

IMPORTANT BUILDING NOTES

Optional Supplies and Tools

4

1/64" = .4 mm
1/32" = .8 mm
1/16" = 1.6 mm
3/32" = 2.4 mm

1/8" = 3.2 mm
5/32" = 4.0 mm
3/16" = 4.8 mm

1/4" = 6.4 mm

3/8" = 9.5 mm

1/2" = 12.7 mm

5/8" = 15.9 mm

3/4" = 19.0 mm

1" = 25.4 mm
2" = 50.8 mm
3" = 76.2 mm

6" = 152.4 mm
12" = 304.8 mm
18" = 457.2 mm
21" = 533.4 mm
24" = 609.6 mm
30" = 762.0 mm
36" = 914.4 mm

55

Before starting to build, take an inventory of this kit to make sure it is complete, and inspect the parts to make sure they
are of acceptable quality. If any parts are missing or are not of acceptable quality, or if you need assistance with assembly ,
contact Product Support. When reporting defective or missing parts, use the part names exactly as they are written in
the Kit Contents list.

Great Planes Product Support

3002 N. Apollo Drive, Suite 1

Champaign, IL 61822

Telephone: [phone], ext. 5

Fax:[phone]

E-mail: [e-mail]

KIT INSPECTION

1. Left Wing Panel

2. Right Wing Panel

3. 40"

[1016 mm] Pushrods (2)

4. Rubber Bands

5. TE Support

6. Aluminum Wing Joiner Plates (2) &
Hardwood Wing Joiner Plates (2)

7. Carbon Fiber Wing Dowels (2)

8. Tow Hook

9. Stab

10. Fuselage

11. Canopy

12. Fin

13. Plastic Tail Skid Halves (2)

Parts Not Shown

Nylon Control Horns & Backplates (2)
2 x 1/2" [13 mm] Machine Screws (2)
1/16" [1.6 mm] Wheel Collar
#2 Lock Nut
#2 Nuts (2)
#2 Flat Washers (2)

Kit Contents

KIT CONTENTS

1

4

3

9

10

13

11

2

7

5

6

12

8
