Great Plains YP4025F-1670 Operator Manual

Download

Page 1

Table of Contents Index

YP4010HD, YP4025 and YP4025F

40 Foot 3-Section Yield-Pro® Planter

Operator Manual

Manufacturing, Inc.

www.greatplainsmfg.com

Read the operator manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception. Your life and the lives of others depend on it!

29162

Illustrations may show optional equipment not supplied with standard unit or may depict similar models where a topic is identical.

ORIGINAL INSTRUCTIONS

Table of Contents Index

Page 2

Table of Contents Index

Page 3

Great Plains Manufacturing, Inc. Cover Index iii

Important Safety Information......................................1

Introduction ................................................................13

Models Covered...........................................................13

Document Family......................................................13

Description of Unit........................................................13

Intended Usage........................................................14

Using This Manual........................................................14

Definitions.................................................................14

Owner Assistance ........................................................15

Product Support .......................................................15

Preparation and Setup...............................................16

Initial Setup...................................................................16

Seasonal Setup............................................................16

Pre-Planting Setup.......................................................16

Hitching Tractor to Planter............................................17

Hitching with 3-Point.................................................17

Hitching with Hydraulic Tongue (Option)..................18

Raising/Lowering Tongue.........................................18

Local Float on Hydraulic Tongue..............................18

Hydraulic Hose Hookup................................................19

Protecting Fan Hydraulic Motor Seals......................20

Electrical Hookup .........................................................21

Parking Stands.............................................................22

Tank Cart Hitching....................................................23

Making Fertilizer Connections..................................23

Heights and Leveling....................................................23

Set Tongue Height ...................................................24

Checking Planter Height...........................................24

Marker Setup................................................................25

Lock Up Fertilizer Drive................................................25

Operating Instructions...............................................26

Pre-Start Checklist .......................................................26

Unfolding The YP40 Planter.........................................27

Raising/Lowering Planter .............................................29

Raising Planter.........................................................30

Lowering Planter ......................................................30

Lift Cylinder Lock-Up................................................31

Re-Phasing Lift System............................................31

Local Float on Hydraulic Tongue..............................31

Folding the YP40 Planter .............................................32

Re-phasing Fold System..........................................34

Transporting the Planter...............................................35

Typical YP40 Planter Weights..................................35

Transport Checklist...................................................36

Caster Locks - Field Operations...............................36

Field Set-Up Checklist ................................................. 36

Field Operation ............................................................ 39

Marker Unfolding..........................................................40

Marker Unfold (one side)..........................................40

Row Marker Operation............................................. 41

Folding the Markers .................................................41

Unusual Marker Operations.....................................41

Monitor Operation........................................................41

Planting........................................................................41

Electric Clutch Operation.............................................42

Y-Tubes ....................................................................... 42

Electric Clutch Lock-Up............................................43

Airbox Operation..........................................................44

Fan Operation..........................................................44

Walkboard and Ladder.................................................45

Loading Materials (YP4025F only)...............................46

Loading Seed........................................................... 46

Loading Fertilizer......................................................47

82 bu. Hopper Operation ............................................. 48

150 bu. Hopper Operation...........................................49

Changing the Seed Box or Hopper..............................50

Checking Planting Rate ............................................... 51

Auxiliary Hydraulics......................................................52

Fertilizer Tanks (Option) .............................................. 53

Trailer Operations........................................................54

Short-Term Parking......................................................55

Long-Term Storage......................................................56

Fertilizer System Clean-Out.........................................57

Problem Fertilizer Clean-Outs..................................57

Adjustments ...............................................................58

Height Switch Adjustment............................................59

Marker Adjustments.....................................................60

Marker Disk Adjustment........................................... 61

Fan Adjustments..........................................................61

Liquid Fertilizer Setup..................................................62

Ground Drive Pump .................................................63

Liquid Fertilizer Strainer(s)...................................63

Fertilizer Relief Valve...............................................64

Fertilizer Orifice Plates............................................. 64

Frame-Mounted Row Accessories...............................65

Terra-Tine™ Adjustments........................................ 65

Frame-Mounted Coulter Adjustments......................66

Vantage I Fertilizer Adjustments..............................66

Great Plains Manufacturing, Inc. provides this publication “as is” without warrantyofanykind,eithere xpressedorimplied.Whilee v ery precaution has been takeninthe preparation ofthismanual, Great PlainsManufacturing,Inc. assumes noresponsibilityfor errors oromissions.Neither is anyliabilityassumed for damages resultingfromtheuse of the information containedherein.Great Plains Manufacturing, Inc. reservestherightto revise and improveits products as it sees fit. This publication describes the state of this product atthetimeofitspublication,andmay not reflect the product in the future.

2014-09-08 Cover Index 401-571M

Trademarks of Great PlainsManufacturing, Inc. include: Singulator Plus, SwathCommand, Terra-Tine.

Registered Trademarks of GreatPlains Manufacturing, Inc. include:

Air-Pro, Clear-Shot,Discovator,Great Plains, Land Pride, MeterCone, Nutri-Pro,Seed-Lok,Solid Stand,

Terra-Guard, Turbo-Chisel,Turbo-Chopper, TurboMax, Turbo-Till,Ultra-Till,Verti-Till, Whirlﬁlter, Yield-Pro.

Brand and Product Namesthat appear and are owned by othersare trademarks of their respective owners.

Printed in the United States of America

Page 4

iv YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

10HD Series Row Adjustments....................................67

25 Series Row Unit Adjustments ................................. 68

Opener Depth ..........................................................69

10HDP Opener Depth.......................................... 69

25P Opener Depth...............................................69

Row Unit Down Pressure......................................... 70

10HDP Series Down-Pressure............................. 70

Adjusting Row Unit Down Force .......................... 71

25P Series Down-Pressure..................................72

Row Unit Shut Off ....................................................74

Seed Shut Off....................................................... 74

Row Unit Lock-Up................................................74

Disengage Meter..................................................75

Unit-Mount Cleaner Adjustments.............................75

Unit-Mounted Coulter Adjustments..........................76

Coulter Depth Adjustment....................................76

Coulter Row Alignment ........................................ 77

Row-Unit Opener Disk Adjustments.........................77

Opener Disc Contact Region ............................... 78

Adjusting Disc Contact......................................... 78

Side Gauge Wheel Adjustment................................ 78

Gauge Wheel Scraper Adjustments......................... 80

25 Series Side Gauge Wheel Scrapers ............... 80

Seed Meter Setup and Adjustment..........................81

10HD, 25P Meter Removal..................................81

10HD, 25P Meter Wheel Replacement................83

Meter Installation..................................................84

10HD, 25P Finger Meter Adjustments ................. 85

Finger Meter Brush Adjustment ........................... 85

Finger Meter Inserts............................................. 86

Sunflower Meter Configurations...........................86

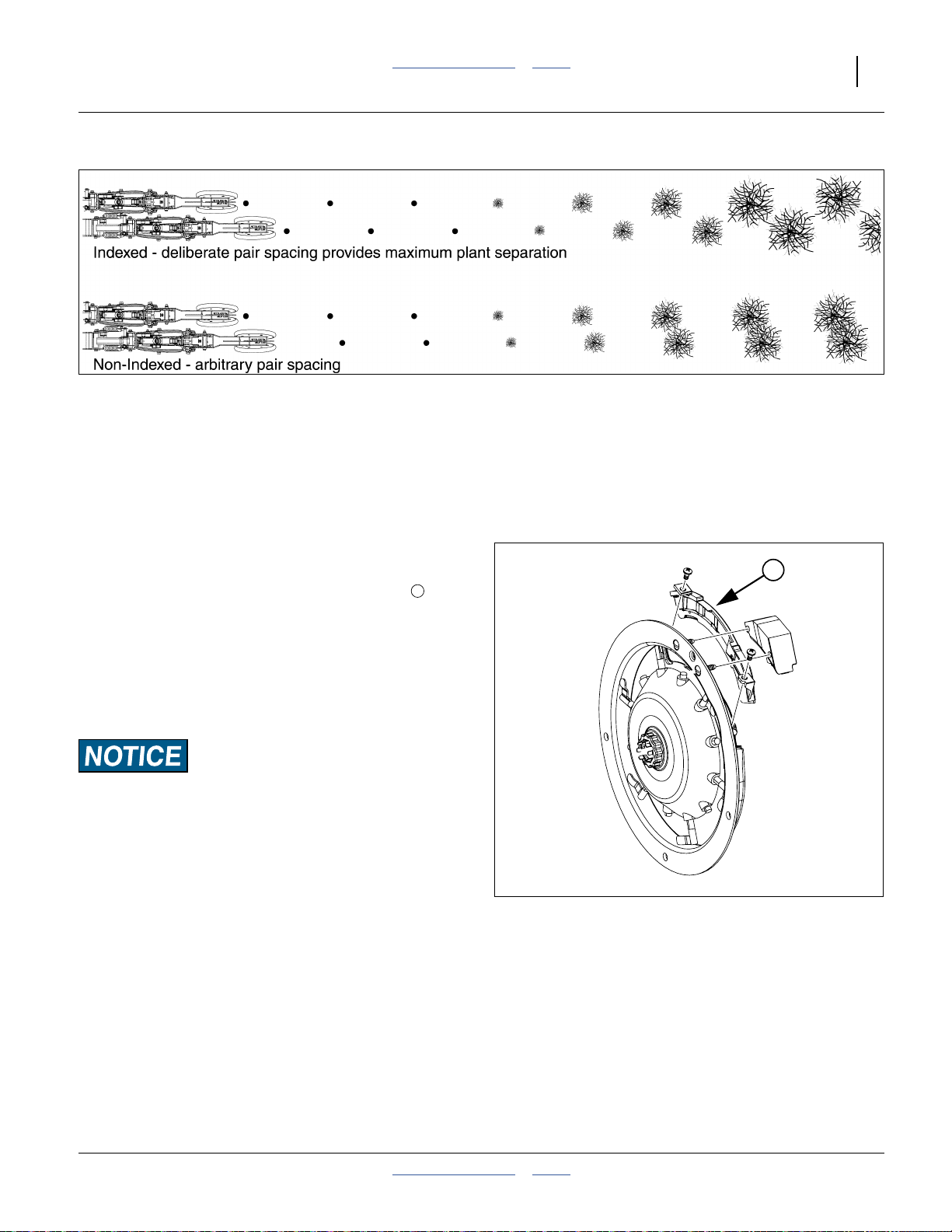

Sprocket Indexing (Stagger) ................................ 87

Finger Meter Inserts............................................. 87

Seed Firmer Adjustments ........................................88

Keeton® Seed Firmer Adjustment........................ 88

Seed-Lok® Seed Firmer Lock-Up ........................88

Press Wheel Adjustment.......................................... 89

25P Series Press Wheel Adjustment...................89

Press Wheel Down Pressure...............................89

Press Wheel Stagger...........................................90

Press Wheel Centering........................................90

Troubleshooting......................................................... 91

General Troubleshooting ............................................. 91

Airbox Troubleshooting................................................ 94

Maintenance and Lubrication...................................95

Maintenance ................................................................ 95

Bleeding Hydraulics.....................................................96

Marker Shear Bolt Replacement..................................98

Wing Leveling .............................................................. 98

Cleaning Out Meters...................................................101

Cleaning Out Air System............................................102

Chain Maintenance.....................................................103

Meter Drive Chain.......................................................103

Meter Maintenance.....................................................104

Finger Pickup Meter Maintenance..........................104

Finger Set Inspection..........................................104

Finger Meter Re-Assembly Steps.......................104

Precautions.........................................................104

Population Max™ Annual Maintenance..............105

Population Max™ Installation.............................105

Skip Stop™ Annual Maintenance.......................106

Skip Stop™ Installation.......................................106

Exchanging Finger Sets..........................................107

Install Corn Finger Set........................................110

Spreaders and Scrapers.............................................111

25P Row-Unit Side Wheels........................................111

Seed Flap Replacement (s/n B1025A+) ....................112

Seed Flap Replacement (s/n B1024A-) .....................112

Fertilizer System Maintenance ..................................113

Lubrication..................................................................114

Seed Lubricants......................................................125

Options......................................................................126

Appendix A - Reference Information ......................141

Specifications and Capacities.....................................141

YP4010HD Specifications and Capacities..............141

YP4025 Domestic Specifications and Capacities...142

YP4025 Export Specifications and Capacities........143

Tire Inflation Chart......................................................144

Marker Extension........................................................145

Hydraulic Diagrams....................................................146

Chain Routing.............................................................153

Chain Routing YP4025F.............................................156

Seed Hose Routing ....................................................161

Torque Values Chart ..................................................168

Appendix B - Initial and Option Setup....................169

Pre-Delivery................................................................169

Initial Setup.................................................................171

Hopper Level Sensor Installation............................172

Appendix C - Option Installation.............................174

YP4010HDP-3215 3-Point Hitch.............................174

122-278S Scraper Installation ................................176

Appendix R - Row Pro..............................................177

Warranty.....................................................................184

Index ..........................................................................185

401-571M Table of Contents Index 2014-09-08

Page 5

Great Plains Manufacturing, Inc. Table of Contents Index 1

Important Safety Information

Look for Safety Symbol

The SAFETY ALERT SYMBOL indicates there is a potential hazard to personal safety involved and extra safety precaution must be taken. When you see this symbol, be alert and carefully read the message that follows it. In addition to design and conﬁguration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.

Be Aware of Signal Words

Signal words designate a degree or level of hazard seriousness.

DANGER indicates an imminently hazardous situation which, if not avoided, will resultin death or serious injury. This signal word is limitedtothe most extreme situations, typically for machine components that, for functional purposes, cannot be guarded.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury, and includes hazards that are exposed when guards are removed.It may also be used to alert against unsafe practices.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices.

Prepare for Emergencies

▲ Be prepared if a ﬁre starts ▲ Keep a ﬁrst aid kit and ﬁre extinguisher handy. ▲ Keep emergency numbers for doctor, ambulance, hospital

and ﬁre department near phone.

000 112 911 999

Be Familiar with Safety Decals

▲ Read and understand “Safety Decals” on page 6,

thoroughly.

▲ Read all instructions noted on the decals. ▲ Keep decals clean. Replace damaged, faded and illegible

decals.

2014-09-08 Table of Contents Index 401-571M

Page 6

2 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Wear Protective Equipment

▲ Wear protective clothing and equipment. ▲ Wear clothingand equipment appropriate for the job. Avoid

loose-ﬁtting clothing.

▲ Because prolonged exposure to loud noise can cause

hearing impairment or hearing loss, wear suitable hearing protection such as earmuffs or earplugs.

▲ Because operating equipment safely requires your full

attention, avoid wearing entertainment headphones while operating machinery.

Handle Chemicals Properly

Agricultural chemicals can be dangerous. Improper use can seriously injure persons, animals, plants, soil and property.

▲ Read and follow chemical manufacturer’s instructions. ▲ Wear protective clothing. ▲ Handle all chemicals with care. ▲ Avoid inhaling smoke from any type of chemical ﬁre. ▲ Store or dispose of unused chemicals as speciﬁed by

chemical manufacturer.

Use A Safety Chain

(Optional hydraulic hitch only. 3-Point has no chain.)

▲ Use a safety chain to help control drawn machinery should

it separate from tractor draw-bar.

▲ Use a chain with a strength rating equal to or greater than

the gross weight of towed machinery.

▲ Attach chain to tractor draw-bar support or other speciﬁed

anchor location. Allow only enoughslackin chain to permit turning.

▲ Replace chain if any links or end ﬁttings are broken,

stretched or damaged.

▲ Do not use safety chain for towing.

Avoid High Pressure Fluids

Escaping ﬂuid under pressure can penetrate the skin, causing serious injury.

▲ Avoidthe hazard by relieving pressure before disconnecting

hydraulic lines.

▲ Use a piece of paper or cardboard, NOT BODY PARTS, to

check for suspected leaks.

▲ Wear protective gloves and safety glasses or goggles when

working with hydraulic systems.

▲ If an accident occurs, seek immediate medical assistance

from a physician familiar with this type of injury.

401-571M Table of Contents Index 2014-09-08

Page 7

Great Plains Manufacturing, Inc. Table of Contents Index Important Safety Information 3

Tire Safety

Tire changing can be dangerous and should be performed by trained personnel using correct tools and equipment.

▲ When inﬂating tires, use a clip-on chuck and extension hose

long enough for you to stand to one side–not in front of or over tire assembly. Use a safety cage if available.

▲ When removing and installing wheels, use wheel-handling

equipment adequate for weight involved.

Use Safety Lights and Devices

Slow-moving tractors and towed implements can create a hazard when driven on public roads. They are difﬁcult to see, especially at night.

▲ Use ﬂashing warning lights and turn signals whenever

driving on public roads.

Use lights and devices provided with implement

Keep Riders Off Machinery

Riders obstruct the operator’s view. Riders could be struck by foreign objects or thrown from the machine.

▲ Never allow children to operate equipment. ▲ Keep all bystanders away from machine during operation.

2014-09-08 Table of Contents Index 401-571M

Page 8

4 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Transport Machinery Safely

Maximum transport speed for implement is 20 mph (32 kph), 13 mph (22 kph) in turns. Some rough terrains require a slower speed. Sudden braking can cause a towed load to swerve and upset.

▲ Do not exceed 20 mph. Never travel at a speed which does

not allow adequate controlof steering and stopping. Reduce speed if towed load is not equipped with brakes.

▲ Comply with state and local laws. ▲ Do not tow an implement that, when fully loaded, weighs

more than 1.5 times the weight of towing vehicle.

▲ Carry reﬂectors or ﬂags to mark planter in case of

breakdown on the road.

▲ Keep clear of overhead power lines and other obstructions

when transporting. Refer to transport dimensions under “Speciﬁcations and Capacities” on page 141.

▲ Do not foldor unfold the planter while the tractor is moving

Shutdown and Storage

▲ Lower planter, put tractor in park, turn off engine, and

remove the key.

▲ Secure planter using blocks and supports provided. ▲ Detach and store planter in an area where children

normally do not play.

401-571M Table of Contents Index 2014-09-08

Page 9

Great Plains Manufacturing, Inc. Table of Contents Index Important Safety Information 5

Practice Safe Maintenance

▲ Understand procedure before doing work. Use proper

tools and equipment. Refer to this manual for additional information.

▲ Work in a clean, dry area. ▲ Lower the planter, put tractorin park, turn off engine, and

remove key before performing maintenance.

▲ Make sure all moving parts have stopped and all system

pressure is relieved.

▲ Allow planter to cool completely. ▲ Disconnect battery ground cable (-) before servicing or

adjusting electrical systems or before welding on planter.

▲ Inspect all parts. Make sure parts are in good condition

and installed properly.

▲ Remove buildup of grease, oil or debris. ▲ Remove all tools and unused parts from planter before

operation.

Safety At All Times

Thoroughly read and understand the instructions in this manual before operation. Read all instructions noted on the safety decals.

▲ Be familiar with all planter functions. ▲ Operate machinery from the driver’s seat only. ▲ Do not leave planter unattended with tractor engine

running.

▲ Do not stand between the tractor and planter during

hitching.

▲ Keep hands, feet and clothing away from power-driven

parts.

▲ Wear snug-ﬁtting clothing to avoid entanglement with

moving parts.

▲ Watch out for wires, trees, etc., when folding and raising

planter. Make sure all persons are clear of working area.

2014-09-08 Table of Contents Index 401-571M

Page 10

6 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Safety Decals

Safety Reﬂectors and Decals

Your implement comes equipped with all lights, safety reﬂectors and decals in place. They were designed to help you safely operate your implement.

▲ Read and follow decal directions. ▲ Keep lights in operating condition. ▲ Keep all safety decals clean and legible. ▲ Replace all damaged or missing decals. Order new decals

from your Great Plains dealer. Refer to this section for proper decal placement.

▲ When ordering new parts or components, also request

corresponding safety decals.

818-055C

To install new decals:

1. Clean the area on which the decal is to be placed.

2. Peel backing from decal. Press ﬁrmly on surface,

being careful not to cause air bubbles under decal.

Slow Moving Vehicle Reﬂector

On the back of the walkboard platform; 1 total

838-266C

Red Reﬂectors

On rear face of axle (below Daytime reﬂectors); two total

29164

401-571M Table of Contents Index 2014-09-08

Page 11

Great Plains Manufacturing, Inc. Table of Contents Index Important Safety Information 7

838-267C

Daytime Reﬂectors

On rear face of axle (above Red reﬂectors); two total

29164

838-265C

Amber Reﬂectors

On the front of the center section front lower tool bars, on the rear of the wing tool bars, and on the sides of the seed box frame; six total.

29164

2014-09-08 Table of Contents Index 401-571M

Page 12

8 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

818-557C

Danger (in Spanish):

Advising non-English readers to seek translation On side of tongue; one total

29164

818-590C

Danger: Crushing Hazard

Top center of 3-point hitch; one total (not present with hydraulic tongue option)

838-599C

Danger: Electrocution Hazard

One each side of marker upright arm, each side; four total

29164

401-571M Table of Contents Index 2014-09-08

Page 13

Great Plains Manufacturing, Inc. Table of Contents Index Important Safety Information 9

818-045C

Warning: Pinch/Crush

On front faces of rockshaft, above gauge wheels, On inside and outside face, wing caster weldments, On side face of rear axle weldment; eight total

818-188C

WARNING

EXCESSIVE SPEED HAZARD

To Prevent Serious Injury or Death:

Do Not exceed 20 mph maximum transport speed. Loss of vehicle control and/or machine can result.

Warning: Speed

On side of tongue, one total

818-188C Rev. C

29164

2014-09-08 Table of Contents Index 401-571M

Page 14

10 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

818-579C

Warning: Pinch/Shear Hazard

Front and rear faces of inner marker arms; four total

29164

818-580C

Warning: Overhead Marker

Front and rear faces of inner marker arms; four total

838-094C

Warning: High Pressure Fluid

On side of tongue at hitch; one total

29164

401-571M Table of Contents Index 2014-09-08

Page 15

Great Plains Manufacturing, Inc. Table of Contents Index Important Safety Information 11

818-351C

Caution: Transport Locks

Hitch tongue; one total

29164

818-398C

Caution: Tires Not A Step

One front face each wing gauge wheel, One each side front center axle, One each rear face of rear caster arms; 8 total

818-587C

29164

Caution: Read Operator’s Manual

On center tool bar; one total

2014-09-08 Table of Contents Index 401-571M

29164

Page 16

12 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

838-426C

Caution: Pressure and Torque

On outside rim each transport tire; 10 total

29164

401-571M Table of Contents Index 2014-09-08

Page 17

Great Plains Manufacturing, Inc. Table of Contents Index 13

Introduction

Great Plains welcomes you to its growing family of new product owners. The 40 Foot 3-Section Yield-Pro Planter (YP40 Planter) has been designed with care and built by skilled workers using quality materials. Proper setup, maintenance, and safe operating practices will help you get years of satisfactory use from the machine.

Models Covered

YP4010HDP-481010HD Series, 48-Row, 10 in. (25 cm) YP4010HDP-607510HD Series, 60-Row, 7.5 in. (19 cm) YP4025-1630 25 Series, 16-Row, 30 in. (76 cm) YP4025-1670 25 Series, 16-Row, 70 cm (27.5 in.) YP4025-2420 25 Series, 24-Row, 20 in. (51 cm) YP4025-3115 25 Series, 31-Row, 15 in. (38 cm) YP4025-3135 25 Series, 31-Row, 35 cm (13.8 in.) YP4025-3215 25 Series, 32-Row, 15 in. (38 cm) YP4025-32TR 25 Series, 32-Twin Row, 30 in. pairs YP4025-32TR70 25 Series, 32-Twin Row, 70 cm pairs YP4025-32TR75 25 Series, 32-Twin Row, 75 cm pairs YP4025-4810 25 Series, 48-Row, 10in. (25 cm) YP4025F-1670

a. Operation of the seed/fertilizer hopper supplied

with this model is covered in a separate manual, 403-362M.

25 Series, 16-Row, 70cm (27.5 in.)

R F

B L

Note: YP4025A modelswith Air-Pro®seed meters are

covered by adifferent set of manuals.

Document Family

401-571M Owner’s Manual (this document) 401-571B Seed Rate Charts 401-571P Parts Manual 403-362M 670/1440 liter seed/fertilizer hopper

DICKEY-john®IntelliAg® manuals: 110011440 10 in. Virtual Terminal Manual 110011508 Seed Monitor Manual Level 1 110011501 Seed Monitor Manual Level 2 & 3 110011499 YP40 30 in. and 70 cm Quick-Start guide 110011504 YP40 10 in. Quick-Start guide 110011532 YP40 20 in. Quick-Start guide 110011533 YP40 15 in. and 35 cm Quick-Start guide 110011535 YP40 7.5 in. Quick-Start guide 110011536 YP40 TR30 in. and TR70 cm QSG 11001-1126 hopper level sensor install

Figure 1

YP40 Planter

29162

Description of Unit

The YP40 Planter is a pull-type implement with optional mounted or pull-behind fertilizer capability. The YP40 offers three opener types and a wide variety of singulating and volumetric seed meters. It accepts optional unit mounted and frame-mounted row accessories. The YP40 Planter folds for transport.

10HD Series models support interchangeable seed meters, and offer the narrowest row spacing (7.5 in.), as well as 10 in. The 10HD opener is suitable for conventional till, min. till light no till, and with coulters; moderate no-till conditions.

25 Series support interchangeable seed metersandoffer single and twin-row spacings from 10 to 30 in. 25 Series is suitable for conventional till, minimum-till, light no-till conditions, and (with coulters) moderate no-till conditions.

2014-09-08 Table of Contents Index 401-571M

Page 18

14 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Intended Usage

Use the YP40 Planter to seed production-agriculture crops only. Do not modify the planter for use with attachments other than Great Plains options and accessories speciﬁed for use with the YP40 Planter.

Using This Manual

This manual will familiarize you with safety, assembly, operation, adjustments, troubleshooting, and maintenance. Read this manual and follow the recommendations to help ensure safe and efﬁcient operation.

The information in this manual is current at printing. Some parts may change to assure top performance.

Deﬁnitions

The following terms are used throughout this manual.

A crucial point of information related to the pr eceding topic. Read and follow the directions to r emain safe , avoid serious damage to equipment and ensure desired field results.

Note: Useful information relatedto the preceding topic. Right-hand and left-hand as used in

R F

B L

this manual are determined by facing the direction the machine will travel while in use unless otherwise stated. An orientation rose in some line art illustrations shows the directions of: Up, Back, Left, Down, Front, Right.

401-571M Table of Contents Index 2014-09-08

Page 19

Great Plains Manufacturing, Inc. Table of Contents Index Introduction 15

Owner Assistance

If you need customer service or repair parts, contact a Great Plains dealer. They have trained personnel, repair parts and equipment specially designed for Great Plains products.

Refer to Figure 2

Your machine’s parts were specially designed and should only be replaced with Great Plains parts. Always use the serial and model number when ordering parts from your Great Plains dealer.The serial-number plate is located on the left end of the seed cart tool bar.

Record your YP4010HD/YP4025/F model and serial number here for quick reference:

Model Number:__________________________ Serial Number: __________________________ Your Great Plains dealer wants you to be satisﬁed with

your new machine. If you do not understand any part of this manual orare not satisﬁedwith the service received, please take the following actions.

1. Discuss the matter with your dealership service

manager.Make sure they areawareof any problems so they can assist you.

2. If you are still unsatisﬁed, seek out the owner or

general manager of the dealership.

For further assistance write to:

Figure 2

Serial Number Plate

31467

Product Support

Great Plains Mfg. Inc., Service Department

Salina, KS 67402-5060

PO Box 5060

785-823-3276

2014-09-08 Table of Contents Index 401-571M

Page 20

16 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Preparation and Setup

This section helps you prepare your tractor and YP40 planter for use, and covers tasks that need to be done seasonally, or when the tractor/planter conﬁguration changes.

Before using theYP40 planter inthe ﬁeld, youmust hitch the planter to a suitable tractor, inspect systems and level the planter. Before using the planter for the ﬁrst time, and periodically thereafter, certain adjustments and calibrations are required.

Initial Setup

See “Appendix B - Initial and Option Setup” on page 169 for pre-delivery items (normally completed by dealer), and ﬁrst-time/infrequent setup tasks, including:

• Install seed monitor console in tractor (page 171).

Seasonal Setup

On initial delivery,use with anewtractor,and seasonally, check and as necessary, complete these items before continuing to the routine setup items:

• Bleed hydraulic system (page 96).

• Wing leveling and alignment (page 98).

• Radar calibration (page 172).

• De-grease exposed cylinder rods ifsoprotected at last storage.

Pre-Planting Setup

Complete this checklist before routine setup:

❑ Read and understand “Important Safety

Information” on page 1.

❑ Check that all working parts are moving freely, bolts

are tight, and cotter pins are spread.

❑ Check that all grease ﬁttings are in place and

lubricated. See “Lubrication” on page 114.

❑ Check that all safety decals and reﬂectors are

correctly located and legible. Replace if damaged. See “Safety Decals” on page 6.

❑ Inﬂate tires to pressure recommended and tighten

wheel bolts as speciﬁed. See “Tire Inﬂation Chart” on page 144.

401-571M Table of Contents Index 2014-09-08

Page 21

Great Plains Manufacturing, Inc. Table of Contents Index Preparation and Setup 17

Hitching Tractor to Planter

Crushing Hazard:

You may be severely injured or killed by being crushed between the tractor and planter. Do not stand or place any part of your body between planter and moving tractor. Stop tractor engine and set parking brake before attaching cables and hoses.

High Pressure Fluid Hazard:

Escaping ﬂuid under pressure can have sufﬁcient pressure to penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic lines. Use a piece of paper or cardboard, NOT BODY PARTS, to check for leaks. Wear protective gloves and safety glasses or goggles when working with hydraulic systems. If an accident occurs, seek immediate medical assistance from a physician familiar with this type of injury.

Hitching with 3-Point

Refer to Figure 3

1. If the planter is model YP4010HDP-3215 (“Even Row 15 in.”), check the conﬁguration of the hitch offset at “YP4010HDP-3215 3-Point Hitch” on page 174.

2. Connect your tractor 3-point to the planter 3-point hitch. If using quick hitch be sure planter locks into hitch securely.

3. Raise tractor 3-point enoughto relievepressure from parking stands.

Load Sway Risk:

Adjust 3-point hitch arms and sway blocks to minimize any side-to-side sway to assure proper tracking in the ﬁeld and safe road travel.

4. Connect hydraulic hoses to tractor remotes. See “Hydraulic Hose Hookup” on page 19.

5. Connect electrical cables. See “Electrical Hookup” on page 21.

6. Swing up and pin up 3-point stands. See “Storing 3-Point Parking Stands” on page 22.

7. Remove and store main tongue parking stand. See “Store Main Parking Stand” on page 22.

Figure 3

3-Point Hitching

21924

2014-09-08 Table of Contents Index 401-571M

Page 22

18 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Hitching with Hydraulic Tongue (Option)

Refer to Figure 4

1. Move the tractor to near hitching position.

2. Connect the hydraulic hoses for the tongue circuit. This needs to be done before hitching in order to raise and lower the tongue. See “Hydraulic Hose Hookup” on page 19. Allow slack for hitch movements. Close the tongue cylinder bypass valve.

3. Make electrical connections for at least the planter control circuit(necessary to control planter hydraulic systems). See page 21.

4. Check that hitch local bypass valve is closed.

Refer to Figure 5

5. Set the cab Clutch Folding Module Lift/Hitch switch

to Hitch.

6. Retract the Hitch/Lift circuit to set the tongue height to clear the draw-bar. Back the tractor intoalignment and pin the draw-bar.

7. Connect safety chain to a suitable anchor point on the tractor.

Figure 4

Hitching with Hydraulic Tongue

(Bypass Valve Closed)

28477

8. Connect all other hydraulic hoses.

9. Connect any remaining electrical cables, page 21.

10. Extend the Hitch/Lift circuit to raise the hydraulic tongue just enough to relieve pressure from the parking stand.

11. Remove and store main tongue parking stand. See “Store Main Parking Stand” on page 22.

Raising/Lowering Tongue

In addition to hitching, tongue raising and lowering is required during foldand unfold to engageand disengage the wing locks.

With the standard 3-point hitch, the planter tongue is raised and lowered by raising and lowering the 3-point.

With the optional hydraulic tongue, the planter tongue is raised by extending the hitch cylinder, and lowered by retracting the hitch cylinder.

Figure 5

Clutch Folding Module (Hitch)

Local Float on Hydraulic Tongue

Refer to Figure 25 on page 31

The hydraulic tongue must be in Float during planter transport.

If it is necessary to move the planter without ﬁrst connecting it to a tractor that has a ﬂoat-capable circuit for the hydraulic tongue,open the bypassvalve on the tongue cylinder. This provides local ﬂoating capability at the tongue.

26033

401-571M Table of Contents Index 2014-09-08

Page 23

Great Plains Manufacturing, Inc. Table of Contents Index Preparation and Setup 19

Hydraulic Hose Hookup

High Pressure Fluid Hazard:

Only trained personnel should work on system hydraulics!

Great Plains hydraulic hoses have color coded handle grips to help you hookup hoses to your tractor outlets. Hoses that go to the same remotevalve are markedwith the same color.

Current Style Color Coded Hose Handles

Color Hydraulic Function

Green Wing Fold / Marker Fold / Auxiliary Blue Lift / (and Hitch if hydraulic tongue) Black Fan Yellow Hydraulic Drive

Refer to Figure 6

To distinguish hoses on the same hydraulic circuit, refer to the symbol molded intothe handle grip. Hoses with an extended-cylinder symbol feed cylinder base ends. Hoses with a retracted-cylinder symbol feed cylinder rod ends.

For hydraulic fan and drive motors, connect the hose under the retracted cylinder symbol to the pressure side of the motor. Connect the hose under the extended cylinder symbol to the return side of the motor.

The fan motor further requires hookup of a (third) case drain line, which returns lubricating/cooling ﬂuid.

Figure 6

Color Coded Hose Handles

31733

2014-09-08 Table of Contents Index 401-571M

Page 24

20 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Older Style Hoses with Color Ties

Great Plains hydraulichoses are color coded to help you hookup hoses to your tractor outlets. Hoses that go to the same remote valve are marked with the same color tie.

Color Hydraulic Function

White Wing Fold / Marker Fold / Auxiliary Blue Lift / (and Hitch if hydraulic tongue) Orange Fan Yellow Hydraulic Drive

Refer to Figure 7

To distinguish hoses on the same hydraulic circuit, refer to plastic hose label. The hose under an extended-cylindersymbol feedsa cylinder base end.The hose under a retracted-cylinder symbol feeds a cylinder rod end.

The fan motor further requires hookup of a (third) case drain line, which returns lubricating/cooling ﬂuid.

Figure 7

Plastic Hose Label

27270

Protecting Fan Hydraulic Motor Seals

Low Pressure (Case) Drain Connection

Machine Damage Risk:

Case Drain Hose must be attached ﬁrst, prior to inlet and return hoses being connected.

Case Drain Hose must be detached last, to prevent damage to the fan motor.

1. Attach case drain hose to low pressure drain connection.

Note: Case drain hose must be hooked up ﬁrst and

unhooked last to prevent damage to hydraulic motor seals. It has thesmaller

⁄

in. I.D. hose and

small, ﬂat-face, connector.

2. Connect low pressure motor return hose to low pressure return connector. It is distinguished by a large (1.06 in./2.7 cm diameter) quick coupler.

Machine Damage Risk:

DO NOT connect the case drain line to a power-beyond-port.

3. Connect hydraulic hoses to tractor remotes.

401-571M Table of Contents Index 2014-09-08

Page 25

Great Plains Manufacturing, Inc. Table of Contents Index Preparation and Setup 21

Electrical Hookup

Refer to Figure 8

Make sure tractor isshut down with accessory power off before making connections.

1. Mate lighting connector to tractor outlet.

2. Mate monitor connector to tractor harness.

3. Mate any optional or aftermarket electrical connectors.

Make connections prior to planter movement. Some planter hydraulic circuits are under monitor control.

Figure 8

Connector Identiﬁcation

36051 25237 34694

2014-09-08 Table of Contents Index 401-571M

Page 26

22 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Parking Stands

Store Main Parking Stand

Refer to Figure 9

1. Raise the tractor hitch slightly to lift parking stands off ground.

2. Remove the lower pin and the upper pin holding the parking stand .

3. Movethe stand from under thetongue to an inverted position in the bracket on the left side on the tongue. Pin in place.

1 2

Storing 3-Point Parking Stands

Refer to Figure 10 (shown without tractor forclarity)

1. For the standard 3-point hitch, store the two forward stands by either of the following methods:

• Remove the top pin , swing the stand out, upand

vertical around the bottom pin , and re-insert the top pin , or

• Remove the bottom pin , swing the stand inward, to

a horizontal positional under the hitch, and insert the removed pin at hole under the stand.

Refer to Figure 9

2. Adjust the top link of a 3-point long enough so the ball swivel does not bottom out when fully raised.

3. Secure hoses so they do not get caught in ball swivel . Failure to do so could cause hose to be crushed requiring hose replacement.

7 6

Figure 9

Main Parking Stand Stored

29242

Figure 10

Storing 3-Point Stands

26034

401-571M Table of Contents Index 2014-09-08

Page 27

Great Plains Manufacturing, Inc. Table of Contents Index Preparation and Setup 23

Tank Cart Hitching

If using a fertilizer cart, consult the cart manual for:

• hitching cart tongue to planter

• connecting pump control electronics to planter

• connecting fertilizer feed hoses to planter Complete the tractor-planter hook-up before making any

tank cart connections.

Open hose and inlet valves when ready to begin planting. Close them when not in use.

Fertilizer Connection Types

Type

Description

2-section, planter manifold and pump: Starter inlet only

3-section, cart manifold and pump: Left, Center, Right inlets & Gauge line

Fertilizer Cart Connections

Figure 11

Making Fertilizer Connections

PFC2000 tank cart, YP40 planter with Type 2 and Type 3 Manifolds, & Ground Drive Pump Planter Inlet

Left Type 3 Center Type 3 Right Type 3 Type 2

PFC1600 or PFC2000 tank cart, YP40 planter with Type 3 Manifold (only) Planter Inlet

Left Type 3 Center Type 3 Right Type 3

a. Gauge Line is supplied with PFC1600 or PFC2000 tank cart

29269

Gauge Line

Heights and Leveling

All frame sections must beat the correct height andlevel to maintain even planting depth.

2014-09-08 Table of Contents Index 401-571M

Note: Level frame in planting conditions.

Failure to do so may result in implement not producing desired results.

Page 28

24 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Periodic frame-leveling adjustments should not be necessary. If you are having problems with uneven depth, check planter levelness and follow these procedures.

1. Before making any adjustments be sure the lift cylinders are re-phased and operating properly. If not, see “Re-Phasing Lift System” on page 31

2. Complete “Bleeding Hydraulics” on page 96.

3. Unfold the planter fully (page 27).

41.5 in.

Set Tongue Height

(105.4 cm)

Planter must be unfolded for this procedure.

Refer to Figure 12

Set the initial tongue height, using 3-point or hydraulic tongue cylinder. Distance is measuredat top of tongueto ground level.

• For standard 3-point hitch:

Set depth stop to capture this working height. If desired height cannot be attained with normal range of hitch, swivel coupler weldment may be relocated in

Figure 12

Initial Tongue Height

25316

tongue bolt holes.

Note: Tractor 3-point control mustbe inDepth Control

mode, and not Draft Control mode.

• For hydraulic tongue:

Note the scale reading on the tongue for this height. [Re]set the tongue height to this value when planting.

Checking Planter Height

The planter isdesigned to operate withall sections ofthe main tool barnominally 26 in. (66 cm) above the planting surface. The height of the center section is not routinely adjustable. Set planting depth with row unit adjustments.

When lowering the planter for the ﬁrst time on the planting ground:

1. Completely lower the maintool bar.If necessary, ﬁrst lift off transport locks, remove and stow locks.

2. Set hitch to planting height.

3. Pull forward a few feet or just over a meter.

Height Mis-adjustment Risk:

Planter must be fully lowered to ﬁeld position (with openers into ground) and hitch height must be set before making side-to-side adjustments.

4. Check tool bar height across planter. See page 98 for further detail and adjustment.

Figure 13

Center Level Check

29276

401-571M Table of Contents Index 2014-09-08

Page 29

Great Plains Manufacturing, Inc. Table of Contents Index Preparation and Setup 25

Marker Setup

Prior to ﬁrst use, check and adjust:

•“Dual Marker Speed Adjustment” on page 172. Prior to ﬁrst use, and whenever changing row spacings,

set or reset:

•“Set Marker Extension” on page 145. Prior to each planting session, check and adjust:

•“Marker Disk Adjustment” on page 61.

Lock Up Fertilizer Drive

YP40 serial number B1072A+

Loss of Control and Sharp Object/Crushing Hazards:

Do not lift or lower wheel by spoke or rim; use handle only. Keep feet out from under wheel. 90 pounds (41 kg.) force is required to lift wheel. If you lose your grip before pinning, or after unpinning, the arm snaps down rapidly. The traction teeth and the force of the wheel impact can inﬂict serious injury.

The liquid fertilizer option usesa piston pumpdriven by a ground contact wheel.When not using thefertilizer drive, preserve the pump by locking up the ground wheel. On older models remove the chain.

Note: Do notoperate planter pump when not applying

material.

Refer to Figure 14

For YP40 planters:

5. Remove clevis pin from storage hole .

6. Release the lock arm , lift handle to lift ground wheel up to position it in-between lock arm.

7. Secure with pin clevis and cotter pin.

5 7

Figure 14

Locked Up Fertilizer Drive

32364

2014-09-08 Table of Contents Index 401-571M

Page 30

26 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Operating Instructions

This section covers general operating procedures. Experience, machine familiarity, and the following information will lead to efﬁcient operation and good working habits. Always operate farm machinery with safety in mind.

Pre-Start Checklist

Perform the followingsteps before transporting the YP40 planter to the ﬁeld.

29264

High Pressure Fluid Hazard:

Escaping ﬂuid under pressure can have sufﬁcient pressure to penetrate the skin. Check all hydrauliclines and ﬁttings before applying pressure. Fluid escaping from a very small hole can be almost invisible. Use paper or cardboard, not body parts, and wear heavy gloves to check for suspected leaks. If an accident occurs, seek immediate medical assistance from a physician familiar with this type of injury.

❑ Carefully read “Important Safety Information” on

page 1.

❑ Install seed rate meters appropriate for crop. To

change meters, see “Seed Meter Setup and Adjustment” on page 81.

❑ Install seed wheels appropriate for crop. To change

wheels, see “10HD, 25P Meter Wheel Replacement” on page 83. With ﬁnger meters, make sure correct 6- or 12-ﬁnger units are installed for the intended row spacing.

❑ Lubricate planter as indicated under “Lubrication”

on page 114.

❑ Check all tires for proper inﬂation. See “Tire

Inﬂation Chart” on page 144.

❑ Check all bolts, pins, and fasteners. Torque as

shown in “Torque Values Chart” on page 168.

❑ Check planter for worn or damaged parts. Repair or

replace parts before going to the ﬁeld.

❑ Check hydraulic hoses, ﬁttings, and cylinders for

leaks. Repair or replace before going to the ﬁeld.

401-571M Table of Contents Index 2014-09-08

Page 31

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 27

Unfolding The YP40 Planter

The distance between the tractor and the seed structure decreases by 12 ft. (3.7 m) during unfolding. Planter, tractor, or both will move during this operation.

Crushing, Pinch-Point and Overhead Hazards:

To prevent serious injury or death:

▲ Fold only on hard level ground. Allow ample room. ▲ If it is desired that the tractornotmove,make suretractoris

in Park and/or has parking brakes set, otherwise the telescoping movement of the planter is likely to result in tractor movement.

▲ Do not allow anyone to be on or near the planter during

unfolding.

▲ Stay clear of the wing sweep arcs. The sweep arcs of the

wings have numerous pinch and crush points in the mechanism. Coulters and row openers are sharp.

▲ Allow no one near planter. The seed structure usually

moves forward during unfolding.

▲ Do not unfold with planter lowered, or machine damage

will result.

▲ Unfold only with markers resting in transport cradles. ▲ Unfold only if hydraulics are bled free of air and fully

charged with hydraulic oil.

1. Move to level ground.

Refer to Figure 15

2. On the Clutch Folding Module (CFM), set the following switches to OFF (down): MASTER switch in the CLUTCH cluster , and Fert.Pump .

3. If the foldedplanter is lowered,raise mainframe (see “Raising/Lowering Planter” on page 29).

4. If equipped with hydraulic hitch, the CFM Lift/Hitch switch must be set to Hitch.

1 2

Figure 15

Clutch Folding Module

26111

2014-09-08 Table of Contents Index 401-571M

Page 32

28 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Unfolding, Continued ...

5. Raise tractor 3-point hitch or extend (raise) planter hydraulic tongue until tongue wing locks rise and disengage.

Machine Damage Risk:

If hitch is not raised, wing locks will remain in transport hooks. Wings will not unfold, and machine damage is possible.

6. Set CFM Marker/Fold switch to Fold. LED above

switch blinks continuously.

7. Activate (normally Retract) tractor hydraulic circuit to unfold wings.

8. Operation is complete when the tongue lock engages.

Refer to Figure 18

Figure 16

29243

Unfold: Wings Locked

Machine Damage Risk:

Do not operate planter when unfolded unless tongue lock is engaged.

9. When fully unfolded, set Marker/Fold hydraulic circuit to Neutral.

10. Forimminent lowered operations, remove lift cylinder locks (see “Lift Cylinder Lock-Up” on page 31).

11. Set hitch height to planting position (“Raising/Lowering Tongue” on page 18).

Figure 17

Planter Unfolding

Figure 18

Tongue Lock Engaged

29279

29334

401-571M Table of Contents Index 2014-09-08

Page 33

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 29

Raising/Lowering Planter

Refer to Figure 19

Planter raising/lowering relies on the four lift cylinders at the mainframe and wing end gauge wheels.

The planter must be raised for folding and unfolding. The planter will not lower if transport locks are installed.

See “Lift Cylinder Lock-Up” on page 31. Note: When unfolded, if one or both markers are

extended, they may drag or shoveif leftextended during raise or loweroperations. To avoid this, fold markers prior to raise or lower.

Machine Damage Risk (Hydraulic Hitch Only):

Do not lower planter while folded without using the special procedure on page 31 (this is a hydraulic hitch restriction planter may be lowered while folded with standard 3-point hitch).

Figure 19

Clutch Folding Module

26113

Machine Damage Risk:

Do not lower while any planter folding operations are underway or partially complete, with either hitch.

Machine Damage Risk:

Always raise the planter for any reverse/backing operations.

Figure 20

Planter Raised

Figure 21

Planter Lowered

29280

29281

2014-09-08 Table of Contents Index 401-571M

Page 34

30 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Raising Planter

Refer to Figure 22

1. If the planter has hydraulic hitch, set the Lift/Hitch switch to LIFT.

Note: If theplanter hasthe standard3-point hitch, this

2. Move the cab lever to Extend the circuit for Lift/Hitch.

Machine Damage Risk:

On tractors with electronic timer controls for hydraulic circuits, lift timers must be set to no more than 2 seconds longer than needed to fully raise planter.

Do Not Set for Continuous Mode.

For transport, maintenance or storage, install lift cylinder locks. See “Lift Cylinder Lock-Up” on page 31.

switch has no function. The hydraulic circuit is always in Lift (Raise/Lower) mode.

Pinch/Crush Risk:

Keep all personnel clear of center section and seed cart while raising tool bar. The wheels move inward.

Lowering Planter

Refer to Figure 23

1. If lift cylinder locks are installed, ﬁrst fully raise the planter, and remove the locks. See “Raising Planter” on page 30 and “Lift CylinderLock-Up”on page 31.

2. If equipped with hydraulic hitch, set the Lift/Hitch switch to LIFT.On 3-point hitch,this switch hasno function and the circuit is in Lift mode at all times.

3. Movethe cab lever toRetractthe circuit for Lift/Hitch. When fully lowered, return lever to neutral.

Machine Damage Risk (Hydraulic Hitch Only):

Never lower planter while fully folded, if it is equipped with the hydraulic tongue hitch, or machine damage can occur unless a special procedure is followed (seepage 31). A planter with a 3-point hitch may be lowered while folded.

Figure 22

CFM: Raising Planter

Crushing Risk: Keep all personnel clear of center section and seed cart while lowering tool bar. The wheels move outward.

26113

Machine Damage Risk:

Never lower planter while partially unfolded (with either hitch). Wing row units can strike main transport wheels.

401-571M Table of Contents Index 2014-09-08

Figure 23

CFM: Lowering Planter

26113

Page 35

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 31

Lift Cylinder Lock-Up

When moving the raised planter more than a short distance, or over any public road, or when performing adjustments or maintenance, do not rely solely on the lift cylinders to keep the mainframe raised.

Install transport locks.

Refer to Figure 24

1. If planter is folded, conﬁrm hitch is in Float. If planter is unfolded, hitch may be in any conﬁguration.

2. Raise the planter mainframe. See “Raising/Lowering Planter” on page 29.

3. Remove the transport locks from their storage positions . Install the transport locks on the cylinder rods , securing them with the same pins used for storage.

4. Lower the lift cylinders onto the locks.

Figure 24

Lift Cylinder Locks Installed

29283

Re-Phasing Lift System

In typical use during a single planting operation, it is normal for the lift cylinders to get slightly out of phase, resulting in uneven raising and lowering of the YP40 planter.

Every 8- to10 passes, orif lifting isuneven,re-phase the cylinders with this procedure:

1. Raise the planter completely, and hold the hydraulic lever or switch in Extend for several seconds after the planter reaches fullelevation,oruntil all cylinders are fully extended.

2. When all cylinders are fully extended, momentarily reverse (Retract) the control to lower the planter

⁄

inch (13 mm).

Local Float on Hydraulic Tongue

A hydraulic hitch planter may be raised or lowered while folded using the local ﬂoat valve.

1. Float hitch circuit before lowering while folded. Float hitch circuit before rasing while folded.

2. Set CFM Lift/Hitch switch to Lift for raising/lowering.

3. Close bypass valve before switching to Hitch. Hitch circuit operation has no effect with bypass valve open.

Figure 25

Local Float on Hydraulic Tongue

Crushing Hazard:

Tongue or planter componentsmaydrop suddenly when circuit is ﬂoated. Before raising or lowering, set CFM Lift/Hitch switch to Hitch and set tractor circuit to Float. If tractor is not available, use bypass valve on hitch. Stand clear and open it slowly.

26152

2014-09-08 Table of Contents Index 401-571M

Page 36

32 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Folding the YP40 Planter

Fold the YP40planter for moves between ﬁeldsand over public roads, and for storage. The distance between the tractor and the seed structure increasesby 12 ft. (3.7 m) during folding. Planter, tractor, or both will move during this operation.

Pinch Point and Crushing Hazard.

To prevent serious injury or death:

▲ Fold only on hard level ground. Allow ample room. ▲ If it is desiredthat the tractor not move during folding, make

sure tractor is in Park and/or has parking brakes set, otherwise the telescoping movement of the planter is likely to result in tractor movement.

▲ Do not allow anyone to be on or near the planter during

folding.

▲ Stay clear of the wing sweep arcs. The sweep arcs of the

wings have numerous pinch and crush points in the mechanism. Coulters and row openers are sharp.

▲ Allow no one behind the planter. The seed structure moves

backward during folding.

▲ Do not fold with planter lowered, or machine damage will

result.

▲ Fold only with markers resting in transport cradles. ▲ Fold only ifhydraulics are bled free of air andfully charged

with hydraulic oil.

1. Move to level ground.

Refer to Figure 26

2. On the cab Clutch Folding Module (CFM), set the following switches to OFF (down): MASTER switch in the CLUTCH cluster , and Fert.Pump .

3. Raise planter mainframe (see “Raising/Lowering Planter” on page 29). Do not raise (hydraulic) hitch at this point.

4. Install lift cylinder locks (see “Lift CylinderLock-Up” on page 31).

1 2

Figure 26

CFM: Wing Folding

26033

401-571M Table of Contents Index 2014-09-08

Page 37

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 33

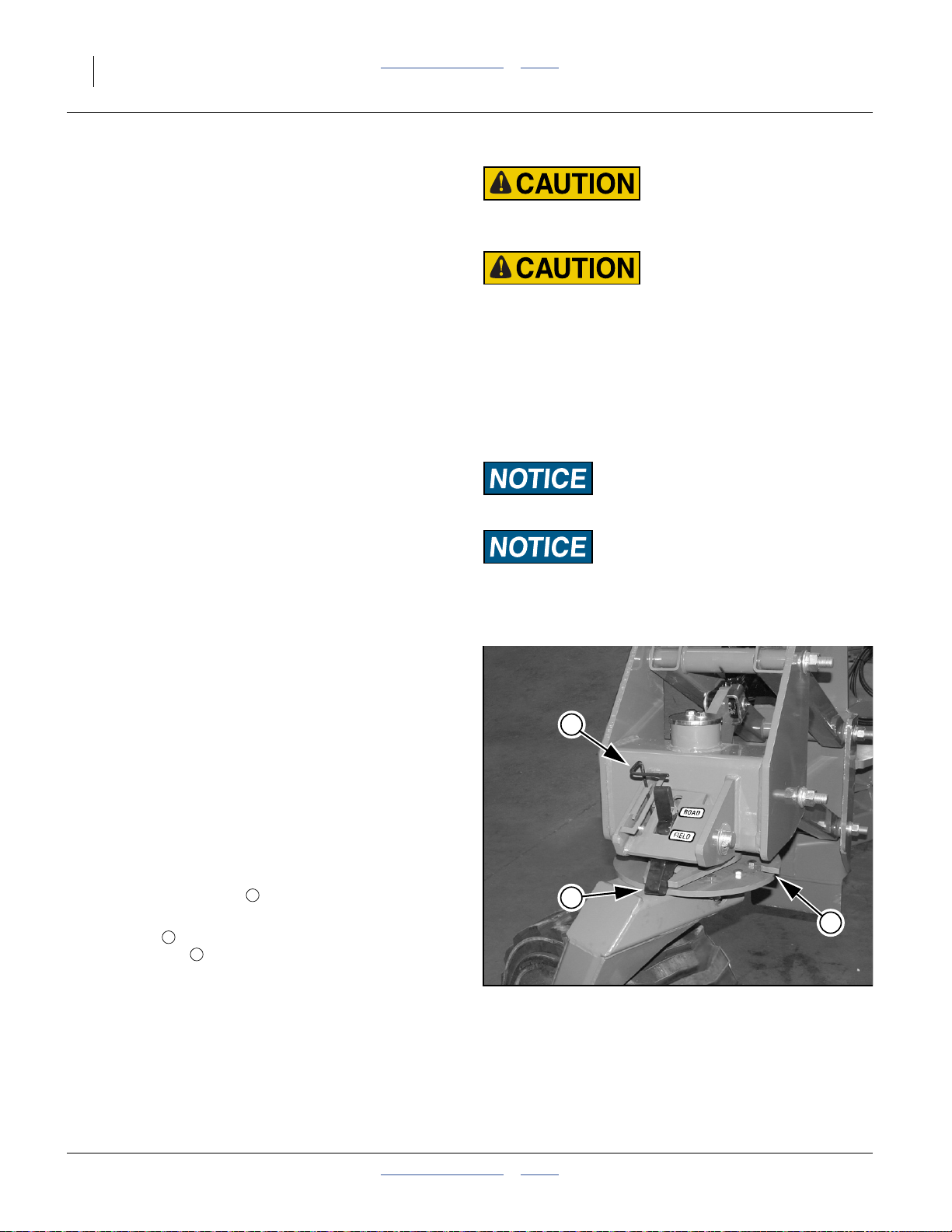

Refer to Figure 27

If caster locks are engaged (handle in FIELD position), they must be released before folding.

Machine Damage Risk:

Caster locks must be disengaged for transport.

5. At each wing caster, move the lock control handle to the ROAD position.

6. If the indicator end of the lock does not immediately snap up from FIELD to ROAD, some pivot tension is holding the pawl end of the lock in the plate detent . Move the planter forward or back a short distance until both locks unlock.

Refer to Figure 26

7. Set CFM Marker/Fold switch to Fold. LED above switch blinks continuously.

8. Activate (normally Extend) tractor Marker/Fold hydraulic circuit to fold wings. Sequence begins with releasing of tongue latch (Refer to Figure 18 on page 28). Before folding completes ...

9. Raise planter tongue (“Raising/Lowering Tongue” on page 18). This must be done before folding completes.

Figure 27

Caster Unlocked

29306

Machine Damage Risk:

If tongue is not raised prior to folding complete, wing locks will be above transport hooks and unable to secure wings to tongue.

If this happens, partially unfold planter, raise tongue, and refold.

Refer to Figure 27

10. When fully folded,lower tongue so that wing locks engage transport hooks .

11. Set Marker/Fold circuit lever to Neutral.

12. 3-point: lower hitch completely Hydraulic tongue: Set hitch circuit to Float (not Neutral).

Machine Damage Risk:

Wing locks must be engaged for safe transport, and planter tongue must be lowered to keep wings locked.

Hydraulic tongue, if installed, must be in Float.

2014-09-08 Table of Contents Index 401-571M

Figure 28

Fold Commencing

Figure 29

Wings Locked

29282

29243

Page 38

34 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Re-phasing Fold System

In typical use during a single planting operation, it is normal for the fold cylinders to get slightly out of phase, resulting in uneven folding and unfolding of the YP40.

Every few planting days, re-phase the cylinders with this procedure:

1. Raise, unfold and fold the planter completely, and hold the fold hydraulic lever or switch in Extend for severalsecondsafter the planterreaches full folding, or until all cylinders are fully extended.

2. When all cylinders are fully extended, reverse (Retract) the control to unfold and return to planting.

401-571M Table of Contents Index 2014-09-08

Page 39

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 35

Transporting the Planter

Loss of Control Hazard:

Ensure that the towing vehicle is adequate for the task. Using an inadequate tow vehicle is extremely unsafe, and can result in loss of control, serious injury and death.

The planter can weigh up to 45000 pounds (20400 kg), depending on conﬁguration and seedload. A tank carthitched to the planter (“in train”) adds another 5000 pounds(2268kg) empty. The tractor unit MUST be rated for the load. If the tractor is not rated for at least 45000 pounds, calculate or obtain a scale weight of the planter and cart. Do not tow if planter exceeds the load rating of the vehicle.

Loss of Control Hazard:

A PFC tank cart in train must be EMPTY. A full tank cart weighs nearly 30000 pounds (13608 kg), and, when hitched to the planter, represents an unsafe highway load regardless of the rating of the towing vehicle. If a PFC cart must be transported loaded, tow it separately. Check Bridge Loads: A loaded planter, or a planter with cart in tow, can exceed the load ratings of bridges you must cross.

29284

.eps

100%

Loss of Control Hazard:

The CFM switch must be setto Hitch, and the hydraulic circuit must be in FLOAT during transport. Failure to do this may resultinhydraulicsystemdamage,transport hooks unlatching, and major planter/tractor damage.

The ﬁgures inthe table below represent alimited number of conﬁgurations. The weight of your planter can vary by thousands of pounds, even if it is the same base model, due to installed options and/or aftermarket equipment. If your tractor weight or capability is near its limits, take your empty planter to a scale and get a precise weight.

Typical YP40 Planter Weights

Reduction of Control Risk:

Seed may be loaded prior to travel, but increases stopping distance, increases the need for caution in turns and braking, and increases tire wear.

2014-09-08 Table of Contents Index 401-571M

Page 40

36 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Transport Checklist

❑ Plan the route. If towinga cart hitched to theplanter,

plan the route so that no reverse movements will be necessary. Avoid steep hills. Keep Clearances in mind. Folded, your YP40planter may be nearly 15 ft. (4.6 m) wide and 13 ft. (4 m) high.

❑ Hitch.

Make both electrical and hydraulic connections. See “Hitching Tractor to Planter” on page 17.

❑ If markers are unfolded, fold them.

See “Folding the Markers” on page 41.

❑ Raise planter.

See “Raising/Lowering Planter” on page 29

❑ Install lock-up channels on lift cylinders.

See “Lift Cylinder Lock-Up” on page 31.

❑ Disengage caster locks. See page 33. ❑ Fold and latch lower ladder section. See page 45. ❑ If planter wings are unfolded, fold them.

See “Folding the YP40 Planter” on page 32. Make sure wing locks are engaged.

❑ 3-point hitch:

Lower hitch fully to ensure wings remain locked. Hydraulic hitch: Conﬁrm CFM set to Hitch and hitch circuit in Float.

Breaking and Loss of Control Hazard:

Do not exceed 20 mph when driving straight.

Loss of Control Hazard:

Do not exceed 13 mph in turns.

Steering

Never exceed 13 mph (22 kph) in turns. The YP40 planter is extremely heavy, and can cause “over-steer” with most tractors. The rear-most transport wheels and tank cart lead wheel fully caster, and provide no resistance to side sway by the planter or cart.

Never exceed 3 mph (5 kph) in reverse.

Never back up with the planter lowered or with a fertilizer tank hitched to the planter.

❑ Always have lights on for highway operation. ❑ Comply with all federal, state and local safety laws

when traveling on public roads.

❑ Travel with caution.

Caster Locks - Field Operations

For planting in conditions ranging from ﬂat ground to moderate slopes, the caster locks may be left in the ROAD position, allowing the casters to pivot freely, and simplifying fold/unfold operations.

For planting across extreme hillsides, where side drift might occur, lock the casters after unfolding:

1. Move the lock handle from ROAD to FIELD at each caster.

The lock arm will automatically capture and hold the pivot plate detent when the planter next moves.

See page 33 for unlocking steps.

Field Set-Up Checklist

Use the following tables to develop a ﬁnal checklist for your tractor/planter conﬁguration. Additional or fewer steps may be necessary depending on tractor features, planter options and planting accessories.

Figure 30

Caster Lock

29306

401-571M Table of Contents Index 2014-09-08

Page 41

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 37

Mechanical Checklist Page

Tongue height preset on 3-point 24 Planter unfolded 27 Tongue front latch hook engaged 28 Transport locks moved to storage 31 Caster locks set to FIELD

(extreme hillsides only) Side-to-side level at gauge wheels 98 Marker initial length set 145 Marker disc angle set 61

Electrical Checklist Page

Verify electrical hookups solid 21 Check seed monitor terminal and observe

any diagnostic messages With hydraulic circuits in Neutral, check

switches and indicator lights on Clutch Folding Module switch panel. Conﬁrm Master OFF.

Verify that, when planter is lowered, radar speed sensor is pointed at ground, at an angle approximately 35° below horizontal.

a. Refer to monitor manual b. Refer to sensor documentation

Air System Checklist Page

Manifold to seed box or hopper seal Add 1 cupof seed lubricant to each airbox,

prior to ﬁrst use, and prior to loading seed Seed loaded 48 Tube gates turned on to correct rows 42 No air leaks (except from seed box) Hose routings -nosags, no pinches(check

wing-folded & ﬁeld positions) Hoses fully connected to meters and

locked

125

Frame Mounted Checklist Page

Row cleaner depth setting 75 Coulter depth and alignment 71

Row Units Checklist Page

Preset depth handles alike 69 Preset down force springs alike, except in

tracks.

⁄

Set all unit-mounted coulters to

inch

shallower than opener blades Check coulter alignment to row 77 Check closing wheel alignment 90 Set press wheels alike. 89 Engage meter coupling for all desired rows 81 Check action and contact of side depth

wheels (25P only) Check wheel scraper gaps (if installed) 80

Treatments (Options) Checklist Page

Conﬁrm Clutch Folding Module “Fert.Pump” switch OFF

Check tractor-mounted components a Ground drive wheel, chain PFC2000 or PFC1600: Execute Tank Cart

Checklist Check for correct oriﬁce plates c Fill system with 100 gallons of water, and

check for leaks Check all row unit lines connected, free of

kinks, and discharge tube/nozzles clear Inlet and hose valves open SmartBox system loaded, powered up

a. Check supplier manual for tanks and pump. Check fertilizer

section of monitor manual.

b. See PFC2000/PFC1600 Manual. c. Check Seed Rate manual, and manual for fertilizer pump

system.

2014-09-08 Table of Contents Index 401-571M

Page 42

38 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Hydraulic System Checklist Page

Check tractor hydraulic reservoir full Inspect connections for leaks Perform a raise and lower operation 29 Check fan speed and airﬂow direction a If equipped with hydraulic drive, conﬁrm

Clutch Folding Module Master switch off,

and check hydraulic planter drive rotation Set Clutch Folding Module switch

“Marker/Fold” to “Marker”

a. Operate fan brieﬂy and observe rotor blades spinning toward

exit port. Check rpm on seed monitor.

Hydraulic Planter Drive Checklist Page

Check chain lubrication and slack 119 Input initial values for desired population a Pre-run system using manual ground

speed mode on seed monitor. Reset to digital frequency source after test running.

Calibrate radar speed sensor pulses with planter lowered.

Lubricate slider joints on drive shafts 123 Check clutch operation 42

a. Refer to seed monitor manual and Seed Rate manual. b. Refer to seed monitor manual.

Meters Checklist Page

Correct meters for seed a Correct wheels for seed a Correct ﬁnger meters for seed:

6-ﬁnger for twin-row, 12-ﬁnger for single-row and some high-speed or high population twin row)

Close clean-out doors 101 Corn?

Check timing of meters for twin-row Check chain tension. Re-connect any

loose idler tensioning springs. Check meter assemblies secured 84 Engage drive couplers 84

a. Refer to Seed Rate manual.

401-571M Table of Contents Index 2014-09-08

Page 43

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 39

Field Operation

Perform all steps in “Pre-Start Checklist” on page 26 and “Field Set-Up Checklist” on page 36.

First Pass Operation Checklist Page

1. Set tractor 3-point hitch to “depth control” operation (and not load control)

2. Unfold marker on next-row side. 40

3. Set fan hydraulic circuit to low ﬂow, engage circuit. Gradually adjust fan hydraulic ﬂow to obtain 3800 rpm.

4. Engage hydraulic seed drive via seed monitor. Refer to seed monitor manual.

5. If planter has a fertilizer system integrated with the DICKEY-john seed monitor, set the “Fert.Pump” switch on the Clutch Folding Module to ON.

6. In the CLUTCH cluster of the Clutch Folding Module, set all switches, including Master, to ON.

7. Pull forward, lower planter, and begin planting for a short distance.

8. Stop. Assess:

• planting depth

• seed spacing

• press wheel operation

• fertilizer application (if in use)

9. Make necessary adjustments 58

Sharp Field Turns Checklist Page

1. Fold marker 41

2. Raise planter 29

3. Make turn

4. Lower planter 29

5. Unfold marker on next-row side. 40

6. Resume planting.

Suspending Planting Checklist Page

1. Stop tractor

2. Fanhydraulic circuit toFloat or Neutral 44

3. Fold Marker 41

4. Raise planter 29

Ending Planting Checklist Page

1. Suspend operations as above, then

2. Install lift locks 31

3. Set caster locks to ROAD 33

4. Fold planter 32

5. Lights ON -

6. Transport 35

2014-09-08 Table of Contents Index 401-571M

Page 44

40 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Marker Unfolding

Electrocution Hazard:

Beware of overhead electrical lines. If the markers contact lines, the tractor, raised planter and any cart can become “hot” with no indication. A person standing on theground and touching equipment can complete the circuit.Serious injury or death is likely. At higher voltages electrocution can occur without direct contact.

If your YP40 planter has markers, unfolding of the markers is performed only after unfolding the wings.

The Marker/Aux valve on the left wing must be set to “Marker”. See “Auxiliary Hydraulics” on page 52.

Before operating markers, make sure cylinders are properly bled. See “Bleeding Hydraulics” on page 96.

This section presumes correct marker length for your pass spacing. If this has not been set, or needs to be changed, see “Set Marker Extension” on page 145.

Dual markers are equipped with an automatic sequence valve that controls which side activates, as well as marker deployment.

Folding speed of dual markers is adjusted via set screws on the sequence valve body. Excessive folding speed may damage markers.See “Dual Marker Speed Adjustment” on page 172.

CFM: Marker Operation

Overhead Hazard:

To prevent serious injury or death, do not allow anyone to stand near or beyond the end of the wings during marker operations. Marker arms are heavy and marker discs may be sharp.

Figure 31

26119

Marker Unfold (one side)

Refer to Figure 32 and Figure 33

1. If the Auxiliary Hydraulic circuit has been used recently, conﬁrm that the manual Marker/Aux valve on the left wing is set to “Marker”.

2. On the DICKEY-john® Clutch Folding Module (CFM), set “Marker/Fold” switch to Marker (up). The LED above the switch illuminates steadily for normal operation.

3. Move tractor hydraulic control (lever or switch) for the marker circuit to Extend. Hold until marker is completely unfolded. Do not leave tractor control in detent.

4. If the marker side operating is not the desired side, let it unfold part way, and move the tractor’s circuit control to “Retract”. Whenthemarker is folded, move the circuit control to Extendto activate the other side.

On the CFM, leave the “Marker/Fold” switch in “Marker” during normal ﬁeld operations.

Figure 32

Marker Unfolding

Figure 33

One Marker Unfolded

29285

29286

401-571M Table of Contents Index 2014-09-08

Page 45

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 41

Row Marker Operation

To alternate which side is marked:

1. Move the tractor’s circuit control to fold marker. Hold until marker is folded.

2. Reverse the tractor’s circuit control. Hold until the new side’s marker is fully unfolded.

3. Return tractor control to neutral.

Folding the Markers

If your planter has markers, they must be folded and secured before folding the wings.

1. Movethe tractor’s circuit control toRetract. Hold until marker is folded.

2. Set circuit control to neutral.

Unusual Marker Operations

Both Sides Unfolded

With both markers in their cradles:

1. Unfold either side, and when completely deployed…

2. Movelever/switch to Retract momentarily, and return to Extend to deploy other side.

Monitor Operation

Monitor operation is described in a separate manual supplied with your YP40 planter.

Operations covered in that manual (and therefore not in this manual) include:

• hydraulic drive control (option)

• seed rate calibration

• planting rate

• fertilizer rate

• ground speed

• setting rate limits and detecting out-of-limits

• GPS integration

• fan rpm

• low hopper alarm

Planting

When all checklist items are complete, a planting pass normally consists of a few simple steps)

1. Lower planter mainframe

2. Extend a marker

3. Drive forward

4. Scan monitors and controls. Check for errors, alerts and out-of-limits events. Check planting rate reports.

5. Raise marker

6. Raise planter mainframe

7. Turn

8. Extend marker as needed for next pass

9. Subsequent Passes resume at step 1.

When reloading seed and fertilizer, check consumption against anticipated use to that point.

Figure 34

Planting

29264

2014-09-08 Table of Contents Index 401-571M

Page 46

42 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Electric Clutch Operation

The YP40 planter has three clutches in the seed meter drive system. A clutch enables or disables groups of row units. The information in the table below is normally preset at the factory for your planter conﬁguration.

The switches Left / Center / Right correspond to the left wing row units, center section row units and right wing row units respectively.

The Master switch controls all row units, regardless of drive type. For all switches, “OFF” (down) removes power from the clutch, disengaging that set of row units. When any switch (plus Master) is ON, the LED for that switch illuminates steadily.

2 3 4

Rows Planter Model

16 YP4025-1630, YP4025-1670, YP4025F-1670 (401-576K) 01-05 06-11 12-16 24 YP4025-2420 (401-575K) 01-08 09-16 17-24 31 YP4025-3115, YP4025-3135 (401-579K) 01-10 11-21 22-31 32 YP4025-3215, YP4025-32TR, YP4025-32TR70

YP4025-32TR75 (401-572,-599K) 48 YP4010HDP-4810, YP4025-4810 (401-573K) 01-15 16-33 34-48 60 YP4010HDP-6075 (401-620K) 01-20 21-40 41-60

Figure 35

CFM: Clutch Switches

Clutch Switch Coverage (Rows)

2 3 4

Left Center Right

01-10 11-22 23-32

26120

Y-Tubes

Refer to Figure 36

Y-tube gates can be shut off, for example:

• to plant 30 in. corn on a 15 in. planter, or

• to feed only one row for single-row planting on a twin-row machine.

In the photograph, both meter tubes are open. You can also shut off the Y-tube gatesto clean outthe air

system and meters. See “Cleaning Out Air System”on page 102.

Figure 36

Seed Y-Tube

22843

401-571M Table of Contents Index 2014-09-08

Page 47

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 43

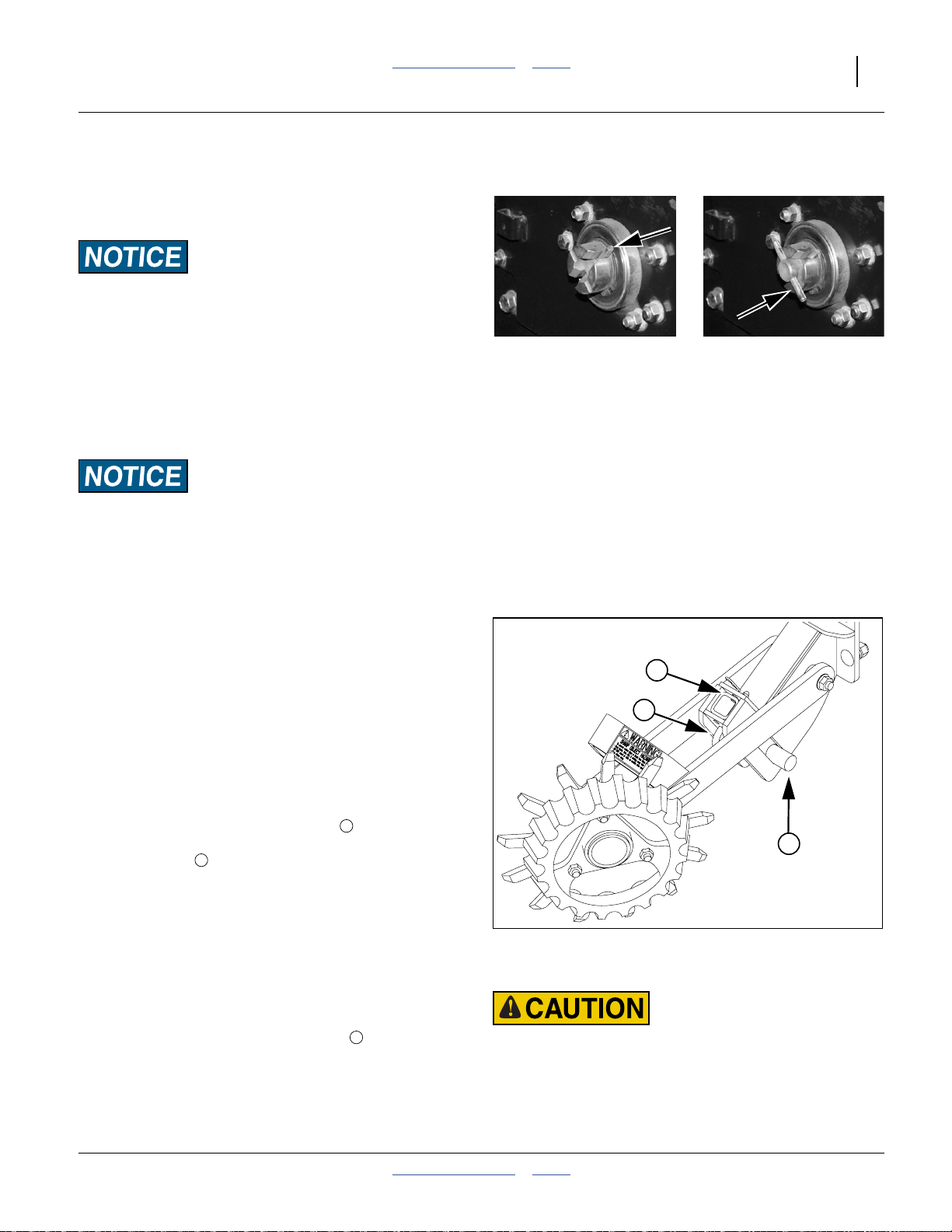

Electric Clutch Lock-Up

In case of electric clutch failure, an electric clutch can be mechanically engaged.

Refer to Figure 37 and Figure 38

1. Remove the rubber plugs from the oil shield

disc to allow access to the lock-up holes. Plugs simply push out away from the clutch side.

2. Align the cutouts with the holes .

3. Insert the M8-1.25×14 mm long metric bolts . If you observe half the hole obstructed by a metal

disc , you are not at a cutout.

3 4

If the entirehole is obstructed by a metaldisc , you are not at a cutout.

When at a cutout, the bolt will screw in with minimal resistance until the bolt head reaches the clutch face.

4. Re-install the plugs so they are not lost.

Note: Use onlythe provided 14 mm length bolts. Longer

bolts will damagetheclutch. Shorter bolts may not effect a lock-up.

Figure 37

Electric Clutch Lockup

Figure 38

Clutch Plate Nearly at Cutout

29329

26168

2014-09-08 Table of Contents Index 401-571M

Page 48

44 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

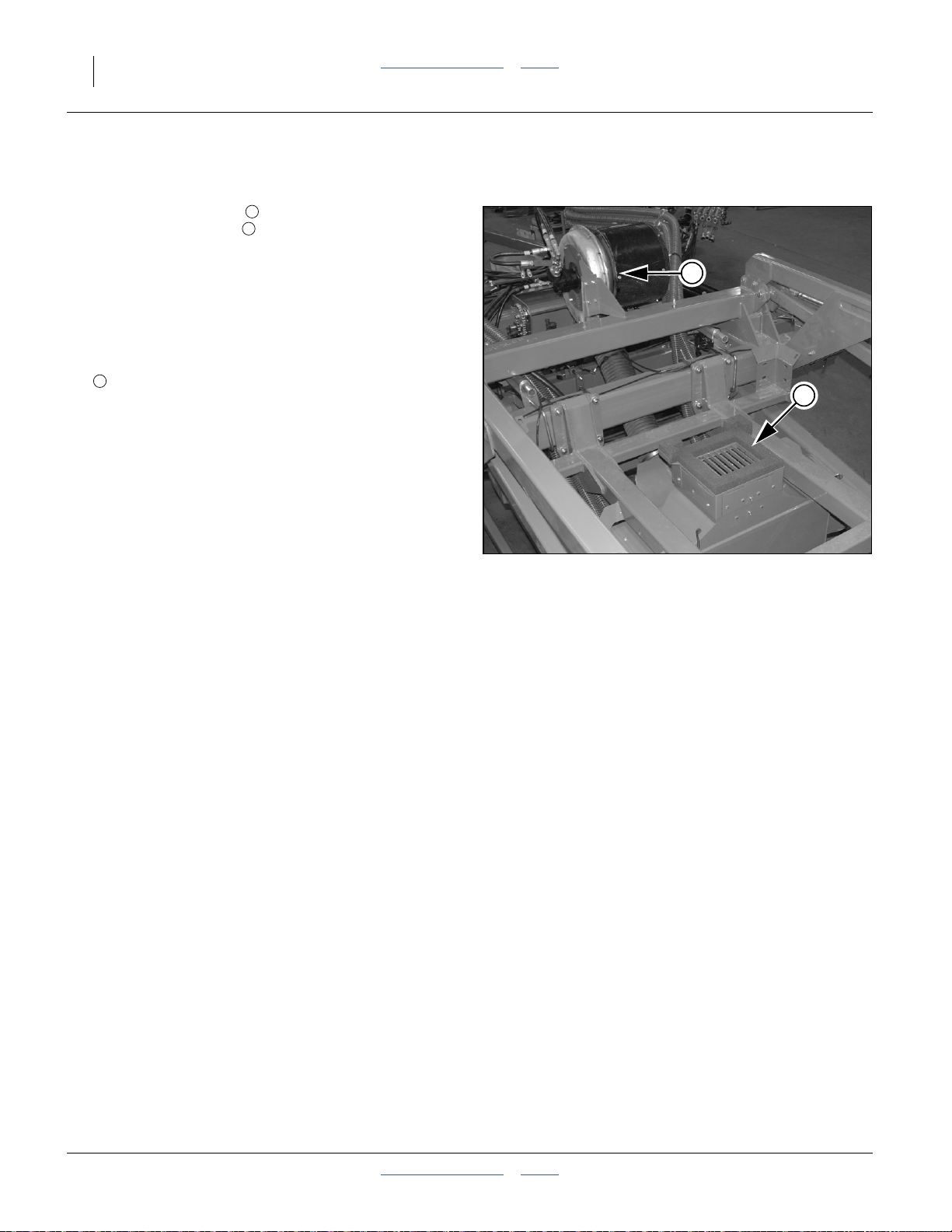

Airbox Operation

Refer to Figure 39

The function of the airbox is to mix seedwith turbulent air from the hydraulic fan , which then exits through a manifold (not shown) to the seed tubes which serve the row unit meters.

Fan Operation

All three (3) fan hydraulic lines must be properly connected. “Hydraulic Hose Hookup” on page 19.

Use tractor remote hydraulic valve ﬂow control to set

fan speed. Start with a very low speed and verify that fanimpeller is spinninginthe correct direction(towardair exit port). Airmoves toward the air box in either direction of fan rotation, but reverse spinning airﬂow is too low to operate the air box.

Start withﬂowonlow setting. 8-12 gpm (30-45 liters/min) is average ﬂow.

Recommended butterﬂy valve setting is 0°. Recommended fan speed depends on planter conﬁguration:

3800 rpm 82 bu. hopper

150 bu. hopper 670/1440 liter seed/fertilizer hopper

3500 rpm bulk seed boxes

a. See manual 403-362M for operation with this

hopper.

Do not run the fan at speeds over 4500 rpm or speeds under 3000 pm. A fan speed too high creates too much air ﬂow causing seed to plug up the meter box. Fans operating too slowly do not create enough air ﬂow to push the seed to the meter, causing the seed tube to plug or meters to run empty. If air system does not operate suitably with fan speeds between 3000-4500 rpm, refer to the troubleshooting chart, and then adjust the fan butterﬂy valve. See “Fan Adjustments” on page 61.

Watch monitor and adjust fan speed by increasing or decreasing hydraulic ﬂow from tractor.

When starting empty you must blow seed out to the meters for two to four minutes to ﬁll meters.

The monitor hasa level sensor below the hopperor seed box to warn when seed box is empty. There are three to four acres of seed in the system when the sensor ﬁrst indicates box empty, depending on seeding rate.

Figure 39

Fan and Air Box

Note: Do not apply pressure to the return line oroperate

with restricted return line, ormotor sealswill be damaged.

Note: Before the ﬁrst planting each season, or when

using new meters or meter wheels for the ﬁrst time, or at the start of each season, before ﬁlling with seed, add

⁄

cup (80 ml) graphite to bottom

of airbox.

29309

401-571M Table of Contents Index 2014-09-08

Page 49

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 45

Walkboard and Ladder

Walkboard pin and pivot operation is covered on page 50.

Refer to Figure 40

The bottom two steps of the walkboard ladder is a swing-down section. To release it, pull the spring-loaded

pin forward and pull the top of the free end of the ladder back.

To re-stowthe steps, merely swing themup and forward. The spring-load pin automatically engages.

Machine Damage Risk:

Ladder steps must be locked up before lowering planter or machine damage will occur.

Refer to Figure 40

A tool is pinned to the bottom of the walkboard. it is easier to remove and replace this tool with the planter lowered.

The tool is useful on 10HD and 25P openers. The wrench end ﬁts the nutweldment of the spring forcecam (page 72).The pry endﬁts the hub groove of greenseed wheels (page 83).

Figure 40

Walkboard Lower Ladder

29321

Refer to Figure 42

As necessary for auger clearance, open walkboard top railing. At each side, pull cross-pins out and make

⁄

turn. Release pin into shallow detents. Swing railing

toward hopper.

Figure 41

Walkboard Tool Location

Figure 42:

Walkboard Swing-Down Rail

29322

29309

2014-09-08 Table of Contents Index 401-571M

Page 50

46 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Loading Materials (YP4025F only)

The YP4025F-1630 or YP4025F-1670 Planter is a dry fertilizer/seeder version of the YP4025. The standard seed-only hopper or bulk-box capability is replaced by a dual-function hopper.

Seed and fertilizer may be loaded manually or via auger. Before ascending the ladder for loading or auger outlet control:

• Check that the walkboard is closed and latched. Although the YP40F walkboard has a side extension, the latching is identical to the standard walkboard.

• Swing down and latch the lower ladder section.

Refer to Figure 43 (depicting the siderailing closed, and rear railing open)

If loading via auger, the sideand rear top railings may be swung down for clearance.

• Shut off hydraulic fan. Both hopper bins are pressurized when the fan is running.

Figure 43

Walkboard Railings

31092

Blowing Debris and Possible Chemical Hazards:

Do not open hopper lids with fan running. Hopper contents may blow into your face, possibly causing eye injury, and exposing you to dust and possible chemical hazards.

Dust and Possible Chemical Hazards:

Seed may present a dust inhalation hazard. Treated seed may present a chemical exposure hazard. Wear eye protection. Wear a dust mask or respirator. Wear other protective equipment speciﬁed by the seed and treatment suppliers.

Loading Seed

The seed hopper is the smaller rear hopper.

1. Close the slide gate at the base of the seed hopper.

Refer to Figure 44

2. To open thelid, lift upon the handle . The handleis

also a spring-loaded latch, and tilts up to release.

3. Inspect the hopper for leftover seed and debris.

Clean out anything other than the seed to be planted.

4. At ﬁrst use,and seasonally, addseed lubricant to the

empty hopper, and then add a seed/lubricant mix to the empty hopper per the Operator manual. Mix lubricant with remaining seed per Operator manual.

5. See Caution at right. Load seed and seed lubricant no higher than the top cap of the vent structure.

6. Close lid. Check that the latch snaps to horizontal

and is holding lid closed.

Figure 44

Seed Hopper Lid

Sudden Lid Motion:

Open rear (seed) lid carefully. It is supported by a spring-loaded piston, and may swing up rapidly.

7. Swing up and latch railing if lowered for auger operations.

31091

401-571M Table of Contents Index 2014-09-08

Page 51

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 47

Loading Fertilizer

Check that calibration and clean-out doors are closed at meter (page 57).

Refer to Figure 45

1. Lift the handle until the hook releases from the U-bolt shackle .

2. Inspect the strainer basket fordebris.Removeand clean as necessary.

3 4 5

Conﬁned Space Hazards:

Leave strainer in place for all routine operations. Do not enter hopper for routine operations. Risk of entrapment and rapid suffocation.

3. Inspect the hopper for leftover fertilizer and debris. Clean out anything other than the fertilizer to be applied. See YP4025F Supplement Manual (403-362M) for further information.

4. Re-install strainer.

5. Inspect the seal under the lid. It must make air-tight seal against the hopper top plate when the lid is closed and latched. Replace sealif crushed, worn or missing.

6. Load fertilizer through strainer.

Dust and Possible Chemical Hazards:

Dry fertilizer may present a dust inhalation hazard and may present a chemical exposure hazard. Wear eye protection. Wear a dust mask or respirator. Wear any other protective equipment speciﬁed by the material supplier.

7. Swing lid closed. Lift handle. Engage shackle with hook. Close handle.

8. Swing up and latch railing if lowered for auger operations.

Close lid handleforoperations or short-term parking. For long-term storage, do not engage hook or latch handle, to avoid deforming the seal.

For storage, particularly unlatched, a padlock through both U-bolts deters unauthorized entry by persons unaware of possible conﬁned space risks, and prevents entry of pests, debris and precipitation

Figure 45

Fertilizer Hopper Lid

31090

2014-09-08 Table of Contents Index 401-571M

Page 52

48 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

82 bu. Hopper Operation

Tipping Hazard:

Load an 82 bu. hopper only when mounted on the cart. A full hopper can weigh over 5500 lbs (2500 kg), which is above the lifting and balance capability of most tractors and farm forklifts.

Note: Fork lift height capability required is:

Planter lowered: 4 ft. 2 Planter raised: 6 ft.5

⁄

in. (129 cm)

⁄

in. (198 cm)

Note: The hopperincludes alevelsensor whichis not

factory-installed. If you desire to use the sensor, install it prior toﬁrst useof thehopper. See page 172.

Adding Seed to 82 bu. Hopper

1. When using new meters for the ﬁrst time, or at the start of each season, measure out approximately 4 gallons (15 liters) of seed into a pail. Add (120 ml) of lubricant to the pail. Mix and pour into air box before mounting hopper.

2. Put tractor in Park.

3. Turn off seed box fan.

4. If the 82buhopper is notyeton the planter,dismount any box or hopper present, and mount the empty 82bu hopper. See “Changing the Seed Box or Hopper” on page 50.

5. Open slide gate at base of hopper. Open lid.

6. Measure the lubricant required, and if loading seed by bag, determine the amount of lubricant per bag.

If loading with a hydraulic auger, see “Auxiliary Hydraulics” on page 52.Lower walkboard railing as necessary.

Note: Auger heightcapability requiredis:

PROBOX®, planter lowered: 8 ft. 9 PROBOX®, planter raised: 11 ft.

82 bu. hopper, planter lowered:9 ft. 82 bu. hopper, planter raised: 11 ft. 3 (3.44 m)

7. Add seed, mixing in lubricant continuously or per bag.

⁄

in. (2.68 m)

⁄

in. (3.37 m)

⁄

in. (2.75 m)

⁄

in.

cup

Approximate capacity of 82 bu. bulk seed hopper,

in bushels, at 10 in. increments.

Figure 46

22958

82 bu. Hopper Capacities (bu.)

Entanglement, Chemical and Falling Risks:

Observe all safety precautions for use of loading equipment, particularly augers.

System Plugging Risk:

Do not use liquid seed treatments.

401-571M Table of Contents Index 2014-09-08

Page 53

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 49

150 bu. Hopper Operation

Tipping Hazard:

Load a 150 bu. hopper only when mounted on the cart. A full hopper can weigh over 10000 lbs (4500 kg), which is above the lifting and balance capability of most tractors and farm forklifts.

Note: The 150 bu. hopper is incompatible with the

optional cart-mounted liquid fertilizer system. The sidesof the hopper extendinto the space occupied by the tank system.

Note: Fork lift height capability required is:

Planter lowered: 4 ft. 2 Planter raised: 6 ft.5

⁄

in. (129 cm)

⁄

in. (198 cm)

Note: The hopperincludes alevelsensor whichis not

factory-installed. If you desire to use the sensor, install it prior toﬁrst useof thehopper. See page 172.

Adding Seed to 150 bu. Hopper

1. When using new meters for the ﬁrst time, or at the start of each season, measure out approximately 8 gallons (30 liters) of seed into a pail. Add 1 cup (240 ml) of lubricant to the pail. Mix and pour into air box before mounting hopper.

2. Put tractor in Park.

3. Turn off seed box fan.

4. If the 150 bu. hopper is not yet on the planter, dismount any box or hopper present, and mount the

empty 150 bu. hopper. See “Changing the Seed Box or Hopper” on page 50.

5. Open slide gates at base of hoppers. Open lids.

6. Measure the lubricant required, and if loading seed by bag, determine the amount of lubricant per bag.

Approximate capacity of 150 bu. bulk seed

hopper, in bushels, at 10 in. increments.

Figure 47

22959

150 bu. Hopper Capacities (bu.)

Entanglement, Chemical and Falling Risks:

Observe all safety precautions for use of loading equipment, particularly augers.

System Plugging Risk:

Do not use liquid seed treatments.

If loading with a hydraulic auger, see “Auxiliary Hydraulics” on page 52.Lower walkboard railing as

necessary.

Note: Auger heightcapability requiredis:

PROBOX®, planter lowered: 8 ft. 9 PROBOX®, planter raised: 11 ft. 150 buhopper,planterlowered:9 ft.6 150 bu hopper, planter raised: 11 ft. 9

⁄

in. (2.68 m)

⁄

in. (3.37 m)

⁄

in.(2.9 m)

⁄

in.

(3.59 m)

7. Add seed, mixing in lubricant continuously or per bag.

2014-09-08 Table of Contents Index 401-571M

Page 54

50 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Changing the Seed Box or Hopper

Note: The YP40aplanteraccepts the Great Plains 82 bu.

hopper,150 bu.

hopper, or bulk seedboxesthat

meet the PioneercPROBOX®speciﬁcation.

Tipping Hazard:

Place or remove a hopper only when empty. A full hopper can weigh between 5000 and 10000 lbs (2700-4500 kg), which is above the lifting and balance capability of most tractors and farm forklifts.

1. Move the planter to an area of level ground and sufﬁcient room to maneuver a tractor or fork-loader.

2. Unhitch tank cart if present.

Refer to Figure 48

3. Disconnect hopper level sensor (if installed).

4. Remove the pin securing the left end of the

walkboard to the ladder assembly.

5. Swing the walkboard open, and secure itat fullopen with the keeper .

6. Raise the planter. This causes the rear transport wheels to move forward, providing closer access for the lifter.

7. Back up the planter about three feet (1m). This causes the rear transport wheels to caster forward, further reducing the reach required for lifting.

8. Turn off the seed box fan.

9. Put the towing tractor in Park. Shut off engine. Remove key.

10. Close the slide gate at the base of the hopper or seed box.

Refer to Figure 49

11. Removethe two pins , atoppositecorners, used to

retain the seed box or hopper. Remove these pins even if no container is presently mounted.

Refer to Figure 50

12. Align the lifting forks with the slots in the rear of the seed box or hopper. Slowly drive forward until the forks are completely under the container.

13. Slowly liftthe seed container above the bracket, and back away from the planter.

14. Lower the container to the ground for exchange with the next seed container.

Figure 48

Walkboard Pin and Keeper

Figure 49

Seed Box Lock Pins

Figure 50

Removing/Mounting Hopper

29312

29267

26121

a. Only the model YP4025F-1670 supports the 403-289K seed/fertilizer hopper, which is standard on that model. b. The 150 bu. hopper is incompatible with on-board fertilizer tanks. c. PROBOX® is a registered trademark of Pioneer Hi-Bred International, Inc.

401-571M Table of Contents Index 2014-09-08

Page 55

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 51

15. If mounting a seed box for the ﬁrst time in a season, open the new seed box and measure out approximately3 gallons(11 liters)of seed into apail.

Add

⁄

cup (80 ml) of lubricant. Mix and pour into air

box before mounting new seed box.

Tipping Hazard:

A full seed box can weigh over 2500 lbs (1134 kg). Make sure your tractor or fork lift is rated for and conﬁgured to lift this weight. Do not let anyone stand under or in front of the elevated seed box.

Plugging and Inconsistent Population Risks:

Ezee Glide Plus talc+graphite seed lubricant blend is mandatory for all seed, especially treated or inoculated seed when using precision meters.

For ﬁnger pickup meters, use pure graphite or Ezee Glide Plus. See “Seed Lubricants” on page 125.

16. If mounting aseed box, add lubricant to the seedbox at this time.It may beeasier to add it while the box is still at ground level.

Refer to Figure 51

17. Approach thehopper orseed box from the back (the side with the slide gate).

18. If mounting aseedhopper,conﬁrm that thehopper is the correct version for that side. The left hopper has the lid hinge on the left. The right hopper has the lid hinge on the right.

19. Slowly lift the full seed box or empty hopper, and place it in the planter air box frame.

20. Install the box retaining pins in frame corners.

Figure 51

Approaching Hopper

25255

21. If thehopper hasa level sensor, connect that lead to the “HOPPER 2”lead of theplanter harness, located below the hydraulic drive in the center section.

22. Close and pin walkboard.

23. It may be necessary to make a one-time adjustment to the seal on the top of the air box, to obtain full

It is possibleto lift the hopperor seed box from anyside, but it will only function properly if the seed gate is to the rear of the planter.

contact between air box and seed box/hopper.

24. If installing an empty hopper for planting, load seed (and lubricant).

25. Open the slide gate.

Checking Planting Rate

Although your seed monitor will report useful full pass results, cautious practice includesmanually checking the seed rate early in the ﬁrst pass.

The Seed Rate Chart book for this planter (manual part number 401-571B) contains sampling instructions.

2014-09-08 Table of Contents Index 401-571M

Page 56

52 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Auxiliary Hydraulics

Refer to Figure 52, Figure 53 and Figure 54

The YP40 planter includes, as standard equipment, an auxiliary hydraulic circuit, intended to power a seed auger for loading bulk hoppers.

The Aux quick-disconnect ports are onthe frame. This circuit is shared with the markers (if installed).

Note: If markers arenot installed,the Aux/Marker circuit

is always in Aux mode.

Operating Auxiliary Hydraulics

The planter needs to be unfolded for convenient access to the manual hydraulic valve.

1. Fold any extended markers and set the tractor lever for the marker/aux circuit to Neutral.

2. If no markers were unfolded, set the Clutch Folding Module Marker/Fold switch to “Marker”.

3. If the machine has markers, at the left wing tool bar, move the lever on the manual valve from Marker (lever pointing forward) to Aux (lever pointing back).

4. Connect the implement requiring hydraulic power.

5. Brieﬂy Extend the tractor lever for the Marker circuit, engage local valve/switchon implement, and conﬁrm proper implement operation (auger rotation in the correct direction).

5 4

CFM: Auxiliary Operations

Figure 52

Auxiliary Hydraulic Ports

Figure 53

29269

26122

6. Set tractor circuit lever to Extend, and operate implement with local controls.

7. When operation is complete, set tractor circuit to Float or Neutral.

8. Set wing valve back to Marker .

3 5

Unexpected Marker Movement:

Do not move Marker/Aux valve unless tractor circuit is in Float, Neutral, or shut down. If circuit is pressurized, markers begin moving immediately when valve is set to Marker.

401-571M Table of Contents Index 2014-09-08

Figure 54

Auxiliary Hydraulic Valve

26048

Page 57

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 53

Fertilizer Tanks (Option)

Agricultural Chemical Hazard:

Some chemicals will cause serious burns, lung damage and death. Avoid contact with skin or eyes. Wear proper protective equipment as required by chemical manufacturer. Avoid prolonged breathing of chemical fumes. Wear respirator as required by chemical manufacturer. Seek medical assistance immediately if accident occurs. Know what to do in case of an accident.

Filling Tanks

Refer to Figure 55

1. Connect nurse-tank hose to quick-ﬁll coupler located at rear tool bar. Lock hose in place with cam-lock levers.

2. Close valve (not shown) going to the in-line ﬁlter located just before the pump.

3. Open valves at each tank and at quick-ﬁll coupler.

4. Fill tanks, then close valve at quick-ﬁll coupler, and disconnect the nurse tank hose.

Note: Always close valve at ﬁlter when ﬁlling or storing

any liquid in tanks. Failure to do so may allow material torun out of manifold outletscausing contamination from spillage.

Note: Alwaysﬁllfertilizertankstoequallevels.If onetank

ﬁllsmorequickly,shutthattankvalveofftoraisethe levelin theother tank.

Ground Drive Pump

The liquid fertilizer option uses a ground drive pump which engages whenever the planter is lowered and in forward motion. For pump operation and pump maintenance, refer to the pump manual, supplied in the liquid fertilizer option package. For fertilizer settings, see the Seed Rate manual.

Figure 55

Quick-Fill Coupler

29287

Plugging Risk:

Do not allow fertilizer to remain in the tanks for extended periods or settling of material and system plugging will occur.

2014-09-08 Table of Contents Index 401-571M

Page 58

54 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Trailer Operations

The YP40 planter optionally includes a trailing pintle hitch, intended for use with Great Plains PFC1600 or PFC2000 fertilizer tank carts. Hitching/hook-up and operating instructions are found in the tank cart Operator’s Manual.

Uncontrollable Load Hazard:

DO NOT EVER transport the tank cart while hitched to the planter (in train) over roads if there is any liquid in either tank. Tank(s) must be empty for transport, or the tank must be towed separately.

Loss of Control Hazard:

Do not attempt reverse operations with a PFC tank hitched to the planter. Trailer direction is extremely difﬁcult to control.

The leading gauge wheels, rear-most transport wheels, PFC tank cart lead wheel and SML tank cart trailing wheels fully caster, and provide no resistance to side sway by the planter or cart.

The PFC1600 and PFC2000 tanks include a ground-driven pump with an electric clutch. The clutch circuit is controlled by the “Fert.Pump” switch on the

Clutch Folding Module. Also, as the pump is ground-driven, it automatically starts and stops with planter movement.

Figure 56

Tank Cart Hitched to Planter

Figure 57

CFM: Tank Pump Control

29288

26122

401-571M Table of Contents Index 2014-09-08

Page 59

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 55

Short-Term Parking

1. Fold markers. See “Folding the Markers” on page 41.

2. Choose a location with level ﬁrm ground. Do not unhitch on a slope.

3. Raise the planter.See “Raising Planter”on page 30.

4. Fold the planter (optional). See “Folding the YP40 Planter” on page 32.

5. Block tires.

6. Re-install the parking stand (“Hitching Tractor to Planter” on page 17).

Refer to Figure 58 (shown without tractor forclarity)

7. For the standard 3-point hitch, deploy the two forward stands . Remove the inner pin , swing the stand out, down and vertical around the bottom pin , and re-insert the pin at .

5 4

6 7

Figure 58

Deploying 3-Point Stands

26034

For hydraulic hitch planters, adjust hitch cylinder to relieve weight from draw-bar.

8. Insert transport locks on all lift cylinders.

9. Disconnect hydraulic lines. Secure them so that they do not touch the ground.

10. Disconnect electrical cables, capping where provisioned.

2014-09-08 Table of Contents Index 401-571M

Page 60

56 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Long-Term Storage

Complete Parking steps ﬁrst.

1. Park the YP40 planter indoors if possible, per the steps above. Great Plains recommends parking/storing inthe raised conﬁguration, folded, on the parking stands and with all lift cylinder locks installed.

2. If no hoppersorseed boxes are mounted, capthe air boxes.

3. If empty seed boxes or hoppers are mounted, close the seed gates and the lids.

4. If partially-loaded seed boxes are mounted, close seed gates, and remove seed boxes. If partially loaded hoppers are present, unload seed via clean-out doors onairbox. Store planter onlywithout seed.

5. Open airbox clean-out doors. Clean out residual seed.

6. Close airbox clean-out doors. Using planter fan,blow seed to meters, cleaning out the lines.

7. Open meter clean-outs. Clean out residual seed.

8. Close all clean-out doors and ports. Shut off all Y-tubes.

9. If seed meters are removed, tie or tape a small plastic bag over ends of all seed delivery tubes, to prevent insects from entering or nesting.

10. Apply grease to exposed cylinder rods to prevent rust.

11. Flush fertilizer lines (if present). Flush system with RVanti-freeze if thereis any chanceof freezing prior to next implement use.

12. Empty and clean fertilizer strainers.

13. Lubricate all points listed in Maintenance to prevent rust.

14. Clean planter of mud, dirt, excess oil and grease.

Figure 59

Planter Ready for Parking

29290

401-571M Table of Contents Index 2014-09-08

Page 61

Great Plains Manufacturing, Inc. Table of Contents Index Operating Instructions 57

Fertilizer System Clean-Out

Equipment Damage Risk:

Do not leave fertilizer in the hopper for extended periods. Fertilizer is generally corrosive, and will attack expose metal surfaces.

1. When planting is completed, raise the planter, but leave the fan running for 30 seconds to empty the base of the meter, delivery hoses, and applicators.

2. Unless a tarp will be used to collect the remaining fertilizer,move the planter to an area with a ﬂat clear surface. Comply with fertilizer supplier instructions for suitable areas at which to cover fertilizer.

3. Install transport locks on the raised planter. Shut off the tractor. Mount a collection tarp if only a small amount of fertilizer remains.

Refer to Figure 60

4. Open the calibration door (rear door). If the air system is empty, no material may fall.

5. Open the clean-out door (forward door). Expect material toﬂow in signiﬁcant volume untilthe hopper is empty.

6. Turn the ground drive wheel several revolutions to empty the meter ﬂutes.

If a second person is available, open the hopper lid and inspect the meter ﬂutes while turning the wheel.

7. Recover the fertilizer.

8. With the clean-out and calibration doors open, power-wash the fertilizer hopper from above. Rotate the ground drive to expose all meter ﬂutes to the water. Wipe doors, seals and meter ﬂanges.

9. Use a wire to tie the doors partly open during drying and storage. This allows condensationto drain while preventing pest entry. See page 47 for lid operations prior to storage.

Problem Fertilizer Clean-Outs

For normal unloading of residual materials at completion of planting, see “Long-Term Storage” on page 56.

If, however, parking and storage recommendations have not been followed, it is possible to have hard-to-remove material present.

If the material fails to pass through the fertilizer meter clean-out door, take the following steps to remove it. Do not consider entering the hopper until ﬁrst completing these tasks.

Open the clean-out door (page 57). Remove the strainer (page 47) and evaluate the

problem. For small amounts of residual materials, poking with a

long pole may sufﬁce to push it through the clean-out. If poking doesn’t produce satisfactory results, and you

intend to trywash-out, at least poke one holedownto the meter clean-out, so that water can ﬂow out.

For example:

• If the problem is a single moveable large object, such as a dead animal, ﬁshing out from above may be the solution.

• If the problem is congealed materials, scoop out a sample from above and see if the mass dissolves in water.Ifso,and there is asmall amount of thematerial involved, rinsing, or rinsing and pumping the hopper from above may be the solution.

If wash-out is contemplated, start by introducing a small amount of water, and make sure that it appears at the clean-out within 15minutes.If not, youwill just beadding water to the problem. The hopper is not designed tohold water at full capacity. Add no more water, remove meter box instead, and clean out from below.

Figure 60

Meter Door Handles

31101

2014-09-08 Table of Contents Index 401-571M

Page 62

58 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Adjustments

To get full performance from your YP40 planter, you need an understanding of allcomponent operations, and many provide adjustments foroptimal ﬁeld results.Some of these have been covered earlier in this manual.

Even if your planting conditions rarely change, some of these items need periodic adjustment due to normal wear.

Adjustment Page The Adjustment Affects

Tongue Height 22 Correct draft load to tractor Frame level 23 Planting consistency Height Switch Adjustment 60 Correct off/on state of meter drive Wing Leveling 99 Planting consistency Hydraulic Drive Adjustments - Refer to YP40 planter Seed Rate manual Marker Adjustments

Marker Extension 145 Intended swath spacing

Marker Speed Adjustment 172 Reliable marker operation Fan Adjustments 61 Consistent seed ﬂow to meters Fertilizer Adjustments

Fertilizer Setup (option) 62 Seed germination and growth

Fertilizer Oriﬁces (option) - Refer to YP40 planter Seed Rate manual Frame-Mounted Row Accessories

Terra-Tine Row Cleaners 65 Row preparation

Coulters 66 Row pre-furrow depth and trash cutting

Vantage I Fertilizer Delivery 66 Fertilizer placement Row Unit Adjustments for Series... 10HD 25P

Opener Depth 69 69 Planting depth

Row Unit Down Pressure 70 72 Planting depth uniformity

Row Unit Lock-Up 74 74 Single/twin-row operation

Row Cleaner Adjustments (Option) 75 75 Row preparation

Coulter Adjustments (Option) 76 76 Seed depth uniformity

Opener Disk Adjustments 77 77 Seed depth, seed-to-soil contact

Side Depth Wheels n/a 78 Seed depth, prevents plugging

Adjusting Gauge Wheel Scrapers n/a 80 Consistent seed furrow depth

Seed Meter Setup and Adjustment 81 81 Consistent seed population

Seed Firmer Adjustments (Option) 88 88 Seed-soil contact

Press Wheel Adjustment 89 89 Effective soil coverage Seed Meter Adjustments 10HD 25P

Exchanging Meters 84 84

Meter Brush 85 85

Sprocket Indexing (Stagger) 87 87 Planting Rate - Refer to Seed Rate manual Monitor Adjustments - Refer to Seed Monitor manual

401-571M Table of Contents Index 2014-09-08

Page 63

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 59

Height Switch Adjustment

s/n B1058A+

Refer to Figure 61 The YP40 planter includes a sensing switch that

signals the seed monitor (and activates the optional hydraulic meter drive), when the planter is lowered for planting. The switch is located at the rear cross tube on the planter’s left side.

Although factory-preset for typical planting conditions, Great Plains recommends adjusting this switch for your exact ﬁeld conditions and planting depth.

Crushing Hazard:

Exercise extreme caution when adjusting the switch.

1. Lower the planter to the height at which seed delivery is to begin.

2. Loosen bolt holding switch bracket to plate .

3. Move bracket forward or rearward so that switch toggle arm makes contact with rear cross tube .

4. Tighten nuts.

Note: Switch isin “Neutral” position when planting.

Switch is “Activated” when raised.

2 3 4

5 6

Figure 61

Height Switch Location s/n B1058A+

32347

2014-09-08 Table of Contents Index 401-571M

Page 64

60 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Height Switch Adjustment

s/n B1057A-

Refer to Figure 62

Planter is shown in raised position for clarity of height switch. The YP40 planter includes a sensing switch that signals the seed monitor (and activates the optional hydraulic meter drive), when the planter is lowered for planting. The switch is located at the front of theright link connecting the rockshaft and rear axle.

Although factory-preset for typical planting conditions, Great Plains recommends adjusting this switch for your exact ﬁeld conditions and planting depth.

Crush Hazard:

Exercise extreme caution when adjusting the switch.

1. Lower the planter to the height at which seed delivery is to begin.

2. Loosen U-bolt holding switch bracket to link .

3. Move bracket forward or rearward so that switch toggle arm makes contact with tool bar .

4. Tighten nuts.

Note: Switch isin “Neutral” position when planting.

Switch is “Activated” when raised.

2 3 4

5 6

Figure 62

Height Switch Location s/n B1057A-

29266

Marker Adjustments

There are six adjustments for markers,only one of which is routine:

• Disk Angle (covered in this section)

Even if your row spacing rarely changes, you may need to adjust disk angle for soil conditions and planting speed.

• Shear Bolt Replacement (Maintenance, page 98)

If a marker hangs up on an obstruction, a bolt at the fold is designed to fail.

• Marker Cylinder Bleed (Maintenance, page 97)

Once set for a speciﬁc row spacing, this only needs periodic checking to ensure the clamp is secure.

• Marker Extension (Initial Setup, page 145)

Once set for a speciﬁc row spacing, this only needs periodic checking to ensure the clamp is secure.

• Marker Speed (Initial Setup, page 172)

Once initially set by your dealer, this rarely needs modiﬁcation.

Sharp Overhead Object Hazard:

You may be injured if hit by a folding or unfolding marker. Markers may fall quickly and unexpectedly if the hydraulics fail. Never allow anyone near the planter when folding or unfolding the markers.

401-571M Table of Contents Index 2014-09-08

Page 65

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 61

Marker Disk Adjustment

Sharp Object Hazard:

Marker disks may be sharp. Use caution when making adjustments in this area.

Refer to Figure 63

1. To change angle of cut, and the width of the mark, loosen

⁄

inch bolts holding the disk assembly.

For a wider mark , increase the angle of the marker with respect to the tube . For a narrower

mark , reduce the angle.

Note: Donot set a marker angle wider than need to make

a useful mark. Excess angleincreases wear onall marker components.

2. Tighten bolts .

Note: The directionof travel tends to drive the disk

angle to Wide. If bolts are not tight enough, or loosen over time,the diskwill slipinto theWide mark conﬁguration.

Fan Adjustments

Refer to Figure 64

There is one butterﬂy valve at the fan outlet: The recommended butterﬂy valve setting is 0°.

Recommended fan speed depends on planter conﬁguration:

3800 rpm 82 bu. hopper

150 bu. hopper 670/1440 liter seed/fertilizer hopper

3500 rpm bulk seed boxes

a. See manual 403-362M for operation with this

hopper.

Figure 63

Marker Disk Angle

11757

Adjust the basicfanrate with the tractorhydraulicsystem and the fan rpm display of the seed monitor. Do not run

Figure 64

Fan Butterﬂy Valve

29313

the fan at speeds over 4500 rpm or speeds under 3000 rpm.

A fan operating at too higha speed creates too much air ﬂow causing seed to plug up the meter box, and meters to run empty. A fan operating too slowly does not create enough air ﬂow to push the seed to the meter, causing meters to run empty. If air system does not operate suitably with fan speeds between 3000-4500 rpm, refer to the troubleshooting chart, and then adjust the fan butterﬂy valve only as needed.

the meter has less seed, check for blockageupstream. If there is no blockage,checkforinsufﬁcient fan airﬂow: low rpm and/or butterﬂy valve at too high an angle.

The butterﬂy valve may be helpful if your tractor can maintain a high, but irregular fan rpm. Set the rpm to above 3800 rpm with valve completely open (0°).

Adjust valve angle in the 20-30° range until you achieve

the desired seed ﬂow consistency. Normally, each seed meter will be full of seed, up to the top of the bypass screen at the base of the inlet neck. If

2014-09-08 Table of Contents Index 401-571M

Page 66

62 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Liquid Fertilizer Setup

Note: Fordryfertilizeroperations,seemanual403-362M,

which covers thedry fertilizer/seed hopper andair delivery systemoperation.

Liquid fertilizer distribution systemsa are optional on the YP40 planter and are optimized for use with the optional on-board 2x200 gallon tanks and/or the Great Plains PFC1600 or PFC2000 tank carts.

If installed, there are several points of fertilizer setup and/or adjustment:

1. Pump setting dial or sprockets Basic pumping rate is adjusted at pumps.

For the cart-mounted pump and center section ground-drive pump, a dial on the pump sets rate.

Refer to the Seed Rate manual and the tank cart Operator’s manual.

2. Row oriﬁce setup Oriﬁce plate sizes are chosen to assure consistent pressure at all nozzles. Refer to the Seed Rate manual.

3. Relief valve setting See “Fertilizer Relief Valve” on page 64.

4. Inlets Both Type 2 (2-section, single inlet) and Type 3 (3-section,3-inlet) systems havequick-connectinlets and shutoff valves at the back of the planter. See page 23 for hook-up details.

5. Strainer setup The optional ground drive pump includes a strainer. The mesh screen size must be compatible with the oriﬁce plates in the distribution system. Refer to the Seed Rate manual.

Great Plains recommends checking with your local agronomist as soil conditionsvary. Soilconditions in your area may needless or morefertilizer than representedin these charts. In furrow, do not exceed 12 gallons per acre in any case.

The liquid fertilizer system is designed to operate (ideally) between 15 and 40 psi, but in no case more than 65 psi. Several system elements affect system pressure, and need initial setup, periodic maintenance, and adjustment when changing fertilizer rates.

Agricultural Chemical Hazard:

Some chemicals will cause serious burns, lung damage, and death. Avoid contact with skin or eyes. Wear proper protective equipment as required by chemical manufacturer. Avoid prolonged breathing of chemical fumes. Wear respirator as required by chemical manufacturer. Seek medical assistance immediately if accident occurs. Know what to do in case of accident.

a. Type 2, Type 3, or both, with or without planter-mounted ground drive pumps for Type 2. See page 23 for details.

401-571M Table of Contents Index 2014-09-08

Page 67

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 63

Ground Drive Pump

Refer to Figure 65

With a Type2fertilizer system, thepump is driven by a ground contact wheel .Fertilizer rate is independent of seed rate. Fertilizer coarse rate is set by a driving sprocket on the ground drive assembly, and ﬁne rate is adjusted at the setting hub (dial) on the pump.

Equipment Damage/Material Loss Risks:

The ground drive contact wheel and chain system will operate whenever the planter is lowered and in motion. If planting without fertilizing, the pump must not be allowed to run dry. Disconnect the chain or remove a sprocket.

Note: When aType 3 fertilizer system is installed, the

pumpismountedatthesource(notontheplanter), usually on a tank cart.

For sprocket and dial settings, refer to the Seed Rate manual.

Liquid Fertilizer Strainer(s)

The optional ground drive fertilizer pump systems include a strainer at the pump. The Type 3 system relies on strainers at the source, usually on a tank cart.

The strainer(s) are delivered with a mesh screen. You need to checkthat each screen is anappropriate size for the oriﬁce plates you plan to use.

If changing screen sizes, keep in mind the following:

• Generally, select a mesh screen the same or slightly smaller than the oriﬁce size.

• A substantially smaller mesh (e.g. 100) will reduce manifold oriﬁce plates plugging so often, but the strainer screen will have to be cleaned more often.

• A much larger mesh (e.g. 50 or 30) will pass more material but should only be considered when using large manifold oriﬁce plates.

• A plugged or partially plugged screen starves the pump and results in a reduced application rate. Monitor the pressuregaugefor a reduction inpressure that indicates a plugged strainer screen.

Figure 65

John Blue Pump

Sprocket and Dial

Figure 66

Strainer

28416

21965

2014-09-08 Table of Contents Index 401-571M

Page 68

64 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Fertilizer Relief Valve

Refer to Figure 67

When a “Type 2” fertilizer system is installed, a relief

1 2

valve and pressure gauge are mounted at each ground drive pump. The relief valve protects the manifold, lines and ﬁttings from excessive pressure. Any product that dumps over the relief valve will discharge from the dump line in relative safety.

To set relief valve:

1. Unlock plastic jam nut from relief valve knob.

2. Unscrew knob clockwise (looking down) until it loses contact with internal spring.

3. Screw knob counterclockwise two turns. Start at this setting.

4. Observe manifold gauge and watch for reliefvalve dump line discharge while operating in the ﬁeld.

5. If valve is dumping product and gauge reads under 65 psi, stop tractor and turn knob clockwise

⁄

turn. Continue operating at normal ﬁeld speed.

Repeat this step as needed until no product is discharged from relief valve dump line .

6. If thepressure gaugereads above 65 psi, change to a larger oriﬁce. Go to step 2 and repeat.

Figure 67

Fertilizer Relief Valve

25164

Fertilizer Oriﬁce Plates

Refer to Figure 68

In general, the oriﬁce needs to be small enough to create at least 15 psi of pressure in the manifold but large enough to prevent the manifold pressure from exceeding 65 psi.

The minimum pressureis required toevenout the ﬂow of fertilizer between rows. To reduce oriﬁce plugging and pump wear, use the largest oriﬁce practical for your fertilizer application rate. Alternate oriﬁce plates are listed in the Seed Rate manual.

The best pressure range to maintain is 20-40 psi to ensure optimum distribution while minimizing leakage. Built-in check valves at the row units prevent ﬂow below 15 psi.

The Seed Rate Chart book for this planter (manual part number 401-571B) contains a table of oriﬁce sizes in gallons per acre.

Oriﬁce plates do not set fertilizer rate. Rate is set at the pump.

High Pressure Fluid Hazard:

Wear protective gloves when changing oriﬁce plates.

Figure 68

Fertilizer Oriﬁce Plate

29984

401-571M Table of Contents Index 2014-09-08

Page 69

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 65

Frame-Mounted Row Accessories

Terra-Tine™ Adjustments

Refer to Figure 69 through Figure 71

Note: All adjustmentsmust be made with the planter in

the fully raised position.

Equipment Damage Risk:

Be sure to check that the Terra-Tine Row Cleaner tines DO NOT touch the coulter blade or any other attachments. Such contacts will cause excess wear to all parts involved. At least

⁄

in (13mm) clearance is recommended.

1. When the blade is out of the soil, adjust the Terra-Tine lock collar height to set the height of tine ﬁngers ﬂush with the bottom of coulter blade.

2. For side-to-side alignment, rotate the shank mount around the vertical shaft and retighten the square head set screw (set screws not visible in twin-row illustration).

3. If tines are found to be rolling over, rather than moving trash, spring tension can be increased. See the Terra-Tine manual for details.

Using Terra-Tines with Coulters

Refer to Figure 69 and Figure 70

Tines may be set ahead of, behind , and to the

8 9

right or left of frame-mounted coulters.

4. Fore-to-aft adjustment is accomplished by adding or removing the extension arm to place the Terra-Tine Row Cleaner to either side of the coulter hub depending on the desired position or clearance between other attachments. Testing has shown better performance behind the hub, but available space may dictate the mounting position.

6 7

Figure 69

Terra-Tine Twin-Arm and

Single-Arm with Extension

26060 26061

Figure 70

Terra-Tine / Coulter Hub Positioning

2014-09-08 Table of Contents Index 401-571M

13469

Page 70

66 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Frame-Mounted Coulter Adjustments

Refer to Figure 71

Frame-mounted coulters may be run on-row or between rows.

On-Row

If run on-row,or within2 in. (5.1 cm) of the furrow, adjust the shaft to set the coulter depth to be the planting depth or

Between Row (or Off-Row at least 2in)

At the shaft , adjust the coulter depth for a running depth of 4 to 4 level . Refer to the Vantage I manual (204-376M) for further adjustments.

Do not adjust the spring tension. It is factory pre-set.

1 2

⁄

inch (6 mm) shallower.

⁄

inches (10.1-11.4 cm) belowground

Vantage I Fertilizer Adjustments

Refer to Figure 72

At the back plate , adjust the tine height for a running depth of 1 inch (2.5 cm) below ground level . Refer to the Vantage I manual (204-376M) for further adjustments.

2 3

Figure 71

Frame-Mount Coulter

Figure 72

Vantage I Applicator

25392

22951

401-571M Table of Contents Index 2014-09-08

Page 71

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 67

10HD Series Row Adjustments

Refer to Figure 73 (which depicts arowunit fully populated with all optional

Figure 73

29268

accessories supported foruse on at least one 10HDP modelsome models maynot support some accessories)

From front to back, a Great Plains 10HD Series row unit can include the following capabilities (some optional):

1. UMC Row Cleaner: optional Row cleaners clear debris ahead of the furrow. See page 75 for adjustments.

2. Unit-Mounted Coulter (UMC): optional UMCs cut residue and prepare the soil ahead of the seed furrow. See 76 for adjustments.

3. Dual Down Pressure Springs: standard Each row unit is mounted on the YP40 planter via parallel arms which allow the row unit to independently move up and down while remaining parallel to the ground. The adjustable spring provides the force to get the row unit and attachments into the soil. See 70 for adjustments.

4. Row Unit Spring Cam: standard Adjustment sets the down-force usedbythe row unit. See “10HDP Series Down-Pressure” on page 70.

10HD Series Row Unit

5. Row-Unit Lock-Up: holes standard, pins optional If rows are shut off with seed tube plugs, row unit wear can be reduced by locking them up. See “Row Unit Shut Off” on page 74.

6. Disc Blades: standard, 2 per row unit Double disc blades open a furrow, creating the seed bed. Spacers adjust the blades for a clean furrow. See “Row-Unit Opener Disk Adjustments” on page 77.

7. Seed Meter (standard - choice of models) A precision or ﬁnger pickupmeter is standard, with a choice of wheels or ﬁnger sets. See 81 for changing meters and wheels. See 85 for ﬁnger meter adjustments.

8. Drive Coupler Disengage unused rows during calibration or when using alternate row spacings. See 74.

9. Scrapers: (spreader shown) A lower separator/scraper is standard. An upper rear carbide scraper is optional. See 111.

10. Seed delivery tube: standard No adjustments are necessary.See 74 for seed tube shutoff above meter. Standard tubes include a seed sensor for the optional seed monitor.

11. Seed ﬁrmer: Reduces seed bounce and aids emergence by pressing seed gently into the furrow.

A seed ﬂap (not shown) is standard. See 112 for replacement.

Keeton Improves seed-soil contact, and provides a stable arm for a low-rate liquid fertilizer delivery tube. See “Keeton® Seed Firmer Adjustment” on page 88.

Seed-Lok® ﬁrming wheel (shown) Improves seed-soil contact. See “Seed-Lok® Seed Firmer Lock-Up” on page 88.

12. Press wheels: standard (choice of types) These close the seed trench. The wheels also support the free end of the row unit, and provide the primary control over seeding depth. See “10HDP Opener Depth” on page 69.

Machine Damage Hazard:

Do not back up with row units in the ground. To do so will cause severe damage and row unit plugging.

seed ﬁrmer (not shown)

2014-09-08 Table of Contents Index 401-571M

Page 72

68 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

25 Series Row Unit Adjustments

Refer to Figure 74 (which depicts a rowunit fully populated with all optionalaccessories supported for use with the YP4010HD/YP4025/F planter)

Fromfront to back,a Great Plains 25 Series row unit can include the following capabilities (some optional):

1. Dual Down Pressure Springs: standard Each row unit is mounted on the planter withparallel arms which allow each row unit to independently move up and down while staying horizontal. Adjustable springs provide the force to get the row unit and attachments into the soil. See “Refer to Figure 78” on page 71.

2. Row cleaners: optional Row cleaners clear trash from the row. Twin-row planters support single-arm cleaners. Single-row planters support single- or double-armcleaners.See “Unit-Mount Cleaner Adjustments” on page 75.

3. Disk Coulter: optional, choice of blades Coulters cut any remaining trash, and create a groove for light no-till planting. The down force needed to cut and widen the coulter groove is supplied by the row unit. The depth relative to the opener is setbya choice of hubmounting holes. See “Unit-Mounted Coulter Adjustments” on page 76.

4. Disc Blades: standard, 2 per row unit Double disc blades widen the coulter groove, creating the seed bed. Setup controls depth and width. See “Row-Unit Opener Disk Adjustments” on page 77.

5. Depth Side Gauge Wheels: standard The depth gauge wheels have adjustments for spacing and angle. See “Side Gauge Wheel Adjustment” on page 78.

6. Seed meter: required, choice of models/features Meters deliver singulated or volumetric seed. See “Seed Meter Setup and Adjustment” on page 81.

7. Seed delivery tube: standard (not shown) No adjustments are necessary.

8. Seed ﬁrmer (optional):

9. Gauge Wheel Scraper: optional The depth gauge wheels also accept an optional scraper.See “Gauge Wheel Scraper Adjustments” on page 80.

10. Press wheels: standard (choice of types) These close the seed trench. See “Press Wheel Adjustment” on page 89.

Machine Damage Hazard:

Do not back up with row units in the ground. To do so will cause severe damage and row unit plugging.

Figure 74

25 Series Row Unit

18287 25193

Keeton Improves seed-soil contact, and provides a stable arm for a low-rate liquid fertilizer delivery tube. See See “Keeton® Seed Firmer Adjustment” on page 88.

Seed-Lok® ﬁrming wheel (shown in inset) Improves seed-soil contact. See “Seed-Lok® Seed Firmer Lock-Up” on page 88.

401-571M Table of Contents Index 2014-09-08

seed ﬁrmer (shown mounted)

Page 73

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 69

Opener Depth

10HDP Opener Depth

Seeding depth on 10HDP Series is set by frame-mounted coulter depth (if installed) and row unit depth. Set frame height (page 24) before making row unit depth adjustments.

10HD Series press wheel height is a stop adjustment and not a spring adjustment. It establishes a ﬁxed relationship between opener depth and theclosed-furrow surface at the press wheel

Refer to Figure 75

Set opener seeding depth by adjusting press-wheel height . To adjust, ﬁrst raise openers slightly, then lift and slide T handles on top of openers. Initially adjust all press wheels to the same height. Individual rows running in tire tracks may need to be set deepera.

• For more shallow seeding, slide T handles forward

• For deeper seeding, slide T handles backward

If press wheels are lifting off ground, check front-to-back level, and increase row unit spring down force.

If press wheels are digging into ground, reduce spring down force at the row units.

toward YP40 planter.

away from YP40 planter.

Figure 75: 10HDP:

Initial Opener Depth

27124

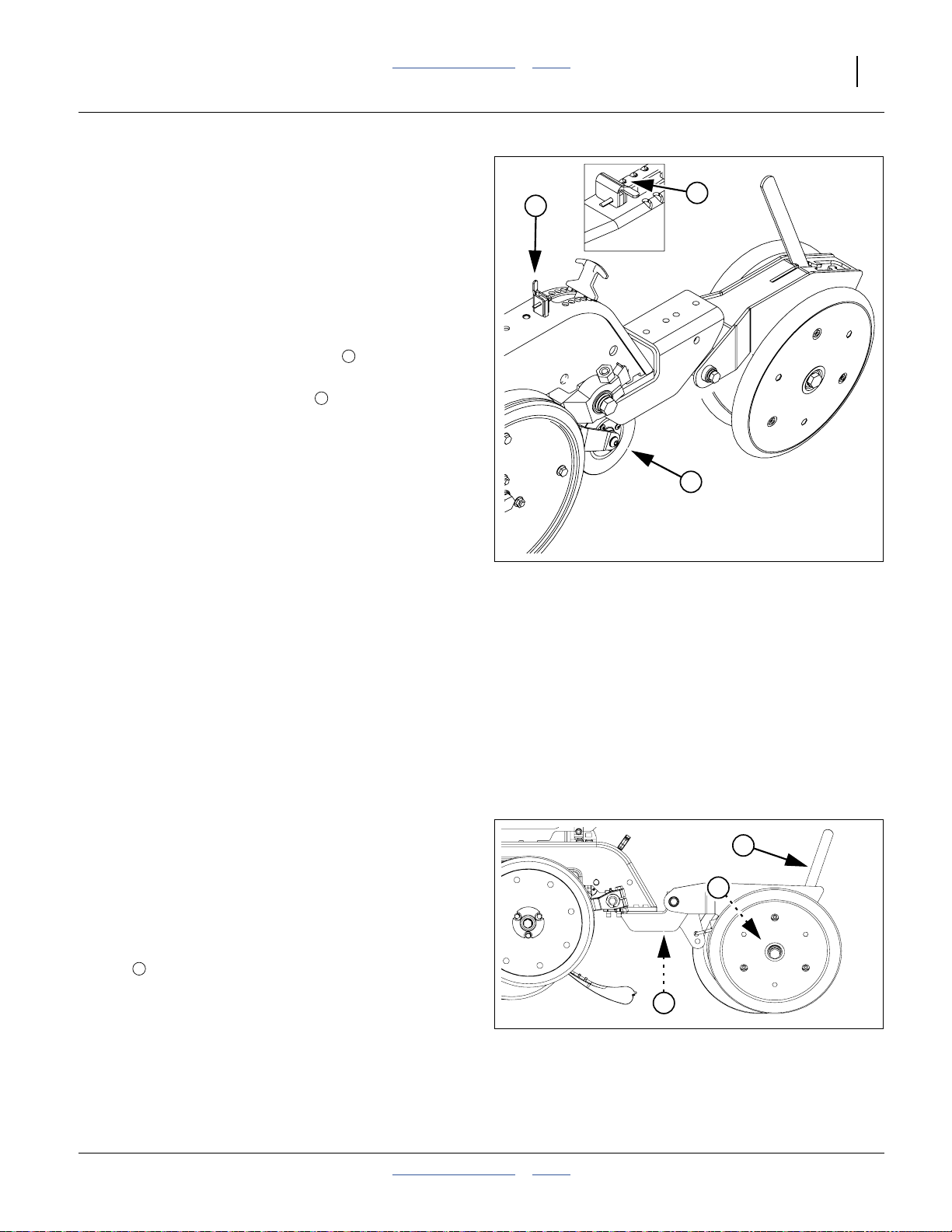

25P Opener Depth

Refer to Figure 76

The “T” handle sets planting depth by limiting the how high the side depth gauge wheels ride relative to the opener disks. The position of the seed tube itself is ﬁxed relative to the disks, and is not adjusted.

With the planter raised, lift both side depth wheels against the stop and measure the depth of exposed opener disk below it. Do not lift just one wheel, as the 25 Series T handle sets the average depth of both wheels.

Alternatively, check the actual furrow depth with openers lowered and pulled forward in ﬁeld conditions.

To adjust seed depth, pull the “T” handle up and back, move it forward or aft, andset it back in adifferent pair of holes in the scale.

• For shallower planting, move the “T” handle forward.

• For deeper planting, move the “T” handle back. Check opener down-pressure and press wheel(s) after

adjusting depth. See “25P Series Down-Pressure” on page 72, and “Press Wheel Adjustment” on page 89.

Inspect Furrow Here

Figure 76: 25P:

Opener Depth

{

29330

a. If frame-mounted coulters are installed, adjust them for tire tracks before adjust T-handles. The coulter depth adjustment may be all

that’s required to compensate for tracks.

2014-09-08 Table of Contents Index 401-571M

Page 74

70 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Row Unit Down Pressure

10HDP Series Down-Pressure

Refer to Figure 77

An adjuster cam sets row unit spring down pressure individually for each row unit. This is useful for penetrating hard soil and planting in tire tracks.

The notes in the left table below are based on a planter without coulters. About 120 pounds (54 kg) of the down-force is the weight of the row unit itself. The additional force is due to the springs lifting against the mass of the planter.

Test, without seeding, in your conditions, to determine optimal down-force settings.

To adjust down pressure, use an adjustable or open-end

⁄

inch (29 mm) wrench.

1. Raise the planter. Although this adjustment can be made with the planter lowered, the springs will be in tension, and will require more effort. The extra force required may also damage tools.

2. Put tractor in Park and shut it off.

3. Position wrench on hex nut weldment.

4. Pull upper spring link back.

5. Move the adjustment cam to the new setting on the spring adjust bar.

Note: To change 10HD springs, a Spring Changing Tool

Kit is available, order Great Plains part number 398-589A.

Row Unit Minimum (one)

Figure 77: 10HDP:

and Maximum (six)

27065

2-Spring 10HD Cam Down-Force Settings

These settings apply to 2009+planters, or updatedolder planters, that have two parallel arm springs per row.

Cam Notch Pounds Kilograms

zero (out of notch) Lock-Up & Maintenance

one 125 55

two 140 60

three 155 70

four 185 85

five 215 100

six 245 110

tip Do Not Use

36026

4-Spring 10HD Cam Down-Force Settings

These settings apply to older planters, not yet updateda, that have four parallel arm springs per row.

Cam Notch Pounds Kilograms

zero (out of notch) Lock-Up & Maintenance

one 250 115 two 275 125

three 310 140

four 370 170 five 430 195

six 490 220

tip Do Not Use

31452

Note: With 4-spring rows,do not setall rows so highthat

planting becomes uneven or gauge wheels lift off ground.

a. Contact your Great Plains dealer for update kit information.

401-571M Table of Contents Index 2014-09-08

Page 75

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 71

Refer to Figure 78

The ideal amount ofdown-force causes the presswheels to compress any loose surface soil, but not press a trench into subsoil.

To assess down-force, operate the YP40 planter for a short distance on typical ground (with or without seeding), and stop. Leave the YP40planter lowered (row units in ground).

At several row units, inspect the furrow created by the opener discs and closed by the press wheels.

Note: Be sureto inspectrows both in and out of tire

tracks.

Refer to Figure 79

1. If the press wheels are leaving no tracks, or light tracks, increase down-force.

2. If the wheels are compressing trash and loose soil, and leaving clear tracks right at the top of the subsoil, down-force is probably correctandneeds no adjustment.

3. If the wheels are creating a trench into the subsoil, down-force is too high and needs to be reduced.

Adjusting Row Unit Down Force

The springs allow the row units to ﬂoat down into depressions and up over obstructions.

With Frame-Mounted Coulters With frame-mounted coulters, the seed trench is

primarily opened by the coulters. Row unit springs provide only additional assistance needed to make a furrow “V” shaped and ensure furrow closure by the press wheels.

Often, the rows may be run at the minimum spring setting, other than in tire tracks, which commonly need some adjustment.

If trench depth is not being achieved across all rows, adjust the force and/or depth of the coulters before making row unit spring adjustments.

With Unit-Mounted Coulters (or no coulters) Without frame-mounted coulters, the row unit springs

provide the primary down force for cutting through residue and opening the seed trench.

Figure 78: 10HDP:

Checking Furrow

Light or no press wheel tracks

Press wheel(s) compress loose soil only

Press wheel(s) making deep tracks

Figure 79: 10HDP:

Assessing Down-force

Inspect Furrow Here

Insufﬁcient down-force Increase down-force

Ideal No adjustment required

Down-force too high Reduce down-force

{

27064

2014-09-08 Table of Contents Index 401-571M

Page 76

72 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

25P Series Down-Pressure

Refer to Figure 80

Row unit springs provide the primary down pressure necessary for row unit disks to open a seed trench. The weight of the row units themselves contributes about 145 pounds (66 kg) of the total force.

The springs allow the row units to ﬂoat down into depressions and up over obstructions. Springs also provide down force on coulters when using optional row mounted coulters, and provide theprimary down force on row cleaners (optional), seed ﬁrmers (optional) and press wheels.

An adjuster cam sets down pressure individually for each row unit. This isuseful for penetrating hard soiland planting in tire tracks. For best results always adjust tractor tires so they are not ahead of 30 in. or 70 cm rows.

Refer to Figure 82

Figure 80: 25 Series:

Row Unit Springs

25118

Cam Notch Pounds Kilograms

zero (out of notch) Maintenance Only

one 345 156

two 370 168

three 400 181

four 450 204

ﬁve 500 228

six 550 249 tip Do Not Use

Use only enough down pressure to cut the seed trench and maintain proper soil-ﬁrming over seed. Excessive row unit down force will lead to premature wear on row unit components, uneven seed depth and gauge wheel slippage.

Refer to Figure 81 (shown at cam setting 1), Figure 82 and Figure 83

To adjust down pressure, use a 1 end wrench or the tool stored under the walkboard.

1. Raise the planter. Although this adjustment can be made with the planter lowered, the springs will be in tension, and will require more effort. The extra force required may also damage tools.

2. Install lift cylinder locks.

3. Put tractor in Park and shut it off.

4. Position wrench on the ﬁxed nut near or slightly forward of vertical.

⁄

in. (29 mm) open

Figure 81

25 Series Row Unit

Spring Adjustment

Figure 82

Row Unit Minimum Cam (1)

25268

27065

401-571M Table of Contents Index 2014-09-08

Page 77

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 73

5. Pull upper spring link back.

6. Move the adjustment cam to the new setting on the spring adjust bar .

Note: Do not setall rows higher thannotch 4. Usinghigh

settings across all rows causes uneven planting. Individual rows may be set higher if running in tire tracks.

Refer to Figure 84

The ideal amount of down-force causes the side gauge wheels to compress any loosesurface soil, butnot press a trench into subsoil.

To assess down-force, operate the planter for a short distance on typical ground (with or without seeding), and stop. Leave the planter lowered (row units in ground).

At several row units, inspect the furrow created by the opener discs, but prior to furrow closing by the press wheels.

Note: Be sureto inspectrows both in and out of tire

tracks.

Figure 83

Row Unit Maximum Cam (6)

Inspect Furrow Here

Figure 84: 25 Series:

Checking Furrow

{

27065

25193

Refer to Figure 85

1. If the side gauge wheels are leaving no tracks, or light tracks, increase down-force.

2. If the wheels are compressing trash and loose soil, and leaving clear tracks right at the top of the subsoil, down-force is probably correctandneeds no adjustment.

3. If the wheels are creating a trench into the subsoil, down-force is too high and needs to be reduced.

Light or no side gauge wheel tracks

Gauge wheels compress loose soil only

Side gauge wheels making deep tracks

Figure 85: 25 Series:

Assessing Down-force

Insufﬁcient down-force Increase down-force

Ideal No adjustment required

Down-force too high Reduce down-force

2014-09-08 Table of Contents Index 401-571M

Page 78

74 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Row Unit Shut Off

10HD and 25P Series row units are designed to permit alternate row spacing, which requires disabling the rows not used. This involves three steps:

1. Shut off seed ﬂow to the row.

2. Lock up the row to reduce opener wear.

3. Disengage the meter drive to reduce meter wear.

Seed Shut Off

Refer to Figure 87

At the Y-tubea above the row, turn the valve serving that row until the handle is perpendicular to the tubing.

Row Unit Lock-Up

15 in splitter rows can be pinned in the up position to accommodate 30 in. row spacing.

Refer to Figure 87

The lock-up pins for each rear rowunitare located ina storage hole in the row unit mount. To lock up a unit, the unit must be raised, and the pin moved to thelock-up

hole in the row unit shank. Lock-up pins are not standard on all row spacings. Refer to page 136 for additional or replacement lock-up pins.

1. Raise the planter. Although this adjustment can be made with the planter lowered, the springs will be in tension, and will require more effort. The extra force may also damage tools.

2. Install lift cylinder locks.

3. Set the down pressure springs to the minimum setting, per the instructions on page 70 or page 72.

4. Raise the row unit high enough that the hole for the pin is above the lower parallel arm: a. use a hoist at the rear of the shank , or b. use a jack under the shank extension

Refer to Figure 88

5. Remove the pin from the storage hole and insert and secure it in the lock-up hole .

6. Lower row unit. Parallel arm rests on lock-up pin.

Figure 86:

Y-Tube: Both Rows Operating

22843

Figure 87

25 Series Lock-Up Pin

Loss of Control and Sharp Object Hazards:

Do not lift a row unit by hand. The weight of the unit, plus the spring force (even at minimum) is too great (plus, a free hand is needed for pinning). Even with multiple people lifting,

25269 25193

Figure 88

25 Series Row Unit Locked Up

a. If the row is not served by a Y-tube, loosen the clamp, remove (and secure) the hose. Block the tube ﬁtting with an 817-622C cap.

401-571M Table of Contents Index 2014-09-08

25270

Page 79

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 75

Disengage Meter

Refer to Figure 89

7. Uncouple meter drives for the locked-up rows. Pull shaft out and park pin in shallow detents.

Equipment Damage Risk:

Do not disable meters by removing them or chain drive damage will occur.

8. Shut off Y-tube port for the current row unit.

9. Repeat for all rows needing lock-up.

10. Reset marker extension (page 145).

Figure 89

Row Unit Drive Coupler

Engaged (Left) and

Disengaged (right)

26171

11. Reset monitor active row pattern and row spacing to avoid nuisance alarms.

Equipment Damage Risk:

Do not pin the row unit while it is in the lowered position. If the pin is inserted below the parallel arm, unit damage will occur when planting begins.

Unit-Mount Cleaner Adjustments

Refer to Figure 90 and Figure 91

Optional Martin row cleaners are unit-mounted, using: UMRC: Unit-Mount Row Cleaner (stand-alone), or UMC-RC: Unit-Mount Coulter RC (on coulter bracket, with or without a coulter disk present).

There are two adjustments:

1. Wheel placement (forward or aft mounting hole, for more or less aggressive cleaning), and

2. Wheel height, adjusted by a stop. Cleaner arms ﬂoat. The stop only sets the lowest position.

In UMRC mount, a pinned cross-tube on the mount adjusts the depth. In UMC-RC (coulter) mount, a sliding down-stop block adjusts how close to the ground the

row cleaners operate. The row cleaner needs to be adjusted for your

conditions, crop changes, and as coulters and openers wear.Ideally, cleaners contactonly the trash, and do not disturb the soil. If allowed to “dig”, row cleaners can reduce seed coverage.

Suggested initial depth is tine tips at ground level. Make the adjustment with the planter raised. Install

lift-assist cylinder locks. Also check bolt tightness prior to each planting session, to avoid down-stop slippage.

Figure 90

UMRC: Cleaner Adjust

Sharp Object Hazard:

Row cleaner tines, castingedgesand coulter blades are sharp. Wear hand protection when working in this area.

27308

2014-09-08 Table of Contents Index 401-571M

Page 80

76 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

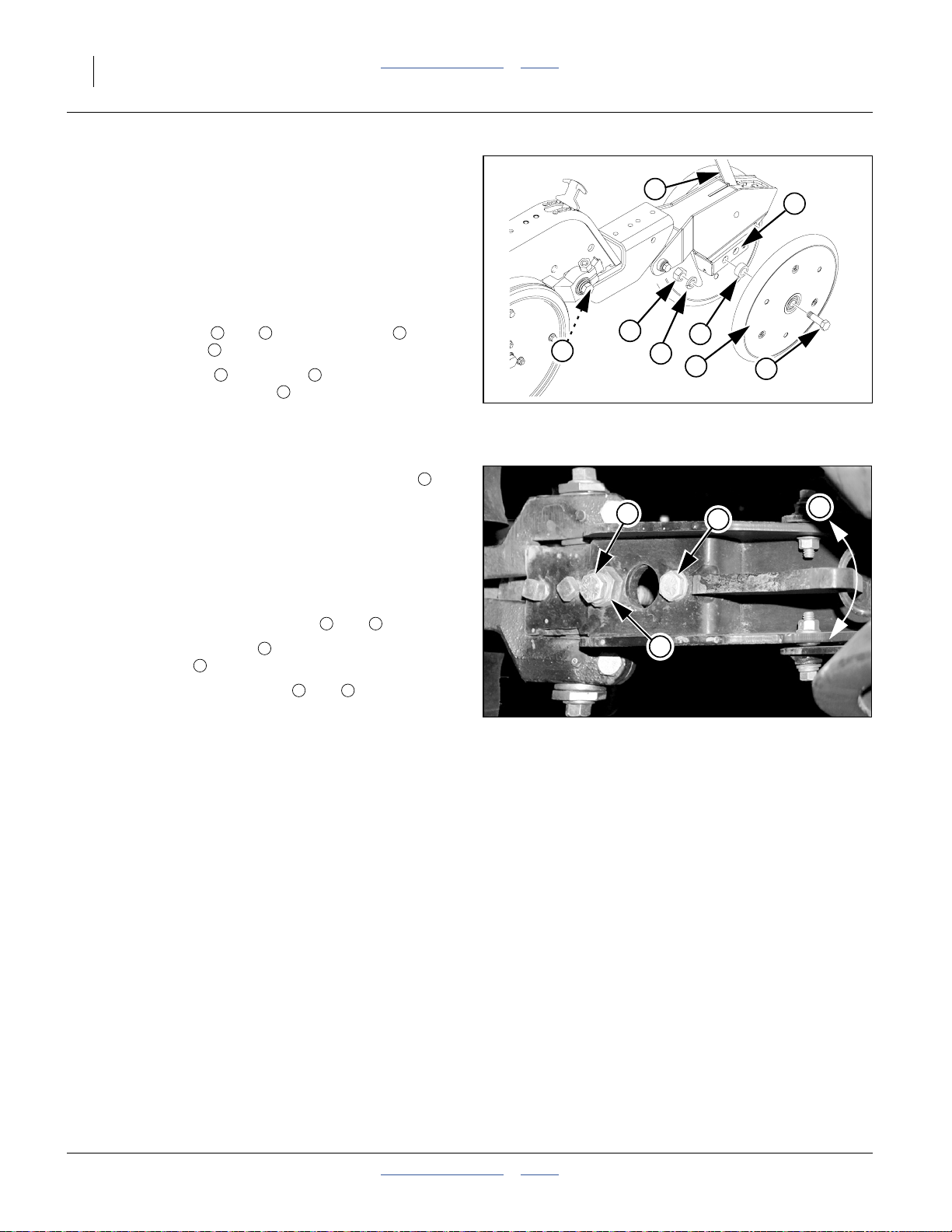

To adjust the row cleaner:

1. Determine the height adjustment required. Measure from the lowest tine to the ground. Determine the

desired new measurement.

2. Support most or all of the weight of the arm to

prevent injury and ease the adjustment. Loosen

5 2

bolts on UMC-RC. Remove bent pin on UMRC.

3. Support arm at desired height.

4. UMRC: Slide adjustment tube until cross-tube contacts arm at target height. Insert bent pin in

1 3

whichever hole pair is most in alignment.

5. UMC-RC: Slide the down-stop on the arm :

6 4

- back toward the pivot for shallower cleaning, or

- forward toward the tines for deeper cleaning. Tighten the bolts . Each possible hole pairing adjusts the tine height by about

⁄

in. (19 mm).

6. Check the new height measurement.

Refer to Row Cleaner manual 204-085M-A for further information on use, adjustment and maintenance of row

Figure 91

UMC-RC: Row Cleaner Adjust

27343

cleaners.

Unit-Mounted Coulter Adjustments

Note: Applies onlyto 10HDPand 25PSeries. Note: Unit-Mount Coultersare notfactory-installed.

Check alignment and depth prior to ﬁrst use.

Note: For frame-mounted coulter adjustments, see

“Frame-Mounted Coulter Adjustments”on page 66.

Coulter Depth Adjustment

The ideal operating depth for unit-mounted coulters is

⁄

in. above opener depth. Although they may have

originally been set to this depth, coulter (and opener) blades wear with time, and may need adjusting.

Adjusting the coulter depth is accomplished by re-mounting the coulter blade in one of the six mounting holes arranged in a staggered pattern in the coulter bracket.

Refer to Figure 92 and Figure 93

Raise YP40 planter and install cylinder locks before working on coulters. Row unit may be fully lowered or locked up. Do not attempt to move blade when the current or new position causes it to contact the ground during the adjustment. Be carefularound the frontend of row units. Coulter blades may be sharp.

Figure 92

10HD Series Unit-Mounted Coulter

29124

401-571M Table of Contents Index 2014-09-08

Page 81

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 77

To adjust coulter depth:

1. Determine the present opener and coulter depths.

2. Note which bracket hole the coulter is presently using.

3. Determine which new hole will position the coulter closer to the

4. Removethe

⁄

in. above depth. See the table below.

⁄

-11×4 in.bolt,lockwasherand nut (

in Figure 92).

5. Move the blade to the new position. Insert the bolt, and tighten on the lock washer and nut.

If a worn coulter cannot be adjusted to satisfactory operating depth, replace the coulter blade.

Coulter Row Alignment

Refer to Figure 94

For unit-mounted coulters, the ideal alignment is for the

Figure 93

Coulter Blade Mounting Holes

29125

blade to prepare a furrow directly ahead of the opener discs.

As a check on coarse alignment, sight along the coulter blade centerline , the gap between the opener blades , and the centerline between the press wheels . If they are clearly out of alignment, either the

coulter or the press wheels (or both) may be in need of adjustment.

The exacting test of correct alignment is ﬁeld results. Operate the planter on some test ground (no seed required), and verify that the opener blades are in the

Hole

No.

2 3 5 1 4 6

Depth of (new) coulter blade relative

to (new) opener blades

1 in. (25 mm) above

⁄

in. (16 mm) above

⁄

in. (6 mm) above

0 (factory standard hole)

⁄

in. (10 mm) below

⁄

in. (19 mm) below

groove opened by the coulter.

Adjust UMC Alignment

To adjust unit-mountedcoulter alignment, loosen thefour

bolts that attach its bracket to the row unit. The holes on the row unit are slotted, side-to-side, and allow the coulter bracket sideways and rotational adjustment.

Keep the coulter blade vertical while adjusting.

If theblade cannot be broughtinto alignment, check that the blade spindle itselfis using thesame hole locationon each side of the bracket.

Adjust FMC Alignment

To adjust frame-mountedcoulters, loosen thesame bolts used to make vertical adjustments.

Row-Unit Opener Disk Adjustments

Note: Applies toall Series openers.

Figure 94

10HD Unit-Mount Coulter

2014-09-08 Table of Contents Index 401-571M

29219

Page 82

78 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Opener Disc Contact Region

Refer to Figure 95

Opener disc angle and stagger is not adjustable, but disc-to-disc spacing is, and may need attention as discs experience normal wear. Spacers will need to be reset when blades are replaced.

The ideal spacing causes the blades to be in contact for about one inch . If you insert two pieces of paper between the blades, they should slide to within zero (touching) to 1.5 in. (3.8 cm) of each other. If zero, the gap between the blades should not be signiﬁcantly greater than the thickness of two sheets of paper.

If the contact region is signiﬁcantly larger or there is a large gap, it needsto be adjustedby moving one ormore spacer washers.

Adjusting Disc Contact

Refer to Figure 95 and Figure 96

1. Raise the planter and install lift cylinder locks.

2. For25P Series, remove the side gaugewheels on the row unit in need of adjustment.

3. Remove the bolt retaining the opener disc on one side. Carefully remove the disc. Do not lose the hub components and spacer washers , . Make note of how many spacer washers are between the disk and the nut bar .

Note: When the bolt is fully removed from the disk, adust

cap will be loose.

4. To reduce thespacing between the discs(thenormal case), move one spacerwasher from theinside to the outside of the disc. Do not discard any spacers. They will be moved to the inside upon eventual replacement of a completely worn out blade.

5. Re-assemble and check disk contact.

3 4

5 6

Opener Disc Contact Region

Figure 95

Figure 96

Opener Disc Spacers

26127

26128

Side Gauge Wheel Adjustment

Note: Applies to25P Series openers only.

Refer to Figure 97

Disc-to-wheel angle and clearance ideally has the wheel just touching the disk when the wheel is raised to planting depth (is up against the stop set by the “T” handle. The goal is to have both disks and wheels turn freely, butkeep soil andtrash from getting between them.

These two adjustments interact with each other. Changing one requires at least checking the other.

In addition to changing the disk angle due to changing depth or new ﬁeld conditions, these two settings may need attention over time as the disk and wheels wear from normal use. This adjustment will also need to be made if any opener components are replaced.

401-571M Table of Contents Index 2014-09-08

Side Gauge Wheel

Opener Disks

Incorrect

Figure 97

Disk/Gauge Wheel Alignment

Side Gauge Wheel

Correct

Page 83

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 79

Refer to Figure 98 For 2 in. (5.1 cm) planting depth, adjust side gauge

wheel angle so wheels contact row unit disks at the bottom of wheel. Check with rows in soil so wheels are held up.

At the same time, keep side gauge wheels close to opener disks so openers do not plug with soil or trash.

Note: Wheels shouldbe outfar enough so disks and

wheels turn freely.

Contact Within this Area

Figure 98

Opener-Gauge Wheel Contact

Figure 99: 25P:

Checking Wheel/Disc Contact

22531

26129

2014-09-08 Table of Contents Index 401-571M

Page 84

80 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Refer to Figure 100

To adjust side gauge wheels:

1. Raise the planter and install lift cylinder locks.

2. Loosen hex-head bolt . Move wheel and arm out on O-ring bushing.

3. Loosen pivot bolt Turn hex adjuster so indicator notch is at 5 o’clock to 7 o’clock.

Note: Use thisas thestarting point for adjustment.

4. Move wheel arm in so side gauge wheel contacts row unit disk. Tightenhex-head bolt to clamp arm around bushing and shank.

5. Check wheel-to-disk contact at 2 in. (5.2 cm) planting depth, as shown in Figure 99. Lift wheel 2 in., check contact and release. Wheel should fall freely.

• If wheel does not contact disk atbottom to area where

blade leaves contact with soil, move hex adjuster until wheel is angled for proper contact with disk.

• If wheel does not fall freely, loosen hex-head bolt

and slide wheelarm outjust until wheeland arm move freely. Retighten hex-head bolt according to grade.

Note: Use “Torque Values Chart” on page 168for

6. Keep turning hex adjuster and moving wheel arm until the wheel is adjusted properly. When satisﬁed, tighten pivot bolt to 110 ft-lbs (149 N-m).

reference.

2 3

Figure 100: 25P:

Disk/Gauge Wheel Adjustment

22524 22525

Gauge Wheel Scraper Adjustments

Note: Applies onlyto 25PSeries openers. Scrapers are optional, and may be useful in moist or

sticky soils that tend to accumulate on gauge wheels, reducing intended planting depth.

25 Series Side Gauge Wheel Scrapers

Refer to Figure 101

To adjust scrapers:

1. Loosen nut .

2. Slide scraper toward gauge wheel until scraper touches tire.

3. Slide scraper away from wheel leaving a (3 mm) gap at .

4. Rotate scraper left and right around bolt, making sure it cannot touch tire if bumped in ﬁeld. If it can touch tire, back scraper away from wheel until it cannot.

5. Center scraper angle on bolt until gap is constant.

6. Tighten nut .

2 3

1 4

⁄

in.

Figure 101: 25P Series:

Gauge Wheel Scraper

25273

401-571M Table of Contents Index 2014-09-08

Page 85

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 81

Seed Meter Setup and Adjustment

Your YP40 planter was originally supplied with a speciﬁc seed meter type andinternal components optimized for a particular crop. Depending on the meter type and conﬁguration, there may be adjustments available.

On 10HD and 25P Series openers, you can also entirely change the meter as your crop mix changes.

All YP40 models support:

• Great Plains Singulator Plus™ meters 10HD and 25P instructions begin on this page.

The YP4010HD and YP4025 further support:

• Finger pick-up meters (page 85).

The YP40 does not support feeder cups. Use a Singulator Plus™ meter with speciﬁc wheels for volumetric applications.

10HD, 25P Meter Removal

Note: Applies onlyto 10HDand 25PSeries openers.

1. Clean out meter. See “Cleaning Out Meters” on

page 101.

Refer to Figure 102

2. Slide the retaining ring up on the seed hose, and

remove the seed hose.

Refer to Figure 103

3. Release the lower latch.

Figure 102: 10HD, 25P:

Seed Hose Retaining Ring

22883

Refer to Figure 104

4. Release the upper latch and swing the drive mount

away from the meter.

Figure 103: 10HD, 25P:

Lower Meter Latch

Figure 104: 10HD, 25P:

Upper Meter Latch

22911

2014-09-08 Table of Contents Index 401-571M

Page 86

82 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Refer to Figure 105

5. Lift up, then back, and remove the meter.

Refer to Figure 106

6. While the meter is removed, take time to inspect the meter drive chain , idlers and drive sprocket , and perhaps perform the periodic chain lubrication.

Meter drive chain idlers are spring-loaded, and require no adjustment for chain slack.

1 2 3

Figure 105: 10HD, 25P:

Singulator Meter Removal

Figure 106: 10HD, 25P:

Inspect Meter Drive

22912

21917

401-571M Table of Contents Index 2014-09-08

Page 87

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 83

10HD, 25P Meter Wheel Replacement

Choose the correct seed meter wheel for the type of seed you will be using. Be sure to use the same wheel type on all meters.

Meter Wheels Not Interchangeable:

Seed meter wheels for the 10HD and 25P Series row units are made of a green color material and are not interchangeable with the other Great Plains seed meter wheels, such as Black for 20P Series. Use only green wheels in10HDand 25P Series row units.

1. Clean out meter. For more information, see “10HD, 25P Meter Removal” on page 81.

Figure 107: 10HD, 25P:

Singulator Wheel Retainer

22911

Refer to Figure 107

2. Push in spring-loaded wheel retainer and make

⁄

turn. Pull off wheel retainer and spring.

Refer to Figure 108

3. Pry the seed meter wheel out about

⁄

inch (6 mm)

using the tool stored under the walkboard, and spin backward to clean out seeds from top pockets.

Note: If wheelis notfree ofall seed, wheel removal is

much more difﬁcult, as pocketedseeds willshear against meter parts.

Refer to Figure 109

4. Remove seed meter wheel.

Figure 108: 10HD, 25P:

Pry Meter Wheel

22913

Figure 109: 10HD, 25P:

25274

Remove Wheel

2014-09-08 Table of Contents Index 401-571M

Page 88

84 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Refer to Figure 110

Note: Withtheseedmeterwheelremoved,youmay want

to check the meter forinternal damage or trash.

Note: Some wear ontop edge of slide is normal.

Excess wear is cause for replacement.

5. When changing crops be sure to clean out air

system before installing new meters or wheels. See “Cleaning Out Air System” on page 102.

6. Place new wheel on meter wheel shaft. Tilt it slightly forward to engage and push back on the slide. Seat wheel fully on cross-pin.

⁄

7. Replace spring-loaded wheel retainer. Make to seat cross-pin in shallow groove of retainer.

turn

Figure 110: 10HD, 25P:

22884

Inspect Meter

Meter Installation

Note: Applies onlyto 10HDand 25PSeries openers. Installation is the reverse of the removal process, with

two steps omitted.

Refer to Figure 111

1. Insert the meter.

Insert the top meter tab (with the hook).

Align the meter base with the latch plate ears.

Insert the bottom meter tab.

Mind the lower latch, as it tends to swing under the meter base and block mating with the latch plate.

Refer to Figure 103 on page 81

2. Engage the upper latch, and swing the mounting plate into engagement with the meter.

Note: Always engage upper latch ﬁrst.

Refer to Figure 104 on page 81

3. Engage the lower latch.

Refer to Figure 105 on page 82

4. Slide the seed hose over the meter inlet tube, and then slide the retaining ring down the seed hose.

Figure 111: 10HD, 25P:

25275

Install Meter

401-571M Table of Contents Index 2014-09-08

Page 89

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 85

10HD, 25P Finger Meter Adjustments

Note: Applies onlyto 10HDand 25PSeries openers. The ﬁnger pick-up meter has an adjustable brush, and

alternate inserts are available for the backing plate. The

brush has been pre-set to the optimum setting for most seed sizes. The factory-installed insert is the “A” insert.

Optimum planting speed is 4

⁄

to 5 miles per hour

(7.2-8 kph). Excess speed causes poor spacing performance due to seed tube bounce, and may also

cause improper depth control due to row unit bounce. Always pay attention to your planter monitor. Compare

actual seed usage to your estimates. Fine-tune your planter by thoroughly checking all key

components including: seed tubes, chains, sprockets, tire pressure, seed monitor, double disk openers, gauge wheels, seed ﬁrmer, closing wheels, parallel arms, and

Figure 112

Finger Meter Brush Lever

25276

the row unit itself.

Finger Meter Brush Adjustment

The brush reduces or eliminates “doubles” (delivering two seeds per ﬁnger), but if set too aggressively can cause “skips” (delivering no seed on some ﬁngers). As needed, adjust for minimal doubles and skips.

Note: These instructions describe the current ﬁnger

pickup meter shipped with new Great Plains planters, which has anintegrated adjustment lever forthe brush. If you have added pre-existing ﬁnger meters after purchase, there is some chance that you may have the previous model meter, adjusted by screwdriver rather than lever. If so, rely on counting detents to determine the setting. Not all have 9 detents.

Refer to Figure 112

The adjustable brush provides additional ﬂexibility to accommodate a wide range of seed sizes. Use lever to gently rotate the brush into position.

The settings range from 1 to 5 with detents at each half step, for a totalof 9 detents. The factory default setting is

⁄

. Although the numbers are molded into the meter

housing, only “1” and “5” may be visible. To ensure consistency, rotate the lever fully

counter-clockwise (1), andcountdetents as you advance it to the desired setting.

Use the general guidelines in the table below to adjust the brush position to your seed size and shape. The numbers listed correspondto the numbers printed on the outer housing of your meter. If there is a decal on your meter, its units are seed size in pounds per 80,000 seed bag.

Bag Weight Seeds Per Brush Seeds Per Bag Weight

(80,000 seeds) Pound Setting Kilogram (80,000 seeds)

Rounds

65 lbs 1230 or less 1 2710 or less 29.5 kg 65 to 55 lbs 1230 to 1450 2 2710 to 3195 29.5 to 24.9 kg 55 to 45 lbs 1450 to 1780 3 3195 to 3925 24.9 to 20.4 kg 45 to 35 lbs 1780 to 2300 4 3925 to 5070 20.4 to 15.9 kg

35 lbs 2300 or more 5 5070 or more 15.9 kg

Flats

45 lbs 1780 or less 1 3925 or less 20.4 kg 45 to 35 lbs 1780 to 2300 2 3925 to 5070 20.4 to 15.9 kg

35 lbs 2300 or more 3 5070 or more 15.9 kg

29633

2014-09-08 Table of Contents Index 401-571M

Page 90

86 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Finger Meter Inserts

Refer to Figure 113

The backing plate is equipped with an “A” insert for Corn, and a “C” insert for Sunﬂower. In tests, these inserts providethe best performance in mostseed sizes.

However, there are alternate inserts that can be used. Before changing to a different insert, please consult with a Great Plains service representative for a recommendation.

The insert type is moldedinto the back. Changinginserts requires meter disassembly.

Meter Reliability Risk:

Be cautious in using seed treatments, additives, and other chemicals when possible. They can cause meter performance problems and premature wear. If graphite is used, use Precision Planting® planting graphite or Great Plains graphite, which is less abrasive. Generally, seeds treated with Maxi, Captan, and similar coatings beneﬁt from graphite. Always store meters in a dry, secure place. Moisture,

Figure 113

Finger Meter Insert

22908

temperature, nest-building insects and rodents can create problems. Always pay attention to your seed monitor and operating manual. Monitor the amount of seed you are planting compared to expectations. Investigate abnormalities!

Sunﬂower Meter Conﬁgurations

Review the ﬁnger pickup meter conﬁguration, based on the seed size. See chart below. See “Exchanging Finger Sets” on page 107 for component removal and installation instructions.

The standard Sunﬂower conﬁguration is suitable for #4 and #3 seed sizes. Larger seeds may require the Corn meter conﬁguration.Using a ﬁngerpickupmeter for Confection seeds is not recommended.

Finger Pickup Conﬁgurations for Sunﬂower

Oil Seed Size Confection Seed

#4 #3 #2

Meter Component

Finger Set

~16500 seeds/kg

(~7500 seeds/pound)

343067

~14300 seeds/kg

(~6500 seeds/pound)

343067

~12100 seeds/kg

(~5500 seeds/pound)

343029

(12-finger sunflower) (12-finger sunflower) (12-finger corn)

Backing Plate

342108

342110

(Insert C) (Insert C) (Insert A)

Brush Block

343091

(brushless

343091

(brushless

block)

c. These components are included in the standard 890-856C Corn meter. 34573 s. These components are included in the standard 890-912C Sunflower meter, and the 403-659A Conversion Kit.

401-571M Table of Contents Index 2014-09-08

block)

343052

(adjustable

brush block)

(long, narrow, XL)

~6600 seeds/kg

(~3000 seeds/pound)

Not

recommended

for XL

confection

seed

Page 91

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 87

Sprocket Indexing (Stagger)

28420

If you are planting:

• ﬁnger-metered,

• twin-row crops,

• at seed interval spacings above 6

⁄

inches (16.5 cm),

you can synchronize each pair of adjacent meters in a twin row so that you achieve the maximum seed-to-seed spacing between the units of the pair.

Refer to the Seed Rate manual for details.

Finger Meter Inserts

Refer to Figure 114

The backing plate is equipped with an “A” insert . In

tests, this insert provides the best performance in most seed sizes. However, there are two alternative inserts that can be used. Before changing to a different insert, please consult withaGreat Plains service representative for a recommendation.

The identiﬁcation of the insert type is molded into the back of the insert.

Machine Damage Risks:

Be cautious in using seed treatments, additives, and other chemicals when possible. They can cause meter performance problems and premature wear to meter parts. Avoid the use of graphite with the precision meter. Ifgraphitemust be used, use Precision™ Planting graphite or Great Plains graphite which is less abrasive. Generally, seeds coated with Maxi or similar coatings, such as Captan, beneﬁt from graphite. Always store meters in a dry, secure place. Moisture, temperature,

Figure 114: 10HD, 25P:

Finger Meter Insert

22908

nest-building insects and rodents can create problems. Always pay attention to your seed monitor and operating manual. Monitor the amount of seed youare plantingcompared to your expectations. Always investigate abnormalities!

2014-09-08 Table of Contents Index 401-571M

Page 92

88 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Seed Firmer Adjustments

Note: Applies toall row units. Series 25 row units include a standard seed ﬂap, and

accept one of two optional seed ﬁrmers (which may be included in your selected opener bundle).

Sharp Object Hazard:

Row unit disk blades may be sharp. Use caution when making adjustments in this area. To adjust the Keeton® Seed Firmer, lower the planter until the disksof the row units are resting on the ground.

Keeton

The optional Keeton

Seed Firmer Adjustment

Seed Firmer is an engineered polymer shape that slides down the seed trench. It traps seeds as they exit the seed tube and ﬁrms them into the bottom of the “V”.

Refer to Figure 115

The ﬁrmer haspreset tension which is recommended for using the ﬁrst year. The tension screw can be

tightened in subsequent years according to your needs. Firmers should provide just enough tension to push seeds to the bottom of the furrow.

Keeton® Seed Firmer

Figure 115

20327

Seed-Lok® Seed Firmer Lock-Up

Optional Seed-Lok® ﬁrming wheels provide additional seed-to-soil contact. The wheels are spring loaded and require no adjustment.In some wetand sticky conditions the wheels may accumulate soil. To avoid problems associated with this, you can lock-up the ﬁrmers.

Refer to Figure 116 (whichdepictsa row unit with discs,side depth wheels/arms andpress wheels removed for illustrative purposes - removal is notnecessary for lock/unlock)

To lock up Seed-Lok® wheels:

1. Raise planter. Insert lift assist cylinder locks.

2. Lift Seed-Lok®lock-up handle until leverstop is

1 2

free to rotate.

3. Rotate lever stop to side/idle position . Release

lock-up handle .

4. Push up on Seed-Lok® wheel until wheel arm

latches up .

To release a locked-up Seed-Lok®:

1. Insert a

handle . Alternatively, lift up on the wheel .

⁄

inch tool drive tip inthe tool hole of the

1 4

2. Rotate the handle clockwise (handle arm up) until

the Seed-Lok® wheel releases at the latch point

and falls free.

3. While holding the handleup,rotatethe raised portion

of the lever stop under both sides of the handle

2 2

at the arm end. Remove the tool.

Figure 116

Seed-Lok® Lock-Up

Note: Engage the lever stop under the handle when

Seed-Lok®is in use. Ifleftdisengaged , a furrow obstruction could cause unintended lock-up.

31543

401-571M Table of Contents Index 2014-09-08

Page 93

Great Plains Manufacturing, Inc. Table of Contents Index Adjustments 89

Seed-Lok® Seed Firmer Lock-Up (older style)

Optional Seed-Lok® ﬁrming wheels provide additional seed-to-soil contact. The wheels are spring loaded and do not require adjusting. In some wet and sticky conditions the wheels may accumulate soil. To avoid problems associated with this, you can lock-up the ﬁrmers.

Refer to Figure 117

To lock up Seed-Lok® wheels:

1. Raise planter. Insert lift assist cylinder locks.

2. Rotate Seed-Lok down on top of row unit body.

3. Push up on Seed-Lok® wheel until wheel arm latches up.

lock-up handle 90 degrees

Press Wheel Adjustment

The press wheels close the furrow which gently presses the soil over the seed to ensure good seed-to-soil contact for even emergence. On 10HD Series openers, the press wheel height also controls seed depth.

To provideconsistent seedﬁrming, the press wheels are free to move downward from their normal operating position. This system maintains closing/pressing action evenifthe row unit armis lifted whenthedisks encounter obstructions.

25P Series Press Wheel Adjustment

25 Series press wheels have three adjustments:

Refer to Figure 118

a. Down pressure (shown at maximum) b. Wheel stagger (shown staggered) c. Centering (see Figure 120 on page 90)

Press Wheel Down Pressure

Handle sets down pressure, which may need adjustment for different soil types and ﬁeld conditions.

• Relax the handle forward (in the direction of travel)for

• Pull the handle back for increased down pressure.

decreased down pressure.

Figure 117

Seed-Lok® Lock-Up (older style)

Press wheel adjustments available depend on the row unit Series: 10HDP Series: page 69 25P Series: page 89

Note: On 25P Series, higher press wheel down

pressures reduce the down force on the main row unit shank components, such as the openers. High press wheel settings may requireanincrease in overall row unit down force. See page 71.

22909

Figure 118

Press Wheel Adjustments

25118

2014-09-08 Table of Contents Index 401-571M

Page 94

90 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Press Wheel Stagger

The factory stagger setting has been found optimal for residue ﬂow. If your conditions, such as wet soil or shallow planting, appear to require even press wheels, you might try one row before re-conﬁguring the entire planter. To change the stagger:

Refer to Figure 119

1. Raise the planter and install the lift assist cylinder locks. See “Lift Cylinder Lock-Up” on page 31.

2. Removethebolt , nut and lock-washer forthe left press wheel .

3. Move the spacer and wheel to the forward of the two mounting holes at .

4. Re-install the bolt, lock washer and nut. Tighten.

Press Wheel Centering

If one press wheel is running in the seed trench, or the wheels are not centered over the trench, the angle of the press wheel assembly can be adjusted as follows:

Refer to Figure 120

1. Determine how far, and in which direction, the press wheel assembly needs to move tocenter the wheels.

2. Raise planter andinstall lift assist cylinderlocks.See “Lift Cylinder Lock-Up” on page 31.

3. Loosen the

4. Turn the hex head cam under the forward hex head jam bolt , and move the required amount.

5. Tighten both hex-head bolts and .

If press wheel adjustments do not provide satisfactory furrow closing, your conditions may require alternate press wheels. A variety of wheel assemblies are available. Consult your Great Plains dealer.

1 2 3

5 4

⁄

in. hex-head bolts and .

8 9

Press Wheel Force & Stagger

Press Wheel Centering

(View from beneath opener)

Figure 119

Figure 120

22907

25277

Note: Do not loosen the square-headboltsforward of the

hex-head bolts.

401-571M Table of Contents Index 2014-09-08

Page 95

Great Plains Manufacturing, Inc. Table of Contents Index 91

Troubleshooting

General Troubleshooting

Problem Cause Solution

Planting too little

Planting too much

Incorrect seed size for meter wheel can cause skips

Meter drive not engaged Engage drive coupler, page 75 Worn meter components Replace worn components Incorrect seed rate. Check seed rate information. Excessive ﬁeld speed. Reduce ﬁeld speed. Seed size and weight may vary. Finger meter brush may need adjustment, page 85. Brush too tight on ﬁnger meter Adjust brush, page 85. Incorrect fan air ﬂow Adjust fan speed and/or fan bafﬂe. See page 61 Excessive gaps between planter

passes. Plugged row-unit seed tube. Raise planter, expose bottom of seed tube and clean out. Thrown or worn drive chains Check drive chains. Worn/rusted sprockets, chainsand/or

chain idlers Loose ﬁnger assemblies in ﬁnger

meters Speed sensor calibration Perform calibration per DICKEY-john® documentation with

Speed sensor angle. With planter lowered, check radar speed sensor angle per

Meter wheel or ﬁnger pickup has fewer cells than indicated on seed rate chart.

Incorrect seed size for meter wheel can cause doubles

Worn meter components Replace worn components Meter clean-out door left open Close door Incorrect seed rate. Check seed rate information in the seed monitor manual. Actual ﬁeld size is different. Verify ﬁeld size. Excessive overlap.

Irregular shaped ﬁeld. Speed sensor calibration Perform calibration per DICKEY-john® documentation with

Speed sensor angle. With planter lowered, check radar speed sensor angle per

Brush too loose on ﬁnger pickup meter

Meter wheel or ﬁnger pickup has more cells than indicated on seed rate chart.

Replace meter wheels to match seed

Adjust marker, page 60.

Replace sprockets, chains and/or chain idlers.

Have dealer service meters.

planter lowered.

DICKEY-john® recommendations. Charts are based on either 6 ﬁnger or 12 ﬁnger meters or

various wheel cell counts.

Replace meter wheels to match seed

Adjust marker, page 60.

planter lowered.

DICKEY-john® recommendations. Adjust brush, page 85

Charts are based on either 6 ﬁnger or 12 ﬁnger meters or various wheel cell counts.

2014-09-08 Table of Contents Index 401-571M

Page 96

92 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Problem Cause Solution

Uneven seed spacing

Uneven seed depth

Population Alarms

Row-unit disks not turning freely.

Excessive seed cracking.

Hydraulic meter drive motor rpm too low for reliable control by proportional valve.

Excessive ﬁeld speed. Reduce ﬁeld speed. Unclean seed. Use clean seed. Seed-Lok Row-unit disks not turning. See “Row-unit disks not turning freely.” in this

Plugged row-unit seed tube. Raise planter, expose bottom of seed tube and clean out. Worn/rusted sprockets, chainsand/or

chain idler. Partially plugged row-unit seed tube. Lift up planter, expose bottom of seed tube and clean out. Lack of proper seed lubrication on

seed. Use of excessively sticky or wet seed

treatment. Excessive ﬁeld speed. Reduce ﬁeld speed. Planting conditions too wet. Wait until drier weather. Incorrect coulter depth setting. See coulter manual. Excessive or improper row unit down

pressure spring setting. Damaged seed tubes. Check seed tubes for damage. Seed-Lok® building up with dirt. Lock up Seed-Lok®, page 88. Row-unit not penetrating low spots. See “Refer to Figure 78” on page 71. Rough planting conditions. Rework the ﬁeld. Seed ﬁrmer not in place and set to

correct tension. False alarms or actual seed rate

errors due to monitor setup with incorrect row count and/or spacing.

Row-unit plugged with dirt. Clean row-unit. Planting conditions too wet. Wait until drier weather. Incorrect side depth wheel

adjustment Seed-Lok® is plugging row-unit. Lock up Seed-Lok®, page 88. Failed disk bearings. Replace disk bearings. Bent or twisted row-unit frame. Replace row-unit frame. Partially plugged row-unit seed tube. Raise planter, expose bottom of seed tube and clean out. Incorrect seed meter wheel Replace wheels with those matching seed Unclean seed. Use clean seed. Damaged, old or dry seed. Use clean, new seed.

plugging. Lock up Seed-Lok®, page 88.

1. Increase ﬁeld speed.

2. Use a seed wheel with lower cell count. Switch from 12 ﬁnger meters to 6 ﬁnger meters.

3. Install a low speed kit (page 127).

Troubleshooting chart.

Check and replace any worn/rusted sprockets, chains or chain idlers.

See “Seed Lubricants” on page 125.

Check your treatment.

See “Refer to Figure 78” on page 71.

See “Seed Firmer Adjustments” on page 88.

Review planter conﬁguration and monitor setup.

See “Side Gauge Wheel Adjustment” on page 78.

401-571M Table of Contents Index 2014-09-08

Page 97

Great Plains Manufacturing, Inc. Table of Contents Index Troubleshooting 93

Problem Cause Solution

Press wheels not compacting the soil as desired.

Press wheel or row-units plugging

Air lines plugging between air box and Y splitters

Seed blowing out of Pro-Box door area

Hydraulic marker functioning improperly

Marker disk does not

Incorrect spring handle setting See “Press Wheel Adjustment” on page 89. Wheel stagger needs adjustment for

conditions Insufﬁcient row unit down force See “Refer to Figure 78” on page 71. Too wet or cloddy. Wait until drier weather or rework ground. Use of incorrectly shaped tire for your

conditions.

Incorrect press wheel depth. Reset press wheel depth, page 89. Planting conditions too wet. Wait until drier weather. Too much pressure on row-units. Reduce down pressure on row-units. Coulters set too deep, bring up

excess dirt and moisture. Backed up with planter in the ground. Clean out and check for damage. Failed disk bearings. Replace disk bearings. Disk blades worn. Replace disk blades. Scraper worn or damaged. Replace scraper. Improper air hose routing. With planter unfolded, hoses should form a gentle

Air leaks between manifold and splitters

Fan air ﬂow too low. Speed up fan. If already at 3800 rpm, increase airﬂow by

Fan air ﬂow too high. Slow down fan. If already at or below 3000 rpm, set fan at

Seal on top of airbox damaged or out of adjustment.

Marker circuit set to Aux Set Marker/Aux valve on wing to Marker. See page 52. Air in lines or valves Re-phase Marker cylinders, then see “Marker Cylinder

Leaks in hose ﬁttings or connections. Check all hose ﬁttings and connections for air or oil leaks. Low tractor hydraulic oil level. Check tractor hydraulic oil level. Loose or missing bolts or fasteners. Check all bolts and fasteners. Needle valve plugged. Open needle valve, cycle markers slowly and reset needle

Needle valve(s) in sequence valve plugged.

Wing Fold Switch ON Turn Wing Fold switch OFF Marker disc needs adjustment Increase disc angle. If still no mark, reverse marker disk to

See “Press Wheel Adjustment” on page 89.

Wedgeshaped wheels work beston narrow spacings and in wet conditions. Round edge wheels work best in wider row spacings and drier conditions.

Check coulter adjustment.

horizontal “S” shape through the holders with no big sags. Check for leaks and correct as needed.

reducing butterﬂy valve angle, before increasing rpm.

3800 rpm and use fan butterﬂy valve to reduce airﬂow. Seal should be compressed approximately

hopper or box is installed.

Bleeding” on page 97.

valve. See page 172. Open needle valves,cycle markers slowly and reset needle

valves. See page 172.

pull or throw dirt.

⁄

inch when

mark

Hydraulic

Bypass valve is open at hitch Close valve.

Hitch Won’t

Stay Raised

2014-09-08 Table of Contents Index 401-571M

Page 98

94 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Problem Cause Solution

Speed

Reading

Monitor speed reading willonly match tractor with planter lowered.

If speeds don’t agree during planting (with planter lowered), re-calibrate radar speed sensor with planter lowered.

Doesn’t

Match

Tractor

Airbox Troubleshooting

Problem Cause Fix

Single row doesn’tﬁll or keep up with other rows.

Both rows on one meter outlet low or not keeping up with other rows.

Note: This is more likelyto occur

on end outlets.

Multiple rows fail for lack of seed.

Single or multiple hoses plugging just ahead of airbox.

All rows fail. Lack of seed. Add seed.

1, 2, 3, or more outlets fail. Note: Outlets can be

side-by-side or random. Plugging may also move from one outlet to another.

Little or no seed to many rows, with heavily treated seed.

Y tube is bent/angled off feed pipe. Loosen and rotate pipe so the bend is

straight down and Y-tubeis not pointing to

front or rear of air pipe. Excess fan speed. Reduce fan speed. Blockage in air slot in top of airbox. Clear by using a long slim tool and taking

hose off hose outlet or clean-out door.

Note: May be necessary to take top off

airbox to clear debris from slot, or use side access doors.

Bad hose routing between delivery hose and airbox on wing.

Fan speed too high/too low. Check/adjust fan speed, butterﬂy valve. Out of seed. Add seed. Fan speed too high/too low. Check/adjust fan speed, butterﬂy valve. Possible air leak. Check for air leak downstream between

Fan speed too high. Adjust fan speed or butterﬂy valve.

Foreign matter in seed chamber in bottom of airbox.

Seed treatment sticky. Note: Do not use liquid seed treatments.

Treatment mixed unevenly and plugging outlets.

Correct hose routing.

box and top of meter.

Extremely high populations may require

slightly reduced ﬁeld speed.

Clean out seed chamber.

Add talc to seed to dry out seed

treatment.

Clean out seed. Re-mix seed and

treatment.

401-571M Table of Contents Index 2014-09-08

Page 99

Great Plains Manufacturing, Inc. Table of Contents Index 95

Maintenance and Lubrication

Maintenance

Proper servicing and maintenance is the key to long implement life. With careful and systematic inspection, you can avoid costly maintenance, downtime, andrepair.

Alwaysturn off andremovethe tractor key before making any adjustments or performing any maintenance.

Crushing and Overhead Hazards:

You may be severely injured or killed by being crushed under the falling implement. Always have transport locks in place and frame sufﬁciently blocked up when working on implement.

High Pressure Fluid Hazard:

1. After using your planter for several hours, check all bolts to be sure they are tight.

2. Remove excess slack from chains. Clean and use chain lube on all roller chains as needed.

3. Maintain proper air pressure in planter tires.

4. Keep disk scrapers properly adjusted.

5. Clean planter on a regular basis. Regular and thorough cleaning will lengthen equipment life and reduce maintenance and repair.

6. Lubricate areas listed under “Lubrication” on page 114.

7. Replace any worn, damaged, or illegible safety labels by obtaining new labels from your Great Plains dealer.

2014-09-08 Table of Contents Index 401-571M

Page 100

96 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.

Bleeding Hydraulics

Machine Damage Risk:

Do not fold or unfold without ﬁrst raising planter completely.

Bleeding Lift Hydraulics

Normally the lift hydraulics are bled at the factory before shipping, and bleeding should notbe required other than to raise fully and hold lever on for one minute or until all cylinders extend fully.

If it is necessary to further bleed lift system, see “Lift

Cylinder Bleeding” on page 96.

Bleeding Fold Cylinder Hydraulics

Normally the fold hydraulics are bled atthefactory before shipping, and bleeding should notbe required other than to fold fully and hold lever on for one minute or until all cylinders reach the end of their stroke.

Erratic gage wheel behavior, such as wandering back and forth in the ﬁeld, or failing to rotate fully into place while folding, are signs that the fold cylinders need to be bled.

If it is necessary to further bleed fold system, see “Fold

Cylinder Bleeding” on page 97. Lift Cylinder Bleeding

Refer to Figure 121

1. Unfold and lower planter.

2. Un-pin rod endsof all liftcylinders. Position cylinders so that rod ends may extend without striking machine parts.

3. Loosen the JIC ﬁttings at the base end of each master lift cylinder.

4. Extend the circuit until ﬂuid appears at the loosened ﬁttings. Set circuit to Neutral and secure ﬁttings.

5. Loosen the JIC ﬁttings at the base end of each slave lift cylinder.

6. Extend the circuit until ﬂuid appears at the loosened ﬁttings. Set circuit to Neutral and secure ﬁttings.

7. Re-pin rod ends.

JIC Torque Chart

Size Foot-Pounds N-m

⁄

-20 11-12 15-16

⁄

-20 15-16 20-22

⁄

-18 18-20 24-28

⁄

-16 38-42 52-58

⁄

-14 57-62 77-85

⁄

-12 79-87 108-119

Over-Torque Leak Risk:

JIC ﬁttings do not require high torque. Excess torque causes leaks. JIC and ORB ﬁtting do not require sealant.

Bleed lines only at:

JIC (Joint Industry Conference, 37° flare) or NPT (National Pipe Thread, tapered thread) ﬁttings.

Never bleed at:

QD (Quick Disconnect) ﬁttings or ORB (O-Ring Boss) ﬁttings, the O-ring is likely to be torn if

any pressure remains in the circuit.

Figure 121

25227

Lift Bleed
