Table of Contents
Important Safety Information ...................................... 1
Safety Decals ................................................................. 5
Introduction...................................................................10
Models Covered ........................................................... 10
Description of Unit ........................................................10
Document Family......................................................10
Using This Manual.................................................... 10
Definitions................................................................. 10
Owner Assistance ........................................................11
Preparation and Setup ...............................................12
Prior to Going to the Field Checklist.............................12
Hitching Turbo-Chisel to Tractor ..................................13
Electrical Hookup......................................................14
Hydraulic Hose Hookup............................................ 14
Hydraulic Hose Hookup............................................ 14
Transport Locks........................................................ 15
First Time Field Adjustments........................................15
Pre-Leveling of Machine........................................... 15
Front to Rear Leveling..............................................15
Wing Adjustment (5313-5315).................................. 16
Wing Adjustment (5317-5323).................................. 16
5317-5323 Hydraulic Down Pressure ...................... 17
Operating Instructions .............................................. 18
Pre-Start Checklist ....................................................... 18
Transport...................................................................... 19
Transport Steps........................................................ 19
Field Operation ............................................................ 20
Field Set-Up Checklists................................................ 20
General Operation and In-Field Adjustments............... 21
Rear Attachment Settings ............................................ 24
Rear Chopper Reel .................................................. 24
Buster Bar ................................................................ 25
Maintenance and Lubrication ................................... 26
Maintenance ................................................................ 26
Lubrication ................................................................... 26
Appendix..................................................................... 28
TC Specifications and Capacities ................................ 28
Tire Inflation Chart ....................................................... 29
Hydraulic Connectors and Torque ............................... 29
Torque Values Chart.................................................... 30
Index............................................................................ 33
© Copyright 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 All rights Reserved
Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been
taken in the preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for
damages resulting from the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as
it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
03/06/2014 566-224M
Trademarks of Great Plains Manufacturing, Inc. include: Singulator Plus, Swath Command, Terra-Tine.
Registered Trademarks of Great Plains Manufacturing, Inc. include:
Air-Pro, Clear-Shot, Discovator, Great Plains, Land Pride, MeterCone, Nutri-Pro, Seed-Lok, Solid Stand,
Terra-Guard, Turbo-Chisel, Turbo-Chopper, Turbo Max, Turbo-Till, Ultra-Till, Verti-Till, Whirlfilter, Yield-Pro.
Brand and Product Names that appear and are owned by others are trademarks of their respective owners.
Printed in the United States of America
iv TC5109-5323 Great Plains Manufacturing, Inc.
566-224M 03/06/2014
Great Plains Manufacturing, Inc. 1
Important Safety Information
Look for Safety Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that follows it. In addition to design and configuration of equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence and
proper training of personnel involved in the operation,
transport, maintenance and storage of equipment.
Be Aware of Signal Words
Signal words designate a degree or level of hazard seriousness.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
This signal word is limited to the most extreme situations,
typically for machine components that, for functional purposes, cannot be guarded.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury, and includes hazards that are exposed when
guards are removed. It may also be used to alert against
unsafe practices.
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury. It may also be used to alert against unsafe practices.
Prepare for Emergencies
▲ Be prepared if a fire starts
▲ Keep a first aid kit and fire extinguisher handy.
▲ Keep emergency numbers for doctor, ambulance, hospital
and fire department near phone.
Be Familiar with Safety Decals
▲ Read and understand “Safety Decals” on page 5, thor-
oughly.
▲ Read all instructions noted on the decals.
▲ Keep decals clean. Replace damaged, faded and illegible
decals.
03/06/2014 566-224M
2 TC5109-5323 Great Plains Manufacturing, Inc.
Use Safety Chains
▲ Use safety chains to help control drawn machinery should it
separate from tractor draw-bar or trailing nurse tank hitch.
▲ Use chain with a strength rating equal to or greater than
the gross weight of towed machinery.
▲ Attach implement chain to tractor draw-bar support or
specified anchor location. Allow only enough slack in chain
for turns.
▲ Replace chain if any links or end fittings are broken,
stretched or damaged.
▲ Do not use safety chain for towing.
Avoid High Pressure Fluids
Escaping fluid under pressure can penetrate the skin,
causing serious injury. This Turbo-Chisel requires a
Power-Beyond port, which is always under pressure
when the tractor is running.
▲ Avoid the hazard by relieving pressure at other remote, and
shutting down tractor before connecting, disconnecting or
inspecting hydraulic lines.
▲ Use a piece of paper or cardboard, NOT BODY PARTS, to
check for suspected leaks.
▲ Wear protective gloves and safety glasses or goggles when
working with hydraulic systems.
▲ If an accident occurs, seek immediate medical assistance
from a physician familiar with this type of injury.
Keep Riders Off Machinery
Riders obstruct the operator’s view. Riders could be
struck by foreign objects or thrown from the machine.
▲ Never allow children to operate equipment.
▲ Keep all bystanders away from machine during operation.
Use Safety Lights and Devices
Slow-moving tractors and towed implements can create
a hazard when driven on public roads. They are difficult
to see, especially at night.
▲ Use flashing warning lights and turn signals whenever driv-
ing on public roads.
▲ Use lights and devices provided with implement.
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Important Safety Information 3
Transport Machinery Safely
Maximum transport speed for implement is 20 mph (32
kph), 13 mph (22 kph) in turns. Some rough terrains
require a slower speed. Sudden braking can cause a
towed load to swerve and upset.
▲ Do not tow an implement or nurse tank that weighs more
than 1.5 times the weight of towing vehicle.
▲ Carry reflectors or flags to mark Turbo-Chisel in case of
breakdown on the road.
▲ Keep clear of overhead power lines and other obstructions
when transporting. Refer to transport dimensions under
“TC Specifications and Capacities” on page 28.
▲ Do not exceed 20 mph. Never travel at a speed which does
not allow adequate control of steering and stopping. Reduce
speed if towed load is not equipped with brakes.
▲ Reduce speed on rough roads.
▲ Comply with national, regional and local laws.
▲ Do not fold or unfold the Turbo-Chisel while the tractor is
moving.
Shutdown and Storage
▲ Lower Turbo-Chisel, put tractor in park, turn off engine,
and remove the key.
▲ Secure Turbo-Chisel using parking jack provided.
▲ Detach and store Turbo-Chisel in an area where children
normally do not play.
Tire Safety
Tire changing can be dangerous. Employ trained personnel using correct tools and equipment.
▲ When inflating tires, use a clip-on chuck and extension hose
long enough for you to stand to one side–not in front of or
over tire assembly. Use a safety cage if available.
▲ When removing and installing wheels, use wheel-handling
equipment adequate for weight involved.
03/06/2014 566-224M
4 TC5109-5323 Great Plains Manufacturing, Inc.
Practice Safe Maintenance
▲ Understand procedure before doing work. Use proper
tools and equipment. Refer to this manual for additional
information.
▲ Work in a clean, dry area.
▲ Lower implement, put tractor in park, turn off engine, and
remove key before performing maintenance.
▲ Make sure all moving parts have stopped and all system
pressure is relieved.
▲ Disconnect battery ground cable (-) before servicing or
adjusting electrical systems or before welding on TurboChisel.
▲ Inspect all parts. Make sure parts are in good condition
and installed properly.
▲ Remove buildup of grease, oil or debris.
▲ Remove all tools and unused parts from implement before
operation.
Safety At All Times
Thoroughly read and understand the instructions in this
manual before operation. Read all instructions noted on
the safety decals.
▲ Be familiar with all Turbo-Chisel functions.
▲ Operate machinery from the driver’s seat only.
▲ Do not leave Turbo-Chisel unattended with tractor engine
running.
▲ Do not stand between tractor and implement, or implement
and nurse tank, during hitching.
▲ Keep hands, feet and clothing away from power-driven
parts.
▲ Wear snug-fitting clothing to avoid entanglement with mov-
ing parts.
▲ Watch out for wires, trees, etc., when folding and raising
Turbo-Chisel. Make sure all persons are clear of working
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Important Safety Information 5
Safety Decals
Safety Reflectors and Decals
Your implement comes equipped with all lights, safety
reflectors and decals in place. They were designed to
help you safely operate your implement.
▲ Read and follow decal directions.
▲ Keep lights in operating condition.
▲ Keep all safety decals clean and legible.
▲ Replace all damaged or missing decals. Order new decals
from your Great Plains dealer. Refer to this section for
proper decal placement.
▲ When ordering new parts or components, also request cor-
responding safety decals.
To install new decals:
1. Clean the area on which the decal is to be placed.
2. Peel backing from decal. Press firmly on surface,
being careful not to cause air bubbles under decal.
818-055C
Slow Moving Vehicle Reflector
On the back of smv post on wing stop;
1 total
838-615C
Amber Reflectors
Two on front of light brackets. Two on front, outside of
trusses. Two on outside, rear of center frame. Two on
rear of finishing attachment (not shown), visible from side
while folded for transport;
8 total
41194
42730
03/06/2014 566-224M
6 TC5109-5323 Great Plains Manufacturing, Inc.
838-614C
Red Reflectors
On rear of light brackets (top);.
2 total
41193
838-603C
Orange Reflectors
On rear of light brackets (bottom);
2 total
41193
838-598C Caution: Read Operator’s Manual
On front of left truss;
1 total
566-224M 03/06/2014
41189
Great Plains Manufacturing, Inc. Important Safety Information 7
838-599C Danger: Electrocution Hazard
Top side of gusset on rear of hitch (left side), Models
5313-5323;
1 total
41189
838-600C Danger: Crushing Hazard
Front of hitch;
1 total
838-602C Warning: Overhead Wing Hazard
Outside, center of center frame and front, left of wing
frames (both sides), Models 5313-5323;
4 total
41188
42730
03/06/2014 566-224M
8 TC5109-5323 Great Plains Manufacturing, Inc.
838-094C Warning: High Pressure Fluid
Front of hitch (middle);
1 total
41188
838-611C Warning: Hand Crushing
Front side of center frame (left & right side);
2 total
838-613C Notice: Transport Lock
Outside of cylinder mount bar (both sides);
2 total
42729
42729
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Important Safety Information 9
838-606C Warning: Tongue Rising
Front of hitch (rear);
1 total
41188
848-271C Danger: Cutting Of Foot
Top side of gusset on rear of hitch (middle);
1 total
41189
03/06/2014 566-224M
10 TC5109-5323 Great Plains Manufacturing, Inc.
Introduction
Great Plains welcomes you to our growing family of new
product owners. The TC5109-5323 have been designed
with care and built by skilled workers using quality materials. Proper setup, maintenance, and safe operating
practices will help you get years of satisfactory use from
the machine.
Models Covered
TC5109 11-Foot 1-section
TC5111 14-Foot 1-section
TC5113 16-Foot 1-section
TC5115 19-Foot 1-section
TC5313 16-Foot 3-section
TC5315 19-Foot 3-section
TC5317 21-Foot 3-section
TC5319 24-Foot 3-section
TC5321 26-Foot 3-section
TC5323 29-Foot 3-section
Description of Unit
The TC5109-5323 is a one or three-section “vertical” tillage tool. Working width ranges from 11 to 29 feet. The
implement is designed to cut, size and bury residue. It
can work up to 11” deep, will dislodge rootballs and leave
the field smooth enough for “one pass” finishing in
Spring. For optimum leveling of your machine, it should
be equipped with either a Chopper Reel or Buster Bar
attachment.
Document Family
566-224Q-ENG Assembly Manual
566-224Q Pre-Delivery Manual
566-224M Operator Manual (this document)
566-224P Parts Manual
Using This Manual
This manual will familiarize you with
safety, assembly, operation, adjustments, troubleshooting, and maintenance. Read this manual and follow
the recommendations to help
ensure safe and efficient operation.
U
R
F
D
R
L
Figure 1
Turbo Max
The information in this manual is current at printing.
Some parts may change to assure top performance.
Definitions
The following terms are used throughout this manual.
A crucial point of information related to the preceding topic.
Read and follow the directions to remain safe, avoid serious
damage to equipment and ensure desired field results.
Note: Useful information related to the preceding topic.
Right-hand and left-hand as used in
this manual are determined by facing
the direction the machine will travel
while in use unless otherwise stated.
An orientation rose in some line art
illustrations shows the directions of:
Up, Back, Left, Down, Front, Right.
41977
U
R
F
D
B
L
B
L
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Important Safety Information 11
Owner Assistance
If you need customer service or repair parts, contact a
Great Plains dealer. They have trained personnel, repair
parts and equipment specially designed for Great Plains
products.
Refer to Figure 2
Your machine’s parts were specially designed and
should only be replaced with Great Plains parts. Always
use the serial and model number when ordering parts
from your Great Plains dealer. The serial-number plate is
located on the left end of the top front tool bar.
Record your Turbo-Chisel model and serial number here
for quick reference:
Model Number:__________________________
Serial Number: __________________________
Your Great Plains dealer wants you to be satisfied with
your new machine. If you do not understand any part of
this manual or are not satisfied with the service received,
please take the following actions.
1. Discuss the matter with your dealership service
manager. Make sure they are aware of any problems
so they can assist you.
2. If you are still unsatisfied, seek out the owner or general manager of the dealership.
Figure 2
Serial Number Plate
For further assistance write to:
Product Support
Great Plains Mfg. Inc., Service Department
PO Box 5060
Salina, KS 67402-5060
41189
(800)255-9215
03/06/2014 566-224M
12 TC5109-5323 Great Plains Manufacturing, Inc.
Preparation and Setup
This section helps you prepare your tractor and TurboChisel for use, and covers tasks that need to be done seasonally, or when the tractor/Turbo-Chisel configuration
changes.
Before using the Turbo-Chisel in the field, you must hitch it
to a suitable tractor, inspect systems and level the TurboChisel. Before using the Turbo-Chisel for the first time,
and periodically thereafter, certain adjustments and calibrations are required.
Prior to Going to the Field Checklist
Complete this checklist before routine setup:
❑ Read and understand “Important Safety Informa-
tion” on page 1.
❑ Check that all working parts are moving freely, bolts
are tight, and cotter pins are spread.
❑ Make sure your tractor horsepower matches the
implement you are pulling. This is important so the
implement can do the best possible job.
❑ Clean all hydraulic couplings and connect to tractor
as shown on page 13 and 14.
❑ If machine is folded, remove the transport pins from
wing stops. (DO NOT remove pins if the wing is leaning against the pins or putting pressure on the pins.
Use the hydraulics to pull the wings in completely
before unpinning them.) Once the pins are removed,
slowly untold the unit. Make sure no one is under the
wings during the unfolding process.
❑ Check again for hydraulic leaks and watch that
hoses do not get pinched in hinges, wing stops, etc.
❑ After the machine is completely unfolded, raise and
lower the Turbo Max several times to purge air from
the hydraulic system. Again check for hydraulic leaks
and tighten or replace if necessary.
❑ Check safety chain hookup. Make sure all warning
lights are hooked up and functioning correctly.
❑ Check that all grease fittings are in place and lubri-
cated. See “Lubrication” on page 26. The hubs will
come pre-greased and will not need greased at this
time.
❑ Check that all safety decals and reflectors are cor-
rectly located and legible. Replace if damaged. See
“Safety Decals” on page 5.
❑ Inflate tires to pressure recommended and tighten
wheel bolts as specified. See “Torque Values
Chart” on page 30.
❑ Put transport locks in place and refold the machine
slowly. Put wing stop pins in place. Always use the
transport pins when moving from field to field. You
are now ready to go to the field.
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Preparation and Setup 13

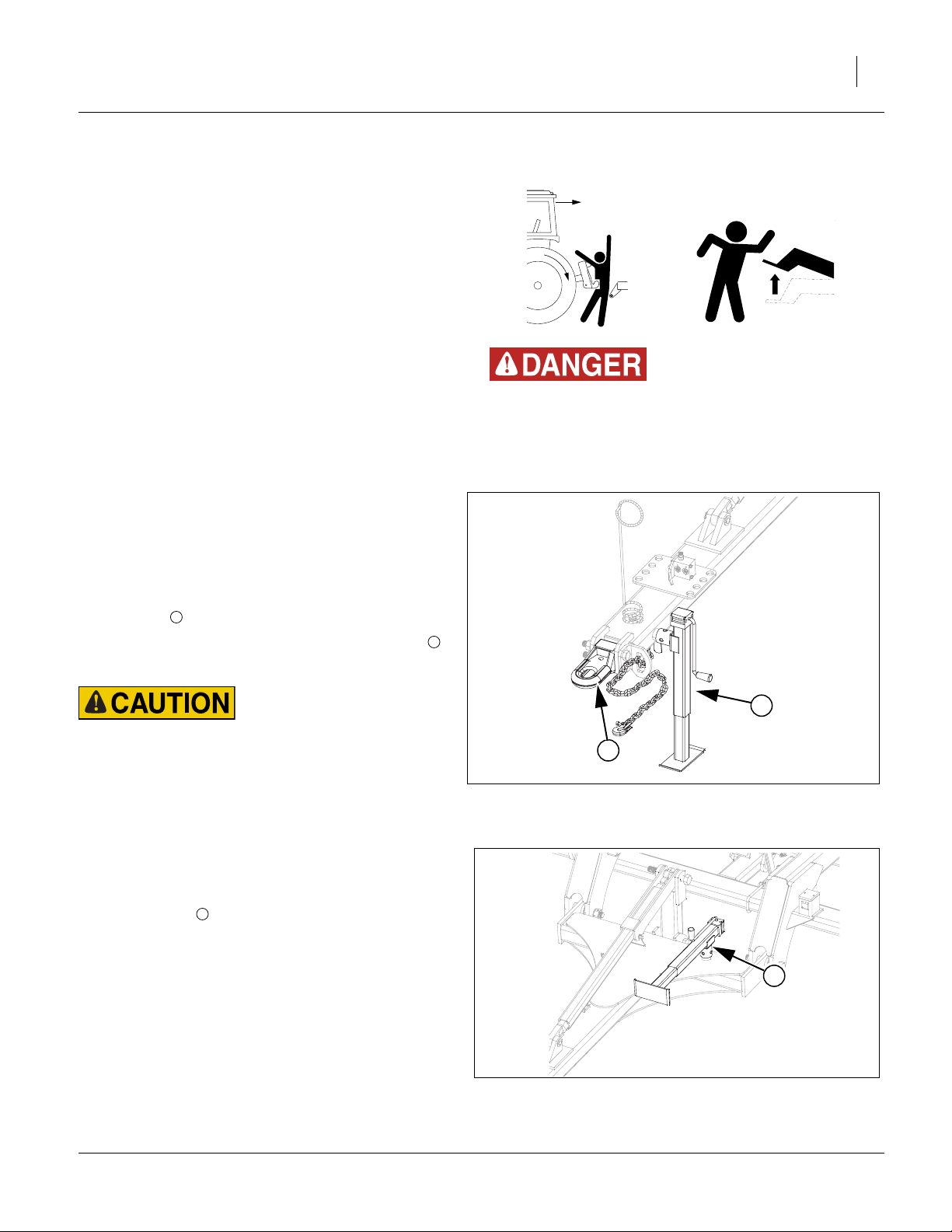

Hitching Turbo-Chisel to Tractor
Hitch to a tractor for highway transport or field operations. Hitch to a leading implement only for field operations. Do not transport behind another implement.
Before hitching, check the compatibility and capability of
the towing tractor or implement:
The TC5109-5323 Turbo-Chisel is a pull-type implement
equipped with a standard Category IV single tang hitch.
It may be converted to a Category III or clevis hitch
using supplied accessory parts.
To prevent soil compaction on rows, set tractor wheels
between rows. For hillsides and steep slopes, set tractor
wheels as wide as possible for maximum stability.
1. Raise tractor three-point arms (if equipped) clear up
to clear Turbo-Chisel.
2. For TWO-WHEEL DRIVE and MFWD tractors, pin
drawbar in fixed center position for field and transport. For FOUR-WHEEL DRIVE and TRAC-DRIVE
tractors, leave one hole clearance on each side of
drawbar for field position, hitch damage may occur if
pinned solid. Pin in center position for transport to
maintain maximum steering control.
Refer to Figure 3
3. Use jack to raise and lower turbo-chisel tongue.
4. Back tractor draw bar into alignment with hitch .
5. Secure with a locking hitch pin.
1
2
Crushing Hazard:
Do not stand or place any body part between turbo-chisel and
moving tractor. You may be severely injured or killed by being
crushed between the tractor and turbo-chisel. Stop tractor
engine and set parking brake before attaching cables and
hoses.
Negative Tongue Weight Hazard:
Make certain that turbo-chisel is securely hitched to the tractor or leading implement before unfolding. An unhitched
turbo-chisel can tip over backwards during folding and
unfolding if the tongue is not secured.
6. Secure safety chain to an anchor on the tractor.
Refer to Figure 4
7. Retract jack foot. Re-orient jack to storage position.
8. After hitching tractor to turbo-chisel, store jack on
storage stob on Turbo-Chisel tongue.
Load Sway Hazard:
9. Lock drawbar swing to center position to minimize any
side-to-side sway to assure proper tracking in the field,
and safe road travel. See “Transport” on page 19, for
safe transporting.
3
2
Figure 3
Jack & Hitch Clevis
Figure 4
Jack in Storage
1
41993
3
41994
03/06/2014 566-224M
14 TC5109-5323 Great Plains Manufacturing, Inc.
Electrical Hookup
Refer to Figure 5
Your Turbo-Chisel is equipped with either North American lights.
Plug the lighting connector into the tractor outlet.
Test the lights and signalling prior to highway movement.
Hydraulic Hose Hookup
Great Plains hydraulic hoses are color coded to help you
hookup hoses to your tractor outlets. Hoses that go to
the same remote valve are marked with the same color.
Color Hydraulic Function
Black Lift (2 hoses)
Green Fold (2 hoses)
Red Gang (2 hoses)
Hydraulic Hose Hookup
High Pressure Fluid Hazard:
Shut down tractor before making hydraulic connections.
Only trained personnel should work with system hydraulics.
Escaping fluid under pressure can have sufficient pressure to
penetrate the skin causing serious injury. If an accident
occurs, seek immediate medical assistance from a physician
familiar with this type of injury.
Use paper or cardboard, NOT BODY PARTS, to check for
leaks. Wear protective gloves and safety glasses or goggles
when working with hydraulic systems.
Refer to Figure 6
To distinguish hoses on the same hydraulic circuit, refer
to hose label.
• The hose with an extended-cylinder symbol feeds a
cylinder base end.
• The hose with a retracted-cylinder symbol feeds a
cylinder rod end.
Secure hoses and cables so that they have sufficient
slack for hitch movements, but cannot get caught
between moving parts of tractor, turbo-chisel or hitch.
Failure to safely route and secure hoses and cables
could result in damage requiring component repair/
replacement, and lost field time.
To distinguish hoses on the same hydraulic circuit, refer
to, “Hydraulic Hose Hookup” on page 14. Clean all
hydraulic couplings and hook hoses to tractor.
Figure 5
North American Connector
Figure 6
Hose Handles
25236
31733
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Preparation and Setup 15
Transport Locks
Refer to Figure 7
10. Once the cylinders are connected, raise the unit completly. If the transport locks are in place, remove them
at this time.
1
1
Refer to Figure 8
11. Store the transport locks on the lift mechanism link
as shown.
12. Once the locks are removed, unfold the wings (if folding
unit).
Note: Make sure no one is under the wings during the un-
folding process. Watch for leaks and make sure hoses
do not get pinched during the initial unfolding process.
13. Once the machine is unfolded, raise and lower the
machine several times to purge air from the lift system.
Again, watch for any leaks and tighten if necessary.
14. Check the tire pressure for proper inflation and check
the tightness of lug bolts.
2
First Time Field Adjustments
Pre-Leveling of Machine
Note: Pre-leveling of machine should be done on a good lev-
el surface.
Front to Rear Leveling
Refer to Figure 9
15. Lower the machine until the front row of shanks are 1 to
2” above the surface. At this point, remove the snap
wire pin from the turnbuckle lock , swing lock off
turnbuckle and adjust the hitch turnbuckle to adjust
the fore and aft. The front corner of the main frame
should be 1/2 to 1” lower than the rear corner.
16. Now the turnbuckle lock may be swung back onto
hitch turnbuckle and the snap wire pin may be reinstalled.
1 2
3
2
3 1
Figure 7
Transport Locks
2
Figure 8
Transport Locks Storage
2
3
41805
42673
1
Figure 9
Hitch Turnbuckle Adjustment
03/06/2014 566-224M
41805
16 TC5109-5323 Great Plains Manufacturing, Inc.
Wing Adjustment (5313-5315)
Refer to Figure 10
17. Once the machine is level fore to aft, the wings may be
leveled (Models 5313-5315). Start by unfolding the
wings to a rigid position.
18. Completely extend the wing fold cylinders and check
the wings for levelness. If machine is not level, fold
wings back up and instal shims as needed to level.
Note: Extra shims are stored in manual pak. The extra
shims may be needed in the future if the hinge holes or
bolts begin to wear. There are two different thickness
of shims, you may use multiple shims to level wings.
19. Remove the two 3/8 x 1 1/2 bolts and either add more
shims to raise wings or take shims out to lower wings.
20. Re-instal bolts and tighten to specs, see “Torque Val-
ues Chart” on page 30.
2
2
1
2
Figure 10
5313-5315 Wing Adjustment
2
1
42061
Wing Adjustment (5317-5323)
Refer to Figure 11
21. The wings are to be leveled with the turnbuckle on
the wing cylinder mount .
22. Loosen jam nut and either shorten turnbuckle to raise
the wings or lengthen the turnbuckle to lower the wings.
23. Re-tighten the jam nut to specs, see “Torque Values
Chart” on page 30.
3
2
3
1
3
1
Refer to Figure 12
24. Once machine is pre-leveled, raise and lower the gangs
completely to cycle and purge air from these cylinders
.
1
2
Figure 11
5317-5323 Wing Adjustment
1
Figure 12
Gang Cylinder Purging
41729
41729
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Preparation and Setup 17
5317-5323 Hydraulic Down Pressure
Refer to Figure 13
Note: This setup procedure is for tractors with closed-center
or pressure compensated flow hydraulic systems.
Open center hydraulics not supported.Adjust down
pressure valve as shown on decal (located on front
right hand truss), Refer to Figure 14.
Never leave tractor valve centered when unfolded with machine
in motion. Machine damage may occur when wings flex up or
down
This machine is designed for continuos hydraulic flow to the wing
fold cylinders during field operations. It is for use on tractors
having CLOSED CENTER hydraulics only. If your tractor has an
OPEN CENTER hydraulics, please consult your dealer for operating instructions.
25. Adjust the bypass/pressure reducing valve by turning
knob clockwise all the way in and then backing out 1
1
full turn.
26. On tractor, adjust flow-control valve to low side of flow
rate.
Note: The faster the flow of oil through the system the
greater the potential for oil heating, premature wear
or tractor damage.
27. Lock the fold hydraulic lever for continuous downward
oil flow.
28. Adjust bypass/pressure reducing valve knob on
implement so the pressure gauge reads 1200 psi.
Never exceed 1400 psi.
29. While watching pressure gauge , slowly open knob
until gauge reads 1100psi. Pressure might rise and
then fall off as knob is opened. If pressure exceeds
1400 psi during this step, the tractor flow is too high,
reduce tractor flow. Lock valve knob at 1100 psi.
30. Finally adjust valve to the desired wing down pressure setting. Never exceed 900 psi.
31. In field operation, lock the fold hydraulic lever for continuous downward oil flow. If wings are running too
high, increase pressure setting, knob , to level
machine. If center is too high, decrease pressure setting with knob on valve.
.
2
2
4
2
3
3 1
1
2
R
F
U
D
B
L
3
1
4
2
Figure 13
5317-5323 Down Pressure
Figure 14
Down Pressure Decal
41296
848-390C
03/06/2014 566-224M
18 TC5109-5323 Great Plains Manufacturing, Inc.
Operating Instructions
This section covers general operating procedures. Experience, machine familiarity, and the following information
will lead to efficient operation and good working habits.
Always operate farm machinery with safety in mind.
Pre-Start Checklist
Perform the following steps before transporting the
Turbo-Chisel to the field.
❑ Carefully read “Important Safety Information” on
page 1.
❑ Lubricate Turbo-Chisel as indicated under “Lubrica-
tion” on page 26.
❑ Check all tires for proper inflation, “Tire Inflation
Chart” on page 29.
❑ Check all bolts, pins, and fasteners. Torque as
shown in “Torque Values Chart” on page 30.
❑ Check Turbo-Chisel for worn or damaged parts.
Repair or replace parts before going to the field.
Check hydraulic hoses, fittings, and cylinders for leaks.
Repair or replace before going to the field.
High Pressure Fluid Hazard:
Relieve pressure and shut down tractor before connecting, disconnecting or checking hydraulic lines. Use a piece of paper
or cardboard, NOT BODY PARTS, to check for leaks. Wear
protective gloves and safety glasses or goggles when working
with hydraulic systems. Escaping fluid under pressure can
have sufficient pressure to penetrate the skin causing serious
injury. If an accident occurs, seek immediate medical assistance from a physician familiar with this type of injury.
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Operating Instructions 19
Transport
Loss of Control Hazard:
Do not tow the turbo-chisel behind another implement on public roads. Tow the turbo-chisel to the field with a separate
vehicle. The leading implement may not provide sufficient lateral control of a trailing implement at highway speeds. The
total weight of the train can also exceed the steering and/or
braking capability of the tractor. The resulting accident could
cause serious injury or death.
Loss of Control Hazard:
Use an adequate towing vehicle. Never tow an implement that
weighs more than 150% of the towing vehicle (transport vehicle must weigh at least 67% of implement). Ensure that the
towing vehicle is adequate for the task. Using an inadequate
tow vehicle is extremely unsafe, and can result in loss of control, serious injury and death.
See tables below for harrow transport weights.
Braking and Loss of Control Hazard:
Do not exceed 20 mph (32 kph). Slow down on rough roads.
Transport Steps
Know your implement weight. If tractor capabilities are
marginal, check actual weight of implement at a scale.
32. Check that implement is securely hitched to a sufficient tractor (page 13).
33. Always use a locking-style hitch pin sized to match
holes in hitch and draw-bar, and rated for the load.
34. Attach safety chain to tractor with enough slack to
permit turning (page 13).
35. Verify correct operation of lights.
36. Instal transport locks (page 15).
37. Check that tires are properly inflated (page 29).
38. Plan the route. Avoid steep hills.
39. Always have lights on for highway operation.
40. Do not exceed 32 kph (20 mph). Comply with all
national, regional and local laws when traveling on
public roads.
41. Remember that the implement may be wider than
the towing vehicle. Allow safe clearance.
03/06/2014 566-224M
20 TC5109-5323 Great Plains Manufacturing, Inc.
Field Operation
This implement is designed to be pulled in the field with
the machine engaged (including wide turns). Lifting for
short distances to clear residue clogs is acceptable. Lifting for tight turns or reverse moves is required.
Equipment Damage Risk:
Lift for tight turns and reverse moves. Tight turns can result in
a section moving backward. Never back up with harrows on
the ground. If the inside tire stops or rolls backward, the turn is
tight and requires lift.
Field Set-Up Checklists
Use the following tables to develop a final checklist for
your tractor/Turbo-Chisel configuration. Additional or
fewer steps may be necessary depending on tractor features, Turbo-Chisel options and planting accessories.
Mechanical Checklist (Tractor Hitching) Page
Turbo-Chisel hitched 13
Hitch pin locked
Safety chain secured to tractor or leading
implement
Parking jack stowed 13
13
Electrical Checklist Page
Verify electrical hookups solid, or connector securely stowed if not using lights in
field.
14
Hydraulic System Checklist Page
Check tractor hydraulic reservoir full -
Make hydraulic connections 14
Inspect connections for leaks -
Unfold Implement
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Operating Instructions 21
General Operation and In-Field Adjustments
1. Remove the transport pins, see “Transport Locks” on
page 15 and unfold machine. Make sure the fold cylinders are fully extended to allow the wings to fully flex in
the field.
2. If possible have someone observe the machine during
first time operation for levelness, front to rear and wings
to center frame.
Refer to Figure 15
3. If machine needs leveled from front to rear, remove the
snap wire pin from the turnbuckle lock , swing lock
off turnbuckle and adjust the hitch turnbuckle . When
done adjusting, be sure and swing turnbuckle lock back
down and secure with snap wire pin.
1 2
3
3
2
Refer to Figure 16
4. If machine is not level when fold cylinders are completely extended, fold wings back up and instal shims as
needed to level.
Note: Extra shims are stored in manual pak. The extra
shims may be needed in the future if the hinge holes or
bolts begin to wear. There are two different thickness
of shims, you may use multiple shims to level wings.
5. Remove the two 3/8 x 1 1/4 bolts and either add more
shims to raise wings or take shims out to lower wings.
6. Re-instal bolts and tighten to specs, “Torque Values
Chart” on page 30.
7. For best results, if at all possible, run machine at a slight
angle to the rows. This will improve trash flow and allow
for better dislodging of rootballs and will help spread the
residue more evenly across the field.
2
2
1
1
Figure 15
Turnbuckle Adjustment
Figure 16
Wing Adjustment
41987
2
1
41774
03/06/2014 566-224M
22 TC5109-5323 Great Plains Manufacturing, Inc.
Refer to Figure 17
8. When you have machine level and set to the desired
working depth, set the depth stop on the depth stop
2
tube . This is located at the front of the machine. This
will maintain a constant depth each time after raising
and lowering machine.One full turn of the handle will
change the depth approximately 1/4”.
Note: If after setting the depth stop, the detent on the trac-
tor kicks out before the stop contacts the button on
the depth stop, slow the hydraulic flow speed down. If
this problem exists, contact the factory service representative for other possible adjustments. On tractors
with a timed detent setting, set the detent so when
you raise the machine, the pump will run for 1/2 to 1
full second after full raise. If it runs longer than this,
damage to the seals of the lift cylinders may result.
Refer to Figure 18
9. Once the machine is set, running level both fore and
aft, from side to side you are ready to run. The first
part of the machine that makes contact with the soil is
the turbo coulters. These can be adjusted hydraulically
from the seat of the tractor. These coulters are
designed to cut and size, they will also help with burying residue as the aggressive turbo blades will pick up
and roll the soil.
Note: These coulters should not be run at a depth deeper
than 5”. Also, in very hard ground, be careful to try not
to force the coulters too deep as it may try to raise the
front of the machine out of the ground as this will affect the overall performance of the machine.
10. The machine can be equipped with several different
shank options. It is important to understand these
options and how they affect the soil. See a and b for
description.
a. Toggle Trip Shanks with 7” winged point. These can
run up to 11” deep and with winged points, they do an
excellent job of fracturing the soil. These shanks run 2”
deeper than the rear row of shanks.
1
3
4
4
1
Figure 17
Depth Stop Adjustment
Figure 18
Turbo Coulter Adjustment
3
2
41984
41984
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Operating Instructions 23
b. Spring Reset Mounts can be equipped with several dif-
ferent shank and point configurations. The most popular
is the Parabolic Shank with a 7” winged point. This point
is similar to the ones on the toggle trip shank except It
has a “fin” on it that helps minimize shank “blow out”.
The combination of these shank assemblies and the
Toggle Trip shanks provide the best combination for
fracturing the ground completely while leaving the surface in a relatively “smooth” condition. By following the
combination with a Chopper Reel or Buster Bar, one
pass finishing in the Spring is attainable. Spring Reset
Mounts can also be equipped with a Standard Chisel
Shank which supports many point options. See chart
below for a detailed analysis of the varying point
options.
Front Row Rear Row Fracture Bury Residue Smoothness Trash Clearance
Toggle Trip 7” Point
Toggle Trip 7” Point
7” Point
Auto Reset/Chisel
w/ 2” Straight Point
Auto Reset/Chisel
w/ 3” or 4” Twisted Point
Auto Reset/ Parabolic
w/ 7” Finned Point
Auto Reset/ Chisel
w/ 7” Winged Point
Auto Reset/ Chisel
w/ 2” Winged Point
Auto Reset/ Chisel
w/ 2” Straight Point
Auto Reset/Chisel
w/ 3” or 4” Twisted Point
Very Good Good Very Good Very Good
Very Good Very Good Good Good
Good Very Good Good Good
Average Good Poor Good
Poor Very Good Very Poor Average
03/06/2014 566-224M
24 TC5109-5323 Great Plains Manufacturing, Inc.
Rear Attachment Settings
Rear Chopper Reel
11. The chopper reel attachment is designed to help size
the soil and residue coming out of the back of the
machine and level the soil surface. The reels should be
run as far forward as possible without causing plugging
of the reel assemblies or the machine. In wetter conditions, they may need to be moved back some to allow
the soil to “settle” before coming in contact with the
reels. Also in wet conditions, it is not advisable to apply
down pressure on the reels as this will cause them to
plug with mud.
Refer to Figure 19
12. In order to raise or lower the chopper reel assembly, adjust
the eyebolt by loosening the jam nuts . Extend eyebolt
to lower the assembly, retract eyebolt to raise assembly.
13. Tighten jam nuts securely.
14. To adjust the chopper reels fore and aft, remove bolt and
slide tubes in or out. Adjustment is 3” for each hole. The
bolt may need to move from the back hole to the front hole
or vice verse, depending on the amount of adjustment
needed. Because of weight concerns, the choppers should
run as far forward as possible while still allowing soil and
residue to flow freely from the rear shanks.
1
2
3
3
1
2
Refer to Figure 20
15. The down pressure can be adjusted two ways. For slight
down pressure, loosen set screw from collar and slide
collar up for more pressure. Tighten set screw to secure.
16. For added down pressure, tighten lock nut on top of
spring. This will compress the bottom of the spring,
increasing down pressure. This will also raise the chopper
reel so you will also need to re-adjust eyebolt at the bottom
of the spring bolt accordingly.
4
5
6
Figure 19
Chopper Reel Adjustment
4
6
5
Figure 20
Chopper Reel Down Pressure
41985
42005
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Operating Instructions 25
Buster Bar
Refer to Figure 21
17. The buster bar attachment is designed to knock the tops of
the ridges and to help fill the valleys behind the chisel
shanks. The down pressure can be set by the 1/2” bolt
under the arm. To adjust the pressure, loosen the jam nut
on the back side and then adjust the 1/2” bolt. To increase
down pressure, loosen the bolt. In some instances, especially when you are running the chisel very deep, the bolt
head will not be in contact with the ball joint when the unit
is out of the ground. Once the unit is lowered into the
ground, the bolt head will come in contact with the ball
joint and pressure will be applied. Once the proper tension
is set, retighten the jam nut. There are no other adjustments to this attachment.
Figure 21
Buster Bar Settings
41989
03/06/2014 566-224M
26 TC5109-5323 Great Plains Manufacturing, Inc.
Maintenance and Lubrication
Maintenance
1. Always use the transport lock when working on or
doing maintenance to the Turbo-Chisel. If folded, be
sure your wing stop pins are in place. Read and
understand all safety decals on your equipment.
2. During the first season of operation, and periodically
after that, check your bolts for tightness. Check
shank pivot bolts for tightness. Check shank pivot
bolts on the spring-loaded shank, these must remain
tight to prevent excessive wear on the shank assembly.
3. Replace or rotate worn parts as needed -- hinge
bolts, clevis pins, bearings, sweeps, shanks, etc.
4. Check and tighten or replace any hydraulic leaks.
Check hoses for any leaks. It is important that there
are no leaks on the equipment.
5. Grease wheel bearings and walking beams sparingly. Over greasing may cause damage to seals and
reduce the life of the bearing. Grease hinge points
periodically.
6. Check drag bolts for loosness or excessive wear.
Replace broken or bent teeth. Your drag is an important part of the tillage operation.
7. If machine is stored outdoors over the winter months,
it is a good idea to fold the machine then set it down
on the ground so all the cylinders are retracted to
protect the cylinder rods. This will extend the life of
the cylinder seals and reduce internal and external
leaks.
By following and maintaining a routine service and lubrication program, your tillage equipment will give you
many years of service.
For the most current manual information, visit Great
Plains website listed below. For more information on
operating, adjusting or maintaining your Great
Plains Discovator, assistance is available. Contact:
Product Support
Great Plains Mfg. Inc., Service Department
PO Box 5060
Salina, KS 67402-5060
(800)255-9215
Lubrication
Multipurpose
spray lube
Wheel Bearing Hub
Multipurpose
grease lube
Multipurpose
oil lube
Intervals (service hours)
at which lubrication is
50
required
50
1 zerk on each hub;
4 total
Type of Lubrication: Grease
Quantity: Sparingly, Do Not Over Grease, may cause damage
to seal.
Repack wheel bearings annually or every 2500 acres.
566-224M 03/06/2014
41991
Great Plains Manufacturing, Inc. Maintenance and Lubrication 27
Wing Hinge
10
One on each wing hinge (3-Section)
Type of Lubrication: Grease
Quantity: Sparingly or 2 pumps
42053
03/06/2014 566-224M
28 TC5109-5323 Great Plains Manufacturing, Inc.
Appendix
TC Specifications and Capacities
Model No. TC5109 TC5111 TC5113 TC5115
Tillage Width 11' 3" (3.43 m) 13' 9" (4.20 m) 16' 3" (4.95 m) 18' 9" (5.72 m)
Center Section 10' (3.05 m) 10' (3.05 m) 10' (3.05 m) 10' (3.05 m)
Wing N/A 3' 6" (1.07) 4' 9" (1.45)
Number of Shanks 9111315
Shank Spacing
Number of Coulters
Blade Spacing
Weight (base machine) 8,080 lbs. (3665 kg) 9,835 lbs. (4461 kg) 11,240 lbs. (5098 kg) 12,600 lbs. (5715 kg)
Transport Width 11' 6" (3.50 m) 14' 3" (4.4 m) 16' 6" (5 m) 19' (5.80 m)
Transport Height N/A N/A N/A N/A
Length (w/o attachment) 22' 10" (6.95 m) 22' 10" (6.95 m) 22' 10" (6.95 m) 22' 10" (6.95 m)
Tire Size Center 12.5L x 15" 12-ply 12.5L x 15" 12-ply 12.5L x 15" F-ply 12.5L x 15" F-ply
Tire Size Wing N/A N/A N/A N/A
Horsepower (PTO) Chisel Shanks* 200-250 230-285 270-329 315-385
Kilowatt Chisel Shanks 150-185 170-210 200-245 235-290
Horsepower (PTO) Parabolic Shanks** 230-260 255-315 315-385 355-440
Kilowatt Parabolic Shanks 170-190 190-235 235-290 260-330
15" (.38 m) 15" (.38 m) 15" (.38 m) 15" (.38 m)
19 23 27 31
7.5" (.19 m) 7.5" (.19 m) 7.5" (.19 m) 7.5" (.19 m)
2' 6" (.076 m)
Model No. TC5313 TC5315 TC5317 TC5319 TC5321 TC5323
Tillage Width 16' 3" (4.95 m) 18' 9" (5.72 m) 21' 3" (6.48 m) 23' 9" (7.24 m) 26' 3" (8.00 m) 28' 9" (8.76 m)
Center Section 10' (3.05 m) 10' (3.05 m) 10' (3.05 m) 10' (3.05 m) 10' (3.05 m) 10' (3.05 m)
Wing 3' 6" (1.07) 4' 9" (1.45) 6' (1.83 m) 7' 3" (2.21 m) 8' 9" (2.67 m) 9' 6" (2.90 m)
Number of Shanks 13 15 17 19 21 23
Shank Spacing
Number of Coulters
Blade Spacing
Weight (base machine) 11,280 lbs. (5117 kg) 12,900 lbs. (5851 kg) 13,700 lbs. (6214 kg) 14,200 lbs. (6441 kg) 15,650 lbs. (7099 kg) 16,250 lbs. (7371 kg)
Transport Width 14' 6" (4.42 m) 14' 6" (4.42 m) 14' 9" (4.50 m) 14' 9" (4.50 m) 14' 9" (4.50 m) 14' 9" (4.50 m)
Transport Height 9' 6" (2.90 m) 10' 3" (3.12 m) 11' (3.35 m) 12' 3" (3.73 m) 13' 6" (4.11 m) 14' 6" (4.42 m)
Length (w/o attachment) 22' 10" (6.95 m) 22' 10" (6.95 m) 22' 10" (6.95 m) 22' 10" (6.95 m) 22' 10" (6.95 m) 22' 10" (6.95 m)
Tire Size Center 12.5L x 15" F-ply 12.5L x 15" F-ply 12.5L x 15" F-ply 12.5L x 15" F-ply 12.5L x 15" F-ply 12.5L x 15" F-ply
Tire Size Wing N/A N/A 12.5L x 15" 12-ply 12.5L x 15" 12-ply 12.5L x 15" 12-ply 12.5L x 15" 12-ply
Horsepower (PTO) Chisel Shanks* 270-329 315-385 355-440 397-468 440-510 497+
Kilowatt Chisel Shanks 200-245 235-290 260-330 295-350 325-380 370+
Horsepower (PTO) Parabolic Shanks** 315-385 355-440 425-500 450-530 568+ N/A
Kilowatt Parabolic Shanks 235-290 260-330 320-370 335-395 425+ N/A
15" (.38 m) 15" (.38 m) 15" (.38 m) 15" (.38 m) 15" (.38 m) 15" (.38 m)
27 31 35 39 43 47
7.5" (.19 m) 7.5" (.19 m) 7.5" (.19 m) 7.5" (.19 m) 7.5" (.19 m) 7.5" (.19 m)
* Available with 2” straight or 3” twisted points on chisel shanks
** Equipped with 7” winged points on parabolic shanks
With a continued commitment to constantly improving our products, these specifications are subject to change without
notice.
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Appendix 29
Tire Inflation Chart
Tire Inflation Chart
Wheel Tire Size Inflation
Transport 12.5L x 15” F-Ply
Transport/
Wings
12.5L x 15” 12-Ply
620 kPa
90 psi
379 kPa
55 psi
All tires are warranted by the original manufacturer of the tire.
Tire warranty information is found in the brochures included with
your Operator’s and Parts Manuals or online at the manufacturer’s web sites listed below. For assistance or information, contact your nearest Authorized Farm Tire Retailer.
Manufacturer Web site
Firestone www.firestoneag.com
Gleason www.gleasonwheel.com
Titan www.titan-intl.com
Galaxy www.atgtire.com
BKT www.bkt-tire.com
Hydraulic Connectors and Torque
Refer to Figure 22 (a hypothetical fitting)
Leave any protective caps in place until immediately prior
to making a connection.
1
NPT - National Pipe Thread
Note tapered threads, no cone/flare, and no O-ring.
Apply liquid pipe sealant for hydraulic applications.
Do not use tape sealant, which can clog a filter and/or
plug an orifice.
2
JIC - Joint Industry Conference (SAE J514)
Note straight threads and the 37° cone on
“M” fittings (or 37° flare on “F” fittings).
Use no sealants (tape or liquid) on JIC fittings.
3
ORB - O-Ring Boss (SAE J514)
Note straight threads and elastomer O-Ring .
Prior to installation, to prevent abrasion during tightening, lubricate O-Ring with clean hydraulic fluid.
Use no sealants (tape or liquid) on ORB fittings.
ORB fittings that need orientation, such as the ell
depicted, also have a washer and jam nut
(“adjustable thread port stud”). Back jam nut away
from washer. Thread fitting into receptacle until
O-Ring contacts seat. Unscrew fitting to desired
orientation. Tighten jam nut to torque specification.
4 5
5 7
8 9
5
Dash
Size
-4
-5
-5
-5
-6
-6
-6
-8
-8
-8
Tire Warranty Information
1
9
8
4
2
Figure 22
Hydraulic Connector ID
Fittings Torque Values
Fitting N-m Ft-Lbs
1
⁄4-18 NPT 1.5-3.0 turns past finger
tight
1
⁄2-20 JIC 19-20 14-15
1
⁄2-20 ORB w/jam nut 12-16 9-12
1
⁄2 -20 ORB straight 19-26 14-19
5
⁄16-18 JIC 24-27 18-20
5
⁄16-18 ORB w/jam nut 16-22 12-16
5
⁄16-18 ORB straight 24-33 18-24
3
⁄4 -16 JIC 37-53 27-39
3
⁄4 -16 ORB w/jam nut 27-41 20-30
3
⁄4-16 ORB straight 37-58 27-43
7
5
3
31282
03/06/2014 566-224M
30 TC5109-5323 Great Plains Manufacturing, Inc.
Torque Values Chart
Bolt
Size
in-tpi
1
⁄4-20
1
⁄4-28
5
⁄16-18
5
⁄16-24
3
⁄8-16
3
⁄8-24
7
⁄16-14
7
⁄16-20
1
⁄2-13
1
⁄2-20
9
⁄16-12
9
⁄16-18
5
⁄8-11
5
⁄8-18
3
⁄4-10
3
⁄4-16
7
⁄8-9
7
⁄8-14
1-8
1-12
1
1
⁄8-7
1
1
⁄8-12
1
⁄4-7
1
1
⁄4-12
1
3
⁄8-6
1
3
1
⁄8-12
1
1
⁄2-6
1
1
⁄2-12
Bolt Head Identification
Grade 2 Grade 5 Grade 8 Class 5.8 Class 8.8 Class 10.9
a
b
d
N-m
ft-lb
7.4 11 16
8.5 13 18
15 24 33
17 26 37
27 42 59
31 47 67
43 67 95
49 75 105
66 105 145
75 115 165
95 150 210
105 165 235
130 205 285
150 230 325
235 360 510
260 405 570
225 585 820
250 640 905
340 875 1230
370 955 1350
480 1080 1750
540 1210 1960
680 1520 2460
750 1680 2730
890 1990 3230
1010 2270 3680
1180 2640 4290
1330 2970 4820
N-m N-m
5.6 8 12
61014 5 811
11 17 25 12 19 27
13 19 27 13 21 29
20 31 44 24 39 53
22 35 49 29 45 62
32 49 70 42 67 93
36 55 78 44 70 97
49 76 105 66 77 105
55 85 120 68 105 150
70 110 155 73 115 160
79 120 170 105 165 230
97 150 210 115 180 245
110 170 240 145 230 300
170 265 375 165 260 355
190 295 420 205 325 450
165 430 605 230 480 665
185 475 670 355 560 780
250 645 910 390 610 845
275 705 995 705 1120 1550
355 795 1290 785 1240 1710
395 890 1440 1270 1950 2700
500 1120 1820 1380 2190 3220
555 1240 2010
655 1470 2380
745 1670 2710
870 1950 3160
980 2190 3560
Bolt Head Identification
Bolt
Size
ft-lb ft-lb ft-lb ft-lb ft-lb
mm x pitch
M 5 X 0.8
M 6 X 1
M 8 X 1.25
M 8 X 1
M10 X 1.5
M10 X 0.75
M12 X 1.75
M12 X 1.5
M12 X 1
M14 X 2
M14 X 1.5
M16 X 2
M16 X 1.5
M18 X 2.5
M18 X 1.5
M20 X 2.5
M20 X 1.5
M24 X 3
M24 X 2
M30 X 3.5
M30 X 2
M36 X 3.5
M36 X 2
a. in-tpi = nominal thread diameter in inches-threads per inch
b. N· m = newton-meters
c. mm x pitch = nominal thread diameter in mm x thread pitch
d. ft-lb = foot pounds
c
5.8 8.8 10.9
N-m N-m N-m
357
71115
17 26 36
18 28 39
33 52 72
39 61 85
58 91 125
60 95 130
90 105 145
92 145 200
99 155 215
145 225 315
155 240 335
195 310 405
220 350 485
280 440 610
310 650 900
480 760 1050
525 830 1150
960 1510 2100
1060 1680 2320
1730 2650 3660
1880 2960 4100
946
Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.
25199m
25199
Gang Bolt Torque 1 3/4”-5 1288 N-m (850 ft-lb (165 lbs on 5’ cheater).
Wheel Bolt Torque Values 1/2”-20 (75-85 ft-lbs) 9/16”-18 (80-90 ft-lbs) 5/8”-18 (85-100 ft-lbs)
Chopper Hub Spindle Torque 7/8-9 350 ft-lbs
566-224M 03/06/2014
Great Plains Manufacturing, Inc. Appendix 31
Warranty
Great Plains Manufacturing, Incorporated warrants to the original purchaser that this tillage
and workmanship for a period of one year from the date of original purchase when used as intended and under normal service and conditions
for personal use; 90 days for commercial or rental purposes. This Warranty is limited to the replacement of any defective part by Great Plains
Manufacturing, Incorporated and the installation by the dealer of any
such replacement part. Great Plains reserves the right to inspect any
equipment or part which are claimed to have been defective in material
or workmanship.
This Warranty does not apply to any part or product which in Great
Plains’ judgement shall have been misused or damaged by accident or
lack of normal maintenance or care, or which has been repaired or altered in a way which adversely affects its performance or reliability, or
which has been used for a purpose for which the product is not designed. This Warranty shall not apply if the product is towed at a speed
in excess of 20 miles per hour.
Claims under this Warranty must be made to the dealer which originally
sold the product and all warranty adjustments must by made through
such dealer. Great Plains reserves the right to make changes in materials or design of the product at any time without notice.
This Warranty shall not be interpreted to render Great Plains liable for
damages of any kind, direct, consequential, or contingent, to property.
Furthermore, Great Plains shall not be liable for damages resulting from
any cause beyond its reasonable control. This Warranty does not extend to loss of crops, losses caused by harvest delays or any expense
or loss for labor, supplies, rental machinery or for any other reason.
No other warranty of any kind whatsoever, express or implied, is
made with respect to this sale; and all implied warranties of merchantability and fitness for a particular purpose which exceed
the obligations set forth in this written warranty are hereby disclaimed and excluded from this sale.
This Warranty is not valid unless registered with Great Plains Manufacturing, Incorporated within 10 days from the date of original purchase.
equipment will be free from defects in material
42134
03/06/2014 566-224M
32 TC5109-5323 Great Plains Manufacturing, Inc.
566-224M 03/06/2014
Great Plains Manufacturing, Inc. 33
Index
A
address, Great Plains ............. 11, 26
amber reflectors ................................. 5
B
bearings ........................................... 26
bolts ................................................. 26
C
Category III ...................................... 13
Category IV ...................................... 13
Caution
Read Operator’s Manual .............. 6
CAUTION, defined ............................. 1
chain ................................................ 13
checklists
electrical ..................................... 20
field ............................................. 20
hydraulic system ........................ 20
mechanical
implement ............................. 20
pre-setup .................................... 12
pre-start ......................................18
children .............................................. 2
color code, hose ............................... 14
contact Great Plains ................ 11
covered models ................................ 10
customer service ..............................11
cylinder symbols .............................. 14
, 26
D
Danger
Crushing Hazard .......................... 7
DANGER, defined ..............................1
decal replacement .............................. 5
decals
caution
read manual ........................... 6
danger
crushing .................................. 7
cutting of foot .......................... 9
electrocution ........................... 7
notice
transport lock .......................... 8
speed
30km per hr ............................ 9
warning
hand crushing ......................... 8
high pressure fluid .................. 8
overhead wing ........................ 7
tongue rising ........................... 9
decal, safety .......................................5
definitions .........................................10
depth stop adjustment ...................... 22
directions .......................................... 10
drag bolts ......................................... 26
E
email, Great Plains .................. 11, 26
F
fire ...................................................... 1
H
handles, hose .................................. 14
high pressure fluid ........................... 14
high pressure fluids ........................... 2
hills ..........................................13
hitch pin ........................................... 19
hitch turnbuckle adjustment ............. 15
hitching ............................................ 13
hose handles ................................... 14
hoses, hydraulic ............................... 14
hydraulic connectors ........................ 29
hydraulic hoses ................................ 14
hydraulic safety .................................. 2
, 19
I
inflation ............................................ 29
J
jack .................................................. 13
JIC ................................................... 29
Joint Industry Conference ................ 29
J514 ................................................. 29
K
kPa ................................................... 29
L
leaks ..........................................2, 26
left-hand, defined ............................. 10
lights ..........................................2
lubrication ........................................ 26
, 14
M
Maintenance .................................... 26
maintenance safety ............................ 4
medical assistance ........... 2
model number .................................. 11
, 14, 18
N
National Pipe Thread ....................... 29
negative tongue weight .................... 13
Note, defined ................................... 10
Notice, defined ................................. 10
NPT ................................................. 29
O
orange reflector ................................. 6
ORB ................................................. 29
orientation rose ................................ 10
O-Ring Boss .................................... 29
outside wing hinge ........................... 27
owner assistance ............................. 11
P
parts ................................................ 26
phone number, GP .......................... 12
pin, hitch .......................................... 19
psi .................................................... 29
R
red reflectors ...................................... 6
reflectors
amber ........................................... 5
orange .......................................... 6
red ................................................ 6
SMV ..............................................5
reflectors, safety ................................. 5
repair parts .......................................11
reverse ............................................. 20
riders .................................................. 2
right-hand, defined ........................... 10
rose, oriention ..................................10
S
SAE J514 ......................................... 29
safety chain ............................... 2
safety decal ........................................5
safety information ............................... 1
safety symbol ..................................... 1
scale ................................................. 19
serial number ...................................11
setup ................................................12
shutdown ............................................ 3
slopes ............................................... 13
SMV (Slow Moving Vehicle) ............... 5
Spanish ....................................... 6
Specifications and Capacities .......... 28
speed .................................................7
speed limit
forward ....................................... 19
transport ..................................... 19
storage ............................................... 3
storing machine ................................ 26
support .................................... 11
symbol, safety .................................... 1
, 13
, 7
, 26
T
tables
document family ......................... 10
fittings torque .............................. 29
hose color code ..........................14
models covered ..........................10
torque values .............................. 30
tire inflation ....................................... 29
tires ....................................................3
towing ............................................... 19
towing vehicle capability ................... 19
transport ...........................................19
transport lock .................................... 26
transport locks .................................. 15
transport locks storage ..................... 15
transport speed .................................. 3
transporting ...................................... 18
turbo coulter adjustment ................... 22
turnbuckle adjustment ......................21
U
URLs, tires .......................................29
W
WARNING, defined ............................1
warranty ............................................29
03/06/2014 566-224M
34 TC5109-5323 Great Plains Manufacturing, Inc.
weight .............................................. 19
weight, implement ............................ 19
welding ............................................... 4
Wheel Bearing Hub .......................... 26
wing adjustment ............................... 21
Wing Depth Adjustment ................... 16
www ................................................. 29
Numerics
13 mph ............................................... 3
20 mph ...................................... 3
, 19
22 kph .................................................3
32 kph .................................................3
566-224M, manual ............................10
566-224P, manual .............................10
566-224Q-ENG, manual ...................10
566-224Q, manual ............................10
818-055C, reflector .............................5
838-094C, decal .................................8
838-598C, decal .................................6
838-599C, decal .................................7
838-600C, decal ................................. 7
838-602C, decal ................................. 7
838-603C, reflector ............................6
838-606C, decal ................................. 9
838-611C, decal ................................. 8
838-613C, decal ................................. 8
838-614C, reflector ............................6
838-615C, reflector ............................5
848-271C, decal ................................. 9
566-224M 03/06/2014
Great Plains Manufacturing, Inc.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
Loading...
