Parts Manual
Sub-Soiler Inline Ripper
SS0300
Read the Operator's manual entirely.When you see this symbol, the subsequent
instructions and warnings are serious - follow without exception.Your life and the
lives of others depend on it!
41935
Cover illustration may show optional equipment not supplied with standard unit.
© Copyright 2014 Printed 07/21/14 596-224P
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Section 2: Frames..........................................................6
Center Frame Assembly......................................................6
Lights (S/N 1932YY+).........................................................8
Lights (S/N 1931YY-).........................................................10
Section 3: Transport....................................................12
Gauge Wheel Assembly....................................................12
Hub & Tire Assembly.........................................................14
Section 4: Shanks & Coulter......................................16
Spring Reset Shank Mount Assembly ( 598-105K S/N
1742YY+)....................................................................16
Auto Reset Shank Mount Assembly (S/N 1741YY-)..........18
Rigid Shank Mount Assembly...........................................20
Rigid Shank Mount Assembly (598-002K)........................22
1 1/4" Shanks & Tips Assembly........................................24
1 1/4" Shanks & Tips Assembly (598-018A).....................26
3/4" No-Till Shank & Tip Assembly....................................28
3/4" No-Till Shank & Tip Assembly (598-021A).................30
Coulter Assembly..............................................................32
Coulter Assembly (598-072L)...........................................34
Section 5: Decals.........................................................36
Decals...............................................................................36
Section 6: Optional......................................................38
Berm Conditioner..............................................................38
Part Number Index.......................................................40
© Copyright 2014 All rights reserved Printed 07/21/14
Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the
preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from
the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as it sees fit. This publication describes
the state of this product at the time of its publication, and may not reflect the product in the future.
The following are trademarks of Great Plains Mfg., Inc.: Application Systems, Ausherman, Land Pride, Great Plains
All other brands and product names are trademarks or registered trademarks of their respective holders.
596-224P - 2 - 07/21/14
Great Plains Manufacturing, Incorporated Trademarks
Printed in the United States of America.
Table of Contents Part Number Index
Alphabetized Table of Contents
Selected Models
1
1 1/4" Shanks & Tips Assembly...................................24
1 1/4" Shanks & Tips Assembly (598-018A)................26
3
3/4" No-Till Shank & Tip Assembly...............................28
3/4" No-Till Shank & Tip Assembly (598-021A)............30
A
Auto Reset Shank Mount Assembly (S/N 1741YY-).....18
B
Berm Conditioner.........................................................38
C
Center Frame Assembly.................................................6
Coulter Assembly.........................................................32
Coulter Assembly (598-072L).......................................34
D
Decals..........................................................................36
G
Gauge Wheel Assembly...............................................12
H
Hub & Tire Assembly....................................................14
L
Lights (S/N 1931YY-)....................................................10
Lights (S/N 1932YY+)....................................................8
R
Rigid Shank Mount Assembly......................................20
Rigid Shank Mount Assembly (598-002K)...................22
S
Spring Reset Shank Mount Assembly ( 598-105K S/N
1742YY+)...............................................................16
07/21/14 - 3 - 596-224P
Table of Contents Part Number Index
596-224P - 4 - 07/21/14
Table of Contents Part Number Index
07/21/14 - 5 - 596-224P
Table of Contents Part Number Index
Center Frame Assembly
(Applies to SS0300 only)
41931
596-224P - 6 - 07/21/14
Table of Contents Part Number Index
Center Frame Assembly
(Applies to SS0300 only)
Image No.dwg41931
3PT RIPPER 118" FRAME596-196H1.
STAND WELDMENT119-281H2.
PIN WIRE SNAP LOCK 1/2 X 3 1/2805-232C3.
PIN HITCH 1 1/4 X 4 1/2805-119C4.
BUSHING - CAT 4 UPPER501-020D5.
PIN HAIR COTTER .243 WIRE PLT805-167C6.
PIN HITCH 1 7/16 X 8 3/8 PLT805-168C7.
20P CAT3 HITCH PIN BUSHING117-379D8.
MANUAL PAK 1 W/GASKET"817-516C9.
SCREW PAN HD 1/4-20 X 3/4801-005C10.
MINI END WHEEL PRESS WHEEL817-042C11.
WASHER LOCK SPRING 1/4 PLT804-006C12.
NUT-HEX 1/4-20 PLT803-006C13.
BRACKET SPEED LIMIT596-271D14.
U-BOLT 1/2-13 X 4 1/32 X 7 1/4806-069C15.
WASHER LOCK SPRING 1/2 PLT804-015C16.
NUT HEX 1/2-13 PLT803-020C17.
SS EU REAR LIGHT BRACKET LH596-198H18.
SS EU REAR LIGHT BRACKET RH596-197H19.
4 - HOLE PLATE596-269D20.
HHCS 1/2-13X3 1/2 GR5802-041C21.
BUSHING CYL 1 1/4 X 1 X 1890-005C22.
PIN HTCH 1X4 1/2 USLB W/KEEPER805-077C23.
20P LOWER HITCH BUSHING117-378D24.
HITCH PIN SUPPORT INSERT117-059H25.
PIN HITCH 1 1/8 X 8 1/2 SP HD805-332C26.
PIN 1 1/2 X 7 1/2 USEABLE, PLT596-185D27.
PIN COTTER 7/32 X 2805-060C28.
Section 2: Frames
RevisionCommentsPart DescriptionPart No.Ref.
Includes items 22-28RIPPER CAT 2 HITCH PIN KIT596-060A29.
07/21/14 - 7 - 596-224P
Lights (S/N 1932YY+)
(Applies to SS0300 only)
Table of Contents Part Number Index
43492
596-224P - 8 - 07/21/14
Table of Contents Part Number Index
Lights (S/N 1932YY+)
(Applies to SS0300 only)
ImageNo.dwg43492
HARNESS LIGHT EU SS - LED833-670C1.
SS EU REAR LIGHT BRACKET LH596-198H2.
SS EU REAR LIGHT BRACKET RH596-197H3.
HHCS 5/8-11 PLT802-050C4.
SIGN MOUNT WLMT148-757H5.
WASHER LOCK SPRING 5/8 PLT804-022C6.
NUT HEX 5/8-11 PLT803-021C7.
WASHER LOCK SPRING 3/8 PLT804-013C8.
NUT HEX 3/8-16 PLT803-014C9.
FLUORESCENT PANEL SQ RED/WHITE833-398C10.
HHCS 3/8-16X3/4 GR5802-014C11.
LIGHT, RED LAMP LED SING. EURO833-660C12.
LIGHT, YELLOW LAMP LED EURO833-654C13.
V300 REAR LED LIGHT BRACKET248-513D14.
RED TRIANGLE REFLECTOR833-399C15.
CABLE TIE 28 LONG800-035C16.
CABLE TIE .19X14.25 3DIA 50LB800-060C17.
Section 2: Frames
RevisionCommentsPart DescriptionPart No.Ref.
07/21/14 - 9 - 596-224P
Lights (S/N 1931YY-)
(Applies to SS0300 only)
Table of Contents Part Number Index
41932
596-224P - 10 - 07/21/14
Table of Contents Part Number Index
Lights (S/N 1931YY-)
(Applies to SS0300 only)
Image No.dwg41932
SIGN MOUNT WLMT148-757H1.
HHCS 5/8-11X1 1/4 GR5802-050C2.
WASHER LOCK SPRING 5/8 PLT804-022C3.
NUT HEX 5/8-11 PLT803-021C4.
FLUORESCENT PANEL SQ RED/WHITE833-398C5.
HHCS 3/8-16X3/4 GR5802-014C6.
WASHER LOCK SPRING 3/8 PLT804-013C7.
NUT HEX 3/8-16 PLT803-014C8.
REAR LIGHT BRKT151-324D9.
RED TRIANGLE REFLECTOR833-399C10.
LH 4 1/2 ROUND LIGHT RED/AMBER833-388C11.
HARNESS LIGHT EU SS833-529C12.
CABLE TIE 28 LONG800-035C13.
CABLE TIE .19X14.25 3DIA 50LB800-060C14.
Section 2: Frames
RevisionCommentsPart DescriptionPart No.Ref.
07/21/14 - 11 - 596-224P
Table of Contents Part Number Index
Gauge Wheel Assembly
(Applies to SS0300 only)
41813
596-224P - 12 - 07/21/14
Table of Contents Part Number Index
Gauge Wheel Assembly
(Applies to SS0300 only)
Image No.dwg41813
RIPPER GUAGEWHEEL MOUNT596-099H1.
U-BOLT 5/8-11 X 6 1/32 X 5 3/4806-016C2.
WASHER LOCK SPRING 5/8 PLT804-022C3.
NUT HEX 5/8-11 PLT803-021C4.
SCREW JACK 2000# TP-WND A-FRAM890-875C5.
HHCS 7/16-14X1 1/4 GR5 PLT802-673C6.
NUT HEX FLANGE LOC 7/16-14 PLT803-229C7.
RIPPER GUAGEWHEEL ARM596-148H8.
PIN ROLL 1/2 X 3 LG. PLT805-054C9.
HHCS 7/16-14X2 3/4 GR5802-315C10.
NUT HEX LOCK 7/16-14 PLT803-200C11.
RIPPER GUAGEWHEEL HUB ASY596-146S12.
TIRE 20.5 X 8 10 PLY6 BOLT596-065K13.
HHCS 3/4-10X2 GR5802-064C14.
WASHER LOCK SPRING 3/4 PLT804-023C15.
PIN BENT 1 X 4 3/4 W/HAIRPIN805-355C16.
Section 3:Transport
RevisionCommentsPart DescriptionPart No.Ref.
07/21/14 - 13 - 596-224P
Hub & Tire Assembly
(Applies to SS0300 only)
Table of Contents Part Number Index
41817
596-224P - 14 - 07/21/14
Table of Contents Part Number Index
Hub & Tire Assembly
(Applies to SS0300 only)
Image No.dwg41817
RIPPER HUB SPINDLE WELDMENT596-147H1.
BRG CONE 1.50ID 13600LA90028822-141C2.
BRG CUP 13621822-231C3.
GREASE ZERK 1/4-28 X 45-DEG800-058C4.
BOLT WHL 9/16-18X1 1/8 GR5802-845C5.
SPINDLE SLEEVE596-230D7.
NUT HEX JAM 1 1/2-12 PLT803-210C8.
TIRE 20.5 X 8.0-10 LRE814-254C10.
WHEEL 10X6 6/6 4.62 PH.18INSET814-219C11.
VALVE STEM METAL TR-575 TUBLES814-210C12.
Section 3:Transport
RevisionCommentsPart DescriptionPart No.Ref.
Includes Items 3-5HUB ASSY 6 BOLT 4 5/8 PILOT815-066C6.
Includes Items 1-8RIPPER GUAGEWHEEL HUB ASY596-146S9.
Includes Items 10-12TIRE 20.5 X 8 10 PLY 6 BOLT596-065K13.
07/21/14 - 15 - 596-224P
Table of Contents Part Number Index
Spring Reset Shank Mount Assembly ( 598-105K S/N 1742YY+)
(Applies to SS0300 only)
43154
596-224P - 16 - 07/21/14
Table of Contents Part Number Index
Section 4: Shanks & Coulter
Spring Reset Shank Mount Assembly ( 598-105K S/N 1742YY+)
(Applies to SS0300 only)
RevisionCommentsPart DescriptionPart No.Ref.
Image No.dwg43154
SHANK MOUNT SPRING RESET598-100H1.
MOUNT CLAMP598-103H2.
HHCS 1-8X3 GR8802-345C3.
WASHER FLAT 1 HARD ASTMF436 PN804-147C4.
WASHER LOCK SPRING 1 PLT804-027C5.
NUT HEX 1-8 PLT803-031C6.
SHANK WEAR BLOCK837-006C7.
PAN HD 5/16-18 1LG PHILLPS PLT801-176C8.
WASHER LOCK SPRING 5/16 PLT804-009C9.
SLEEVE BEARING 1 5/8 I.D.817-987C10.
SPRING RESET SHANK PIVOT ARM598-101H11.
PIVOTTUBE598-061D12.
HHCS 1-8X8 5/8 GR5 SPTHD PLT802-756C13.
SPRING RESET SPRING SUBASSY598-104S14.
PIN - 1IN DIA.598-059D15.
WASHER MACH 1.5X1.00X.075804-192C16.
SNAP RING EXT 1 HEAVY800-085C17.
HHCS 3/4-10X6 GR8802-487C18.
WASHER FLAT 3/4 HARD ASTMF436804-093C19.
WASHER LOCK SPRING 3/4 PLT804-023C20.
NUT HEX 3/4-10 PLT803-027C21.
DO NOT DISASSEMBLE SPRING
PACK.
07/21/14 - 17 - 596-224P
Table of Contents Part Number Index
Auto Reset Shank Mount Assembly (S/N 1741YY-)
(Applies to SS0300 only)
21561
596-224P - 18 - 07/21/14
Table of Contents Part Number Index
Auto Reset Shank Mount Assembly (S/N 1741YY-)
(Applies to SS0300 only)
Image No.dwg21561
SPRING RESET SPRING SUBASY598-022S1.
WASHER FLAT 3/4 HARD ASTMF436804-093C2.
GREASE ZERK STRAIGHT 1/4-28800-001C3.
HHCS 5/8-11X4 GR5802-060C4.
HHCS 3/4-10X4 GR5802-068C5.
SHANK HOLDER 1 1/4598-011H6.
NUT LOCK 3/4-10 PLT803-026C7.
NUT HEX 3/4-10 PLT803-027C8.
WASHER LOCK SPRING 3/4 PLT804-023C9.
SPRING RESET SHANK PIVOT ARM598-003H10.
HHCS 5/8-11X8 1/2 GR5802-356C11.
HHCS 3/4-10X6 GR8802-487C12.
BUSHING 1.25ODX1.00IDX2.00890-771C13.
NUT LOCK 5/8-11 PLT803-024C14.
SHANK MOUNT SPRING RESET598-004H15.
NUT HEX TOP LOCK 1-8 PLT803-168C16.
HHCS 1-8X8 5/8 GR5 SPTHD PLT802-756C17.
MOUNT CLAMP598-008H18.
HHCS 3/4-10X3 GR8802-552C19.
DO NOT DISASSEMBLE SPRING
PACK.
For 1 1/4" Straight & Parabloic
Shanks.
For 3/4" No-Till Shanks.SHANK HOLDER 3/4 SUB ASY598-030A6.
Section 4: Shanks & Coulter
RevisionCommentsPart DescriptionPart No.Ref.
07/21/14 - 19 - 596-224P
Table of Contents Part Number Index
Rigid Shank Mount Assembly
(Applies to SS0300 only)
41819
596-224P - 20 - 07/21/14
Table of Contents Part Number Index
Rigid Shank Mount Assembly
(Applies to SS0300 only)
Image No.dwg41819
MOUNT CLAMP598-008H1.
SHANK MOUNT, RIGID598-010H2.
NUT LOCK 5/8-11 PLT803-024C4.
HHCS 3/4-10X4 GR5802-068C5.
HHCS 3/4-10X6 GR8802-487C6.
WASHER LOCK SPRING 3/4 PLT804-023C7.
NUT HEX 3/4-10 PLT803-027C8.
WASHER FLAT 3/4 HARD ASTMF436804-093C9.
HHCS 3/4-10X3 GR8802-552C10.
NUT LOCK 3/4-10 PLT803-026C11.
HHCS 5/8-11X4 GR5802-060C12.
Section 4: Shanks & Coulter
RevisionCommentsPart DescriptionPart No.Ref.
For1 1/4" Straigh& ParabolicShanks.SHANK HOLDER 1 1/4598-011H3.
For 3/4" No-Till Shanks.SHANK HOLDER 3/4 SUB ASY598-030A3.
07/21/14 - 21 - 596-224P
Table of Contents Part Number Index
Rigid Shank Mount Assembly (598-002K)
(Applies to SS0300 only)
43157
596-224P - 22 - 07/21/14
Table of Contents Part Number Index
Rigid Shank Mount Assembly (598-002K)
(Applies to SS0300 only)
Image No.dwg43157
SHANK MOUNT, RIGID598-010H1.
MOUNT CLAMP598-008H2.
HHCS 3/4-10X3 GR8802-552C3.
WASHER FLAT 3/4 HARD ASTMF436804-093C4.
WASHER LOCK SPRING 3/4 PLT804-023C5.
NUT HEX 3/4-10 PLT803-027C6.
HHCS 3/4-10X6 GR8802-487C7.
Section 4: Shanks & Coulter
RevisionCommentsPart DescriptionPart No.Ref.
07/21/14 - 23 - 596-224P
Table of Contents Part Number Index
1 1/4" Shanks & Tips Assembly
(Applies to SS0300 only)
41820

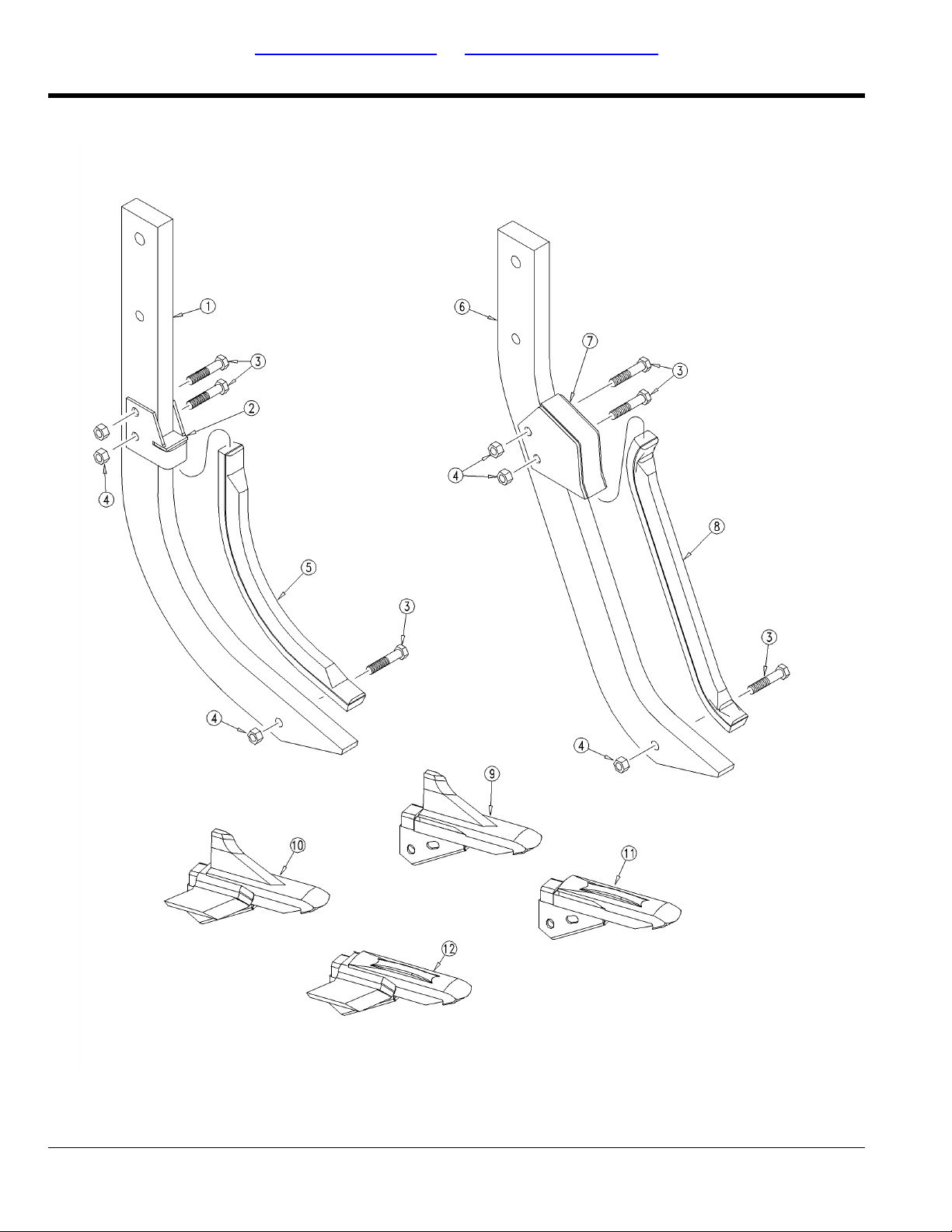

596-224P - 24 - 07/21/14
Table of Contents Part Number Index
1 1/4" Shanks & Tips Assembly
(Applies to SS0300 only)
Image No.dwg41820
SHANK PARABOLIC 1 1/4820-268C1.
WEAR SHIN RETAINER 1 1/4 PARAB598-016H2.
HHCS 1/2-13X2 1/2 GR5802-130C3.
NUT LOCK 1/2-13 PLT803-019C4.
WEAR SHIN 1 1/4" PARABOLIC820-285C5.
SHANK STRAIGHT 1 1/4820-269C6.
WEAR SHIN RETAINER 1 1/4 STRT598-017H7.
WEAR SHIN 1 1/4" STRAIGHT820-284C8.
TIP 1 1/4" X 2" WITH FIN820-280C9.
TIP 1 1/4" X 7" WITH FIN820-282C10.
TIP 1 1/4" X 2" RAISED CENTER820-277C11.
TIP 1 1/4" X 7" RAISED CENTER820-279C12.
Section 4: Shanks & Coulter
RevisionCommentsPart DescriptionPart No.Ref.
07/21/14 - 25 - 596-224P
Table of Contents Part Number Index
1 1/4" Shanks & Tips Assembly (598-018A)
(Applies to SS0300 only)
43155
596-224P - 26 - 07/21/14
Table of Contents Part Number Index
1 1/4" Shanks & Tips Assembly (598-018A)
(Applies to SS0300 only)
Image No.dwg43155
SHANK HOLDER 1 1/4598-099H1.
HHCS 3/4-10X6 GR8802-487C2.
WASHER FLAT 3/4 HARD ASTMF436804-093C3.
WASHER LOCK SPRING 3/4 PLT804-023C4.
NUT LOCK 3/8-16 PLT803-013C5.
SHANK STRAIGHT 1 1/4820-269C6.
SPACER BUSHING599-143D7.
HHCS 3/4-10X4 GR5802-068C8.
NUT LOCK 3/4-10 PLT803-026C9.
HHCS 5/8-11X4 GR5802-060C10.
NUT LOCK 5/8-11 PLT803-024C11.
WEAR SHIN RETAINER 1 1/4 STRT598-017H12.
HHCS 1/2-13X2 1/2 GR5802-130C13.
WASHER FLAT 1/2 USS HARD PLT804-113C14.
NUT HEX FLG LOCK 1/2-13 PLT803-169C15.
WEAR SHIN 1 1/4" STRAIGHT820-284C16.
Includes items 1-16.SHANK AND SHIN 1 1/4 STRAIGHT598-018A17.
TIP 1 1/4" X 2" WITH FIN820-280C18.
TIP 1 1/4" X 7" WITH FIN820-282C19.
TIP 1 1/4" X 2" RAISED CENTER820-277C20.
TIP 1 1/4" X 7" RAISED CENTER820-279C21.
Section 4: Shanks & Coulter
RevisionCommentsPart DescriptionPart No.Ref.
07/21/14 - 27 - 596-224P
Table of Contents Part Number Index
3/4" No-Till Shank & Tip Assembly
(Applies to SS0300 only)
41821
596-224P - 28 - 07/21/14
Table of Contents Part Number Index
3/4" No-Till Shank & Tip Assembly
(Applies to SS0300 only)
Image No.dwg41821
SHANK NO-TILL 3/4820-270C1.
RETAINER CLIP 3/4" NT598-045D2.
HHCS 1/2-13X1 3/4 GR5802-082C3.
NUT LOCK 1/2-13 PLT803-019C4.
WEAR SHIN 3/4" NO TILL812-322C5.
TIP 3/4" NO TILL LOW WING812-333CP6.
PIN SPIROL 3/4 X 1.7 LONG HVY598-053D7.
PIN SPIROL 1/2 X 1 3/4805-357C8.
Section 4: Shanks & Coulter
RevisionCommentsPart DescriptionPart No.Ref.
07/21/14 - 29 - 596-224P
Table of Contents Part Number Index
3/4" No-Till Shank & Tip Assembly (598-021A)
(Applies to SS0300 only)
43156
596-224P - 30 - 07/21/14
Table of Contents Part Number Index
3/4" No-Till Shank & Tip Assembly (598-021A)
(Applies to SS0300 only)
Image No.dwg43156
SHANK HOLDER 3/4598-029H1.
HHCS 3/4-10X6 GR8802-487C2.
WASHER FLAT 3/4 HARD ASTMF436804-093C3.
WASHER LOCK SPRING 3/4 PLT804-023C4.
NUT HEX 3/4-10 PLT803-027C5.
SHANK NO-TILL 3/4820-270C6.
SPACER BUSHING599-117D7.
HHCS 3/4-10X4 GR5802-068C8.
NUT LOCK 3/4-10 PLT803-026C9.
HHCS 5/8-11X4 GR5802-060C10.
NUT LOCK 5/8-11 PLT803-024C11.
RETAINER CLIP 3/4" NT598-045D12.
HHCS 1/2-13X1 3/4 GR5802-082C13.
NUT LOCK 1/2-13 PLT803-019C14.
WEAR SHIN 3/4" NO TILL812-322C15.
PIN SPIROL 3/4 X 1.7 LONG HVY598-053D16.
PIN SPIROL 1/2 X 1 3/4805-357C17.
Includes items 1-17.SHANK AND SHIN 3/4" NO TILL598-021A18.
Section 4: Shanks & Coulter
RevisionCommentsPart DescriptionPart No.Ref.
Rev. 2TIP 3/4" NO TILL LOW WING HF599-149D19.
Rev. 1RPBY 599-149D812-333CP19.
07/21/14 - 31 - 596-224P
Coulter Assembly
(Applies to SS0300 only)
Table of Contents Part Number Index
41934
596-224P - 32 - 07/21/14
Coulter Assembly
(Applies to SS0300 only)
Image No.dwg41934
COULTER CLAMP 6H X 4W149-584D1.
U-BOLT 5/8-11 X 6 1/32 X 5 3/4806-016C2.
WASHER LOCK SPRING 5/8 PLT804-022C3.
NUT HEX 5/8-11 PLT803-021C4.
CLAMP PLT 6 BAR204-039D5.
WASHER LOCK SPRING 1/2 PLT804-015C6.
HHCS 1/2-13X6 GR5802-047C7.
CLAMP SHANK 1 1/2 DIA204-072D8.
SCREW SET SQ HD. 1/2-13X1 GR5801-054C9.
SHANK 1 1/2D X 26 FERT COULT204-013D10.
HHCS 5/16-18X2 GR5802-115C11.
NUT LOCK 5/16-18 PLT803-011C12.
COULTER STOP WELDMENT149-162H13.
SCREW SQ HD 5/8-11 X 1 CUP PT801-040C14.
SWIVEL COULTR CASTING ASSY, R204-419S15.
GREASE ZERK STRAIGHT 1/4-28800-001C16.
NUT HEX JAM 5/8-11 PLT803-023C17.
SCREW SET 5/8-11X1 1/2 GR8 CUP801-083C18.
COULTER SPRING ROD WLDMT204-075H19.
BUSHING COULTER CASTING817-029C20.
SPRING 2.25 O.D. X .5 COIL149-559D21.
SPRING ROD SLEEVE 1 1/8 OD204-107D22.
COULTER SPRING WASHER149-558D23.
NUT HEX JAM 3/4-10 PLT803-048C24.
BUSHING 1.50ODX1.25IDX2.94890-389C25.
FERT COULTER SWING ARM149-181E26.
WASHER FLAT 1 1/4 SAE PLT804-039C27.
PIN COTTER 1/4 X 2 PLT805-021C28.
DECAL GP PLANTING COMPONENTS838-482C29.
SWING ARM BUSHING817-051C30.
NUT HEX FLANGE LOCK 3/4-10 PLT803-181C31.
NUT HEX JAM 3/4-10 PLT803-048C32.
BRG CUP LM-67010822-020C33.
BRG CONE 1.25ID LM-67048822-021C35.
OIL SEAL DOUBLE LIP816-009C36.
HUB GREASE CAP200-001D37.
WASHER SPINDLE - 7/8804-055C39.
NUT HEX SLOTTED 7/8-14 PLT803-029C40.
PIN COTTER 3/16 X 1 3/4 PLT805-017C41.
RHSNB 1/2-13X1 1/4 GR5802-214C42.
COULTER BLADE 20 FLUTED820-074C43.
NUT HEX FLANGE 1/2-13 GR G PLT803-193C44.
PIN SPIROL 3/8X2 1/2 PLAIN805-043C47.
Table of Contents Part Number Index
Includes items 16 & 33COULTER HUB & CUP ASSY200-039V34.
Includes items 34-37COULTER HUB PACKAGE204-379S38.
Includes items 13-42 & 44VANI 20" RH COULTER ASSY204-689L45.
Includes items 13-45SUBSOILER RH COULTER ASSY598-072L46.
Section 4: Shanks & Coulter
RevisionCommentsPart DescriptionPart No.Ref.
07/21/14 - 33 - 596-224P
Table of Contents Part Number Index
Coulter Assembly (598-072L)
(Applies to SS0300 only)
43160
596-224P - 34 - 07/21/14
Table of Contents Part Number Index
Coulter Assembly (598-072L)
(Applies to SS0300 only)
Image No.dwg43161
COULTER CLAMP 6H X 4W149-584D1.
U-BOLT 5/8-11 X 6 1/32 X 5 3/4806-016C2.
WASHER LOCK SPRING 5/8 PLT804-022C3.
NUT HEX 5/8-11 PLT803-021C4.
CLAMP PLT 6 BAR204-039D5.
WASHER LOCK SPRING 1/2 PLT804-015C6.
HHCS 1/2-13X6 GR5802-289C7.
CLAMP SHANK 1 1/2 DIA204-072D8.
SCREW SET SQ HD. 1/2-13X1 GR5801-054C9.
SHANK 1 1/2D X 26 FERT COULT204-013D10.
HHCS 5/16-18X2 GR5802-115C11.
NUT LOCK 5/16-18 PLT803-011C12.
COULTER STOP149-044D13.
PVT CLTR CASTING MOUNT ASY RH249-225S14.
GREASE ZERK STRAIGHT 1/4-28800-001C15.
SCREW SET 5/8-11X1 1/2 GR8 CUP801-083C16.
NUT HEX JAM 5/8-11 PLT803-023C17.
EYE BOLT 3/4-10X14 3/4 LG SP802-718C18.
COULTER SPRING GUIDE TUBE805-331C19.
SPRING 2.25 O.D. X .5 COIL149-559D20.
COULTER SPRING WASHER149-558D21.
NUT HEX JAM 3/4-10 PLT803-048C22.
BUSHING 1X3/4X1 1/8 FLG HD817-513C23.
BUSHING 1.50ODX1.25IDX2.94890-389C24.
VANI 20" SWING ARM WLMT204-664H25.
WASHER MACH 1 7/8X1 1/4X 14GA804-165C26.
SNAP RING EXT 1 1/4 HEAVY800-177C27.
WASHER MACH 1 1/4X3/4X14GA804-156C28.
SNAP RING 3/4 EXTERNAL HEAVY800-164C29.
BRG CUP LM-67010822-020C30.
BRG CONE 1.25ID LM-67048822-021C32.
OIL SEAL DOUBLE LIP816-009C33.
HUB GREASE CAP200-001D34.
WASHER SPINDLE - 7/8804-055C36.
NUT HEX SLOTTED 7/8-14 PLT803-029C37.
PIN COTTER 3/16 X 1 3/4 PLT805-017C38.
RHSNB 1/2-13X1 1/4 GR5802-214C39.
COULTER BLADE 20 FLUTED820-074C40.
NUT HEX 1/2-13 PLT803-020C41.
PIN SPIROL 3/8X2 1/2 PLAIN805-043C42.
Section 4: Shanks & Coulter
RevisionCommentsPart DescriptionPart No.Ref.
Includes items 15 & 30COULTER HUB & CUP ASSY200-039V31.
Includes items 31-34COULTER HUB PACKAGE204-379S35.
Includes items 6, 13-42SUBSOILER RH COULTER ASSY598-072L43.
07/21/14 - 35 - 596-224P
Decals
(Applies to SS0300 only)
Table of Contents Part Number Index
41933
596-224P - 36 - 07/21/14
Decals
(Applies to SS0300 only)
Image No.dwg41933
DECAL SUB-SOILER 300848-609C5.
DECAL GP PLANTING COMPONENTS838-482C6.
DECAL RIPPER CLAMP BOLT TORQUE838-756C7.
DECAL 30KM PER HR848-398C8.
DECAL SUB-SOILER SHANK DEPTH838-597C10.
DECAL CAUTION TIRE 90 PSI/120838-595C11.
DECAL REFLECTOR AMBER 2X9838-615C12.
Table of Contents Part Number Index
Section 5: Decals
RevisionCommentsPart DescriptionPart No.Ref.
Rev. 2DECAL PIC READ MANUAL848-512C1.
Rev. 1Replaced by 848-512CDECAL PIC--READ MANUAL838-358C1.
Rev. 2DECAL PIC EYE PROTECTION848-510C2.
Rev. 1Replaced by 848-510CDECAL PIC--WEAR EYE PROTECTION838-360C2.
Rev. 2DECAL PIC DO NOTRIDE848-511C3.
Rev. 1Replaced by 848-511CDECAL PIC--DO NOT RIDE838-361C3.
Rev. 2DECAL PIC FINGER PINCH POINT848-531C4.
Rev. 1Replaced by 848-531CDECAL PIC--PINCH POINT838-368C4.
Rev. 2DECAL PIC TIRE NOTA STEP848-507C9.
Rev. 1Replaced by 848-507CDECAL PIC--TIRE IS NOTA STEP838-362C9.
07/21/14 - 37 - 596-224P
Berm Conditioner
(Applies to SS0300 only)
Table of Contents Part Number Index
42287
596-224P - 38 - 07/21/14
Berm Conditioner
(Applies to SS0300 only)
Image No.dwg42287
BERM CONDITIONER FRAME599-041H1.
HHCS 3/4-10X7 GR8802-816C2.
WASHER 3/4X3 PLATED599-087D3.
PLASTIC SLEEVE817-229C4.
PIVOTBUSHING599-095D5.
WASHER LOCK SPRING 3/4 PLT804-023C6.
NUT HEX 3/4-10 PLT803-027C7.
SPRING MOUNT599-045H8.
HHCS 1/2-13X2 1/2 GR5802-130C9.
WASHER LOCK SPRING 1/2 PLT804-015C10.
NUT HEX 1/2-13 PLT803-020C11.
SPRING/PLUG (SHORT) SUB ASSY552-107V12.
ADJUSTER LINK599-044H13.
ADJUSTER LINK599-043H14.
HHCS 1/2-13X3 1/2 GR5802-041C15.
NUT LOCK 1/2-13 PLT803-019C16.
HHCS 1/2-13X6 GR5802-047C17.
WASHER FLAT 1/2 USS PLT804-017C18.
CASTING - STAINLESS T-HANDLE812-302C19.
SPRING COMP 5/8 OD X 1 3/4 LG807-172C20.
WASHER FLAT 3/8 SAE PLT804-012C21.
PIN COTTER 1/8 X 1805-363C22.
REEL BEARING HANGER SC540-121H23.
U-BOLT 5/8-11X3 1/32X4 1/2 SPT806-183C24.
WASHER LOCK SPRING 5/8 PLT804-022C25.
NUT HEX 5/8-11 PLT803-021C26.
BERM CONDITIONER BASKET599-042H27.
RHSNB 1/2-13X2 GR5802-129C28.
RHSNB 1/2-13X1 1/2 GR5802-106C29.
BRG FLG 1.50ID 4BOLT SQ822-208C30.
3/4 LONG X 1/2 TINE STOP/SPACR550-134D31.
ZERK GUARD ROLLING HARROW589-085D32.
NUT HEX TOP LOCK 1/2-13PLT803-342C33.
HHCS 1-8X4 GR5802-073C34.
1 HARDENED SPINDLE WASHER148-404D35.
TUBE RND - 1 1/2 OD540-180D36.
NUT HEX 1-8 NYLON INSERT PLT803-038C37.
SPRING MOUNT STRAIGHT LEG599-062H38.
SPRING MOUNT PARABOLIC SHANK599-063H38.
HHCS 1/2-13X3 1/2 GR5802-041C39.
Table of Contents Part Number Index
Section 6: Optional
RevisionCommentsPart DescriptionPart No.Ref.
07/21/14 - 39 - 596-224P
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
PagePart Number
PagePart Number
7117-059H ...................
7117-378D ...................
7117-379D ...................
7119-281H ...................
39148-404D ...................
9, 11148-757H ...................
35149-044D ...................
33149-162H ...................
33149-181E ...................
33, 35149-558D ...................
33, 35149-559D ...................
33, 35149-584D ...................
11151-324D ...................
33, 35200-001D ...................
33, 35200-039V ...................
33, 35204-013D ...................
33, 35204-039D ...................
33, 35204-072D ...................
33204-075H ...................
33204-107D ...................
33, 35204-379S ...................
33204-419S ...................
35204-664H ...................
33204-689L ...................
9248-513D ...................
35249-225S ...................
7501-020D ...................
39540-121H ...................
39540-180D ...................
39550-134D ...................
39552-107V ...................
39589-085D ...................
7596-060A ...................
13, 15596-065K ...................
13596-099H ...................
13, 15596-146S ...................
15596-147H ...................
13596-148H ...................
7596-185D ...................
7596-196H ...................
7, 9596-197H ...................
7, 9596-198H ...................
15596-230D ...................
7596-269D ...................
7596-271D ...................
19598-003H ...................
19598-004H ...................
19, 21, 23598-008H ...................
21, 23598-010H ...................
19, 21598-011H ...................
25598-016H ...................
25, 27598-017H ...................
27598-018A ...................
31598-021A ...................
19598-022S ...................
31598-029H ...................
19, 21598-030A ...................
29, 31598-045D ...................
29, 31598-053D ...................
17598-059D ...................
17598-061D ...................
33, 35598-072L ...................
27598-099H ...................
17598-100H ...................
17598-101H ...................
17598-103H ...................
17598-104S ...................
39599-041H ...................
39599-042H ...................
39599-043H ...................
802-487C ...................
803-021C ...................
803-027C ...................
39599-044H ...................
39599-045H ...................
39599-062H ...................
39599-063H ...................
39599-087D ...................
39599-095D ...................
31599-117D ...................
27599-143D ...................
31599-149D ...................
19, 33, 35800-001C ...................
9, 11800-035C ...................
15800-058C ...................
9, 11800-060C ...................
17800-085C ...................
35800-164C ...................
35800-177C ...................
7801-005C ...................
33801-040C ...................
33, 35801-054C ...................
33, 35801-083C ...................
17801-176C ...................
9, 11802-014C ...................
7, 39802-041C ...................
33, 39802-047C ...................
9, 11802-050C ...................
19, 21, 27, 31802-060C ...................
13802-064C ...................
19, 21, 27, 31802-068C ...................
39802-073C ...................
29, 31802-082C ...................
39802-106C ...................
33, 35802-115C ...................
39802-129C ...................
25, 27, 39802-130C ...................
33, 35802-214C ...................
35802-289C ...................
13802-315C ...................
17802-345C ...................
19802-356C ...................
17, 19, 21, 23,
27, 31
19, 21, 23802-552C ...................
13802-673C ...................
35802-718C ...................
17, 19802-756C ...................
39802-816C ...................
15802-845C ...................
7803-006C ...................
33, 35803-011C ...................
27803-013C ...................
9, 11803-014C ...................
25, 29, 31, 39803-019C ...................
7, 35, 39803-020C ...................
9, 11, 13, 33, 35,
39
33, 35803-023C ...................
19, 21, 27, 31803-024C ...................
19, 21, 27, 31803-026C ...................
17, 19, 21, 23,
31, 39
33, 35803-029C ...................
17803-031C ...................
39803-038C ...................
33, 35803-048C ...................
19803-168C ...................
27803-169C ...................
33803-181C ...................
33803-193C ...................
13803-200C ...................
15803-210C ...................
804-022C ...................
804-023C ...................
804-093C ...................
13803-229C ...................
39803-342C ...................
7804-006C ...................
17804-009C ...................
39804-012C ...................
9, 11804-013C ...................
7, 33, 35, 39804-015C ...................
39804-017C ...................
9, 11, 13, 33, 35,
39
13, 17, 19, 21,
23, 27, 31, 39
17804-027C ...................
33804-039C ...................
33, 35804-055C ...................
17, 19, 21, 23,
27, 31
27804-113C ...................
17804-147C ...................
35804-156C ...................
35804-165C ...................
17804-192C ...................
33, 35805-017C ...................
33805-021C ...................
33, 35805-043C ...................
13805-054C ...................
7805-060C ...................
7805-077C ...................
7805-119C ...................
7805-167C ...................
7805-168C ...................
7805-232C ...................
35805-331C ...................
7805-332C ...................
13805-355C ...................
29, 31805-357C ...................
39805-363C ...................
13, 33, 35806-016C ...................
7806-069C ...................
39806-183C ...................
39807-172C ...................
39812-302C ...................
29, 31812-322C ...................
29, 31812-333CP ................
15814-210C ...................
15814-219C ...................
15814-254C ...................
15815-066C ...................
33, 35816-009C ...................
33817-029C ...................
7817-042C ...................
33817-051C ...................
39817-229C ...................
35817-513C ...................
7817-516C ...................
17817-987C ...................
33, 35820-074C ...................
25820-268C ...................
25, 27820-269C ...................
29, 31820-270C ...................
25, 27820-277C ...................
25, 27820-279C ...................
25, 27820-280C ...................
25, 27820-282C ...................
25, 27820-284C ...................
25820-285C ...................
33, 35822-020C ...................
33, 35822-021C ...................
15822-141C ...................
39822-208C ...................
15822-231C ...................
11833-388C ...................
9, 11833-398C ...................
9, 11833-399C ...................
11833-529C ...................
9833-654C ...................
9833-660C ...................
9833-670C ...................
17837-006C ...................
37838-358C ...................
37838-360C ...................
37838-361C ...................
37838-362C ...................
37838-368C ...................
33, 37838-482C ...................
37838-595C ...................
37838-597C ...................
37838-615C ...................
37838-756C ...................
37848-398C ...................
37848-507C ...................
37848-510C ...................
37848-511C ...................
37848-512C ...................
37848-531C ...................
37848-609C ...................
7890-005C ...................
33, 35890-389C ...................
19890-771C ...................
13890-875C ...................
19dwg21561 ..................
13dwg41813 ..................
15dwg41817 ..................
21dwg41819 ..................
25dwg41820 ..................
29dwg41821 ..................
7dwg41931 ..................
11dwg41932 ..................
37dwg41933 ..................
33dwg41934 ..................
39dwg42287 ..................
17dwg43154 ..................
27dwg43155 ..................
31dwg43156 ..................
23dwg43157 ..................
35dwg43161 ..................
9dwg43492 ..................
596-224P - 40 - 07/21/14
Table of Contents Part Number Index
This Page Intentionally Left Blank
07/21/14 - 41 - 596-224P
Great Plains Mfg., Inc.
1525 E. North Street
Salina, Kansas 67401 USA
www.greatplainsmfg.com
Loading...
