Parts Manual
Planter Row Unit RU1999 and SRU1999
Model SRU1999/SR5030
S/N KK1000, S/N KK1005, S/N KK1006, S/N
KK1010 and later
Read the Operator's manual entirely.When you see this symbol, the subsequent
instructions and warnings are serious - follow without exception.Your life and the
lives of others depend on it!
© Copyright 2010 Printed 09/23/10 404-086P
17664
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Decals.............................................................................6
Decal Placement.................................................................6
Drives.............................................................................8
Chemical Hopper Drive.......................................................8
Seed Hopper Drive............................................................10
Hopper Frame..............................................................12
Adjustment Assembly........................................................12
Disk & Scraper..................................................................14
Parallel Arm & Hopper Support.........................................16
Shank Assembly...............................................................18
Side Gauge Wheel............................................................20
Side Gauge Wheel & Disk Assembly................................22
Spring Assembly...............................................................24
Hoppers........................................................................26
Chemical Hopper..............................................................26
Chemical Hopper Primary & Secondary Granular Meter...28
Chemical Hopper Primary Granular Chemical Meter........30
Seed Hopper.....................................................................32
Meters...........................................................................34
Brush Meter.......................................................................34
Finger Pickup Meter..........................................................36
Primary & Secondar y Granular Meter...............................38
Options.........................................................................40
Front Insecticide Diffuser...................................................40
Insecticide Tube.................................................................42
Insecticide Tube With Closing Disk....................................44
Rear Chemical Diffuser.....................................................46
Seed Lok® (404-093K).....................................................48
Press Wheels...............................................................50
1" x 12" Double "V" Press Wheel......................................50
6 1/2" Press Wheel Closing Disk.......................................52
6 1/2" Press Wheel Closing Disk Mount............................54
Part Number Index.......................................................56
© Copyright 2010 All rights reserved Printed 09/23/10
Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the
preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from
the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as it sees fit. This publication describes
the state of this product at the time of its publication, and may not reflect the product in the future.
The following are trademarks of Great Plains Mfg., Inc.: Application Systems, Ausherman, Land Pride, Great Plains
All other brands and product names are trademarks or registered trademarks of their respective holders.
404-086P - 2 - 09/23/10
Great Plains Manufacturing, Incorporated Trademarks
Printed in the United States of America.
Table of Contents Part Number Index
Alphabetized Table of Contents
Selected Models
1
1" x 12" Double "V" Press Wheel.................................50
6
6 1/2" Press Wheel Closing Disk..................................52
6 1/2" Press Wheel Closing Disk Mount.......................54
A
Adjustment Assembly...................................................12
B
Brush Meter..................................................................34
C
Chemical Hopper.........................................................26
Chemical Hopper Drive..................................................8
Chemical Hopper Primary & Secondary Granular
Meter......................................................................28
Chemical Hopper Primary Granular Chemical Meter....30
D
Decal Placement............................................................6
Disk & Scraper.............................................................14
F
Finger Pickup Meter.....................................................36
Front Insecticide Diffuser..............................................40
I
Insecticide Tube............................................................42
Insecticide Tube With Closing Disk...............................44
P
Parallel Arm & Hopper Support....................................16
Primary & Secondar y Granular Meter..........................38
R
Rear Chemical Diffuser................................................46
S
Seed Hopper................................................................32
Seed Hopper Drive.......................................................10
Seed Lok® (404-093K)................................................48
Shank Assembly...........................................................18
Side Gauge Wheel.......................................................20
Side Gauge Wheel & Disk Assembly...........................22
Spring Assembly..........................................................24
09/23/10 - 3 - 404-086P
Table of Contents Part Number Index
404-086P - 4 - 09/23/10
Table of Contents Part Number Index
09/23/10 - 5 - 404-086P
Table of Contents Part Number Index
Decal Placement
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17658
404-086P - 6 - 09/23/10
Table of Contents Part Number Index
Decal Placement
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17658
DECAL AMBER REFLECTOR818-229C1.
DECAL RED REFLECTOR818-230C2.
RPBY 838-161C818-768C5.
DECAL GREAT PLAINS PLANTER818-430C5.
Decals
RevisionCommentsPart DescriptionPart No.Ref.
Decal is located on outside rows. For
12 row planter, decal is located on
rows 4 and 8.
Decal is located on outside rows and
if equipped with chemicalhopper.For
12 row planter, decal is located on
rows 4 and 8.
Chemical hopper only.DECAL AG CHEMICALS DANGER818-323C3.
Decal is located on outside rows.DECAL 1230818-767C4.
Decal is located on outside rows on
long row units.
Decal is located on outside rows on
long row units.
Short row units only.DECAL 4 COLOR STRIPE - 2 3/8818-800C5.
Decal is located on outside rows.DECAL 6030 PLANTER818-431C6.
Decal is located on outside rows.DECAL 8030 PLANTER818-432C7.
Decal is located on outside rows.DECAL 8036 PLANTER818-506C8.
Decal is located on outside rows.DECAL 8038 PLANTER818-505C9.
Decal is located on outside rows.DECAL 1030 PLANTER818-507C10.
Decal is located on outside rows.DECAL PLANTER STRIPE 5030838-052C11.
09/23/10 - 7 - 404-086P
Table of Contents Part Number Index
Chemical Hopper Drive
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17657
404-086P - 8 - 09/23/10
Table of Contents Part Number Index
Chemical Hopper Drive
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17657
METER CLUTCH, CHEMICIAL403-087S1.
SNAP RING EXT 5/8 INV CLIP800-145C2.
KNOB, METER CLUTCH817-327C3.
NUT HEX WHIZ 5/16-18 PLT803-043C4.
FLANGE, HOUSING404-043D5.
BRG 35IDX62ODX14 MM 6007 2RS822-125C6.
HOUSING WELD, METER CLUTCH404-067H7.
RHSNB 5/16-18X3/4 GR5802-092C8.
RPBY 808-263C403-012H9.
SHAFT, CLUTCH CHEM403-047D10.
PIN ROLL 3/16X1 1/4 PLT805-023C11.
SPRING COMP 1.095X1 1/4X.072MW807-130C12.
COUPLER, DRIVE403-046D13.
PIN ROLL 3/16 X 1 PLT805-022C14.
RPBY 136-166D809-144C15.
RHSNB 5/16-18X2 1/4 GR5802-251C16.
WASHER FLAT1/4 USS PLT804-075C17.
BUSHING, IDLER PIVOT404-146D18.
RPBY 817-713C817-333C19.
PLATE, IDLER RETAINER404-149D20.
Drives
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 9 - 404-086P
Table of Contents Part Number Index
Seed Hopper Drive
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17656
404-086P - 10 - 09/23/10
Table of Contents Part Number Index
Seed Hopper Drive
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17656
METER CLUTCH, SEED404-068K1.
PLANTER IDLER ASSY404-092S2.
SNAP RING EXT 5/8 INV CLIP800-145C3.
KNOB, METER CLUTCH817-327C4.
NUT HEX WHIZ 5/16-18 PLT803-043C5.
FLANGE, HOUSING404-043D6.
BRG 35IDX62ODX14 MM 6007 2RS822-125C7.
HOUSING WELD, METER CLUTCH404-067H8.
RHSNB 5/16-18X3/4 GR5802-092C9.
DRIVE HUB, METER CLUTCH808-253C10.
SHAFT, CLUTCH404-108D11.
PIN ROLL 3/16X1 1/4 PLT805-023C12.
SPRING COMP .970ODX.063WX1.25807-174C13.
PIN ROLL 3/16 X 1 PLT805-022C14.
COUPLER DRIVE, SEED HEX404-107D15.
RHSNB 5/16-18X2 1/4 GR5802-251C16.
IDLER WELD404-087H17.
BUSHING, IDLER PIVOT404-146D18.
RPBY 817-713C817-333C19.
PLATE, IDLER RETAINER404-149D20.
RPBY 136-167D809-162C21.
HHCS 3/8-16X1 GR5802-017C22.
WASHER LOCK SPRING 3/8 PLT804-013C23.
TORSION SPRING IDLER807-179C24.
FIRMING WHL, MOUNTING COLLAR122-096D25.
RPBY 808-158C402-222D26.
NUT FLANGE LOCK 3/8-16 PLT803-209C27.
Drives
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 11 - 404-086P
Table of Contents Part Number Index
Adjustment Assembly
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
14848
404-086P - 12 - 09/23/10
Table of Contents Part Number Index
Adjustment Assembly
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg14848
PLANTER HANDLE404-020D1.
WALKBEAM404-077D2.
WALKBEAM MOUNT404-078D3.
WALKBEAM PIVOT PIN404-079D4.
WASHER 3/4 X 17/32 X 18 GA PLT804-100C5.
PIN COTTER 3/32 X 1 LONG805-063C6.
PIN ROLL 5/32 X 1 1/4805-068C7.
PIN ROLL 1/4 X 1 1/2 LG PLT805-180C8.
SPRING COMP .72 X 1.5 X .072WD807-119C9.
Hopper Frame
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 13 - 404-086P
Table of Contents Part Number Index
Disk & Scraper
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17650
404-086P - 14 - 09/23/10
Table of Contents Part Number Index
Disk & Scraper
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17650
HHCS 5/8-11X1 1/2 GR5 NYL802-228C1.
DD BRG FLANGE DUST COVER107-111D2.
RPBY 404-121S404-072S3.
RPBY 404-170H812-272C4.
PIN ROLL 5/16 X 3/4 PLT805-280C5.
WASHER MACH 1.19 X .63 X 18GA804-040C6.
SCRAPER, DISC LH404-153D7.
NUT HEX WHIZ 5/16-18 PLT803-043C8.
RHSNB 5/16-18X3/4 GR5802-092C9.
SCRAPER, DISC RH404-152D10.
Hopper Frame
RevisionCommentsPart DescriptionPart No.Ref.
Refer to "Side Gauge Wheel & Disk
Assembly" for breakdown.
09/23/10 - 15 - 404-086P
Table of Contents Part Number Index
Parallel Arm & Hopper Support
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17647
404-086P - 16 - 09/23/10
Table of Contents Part Number Index
Parallel Arm & Hopper Support
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17647
HOPPER SUPPORT WELD404-085H1.
INTERPLANT HOPPER SUPPORT WELD404-054H1.
HHCS 5/8-11X2 GR5802-055C2.
WASHER FLAT5/8 HARD ASTMF436804-095C3.
PARALLEL ARM PIVOT TUBE404-147D4.
SEED HOPPER HOOK CUP890-590C5.
NUT HEX FLANGE LOCK 5/8-11 PLT803-263C6.
RHSNB 3/8-16X1 1/4 GR5802-155C7.
UP-DOWN STOP404-118D8.
NUT FLANGE LOCK 3/8-16 PLT803-209C9.
PARALLEL ARM WELD404-078H10.
MOUNT, UNIT404-151D11.
U-BOLT 5/8-11 X 7 1/32 X 8806-104C12.
TOP PARALLELARM WELD404-083H13.
RHSNB 1/4-20X3/4 GR5802-002C14.
MOUNT, REFLECTOR401-371D15.
NUT HEX FLANGE 1/4-20 PLT803-230C16.
Hopper Frame
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 17 - 404-086P
Table of Contents Part Number Index
Shank Assembly
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17649
404-086P - 18 - 09/23/10
Table of Contents Part Number Index
Shank Assembly
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17649
SNAP RING EXT 5/8 .050 T800-118C1.
PIN, DEPTH CONTROL404-138D2.
PIN CLEVIS 1/4 X 2 1/2 PLT805-278C3.
PIN COTTER 3/32 X 1 LONG805-063C4.
RPBY 817-606C817-139C5.
PIN ROLL 5/16 X 7/8805-250C6.
SHIELD,DISK404-139D7.
NUT HEX WHIZ 5/16-18 PLT803-043C8.
RHSNB 5/16-18X3/4 GR5802-092C9.
SHANK WELD404-082H10.
ADJUSTMENT ASSY404-014S11.
Hopper Frame
RevisionCommentsPart DescriptionPart No.Ref.
Refer to "Adjustment Assembly" for
breakdown.
09/23/10 - 19 - 404-086P
Table of Contents Part Number Index
Side Gauge Wheel
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17651
404-086P - 20 - 09/23/10
Table of Contents Part Number Index
Side Gauge Wheel
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17651
HHCS 5/8-11 X 3 GR8802-646C1.
WASHER LOCK SPRING 5/8 PLT804-022C2.
4 X 16 GAUGE TIRE ASSY-PLASTIC814-173C3.
WASHER MACH 1.19 X .63 X 18GA804-040C4.
ARM, GAUGEWHEEL404-155D5.
HHCS 1/2-13X3 GR5802-039C6.
ECCENTRIC BUSHING404-174D7.
O-RING BUSHING404-171D8.
O-RING 1 1/4ID X 1 1/2ODX1/8816-315C9.
NUT HEX 1/2-13 PLT803-020C10.
GREASE ZERK STRAIGHT 1/4-28800-001C11.
RPBY 812-327C404-173D12.
PIN ROLL 1/8 X 3/8 PLT805-289C13.
SPINDLE, GA WHL MNT ADJ404-119D14.
SCRW SET SQ HD1/2-13X2 GR5 PLT801-046C15.
RPBY 812-327C404-109S16.
HFS 1/2-13 X 1 1/2 GR8 NYL PLT802-663C17.
WASHER LOCK SPRING 1/2 PLT804-015C18.
Hopper Frame
RevisionCommentsPart DescriptionPart No.Ref.
Refer to "Side Gauge Wheel & Disk
Assembly" for breakdown.
09/23/10 - 21 - 404-086P
Table of Contents Part Number Index
Side Gauge Wheel & Disk Assembly
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17652
404-086P - 22 - 09/23/10
Table of Contents Part Number Index
Side Gauge Wheel & Disk Assembly
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17652
HFSS 5/16-18X1 GR5 PLT802-431C1.
HFSS 5/16-18X1 3/4 GR5802-094C2.
4 X 16 GAUGE WHEEL RIM HALF817-331C3.
4 1/2 X 16 GAUGE TIRE814-113C4.
BRG .63ID PRESS WHL ASY822-170C5.
4 X 16 GAUGE WHEEL RIM814-175C6.
803-184 FLG TP LK 5/16-18ZNYCR803-177C7.
4 X 16 GAUGE TIRE ASSY-PLASTIC814-173C8.
RIVET,BUTTON HEAD 1/4 X 1/2800-213C9.
HSG RIBB FLG 6BOLT PLT890-466C10.
BEARING AA205DD188-001V11.
RPBY 820-287C820-200C12.
RPBY 404-121S404-072S13.
Hopper Frame
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 23 - 404-086P
Table of Contents Part Number Index
Spring Assembly
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17648
404-086P - 24 - 09/23/10
Table of Contents Part Number Index
Spring Assembly
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17648
PIN COTTER 1/4 X 2 PLT805-021C1.
WASHER FLAT1 SAE804-029C2.
EYE-BOLT 1/2-13 PLT802-655C3.
SPRING PLUG .250 DIA.406-010D4.
SPRING EXT 2.19ODX.250X6.0807-180C5.
DOWN PRESSURE SPRING ASSY .250406-005S6.
PIN CLEVIS 3/8 X 3 3/4 PLT805-277C7.
SPRING .540 O.D.X 1 1/4 X.054W807-106C8.
SHAFT, SPRING MOUNT404-148D9.
GUIDE WELD404-084H10.
T-HANDLE ASSEMBLY817-328C11.
PIN ROLL 5/32 X 5/8 PLT805-186C12.
Hopper Frame
RevisionCommentsPart DescriptionPart No.Ref.
OptionSPRINGEXT 2.21ODX.262X6.0807-178C5.
OptionDOWN PRESSURE SPRING ASSY .262406-006S6.
09/23/10 - 25 - 404-086P
Table of Contents Part Number Index
Chemical Hopper
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17655
404-086P - 26 - 09/23/10
Table of Contents Part Number Index
Chemical Hopper
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17655
96 CHEMICAL HOPPER LID817-264C1.
96 HOPPER LID HOOK817-269C2.
PUSH NUT 1/4800-283C3.
96 CHEMICAL HOPPER817-268C4.
COVER, CHEM METER817-353C5.
HFS 10-24 X 3/4 PLT801-155C6.
HFS 10-16 X 5/8 SELF-DRILL PLT801-156C7.
NUT SQ 10-24 PLT803-300C8.
NUT HEX FLANGE 1/4-20 PLT803-230C9.
WASHER FLAT1/4 USS PLT804-075C10.
RHSNB 1/4-20X3/4 GR5802-002C11.
RHSNB 1/4-20X5/8 PLT802-633C12.
FUNNEL MOUNT817-352C13.
OVER CENTER LATCH800-137C14.
Hoppers
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 27 - 404-086P
Table of Contents Part Number Index

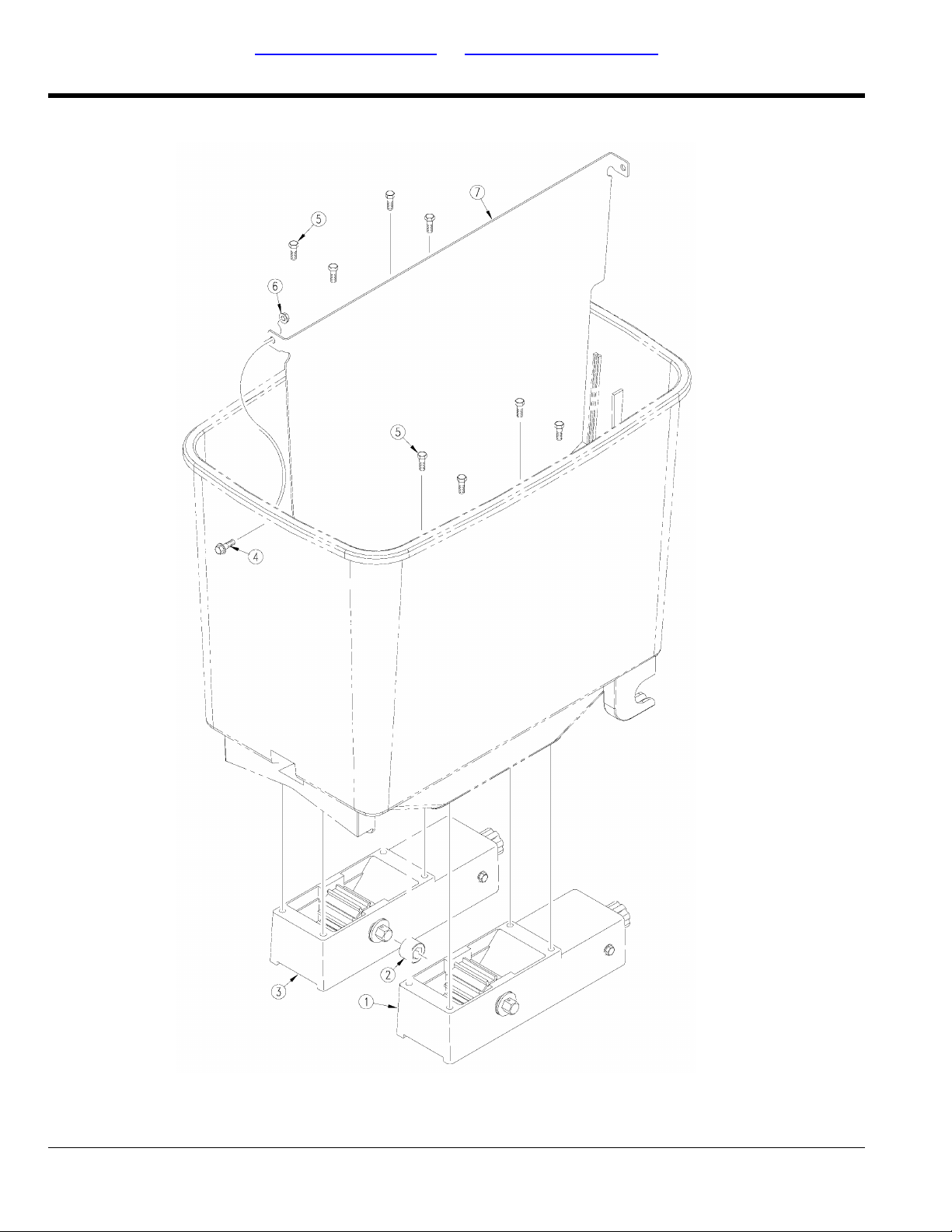

Chemical Hopper Primary & Secondary Granular Meter
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
15715
404-086P - 28 - 09/23/10
Table of Contents Part Number Index
Chemical Hopper Primary & Secondary Granular Meter
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg15715
PRIMARY CHEMICAL METER ASSY403-035V1.
SECONDARY METER COUPLER890-354C2.
SECONDARY CHEMICAL METER ASSY403-036V3.
HFSS 1/4-20X5/8 GR5802-196C4.
SCREW HEX SELF TAP 1/4-20X3/4801-081C5.
NUT HEX FLANGE 1/4-20 PLT803-230C6.
CHEMICAL DIVIDER STAINLESS403-042D7.
Refer to "Primary & Secondary
Granular Meter" for breakdown.
Refer to "Primary & Secondary
Granular Meter" for breakdown.
Hoppers
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 29 - 404-086P
Table of Contents Part Number Index
Chemical Hopper Primary Granular Chemical Meter
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
15714
404-086P - 30 - 09/23/10
Table of Contents Part Number Index
Chemical Hopper Primary Granular Chemical Meter
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg15714
PRIMARY CHEMICAL METER ASSY403-035V1.
NUT HEX WHIZ 1/4-20 PLT803-194C2.
HFSS 1/4-20X1/2 GR5802-148C3.
SCREW HEX SELF TAP 1/4-20X3/4801-081C4.
COVER PLATE403-021D5.
Refer to "Primary & Secondary
Granular Meter" for breakdown.
Hoppers
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 31 - 404-086P
Table of Contents Part Number Index
Seed Hopper
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
15710
404-086P - 32 - 09/23/10
Table of Contents Part Number Index
Seed Hopper
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg15710
NUT HEX WHIZ 5/16-18 PLT803-043C1.
WASHER FLAT5/16 SAE PLT804-036C2.
RPBY 890-856C403-033S3.
NUT HEX FLANGE 1/4-20 PLT803-230C4.
OVER CENTER LATCH800-137C5.
RHSNB 1/4-20X3/4 GR5802-002C6.
96 SEED HOPPER817-267C7.
RHSNB 5/16-18X1 GR5802-282C8.
PUSH NUT 1/4800-283C9.
96 HOPPER LID HOOK817-269C10.
96 SEED HOPPER LID817-263C11.
Hoppers
RevisionCommentsPart DescriptionPart No.Ref.
Refer to "Finger Pickup Meter" for
breakdown.
Referto"Brush Meter" forbreakdown.BRUSH METER ASSY (W/O PLATE)403-046S12.
09/23/10 - 33 - 404-086P
Table of Contents Part Number Index
Brush Meter
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
15743
404-086P - 34 - 09/23/10
Table of Contents Part Number Index
Brush Meter
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg15743
HOUSING W/BEARING890-554C1.
COVER890-560C2.
HWHSDFTS #10-24X1/2 PLT801-150C3.
PIN ROLL 1/4 X 1 1/2 LG PLT805-180C4.
PIN, ROLL 1/4 X 1 1/4 LONG805-208C5.
SEED DISC HUB ASSY W/SHLD BOLT890-555C6.
WEAR STRIP890-556C7.
RETAINING STRIP890-557C8.
UPPER BRUSH HOLDER890-558C9.
LOWER BRUSH HOLDER890-559C10.
NUT WING 1/4-20 NYLOCK PLT803-286C12.
Meters
RevisionCommentsPart DescriptionPart No.Ref.
Dark blue color coded.SOYBEAN PLATE, 48 CELL817-282C11.
Black color coded.SOYBEANPLATE, 60 CELL817-283C11.
Red color coded.MILO PLATE, SMALL 30 CELL817-284C11.
Light blue color coded.MILO PLATE, LARGE 30 CELL817-285C11.
Red color coded.MILO, HIGH RATE, SMALL 60 CELL817-286C11.
Yellow color coded.MILO, HIGH RATE, LARGE 60 CELL817-287C11.
White color coded.COTTON,ACID-DELINTED, 30 CELL817-288C11.
Tan color coded.COTTON,ACID-DELINTED, 36 CELL817-289C11.
Light green color coded.COTTON,HGH RT ACD-DEL, 48CELL817-290C11.
Brown color coded.COTTON, HLL DRP ACD-DEL,12CELL817-291C11.
09/23/10 - 35 - 404-086P
Table of Contents Part Number Index
Finger Pickup Meter
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
12026
404-086P - 36 - 09/23/10
Table of Contents Part Number Index
Finger Pickup Meter
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg12026
PIN ROLL 1/4 X 1 1/2 LG PLT805-180C1.
PIN ROLL 3/16X 1 1/2 PLT805-024C2.
BRG IB12444SRSE822-127C3.
PIN, ROLL 1/4 X 1 1/4 LONG805-208C4.
RPBY 343003403-031D5.
BRUSH817-166C6.
RPBY 3421016403-025D7.
SP SLTD CTRSNK HD #10X3/4 LG801-086C8.
RPBY 3421016 & 343040403-030V9.
SCR PAN HD 10-32 X 5/8 PLT801-087C10.
RPBY 343053403-032V11.
SPRING807-129C12.
RPBY 31114H1041803-216C13.
RPBY 343021800-152C14.
PIN COTTER 5/32 X 1 1/4 LG805-045C15.
REPL BY 343BCA817-169C16.
NUT HEX WHIZ 1/4-20 PLT803-194C17.
HHCS 1/4-20X5/8 GR5802-078C18.
HFSS 1/4-20X1/2 GR5802-148C19.
HHCS 1/4-20X1 1/2 GR2802-221C20.
RPBY 343002403-028H21.
RPBY 343006890-334C22.
RPBY 343001817-168C23.
RPBY 340110041817-171C24.
COVER403-024D25.
RPBY 343038817-164C26.
NUT-LOCK 1/4-20 PLT803-007C27.
Meters
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 37 - 404-086P
Table of Contents Part Number Index
Primary & Secondary Granular Meter
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
13926
404-086P - 38 - 09/23/10
Table of Contents Part Number Index
Primary & Secondary Granular Meter
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg13925
DETENT CLIP403-041D1.
PRIMARY SHAFT403-028D2.
DIAL MOUNT403-029D3.
ADJUSTMENT ROD403-030D4.
HFS 10-16 X 1/2 TYPE BT PLTD801-094C5.
CSPH 10-16 X 1/2 TYPE BE PLTD801-095C6.
HFS 10-24 X 1 1/4 PLT801-127C7.
NUT HEX 10-24 PLT803-001C8.
WASHER FLAT#10 SAE PLT804-046C9.
WASHER MACH 1.00 X .625 X 14GA804-111C10.
PIN ROLL 1/8 X 1LG. PLT.805-080C11.
PIN COTTER 3/32 X 1 LONG805-063C12.
PIN ROLL 1/8 X 3/4 PLT805-057C13.
KNOB817-177C14.
NUMBER DIAL817-178C15.
10 NUMBER DIAL817-179C16.
HEX BUSHING817-180C17.
FEED ROLLER, HEX BORE817-182C18.
ADJUSTMENT BLOCK817-183C19.
METERING GATE817-187C20.
GATE RETAINER817-188C21.
BSHG FLG .891IDX1.125ODX.38L890-342C22.
HOUSING890-355C23.
SECONDARY SHAFT403-027D24.
PIN ROLL 3/16X1 1/4 PLT805-023C25.
CALIBRATION TOOL403-043V26.
Meters
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 39 - 404-086P
Table of Contents Part Number Index
Front Insecticide Diffuser
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17660
404-086P - 40 - 09/23/10
Table of Contents Part Number Index
Front Insecticide Diffuser
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17660
CHEMICAL FUNNEL817-189C1.
SCREW HEX SLT 10-16X1/2 PLT801-075C2.
SINGLE WIRE HOSE CLAMP #14800-029C3.
HOSE 1/2 ID X 1/8 WL CLEAR PVC990-087R4.
SP 1/2 HB Y830-217C5.
7 DIFFUSER CONNECTOR TUBE403-017D6.
7 DIFFUSER816-179C7.
PIN COTTER .186 WIRE DIA805-185C8.
Options
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 41 - 404-086P
Table of Contents Part Number Index
Insecticide Tube
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17659
404-086P - 42 - 09/23/10
Table of Contents Part Number Index
Insecticide Tube
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17659
CHEMICAL FUNNEL817-189C1.
SCREW HEX SLT 10-16X1/2 PLT801-075C2.
SINGLE WIRE HOSE CLAMP #14800-029C3.
HOSE 1/2 ID X 1/8 WL CLEAR PVC990-087R4.
SP 1/2 HB Y830-217C5.
TUBE, CHEM DELIVERY403-051D6.
RPBY 800-112C800-149C7.
Options
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 43 - 404-086P
Table of Contents Part Number Index
Insecticide Tube With Closing Disk
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17662
404-086P - 44 - 09/23/10
Table of Contents Part Number Index
Insecticide Tube With Closing Disk
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17662
CHEMICAL FUNNEL817-189C1.
SCREW HEX SLT 10-16X1/2 PLT801-075C2.
SINGLE WIRE HOSE CLAMP #14800-029C3.
PIPE 1" SCH 40 PVC990-089R4.
SP 1/2 HB Y830-217C5.
RPBY 800-112C800-149C6.
TUBE, CHEM DELIVERY403-051D7.
Options
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 45 - 404-086P
Table of Contents Part Number Index
Rear Chemical Diffuser
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17661
404-086P - 46 - 09/23/10
Table of Contents Part Number Index
Rear Chemical Diffuser
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17661
NUT HEX FLANGE 1/4-20 PLT803-230C1.
WASHER FLAT1/4 USS PLT804-075C2.
CHEMICAL FUNNEL817-189C3.
SINGLE WIRE HOSE CLAMP #14800-029C4.
HOSE 1/2 ID X 1/8 WL CLEAR PVC990-087R5.
DEFUSSER ROD MTG BRKT RH403-049D6.
RHSNB 1/4-20X3/4 GR5802-002C7.
SCREW HEX SLT 10-16X1/2 PLT801-075C8.
DEFUSSER ROD403-033D9.
DEFUSSER ROD MTG BRKT LH403-050D10.
CLAMP PLATE403-020D11.
7 DIFFUSER MOUNT403-013H12.
RHSNB 3/8-16X1 1/4 GR5802-155C13.
7 DIFFUSER816-179C14.
DIFFUSER PLATE403-014D15.
WASHER LOCK SPRING 3/8 PLT804-013C16.
NUT HEX 3/8-16 PLT803-014C17.
RHSNB 3/8-16X1 3/4 GR5802-252C18.
14 CHEMICAL DIFFUSER817-137C19.
Options
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 47 - 404-086P
Table of Contents Part Number Index
Seed Lok® (404-093K)
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17663
404-086P - 48 - 09/23/10
Table of Contents Part Number Index
Seed Lok® (404-093K)
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17663
PIN COTTER 5/32 X 1 1/4 LG805-045C1.
LEVER, SEED LOK404-213D2.
SPRING .540 O.D.X 1 1/4 X.054W807-106C3.
LOCK ROD WELD404-088H4.
SEED LOK MOUNT404-144D5.
RHSNB 5/16-18X3/4 GR5802-092C6.
NUT HEX WHIZ 5/16-18 PLT803-043C7.
JD KINZE SEED LOK LOWER MOUNT206-010D8.
SNAP RING 1/2 EXTERNAL HEAVY800-166C9.
SEED LOK WHEEL ARM404-061D10.
SCR HX SKT BUT CP 3/8-16X3/4801-078C11.
WASHER INTERNAL STAR 3/8 PLT.804-078C12.
BRG 203 SEED-LOK WITH PIN188-008V13.
SCR PH THD FMG #10X1/2 TP ZP801-084C14.
RETAINER W/BONDED SEAL 4BLT816-173C15.
5/8 X 6 SEED LOK WHEEL817-191C16.
6 SEED LOK ASSEMBLY206-014S17.
WASHER 1.5 X .51 X .187804-112C18.
SPRING EXT 1 X 4 X .135 WD807-125C19.
SEED LOK PIVOT PIN206-011D20.
LEVER STOP404-212D21.
Options
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 49 - 404-086P
Table of Contents Part Number Index

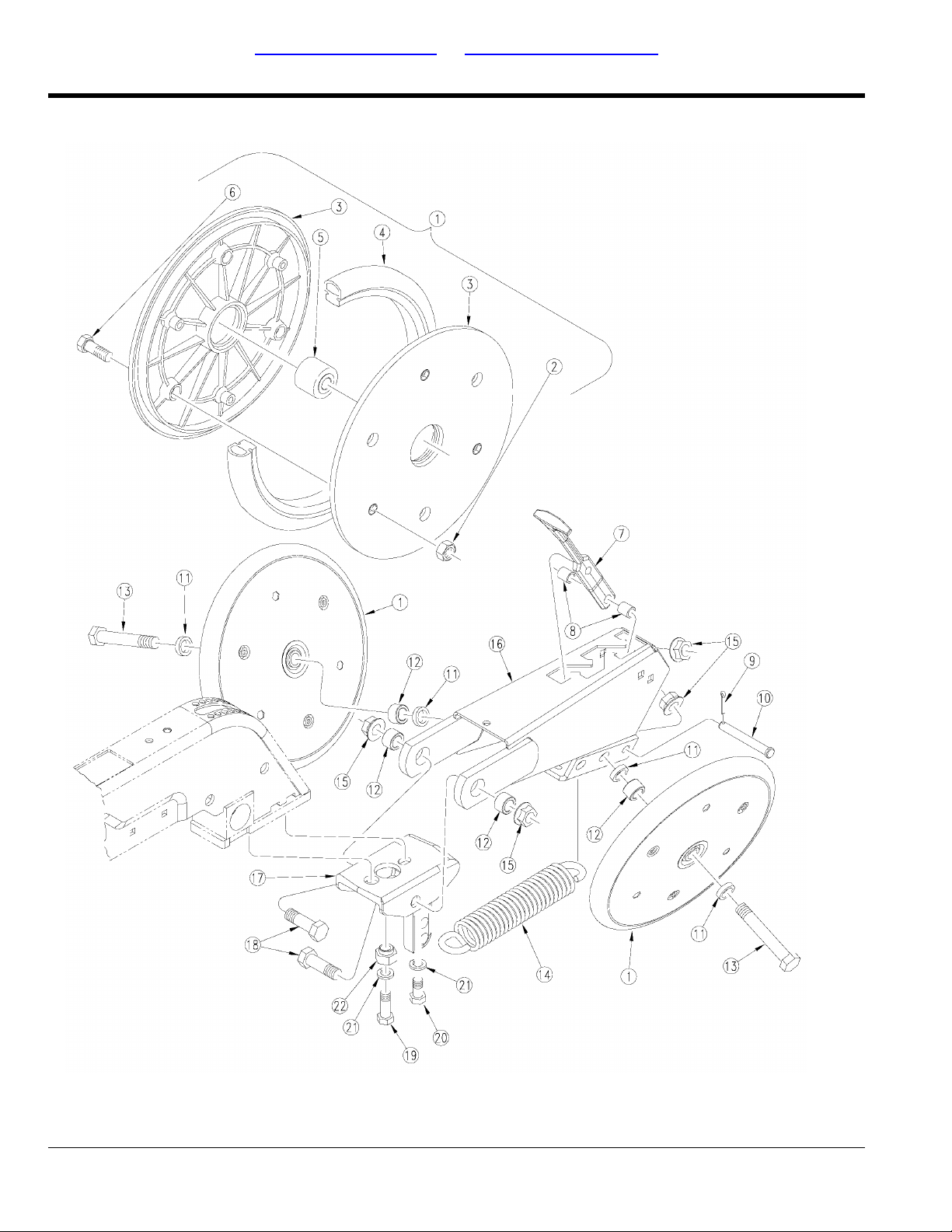

1" x 12" Double "V" Press Wheel
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17653
404-086P - 50 - 09/23/10
Table of Contents Part Number Index
1" x 12" Double "V" Press Wheel
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17653
1 X 12 PRESS WHL ASSY-5203BRG814-174C1.
NUT HEX LOCK 1/4-20 FLG803-088C2.
1 X 12 PRESS WHEEL RIM HALF817-330C3.
TIRE RUBBER 1 X 12814-034C4.
BRG .63ID PRESS WHL ASY822-170C5.
HHCS 1/4-20X1 GR5802-005C6.
PW HANDLE405-049D7.
PW HANDLE TUBE405-004D8.
PIN COTTER 5/32 X 1 PLT805-019C9.
PIN CLEVIS 7/16 X 3 17/64 USBL805-183C10.
1/4 PW SPACER5/8 DIA405-031D11.
PARALLEL ARM PIVOT TUBE404-147D12.
HHCS 5/8-11X4 GR5802-060C13.
SPRING EXT 1 7/8ODX8 3/8X.25W807-113C14.
NUT HEX FLANGE LOCK 5/8-11 PLT803-263C15.
CLOSEING WHEEL ARM WELD405-015H16.
CLOSING WHEEL MOUNT404-164D17.
HHCS 5/8-11X2 GR5802-055C18.
HHCS 1/2-13X1 1/2 GR5802-091C19.
HHCS 1/2-13X1 GR5802-258C20.
WASHER LOCK SPRING 1/2 PLT804-015C21.
1X12 PW ADJUSTER405-032D22.
Press Wheels
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 51 - 404-086P
Table of Contents Part Number Index
6 1/2" Press Wheel Closing Disk
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17665
404-086P - 52 - 09/23/10
Table of Contents Part Number Index
6 1/2" Press Wheel Closing Disk
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17665
6 1/2 X 12 PW ASSEMBLY814-105C1.
HFSS 5/16-18X1/2 GR5802-352C2.
HAM RIM 6.5 X 12612-50-083.
HAM.1.5 X.5 ID BALL BEARING2035034.
HAM. TIRE 6.5 X 12 TRACTION204030-A5.
NUT HEX WHIZ 5/16-18 PLT803-043C6.
HHCS 1/2-13X10 GR5802-416C7.
NUT HEX FLANGE LOCK 5/8-11 PLT803-263C8.
PARALLEL ARM PIVOT TUBE404-147D9.
WASHER FLAT5/8 HARD ASTMF436804-095C10.
HHCS 5/8-11X1 3/4 GR5802-053C11.
ARM WELD 6 1/2 X 12 PW405-018H12.
NUT LOCK 1/2-13 PLT803-019C13.
6.5 X 12 PW SPACER TUBE405-018D14.
SPRING EXT 1 5/16 X6 7/8 X1/4W807-121C15.
8 CONCAVE DISK820-122C16.
HHCS 1/2-13X1 GR5802-258C17.
WASHER LOCK SPRING 1/2 PLT804-015C18.
6 1/2" PRESS WHEEL CLOSING DISK MOUNT19.
Press Wheels
RevisionCommentsPart DescriptionPart No.Ref.
Refer to "6 1/2" Press Wheel Closing
Disk Mount" for breakdown.
09/23/10 - 53 - 404-086P
Table of Contents Part Number Index
6 1/2" Press Wheel Closing Disk Mount
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
17654
404-086P - 54 - 09/23/10
Table of Contents Part Number Index
6 1/2" Press Wheel Closing Disk Mount
(Applies to RU1999 (1999+), SRU1999 (1999+) only)
Image No.dwg17654
ANCHOR, SPRING405-041D1.
HHCS 5/8-11X1 3/4 GR5802-053C2.
WASHER LOCK SPRING 5/8 PLT804-022C3.
MOUNT, CLOSING DISK ARM405-042D4.
PARALLEL ARM PIVOT TUBE404-147D5.
PIN, STOP405-043D6.
PIN ROLL 1/4 X 1 PLATED805-044C7.
CLOSING DISK ARM WELD405-017H8.
HHCS 1/2-13X3 GR5 SPTHD802-513C9.
CLOSING DISK SPRING CAM405-009H10.
SPRING PIVOT NUT405-044D11.
SPRING TORSION .250 WIRE807-181C12.
NUT LOCK 1/2-13 PLT803-019C13.
Press Wheels
RevisionCommentsPart DescriptionPart No.Ref.
09/23/10 - 55 - 404-086P
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
PagePart Number
PagePart Number
15107-111D ...................
11122-096D ...................
23188-001V ...................
49188-008V ...................
53203503 ......................
53204030-A ...................
49206-010D ...................
49206-011D ...................
49206-014S ...................
17401-371D ...................
11402-222D ...................
9403-012H ...................
47403-013H ...................
47403-014D ...................
41403-017D ...................
47403-020D ...................
31403-021D ...................
37403-024D ...................
37403-025D ...................
39403-027D ...................
39403-028D ...................
37403-028H ...................
39403-029D ...................
39403-030D ...................
37403-030V ...................
37403-031D ...................
37403-032V ...................
47403-033D ...................
33403-033S ...................
29, 31403-035V ...................
29403-036V ...................
39403-041D ...................
29403-042D ...................
39403-043V ...................
9403-046D ...................
33403-046S ...................
9403-047D ...................
47403-049D ...................
47403-050D ...................
43, 45403-051D ...................
9403-087S ...................
19404-014S ...................
13404-020D ...................
9, 11404-043D ...................
17404-054H ...................
49404-061D ...................
9, 11404-067H ...................
11404-068K ...................
15, 23404-072S ...................
13404-077D ...................
13404-078D ...................
17404-078H ...................
13404-079D ...................
19404-082H ...................
17404-083H ...................
25404-084H ...................
17404-085H ...................
11404-087H ...................
49404-088H ...................
11404-092S ...................
11404-107D ...................
11404-108D ...................
21404-109S ...................
17404-118D ...................
21404-119D ...................
19404-138D ...................
19404-139D ...................
49404-144D ...................
9, 11404-146D ...................
17, 51, 53, 55404-147D ...................
25404-148D ...................
9, 11404-149D ...................
17404-151D ...................
15404-152D ...................
15404-153D ...................
21404-155D ...................
51404-164D ...................
21404-171D ...................
21404-173D ...................
21404-174D ...................
49404-212D ...................
49404-213D ...................
51405-004D ...................
55405-009H ...................
51405-015H ...................
55405-017H ...................
53405-018D ...................
53405-018H ...................
51405-031D ...................
51405-032D ...................
55405-041D ...................
55405-042D ...................
55405-043D ...................
55405-044D ...................
51405-049D ...................
25406-005S ...................
25406-006S ...................
25406-010D ...................
53612-50-08 ..................
21800-001C ...................
41, 43, 45, 47800-029C ...................
19800-118C ...................
27, 33800-137C ...................
9, 11800-145C ...................
43, 45800-149C ...................
37800-152C ...................
49800-166C ...................
23800-213C ...................
27, 33800-283C ...................
21801-046C ...................
41, 43, 45, 47801-075C ...................
49801-078C ...................
29, 31801-081C ...................
49801-084C ...................
37801-086C ...................
37801-087C ...................
39801-094C ...................
39801-095C ...................
39801-127C ...................
35801-150C ...................
27801-155C ...................
27801-156C ...................
17, 27, 33, 47802-002C ...................
51802-005C ...................
11802-017C ...................
21802-039C ...................
53, 55802-053C ...................
17, 51802-055C ...................
51802-060C ...................
37802-078C ...................
51802-091C ...................
9, 11, 15, 19, 49802-092C ...................
23802-094C ...................
31, 37802-148C ...................
17, 47802-155C ...................
29802-196C ...................
37802-221C ...................
15802-228C ...................
9, 11802-251C ...................
47802-252C ...................
803-043C ...................
51, 53802-258C ...................
33802-282C ...................
53802-352C ...................
53802-416C ...................
23802-431C ...................
55802-513C ...................
27802-633C ...................
21802-646C ...................
25802-655C ...................
21802-663C ...................
39803-001C ...................
37803-007C ...................
47803-014C ...................
53, 55803-019C ...................
21803-020C ...................
9, 11, 15, 19, 33,
49, 53
51803-088C ...................
23803-177C ...................
31, 37803-194C ...................
11, 17803-209C ...................
37803-216C ...................
17, 27, 29, 33, 47803-230C ...................
17, 51, 53803-263C ...................
35803-286C ...................
27803-300C ...................
11, 47804-013C ...................
21, 51, 53804-015C ...................
21, 55804-022C ...................
25804-029C ...................
33804-036C ...................
15, 21804-040C ...................
39804-046C ...................
9, 27, 47804-075C ...................
49804-078C ...................
17, 53804-095C ...................
13804-100C ...................
39804-111C ...................
49804-112C ...................
51805-019C ...................
25805-021C ...................
9, 11805-022C ...................
9, 11, 39805-023C ...................
37805-024C ...................
55805-044C ...................
37, 49805-045C ...................
39805-057C ...................
13, 19, 39805-063C ...................
13805-068C ...................
39805-080C ...................
13, 35, 37805-180C ...................
51805-183C ...................
41805-185C ...................
25805-186C ...................
35, 37805-208C ...................
19805-250C ...................
25805-277C ...................
19805-278C ...................
15805-280C ...................
21805-289C ...................
17806-104C ...................
25, 49807-106C ...................
51807-113C ...................
13807-119C ...................
53807-121C ...................
49807-125C ...................
37807-129C ...................
9807-130C ...................
11807-174C ...................
25807-178C ...................
11807-179C ...................
25807-180C ...................
55807-181C ...................
11808-253C ...................
9809-144C ...................
11809-162C ...................
15812-272C ...................
51814-034C ...................
53814-105C ...................
23814-113C ...................
21, 23814-173C ...................
51814-174C ...................
23814-175C ...................
49816-173C ...................
41, 47816-179C ...................
21816-315C ...................
47817-137C ...................
19817-139C ...................
37817-164C ...................
37817-166C ...................
37817-168C ...................
37817-169C ...................
37817-171C ...................
39817-177C ...................
39817-178C ...................
39817-179C ...................
39817-180C ...................
39817-182C ...................
39817-183C ...................
39817-187C ...................
39817-188C ...................
41, 43, 45, 47817-189C ...................
49817-191C ...................
33817-263C ...................
27817-264C ...................
33817-267C ...................
27817-268C ...................
27, 33817-269C ...................
35817-282C ...................
35817-283C ...................
35817-284C ...................
35817-285C ...................
35817-286C ...................
35817-287C ...................
35817-288C ...................
35817-289C ...................
35817-290C ...................
35817-291C ...................
9, 11817-327C ...................
25817-328C ...................
51817-330C ...................
23817-331C ...................
9, 11817-333C ...................
27817-352C ...................
27817-353C ...................
7818-229C ...................
7818-230C ...................
7818-323C ...................
7818-430C ...................
7818-431C ...................
7818-432C ...................
7818-505C ...................
7818-506C ...................
7818-507C ...................
7818-767C ...................
7818-768C ...................
7818-800C ...................
53820-122C ...................
23820-200C ...................
9, 11822-125C ...................
404-086P - 56 - 09/23/10
Table of Contents Part Number Index
Part Number Index (continued)
PagePart Number
37822-127C ...................
23, 51822-170C ...................
41, 43, 45830-217C ...................
7838-052C ...................
37890-334C ...................
39890-342C ...................
29890-354C ...................
39890-355C ...................
23890-466C ...................
35890-554C ...................
35890-555C ...................
35890-556C ...................
35890-557C ...................
35890-558C ...................
35890-559C ...................
35890-560C ...................
17890-590C ...................
41, 43, 47990-087R ...................
45990-089R ...................
37dwg12026 ..................
39dwg13925 ..................
13dwg14848 ..................
33dwg15710 ..................
31dwg15714 ..................
29dwg15715 ..................
35dwg15743 ..................
17dwg17647 ..................
25dwg17648 ..................
19dwg17649 ..................
15dwg17650 ..................
21dwg17651 ..................
23dwg17652 ..................
51dwg17653 ..................
55dwg17654 ..................
27dwg17655 ..................
11dwg17656 ..................
9dwg17657 ..................
7dwg17658 ..................
43dwg17659 ..................
41dwg17660 ..................
47dwg17661 ..................
45dwg17662 ..................
49dwg17663 ..................
53dwg17665 ..................
09/23/10 - 57 - 404-086P
Great Plains Mfg., Inc.
1525 E. North Street
Salina, Kansas 67401 USA
www.greatplainsmfg.com
Loading...
