7. Parts & Assembly
Table of contents
General Assembly ................... 40
4.6m Full Assembly .............................. 40
5.5m Full Assembly .............................. 42
6.6m Full Assembly .............................. 44
Drawbar Assembly ............................... 46
Chassis Assembly ................................ 48
Lift Axle Assembly ................................ 50
Rear Drawbar Assembly ...................... 52
Eradicator Tine Kit ............................... 54
Roll Carriers ............................. 56
4.6m Roll Carrier Assembly L/H............ 56
4.6m Roll Carrier Assembly R/H ........... 58
5.5m Roll Carrier Assembly L/H............ 60
5.5m Roll Carrier Assembly R/H ........... 62
6.6m Roll Carrier Assembly L/H............ 64
6.6m Roll Carrier Assembly R/H ........... 66
7. Parts & Assembly
Disc Frames ............................. 68
4.6m Disc Frame Assembly L/H ........... 68
4.6m Disc Frame Assembly R/H .......... 70
5.5m Disc Frame Assembly L/H ........... 72
5.5m Disc Frame Assembly R/H .......... 74
6.6m Disc Frame Assembly L/H ........... 76
6.6m Disc Frame Assembly R/H .......... 78
Disc Unit Assembly R/H ....................... 80
Disc Unit Assembly L/H ........................ 82
Disc Unit Assembly Centre................... 84
Disc Hub Assembly .............................. 86
Disc Frame Adjuster Manual ................ 88
Double Disc Axles .................... 90
Double Disc Axle Assembly 5 rings ........ 90
Double Disc Axle Assembly 6 rings ........ 92
Double Disc Axle Assembly 7 rings ........ 94
Double Disc Pillar Assembly .................. 96
Hydraulics ................................ 98
Lift Circuit Hydraulic Components ........ 98
Lift Circuit........................................... 100
Wing Circuit Hydraulic Components ... 102
Wing Circuit ....................................... 104
Operating Instructions
39X-Press
7. Parts & Assembly
A
AS2138
PJG
01/11/2005
X-PRESS 4.6m
X-PRESS 4.6m FULL ASSEMBLY
X-Press
40
Operating Instructions
7. Parts & Assembly
AS2138
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS2142 X-PRESS - CHASSIS ASSEMBLY 1
AS2141 X-PRESS DRAWBAR ASSEMBLY 1
AS2143 LIFT AXLE ASSEMBLY 1
AS2147 DISC FRAME ASSEMBLY LH 1
AS2145 4.6m ROLL CARRIER ASSEMBLY LH 1
AS2146 ROLL CARRIER ASSEMBLY RH 4.6m 1
AS2148 DISC FRAME RH 4.6m 1
AS2158 IFT CIRCUIT - HYD. COMPONENT LAYOUT1
AS2160 WING CIRCUIT - HYD. COMPONENTS 1
AS2157 DISC FRAME ADJUSTER ASSEMBLY 2
P14175 MANUAL - X-PRESS 2005 1
P13013 MANUAL CASE Ø100 1
X-PRESS 4.6m FULL ASSEMBLY
Operating Instructions
41X-Press
7. Parts & Assembly
PJG
AAS2139
09/11/2005
X-PRESS 5.5m
X-PRESS 5.5m FULL ASSEMBLY
X-Press
42
Operating Instructions
7. Parts & Assembly
AS2139
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS2142 X-PRESS - CHASSIS ASSEMBLY 1
AS2141 X-PRESS DRAWBAR ASSEMBLY 1
AS2149 ROLL FRAME 5.5m LH 1
AS2150 ROLL FRAME ASSEMBLY RH 1
AS2151 DISC FRAME ASSEMBLY 5.5m LH 1
AS2152 DISC FRAME ASSEMBLY 5.5m RH 1
AS2143 LIFT AXLE ASSEMBLY 1
AS2158 IFT CIRCUIT - HYD. COMPONENT LAYOUT1
AS2160 WING CIRCUIT - HYD. COMPONENTS 1
AS2157 DISC FRAME ADJUST ER ASSEMBLY 2
P13013 MANUAL CASE Ø100 1
P14175 MANUAL X-PRESS 2006 1
5.5m X-PRESS FULL ASSEMBLY
Operating Instructions
43X-Press
7. Parts & Assembly
A
AS2140
PJG
09/11/2005
X-PRESS - 6.6m
X-Press
44
Operating Instructions
X-PRESS 6.6m FULL ASSEMBLY
7. Parts & Assembly
AS2140
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS2142 X-PRESS - CHASSIS ASSEMBLY 1
AS2141 X-PRESS DRAWBAR ASSEMBLY 1
AS2143 LIFT AXLE ASSEMBLY 1
AS2155 ROLL FRAME ASSEMBLY LH 1
AS2154 ROLL FRAME ASSEMBLY RH 1
AS2156 DISC FRAME ASSMEMBLY 6.6m RH 1
AS2153 6.6m DISC FRAME ASSEMBLY LH 1
AS2158 IFT CIRCUIT - HYD. COMPONENT LAYOUT1
AS2160 WING CIRCUIT - HYD. COMPONENTS 1
AS2157 DISC FRAME ADJUST ER ASSEMBLY 4
P13013 MANUAL CASE Ø100 1
P14175 MANUAL X-PRESS 2006 1
X-PRESS 6.6m FULL ASSEMBLY
Operating Instructions
45X-Press
7. Parts & Assembly
A
AS2141
PJG
11/08/2005
X-PRESS
X-Press
46
Operating Instructions
X-PRESS DRAWBAR ASSEMBLY
7. Parts & Assembly
AS2141
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P12884 X-PRESS DRAWBAR 1
P08999 CAT 4 PERFECT HITCH ASSEMBLY 1
P12766 BOLT M24x180 GR10.9 2
P02604 WASHER FLAT M24 Ø50 4
P02010 NU T LOCK M24 2
P14001 HOSE MAST - X-PRESS 1
P03089 BOLT M12x65 GR. 8.8 2
P02007 NU T LOCK M12 2
P09112 CLAMP ½" BSP PAIR 3
P09113 CLAMP - TOP PLATE 2
P10278 BOLT M8x45 GR. 8.8 1
P12507 BOLT M8x80 GR. 8.8 1
P09092 HOSE STOWAGE PLATE 1
P06651 BOLT M10x25 GR. 8.8 2
P02600 WASHER FLAT M10 2
P05534 NU T LOCK M10 2
P14029 PIN Ø45x138 1
P02483 LYNCH PIN CAT 1 1
P01593 BOLT M36x200 GRS GR. 8.8 2
P02609 M36 FLAT WASHER 2
P02012 NU T LOCK M36 2
P00071 NIPPLE - GREASE 2
DRAWBAR ASSEMBLY
Operating Instructions
47X-Press
7. Parts & Assembly
AAS2142
PJG
11/08/2005
X-PRESS
X-Press
48
Operating Instructions
X-PRESS - CHASSIS ASSEMBLY
7. Parts & Assembly
AS2142
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P14002 CHASSIS 1
P14031 BUSH Ø45xØ36.5x40 4
P14003 PARKING STAND X-PRESS 2
P14027 PIN Ø25x118 HANDLED 2
P02483 LYNCH PIN CAT 1 4
P14028 PIN Ø30x159 2
P11689 BOLT M8x110 GR. 8.8 2
P08817 WASHER SPRING M8 6
P09112 CLAMP ½" BSP PAIR 5
P09113 CLAMP - TOP PLATE 5
P10278 BOLT M8x45 GR. 8.8 5
P04753 BOLT M8x60 GR. 8.8 4
P01597 BOLT M36x240 GRS GR. 8.8 4
P02609 M36 FLAT WASHER 4
P02012 NU T LOCK M36 4
P00071 NIPPLE - GREASE 4
P14030 BUSH Ø31.5xØ25x30 4
P12610 BOLT M24x120 GR 10.9 ST R 4
P02604 WASHER FLAT M24 Ø50 16
P02010 NU T LOCK M24 4
P05361 RATCHET STRAP 1
P04233 SPANNER - M60 2
CHASSIS ASSEMBLY
Operating Instructions
49X-Press
7. Parts & Assembly
AAS2143
PJG
12/08/2005
X-PRESS
X-Press
50
Operating Instructions
LIFT AXLE ASSEMBLY
7. Parts & Assembly
AS2143
LIFT AXLE ASS E MBLY
X-PRESS
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P14004 LIFT AXLE 1
P12282 LIGHT STALK 2
P05796 REFLECTOR - RED 2
P05797 LIGHT U NIT 2
P06337 BULB INDICAT OR LLB 335 2
P06338 BULB STOP/T AIL LIGHT LLB 380 2
P03788 WHEEL ASSEMBLY - 500/50 2
P07979 WHEEL RIM 500/50 - 6 ST UD 1
P09169 TYR E 500/50-15 1
P02012 NU T LOCK M36 2
P02038 WASHER SPRING M16 14
P02483 LYNCH PIN CAT 1 1
P00071 NIPPLE - GREASE 2
P02601 WASHER FLAT M12 4
P01358 NU T PLAIN M16 14
P03087 BOLT M12x50 GR. 8.8 4
P01901 BOLT M16x80 GR. 8.8 14
P03624 BOLT M36x280/125 GRS GR. 8.8 2
P02007 NU T LOCK M12 4
P05820 JUNCTION BOX 1
P14007 BOT T OM AXLE 1
P14024 BACK PLAT E 3
P14025 PIN Ø30x129 1
P14032 RIVET Ø5x16 4
P14033 RIVET Ø5x25 2
P13033 HUB ASSEMBLY 6 STUD COMPLETE 2
P14182 BOT T OM AXLE COMPLET E 1
AS2364 REAR DRAWBAR ASSEMBLY 1
Operating Instructions
51X-Press
7. Parts & Assembly
AAS2364
PJG
30/11/2005
X-PRESS
X-Press
52
Operating Instructions
REAR DRAWBAR ASSEMBLY
7. Parts & Assembly
AS2364
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P08836 HELPER LEAF 1
P02608 WASHER FLAT M30 2
P14026 PIN Ø32x138 HANDLED 1
P02483 LYNCH PIN CAT 1 1
P02011 NU T LOCK M30 1
P00006 BOLT M12x80 GR. 8.8 1
P02601 WASHER FLAT M12 1
P02007 NU T LOCK M12 1
P14006 REAR HITCH 1
P00056 BOLT M30x240 GR. 8.8 1
REAR DRAW BAR ASSEMBLY
Operating Instructions
53X-Press
7. Parts & Assembly
AAS1637
AGD
23/06/2004
X-Press
54
Operating Instructions
ERADICATOR TINE KIT
7. Parts & Assembly
AS1637
ER AD ICATOR KIT
X-PRESS
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23 QUANTITY SHOWN PER MACHINE
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P12809 ERADICATOR TINE BEAM 2
P05207 PIN Ø16x73 6
P12524 TINE CLAMP UNIT 6
P12525 BUSH Ø25xØ16.5x26 6
P12575 RET AINING PLAT E 6
P02602 WASHER FLAT M16 74
P02008 NU T LOCK M16 66
P11494 BOLT M16x55 GR. 8.8 12
P07546 PLASTIC END CAP 80x80 4
P12573 PRO-ACT IVE 150x12 6
P12574 BOLT U M16 130/115-86 GR8.8 12
P00007 BOLT M16x40 GR. 8.8 18
P02485 R CLIP Ø6x120 6
P12628 TINE 2x1 SHORT 6
P01102 BOLT M16x70 GR. 8.8 12
P03017 POINT 1½" REVERSIBLE 6
P03448 BOLT 7/16" UN Fx75 12
P07131 NUT LOCK 7/16"U NF 12
Operating Instructions
55X-Press
7. Parts & Assembly
AAS2145
PJG
17/08/2005
X-PRESS 4.6m
X-Press
56
Operating Instructions
4.6m ROLL CARRIER ASSEMBLY LH
7. Parts & Assembly
AS2145
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

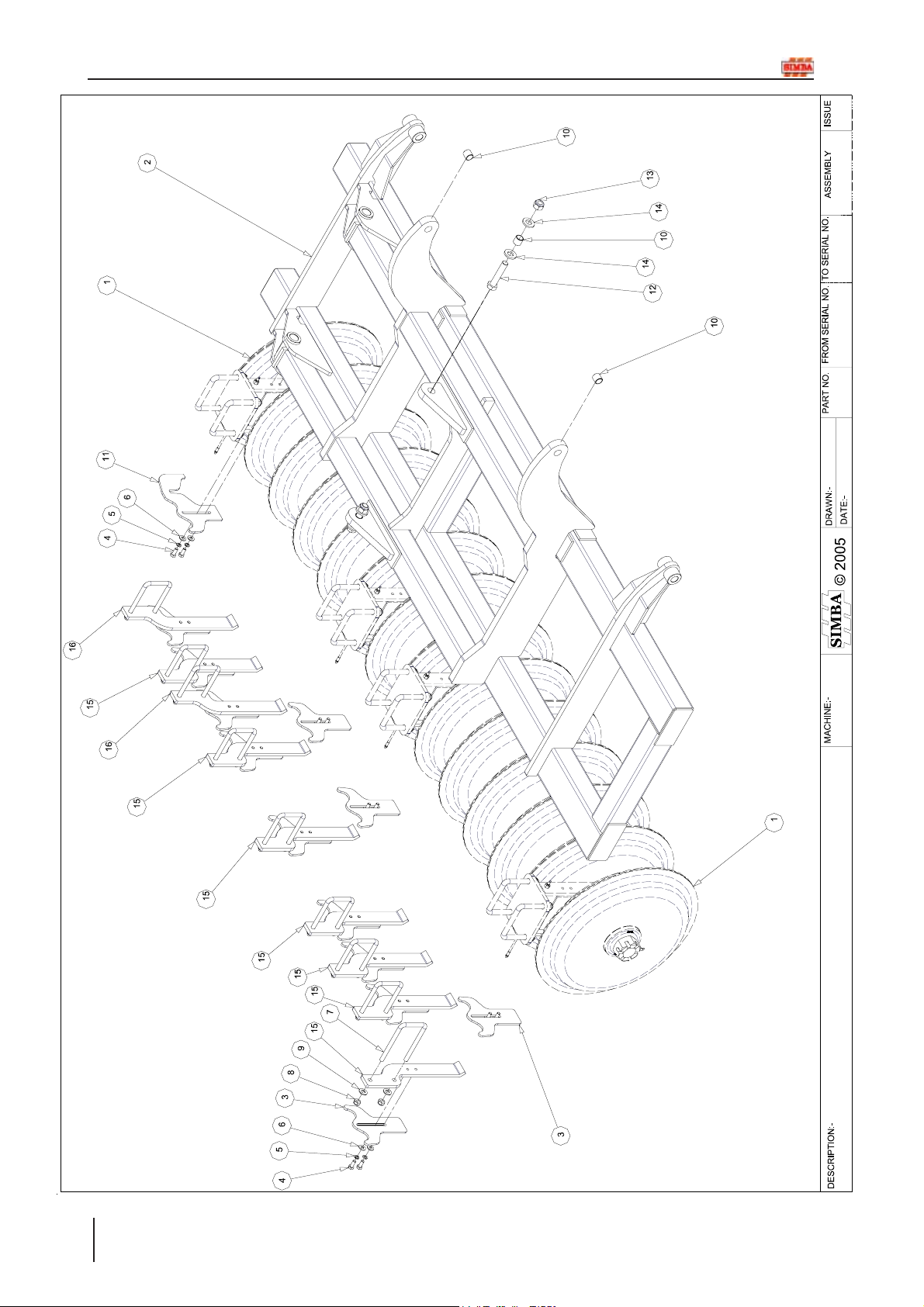

AS0775 AXLE ASSEMBLY - DD700 5 RINGS 2
P14017 ROLL FRAME LH 4.6m 1
P01645 BUSH SPRUNG - Ø32xØ26x32 2
P02037 WASHER SPRING M12 14
P02601 WASHER FLAT M12 18
P10870 BOLT M12x30 GR. 8.8 18
P06802 BOLT U M16 GR8.8 190x117 5
P09558 SCRAPER PLATE 8
P02602 WASHER FLAT M16 10
P02008 NU T LOCK M16 10
P09560 SCRAPER STEM LH 4
P10029 SCRAPER 1 1/2 1
P12610 BOLT M24x120 GR 10.9 STR 1
P02604 WASHER FLAT M24 Ø50 2
P02010 NU T LOCK M24 1
P09559 SCRAPER STEM RH 1
R OLL CAR RIER ASSE M BLY LH 4 .6 m
Operating Instructions
57X-Press
7. Parts & Assembly
AAS2146
PJG
10/05/2005
X-Press
58
Operating Instructions
ROLL CARRIER ASSEMBLY RH 4.6m
7. Parts & Assembly
AS2146
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS0775 AXLE ASSEMBLY - DD700 5 RINGS 2
P14018 4.6m RH ROLL FRAME 1
P09560 SCRAPER STEM LH 1
P02601 WASHER FLAT M12 18
P02037 WASHER SPRING M12 18
P10870 BOLT M12x30 GR. 8.8 18
P02602 WASHER FLAT M16 10
P02008 NU T LOCK M16 10
P06802 BOLT U M16 GR8.8 190x117 5
P09558 SCRAPER PLATE 8
P01645 BUSH SPRUNG - Ø32xØ26x32 2
P10029 SCRAPER 1 1/2 1
P09559 SCRAPER STEM RH 4
P12610 BOLT M24x120 GR 10.9 STR 1
P02604 WASHER FLAT M24 Ø50 2
P02010 NU T LOCK M24 1
ROLL CARRIER ASSEMBLY RH 4.6m
Operating Instructions
59X-Press
7. Parts & Assembly
AAS2149
PJG
01/11/2005
X-PRESS 5.5m
X-Press
60
Operating Instructions
ROLL FRAME 5.5m LH
7. Parts & Assembly
AS2149
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS0776 AXLE ASSEMBLY - DD700 6 RINGS 2
P14019 ROLL FRAME LH 5.5m 1
P01645 BUSH SPRUNG - Ø32xØ26x32 3
P10029 SCRAPER 1 1/2 1
P02601 WASHER FLAT M12 22
P02037 WASHER SPRING M12 22
P10870 BOLT M12x30 GR. 8.8 22
P09558 SCRAPER PLATE 10
P02602 WASHER FLAT M16 14
P02008 NU T LOCK M16 14
P06802 BOLT U M16 GR8.8 190x117 7
P12610 BOLT M24x120 GR 10.9 STR 2
P02010 NU T LOCK M24 2
P02604 WASHER FLAT M24 Ø50 4
P09559 SCRAPER STEM RH 2
P09560 SCRAPER STEM LH 5
R OLL FR AME ASS E M BLY 5.5m LH
Operating Instructions
61X-Press
7. Parts & Assembly
AAS2150
PJG
02/11/2005
X-PRESS 5.5m
X-Press
62
Operating Instructions
ROLL FRAME ASSEMBLY RH
7. Parts & Assembly
AS2150
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS0776 AXLE ASSEMBLY - DD700 6 RINGS 2
P14020 ROLL FRAME 5.5m RH 1
P09558 SCRAPER PLATE 10
P10870 BOLT M12x30 GR. 8.8 22
P02037 WASHER SPRING M12 22
P02601 WASHER FLAT M12 22
P06802 BOLT U M16 GR8.8 190x117 7
P02008 NU T LOCK M16 14
P02602 WASHER FLAT M16 14
P10029 SCRAPER 1 1/2 1
P01645 BUSH SPRUNG - Ø32xØ26x32 2
P12610 BOLT M24x120 GR 10.9 STR 2
P02010 NU T LOCK M24 2
P02604 WASHER FLAT M24 Ø50 4
P09560 SCRAPER STEM LH 2
P09559 SCRAPER STEM RH 5
R OLL FR AME ASS E M BLY R H
Operating Instructions
63X-Press
7. Parts & Assembly
AAS2155
PJG
02/11/2005
X-PRESS 6.6m
X-Press
64
Operating Instructions
ROLL FRAME ASSEMBLY LH
7. Parts & Assembly
AS2155
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS0643 AXLE ASSEMBLY - DD700 7 RINGS 2
P14021 ROLL FRAME 6.6m LH 1
P09558 SCRAPER PLATE 12
P10870 BOLT M12x30 GR. 8.8 26
P02037 WASHER SPRING M12 25
P02601 WASHER FLAT M12 26
P06802 BOLT U M16 GR8.8 190x117 9
P02008 NU T LOCK M16 18
P02602 WASHER FLAT M16 18
P01645 BUSH SPRUNG - Ø32xØ26x32 2
P12610 BOLT M24x120 GR 10.9 STR 2
P02010 NU T LOCK M24 2
P02604 WASHER FLAT M24 Ø50 4
P09560 SCRAPER STEM LH 7
P09559 SCRAPER STEM RH 2
P10029 SCRAPER 1 1/2 1
R OLL FR AME ASS E MBLY LH
Operating Instructions
65X-Press
7. Parts & Assembly
AAS2154
PJG
02/11/2005
X-PRESS 6.6m
X-Press
66
Operating Instructions
ROLL FRAME ASSEMBLY RH
7. Parts & Assembly
AS2154
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS0643 AXLE ASSEMBLY - DD700 7 RINGS 2
P14022 ROLL FRAME 6.6m RH 1
P09558 SCRAPER PLATE 12
P10870 BOLT M12x30 GR. 8.8 26
P02037 WASHER SPRING M12 23
P02601 WASHER FLAT M12 26
P06802 BOLT U M16 GR8.8 190x117 9
P02008 NU T LOCK M16 18
P02602 WASHER FLAT M16 18
P01645 BUSH SPRUNG - Ø32xØ26x32 4
P10029 SCRAPER 1 1/2 1
P12610 BOLT M24x120 GR 10.9 STR 2
P02010 NU T LOCK M24 2
P02604 WASHER FLAT M24 Ø50 4
P09559 SCRAPER STEM RH 7
P09560 SCRAPER STEM LH 2
R OLL FR AME ASS E M BLY R H
Operating Instructions
67X-Press
7. Parts & Assembly
A
BAS2147
PJG
27/10/2005
B
X-PRESS 4.6m
X-Press
68
Operating Instructions
DISC FRAME ASSEMBLY LH
7. Parts & Assembly
AS2147
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS2523 PROACTIVE UNIT - RH 9
AS2524 PROACTIVE UNIT LH 8
AS 2166 D ISC UN IT - CENT RE 1
P12621 SPACER Ø36xØ16.5x31mm 34
P02008 NU T LOCK M16 68
P14008 DISC FRAME 4.6m LH 1
P12810 NU T CAST LE M24 17
P12783 LYNCH PIN CAT 0 17
P02602 WASHER FLAT M16 51
P01704 BOLT M16x50 GR. 8.8 33
P12622 T RACK ARM 17
P12815 BOLT M24x185 ST R UCTURAL GR 8.8 17
P12620 TOP PLAT E 17
P12886 Ø24xØ16x13mm SPACER BUSH 16
P02011 NU T LOCK M30 2
P00036 BOLT M30x180 GR. 8.8 2
P02608 WASHER FLAT M30 8
P03677 WASHER FLAT M24 1
P02010 NU T LOCK M24 1
P07916 BUSH SPRUNG - Ø32xØ26x25 1
P12928 TRACK ROD FRONT LH 4.6SL X-PRESS 1
P14014 T RACKROD R EAR 1
P14055 SPACER BUSH - 10mm 2
P02009 NU T LOCK M20 4
P14050 POINTER 2
P12349 BOLT M6x30 4
P07981 NUT LOCK M6 4
P05401 WASHER SPRING M6 4
P00874 BOLT M20x70 GR. 8.8 4
P01102 BOLT M16x70 GR. 8.8 34
P04025 BOLT M24x90 GR. 8.8 1
P14481 GANG ANGLING JACK 2
P14216 DISC BLADE Ø457x6 1
P11462 DISC BLADE Ø515x6 16
P02603 WASHER FLAT M20 4
DISC FRAME ASSEMBLY LH
Operating Instructions
69X-Press
7. Parts & Assembly
BAS2148
PJG
11/10/2005
B
X-PRESS 4.6m
X-Press
70
Operating Instructions
DISC FRAME RH 4.6m
7. Parts & Assembly
AS2148
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS2523 PROACTIVE UNIT - RH 9
AS2524 PROACTIVE UNIT LH 9
P14009 DISC FRAME 4.6m RH 1
P00036 BOLT M30x180 GR. 8.8 2
P02608 WASHER FLAT M30 8
P02011 NU T LOCK M30 2
P07916 BUSH SPRUNG - Ø32xØ26x25 1
P12622 T RACK ARM 18
P12930
P14014 T RACKROD R EAR 1
P12620 TOP PLAT E 18
P12886 Ø24xØ16x13mm SPACER BUSH 18
P12815 BOLT M24x185 ST R UCTURAL GR 8.8 18
P12621 SPACER Ø36xØ16.5x31mm 36
P02008 NU T LOCK M16 72
P02602 WASHER FLAT M16 54
P01704 BOLT M16x50 GR. 8.8 36
P12783 LYNCH PIN CAT 0 18
P12810 NU T CAST LE M24 18
P02009 NU T LOCK M20 4
P14055 SPACER BUSH - 10mm 2
P14050 POINTER 2
P12349 BOLT M6x30 4
P05401 WASHER SPRING M6 4
P07981 NUT LOCK M6 4
P00874 BOLT M20x70 GR. 8.8 4
P01102 BOLT M16x70 GR. 8.8 36
P14481 GANG ANGLING JACK 2
P14216 DISC BLADE Ø457x6 1
P11462 DISC BLADE Ø515x6 17
P02603 WASHER FLAT M20 4
DISC FRAME ASSEMBLY RH 4.6m
RACK ROD RH FRONT 4.6m X-PRESS SL1
Operating Instructions
71X-Press
7. Parts & Assembly
BAS2151
PJG
26/08/2005
A
X-PRESS 5.5m
X-Press
72
Operating Instructions
DISC FRAME ASSEMBLY 5.5m LH
7. Parts & Assembly
AS2151
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS2523 PROACTIVE UNIT - RH 11
AS2524 PROACTIVE UNIT LH 10
AS 2166 D ISC UN IT - CENT RE 1
P00036 BOLT M30x180 GR. 8.8 2
P01102 BOLT M16x70 GR. 8.8 42
P01704 BOLT M16x50 GR. 8.8 42
P02008 NU T LOCK M16 85
P02009 NU T LOCK M20 4
P02010 NU T LOCK M24 1
P02011 NU T LOCK M30 2
P02602 WASHER FLAT M16 44
P02608 WASHER FLAT M30 8
P03677 WASHER FLAT M24 1
P04025 BOLT M24x90 GR. 8.8 1
P05401 WASHER SPRING M6 4
P07916 BUSH SPRUNG - Ø32xØ26x25 1
P07981 NUT LOCK M6 4
P12349 BOLT M6x30 4
P12620 TOP PLAT E 21
P12621 SPACER Ø36xØ16.5x31mm 42
P12622 T RACK ARM 21
P12783 LYNCH PIN CAT 0 21
P12810 NU T CAST LE M24 21
P12815 BOLT M24x185 ST R UCTURAL GR 8.8 21
P12886 Ø24xØ16x13mm SPACER BUSH 21
P12896 TRACK ROD FRONT LH 5.5SL X-PRESS 1
P14010 DISC FRAME 5.5 LH 1
P14015 T RACKROD R EAR 1
P14050 POINTER 2
P14055 SPACER BUSH - 10mm 2
P00874 BOLT M20x70 GR. 8.8 4
P14481 GANG ANGLING JACK 2
P14216 DISC BLADE Ø457x6 1
P11462 DISC BLADE Ø515x6 20
P02603 WASHER FLAT M20 4
DISC FRAME 5.5m LH
Operating Instructions
73X-Press
7. Parts & Assembly
BAS2152
PJG
30/08/2005
X-PRESS 5.5m
X-Press
74
Operating Instructions
DISC FRAME ASSEMBLY 5.5m RH
7. Parts & Assembly
AS2152
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS2523 PROACTIVE UNIT - RH 11
AS2524 PROACTIVE UNIT LH 11
P14011 DISC FRAME 5.5m RH 1
P12897
P14015 T RACKROD R EAR 1
P02009 NU T LOCK M20 4
P02011 NU T LOCK M30 2
P02602 WASHER FLAT M16 44
P02608 WASHER FLAT M30 8
P05401 WASHER SPRING M6 4
P07916 BUSH SPRUNG - Ø32xØ26x25 1
P07981 NUT LOCK M6 4
P12349 BOLT M6x30 4
P12620 TOP PLAT E 22
P12621 SPACER Ø36xØ16.5x31mm 44
P12622 T RACK ARM 22
P12783 LYNCH PIN CAT 0 22
P12810 NU T CAST LE M24 22
P12815 BOLT M24x185 ST R UCTURAL GR 8.8 22
P12886 Ø24xØ16x13mm SPACER BUSH 22
P00036 BOLT M30x180 GR. 8.8 2
P01102 BOLT M16x70 GR. 8.8 44
P01704 BOLT M16x50 GR. 8.8 44
P14050 POINTER 2
P14055 SPACER BUSH - 10mm 2
P02008 NU T LOCK M16 88
P00874 BOLT M20x70 GR. 8.8 4
P14481 GANG ANGLING JACK 2
P02603 WASHER FLAT M20 4
P14216 DISC BLADE Ø457x6 1
P11462 DISC BLADE Ø515x6 21
DISC FRAME ASSEMBLY 5.5m RH
RACK ROD RH FRONT 5.5m X-PRESS SL1
Operating Instructions
75X-Press
7. Parts & Assembly
BAS2153
PJG
30/08/2005
X-PRESS 6.6m
X-Press
76
Operating Instructions
6.6m DISC FRAME ASSEMBLY LH
7. Parts & Assembly
AS2153
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS2524 PROACTIVE UNIT LH 12
AS2523 PROACTIVE UNIT - RH 13
AS 2166 D ISC UN IT - CENT RE 1
P14012 DISC FRAME 6.6m LH 1
P12622 T RACK ARM 25
P12815 BOLT M24x185 ST R UCTURAL GR 8.8 25
P12620 TOP PLAT E 25
P12810 NU T CAST LE M24 25
P12783 LYNCH PIN CAT 0 25
P01704 BOLT M16x50 GR. 8.8 50
P12822 TRACK ROD FRONT LH 6.6SL X-PRESS 1
P14016 TRACKROD - REAR 1
P12886 Ø24xØ16x13mm SPACER BUSH 25
P02602 WASHER FLAT M16 52
P07916 BUSH SPRUNG - Ø32xØ26x25 2
P02009 NU T LOCK M20 4
P00036 BOLT M30x180 GR. 8.8 2
P02608 WASHER FLAT M30 8
P02011 NU T LOCK M30 2
P14050 POINTER 2
P12349 BOLT M6x30 4
P07981 NUT LOCK M6 4
P05401 WASHER SPRING M6 4
P03677 WASHER FLAT M24 1
P02010 NU T LOCK M24 1
P00874 BOLT M20x70 GR. 8.8 4
P14055 SPACER BUSH - 10mm 2
P12621 SPACER Ø36xØ16.5x31mm 50
P01102 BOLT M16x70 GR. 8.8 50
P02008 NU T LOCK M16 101
P04025 BOLT M24x90 GR. 8.8 1
P02603 WASHER FLAT M20 4
P14481 GANG ANGLING JACK 2
P14216 DISC BLADE Ø457x6 1
P11462 DISC BLADE Ø515x6 24
DISC FRAME ASSEMBLY 6.6m LH
Operating Instructions
77X-Press
7. Parts & Assembly
BAS2156
PJG
11/10/2005
X-PRESS 6.6m
X-Press
78
Operating Instructions
DISC FRAME ASSMEMBLY 6.6m RH
7. Parts & Assembly
AS2156
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS2523 PROACTIVE UNIT - RH 13
AS2524 PROACTIVE UNIT LH 13
P14013 DISC FRAME 6.6 RH 1
P14016 TRACKROD - REAR 1
P12821
P02009 NU T LOCK M20 4
P02011 NU T LOCK M30 2
P02602 WASHER FLAT M16 52
P02608 WASHER FLAT M30 8
P05401 WASHER SPRING M6 4
P07916 BUSH SPRUNG - Ø32xØ26x25 2
P07981 NUT LOCK M6 4
P12349 BOLT M6x30 4
P12620 TOP PLAT E 26
P12621 SPACER Ø36xØ16.5x31mm 52
P12622 T RACK ARM 26
P12783 LYNCH PIN CAT 0 26
P12810 NU T CAST LE M24 26
P12815 BOLT M24x185 ST R UCTURAL GR 8.8 26
P12886 Ø24xØ16x13mm SPACER BUSH 26
P14050 POINTER 2
P14055 SPACER BUSH - 10mm 2
P00036 BOLT M30x180 GR. 8.8 2
P01102 BOLT M16x70 GR. 8.8 56
P01704 BOLT M16x50 GR. 8.8 52
P02008 NU T LOCK M16 104
P02603 WASHER FLAT M20 4
P14481 GANG ANGLING JACK 2
P14216 DISC BLADE Ø457x6 1
P11462 DISC BLADE Ø515x6 25
DISC FRAME ASSEMBLY 6.6m RH
RACK ROD RH FRONT 6.6m X-PRESS SL1
Operating Instructions
79X-Press
7. Parts & Assembly
AAS2523
PJG
26/08/2005
XPRESS
X-Press
80
Operating Instructions
PROACTIVE UNIT - RH
7. Parts & Assembly
AS2523
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS1627 DISC HUB ASSEMBLY 1
P07229 NUT LOCK M12 FINE THR EAD 3
P13174 BOLT M12x50 GR. 10.9 FINE T HREAD 3
P01281 BOLT M12x100 GR. 8.8 1
P00010 BOLT M16x100 GR. 8.8 1
P02008 NU T LOCK M16 1
P02037 WASHER SPRING M12 5
P11032 BOLT M12x25 GR. 8.8 5
P12782 SPRUNG LEAF 20mm 1
P02601 WASHER FLAT M12 6
P12695 PROTECTION PLATE 1
P02007 NU T LOCK M12 1
P14099 ADAPTER LH 1
PROACT IVE U N IT - RH
Operating Instructions
81X-Press
7. Parts & Assembly
AAS2524
PJG
26/08/2005
X-PRESS
X-Press
82
Operating Instructions
PROACTIVE UNIT LH
7. Parts & Assembly
AS2524
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS1627 DISC HUB ASSEMBLY 1
P07229 NUT LOCK M12 FINE THR EAD 3
P13174 BOLT M12x50 GR. 10.9 FINE T HREAD 3
P01281 BOLT M12x100 GR. 8.8 1
P00010 BOLT M16x100 GR. 8.8 1
P02008 NU T LOCK M16 1
P11032 BOLT M12x25 GR. 8.8 5
P02037 WASHER SPRING M12 5
P12782 SPRUNG LEAF 20mm 1
P02601 WASHER FLAT M12 6
P12695 PROTECTION PLATE 1
P02007 NU T LOCK M12 1
P14098 ADAPTER RH 1
PROACTIVE UNIT - LH
Operating Instructions
83X-Press
7. Parts & Assembly
AAS2166
PJG
26/08/2005
X-PRESS
X-Press
84
Operating Instructions
DISC UNIT - CENTRE
7. Parts & Assembly
AS2166
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS1627 DISC HUB ASSEMBLY 1
P00010 BOLT M16x100 GR. 8.8 1
P01281 BOLT M12x100 GR. 8.8 1
P01901 BOLT M16x80 GR. 8.8 1
P02007 NU T LOCK M12 1
P02008 NU T LOCK M16 1
P02037 WASHER SPRING M12 5
P02601 WASHER FLAT M12 6
P07229 NUT LOCK M12 FINE THR EAD 3
P11032 BOLT M12x25 GR. 8.8 5
P11462 DISC BLADE Ø515x5 1
P14098 ADAPTER RH 1
P12695 PROTECTION PLATE 1
P13174 BOLT M12x50 GR. 10.9 FINE T HREAD 3
P13540 SPRUNG LEAF 80x20 CTR 1
P13561 BUSH - CTR LEAF 1
DISC UNIT ASSEMBLY - CENTRE
Operating Instructions
85X-Press
7. Parts & Assembly
A
P12904
ARH
AS1627
11346
14/07/2004
X-Press
86
Operating Instructions
DISC HUB COMPLETE 2004
7. Parts & Assembly
AS1627
DISC HUB COMPLETE
X-PRESS 2004
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P12905 HOU SING 1
P12909 HU B CAP 1
P12415 BEARING + SEAL KIT COMPLETE 1
P12906 SPINDLE M27x1.5 1
P12907 NUT CAST LE M27x1.5 1
P12908 SPRING PIN 1
P00071 NIPPLE - GREASE 1
P12910 GRU B SCREW M6x8 1
P12904 HUB ASSEMBLY COMPLETE 1
NOT AVA ILAB LE INDIVIDUALLY
ITEMS 1 TO 10
Operating Instructions
87X-Press
7. Parts & Assembly
AAS2157
PJG
25/11/2005
X-PRESS
X-Press
88
Operating Instructions
DISC FRAME ADJUSTER ASSEMBLY
7. Parts & Assembly
AS2157
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P14097 CAT 3 TOPLINK C/W CLEVIS ENDS 1
P00017 BOLT M24x100 GR. 8.8 2
P02604 WASHER FLAT M24 Ø50 4
P02010 NU T LOCK M24 2
P08802 SHIM KIT 7 PIECE 1
DISC FRAME ADJUSTER ASSEMBLY
Operating Instructions
89X-Press
7. Parts & Assembly
ARH
BAS0775
27/04/2004
X-Press
90
Operating Instructions
AXLE ASSEMBLY - DD700 5 RINGS
7. Parts & Assembly
AS0775
AXLE ASSEMBLY DD700
5 RINGS
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS0658 PILLAR ASSEMBLY DD600 2
P07727 AXLE Ø60x1135 1
P08190 DD 600 - NUT SPOOL 2
P08994 DD RING Ø700 10
P08191 DD 600 - INT ERNAL SPACER 5
P08189 DD 600 - BEARING SPOOL 4
P08188 DD 600 - SPOOL 2
P02489 PIN SPLIT Ø10x100 1
P01698 NU T CAST LE M60 1
Operating Instructions
91X-Press
7. Parts & Assembly
ARH
B
AS0776
27/04/2004
X-Press
92
Operating Instructions
AXLE ASSEMBLY - DD700 6 RINGS
7. Parts & Assembly
AS0776
AXLE ASSEMBLY DD700
6 RINGS
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS0658 PILLAR ASSEMBLY DD600 2
P07728 AXLE Ø60x1369 1
P08190 DD 600 - NUT SPOOL 2
P08994 DD RING Ø700 12
P08191 DD 600 - INT ERNAL SPACER 6
P08189 DD 600 - BEARING SPOOL 4
P08188 DD 600 - SPOOL 3
P02489 PIN SPLIT Ø10x100 1
P01698 NU T CAST LE M60 1
Operating Instructions
93X-Press
7. Parts & Assembly
ARH
AAS0643
26/04/2004
X-Press
94
Operating Instructions
AXLE ASSEMBLY - DD700 7 RINGS
7. Parts & Assembly
AS0643
AXLE ASSEMBLY DD700
7 RINGS
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
AS0658 PILLAR ASSEMBLY DD600 2
P07729 AXLE Ø60x1623 1
P08190 DD 600 - NUT SPOOL 2
P08994 DD RING Ø700 14
P08191 DD 600 - INT ERNAL SPACER 7
P08189 DD 600 - BEARING SPOOL 4
P08188 DD 600 - SPOOL 4
P02489 PIN SPLIT Ø10x100 1
P01698 NU T CAST LE M60 1
Operating Instructions
95X-Press
7. Parts & Assembly
ARH
C
AS0658
23/04/2004
X-Press
96
Operating Instructions
PILLAR ASSEMBLY DD600
7. Parts & Assembly
AS0658
PILLAR ASS E M BLY
DD600 + 700
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P07696 PRESS ROLL PILLAR 1
P05431 BEARING - PRESSED STEEL 1
P08276 GREASE PIPE 1
P08450 BEARING GUARD 1
P08298 SPACER 10mm 2
P00057 BOLT M16x60 GR. 8.8 2
P02602 WASHER FLAT M16 4
P02008 NU T LOCK M16 4
P01704 BOLT M16x50 GR. 8.8 2
P02603 WASHER FLAT M20 4
P02009 NU T LOCK M20 4
P01619 BOLT U M20 GR8.8 145x172 2
Operating Instructions
97X-Press
7. Parts & Assembly
OMIT ITEM 15 WHEN REAR
DRAWBAR KIT FITTED
AAS2158
PJG
03/11/2005
X-PRESS
X-Press
98
Operating Instructions
LIFT CIRCUIT - HYD. COMPONENT LAYOUT
7. Parts & Assembly
AS2158
LIFT CIRCUIT - HYD. COMPONENT
LAY OU T
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P12894 CYLINDER Ø120x310 1
P12888 CYLINDER Ø120x310 1
P02263 DOWTY SEAL ½" BSP 6
P02735 BULKHEAD ½" BSP 2
P06216 ADAPTOR T SFOR ½" BSP 2
P00203 ADAPT OR MALE-MALE ½" BSP 2
P12769 ADAPTOR T SFOL 3/8" BSP 2
P03687 DOWTY SEAL 3/8" BSP 4
P03686 ADAPTOR MALE - MALE ½"-3/8" BSP 4
P00206 ADAPTOR MALE-FEM ½" BSP 2
P00774 SHUT OFF TAP ½" BSP 2
P00205 QUICK RELEASE MALE - ½" BSP 2
P00071 NIPPLE - GREASE 4
AS2359 REAR DRAWBAR HYDRAULICS 1
P14172 BLANKING CAP 1/2" 2
Operating Instructions
99X-Press
7. Parts & Assembly
A
AS2159
PJG
03/11/2005
X-PRESS
X-Press
100
Operating Instructions
LIFT CIRCUIT - HYD. HOSE LAYOUT
7. Parts & Assembly
AS2159
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P14076 HA 1/2 x 4850 90° 2
P14077 HA 1/2 x 3250 1
P14078 HA 1/2 x 2950 1
P14079 HA 1/2 x 1250 90º/90° 1
P14080 HA 1/2 x 850 90°/90° 1
LIFT CIRCUIT - HYD. HOSE LAYOUT
Operating Instructions
101X-Press
7. Parts & Assembly
OMIT ITEM 24 WHERE REAR
AAS2160
DRAWBAR KIT IS FITTED
PJG
08/11/2005
X-PRESS
X-Press
102
Operating Instructions
WING CIRCUIT - HYD. COMPONENTS
7. Parts & Assembly
AS2160
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P00203 ADAPT OR MALE-MALE ½" BSP 13
P02263 DOWTY SEAL ½" BSP 15
P00205 QUICK RELEASE MALE - ½" BSP 2
P02733 ELBOW 1/2" BSP - F-F 1
P02735 BULKHEAD ½" BSP 2
P03686 ADAPTOR MALE - MALE ½"-3/8" BSP 10
P03687 DOWTY SEAL 3/8" BSP 10
P06219 BLANKING PLUG ½" BSP 1
P06268 BLANKING PLUG - 1/4" BSP 1
P07977 BLANKING PLUG 3/8" BSP 3
P08255 ADAPTOR MALE 1/2" - FEMALE 1/4" 1
P09117 PRESSURE GAUGE 250BAR 1
P11785 ACCUMULAT OR 0.7L 10 BAR 1
P12056 DOC + PR RED. MANIFOLD 1
P12406 ADAPTOR MALE M18 - MALE 1/2" BSP 2
P12769 ADAPTOR T SFOL 3/8" BSP 4
P14090 CONNECT OR BLOCK 1
P14091 WASHER COPPER M18 2
P14092 BULKHEAD NUT 1/2" BSP 2
P14172 BLANKING CAP 1/2" 6
AS2358 REAR DRAWBAR HYDRAULICS 1
P08838 ACCUMULATOR 1.4L DIAPHRAGM 10b 1
P12786 CYLINDER - Ø90x400 - 45 4
WING CIRCUIT - HYD. COMPONENTS
Operating Instructions
103X-Press
7. Parts & Assembly
AAS2161
PJG
08/11/2005
X-PRESS
E
E
D
F11
F01
X-Press
104
Operating Instructions
WING CIRCUIT - HYD. HOSES
7. Parts & Assembly
AS2161
ITEM PART NO DESCRIPTION QTY COMMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P14076 HA 1/2" x 4850 90° 2
P14076 HA 1/2" x 4850 90° 2
P14081 HA 1/2" x 2050 90° 1
P14082 HA 1/2" x 1950 90° 1
P10199 HA 1/2" x 650 90°/90° 4
P14084 HA 1/2" x 1050 90°/90° 4
P10199 H A 1/2" x 650 2
P14086 H A 1/2" x 300 2
WING CIRCUIT - HYD. HOSES
Operating Instructions
105X-Press
7. Parts & Assembly
X-Press
106
Operating Instructions
Loading...
