Great Plains ADC1150 User Manual

Table of Contents Part Number Index

Parts Manual

ADC1150

Air Drill Cart

1995-1997

Read the Operator's manual entirely.When you see this symbol, the subsequent
instructions and warnings are serious - follow without exception.Your life and the
lives of others depend on it!

© Copyright 2007 Printed 04/09/07 167-058P

15043

Table of Contents Part Number Index

Table of Contents

Section 1: Introduction.................................................4

Using This Manual...............................................................4

Manual Replacement Information.......................................4

Manual Revisions................................................................4

Touch-up Paint....................................................................4

Hardware Legend................................................................5

Replacement Hardware......................................................5

Serial Numbers...................................................................5

Part Number Service Coding..............................................5

Frame and Bin...............................................................6

Tongue................................................................................6

Rotating Square Jack (116-065K).......................................8

Rotating Square Butler Jack (890-610C)..........................10

Rotating Square Hammerblow Jack (890-610C)...............12

Drive And Non-Drive Hub And Wheel...............................14

Bin And Frame..................................................................16

Lid.....................................................................................18

Walkboard Mount..............................................................20

Walkboard And Rail...........................................................22

Metering System..........................................................24

Meterbox...........................................................................24

Fan and Air System.....................................................26

Fan And Transition.............................................................26

Pressure Gauge................................................................28

Drives...........................................................................30

Drive Train.........................................................................30

Drive Train (Cont.).............................................................32

Electrical Clutch Wiring Harness.......................................34

Gearbox (168-213K).........................................................36

Gearbox (168-284K).........................................................38

Hydraulic System........................................................40

Hydraulic System..............................................................40

Implement To Cart Hydraulic Hook-Up..............................42

Decals...........................................................................44

Decal Placement...............................................................44

Optional Equipment....................................................46

Auger.................................................................................46

Auger Hydraulic Drive.......................................................48

Double Selector Valve 3/4 FORB (810-274C)...................50

Valve 4-Way 3 Position Open Center Directional

(810-268C)..................................................................52

Vansco Electric Monitor (823-136C).................................54

Fan Sensor........................................................................56

Meter Shaft Sensor...........................................................58

Jackshaft Sensor...............................................................60

Bin Level Monitor...............................................................62

Part Number Index.......................................................64

© Copyright 2007 All rights reserved Printed 04/09/07

Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the
preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from
the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as it sees fit. This publication describes
the state of this product at the time of its publication, and may not reflect the product in the future.

The following are trademarks of Great Plains Mfg., Inc.: Application Systems, Ausherman, Land Pride, Great Plains

All other brands and product names are trademarks or registered trademarks of their respective holders.

167-058P - 2 - 04/09/07

Great Plains Manufacturing, Incorporated Trademarks

Printed in the United States of America.

Table of Contents Part Number Index

Alphabetized Table of Contents

Selected Models

A

Auger............................................................................46

Auger Hydraulic Drive..................................................48

B

Bin And Frame.............................................................16

Bin Level Monitor..........................................................62

D

Decal Placement..........................................................44

Double Selector Valve 3/4 FORB (810-274C)..............50

Drive And Non-Drive Hub And Wheel..........................14

Drive Train....................................................................30

Drive Train (Cont.)........................................................32

E

Electrical Clutch Wiring Harness..................................34

F

Fan And Transition........................................................26

Fan Sensor...................................................................56

G

Gearbox (168-213K).....................................................36

Gearbox (168-284K).....................................................38

V

Valve 4-Way 3 Position Open Center Directional

(810-268C).............................................................52

Vansco Electric Monitor (823-136C)............................54

W

Walkboard And Rail......................................................22

Walkboard Mount.........................................................20

H

Hydraulic System.........................................................40

I

Implement To Cart Hydraulic Hook-Up.........................42

J

Jackshaft Sensor..........................................................60

L

Lid................................................................................18

M

Meter Shaft Sensor......................................................58

Meterbox......................................................................24

P

Pressure Gauge...........................................................28

R

Rotating Square Butler Jack (890-610C).....................10

Rotating Square Hammerblow Jack (890-610C)..........12

Rotating Square Jack (116-065K)..................................8

T

Tongue...........................................................................6

04/09/07 - 3 - 167-058P

Table of Contents Part Number Index

167-058P - 4 - 04/09/07

Table of Contents Part Number Index

04/09/07 - 5 - 167-058P

Table of Contents Part Number Index

Tongue

(Applies to ADC1150 (1995-1997) only)

14085

167-058P - 6 - 04/09/07

Table of Contents Part Number Index

Tongue

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14085
HHCS 1 1/4-7X11 GR5 SPTHD802-317C1.
HHCS 1 1/4-7X9 1/2 GR5 SPTHD802-166C2.
RPBY 196-136H170-058H3.
NUT HEX 1 1/4-7 PLT803-034C4.
WASHER LOCK 1 1/4 SPRING PLT804-030C5.
SINGLE HITCH STRAP-LARGE170-033H6.
NUT HEX 1-8 PLT803-031C7.
WASHER LOCK SPRING 1 PLT804-027C8.
LOWER HITCH170-040H9.
SINGLE HITCH STRAP-SMALL170-034H10.
HHCS 1-8X3 1/2 GR5802-169C11.
SMALL DIAMETER CLEVIS HITCH PK170-039A12.
LARGE DIAMETER HITCH PACKAGE170-038A13.
SMALL DIA STRAP HITCH PKG170-059A14.
SPRING HOSE LOOP HEAVY807-073C15.
HHCS 1/2-13X1 1/2 GR5802-091C16.
WASHER LOCK SPRING 1/2 PLT804-015C17.
WASHER FLAT 1/2 USS PLT804-017C18.
NUT HEX 1/2-13 PLT803-020C19.
SAFETY CHAIN 30000 LB890-184C20.
SAFETY CHAIN WASHER194-070D21.

Frame and Bin

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 7 - 167-058P

Table of Contents Part Number Index

Rotating Square Jack (116-065K)

(Applies to ADC1150 (1995-1997) only)

10510

167-058P - 8 - 04/09/07

Table of Contents Part Number Index

Rotating Square Jack (116-065K)

(Applies to ADC1150 (1995-1997) only)

Image No.dwg10510
JACK LID116-069D1.
ROTATING JACK HOUSING116-061H2.
ROTATING JACK CRANK HANDLE116-042H3.
JACK CRANK HAND GRIP116-068D4.
EXTERNAL E RING 3/4 I.D.800-042C5.
BEVEL GEAR 15T 7 PITCH 26.6 PA116-065D6.
WOODRUFF KEY #606800-046C7.
SNAP RING EXT .750 .078 T800-015C8.
BEVEL GEAR 30T 7 PITCH 63.4 PA116-064D9.
JACK CRANK BUSHING116-066D10.
JACK LEG WITH FOOT116-037H11.
JACK SCREW WITH STOP116-038H12.
JACK NUT116-055D13.
BRG THST .75IDX1.65ODX.54T BND822-055C14.
JACK NUT PIN116-062D15.
SCR P.H. 8X3/8 TYPEB THD FORM801-052C16.

Frame and Bin

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 9 - 167-058P

Table of Contents Part Number Index

Rotating Square Butler Jack (890-610C)

(Applies to ADC1150 (1995-1997) only)

13324

167-058P - 10 - 04/09/07

Table of Contents Part Number Index

Rotating Square Butler Jack (890-610C)

(Applies to ADC1150 (1995-1997) only)

Image No.dwg13324
BUTLER GRIP CLIP10-800541.
BUTLER PVC GRIP2H-300812.
BUTLER CRANK ASSEMBLY2H-300803.
BUTLER GROOVE PIN10-801474.
BUTLER GEAR BOX2H-200GP5.
BUTLER BUSHING10-700206.
BUTLER PINION GEAR10-500587.
BUTLER THRUST BEARING10-800128.
WOODRUFF KEY #606800-046C9.
BUTLER BEVEL GEAR10-5005710.
7/8-14 LOCKNUT PLATED.10-8002811.
SCR P.H. 8X3/8 TYPEB THD FORM801-052C12.
RPBY 10-2050120-2002813.
OBSOLETE BUTLER INNER LEG ASBY2H-300GP14.

Frame and Bin

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 11 - 167-058P

Table of Contents Part Number Index

Rotating Square Hammerblow Jack (890-610C)

(Applies to ADC1150 (1995-1997) only)

20213

167-058P - 12 - 04/09/07

Table of Contents Part Number Index

Rotating Square Hammerblow Jack (890-610C)

(Applies to ADC1150 (1995-1997) only)

Image No.dwg20213
HB VIKING COVER0178021.
HB COVER SCREW0178062.
HB BEVEL GEAR0200233.
HB GROOVE PIN .25 X 1.50090624.
HB WEAR PLATE0160535.
HB THRUST BEARING0010156.
HB BEARING SEAT0160487.
HB SCREW & NUT ASSY7122058.
HHCS 3/8-16X2 1/2 GR5802-114C9.
WASHER FLAT 3/8825-002C10.
NUT LOCK 3/8-16 PLT803-013C11.
HB CRANK, NARROW CLEVIS70114012.
REP BY 182531640069X13.
HB CROSS SHAFT00612514.
REP BY 701438701029X15.
HB BEARING SLEEVE01701216.
HB BULLDOG 12000LB LABEL01579617.
HB BEVEL GEAR PINION02002218.
HB RETAINING PIN00905219.
SQ TB JACK 10000 LB 10 STROKE890-610C

Frame and Bin

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 13 - 167-058P

Table of Contents Part Number Index

Drive And Non-Drive Hub And Wheel

(Applies to ADC1150 (1995-1997) only)

11295

167-058P - 14 - 04/09/07

Table of Contents Part Number Index

Drive And Non-Drive Hub And Wheel

(Applies to ADC1150 (1995-1997) only)

Image No.dwg11295
HUB CAP890-032C1.
PIN COTTER 3/16 X 1 1/4 PLT805-016C2.
NUT HEX SLOTTED 7/8-14 PLT803-029C3.
WASHER SPINDLE - 7/8804-055C4.
BRG CONE 1.31IDX1.01WD #2790822-038C5.
BRG CUP 3.00ODX.75WD #2720822-039C6.
8-BOLT WHEEL HUB MACH.200-006D7.
BRG CUP 3.67ODX.93WD #3720822-037C8.
HUB STUD 5/8-18X2 1/2 GR5802-182C9.
A.D.52T DRIVE SPKT WDMT168-232H10.
8 BT HUB W/CUPS, STDS, 52TSPKT200-049S11.
BRG CONE 2.00IDX1.18WD #3780822-036C12.
8-BOLT HUB SEAL816-019C13.
AIR DRILL CART SPINDLE201-022D14.
8-BT HUB/SPNDL PKG W/52TDVSPKT200-050K15.
NUT HEX FLANGE 5/8-18 PLT803-089C16.
8-BOLT HUB W/CUPS & STUDS200-008S17.
8-BOLT HUB & SPINDLE PKG.200-009K18.
WHEEL 8 BOLT 16.1 X 14 FLT CTR814-020C19.
VALVE STEM TR415X.625X1 1/4 LG816-035C20.
TIRE 16.5LX16.1 10PLYTUBELESS814-019C21.
CART WHEEL & TIRE ASSEMBLY168-035K22.

Frame and Bin

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 15 - 167-058P

Table of Contents Part Number Index

Bin And Frame

(Applies to ADC1150 (1995-1997) only)

14083

167-058P - 16 - 04/09/07

Table of Contents Part Number Index

Bin And Frame

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14083
150 BU AIR DRILL FRAME WELDMNT166-093H1.
NUT HEX 1/2-13 PLT803-020C2.
WASHER LOCK SPRING 1/2 PLT804-015C3.
WASHER FLAT 1/2 SAE PLT804-016C4.
METERING BOX ASSEMBLY168-187K5.
HHCS 1/2-13X1 1/2 GR5802-091C6.
150 BUSHEL BIN WELDMENT167-046H7.
HHCS 1/4-20X5/8 GR5802-078C8.
WASHER LOCK SPRING 1/4 PLT804-006C9.
NUT-HEX 1/4-20 PLT803-006C10.

Frame and Bin

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 17 - 167-058P

Table of Contents Part Number Index

Lid

(Applies to ADC1150 (1995-1997) only)

14084

167-058P - 18 - 04/09/07

Table of Contents Part Number Index

Lid

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14084
NUT HEX 10-24 PLT803-001C1.
WASHER INTERNAL STAR #10 PLT804-004C2.
GRAIN LEVEL SIGHT GLASS817-007C3.
SIGHT GLASS GASKET816-013C4.
SCREW RD HD SLT 10-24X1/2 PLT801-003C5.
NUT HEX 3/8-16 PLT803-014C6.
U-BOLT 3/8-16 X 2 5/8 X 3 1/4806-077C7.
AIR DRILL HOPPER BASKET167-051H8.
AIR DRILL BIN LID HINGE167-050H9.
HHCS 1/2-13X8 GR5802-289C10.
HHCS 5/16-18X1 GR5802-159C11.
NUT HEX NYLOCK 1/2-13803-147C12.
HHCS 1/2-13X2 3/4 GR5802-226C13.
AIR DRILL BIN LID167-049H14.
BIN LID PIVOT BAR WELDMENT167-054H15.
PIN ROLL 1/2 X 1 3/4805-169C16.
AIR DRILL BIN LID HANDLE WLMNT167-048H17.
AIR DRILL BIN LID HOOK167-035H18.
WASHER FLAT 3/8 SAE PLT804-012C19.
WASHER FLAT 5/16 SAE PLT804-036C20.
NUT LOCK 3/8-16 PLT803-013C21.
NUT LOCK 5/16-18 PLT803-011C22.
PRESSURE RELIEF PIPE167-112D23.
HHCS 5/16-18X3 1/4 GR5802-390C24.
WASHER FLAT 3/8 NEOPRENE PLT804-136C25.
WASHER FLAT 5/16 NEOPRENE PLT804-135C26.
RPBY 167-089A167-159D27.

Frame and Bin

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 19 - 167-058P

Table of Contents Part Number Index

Walkboard Mount

(Applies to ADC1150 (1995-1997) only)

14140

167-058P - 20 - 04/09/07

Table of Contents Part Number Index

Walkboard Mount

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14140
LOWER LADDER WELDMENT - RH166-085H1.
LOWER LADDER SUPT WELDMENT166-084H2.
U-BOLT 1/2-13X3 1/32X4806-066C3.
LOWER LADDER WELDMENT - LH166-086H4.
HHCS 1/2-13X3 GR5802-039C5.
NUT HEX 1/2-13 PLT803-020C6.
WASHER LOCK SPRING 1/2 PLT804-015C7.
NUT HEX 5/16-18 PLT803-008C8.
WASHER LOCK SPRING 5/16 PLT804-009C9.
WALKBOARDSUPT PLATE - RH166-317D10.
WALKBOARDSUPT PLATE - LH166-318D11.
HHCS 3/8-16X1 GR5802-017C12.
HHCS 5/16-18X1 GR5802-159C13.
UPPER HANDRAIL WELDMNT - FRONT166-088H14.
WASHER FLAT 3/8 SAE PLT804-012C15.
WASHER LOCK SPRING 3/8 PLT804-013C16.
NUT HEX 3/8-16 PLT803-014C17.
WASHER FLAT 5/16 SAE PLT804-036C18.
1150 AIR DRILL SMV BRACKET166-403D19.
DECAL SLOW MOVING-GALV. BACKED818-055C20.
SCREW RD HD 1/4-20 X 5/8801-018C21.
SMV MOUNTING BLADE890-153C22.
NUT-HEX 1/4-20 PLT803-006C23.
WASHER LOCK SPRING 1/4 PLT804-006C24.
HHCS 5/16-18X3/4 GR5802-007C25.
U-BOLT 3/8-16 X 3 1/32 X 4806-021C26.
NUT LOCK 5/16-18 PLT803-011C27.
WASHER FLAT 5/16 NEOPRENE PLT804-135C28.
WALKBOARDSTRUTWELDMENT - RH166-091H29.
WALKBOARDSTRUTWELDMENT - LH166-092H30.
HHCS 1/2-13X1 1/4 GR5802-034C31.

Frame and Bin

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 21 - 167-058P

Table of Contents Part Number Index

Walkboard And Rail

(Applies to ADC1150 (1995-1997) only)

14141

167-058P - 22 - 04/09/07

Table of Contents Part Number Index

Walkboard And Rail

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14141
HHCS 5/16-18X1 GR5802-159C1.
UPPER HANDRAIL WELDMNT - REAR166-087H2.
TOP STEP WELDMENT - RH166-090H3.
WASHER LOCK SPRING 5/16 PLT804-009C4.
NUT HEX 5/16-18 PLT803-008C5.
HHCS 5/16-18X1 3/4 GR5802-013C6.
WALKBOARD3 PT 15'119-155D7.
3-PT STEP RETAINER119-032D8.
HHCS 3/8-16X1 GR5802-017C9.
NUT HEX 3/8-16 PLT803-014C10.
WASHER LOCK SPRING 3/8 PLT804-013C11.
TOP STEP WELDMENT - LH166-089H12.

Frame and Bin

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 23 - 167-058P

Table of Contents Part Number Index

Meterbox

(Applies to ADC1150 (1995-1997) only)

14080

167-058P - 24 - 04/09/07

Table of Contents Part Number Index

Meterbox

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14080
DESTACO HOLD DOWN ACTION CLAMP800-179C1.
HHCS 1/4-20X5/8 GR5802-078C2.
WASHER FLAT 1/4 SAE PLT804-007C3.
CALIBRATION LID WELDMENT168-190H4.
METERING BOX ACCESS SEAL816-201C5.
NUT-HEX 1/4-20 PLT803-006C6.
METERING BOX WELDMENT168-186H7.
METERING BOX TOP PANEL WELDMNT168-185H8.
HWHSTS #10-24 X 1 TYPE F801-104C9.
BEARING FLANGE-3/16 DIA HOLES107-112D10.
SEAL 1.33IDX2.23ODX.31T816-199C11.
BEARING .755 HEX BORE W/S-S188-009V12.
AGITATOR SHAFT WELDMENT168-189H13.
METERING BOX STAR SHAFT ASSY168-188S14.
METER SHAFT168-269D15.
METERING BOX END SPACER817-207C16.
METERING BOX MIDDLE SPACER817-206C17.
AGITATOR 8 POINT HALF817-018C18.
METERING BOX SEAL FLANGE168-251D19.
HHCS 1/4-20X1 1/2 GR5802-167C20.
WASHER LOCK SPRING 1/4 PLT804-006C21.

Metering System

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 25 - 167-058P

Table of Contents Part Number Index

Fan And Transition

(Applies to ADC1150 (1995-1997) only)

14206

167-058P - 26 - 04/09/07

Table of Contents Part Number Index

Fan And Transition

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14206
6 HYDRAULIC FAN KIT W/ SCREEN890-395C1.
FANOUTLET TRANSITION168-205H2.
2 1/2 AIR HOSE BAND CLAMP800-180C3.
HOSE FAN TRANS TO METER BOX168-306D4.
HYD MOTOR 1/8 KEY168-094D5.
HYD MOTOR 7/8ORBF810-273C6.
WASHER FLAT 3/8 SAE PLT804-012C7.
WASHER LOCK SPRING 3/8 PLT804-013C8.
HHCS 3/8-16X1 1/4 GR5802-079C9.
SCREEN - FAN GUARD890-397C10.
BUSHING - FAN890-396C11.
RPBY 196-146D196-112D12.
NUT HEX 3/8-16 PLT803-014C13.
WASHER LOCK SPRING 5/16 PLT804-009C14.
HHCS 5/16-18X1 1/4 GR5802-010C15.
SCREW HEX SLT10-16X1/2P.THD CT801-002C16.

Fan and Air System

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 27 - 167-058P

Table of Contents Part Number Index

Pressure Gauge

(Applies to ADC1150 (1995-1997) only)

14816

167-058P - 28 - 04/09/07

Table of Contents Part Number Index

Pressure Gauge

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14816
MAGNEHELIC PRES GAGE-0-25INH2O890-470C1.
AD 1/8MNPT X 1/4HB BRASS830-276C2.
BREATHER FILTER VENT 1/8 NPT890-472C3.
CLAMP WRM DRV #4 SS (.25-.63)800-258C4.
RPBY 800-258C800-034C4.
AIR GAUGE HOSE 38168-141D5.

Fan and Air System

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 29 - 167-058P

Table of Contents Part Number Index

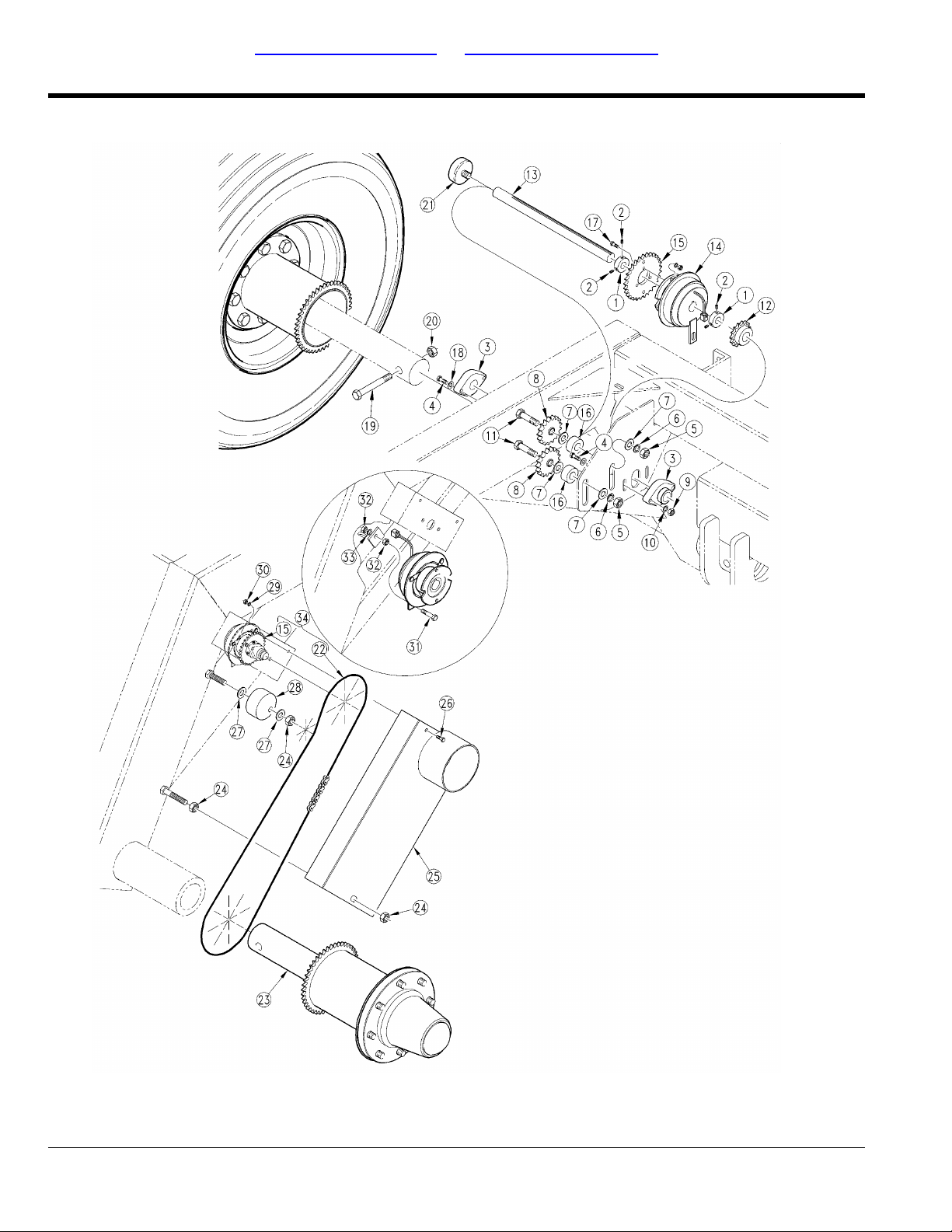

Drive Train

(Applies to ADC1150 (1995-1997) only)

14229

167-058P - 30 - 04/09/07

Table of Contents Part Number Index

Drive Train

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14229
1 BORE KEYED SET COLLAR181-151D1.
SCREW SET 5/16-18 SKT KP X 3/8801-035C2.
BRG FLG 1.00ID 2BOLT822-073C3.
HHCS 5/16-18X1 1/4 GR5802-010C4.
NUT HEX 5/8-11 PLT803-021C5.
WASHER LOCK SPRING 5/8 PLT804-022C6.
WASHER FLAT 5/8 SAE PLT804-021C7.
SPROCKET 40A17 IDLER808-046C8.
NUT HEX 5/16-18 PLT803-008C9.
WASHER LOCK SPRING 5/16 PLT804-009C10.
HHCS 5/8-11X3 GR5802-059C11.
SPKT 40B15 X 1 B W/KW & SS808-062C12.
AIR DRILL CLUTCH SHAFT168-308D13.
AIR DRILL ELECTRIC CLUTCH823-074C14.

SPEED CHANGE SPACER161-131D16.
HHCS 5/16-18X1 GR5802-159C17.
WASHER FLAT 5/16 SAE PLT804-036C18.
HHCS 3/4-10X5 GR5802-069C19.
NUT LOCK 3/4-10 PLT803-026C20.
ACRE METER AIR DRILL 1150890-442C21.

8-BT HUB/SPNDL PKG W/52TDVSPKT200-050K23.
NUT HEX 1/2-13 PLT803-020C24.
CHAIN MUD GUARD WITH COVER166-101H25.
HHCS 1/4-20X3/4 GR5802-004C26.
WASHER FLAT 1/2 SAE PLT804-016C27.
DRIVE CHAIN TENSIONER166-359D28.
WASHER LOCK SPRING 1/4 PLT804-006C29.
NUT-HEX 1/4-20 PLT803-006C30.
HHCS 3/8-16X2 GR5802-143C31.
NUT HEX 3/8-16 PLT803-014C32.
WASHER LOCK SPRING 3/8 PLT804-013C33.
45' CLUTCH SPROCKET & DR CHAIN168-209A34.

34' CLUTCH SPROCKET & DR CHAIN168-210A34.

Drives

RevisionCommentsPart DescriptionPart No.Ref.

45' Drills40A29 CLUTCH SPROCKET168-123D15.
34' Drills40A38 CLUTCH SPROCKET168-183D15.

45' DrillsCHAIN RL 2040A X 68 PITCH W/C809-179C22.
34' DrillsCHAIN RL 2040A 70 PITCH809-031C22.

Includes items 15 (168-123D),and22

(809-179C)

Includes items 15 (168-183D),and22

(809-031C)

04/09/07 - 31 - 167-058P

Table of Contents Part Number Index

Drive Train (Cont.)

(Applies to ADC1150 (1995-1997) only)

14204

167-058P - 32 - 04/09/07

Table of Contents Part Number Index

Drive Train (Cont.)

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14204
CHAIN RL #40 X 78 PITCH W/CON809-145C1.
SPKT 40B45 1 BORE W/KW & SS808-191C2.
KEY 1/4 X 1123-004D3.
AIR DRILL JACK SHAFT168-307D4.
NUT HEX 3/8-16 PLT803-014C5.
WASHER LOCK SPRING 3/8 PLT804-013C6.
SPKT 40B25 X 1 B W/KW & SS808-038C7.
NUT HEX 3/4-10 PLT803-027C8.
WASHER LOCK SPRING 3/4 PLT804-023C9.
NUT HEX 5/8-11 PLT803-021C10.
WASHER LOCK SPRING 5/8 PLT804-022C11.
SPROCKET 40A17 IDLER808-046C12.
HHCS 5/8-11X3 GR5802-059C13.
HHCS 3/8-16X1 GR5802-017C14.
SPKT 40B17 X 1 BORE W/KW & SS808-159C15.
97 1150 GEARBOX ASSEMBLY168-284K16.

GEARBOX ASSEMBLY168-213K16.

CHAIN RL 2040A X 84 PITCH W/C809-177C17.
PIN LINCH 5/16 X 2 11/32805-158C18.
30T QUICK CHANGE SPKT WELDMENT168-191H19.
CHAIN RL 2040A X 113 PITCH W/C809-178C20.

HHCS 3/4-10X4 1/2 GR5802-192C22.
RPBY 136-063D809-068C23.
WASHER FLAT 3/4 SAE PLT804-025C24.
SPEED CHANGE SPACER161-131D25.
WASHER FLAT 5/8 SAE PLT804-021C26.
GEAR 54 TOOTH QUICK CHANGE168-243D27.
GEAR 17 TOOTH QUICK CHANGE808-192C28.
BRG FLG 1.00ID 2BOLT822-073C29.
SPEEDCHANGE WELDMENT #40172-060E30.
BRG .75ID SPEED CHANGE822-043C31.

Drives

RevisionCommentsPart DescriptionPart No.Ref.

2nd rev.Refer to "Gearbox (168-284K)" for

breakdown.

1st rev.Refer to "Gearbox (168-213K)" for

breakdown.

Includes items 30 and 31SPEEDCHANGE HUB #40172-061S21.

04/09/07 - 33 - 167-058P

Table of Contents Part Number Index

Electrical Clutch Wiring Harness

(Applies to ADC1150 (1995-1997) only)

14824

167-058P - 34 - 04/09/07

Table of Contents Part Number Index

Electrical Clutch Wiring Harness

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14824
CABLE TIE 28 LONG800-035C1.
150 BU AD ELEC CLUTCH WIRE HAR823-132C2.
TWO WIRE LEAD 8' LONG823-134C3.

Drives

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 35 - 167-058P

Table of Contents Part Number Index

Gearbox (168-213K)

(Applies to ADC1150 (1995-1997) only)

14205

167-058P - 36 - 04/09/07

Table of Contents Part Number Index

Gearbox (168-213K)

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14205
REAR GEARBOX HOUSING168-156H1.
PLATE GEAR SHAFT168-212D2.
GEARBOX CLUTCH LEVER168-159H3.
O-RING 1 ID X 1 1/4 OD X 1/8816-166C4.
PIN ROLL 1/2 X 1 1/4 PLT805-123C5.
GEARBOX OUTPUT SHAFT168-214D6.
BRG FLG 1.00ID 4BOLT822-074C7.
HHCS 7/16-14X1 1/2 GR5802-029C8.
WASHER LOCK 7/16 PLT804-014C9.
NUT HEX 7/16-14 PLT803-015C10.
SEAL 5/16 X 3/4 DOR-TITE TRAY990-024R11.
SEAL 5/16 X 3/4 DOR-TITE TRAY990-024R12.
GEARBOX LID168-164H13.
HHCS 5/16-18X1 SS802-087C14.
WASHER LOCK SPRING 5/16 PLT804-009C15.
HHCS 3/8-16X1 1/4 GR5802-079C16.
WASHER LOCK SPRING 3/8 PLT804-013C17.
NUT HEX 3/8-16 PLT803-014C18.
SEAL OIL 1 1/2 X 2 1/8 X 5/16816-053C19.
CLUTCH SEAL HOUSING168-208D20.
BRG THST 1.00IDX2.00ODX.62822-069C21.
MULTI GEAR PLATE GEAR168-187D22.
SPRING GEARBOX CLUTCH807-041C23.
NUT HEX JAM 1-8 PLT803-030C24.
GEARBOX BEVEL GEAR KEY890-353C25.
24T BEVEL PINNION GEAR168-188D26.
BRG BALL 1.00IDX2.00ODX.62822-070C27.
GEARBOX BEARING MOUNT168-157H28.
HHCS 3/8-16X1 GR5802-017C29.
REAR GRBX OUTPUT GEAR INDICATR168-163H30.
GEAR INDICATOR SPACER168-209D31.
HHCS 1/4-20X3/4 GR5802-004C32.
WASHER LOCK SPRING 1/4 PLT804-006C33.
NUT-HEX 1/4-20 PLT803-006C34.
REAR GRBX INPUT GEAR INDICATOR168-162H35.
SHIFT LEVER168-210D36.
SCREW SET SH 3/8-16X3/8 TYPE C801-023C37.
SHIFT FORK168-158H38.
GEARBOX INPUT SHAFT168-213D39.
DRAIN PLUG 3/4-16 UNF PLATED800-066C40.
SNAP RING INT 2.000800-088C41.
CHAIN GUARD WELDMENT168-212H42.
NUT LOCK 5/16-18 PLT803-011C43.
HHCS 5/16-18X1 3/4 GR5802-013C44.
SPKT 40B45 W/CALIBRATION HUB168-222H45.

Drives

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 37 - 167-058P

Table of Contents Part Number Index

Gearbox (168-284K)

(Applies to ADC1150 (1995-1997) only)

16936

167-058P - 38 - 04/09/07

Table of Contents Part Number Index

Gearbox (168-284K)

(Applies to ADC1150 (1995-1997) only)

Image No.dwg16936
FRONT GEARBOX HOUSING - NEW168-269H1.
PLATE GEAR SHAFT168-212D2.
HHCS 5/16-18X1 3/4 GR5802-013C3.
GEARBOX CLUTCH LEVER168-159H4.
O-RING 1 ID X 1 1/4 OD X 1/8816-166C5.
PIN ROLL 1/2 X 1 1/4 PLT805-123C6.
GEARBOX OUTPUT SHAFT168-214D7.
BRG FLG 1.00ID 4BOLT822-074C8.
HHCS 7/16-14X1 1/2 GR5802-029C9.
WASHER LOCK 7/16 PLT804-014C10.
NUT HEX 7/16-14 PLT803-015C11.
SEAL 5/16 X 3/4 DOR-TITE TRAY990-024R12.
GEARBOX LID168-164H13.
HHCS 5/16-18X1 SS802-087C14.
WASHER LOCK SPRING 5/16 PLT804-009C15.
HHCS 3/8-16X1 1/4 GR5802-079C16.
WASHER LOCK SPRING 3/8 PLT804-013C17.
NUT HEX 3/8-16 PLT803-014C18.
6 POINT FERT METERING WHEEL817-053C19.
SEAL OIL 1 1/2 X 2 1/8 X 5/16816-053C20.
BRG THST 1.00IDX2.00ODX.62822-069C21.
MULTI GEAR PLATE GEAR168-187D22.
SPRING GEARBOX CLUTCH807-041C23.
NUT HEX JAM 1-8 PLT803-030C24.
GEARBOX BEVEL GEAR KEY890-353C25.
24T BEVEL PINNION GEAR168-188D26.
BRG BALL 1.00IDX2.00ODX.62822-070C27.
GEARBOX BEARING MOUNT168-157H28.
RING 1'" SNAP800-021C29.
SHIFT INDICATOR VERT PLTFRT168-378D30.
SPRING COMP .796ODX.065WX1.22807-175C31.
HHCS 1/4-20X3/4 GR5802-004C32.
WASHER LOCK SPRING 1/4 PLT804-006C33.
NUT-HEX 1/4-20 PLT803-006C34.
SHIFTER/INDICATOR - 1150 NEW168-296H35.
PIN ROLL 3/16 X 1 PLT805-022C36.
SHIFT FORK - NEW168-270H37.
GEARBOX INPUT SHAFT168-213D38.
DRAIN PLUG 3/4-16 UNF PLATED800-066C39.
SNAP RING INT 2.000800-088C40.
GEARBOX SHIFT INDICATOR817-342C41.
SCREW RD HD SLT 10-24X1/2 PLT801-003C42.
WASHER LOCK #10804-054C43.
NUT HEX 10-24 PLT803-001C44.
SPKT 40B45 W/CALIBRATION HUB168-222H45.
NUT LOCK 5/16-18 PLT803-011C46.

Drives

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 39 - 167-058P

Table of Contents Part Number Index

Hydraulic System

(Applies to ADC1150 (1995-1997) only)

14776

167-058P - 40 - 04/09/07

Table of Contents Part Number Index

Hydraulic System

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14776
HH1/2R2 150 3/4FJIC 1/2MNPT811-515C1.
HH1/2R1 028 3/4FJIC 3/4MORB811-195C2.
VALVE LINE CHECK810-037C3.
TE 3/4MORB 3/4MJIC 3/4MJIC811-077C4.
AD 7/8MORB 3/4FJIC811-502C5.
HH1/2R2 142 3/4FJIC 1/2MNPT811-516C6.
CR 3/4MJIC811-147C7.
EL 3/4FJIC 1/8NPTF811-503C8.
EL 3/4FJIC 3/4MJIC811-150C9.
HH3/8R2 159 1/2MNPT 3/4FJIC811-548C10.
AD 3/4MORB 3/4MJIC811-088C11.
EL 3/4MJIC 3/4MORB811-063C12.
HH3/8R2 075 3/4FJIC 3/4MORB811-551C13.
HH3/8R2 121 1/2 3/4FJIC811-546C14.
HH3/8R2 101 1/2 3/4FJIC811-547C15.
AD 3/4MORB811-086C16.
CP 3/4 FORB 3/4 FORB811-488C17.
HH3/8R2 147 3/4FJIC811-549C18.
HH3/8R2 144 3/4FJIC811-550C19.
AD 3/4MORB 3/4FJIC811-324C20.
AD 3/4MJIC 7/8MORB811-192C21.
HH3/8R2 225 1/2MNPT 3/4MORB811-545C22.
RPBY 168-324A823-083C23.

Hydraulic System

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 41 - 167-058P

Table of Contents Part Number Index

Implement To Cart Hydraulic Hook-Up

(Applies to ADC1150 (1995-1997) only)

14769

167-058P - 42 - 04/09/07

Table of Contents Part Number Index

Implement To Cart Hydraulic Hook-Up

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14769
CP 3/4FORB QD BH811-204C1.
SNAP RING EXT 1 1/2 SHAFT800-044C2.

Hydraulic System

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 43 - 167-058P

Table of Contents Part Number Index

Decal Placement

(Applies to ADC1150 (1995-1997) only)

14316

167-058P - 44 - 04/09/07

Table of Contents Part Number Index

Decal Placement

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14316
DECAL NOTICE TO OWNER-NO WARRA818-560C1.
DECAL DANGER CANNOT READ ENG818-557C2.
DECAL CAUTION AD TOW VEHICLE818-629C3.
DECAL WARNING HIGH PRESSUR SML818-339C4.
DECAL NOTICE TRACTOR HYD AD95818-625C5.
DECAL WARNING AD FAN HAZARD818-632C6.
DECAL DANGER ELECTROCUTION AUG818-627C7.
DECAL 1150 AIR DRILL SEED RATE818-621C8.
RPBY 838-160C818-597C9.
DECAL 1150818-596C10.
DECAL GREAT PLAINS818-594C11.
DECAL AMBER REFLECTOR818-229C12.
DECAL RED REFLECTOR818-230C13.
DECAL WARNING AD BIN HAZARDS818-628C14.
DECAL CAUTION AIR LEAKS818-189C15.
DECAL GP LOGO - LARGE818-598C16.
DECAL SLOW MOVING-GALV. BACKED818-055C17.
DECAL METER BOX LID NOTICE818-620C18.
DECAL AIR DRILL818-595C19.
DECAL WARNING OVERHEAD AUGER818-622C20.
DECAL DANGER AD ROTATING AUGER818-634C21.
DECAL DANGER GUARD MISSING AUG818-633C22.
DECAL WARNING PINCH POINT AUG818-623C23.
DECAL CAUTION AD AUGER GENERAL818-635C24.
DECAL GREAT PLAINS ON LOGO818-413C25.
DECAL CAUTION AD GENERAL INST818-630C26.

1150 A-D SAFETY DECAL PKG160-180A

Decals

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 1 thru 26.1150 AIR DRILL DECAL PKG160-179A
Includes items 2,3,4,6, 7, 12, 13, 14,

17, 20 thru 24 & 26.

04/09/07 - 45 - 167-058P

Table of Contents Part Number Index

Auger

(Applies to ADC1150 (1995-1997) only)

14295

167-058P - 46 - 04/09/07

Table of Contents Part Number Index

Auger

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14295
AUGER PIVOT PIN166-307D1.
HHCS 1/4-20X2 1/2 GR5802-097C2.
GREASE ZERK STRAIGHT 1/4-28800-001C3.
AUGER PIVOT ARM WELDMENT166-098H4.
AUGER PIVOT ARM LOCK WELDMENT166-095H5.
PIN HAIR COTTER .148 WIRE805-032C6.
NUT HEX 3/8-16 PLT803-014C7.
WASHER LOCK SPRING 3/8 PLT804-013C8.
PIN BENT SHANK LOCK 5/8 OD805-197C9.
AUGER PIVOT HINGE PIN166-308D10.
PIN ROLL 3/16 X 2 PLT805-025C11.
AUGER PIVOT HINGE WELDMENT166-097H12.
SPRING RESET HOE807-016C13.
6 AUGER WELDMENT166-099H14.
DOUBLE SELECTOR VALVE 3/4FORB810-274C15.

AUGER VALVE LINK COUPLER166-293D16.
AUGER LINKAGE WELDMENT166-081H17.
NUT LOCK 1/2-13 PLT803-019C18.
HHCS 1/2-13X6 GR5802-047C19.
HHCS 5/16-18X1 1/4 GR5802-010C20.
AUGER RETAINING PLATE166-303D21.
8 A.D. AUGER HOPPER W/HOLES166-405D22.
NUT HEX 5/16-18 PLT803-008C23.
WASHER LOCK SPRING 5/16 PLT804-009C24.
HHCS 5/16-18X1 GR5802-159C25.
U-BOLT 3/8-16 X 3 1/32 X 4806-021C26.
HHCS 5/16-18X2 1/2 GR5802-172C27.
HHCS 3/8-16X1 1/4 GR5802-079C28.
AUGER LATCH WELDMENT166-100H29.
WASHER FLAT 3/8 SAE PLT804-012C30.
NUT LOCK 3/8-16 PLT803-013C31.
SPRING EXT .063 X 2 1/2807-040C32.
HHCS 3/8-16X2 3/4 GR5802-216C33.
VALVE 4 WAY 3 POS OP CEN DIR810-268C34.

NUT-LOCK 1/4-20 PLT803-007C35.
WASHER FLAT 5/16 SAE PLT804-036C36.
AUGER HOSE SUPPORT CLAMP166-300D37.
NUT LOCK 5/16-18 PLT803-011C38.
PIN ROLL 5/16 X 1 1/4 PLT805-189C39.
BLACK VINYL GRIP817-255C40.
MARKER LOCK PIN113-164D41.
MARKER LOCK SPRING807-031C42.
RING, SPLIT 1-1/4 I.D.800-051C43.

Optional Equipment

RevisionCommentsPart DescriptionPart No.Ref.

Refer to "Double Selector Valve 3/4

FORB (810-274C)" for breakdown.

Referto"Valve4-Way3Position Open

Center Directional (810-268C)" for
breakdown.

04/09/07 - 47 - 167-058P

Table of Contents Part Number Index

Auger Hydraulic Drive

(Applies to ADC1150 (1995-1997) only)

14929

167-058P - 48 - 04/09/07

Table of Contents Part Number Index

Auger Hydraulic Drive

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14929
HEAD PLATE FOR 6 IN HYD AUGER10084931.
RPBY 6392D10084952.
RPBY 822-175C540083.
RPBY 822-060C6382C4.
FLEX COUPLER HALF 13198A15.
FLEX COUPLER CHAIN3146A916.
FLEX COUPLER HALF 1 1/4414787.
PIN ROLL 3/8 X 26318C8.
HYD MOTER MOUNT WLDMT10041759.
HYD MOTOR 7/8 ORBF810-267C10.
J-B0LT 5/1683512811.
NUT HEX NYLOCK 1/2-13803-147C12.
WASHER LOCK SPRING 1/4 PLT804-006C13.
NUT HEX NYLOCK 5/16-18 PLT803-084C14.
RHSNB 5/16-18X3/4 GR5802-092C15.
NUT-HEX 1/4-20 PLT803-006C16.
HHCS 1/2-13X1 GR5802-258C17.
HHCS 1/4-20X3/4 GR5802-004C18.
WASHER LOCK SPRING 3/8 PLT804-013C19.
WASHER FLAT 1/4 SAE PLT804-007C20.
NUT LOCK 3/8-16 NYLON INSERT803-078C21.
HHCS 3/8-16X1 3/4 GR5802-023C22.
KEY 1/4 X 1/4 X 1 1/4 LG168-276D23.
6 IN - 90 DISCHARGE SPOUT6514A124.
NUT HEX 5/16-18 PLT803-008C25.
WASHER LOCK SPRING 5/16 PLT804-009C26.
HHCS 5/16-18X2 FTHD802-473C27.
DISCHARGE BANK BACK - 6 IN50279A128.
HHCS 3/8-16X3/4 GR5802-014C29.

Optional Equipment

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 49 - 167-058P

Table of Contents Part Number Index

Double Selector Valve 3/4 FORB (810-274C)

(Applies to ADC1150 (1995-1997) only)

14927

167-058P - 50 - 04/09/07

Table of Contents Part Number Index

Double Selector Valve 3/4 FORB (810-274C)

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14927
DOUBLE SELECTOR VALVE 3/4FORB810-274C1.
RPBY SEAL KIT10792.
RPBY SEAL KIT 810-458C1089-2103.
SHOEMAKER O-RING BUNA N 70DURO1088-2104.
SH GROOVE PIN12855.
BLACK VINYL GRIP817-255C6.
SH PIN, SPRING 0.25 DIAMETER10847.

Optional Equipment

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 51 - 167-058P

Table of Contents Part Number Index

Valve 4-Way 3 Position Open Center Directional (810-268C)

(Applies to ADC1150 (1995-1997) only)

14928

167-058P - 52 - 04/09/07

Table of Contents Part Number Index

Valve 4-Way 3 Position Open Center Directional (810-268C)

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14928
VALVE 4 WAY 3 POS OP CEN DIR810-268C1.
RPBY SEAL KIT10792.
RPBY SEAL KIT 810-458C1089-2103.
SHOEMAKER O-RING BUNA N 70DURO1088-2104.
SH GROOVE PIN12855.
BLACK VINYL GRIP817-255C6.
SHOEMAKER STOP PIN12847.
SHOEMAKER PLUG, HEX SOCKET1132-48.

Optional Equipment

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 53 - 167-058P

Table of Contents Part Number Index

Vansco Electric Monitor (823-136C)

(Applies to ADC1150 (1995-1997) only)

14711

167-058P - 54 - 04/09/07

Table of Contents Part Number Index

Vansco Electric Monitor (823-136C)

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14711
BASIC MONITORVA-2410021.
1150 AIR DRILL HARNESSVA-2417072.
REED SWITCH PICK-UPVA-0800023.
4 MAGNET ACTUATORVA-111002-44.
2 MAGNET ACTUATOR 3/4 HEXVA-111004-25.
BIN LEVEL SENSORVA-0770026.
RPBY 168-044AVA-0920007.

Optional Equipment

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 55 - 167-058P

Table of Contents Part Number Index

Fan Sensor

(Applies to ADC1150 (1995-1997) only)

14720

167-058P - 56 - 04/09/07

Table of Contents Part Number Index

Fan Sensor

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14720
AIR DRILL FAN SENSOR BRACKET168-180H1.
RPBY 168-044AVA-0920002.
SCREW RD HD 8-32 X 1 1/2LG PLT801-067C3.
WASHER FLAT #8 PLT804-088C4.
NUT HEX 8-32803-064C5.
WASHER LOCK #8804-043C6.

Optional Equipment

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 57 - 167-058P

Table of Contents Part Number Index

Meter Shaft Sensor

(Applies to ADC1150 (1995-1997) only)

14944

167-058P - 58 - 04/09/07

Table of Contents Part Number Index

Meter Shaft Sensor

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14944
REED SWITCH PICK-UPVA-0800021.
MONITOR SWITCH MOUNT BKT168-323D2.
2 MAGNET ACTUATOR 3/4 HEXVA-111004-23.
SCREW RD HD 8-32 X 1 1/2LG PLT801-067C4.
WASHER FLAT #8 PLT804-088C5.
WASHER LOCK #8804-043C6.
NUT HEX 8-32803-064C7.
HHCS 3/8-16X3/4 GR5802-014C8.
WASHER LOCK SPRING 3/8 PLT804-013C9.
NUT HEX 3/8-16 PLT803-014C10.

Optional Equipment

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 59 - 167-058P

Table of Contents Part Number Index

Jackshaft Sensor

(Applies to ADC1150 (1995-1997) only)

14952

167-058P - 60 - 04/09/07

Table of Contents Part Number Index

Jackshaft Sensor

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14952
METER SHAFT SENSOR MNT BRACKET168-240D1.
4 MAGNET ACTUATORVA-111002-42.
NUT HEX 8-32803-064C3.
WASHER LOCK #8804-043C4.
RPBY 168-044AVA-0920005.
WASHER FLAT #8 PLT804-088C6.
SCREW RD HD 8-32 X 1 1/2LG PLT801-067C7.

Optional Equipment

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 61 - 167-058P

Table of Contents Part Number Index

Bin Level Monitor

(Applies to ADC1150 (1995-1997) only)

14710

167-058P - 62 - 04/09/07

Table of Contents Part Number Index

Bin Level Monitor

(Applies to ADC1150 (1995-1997) only)

Image No.dwg14710
BIN LEVEL SENSORVA-0770021.
NUT HEX 8-32803-064C2.
WASHER LOCK #8804-043C3.
WASHER FLAT #8 PLT804-088C4.

Optional Equipment

RevisionCommentsPart DescriptionPart No.Ref.

04/09/07 - 63 - 167-058P

Table of Contents Part Number Index

Part Number Index

The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.

PagePart Number

PagePart Number

PagePart Number

PagePart Number

13001015 ......................

13006125 ......................

13009052 ......................

13009062 ......................

13015796 ......................

13016048 ......................

13016053 ......................

13017012 ......................

13017802 ......................

13017806 ......................

13020022 ......................

13020023 ......................

1110-50057 ...................

1110-50058 ...................

1110-70020 ...................

1110-80012 ...................

1110-80028 ...................

1110-80054 ...................

1110-80147 ...................

491004175 ....................

491008493 ....................

491008495 ....................

25107-112D ...................

51, 531079 ..........................

511084 ..........................

51, 531088-210 ...................

51, 531089-210 ...................

47113-164D ...................

531132-4 .......................

9116-037H ...................

9116-038H ...................

9116-042H ...................

9116-055D ...................

9116-061H ...................

9116-062D ...................

9116-064D ...................

9116-065D ...................

9116-066D ...................

9116-068D ...................

9116-069D ...................

23119-032D ...................

23119-155D ...................

33123-004D ...................

531284 ..........................

51, 531285 ..........................

45160-179A ...................

45160-180A ...................

31, 33161-131D ...................

47166-081H ...................

21166-084H ...................

21166-085H ...................

21166-086H ...................

23166-087H ...................

21166-088H ...................

23166-089H ...................

23166-090H ...................

21166-091H ...................

21166-092H ...................

17166-093H ...................

47166-095H ...................

47166-097H ...................

47166-098H ...................

47166-099H ...................

47166-100H ...................

31166-101H ...................

47166-293D ...................

47166-300D ...................

47166-303D ...................

47166-307D ...................

47166-308D ...................

21166-317D ...................

21166-318D ...................

31166-359D ...................

21166-403D ...................

47166-405D ...................

19167-035H ...................

17167-046H ...................

19167-048H ...................

19167-049H ...................

19167-050H ...................

19167-051H ...................

19167-054H ...................

19167-112D ...................

19167-159D ...................

15168-035K ...................

27168-094D ...................

31168-123D ...................

29168-141D ...................

37168-156H ...................

37, 39168-157H ...................

37168-158H ...................

37, 39168-159H ...................

37168-162H ...................

37168-163H ...................

37, 39168-164H ...................

57168-180H ...................

31168-183D ...................

25168-185H ...................

25168-186H ...................

37, 39168-187D ...................

17168-187K ...................

37, 39168-188D ...................

25168-188S ...................

25168-189H ...................

25168-190H ...................

33168-191H ...................

27168-205H ...................

37168-208D ...................

31168-209A ...................

37168-209D ...................

31168-210A ...................

37168-210D ...................

37, 39168-212D ...................

37168-212H ...................

37, 39168-213D ...................

33168-213K ...................

37, 39168-214D ...................

37, 39168-222H ...................

15168-232H ...................

61168-240D ...................

33168-243D ...................

25168-251D ...................

25168-269D ...................

39168-269H ...................

39168-270H ...................

49168-276D ...................

33168-284K ...................

39168-296H ...................

27168-306D ...................

33168-307D ...................

31168-308D ...................

59168-323D ...................

39168-378D ...................

7170-033H ...................

7170-034H ...................

7170-038A ...................

7170-039A ...................

7170-040H ...................

7170-058H ...................

7170-059A ...................

33172-060E ...................

33172-061S ...................

31181-151D ...................

25188-009V ...................

7194-070D ...................

27196-112D ...................

1120-20028 ...................

15200-006D ...................

15200-008S ...................

15200-009K ...................

15200-049S ...................

15, 31200-050K ...................

15201-022D ...................

112H-200GP .................

112H-30080 ...................

112H-30081 ...................

112H-300GP .................

493146A91 ....................

493198A1 ......................

4941478 ........................

4950279A1 ....................

4954008 ........................

496318C ........................

496382C ........................

13640069X ....................

496514A1 ......................

13701029X ....................

13701140 ......................

13712205 ......................

47800-001C ...................

9800-015C ...................

39800-021C ...................

29800-034C ...................

35800-035C ...................

9800-042C ...................

43800-044C ...................

9, 11800-046C ...................

47800-051C ...................

37, 39800-066C ...................

37, 39800-088C ...................

25800-179C ...................

27800-180C ...................

29800-258C ...................

27801-002C ...................

19, 39801-003C ...................

21801-018C ...................

37801-023C ...................

31801-035C ...................

9, 11801-052C ...................

57, 59, 61801-067C ...................

25801-104C ...................

31, 37, 39, 49802-004C ...................

21802-007C ...................

27, 31, 47802-010C ...................

23, 37, 39802-013C ...................

49, 59802-014C ...................

21, 23, 33, 37802-017C ...................

49802-023C ...................

37, 39802-029C ...................

21802-034C ...................

21802-039C ...................

47802-047C ...................

31, 33802-059C ...................

31802-069C ...................

17, 25802-078C ...................

27, 37, 39, 47802-079C ...................

37, 39802-087C ...................

7, 17802-091C ...................

49802-092C ...................

47802-097C ...................

803-006C ...................

803-014C ...................

804-006C ...................

804-009C ...................

804-013C ...................

13802-114C ...................

31802-143C ...................

19, 21, 23, 31, 47802-159C ...................

7802-166C ...................

25802-167C ...................

7802-169C ...................

47802-172C ...................

15802-182C ...................

33802-192C ...................

47802-216C ...................

19802-226C ...................

49802-258C ...................

19802-289C ...................

7802-317C ...................

19802-390C ...................

49802-473C ...................

19, 39803-001C ...................

17, 21, 25, 31,
37, 39, 49

47803-007C ...................

21, 23, 31, 47, 49803-008C ...................

19, 21, 37, 39, 47803-011C ...................

13, 19, 47803-013C ...................

19, 21, 23, 27,
31, 33, 37, 39,
47, 59

37, 39803-015C ...................

47803-019C ...................

7, 17, 21, 31803-020C ...................

31, 33803-021C ...................

31803-026C ...................

33803-027C ...................

15803-029C ...................

37, 39803-030C ...................

7803-031C ...................

7803-034C ...................

57, 59, 61, 63803-064C ...................

49803-078C ...................

49803-084C ...................

15803-089C ...................

19, 49803-147C ...................

19804-004C ...................

17, 21, 25, 31,
37, 39, 49

25, 49804-007C ...................

21, 23, 27, 31,
37, 39, 47, 49

19, 21, 27, 47804-012C ...................

21, 23, 27, 31,
33, 37, 39, 47,
49, 59

37, 39804-014C ...................

7, 17, 21804-015C ...................

17, 31804-016C ...................

7804-017C ...................

31, 33804-021C ...................

31, 33804-022C ...................

33804-023C ...................

33804-025C ...................

7804-027C ...................

7804-030C ...................

19, 21, 31, 47804-036C ...................

57, 59, 61, 63804-043C ...................

39804-054C ...................

15804-055C ...................

57, 59, 61, 63804-088C ...................

19, 21804-135C ...................

19804-136C ...................

15805-016C ...................

39805-022C ...................

167-058P - 64 - 04/09/07

Table of Contents Part Number Index

Part Number Index (continued)

PagePart Number

47805-025C ...................

47805-032C ...................

37, 39805-123C ...................

33805-158C ...................

19805-169C ...................

47805-189C ...................

47805-197C ...................

21, 47806-021C ...................

21806-066C ...................

19806-077C ...................

47807-016C ...................

47807-031C ...................

47807-040C ...................

37, 39807-041C ...................

7807-073C ...................

39807-175C ...................

33808-038C ...................

31, 33808-046C ...................

31808-062C ...................

33808-159C ...................

33808-191C ...................

33808-192C ...................

31809-031C ...................

33809-068C ...................

33809-145C ...................

33809-177C ...................

33809-178C ...................

31809-179C ...................

41810-037C ...................

49810-267C ...................

47, 53810-268C ...................

27810-273C ...................

47, 51810-274C ...................

41811-063C ...................

41811-077C ...................

41811-086C ...................

41811-088C ...................

41811-147C ...................

41811-150C ...................

41811-192C ...................

41811-195C ...................

43811-204C ...................

41811-324C ...................

41811-488C ...................

41811-502C ...................

41811-503C ...................

41811-515C ...................

41811-516C ...................

41811-545C ...................

41811-546C ...................

41811-547C ...................

41811-548C ...................

41811-549C ...................

41811-550C ...................

41811-551C ...................

15814-019C ...................

15814-020C ...................

19816-013C ...................

15816-019C ...................

15816-035C ...................

37, 39816-053C ...................

37, 39816-166C ...................

25816-199C ...................

25816-201C ...................

19817-007C ...................

25817-018C ...................

39817-053C ...................

25817-206C ...................

25817-207C ...................

47, 51, 53817-255C ...................

39817-342C ...................

PagePart Number

21, 45818-055C ...................

45818-189C ...................

45818-229C ...................

45818-230C ...................

45818-339C ...................

45818-413C ...................

45818-557C ...................

45818-560C ...................

45818-594C ...................

45818-595C ...................

45818-596C ...................

45818-597C ...................

45818-598C ...................

45818-620C ...................

45818-621C ...................

45818-622C ...................

45818-623C ...................

45818-625C ...................

45818-627C ...................

45818-628C ...................

45818-629C ...................

45818-630C ...................

45818-632C ...................

45818-633C ...................

45818-634C ...................

45818-635C ...................

15822-036C ...................

15822-037C ...................

15822-038C ...................

15822-039C ...................

33822-043C ...................

9822-055C ...................

37, 39822-069C ...................

37, 39822-070C ...................

31, 33822-073C ...................

37, 39822-074C ...................

31823-074C ...................

41823-083C ...................

35823-132C ...................

35823-134C ...................

13825-002C ...................

29830-276C ...................

49835128 ......................

15890-032C ...................

21890-153C ...................

7890-184C ...................

37, 39890-353C ...................

27890-395C ...................

27890-396C ...................

27890-397C ...................

31890-442C ...................

29890-470C ...................

29890-472C ...................

13890-610C ...................

37, 39990-024R ...................

9dwg10510 ..................

15dwg11295 ..................

11dwg13324 ..................

25dwg14080 ..................

17dwg14083 ..................

19dwg14084 ..................

7dwg14085 ..................

21dwg14140 ..................

23dwg14141 ..................

33dwg14204 ..................

37dwg14205 ..................

27dwg14206 ..................

31dwg14229 ..................

47dwg14295 ..................

45dwg14316 ..................

63dwg14710 ..................

PagePart Number

55dwg14711 ..................

57dwg14720 ..................

43dwg14769 ..................

41dwg14776 ..................

29dwg14816 ..................

35dwg14824 ..................

51dwg14927 ..................

53dwg14928 ..................

49dwg14929 ..................

59dwg14944 ..................

61dwg14952 ..................

39dwg16936 ..................

13dwg20213 ..................

55, 63VA-077002 .................

55, 59VA-080002 .................

55, 57, 61VA-092000 .................

55, 61VA-111002-4 ..............

55, 59VA-111004-2 ..............

55VA-241002 .................

55VA-241707 .................

04/09/07 - 65 - 167-058P

Great Plains Mfg., Inc.

1525 E. North Street

Salina, Kansas 67401 USA

www.greatplainsmfg.com
