Great Plains 8560 FCF User Manual
Table of Contents Index
Assembly Manual
8539, 8544, 8548, 8551, 8556 & 8560
Field Cultivator, Constant Level
8323, 8328, 8332, 8336,
Manufacturing, Inc.
www.greatplainsmfg.com
Read the operator’s manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit.
41725
ORIGINAL INSTRUCTIONS
© Copyright 2014 Printed 2014-02-10 560-483Q-ENG
Table of Contents Index
EN
Table of Contents Index
Table of Contents Index
Great Plains Manufacturing, Inc. iii
Table of Contents
Important Safety Information ...................................... 1
Introduction ..................................................................4
Description of Unit ..........................................................4
Models Covered ............................................................. 4
Document Family ...........................................................4
Tools Required ...............................................................4
Pre-assembly Checklist..................................................4
Using This Manual..........................................................5
Definitions................................................................... 5
Shipping Inventory..........................................................6
Unloading ....................................................................... 7
Unpacking Components .............................................7
Unload Smaller Items First .........................................7
Unpacking Boxes .......................................................7
Assembly and Setup Assistance ................................7
Assembly ......................................................................8
Install Center Frame...................................................8
Torque Tube & Level Bar ...........................................9
Center Fold................................................................. 9
Connect Hitch...........................................................10
Install Wing Cylinder Mount...................................... 10
Install 8323 & 8328 Wings........................................ 11
Install 8332 & 8336 Wings........................................ 12
Install 5-Section Wing............................................... 13
Install 5-Section Wing Fold....................................... 13
Install 5-Section Outside Wings................................14
Center Transport ......................................................15
Wing Transport.........................................................15
Install Gauge Wheel .................................................16
Install K-Flex............................................................. 16
Install Magnum Shank..............................................17
Install Hydraulic Valves ............................................17
Install Rebound Valve and O-Ring Fittings...............18
Install Depth Control Valve.......................................18
Install 3-Section Double Tee Block...........................19
Install 5-Section Double Tee Block...........................19
Install Hose Handles.................................................19
Install JIC Fittings .....................................................20

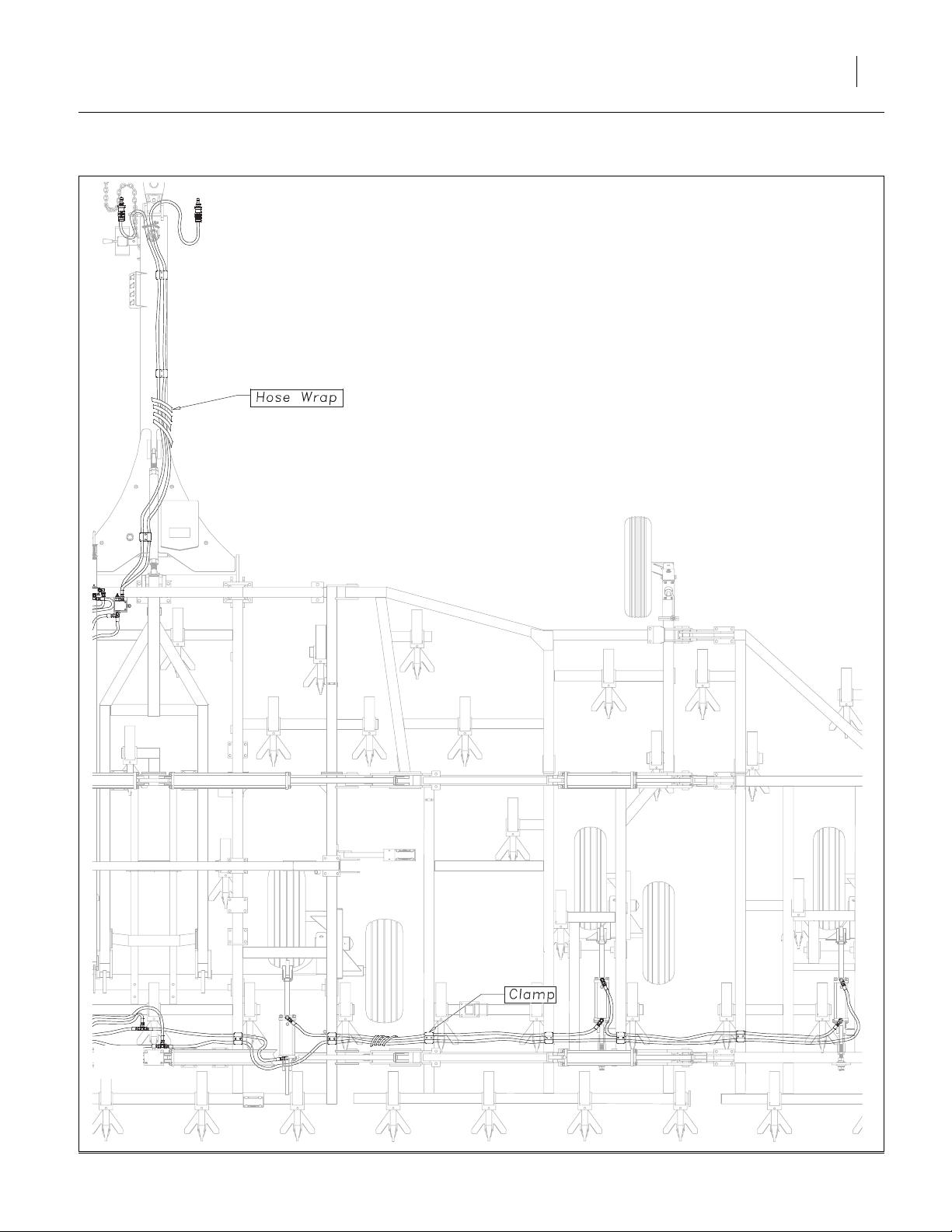

Attach Hose Clamps and Hose wraps...................... 21
Hydraulic Hose Hookup............................................ 21
Hose Handles...........................................................21
Purging Hydraulic System ........................................22
Light Assembly .........................................................23
Install Rear Hitch (optional) ......................................23
Completing Setup..................................................... 24
Appendix..................................................................... 25
Torque Values Chart.................................................... 25
Tire Inflation Chart ....................................................... 26
Tires Chart ................................................................... 26

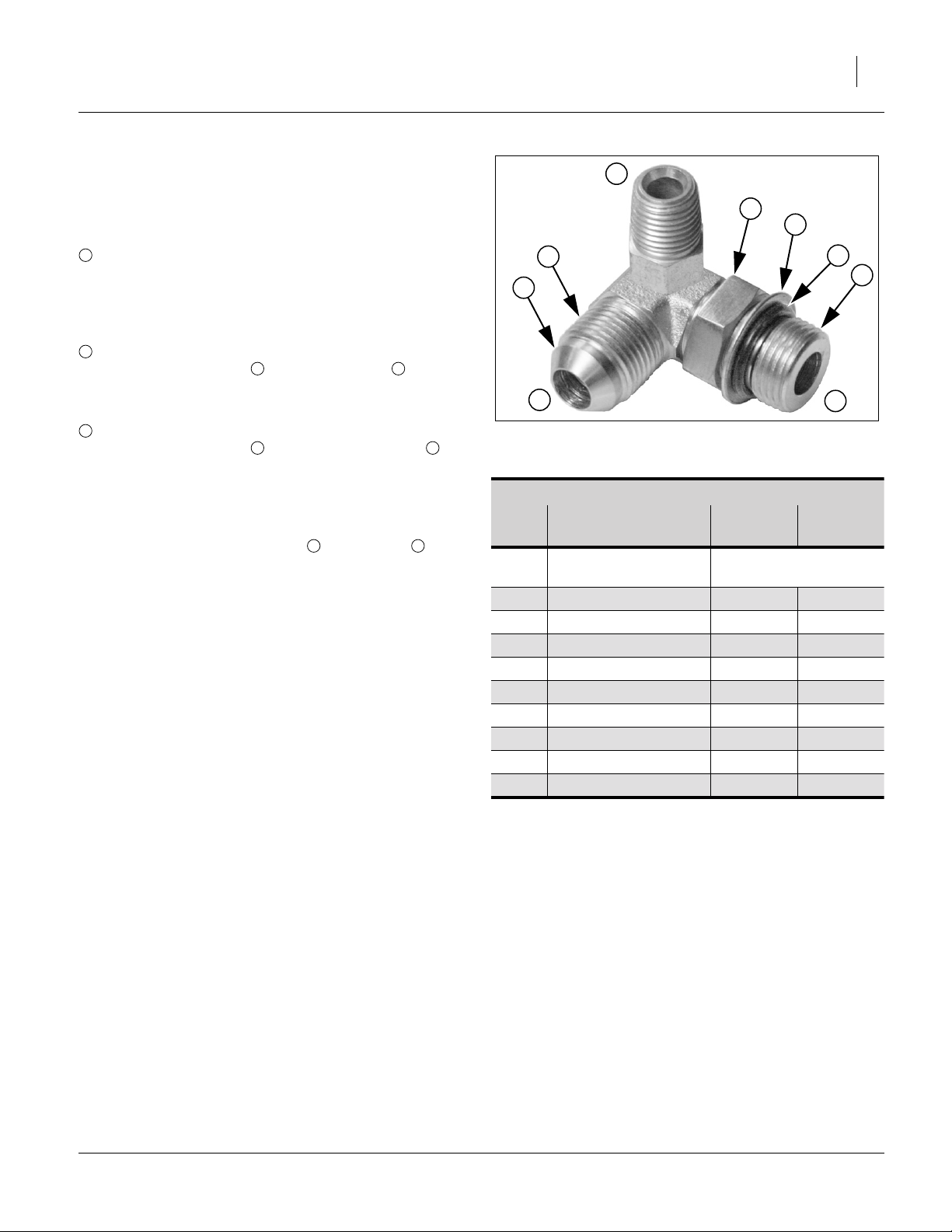

Hydraulic Connectors and Torque ............................... 27
3-Section Hydraulic Lift Layout .................................... 28
3-Section Hydraulic Fold Layout .................................. 29
5-Section Hydraulic Lift Layout .................................... 30
5-Section Hydraulic Lift Layout .................................... 31
5-Section Hydraulic Fold Layout .................................. 32
5-Section Hydraulic Fold Layout .................................. 33
8323FCC Machine Layout ........................................... 34
8328FCC Machine Layout ........................................... 35
8332FCC Machine Layout ........................................... 36
8336FCC Machine Layout ........................................... 37
8539FCC Machine Layout ........................................... 38
8539FCC Machine Layout ........................................... 39
8544FCC Machine Layout ........................................... 40
8544FCC Machine Layout ........................................... 41
8548FCC Machine Layout ........................................... 42
8548FCC Machine Layout ........................................... 43
8551FCC Machine Layout ........................................... 44
8551FCC Machine Layout ........................................... 45
8556FCC Machine Layout ........................................... 46
8556FCC Machine Layout ........................................... 47
8560FCC Machine Layout ........................................... 48
8560FCC Machine Layout ........................................... 49
8323FCC S4T Spike Drag HR Layout ......................... 50
8328FCC S4T Spike Drag HR Layout ......................... 51
8332FCC S4T Spike Drag HR Layout ......................... 52
8336FCC S4T Spike Drag HR Layout ......................... 53
8539FCC S4T Spike Drag HR Layout ......................... 54
8539FCC S4T Spike Drag HR Layout ......................... 55
8544FCC S4T Spike Drag HR Layout ......................... 56
8544FCC S4T Spike Drag HR Layout ......................... 57
8548FCC S4T Spike Drag HR Layout ......................... 58
8548FCC S4T Spike Drag HR Layout ......................... 59
8551FCC S4T Spike Drag HR Layout ......................... 60
8551FCC S4T Spike Drag HR Layout ......................... 61
8556FCC S4T Spike Drag HR Layout ......................... 62
8556FCC S4T Spike Drag HR Layout ......................... 63
8560FCC S4T Spike Drag HR Layout ......................... 64
8560FCC S4T Spike Drag HR Layout ......................... 65
© Copyright 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 All rights Reserved
Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been
taken in the preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for
damages resulting from the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as
it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
02/10/2014 560-483Q-ENG
Trademarks of Great Plains Manufacturing, Inc. include: Singulator Plus, Swath Command, Terra-Tine.
Registered Trademarks of Great Plains Manufacturing, Inc. include:
Air-Pro, Clear-Shot, Discovator, Great Plains, Land Pride, MeterCone, Nutri-Pro, Seed-Lok, Solid Stand,
Terra-Guard, Turbo-Chisel, Turbo-Chopper, Turbo Max, Turbo-Till, Ultra-Till, Verti-Till, Whirlfilter, Yield-Pro.
Brand and Product Names that appear and are owned by others are trademarks of their respective owners.
Printed in the United States of America
iv 8323-8560FCC Great Plains Manufacturing, Inc.
8323FCC S5T Spike Drag Layout ............................... 66
8328FCC S5T Spike Drag Layout ............................... 67
8332FCC S5T Spike Drag Layout ............................... 68
8336FCC S5T Spike Drag Layout ............................... 69
8539FCC S5T Spike Drag Layout ............................... 70
8539FCC S5T Spike Drag Layout ............................... 71
8544FCC S5T Spike Drag Layout ............................... 72
8544FCC S5T Spike Drag Layout ............................... 73
8548FCC S5T Spike Drag Layout ............................... 74
8548FCC S5T Spike Drag Layout ............................... 75
8551FCC S5T Spike Drag Layout ............................... 76
8551FCC S5T Spike Drag Layout ............................... 77
8556FCC S5T Spike Drag Layout ............................... 78
8556FCC S5T Spike Drag Layout ............................... 79
8560FCC S5T Spike Drag Layout ............................... 80
8560FCC S5T Spike Drag Layout ............................... 81
8323FCC S3T Spike Drag w/Reel Layout ................... 82
8328FCC S3T Spike Drag w/Reel Layout ................... 83
8332FCC S3T Spike Drag w/Reel Layout ................... 84
8336FCC S3T Spike Drag w/Reel Layout ................... 85
8539FCC S3T Spike Drag w/Reel Layout ................... 86
8539FCC S3T Spike Drag w/Reel Layout ................... 87
8544FCC S3T Spike Drag w/Reel Layout ................... 88
8544FCC S3T Spike Drag w/Reel Layout ................... 89
8548FCC S3T Spike Drag w/Reel Layout ................... 90
8548FCC S3T Spike Drag w/Reel Layout ................... 91
8551FCC S3T Spike Drag w/Reel Layout ................... 92
8551FCC S3T Spike Drag w/Reel Layout ................... 93
8556FCC S3T Spike Drag w/Reel Layout ................... 94
8556FCC S3T Spike Drag w/Reel Layout ................... 95
8560FCC S3T Spike Drag w/Reel Layout ................... 96
8560FCC S3T Spike Drag w/Reel Layout ................... 97
8323FCC CH4B Coil Tine Drag Layout ....................... 98
8328FCC CH4B Coil Tine Drag Layout........................99
8332FCC CH4B Coil Tine Drag Layout......................100
8336FCC CH4B Coil Tine Drag Layout......................101
8539FCC CH4B Coil Tine Drag Layout......................102
8539FCC CH4B Coil Tine Drag Layout......................103
8544FCC CH4B Coil Tine Drag Layout......................104
8544FCC CH4B Coil Tine Drag Layout......................105
8548FCC CH4B Coil Tine Drag Layout......................106
8548FCC CH4B Coil Tine Drag Layout......................107
8551FCC CH4B Coil Tine Drag Layout......................108
8551FCC CH4B Coil Tine Drag Layout......................109
8556FCC CH4B Coil Tine Drag Layout......................110
8556FCC CH4B Coil Tine Drag Layout......................111
8560FCC CH4B Coil Tine Drag Layout......................112
8560FCC CH4B Coil Tine Drag Layout......................113
8323FCC CH3A Coil Tine w/ Reel Drag Layout.........114
8328FCC CH3A Coil Tine w/ Reel Drag Layout.........115
8332FCC CH3A Coil Tine w/ Reel Drag Layout.........116
8336FCC CH3A Coil Tine w/ Reel Drag Layout.........117
8539FCC CH3A Coil Tine w/ Reel Drag Layout.........118
8539FCC CH3A Coil Tine w/ Reel Drag Layout.........119
8544FCC CH3A Coil Tine w/ Reel Drag Layout.........120
8544FCC CH3A Coil Tine w/ Reel Drag Layout.........121
8548FCC CH3A Coil Tine w/ Reel Drag Layout.........122
8548FCC CH3A Coil Tine w/ Reel Drag Layout.........123
8551FCC CH3A Coil Tine w/ Reel Drag Layout.........124
8551FCC CH3A Coil Tine w/ Reel Drag Layout.........125
8556FCC CH3A Coil Tine w/ Reel Drag Layout.........126
8556FCC CH3A Coil Tine w/ Reel Drag Layout.........127
8560FCC CH3A Coil Tine w/ Reel Drag Layout.........128
8560FCC CH3A Coil Tine w/ Reel Drag Layout.........129
Index ..........................................................................131
560-483Q-ENG 02/10/2014
Great Plains Manufacturing, Inc. 1
Important Safety Information
Look for Safety Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that follows it. In addition to design and configuration of equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence and
proper training of personnel involved in the operation,
transport, maintenance and storage of equipment.
Be Aware of Signal Words
Signal words designate a degree or level of hazard seriousness.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
This signal word is limited to the most extreme situations,
typically for machine components that, for functional purposes, cannot be guarded.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury, and includes hazards that are exposed when
guards are removed. It may also be used to alert against
unsafe practices.
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury. It may also be used to alert against unsafe practices.
Use Adequate Lifting Means
The frame sections and gangs of this machine are
extremely heavy. If using multiple lifters, make sure each
is rated for at least its share of the load.
> 14,000
POUNDS
Prepare for Emergencies
▲ Be prepared if a fire starts
▲ Keep a first aid kit and fire extinguisher handy.
▲ Keep emergency numbers for doctor, ambulance, hospital
and fire department near phone.
02/10/2014 560-483Q-ENG
2 8323-8560FCC Great Plains Manufacturing, Inc.
Be Familiar with Safety Decals
▲ Read and understand the “Safety Decals” section of the
Operators Manual.
▲ Read all instructions noted on the decals.
▲ Keep decals clean. Replace damaged, faded and illegible
decals.
Wear Protective Equipment
▲ Wear protective clothing and equipment.
▲ Wear clothing and equipment appropriate for the job. Avoid
loose-fitting clothing.
▲ Because prolonged exposure to loud noise can cause hear-
ing impairment or hearing loss, wear suitable hearing protection such as earmuffs or earplugs.
▲ Because operating equipment safely requires your full
attention, avoid wearing entertainment headphones while
operating machinery.
Avoid High Pressure Fluids
Escaping fluid under pressure can penetrate the skin,
causing serious injury.
▲ Avoid the hazard by relieving pressure before disconnecting
hydraulic lines.
▲ Use a piece of paper or cardboard, NOT BODY PARTS, to
check for suspected leaks.
▲ Wear protective gloves and safety glasses or goggles when
working with hydraulic systems.
▲ If an accident occurs, seek immediate medical assistance
from a physician familiar with this type of injury.
Use Safety Lights and Devices
Slow-moving tractors and towed implements can create
a hazard when driven on public roads. They are difficult
to see, especially at night.
▲ Use flashing warning lights and turn signals whenever driv-
ing on public roads.
Use lights and devices provided with implement
Keep Riders Off Machinery
Riders obstruct the operator’s view. Riders could be
struck by foreign objects or thrown from the machine.
▲ Never allow children to operate equipment.
▲ Keep all bystanders away from machine during operation.
560-483Q-ENG 02/10/2014
Great Plains Manufacturing, Inc. Important Safety Information 3
Shutdown and Storage
▲ Lower implement, put tractor in park, turn off engine, and
remove the key.
▲ Secure Field Cultivator using blocks and supports provided.
▲ Detach and store Field Cultivator in an area where children
normally do not play.
Tire Safety
Tire changing can be dangerous and should be performed by trained personnel using correct tools and
equipment.
▲ When inflating tires, use a clip-on chuck and extension hose
long enough for you to stand to one side–not in front of or
over tire assembly. Use a safety cage if available.
▲ When removing and installing wheels, use wheel-handling
equipment adequate for weight involved.
Safety At All Times
Thoroughly read and understand the instructions in this
manual before operation. Read all instructions noted on
the safety decals.
▲ Be familiar with all machine functions.
▲ Operate machinery from the driver’s seat only.
▲ Do not leave machine unattended with tractor engine run-
ning.
▲ Do not stand between the tractor and machine during
hitching.
▲ Keep hands, feet and clothing away from power-driven
parts.
▲ Wear snug-fitting clothing to avoid entanglement with mov-
ing parts.
▲ Watch out for wires, trees, etc., when folding and raising
machine. Make sure all persons are clear of working area.
02/10/2014 560-483Q-ENG
4 8323-8560FCC Great Plains Manufacturing, Inc.
Introduction
The Field Cultivator has been designed with care and
built by skilled workers using quality materials. Proper
setup, maintenance, and safe operating practices will help
the customer get years of satisfactory use from the
machine.
Description of Unit
The Field Cultivator, is a three or five-section seedbed
preparation tillage tool. Working width ranges from 23 to
60 feet. The implement is designed for secondary field
operations to smooth, level, eliminate weeds and incorporate chemicals. Various finishing attachments are available to further smooth, redistribute residue, firm soil and
break clods.
Models Covered
8323FCC 23-Foot 3-section
8328FCC 28-Foot 3-section
8332FCC 32-Foot 3-section
8336FCC 36-Foot 3-section
8539FCC 39-Foot 5-section
8544FCC 44-Foot 5-section
8548FCC 48-Foot 5-section
8551FCC 51-Foot 5-section
8556FCC 56-Foot 5-section
8560FCC 60-Foot 5-section
Figure 1
Field Cultivator
41882
Document Family
560-483Q-ENG Assembly Manual (this document)
560-483Q Pre-Delivery Manual
560-483M Operator Manual
560-483P Parts Manual
Tools Required
• Basic Hand Tools
• Torque Wrench
• Fork Truck, Overhead Hoist or Loader
Pre-assembly Checklist
1. Before assembling, read and understand “Important
Safety Information” in front part of this manual.
2. Have at least two people on hand while assembling.
3. Make sure area is level and free of obstructions
(preferably an open concrete area).
560-483Q-ENG 02/10/2014
4. Have all major componets
5. Have all fasteners and pins shipped with Field Cultivator.
Great Plains Manufacturing, Inc. Introduction 5
Using This Manual
This manual was written to help you assemble and prepare the new machine for the customer. The manual
includes instructions for assembly and setup. Read this
manual and follow the recommendations for safe, efficient and proper assembly and setup.
An operator’s and parts manual is also provided with the
new machine. Read and understand “Important Safety
Information” and “Operating Instructions” in the operator’s manual before assembling the machine. Refer to
the parts manual for proper part’s identification. As a reference, keep the operator’s and part’s manual on hand
while assembling.
The information in this manual is current at printing.
Some parts may change to assure top performance.
Definitions
The following terms are used throughout this manual.
R
A crucial point of information related to the preceding topic.
Read and follow the directions to remain safe, avoid serious
damage to equipment and ensure desired field results.
Note: Useful information related to the preceding topic.
Right-hand and left-hand as used in
this manual are determined by facing
the direction the machine will travel
while in use unless otherwise stated.
An orientation rose in some line art
illustrations shows the directions of: Up,
Back, Left, Down, Front, Right
R
F
U
B
L
D
L
Figure 2
Right / Left
41726
02/10/2014 560-483Q-ENG
6 8323-8560FCC Great Plains Manufacturing, Inc.
Shipping Inventory
The machine will be shipped unassembled as shown in
a big shipping rack and shipping boxes on pallets. The
only parts that will be assembled are the reel attachment assemblies. The reel attachments (if equipped)
will be banded together with the gang assemblies on
pallet.
Refer to Figure 3
• All frame sections, hitch and torque tubes will be
shipped in shipping container.
Refer to Figure 4
• Shank parts, small parts and bolts will be shipped in
boxes. Rear attachment big parts will be banded to
attachment smaller parts box.
Shipping containers do not need to be returned to Great
Plains.
Figure 3
Shipping Rack
Figure 4
Shipping Boxes
41899
41900
560-483Q-ENG 02/10/2014
Great Plains Manufacturing, Inc. Introduction 7
Unloading
Once everything is unloaded from “storage pod” you may
proceed with taking parts out of shipping containers.
Carefully move everything to level site and prepare to un
pack items.
Unpacking Components
Be sure you have read and understood the Important
Safety Information, starting on page 1 of this manual,
before you start unpacking componets.
Centering componets:
Be sure and center fork truck or chains (overhead hoist)
on componets so they won’t slide and cause injury.
Carefully un-band componets.
Now unload individual componets one at a time using a
fork truck or overhead hoist.
Move each component out of the way so you have plenty
of room to remove the next one.
Unload Smaller Items First
Unloading the frames is a potentially dangerous operation.
Reduce risk and complication by first unloading
1. the tire wheel assemblies,
2. the smaller items
Place these components well out of the manoeuvring
area needed for unloading the gang assemblies and
frames.
3. Carefully unload the Frames and hitch out of shipping rack
Unpacking Boxes
1. Carefully remove banding and lids from boxes.
2. Locate and identify all componets before assembling.
Assembly and Setup Assistance
To order additional copies of pre-delivery instructions or
operator’s and parts manuals, write to the following
address. Include model numbers in all correspondence.
If you do not understand any part of this manual or have
the assembly or setup questions, assistance is available.
Contact:
Product Support
Great Plains Mfg. Inc., Service Department
PO Box 5060
Salina, KS 67402-5060
(800)255-9215
02/10/2014 560-483Q-ENG
8 8323-8560FCC Great Plains Manufacturing, Inc.
Assembly
Install Center Frame
Refer to Figure 5
3. Once the center Frame has been uncrated and put
on stands, the brace bar and trusses maybe
installed.
4. Carefully move center brace bar to front of center
frame , with overhead hoist or fork lift, secure with
3/4 x 2 hex bolts , 3/4 lock washers and 3/4 nuts.
5. Attach center frame trusses with 3/4 x 2 hex bolts
plates with 5/8 x 1 1/2 hex bolts , 5/8 lock washers
and 5/8 nuts.
6. On models 8332-8560 attach the brace bar truss
(middle plates) with 5/8 x 1 1/2 hex bolts , 5/8 lock
washers and 5/8 nuts, outside plates with 3/4 x 2 hex
bolts , 3/4 lock washers and 3/4 nuts.
7. Attach light brackets, LH and RH with 1/2 x 3 1/
32 x 6 u-bolts (models 8323-8328) or 1/2 x 5 1/32 x 4
1/2 u-bolt (models 8332-8560), 1/2 lock washers
and 1/2 nuts.

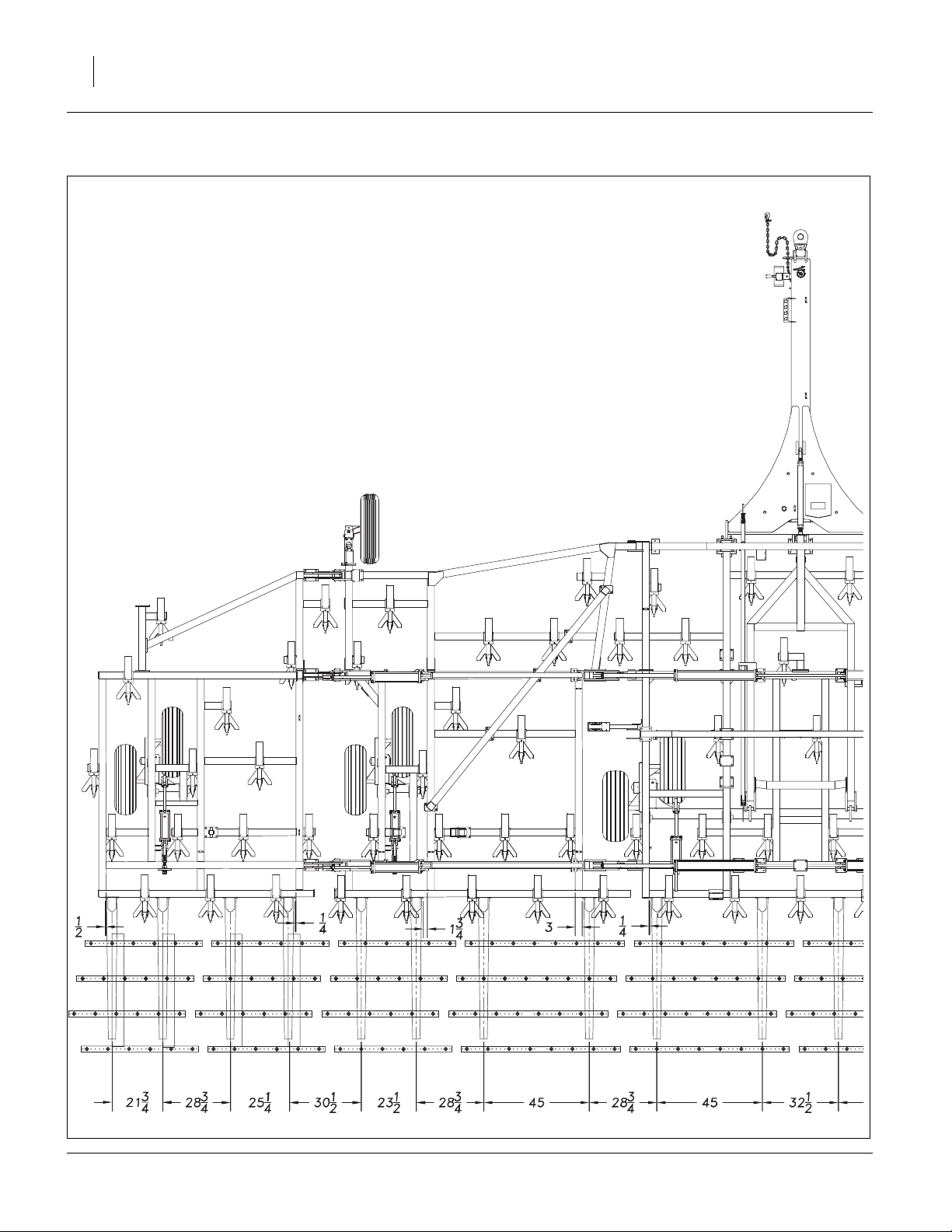

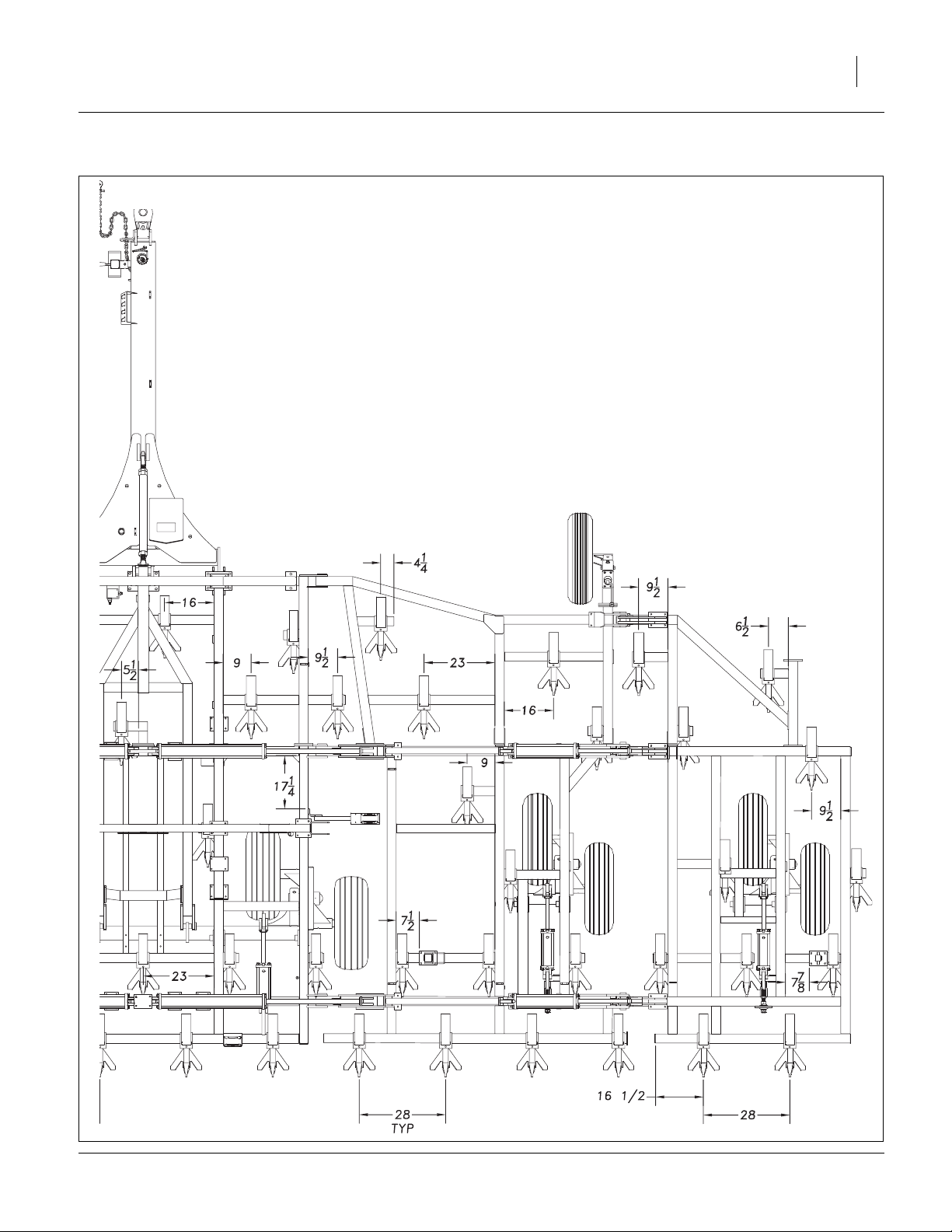

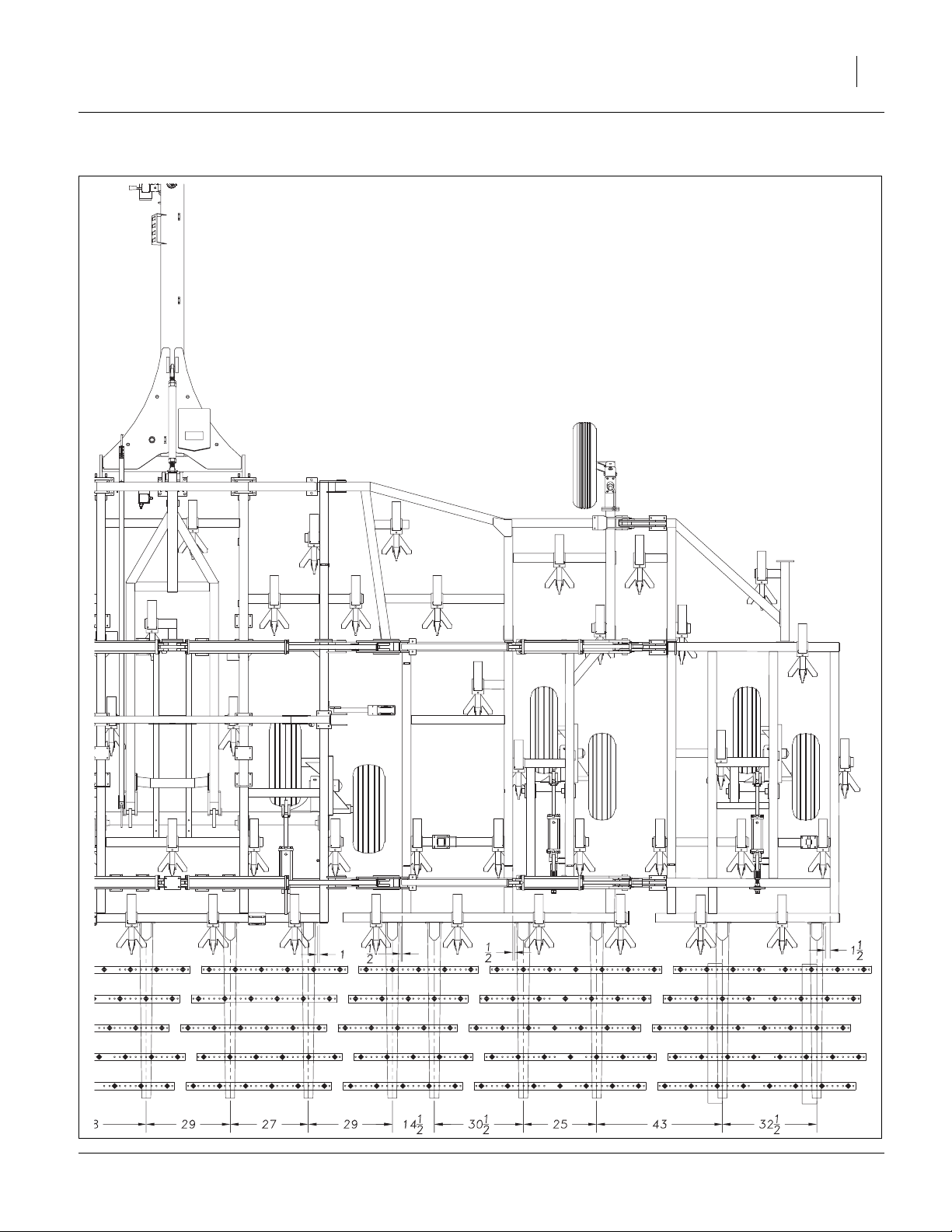

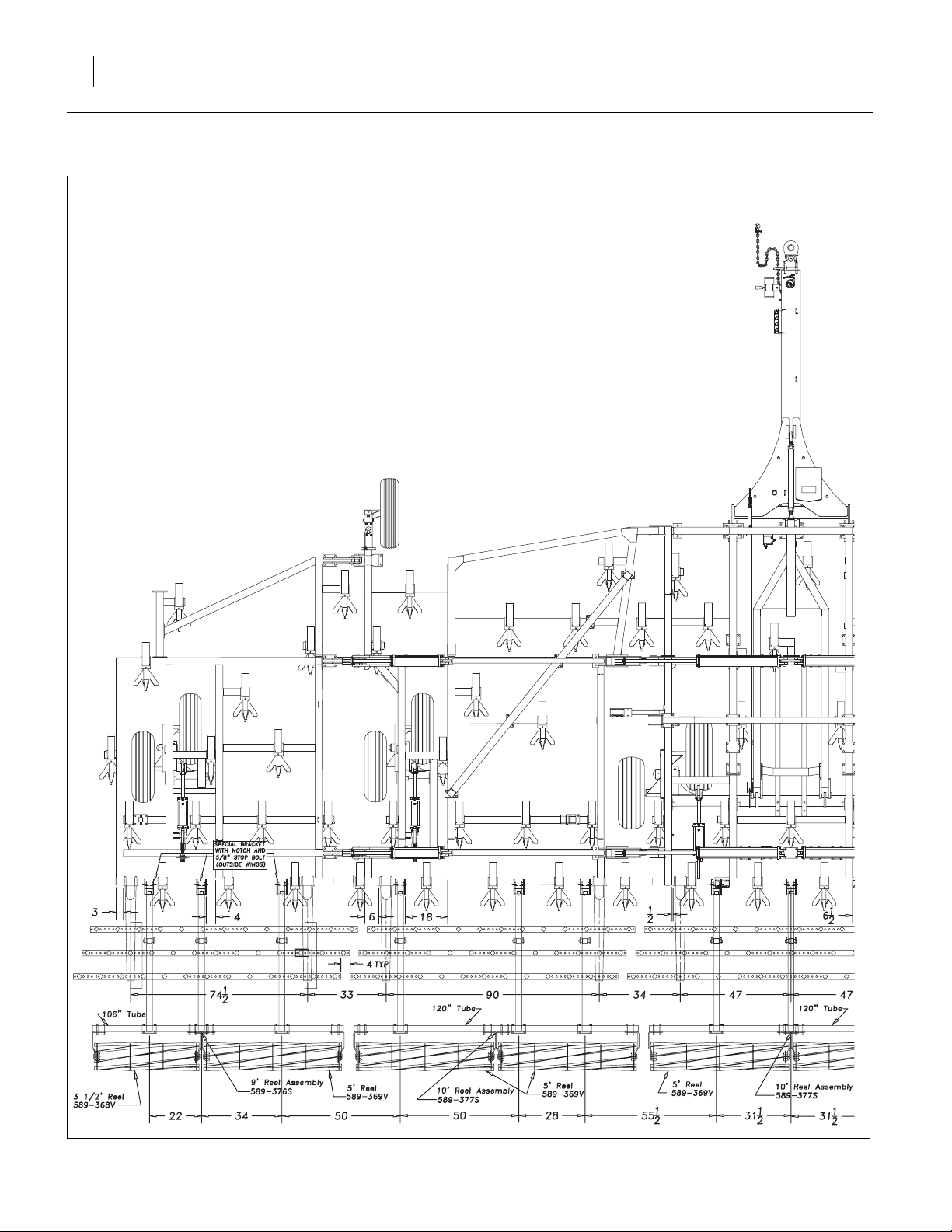

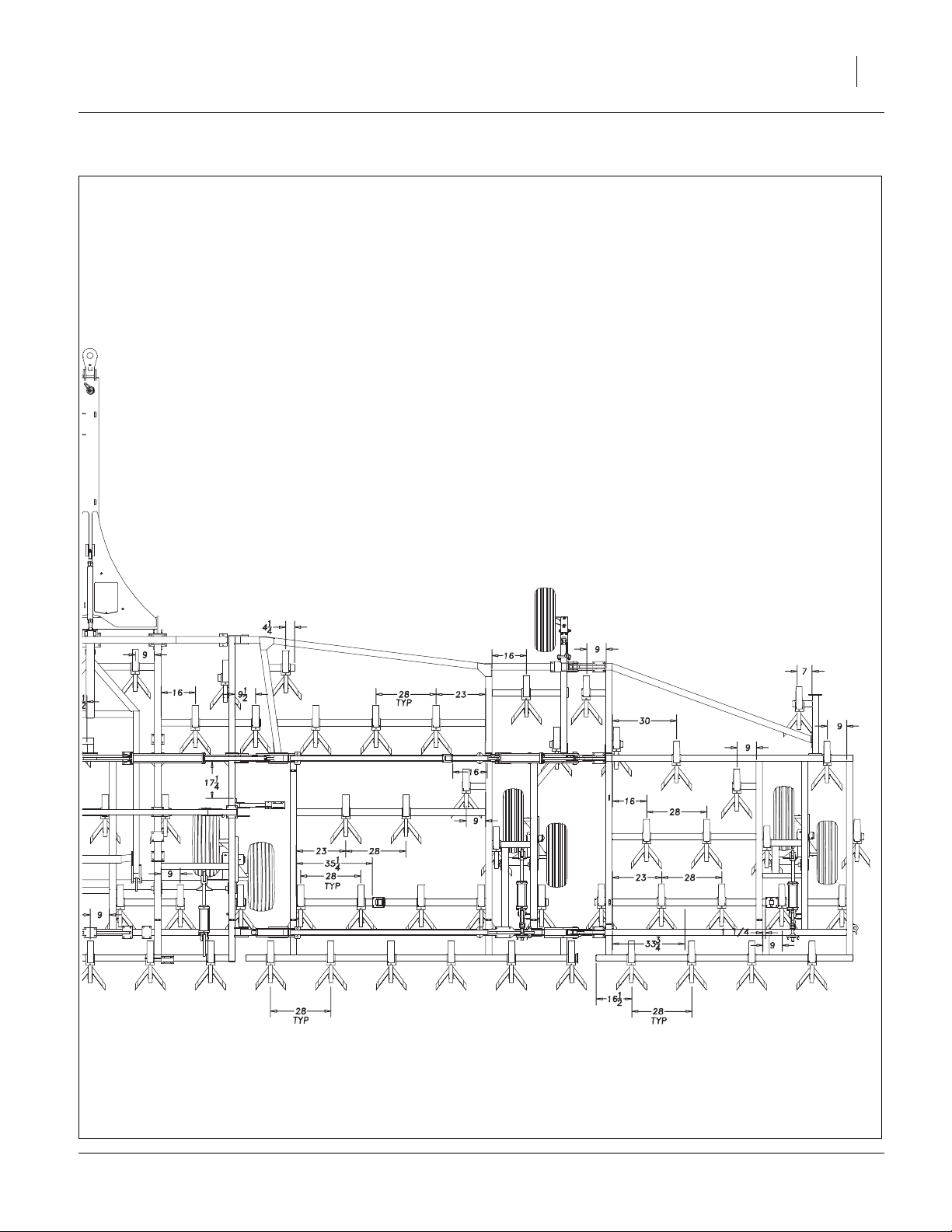

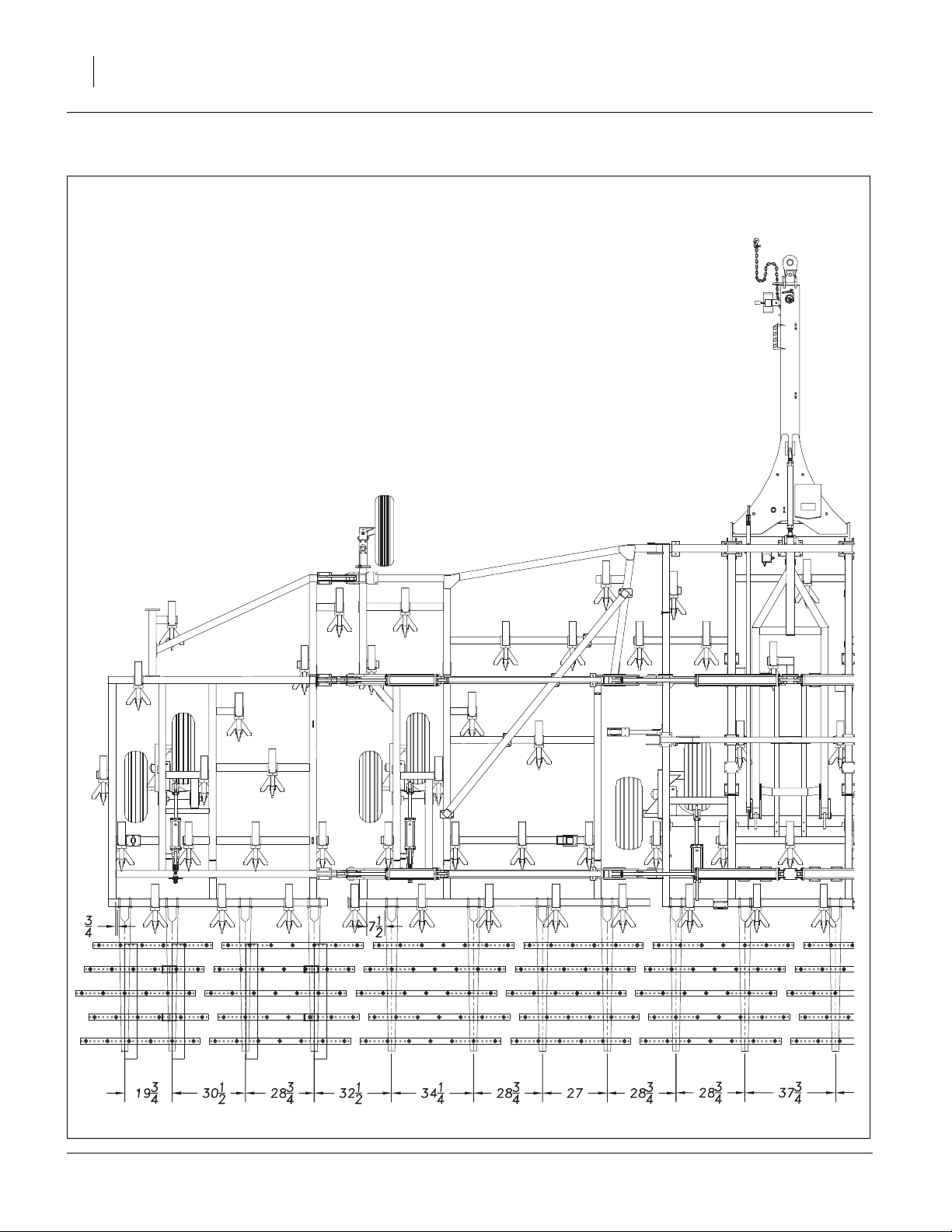

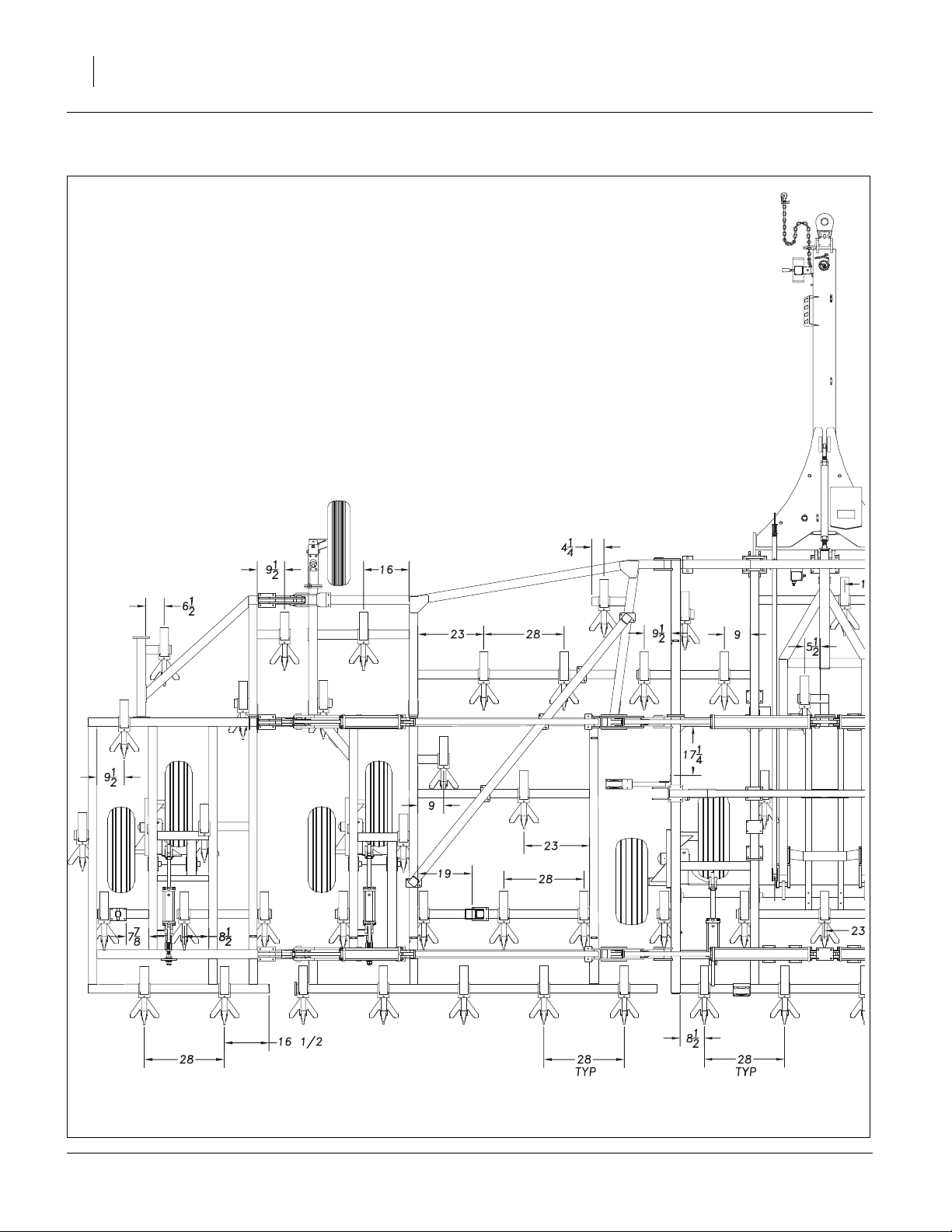

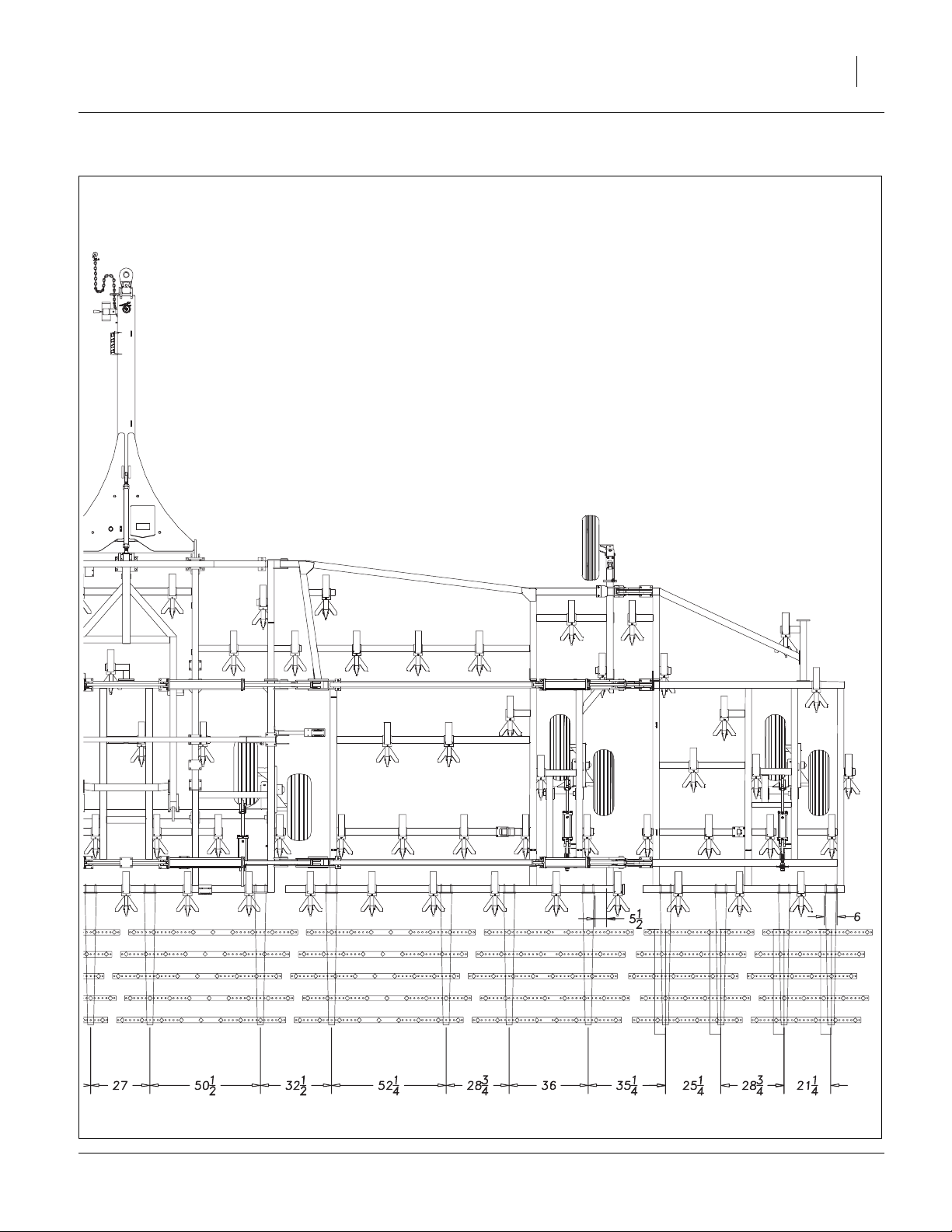

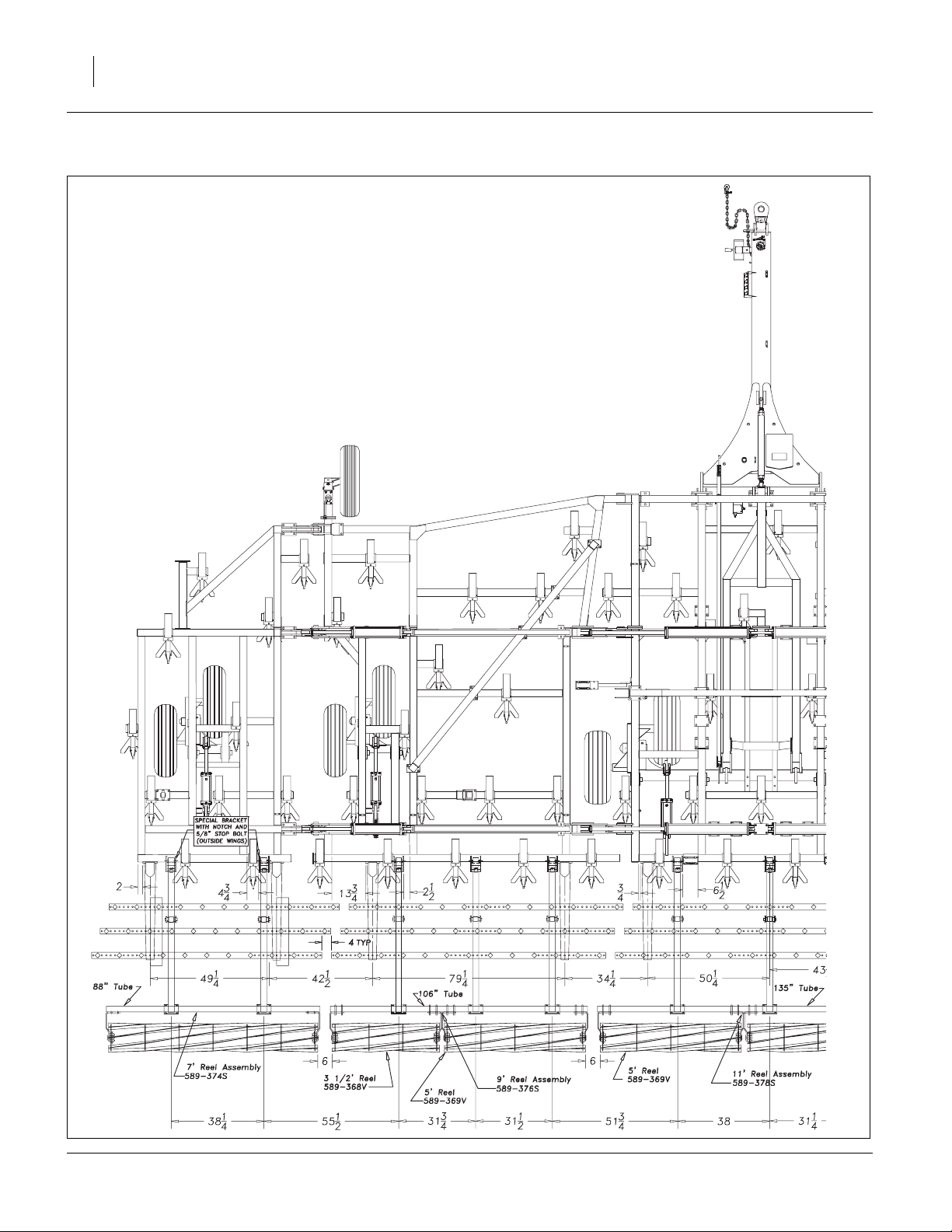

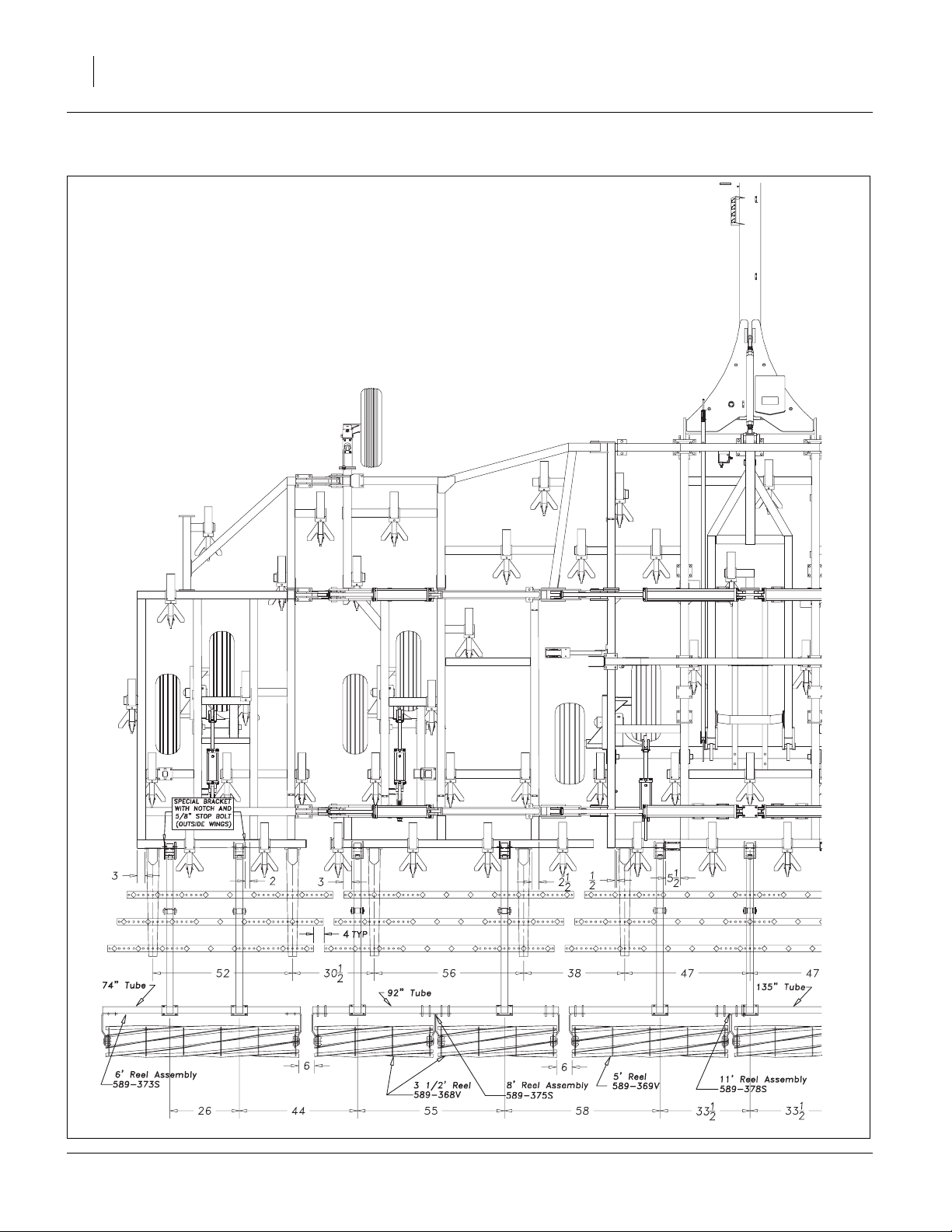

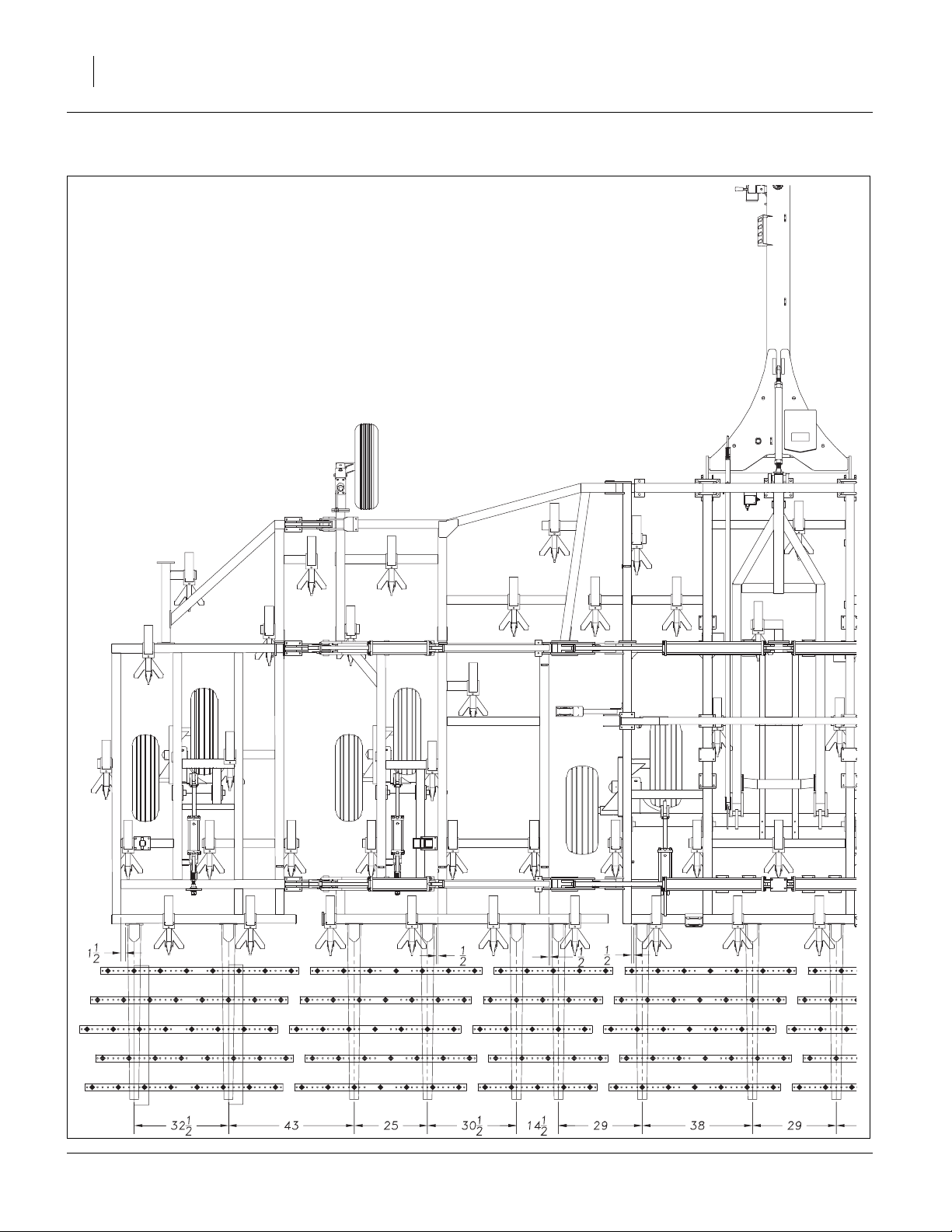

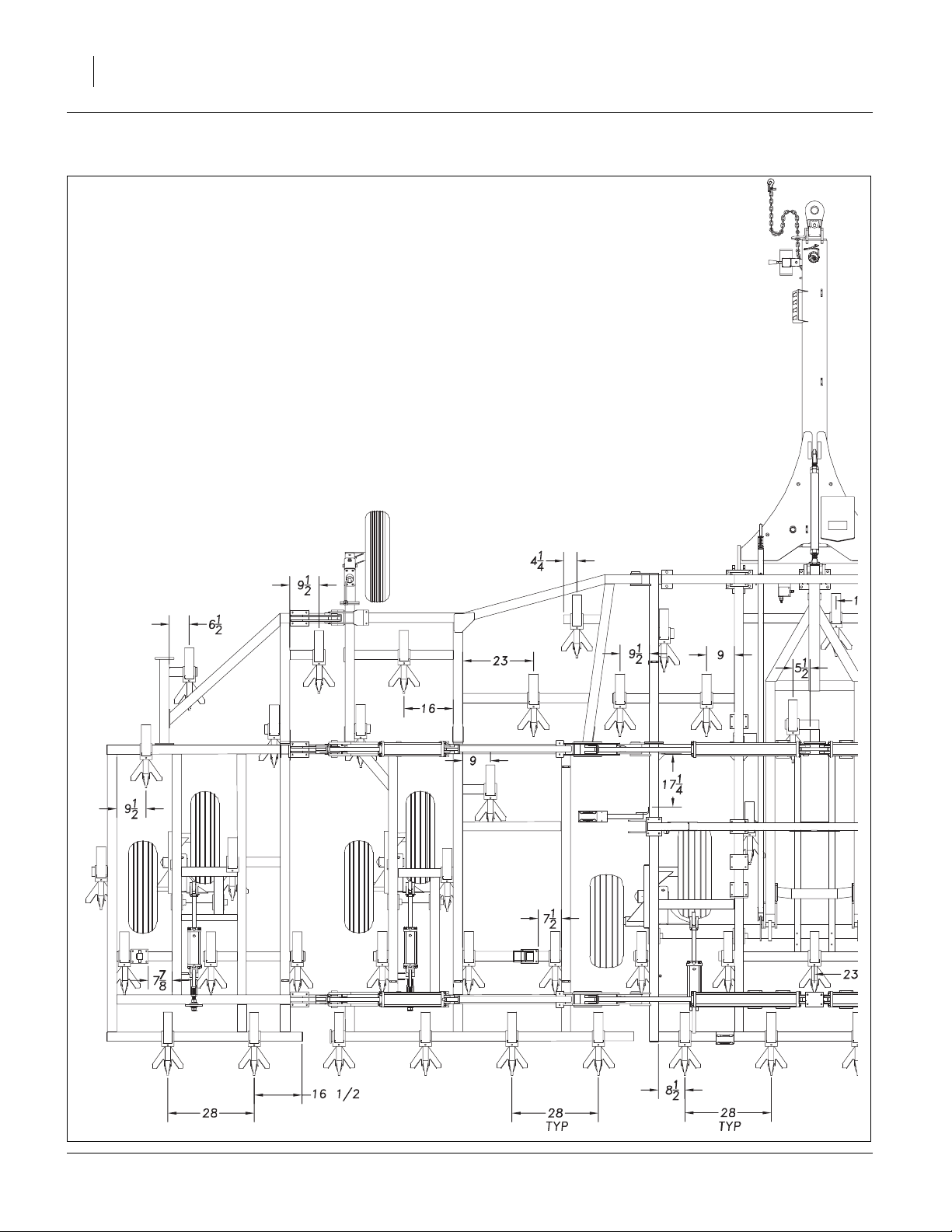

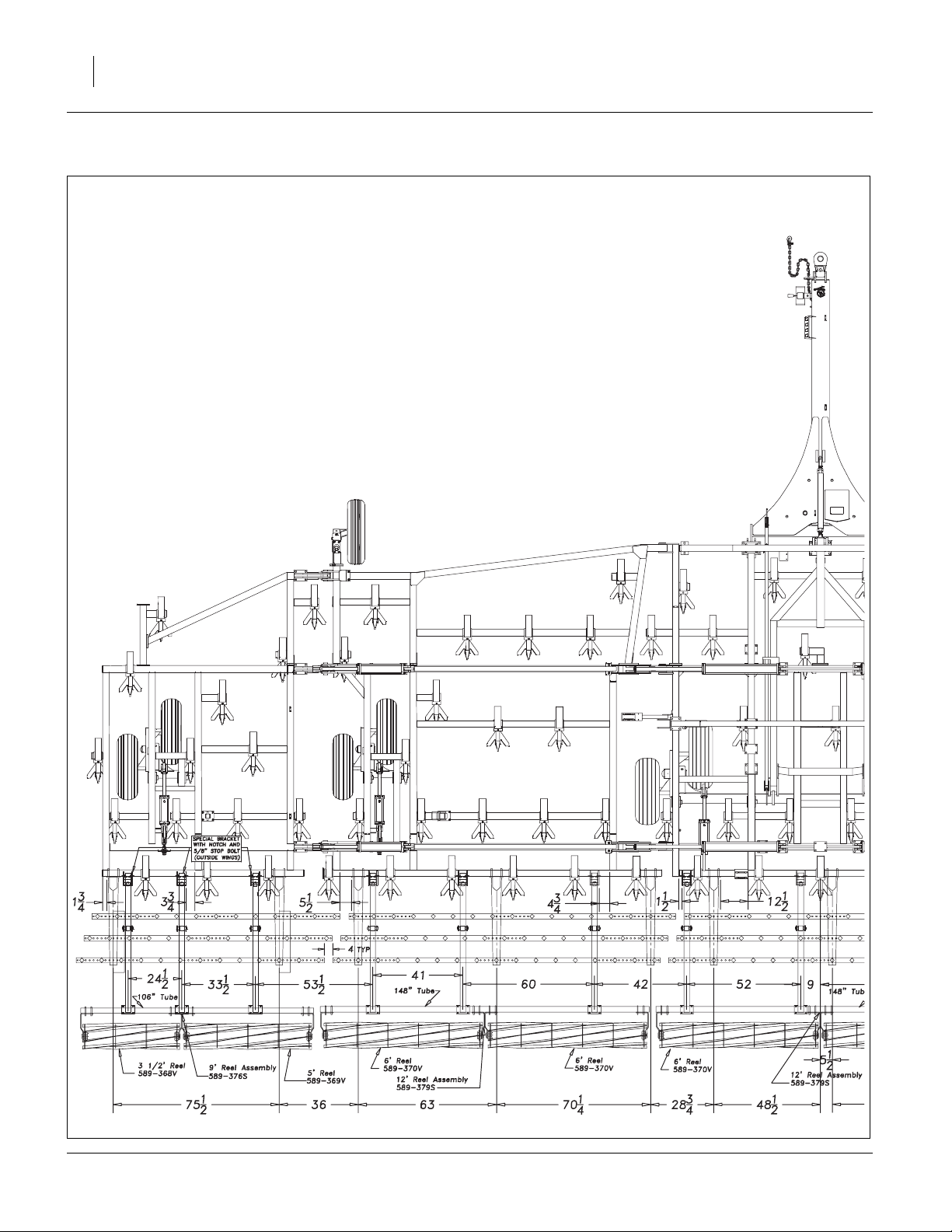

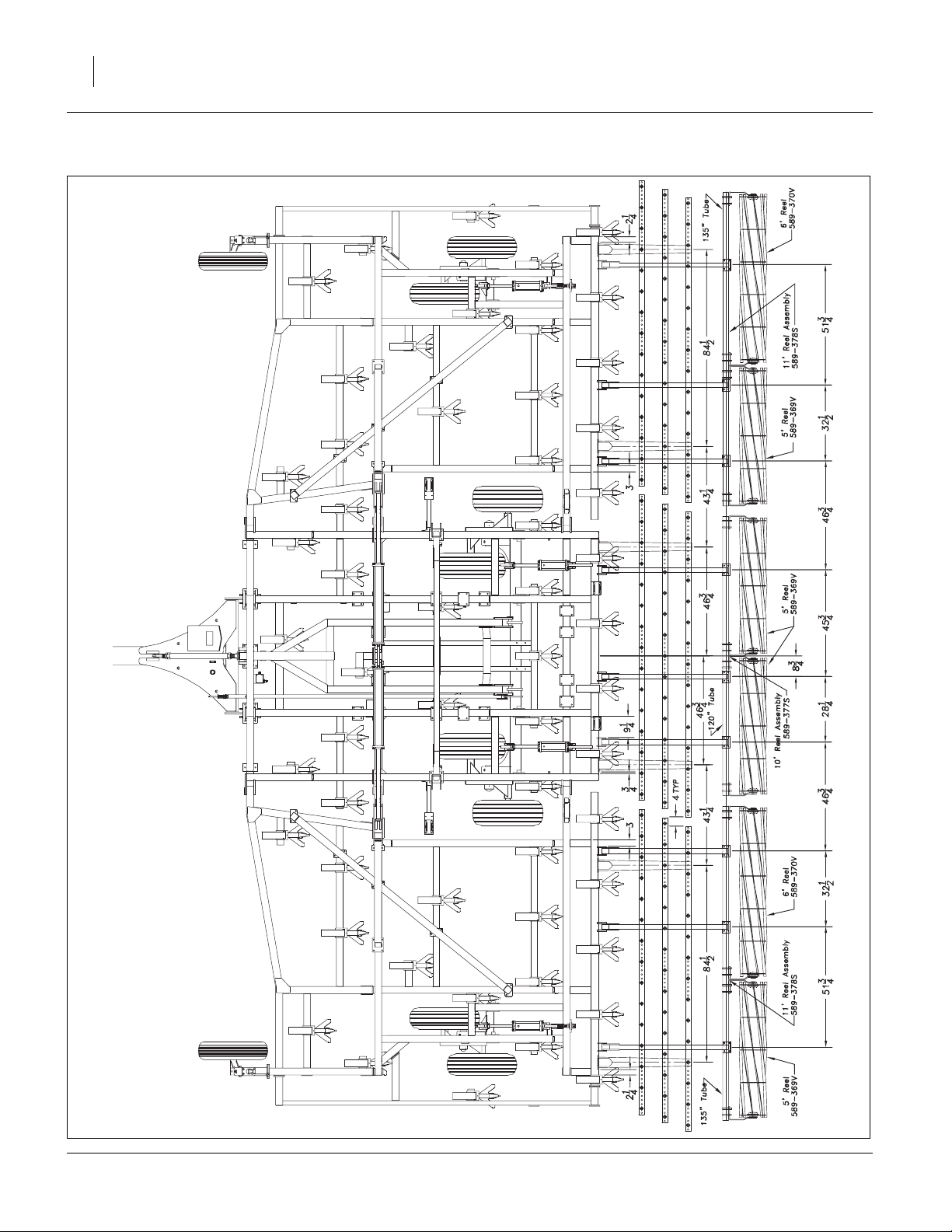

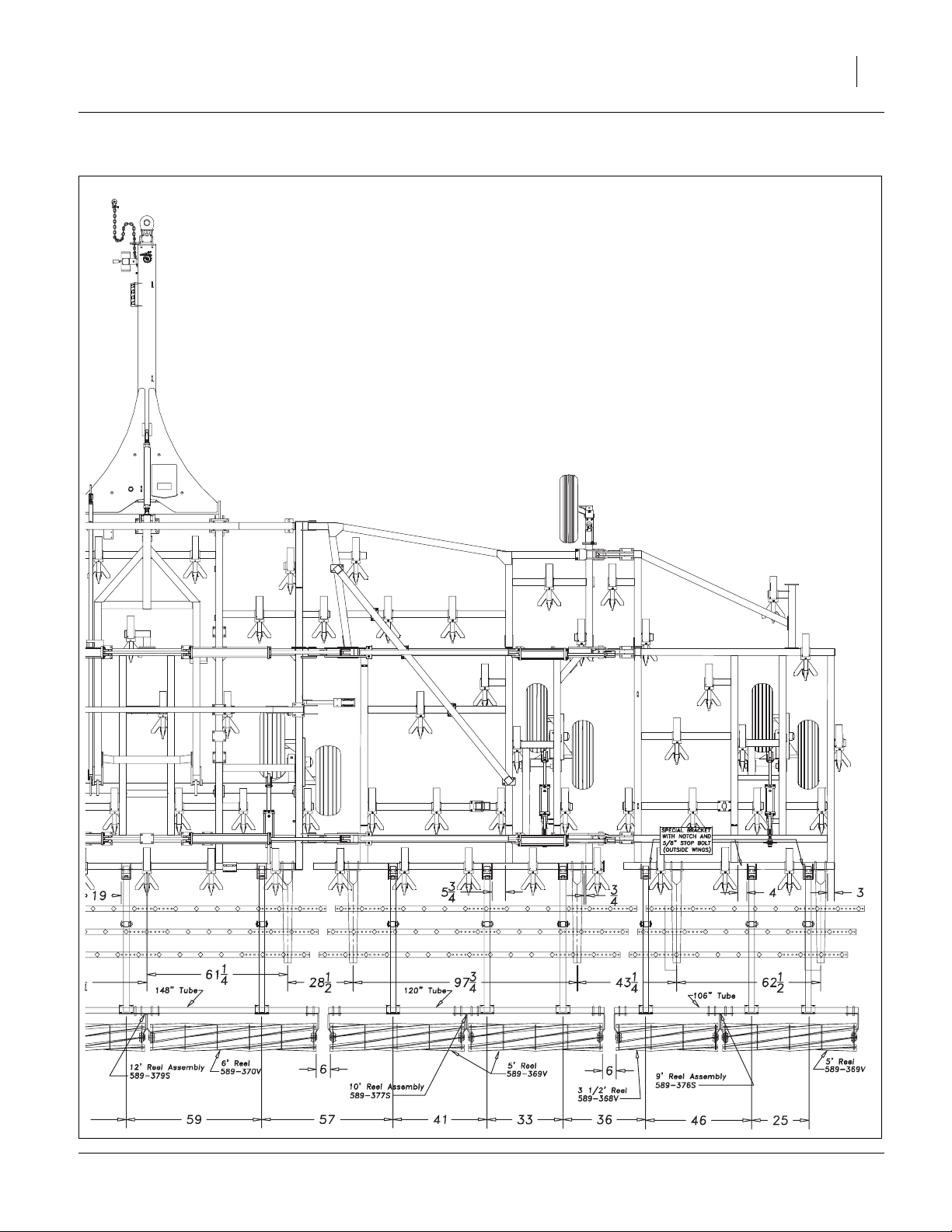

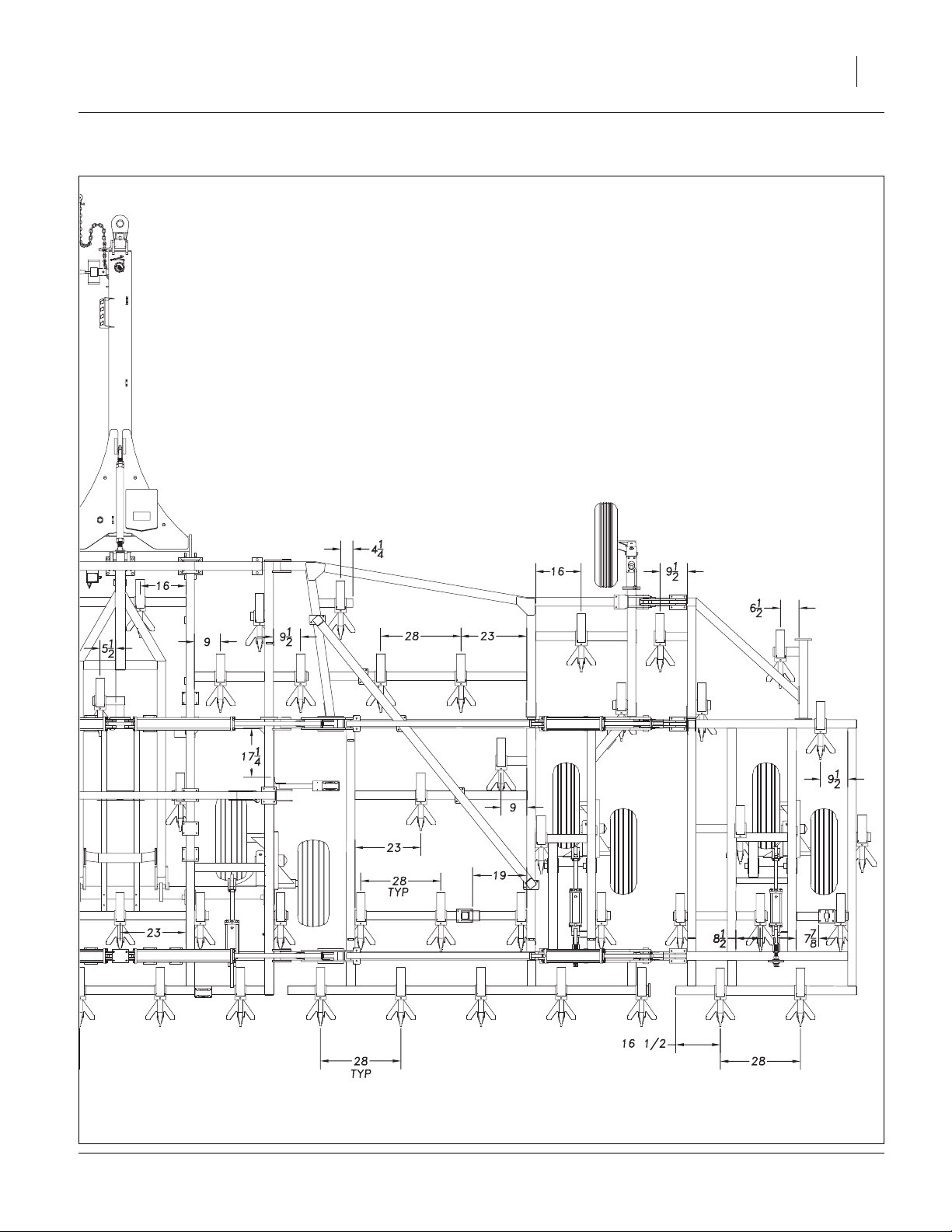

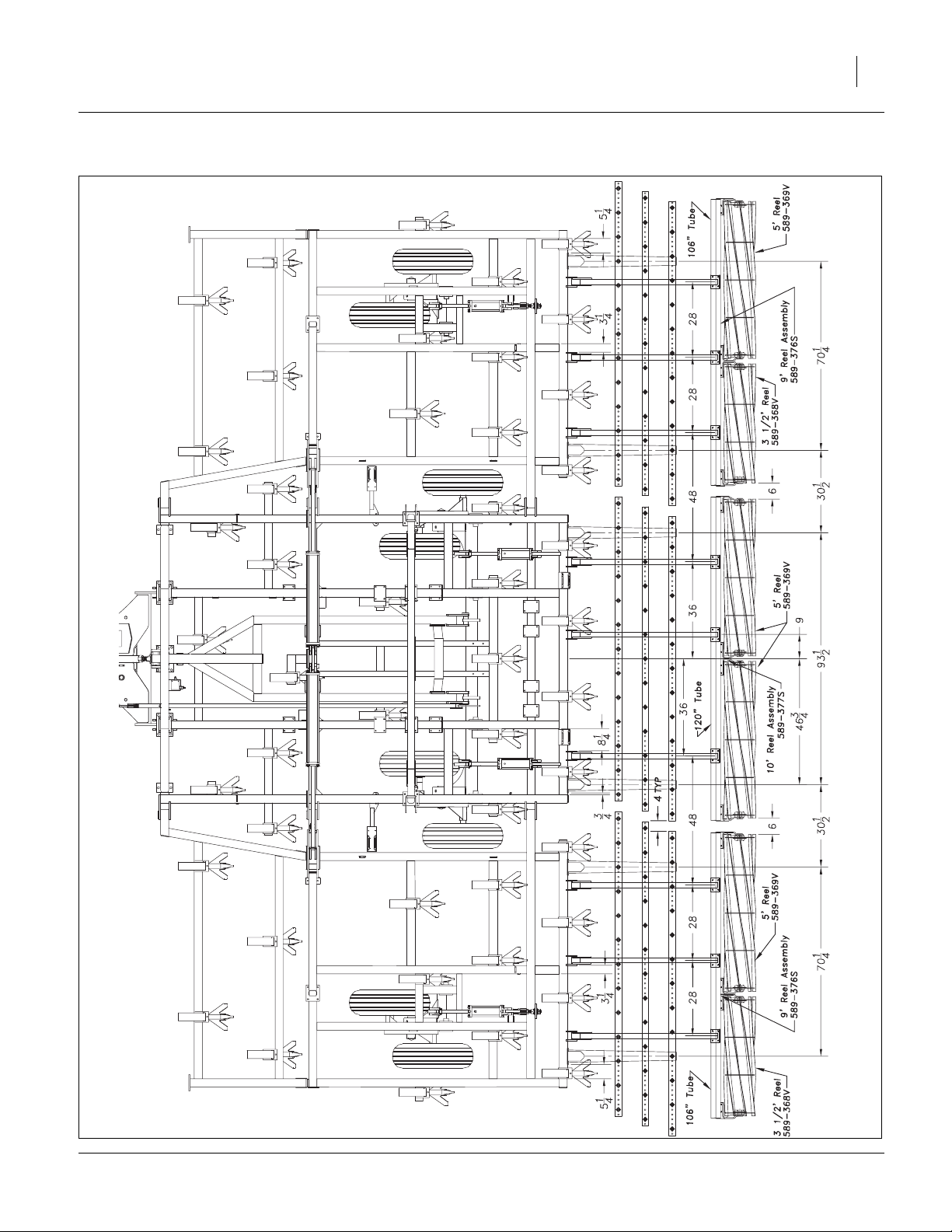

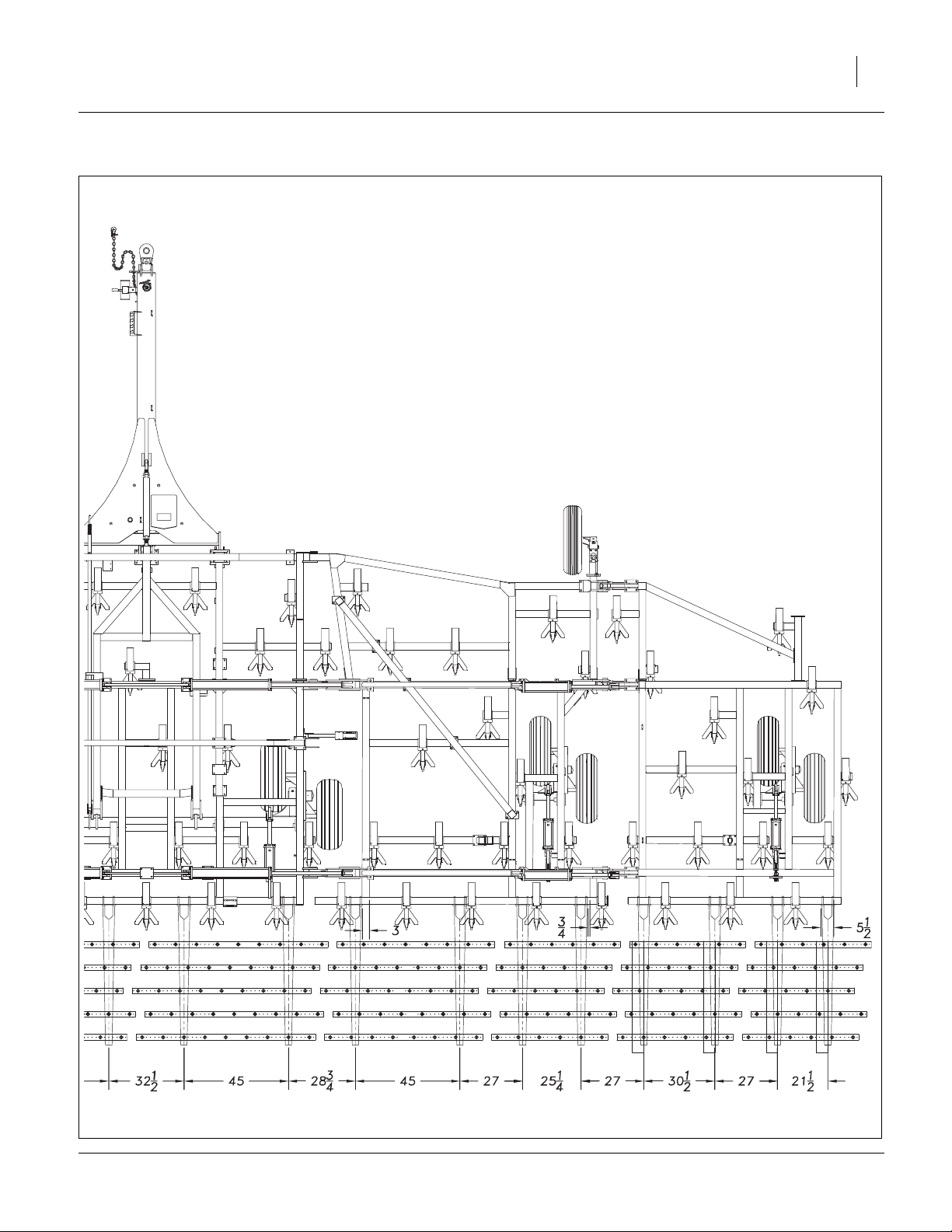

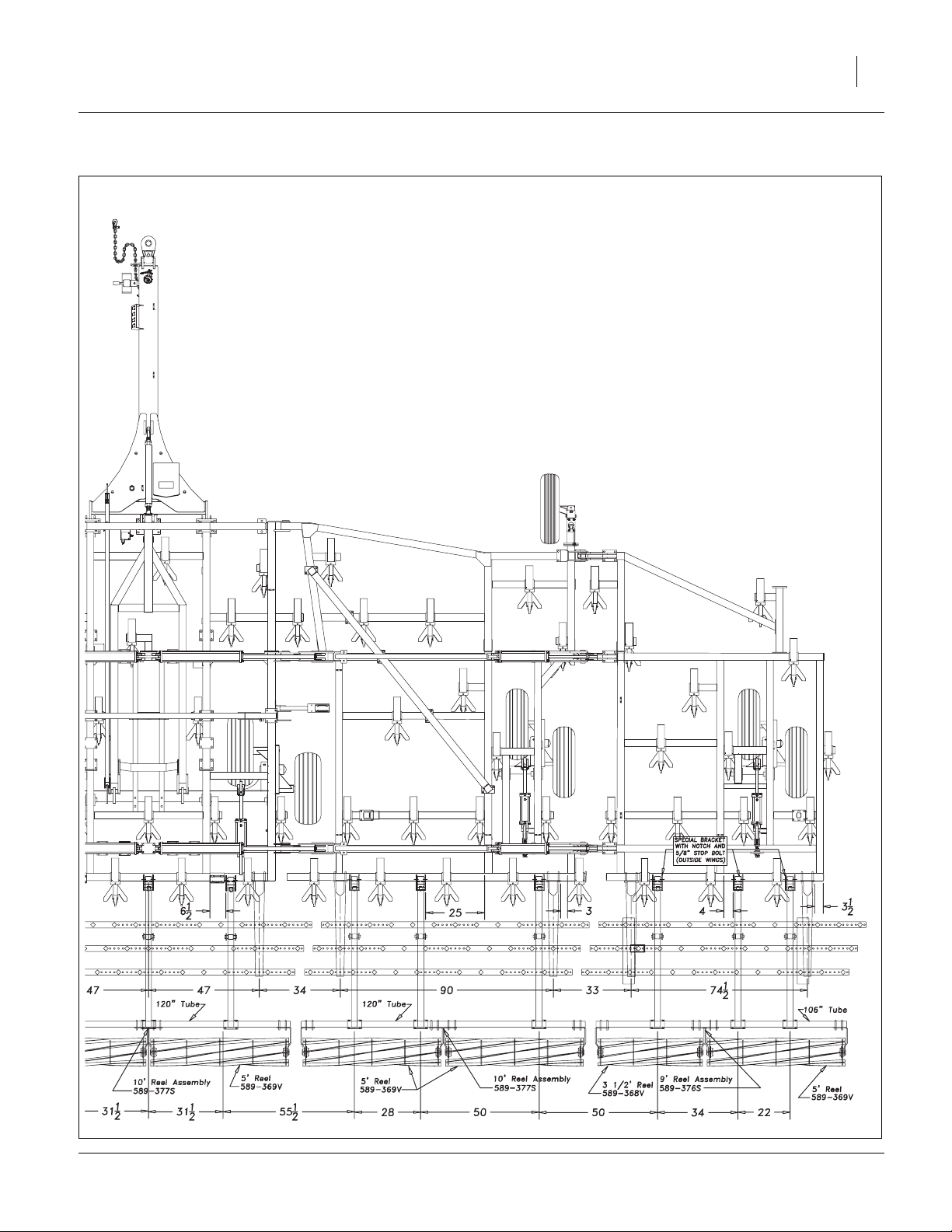

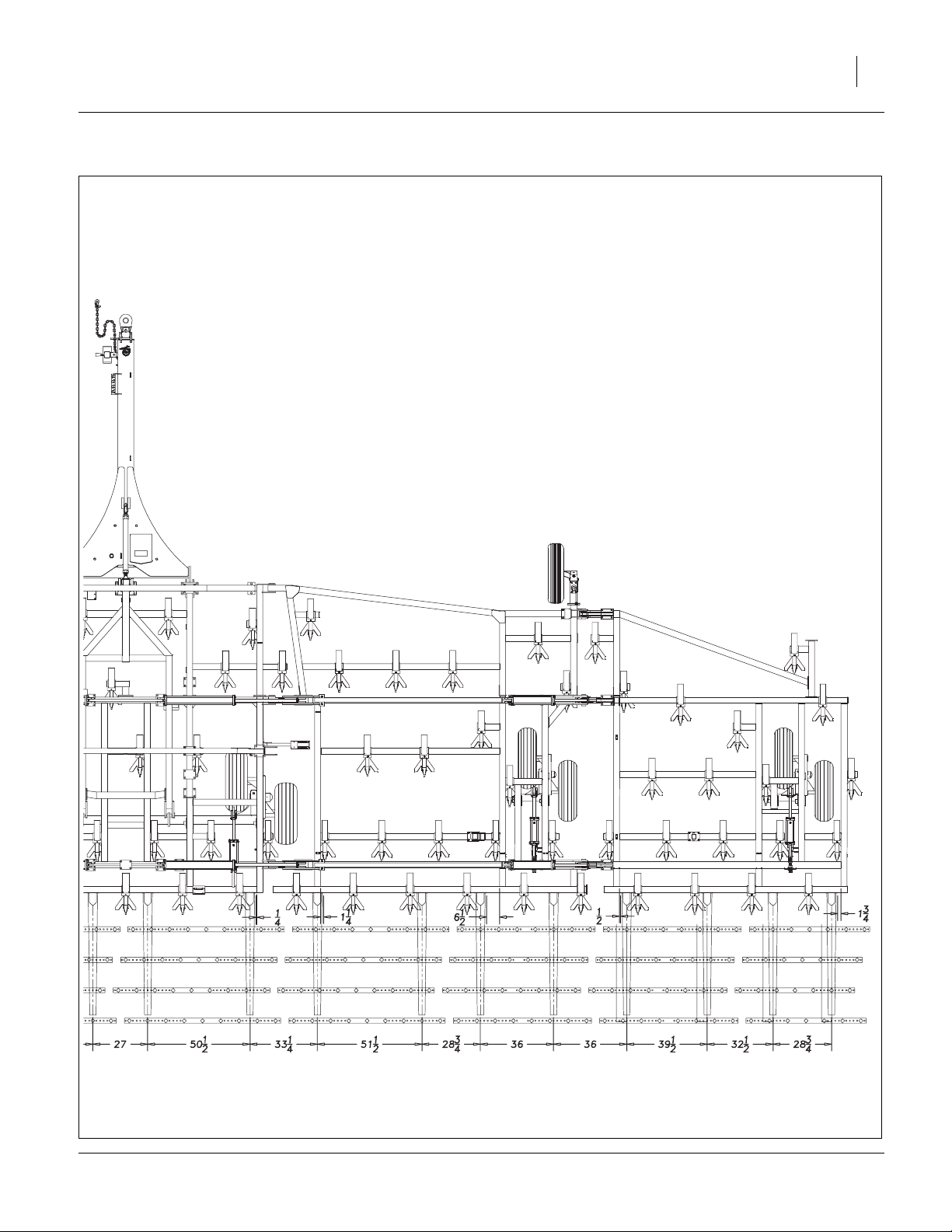

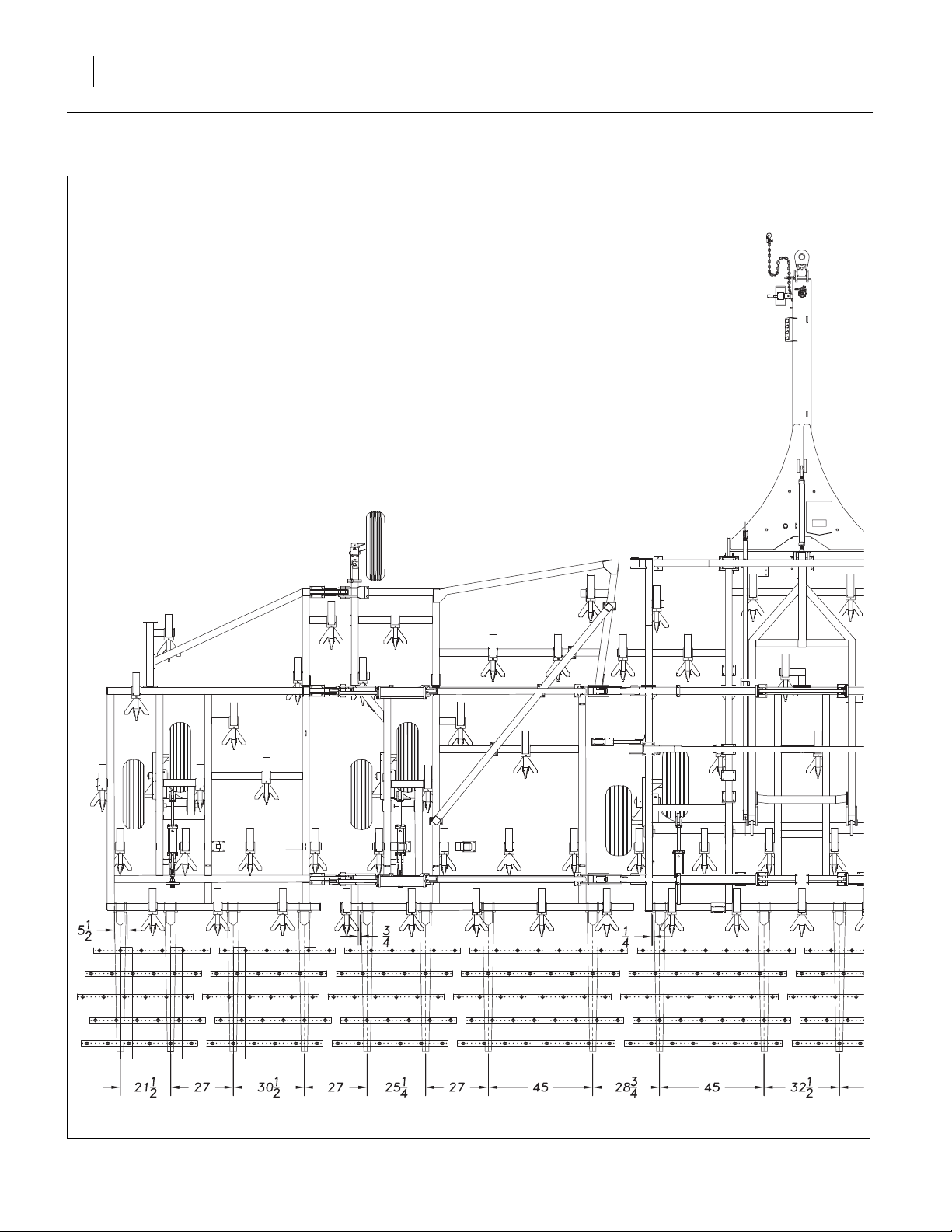

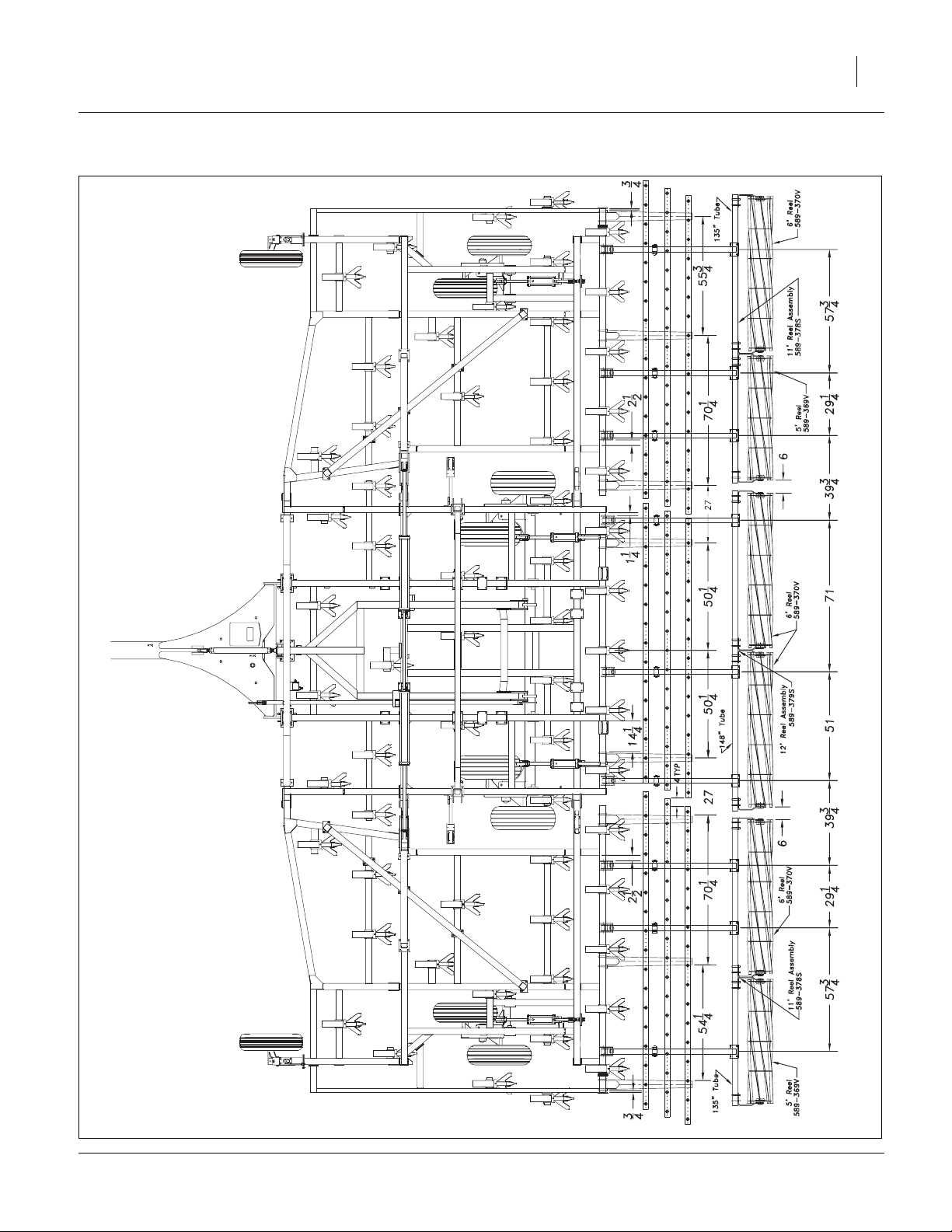

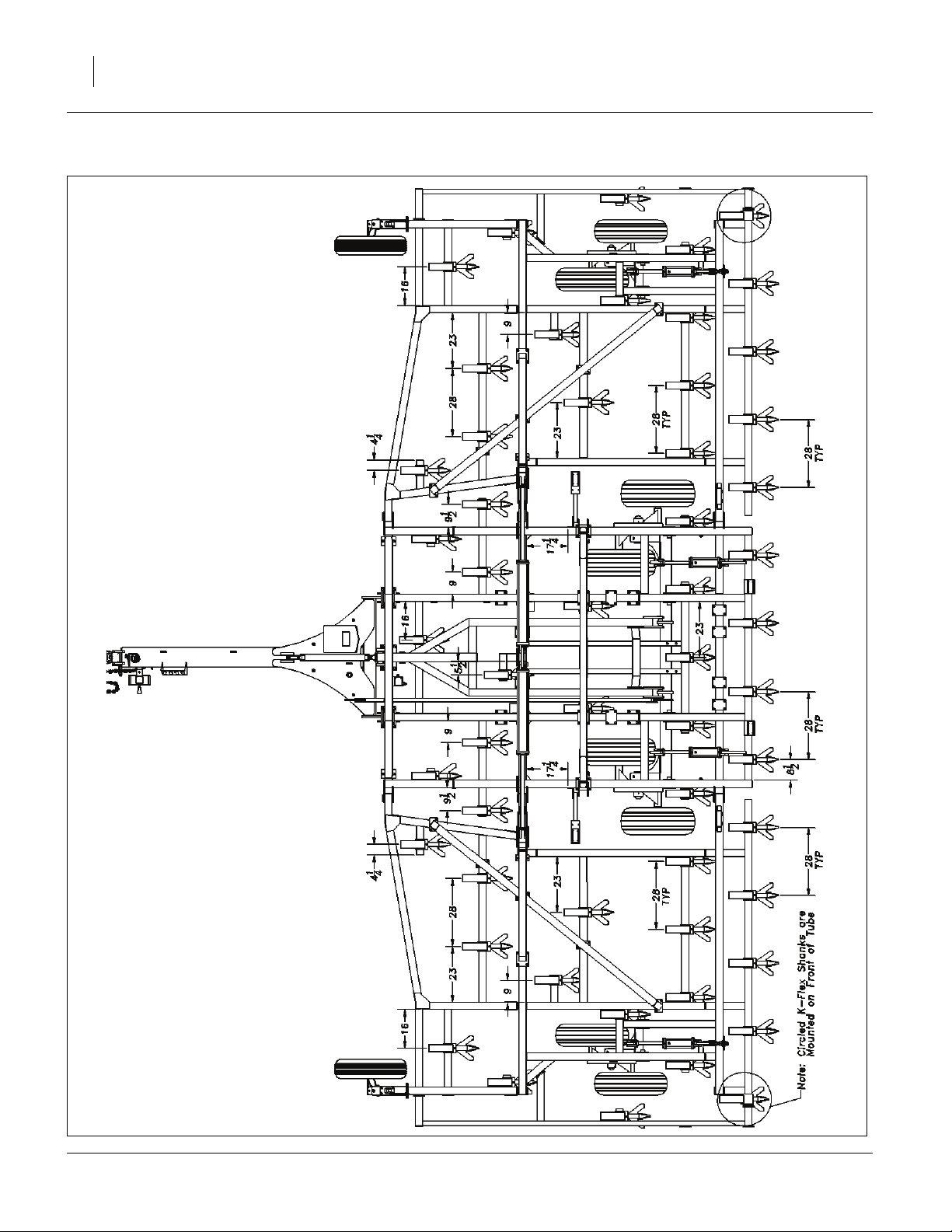

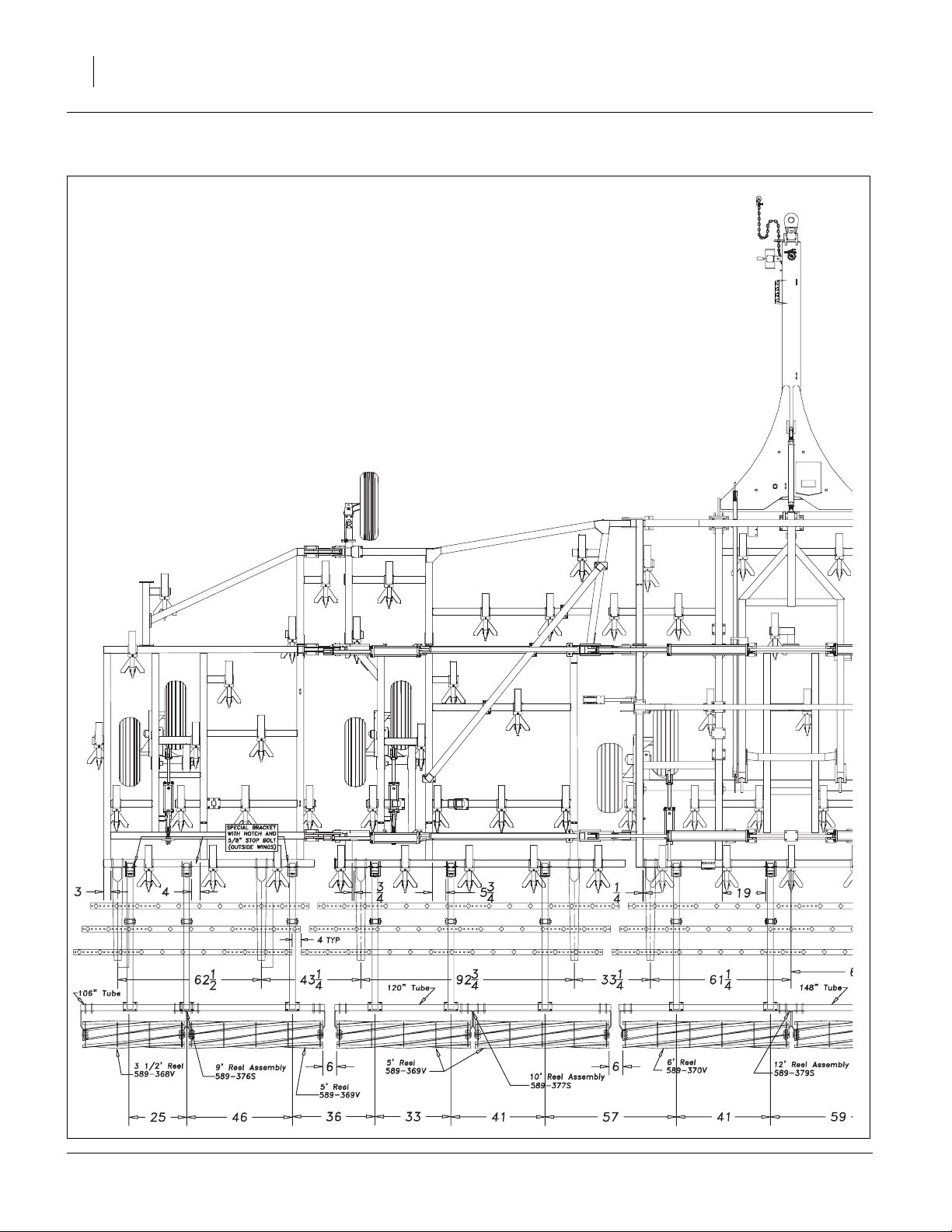

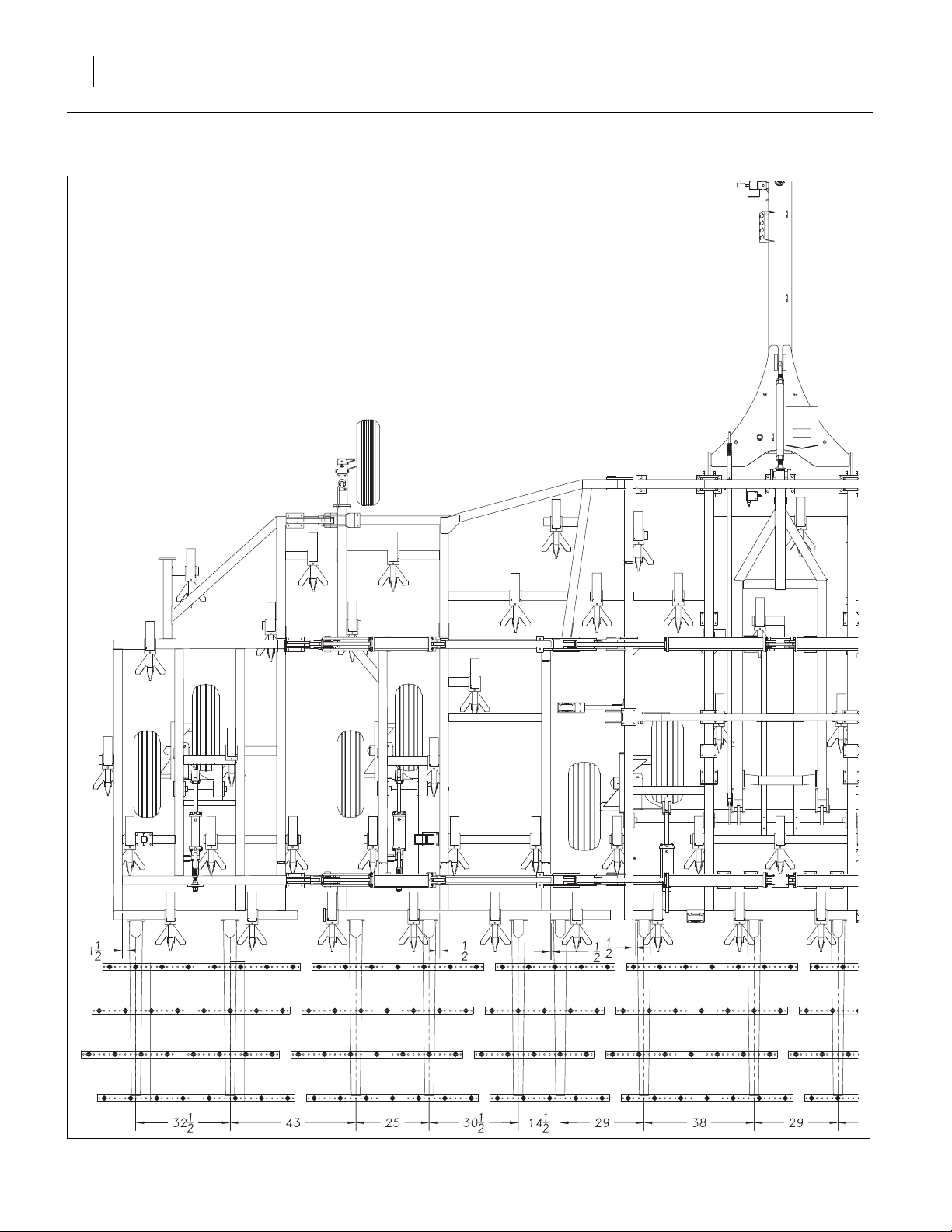

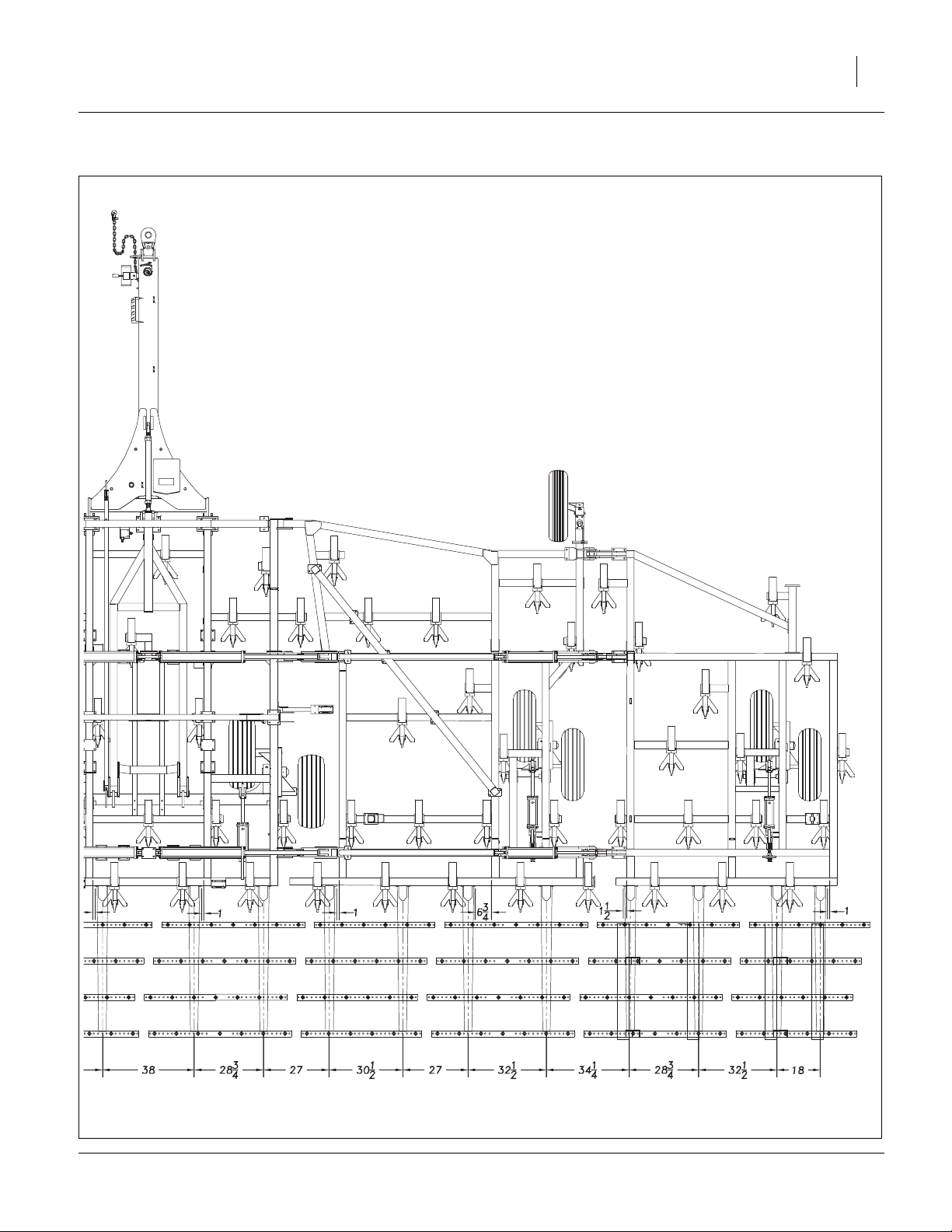

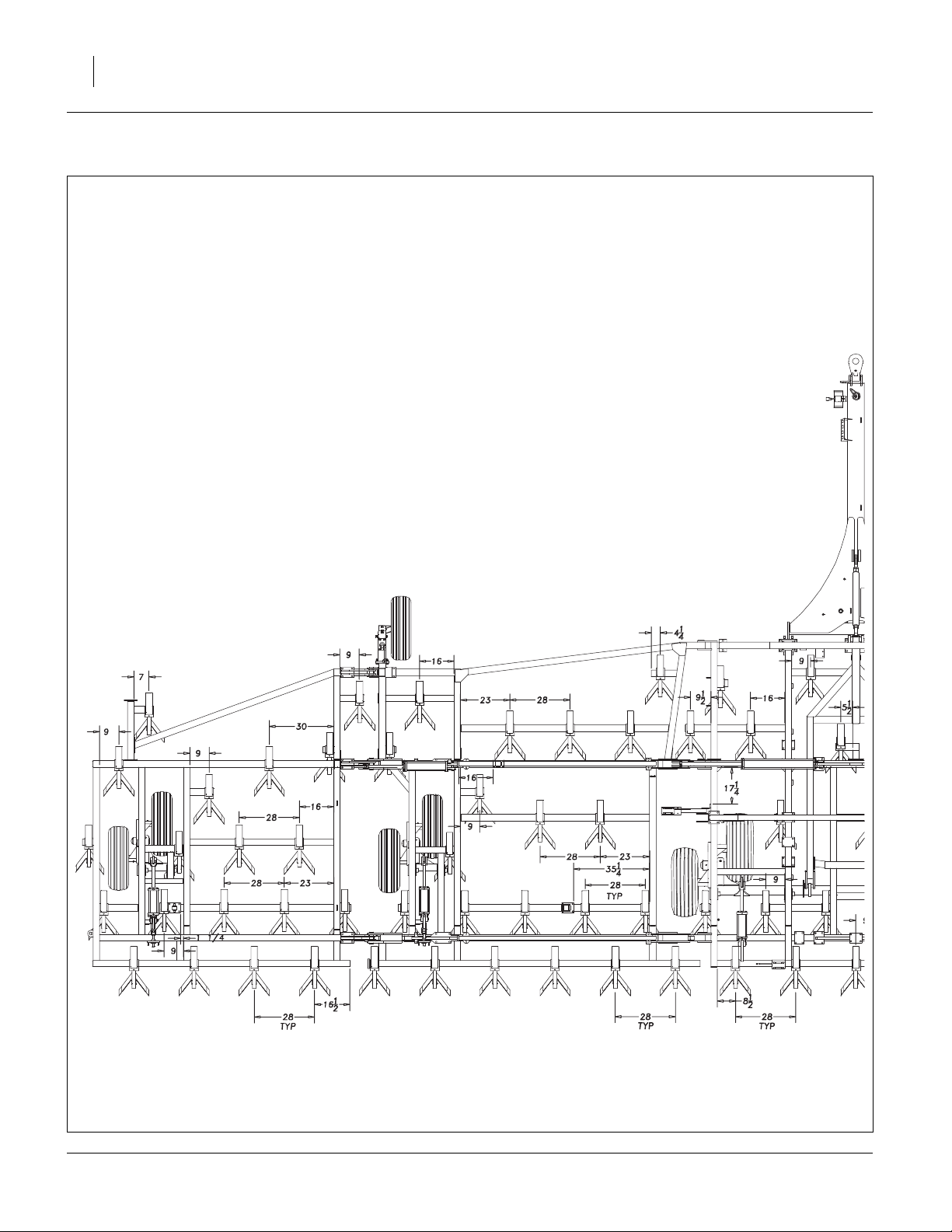

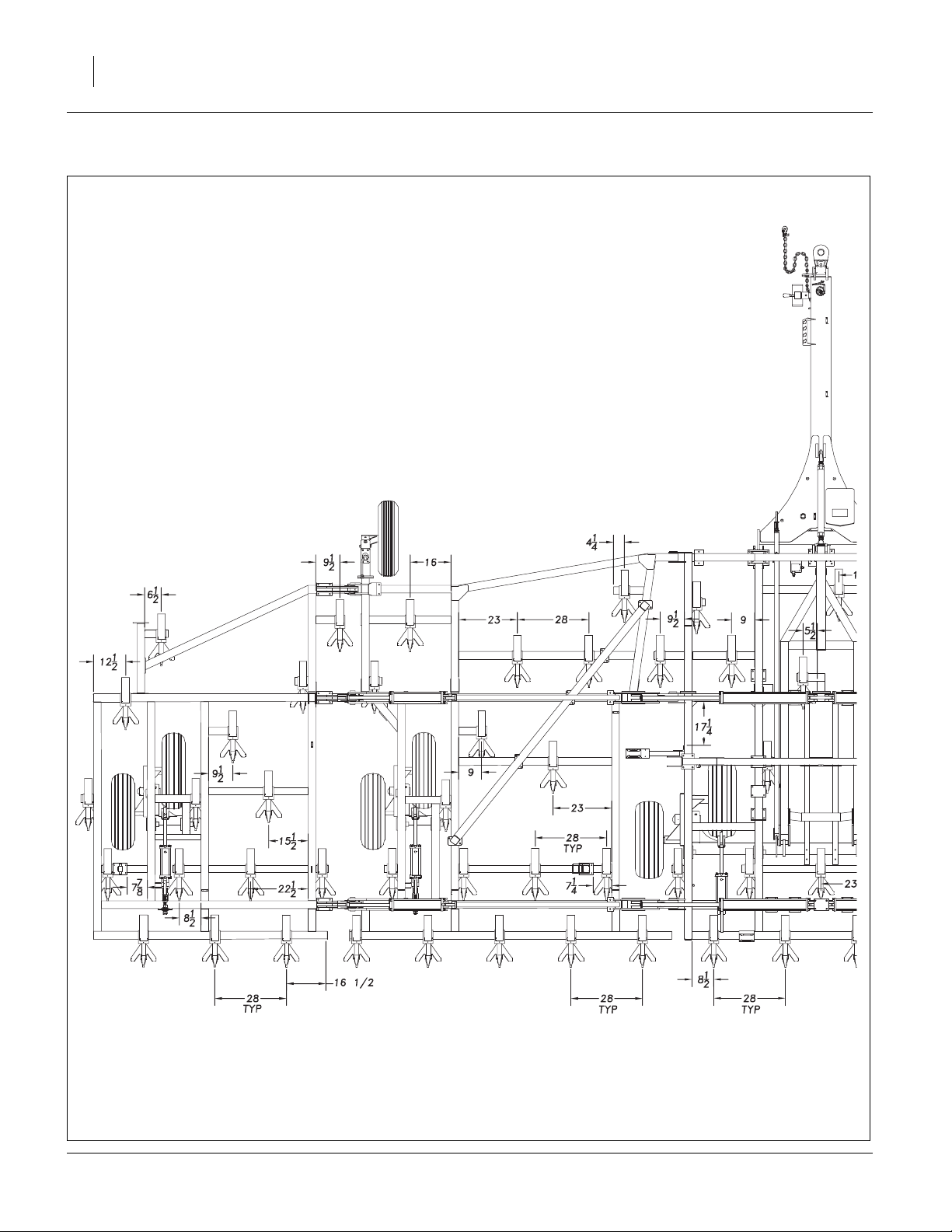

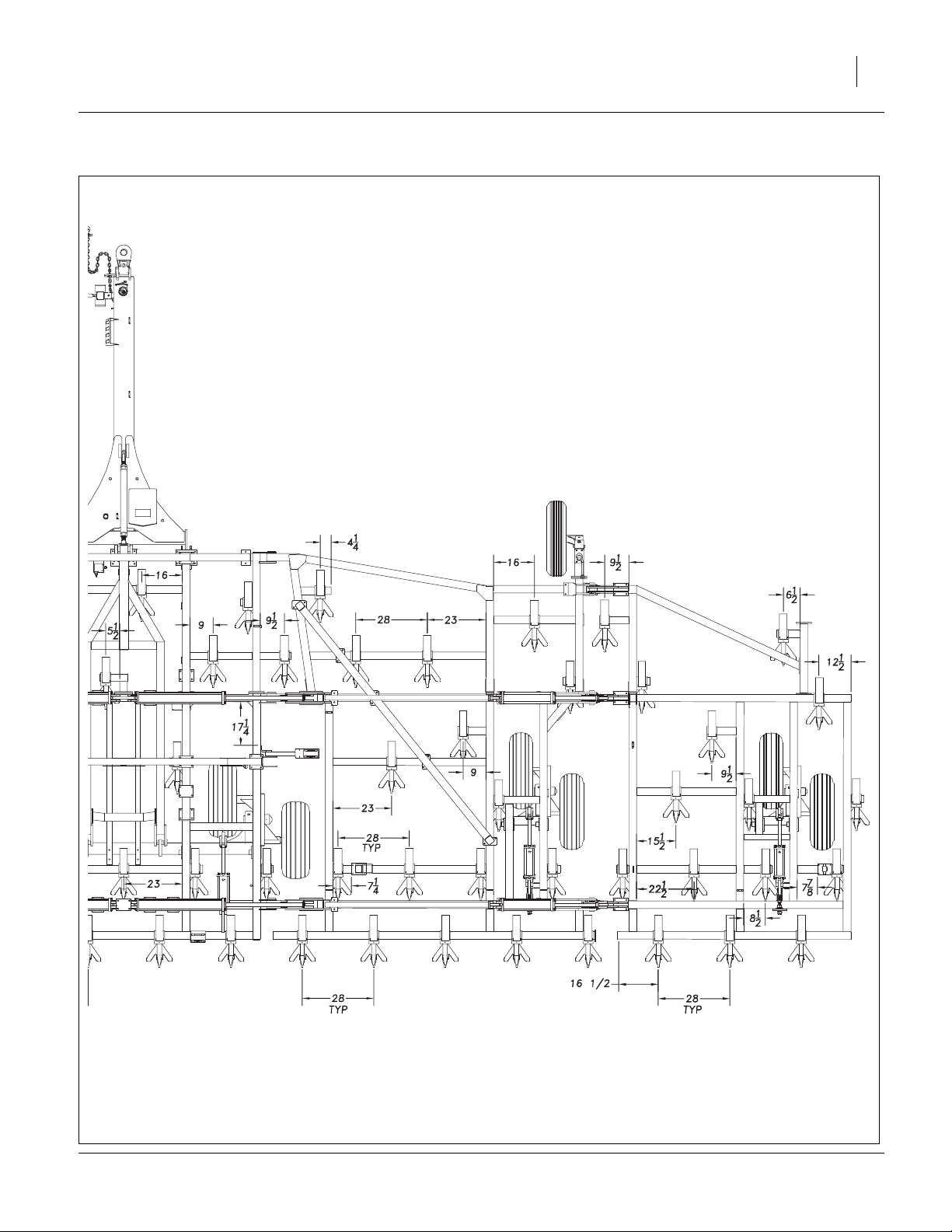

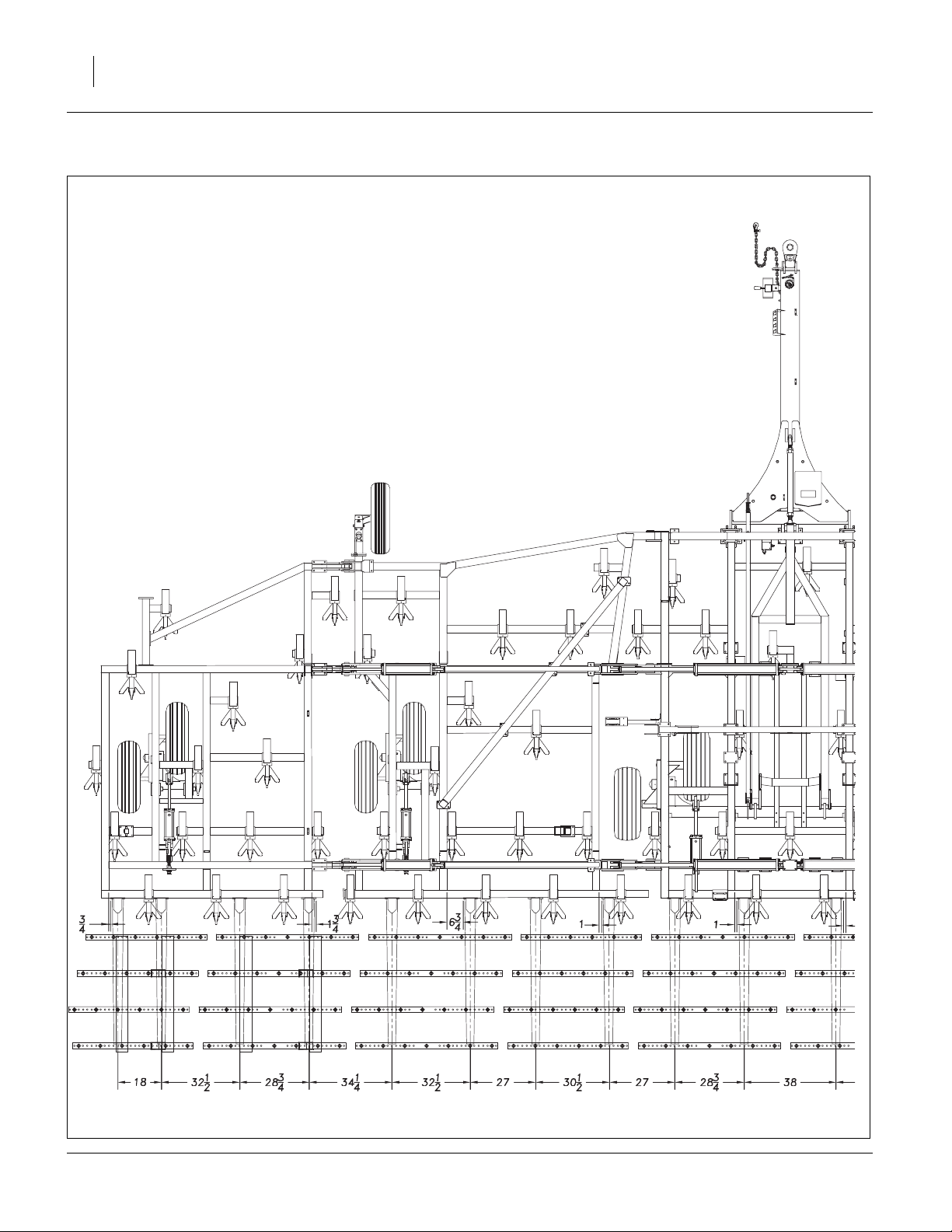

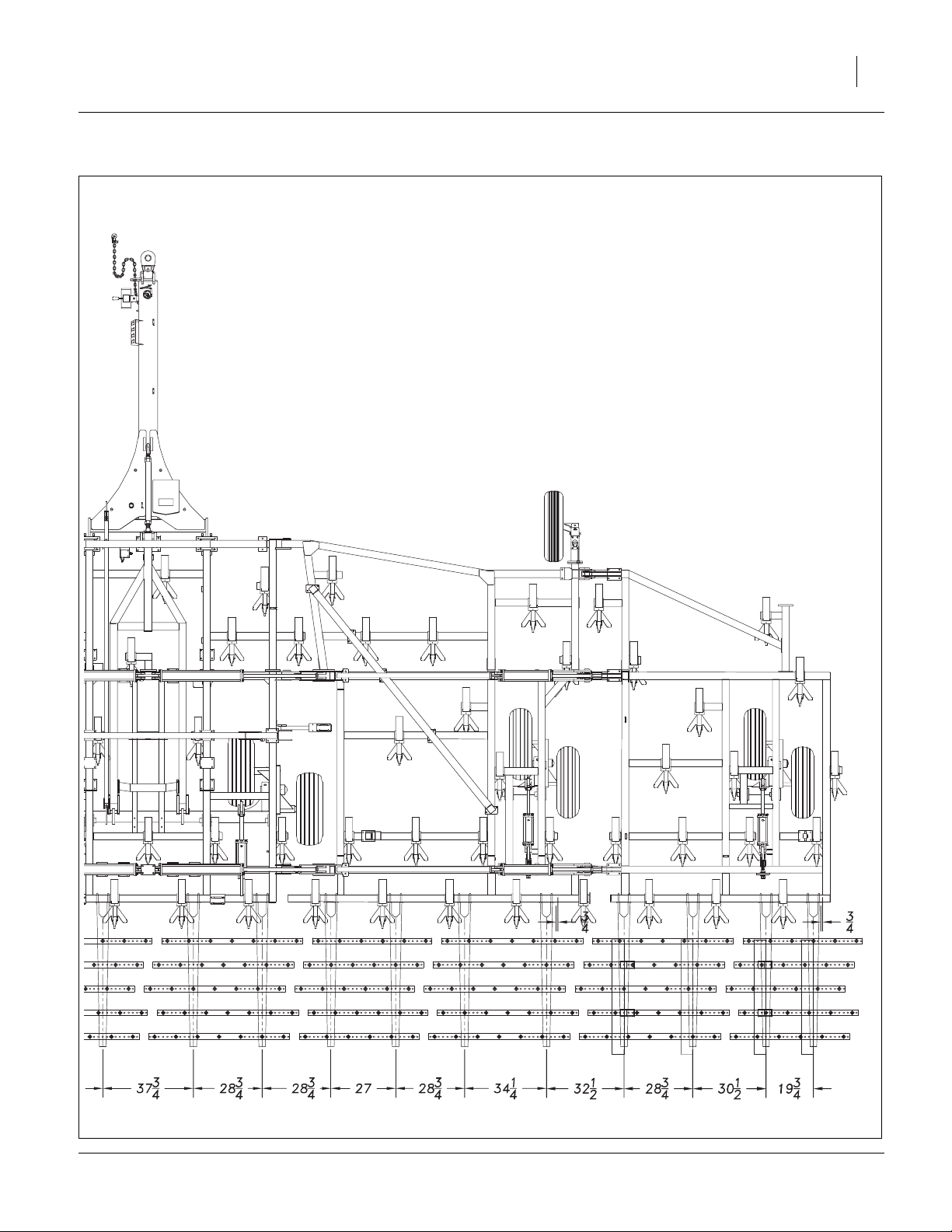

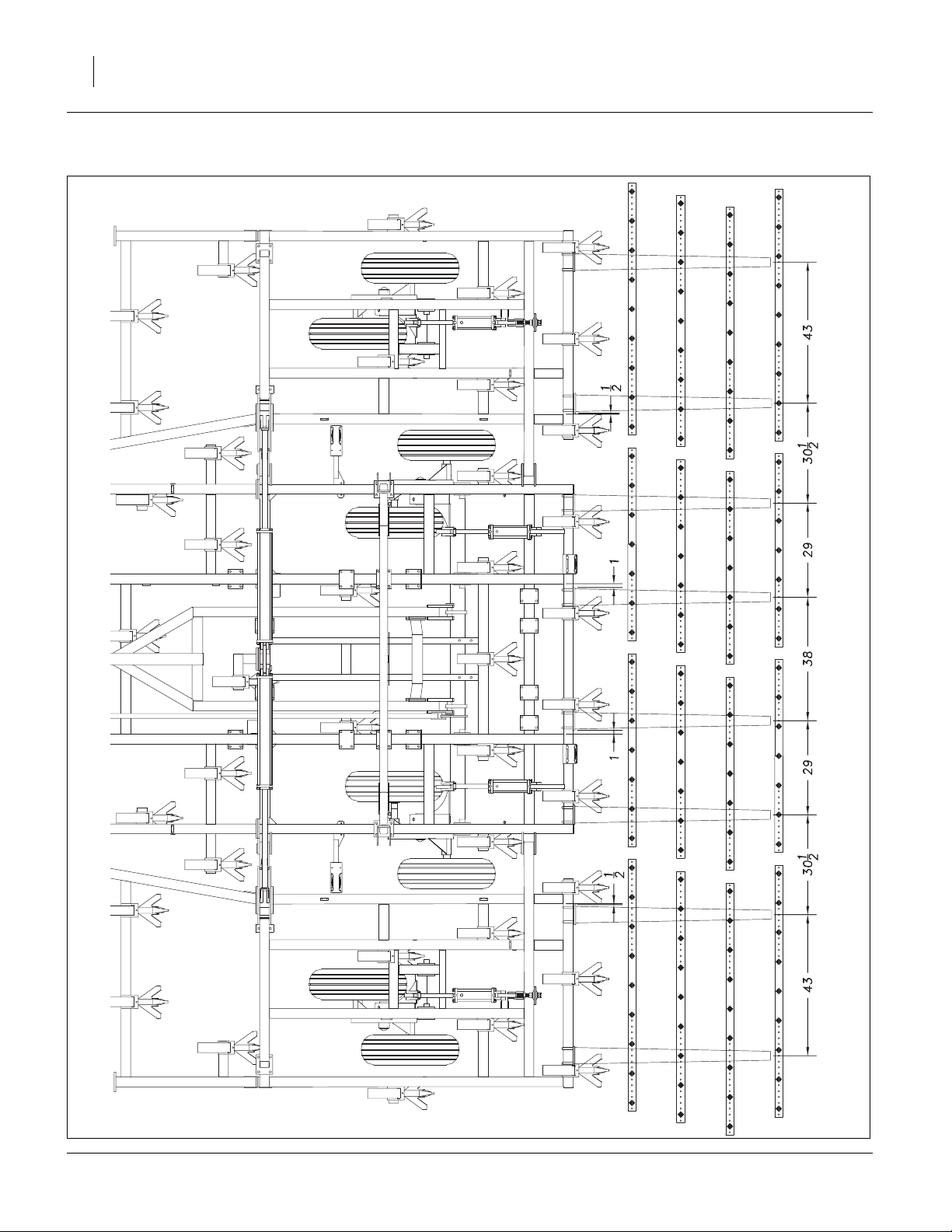

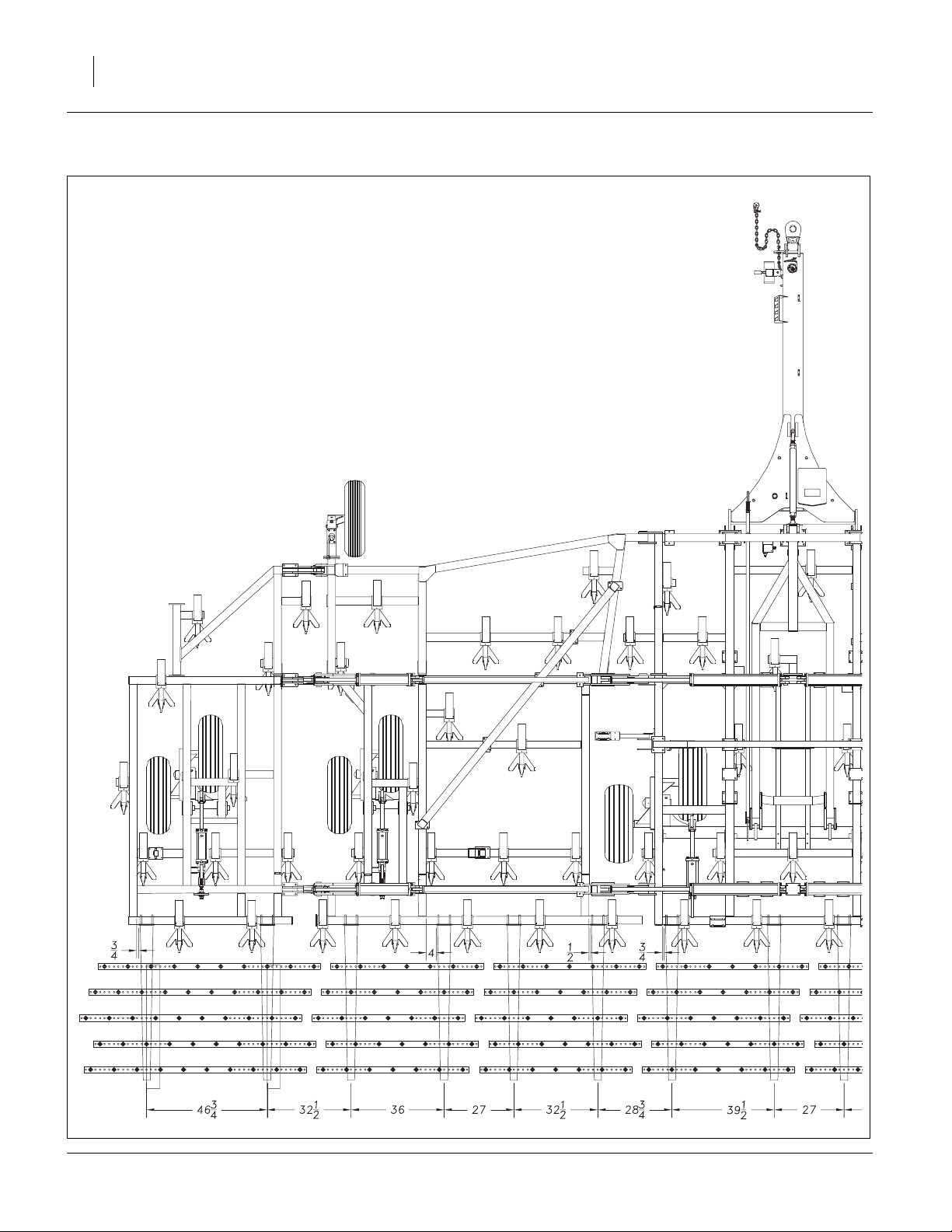

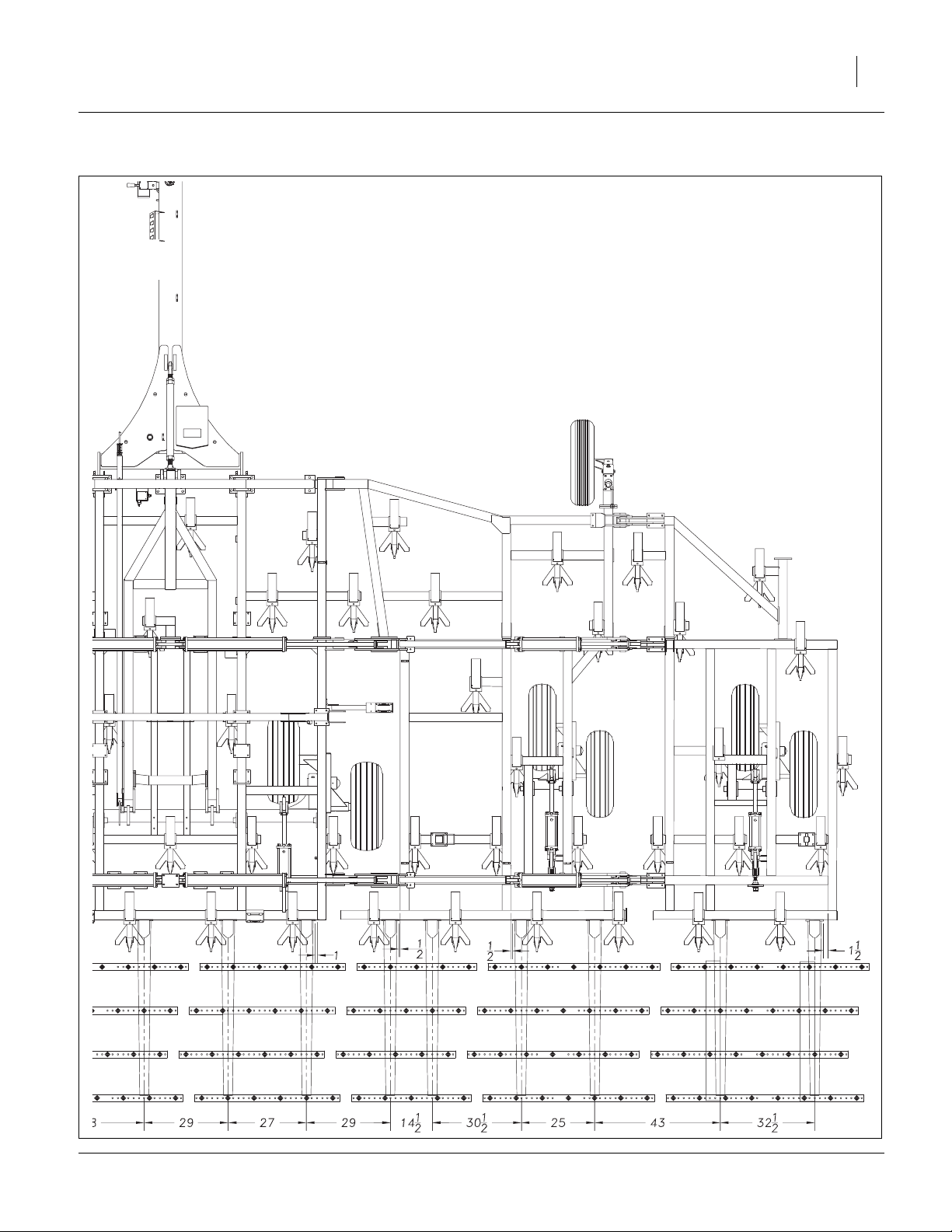

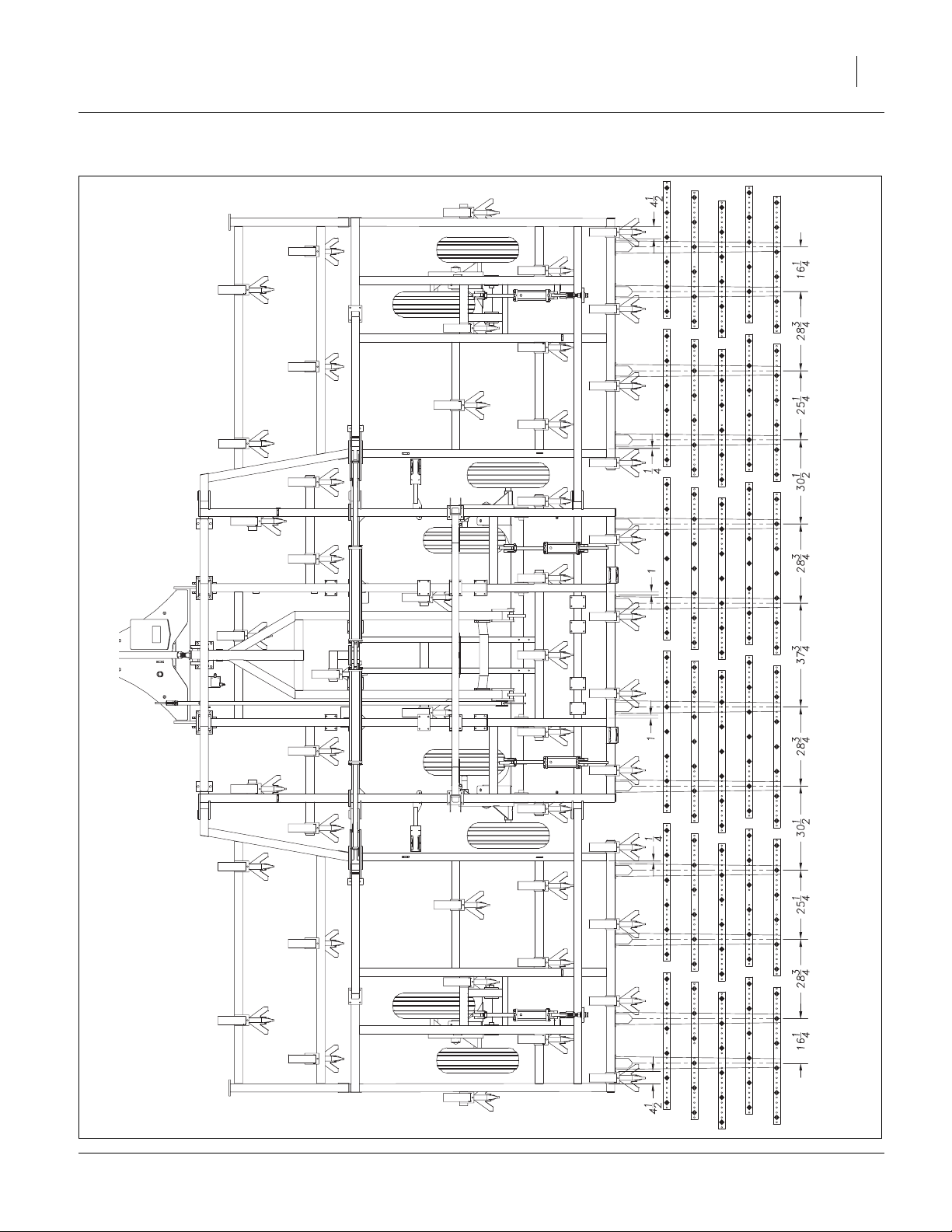

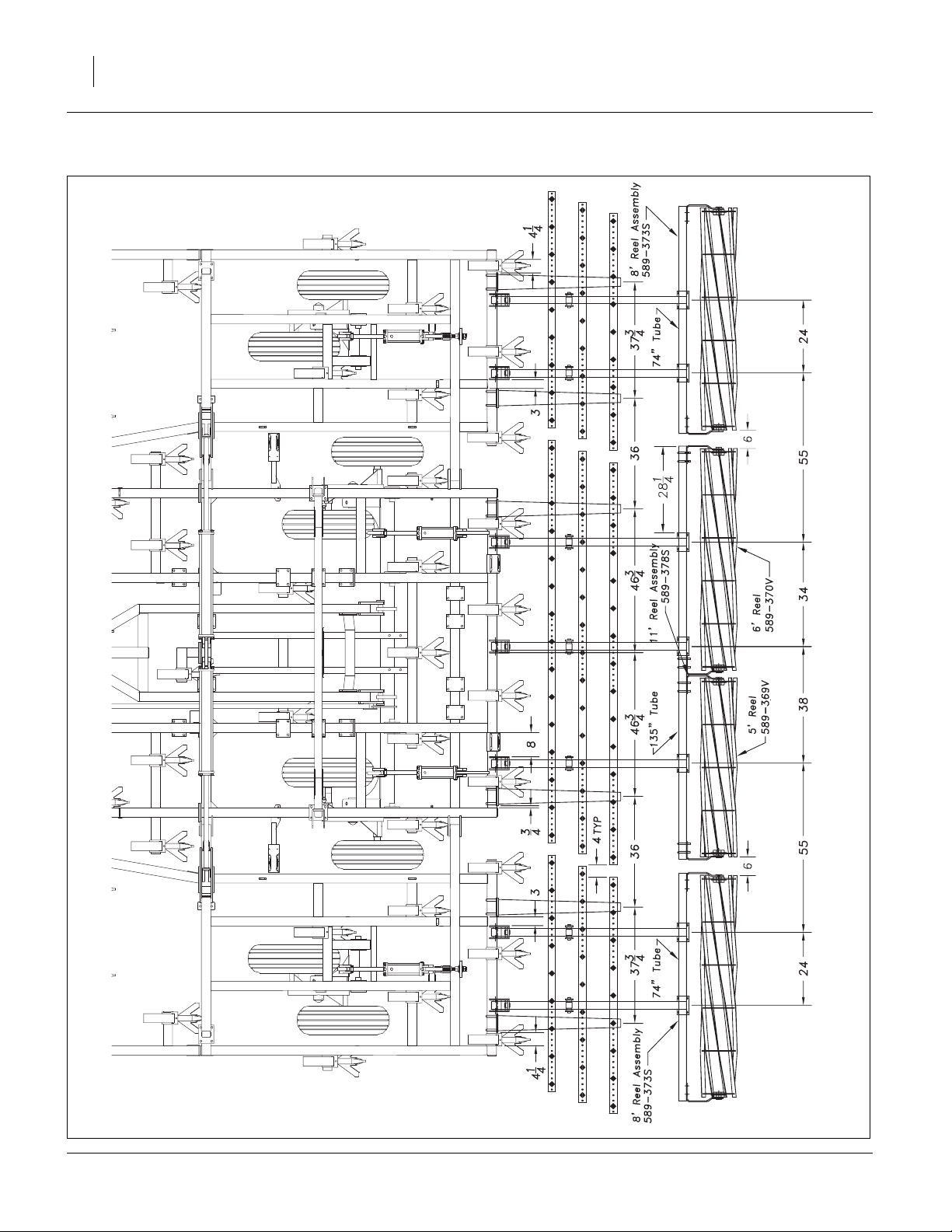

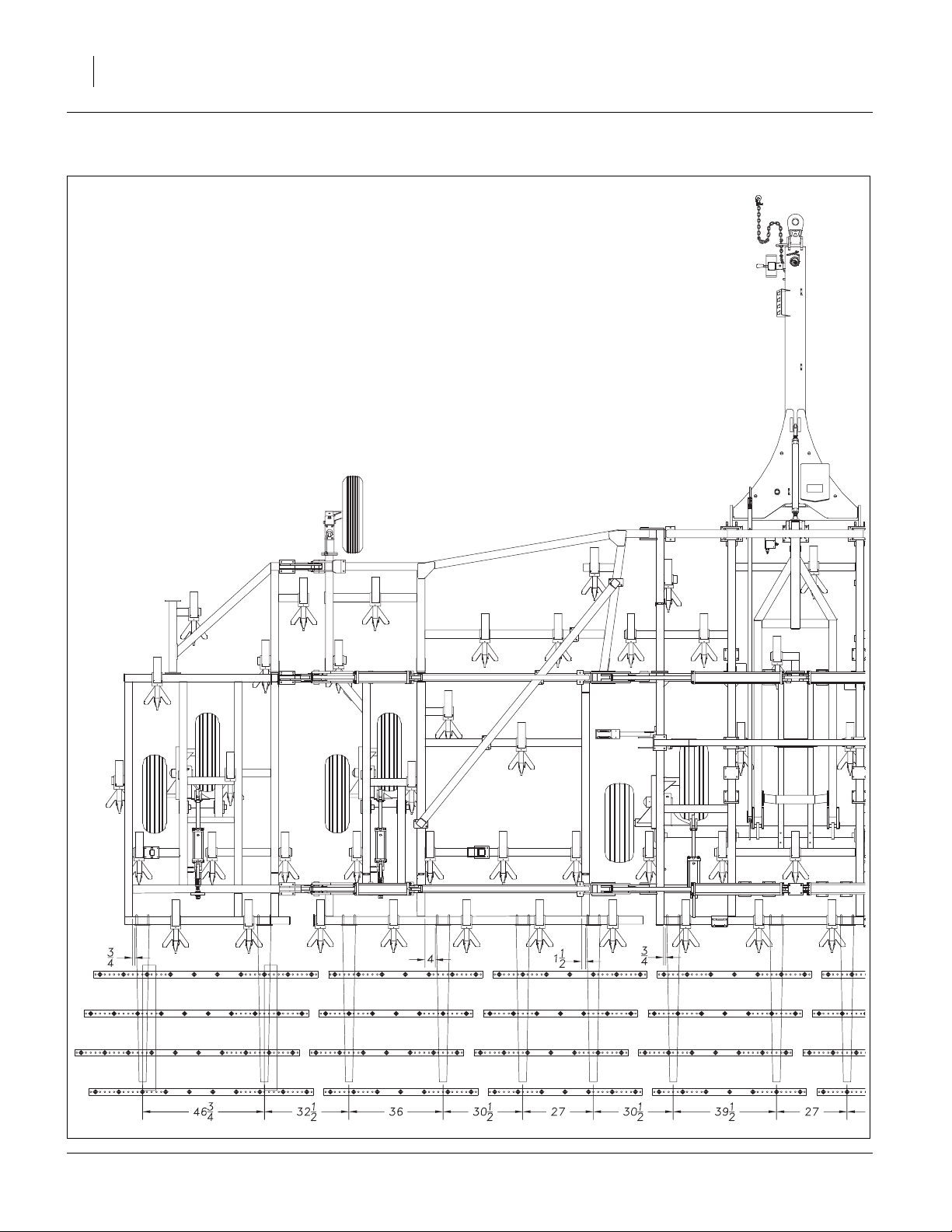

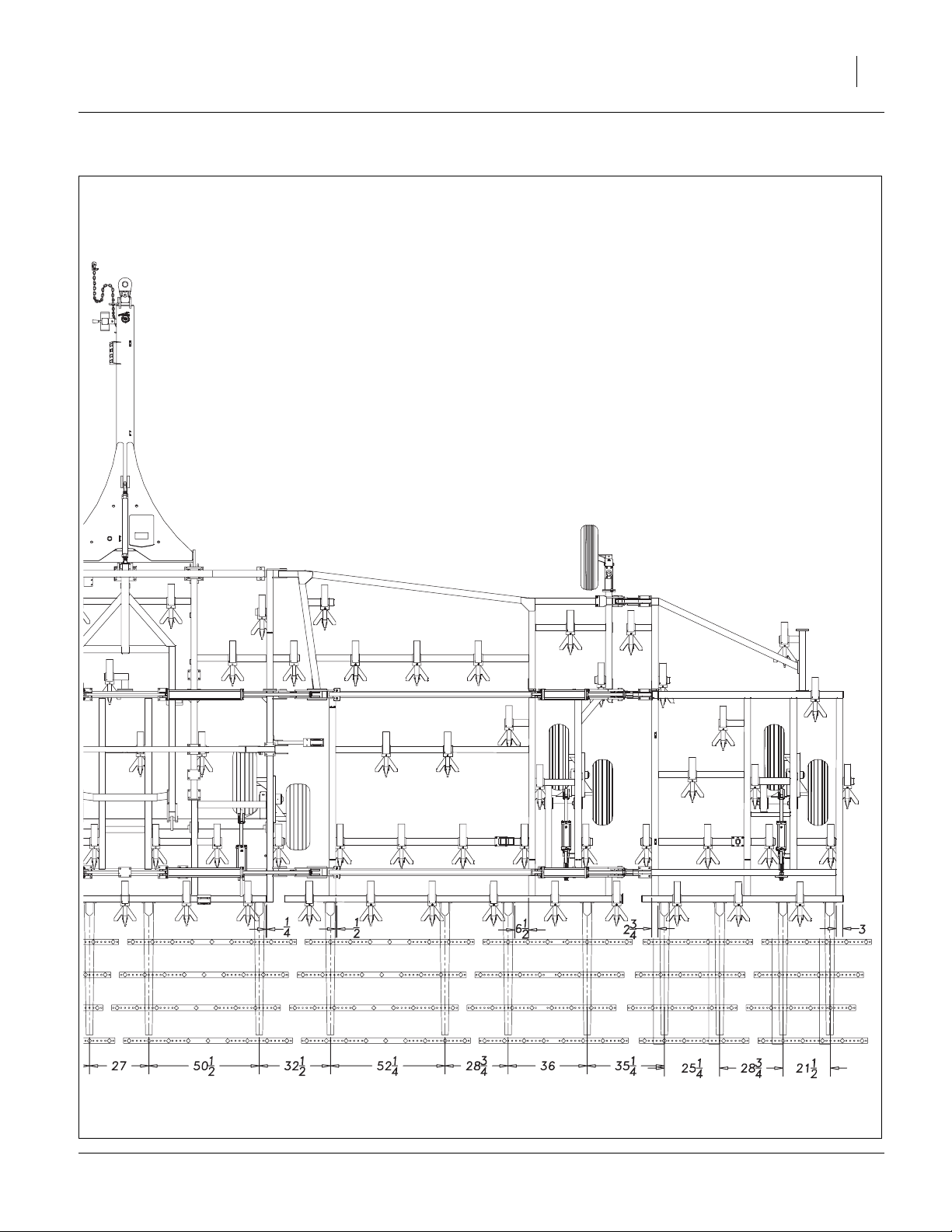

Note: See machine layout section in this manual for prop-
8. Attach light mounting brackets to rear center
frame tube with 1/2 x 4 1/32 x 4 u-bolt , 1/2 lock
washers and 1/2 nuts.
9. Mount smv post with 1/2 x 4 1/32 x 4 u-bolt , 1/
2 lock washers and 1/2 nuts as close to center of
tube shown. Attach smv sign to rear of smv post
with 1/4 x 3/4 pan head screws , 1/4 lock washers
and nuts.
10. All bolts may be tightened to specs, See “Torque
Values Chart” on page 25. Attach plastic end caps
1
3
(front plates), 3/4 lock washers and 3/4 nuts, rear
3
3
7 8
10
er light bracket placement.
13 12
to all open ends of 4 x 3 tube.
16
2
4
5
6
5
11
12
14
15
R
F
16
U
D
B
L
6
1
8
5
13
5
3
2
Figure 5
Center Frame Assembly
14
15
3
11
4
12
7
9
3
10
7
41884
560-483Q-ENG 02/10/2014
Great Plains Manufacturing, Inc. Assembly 9
Torque Tube & Level Bar
Refer to Figure 6
11. Carefully raise the torque tube with an overhead
hoist and secure with 1 1/4 x 6 pins , 3/8 x 2 1/4 Gr.
8 hex bolts and 3/8 top lock nut.
12. Attach the h-bracket mounting plate with 3/4 x 2
hex bolts , secure with 3/4 lock washers and 3/4
nuts
13. Attach the h- bracket into the h-bracket mounting
plate , secure with 1 x 2 29/64 clevis pins , 1.5
machine washers and 3/16 x 2 cotter pins.
14. Attach level bar slide tube assembly to top hole of
h- bracket with 1 x 9 Gr. 8 hex bolt and 1 top
lock nut.
15. Now slide the front of the level bar over the back
side of the level bar slide tube assembly , secure
with a 3/4 x 5 1/2 hex bolt and 3/4 lock nut.
16. Attach rear of level bar to the torque tube with the
1 x 6 Gr. 8 special hex bolt and 1 top lock nut.
17. Mount the level bar cross tube to the level bar
side plates with 5/8 x 1 1/2 hex bolts , secure with
5/8 lock washers and 5/8 nuts.
18. Now install the cylinders using 1 x 3 1/8 pins ,
1.5 x 1.0 x.075 machine washers and 3/16 x 2 cotter
pin.
19. Install cylinder transport locks to cylinders
using 3/8 x 3 pins and clip pins.
20. All bolts may be tightened to specs, See “Torque
Values Chart” on page 25.
4
5
3 6
5 8
9
1
2
3
7
9
7
10
11
12
13
14 15
16 14
R
F
8
10
7
5
U
B
12
13
11
15
L
D
9
14
16
4
2
6
3
Figure 6
Torque Tube & Level Bar Assembly
1
41885
Center Fold
Refer to Figure 7
Note: Models 8323-8328 wing stop goes on rear plates of
center frame trusses. All other models go on front
plates as shown.
21. Attach inside plates of center wing stop , to center
frame trusses using 5/8 x 1 1/2 bolts , 5/8 lock
washers and nuts.
22. Attach outside plates of center wing stop , to outside tubes of center frame with 5/8 x 3 1/32 x 6 1/2 ubolts , 5/8 lock washers and nuts.
3
23. Mount front and rear fold brackets to center
frame plates with 5/8 x 1 1/2 bolts , 5/8 lock washers and nuts.
24. Insert the 1/2 x 4 1/2 pin w/keepers into round
tubes on rear of wing stop .
25. All bolts may be tightened to specs, See “Torque
Values Chart” on page 25.
02/10/2014 560-483Q-ENG
4 5
1
1
2
1
3
2
2
6
5
6
1
4
Figure 7
Center Fold Assembly
2
4
Models 8323-
8328 Go On
2
Rear Plates
of Trusses.
R
F
5
U
B
L
D
41886
10 8323-8560FCC Great Plains Manufacturing, Inc.
Connect Hitch
Refer to Figure 8
26. Attach hitch to center brace bar using 1 1/4 x 7 Gr.
8 hex bolt , 1 1/4 flat washers (one on outside of
hitch, both sides) and top lock nut.
27. Mount square jack to front mount on hitch with
pin provided with jack.
Note: Use jack to help support front of hitch for rest of
hitch assembly.
28. Attach rear of turnbuckle assembly to h-bracket
with 1 x 9 Gr. 8 hex bolt and 1 nylon lock nut.
29. Attach front of turnbuckle assembly to hitch
using 1 x 4 1/2 pin , 1.5 x 1.0 x.075 machine
washer and 3/16 x 2 cotter pin.
30. Align holes in hitch base with holes in front of hitch
.
1
31. Align holes in safety chain support with holes on
left side of hitch , secure with 1 x 8 Gr. 8 special
hex bolts , 1 lock washers and 1 nuts.
32. Install safety chain on bottom side of hitch ,
secure with 7/8 x 3 hex bolt , 7/8 flat washer, 7/8
lock washer and 7/8 nut.
33. Route safety chain through safety chain support
.
8
34. Mount spring hose loop to top side of hitch ,
with 1/2 x 1 1/2 bolt , 1/2 lock washer and 1/2 flat
washer.
35. Mount the manual pack to hitch with 1/4 x 3/4
pan screws , rubber spacers , 1/4 lock washers
and 1/4 nuts.
36. All bolts may be tightened to specs, See “Torque
Values Chart” on page 25.
1
2 3
4 1
5
6
5 1
7
8
9
1
10
11 1
12
11
13 1
14
15 1
16 17
13
14
10
16
6
15
17
7
5
2
12
9
1
4
8
11
Figure 8
Hitch Assembly
3
U
R
F
B
L
D
41888
Install Wing Cylinder Mount
Refer to Figure 9
Note: The wing cylinder mount assemblies will be in-
stalled as shown below for all wings.
37. Attach cylinder mount plate to inside of tube weldment of wing frame, with 1 x 9 Gr. 8 hex bolt and 1
top lock nut. Tighten bolt down snug.
38. Slide adjustment bolt assembly through front side
of ball joint on wing frame, secure with 1 slotted nut
and 3/16 x 1 1/2 roll pin. Attach clevis end of
4
adjustment bolt assembly to rear hole of cylinder
mount plate with 1 x 2 29/64 clevis pin , 1.5 x 1.0
x.075 machine washer and 3/16 x 2 cotter pin.
Note: See side to side leveling in “Operator’s Manual” for
proper adjustment of wing when machine is completely assembled.
560-483Q-ENG 02/10/2014
1 5
1
2
3
3
3
1
Figure 9
Wing Cylinder Mount Assembly
5
4
R
F
U
B
L
D
2
41919
Great Plains Manufacturing, Inc. Assembly 11
Install 8323 & 8328 Wings
Refer to Figure 10
Note: Be sure and install the 1 x 6 1/4 hinge pins as
shown with roll pin in slot on front side of hinge.
39. Carefully align holes in wing frame LH with holes
in center frame. Secure with 1 1/4 x 6 1/4 hinge pins
, 3/8 x 2 1/2 roll pins, 1 flat washer 1 top lock nut.
2
40. Attach wing brace to the front of the wing frame LH
with 3/4 x 2 hex bolts , 3/4 lock washers and 3/4
1 4
hex nuts.
41. Align holes in wheel arm L , secure with 1 1/4 x 6
pins , 3/8 x 2 1/4 hex bolts and 3/8 top lock nuts.
6
42. Mount wing fold bracket to wing with 3/4 x 5 hex
bolts , 3/4 lock washers and 3/4 hex nuts, 5/8 x 3 1/
8
32 x 5 1/2 u-bolts , 5/8 lock washers and 5/8 hex
nuts.
43. Attach base end of 3.25 x 8 x 1.25 lift cylinder to
front hole of cylinder mount plate with 1 x 3 1/8 pin
, 1.5 x 1.0 x.075 machine washer and 3/16 x 2 cot-
12
ter pin. Attach rod end of 3.25 x 8 x 1.25 cylinder
to wheel arm L with 1 x 3 1/8 pin , 1.5 x 1.0
x.075 machine washer and 3/16 x 2 cotter pin.
44. Attach base end of 4 x 30 x 1.5 fold cylinder to
hole of center fold bracket with 1 x 3 1/8 pin , 1.5 x
1.0 x.075 machine washer and 3/16 x 2 cotter pin.
45. Do not attach rod end of fold cylinders until fold system has been purged, See “Purging Hydraulic Sys-
tem” on page 22
46. Repeat same procedure for right wing.
47. Tighten all bolts to specs, See “Torque Values
Chart” on page 25.
3
5
7
9
512
1
11
2
10
10
13
12
R
F
12
2
U
D
2
13
8
4
9
B
3
L
Figure 10
8323 & 8328 Wing Assembly
5
12
7
10
12
11
6
1
41889
02/10/2014 560-483Q-ENG
12 8323-8560FCC Great Plains Manufacturing, Inc.
Install 8332 & 8336 Wings
Refer to Figure 11
Note: Be sure and install the 1 x 6 1/4 hinge pins as
shown with roll pin in slot on front side of hinge.
48. Carefully align holes in wing frame LH with holes in
center frame. Secure with 1 1/4 x 6 1/4 hinge pins ,
3/8 x 2 1/2 roll pins, 1 flat washer 1 top lock nut.
49. Attach wing brace to the front of the wing frame LH
with 3/4 x 2 hex bolts , 3/4 lock washers and 3/4
1 4
hex nuts.
50. Align holes in wheel arm L , secure with 1 1/4 x 6
pins , 3/8 x 2 1/4 hex bolts and 3/8 top lock nuts.
6
51. Fasten LH wing truss to wing with 5/8 x 1 1/2 hex
bolts , 5/8 lock washers and 5/8 hex nuts.
8
52. Mount wing extension to outside of wing and wing
brace with 5/8 x 1 1/2 hex bolts , 5/8 lock washers
and 5/8 hex nuts.
53. Mount wing fold bracket to wing with 3/4 x 5 hex
bolts , 3/4 lock washers and 3/4 hex nuts, 5/8 x 3
11
1/32 x 5 1/2 u-bolts , 5/8 lock washers and 5/8 hex
nuts.
54. Attach base end of 3.25 x 8 x 1.25 lift cylinder to
front hole of cylinder mount plate with 1 x 3 1/8 pin
, 1.5 x 1.0 x.075 machine washer and 3/16 x 2 cot-
15
ter pin. Attach rod end of 3.25 x 8 x 1.25 cylinder
to wheel arm L with 1 x 3 1/8 pin , 1.5 x 1.0
x.075 machine washer and 3/16 x 2 cotter pin.
55. Attach base end of 4 x 30 x 1.5 fold cylinder to
hole of center fold bracket with1x31/8pin ,1.5x
1.0 x.075 machine washer and 3/16 x 2 cotter pin.
56. Attach 5” stub to outside of wing extension , with
5/8 x 1 1/2 hex bolts , 5/8 lock washers and 5/8 hex
nuts.
57. Do not attach rod end of fold cylinders until fold system has been purged, See “Purging Hydraulic Sys-
tem” on page 22
58. Repeat same procedure for right wing.
59. Tighten all bolts to specs, See “Torque Values
Chart” on page 25.
3
5
7
9
10
12
5
17
8
1
8
14
15
2
2
13
13
16
15
9
R
F
15
2
U
D
11
16
2
8
10
12
B
L
8332 & 8336 Wing Assembly
4
3
Figure 11
1
13
15
7
14
6
17
8
9
8
5
41893
560-483Q-ENG 02/10/2014
Great Plains Manufacturing, Inc. Assembly 13
Install 5-Section Wing
Refer to Figure 12
Note: Be sure and install the1x61/4hinge pins as shown
with roll pin in slot on front side of hinge.
60. Carefully align holes in wing frame LH with holes in
center frame. Secure with 1 1/4 x 6 1/4 hinge pins , 3/
8 x 2 1/2 roll pins, 1 flat washer 1 top lock nut.
61. Attach wing brace to the front of the wing frame LH
with 3/4 x 2 hex bolts , 3/4 lock washers and 3/4 hex
nuts.
62. Align holes in wheel arm L , secure with 1 1/4 x 6 pins
, 3/8 x 2 1/4 hex bolts and 3/8 top lock nuts.
6
63. Fasten LH wing truss to wing with 5/8 x 1 1/2 hex
bolts , 5/8 lock washers and 5/8 hex nuts.
8
64. Attach base end of 3.50 x 8 x 1.25 lift cylinder (models
8539-8548) or 3.75x8x1.38 lift cylinder (models 8551-
8560) to front hole of cylinder mount plate with 1 x
3 1/8 pin , 1.5 x 1.0 x.075 machine washer and 3/16 x
2 cotter pin. Attach rod end of cylinder to wheel arm L
and 3/16 x 2 cotter pin.
65. Tighten all bolts to specs, See “Torque Values Chart”
on page 25.
9
11
with1x31/8pin ,1.5x1.0x.075 machine washer
5
3 1
4
5
7
11
2
1
2
10
9
R
F
2
1
11
9
7
8
2
10
U
4
6
B
L
D
3
Figure 12
5-Section Wing Assembly
5
41894
Install 5-Section Wing Fold
Refer to Figure 13
66. Mount wing folding brackets to wing with 3/4 x 5 hex
bolts , 3/4 lock washers and 3/4 hex nuts, 5/8 x 3 1/32
2
x 5 1/2 u-bolts 5/8 lock washers and 5/8 nuts, 3/4 x 5
1/2 hex bolt , 3/4 lock washer and 3/4 nut.
67. Attach base end of 4 x 30 x 1.5 cylinders to center
fold bracket with 1 x 3 1/8 pin , 1.5 x 1.0 x.075
machine washer and 3/16 x 2 cotter pin.
68. Do not attach rod end of fold cylinders until fold system
has been purged, See “Purging Hydraulic System”on
page 22.
69. Attach inside wing hinge to wing brace with 5/8 x 1 1/
2 hex bolts , 5/8 lock washers and 5/8 hex nuts, 5/8 x 3
1/32 x 5 1/2 u-bolt , 5/8 lock washers and 5/8 nuts.
70. Attach wing lock mount , on top of wing frame tube,
with 1/28 x 3 1/32 x 5 u-bolts , 5/8 lock washers and
5/8 nuts.
Note: See layout section in “Operator’s Manual” for proper
placement of wing lock mount and wing rest .
71. Bolt the automatic wing latch , wing lock mount ,
with 3/4 x 4 1/2 hex bolts , 3/4 lock washers and 3/
4 nuts.
72. Attach wing rest to front wing folding bracket ,
secure with wing rest plate , 1/2 x 4 1/2 hex bolts
, 1/2 lock washers and 1/2 nuts.
15
3
4
8
3
13 1
1
5
6
7
9
10
913
11 9
12
14
6
5
2
12
9
11
10
15
13
1
14
7
3
R
F
U
3
B
L
D
Figure 13
5-Section Wing Fold Assembly
73. Tighten all bolts to specs, See “Torque Values
Chart” on page 25.
74. Repeat same procedure for right wing.
1
4
8
41895
02/10/2014 560-483Q-ENG
14 8323-8560FCC Great Plains Manufacturing, Inc.
Install 5-Section Outside Wings
Refer to Figure 14
75. Align holes in outside wing hinge with hole in LH
and RH outside wing , secure with 1 x 5 1/2 hex
bolt , 5/8 lock washers, 5/8 nuts and two 5/8 x 3 1/
4
32 x 5 u-bolts , 5/8 lock nuts. Fasten the front outside wing hinge to wing brace the same way.
76. Carefully align holes in wing hinges with holes in
fold brackets. Secure with 1 1/4 x 7 Gr. 8 hex bolt
and 1 1/4 top lock nut.
77. Attach outside wing brace to front side of wing
frame with 3/4 x 2 hex bolts , 3/4 lock washers, 3/4
hex nuts.
78. Attach bolt-on stub to side of wing brace and front
of wing frame with 5/8 x 4 1/32 x 4 1/4 u-bolts , 5/8
lock washers and 5/8 nuts
79. Attach holes in wheel arm L , to wing frame ,
secure with 1 1/4 x 6 pin , 3/8 x 2 1/4 hex bolts and
3/8 top lock nuts.
80. Attach base end of 3.25 x 8 x 1.25 lift cylinder (models 8539-8548) or 3.50 x 8 x 1.325lift cylinder (models 8551-8560) to front hole of cylinder mount
plate with 1 x 3 1/8 pin , 1.5 x 1.0 x.075 machine
washer and 3/16 x 2 cotter pin. Attach rod end of cylinder to torque tube lever with 1 x 3 1/8 pin , 1.5
12 14
x 1.0 x.075 machine washer and 3/16 x 2 cotter pin.
81. Mount bottom of 180 fold rocker to wing hinge
with 1 x 3 1/8 clevis pin , 1.5 x 1.0 x.075 machine
washer and 3/16 x 2 cotter pin.
82. Attach base end of 4 x 16 x 1.25 cylinders to center fold bracket with 1 x 3 1/8 pin , 1.5 x 1.0 x.075
machine washer and 3/16 x 2 cotter pin.
83. Do not attach rod end of fold cylinders until fold system has been purged, See “Purging Hydraulic Sys-
tem” on page 22.
84. Attach T bracket to wing frame with 1/2 x 3 1/32 x
5 u-bolts , 1/2 lock washers and 1/2 nuts.
Note: See layout section in “Operator’s Manual”for proper
placement of lock mount .
85. Tighten all bolts to specs, See “Torque Values
Chart” on page 25.
5
19
2
1
3
8
11
12 13
14
16
18
1
1
6
7
9
10 2
15 1
17
14
18
R
F
15
12
14
17
1
14
13
18
16
6
1
9
7
4
2
11
U
19
10
41896
D
B
L
5-Section Outside Wing Assembly
3
5
8
Figure 14
9
560-483Q-ENG 02/10/2014
Great Plains Manufacturing, Inc. Assembly 15
Center Transport
Note: See “Tires Chart” on page 26 for proper tire sizes for
tire/wheel assembly .
Refer to Figure 15
Note: See transport section of “Parts Manual” for proper
parts breakdown for center walking beam assemblies (left hand and right hand) for model of machine
purchased. See notes on drawing for proper hole
placement of walking beam spindle and front tube on
walking beam.
86. Install the walking beam assembly with correct 5/16
hex bolt and 5/16 top lock nut.
87. Align hole in spindle/hub assembly to hole in walking beam assembly secure with hex bolt and top
lock nut or pin and cotter pin .
88. Mount tire/wheel assembly to spindle/hub assembly
with 9/16 or 5/8 lug nuts .
3 6
Note: Left hand shown is shown. Repeat same procedure
89. Tighten all bolts to specs, See “Torque Values Chart”
on page 25.
2
for right side.
5
1
3
1
4
5
Wing Transport
Refer to Figure 16
Note: See transport section of “Parts Manual” for proper
parts breakdown for wing walking beam assemblies.
See notes on drawing for proper hole placement on
walking beam spindle and front tube of walking
beam. See “Tires Chart” on page 26 for proper tire
sizes for tire/wheel assembly .
90. Install the walking beam assembly with correct 5/16
hex bolt and 5/16 top lock nut.
91. Align hole in spindle/hub assembly (13.5” spindle)
to hole in walking beam assembly secure with 5/16
x 2 13/16 pin clevis and cotter pin.
92. Mount tire/wheel assembly to spindle/hub assembly
with 9/16 lug nuts .
3 6
Note: Left hand shown is shown. Repeat same procedure
93. Tighten all bolts to specs, See “Torque Values Chart”
on page 25
2
4
for right side.
5
1
3
1
5
R
F
U
R
B
5
F
L
D
2
4
5
6
3
1
3
Figure 15
Center Transport
41891
5
3
2
1
4
5
6
U
B
4
L
D
Figure 16
Wing Transport
3
42732
02/10/2014 560-483Q-ENG
16 8323-8560FCC Great Plains Manufacturing, Inc.
Install Gauge Wheel
Refer to Figure 17
94. Start by installing the wheel arm mount to the
plates on wing frame with 5/8 x 2 hex bolts , 5/8
lock washers and 5/8 nuts.
95. Slide screw jack down through the wheel arm
mount plate, secure with 1/2 x 1 1/4 hex bolts and
1/2 top lock nuts
96. Slide the spindle receiver inside the wheel arm
mount, align holes, secure with 3/4 x 4 hex bolt , 3/
4 lock washer and 3/4 nut. Install two 5/8 x 1 1/4 hex
bolts to welded nuts on wheel arm mount.
7
97. Slide 6-bolt hub assembly into spindle receiver ,
align holes, secure with 5/16 x 2 13/16 clevis pin
and 1/8 x 1 cotter pin.
98. Attach the 9.5L x 15, 8 ply, wheel/tire assembly to
6-bolt hub assembly and secure with 9/16 lug nuts
.
11
99. Tighten bolts to specs, See “Torque Values Chart”
on page 25.
3
5
8 5
1
2
4
6
9
10
Install K-Flex

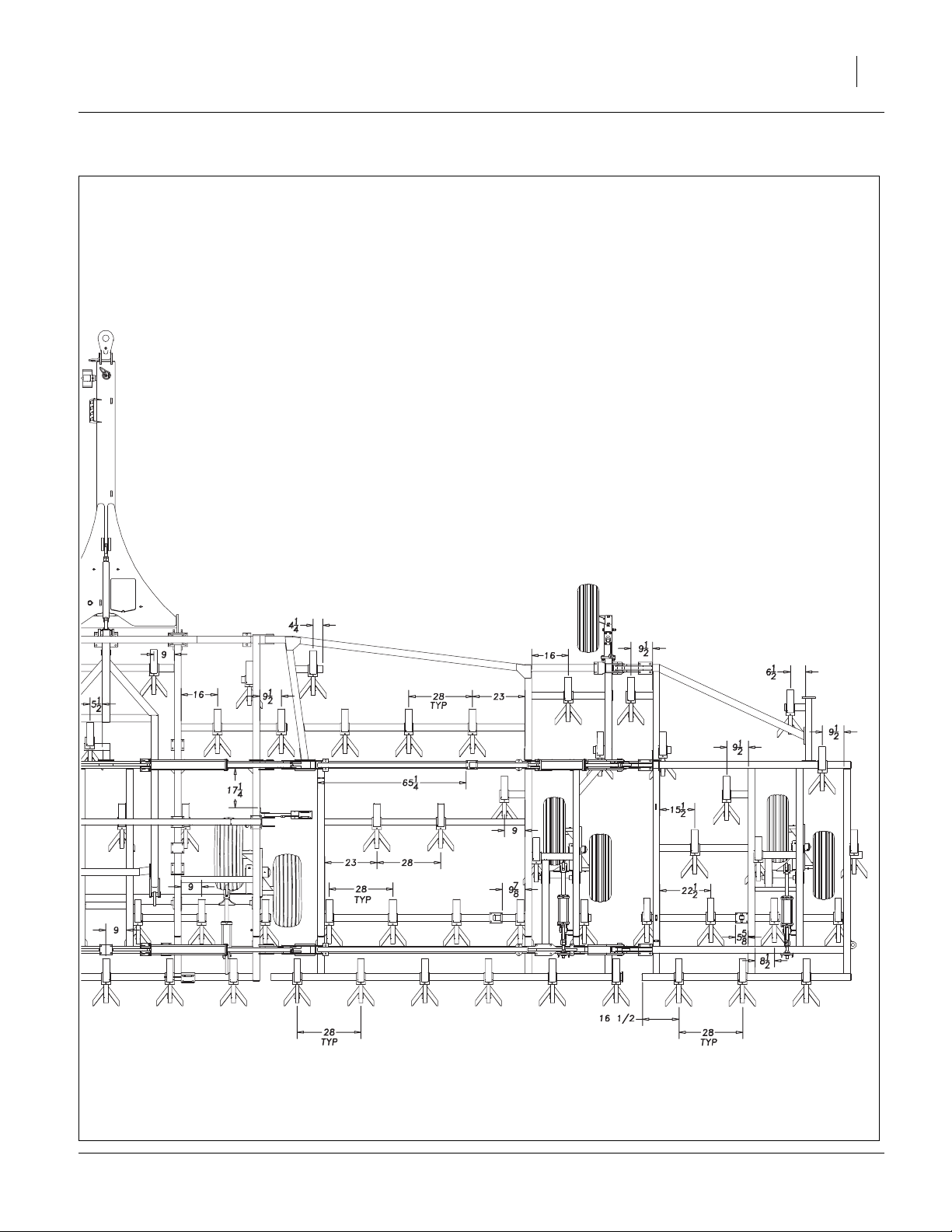

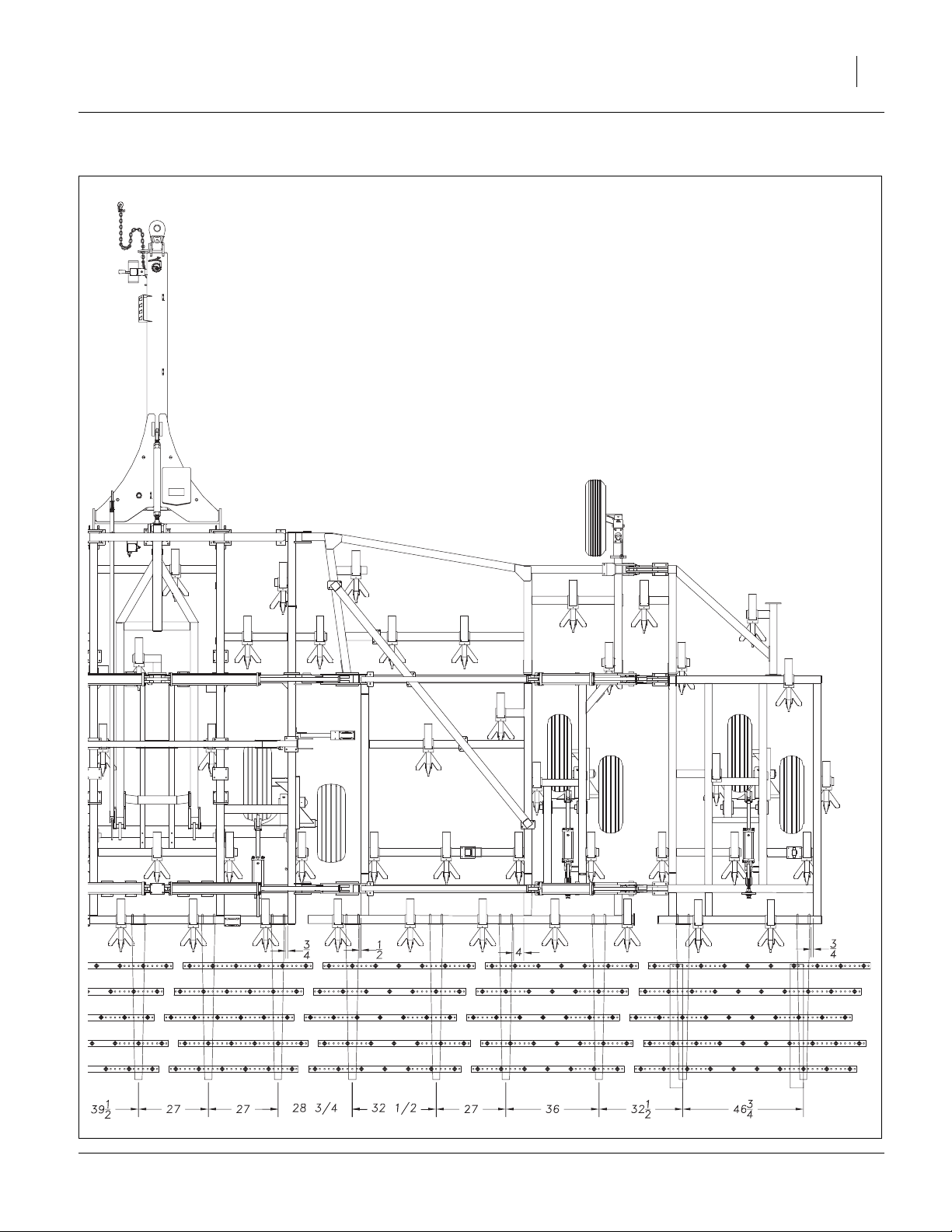

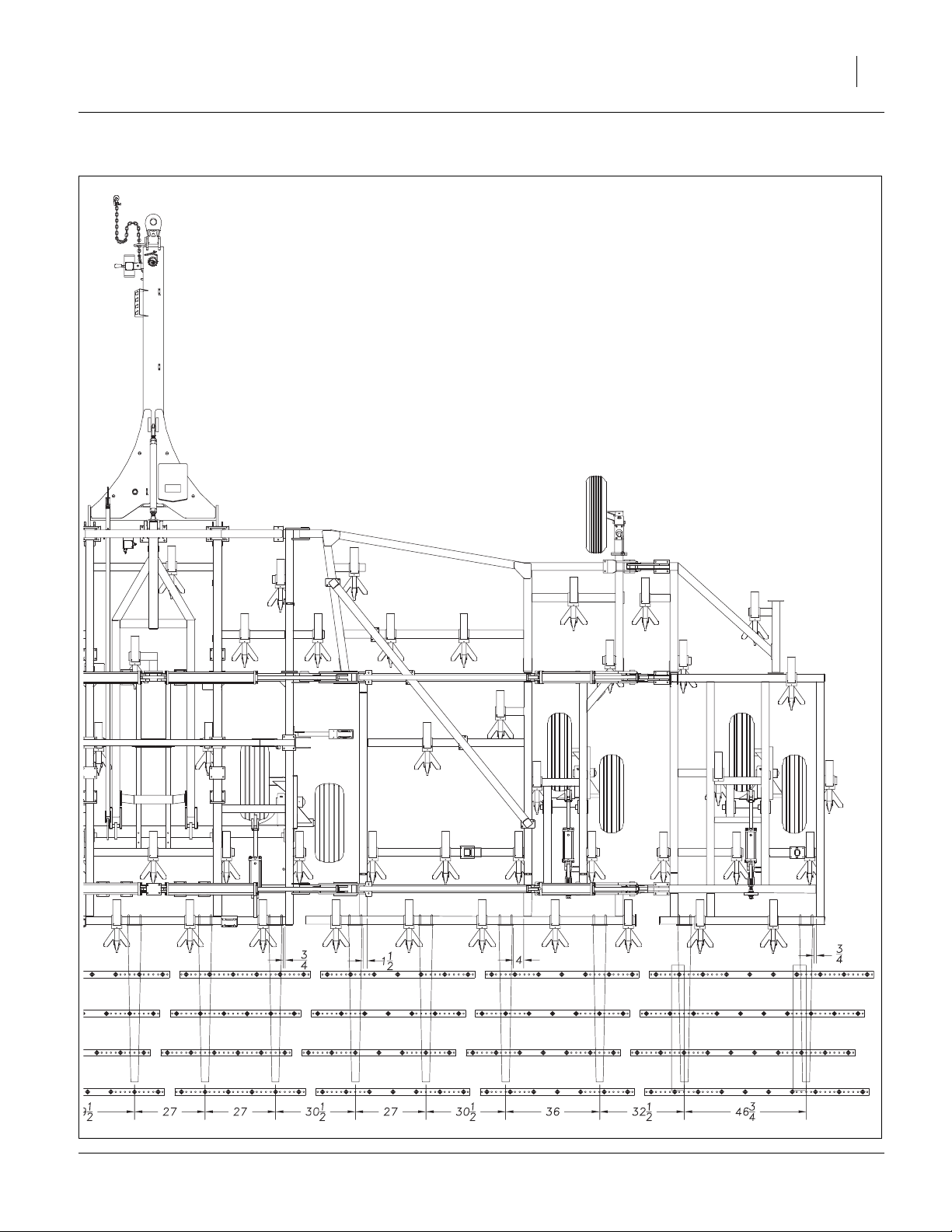

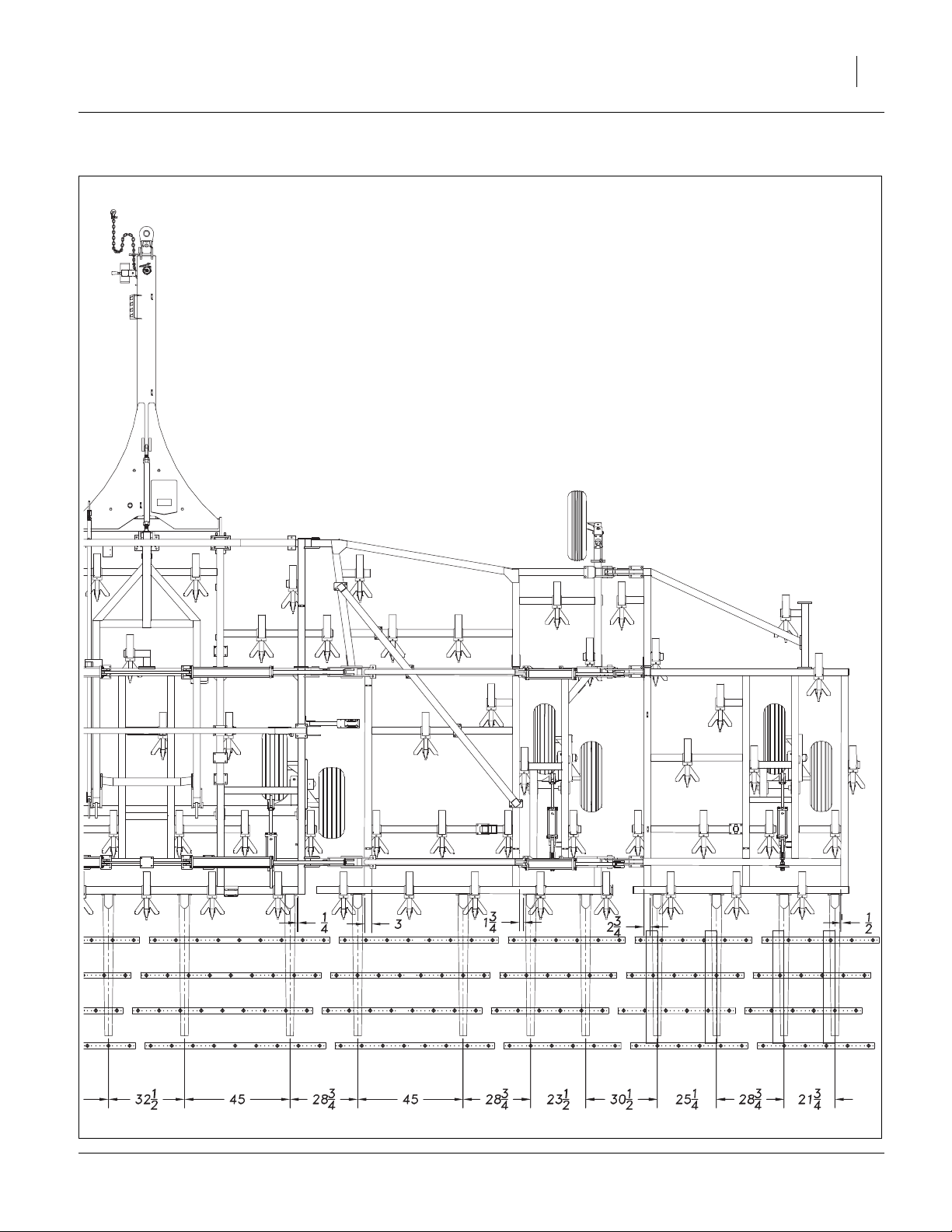

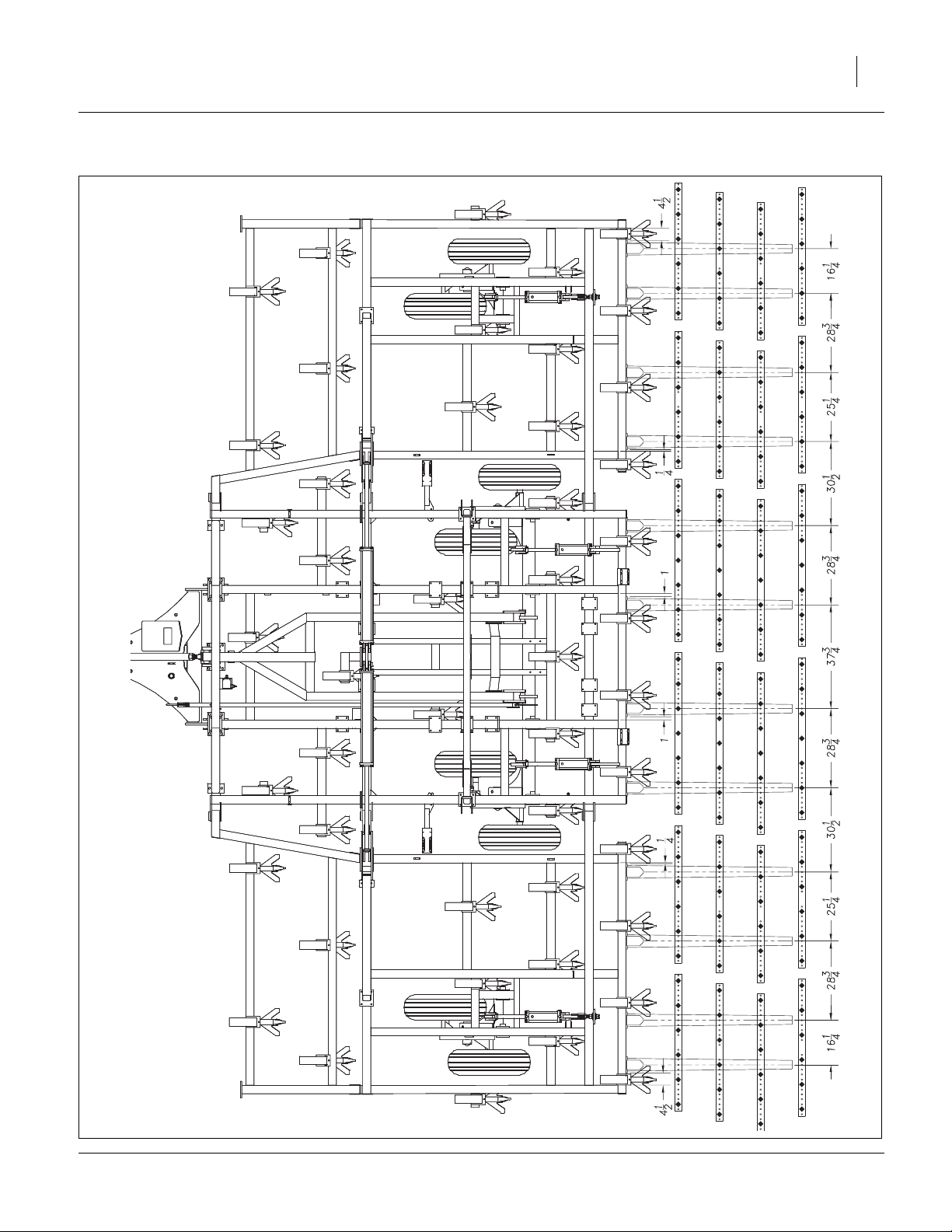

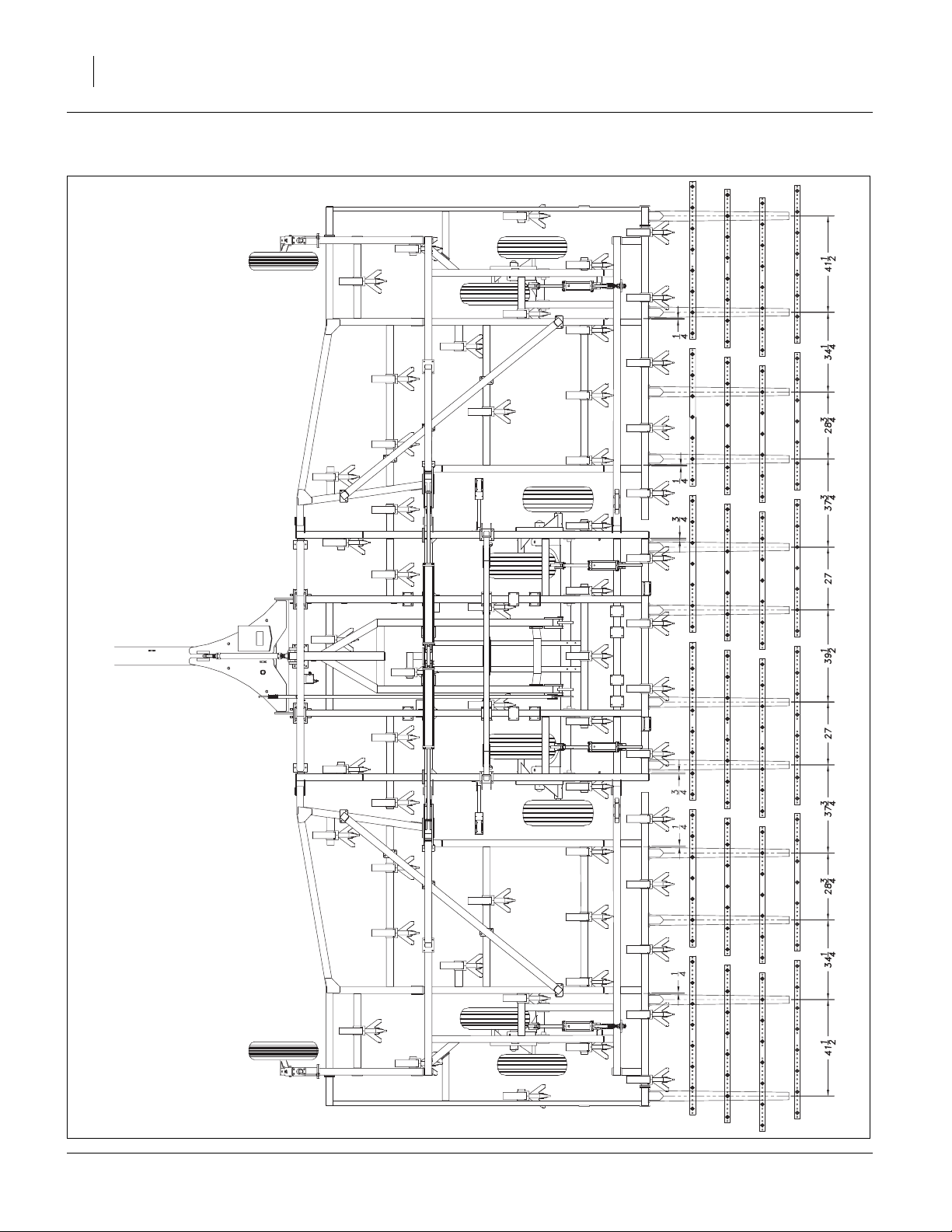

Note: See layout section in appendix section for proper
shank placement.
Refer to Figure 18
100.Slide k-flex shank mount through slot in k-flex
clamp . Slide these two parts over frame tube in
proper location.
101.Align top hole in k-flex clip with top hole in k-flex
clamp , secure with 1/2 x 1 1/2 hex bolt , 1/2 lock
washer and 1/2 nut. Install 1/2 x 5 hex bolts , 1/2
lock washers and 1/2 nuts.
102.Slide shank through slotted hole in k-flex shank
mount (1), secure with 5/8 x 2 hex bolt and 5/8 top
lock nut. Attach sweep with 7/16 x 1 3/4 plow bolts
16 nylock nuts.
103.Tighten all bolts to specs, See “Torque Values
Chart” on page 25.
2
2 4
6
, one, 7/16 flat washer (top slotted hole) and 7/
910
1
3
5
7
8
R
F
11
U
D
B
3
L
Align Hole
10
1
9
8
6
Figure 17
Gauge Wheel Assembly
2
9
8
Figure 18
K-Flex Assembly
4
2
7
5
Align Hole
41881
4
5
1
3
10
7
6
41667
560-483Q-ENG 02/10/2014
Great Plains Manufacturing, Inc. Assembly 17
Install Magnum Shank
Note: See layout section in appendix section for proper
shank placement.
Refer to Figure 19
104.Loosen 1/2 x 1 1/2 hex bolt clear up to get 5/8 x 2
hex bolt installed.
105.Position pre-assembled shank mount assembly
over front of frame tube in proper location. Secure
with 5/8 x 4 1/32 x 4 3/4 u-bolt and 5/8 top lock nut.
106.Be sure the 3/4 nylock jam nut is loose enough for
shank cradle to pivot.
107.Slide shank into shank cradle until holes are
aligned, secure with 5/8 x 2 hex bolt and 5/8 top
lock nut.
108.Align sweep with holes on shank , secure with 7/
16 x 1 3/4 plow bolts , one, 7/16 flat washer (top
slotted hole) and 7/16 nylock nuts.
109.Re-tighten 1/2 x 1 1/2 hex bolt until threads bottom
out.
Note: IIMPORANT(!) Be sure and tighten 3/4 nylock
110.Tighten rest of bolts to specs, See “Torque Values
Chart” on page 25.
6
5
7 5
8 9
jam nut until threads bottom out to insure that
hole doesn’t wear excessively.
3
4
1
2
3
6
4
4
1
3
8
7
Figure 19
Magnum Shank Assembly
2
6
5
9
41668
Install Hydraulic Valves
Refer to Figure 20
111.Align holes in depth control valve to top of depth
stop valve mounting bracket using 5/16 x 2 hex
bolts and 5/16 lock washers.
2
112.Slide one end of depth stop tube (with 2 holes)
through slotted hole in depth stop valve mounting
bracket. Slide other end of depth stop tube lever
on torque tube, secure with 1/2x3hexbolt and 1/
2 lock nut.
113.Bolt depth stop screw assembly to front of depth
stop tube with 1/2 x 2 1/2 hex bolts , 1/2 lock
washers and 1/2 nuts.
114.Mount rebound valve to bracket, with 5/16x4hex
bolts , 5/16 lock washers and 5/16 nuts.
115.Tighten rest of bolts to specs, See “Torque Values
Chart” on page 25 and bend cotter pin.

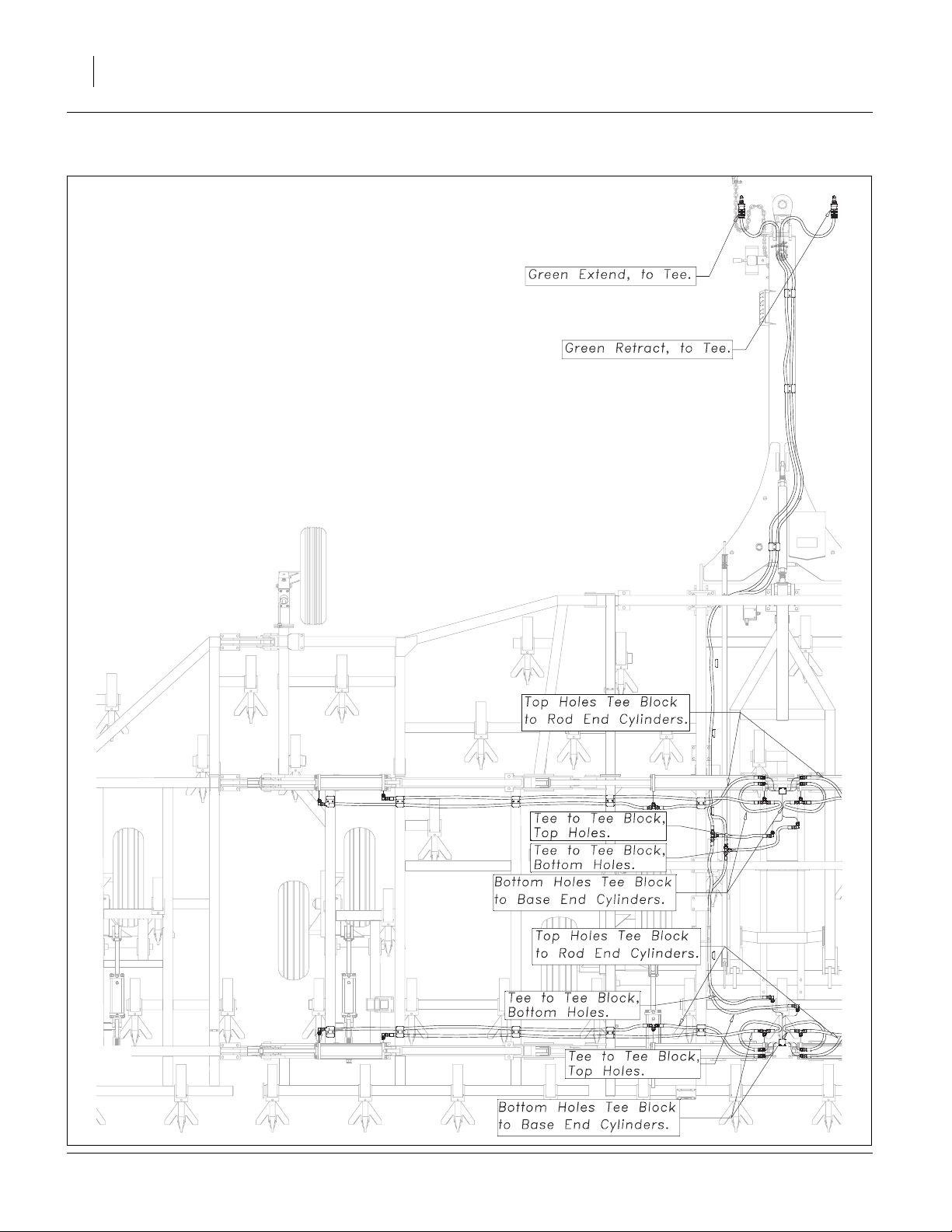

Note: Install all hydraulic fittings as shown in steps on fol-
lowing pages. Refer to appendix section for complete hydraulic layouts.
3 6
7
8
1
2
3
3
4
5
R
F
U
B
D
L
2
5
3
1
4
10
6
9
8
7
Figure 20
Hydraulic Valve Assembly
41901
02/10/2014 560-483Q-ENG
18 8323-8560FCC Great Plains Manufacturing, Inc.
Install Rebound Valve and O-Ring Fittings
Refer to Figure 21
116.Thread straight (non- adjustable stud) fittings into
ports V1, V2 and C2 of rebound valve .
Note: Tighten as shown below. Do not over tighten as this
could cause damage to valves.
a. Inspect all components for damage or contamination
during shipping.
b. Lubricate o-ring and threads on fitting.
c. Turn fitting into port until finger tight, See “Fittings
Torque Values” on page 27 or proper torque value.
117.Thread elbow (adjustable stud) fitting2 into port C1
of rebound valve .
a. Follow steps a and b from the foregoing instructions,
then proceed with the following steps below.
b. Looking from fitting from end with nut/washer/o-ring
assembly, turn nut clockwise as far as possible.
c. Using wrench, turn fitting into port until the washer
touches the port spot face. Continue turning fitting
until washer touches thread nearest wrench pad.
d. Back off fitting counterclockwise not exceeding one
revolution until it is oriented in the correct position.
e. Place wrench on the wrench pad of fitting to prevent
fitting from turning, and See “Fittings Torque Val-
ues” on page 27 for proper torque value.
1
1
2
3
R
F
U
B
L
2
3
D
3
3
Figure 21
Rebound Valve Fittings
1
41670
Install Depth Control Valve
Refer to Figure 22
118.Thread elbow (adjustable stud) fitting into rear port
of depth stop valve . Thread straight (non- adjustable stud) fittings into right port of depth control
valve .
1
Note: Tighten ORB fittings, See “Install Rebound Valve
and O-Ring Fittings” on page 18
1
3
2
3
2
Figure 22
Depth Control Valve Fittings
F
R
U
B
L
D
1
42099
560-483Q-ENG 02/10/2014
Great Plains Manufacturing, Inc. Assembly 19
Install 3-Section Double Tee Block
Refer to Figure 23
119.Thread elbow (adjustable stud) fitting into rear ports
of double tee block . Thread straight (non- adjustable
stud) fittings into left and right ports of double tee
block .
1
Note: Tighten ORB fittings, See “Install Rebound Valve and
O-Ring Fittings” on page 18.
3
1
2
2
1
U
3
R
B
Install 5-Section Double Tee Block
Refer to Figure 24
120.Thread elbow (adjustable stud) fitting into rear and
front ports of double tee blocks . Thread straight (nonadjustable stud) fittings into left and right ports of double tee block .
121.Fasten MJIC tee’s between hoses as shown.
Note: See “Install JIC Fittings” on page 20 for proper instal-
lition.
Note: Tighten ORB fittings, See “Install Rebound Valve and
O-Ring Fittings” on page 18
1
3
4
2
1
Install Hose Handles
Refer to Figure 25
Note: Hose handles are color coded. See “Hydraulic Hose
Hookup” on page 21 for proper placement on hoses.
122.Install fittings to end of hoses running to front of
hitch. Attach poppet fittings to fittings .
123.Tighten ORB fittings, See “Install Rebound Valve and
O-Ring Fittings” on page 18
124.Align the grooves in the front of the hose handles to
the back two ribs of fittings as shown and install the
self threading screws through holes.

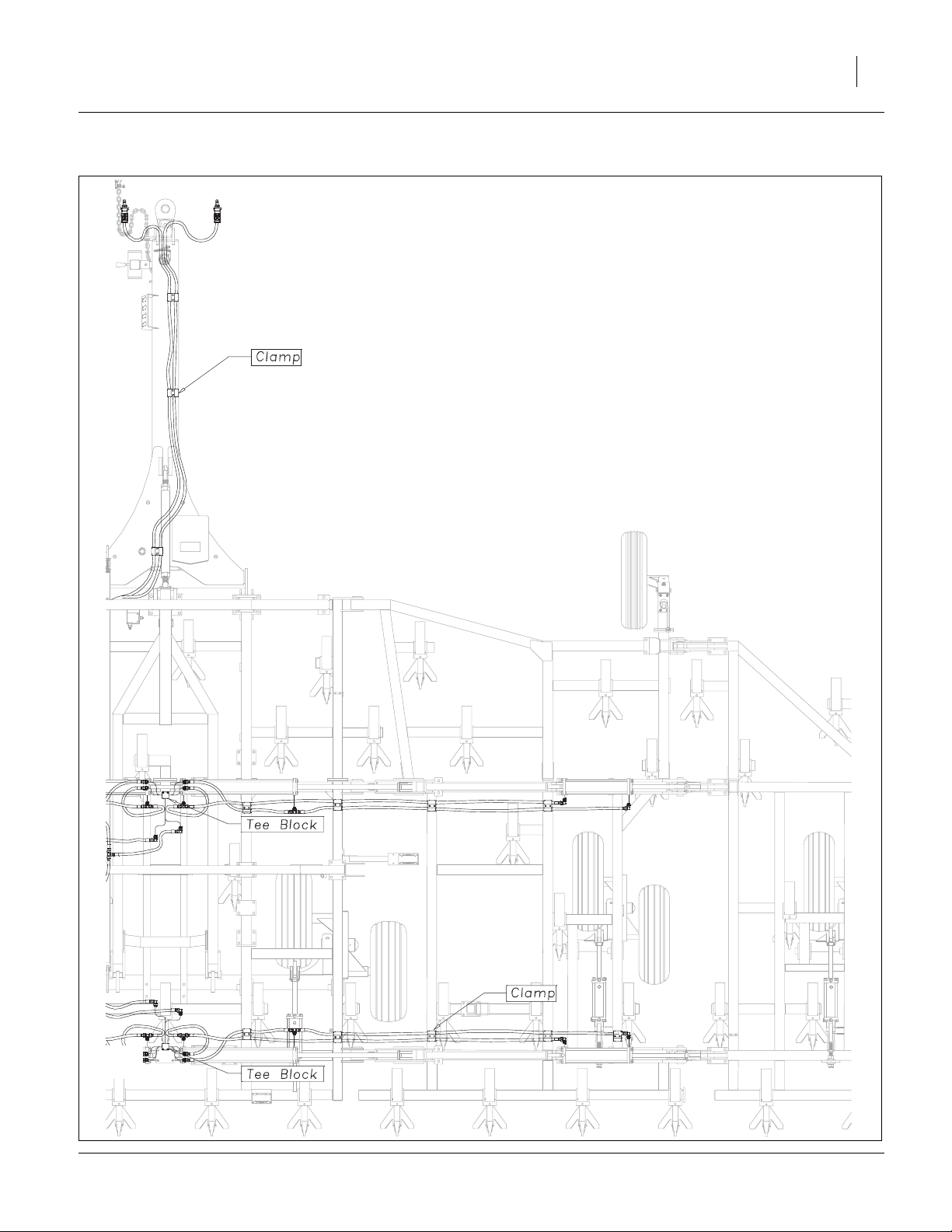

125.Route hoses as shown in layout section in “Operator’s
Manual”.
2 1
3 2
4
2
5
R
F
R
F
F
L
D
Figure 23
3-Section Double Tee Block
41915
1
U
B
L
3
D
4
2
Figure 24
5-Section Double Tee Block
41916
U
B
5
L
D
2
3
4
Figure 25
Hose Handle Assembly
1
41672
02/10/2014 560-483Q-ENG
20 8323-8560FCC Great Plains Manufacturing, Inc.
Install JIC Fittings
Refer to Figure 26
126.Install JIC female hose to male fitting.
127.When the JIC hoses are routed, follow the following procedure for hooking up and tightening.
a.Inspect for possible contamination or damage from
shipping or handling. Sealing surface should be
smooth. Annular tool marks of (100uin) concentric
with thread permissible.
b.Lubricate the threads and the entire surface of the
cone with hydraulic fluid or a light lubricant.
c.Align mating componets for hand connection and turn
flare nut until sealing surfaces make full contact.
d.Torque nut to the values shown in “Torque Value Chart”
page 23. If a wrench pad is provided next to nut, place
a second wrench on pad to prevent flare from rotating
while being torqued.
e.When torquing nut onto a straight flared fitting, it may
be necessary to also place a wrench on the flared fitting wrench pad to prevent it from turning during
assembly.
128.Alternate Assembly Method for JIC.
a.If torqued method not possible, follow steps a-c (step
166), then proceed to the steps below.
b.Lightly wrench tighten the nut until there is firm resis-
tance.
c. Place a wrench on wrench pad next to nut as near the
6 0’clock position as possible.
d.Place second wrench on nut as near the 3 o’clock posi-
tion as possible.
e.Turn nut clockwise to no less than the 4 o’clock posi-
tion and no more than the 6 o’clock position. Required
rotation generally decreases as size increases.
1
R
F
U
B
L
D
1
Figure 26
JIC Fittings Assembly
2
41678
560-483Q-ENG 02/10/2014
Great Plains Manufacturing, Inc. Assembly 21
u
e
.
Attach Hose Clamps and Hose wraps
Refer to Figure 27
129.When all the hoses are hooked up and tightened properly, put hose clamps on hoses as shown.
130.Install hose wraps on hoses as needed.
Note: Be sure and get hoses and light wiring harness fas-
tened properly so they do not drag. Check to be sure
there is enough slack in hinge area when folding machine the first time.

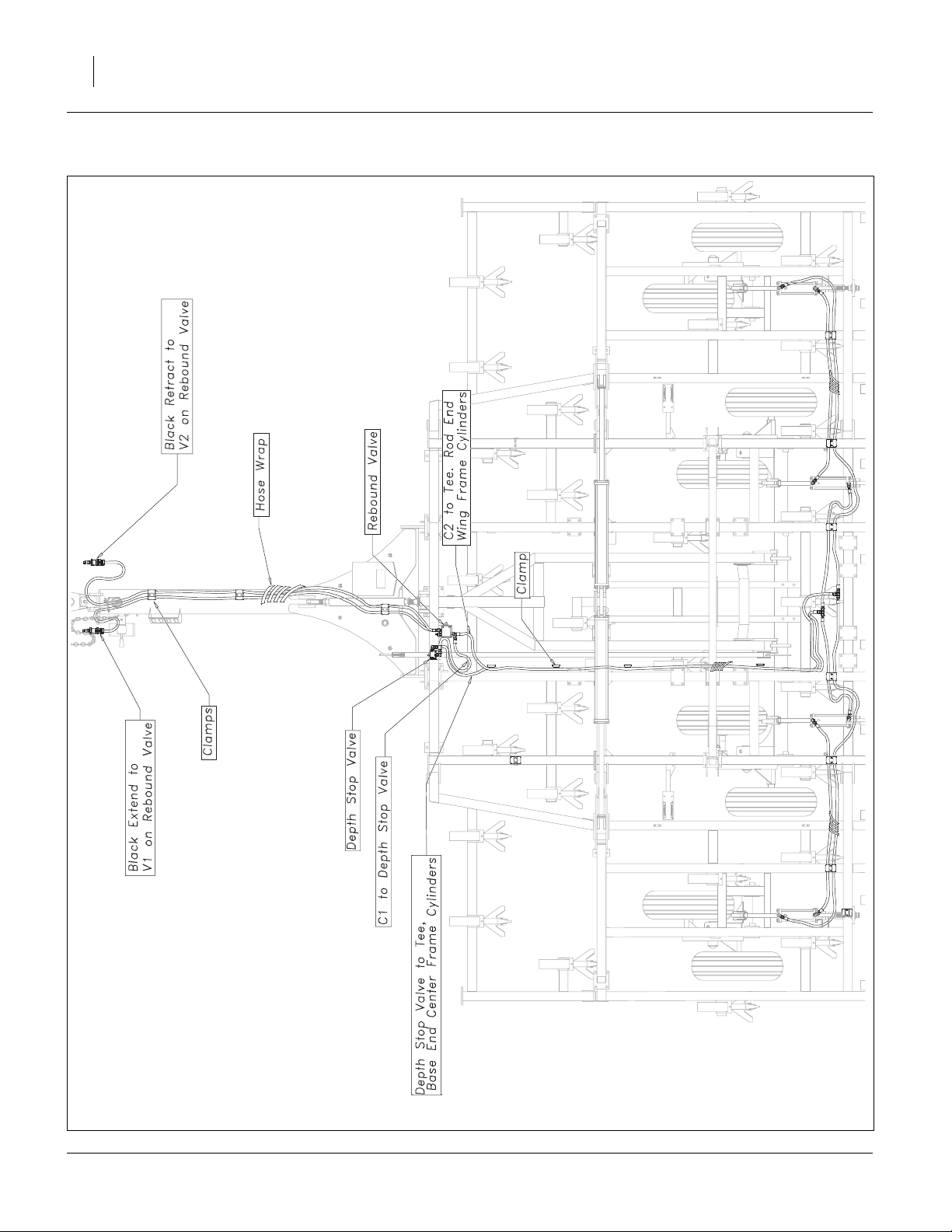

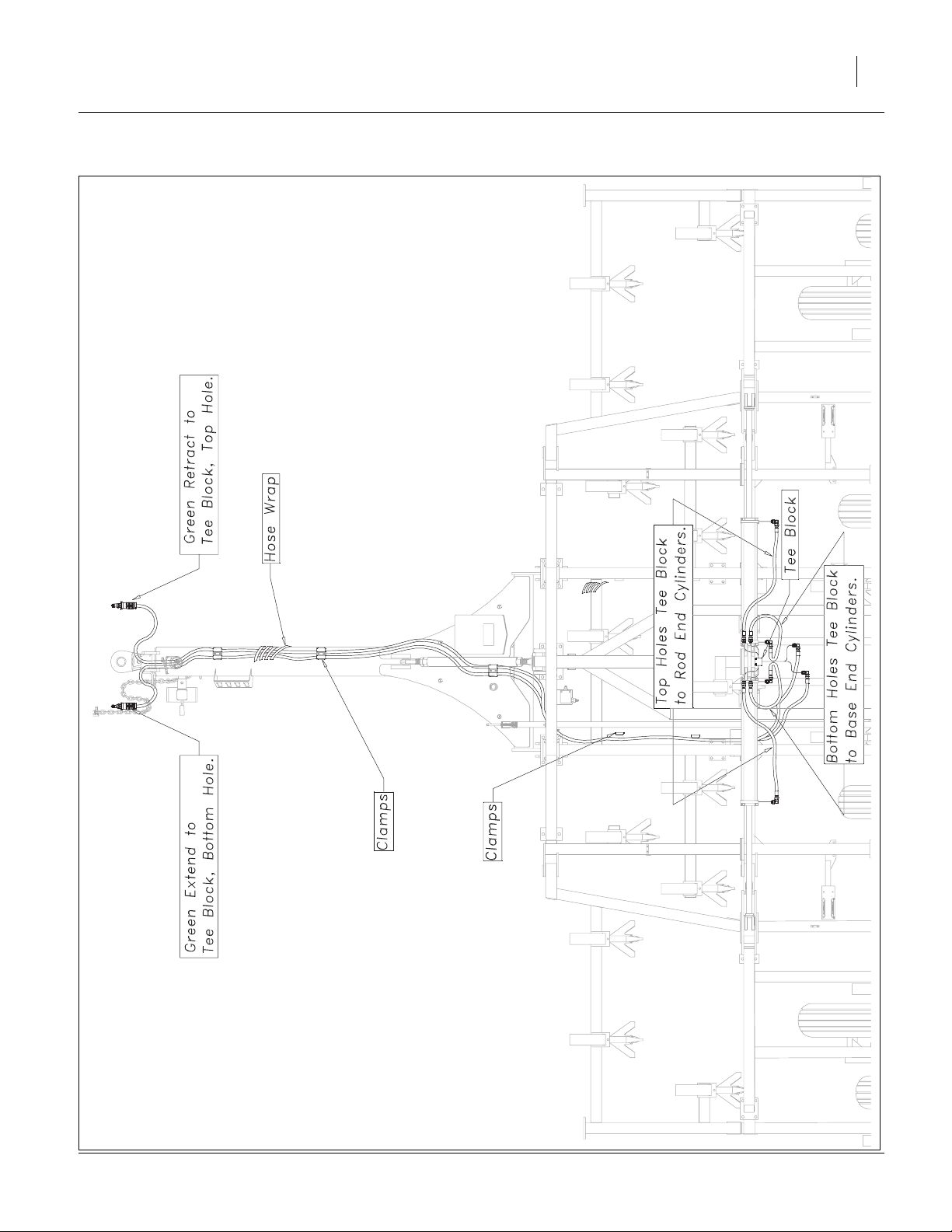

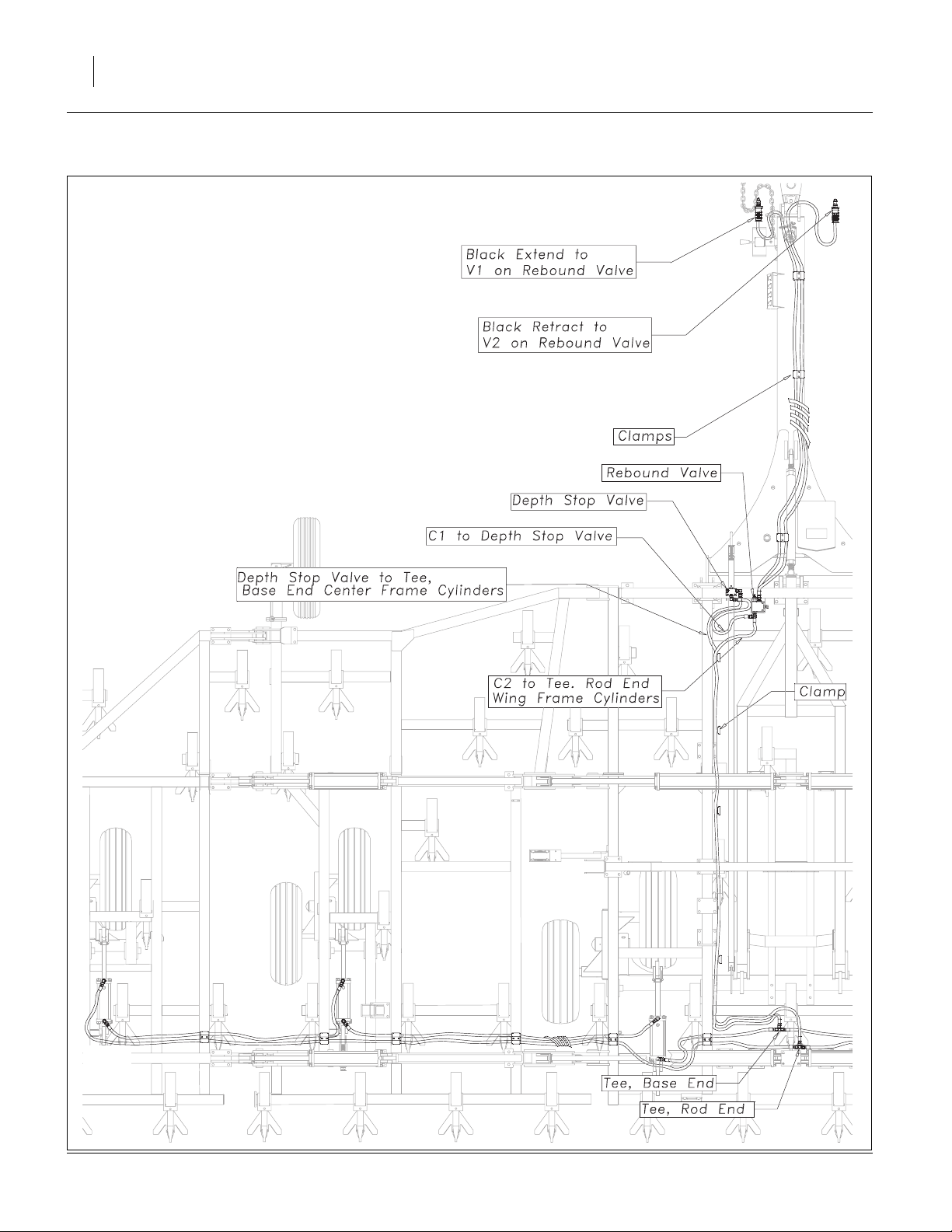

Hydraulic Hose Hookup
131.Great Plains hydraulic hoses are color coded to help you
hookup hoses to your tractor outlets. Hoses that go to
the same remote valve are marked with the same color.
Color Hydraulic Function
Black Lift (2 hoses)
Green Fold (2 hoses)
Hose Handles
Refer to Figure 28
132.To distinguish hoses on the same hydraulic circuit, refer
to hose handles. The hose under an extended-cylinder
symbol feeds a cylinder base end. The hose under a
retracted-cylinder symbol feeds a cylinder rod end.
133.Once all hoses are tightened, hook hoses to tractor
Figure 27
Hose Clamp Assembly
High Pressure Fluid Hazard:
Relieve pressure before disconnecting hydraulic lines. Use
paper or cardboard, NOT BODY PARTS, to check for leaks.
Wear protective gloves and safety glasses or goggles when
working with hydraulic systems. Escaping fluid under press
can have sufficient pressure to penetrate the skin causing s
ous injury. If an accident occurs, seek immediate medical
assistance from a physician familiar with this type of injury
Only trained personnel should work on system hydraulics.
41583
02/10/2014 560-483Q-ENG
Figure 28
Hose Handles
41552
22 8323-8560FCC Great Plains Manufacturing, Inc.
Purging Hydraulic System
Refer to Figure 29
134.Charge the lift system first. Extend the lift cylinders
(black handles) until the center section is fully
1
raise. Remove the cylinder transport locks . The
wings will not start to raise until the center cylinders
are fully extended and the master cylinders begin to
bypass oil through the rephasing ports, to the wing
cylinders. Watch for leaks and retighten fittings if
necessary. Continue to pump oil to the lift system
until the wing cylinders are also fully extended. At
this point, reverse the flow and lower the unit to the
ground, retracting all cylinders. Raise and lower the
unit several times to purge air from the system.
135.You may now charge the fold system. Before charg-
ing the fold cylinders , make sure the rod end of the
cylinders are un pinned and block is under cylinders
as shown on rear cylinders, so that when the rod is
extended, it will clear the wing fold brackets. Extend
the fold cylinders (green ends) completely and
then close them. Extend and retract the cylinders
several times to purge air from the system. Now the
cylinders may be extended far enough to be connected to the wing fold brackets.
136.Remove wood blocks and install 1 x 7 Gr. 8 special
thread bolts , 1 flat washers and 1 top lock nut to
rod end of inside wing cylinders and slot in fold
bracket.
Note: Tighten1x7Gr.8special thread bolt down to
where there is 1/16” to 1/8” gap. Be sure bolt will
still turn freely.
137. Remove wood blocks and install 1 x 7 hinge pins ,
1 flat washers, 1 3/4 rollers and 3/8 x 2 roll pins to
base end of outer wing cylinders and rocker.
4
3
3
2
4
5
R
F
3
3
3
4
1
2
U
1
5
B
L
3
D
Figure 29
Hydraulic Purging
41914
560-483Q-ENG 02/10/2014
Great Plains Manufacturing, Inc. Assembly 23
Light Assembly
Refer to Figure 30
138.Route light harness 30’ lead from front of hitch
(tractor plug to front), along same route as hydraulic
hose (fasten in same clamps and hose wraps as
hoses). Plug one end of enhance light harness to
small end of light harness 30’ lead . Plug bigger end
of wishbone light harness into other end of enhance
light module . Route other ends over towards
(marked left and right) the light mounting brackets as
shown.
139.Mount red lamp lights to top of light mounting
brackets, with 1/4 x 1 hex bolts and 1/4 lock nuts.
140.Mount amber lamp lights to top of light brackets
with 1/4 x 1 hex bolts and 1/4 lock nuts.
141.Tighten all bolts to specs. Be sure and get all wiring
harnesses fastened up securely with hose wraps or
clamps (if routed close to hydraulic hoses) or use
cable ties .
2
6
7
1
2
1
3
4
6
5
6
5
4
3
2
1
Figure 30
Lights
6
7
4
6
5
U
R
F
B
L
D
41897
Install Rear Hitch (optional)
Refer to Figure 31
Note: The rear tow hitch will be shipped with big compo-
nents banded together and bolts will be in a box.
Carefully un-band the components.
142.Attach left and right rear hitch arms, rear hitch
truss , rear truss support to center frame using 5/
8 x 1 1/2 bolts , 5/8 x 3 1/32 x 5 1/2 u-bolts ,
secure with 5/8 lock washers and 5/8 nuts.
Note: Do not tighten any bolts until every thing is installed.
143.Now install the rear hitch frame using 5/8 x 1 1/2
bolts , 5/8 x 4 1/32 x 4 1/4 u-bolts , secure with 5/8
lock washers and 5/8 nuts.
144.The bolt on sleeve assembly with rigid or flex slide ,
may be fastened using 5/8 x 3 1/32 x 4 1/2 u-bolt ,
secure with 5/8 lock washers and 5/8 nuts.
145. Tighten all bolts to specs, See “Torque Values
Chart” on page 25.
146.If machine is equipped with optional rear hitch accessory kit may be installed as shown in “Parts Manual”.
147.Route hoses and light harness along hitch and frame
with hose clamps and hose wraps, provided.
Note: Be sure hoses and light harness is fastened securely
so they don’t drag or get pinched.
2 1
4 5
6 7
3
6 8
9
10
6
4
6
5
1
6
6
3
10
7
2
8
9
9
Figure 31
Rear Tow Hitch
41883
02/10/2014 560-483Q-ENG
24 8323-8560FCC Great Plains Manufacturing, Inc.
Completing Setup
148.The decals may now be installed.
149.See appropriate pages for decals in the “Parts Manual” for decal placement.
150.To install new decals:
151.Clean the area on which the decal is to be placed.
152.Peel backing from decal. Press firmly on surface,
being careful not to cause air bubbles under decal.
153.Slowly peel away top protective covering being careful not to pull decal from implement.
154.If machine has an optional finishing attachment,
refer to the “Parts Manual” for parts break down, and
attachment layout drawings of this manual.
155.Be sure to consult the operating instructions, “Operator’s Manual”, for the first time field adjustments
before going to the field.
560-483Q-ENG 02/10/2014
Great Plains Manufacturing, Inc. 25

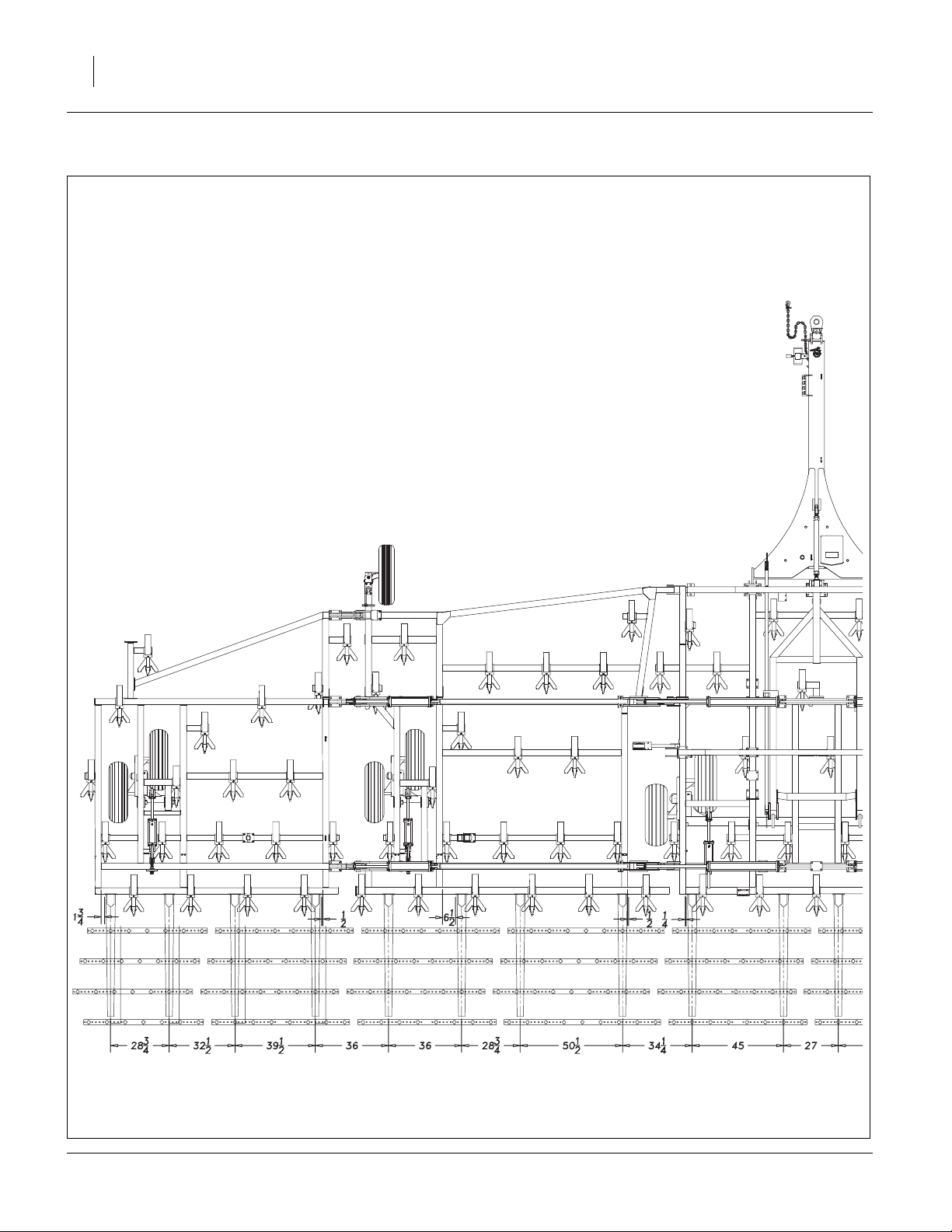

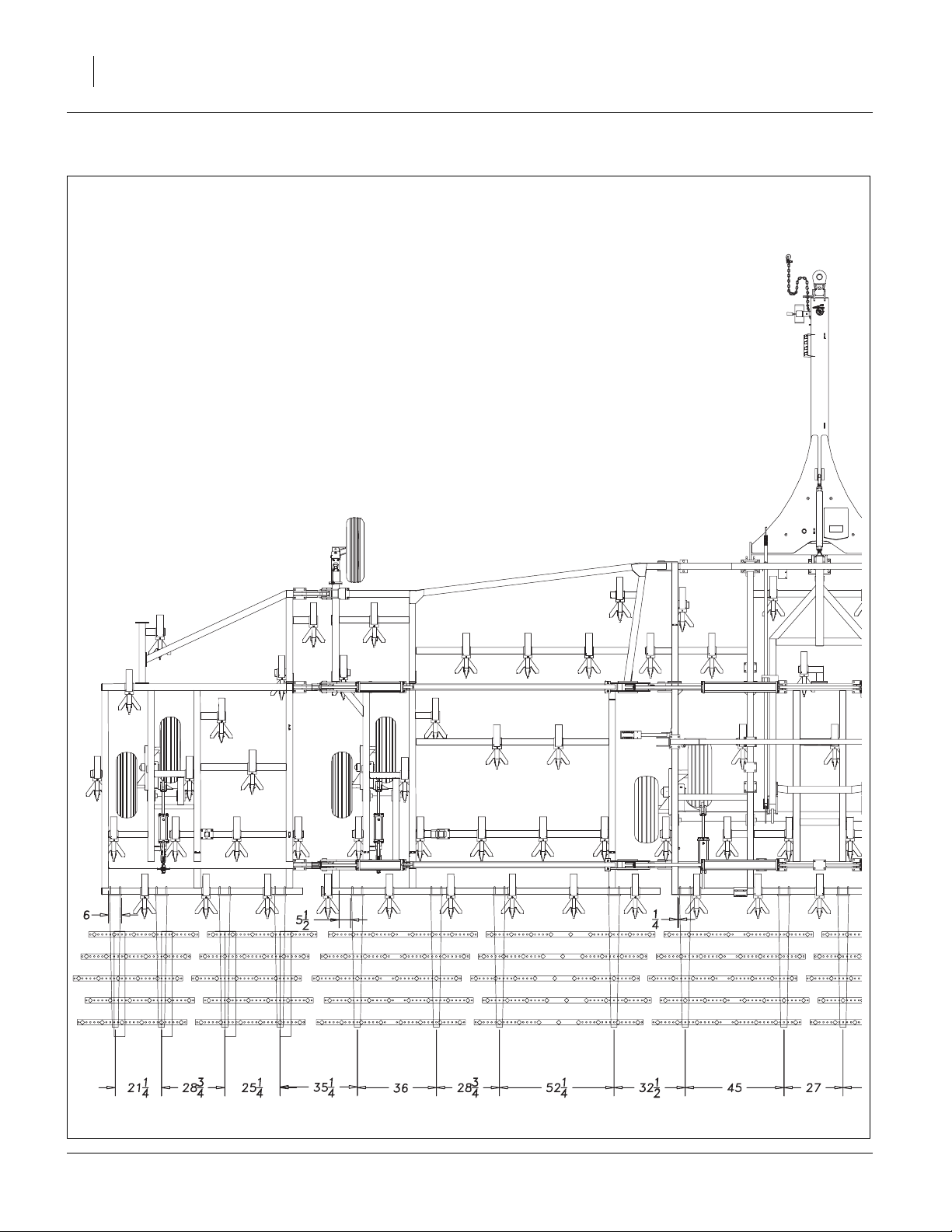

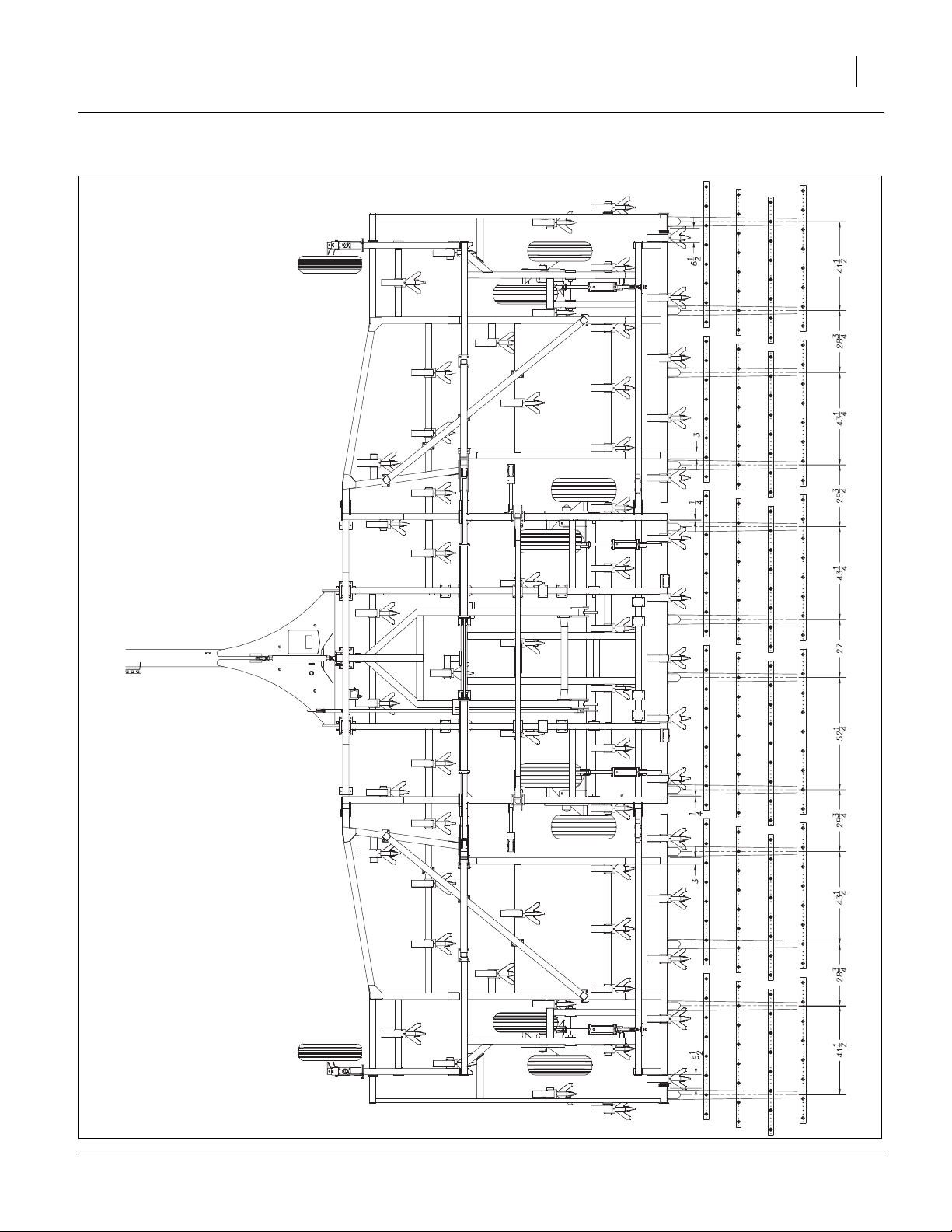

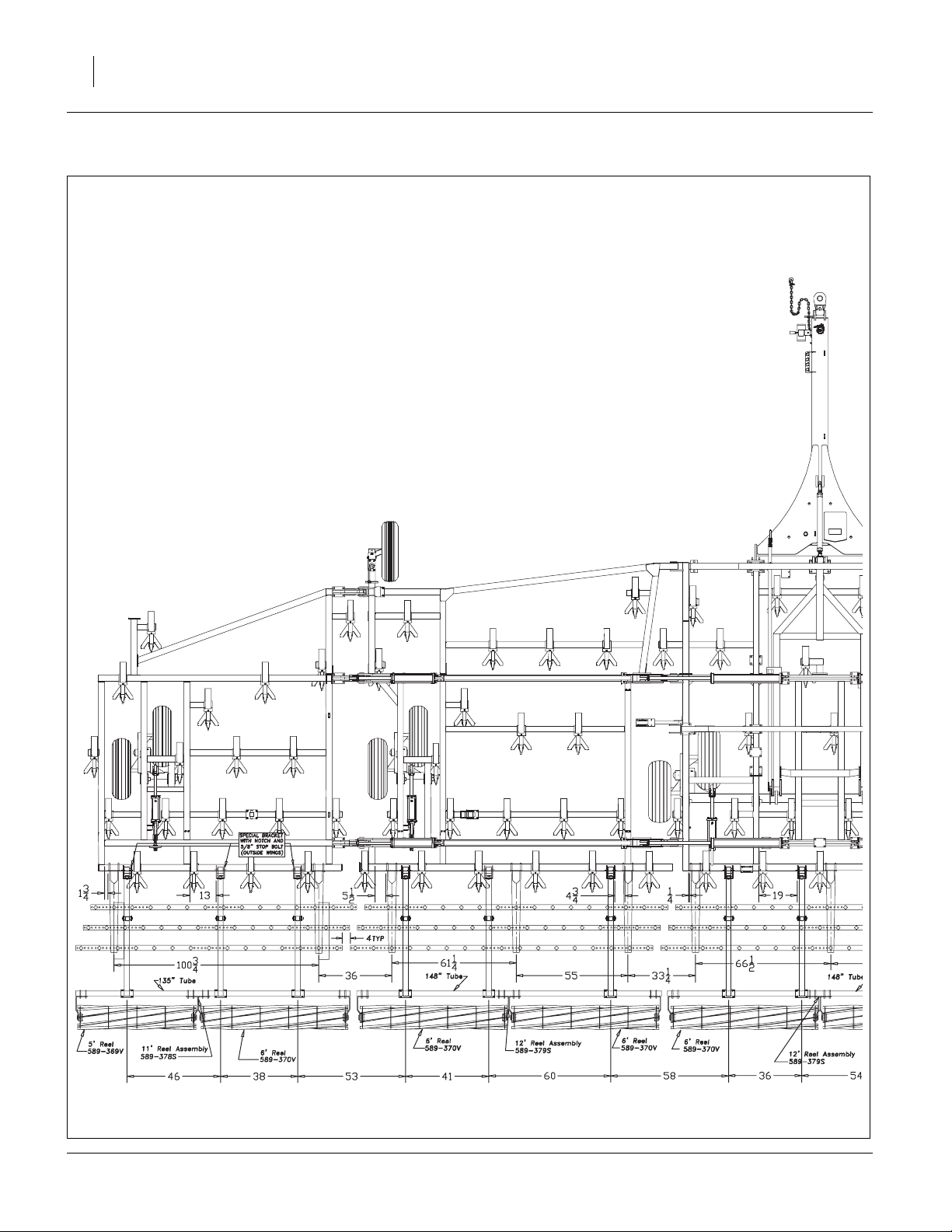

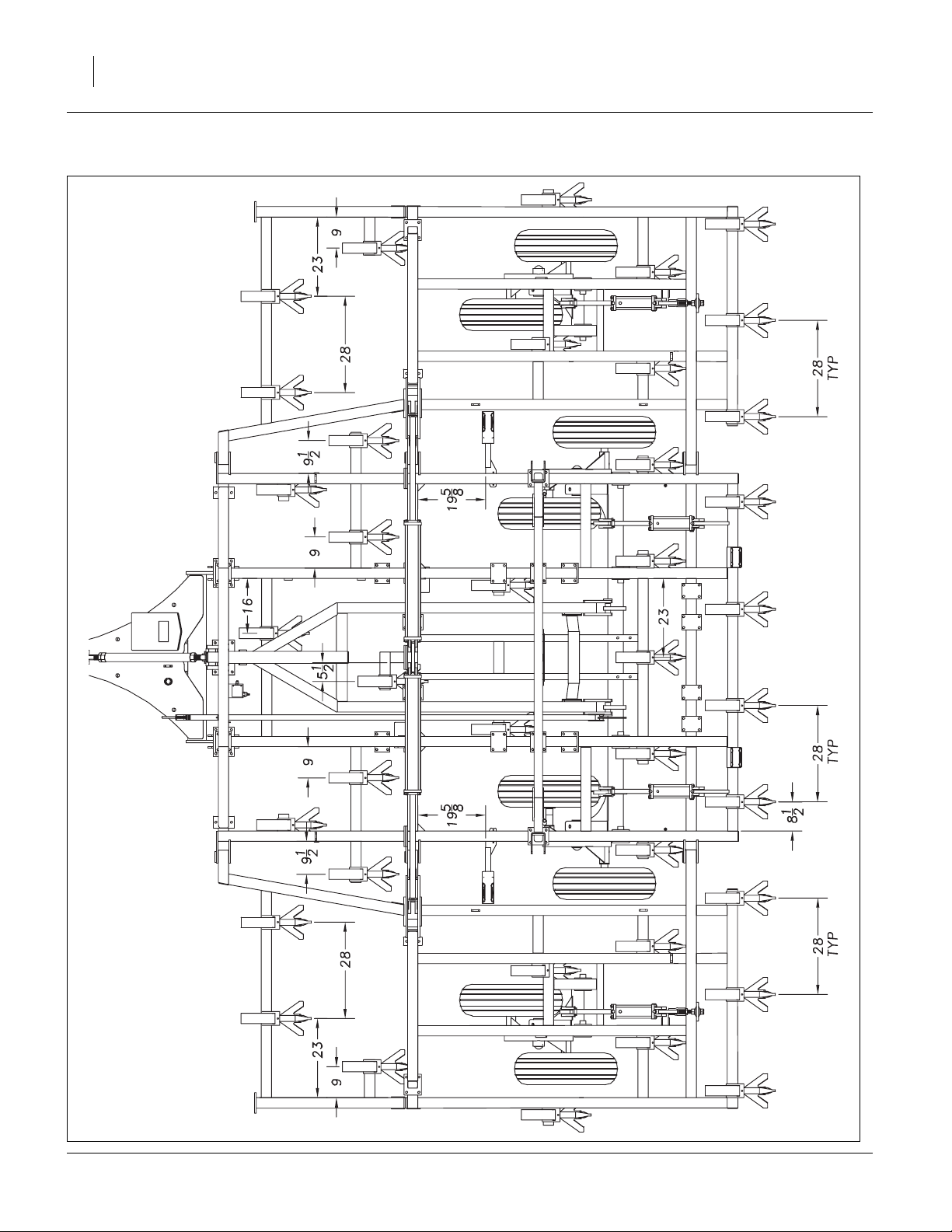

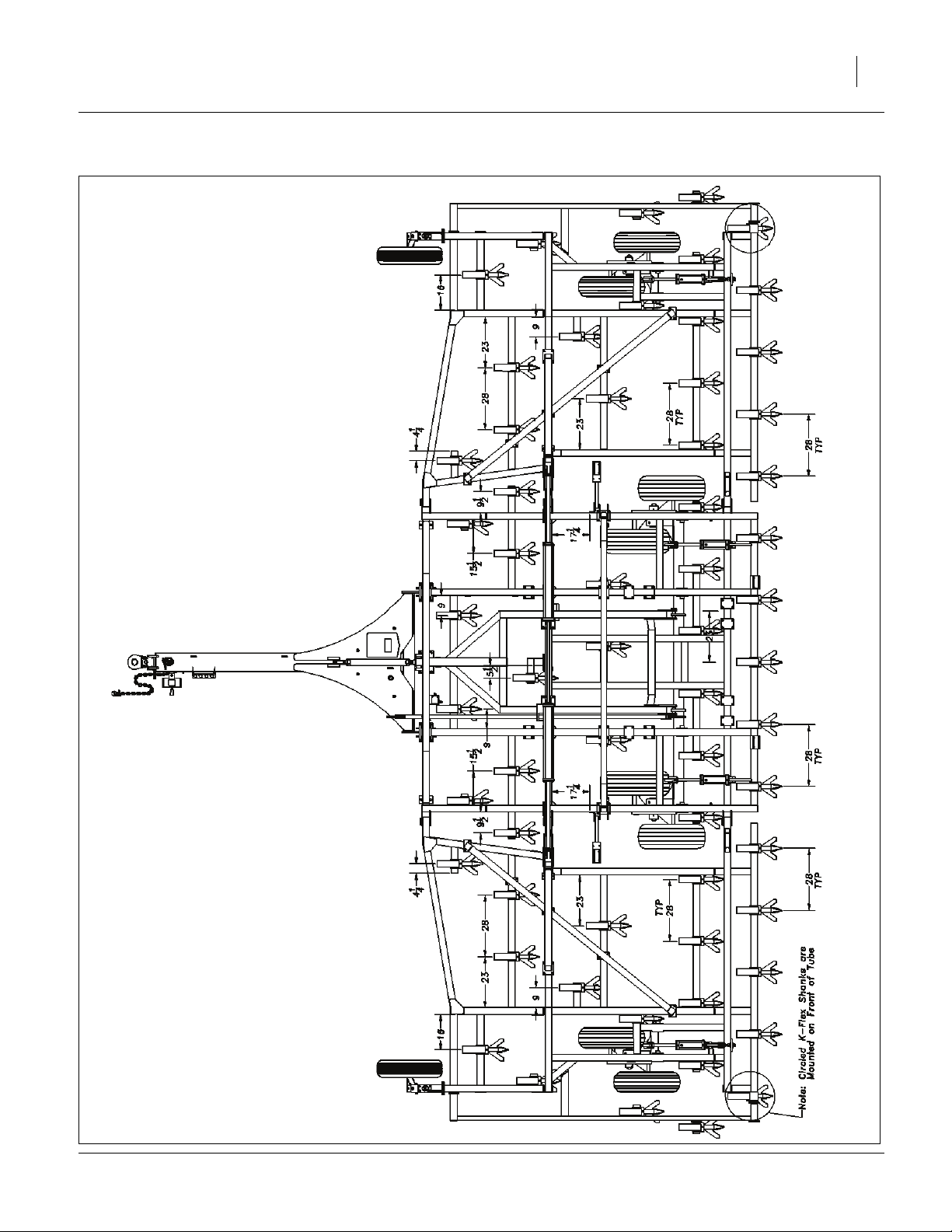

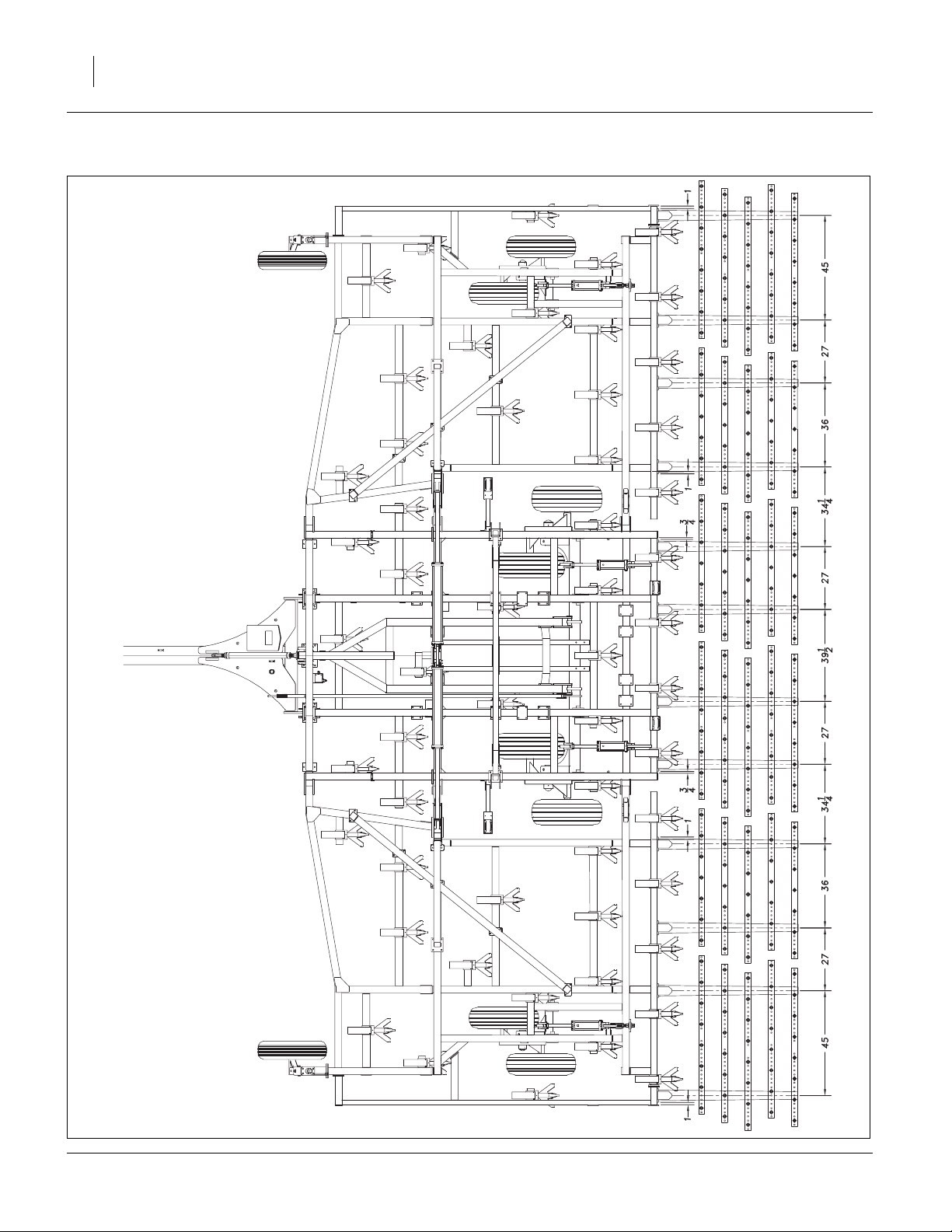

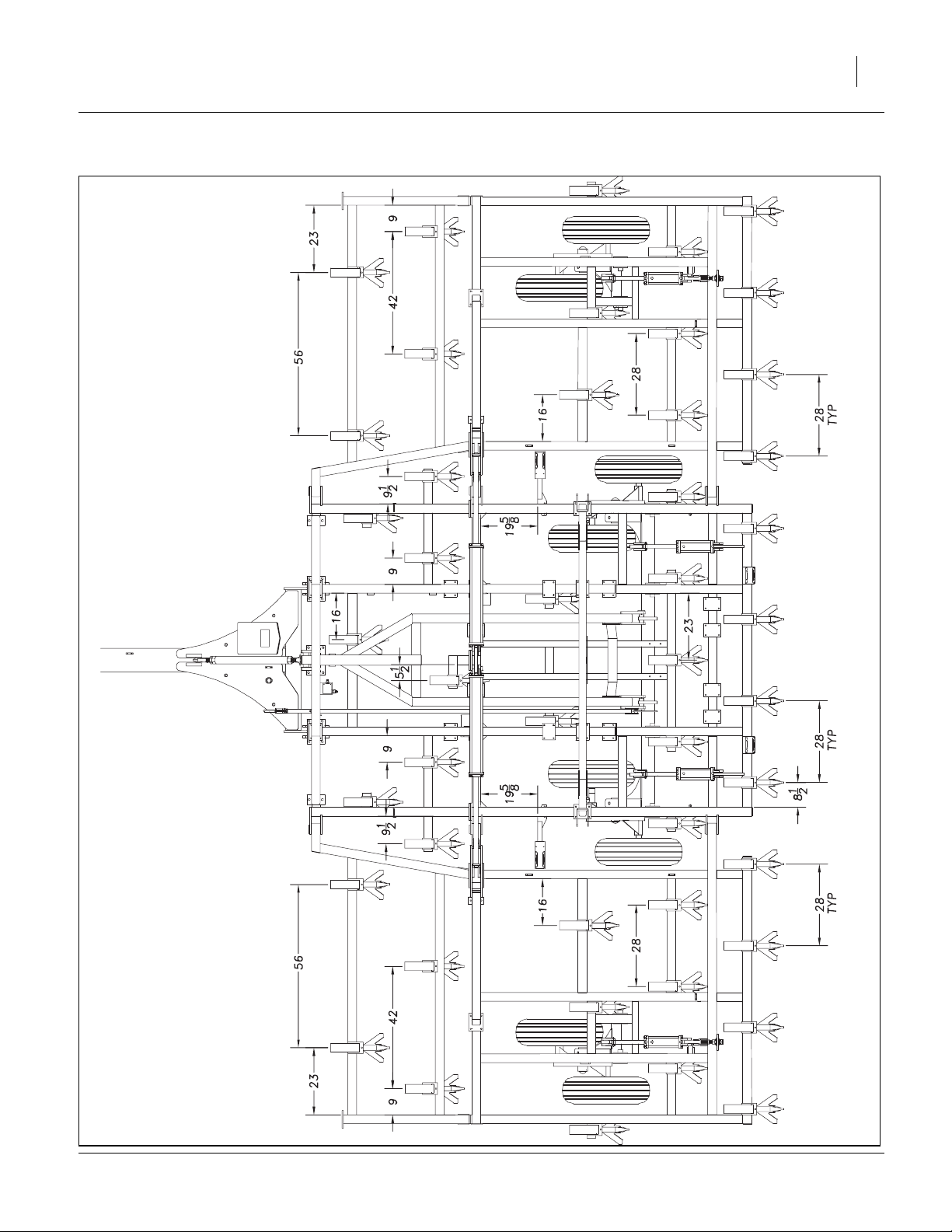

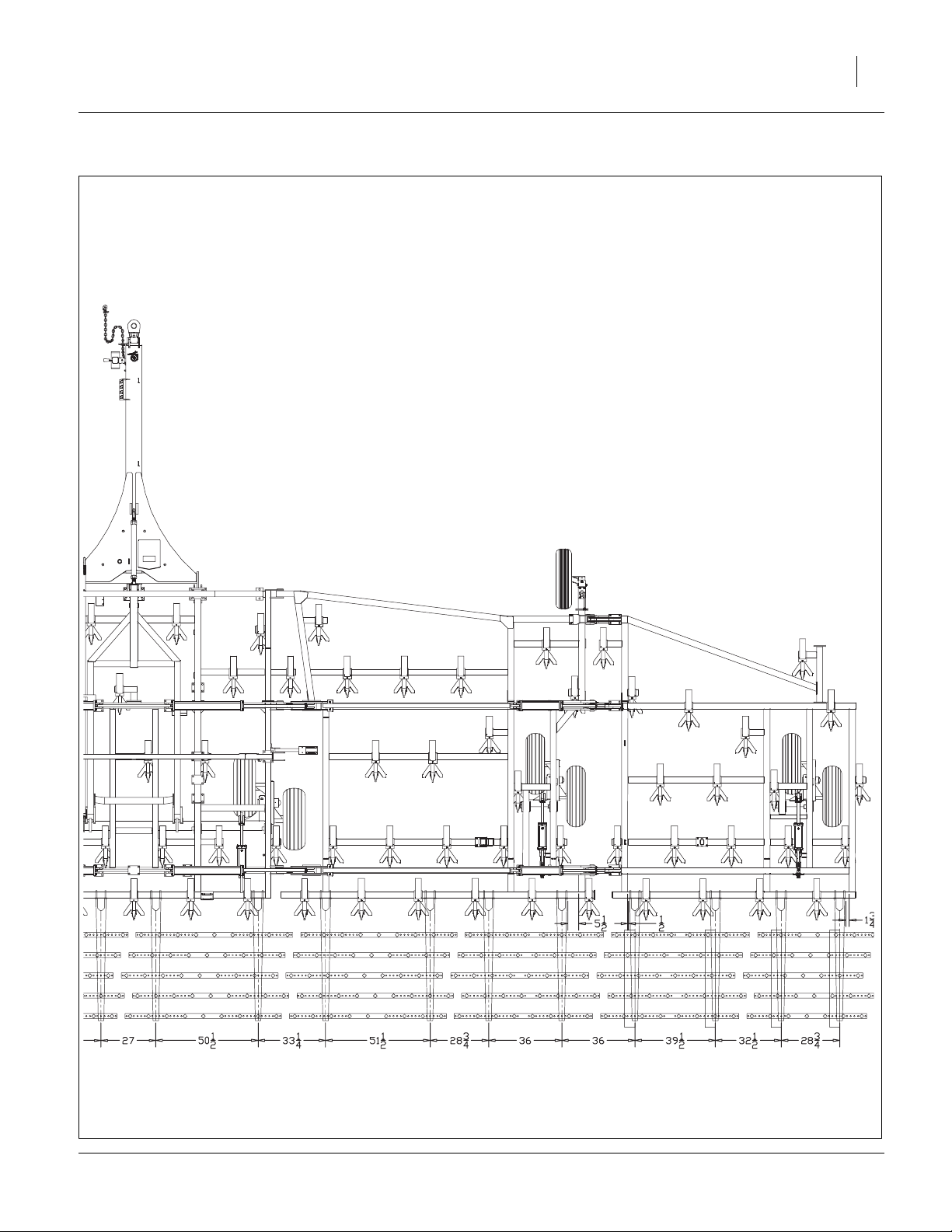

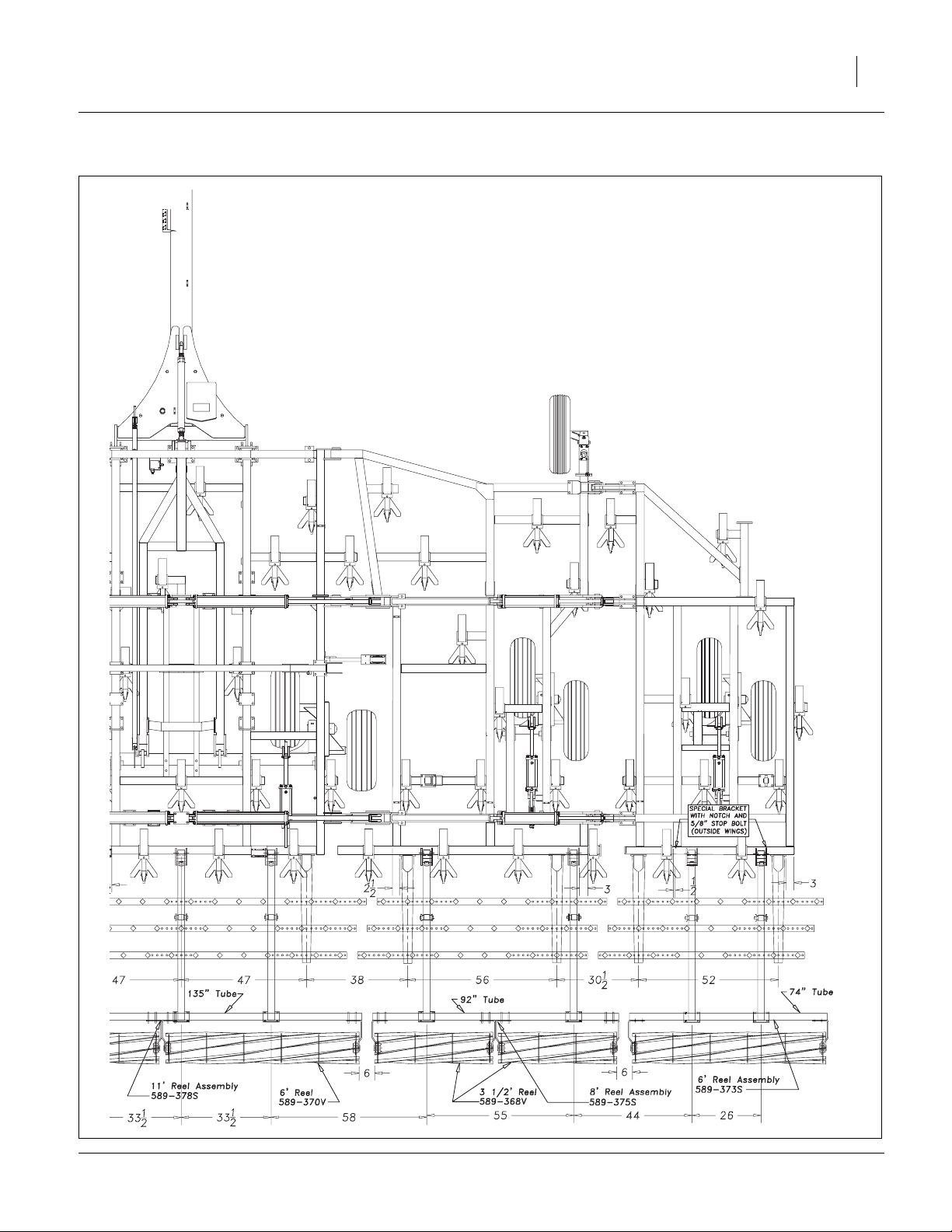

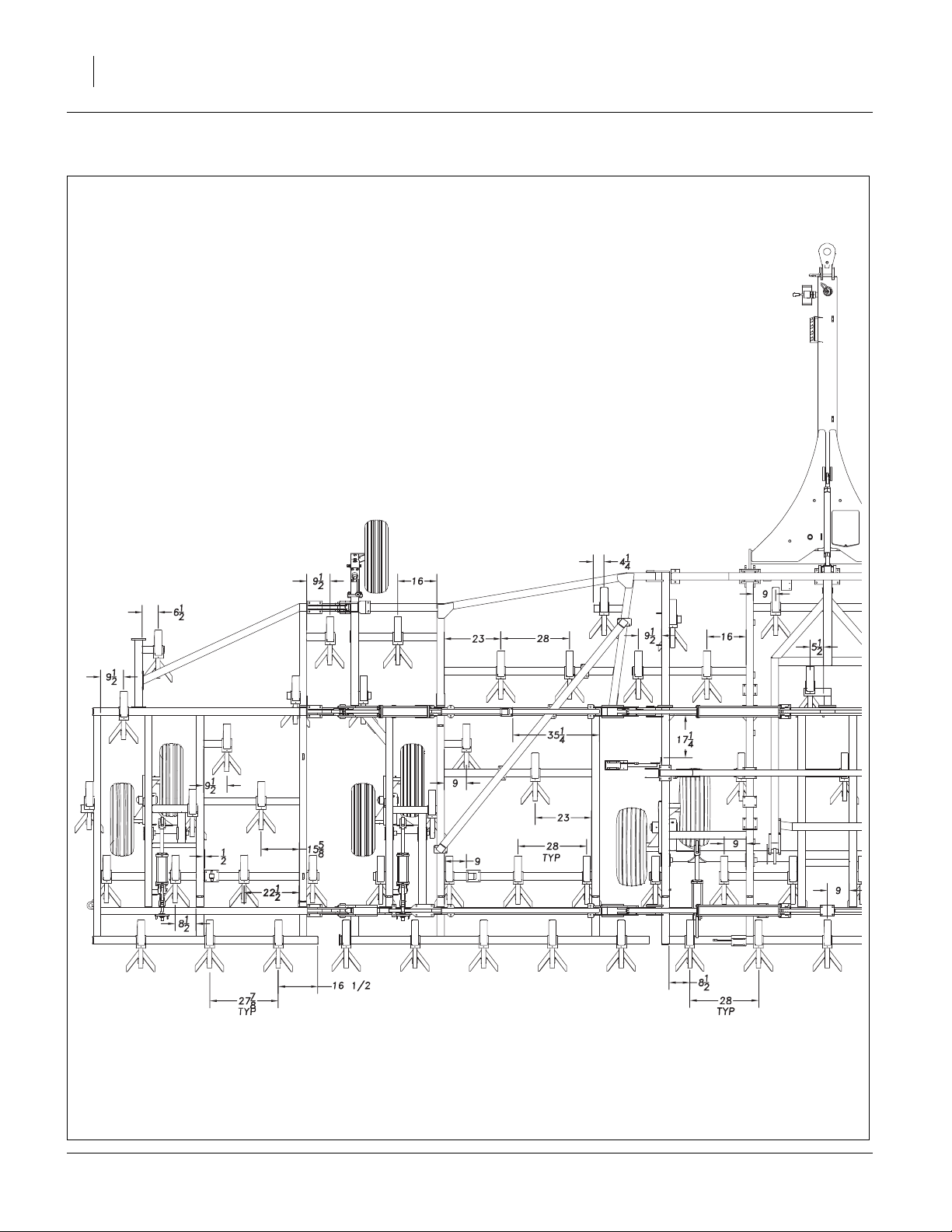

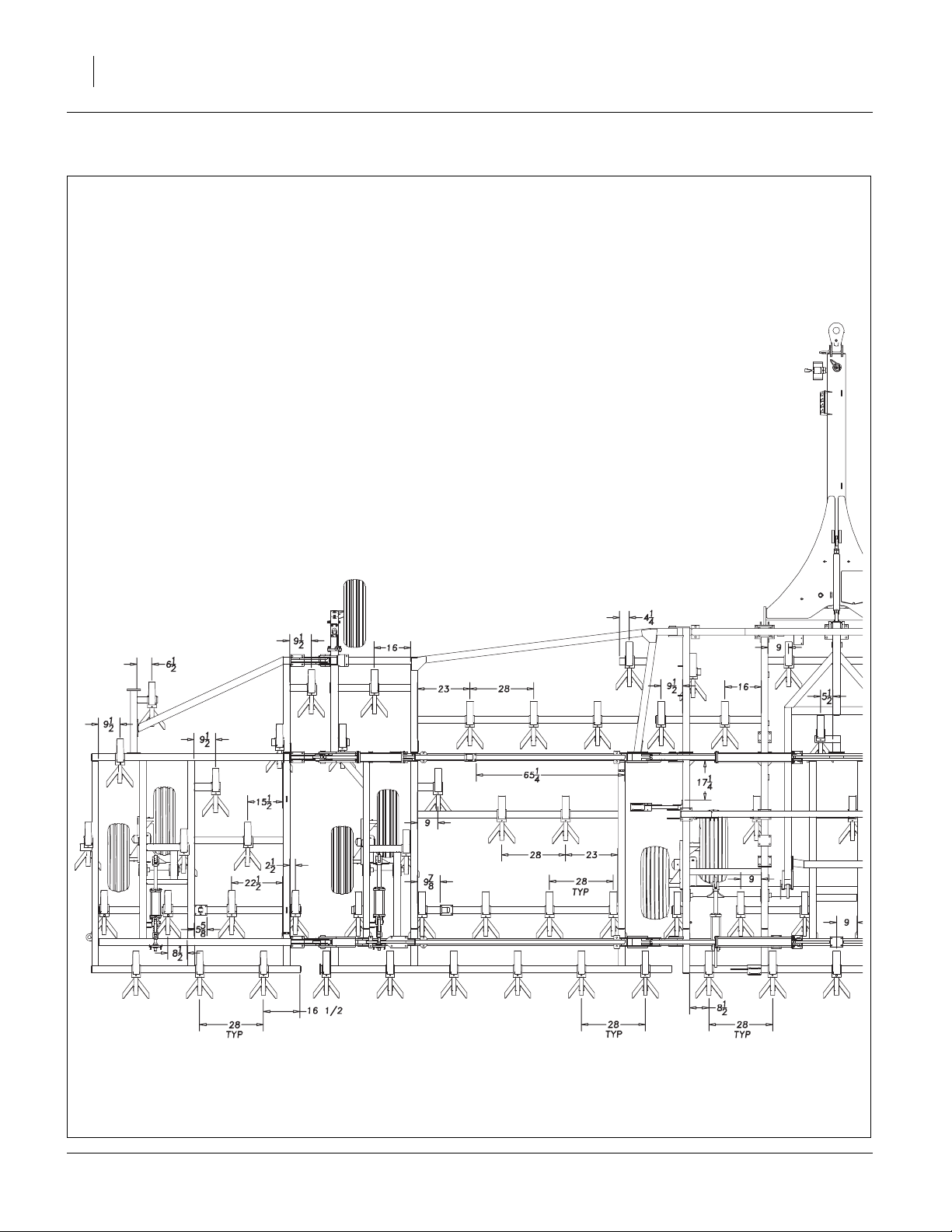

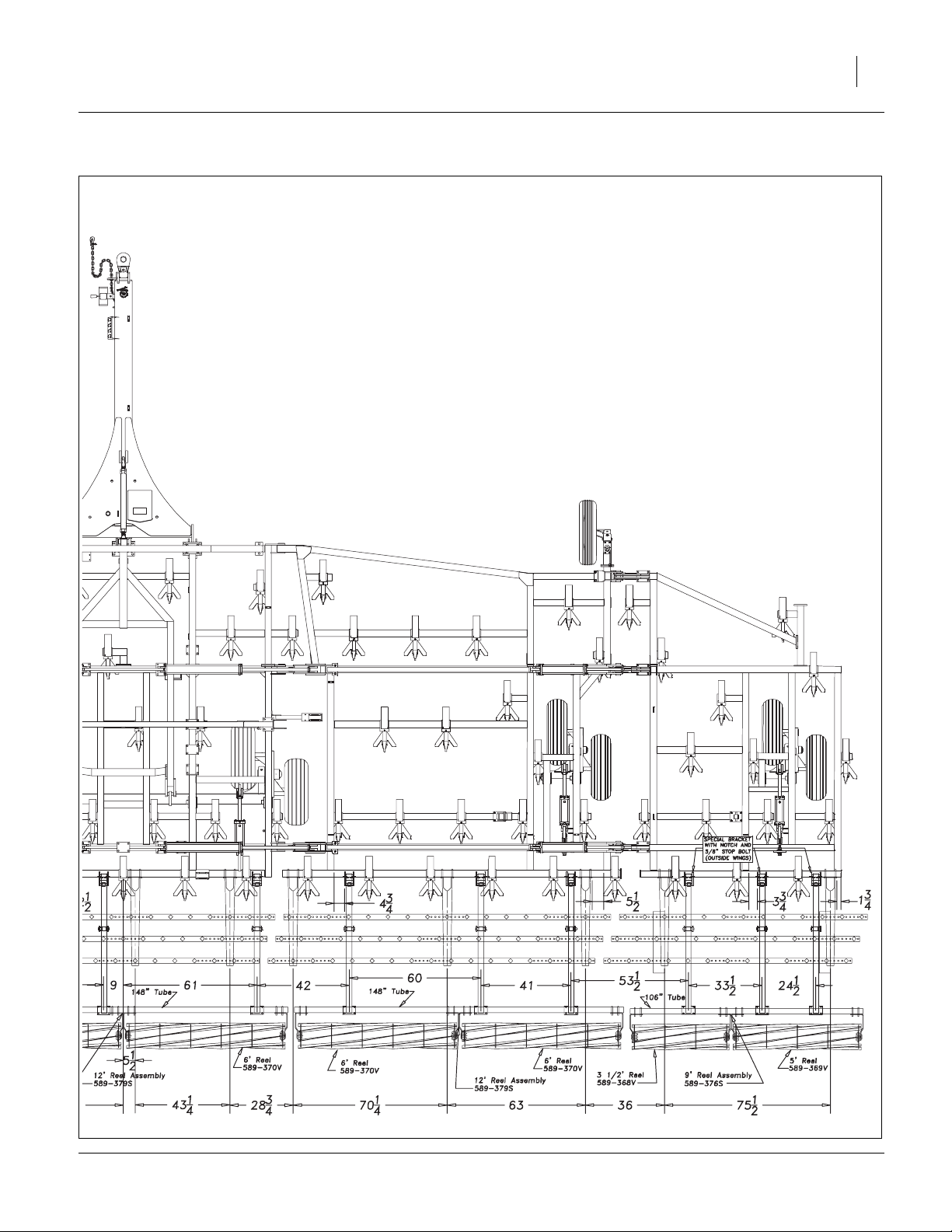

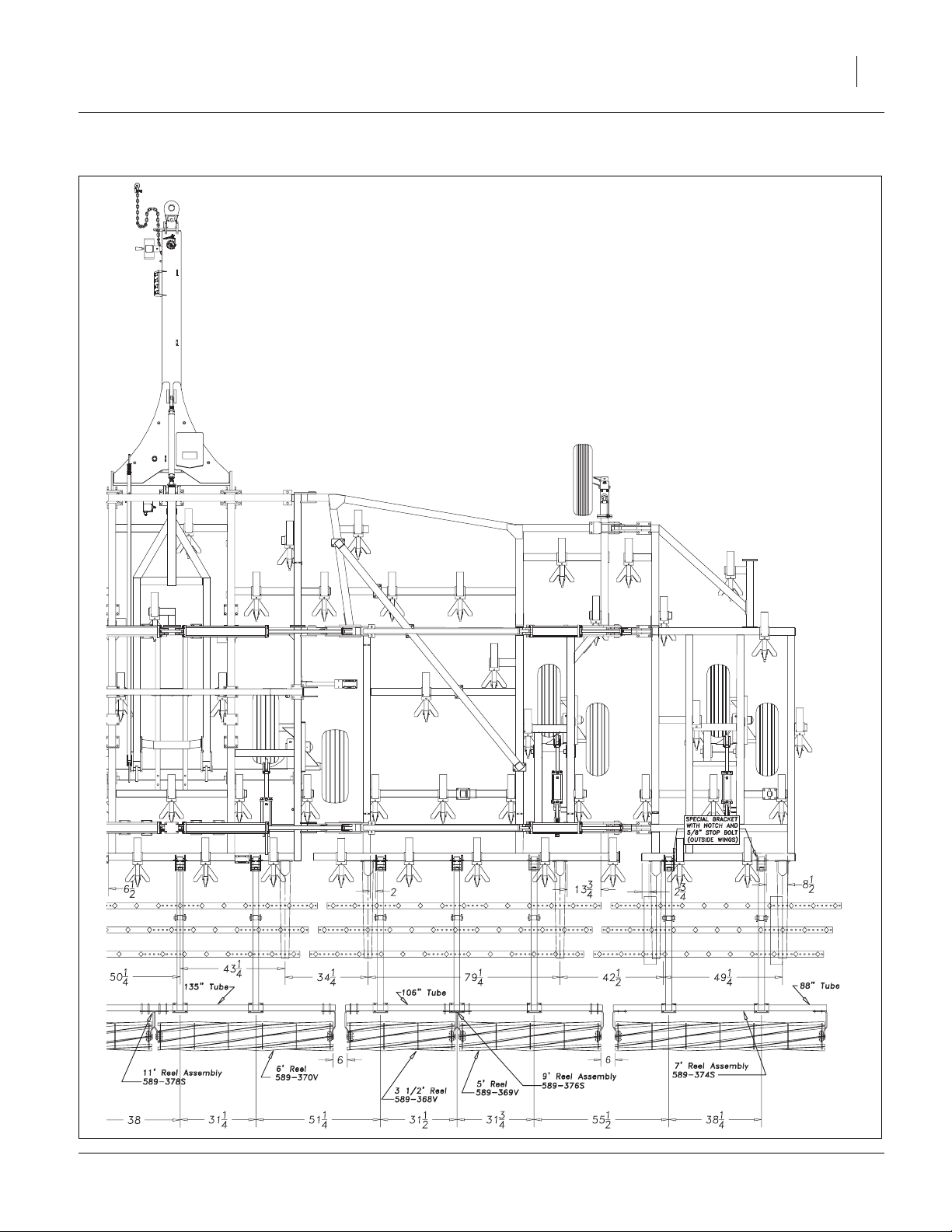

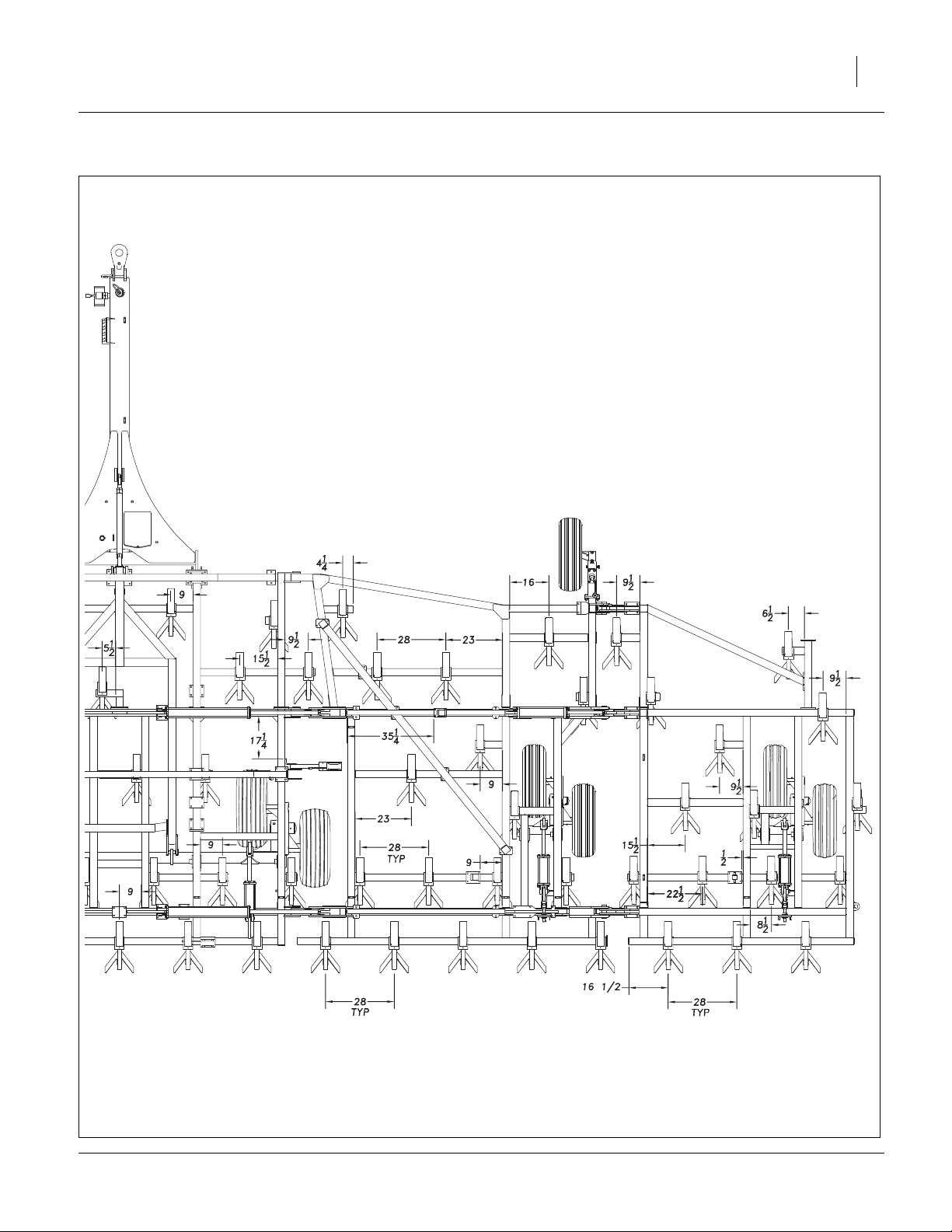

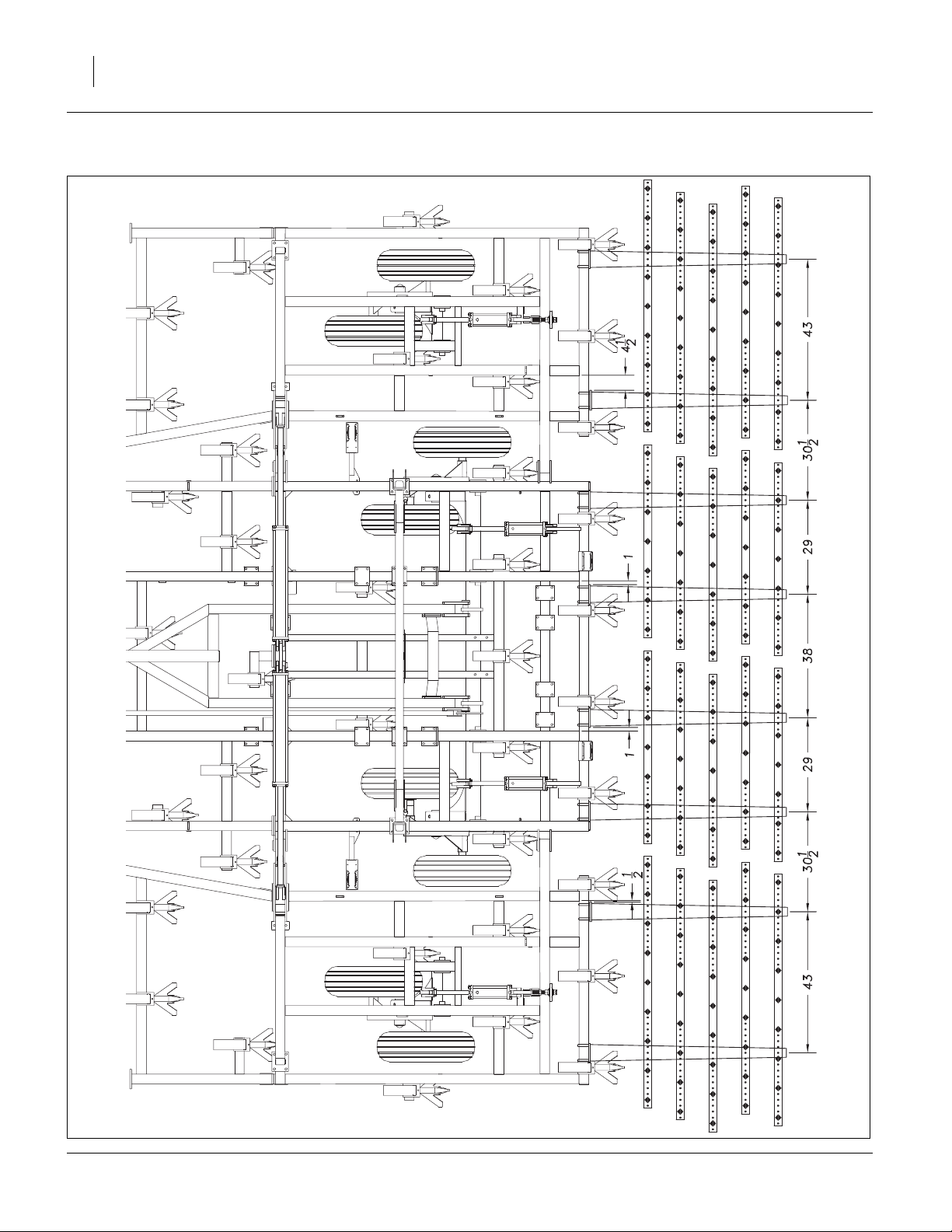

Appendix
Torque Values Chart
Bolt
Size
in-tpi
1
⁄4-20
1
⁄4-28
5
⁄16-18
5
⁄16-24
3
⁄8-16
3
⁄8-24
7
⁄16-14
7
⁄16-20
1
⁄2-13
1
⁄2-20
9
⁄16-12
9
⁄16-18
5
⁄8-11
5
⁄8-18
3
⁄4-10
3
⁄4-16
7
⁄8-9
7
⁄8-14
1-8
1-12
1
1
⁄8-7
1
1
⁄8-12
1
⁄4-7
1
1
⁄4-12
1
3
⁄8-6
1
3
1
⁄8-12
1
1
⁄2-6
1
1
⁄2-12
Bolt Head Identification
Grade 2 Grade 5 Grade 8 Class 5.8 Class 8.8 Class 10.9
a
b
d
N-m
ft-lb
7.4 11 16
8.5 13 18
15 24 33
17 26 37
27 42 59
31 47 67
43 67 95
49 75 105
66 105 145
75 115 165
95 150 210
105 165 235
130 205 285
150 230 325
235 360 510
260 405 570
225 585 820
250 640 905
340 875 1230
370 955 1350
480 1080 1750
540 1210 1960
680 1520 2460
750 1680 2730
890 1990 3230
1010 2270 3680
1180 2640 4290
1330 2970 4820
N-m N-m
5.6 8 12
61014 5 811
11 17 25 12 19 27
13 19 27 13 21 29
20 31 44 24 39 53
22 35 49 29 45 62
32 49 70 42 67 93
36 55 78 44 70 97
49 76 105 66 77 105
55 85 120 68 105 150
70 110 155 73 115 160
79 120 170 105 165 230
97 150 210 115 180 245
110 170 240 145 230 300
170 265 375 165 260 355
190 295 420 205 325 450
165 430 605 230 480 665
185 475 670 355 560 780
250 645 910 390 610 845
275 705 995 705 1120 1550
355 795 1290 785 1240 1710
395 890 1440 1270 1950 2700
500 1120 1820 1380 2190 3220
555 1240 2010
655 1470 2380
745 1670 2710
870 1950 3160
980 2190 3560
Bolt Head Identification
Bolt
Size
ft-lb ft-lb ft-lb ft-lb ft-lb
mm x pitch
M 5 X 0.8
M 6 X 1
M 8 X 1.25
M 8 X 1
M10 X 1.5
M10 X 0.75
M12 X 1.75
M12 X 1.5
M12 X 1
M14 X 2
M14 X 1.5
M16 X 2
M16 X 1.5
M18 X 2.5
M18 X 1.5
M20 X 2.5
M20 X 1.5
M24 X 3
M24 X 2
M30 X 3.5
M30 X 2
M36 X 3.5
M36 X 2
a. in-tpi = nominal thread diameter in inches-threads per inch
b. N· m = newton-meters
c. mm x pitch = nominal thread diameter in mm x thread pitch
d. ft-lb = foot pounds
c
5.8 8.8 10.9
N-m N-m N-m
357
71115
17 26 36
18 28 39
33 52 72
39 61 85
58 91 125
60 95 130
90 105 145
92 145 200
99 155 215
145 225 315
155 240 335
195 310 405
220 350 485
280 440 610
310 650 900
480 760 1050
525 830 1150
960 1510 2100
1060 1680 2320
1730 2650 3660
1880 2960 4100
946
Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.
25199m
25199
Wheel Bolt Torque Values 1/2”-20 (75-85 ft-lbs) 9/16”-18 (80-90 ft-lbs) 5/8”-18 (85-100 ft-lbs)
02/10/2014 560-483Q-ENG
26 8323-8560FCC Great Plains Manufacturing, Inc.
Tire Inflation Chart
Tire Inflation Chart
Wheel Tire Size Inflation
Gauge
Wheel
Transport/
Center/
Wing
Transport/
Center
Transport/
Center
Transport/
Center
9.5Lx15” 8-Ply
9.5Lx15” 8-Ply
11Lx15” 12-Ply
11Lx15” Load F
12.5L x 15” F-Ply
44 psi
303 kPa
44 psi
303 kPa
52 psi
359 kPa
90 psi
621 kPa
90 psi
(621 kPa)
All tires are warranted by the original manufacturer of the tire.
Tire warranty information is found in the brochures included with
your Operator’s and Parts Manuals or online at the manufacturer’s web sites listed below. For assistance or information, contact your nearest Authorized Farm Tire Retailer.
Manufacturer Web site
Firestone www.firestoneag.com
Gleason www.gleasonwheel.com
Titan www.titan-intl.com
Galaxy www.atgtire.com
BKT www.bkt-tire.com
Tires Chart
Tires for Main Frame
Model Center Frame
Numbers Tire Size Qty Tire Size Qty Tire Size Qty
8323 - 8328 9.5L–15 8 ply 4 9.5L–15 8 ply 4
8332 - 8336 11L-15 12 ply 4 9.5L–15 8 ply 4
8539 - 8548 11L-15 F ply 4 9.5L–15 8 ply 4 9.5L–15 8 ply 4
8551 - 8560 12.5L-15 F ply 4 9.5L–15 8 ply 4 9.5L–15 8 ply 4
Models showing 4 tires per section have walking tandems on those sections.
