Great Plains 800 User Manual

Table of Contents Part Number Index

Parts Manual

800

8' End Wheel Drill

Read the Operator's manual entirely.When you see this symbol, the subsequent
instructions and warnings are serious - follow without exception.Your life and the
lives of others depend on it!

28153

Cover illustration may show optional equipment not supplied with standard unit.

© Copyright 2011 Printed 09/25/13 175-057P

Table of Contents Part Number Index

Table of Contents

Section 1: Introduction.................................................4

Using This Manual...............................................................4

Manual Replacement Information.......................................4

Manual Revisions................................................................4

Touch-up Paint....................................................................4

Hardware Legend................................................................5

Replacement Hardware......................................................5

Serial Numbers...................................................................5

Part Number Service Coding..............................................5

Frame..............................................................................6

Opener Lift..........................................................................6

Tongue to Frame.................................................................8

Walkboard.........................................................................10

Box Assembly..............................................................12

Box to Frame.....................................................................12

Fertilizer Box to Frame......................................................14

Fertilizer Tray to Box..........................................................16

Light Kit (S/N A1077-).......................................................18

Light Kit (S/N A1078U+)....................................................20

Small Seeds Box and Fertilizer Box to Frame...................22

Small Seeds Box Components.........................................24

Small Seeds Box to Frame................................................26

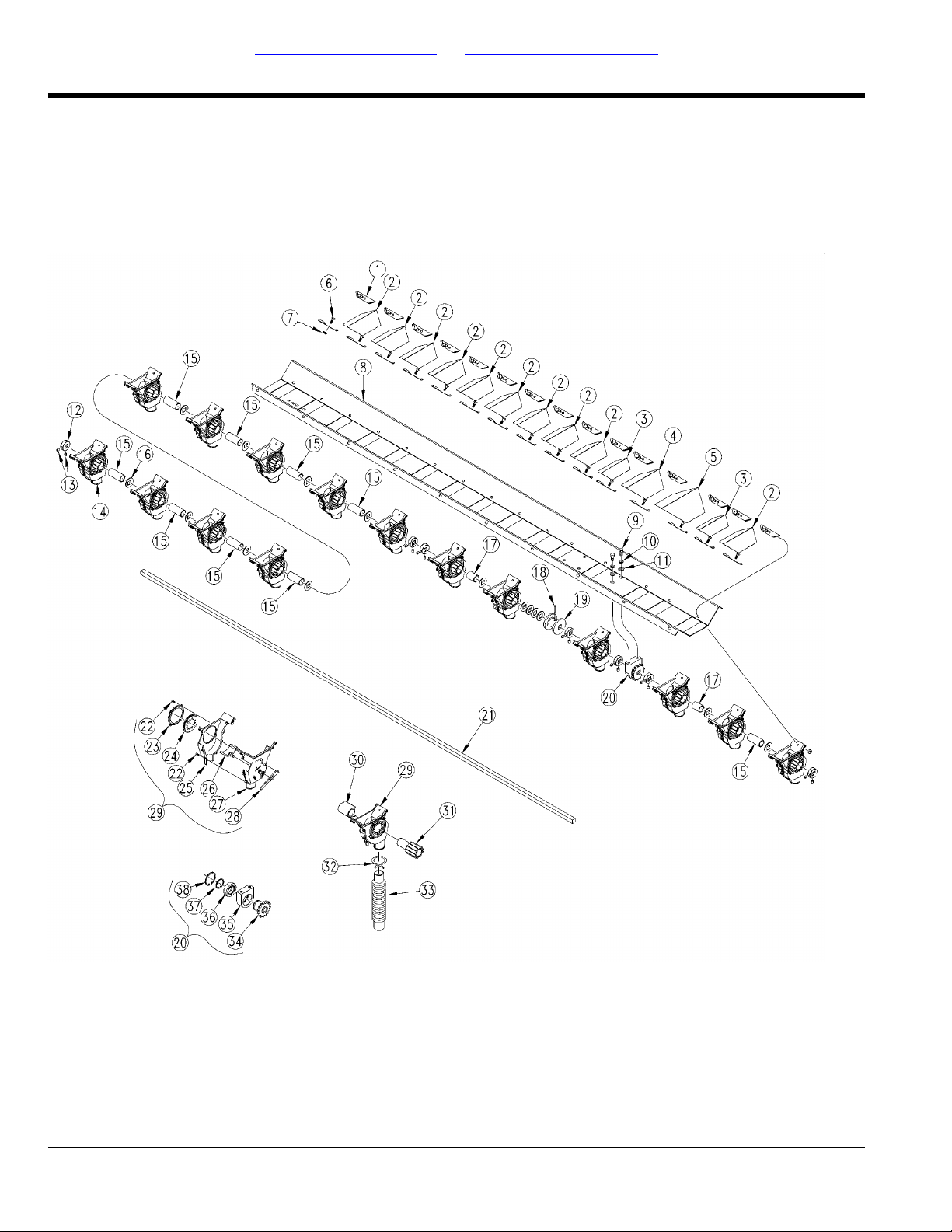

Metering.......................................................................28

6" Feeder Cup Spacing.....................................................28

7.5" Feeder Cup Spacing..................................................30

Adjustment Handle............................................................32

Fertilizer Tray.....................................................................34

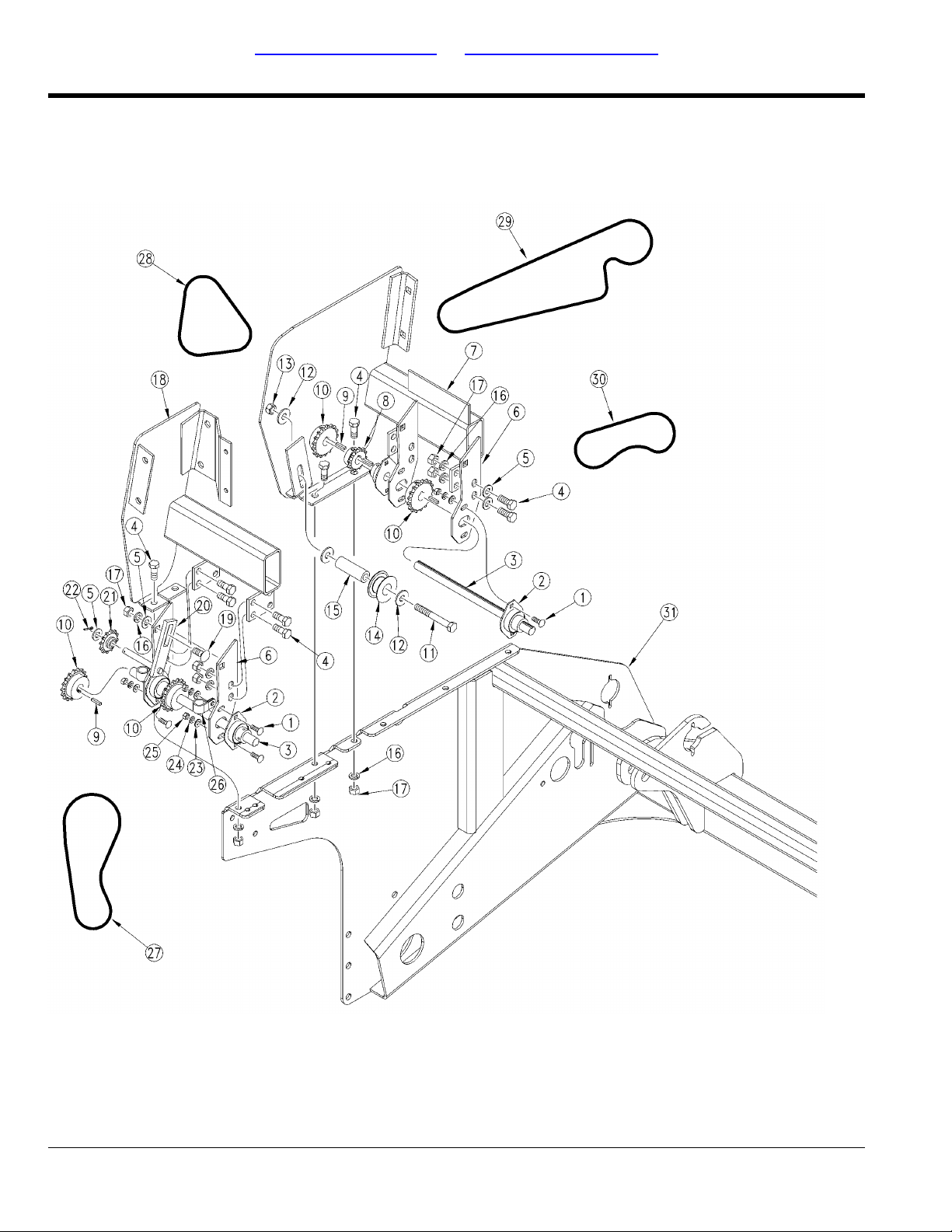

Drive.............................................................................36

Auxiliary Drive...................................................................36

Fertilizer Drive...................................................................38

Jackshaft Drive..................................................................40

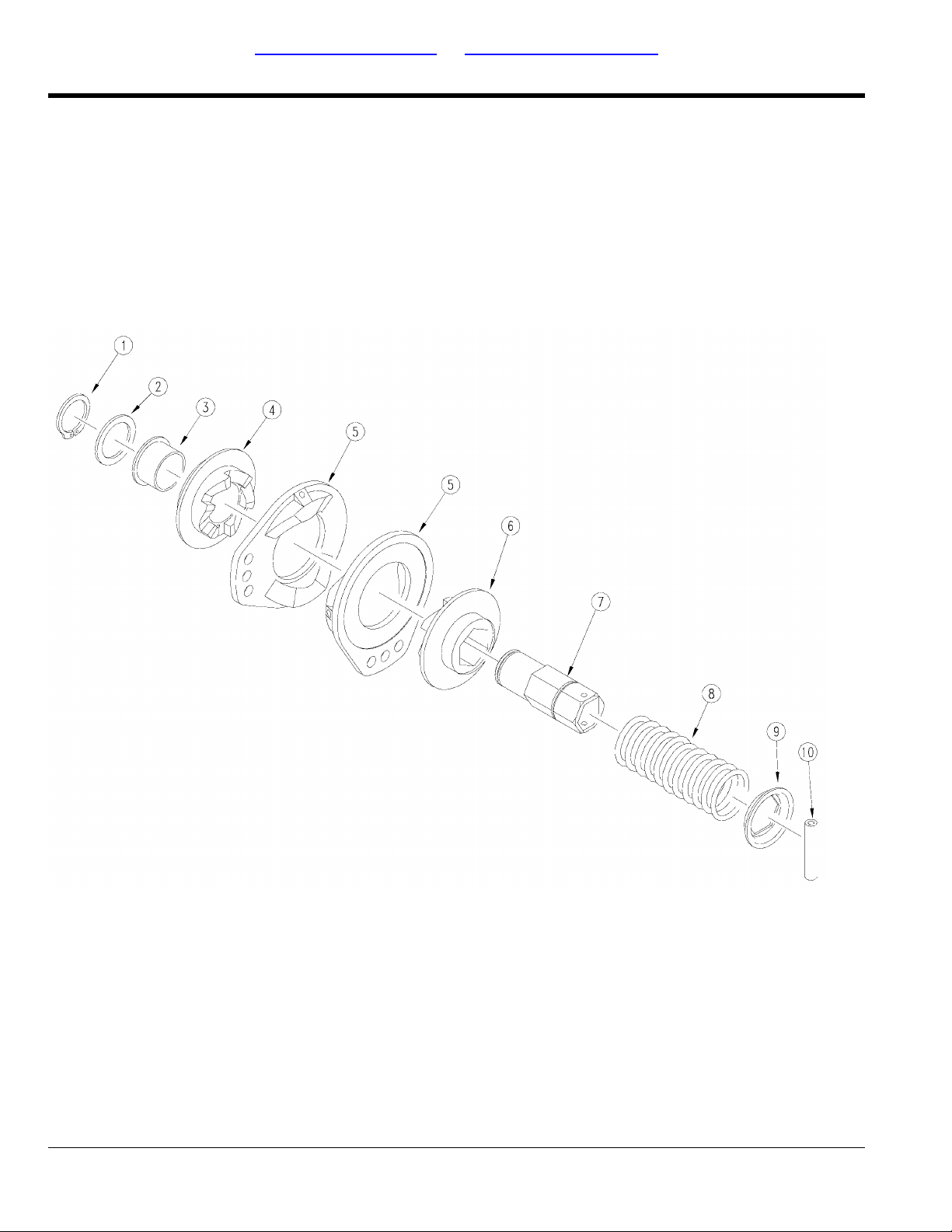

Jaw Clutch (176-043S)......................................................42

Small Seeds and Fertilizer Drive.......................................44

Small Seeds Drive.............................................................46

Openers........................................................................48

Fertilizer Hose...................................................................48

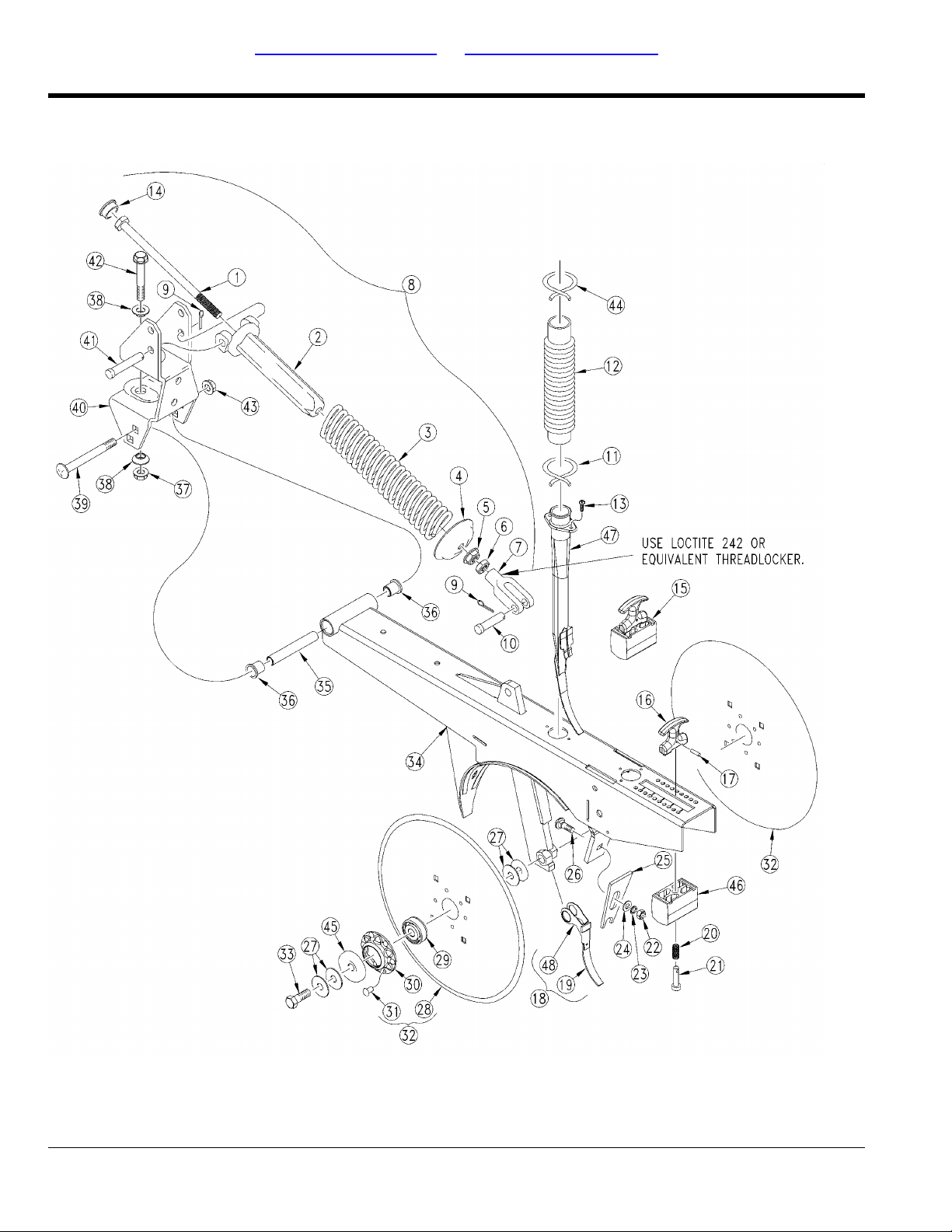

Long Arm Opener.............................................................50

Short Arm Opener.............................................................52

Small Seeds Hose.............................................................54

6" Seed Lok (Option) (122-266K)......................................56

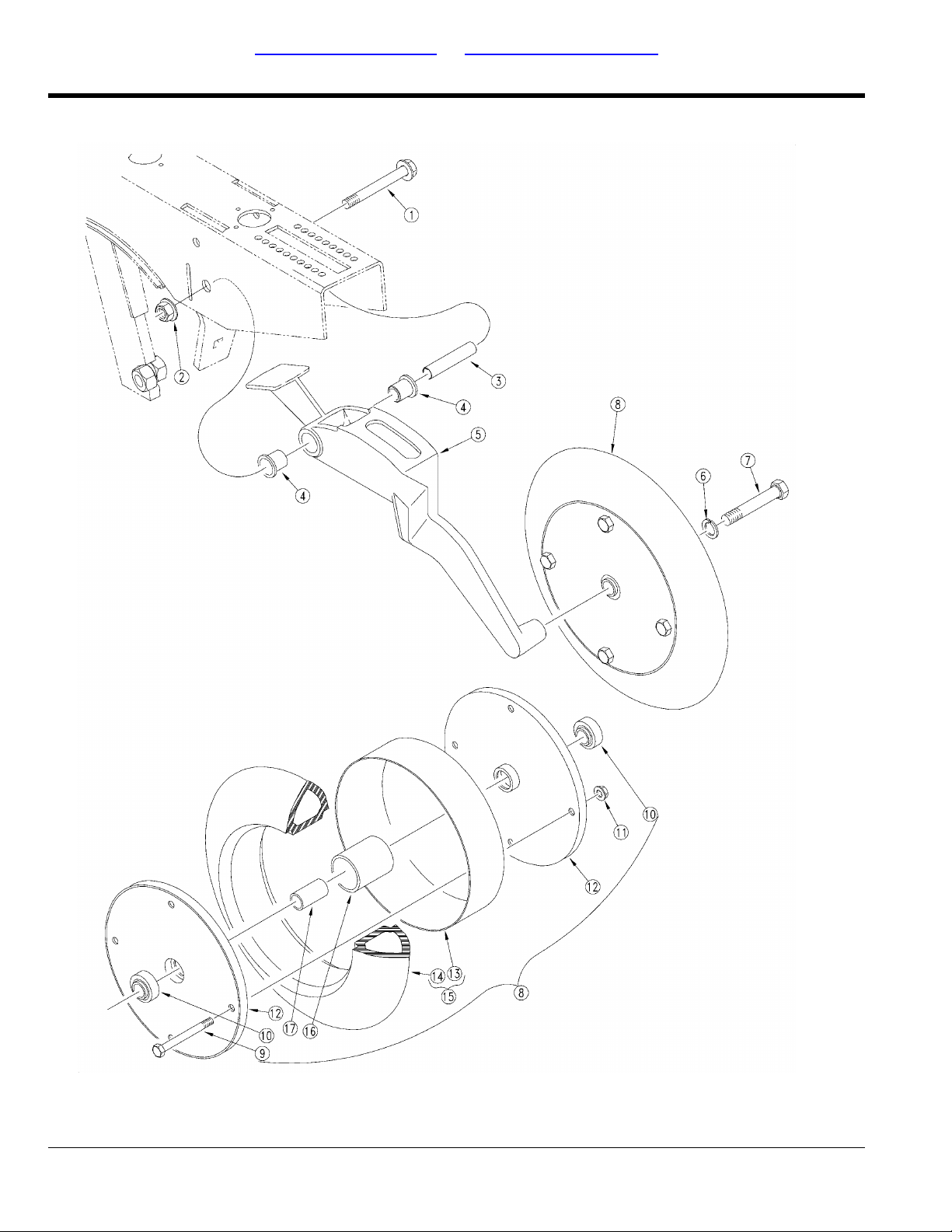

Press Wheels...............................................................58

1" x 12" Double "V" Press Wheel......................................58

2" x 13" Single Press Wheel..............................................60

3" x 13" Single Press Wheel..............................................62

3" x 14" Peaked Single Press Wheel.................................64

Hydraulics....................................................................66

Hydraulic Cylinder (810-162C)..........................................66

Lift Hydraulics....................................................................68

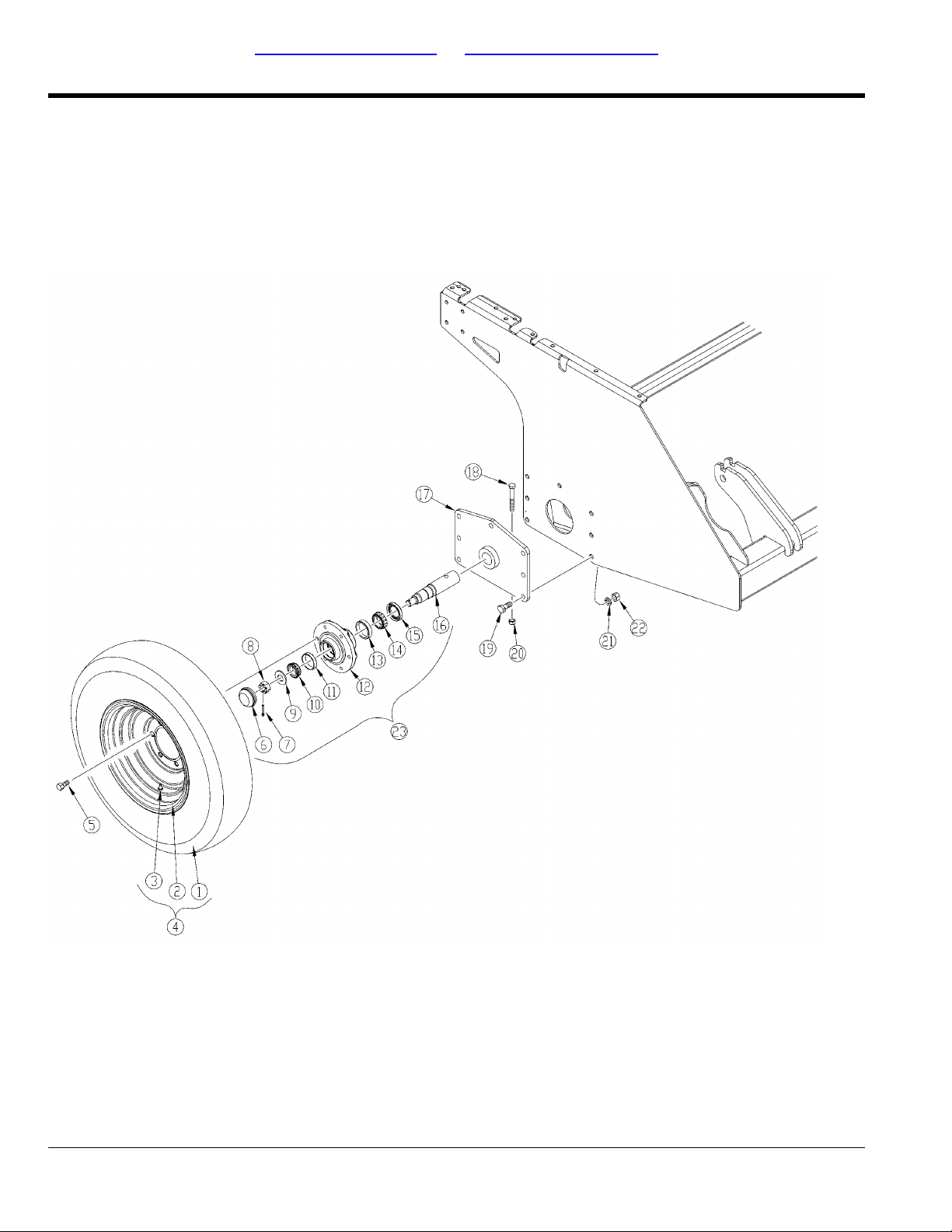

Transport......................................................................70

Lock-Out Hub....................................................................70

Transpor t Wheel................................................................72

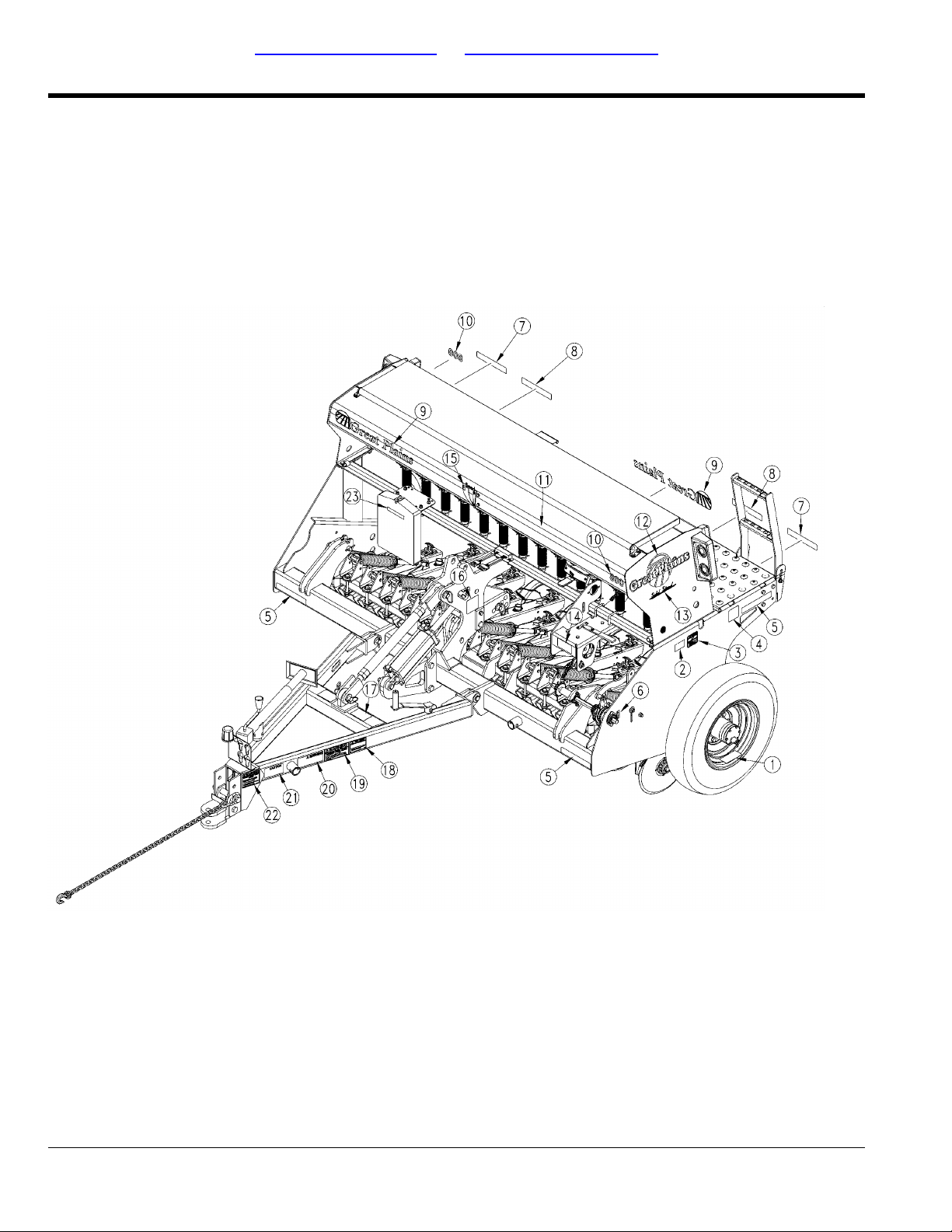

Decals...........................................................................74

Decals...............................................................................74

Part Number Index.......................................................76

© Copyright 2011 All rights reserved Printed 09/25/13

Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the
preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from
the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as it sees fit. This publication describes
the state of this product at the time of its publication, and may not reflect the product in the future.

The following are trademarks of Great Plains Mfg., Inc.: Application Systems, Ausherman, Land Pride, Great Plains

All other brands and product names are trademarks or registered trademarks of their respective holders.

175-057P - 2 - 09/25/13

Great Plains Manufacturing, Incorporated Trademarks

Printed in the United States of America.

Table of Contents Part Number Index

Alphabetized Table of Contents

Selected Models

1

1" x 12" Double "V" Press Wheel.................................58

2

2" x 13" Single Press Wheel.........................................60

3

3" x 13" Single Press Wheel.........................................62

3" x 14" Peaked Single Press Wheel............................64

6

6" Feeder Cup Spacing................................................28

6" Seed Lok (Option) (122-266K).................................56

7

7.5" Feeder Cup Spacing.............................................30

A

Adjustment Handle.......................................................32

Auxiliary Drive..............................................................36

B

Box to Frame................................................................12

Small Seeds Box and Fertilizer Box to Frame..............22

Small Seeds Box Components.....................................24

Small Seeds Box to Frame...........................................26

Small Seeds Drive........................................................46

Small Seeds Hose........................................................54

T

Tongue to Frame............................................................8

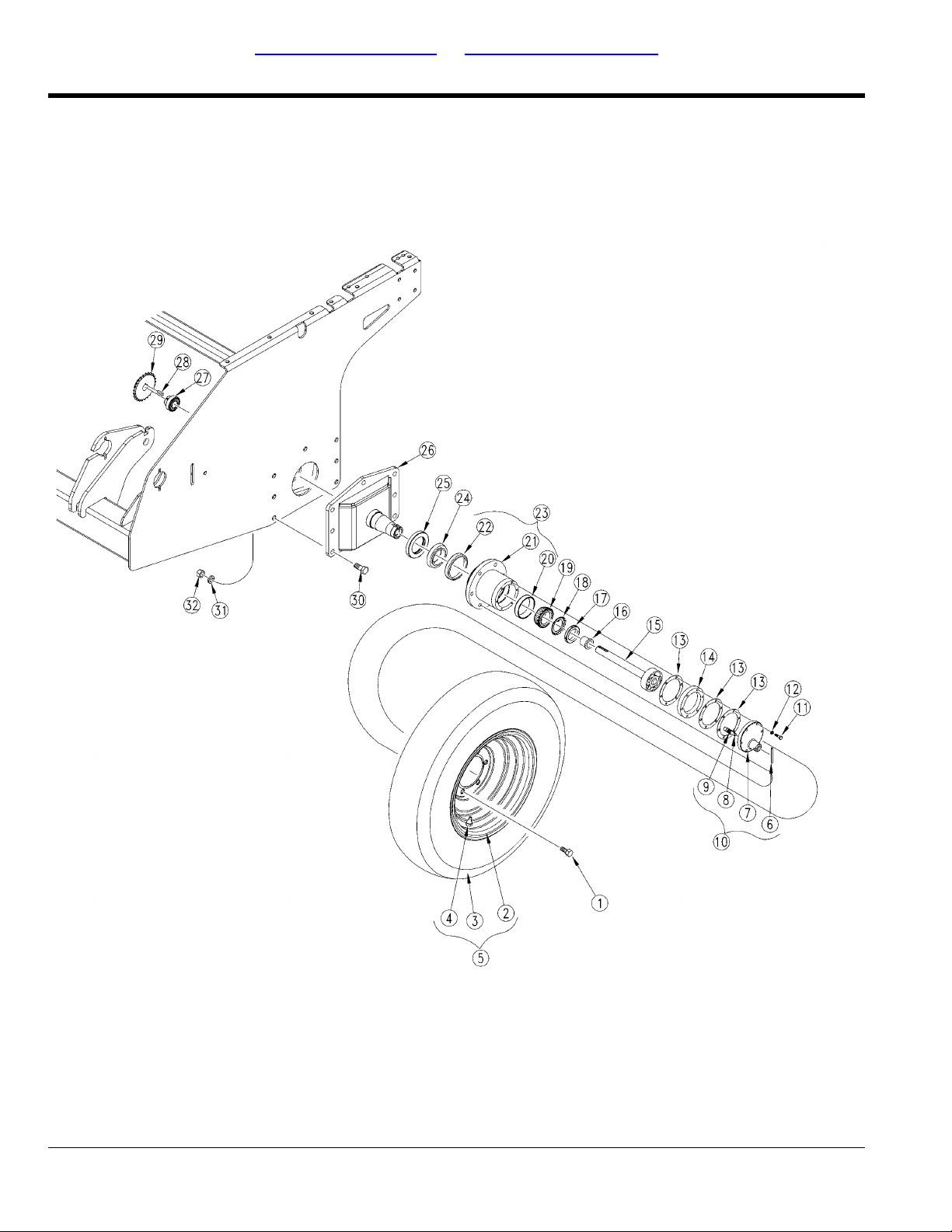

Transport Wheel...........................................................72

W

Walkboard....................................................................10

D

Decals..........................................................................74

F

Fertilizer Box to Frame.................................................14

Fertilizer Drive..............................................................38

Fertilizer Hose..............................................................48

Fertilizer Tray................................................................34

Fertilizer Tray to Box.....................................................16

H

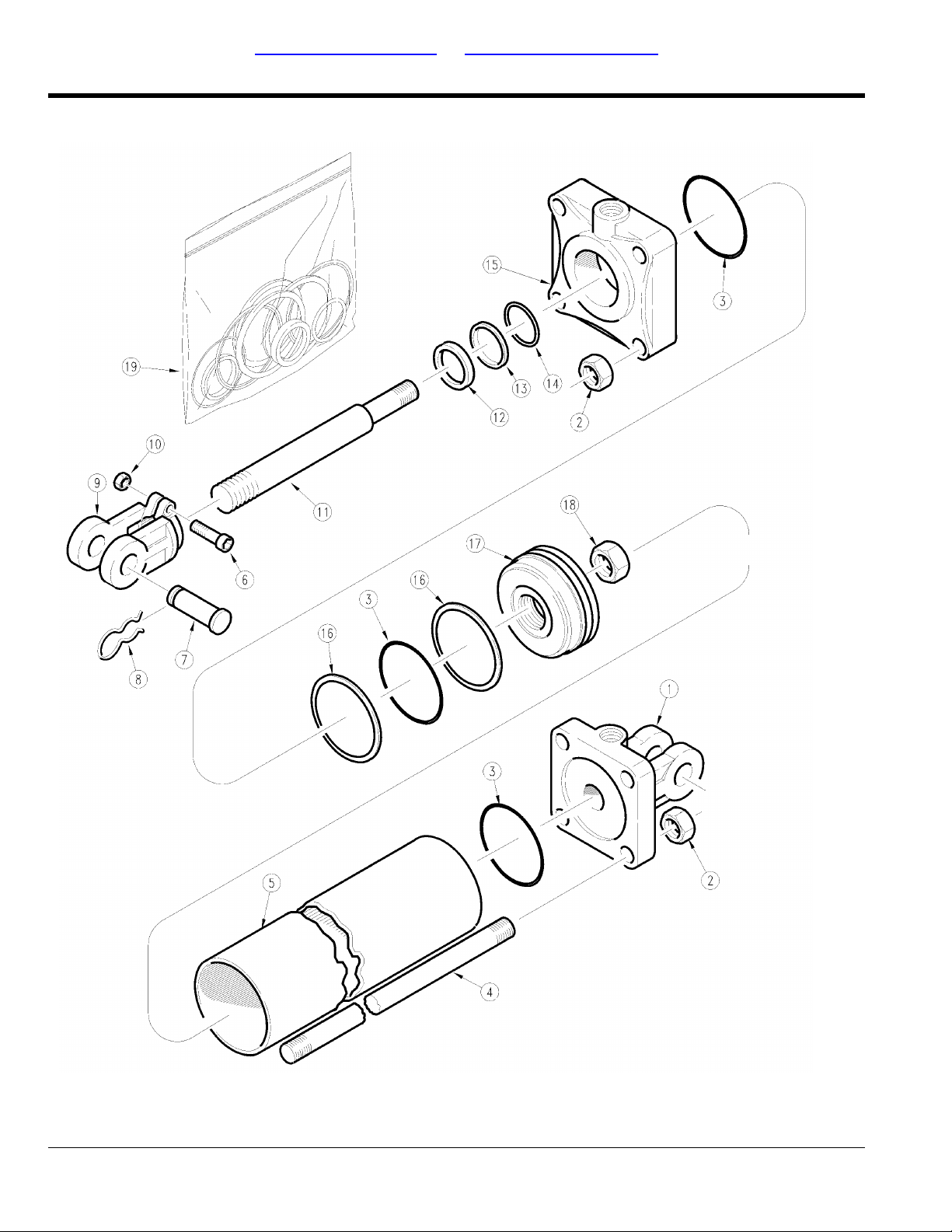

Hydraulic Cylinder (810-162C).....................................66

J

Jackshaft Drive.............................................................40

Jaw Clutch (176-043S).................................................42

L

Lift Hydraulics...............................................................68

Light Kit (S/N A1077-)..................................................18

Light Kit (S/N A1078U+)...............................................20

Lock-Out Hub...............................................................70

Long Arm Opener.........................................................50

O

Opener Lift.....................................................................6

S

Short Arm Opener........................................................52

Small Seeds and Fertilizer Drive..................................44

09/25/13 - 3 - 175-057P

Table of Contents Part Number Index

175-057P - 4 - 09/25/13

Table of Contents Part Number Index

09/25/13 - 5 - 175-057P

Table of Contents Part Number Index

Opener Lift

(Applies to 800 End Wheel only)

28074

175-057P - 6 - 09/25/13

Table of Contents Part Number Index

Opener Lift

(Applies to 800 End Wheel only)

Image No.dwg28074
OPENER SUB FRAME175-221H1.
13' EW SUB FRM MTG PIN END175-149H2.
BUSHING CYL 1 1/4 X 1 X 1890-005C3.
PIN COTTER1/4 X 2 PLT805-021C4.
CYL 3.5X8X1.25 ROD (TIE ROD)810-162C5.
8FT EW CYLINDER LUG175-381D6.
HHCS 3/4-10X3 GR5802-383C7.
WASHER LOCK SPRING 3/4 PLT804-023C8.
NUT HEX 3/4-10 PLT803-027C9.
13' EW CYLINDER FLEX LUG175-302D10.
PIN HITCH 1 X 4 1/2 USABLE LG805-077C11.
BUSHING SPINDLE 1 1/2X1 1/4X1890-011C12.
13' EW SUB FRM MTG PIN CTR175-148H13.
WASHER LOCK SPRING 1/2 PLT804-015C14.
HHCS 1/2-13X1 1/4 GR5802-034C15.
BUSHING, 1 1/2X1 1/4X3/4LG890-620C16.

Frame

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 7 - 175-057P

Table of Contents Part Number Index

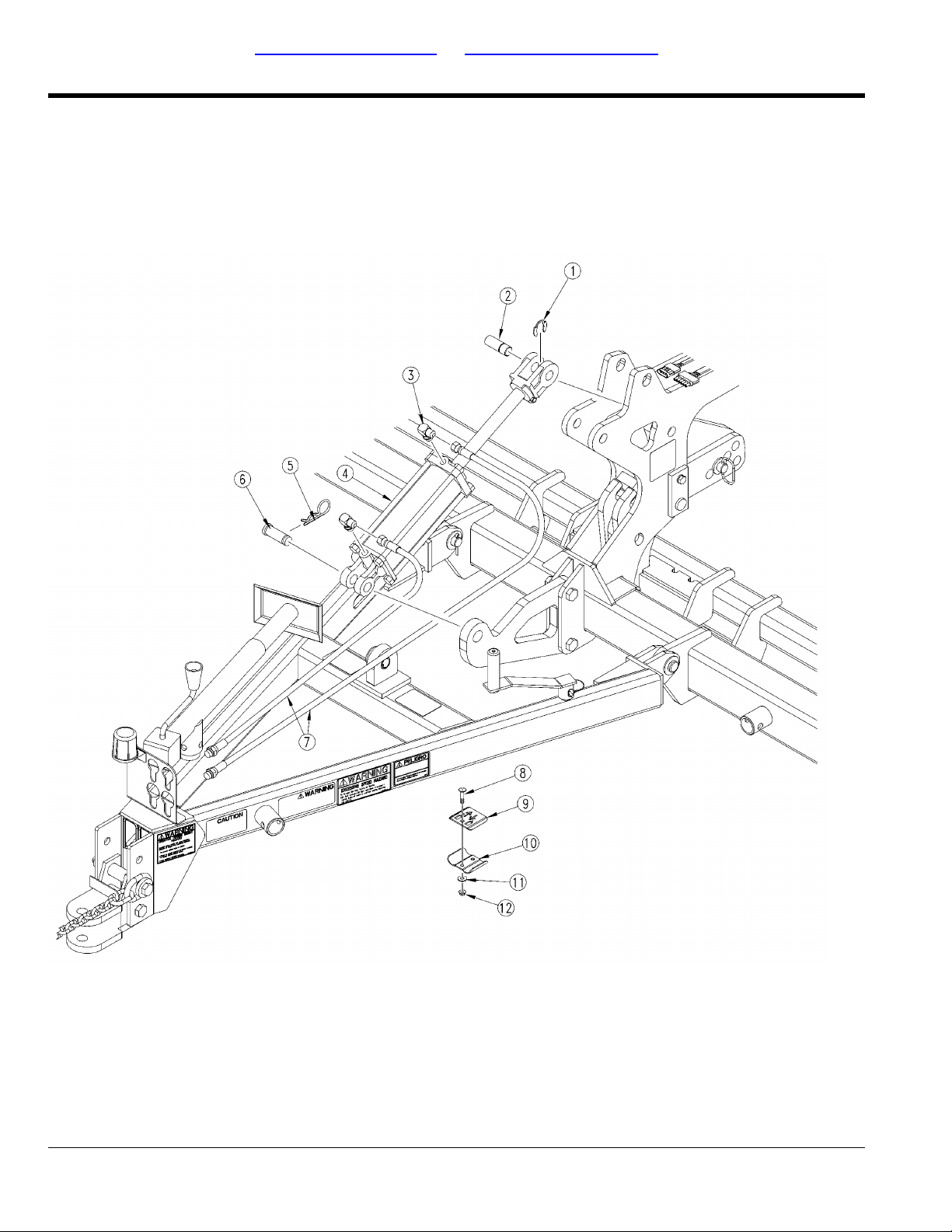

Tongue to Frame

(Applies to 800 End Wheel only)

28051

175-057P - 8 - 09/25/13

Table of Contents Part Number Index

Tongue to Frame

(Applies to 800 End Wheel only)

Image No.dwg28051
MAIN FRAME WLMT175-263H1.
PIN HITCH 1 X 4 1/2 USABLE LG805-077C2.
TONGUE LEVEL LINK ASSEMBLY151-075S3.
HHCS 3/4-10X3 GR5802-383C4.
8FT EW CYLINDER LUG175-381D5.
WASHER LOCK SPRING 3/4 PLT804-023C6.
NUT HEX 3/4-10 PLT803-027C7.
PIN CLEVIS 1 X 2 29/64 USABLE805-134C8.
WASHER FLAT 1 SAE804-029C9.
BUSHING 1 1/4X1X1/2 HRD ST SLT890-836C10.
PIN COTTER7/32 X 2805-060C11.
PIN WIRE RETAINING 1/4 X 1 3/4805-065C12.
CALIBRATION CRANK WELDMENT175-235H13.
GRIP HANDLE VNYL 1.0 IDX4.5 LG817-632C14.
HITCH PIN 1X3 1/4 W/COTTER805-306C15.
606NT TONGUEWELDMENT151-130H16.
SCREW JACK 2000# 15-30 TOP WND890-245C17.
HOSE RETAINER175-403D18.
HFS 3/8-16X1 GR5802-388C19.
NUT HEX 1/4-20 PLT803-006C20.
WASHER LOCK SPRING 1/4 PLT804-006C21.
7-PIN CONNECTORHOLDER833-492C22.
HFSS 1/4-20X5/8 GR5802-196C23.
WASHER LOCK SPRING 3/8 PLT804-013C24.
NUT HEX 3/8-16 PLT803-014C25.
WASHER FLAT 3/4 SAE PLT804-025C26.
CLEVIS HITCH WELDMENT177-527H27.
SAFETY CHAIN 10000 LB890-182C28.
SAFETY CHAIN WASHER177-587D29.
HHCS 3/4-10X7 GR5802-095C30.
HHCS 3/4-10X6 GR5802-070C31.
ADJ LINK WELDMENT RH THD156-013E32.
NUT HEX JAM 1 1/4-7 PLT803-032C33.
TONGUE LEVEL LINK151-074H34.
NUT HEX JAM 1 1/4-7 LH THD PLT803-046C35.
ADJ LINK WELDMENT LH THD156-014E36.
LIGHT HARNSS, ENHANCE MODULE890-924C37.
SCREW PAN HD 6-32 X 1/2 SS801-017C38.
WASHER FLAT #6 SAE PLT804-109C39.
WASHER LOCK #6 SS804-050C40.
NUT HEX 6-32 SS803-065C41.

Frame

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 9 - 175-057P

Table of Contents Part Number Index

Walkboard

(Applies to 800 End Wheel only)

28055

175-057P - 10 - 09/25/13

Table of Contents Part Number Index

Walkboard

(Applies to 800 End Wheel only)

Image No.dwg28055
MAIN FRAME WLMT175-263H1.
8FT EW WALKBOARD175-411D2.
HHCS 7/16-14X1 1/4 GR5 PLT802-673C3.
WASHER LOCK 7/16 PLT804-014C4.
NUT HEX 7/16-14 PLT803-015C5.
NUT HEX 5/16-18 PLT803-008C6.
WASHER LOCK SPRING 5/16 PLT804-009C7.
NUT HEX 1/4-20 PLT803-006C8.
WASHER LOCK SPRING 1/4 PLT804-006C9.
RHSNB 5/16-18X3/4 GR5802-092C10.
SMV BLADE MOUNT119-300D11.
DECAL SLOWMOVING-GALV. BACKED818-055C12.
SCREW RD HD 1/4-20 X 5/8801-018C13.
REAR WALKBOARD MOUNT175-412D14.
NUT HEX 1/2-13 PLT803-020C15.
WASHER LOCK SPRING 1/2 PLT804-015C16.
3PT HINGED WALKBOARD LADDER119-294H17.
HHCS 1/2-13X1 1/4 GR5802-034C18.
NUT HEX 3/8-16 PLT803-014C19.
WASHER LOCK SPRING 3/8 PLT804-013C20.
WASHER FLAT 3/8 USS PLT804-011C21.
WALKBOARDLADDER PIVOTBUSHING119-278D22.
SEED ONLY LH LADDER MNT175-413D23.
LH WLK BRD SUPP SML SEEDS175-416D24.
RH WLK BRD SUPP SML SEEDS175-417D25.
LH WLK BRD SUPP FERT142-077D26.
RH WLK BRD SUPP FERT142-064D27.
LH WLK BRD SUPP SML SDS-FERT142-312D28.
RH WLK BRD SUPP SML SDS-FERT142-298D29.
HHCS 3/8-16X1 1/4 GR5802-079C30.
RHSNB 1/2-13X1 1/4 GR5802-214C31.

Frame

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 11 - 175-057P

Table of Contents Part Number Index

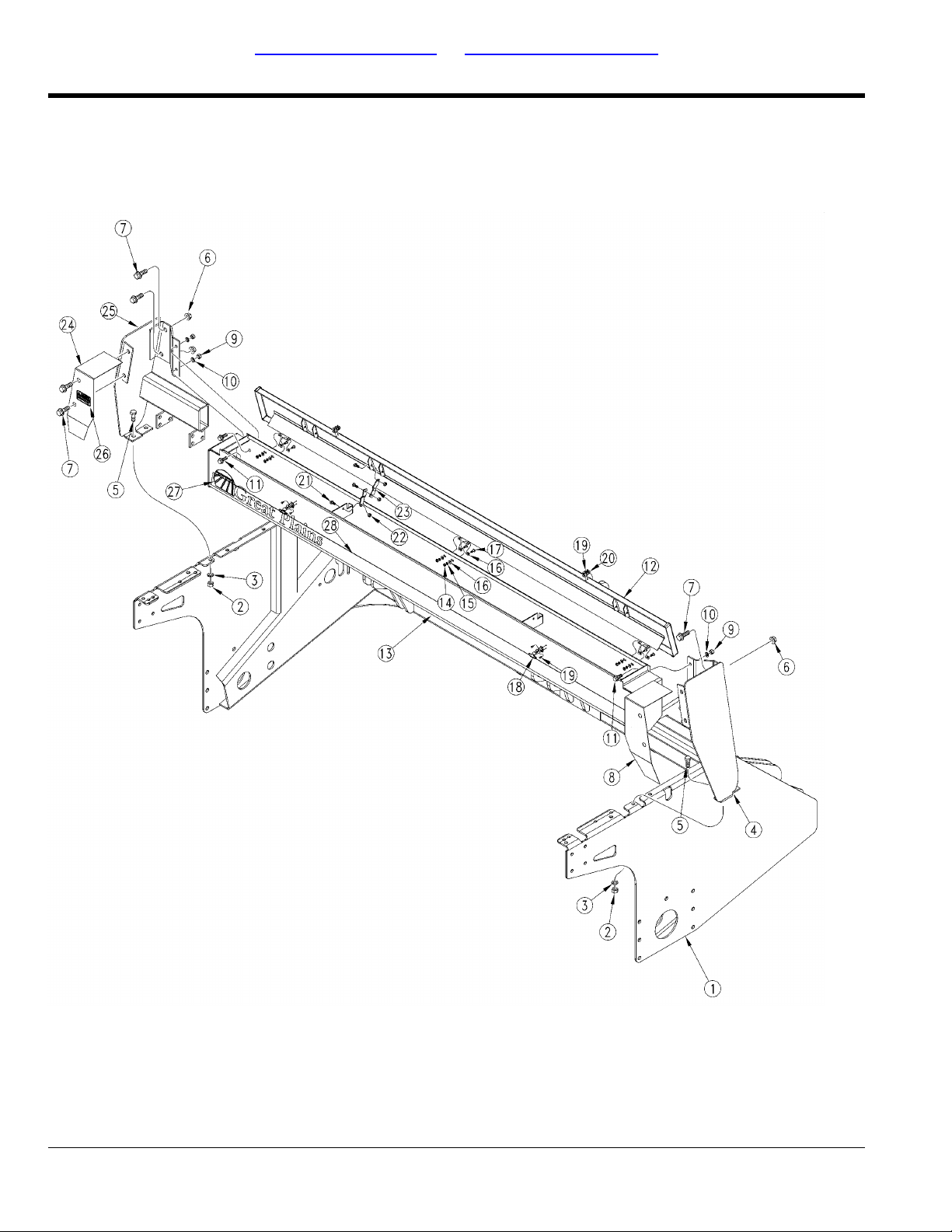

Box to Frame

(Applies to 800 End Wheel only)

28083

175-057P - 12 - 09/25/13

Table of Contents Part Number Index

Box to Frame

(Applies to 800 End Wheel only)

Image No.dwg28083
MAIN FRAME WLMT175-263H1.
NUT HEX 1/2-13 PLT803-020C2.
WASHER LOCK SPRING 1/2 PLT804-015C3.
HOSE CLIP 13/16 ID 1/2 MOUNT800-377C4.
HHCS 1/2-13X1 1/4 GR5802-034C5.
NUT HEX 5/16-18 PLT803-008C6.
WASHER LOCK SPRING 5/16 PLT804-009C7.
WASHER FLAT 5/16 SAE PLT804-036C8.
BRG CUTOUTCOVER, 47 MST118-403D9.
RHSNB 5/16-18X3/4 GR5802-092C10.
8' BOX WELDMENT175-192H11.
HFS 3/8-16X1 GR5802-388C12.
RHSNB 3/8-16X2 GR5802-411C13.
LID HINGE BASE PLATE313-176D14.
LID HINGE PIVOT313-186D15.
NUT FLANGE LOCK 3/8-16 PLT803-209C16.

SEED LEVEL BUSHING817-086C18.
8FT EW BOX LID WLMT175-257H19.
HHCS 5/16-18X1 1/4 NYL802-425C20.
LID HANDLE119-154D21.
SPRING .540 O.D.X 1 1/4 X.054W807-106C22.
LATCH CASTING MACHINED119-153D23.
NUT LOCK 5/16-18 PLT803-011C24.
SEED LEVEL CHAIN BRACKET197-091D25.
RIVET POP 1/8 .125 AD42BSLF800-101C26.
NUT HEX NYLOCK 1/4-20803-255C27.
WASHER FLAT 1/4 USS PLT804-075C28.
FOAM FLOAT WASHER197-096D29.
LOWER REAR GUSSET PLATE196-089D30.
PIN COTTER1/8 X 3/4805-067C31.
CABLE 3/64 X 10 7/8 W/EYELETS890-365C32.
6' SEED LEVEL ARM118-561D33.
WASHER FLAT 1/4 SAE PLT804-007C34.
ROD HOOK197-092D35.
HFS 10-24 X 1 1/8 PLTD801-096C36.
SEED LEVEL ARM MOUNT817-202C37.
NUT HEX FLANGE 5/16-18 PLT803-199C38.
BOX PARTITION118-560D39.
BALL STUD 10MM X 5/16-18 UNC800-121C40.
9 1/4-15 X 70LB GAS SPRING890-308C41.
HFS 5/16-18X3/4 GR5802-387C42.
WASHER INTERNAL STAR #10 PLT804-004C43.
WASHER ADJ HANDLE BRG804-001C44.
SEED LEVEL INDICATOR817-350C45.
SCR HEX HD SHT MET #8 X 1/2801-154C46.
MANUAL PAK MOUNT118-652D47.
HHCS 1/4-20X3/4 GR5802-004C48.
NUT HEX 3/8-16 PLT803-014C49.
NUT HEX FLG TL 1/4-20 ZNYCR803-293C50.
WASHER LOCK SPRING 3/8 PLT804-013C51.
U-BOLT 3/8-16 X 2 X 2 3/4806-004C52.
MINI END WHEEL PRESS WHEEL817-042C53.
MANUAL PAK 1" W/ GASKET817-516C54.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 13 through 16LID HINGE ASSEMBLYPS25120313-076S17.

09/25/13 - 13 - 175-057P

Table of Contents Part Number Index

Fertilizer Box to Frame

(Applies to 800 End Wheel only)

28091

175-057P - 14 - 09/25/13

Table of Contents Part Number Index

Fertilizer Box to Frame

(Applies to 800 End Wheel only)

Image No.dwg28091
MAIN FRAME WLMT175-263H1.
NUT HEX 1/2-13 PLT803-020C2.
WASHER LOCK SPRING 1/2 PLT804-015C3.
HHCS 1/2-13X1 1/4 GR5802-034C4.
8' FERTBOX WELDMENT142-258H5.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C6.
HHCS 1/2-13X1 1/4 GR5802-034C7.
RHSNB 3/8-16X2 GR5802-411C8.
FERT BOX LID HINGE R.H.142-264D9.
LID HINGE PIVOT313-186D10.
NUT FLANGE LOCK 3/8-16 PLT803-209C11.

RHSNB 3/8-16X3/4 GR5802-149C13.
WASHER FLAT 3/8 SAE PLT804-012C14.
WASHER LOCK SPRING 3/8 PLT804-013C15.
NUT HEX 3/8-16 PLT803-014C16.
FERT BOX MOUNT BRACKET142-135D17.
HFS 5/16-18X3/4 GR5802-387C18.
NUT HEX FLANGE 5/16-18 PLT803-199C19.
FERT BOX PARTITION142-236D20.
NUT LOCK 5/16-18 PLT803-011C21.
BALL STUD 10MM X 5/16-18 UNC800-121C22.
9 1/4-15 X 70LB GAS SPRING890-308C23.
LATCH CASTING MACHINED119-153D24.
SPRING .540 O.D.X 1 1/4 X.054W807-106C25.
LID HANDLE142-141D26.
WASHER FLAT 5/16 SAE PLT804-036C27.
HHCS 5/16-18X1 1/4 NYL802-425C28.
8' FERT/NGBOX LID WELDMENT142-259H29.
DECAL LOGO&GP F/STRIPE 4 X 24838-161C30.
DECAL 3 COLOR STRIPE 2.50 WIDE838-160C31.
DECAL 800848-276C32.
FERT BOX LID HINGE L.H.142-263D33.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 8 through 113PT FERTBOX LID HINGE ASSY RH142-590S12.

Includes items 8 through 113PT FERTBOX LID HINGE ASSY LH142-589S34.

09/25/13 - 15 - 175-057P

Table of Contents Part Number Index

Fertilizer Tray to Box

(Applies to 800 End Wheel only)

28163

175-057P - 16 - 09/25/13

Table of Contents Part Number Index

Fertilizer Tray to Box

(Applies to 800 End Wheel only)

Image No.dwg28163

8FT EW FERT TRAY ASY 7 1/2142-267K1.
NUT HEX LOCK 1/4-20 FLG803-088C2.
HFSS 1/4-20X1/2 GR5802-148C3.
FERT. BOX & LID ASY142-266L4.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

Shown8FT EW FERT TRAY ASY 6142-264K1.

Per FootSEAL 5/16 X 3/4 DOR-TITE TRAY990-024R5.

09/25/13 - 17 - 175-057P

Table of Contents Part Number Index

Light Kit (S/N A1077-)

(Applies to 800 End Wheel only)

28155

175-057P - 18 - 09/25/13

Table of Contents Part Number Index

Light Kit (S/N A1077-)

(Applies to 800 End Wheel only)

Image No.dwg28155
DUAL AG LIGHT W/WP ENHANCED RH891-183C1.
DUAL AG LIGHT W/WP ENHANCED LH891-184C1.
SCR HEX SELF TAP 1/4-20X1TYPEF801-151C2.
HANDLE119-190D3.
HFSS 1/2-13X1 1/2 GR5802-203C4.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C5.
HARNESS, EXTENSION 15 FT147055586.
LIGHT HARNESS, ENHANCE MODULE890-924C7.
HARNESS, WISHBONE, 7 1/2 FT147055608.
7-PIN CONNECTORHOLDER833-492C9.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 19 - 175-057P

Table of Contents Part Number Index

Light Kit (S/N A1078U+)

(Applies to 800 End Wheel only)

36037

175-057P - 20 - 09/25/13

Table of Contents Part Number Index

Light Kit (S/N A1078U+)

(Applies to 800 End Wheel only)

Image No.dwg36037
LIGHT, RED LAMP - LED833-696C1.
HHCS 1/4-20X1 GR5802-005C2.
HANDLE119-190D3.
HFSS 1/2-13X1 1/2 GR5802-203C4.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C5.
LIGHT HARNESS, 15' LEAD - LED833-684C6.
LIGHT HRNSS ENHANCE MODULE LED833-694C7.
HARNESS WISHBONE 7' -6 - LED833-709C8.
7-PIN CONNECTORHOLDER833-492C9.
LIGHT, AMBER LAMP LED833-697C10.
SCREW HEX SELF TAP 1/4-20X3/4801-081C11.
NUT HEX 1/4-20 PLT803-006C12.
WASHER LOCK SPRING 1/4 PLT804-006C13.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 21 - 175-057P

Table of Contents Part Number Index

Small Seeds Box and Fertilizer Box to Frame

(Applies to 800 End Wheel only)

28103

175-057P - 22 - 09/25/13

Table of Contents Part Number Index

Small Seeds Box and Fertilizer Box to Frame

(Applies to 800 End Wheel only)

Image No.dwg28103
MAIN FRAME WLMT175-263H1.
NUT HEX 1/2-13 PLT803-020C2.
WASHER LOCK SPRING 1/2 PLT804-015C3.
HHCS 1/2-13X1 1/4 GR5802-034C4.
8FT EW SML SDS BOX ASY 6175-269K5.
8FT EW SML SDS BOX ASY 7 1/2175-271K5.
FERT. BOX & LID ASY142-266L6.
HFSS 1/2-13X1 1/2 GR5802-203C7.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C8.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 23 - 175-057P

Table of Contents Part Number Index

Small Seeds Box Components

(Applies to 800 End Wheel only)

28158

175-057P - 24 - 09/25/13

Table of Contents Part Number Index

Small Seeds Box Components

(Applies to 800 End Wheel only)

Image No.dwg28158
8' SGS LID WELDMENT175-268H1.
RMVBL SMALL SEED BOX PARTITION123-409D2.
LATCH KEEPER 37-15-061-17816-113C3.
RIVET POP 1/8 .125 AD42BSLF800-101C4.
HHCS 1/4-20X5/8 GR5802-078C5.
NUT LOCK 1/4-20 PLT803-007C6.
10' EWNT SGS LID LATCH123-356D7.
SCREW RD HD SLT10-24X1/2 PLT801-003C8.
WASHER FLAT #10 SAE PLT804-046C9.
WASHER INTERNAL STAR #10 PLT804-004C10.
NUT HEX 10-24 PLT803-001C11.
HHCS 1/4-20X3/4 GR5802-004C12.
SML SDS DRIVE SPKT HUB 27T123-834H13.
NUT HEX 1/4-20 PLT803-006C14.
NO. 40 12T IDLER SPKT.817-025C15.
WASHER MACH 1.38 X .876 X .048804-044C16.
SNAP RING .875800-028C17.
RUBBER LATCH 37-11-065-10816-112C18.
SML SEED FEEDER CUP ASSY817-504C19.
PIN COTTER1/8 X 3/4805-067C20.
8FT EW SML SDS BOX FC SHAFT 6175-419D21.
8FT EW SML SDS FC SHAFT 7 1/2175-423D21.
WASHER GRASS SEEDER CUP SHAFT804-042C22.
GRASS SEEDER SLEEVE817-009C23.
GRASS SEEDER SPROCKET817-010C24.
HFSS 1/4-20X1/2 GR5802-148C25.
SEED ADJUSTMENT SUPPORT123-118D26.
ADJUSTMENT HANDLE PIVOT123-050H27.
WASHER LOCK SPRING 1/4 PLT804-006C28.
3/8 SHAFT LOCKING COLLAR890-349C29.
SCREW SET 5/16-18 SKT KP X 3/8801-035C30.
SEED ADJUSTMENT SPOOL123-116D31.
WASHER FLAT 3/8 SAE PLT804-012C32.
REAR SEED RATE ADJ HANDLE123-411D33.
PIN COTTER5/32 X 1 PLT805-019C34.
NUT WING 5/16-18803-058C35.
LOCK TAB123-113D36.
RHSNB 5/16-18X3/4 GR5802-092C37.
GAUGE MOUNTING BRACKET123-410D38.
NUT HEX 8-32 BRASS803-035C39.
WASHER INTERNAL STAR #8 BRASS804-002C40.
WASHER FLAT #8 BRASS804-003C41.
SCREW RD HD 8-32 X 3/8 BRASS801-001C42.
SEED ADJUSTMENT GUIDE819-041C43.
SMALL SEEDS CUP WIND SHIELD817-806C44.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 25 - 175-057P

Table of Contents Part Number Index

Small Seeds Box to Frame

(Applies to 800 End Wheel only)

28098

175-057P - 26 - 09/25/13

Table of Contents Part Number Index

Small Seeds Box to Frame

(Applies to 800 End Wheel only)

Image No.dwg28098
MAIN FRAME WLMT175-263H1.
NUT HEX 1/2-13 PLT803-020C2.
WASHER LOCK SPRING 1/2 PLT804-015C3.
3PT SML SDS BOX MNT RH NON DRV123-829H4.
HHCS 1/2-13X1 1/4 GR5802-034C5.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C6.
HFSS 1/2-13X1 1/2 GR5802-203C7.
HANDLE MOUNT RH CHAIN GUARD123-492D8.
NUT HEX 3/8-16 PLT803-014C9.
WASHER LOCK SPRING 3/8 PLT804-013C10.
HFS 3/8-16X1 GR5802-388C11.
8' SGS LID WELDMENT175-268H12.

8FT EW SML SDS BOX WLMT 7 1/2175-270H13.
NUT HEX 10-24 PLT803-001C14.
WASHER INTERNAL STAR #10 PLT804-004C15.
WASHER FLAT #10 SAE PLT804-046C16.
SCREW RD HD SLT10-24X1/2 PLT801-003C17.
RUBBER LATCH 37-11-065-10816-112C18.
GREASE ZERK STRAIGHT 1/4-28800-001C19.
LATCH KEEPER 37-15-061-17816-113C20.
HHCS 1/4-20X5/8 GR5802-078C21.
NUT LOCK 1/4-20 PLT803-007C22.
10' EWNT SGS LID LATCH123-356D23.
HANDLE MOUNT LH CHAIN GUARD123-491D24.
LH NT SGS DRIVER BRACKET133-317H25.
DECAL MOVING CHAIN DANGER818-518C26.
DECAL LOGO&GP F/STRIPE 4 X 24838-161C27.
DECAL 3 COLOR STRIPE 2.50 WIDE838-160C28.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

Shown8FT EW SML SDS BOX WLMT 6175-267H13.

09/25/13 - 27 - 175-057P

Table of Contents Part Number Index

6" Feeder Cup Spacing

(Applies to 800 End Wheel only)

28174

175-057P - 28 - 09/25/13

Table of Contents Part Number Index

6" Feeder Cup Spacing

(Applies to 800 End Wheel only)

Image No.dwg28174
2SNT SEED BOX DIVIDER CLIP118-341D1.
BOX DVDR 4.00 X 60DEG118-433D2.
3 BOX DIVIDER FOR 4 7/8 ROW118-431D3.
BOX DVDR 5.13 X 60DEG118-437D4.
6 5/8 BOX DVDER FOR 8 1/2 ROW118-432D5.
HHCS 1/4-20X3/4 GR5802-004C6.
NUT HEX WHIZ 1/4-20 PLT803-194C7.
8FT EW FEEDERCUP TRAY 6175-402D8.
HHCS 3/8-16X3/4 GR5802-014C9.
WASHER LOCK SPRING 3/8 PLT804-013C10.
WASHER FLAT 3/8 SAE PLT804-012C11.
5/8 SHAFT LOCKING COLLAR890-350C12.
SCREW SET 5/16-18 SKT KP X 3/8801-035C13.
SEED CUP ASSEMBLY817-075C14.
SPACER TUBE X 2.470118-436D15.
WASHER RETAINING804-031C16.
SPACER TUBE X 1.454118-434D17.
PIN ROLL 3/16X1 1/4 PLT805-023C18.
MACHINED ADJUSTMENT SPOOL109-091D19.
FEEDER CUP BRG ASSEMBLY118-226S20.
8FT EW FEED CUP TRAY SHAFT175-385D21.
SCR SELF TAP 8X3/8 TYPE25 BT801-057C22.
SEED CUP WASHER RETAINER817-073C23.
NYLON WASHER-SPLIT817-004C24.
SEED CUP LEFT HALF817-068C25.
SEED CUP DOOR817-070C26.
SEED CUP RIGHT HALF817-069C27.
SEED CUP ADJUSTMENT HANDLE817-071C28.
SEED CUP ASSEMBLY817-075C29.
SEED CUP SLEEVE817-074C30.
PM SEED CUP SPROCKET890-190C31.
CLAMP HOSE 1 5/8 NO. 26800-009C32.
RUBBER GRAIN TUBE816-002C33.
BRG HUB 40A15118-508D34.
FEEDER CUP BRG HOUSING118-336D35.
BRG 30IDX55OD MM822-103C36.
SNAP RING EXT BASIC 1.880800-004C37.
SNAP RING INT 2.165800-107C38.

Metering

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 29 - 175-057P

Table of Contents Part Number Index

7.5" Feeder Cup Spacing

(Applies to 800 End Wheel only)

28187

175-057P - 30 - 09/25/13

Table of Contents Part Number Index

7.5" Feeder Cup Spacing

(Applies to 800 End Wheel only)

Image No.dwg28187
2SNT SEED BOX DIVIDER CLIP118-341D1.
5 5/8 BOX DVDR FOR 7 1/2 ROW118-340D2.
6 5/8 BOX DVDER FOR 8 1/2 ROW118-432D3.
BOX DVDR 5.13 X 60DEG118-437D4.
HHCS 1/4-20X3/4 GR5802-004C5.
NUT HEX WHIZ 1/4-20 PLT803-194C6.
8FT EW FEED CUP TRAY 7 1/2175-410D7.
HHCS 3/8-16X3/4 GR5802-014C8.
WASHER LOCK SPRING 3/8 PLT804-013C9.
WASHER FLAT 3/8 SAE PLT804-012C10.
SPACER TUBE X 4.078118-346D11.
WASHER RETAINING804-031C12.
SEED CUP ASSEMBLY817-075C13.
SCREW SET 5/16-18 SKT KP X 3/8801-035C14.
5/8 SHAFT LOCKING COLLAR890-350C15.
MACHINED ADJUSTMENT SPOOL109-091D16.
PIN ROLL 3/16X1 1/4 PLT805-023C17.
FEEDER CUP BRG ASSEMBLY118-226S18.
8FT EW FEED CUP TRAY SHAFT175-385D19.
SEED CUP SLEEVE817-074C20.
PM SEED CUP SPROCKET890-190C21.
CLAMP HOSE 1 5/8 NO. 26800-009C22.
RUBBER GRAIN TUBE816-002C23.
SCR SELF TAP 8X3/8 TYPE25 BT801-057C24.
SEED CUP WASHER RETAINER817-073C25.
NYLON WASHER-SPLIT817-004C26.
SEED CUP LEFT HALF817-068C27.
SEED CUP DOOR817-070C28.
SEED CUP RIGHT HALF817-069C29.
SEED CUP ADJUSTMENT HANDLE817-071C30.
SNAP RING INT 2.165800-107C31.
SNAP RING EXT BASIC 1.880800-004C32.
BRG 30IDX55OD MM822-103C33.
FEEDER CUP BRG HOUSING118-336D34.
BRG HUB 40A15118-508D35.

Metering

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 31 - 175-057P

Table of Contents Part Number Index

Adjustment Handle

(Applies to 800 End Wheel only)

16676

175-057P - 32 - 09/25/13

Table of Contents Part Number Index

Adjustment Handle

(Applies to 800 End Wheel only)

Image No.dwg16676
NUT HEX 5/16-18 PLT803-008C1.
WASHER LOCK SPRING 5/16 PLT804-009C2.
WASHER FLAT 5/16 SAE PLT804-036C3.
HHCS 3/8-16X3/4 GR5802-014C4.
WASHER LOCK SPRING 3/8 PLT804-013C5.
WASHER FLAT 3/8 SAE PLT804-012C6.
HHCS 5/16-18X3/4 GR5802-007C7.
SNAP RING EXT 17 MM800-003C8.
BRG BALL 17IDX40OD 6203822-008C9.
WASHER ADJ HANDLE BRG804-001C10.
8FT EW SEED RATE ADJ HANDLE175-243H11.
WASHER FLAT 5/8 SAE PLT804-021C12.
WASHER MACH 1.19 X .63 X 18GA804-040C13.
ADJUSTMENT HANDLE PIVOT109-069D14.
PIN COTTER3/16 X 1 1/4 PLT805-016C15.
NUT WING 1/2-13 PLT803-016C16.
ADJ LOCK PLATE ASS'Y - 1 1/2 W109-025H17.
SCREW RD HD 8-32 X 3/8 BRASS801-001C18.
WASHER FLAT #8 BRASS804-003C19.
REAR SEED ADJ GUIDE 6 3/4 LONG819-109C20.
NAME PLATE ADJ. GUIDE LONG819-001C20.
REAR SEED RATE ADJ MOUNT WLDMT195-253H21.
WASHER INTERNAL STAR #8 BRASS804-002C22.
NUT HEX 8-32 BRASS803-035C23.
NUT HEX LOCK 1/4-20 FLG803-088C24.
HFSS 1/4-20X5/8 GR5802-196C25.
1 3/4 WIDE FEEDER CUP PLUG817-087C26.

Metering

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 33 - 175-057P

Table of Contents Part Number Index

Fertilizer Tray

(Applies to 800 End Wheel only)

28165

175-057P - 34 - 09/25/13

Table of Contents Part Number Index

Fertilizer Tray

(Applies to 800 End Wheel only)

Image No.dwg28165
8FT EW FERT TRAY WLMT 6IN142-260H1.
8FT EW FERT TRAY WLMT 7.5IN142-261H1.
PIN ROLL 5/32 X 1805-073C2.
KNOB P.W. ADJUSTMENT817-021C3.
FERTILIZER ADJUSTMENT ROD ASSY150-044S4.
FERTILIZER ADJ BRKT WELDMENT191-001H5.
SCREW RD HD 8-32 X 3/8 BRASS801-001C6.
NUT HEX 5/16-18 PLT803-008C7.
WASHER LOCK SPRING 5/16 PLT804-009C8.
FERTILIZER ADJUSTMENT GAUGE819-034C9.
NUT HEX 1/4-20 PLT803-006C10.
WASHER LOCK SPRING 1/4 PLT804-006C11.
SPRING SCREW ADJ TENSION STRHT807-020C12.
TENSION SPRING RETAINER122-065D13.
SCREW RD HD 1/4-20 X 5/8801-018C14.
PIN COTTER7/64 X 1 LONG805-064C15.
ACME SLOTTED NUT150-051D16.
WASHER FLAT 25/64 ID SD-LK FAF804-092C17.
WASHER FLAT #8 BRASS804-003C18.
WASHER INTERNAL STAR #8 BRASS804-002C19.
NUT HEX 8-32 BRASS803-035C20.
MF FERTTRAY SLIDE SUPPORT191-019D21.
WASHER LOCK 1/4 SS804-033C22.
NUT HEX SS 1/4-20803-004C23.
MF FERTSTARRETAINER SIDE PLT191-018D24.
RHSNB 1/4-20X3/4 SS802-089C25.
13' EW FERT BRG RETAINER175-102H26.
MF FERTHEX BORE PLASTIC BUSH191-002D27.
FT EW FERT SLIDE GATE 6142-263H28.
FERT DROP TUBE ASSEMBLY BOX141-011E29.
MTG. BASE SLIDE STOP141-076D30.
SLIDE STOPASSEMBLY141-041E31.
6 POINT FERT METERING WHEEL817-053C32.
RHSNB 3/8-16X1 3/4 GR5802-252C33.
MF FERTTRAY END PLT WLDMT LH191-006H34.
FERT TRAY 3/4 HEX SHFT X88 3/4142-265D35.
FELT SEAL890-026C36.
TRAY BRG SPACER141-084D37.
MF FERT.75 HEX BORE BUSHING191-001D38.
BRG FLG 1.25ID 3BOLT822-083C39.
WASHER LOCK SPRING 3/8 PLT804-013C40.
NUT HEX 3/8-16 PLT803-014C41.
SPKT 40B30 X 3/4 HEXBORE W/ SS808-086C42.
RIVET SS 1/8 DIA800-012C43.
LATCH STRIKE800-032C44.

FERT TRAY LATCH STRIKE142-273D46.
FERTILIZER LATCH WELDMENT141-116H47.
COVER HANDLE CHAIN142-009D48.
PIN COTTER5/32 X 1 PLT805-019C49.

Metering

RevisionCommentsPart DescriptionPart No.Ref.

Per FootSEAL 5/16 X 3/4 DOR-TITE TRAY990-024R45.

09/25/13 - 35 - 175-057P

Table of Contents Part Number Index

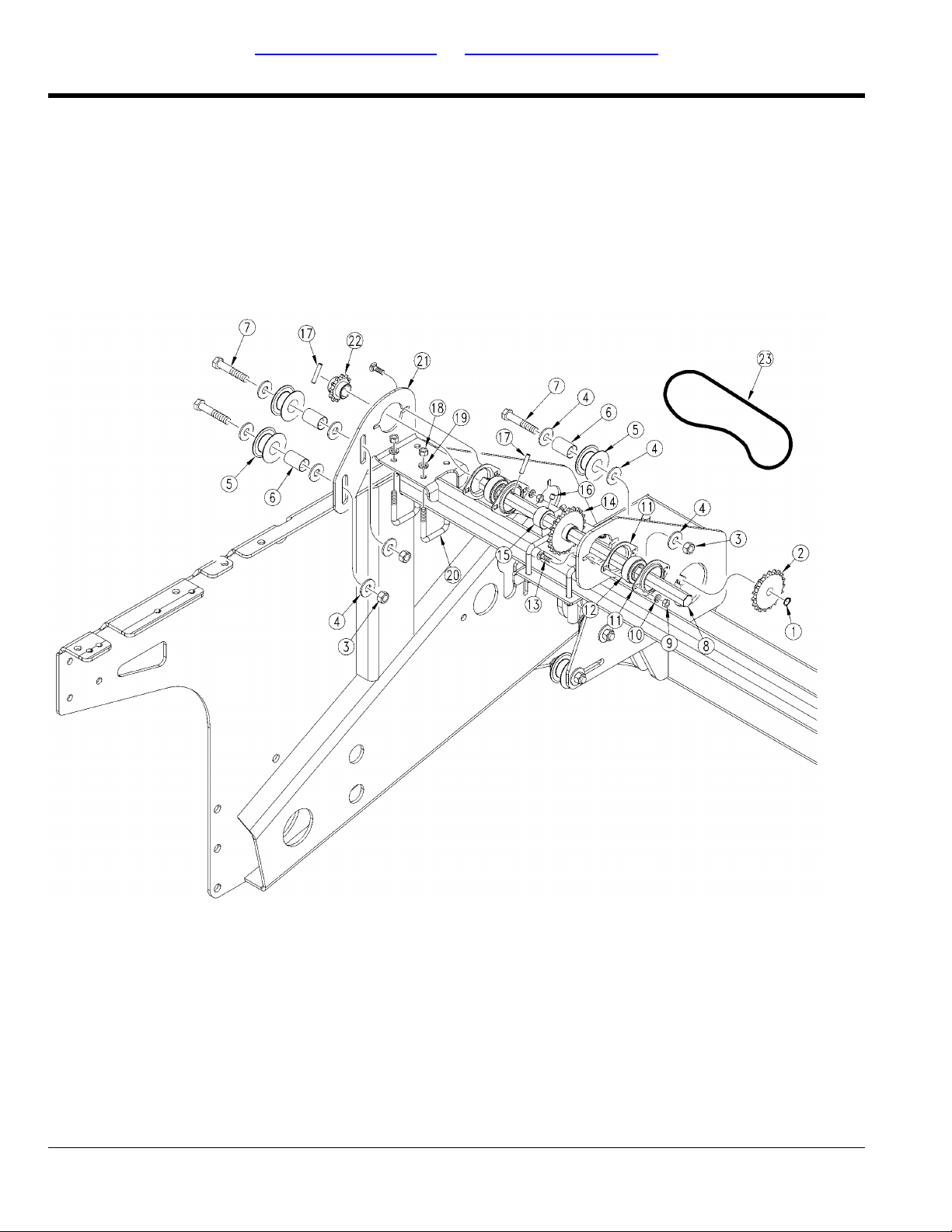

Auxiliary Drive

(Applies to 800 End Wheel only)

28230

175-057P - 36 - 09/25/13

Table of Contents Part Number Index

Auxiliary Drive

(Applies to 800 End Wheel only)

Image No.dwg28230
SNAP RING EXT F/PEERLESS G.B.800-141C1.
SPKT 40B19 X 36T SPLINE BORE808-157C2.
NUT HEX NYLOCK 1/2-13803-147C3.
WASHER FLAT 1/2 USS PLT804-017C4.
IDLER 1 PC 2.38X1.01X1.062817-406C5.
TUBE RND 1 OD X 7/32W X 1.56120-305D6.
HHCS 1/2-13X2 3/4 GR5802-226C7.
8FT EW AUX JACK SHAFT175-415D8.
NUT HEX 5/16-18 PLT803-008C9.
WASHER LOCK SPRING 5/16 PLT804-009C10.
FLANGETTE 52 MST822-032C11.
BRG INS 7/8HEXX2.04OD SPH822-195C12.
RHSNB 5/16-18X1 GR5802-282C13.
SPKT 40C22 X 7/8 HEX BORE808-250C14.
COLLAR LOCK 7/8 HEX402-058D15.
SCREW SET 5/16-18 SKT KP X 3/8801-035C16.
PIN ROLL 1/4 X 1 1/2 LG PLT805-180C17.
NUT HEX 3/8-16 PLT803-014C18.
WASHER LOCK 7/16 PLT804-014C19.
U-BOLT 3/8-16 X 2 X 2 3/4806-004C20.
8FT EW AUX JACK SHAFT MNT175-414D21.
SPKT 40C12 X 7/8 HEX BORE808-219C22.
CHAIN RL #40 70 PITCHES136-036D23.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

Gear Boxto Auxiliary Shaft Drive

Chain

09/25/13 - 37 - 175-057P

Table of Contents Part Number Index

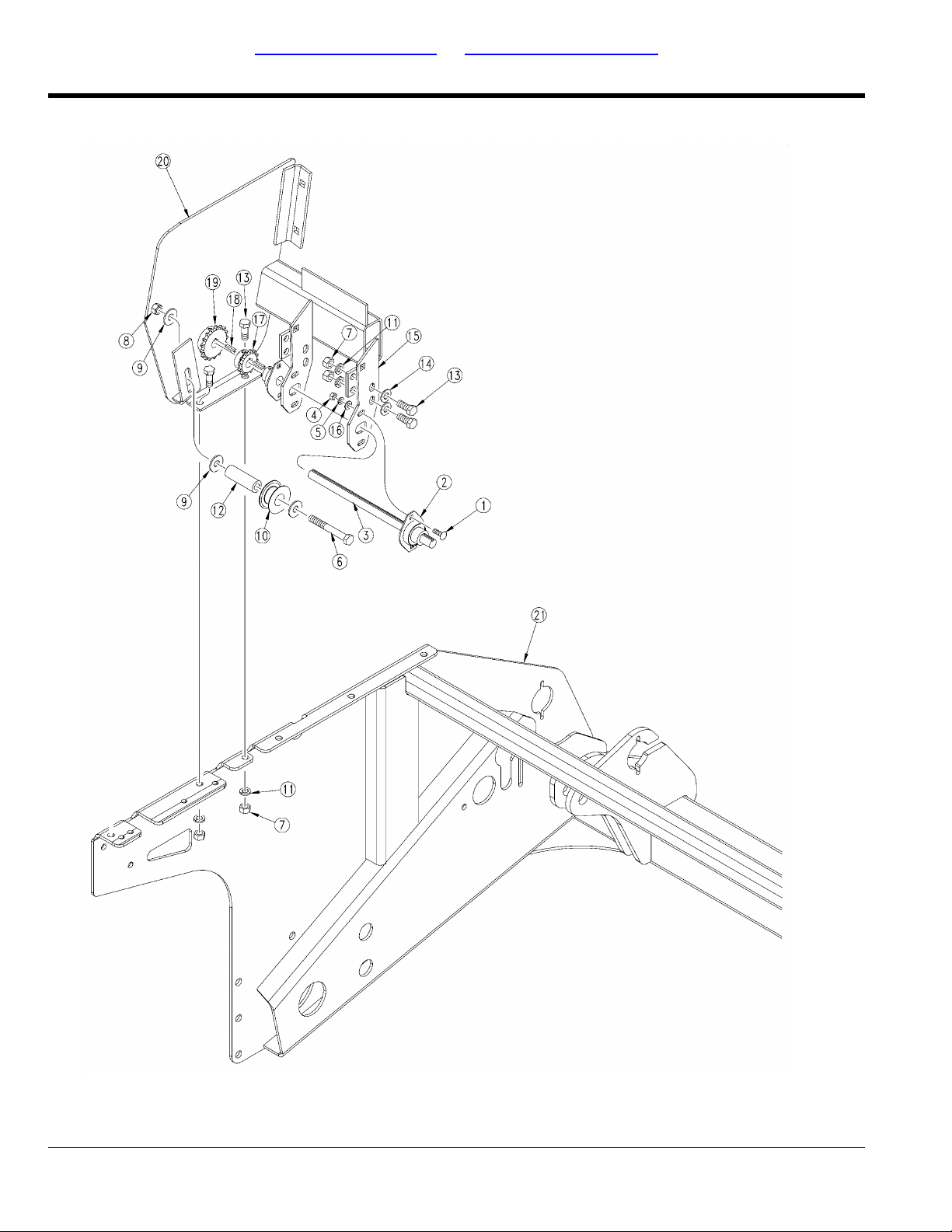

Fertilizer Drive

(Applies to 800 End Wheel only)

28140

175-057P - 38 - 09/25/13

Table of Contents Part Number Index

Fertilizer Drive

(Applies to 800 End Wheel only)

Image No.dwg28140
RHSNB 5/16-18X1 GR5802-282C1.
BRG FLG .75ID 2BOLT822-126C2.
RND SHAFT 3/4 X 13 3/8 W/KW120-234D3.
NUT HEX 5/16-18 PLT803-008C4.
WASHER LOCK SPRING 5/16 PLT804-009C5.
HHCS 1/2-13X4 GR5802-044C6.
NUT HEX 1/2-13 PLT803-020C7.
NUT HEX NYLOCK 1/2-13803-147C8.
WASHER FLAT 1/2 USS PLT804-017C9.
IDLER 1 PC 2.38X1.01X1.062817-406C10.
WASHER LOCK SPRING 1/2 PLT804-015C11.
TUBE RND DOM. 1 OD X 7/32WX3.0120-293D12.
HHCS 1/2-13X1 1/4 GR5802-034C13.
WASHER FLAT 1/2 SAE PLT804-016C14.
BRG PLATE - ASSEMBLY123-580D15.
WASHER FLAT 5/16 SAE PLT804-036C16.
SPKT 40B12 X 3/4 B W/KW&SS808-040C17.
3/16 X 1 KEY168-127D18.
SPKT 40B17 X 3/4BORE W/KW&SS808-170C19.
8' FERTBOX WELDMENT142-258H20.
MAIN FRAME WLMT175-263H21.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 39 - 175-057P

Table of Contents Part Number Index

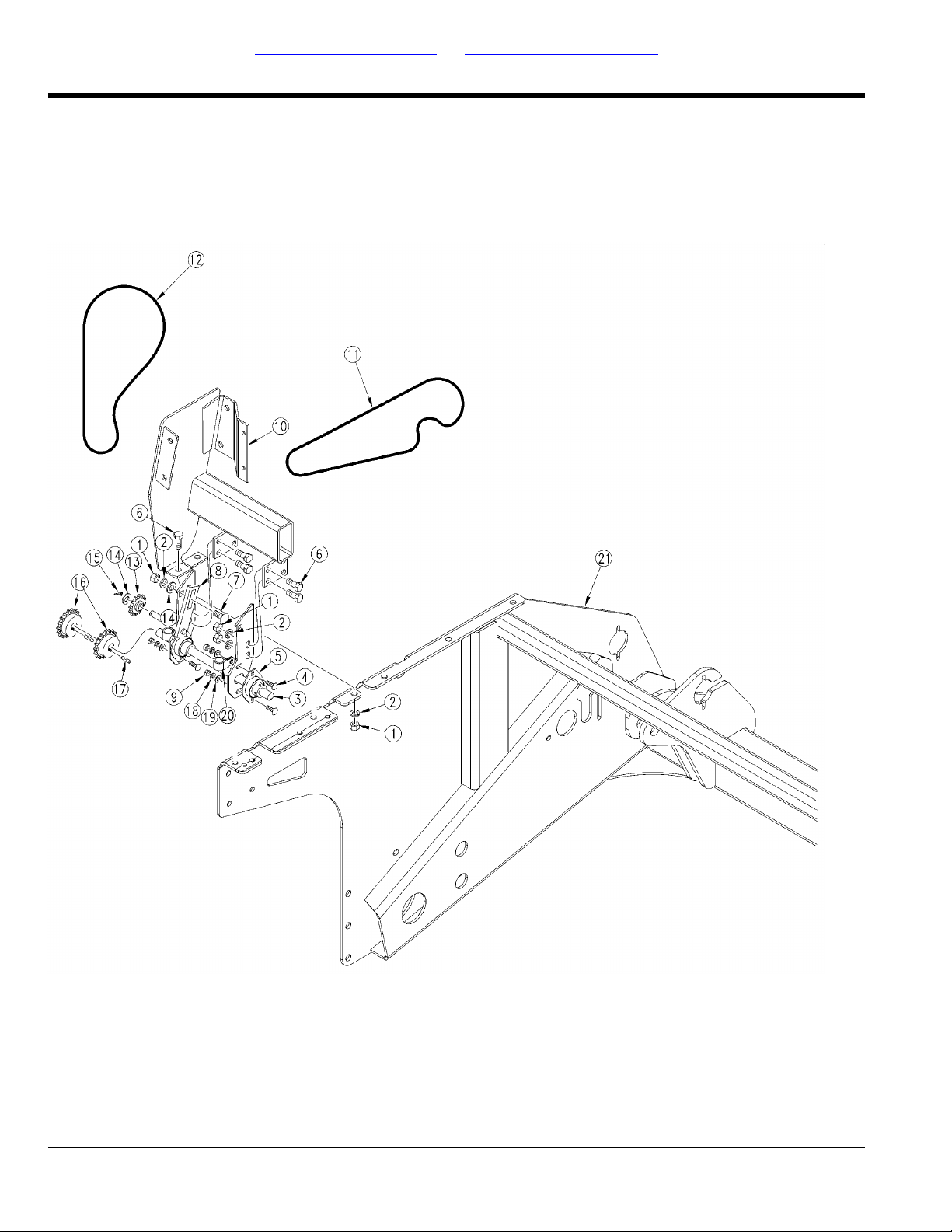

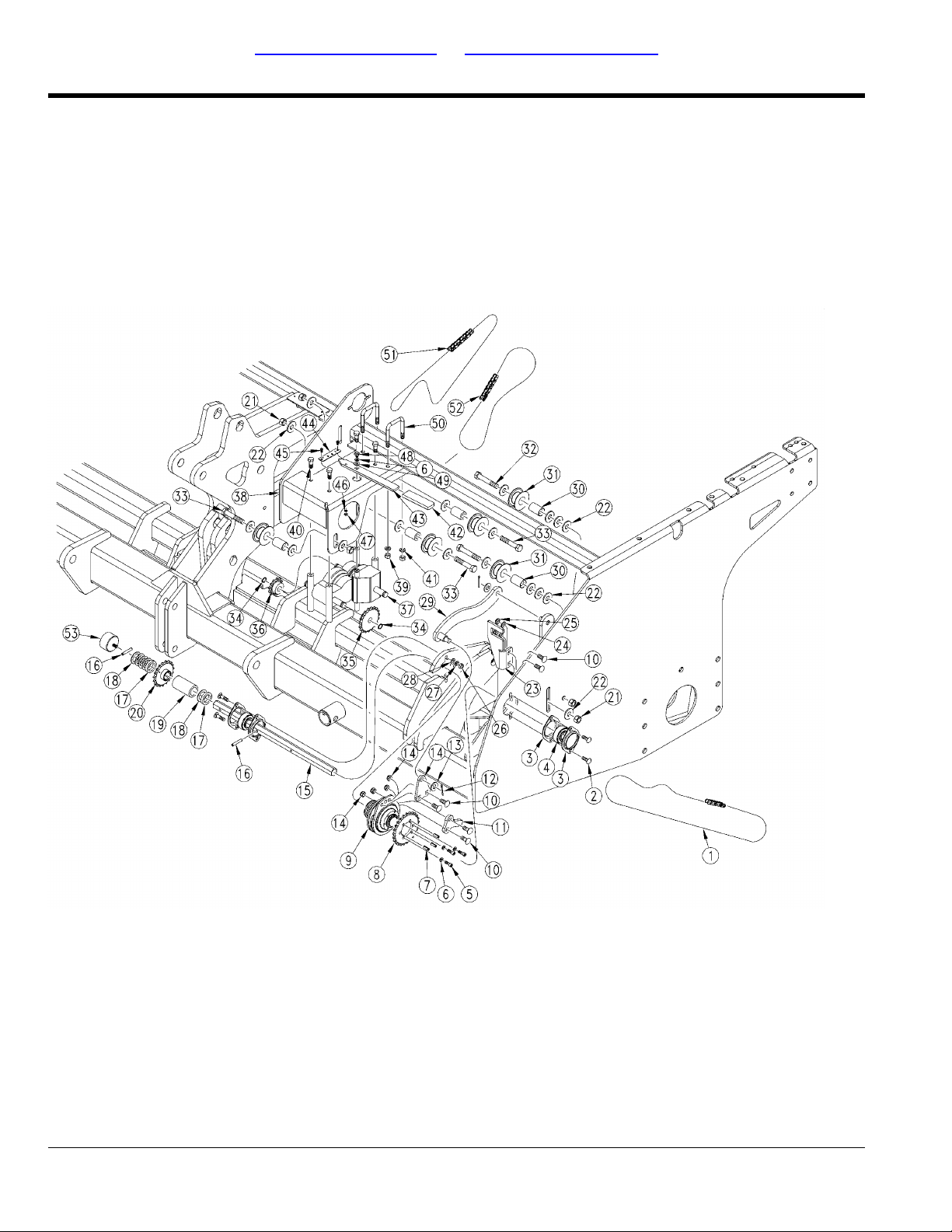

Jackshaft Drive

(Applies to 800 End Wheel only)

28114

175-057P - 40 - 09/25/13

Table of Contents Part Number Index

Jackshaft Drive

(Applies to 800 End Wheel only)

Image No.dwg28114

RHSNB 5/16-18X1 GR5802-282C2.
FLANGETTE 52 MST822-032C3.
BRG INS 7/8HEXX2.04OD SPH822-195C4.
HSHCS 1/4-20X3/4801-070C5.
WASHER LOCK SPRING 1/4 PLT804-006C6.
PIN ROLL 1/4 X 3/4 PLT805-026C7.
25T CLUTCH SPROCKET202-157D8.

RHSNB 3/8-16X1 GR5802-015C10.
12'EWNT CLUTCH TAB152-338D11.
PIN COTTER1/8 X 1 1/4 PLT805-109C12.
WASHER FLAT 1/2 SAE PLT804-016C13.
NUT NYLOCK JAM THIN 3/8-16 PLT803-215C14.
8FT EW MAIN DRIVE LINE175-376D15.
PIN ROLL 1/4 X 1 1/2 LG PLT805-180C16.
7/8 HEX SHAFT SPACER TB X 9/32402-266D17.
WASHER MACH 1.50 X 1.00 X 18GA804-061C18.
DRIVE SPACER TB 1.75 LG175-386D19.
SPKT 40C19 X 7/8 HEX BORE808-149C20.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C21.
WASHER FLAT 1/2 USS PLT804-017C22.
13' EW CLUTCH BRACKET175-303D23.
WASHER FLAT 3/8 USS PLT804-011C24.
NUT HEX NYLOCK 3/8-24 PLT803-305C25.
NUT HEX 5/16-18 PLT803-008C26.
WASHER LOCK SPRING 5/16 PLT804-009C27.
WASHER FLAT 5/16 SAE PLT804-036C28.
13' EW CLUTCH LINK BAR WLDMT175-156H29.
TUBE RND 1 OD X 7/32W X 1.56120-305D30.
IDLER 1 PC 2.38X1.01X1.062817-406C31.
HHCS 1/2-13X3 GR5802-039C32.
HHCS 1/2-13X2 3/4 GR5802-226C33.
SNAP RING EXT F/PEERLESS G.B.800-141C34.
SPKT 40B19 X 36T SPLINE BORE808-157C35.
SPKT 40B12 X 36T SPLINE BORE808-160C36.
GEAR BOX890-282C37.
GEARBOX MOUNT WLMT175-220H38.
NUT HEX 3/8-16 PLT803-014C39.
SCR SELF TAPPING 3/8X1801-076C40.
WASHER LOCK SPRING 3/8 PLT804-013C41.
GRIP 1/4 X 1 X 4 LG816-510C42.
GEARBOX HANDLE175-388D43.
DRIVE TYPE PLATE, 4 3 2 1819-059C44.
SCREW RD HD 8-32 X 3/8 BRASS801-001C45.
WASHER INTERNAL STAR #8 BRASS804-002C46.
NUT HEX 8-32 BRASS803-035C47.
HHCS 1/4-28X3/8 GR5802-300C48.
NUT HEX 8-32 BRASS803-035C49.
U-BOLT 3/8-16 X 2 X 2 3/4806-004C50.

800 EW ACRE METER891-009C53.
800 EW HECTARE METER891-010C53.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

GuageWheel to JackshaftDriveChainCHAIN RL #40 152 PITCHES W/CON136-213D1.

Refer to Jaw Clutch (176-043S)JAWCLUTCH CCW EXT 7/8 HEX176-043S9.

Feeder Cup Drive ChainCHAIN RL #40 89 PITCHES136-054D51.
Jackshaft to Gearbox Drive ChainCHAIN RL #40 62 PITCHES136-104D52.

09/25/13 - 41 - 175-057P

Table of Contents Part Number Index

Jaw Clutch (176-043S)

(Applies to 800 End Wheel only)

16668

175-057P - 42 - 09/25/13

Table of Contents Part Number Index

Jaw Clutch (176-043S)

(Applies to 800 End Wheel only)

Image No.dwg16668
SNAP RING EXT 1 1/4 HEAVY800-177C1.
CLUTCH FRICTION WASHER176-065D2.
BSHG FLG 1.26IDX1.41ODX.87L817-111C3.
CLUTCH DRIVE PLATE LONG - CCW176-079D4.
CLUTCJ ARM PLATE176-080D5.
RPBY 176-077D176-060D6.
CLUTCH HUB 7/8 HEX BORE176-084D7.
SPRING COMP 2 1/16 OD X 4 LG807-097C8.
CLUTCH SPRING RETAINER176-066D9.
PIN ROLL 3/16X 1 1/2 PLT805-024C10.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 43 - 175-057P

Table of Contents Part Number Index

Small Seeds and Fertilizer Drive

(Applies to 800 End Wheel only)

28151

175-057P - 44 - 09/25/13

Table of Contents Part Number Index

Small Seeds and Fertilizer Drive

(Applies to 800 End Wheel only)

Image No.dwg28151
RHSNB 5/16-18X1 GR5802-282C1.
BRG FLG .75ID 2BOLT822-126C2.
RND SHAFT 3/4 X 13 3/8 W/KW120-234D3.
HHCS 1/2-13X1 1/4 GR5802-034C4.
WASHER FLAT 1/2 SAE PLT804-016C5.
BRG PLATE - ASSEMBLY123-580D6.
8' FERTBOX WELDMENT142-258H7.
SPKT 40B12 X 3/4 B W/KW&SS808-040C8.
3/16 X 1 KEY168-127D9.
SPKT 40B17 X 3/4BORE W/KW&SS808-170C10.
HHCS 1/2-13X4 GR5802-044C11.
WASHER FLAT 1/2 USS PLT804-017C12.
NUT HEX NYLOCK 1/2-13803-147C13.
IDLER 1 PC 2.38X1.01X1.062817-406C14.
TUBE RND DOM. 1 OD X 7/32WX3.0120-293D15.
WASHER LOCK SPRING 1/2 PLT804-015C16.
NUT HEX 1/2-13 PLT803-020C17.
LH NT SGS DRIVER BRACKET133-317H18.
RHSNB 1/2-13X1 1/4 GR5802-214C19.
SLOTTED IDLER ARM 1/2 X 3 5/8133-051H20.
NO. 40 12T IDLER SPKT.817-025C21.
PIN COTTER1/8 X 3/4805-067C22.
WASHER LOCK 1 1/4 SPRING PLT804-030C23.
WASHER LOCK 7/16 PLT804-014C24.
NUT HEX 5/16-18 PLT803-008C25.
HOSE CLIP 13/16 ID800-064C26.

CHAIN RL #40 79 PITCHES136-014D30.

MAIN FRAME WLMT175-263H31.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

Small Seeds Drive Chain#40 CHAIN 60 PITCH W/CON.809-115C27.
Fert. Drive ChainCHAIN RL #40 55 PITCHES136-153D28.
Auxiliary Shaft toFert.Jachshaft ChainCHAIN RL #40 96 PITCHES136-250D29.
Fert. Jackshaftto Sml. Seeds

Jackshaft Chain

09/25/13 - 45 - 175-057P

Table of Contents Part Number Index

Small Seeds Drive

(Applies to 800 End Wheel only)

28116

175-057P - 46 - 09/25/13

Table of Contents Part Number Index

Small Seeds Drive

(Applies to 800 End Wheel only)

Image No.dwg28116
NUT HEX 1/2-13 PLT803-020C1.
WASHER LOCK SPRING 1/2 PLT804-015C2.
RND SHAFT 3/4 X 13 3/8 W/KW120-234D3.
RHSNB 5/16-18X1 GR5802-282C4.
BRG FLG .75ID 2BOLT822-126C5.
HHCS 1/2-13X1 1/4 GR5802-034C6.
RHSNB 1/2-13X1 1/4 GR5802-214C7.
SLOTTED IDLER ARM 1/2 X 3 5/8133-051H8.
NUT HEX 5/16-18 PLT803-008C9.
LH NT SGS DRIVER BRACKET133-317H10.
CHAIN RL #40 96 PITCHES136-250D11.

NO. 40 12T IDLER SPKT.817-025C13.

WASHER FLAT 1/2 SAE PLT804-016C14.
PIN COTTER1/8 X 3/4805-067C15.
SPKT 40B17 X 3/4BORE W/KW&SS808-170C16.
3/16 X 1 KEY168-127D17.
WASHER LOCK 7/16 PLT804-014C18.
WASHER FLAT 5/16 SAE PLT804-036C19.
HOSE CLIP 13/16 ID800-064C20.
MAIN FRAME WLMT175-263H21.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

Small Seeds ChainCHAIN RL #40 60 PITCHES136-093D12.
Auxiliary Shaft to Small Seeds

Jackshaft Drive

09/25/13 - 47 - 175-057P

Table of Contents Part Number Index

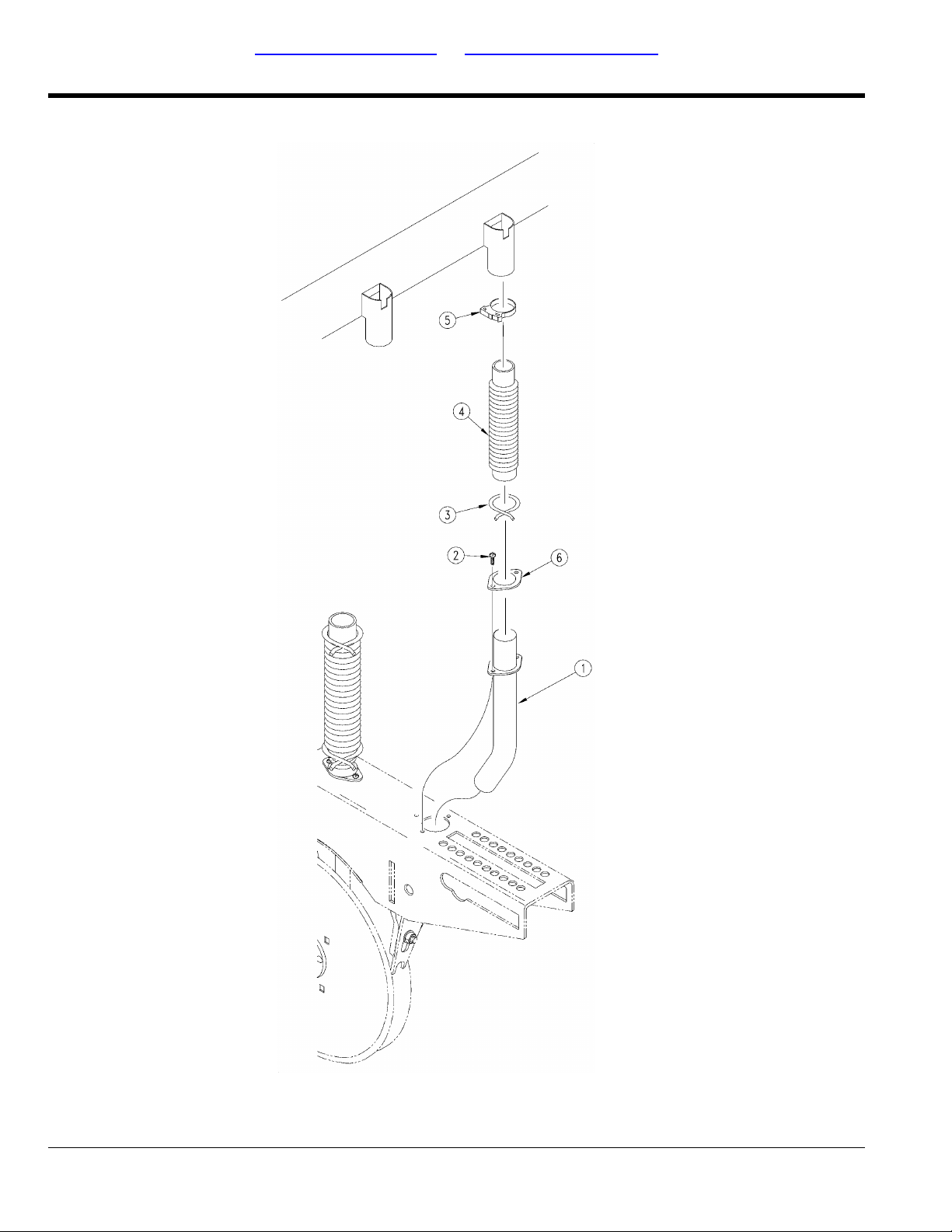

Fertilizer Hose

(Applies to 800 End Wheel only)

16459

175-057P - 48 - 09/25/13

Table of Contents Part Number Index

Fertilizer Hose

(Applies to 800 End Wheel only)

Image No.dwg16459
PLASTIC FERTILIZERTUBE817-346C1.
SCREW HEX SLT10-16X3/8P.THD CT801-002C2.
CLAMP HOSE 1 1/2 NO. 24800-008C3.
SEED HOSE 56 RIBS X 11 LONG816-239C4.
UPPER FERTHOSE CLAMP RATCHET800-016C5.
SML SDS TB REINFORCEMENT RING133-065D6.

Openers

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 49 - 175-057P

Table of Contents Part Number Index

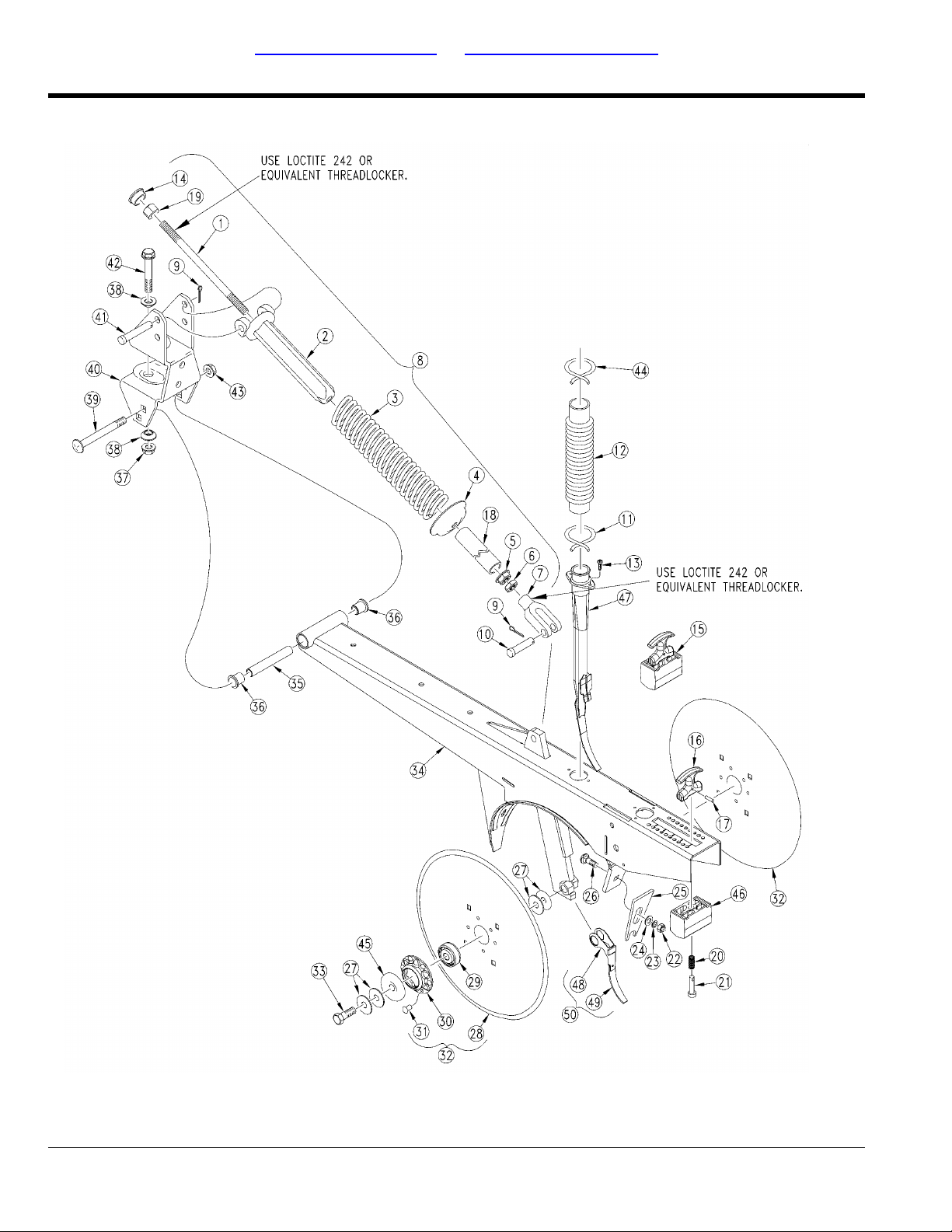

Long Arm Opener

(Applies to 800 End Wheel only)

28052

175-057P - 50 - 09/25/13

Table of Contents Part Number Index

Long Arm Opener

(Applies to 800 End Wheel only)

Image No.dwg28052
STUD 1/2-13X17.6 SPTHD DBBLEND800-322C1.
OPNR SPRING RD TRUNION CASTING812-236C2.
SPRING COMP 2 1/2ODX3/8X12 7/8807-159C3.
SPRING STOPSTAMPING121-154D4.
NUT HEX FLANGE 1/2-13 GR G PLT803-193C5.
NUT HEX JAM 1/2-13 PLT803-036C6.
ADJ. YOKE END121-166D7.
OPENER SPRING ROD ASSY. LONG121-762S8.

PIN COTTER1/8 X 1 1/4 PLT805-109C9.
PIN CLEVIS 1/2 X 1 3/4805-127C10.
SINGLE WIRE HOSE CLAMP #23800-268C11.
RUBBER GRAIN TUBE816-002C12.
SCREW HEX SLT10-16X1/2P.THD CT801-002C13.
PLUG, SPRING ROD CASTING816-306C14.

T-HANDLE ASSEMBLY817-328C16.
PIN ROLL 5/32 X 5/8 PLT805-186C17.
SPACER TB ALUM 1ODX 1/2 X 7.28121-169D18.
NUT HEX 1/2-20 X 5/8 HIGH803-310C19.
SPRING .540 O.D.X 1 1/4 X.054W807-106C20.
PIN CLEVIS 3/8 X 2 1/8 USABLE805-154C21.
NUT HEX 3/8-16 PLT803-014C22.
WASHER LOCK SPRING 3/8 PLT804-013C23.
WASHER FLAT 3/8 SAE PLT804-012C24.
D.D. SLOTTED SCRAPER107-113D25.
RHSNB 3/8-16X1 GR5802-015C26.
WASHER MACH 1.19 X .63 X 18GA804-040C27.
FLAT DISK BLADE-4MM THICK820-256C28.
BRG AA205DD188-001V29.
HSG RIBB FLG 6BOLTPLT890-466C30.
RIVET,BUTTON HEAD 1/4 X 1/2800-213C31.

HHCS 5/8-11X1 1/2 GR5 NYL802-228C33.
OPENER WELDMENT - LONG121-702H34.
STRAIGHT ARM OPENER PIVOT PIPE142-198D35.
PARALLEL ARM PIVOT BUSHING817-084C36.
NUT HEX WHIZ 1/2-13 PLT803-037C37.
WASHER POWDER METAL CONE 1/2804-154C38.
RHSNB 1/2-13X5 1/2 GR5802-121C39.
OPENER MOUNTING BRACKET121-151D40.
PIN CLEVIS 1/2 X 4 PLATED805-234C41.
HHCS 1/2-13X5 GR5802-045C42.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C43.
CLAMP HOSE 1 5/8 NO. 26800-009C44.
DD BRG FLANGE DUST COVER107-111D45.
OPENER TRUNION817-347C46.
OPENER SEED TUBE, PLASTIC817-314C47.
HEX SEED FLAP MOUNTING CLIP121-164D48.
SEED FLAP, RUBBER, SEED-LOK816-302C49.

Openers

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 1 through 7, 14, 18 &

19

Includes items 16, 17, 20, 21 & 46PW ADJUSTMENT TRUNNION ASSY122-202S15.

Includes items 28 through 31DD W/205 BRG-PLD FLNG-4MM107-138S32.

Includes items 48 & 49SEED FLAP & HEX CLIP, SEEDLOK122-242S50.

09/25/13 - 51 - 175-057P

Table of Contents Part Number Index

Short Arm Opener

(Applies to 800 End Wheel only)

28053

175-057P - 52 - 09/25/13

Table of Contents Part Number Index

Short Arm Opener

(Applies to 800 End Wheel only)

Image No.dwg28053
HHCS 1/2-13X10 SPTHD GR8802-550C1.
OPNR SPRING RD TRUNION CASTING812-236C2.
SPRING COMP 2 1/2ODX3/8X12 7/8807-159C3.
SPRING STOPSTAMPING121-154D4.
NUT HEX FLANGE 1/2-13 GR G PLT803-193C5.
NUT HEX JAM 1/2-13 PLT803-036C6.
ADJ. YOKE END121-166D7.

PIN COTTER1/8 X 1 1/4 PLT805-109C9.
PIN CLEVIS 1/2 X 1 3/4805-127C10.
SINGLE WIRE HOSE CLAMP #23800-268C11.
RUBBER GRAIN TUBE816-002C12.
SCREW HEX SLT10-16X1/2P.THD CT801-002C13.
PLUG, SPRING ROD CASTING816-306C14.

T-HANDLE ASSEMBLY817-328C16.
PIN ROLL 5/32 X 5/8 PLT805-186C17.

SEED FLAP, RUBBER, SEED-LOK816-302C19.
SPRING .540 O.D.X 1 1/4 X.054W807-106C20.
PIN CLEVIS 3/8 X 2 1/8 USABLE805-154C21.
NUT HEX 3/8-16 PLT803-014C22.
WASHER LOCK SPRING 3/8 PLT804-013C23.
WASHER FLAT 3/8 SAE PLT804-012C24.
D.D. SLOTTED SCRAPER107-113D25.
RHSNB 3/8-16X1 GR5802-015C26.
WASHER MACH 1.19 X .63 X 18GA804-040C27.
FLAT DISK BLADE-4MM THICK820-256C28.
BRG AA205DD188-001V29.
HSG RIBB FLG 6BOLTPLT890-466C30.
RIVET,BUTTON HEAD 1/4 X 1/2800-213C31.

HHCS 5/8-11X1 1/2 GR5 NYL802-228C33.
OPENER WELDMENT - SHORT121-703H34.
STRAIGHT ARM OPENER PIVOT PIPE142-198D35.
HOSE CLAMP 1 13/32 NO. 22800-292C36.
NUT HEX WHIZ 1/2-13 PLT803-037C37.
WASHER POWDER METAL CONE 1/2804-154C38.
RHSNB 1/2-13X5 1/2 GR5802-121C39.
OPENER MOUNTING BRACKET121-151D40.
PIN CLEVIS 1/2 X 4 PLATED805-234C41.
HHCS 1/2-13X5 GR5802-045C42.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C43.
CLAMP HOSE 1 5/8 NO. 26800-009C44.
DD BRG FLANGE DUST COVER107-111D45.
OPENER TRUNION817-347C46.
OPENER SEED TUBE, PLASTIC817-314C47.
HEX SEED FLAP MOUNTING CLIP121-164D48.

Openers

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 1 through 7 & 14OPENER SPRING ROD ASSY. SHRT.121-763S8.

Includes items 16, 17, 20, 21 & 46PW ADJUSTMENT TRUNNION ASSY122-202S15.

Includes items 19 & 48SEED FLAP & HEX CLIP, SEEDLOK122-242S18.

Includes items 28 through 31DD W/205 BRG-PLD FLNG-4MM107-138S32.

09/25/13 - 53 - 175-057P

Table of Contents Part Number Index

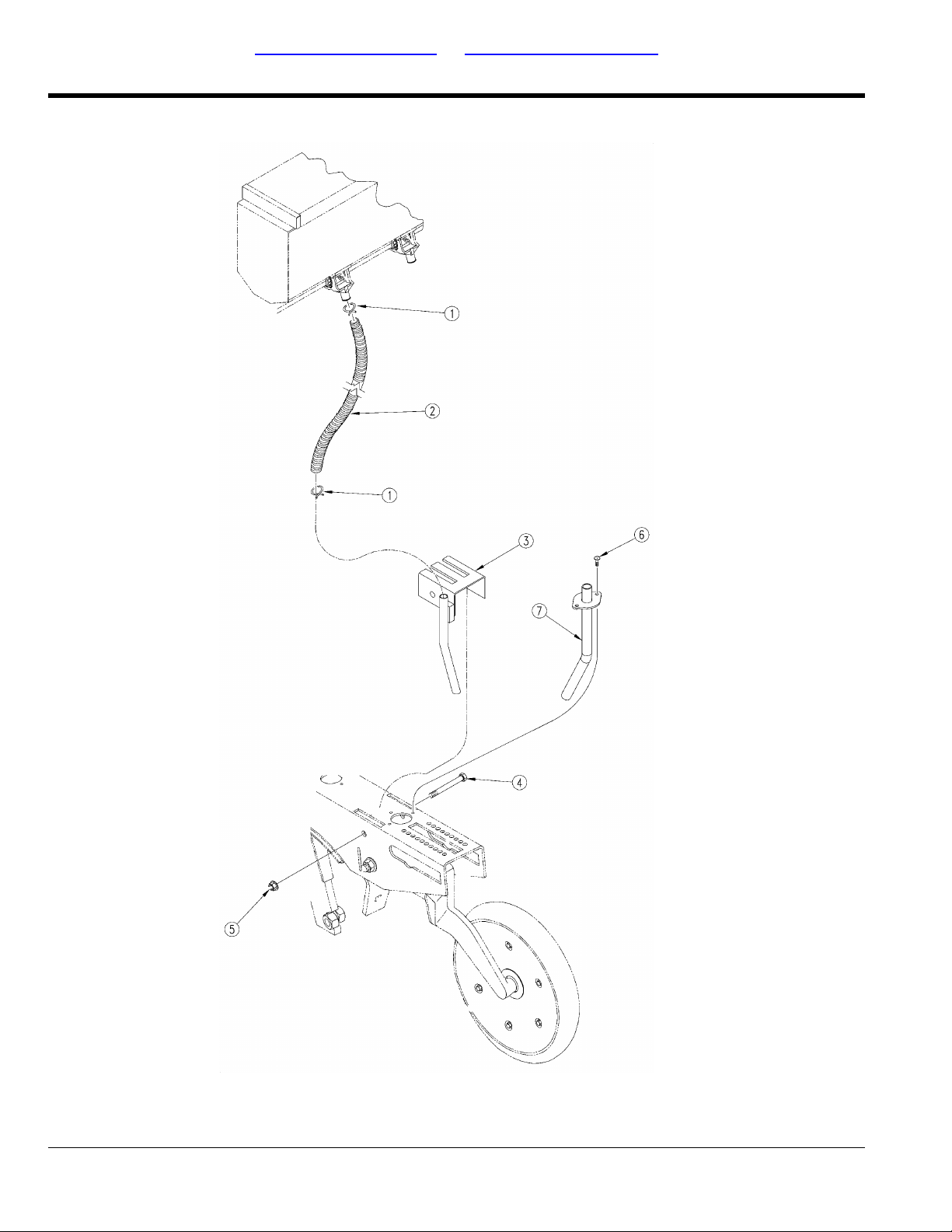

Small Seeds Hose

(Applies to 800 End Wheel only)

28212

175-057P - 54 - 09/25/13

Table of Contents Part Number Index

Small Seeds Hose

(Applies to 800 End Wheel only)

Image No.dwg28212
HOSE CLAMP NO. 12 3/4 ID800-321C1.
SGS HOSE 85 RIBS816-513C2.
SGS SIDE DELIVERY TUBE133-128H3.
HFS 3/8-16X3 5/8 SPTHD802-427C4.
NUT FLANGE LOCK 3/8-16 PLT803-209C5.
SCREW HEX SLT10-16X1/2P.THD CT801-002C6.
SMALL SEEDS TUBE WELDMENT123-939H7.

Openers

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 55 - 175-057P

Table of Contents Part Number Index

6" Seed Lok (Option) (122-266K)

(Applies to 800 End Wheel only)

28054

175-057P - 56 - 09/25/13

Table of Contents Part Number Index

6" Seed Lok (Option) (122-266K)

(Applies to 800 End Wheel only)

Image No.dwg28054
SEED-LOK ARM (1994)122-151D1.
WASHER INTERNAL STAR 3/8 PLT.804-078C2.
LHS CP 3/8-16X3/4 GR8 PLAIN801-141C3.

SNAP RING EXT E 1/2800-093C5.
5 SEED-LOK WHL ARM PIVOTPIN122-120D6.
SS RMVBL SD-LOK MNT WLDMT122-173H7.
SPRING, 1 O.D.X.125WIREX 3 1/2807-101C8.
WASHER FLAT 3/8 SAE PLT804-012C9.
WASHER LOCK SPRING 3/8 PLT804-013C10.
HHCS 3/8-16X1 GR5802-017C11.
5/8 X 6 SEED LOK WHEEL817-191C12.
BEARING 203 SEED-LOK WITH PIN188-008V13.
BEARING RETAINER W/BONDED SEAL816-173C14.
SCR PH THD FMG #10X1/2 TP ZP801-084C15.
SEED LOK TIE UP809-198C16.
WASHER FLAT 3/8 SAE PLT804-012C17.
SEED LOK HANGER SPRING800-310C18.

Openers

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 12 through 156 GROOVED SEED LOK ASSEMBLY206-014S4.

09/25/13 - 57 - 175-057P

Table of Contents Part Number Index

1" x 12" Double "V" Press Wheel

(Applies to 800 End Wheel only)

15466

175-057P - 58 - 09/25/13

Table of Contents Part Number Index

1" x 12" Double "V" Press Wheel

(Applies to 800 End Wheel only)

Image No.dwg15466
HFS 1/2-13X3 3/4 GR5 SPTHD802-421C1.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C2.
PRESS WHEEL PIVOT TUBE198-137D3.
PARALLEL ARM PIVOT BUSHING817-084C4.
98 1X12 PRESS WHEEL WELDMENT199-022H5.
HHCS 5/8-11X1 1/2 GR5802-051C6.
WASHER LOCK SPRING 5/8 PLT804-022C7.

HHCS 1/4-20X1 GR5802-005C9.
1 X 12 PRESS WHEEL RIM HALF817-330C10.
TIRE RUBBER1 X 12814-034C11.
BEARING PRESS WHEEL ASSEMBLY822-170C12.
NUT HEX LOCK 1/4-20 FLG803-088C13.

Press Wheels

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 9 through 131 X 12 PRESS WHL ASSY-5203BRG814-174C8.

09/25/13 - 59 - 175-057P

Table of Contents Part Number Index

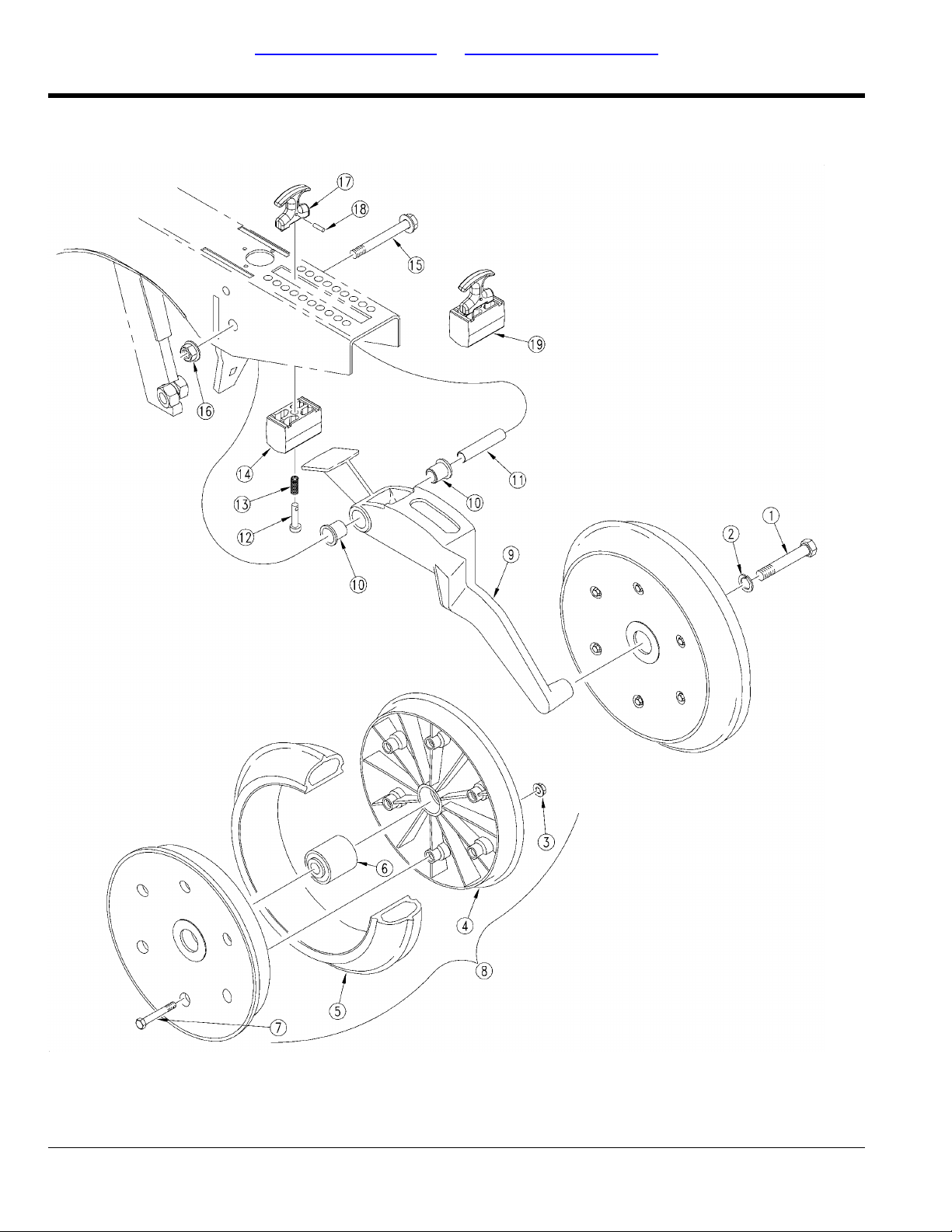

2" x 13" Single Press Wheel

(Applies to 800 End Wheel only)

17439

175-057P - 60 - 09/25/13

Table of Contents Part Number Index

2" x 13" Single Press Wheel

(Applies to 800 End Wheel only)

Image No.dwg17439
HHCS 5/8-11X2 1/2 GR5802-058C1.
WASHER LOCK SPRING 5/8 PLT804-022C2.
NUT HEX LOCK 1/4-20 FLG803-088C3.
2 X 13 PRESS WHEEL RIM HALF817-296C4.
BEARING PRESS WHEEL ASSEMBLY822-170C5.
2 X 13 PRESS WHEEL TIRE814-159C6.
HHFS 1/4-20 X 1 1/2 GR 5802-617C7.

UNIVERSAL PW ARM MACH 2&3X13199-042D9.
PARALLEL ARM PIVOT BUSHING817-084C10.
PRESS WHEEL PIVOT TUBE198-137D11.
PIN CLEVIS 3/8 X 2 1/8 USABLE805-154C12.
SPRING .540 O.D.X 1 1/4 X.054W807-106C13.
OPENER TRUNION817-347C14.
HFS 1/2-13X3 3/4 GR5 SPTHD802-421C15.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C16.
T-HANDLE ASSEMBLY817-328C17.
PIN ROLL 5/32 X 5/8 PLT805-186C18.

Press Wheels

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 3 through 72 X 13 PRESS WHEEL ASSEMBLY814-157C8.

Includes items 12, 13, 14, 17 & 18PW ADJUSTMENT TRUNNION ASSY122-202S19.

09/25/13 - 61 - 175-057P

Table of Contents Part Number Index

3" x 13" Single Press Wheel

(Applies to 800 End Wheel only)

17438

175-057P - 62 - 09/25/13

Table of Contents Part Number Index

3" x 13" Single Press Wheel

(Applies to 800 End Wheel only)

Image No.dwg17438
HHCS 5/8-11X2 1/2 GR5802-058C1.
WASHER LOCK SPRING 5/8 PLT804-022C2.
NUT HEX LOCK 1/4-20 FLG803-088C3.
3 X 13 PRESS WHEEL RIM HALF817-297C4.
3 X 13 PRESS WHEEL TIRE814-160C5.
BEARING PRESS WHEEL ASSEMBLY822-170C6.
HHFS 1/4-20 X 2 GR 5802-618C7.

UNIVERSAL PW ARM MACH 2&3X13199-042D9.
3 X 13 PRESS WHEEL ARM199-029D9.
PARALLEL ARM PIVOT BUSHING817-084C10.
PRESS WHEEL PIVOT TUBE198-137D11.
PIN CLEVIS 3/8 X 2 1/8 USABLE805-154C12.
SPRING .540 O.D.X 1 1/4 X.054W807-106C13.
OPENER TRUNION817-347C14.
HFS 1/2-13X3 3/4 GR5 SPTHD802-421C15.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C16.
T-HANDLE ASSEMBLY817-328C17.
PIN ROLL 5/32 X 5/8 PLT805-186C18.

Press Wheels

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 3 through 73 X 13 PRESS WHEEL ASSEMBLY814-158C8.

Includes items 12, 13, 14, 17 & 18PW ADJUSTMENT TRUNNION ASSY122-202S19.

09/25/13 - 63 - 175-057P

Table of Contents Part Number Index

3" x 14" Peaked Single Press Wheel

(Applies to 800 End Wheel only)

15469

175-057P - 64 - 09/25/13

Table of Contents Part Number Index

3" x 14" Peaked Single Press Wheel

(Applies to 800 End Wheel only)

Image No.dwg15469
HFS 1/2-13X3 3/4 GR5 SPTHD802-421C1.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C2.
PRESS WHEEL PIVOT TUBE198-137D3.
PARALLEL ARM PIVOT BUSHING817-084C4.
3 X 14 PRESS WHEEL ARM199-030D5.
WASHER LOCK SPRING 5/8 PLT804-022C6.
HHCS 5/8-11X3 GR5802-059C7.

HHCS 5/16-18X2 3/4 GR5802-197C9.
BEARING DBL LIP 203 X 5/8 BORE822-095C10.
NUT HEX LOCK 5/16-18 FLG.803-177C11.
4X12 PW RIM HALF122-041D12.
3 X 14 RIM SPACER RING817-063C13.
TIRE 3 X 14 PW PEAKED814-067C14.

LARGE SPACER TUBE817-062C16.
SMALL SPACER TUBE122-110D17.

Press Wheels

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 9 through 173 X 14 PEAKED P.W. ASSEMBLY122-117S8.

includes items 13 & 143 X 14 TIRE & RING ASSEMBLY122-198V15.

09/25/13 - 65 - 175-057P

Table of Contents Part Number Index

Hydraulic Cylinder (810-162C)

(Applies to 800 End Wheel only)

11421

175-057P - 66 - 09/25/13

Table of Contents Part Number Index

Hydraulic Cylinder (810-162C)

(Applies to 800 End Wheel only)

Image No.dwg11421
BASE MIDWAY6R31641.
MW TIE ROD NUT2A00162.

MW TIE ROD7M53164.
MW TUBE 3 1/2 X 8 CYLINDER5M51165.
HHCS 1 1/4-7X2 1/2 GR5802-123C6.
PIN CLEVIS 1 X 3 11/16 GR5 PLT805-124C7.
MW PIN CLIP2A01328.
CLEVIS ROD MIDWAY1M70169.
NUT HEX 3/8-16 PLAIN803-234C10.
MW ROD2M541611.

MW HEAD3R341215.

MW PISTON4M510817.
MW PISTONNUT 1-142A002418.
SEAL KIT MW (5A5102) 3.5X1.25R810-149C19.

Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

Available in item 19 onlyO-RING3.

Available in item 19 onlyWIPER12.
Available in item 19 onlyBACKUP ROD13.
Available in item 19 onlyO-RING14.

Available in item 19 onlyBACKUP PISTON16.

09/25/13 - 67 - 175-057P

Table of Contents Part Number Index

Lift Hydraulics

(Applies to 800 End Wheel only)

28191

175-057P - 68 - 09/25/13

Table of Contents Part Number Index

Lift Hydraulics

(Applies to 800 End Wheel only)

Image No.dwg28191
SNAP RING EXT 1 5304800-245C1.
CYLINDER PIN248-507D2.
EL 3/4MJIC 3/4MORB811-063C3.
CYL 3.5X8X1.25 ROD (TIE ROD)810-162C4.
MW PIN CLIP2A01325.
PIN CLEVIS 1 X 3 11/16 GR5 PLT805-124C6.
HH3/8R2 120 3/4FJIC 3/4MORB811-666C7.
RHSNB 5/16-18X1 1/4 GR5802-009C8.
HYD HOSE CLAMP LABEL502-067D9.
HYD HOSE CLAMP BRACKET502-068D10.
WASHER FLAT 5/16 USS PLT804-010C11.
NUT HEX FLANGE 5/16-18 PLT803-199C12.

Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 69 - 175-057P

Table of Contents Part Number Index

Lock-Out Hub

(Applies to 800 End Wheel only)

28069

175-057P - 70 - 09/25/13

Table of Contents Part Number Index

Lock-Out Hub

(Applies to 800 End Wheel only)

Image No.dwg28069
BOLT WHEEL 1/2-20X1 90-DEG802-104C1.
WHEEL 15-6 6 BOLT814-303C2.
TIRE 7.00-15 LT814-302C3.
VALVE STEM TR415X.625X1 1/4 LG816-035C4.

PIN ROLL 3/16 X 2 1/2 LG. PTL.805-062C6.
6-BOLT HUB LOCKOUT END PLT812-174C7.
6 BOLT LOCKOUT PLUNGER172-201D8.
SPRING COMP 1/2 OD X 1 LG807-096C9.

HHCS 1/4-20X1 GR5802-005C11.
WASHER LOCK SPRING 1/4 PLT804-006C12.
30-3SEC LOCKOUT HUB SEAL816-139C13.
36' & 45' LOCKOUT HUB SPACER172-306D14.
606NT LOCKOUT SHAFT WELD.152-312H15.
BSHG FLG 1.00IDX1.25ODX1.06822-108C16.
NUT BRG LOCK 1.767 OD THD803-186C17.
WASHER BRG LOCK 1.767804-083C18.
BRG CONE 25590822-014C19.
BRG CUP 25520822-013C20.
CASTING 6-BOLT LOCKOUT HUB812-175C21.
BRG CUP 3.81D 382A822-107C22.

RHSNB 1/2-13X1 1/2 GR5802-106C24.
SEAL DBL LIP 2.5 ID X 3.881 OD816-138C25.
8FT EW LH GW MNT175-261H26.
BRG 1.000 DIA W/SET-SCREWS188-003V27.
KEY 1/4 X 1123-004D28.
SPKT 40B25 X 1 B W/KW & SS808-038C29.
HHCS 5/8-11X1 1/2 GR5802-051C30.
WASHER LOCK SPRING 5/8 PLT804-022C31.
NUT HEX 5/8-11 PLT803-021C32.

Transport

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 2 through 4TIRE/WHEEL ASSY 7.00-15 LT402-182K5.

Includes items 6 through 9LOCK OUT HUB END CAP ASY175-173S10.

Includes items 20 through 226-BOLT LOCKOUT HUB W/ CUPS200-041S23.

09/25/13 - 71 - 175-057P

Table of Contents Part Number Index

Transport Wheel

(Applies to 800 End Wheel only)

28071

175-057P - 72 - 09/25/13

Table of Contents Part Number Index

Transport Wheel

(Applies to 800 End Wheel only)

Image No.dwg28071
TIRE 7.00-15 LT814-302C1.
WHEEL 15X6 6 BOLTWHITE814-220C2.
VALVE STEM TR415X.625X1 1/4 LG816-035C3.
TIRE/WHEEL ASSY 7.00-15 LT402-182K4.
BOLT WHEEL 1/2-20X1 90-DEG802-104C5.
HUB GREASE CAP200-001D6.
PIN COTTER3/16 X 1 1/4 PLT805-016C7.
NUT HEX SLOTTED 7/8-14 PLT803-029C8.
WASHER SPINDLE - 7/8804-055C9.
BRG CONE 1.25ID LM-67048822-021C10.
BRG CUP LM-67010822-020C11.
HUB 6 BOLT 4 5/8 PILOT W/ CUPS815-082C12.
BRG CUP LM-29710822-019C13.
BRG CONE 1.50ID LM-29749822-018C14.
SEAL 2.56X1.625X.438 CR16289816-011C15.
SPINDLE 1.75 X 8.75 LG175-409D16.
8FT EW RH GW MNT175-259H17.
HHCS 1/2-13X3 3/4 GR5802-042C18.
HHCS 5/8-11X1 1/2 GR5802-051C19.
NUT HEX NYLOCK 1/2-13803-147C20.
WASHER LOCK SPRING 5/8 PLT804-022C21.
NUT HEX 5/8-11 PLT803-021C22.

Transport

RevisionCommentsPart DescriptionPart No.Ref.

Incudes items 6 through 1613' EW NONDRIVE SPINDLE175-264D23.

09/25/13 - 73 - 175-057P

Table of Contents Part Number Index

Decals

(Applies to 800 End Wheel only)

28203

175-057P - 74 - 09/25/13

Table of Contents Part Number Index

Decals

(Applies to 800 End Wheel only)

Image No.dwg28203
DECAL CAUTION TIRE PSI 60/85848-021C1.
DECAL LOCKOUT HUB - 1205NT818-583C2.
DECAL CAUTION TIRES NOT A STEP818-398C3.
DECAL PIC--DO NOT RIDE838-361C4.
DECAL REFLECTORAMBER 1 1/2X9838-265C5.
DECAL ROTATION ARROW CCW838-412C6.
DECAL REFLECTORRED 1 1/2X9838-266C7.
DECAL REFLECTR DAYTIME1 1/2X9838-267C8.
DECAL LOGO&GP F/STRIPE 4 X 24838-161C9.
DECAL 800848-276C10.
DECAL 3 COLOR STRIPE 2.50 WIDE838-160C11.
DECAL GREAT PLAINS ON LOGO SML838-228C12.
DECAL SCRIPT SOLID STAND SMALL838-158C13.
DECAL WARNING MOVING CHAIN818-860C14.
DECAL SEED LEVEL LH838-237C15.
DECAL 1300 TRANS & DN PRESSURE818-827C16.
DECAL WARNING EXT. CLEVISES838-406C17.
DECAL DANGERCANNOT READ ENG818-557C18.
DECAL WARNING 20 MPH TRANS LRG818-188C19.
DECAL WARNING HYD PRESS LONG838-094C20.
DECAL CAUTION GENERAL INSTR818-719C21.
DECAL WARNING NEG TONGUE WT818-019C22.
DECAL GP PLANTING COMPONENTS838-482C23.

Decals

RevisionCommentsPart DescriptionPart No.Ref.

09/25/13 - 75 - 175-057P

Table of Contents Part Number Index

Part Number Index

The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.

PagePart Number

PagePart Number

PagePart Number

PagePart Number

51, 53107-111D ...................

51, 53107-113D ...................

51, 53107-138S ...................

33109-025H ...................

33109-069D ...................

29, 31109-091D ...................

29, 31118-226S ...................

29, 31118-336D ...................

31118-340D ...................

29, 31118-341D ...................

31118-346D ...................

13118-403D ...................

29118-431D ...................

29, 31118-432D ...................

29118-433D ...................

29118-434D ...................

29118-436D ...................

29, 31118-437D ...................

29, 31118-508D ...................

13118-560D ...................

13118-561D ...................

13118-652D ...................

13, 15119-153D ...................

13119-154D ...................

19, 21119-190D ...................

11119-278D ...................

11119-294H ...................

11119-300D ...................

39, 45, 47120-234D ...................

39, 45120-293D ...................

37, 41120-305D ...................

51, 53121-151D ...................

51, 53121-154D ...................

51, 53121-164D ...................

51, 53121-166D ...................

51121-169D ...................

51121-702H ...................

53121-703H ...................

51121-762S ...................

53121-763S ...................

65122-041D ...................

35122-065D ...................

65122-110D ...................

65122-117S ...................

57122-120D ...................

57122-151D ...................

57122-173H ...................

65122-198V ...................

51, 53, 61, 63122-202S ...................

51, 53122-242S ...................

71123-004D ...................

25123-050H ...................

25123-113D ...................

25123-116D ...................

25123-118D ...................

25, 27123-356D ...................

25123-409D ...................

25123-410D ...................

25123-411D ...................

27123-491D ...................

27123-492D ...................

39, 45123-580D ...................

27123-829H ...................

25123-834H ...................

55123-939H ...................

45, 47133-051H ...................

49133-065D ...................

55133-128H ...................

27, 45, 47133-317H ...................

45136-014D ...................

175-263H ...................

37136-036D ...................

41136-054D ...................

47136-093D ...................

41136-104D ...................

45136-153D ...................

41136-213D ...................

45, 47136-250D ...................

35141-011E ...................

35141-041E ...................

35141-076D ...................

35141-084D ...................

35141-116H ...................

35142-009D ...................

11142-064D ...................

11142-077D ...................

15142-135D ...................

15142-141D ...................

51, 53142-198D ...................

15142-236D ...................

15, 39, 45142-258H ...................

15142-259H ...................

35142-260H ...................

35142-261H ...................

15142-263D ...................

35142-263H ...................

15142-264D ...................

17142-264K ...................

35142-265D ...................

17, 23142-266L ...................

17142-267K ...................

35142-273D ...................

11142-298D ...................

11142-312D ...................

15142-589S ...................

15142-590S ...................

1914705558 ..................

1914705560 ..................

35150-044S ...................

35150-051D ...................

9151-074H ...................

9151-075S ...................

9151-130H ...................

71152-312H ...................

41152-338D ...................

9156-013E ...................

9156-014E ...................

39, 45, 47168-127D ...................

71172-201D ...................

71172-306D ...................

35175-102H ...................

7175-148H ...................

7175-149H ...................

41175-156H ...................

71175-173S ...................

13175-192H ...................

41175-220H ...................

7175-221H ...................

9175-235H ...................

33175-243H ...................

13175-257H ...................

73175-259H ...................

71175-261H ...................

9, 11, 13, 15, 23,
27, 39, 45, 47

73175-264D ...................

27175-267H ...................

25, 27175-268H ...................

23175-269K ...................

27175-270H ...................

23175-271K ...................

7175-302D ...................

41175-303D ...................

41175-376D ...................

7, 9175-381D ...................

29, 31175-385D ...................

41175-386D ...................

41175-388D ...................

29175-402D ...................

9175-403D ...................

73175-409D ...................

31175-410D ...................

11175-411D ...................

11175-412D ...................

11175-413D ...................

37175-414D ...................

37175-415D ...................

11175-416D ...................

11175-417D ...................

25175-419D ...................

25175-423D ...................

41176-043S ...................

43176-060D ...................

43176-065D ...................

43176-066D ...................

43176-079D ...................

43176-080D ...................

43176-084D ...................

9177-527H ...................

9177-587D ...................

51, 53188-001V ...................

71188-003V ...................

57188-008V ...................

35191-001D ...................

35191-001H ...................

35191-002D ...................

35191-006H ...................

35191-018D ...................

35191-019D ...................

33195-253H ...................

13196-089D ...................

13197-091D ...................

13197-092D ...................

13197-096D ...................

59, 61, 63, 65198-137D ...................

59199-022H ...................

63199-029D ...................

65199-030D ...................

61, 63199-042D ...................

671M7016 .....................

73200-001D ...................

71200-041S ...................

41202-157D ...................

57206-014S ...................

69248-507D ...................

672A0016 ......................

672A0024 ......................

67, 692A0132 ......................

672M5416 .....................

13313-076S ...................

13313-176D ...................

13, 15313-186D ...................

673R3412 ......................

37402-058D ...................

71, 73402-182K ...................

41402-266D ...................

674M5108 .....................

69502-067D ...................

69502-068D ...................

675M5116 .....................

676R3164 ......................

802-034C ...................

677M5316 .....................

27800-001C ...................

33800-003C ...................

29, 31800-004C ...................

49800-008C ...................

29, 31, 51, 53800-009C ...................

35800-012C ...................

49800-016C ...................

25800-028C ...................

35800-032C ...................

45, 47800-064C ...................

57800-093C ...................

13, 25800-101C ...................

29, 31800-107C ...................

13, 15800-121C ...................

37, 41800-141C ...................

43800-177C ...................

51, 53800-213C ...................

69800-245C ...................

51, 53800-268C ...................

53800-292C ...................

57800-310C ...................

55800-321C ...................

51800-322C ...................

13800-377C ...................

25, 33, 35, 41801-001C ...................

49, 51, 53, 55801-002C ...................

25, 27801-003C ...................

9801-017C ...................

11, 35801-018C ...................

25, 29, 31, 37801-035C ...................

29, 31801-057C ...................

41801-070C ...................

41801-076C ...................

21801-081C ...................

57801-084C ...................

13801-096C ...................

57801-141C ...................

19801-151C ...................

13801-154C ...................

13, 25, 29, 31802-004C ...................

21, 59, 71802-005C ...................

33802-007C ...................

69802-009C ...................

29, 31, 33802-014C ...................

41, 51, 53802-015C ...................

57802-017C ...................

7, 11, 13, 15, 23,
27, 39, 45, 47

41802-039C ...................

73802-042C ...................

39, 45802-044C ...................

51, 53802-045C ...................

59, 71, 73802-051C ...................

61, 63802-058C ...................

65802-059C ...................

9802-070C ...................

25, 27802-078C ...................

11802-079C ...................

35802-089C ...................

11, 13, 25802-092C ...................

9802-095C ...................

71, 73802-104C ...................

71802-106C ...................

51, 53802-121C ...................

67802-123C ...................

17, 25802-148C ...................

15802-149C ...................

9, 33802-196C ...................

65802-197C ...................

175-057P - 76 - 09/25/13

Table of Contents Part Number Index

Part Number Index (continued)

803-008C ...................

803-014C ...................

803-020C ...................

803-169C ...................

804-006C ...................

804-009C ...................

804-012C ...................

PagePart Number

19, 21, 23, 27802-203C ...................

11, 45, 47802-214C ...................

37, 41802-226C ...................

51, 53802-228C ...................

35802-252C ...................

37, 39, 41, 45, 47802-282C ...................

41802-300C ...................

7, 9802-383C ...................

13, 15802-387C ...................

9, 13, 27802-388C ...................

13, 15802-411C ...................

59, 61, 63, 65802-421C ...................

13, 15802-425C ...................

55802-427C ...................

53802-550C ...................

61802-617C ...................

63802-618C ...................

11802-673C ...................

25, 27803-001C ...................

35803-004C ...................

9, 11, 21, 25, 35803-006C ...................

25, 27803-007C ...................

11, 13, 33, 35,
37, 39, 41, 45, 47

13, 15803-011C ...................

9, 11, 13, 15, 27,
35, 37, 41, 51, 53

11803-015C ...................

33803-016C ...................

11, 13, 15, 23,
27, 39, 45, 47

71, 73803-021C ...................

7, 9803-027C ...................

73803-029C ...................

9803-032C ...................

25, 33, 35, 41803-035C ...................

51, 53803-036C ...................

51, 53803-037C ...................

9803-046C ...................

25803-058C ...................

9803-065C ...................

17, 33, 59, 61, 63803-088C ...................

37, 39, 45, 73803-147C ...................

15, 19, 21, 23,
27, 41, 51, 53,
59, 61, 63, 65

65803-177C ...................

71803-186C ...................

51, 53803-193C ...................

29, 31803-194C ...................

13, 15, 69803-199C ...................

13, 15, 55803-209C ...................

41803-215C ...................

67803-234C ...................

13803-255C ...................

13803-293C ...................

41803-305C ...................

51803-310C ...................

13, 33804-001C ...................

25, 33, 35, 41804-002C ...................

25, 33, 35804-003C ...................

13, 25, 27804-004C ...................

9, 11, 21, 25, 35,
41, 71

13804-007C ...................

11, 13, 33, 35,
37, 39, 41

69804-010C ...................

11, 41804-011C ...................

15, 25, 29, 31,
33, 51, 53, 57

804-013C ...................

804-015C ...................

804-022C ...................

804-036C ...................

807-106C ...................

PagePart Number

9, 11, 13, 15, 27,
29, 31, 33, 35,
41, 51, 53, 57

11, 37, 45, 47804-014C ...................

7, 11, 13, 15, 23,
27, 39, 45, 47

39, 41, 45, 47804-016C ...................

37, 39, 41, 45804-017C ...................

33804-021C ...................

59, 61, 63, 65,
71, 73

7, 9804-023C ...................

9804-025C ...................

9804-029C ...................

45804-030C ...................

29, 31804-031C ...................

35804-033C ...................

13, 15, 33, 39,
41, 47

33, 51, 53804-040C ...................

25804-042C ...................

25804-044C ...................

25, 27804-046C ...................

9804-050C ...................

73804-055C ...................

41804-061C ...................

13804-075C ...................

57804-078C ...................

71804-083C ...................

35804-092C ...................

9804-109C ...................

51, 53804-154C ...................

33, 73805-016C ...................

25, 35805-019C ...................

7805-021C ...................

29, 31805-023C ...................

43805-024C ...................

41805-026C ...................

9805-060C ...................

71805-062C ...................

35805-064C ...................

9805-065C ...................

13, 25, 45, 47805-067C ...................

35805-073C ...................

7, 9805-077C ...................

41, 51, 53805-109C ...................

67, 69805-124C ...................

51, 53805-127C ...................

9805-134C ...................

51, 53, 61, 63805-154C ...................

37, 41805-180C ...................

51, 53, 61, 63805-186C ...................

51, 53805-234C ...................

9805-306C ...................

13, 37, 41806-004C ...................

35807-020C ...................

71807-096C ...................

43807-097C ...................

57807-101C ...................

13, 15, 51, 53,
61, 63

51, 53807-159C ...................

71808-038C ...................

39, 45808-040C ...................

35808-086C ...................

41808-149C ...................

37, 41808-157C ...................

41808-160C ...................

39, 45, 47808-170C ...................

37808-219C ...................

37808-250C ...................

PagePart Number

45809-115C ...................

57809-198C ...................

67810-149C ...................

7, 69810-162C ...................

69811-063C ...................

69811-666C ...................

71812-174C ...................

71812-175C ...................

51, 53812-236C ...................

59814-034C ...................

65814-067C ...................

61814-157C ...................

63814-158C ...................

61814-159C ...................

63814-160C ...................

59814-174C ...................

73814-220C ...................

71, 73814-302C ...................

71814-303C ...................

73815-082C ...................

29, 31, 51, 53816-002C ...................

73816-011C ...................

71, 73816-035C ...................

25, 27816-112C ...................

25, 27816-113C ...................

71816-138C ...................

71816-139C ...................

57816-173C ...................

49816-239C ...................

51, 53816-302C ...................

51, 53816-306C ...................

41816-510C ...................

55816-513C ...................

29, 31817-004C ...................

25817-009C ...................

25817-010C ...................

35817-021C ...................

25, 45, 47817-025C ...................

13817-042C ...................

35817-053C ...................

65817-062C ...................

65817-063C ...................

29, 31817-068C ...................

29, 31817-069C ...................

29, 31817-070C ...................

29, 31817-071C ...................

29, 31817-073C ...................

29, 31817-074C ...................

29, 31817-075C ...................

51, 59, 61, 63, 65817-084C ...................

13817-086C ...................

33817-087C ...................

43817-111C ...................

57817-191C ...................

13817-202C ...................

61817-296C ...................

63817-297C ...................

51, 53817-314C ...................

51, 53, 61, 63817-328C ...................

59817-330C ...................

49817-346C ...................

51, 53, 61, 63817-347C ...................

13817-350C ...................

37, 39, 41, 45817-406C ...................

25817-504C ...................

13817-516C ...................

9817-632C ...................

25817-806C ...................

75818-019C ...................

11818-055C ...................

75818-188C ...................

PagePart Number

75818-398C ...................

27818-518C ...................

75818-557C ...................

75818-583C ...................

75818-719C ...................

75818-827C ...................

75818-860C ...................

33819-001C ...................

35819-034C ...................

25819-041C ...................

41819-059C ...................

33819-109C ...................

51, 53820-256C ...................

33822-008C ...................

71822-013C ...................

71822-014C ...................

73822-018C ...................

73822-019C ...................

73822-020C ...................

73822-021C ...................

37, 41822-032C ...................

35822-083C ...................

65822-095C ...................

29, 31822-103C ...................

71822-107C ...................

71822-108C ...................

39, 45, 47822-126C ...................

59, 61, 63822-170C ...................

37, 41822-195C ...................

9, 19, 21833-492C ...................

21833-684C ...................

21833-694C ...................

21833-696C ...................

21833-697C ...................

21833-709C ...................

75838-094C ...................

75838-158C ...................

15, 27, 75838-160C ...................

15, 27, 75838-161C ...................

75838-228C ...................

75838-237C ...................

75838-265C ...................

75838-266C ...................

75838-267C ...................

75838-361C ...................

75838-406C ...................

75838-412C ...................

75838-482C ...................

75848-021C ...................

15, 75848-276C ...................

7890-005C ...................

7890-011C ...................

35890-026C ...................

9890-182C ...................

29, 31890-190C ...................

9890-245C ...................

41890-282C ...................

13, 15890-308C ...................

25890-349C ...................

29, 31890-350C ...................

13890-365C ...................

51, 53890-466C ...................

7890-620C ...................

9890-836C ...................

9, 19890-924C ...................

41891-009C ...................

41891-010C ...................

19891-183C ...................

19891-184C ...................

17, 35990-024R ...................

67dwg11421 ..................

09/25/13 - 77 - 175-057P

Table of Contents Part Number Index

Part Number Index (continued)

PagePart Number

59dwg15466 ..................

65dwg15469 ..................

49dwg16459 ..................

43dwg16668 ..................

33dwg16676 ..................

63dwg17438 ..................

61dwg17439 ..................

9dwg28051 ..................

51dwg28052 ..................

53dwg28053 ..................

57dwg28054 ..................

11dwg28055 ..................

71dwg28069 ..................

73dwg28071 ..................

7dwg28074 ..................

13dwg28083 ..................

15dwg28091 ..................

27dwg28098 ..................

23dwg28103 ..................

41dwg28114 ..................

47dwg28116 ..................

39dwg28140 ..................

45dwg28151 ..................

19dwg28155 ..................

25dwg28158 ..................

17dwg28163 ..................

35dwg28165 ..................

29dwg28174 ..................

31dwg28187 ..................

69dwg28191 ..................

75dwg28203 ..................

55dwg28212 ..................

37dwg28230 ..................

21dwg36037 ..................

175-057P - 78 - 09/25/13

Table of Contents Part Number Index

This Page Intentionally Left Blank

09/25/13 - 79 - 175-057P

Great Plains Mfg., Inc.

1525 E. North Street

Salina, Kansas 67401 USA

www.greatplainsmfg.com
