Great Plains 6324DV User Manual

Table of Contents Part Number Index

Parts Manual

Discovator (Disc And Coulter) Series VII

5110DV, 5315DV, 6112DV,

6318DV, 6320DV, 6324DV

Read the Operator's manual entirely.When you see this symbol, the subsequent instructions and warnings are serious - follow without exception.Your life and the lives of others depend on it!

Cover

Cover illustration may show optional equipment not supplied with standard unit.

Table of Contents Part Number Index

Table of Contents

Section 1: Introduction.................................................4

Using This Manual...............................................................4

Manual Replacement Information.......................................4

Manual Revisions................................................................4

Touch-up Paint....................................................................4

Hardware Legend................................................................5

Replacement Hardware......................................................5

Serial Numbers...................................................................5

Part Number Service Coding..............................................5

Section 2: Frames..........................................................6

Center Frame Assembly......................................................6

Hitch Pole & Tr uss Assembly...............................................8

Self Level Assembly..........................................................10

Wing Assembly.................................................................12

Lights.................................................................................14

Section 3: Transport....................................................16

Center Transport, 5110DV & 5315DV (Standard Hub)......16

Center Transport, 5110DV & 5315D V (Opt Hea vy Hub).....18

Center Walking Beam: 6112, 6318-6324..........................20

Wing Transport, 5315, 6318 & 6320 (Standard Hub)........22

Wing Transport, 5315, 6318 & 6320 (Optional Heavy

Hub)............................................................................24

Wing Walking Beam Assembly, 6324................................26

6-Bolt Heavy Hub & 6-Bolt Hub & Spindle........................28

Section 4: Hydraulics..................................................30

Hydraulic Depth Control Assembly (S/N 1258DD-)...........30

Hydraulic Depth Control Assembly (S/N 1259DD+)..........32

Hydraulic Layout (S/N 1219DD-).......................................34

Hydraulic Layout (S/N 1220DD+)......................................38

Hydraulic Details...............................................................42

Midway Hydraulic Cylinder (810-138C).............................44

Midway Hydraulic Cylinder (810-479C).............................46

Midway Hydraulic Cylinder (810-480C).............................48

Midway Hydraulic Cylinder (810-482C).............................50

Midway Hydraulic Cylinder (810-484C).............................52

Midway Hydraulic Cylinder (810-485C).............................54

Midway Hydraulic Cylinder (810-493C).............................56

Section 5: Shanks & Gangs........................................58

Regular Magnum Shank Assembly (S/N 1172DD-)..........58

Heavy-Duty Magnum Shank Assembly (S/N 1173DD+)....60

Regular K-Flex Shank Assembly.......................................62

Heavy K-Flex Shank Assembly.........................................64

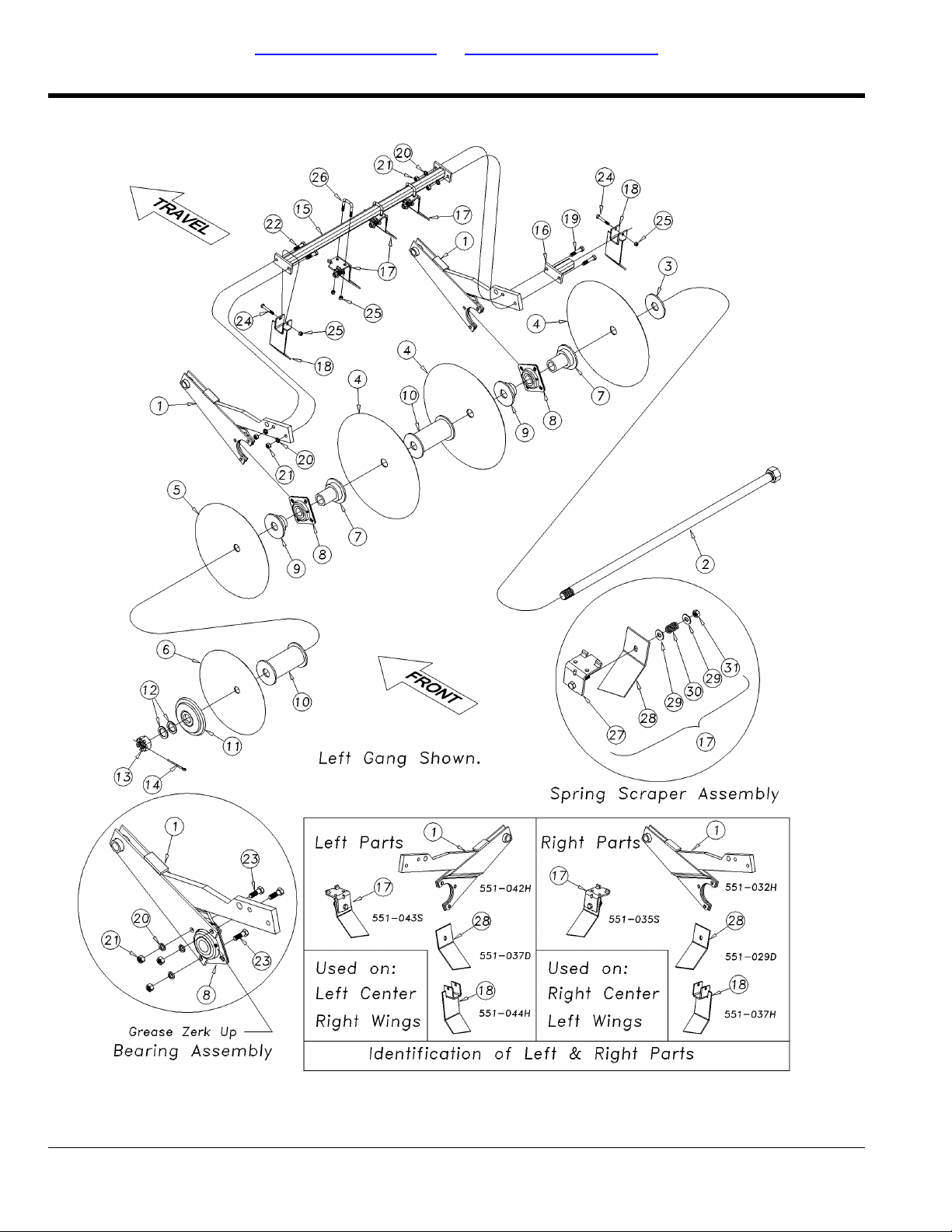

Disc Gang Assembly.........................................................66

Coulter Gang Assembly....................................................68

Gang To Gang Hanger Assembly......................................70

Center Gang Rockshaft Assembly....................................72

Gang Depth Indicator Assembly.......................................74

Section 6: Decals.........................................................76

Decals...............................................................................76

Section 7: Attachments...............................................78

S3T & S5T Spike Drag Assembly.....................................78

Reel Following S3T Spike Assembly.................................80

S5T Spike Drag High Residue Assembly..........................82

S7T Spike Drag Assembly................................................84

CH3A & CH4A Coil Tine Assembly...................................86

Reel Following CH3A Coil Tine Assembly.........................88

CH3B & CH4B Coil Tine Assembly...................................90

EZ Hitch............................................................................92

Extended EZ Hitch............................................................94

Heavy Duty 3 & 5 EZ Hitch Extension...............................96

Rear Hitch Accessory Mount Kit.......................................98

Part Number Index.....................................................100

Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.

The following are trademarks of Great Plains Mfg., Inc.: Application Systems, Ausherman, Land Pride, Great Plains

All other brands and product names are trademarks or registered trademarks of their respective holders.

550-220P - 2 - 02/12/09

Great Plains Manufacturing, Incorporated Trademarks

Printed in the United States of America.

Table of Contents Part Number Index

Alphabetized Table of Contents

Selected Models

6-Bolt Heavy Hub & 6-Bolt Hub & Spindle...................28

Center Frame Assembly.................................................6

Center Gang Rockshaft Assembly...............................72

Center Transport, 5110DV & 5315DV (Opt Heavy

Hub).......................................................................18

Center Transport, 5110DV & 5315DV (Standard

Hub).......................................................................16

Center Walking Beam: 6112, 6318-6324......................20

CH3A & CH4A Coil Tine Assembly..............................86

CH3B & CH4B Coil Tine Assembly..............................90

Coulter Gang Assembly...............................................68

Decals..........................................................................76

Disc Gang Assembly....................................................66

Extended EZ Hitch.......................................................94

EZ Hitch.......................................................................92

Gang Depth Indicator Assembly...................................74

Gang To Gang Hanger Assembly.................................70

Reel Following S3T Spike Assembly............................80

Regular K-Flex Shank Assembly..................................62

Regular Magnum Shank Assembly (S/N 1172DD-).....58

S3T & S5T Spike Drag Assembly................................78

S5T Spike Drag High Residue Assembly.....................82

S7T Spike Drag Assembly...........................................84

Self Level Assembly.....................................................10

Wing Assembly.............................................................12

Wing Transport, 5315, 6318 & 6320 (Optional Heavy

Hub).......................................................................24

Wing Transport, 5315, 6318 & 6320 (Standard Hub)....22

Wing Walking Beam Assembly, 6324...........................26

Heavy Duty 3 & 5 EZ Hitch Extension..........................96

Heavy K-Flex Shank Assembly....................................64

Heavy-Duty Magnum Shank Assembly (S/N

1173DD+)..............................................................60

Hitch Pole & Tr uss Assembly..........................................8

Hydraulic Depth Control Assembly (S/N 1258DD-)......30

Hydraulic Depth Control Assembly (S/N 1259DD+).....32

Hydraulic Details..........................................................42

Hydraulic Layout (S/N 1219DD-)..................................34

Hydraulic Layout (S/N 1220DD+).................................38

Lights............................................................................14

Midway Hydraulic Cylinder (810-138C)........................44

Midway Hydraulic Cylinder (810-479C)........................46

Midway Hydraulic Cylinder (810-480C)........................48

Midway Hydraulic Cylinder (810-482C)........................50

Midway Hydraulic Cylinder (810-484C)........................52

Midway Hydraulic Cylinder (810-485C)........................54

Midway Hydraulic Cylinder (810-493C)........................56

Rear Hitch Accessory Mount Kit..................................98

Reel Following CH3A Coil Tine Assembly....................88

02/12/09 - 3 - 550-220P

Table of Contents Part Number Index

550-220P - 4 - 02/12/09

Table of Contents Part Number Index

02/12/09 - 5 - 550-220P

Table of Contents Part Number Index

Center Frame Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00478

550-220P - 6 - 02/12/09

Table of Contents Part Number Index

Center Frame Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00478

Models 5110CENTER FRAME 5110DV550-159H1. Models 6112CENTER FRAME 6112DV550-029H1. Models 5315CENTER FRAME 5315DV550-155H1. Models 6318, 6320 & 6324 (shown)CENTER FRAME 6318DV-6324DV550-084H1.

TORQUE TUBE 6112DV-6324DV VII560-209H2.

CENTER BRACE BAR551-175H3.

PIN HINGE 1 1/4X6 HRDN PLT805-378C8. PIN HINGE 1 1/4X7 HRDN PLT805-349C9.

HHCS 3/4-10X5 GR5802-069C12. WASHER LOCK SPRING 3/4 PLT804-023C13. NUT HEX 3/4-10 PLT803-027C14. HHCS 3/4-10X2 GR5802-064C15. U-BOLT 5/8-11X4 1/32X4 1/4806-179C16. WASHER LOCK SPRING 5/8 PLT804-022C17. NUT HEX 5/8-11 PLT803-021C18.

WASHER LOCK SPRING 1/2 PLT804-015C20. NUT HEX 1/2-13 PLT803-020C21.

PLASTIC END CAP - 4X3X1/4 TUBE817-585C23. PART - LIGHT KIT550-124D24. LIGHT MOUNT BRKT-WING STOP RH560-065H25. LIGHT MOUNT BRKT-WING STOP LH560-152H26. SCREW SET SQ HD 1/2-13X1 GR5801-054C27. PART - SMV MOUNTING BRACKET550-071D28. SMV SIGN POLE BRKT W/BOLTS890-823C29. WASHER FLAT 7/16 USS PLT804-204C30. WASHER LOCK SPRING 5/16 PLT804-009C31. SMV SIGN POLE W/SLIDE890-822C32. DECAL SLOW MOVING-GALV. BACKED818-055C33. SCREW PAN HD 1/4-20 X 3/4801-005C34. WASHER LOCK SPRING 1/4 PLT804-006C35. NUT-HEX 1/4-20 PLT803-006C36.

(shown) Models 5110DCENTER BRACE BAR 5110DV551-418H3. Models 6112DCENTER BRACE BAR551-028H3. Models 6112CCENTER BRACE BAR551-047H3. Models 5315DCENTER BRACE BAR 5315 D PLUS551-354H3. Models 5315CCENTER BRACE BAR 5315C551-348H3. Models 6318D,6320D & 6324D

(shown) Models 6318C, 6320C & 6324CCENTER BRACE BAR551-176H3. Models 5315CENTER FOLD BRACKET550-144H4. Models 6318, 6320 & 6324 (shown)CENTER FOLD BRACKET550-081H4. Models 5315WING STOP550-147H5. Models 6318, 6320 & 6324 (shown)WING STOP550-068H5. Models 611218" U-BOLT ON STUB550-030H6. Models 5315, 6318, 6320 & 6324CYLINDER REST PAD 3560-001H7.

Models 5315, 6318, 6320 & 6324U-BOLT 1/2-13X3 1/32X5806-189C19.

Models 5315, 6318, 6320 & 6324PIN HITCH 1/2X4 1/2 W/KEEPER805-379C22.

Section 2: Frames

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2Models 5110, 5315TORQUE TUBE 5110DV/5315DVVII550-189H2. Rev. 1Models 6112, 6318, 6320 & 6324

Rev. 2HHCS 3/8-16X2 1/4 GR8 SP THD802-623C10. Rev. 1Changed to 802-623CHHCS 3/8-16X2 1/2 GR5802-114C10. Rev. 2NUT HEX TOP LOCK 3/8-16 PLT803-123C11. Rev. 1Changed to 803-123CNUT LOCK 3/8-16 NYLON INSERT803-078C11.

02/12/09 - 7 - 550-220P

Table of Contents Part Number Index

Hitch Pole & Truss Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00479

550-220P - 8 - 02/12/09

Table of Contents Part Number Index

Hitch Pole & Truss Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00479 CENTER FRAME TRUSS550-009H1.

HITCH POLE550-027H3. ADJ JACK SWIVEL SIDEWIND 5000890-820C4. HOSE SUPPORT550-001H5. PIN COTTER 1/8 X 1 1/2805-225C6. HHCS 1-8X6 1/2 GR5802-074C7. WASHER LOCK SPRING 1 PLT804-027C8. NUT HEX 1-8 PLT803-031C9. HHCS 1-8X5 1/2 GR5802-205C10. HHCS 5/8-11X1 1/2 GR5802-051C11. WASHER LOCK SPRING 5/8 PLT804-022C12. NUT HEX 5/8-11 PLT803-021C13. REBOUND VALVE TALL MOUNT BRKT575-047D14. REBOUND VALVE MOUNT PLATE560-035D15. HHCS 1/2-13X4 1/2 GR5802-413C16. WASHER LOCK SPRING 1/2 PLT804-015C17. NUT HEX 1/2-13 PLT803-020C18. MANUAL PAK TUBE817-609C19. CLAMP WORM DRIVE (3"-5")800-231C20.

Section 2: Frames

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 1HITCH STRUT ASSEMBLY550-010H2.

02/12/09 - 9 - 550-220P

Table of Contents Part Number Index

Self Level Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00480

550-220P - 10 - 02/12/09

Table of Contents Part Number Index

Self Level Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00480 dwg00480 LEVEL BAR550-011H1. 550-011H1. LEVEL-BAR H-BRACKET550-003H2.

Includes items 22 thru 26TURNBUCKLE ASSEMBLY550-013S3.

HITCH CLEVIS/TONGUE550-028H5. HITCH BOLT 1 1/2 X 8 3/8550-035H6.

Use as neededWASHER MACH 2.25 X 1.50 X 10GA804-063C7.

NUT HEX SLOTTED 1 1/2-6 PLT803-301C8. PIN COTTER 1/4 X 3 PLT805-115C9. HITCH BOLT 11550-037H10. HHCS 1-8X9 GR8 PLT802-783C11. NUT HEX LOCK 1-8 PLT803-316C12. HHCS 1-8X8 GR8 PLT802-763C13. PIN CLEVIS 1 X 3 3/8 USABLE805-351C14. WASHER MACH 1.5X1.00X.075804-192C15. PIN COTTER 3/16 X 2805-058C16. PIN CLEV 1X2 3/8 USE MUSHRM HD805-352C17. HHCS 3/4-10X6 GR5802-070C18. NUT LOCK 3/4-10 PLT803-026C19. PIN HITCH 3/4 X 3805-364C20. PIN, HAIR COTTER 3/16 WIRE DIA805-088C21. TUBE ASSEMBLY 21 3/4 LONG550-014H22. CLEVIS END550-015H23. NUT HEX JAM 1 1/4-7 PLT803-032C24. TEE END550-016H25. NUT HEX JAM 1 1/4-7 LH THD PLT803-046C26. SAFETY CHAIN 16100 LB890-824C27. SAFETY CHAIN SPACER576-048D28. WASHER FLAT 1 1/2 SAE PLT804-071C29. BUSHING 1 1/4X1X3/4 HRD ST SLT890-835C30.

Section 2: Frames

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 1HEAVYSIDE PLATEASSEMBLY550-024H4.

02/12/09 - 11 - 550-220P

Table of Contents Part Number Index

Wing Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00481

550-220P - 12 - 02/12/09

Table of Contents Part Number Index

Wing Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00481

Model 5315WING ASSEMBLY-4'RIGHT HAND550-145H1. Model 5315WING ASSEMBLY-4'LEFT HAND550-146H1. Model 6318WING ASSEMBLY - 4' RIGHT HAND550-121H1. Model 6318WING ASSEMBLY - 4' LEFT HAND550-120H1. Model 6320WING ASSEMBLY - 6' RIGHT HAND550-123H1. Model 6320WING ASSEMBLY - 6' LEFT HAND550-122H1. Model 6324WING ASSEMBLY - 7'RIGHT HAND550-125H1. Model 6324 (shown)WING ASSEMBLY - 7' LEFT HAND550-124H1. Model 5315DWING BRACE-DISC 4 RH551-352H2. Model 5315DWING BRACE-DISC 4 LH551-353H2. Model 6318DWING BRACE DISC 4 RH551-282H2. Model 6318DWING BRACE DISC 4 LH551-281H2. Model 6320DWING BRACE DISC 6 RH551-284H2. Model 6320DWING BRACE DISC 6 LH551-283H2. Model 6324DWING BRACE DISC 7 RH551-286H2. Model 6324D (shown)WING BRACE DISC 7 LH551-285H2. Model 5315CWING BRACE-COUTLER 4 RH551-350H2. Model 5315CWING BRACE-COULTER 4 LH551-351H2. Model 6318CWING BRACE COULTER 4 RH551-276H2. Model 6318CWING BRACE COULTER 4 LH551-275H2. Model 6320CWING BRACE COULTER 6 RH551-278H2. Model 6320CWING BRACE COULTER 6 LH551-277H2. Model 6324CWING BRACE COULTER 7 RH551-280H2. Model 6324CWING BRACE COULTER 7 LH551-279H2. Model 5315, 6318 & 6320WING WHEEL BRKT RH560-117H3. Model 5315, 6318 & 6320WING WHEEL BRKT LH560-118H3. Model 6324OUTSIDE WING WHEEL BRKT RH560-115H3. Model 6324 (shown)OUTSIDE WING WHEEL BRKT LH560-116H3. Model 6318, 6320 & 6324ROCKER BRACKET RH550-092H4. Model 6318, 6320 & 6324ROCKER BRACKET LH550-091H4. Model 6324 onlyCONNECTING LINK, 53 3/4580-139H5. Model 6324 onlyCONNECTING LINK BRACKET560-003H6.

PIN HINGE 1 1/4X6 HRDN PLT805-378C7.

HHCS 1-8X6 GR5802-357C10. NUT HEX 1-8 NYLON INSERTPLT803-038C11.

Models 53155" ROCKER540-056D12. Models 6318, 6320 & 6324ROCKER 5 3/4" CENTERTOCENTER560-176D12.

PIN CLEVIS 1 X 3 3/8 USABLE805-351C13. WASHER MACH 1.5X1.00X.075804-192C14. PIN COTTER 3/16 X 2805-058C15. HHCS 1-8X3 GR5802-368C16. NUT HEX LOCK 1-8 PLT803-316C17. HHCS 3/4-10X5 GR5802-069C18. WASHER LOCK SPRING 3/4 PLT804-023C19. NUT HEX 3/4-10 PLT803-027C20. HHCS 3/4-10X2 GR5802-064C21. U-BOLT 1/2-13X3 1/32X5806-189C22. WASHER LOCK SPRING 1/2 PLT804-015C23. NUT HEX 1/2-13 PLT803-020C24. GREASE ZERK 1/4-28 THD FORMING800-080C25.

5315, 6318, 6320 & 6324 CoulterHHCS 1-8X5 GR5802-235C26. Disc ModelsHHCS 1-8X6 GR5802-357C26.

BUSHING CYL 1 1/4 X 1 X 1890-005C27.

Section 2: Frames

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2HHCS 3/8-16X2 1/4 GR8 SP THD802-623C8. Rev. 1Changed to 802-623CHHCS 3/8-16X2 1/2 GR5802-114C8. Rev. 2NUT HEX TOP LOCK 3/8-16 PLT803-123C9. Rev. 1Changed to 803-123CNUT LOCK 3/8-16 NYLON INSERT803-078C9.

02/12/09 - 13 - 550-220P

Table of Contents Part Number Index

Lights

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

01283

550-220P - 14 - 02/12/09

Table of Contents Part Number Index

Lights

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg01283

Models 6113 & 6116AG LIGHT WIRING HARNESS-25'890-317C1. Models 6113 & 6116LIGHT HARNESS, 10' WISHBONE890-390C2. Models 6113 & 6116DUAL AG LIGHTS RH890-312C3. Models 6113 & 6116DUAL AG LIGHTS LH890-311C4. Models 6113 & 6116MAGNET ROUND W/SCREW (4 EA)890-827C5. Includes items 1 thru 5LIGHT KIT890-821C6. Models 6318-6328LEAD HARNESS W/TRAC HKUP 25FT890-831C7. Models 6318-6328WISHBONE WIRING HARNESS(SHORT)890-830C8. Models 6318-6328LIGHT ONE-WAY RED890-828C9. Models 6318-6328LIGHT TWO-WAY AMBER890-829C10. Includes Items 7 thru 10SAFETY LIGHT KIT (LONG LEAD)890-826C11.

Section 2: Frames

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 15 - 550-220P

Table of Contents Part Number Index

Center Transport, 5110DV & 5315DV (Standard Hub)

(Applies to 5110DV, 5315DV only)

00482

550-220P - 16 - 02/12/09

Table of Contents Part Number Index

Center Transport, 5110DV & 5315DV (Standard Hub)

(Applies to 5110DV, 5315DV only)

Image No. 00482dwg AXLE SPINDLE 2X14 (Q888)570-058D1. SEAL (CR16286)816-398C2. SEAL SLEEVE (CR081071)816-396C3. INNER CONE, JL69349822-198C4. INNER CUP JL69310822-197C5.

HUB 888 W/CUPS 6-BOLTS 6" BC815-142C7. BEARING CUP LM-67010822-020C8. BEARING CONE LM-67048822-021C9. WASHER SPINDLE - 7/8804-055C10. PIN COTTER 5/32 X 1 1/2 LONG805-089C11. NUT HEX SLOTTED 7/8-14 PLT803-029C12. GREASE CAP 2.448X1.12X.25890-781C13. WHEEL BOLT 1/2-20X1 1/4 GR5802-632C14.

PIN CLEVIS 5/16X2 13/16 USABLE805-324C16. PIN COTTER 1/8 X 1805-363C17.

Model 5110WHEEL 15X8 6 BOLT WHITE814-221C18. Model 5315WHEEL 15X6 6 BOLT WHITE814-220C18. Model 5110TIRE 11L-15 X 8 PLY814-038C19. Model 5315TIRE 9.5 L X 15 8 PLY814-011C19. Model 5110, items 18 & 19 (shown)TIRE/WHL 11LX15 8PLY 6BLT WHT814-232C20. Model 5315, items 18 & 19TIRE/WHEEL 9.5LX15 8 PLY WHITE814-230C20.

Section 3:Transport

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2ZERK GREASE STRAIGHT 1/8-27MPT800-130C6. Rev. 1Changed to 800-130CGREASE ZERK STRAIGHT 1/4-28800-001C6.

Rev. 2Purchased CompleteHUB 6-BOLT SPINDLE 2X14LH 888815-215C15. Rev. 1Includes items 1 thru 14RPBY 815-215C570-214S15.

02/12/09 - 17 - 550-220P

Table of Contents Part Number Index

Center Transport, 5110DV & 5315DV (Opt Heavy Hub)

(Applies to 5110DV, 5315DV only)

00483

550-220P - 18 - 02/12/09

Table of Contents Part Number Index

Center Transport, 5110DV & 5315DV (Opt Heavy Hub)

(Applies to 5110DV, 5315DV only)

Image No. 00483dwg AXLE SPINDLE 2X14 1/2 (Q783)550-018D1. SEAL GREASE 6-BLT HD HUB W-783816-426C2. BRG CONE 1.62IDX.78WD#LM501349822-048C3. BRG CUP 2.89ODX.58WD #LM501310822-053C4.

HUB 890 W/CUPS 6-BOLTS 6 BC"815-193C6. BEARING CUP LM-67010822-020C7. BEARING CONE LM-67048822-021C8. WASHER SPINDLE - 7/8804-055C9. PIN COTTER 5/32 X 1 1/2 LONG805-089C10. NUT HEX SLOTTED 7/8-14 PLT803-029C11. GREASE CAP 2.448X1.12X.25890-781C12. STUD BOLT 1/2-20X1 7/8P15140113. NUT LUG 1/2-20X90DEG PLT 13/16803-017C14.

PIN CLEVIS 5/16X2 13/16 USABLE805-324C16. PIN COTTER 1/8 X 1805-363C17.

Section 3:Transport

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2ZERK GREASE STRAIGHT 1/8-27MPT800-130C5. Rev. 1Changed to 800-130CGREASE ZERK STRAIGHT 1/4-28800-001C5.

Rev. 2Purchased CompleteHUB 6-BOLT SPINDLE 2X14.5 890815-195C15. Rev. 1Includes items 1 thru 14RPBY 815-195C570-206S15.

02/12/09 - 19 - 550-220P

Table of Contents Part Number Index

Center Walking Beam: 6112, 6318-6324

(Applies to 6112DV, 6318DV, 6320DV, 6324DV only)

00484

550-220P - 20 - 02/12/09

Table of Contents Part Number Index

Center Walking Beam: 6112, 6318-6324

(Applies to 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00484dwg PIVOTSPINDLE 2X8 1/16550-015D1. SEAL (CR16286)816-398C2. INNER CONE, JL69349822-198C3. INNER CUP JL69310822-197C4. WALKING BEAM550-008H5.

BEARING CUP LM-67010822-020C7. BEARING CONE LM-67048822-021C8. WASHER SPINDLE - 7/8804-055C9. PIN COTTER 5/32 X 1 1/2 LONG805-089C10. NUT HEX SLOTTED 7/8-14 PLT803-029C11. GREASE CAP 2.448X1.12X.25890-781C12.

RPBY 815-214C550-007S13.

RPBY 815-221C570-205S13.

RPBY 815-216C550-005S14.

RPBY 815-195C570-206S14.

PIN CLEVIS 5/16X2 13/16 USABLE805-324C15. PIN COTTER 1/8 X 1805-363C16.

WHEEL 15X6 6 BOLT WHITE814-220C18. TIRE 9.5 L X 15 8 PLY814-011C19.

Section 3:Transport

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2ZERK GREASE STRAIGHT 1/8-27MPT800-130C6. Rev. 1Changed to 800-130CGREASE ZERK STRAIGHT 1/4-28800-001C6.

Rev. 2(Standard) Purchased CompleteHUB 6-BOLT SPINDLE 2X13HH 888815-214C13. Rev. 1Back Side Tandem. See Hub &

Spindle Assembly

Rev. 2(Heavy Opt.) Purchased CompleteHUB 6-BOLT SPINDLE 2X13.5 890815-221C13. Rev. 1Back Side Tandem. See Hub &

Spindle Assembly

Rev. 2(Standard) Purchased CompleteHUB 6-BOLT SPINDLE 2X14HH 888815-216C14. Rev. 1Front Side Tandem. See Hub &

Spindle Assembly

Rev. 2(Heavy Opt.) Purchased CompleteHUB 6-BOLT SPINDLE 2X14.5 890815-195C14. Rev. 1Front Side Tandem. See Hub &

Spindle Assembly

(Standard Hub) Items 1 thru 17WALKING BEAM ASSY W/SLIDE-IN550-004L17. (Heavy Hub Option) Items 1 thru 17WALKING BEAM ASSY HVY HUB SP570-188L17.

Includes items 18 & 19TIRE/WHEEL 9.5LX15 8 PLY WHITE814-230C20. (Standard Hub)WHEEL BOLT 1/2-20X1 1/4 GR5802-632C21. (Heavy Hub Option)NUT LUG 1/2-20X90DEG PLT 13/16803-017C21.

02/12/09 - 21 - 550-220P

Table of Contents Part Number Index

Wing Transport, 5315, 6318 & 6320 (Standard Hub)

(Applies to 5315DV, 6318DV, 6320DV only)

00485

550-220P - 22 - 02/12/09

Table of Contents Part Number Index

Wing Transport, 5315, 6318 & 6320 (Standard Hub)

(Applies to 5315DV, 6318DV, 6320DV only)

Image No. 00485dwg AXLE SPINDLE 2X14 (Q888)570-058D1. SEAL (CR16286)816-398C2. SEAL SLEEVE (CR081071)816-396C3. INNER CONE, JL69349822-198C4. INNER CUP JL69310822-197C5.

PIN CLEVIS 5/16X2 13/16 USABLE805-324C16. PIN COTTER 1/8 X 1805-363C17. WHEEL 15X6 6 BOLT WHITE814-220C18. TIRE 9.5 L X 15 8 PLY814-011C19.

Includes items 18 & 19TIRE/WHEEL 9.5LX15 8 PLY WHITE814-230C20.

Section 3:Transport

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2ZERK GREASE STRAIGHT 1/8-27MPT800-130C6. Rev. 1Changed to 800-130CGREASE ZERK STRAIGHT 1/4-28800-001C6.

Rev. 2Purchased CompleteHUB 6-BOLT SPINDLE 2X14LH 888815-215C15. Rev. 1Includes items 1 thru 14RPBY 815-215C570-214S15.

02/12/09 - 23 - 550-220P

Table of Contents Part Number Index

Wing Transport, 5315, 6318 & 6320 (Optional Heavy Hub)

(Applies to 5315DV, 6318DV, 6320DV only)

00486

550-220P - 24 - 02/12/09

Table of Contents Part Number Index

Wing Transport, 5315, 6318 & 6320 (Optional Heavy Hub)

(Applies to 5315DV, 6318DV, 6320DV only)

Image No. 00486dwg AXLE SPINDLE 2X14 1/2 (Q783)550-018D1. SEAL GREASE 6-BLT HD HUB W-783816-426C2. BRG CONE 1.62IDX.78WD#LM501349822-048C3. BRG CUP 2.89ODX.58WD #LM501310822-053C4.

HUB 890 W/CUPS 6-BOLTS 6" BC815-193C6. BEARING CUP LM-67010822-020C7. BEARING CONE LM-67048822-021C8. WASHER SPINDLE - 7/8804-055C9. PIN COTTER 5/32 X 1 1/2 LONG805-089C10. NUT HEX SLOTTED 7/8-14 PLT803-029C11. GREASE CAP 2.448X1.12X.25890-781C12. HUB STUD 1/2-20X1 5/8 GR5802-135C13. NUT LUG 1/2-20X90DEG PLT 13/16803-017C14.

PIN CLEVIS 5/16X2 13/16 USABLE805-324C16. PIN COTTER 1/8 X 1805-363C17. WHEEL 15X6 6 BOLT WHITE814-220C18. TIRE 9.5 L X 15 8 PLY814-011C19.

Includes items 18 & 19TIRE/WHEEL 9.5LX15 8 PLY WHITE814-230C20.

Section 3:Transport

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2ZERK GREASE STRAIGHT 1/8-27MPT800-130C5. Rev. 1Changed to 800-130CGREASE ZERK STRAIGHT 1/4-28800-001C5.

Rev. 2Purchased CompleteHUB 6-BOLT SPINDLE 2X14.5 890815-195C15. Rev. 1Includes items 1 thru 14RPBY 815-195C570-206S15.

02/12/09 - 25 - 550-220P

Table of Contents Part Number Index

Wing Walking Beam Assembly, 6324

(Applies to 6324DV only)

00040

550-220P - 26 - 02/12/09

Table of Contents Part Number Index

Wing Walking Beam Assembly, 6324

(Applies to 6324DV only)

Image No. 00040dwg PIVOTSPINDLE 2X8 1/16550-015D1. SEAL (CR16286)816-398C2. SEAL SLEEVE (CR081071)816-396C3. INNER CONE, JL69349822-198C4. INNER CUP JL69310822-197C5. WALKING BEAM550-006H6. GREASE ZERK 1/4-28 THD FORMING800-080C7. BEARING CUP LM-67010822-020C8. BEARING CONE LM-67048822-021C9. WASHER SPINDLE - 7/8804-055C10. PIN COTTER 5/32 X 1 1/2 LONG805-089C11. NUT HEX SLOTTED 7/8-14 PLT803-029C12. GREASE CAP 2.448X1.12X.25890-781C13.

RPBY 815-216C550-005S14.

RPBY 815-195C570-206S14.

RPBY 815-214C550-007S15.

RPBY 815-221C570-205S15.

PIN CLEVIS 5/16X2 13/16 USABLE805-324C16. PIN COTTER 1/8 X 1805-363C17.

WHEEL 15X6 6 BOLT WHITE814-220C19. TIRE 9.5 L X 15 8 PLY814-011C20.

Section 3:Transport

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2(Standard) Purchased CompleteHUB 6-BOLT SPINDLE 2X14HH 888815-216C14. Rev. 1Front Side Tandem. See Hub &

Spindle Assembly

Rev. 2(Heavy Opt.) Purchased CompleteHUB 6-BOLT SPINDLE 2X14.5 890815-195C14. Rev. 1Front Side Tandem. See Hub &

Spindle Assembly

Rev. 2(Standard) Purchased CompleteHUB 6-BOLT SPINDLE 2X13HH 888815-214C15. Rev. 1Back Side Tandem. See Hub &

Spindle Assembly

Rev. 2(Heavy Opt.) Purchased CompleteHUB 6-BOLT SPINDLE 2X13.5 890815-221C15. Rev. 1Back Side Tandem. See Hub &

Spindle Assembly

(Standard Hub) Items 1 thru 17WALKING BEAM ASSEMBLY560-079L18. (Heavy Hub Option) Items 1 thru 17WALKING BEAM ASSY HVY HUB SP570-207L18.

Includes items 19 & 20TIRE/WHEEL 9.5LX15 8 PLY WHITE814-230C21. (Standard Hub)WHEEL BOLT 1/2-20X1 1/4 GR5802-632C22. (Heavy Hub Option)NUT LUG 5/8-18 X 90 DEG PLT803-219C22.

02/12/09 - 27 - 550-220P

Table of Contents Part Number Index

6-Bolt Heavy Hub & 6-Bolt Hub & Spindle

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00038

550-220P - 28 - 02/12/09

Table of Contents Part Number Index

6-Bolt Heavy Hub & 6-Bolt Hub & Spindle

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00038dwg AXLE SPINDLE 2X13 1/2 (Q783)570-067D1. AXLE SPINDLE 2X14 1/2 (Q783)550-018D1. SEAL GREASE 6-BLT HD HUB W-783816-426C2. BRG CONE 1.62IDX.78WD#LM501349822-048C3. BRG CUP 2.89ODX.58WD #LM501310822-053C4.

Older versions hubsWHEEL BOLT 1/2-20X1 1/4 GR5802-632C13. Newer versionshubsHUB STUD 1/2-20X1 5/8 GR5802-135C13. Newer versionshubsNUT LUG 1/2-20X90DEG PLT 13/16803-017C13.

HUB 6-BOLT SPINDLE 2X13.5 890815-221C14.

& wing

HUB 6-BOLT SPINDLE 2X14.5 890815-195C14.

& wing

AXLE SPINDLE 2X14 (Q888)550-014D15. AXLE SPINDLE 2X13 (Q888)550-017D15. SEAL (CR16286)816-398C16. SEAL SLEEVE (CR081071)816-396C17. INNER CONE, JL69349822-198C18. INNER CUP JL69310822-197C19.

HUB 888 W/CUPS 6-BOLTS 6" BC815-142C21. BEARING CUP LM-67010822-020C22. BEARING CONE LM-67048822-021C23. WASHER SPINDLE - 7/8804-055C24. PIN COTTER 5/32 X 1 1/2 LONG805-089C25. NUT HEX SLOTTED 7/8-14 PLT803-029C26. GREASE CAP 2.448X1.12X.25890-781C27. WHEEL BOLT 1/2-20X1 1/4 GR5802-632C28. HUB 6-BOLT SPINDLE 2X14HH 888815-216C29.

walking beam

HUB 6-BOLT SPINDLE 2X13HH 888815-214C29.

walking beam

Section 3:Transport

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2ZERK GREASE STRAIGHT 1/8-27MPT800-130C5. Rev. 1GREASE ZERK STRAIGHT 1/4-28800-001C5.

Rev. 2Used on Optional Heavy Hub center

Rev. 1Includes items 1 thru 13RPBY 815-221C570-205S14. Rev. 2Used on Optional Heavy Hub center

Rev. 1Includes items 1 thru 13RPBY 815-195C570-206S14.

Rev. 2ZERK GREASE STRAIGHT 1/8-27MPT800-130C20. Rev. 1GREASE ZERK STRAIGHT 1/4-28800-001C20.

Rev. 2Used on Standard Hub center & wing

Rev. 1Includes items 15 thru 28RPBY 815-216C550-005S29. Rev. 2Used on Standard Hub center & wing

Rev. 1Includes items 15 thru 28RPBY 815-214C550-007S29.

02/12/09 - 29 - 550-220P

Table of Contents Part Number Index

Hydraulic Depth Control Assembly (S/N 1258DD-)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00487

550-220P - 30 - 02/12/09

Table of Contents Part Number Index

Hydraulic Depth Control Assembly (S/N 1258DD-)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00487dwg DEPTH STOP BRKT 5315DV-6324DV550-162H1.

Model 5110 & 5315U-BOLT 5/8-11X3 1/32X4 1/2 SPT806-183C2. Model 6112, 6318, 6320 & 6324U-BOLT 5/8-11 X 3 1/32 X 5 1/2806-079C2.

WASHER LOCK SPRING 5/8 PLT804-022C3. NUT HEX 5/8-11 PLT803-021C4.

Cartridge #3C7272HYD VALVE DEPTH CONTROL CROSS810-511C5.

CROSS CART. ASSY FOR 810-511C3C72725. HHCS 5/16-18X2 GR5802-115C6. WASHER LOCK SPRING 5/16 PLT804-009C7. DEPTH STOP BAR 6324DV550-161H8. PIN CLEVIS 3/4 X 2 1/2 PLT805-140C9. WASHER FLAT 3/4 USS PLT804-024C10. PIN COTTER 1/8 X 1 1/2805-225C11. DEPTH STOP SLIDE580-011H12. 3/8X1 3/4 T-HANDLED SCREW575-569H13. PLUNGER - DEPTH CONTROL580-002H14. REP BY 807-216CPW015515. WASHER FLAT 1/2 USS PLT804-017C16. ROLL PIN, 1/8" X1 1/2"25022417.

Includes items 12 thru 17DEPTH STOP CONTROL ASSEMBLY580-010S18.

HHCS 3/8-16X2 GR5802-143C19. NUT LOCK 3/8-16 PLT803-013C20. DECAL DEPTH GUIDE 1 1/2838-601C21.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 31 - 550-220P

Table of Contents Part Number Index

Hydraulic Depth Control Assembly (S/N 1259DD+)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00674

550-220P - 32 - 02/12/09

Table of Contents Part Number Index

Hydraulic Depth Control Assembly (S/N 1259DD+)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00674dwg DEPTH STOP BRKT 5315DV-6324DV550-162H1.

Model 5110 & 5315U-BOLT 5/8-11X3 1/32X4 1/2 SPT806-183C2. Model 6112, 6318, 6320 & 6324U-BOLT 5/8-11 X 3 1/32 X 5 1/2806-079C2.

WASHER LOCK SPRING 5/8 PLT804-022C3. NUT HEX 5/8-11 PLT803-021C4.

Cartridge #3C7272HYD VALVE DEPTH CONTROL CROSS810-511C5.

CROSS CART. ASSY FOR 810-511C3C72725. HHCS 5/16-18X2 GR5802-115C6. WASHER LOCK SPRING 5/16 PLT804-009C7. DEPTH STOP BAR (135 1/2)550-246H8. PIN CLEVIS 3/4 X 2 1/2 PLT805-140C9. WASHER FLAT 3/4 USS PLT804-024C10. PIN COTTER 1/8 X 1 1/2805-225C11. DEPTH STOP BRACKET550-200H12. DEPTH STOP ROD 1/2" THREADED550-425D13. 550-201H550-201H14. SPRING COMP .75OD .125W 2.63LG807-216C15. WASHER FLAT 1/2 HARD ASTMF436804-094C16. 1/2-13 4XPROJECTION WELD NUT803-338C17.

Includes items 12 thru 17DEPTH STOP ASSEMBLY550-202S18.

HHCS 1/2-13X2 1/2 GR5802-130C19. WASHER LOCK SPRING 1/2 PLT804-015C20. NUT HEX 1/2-13 PLT803-020C21.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 33 - 550-220P

Table of Contents Part Number Index

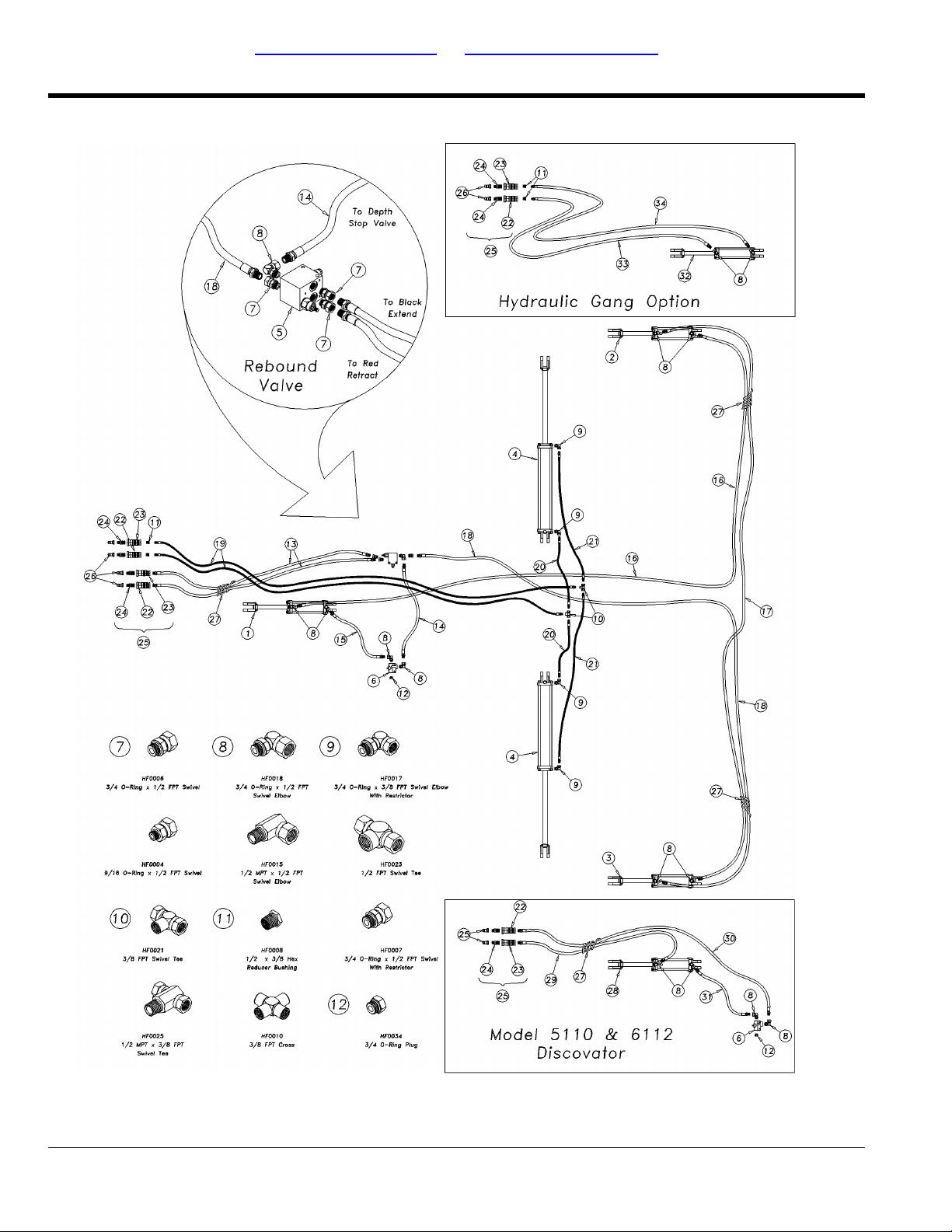

Hydraulic Layout (S/N 1219DD-)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00488

550-220P - 34 - 02/12/09

Table of Contents Part Number Index

Hydraulic Layout (S/N 1219DD-)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00488dwg

SEAL KIT MW 4 RPH CYL 4A5103810-151C1.

REP BY 4C09593C86981.

SEAL KIT MW 3.75X1.375 4A4103810-373C2.

REP BY 4C15453C87032.

SEAL KIT MW 3.5 RPHCYL 4A3104810-174C3.

REP BY 4C09633C87023.

CYL SEAL KIT MW (5A4104) 3 X 7810-015C4.

CROSS, SEAL KIT 1 1/41C46294.

CYL SEAL KIT MW (5A4104) 3 X 7810-015C4.

CROSS, SEAL KIT 1 1/41C46294.

SEAL KIT MW (5A5102) 3.5X1.25R810-149C4.

RPBY 810-146C1C44294. REBOUND VALVE810-622C5.

Cartridge #3C7272HYD VALVE DEPTH CONTROL CROSS810-511C6.

CROSS CART. ASSY FOR 810-511C3C72726. AD 3/4MORB 1/2FNPTS811-998C7. EL 1/2FNPT 3/4MORB811-280C8. OREL 1/16 3/8FNPTS 3/4MORBHF00179. TEE, 3/8" NPTFSWIVELx3/8"HF002110. AD 1/2MNPTX3/8FNPT811-869C11. PL 3/4MORB811-857C12.

Model 5315, 6318, 6320 & 63243/8 HOSE 1/2 MPT 10'6" LONG548-054D13. Model 53153/8 HOSE 1/2 MPT 3' LONG548-055D14. Model 6318, 6320 & 63243/8 HOSE 1/2 MPT 4'6" LONG548-168D14. Model 5315, 6318, 6320 & 63243/8 HOSE 1/2 MPT 3' LONG548-055D15. Model 53153/8 HOSE 1/2 MPT 22' LONG548-105D16. Model 63183/8 HOSE 1/2 MPT 23'4" LONG548-056D16. Model 63203/8 HOSE 1/2 MPT 25'9" LONG548-057D16. Model 63243/8 HOSE 1/2 MPT 25' LONG548-120D16. Model 53153/8 HOSE 1/2 MPT 15'2" LONG548-160D17. Model 63183/8 HOSE 1/2 MPT 18' LONG548-074D17. Model 63203/8 HOSE 1/2 MPT 21'4" LONG548-059D17. Model 63243/8 HOSE 1/2 MPT 20'6" LONG548-097D17. Model 53153/8 HOSE 1/2 MPT 18'6" LONG548-161D18. Model 63183/8 HOSE 1/2 MPT 20'2" LONG548-110D18. Model 63203/8 HOSE 1/2 MPT 22'3" LONG548-061D18. Model 63243/8 HOSE 1/2 MPT 21'6" LONG548-062D18. Model 5315, 6318, 6320 & 63241/4 HOSE 3/8 MPT 17' LONG548-053D19. Model 5315, 6318, 6320 & 63241/4 HOSE 3/8 MPT 2' LONG548-173D20. Model 5315, 6318, 6320 & 63241/4 HOSE 3/8 MPT 4' LONG548-018D21.

HG HANDLE - BLACK EXT811-826C22. HG HANDLE - RED RET811-827C23. AD 1/2MNPT 1/2FNPT (HG)811-858C24.

Includes items 22 thru 24HYDRA GRIP HANDLES (PAIR)550-017S25.

CP 1/2FNPT MALE QD811-856C26.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2Seal Kit# 810-151CCYL REP 4X8X1.38 ROD TIE 3000#810-138C1.

Rev. 1Seal Kit# 3C8698REPLACED BY 810-138CFC02221.

Rev. 2Seal Kit# 810-373CCYL REP 3.75X8X1.38 TIE 3000#810-480C2.

Rev. 1Seal Kit# 3C8703CYL REP 3.75X8X1.37 TIE 2500#FC02232.

Rev. 2Seal Kit# 810-174CCYL REP 3.50X8X1.25 TIE 3000#810-479C3.

Rev. 1Seal Kit# 3C8702REP BY 810-479CFC02243.

Rev. 2Model 5315, Seal Kit# 810-015CCYL 3X18X1.25ROD (TIE) 3000#810-493C4.

Rev. 1Model 5315, Seal Kit# 1C4629OBSOLETE REPLACED BY 810-493CFC11934.

Rev. 2Model 6318 & 20,Seal Kit#810-015CCYL 3X24X1.25 ROD TIE 3000#810-484C4.

Rev. 1Model 6318 & 20, Seal Kit# 1C4629CYL 3X24X1.25 ROD (TIE) 2500#FC13214.

Rev. 2Model 6324, Seal Kit# 810-149CCYL 3.5X24X1.25 ROD TIE 3000#810-485C4.

Rev. 1Model 6324, Seal Kit# 1C4429OBSOLETE REPLACED BY 810-485CFC11954.

02/12/09 - 35 - 550-220P

Table of Contents Part Number Index

Hydraulic Layout (S/N 1219DD-) (continued)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

HOSE WRAP,LARGE SIZE,SHORT(8")575-268D27. HOSE WRAP,SMALL SIZE,SHORT(8")550-123D27.

SEAL KIT MW 4 RPH CYL 4A5103810-151C28.

REP BY 4C09593C869828.

Model 5110 & 61123/8 HOSE 1/2 MPT 9' LONG548-166D29. Model 5110 & 61123/8 HOSE 1/2 MPT 10'6" LONG548-054D30. Model 51103/8 HOSE 1/2 MPT 3' LONG548-055D31. Model 61123/8 HOSE 1/2 MPT 4'6" LONG548-168D31.

CYL SEAL KIT MW (5A4104) 3 X 7810-015C32.

CROSS, SEAL KIT 1 1/41C462932. 1/4 HOSE 3/8 MPT 14'4" LONG548-049D33. 1/4 HOSE 3/8 MPT 15'4" LONG548-050D34.

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2Seal Kit# 810-151CCYL REP 4X8X1.38 ROD TIE 3000#810-138C28.

Rev. 1Seal Kit# 3C8698REPLACED BY 810-138CFC022228.

Rev. 2Seal Kit# 810-015CCYL 3X8X1.25 ROD TIE 3000#810-482C32.

Rev. 1Seal Kit# 1C4629REP BY 810-482CDC021832.

550-220P - 36 - 02/12/09

Table of Contents Part Number Index

Hydraulic Layout (S/N 1219DD-) (continued)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

This Page Intentionally Left Blank

Section 4: Hydraulics

02/12/09 - 37 - 550-220P

Table of Contents Part Number Index

Hydraulic Layout (S/N 1220DD+)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00652

550-220P - 38 - 02/12/09

Table of Contents Part Number Index

Hydraulic Layout (S/N 1220DD+)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00652dwg

Seal Kit# 810-151CCYL REP 4X8X1.38 ROD TIE 3000#810-138C1.

SEAL KIT MW 4 RPH CYL 4A5103810-151C1.

Seal Kit# 810-373CCYL REP 3.75X8X1.38 TIE 3000#810-480C2.

SEAL KIT MW 3.75X1.375 4A4103810-373C2.

Seal Kit# 810-174CCYL REP 3.50X8X1.25 TIE 3000#810-479C3.

SEAL KIT MW 3.5 RPHCYL 4A3104810-174C3.

Model 5315, Seal Kit# 810-015CCYL 3X18X1.25ROD (TIE) 3000#810-493C4.

CYL SEAL KIT MW (5A4104) 3 X 7810-015C4.

Model 6318 & 20,Seal Kit#810-015CCYL 3X24X1.25 ROD TIE 3000#810-484C4.

CYL SEAL KIT MW (5A4104) 3 X 7810-015C4.

Model 6324, Seal Kit# 810-149CCYL 3.5X24X1.25 ROD TIE 3000#810-485C4.

SEAL KIT MW (5A5102) 3.5X1.25R810-149C4. REBOUND VALVE810-622C5.

Cartridge #3C7272HYD VALVE DEPTH CONTROL CROSS810-511C6.

CROSS CART. ASSY FOR 810-511C3C72726. AD 3/4MORB 3/4MJIC811-088C7. EL 3/4MJIC 3/4MORB811-063C8.

TE 3/4MJIC811-078C10. PL 3/4MORB811-857C11.

Model 5315, 6318, 6320 & 6324HH3/8R2 126 3/4MORB 3/4FJIC811-880C12. Model 5315HH3/8R2 045 3/4FJIC811-731C13. Model 6318, 6320 & 6324HH3/8R2 057 3/4FJIC811-952C13. Model 5315, 6318, 6320 & 6324HH3/8R2 045 3/4FJIC811-731C14. Model 5315HH3/8R2 267 3/4FJIC811-966C15. Model 6318HH3/8R2 283 3/4FJIC811-969C15. Model 6320HH3/8R2 312 3/4FJIC811-971C15. Model 6324HH3/8R2 303 3/4FJIC811-889C15. Model 5315HH3/8R2 185 3/4FJIC811-967C16. Model 6318HH3/8R2 219 3/4FJIC811-970C16. Model 6320HH3/8R2 259 3/4FJIC811-972C16. Model 6324HH3/8R2 249 3/4FJIC811-912C16. Model 5315HH3/8R2 225 3/4FJIC811-663C17. Model 6318HH3/8R2 245 3/4FJIC811-938C17. Model 6320HH3/8R2 270 3/4FJIC811-973C17. Model 6324HH3/8R2 261 3/4FJIC811-961C17. Model 5315, 6318, 6320 & 6324HH3/8R2 207 3/4MORB 3/4FJIC811-965C18. Model 5315, 6318, 6320 & 6324HH3/8R2 027 3/4FJIC811-968C19. Model 5315, 6318, 6320 & 6324HH3/8R2 051 3/4FJIC811-964C20.

HG HANDLE - BLACK EXT811-826C21. HG HANDLE - BLACK RET811-913C22. AD 3/4MORB 3/4FORB (HG)811-919C23.

Includes items 21,22 & 23HG PAIR - BLACK MORB-FORB548-001S24.

CP 3/4FORB MALE QD POPPET TYPE811-394C25. HG HANDLE - GREEN EXT811-915C26. HG HANDLE - GREEN RET811-916C27.

Includes items 27, 28 & 23HG PAIR - GREEN MORB-FORB548-003S28.

HOSE WRAP,LARGE SIZE,SHORT(8")575-268D29. HOSE WRAP,SMALL SIZE,SHORT(8")550-123D29.

Seal Kit# 810-151CCYL REP 4X8X1.38 ROD TIE 3000#810-138C30.

SEAL KIT MW 4 RPH CYL 4A5103810-151C30.

Model 6112HH3/8R2 111 3/4MORB 3/4FJIC811-942C31. Model 6112HH3/8R2 126 3/4MORB 3/4FJIC811-880C32. Model 6112HH3/8R2 057 3/4FJIC811-952C33. Seal Kit# 810-015CCYL 3X8X1.25 ROD TIE 3000#810-482C34.

SEAL KIT MW 4 RPH CYL 4A5103810-151C34.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2ORIFICE PLATE 1/16 3/4MORB196-430D9. Rev. 1RPBY 196-430D811-845C9.

02/12/09 - 39 - 550-220P

Table of Contents Part Number Index

Hydraulic Layout (S/N 1220DD+) (continued)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

HH3/8R2 175 3/4MORB 3/4FJIC811-962C35. HH3/8R2 187 3/4MORB 3/4FJIC811-963C36. HG HANDLE - RED EXT811-914C37. HG HANDLE - RED RET811-827C38.

Includes items 37, 38 & 23811-914C- RED MORB-FORB548-002S39.

RevisionCommentsPart DescriptionPart No.Ref.

550-220P - 40 - 02/12/09

Table of Contents Part Number Index

Hydraulic Layout (S/N 1220DD+) (continued)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

This Page Intentionally Left Blank

Section 4: Hydraulics

02/12/09 - 41 - 550-220P

Table of Contents Part Number Index

Hydraulic Details

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00285

550-220P - 42 - 02/12/09

Table of Contents Part Number Index

Hydraulic Details

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00285dwg PIN CLEVIS 1 X 3 11/16 GR5 PLT805-124C1. PIN COTTER 3/16 X 2805-058C2. WASHER MACH 1.5X1.00X.075804-192C3. WASHER FLAT 1 USS PLT804-028C4. REBOUND VALVE810-622C5. HHCS 5/16-18X4 GR5802-279C6. WASHER LOCK SPRING 5/16 PLT804-009C7. NUT HEX 5/16-18 PLT803-008C8.

Rev. 1EYE BOLT 1-8X6 1/2 LG PLT SP802-754C9.

NUT HEX JAM 1-8 PLT803-030C10. HHCS 1-8X9 GR8 PLT802-783C11. NUT HEX 1-8 NYLON INSERTPLT803-038C12.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 43 - 550-220P

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-138C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

01202

550-220P - 44 - 02/12/09

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-138C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg01202 MIDWAY HARDENED CLEVIS ADI1M7016-ADI1. MW ROD 1 3/8 DIA2M6816NC2. MW HEAD3R58123. MW PISTON4R51094. MIDWAY TUBE5R51165. MIDWAY ADI BASE6R5164-ADI6. MW TIE ROD 4 X 10 CYLINDER7M63167.

Only in item 20MW WIPER SEAL8. Only in item 20U-CUP9. Only in item 20O-RING MIDWAY10. Only in item 20BACK UP MIDWAY11. Only in item 20TEFLON SEAL12. Only in item 20LOADER13. Only in item 20WEAR RING14. Only in item 20O-RING15.

MW PISTON NUT 1-142A002416. MW TIE ROD NUT2A001817. NUT HEX 3/8-16 PLAIN803-234C18. HHCS 3/8-16X1 3/4 GR5802-023C19. SEAL KIT MW 4 RPH CYL 4A5103810-151C20.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 45 - 550-220P

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-479C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

01202

550-220P - 46 - 02/12/09

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-479C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg01202 MIDWAY HARDENED CLEVIS ADI1M7016-ADI1. MW ROD 1 1/4 DIA2M5416NC2. MW HEAD3R34123. PISTON MIDWAY4R31094. TUBE MIDWAY5R31165. MIDWAY ADI BASE6R3164-ADI6. MW TIE ROD7M53167.

MW PISTON NUT 1-142A002416. MW TIE ROD NUT2A001617. NUT HEX 3/8-16 PLAIN803-234C18. HHCS 3/8-16X1 3/4 GR5802-023C19. SEAL KIT MW 3.5 RPHCYL 4A3104810-174C20.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 47 - 550-220P

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-480C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

01202

550-220P - 48 - 02/12/09

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-480C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg01202 MIDWAY HARDENED CLEVIS ADI1M7016-ADI1. MW ROD2M6816NC2. MW HEAD3R48123. PISTON MIDWAY4R41094. MIDWAY TUBE5R41165. MIDWAY ADI BASE6R4164-ADI6. MW TIE ROD7M73167.

MW PISTON NUT 1-142A002416. MW TIE ROD NUT2A001817. NUT HEX 3/8-16 PLAIN803-234C18. HHCS 3/8-16X1 3/4 GR5802-023C19. SEAL KIT MW 3.75X1.375 4A4103810-373C20.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 49 - 550-220P

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-482C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

01210

550-220P - 50 - 02/12/09

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-482C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg01210 MIDWAY HARDENED CLEVIS ADI1M7016-ADI1. MW ROD 1 1/4 DIA2M4416NC2. MW HEAD 3X1-1/4 ROD PT.E3R14123. MW PISTON4M41084. MW TUBE 3 X 8 CYLINDER5M41165. MIDWAY ADI BASE6R1162-ADI6. MW TIE ROD7M53167.

Only in item 18MW WIPER8. Only in item 18U-CUP9. Only in item 18O-RING MIDWAY10. Only in item 18BACK UP MIDWAY11. Only in item 18CROWN SEAL MIDWAY12. Only in item 18MW PISTON NUT SEAL13.

MW PISTON NUT 1-142A002414. MW TIE ROD NUT2A001415. NUT HEX 3/8-16 PLAIN803-234C16. HHCS 3/8-16X1 3/4 GR5802-023C17. CYL SEAL KIT MW (5A4104) 3 X 7810-015C18.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 51 - 550-220P

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-484C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

01210

550-220P - 52 - 02/12/09

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-484C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg01210 MIDWAY HARDENED CLEVIS ADI1M7016-ADI1. MIDWAY ROD2M4432NC2. MW HEAD 3X1-1/4 ROD PT.E3R14123. MW PISTON4M41084. MW TUBE5M41325. MIDWAY ADI BASE6R1162-ADI6. MW STD TIE ROD7M43327.

Only in item 18MW WIPER8. Only in item 18U-CUP9. Only in item 18O-RING MIDWAY10. Only in item 18BACK UP MIDWAY11. Only in item 18CROWN SEAL MIDWAY12. Only in item 18MW PISTON NUT SEAL13.

MW PISTON NUT 1-142A002414. MW TIE ROD NUT2A001415. NUT HEX 3/8-16 PLAIN803-234C16. HHCS 3/8-16X1 3/4 GR5802-023C17. CYL SEAL KIT MW (5A4104) 3 X 7810-015C18.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 53 - 550-220P

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-485C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

01210

550-220P - 54 - 02/12/09

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-485C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg01210 MIDWAY HARDENED CLEVIS ADI1M7016-ADI1. MIDWAY ROD2M5432NC2. MW HEAD3R34123. MW PISTON4M51084. MW TUBE 3 1/2 X 24 CYLINDER5M51325. MIDWAY ADI BASE6R3162-ADI6. MW STD TIE ROD7M53327.

Only in item 18MW WIPER8. Only in item 18U-CUP9. Only in item 18O-RING MIDWAY10. Only in item 18BACK UP MIDWAY11. Only in item 18CROWN SEAL MIDWAY12. Only in item 18MW PISTON NUT SEAL13.

MW PISTON NUT 1-142A002414. MW TIE ROD NUT2A001615. NUT HEX 3/8-16 PLAIN803-234C16. HHCS 3/8-16X1 3/4 GR5802-023C17. SEAL KIT MW (5A5102) 3.5X1.25R810-149C18.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 55 - 550-220P

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-493C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

01210

550-220P - 56 - 02/12/09

Table of Contents Part Number Index

Midway Hydraulic Cylinder (810-493C)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg01210 MIDWAY HARDENED CLEVIS ADI1M7016-ADI1. MIDWAY ROD2M4426NC2. MW HEAD 3X1-1/4 ROD PT.E3R14123. MW PISTON4M41084. MIDWAY TUBE5M41265. MIDWAY ADI BASE6R1162-ADI6. MIDWAY TIE ROD7M43267.

Only in item 18MW WIPER8. Only in item 18U-CUP9. Only in item 18O-RING MIDWAY10. Only in item 18BACK UP MIDWAY11. Only in item 18CROWN SEAL MIDWAY12. Only in item 18MW PISTON NUT SEAL13.

MW PISTON NUT 1-142A002414. MW TIE ROD NUT2A001415. NUT HEX 3/8-16 PLAIN803-234C16. HHCS 3/8-16X1 3/4 GR5802-023C17. CYL SEAL KIT MW (5A4104) 3 X 7810-015C18.

Section 4: Hydraulics

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 57 - 550-220P

Table of Contents Part Number Index

Regular Magnum Shank Assembly (S/N 1172DD-)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00347

550-220P - 58 - 02/12/09

Table of Contents Part Number Index

Regular Magnum Shank Assembly (S/N 1172DD-)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00347

(shown)SHANK 9/16X1 3/4X30 MIN DRAFT820-297C1.

SHANK 9/16X1 3/4X30 FLAT820-293C1. SPRING PLUG, TOP, LIGHT DUTY552-014D2. REP BY 807-267CFC11093. REP BY 812-148CFC03174.

Includes items 2 thru 4SPRING/PLUG SUB ASSY552-050V5.

SHANK CRADLE552-043H6. SHANK UPRIGHT F/4" TUBE552-006D7. 1X3/4X3" HARDENED BUSHINGFC03338. U-BOLT 5/8-11X4 1/32X4 3/4806-158C9.

HHCS 1/2-13X1 1/2 GR5 SPCL THD802-507C11. RHSNB 3/4-10X4 1/8 GR5 SPTHD802-485C12. NUT HEX JAM NYLOCK 3/4-10 PLT803-126C13. HHCS 1/2-13X3 GR5 SPCL THD PLT802-535C14. NUT LOCK 1/2-13 PLT803-019C15. HHCS 5/8-11X2 GR5802-055C16.

SWEEP, 1/4" X 7"820-294C18. SWEEP, 1/4" X 7" HARDFACED820-292C18. SWEEP, 1/4" X 7" ULTRAWING820-291C18. 1/4" X 9" SWEEPFC187518. 1/4" X 9 HARDFACED SWEEPFC187918. 1/4" X 9" ULTRA WING SWEEPFC204218. 1/4" X 10" SWEEPFC187618. 1/4" X10" HARDFACED SWEEPFC188018. 1/4" X10" ULTRA WING SWEEPFC204318. 1/4" X11" SWEEPFC187718.

2.00-1/4X11"HARDFACED SWEEPFC188118. 1/4" X 11" ULTRA WING SWEEPFC204418. PLOW 7/16-14X1 3/4 GR5802-090C19. WASHER FLAT 7/16 USS PLT804-204C20. NUT HEX NYLOCK 7/16-14 PLT803-245C21.

Includes items 18 thru 21SWEEP, 7" W/BOLTS575-860V22. Includes items 18 thru 21SWEEP, 7" HARDFACED W/BOLTS575-862V22. Includes items 18 thru 21SWEEP, 7" ULTRAWING W/BOLTS575-861V22. Includes items 18 thru 21SWEEP, 9" W/BOLTS570-219V22. Includes items 18 thru 21SWEEP, 9" W/BOLTS, HARDFACED575-809V22. Includes items 18 thru 21SWEEP, 9" ULTRA-WING W/BOLTS575-810V22. Includes items 18 thru 21SWEEP, 10" W/BOLTS575-807V22. Includes items 18 thru 21SWEEP, 10" W/BOLTS, HARDFACED575-767V22. Includes items 18 thru 2110" ULTRAWINGSWEEP W/BOLTS575-811V22. Includes items 18 thru 21SWEEP, 11" W/BOLTS575-808V22. Includes items 18 thru 21SWEEP, 11" W/BOLTS, HARDFACED575-804V22. Includes items 18 thru 2111" ULTRA WING SWEEP W/BOLTS575-812V22.

Section 5: Shanks & Gangs

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C10. Rev. 1Replaced by 803-271C803-024C10.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C17. Rev. 1Replaced by 803-271C803-024C17.

02/12/09 - 59 - 550-220P

Table of Contents Part Number Index

Heavy-Duty Magnum Shank Assembly (S/N 1173DD+)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00347

550-220P - 60 - 02/12/09

Table of Contents Part Number Index

Heavy-Duty Magnum Shank Assembly (S/N 1173DD+)

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00347 SHANK 5/8X1 3/4X30 MIN DRAFT820-296C1. SHANK 5/8X1 3/4X30 FLAT820-295C1. SHANK 5/8X1 3/4X30 MD OFFSET 2820-351C1. 7/16X1.5 ID TOP SPRING PLUG552-030D2.

7/16X1.5 ID BOTTOM SPRING PLUG812-143C4.

Includes items 2 thru 4HEAVYSPRING/PLUG SUB ASSY552-057V5.

SHANK CRADLE552-043H6. SHANK UPRIGHT F/4" TUBE552-006D7. 1X3/4X3" HARDENED BUSHINGFC03338. U-BOLT 5/8-11X4 1/32X4 3/4806-158C9.

2.00-1/4X11"HARDFACED SWEEPFC188118. 1/4" X 11" ULTRA WING SWEEPFC204418. PLOW 7/16-14X1 3/4 GR5802-090C19. WASHER FLAT 7/16 USS PLT804-204C20. NUT HEX NYLOCK 7/16-14 PLT803-245C21.

Section 5: Shanks & Gangs

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 1SPRING EXT 2.42OD .438W 9.69LG807-149C3.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C10. Rev. 1Replaced by 803-271C803-024C10.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C17. Rev. 1Replaced by 803-271C803-024C17.

02/12/09 - 61 - 550-220P

Table of Contents Part Number Index

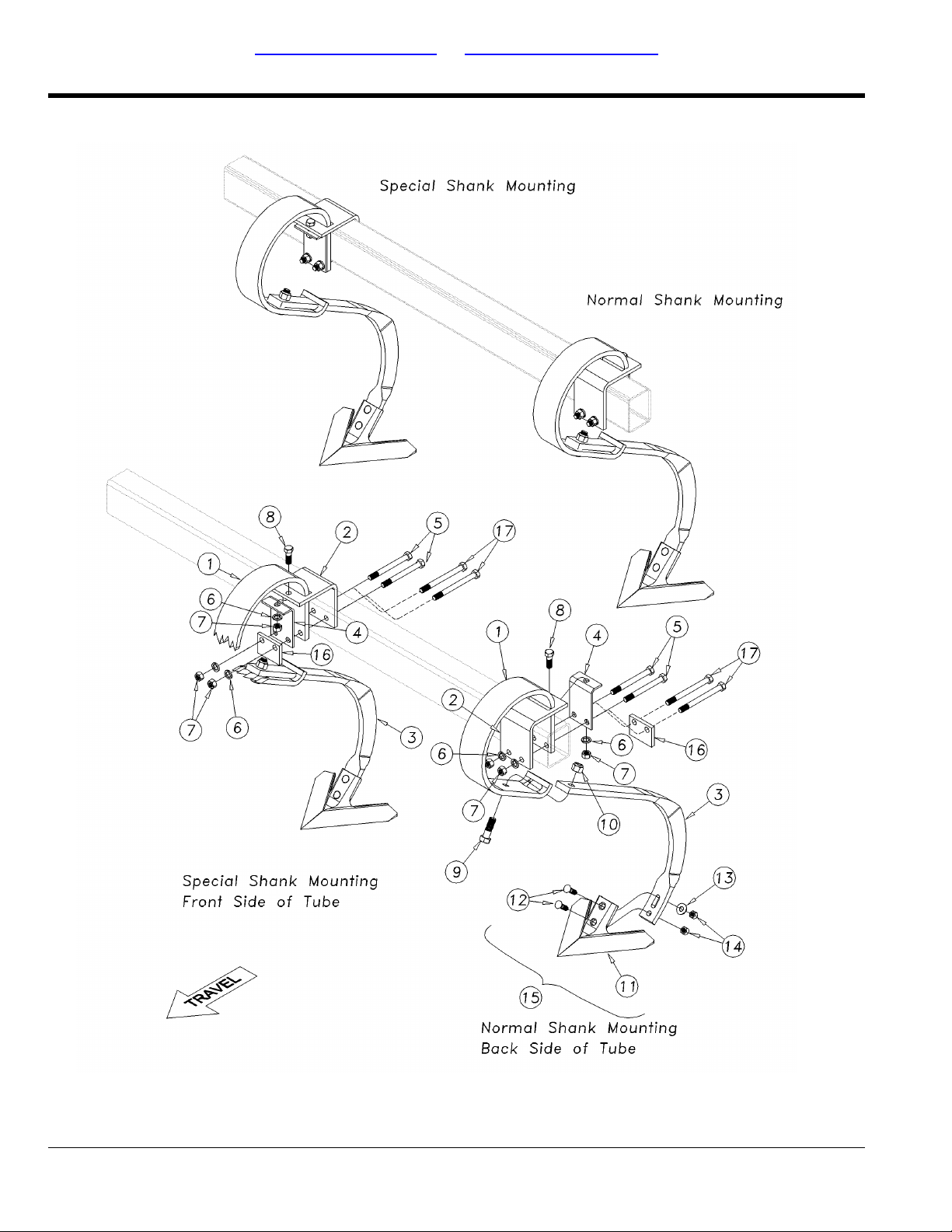

Regular K-Flex Shank Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00029

550-220P - 62 - 02/12/09

Table of Contents Part Number Index

Regular K-Flex Shank Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00029 K-FLEX SHANK 4" MOUNT820-298C1. K-FLEX CLAMP 4X3 REGULAR552-002D2.

(shown)SHANK 9/16X1 3/4X30 MIN DRAFT820-297C3.

SHANK 9/16X1 3/4X30 FLAT820-293C3. SHANK 9/16X1 3/4X30 MD OFFSET820-354C3. K-FLEX CLIP, 4552-001D4. HHCS 1/2-13X5 GR5802-045C5. WASHER LOCK SPRING 1/2 PLT804-015C6. NUT HEX 1/2-13 PLT803-020C7. HHCS 1/2-13X1 1/2 GR5802-091C8. HHCS 5/8-11X2 GR5802-055C9.

SWEEP, 1/4" X 7"820-294C11. SWEEP, 1/4" X 7" HARDFACED820-292C11. SWEEP, 1/4" X 7" ULTRAWING820-291C11. 1/4" X 9" SWEEPFC187511. 1/4" X 9 HARDFACED SWEEPFC187911. 1/4" X 9" ULTRA WING SWEEPFC204211. 1/4" X 10" SWEEPFC187611. 1/4" X10" HARDFACED SWEEPFC188011. 1/4" X10" ULTRA WING SWEEPFC204311. 1/4" X11" SWEEPFC187711.

2.00-1/4X11"HARDFACED SWEEPFC188111. 1/4" X 11" ULTRA WING SWEEPFC204411. PLOW 7/16-14X1 3/4 GR5802-090C12. WASHER FLAT 7/16 USS PLT804-204C13. NUT HEX NYLOCK 7/16-14 PLT803-245C14.

Includes items 11 thru 14SWEEP, 7" W/BOLTS575-860V15. Includes items 11 thru 14SWEEP, 7" HARDFACED W/BOLTS575-862V15. Includes items 11 thru 14SWEEP, 7" ULTRAWING W/BOLTS575-861V15. Includes items 11 thru 14SWEEP, 9" W/BOLTS570-219V15. Includes items 11 thru 14SWEEP, 9" W/BOLTS, HARDFACED575-809V15. Includes items 11 thru 14SWEEP, 9" ULTRA-WING W/BOLTS575-810V15. Includes items 11 thru 14SWEEP, 10" W/BOLTS575-807V15. Includes items 11 thru 14SWEEP, 10" W/BOLTS, HARDFACED575-767V15. Includes items 11 thru 1410" ULTRAWINGSWEEP W/BOLTS575-811V15. Includes items 11 thru 14SWEEP, 11" W/BOLTS575-808V15. Includes items 11 thru 14SWEEP, 11" W/BOLTS, HARDFACED575-804V15. Includes items 11 thru 1411" ULTRA WING SWEEP W/BOLTS575-812V15. OptionalTRIP LIMITERFL110416. Optional, required with item 16HHCS 1/2-13X5 1/2 GR5802-046C17.

Section 5: Shanks & Gangs

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C10. Rev. 1Replaced by 803-271C803-024C10.

02/12/09 - 63 - 550-220P

Table of Contents Part Number Index

Heavy K-Flex Shank Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00029

550-220P - 64 - 02/12/09

Table of Contents Part Number Index

Heavy K-Flex Shank Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00029 HVY DUTY K-FLEX SHANK MOUNT820-299C1. K-FLEX CLAMP 4X3 HD552-003D2. SHANK 5/8X1 3/4X30 MIN DRAFT820-296C3. SHANK 5/8X1 3/4X30 FLAT820-295C3. SHANK 5/8X1 3/4X30 MD OFFSET 2820-351C3. K-FLEX CLIP, 4552-001D4. HHCS 1/2-13X5 GR5802-045C5. WASHER LOCK SPRING 1/2 PLT804-015C6. NUT HEX 1/2-13 PLT803-020C7. HHCS 1/2-13X1 1/2 GR5802-091C8. HHCS 5/8-11X2 GR5802-055C9.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C10. Rev. 1Replaced by 803-271C803-024C10.

2.00-1/4X11"HARDFACED SWEEPFC188111. 1/4" X 11" ULTRA WING SWEEPFC204411. PLOW 7/16-14X1 3/4 GR5802-090C12. WASHER FLAT 7/16 USS PLT804-204C13. NUT HEX NYLOCK 7/16-14 PLT803-245C14. SWEEP, 7" W/BOLTS575-860V15. SWEEP, 7" HARDFACED W/BOLTS575-862V15. SWEEP, 7" ULTRAWING W/BOLTS575-861V15. SWEEP, 9" W/BOLTS570-219V15. SWEEP, 9" W/BOLTS, HARDFACED575-809V15. SWEEP, 9" ULTRA-WING W/BOLTS575-810V15. SWEEP, 10" W/BOLTS575-807V15. SWEEP, 10" W/BOLTS, HARDFACED575-767V15. 10" ULTRAWINGSWEEP W/BOLTS575-811V15. SWEEP, 11" W/BOLTS575-808V15. SWEEP, 11" W/BOLTS, HARDFACED575-804V15. 11" ULTRA WING SWEEP W/BOLTS575-812V15. TRIP LIMITERFL110416. HHCS 1/2-13X5 1/2 GR5802-046C17.

Section 5: Shanks & Gangs

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 65 - 550-220P

Table of Contents Part Number Index

Disc Gang Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00462

550-220P - 66 - 02/12/09

Table of Contents Part Number Index

Disc Gang Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00462dwg BEARING HANGER RH DISC GANG551-032H1. BEARING HANGER LH DISC GANG551-042H1.

Models 5315GANG BOLT, 5-BLADE 36551-082H2. Models 5315 & 6318GANG BOLT 6-BLADE 44551-078H2. Models 5110, 6318, 6320 & 6324GANG BOLT 7-BLADE 52551-079H2. Models 6320GANG BOLT, 8-BLADE 60551-080H2. Models 6112GANG BOLT, 9-BLADE 68551-033H2. Models 6324GANG BOLT, 11 BLADE 84551-264H2.

SHALLOW C-CAVITY CONVEX WASHER551-032D3. 20" DISCBLADESHALLOWCONCAVFC15674. 18" DISCBLADESHALLOWCONCAV820-274C5. 16 DISC BLADE SHALLOW CONCAVIT820-275C6. 4-1/16" HALFSPOOL551-039H7. BRG FLG 1.50ID 4BOLT SQ822-208C8. 2" HALFSPOOL551-040H9. SPOOL551-041H10. WASHER 7X1.562 DURA-TITE820-276C11. WASHER MACH 2.25 X 1.50 X 10GA804-063C12. NUT HEX SLOTTED 1 1/2-6 PLT803-301C13. PIN COTTER 1/4 X 3 PLT805-115C14. SCRAPER BAR 23 1/4551-074H15. SCRAPER, BAR, 31 1/4551-075H15. SCRAPER BAR 39 1/4551-076H15. SCRAPER BAR, 47 1/4551-077H15. SCRAPER BAR, 55 1/4551-034H15. SCRAPER BAR, 63 1/4551-408H15. SCRAPER STUB 4 3/8551-031H16. SCRAPER STUB 10 3/8551-073H16. SCRAPER STUB, 14 3/8551-272H16. SPRING LOADED SCRAPER ASSY RH551-035S17. SPRING LOADED SCRAPER ASSY LH551-043S17. RIGID SCRAPER RIGHT HAND551-037H18. RIGID SCRAPER LEFT HAND551-044H18. HHCS 1/2-13X2 1/2 GR5802-130C19. WASHER LOCK SPRING 1/2 PLT804-015C20. NUT HEX 1/2-13 PLT803-020C21. HHCS 1/2-13X2 GR5802-128C22. HHCS 1/2-13X1 1/2 GR5802-091C23. HHCS 3/8-16X2 1/2 GR5802-114C24. NUT LOCK 3/8-16 NYLON INSERT803-078C25. U-BOLT 3/8-16X1 17/32X2 1/2806-191C26. SCRAPER BRACKET, DISC551-036H27. SCRAPER BLADE RIGHT HAND551-029D28. SCRAPER BLADE LEFT HAND551-037D28. WASHER FLAT 1/2 USS PLT804-017C29. SPRING, SCRAPERFC067630. NUT LOCK 1/2-13 PLT803-019C31.

Section 5: Shanks & Gangs

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 67 - 550-220P

Table of Contents Part Number Index

Coulter Gang Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00463

550-220P - 68 - 02/12/09

Table of Contents Part Number Index

Coulter Gang Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00463dwg BEARING HANGER RH COULTER GANG551-052H1. BEARING HANGER LH COULTER GANG551-055H1. GANG BOLT, 6-BLADE, COULTER551-091H2. GANG BOLT, 7-BLADE, COULTER551-092H2. GANG BOLT, 8-BLADE, COULTER551-093H2. GANG BOLT, 9-BLADE, COULTER551-094H2. GANG BOLT, 10-BLADE, COULTER551-095H2. GANG BOLT, 11-BLADE, COULTER551-096H2. 20" TURBO COULTER DISCOVATORFC18093. RIPPLED COULTER, 20FC02203. SPOOL, FULL 7 13/16" LONG551-083H4. SPOOL, HALF LONG551-051H5. BRG FLG 1.50ID 4BOLT SQ822-208C6. SPOOL, HALF SHORT551-050H7. PART - HALF SPOOL551-048D8. WASHER MACH 2.25 X 1.50 X 10GA804-063C9. NUT HEX SLOTTED 1 1/2-6 PLT803-301C10. PIN COTTER 1/4 X 3 PLT805-115C11. HHCS 1/2-13X1 1/2 GR5802-091C12. WASHER LOCK SPRING 1/2 PLT804-015C13. NUT HEX 1/2-13 PLT803-020C14. 44" SCRAPERANGLE551-143D15. SCRAPER ANGLE, 52551-142D15. SCRAPER ANGLE, 60550-132D15. SCRAPER ANGLE 68550-133D15. SCRAPER 11 1/2551-057D16. SCRAPER - 7 1/4 LONG551-058D17. HHCS 1/2-13X2 GR5802-128C18.

Section 5: Shanks & Gangs

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 69 - 550-220P

Table of Contents Part Number Index

Gang To Gang Hanger Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00464

550-220P - 70 - 02/12/09

Table of Contents Part Number Index

Gang To Gang Hanger Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00464dwg

Model 5110DCENTER GANG HANGER RH 5110DV551-426H1. Model 5110DCENTER GANG HANGER LH 5110DV551-425H1. Model 5315DCENTER GANG HANGER RH 5315DV551-414H1. Model 5315DCENTER GANG HANGER LH 5315DV551-252H1. Model 5315DWING GANG HANGER RIGHT HAND551-191H1. Model 5315DWING GANG HANGER LEFT HAND551-190H1. Model 6112DCENTER GANG HANGER LEFT 6112DV551-199H1. Model 6112DCENTER GANG HANGER RIGHT 6112D551-198H1. Model 6318D,6320D & 6324DCENTER GANG HANGER RH551-197H1. Model 6318D,6320D & 6324DCENTER GANG HANGER LH551-196H1. Model 6318DWING GANG HANGER RIGHT HAND551-209H1. Model 6318DWING GANG HANGER LEFT HAND551-210H1. Model 6320DWING GANG HANGER RIGHT HAND551-208H1. Model 6320DWING GANG HANGER LEFT HAND551-207H1. Model 6324DWING GANG HANGER RIGHT HAND551-222H1. Model 6324DWING GANG HANGER LEFT HAND551-221H1. Model 5315CGANG HANGER, CENTER551-415H1. Model 5315CWING GANG HANGER RH551-247H1. Model 5315CWING GANG HANGER LH551-246H1. Model 6112CGANG HANGER, CENTER551-200H1. Model 6318C, 6320C & 6324CGANG HANGER, CENTER551-237H1. Model 6318CWING GANG HANGER RH551-211H1. Model 6318CWING GANG HANGER LH551-212H1. Model 6320CWING GANG HANGER RH551-214H1. Model 6320CWING GANG HANGER LH551-213H1. Model 6324CWING GANG HANGER RH551-216H1. Model 6324CWING GANG HANGER LH551-215H1. Included in item 1SWIVELCAST812-300C2.

GANG SPRING BOLT540-002H3. CUPPED WASHER550-125D4. SPRING COMP 2.88OD .499W 9.81L807-245C5. PIN 1 X 5 1/2 HRD PLT805-292C6.

PIN CLEVIS 3/4 X 2 1/2 PLT805-140C9. PIN COTTER 1/8 X 1 1/2805-225C10. WASHER FLAT 3/4 USS PLT804-024C11. U-BOLT 5/8-11 X 3 1/32 X 5 1/2806-079C12.

Center Disc ModelsU-BOLT 5/8-11X3 1/32X4 1/2 SPT806-183C12.

WASHER LOCK SPRING 5/8 PLT804-022C13. NUT HEX 5/8-11 PLT803-021C14. WASHER FLAT 1 USS PLT804-028C15. NUT HEX 1-8 PLT803-031C16. NUT HEX JAM 1-8 PLT803-030C17. RATCHET JACK890-778C18.

Section 5: Shanks & Gangs

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2HHCS 3/8-16X2 1/4 GR8 PLT802-483C7. Rev. 1Replaced by 802-483CPIN CLEVIS 3/8 X 2 PLT805-362C7. Rev. 2NUT HEX TOP LOCK 3/8-16 PLT803-123C8. Rev. 1Replaced by 803-123CPIN COTTER 1/8 X 1805-363C8.

02/12/09 - 71 - 550-220P

Table of Contents Part Number Index

Center Gang Rockshaft Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00491

550-220P - 72 - 02/12/09

Table of Contents Part Number Index

Center Gang Rockshaft Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00491dwg

Model 5110D & 5315D (shown)CENTER GANG ADJ ROCKSHAFT 5315551-349H1. Model 6112DCENTER GANG ROCKSHAFT550-018H1. Model 6318D,6320D & 6324DADJUSTABLE ROCKSHAFT, CENTER551-170H1.

HHCS 1/2-13X4 1/2 GR5802-413C2. HHCS 1/2-13X5 GR5802-045C3. NUT HEX TOP LOCK 1/2-13PLT803-342C4.

Model 5110D & 5315D10 5/8 LINK551-371H5. Model6112D,6318D,6320D & 6324DLINK, 14" ASSEMBLY551-072H5. Model5315D,6318D,6320D & 6324DTURNBUCKLE 19-24551-064S6. Model5315C, 6318C, 6320C&6324CREP BY 551-518S890-100C6.

PIN CLEVIS 1 X 3 3/8 USABLE805-351C7. WASHER MACH 1.5X1.00X.075804-192C8. PIN COTTER 3/16 X 2805-058C9.

Section 5: Shanks & Gangs

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 73 - 550-220P

Table of Contents Part Number Index

Gang Depth Indicator Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

01128

550-220P - 74 - 02/12/09

Table of Contents Part Number Index

Gang Depth Indicator Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 01128dwg

Disc modelsDEPTH INDICATOR DECAL STAND551-027H1.

550-061HUGE POINTER550-023H2.

Disc modelsDEPTH INDICATOR LINK 3 5/8 C-C551-004D3.

HHCS 1/2-13X4 GR5802-044C4. WASHER LOCK SPRING 1/2 PLT804-015C5. NUT HEX 1/2-13 PLT803-020C6. HHCS 1/2-13X1 1/2 GR5802-091C7. NUT LOCK 1/2-13 PLT803-019C8. WASHER FLAT 1/2 USS PLT804-017C9. PIN COTTER 1/8 X 1 1/2805-225C10. REP BY 848-087CK-3311.

Coulter modelsDEPTH INDICATOR DECAL STAND551-046H12. 6112C, 6318C,6320C & 6324CU-BOLT 1/2-13X3 1/32X5806-189C13. 5110C & 5315CREP BY 806-066CUB000313.

WASHER LOCK SPRING 1/2 PLT804-015C14. NUT HEX 1/2-13 PLT803-020C15.

Coulter modelsDEPTH INDICATOR LINK 11 3/4C-C551-047D16.

Section 5: Shanks & Gangs

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 75 - 550-220P

Table of Contents Part Number Index

Decals

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

01284

550-220P - 76 - 02/12/09

Table of Contents Part Number Index

Decals

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg01284 DECAL CAUTION GENERAL 4X5838-598C1. DECAL DISCOVATOR838-775C2. DECAL NOTICE TRANSPORT LOCKS838-613C3. DECAL WARNING HAND CRUSHING838-611C4. DECAL DANGER ELECTROCUTION HA838-599C5. DECAL DANGER CRUSHING HAZARD838-600C6. DECAL WARNING HYD PRESS LONG838-094C7. DECAL LOGO&GP F/STRIPE 4 X 24838-161C8. DECAL SERIES VII848-371C9. DECAL REFLECTOR AMBER 2X9838-615C10. DECAL WARNING OVERHEAD WING838-602C11. DECAL WARNING WINGS COULD FALL838-612C12. DECAL REFLECTOR RED 2X9838-614C13. DECAL REFLECTOR ORANGE 2X9838-603C14.

Section 6: Decals

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 77 - 550-220P

Table of Contents Part Number Index

S3T & S5T Spike Drag Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00799

550-220P - 78 - 02/12/09

Table of Contents Part Number Index

S3T & S5T Spike Drag Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00799 CARRIER ARM (3 ROW)575-506H1. CARRIER ARM (4/5 ROW)550-042H2. CATCH TRAY 28" (S3T)575-126D2. CATCH FOR 180 DEGREE FOLD575-124D3. BAR, 5-HOLE 41575-108D4. 6-HOLE ANGLE 50575-136D4. 7-HOLE TOOTH BAR 59575-110D4. 8-HOLE ANGLE 68575-137D4. 9-HOLE TOOTH BAR 77575-152D4. BAR, 11-HOLE 95575-112D4. BAR, 13-HOLE 113575-113D4. BAR, 15-HOLE 131575-114D4. BAR, 17-HOLE 149575-115D4. SPIKE TOOTH SQ 3/4X11820-288C5. BAR BRACKET550-135D6. DOUBLE BAR BRACKET550-043H7. LINK, SPIKE DRAG585-010D8. FRONT DRAG LINK ASSEMBLY575-512H9. 5/16" PULLCHAIN(25LINK)890-837C10. 5/16" HANGCHAIN(15LINK)890-553C11. EXTENSION BAR, 2-HOLE570-061D12. EXTENSION BAR, 4-HOLE570-062D12. U-BOLT 3/4-10X4 1/32X4 1/2806-007C13. WASHER LOCK SPRING 3/4 PLT804-023C14. NUT HEX 3/4-10 PLT803-027C15. RHSNB 5/8-11X2 7/8 SPL802-766C16.

HHCS 1/2-13X1 1/2 GR5802-091C18. HHCS 1/2-13X2 1/2 GR5802-130C19. HHCS 1/2-13X3 GR5802-039C20. NUT HEX WHIZ 1/2-13803-037C21. HHCS 7/16-14X1 1/2 GR5802-029C22. WASHER FLAT 7/16 USS PLT804-204C23. NUT HEX NYLOCK 7/16-14 PLT803-245C24. U-BOLT 3/8-16 X 1 1/8 3-CORNER806-181C25. HHCS 3/8-16X1 1/4 GR5802-079C26. HHCS 3/8-16X2 1/2 GR5802-114C27. NUT LOCK 3/8-16 PLT803-013C28.

Section 7: Attachments

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C17. Rev. 1Replaced by 803-271C803-024C17.

02/12/09 - 79 - 550-220P

Table of Contents Part Number Index

Reel Following S3T Spike Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00939

550-220P - 80 - 02/12/09

Table of Contents Part Number Index

Reel Following S3T Spike Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00939 REEL MOUNTING ARM575-522H1.

5315, 6112, 6318, 6320, 6324REEL MOUNT BRKT 4" BAR575-523H2.

REEL MOUNT BRKT 4" BARW/STOP552-106H3. SPRING BOLT, 1 X 23 LONG552-049H4.

5315, 6318PART - 5' REEL575-092D5. 5315, 6112, 6320PART - 6' REEL575-093D5. 6324PART - 7' REEL575-095D5. 6318, 6320, 6324PART - 9' REEL575-096D5. 5110,PART - 11' REEL575-098D5. 6318, 6320, 6324REEL ASSEMBLY (3 1/2')575-525H6. 5110, 5315, 6318, 6320, 63245' REEL ASSEMBLY575-526H6. 5110, 5315, 61126' REEL ASSEMBLY575-527H6. 63247' REEL WELDMENT575-524H6.

REEL MOUNTING BRACKET575-521H7. WASHER FLAT 1 USS PLT804-028C8. SPRG COMP 1 3/4ODX5/16WX11 1/2807-225C9. SPRNG COM 1 13/16ODX3/8WX2 3/4807-226C10. NUT HEX 1-8 NYLON INSERTPLT803-038C11. EYE BOLT 3/4-10X6 1/2 PLT802-768C12. NUT HEX JAM 3/4-10 PLT803-048C13. HHCS 3/4-10X5 GR5802-069C14. NUT LOCK 3/4-10 PLT803-026C15. HHCS 5/8-11X5 GR5802-062C16.

PIN CLEVIS 3/4 X 2 1/2 PLT805-140C18. WASHER FLAT 3/4 USS PLT804-024C19. PIN COTTER 1/8 X 1 1/2805-225C20. U-BOLT 5/8-11X4 1/32X4 1/4806-179C21. WASHER LOCK SPRING 5/8 PLT804-022C22. NUT HEX 5/8-11 PLT803-021C23. BRG FLG 1.50ID 4BOLT SQ822-208C24. HHCS 1/2-13X2 GR5802-128C25. WASHER RBR 1 3/8ODX9/16IDX1/2L816-429C26. WASHER FLAT 1/2 USS PLT804-017C27. ZERK GUARD ROLLING HARROW589-085D28. NUT HEX TOP LOCK 1/2-13PLT803-342C29. HHCS 3/4-10X3 1/2 GR5802-066C30. REEL BEARING SPACER575-141D31. WASHER LOCK SPRING 3/4 PLT804-023C32. U-BOLT 5/8-11X2 17/32X3 1/2806-182C33.

Section 7: Attachments

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C17. Rev. 1Replaced by 803-271C803-024C17.

02/12/09 - 81 - 550-220P

Table of Contents Part Number Index

S5T Spike Drag High Residue Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00800

550-220P - 82 - 02/12/09

Table of Contents Part Number Index

S5T Spike Drag High Residue Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00800 CARRIER ARM (5HR/7 ROW)570-187H1. CATCH TRAY 76" (S7T)570-006D2. CATCH FOR 180 DEGREE FOLD575-124D3.

63181/4" ANGLE,6HOLE,50575-301D4. 5110, 5315, 6318, 6320, 63241/4" ANGLE,7HOLE,59575-302D4. 6320, 63241/4" ANGLE,8HOLE,68575-303D4. 5315, 6112, 63241/4" ANGLE,9HOLE,77575-304D4.

SPIKE TOOTH SQ 3/4X14820-012C5. BAR BRACKET550-135D6. DOUBLE BAR BRACKET550-043H7. LINK HR SPIKE HARROW575-859H8. FRONT DRAG LINK ASSEMBLY575-512H9. 5/16" PULLCHAIN(25LINK)890-837C10. 5/16" HANGCHAIN(15LINK)890-553C11. EXTENSION BAR, 2-HOLE570-061D12. EXTENSION BAR, 4-HOLE570-062D12. U-BOLT 3/4-10X4 1/32X4 1/2806-007C13. NUT HEX 3/4-10 PLT803-027C14. WASHER LOCK SPRING 3/4 PLT804-023C15. RHSNB 5/8-11X2 7/8 SPL802-766C16.

Section 7: Attachments

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C17. Rev. 1Replaced by 803-271C803-024C17.

02/12/09 - 83 - 550-220P

Table of Contents Part Number Index

S7T Spike Drag Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00938

550-220P - 84 - 02/12/09

Table of Contents Part Number Index

S7T Spike Drag Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00938 CARRIER ARM (5HR/7 ROW)570-187H1. CATCH TRAY 76" (S7T)570-006D2. CATCH FOR 180 DEGREE FOLD575-124D3.

63186-HOLE ANGLE 50575-136D4. 5110, 5315, 6318, 6320, 63247-HOLE TOOTH BAR 59575-110D4. 6320, 63248-HOLE ANGLE 68575-137D4. 5315, 6112, 63279-HOLE TOOTH BAR 77575-152D4.

SPIKE TOOTH SQ 3/4X11820-288C5. BAR BRACKET550-135D6. DOUBLE BAR BRACKET550-043H7. LINK, SPIKE DRAG585-010D8. FRONT DRAG LINK ASSEMBLY575-512H9. 5/16" PULL CHAIN (25 LINK)890-837C10. 5/16" HANG CHAIN (15 LINK)890-553C11. EXTENSION BAR, 2-HOLE570-061D12. EXTENSION BAR, 4-HOLE570-062D12. U-BOLT 3/4-10X4 1/32X4 1/2806-007C13. NUT HEX 3/4-10 PLT803-027C14. WASHER LOCK SPRING 3/4 PLT804-023C15. RHSNB 5/8-11X2 7/8 SPL802-766C16.

Section 7: Attachments

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C17. Rev. 1Replaced by 803-271C803-024C17.

02/12/09 - 85 - 550-220P

Table of Contents Part Number Index

CH3A & CH4A Coil Tine Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00802

550-220P - 86 - 02/12/09

Table of Contents Part Number Index

CH3A & CH4A Coil Tine Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00802 DRAG MOUNTING BRACKET552-045H1. DRAG ARM FOR CH3 W/REEL575-517H2. 3 BAR SIDE PLATE LH575-139D3. 3 BAR SIDE PLATE RH575-138D3. 4 BAR SIDE PLATE LH552-023D3. 4 BAR SIDE PLATE RH552-024D3.

5315, 63183-HOLE DRAG PIPE 48575-119D4. 6112, 63204-HOLE DRAG PIPE 68575-153D4. 5315, 63245-HOLE DRAG PIPE 88575-121D4. 6318, 63206-HOLE DRAG PIPE 108575-122D4. 51107-HOLE DRAG PIPE 128575-123D4. 5315, 6318CH3 DRAG CROSS BRACE (17 1/2)575-507H5. 5110, 6112, 6320CH3 DRAG CROSS TUBE (37 1/2)575-508H5. 5315, 6324CH3 DRAG CROSS TUBE (57 1/2)575-509H5. 6318, 6320CH3 DRAG CROSS TUBE (77 1/2)575-510H5.

CH3 DRAG CROSS EXTENSION (12)575-514H6. DRAG BAR ADJUSTMENT LEVER552-046H7. DRAG ANGLE ADJUSTMENT STRAP552-018D8. DRAG BAR ADJUSTMENT BRACKET552-047H9. 3 BAR CONNECTING STRAP575-130D10. 4 BAR DRAG CONNECTING STRAP552-017D10. HEAVYCOIL TINE807-196C11. SPRING BOLT, 1 X 23 LONG552-049H12. SPRG COMP 1 3/4ODX5/16WX11 1/2807-225C13. SPRNG COM 1 13/16ODX3/8WX2 3/4807-226C14. WASHER FLAT 1 USS PLT804-028C15. NUT HEX 1-8 NYLON INSERTPLT803-038C16. EYE BOLT 3/4-10X6 1/2 PLT802-768C17. NUT HEX JAM 3/4-10 PLT803-048C18. PIN CLEVIS 3/4 X 2 1/2 PLT805-140C19. WASHER FLAT 3/4 USS PLT804-024C20. PIN COTTER 1/8 X 1 1/2805-225C21. HHCS 3/4-10X5 GR5802-069C22. NUT LOCK 3/4-10 PLT803-026C23. U-BOLT 5/8-11X2 17/32X3 1/2806-182C24. U-BOLT 5/8-11X4 1/32X4 1/4806-179C25. WASHER LOCK SPRING 5/8 PLT804-022C26. NUT HEX 5/8-11 PLT803-021C27. HHCS 5/8-11X2 GR5802-055C28. SHOULDER BOLT 5/8-11X1 3/4 SPL802-767C29.

U-BOLT 1/2-13X1 3/4X3 1/8 RND806-180C31. WASHER LOCK SPRING 1/2 PLT804-015C32. NUT HEX 1/2-13 PLT803-020C33. SCREW SET SQ HD 1/2-13X1 GR5801-054C34. 1/2-13 4XPROJECTION WELD NUT803-338C35. HHCS 1/2-13X1 1/4 GR5802-034C36. NUT LOCK 1/2-13 PLT803-019C37. HHCS 1/2-13X3 GR5802-039C38. WASHER FLAT 1/2 HARD ASTMF436804-094C39. 3/4 LONG X 1/2 TINE STOP/SPACR550-134D40. PIN WIRE RETAIN 3/8 X 1 3/4805-348C41. DRAG MOUNTING BRACKET SPECIAL552-060H42. HHCS 5/8-11X5 GR5802-062C43.

Section 7: Attachments

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C30. Rev. 1Replaced by 803-271C803-024C30.

02/12/09 - 87 - 550-220P

Table of Contents Part Number Index

Reel Following CH3A Coil Tine Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00805

550-220P - 88 - 02/12/09

Table of Contents Part Number Index

Reel Following CH3A Coil Tine Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00805dwg ARM MOUNT BRKT 2 1/2" TUBE570-185H1. CH3 REEL MOUNTING ARM575-513H2. PART - 3 1/2' REEL575-273D3.

5315, 6318PART - 5' REEL575-092D3. 6112, 6320PART - 6' REEL575-093D3. 5315, 6324PART - 6' REEL575-095D3. 6318, 6320, 6324PART - 9' REEL575-096D3. 5110PART - 11' REEL575-098D3.

PART - 12' REEL575-099D3.

6318, 6320, 6324REEL ASSEMBLY (3 1/2')575-525H4. 5110, 5315, 6318, 6318, 6320, 63245' REEL ASSEMBLY575-526H4. 5110, 6112, 63206' REEL ASSEMBLY575-527H4. 5315, 63247' REEL WELDMENT575-524H4.

REEL MOUNTING BRACKET575-521H5. CLEVIS BOLT 3/4 (22 1/4)575-516H6. EYE BOLT 3/4-10X6 1/2 PLT802-768C7. NUT HEX JAM 3/4-10 PLT803-048C8. WASHER FLAT 3/4 USS PLT804-024C9. SPRG COM 1.47ODX.31WX11 3/8 BL807-224C10. SPRNG COM 1 13/16ODX3/8WX2 3/4807-226C11. NUT LOCK 3/4-10 PLT803-026C12. PIN CLEVIS 3/4 X 2 1/2 PLT805-140C13. PIN COTTER 1/8 X 1 1/2805-225C14. HHCS 3/4-10X4 1/2 GR5802-192C15. HHCS 5/8-11X4 GR5802-060C16. WASHER LOCK SPRING 5/8 PLT804-022C17. NUT HEX 5/8-11 PLT803-021C18. U-BOLT 5/8-11X2 17/32X3 1/2806-182C19. HHCS 3/4-10X3 1/2 GR5802-066C20. REEL BEARING SPACER575-141D21. WASHER LOCK SPRING 3/4 PLT804-023C22. HHCS 1/2-13X2 GR5802-128C23. WASHER RBR 1 3/8ODX9/16IDX1/2L816-429C24. WASHER FLAT 1/2 USS PLT804-017C25. ZERK GUARD ROLLING HARROW589-085D26. NUT HEX TOP LOCK 1/2-13PLT803-342C27. BRG FLG 1.50ID 4BOLT SQ822-208C28.

Section 7: Attachments

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 89 - 550-220P

Table of Contents Part Number Index

CH3B & CH4B Coil Tine Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00803

550-220P - 90 - 02/12/09

Table of Contents Part Number Index

CH3B & CH4B Coil Tine Assembly

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No.dwg00803 DRAG MOUNTING BRACKET552-045H1. DRAG ARM552-048H2.

(Shown)4 BAR SIDE PLATELH552-023D3.

4 BAR SIDE PLATE RH552-024D3.

5315, 63183-HOLE DRAG PIPE 48575-119D4. 6112, 63204-HOLE DRAG PIPE 68575-153D4. 5315, 6324 (Shown)5-HOLE DRAG PIPE 88575-121D4. 6318, 63206-HOLE DRAG PIPE 108575-122D4. 51107-HOLE DRAG PIPE 128575-123D4.

DRAG BAR ADJUSTMENT LEVER552-046H5. DRAG BAR ADJUSTMENT BRACKET552-047H6. 3 BAR CONNECTING STRAP575-130D7.

(Shown)4 BAR DRAG CONNECTING STRAP552-017D7.

HEAVYCOIL TINE807-196C8. SPRING BOLT, 1 X 23 LONG552-049H9. SPRG COMP 1 3/4ODX5/16WX11 1/2807-225C10. SPRNG COM 1 13/16ODX3/8WX2 3/4807-226C11. WASHER FLAT 1 USS PLT804-028C12. NUT HEX 1-8 NYLON INSERTPLT803-038C13. EYE BOLT 3/4-10X6 1/2 PLT802-768C14. NUT HEX JAM 3/4-10 PLT803-048C15. PIN CLEVIS 3/4 X 2 1/2 PLT805-140C16. WASHER FLAT 3/4 USS PLT804-024C17. PIN COTTER 1/8 X 1 1/2805-225C18. HHCS 3/4-10X5 GR5802-069C19. NUT LOCK 3/4-10 PLT803-026C20. U-BOLT 5/8-11X4 1/32X4 1/4806-179C21. WASHER LOCK SPRING 5/8 PLT804-022C22. NUT HEX 5/8-11 PLT803-021C23. HHCS 5/8-11X3 1/2 GR5802-162C24. SHOULDER BOLT 5/8-11X1 3/4 SPL802-767C25.

U-BOLT 1/2-13X1 3/4X3 1/8 RND806-180C27. WASHER LOCK SPRING 1/2 PLT804-015C28. NUT HEX 1/2-13 PLT803-020C29. SCREW SET SQ HD 1/2-13X1 GR5801-054C30. 1/2-13 4XPROJECTION WELD NUT803-338C31. HHCS 1/2-13X1 1/4 GR5802-034C32. NUT LOCK 1/2-13 PLT803-019C33. HHCS 1/2-13X3 GR5802-039C34. WASHER FLAT 1/2 HARD ASTMF436804-094C35. 3/4 LONG X 1/2 TINE STOP/SPACR550-134D36. DRAG ANGLE ADJUSTMENT STRAP552-018D37. PIN WIRE RETAIN 3/8 X 1 3/4805-348C38. DRAG MOUNTING BRACKET SPECIAL552-060H39. HHCS 5/8-11X5 GR5802-062C40.

Section 7: Attachments

RevisionCommentsPart DescriptionPart No.Ref.

Rev. 2NUT HEX TOP LOCK 5/8-11 PLT803-271C26. Rev. 1Replaced by 803-271C803-024C26.

02/12/09 - 91 - 550-220P

Table of Contents Part Number Index

EZ Hitch

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00997

550-220P - 92 - 02/12/09

Table of Contents Part Number Index

EZ Hitch

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00997dwg E-Z HITCH A-FRAME ONLY570-202H1. U-BOLT 5/8-11X4 1/32X4 1/4806-179C2. WASHER LOCK SPRING 5/8 PLT804-022C3. NUT HEX 5/8-11 PLT803-021C4. HHCS 3/4-10X1 1/2 GR5802-184C5. NUT HEX JAM NYLOCK 3/4-10 PLT803-126C6. WASHER FLAT 7/8 ASTM F436 PLT804-215C7. SPRING - EZ HITCH PIN570-080D8. E-Z HITCH PIN 7/8 OD 8 1/2"L570-055D9. PIN COTTER 3/16 X 2805-058C10.

Includes items 1-10, 12EZ HCH W/SLIDE RIGID BALL JNT570-122A11. Includes items 1-10, 13-16EZ HITCH W/FLEX TONGUE570-121A11.

E-Z HITCH RIGID SLIDE585-090H12. E-Z HITCH FLEX SLIDE585-092H13. E-Z HITCH TONGUE ASSEMBLY585-093H14. HHCS 1-8X7 GR5802-075C15. NUT HEX LOCK 1-8 PLT803-316C16.

(Shown)E-Z HITCH EXTENSION, 24570-216H17.

E-Z HITCH EXTENSION, 12570-215H17. HHCS 5/8-11X2 GR5802-055C18.

Includes items 2-4, 17, 1824" HITCH EXT EZ HITCH(FC1315)570-181A19. Includes items 2-4, 17, 1812" HITCH EXT EZ HITCH(FC1314)570-180A19.

Section 7: Attachments

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 93 - 550-220P

Table of Contents Part Number Index

Extended EZ Hitch

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00998

550-220P - 94 - 02/12/09

Table of Contents Part Number Index

Extended EZ Hitch

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00998dwg REAR HITCH EXT ARMS570-218H1. REAR HITCH CROSS ARM 3X3X46585-096H2. U-BOLT 3/4-10X4 1/32X4 1/2806-007C3. WASHER LOCK SPRING 3/4 PLT804-023C4. NUT HEX 3/4-10 PLT803-027C5. U-BOLT 5/8-11X3 1/32X4 1/2 SPT806-183C6. WASHER LOCK SPRING 5/8 PLT804-022C7. NUT HEX 5/8-11 PLT803-021C8. HHCS 3/4-10X1 1/2 GR5802-184C9. NUT HEX JAM NYLOCK 3/4-10 PLT803-126C10.

Includes items 11 thru 15BOLT-ON SLEEVE ASSY W/O TONGUE585-099S11.

WASHER FLAT 7/8 ASTM F436 PLT804-215C12. SPRING - EZ HITCH PIN570-080D13. E-Z HITCH PIN 7/8 OD 8 1/2"L570-055D14. PIN COTTER 3/16 X 2805-058C15.

Includes items 1-15, 17EXTD EZ-HITCH RIGID BLJNT CH3A589-062A16. Includes items 1-15, 18-21EXTD EZ-HITCH FLEX TONGUECH3A589-061A16.

E-Z HITCH RIGID SLIDE585-090H17. E-Z HITCH FLEX SLIDE585-092H18. E-Z HITCH TONGUE ASSEMBLY585-093H19. HHCS 1-8X7 GR5802-075C20. NUT HEX LOCK 1-8 PLT803-316C21.

(Shown)E-Z HITCH EXTENSION, 24570-216H22.

E-Z HITCH EXTENSION, 12570-215H22. HHCS 5/8-11X2 GR5802-055C23.

Includes items 3-5, 22, 2324" HITCH EXT EZ HITCH(FC1315)570-181A24. Includes items 3-5, 22, 2312" HITCH EXT EZ HITCH(FC1314)570-180A24.

Section 7: Attachments

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 95 - 550-220P

Table of Contents Part Number Index

Heavy Duty 3 & 5 EZ Hitch Extension

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00999

550-220P - 96 - 02/12/09

Table of Contents Part Number Index

Heavy Duty 3 & 5 EZ Hitch Extension

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00999dwg

(Shown)LONG EXT TUBE HEAVY HITCH570-253H1.

EXTENSION TUBE HEAVY HITCH EXT570-201H1. CROSS BAR 51 HVY HITCH EXTENSN570-200H2. PLATE - HEAVY DUTY EXTENSION570-024D3. PART-HEAVY DUTY HITCH EXTENSIO570-034D4. HHCS 3/4-10X11 GR5802-359C5. WASHER LOCK SPRING 3/4 PLT804-023C6. NUT HEX 3/4-10 PLT803-027C7. U-BOLT 5/8-11X4 1/32X4 1/4806-179C8. WASHER LOCK SPRING 5/8 PLT804-022C9. NUT HEX 5/8-11 PLT803-021C10.

Includes items 1 thru 12HVY DUTY 5' EZ HITCH EXTENSION570-252A11. Includes items 1 thru 12HVY DUTY 3' EZ HITCH EXTENSION570-123A11.

Section 7: Attachments

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 97 - 550-220P

Table of Contents Part Number Index

Rear Hitch Accessory Mount Kit

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

00941

550-220P - 98 - 02/12/09

Table of Contents Part Number Index

Rear Hitch Accessory Mount Kit

(Applies to 5110DV, 5315DV, 6112DV, 6318DV, 6320DV, 6324DV only)

Image No. 00941dwg REAR HITCH ACCESSORY MOUNT570-096D1. U-BOLT 1/2-13X4 1/32X4806-206C2. WASHER LOCK SPRING 1/2 PLT804-015C3. NUT HEX 1/2-13 PLT803-020C4. HHCS 5/16-18X1 1/4 GR5802-010C5. WASHER LOCK SPRING 5/16 PLT804-009C6. NUT HEX 5/16-18 PLT803-008C7. SNAP RING EXT 1 1/2 HEAVY800-290C8.

Includes items 1 thru 8REAR HITCH ACC MOUNT KIT570-430V9.

Section 7: Attachments

RevisionCommentsPart DescriptionPart No.Ref.

02/12/09 - 99 - 550-220P

Table of Contents Part Number Index

Part Number Index

The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.

PagePart Number

1M7016-ADI ..............

2A0024 ......................

39196-430D ...................

351C4429 ......................

35, 361C4629 ......................

45, 47, 49, 51, 53, 55, 57

31250224 ......................

51, 53, 572A0014 ......................

47, 552A0016 ......................

45, 492A0018 ......................

45, 47, 49, 51, 53, 55, 57

512M4416NC ................

572M4426NC ................

532M4432NC ................

472M5416NC ................

552M5432NC ................

45, 492M6816NC ................

31, 33, 35, 393C7272 ......................

35, 363C8698 ......................

353C8702 ......................

353C8703 ......................

51, 53, 573R1412 ......................

47, 553R3412 ......................

493R4812 ......................

453R5812 ......................

51, 53, 574M4108 .....................

554M5108 .....................

474R3109 ......................

494R4109 ......................

454R5109 ......................

71540-002H ...................

13540-056D ...................

39548-001S ...................

40548-002S ...................

39548-003S ...................

35548-018D ...................

36548-049D ...................

36548-050D ...................

35548-053D ...................

35, 36548-054D ...................

35, 36548-055D ...................

35548-056D ...................

35548-057D ...................

35548-059D ...................

35548-061D ...................

35548-062D ...................

35548-074D ...................

35548-097D ...................

35548-105D ...................

35548-110D ...................

35548-120D ...................

35548-160D ...................

35548-161D ...................

36548-166D ...................

35, 36548-168D ...................

35548-173D ...................

9550-001H ...................

11550-003H ...................

21550-004L ...................

21, 27, 29550-005S ...................

27550-006H ...................

21, 27, 29550-007S ...................

21550-008H ...................

9550-009H ...................

9550-010H ...................

11550-011H ...................

11550-013S ...................

29550-014D ...................

11550-014H ...................

21, 27550-015D ...................

11550-015H ...................

11550-016H ...................

29550-017D ...................

35550-017S ...................

19, 25, 29550-018D ...................

73550-018H ...................

75550-023H ...................

11550-024H ...................

9550-027H ...................

11550-028H ...................

7550-029H ...................

7550-030H ...................

11550-035H ...................

11550-037H ...................

79550-042H ...................

79, 83, 85550-043H ...................

7550-068H ...................

7550-071D ...................

7550-081H ...................

7550-084H ...................

13550-091H ...................

13550-092H ...................

13550-120H ...................

13550-121H ...................

13550-122H ...................

36, 39550-123D ...................

13550-123H ...................

7550-124D ...................

13550-124H ...................

71550-125D ...................

13550-125H ...................

69550-132D ...................

69550-133D ...................

87, 91550-134D ...................

79, 83, 85550-135D ...................

7550-144H ...................

13550-145H ...................

13550-146H ...................

7550-147H ...................

7550-155H ...................

7550-159H ...................

31550-161H ...................

31, 33550-162H ...................

7550-189H ...................

33550-200H ...................

33550-201H ...................

33550-202S ...................

33550-246H ...................

33550-425D ...................

75551-004D ...................

75551-027H ...................

7551-028H ...................

67551-029D ...................

67551-031H ...................

67551-032D ...................

67551-032H ...................

67551-033H ...................

67551-034H ...................

67551-035S ...................

67551-036H ...................

67551-037D ...................

67551-037H ...................

67551-039H ...................

67551-040H ...................

67551-041H ...................

67551-042H ...................

67551-043S ...................

67551-044H ...................

75551-046H ...................

75551-047D ...................

7551-047H ...................

69551-048D ...................

69551-050H ...................

69551-051H ...................

69551-052H ...................

69551-055H ...................

69551-057D ...................

69551-058D ...................

73551-064S ...................

73551-072H ...................

67551-073H ...................

67551-074H ...................

67551-075H ...................

67551-076H ...................

67551-077H ...................

67551-078H ...................

67551-079H ...................

67551-080H ...................

67551-082H ...................

69551-083H ...................

69551-091H ...................

69551-092H ...................

69551-093H ...................

69551-094H ...................

69551-095H ...................

69551-096H ...................

69551-142D ...................

69551-143D ...................

73551-170H ...................

7551-175H ...................

7551-176H ...................

71551-190H ...................

71551-191H ...................

71551-196H ...................

71551-197H ...................

71551-198H ...................

71551-199H ...................

71551-200H ...................

71551-207H ...................

71551-208H ...................

71551-209H ...................

71551-210H ...................

71551-211H ...................

71551-212H ...................

71551-213H ...................

71551-214H ...................

71551-215H ...................

71551-216H ...................

71551-221H ...................

71551-222H ...................

71551-237H ...................

71551-246H ...................

71551-247H ...................

71551-252H ...................

67551-264H ...................

67551-272H ...................

13551-275H ...................

13551-276H ...................

13551-277H ...................

13551-278H ...................

13551-279H ...................

13551-280H ...................

13551-281H ...................

13551-282H ...................

13551-283H ...................

13551-284H ...................

13551-285H ...................

13551-286H ...................

7551-348H ...................

73551-349H ...................

13551-350H ...................

13551-351H ...................

13551-352H ...................

13551-353H ...................

7551-354H ...................

73551-371H ...................

67551-408H ...................

71551-414H ...................

71551-415H ...................

7551-418H ...................

71551-425H ...................

71551-426H ...................

63, 65552-001D ...................

63552-002D ...................

65552-003D ...................

59, 61552-006D ...................

59552-014D ...................

87, 91552-017D ...................

87, 91552-018D ...................

87, 91552-023D ...................

87, 91552-024D ...................

61552-030D ...................

59, 61552-043H ...................

87, 91552-045H ...................

87, 91552-046H ...................

87, 91552-047H ...................

91552-048H ...................

81, 87, 91552-049H ...................

59552-050V ...................

61552-057V ...................

87, 91552-060H ...................

81552-106H ...................

7560-001H ...................

13560-003H ...................

9560-035D ...................

7560-065H ...................

27560-079L ...................

13560-115H ...................

13560-116H ...................

13560-117H ...................

13560-118H ...................

7560-152H ...................

13560-176D ...................

7560-209H ...................

83, 85570-006D ...................

97570-024D ...................

97570-034D ...................

93, 95570-055D ...................

17, 23570-058D ...................

79, 83, 85570-061D ...................

79, 83, 85570-062D ...................

29570-067D ...................

93, 95570-080D ...................

99570-096D ...................

93570-121A ...................

93570-122A ...................

97570-123A ...................

93, 95570-180A ...................

93, 95570-181A ...................

89570-185H ...................

83, 85570-187H ...................

21570-188L ...................

97570-200H ...................

97570-201H ...................

93570-202H ...................

21, 27, 29570-205S ...................

19, 21, 25, 27, 29570-206S ...................

27570-207L ...................

17, 23570-214S ...................

93, 95570-215H ...................

550-220P - 100 - 02/12/09

Great Plains 6324DV User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
