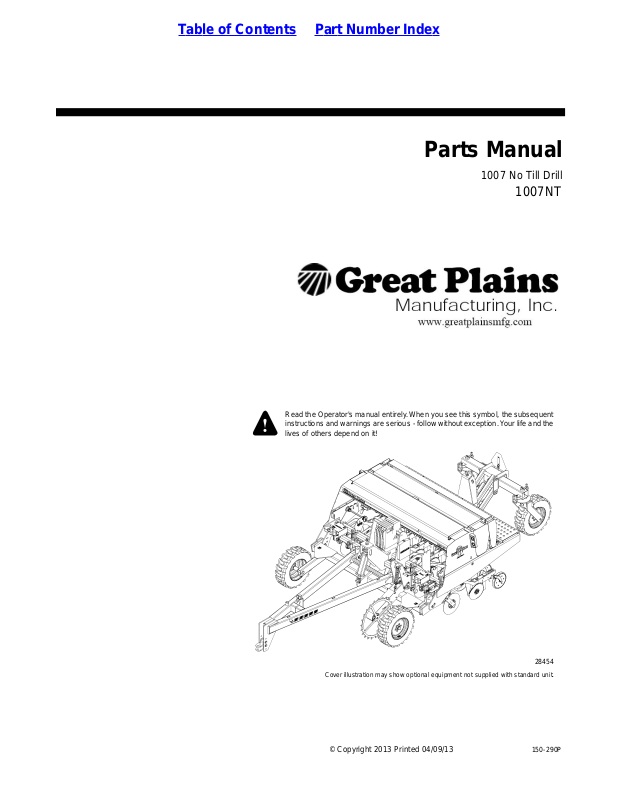

Great Plains 1007NT User Manual

Table of Contents Part Number Index

Parts Manual

1007 No Till Drill

1007NT

Read the Operator's manual entirely.When you see this symbol, the subsequent
instructions and warnings are serious - follow without exception.Your life and the
lives of others depend on it!

28454

Cover illustration may show optional equipment not supplied with standard unit.

© Copyright 2013 Printed 04/09/13 150-290P

Table of Contents Part Number Index

Table of Contents

Section 1: Introduction.................................................4

Using This Manual...............................................................4

Manual Replacement Information.......................................4

Manual Revisions................................................................4

Touch-up Paint....................................................................4

Hardware Legend................................................................5

Replacement Hardware......................................................5

Serial Numbers...................................................................5

Part Number Service Coding..............................................5

Frames............................................................................6

Hitch to Tongue...................................................................6

Tongue to Frame.................................................................8

Walkboard and Ladder Mounts.........................................10

Grease Bank.....................................................................12

Weight Bracket..................................................................14

Light Kit.............................................................................16

Export Light Kit..................................................................18

Box Assembly..............................................................20

Box to Frame.....................................................................20

Box Lid..............................................................................22

Fertilizer Box Mounting.....................................................24

Fertilizer Lid Assembly......................................................26

Small Seeds Box Mounting...............................................28

Small Seeds Box...............................................................30

Native Grass Box Components.........................................32

Native Grass Tray to Box...................................................34

Agitator Mounting..............................................................36

Seed Level Indicator..........................................................38

Transport......................................................................40

Guage Wheel to Frame.....................................................40

Lift Assist...........................................................................42

Guage Wheel Breakdown.................................................46

Metering.......................................................................48

6" Feeder Cup Assembly..................................................48

7 1/2" Feeder Cup Assembly............................................50

Small Seeds Metering.......................................................52

Fertilizer Metering.............................................................54

Fertilizer Tray Adjustment Assembly.................................56

Fertilizer Trays, Gates And Shafts.....................................58

Native Grass Feeder Cup Assembly.................................60

Seed Rate Handle.............................................................62

Drive.............................................................................64

Ground Drive.....................................................................64

LH Gearbox and Drive.......................................................66

Small Seeds Drive Assembly............................................68

Small Seeds Drive With Fertilizer......................................70

Native Grass Drive............................................................72

Agitator Drive....................................................................74

Fertilizer Drive Assembly...................................................76

Gearbox (890-282C).........................................................78

Openers........................................................................80

Coulter...............................................................................80

Native Grass Seed Tube...................................................82

Opener..............................................................................84

5" & 6" Seed Lok...............................................................86

Small Seeds Hose Retainer..............................................88

Fertilizer Hose Retainer and Dual Seed Placement..........90

Press Wheels...............................................................92

1" x 12" Double Press Wheel............................................92

1.25" x 13.5" Double Press Wheel....................................94

2" x 13" Smooth Crown Press Wheel................................96

3" x 13" V-Crown Press Wheel..........................................98

Hydraulics..................................................................100

Hydraulics.......................................................................100

Hydraulic Depth Stop......................................................102

Hydraulic Cylinder (810-539C)........................................104

Midway Hydraulic Cylinder (810-395C)...........................106

Decals.........................................................................108

Decals.............................................................................108

Part Number Index.....................................................110

© Copyright 2013 All rights reserved Printed 04/09/13

Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the
preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from
the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as it sees fit. This publication describes
the state of this product at the time of its publication, and may not reflect the product in the future.

The following are trademarks of Great Plains Mfg., Inc.: Application Systems, Ausherman, Land Pride, Great Plains

All other brands and product names are trademarks or registered trademarks of their respective holders.

150-290P - 2 - 04/09/13

Great Plains Manufacturing, Incorporated Trademarks

Printed in the United States of America.

Table of Contents Part Number Index

Alphabetized Table of Contents

Selected Models

1

1" x 12" Double Press Wheel.......................................92

1.25" x 13.5" Double Press Wheel...............................94

2

2" x 13" Smooth Crown Press Wheel...........................96

3

3" x 13" V-Crown Press Wheel.....................................98

5

5" & 6" Seed Lok..........................................................86

6

6" Feeder Cup Assembly..............................................48

7

7 1/2" Feeder Cup Assembly........................................50

A

Agitator Drive................................................................74

Agitator Mounting.........................................................36

B

Box Lid.........................................................................22

Box to Frame................................................................20

C

Coulter..........................................................................80

D

Decals........................................................................108

E

Export Light Kit.............................................................18

Hydraulic Cylinder (810-539C)...................................104

Hydraulic Depth Stop.................................................102

Hydraulics...................................................................100

L

LH Gearbox and Drive..................................................66

Lift Assist......................................................................42

Light Kit........................................................................16

M

Midway Hydraulic Cylinder (810-395C)......................106

N

Native Grass Box Components....................................32

Native Grass Drive.......................................................72

Native Grass Feeder Cup Assembly............................60

Native Grass Seed Tube...............................................82

Native Grass Tray to Box..............................................34

O

Opener.........................................................................84

S

Seed Level Indicator.....................................................38

Seed Rate Handle........................................................62

Small Seeds Box..........................................................30

Small Seeds Box Mounting..........................................28

Small Seeds Drive Assembly.......................................68

Small Seeds Drive With Fertilizer.................................70

Small Seeds Hose Retainer.........................................88

Small Seeds Metering..................................................52

T

Tongue to Frame............................................................8

W

Walkboard and Ladder Mounts....................................10

Weight Bracket.............................................................14

F

Fertilizer Box Mounting.................................................24

Fertilizer Drive Assembly..............................................76

Fertilizer Hose Retainer and Dual Seed Placement.....90

Fertilizer Lid Assembly.................................................26

Fertilizer Metering........................................................54

Fertilizer Tray Adjustment Assembly.............................56

Fertilizer Trays, Gates And Shafts................................58

G

Gearbox (890-282C)....................................................78

Grease Bank................................................................12

Ground Drive................................................................64

Guage Wheel Breakdown............................................46

Guage Wheel to Frame................................................40

H

Hitch to Tongue..............................................................6

04/09/13 - 3 - 150-290P

Table of Contents Part Number Index

150-290P - 4 - 04/09/13

Table of Contents Part Number Index

04/09/13 - 5 - 150-290P

Hitch to Tongue

(Applies to 1007NT only)

Table of Contents Part Number Index

28384

150-290P - 6 - 04/09/13

Hitch to Tongue

(Applies to 1007NT only)

Image No.dwg28384
1007 TONGUEWELDMENT151-154H1.
U-BOLT 1/2-13 X 6 1/32 X 5 1/4806-034C2.
HOSE RETAINER 1007151-345D3.
WASHER LOCK SPRING 1/2 PLT804-015C4.
NUT HEX 1/2-13 PLT803-020C5.
HHCS 1/4-20X3/4 GR5802-004C6.
7-PIN CONNECTORHOLDER833-492C7.
WASHER LOCK SPRING 1/4 PLT804-006C8.
NUT HEX 1/4-20 PLT803-006C9.
NUT HEX 3/4-10 PLT803-027C10.
WASHER LOCK SPRING 3/4 PLT804-023C11.
SAFETY CHAIN WASHER177-587D12.
SAFETY CHAIN 10000 LB890-182C13.
HHCS 3/4-10X2 1/2 GR5802-212C14.
NUT LOCK 3/4-10 PLT803-026C15.
WASHER FLAT 3/4 USS PLT804-024C16.
CLEVIS HITCH WELDMENT177-527H17.
HHCS 3/4-10X6 1/2 GR5802-360C18.
HHCS 1-8X5 1/2 GR5802-205C19.
WASHER FLAT 1 USS PLT804-028C20.
NUT HEX 1-8 NYLON INSERT PLT803-038C21.
HITCH SPACER TUBE177-591D22.
BALL SWIVEL MOUNT WELDMENT177-526H23.
HHCS 1-8X4 1/2 GR5802-098C24.
WASHER FLAT 5/8 USS PLT804-019C25.
HHCS 5/8-11X4 GR5802-060C26.
BALL SWIVEL MOUNT BOTTOM PLATE177-589D27.
NUT HEX NYLOCK 5/8-11 PLT803-148C28.
PINTLE HOOK SQ.BASE BDB1250-15890-806C29.
NUT HEX 5/8-11 PLT803-021C30.
WASHER LOCK SPRING 5/8 PLT804-022C31.
PINTLE HITCH WELDMENT177-535H32.
HHCS 5/8-11X2 1/4 GR5802-057C33.
SCREW JACK 30' DRILLS890-007C34.

Table of Contents Part Number Index

Frames

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 7 - 150-290P

Tongue to Frame

(Applies to 1007NT only)

Table of Contents Part Number Index

28381

150-290P - 8 - 04/09/13

Tongue to Frame

(Applies to 1007NT only)

Image No.dwg28381
1007 TONGUEWELDMENT151-154H1.
1007 NT FRAME WELDMENT151-161H2.
40P ROCKSHAFT PIN WELDMENT196-288H3.
1 1/4 WEAR SLEAVE160-007D4.
WASHER FLAT 1 1/4 SAE PLT804-039C5.
PIN ROLL 3/8 X 2 PLT805-249C6.

Table of Contents Part Number Index

Frames

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 9 - 150-290P

Table of Contents Part Number Index

Walkboard and Ladder Mounts

(Applies to 1007NT only)

28386

150-290P - 10 - 04/09/13

Table of Contents Part Number Index

Walkboard and Ladder Mounts

(Applies to 1007NT only)

Image No.dwg28386
1006 WALKBOARD119-296D1.
HHCS 3/8-16X1 1/4 GR5802-079C2.
3-PT STEP RETAINER119-032D3.
WASHER FLAT 3/8 USS PLT804-011C4.
WASHER LOCK SPRING 3/8 PLT804-013C5.
NUT HEX 3/8-16 PLT803-014C6.
1007 NT FRAME WELDMENT151-161H7.
3P1006NT FERTILIZERWALKBOARD142-318D8.
1006 SEED WALKBOARD WELDMENT119-303H9.
LADDER MOUNT151-382D10.
706/1006 LADDER WELDMENT119-299H11.
1/2' MOUNT SPACER195-253D12.
HHCS 1/2-13X1 1/4 GR5802-034C13.
NUT LOCK 1/2-13 PLT803-019C14.
WASHER FLAT 7/16 USS PLT804-204C15.
NUT HEX LOCK 7/16-14 PLT803-200C16.
HHCS 7/16-14X1 1/4 GR5 PLT802-673C17.

Frames

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 11 - 150-290P

Grease Bank

(Applies to 1007NT only)

Table of Contents Part Number Index

28392

150-290P - 12 - 04/09/13

Grease Bank

(Applies to 1007NT only)

Image No.dwg28392
GREASE BANK149-553D1.
GREASE BANK MOUNTING BRACKET149-554D2.
HHCS 1/2-13X1 1/4 GR5802-034C3.
WASHER FLAT 1/2 USS PLT804-017C4.
WASHER LOCK SPRING 1/2 PLT804-015C5.
NUT HEX 1/2-13 PLT803-020C6.
HHCS 3/8-16X3/4 GR5802-014C7.
WASHER FLAT 3/8 USS PLT804-011C8.
NUT LOCK 3/8-16 NYLON INSERT803-078C9.
AD PUSH 1/4 TUBE 1/8 FNPT800-449C10.
GREASE ZERK STRAIGHT 1/8-27NPT800-130C11.
TUBE NYLON 1/4OD X 062WL990-109R12.
GREASE ADAPT1/4-28M X 1/4 TB800-211C13.

Table of Contents Part Number Index

Frames

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 13 - 150-290P

Weight Bracket

(Applies to 1007NT only)

Table of Contents Part Number Index

28391

150-290P - 14 - 04/09/13

Weight Bracket

(Applies to 1007NT only)

Image No.dwg28391
HHCS 5/8-11X2 GR5802-055C1.
1006 WB ADJUSTMENT LEG RH151-219D2.
1006 WB ADJUSTMENT LEG LH151-218D2.
WASHER FLAT 5/8 USS PLT804-019C3.
WASHER LOCK SPRING 5/8 PLT804-022C4.
NUT HEX 5/8-11 PLT803-021C5.
1007 NT FRAME WELDMENT151-161H6.

Table of Contents Part Number Index

Frames

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 15 - 150-290P

Light Kit

(Applies to 1007NT only)

Table of Contents Part Number Index

28433

150-290P - 16 - 04/09/13

Light Kit

(Applies to 1007NT only)

Image No.dwg28433
HARNEES, EXTENSION 20 FT147055591.
CABLE TIE .31X21.5 6DIA 120LB800-082C2.
SCREW CS 6-32X3/4801-073C3.
WASHER LOCK #6 SS804-050C4.
NUT HEX 6-32 SS803-065C5.
LIGHT HARNSS, ENHANCE MODULE890-924C6.
CEQ AGHARNESS 7' -6147055607.
LIGHT, DUAL RH147270158.
SCR HEX SELF TAP 1/4-20X1TYPEF801-151C9.
LAMP, DUAL LH1472601410.

Table of Contents Part Number Index

Frames

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 17 - 150-290P

Export Light Kit

(Applies to 1007NT only)

Table of Contents Part Number Index

28447

150-290P - 18 - 04/09/13

Export Light Kit

(Applies to 1007NT only)

Image No.dwg28447

CABLE TIE .31X21.5 6DIA 120LB800-082C2.
CABLE TIE .19X14.25 3DIA 50LB800-060C3.
HHCS 3/8-16X3/4 GR5802-014C4.
FLUORESCENT PANEL SQ RED/WHITE833-398C5.
3X2 CLEAR OVAL LIGHT833-389C6.
FRONT SIGN MOUNT WELDMENT151-157H7.
HHCS 3/8-16X1 GR5802-017C8.
WASHER LOCK SPRING 3/8 PLT804-013C9.
NUT HEX 3/8-16 PLT803-014C10.
NUT NYLOCK JAM THIN 3/8-16 PLT803-215C11.
U-BOLT 5/8-11 X 6 X 3 1/2806-058C12.
REAR SIGN MOUNT WELDMENT151-158H13.
NUT HEX JAM NYLOCK 5/8-18 PLT803-302C14.
REAR LIGHT BRKT151-324D15.
LH 4 1/2 ROUND LIGHT RED/AMBER833-388C16.
RED TRIANGLE REFLECTOR833-399C17.

Table of Contents Part Number Index

Includes items 5, 6, 16, 17 & 181007NT LIGHT HARNESS833-502C1.

Frames

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 19 - 150-290P

Box to Frame

(Applies to 1007NT only)

Table of Contents Part Number Index

28393

150-290P - 20 - 04/09/13

Box to Frame

(Applies to 1007NT only)

Image No.dwg28393
1007 NT FRAME WELDMENT151-161H1.
NUT HEX 1/2-13 PLT803-020C2.
WASHER LOCK SPRING 1/2 PLT804-015C3.
WASHER FLAT 1/2 USS PLT804-017C4.
HHCS 1/2-13X1 1/4 GR5802-034C5.
1006 SEED BOX WELDMENT150-249H6.
HFS 5/16-18X3/4 GR5802-387C7.
NUT HEX 5/16-18 PLT803-008C8.
WASHER LOCK SPRING 5/16 PLT804-009C9.
BRG CUTOUTCOVER, 47 MST118-403D10.
RHSNB 5/16-18X3/4 GR5802-092C11.
NUT HEX FLANGE 5/16-18 PLT803-199C12.
SEED BOX PARTITION118-402D13.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C14.
HANDLE119-190D15.
HFSS 1/2-13X1 1/2 GR5802-203C16.

Table of Contents Part Number Index

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 21 - 150-290P

Box Lid

(Applies to 1007NT only)

Table of Contents Part Number Index

13973

150-290P - 22 - 04/09/13

Box Lid

(Applies to 1007NT only)

Image No.dwg13973
RHSNB 3/8-16X2 GR5802-411C1.
LID HINGE BASE PLATE313-176D2.
LID HINGE PIVOT313-186D3.
NUT FLANGE LOCK 3/8-16 PLT803-209C4.
LID HINGE ASSEMBLYPS25120313-076S5.
NUT LOCK 5/16-18 PLT803-011C6.
BALL STUD 10MM X 5/16-18 X 1/2800-121C7.
WASHER FLAT 5/16 SAE PLT804-036C8.
HHCS 5/16-18X1 1/4 NYL802-425C9.
LID HANDLE119-154D10.
12-20 X 90 LB GAS SPRING890-221C11.
SPRING .540 O.D.X 1 1/4 X.054W807-106C12.
LID LATCH817-805C13.
1006 SEED BOX LID WELDMENT119-298H14.
NUT FLANGE LOCK 3/8-16 PLT803-209C15.
WASHER FLAT 3/8 USS PLT804-011C16.
HHCS 3/8-16X1 GR5802-017C17.

Table of Contents Part Number Index

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 23 - 150-290P

Table of Contents Part Number Index

Fertilizer Box Mounting

(Applies to 1007NT only)

28394

150-290P - 24 - 04/09/13

Table of Contents Part Number Index

Fertilizer Box Mounting

(Applies to 1007NT only)

Image No.dwg28394
1006 FERTILIZERBOX WELDMENT142-879H1.
HFSS 1/2-13X1 1/2 GR5802-203C2.
HANDLE119-190D3.
HHCS 1/2-13X1 GR5802-258C4.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C5.
WASHER LOCK SPRING 1/2 PLT804-015C6.
NUT HEX 1/2-13 PLT803-020C7.
FERT BOX MOUNT BRACKET142-256D8.
FERT BOX PARTITION142-236D9.
HFS 5/16-18X3/4 GR5802-387C10.
NUT HEX FLANGE 5/16-18 PLT803-199C11.
HHCS 1/2-13X1 1/4 GR5802-034C12.
DECAL 1007 NT848-330C13.
DECAL W/ 4 COLOR STRIPE818-414C14.
DECAL GP W/ LOGO AND STRIPE818-415C15.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 25 - 150-290P

Table of Contents Part Number Index

Fertilizer Lid Assembly

(Applies to 1007NT only)

16240

150-290P - 26 - 04/09/13

Table of Contents Part Number Index

Fertilizer Lid Assembly

(Applies to 1007NT only)

Image No.dwg16240
1006 NG/FERT/.BOX LID202-508H1.
LID HANDLE142-141D2.
WASHER FLAT 5/16 SAE PLT804-036C3.
HHCS 5/16-18X1 1/4 NYL802-425C4.
SPRING .540 O.D.X 1 1/4 X.054W807-106C5.
LID LATCH817-805C6.
NUT LOCK 5/16-18 PLT803-011C7.
BALL STUD 10MM X 5/16-18 X 1/2800-121C8.
9 1/4-15 X 70LB GAS SPRING890-308C9.
RHSNB 3/8-16X2 GR5802-411C10.
FERT BOX LID HINGE L.H.142-263D11.
FERT BOX LID HINGE R.H.142-264D11.
LID HINGE PIVOT313-186D12.
NUT FLANGE LOCK 3/8-16 PLT803-209C13.
RHSNB 3/8-16X1 GR5802-015C14.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 27 - 150-290P

Table of Contents Part Number Index

Small Seeds Box Mounting

(Applies to 1007NT only)

28398

150-290P - 28 - 04/09/13

Table of Contents Part Number Index

Small Seeds Box Mounting

(Applies to 1007NT only)

Image No.dwg28398
HANDLE MOUNT LH CHAIN GUARD123-491D1.
HANDLE MOUNT RH CHAIN GUARD123-492D2.
706/1006 SGS DRIVE BRACKET133-238H3.
3PT SML SDS BOX MNT RH NON DRV123-829H4.
HFSS 1/2-13X1 1/2 GR5802-203C5.
HANDLE119-190D6.
HHCS 1/2-13X1 GR5802-258C7.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C8.
HFS 3/8-16X1 GR5802-388C9.
WASHER LOCK SPRING 1/2 PLT804-015C10.
NUT HEX 1/2-13 PLT803-020C11.
NUT HEX 3/8-16 PLT803-014C12.
BEARING PLATE - ASSEMBLY123-580D13.
DECAL W/ 4 COLOR STRIPE818-414C14.
DECAL GP W/ LOGO AND STRIPE818-415C15.
DECAL 1007 NT848-330C16.
DECAL MOVING CHAIN DANGER818-518C17.
HHCS 1/2-13X1 1/4 GR5802-034C18.
WASHER LOCK SPRING 3/8 PLT804-013C19.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 29 - 150-290P

Small Seeds Box

(Applies to 1007NT only)

Table of Contents Part Number Index

28397

150-290P - 30 - 04/09/13

Small Seeds Box

(Applies to 1007NT only)

Image No.dwg28397
SGS 6 BOX WELDMENT133-342H1.
1006-7 1/2" SGS BOX WELDMENT133-225H1.
NUT HEX 10-24 PLT803-001C2.
WASHER LOCK #10804-054C3.
WASHER FLAT #10 SAE PLT804-046C4.
SCREW RD HD SLT10-24X1/2 PLT801-003C5.
1006 SGS LID WELDMENT133-233H6.
LATCH KEEPER 37-15-061-17816-113C7.
RIVET POP 1/8 .125 AD42BSLF800-101C8.
HHCS 1/4-20X5/8 GR5802-078C9.
NUT LOCK 1/4-20 PLT803-007C10.
SEED ADJUSTMENT SUPPORT123-118D11.
RUBBER LATCH 37-11-065-10816-112C12.
10' EWNT SGS LID LATCH123-356D13.
DECAL SMALL SEEDS DANGER838-467C14.

Table of Contents Part Number Index

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 31 - 150-290P

Table of Contents Part Number Index

Native Grass Box Components

(Applies to 1007NT only)

28395

150-290P - 32 - 04/09/13

Table of Contents Part Number Index

Native Grass Box Components

(Applies to 1007NT only)

Image No.dwg28395
1006 NG/FERT/.BOX LID202-508H1.
LID HANDLE119-154D2.
WASHER FLAT 5/16 SAE PLT804-036C3.
HHCS 5/16-18X1 1/4 NYL802-425C4.
SPRING .540 O.D.X 1 1/4 X.054W807-106C5.
LID LATCH817-805C6.
NUT LOCK 5/16-18 PLT803-011C7.
BALL STUD 10MM X 5/16-18 UNC800-121C8.
9 1/4-15 X 70LB GAS SPRING890-308C9.
LID HINGE ASSEMBLYPS25120313-076S10.
RHSNB 3/8-16X2 GR5802-411C11.
LID HINGE BASE PLATE313-176D12.
LID HINGE PIVOT313-186D13.
NUT FLANGE LOCK 3/8-16 PLT803-209C14.
WASHER FLAT 3/8 USS PLT804-011C15.
HHCS 3/8-16X1 GR5802-017C16.
KNOB 1/4-20 FEMALE THD817-324C17.
NG LH COVER202-259D18.
NG RH COVER202-260D19.
1006 NATIVE GRASS BOX202-596H20.
DECAL LOGO&GP F/STRIPE 4 X 24838-161C21.
DECAL 3 COLOR STRIPE 2.50 WIDE838-160C22.
DECAL 1007 NT848-330C23.
DECAL NATIVE GRASS - LARGE838-518C24.
DECAL NATIVE GRASS IMPORTANT838-428C25.
DECAL MOVING CHAIN DANGER818-518C26.
NUT HEX 5/16-18 PLT803-008C27.
WASHER LOCK SPRING 5/16 PLT804-009C28.
BRG FLG .75ID 2BOLT822-071C29.
HHCS 5/16-18X1 1/4 GR5802-010C30.
SPKT 40B17 X 3/4BORE W/KW&SS808-170C31.
PS2096 NG CUP SHAFT313-479D32.
3/16 X 1 KEY168-127D33.
SPKT 40B35 X 3/4 HEX BORE W/SS808-185C34.
SCREW SET 5/16-18 SKT KP X 3/8801-035C35.
RHSNB 5/16-18X1 GR5802-282C36.
FLANGETTE 47 MST822-041C37.
BRG INS 3/4HEXX1.85OD SPH822-128C38.
LOCK COLLAR 3/4 HEX BORE118-494D39.
1006 NG AGITATOR SHAFT202-264D40.
HFSS 1/4-20X2 GR5802-448C41.
NUT HEX LOCK 1/4-20 FLG803-088C42.
DIVIDER AGITATOR LH202-284D43.
HHCS 5/8-11X3 1/2 GR5802-162C44.
SPKT 40A17 IDLER808-046C45.
NUT HEX JAM 5/8-11 PLT803-023C46.
NUT HEX FLANGE 5/8-11 PLT803-196C47.
LH NG SERIES 2 AGITATOR202-281D48.
RH NG SERIES 2 AGITATOR202-280D49.
DIVIDER AGITATOR RH202-283D50.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 33 - 150-290P

Table of Contents Part Number Index

Native Grass Tray to Box

(Applies to 1007NT only)

28497

150-290P - 34 - 04/09/13

Table of Contents Part Number Index

Native Grass Tray to Box

(Applies to 1007NT only)

Image No.dwg28497
HFSS 1/4-20X5/8 GR5802-196C1.
NUT HEX LOCK 1/4-20 FLG803-088C2.
1006-7 1/2 SERIES 2 NG TRAY202-586K3.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 35 - 150-290P

Agitator Mounting

(Applies to 1007NT only)

Table of Contents Part Number Index

28396

150-290P - 36 - 04/09/13

Agitator Mounting

(Applies to 1007NT only)

Image No.dwg28396
RHSNB 5/16-18X1 GR5802-282C1.
FLANGETTE 47 MST822-041C2.
BEARING 3/4HEX B 47MM SPHER OD822-128C3.
WASHER LOCK SPRING 5/16 PLT804-009C4.
NUT HEX 5/16-18 PLT803-008C5.
LOCK COLLAR 3/4 HEX BORE118-494D6.
SCREW SET 5/16-18 SKT KP X 3/8801-035C7.
HFSS 1/4-20X2 GR5802-448C8.
AGITATOR PADDLE 3/4 HEX118-493D9.
NUT HEX LOCK 1/4-20 FLG803-088C10.
1006 AGITATOR SHAFT118-647D11.
SEED FLOAT DOWN FLOAT STOP118-498D12.
NUT HEX 10-24 PLT803-001C13.
WASHER LOCK #10804-054C14.
HFS 10-24 X 1 1/8 PLTD801-096C15.

Table of Contents Part Number Index

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 37 - 150-290P

Seed Level Indicator

(Applies to 1007NT only)

Table of Contents Part Number Index

21726

150-290P - 38 - 04/09/13

Seed Level Indicator

(Applies to 1007NT only)

Image No.dwg21726
SEED LEVEL INDICATOR817-350C1.
SEED LEVEL BUSHING817-086C2.
NUT HEX 10-24 PLT803-001C3.
WASHER LOCK #10804-054C4.
DECAL SEED LEVEL RH838-238C5.
SEED LEVEL ARM MOUNT817-202C6.
HFS 10-24 X 1 1/8 PLTD801-096C7.
SEED LEVEL ARM, 6 3/4R. TAB118-474H8.
RIVET POP 1/8X.265LG FLG800-101C9.
SEED LEVEL CHAIN BRACKET197-091D10.
CABLE 3/64 X 11 5/8 W/ EYELETS890-305C11.
FOAM FLOAT197-089D12.
WASHER FLAT 1/4 USS PLT804-075C13.
.00 HEX SS 1/4-20 NYLOCK803-003C14.
PIN COTTER1/8 X 3/4805-067C15.
FOAM FLOAT WASHER197-096D16.

SCR HEX HD SHT MET #8 X 1/2801-154C18.

Table of Contents Part Number Index

(Used with seed box agitator only)SEED FLOAT DOWN FLOAT STOP118-498D17.

Box Assembly

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 39 - 150-290P

Table of Contents Part Number Index

Guage Wheel to Frame

(Applies to 1007NT only)

28405

150-290P - 40 - 04/09/13

Table of Contents Part Number Index

Guage Wheel to Frame

(Applies to 1007NT only)

Image No.dwg28405
1007 GW ASSEMBLY151-159L1.
WASHER MACH 1.75 X 1.00 X 18GA804-082C2.
BUSHING 1 1/4X1X5/8890-850C3.
PIN CLEVIS 1 X 3 11/16 GR5 PLT805-124C4.
HYD CYL REP 3 3/4 X 12 X 1 1/2810-395C5.

WING PIVOT PIN WELDMENT160-201H6.
1 1/4 WEAR SLEAVE160-007D7.
PIN ROLL 3/8 X 2 PLT805-249C8.
1007 NT FRAME WELDMENT151-161H9.
NTA35 WING EYEBOLT WELDMENT161-107H10.
NUT HEX 1 1/4-7 PLT803-034C11.
WASHER LOCK 1 1/4 SPRING PLT804-030C12.
BUSHING CYL 1 1/4 X 1 X 1890-005C13.
TRANSPORT AXLE CYL LOCK194-113H14.
LOCK SPRING CLIP194-401D15.
HHCS 1/4-20X1/2 GR2802-283C16.
PLASTIC CYL LOCK BUMPER194-402D17.

Transport

RevisionCommentsPart DescriptionPart No.Ref.

Refer to Hydraulic Cylinder810-395C

for breakdown

04/09/13 - 41 - 150-290P

Lift Assist

(Applies to 1007NT only)

Table of Contents Part Number Index

28407

150-290P - 42 - 04/09/13

Lift Assist

(Applies to 1007NT only)

Image No.dwg28407
SMV BLADE MOUNT119-300D1.
1007 SPINDLE GW WELDMENT151-156H2.
1007 REAR CASTER FRAME WELD151-165H3.
1007HD LIFT ASSIST CASTER ARM151-170H4.
LIFT ASSIST REAR PVT MNT151-171H5.
LIFT ASSIST BOLT ON MOUNT151-172H6.
LIFT ASSIST LWR PARALLEL ARM151-173H7.
1007 LOCK OUT PLUNGER151-355D8.
LIFT ASSIST AXLE PIVOT PIN151-381D9.
CASTER SPACER161-056D10.
NTA35 WING EYEBOLT WELDMENT161-107H11.
CASTER RETAINER CAP161-114D12.
LIFT ASSIT CASTER SHAFT161-116D13.
RH TIRE/RIM 265/70B16.5 SKID 6196-274K14.
CYL LOCK CHANNEL 1 1/2X12 3/4196-473H15.
40P CASTER INNER PIVOT TUBE196-654D16.
PLATE RND 3/16" THK 1 7/8" DIA266-012D17.
UHMW RND 2.0 DIA X 2.0 LONG266-020D18.
16R PARALLEL ARM WLDMNT 2402-172H19.
WASHER - SAFETY CHAIN SA500-064D20.
GREASE ZERK STRAIGHT 1/4-28800-001C21.
SCREW RD HD 1/4-20 X 5/8801-018C22.
HHCS 1/2-13X1 1/4 GR5802-034C23.
HHCS 5/8-11X2 GR5802-055C24.
HHCS 5/8-11X4 GR5802-060C25.
HHCS 3/4-10X2 1/4 GR5802-065C26.
HHCS 3/4-10X4 GR5 FTHD802-067C27.
RHSNB 5/16-18X3/4 GR5802-092C28.
HHCS 1-8X18 GR5802-728C29.
NUT HEX 1/4-20 PLT803-006C30.
NUT HEX 5/16-18 PLT803-008C31.
NUT HEX 5/8-11 PLT803-021C32.
NUT LOCK 5/8-11 PLT803-024C33.
NUT HEX 1-8 PLT803-031C34.
NUT HEX 1 1/4-7 PLT803-034C35.
NUT HEX JAM 3/4-10 PLT803-048C36.
NUT HEX JAM 1 1/2-12 PLT803-210C37.
WASHER LOCK SPRING 1/4 PLT804-006C38.
WASHER LOCK SPRING 5/16 PLT804-009C39.
WASHER LOCK SPRING 1/2 PLT804-015C40.
WASHER LOCK SPRING 5/8 PLT804-022C41.
WASHER LOCK SPRING 3/4 PLT804-023C42.
WASHER LOCK SPRING 1 PLT804-027C43.
WASHER FLAT 1 SAE804-029C44.
WASHER LOCK 1 1/4 SPRING PLT804-030C45.
PIN 3/8 X 3 USABLE LW/PIN805-001C46.
PIN ROLL 3/16 X 1 3/4 PLT.805-076C47.
PIN COTTER3/16 X 1 1/2 PLT805-104C48.
PIN CLEVIS 1 X 3 1/8 GR5 PLT805-159C49.
SPRING COMP 1.88OD x .362W807-143C50.
SPRING COMP .796ODX.065WX1.22807-175C51.
CYL REP 3.5X12X1.25 ROD810-539C52.

DECAL SLOWMOVING-GALV. BACKED818-055C54.
DECAL CAUTION TIRE 60PSI/85FT838-092C55.
BOLT WHL 9/16-18X1 1/8 GR5802-845C56.

Table of Contents Part Number Index

Refer to Hydraulic Cylinder810-539C

for breakdown

Includes items 56 - 58HUB ASSY 6BOLT 6"BC 4.62PILOT815-200C53.

Transport

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 43 - 150-290P

Lift Assist (continued)

(Applies to 1007NT only)

BRG CONE 1.50ID 13600LA90028822-141C57.
BRG CUP 13621822-231C58.
VALVE STEM METAL TR-575 TUBLES814-210C59.
RIM 16.5X8.25, 6 BLT4.63 PILT814-209C60.
TIRE SKID ST 265/70B16.5 NHS814-207C61.
BUSHING 2 1/2 X 2 1/4 X 2 LG.890-072C62.

Table of Contents Part Number Index

RevisionCommentsPart DescriptionPart No.Ref.

150-290P - 44 - 04/09/13

Table of Contents Part Number Index

Lift Assist (continued)

(Applies to 1007NT only)

Transport

This Page Intentionally Left Blank

04/09/13 - 45 - 150-290P

Table of Contents Part Number Index

Guage Wheel Breakdown

(Applies to 1007NT only)

28406

150-290P - 46 - 04/09/13

Table of Contents Part Number Index

Guage Wheel Breakdown

(Applies to 1007NT only)

Image No.dwg28406
BOLT WHEEL 1/2-20X1 90-DEG802-104C1.

LH TIRE/RIM 265/70B16.5 SKID 6196-275K2.
TIRE SKID ST 265/70B16.5 NHS814-207C3.
RIM 16.5X8.25, 6 BLT4.63 PILT814-209C4.
VALVE STEM METAL TR-575 TUBLES814-210C5.
HUB GREASE CAP200-001D6.
PIN COTTER5/32 X 1 3/4 LG805-246C7.
NUT HEX SLOTTED 7/8-14 PLT803-029C8.
WASHER SPINDLE - 7/8804-055C9.
BRG CONE 1.25ID LM-67048822-021C10.
BRG CUP LM-67010822-020C11.
HUB 6 BOLT 4 5/8 PILOT W/ CUPS815-082C12.
BRG CUP LM-29710822-019C13.
BRG CONE 1.50ID LM-29749822-018C14.
SEAL 2.56X1.625X.438 CR16289816-011C15.
6 BOLT SINGLE ENDED SPINDLE201-009D16.
NUT LOCK 1/2-13 PLT803-019C17.
HHCS 1/2-13X3 1/4 GR5802-099C18.
1007 ROCKSHAFT WELD151-153H19.

Transport

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 3 through 5RH TIRE/RIM 265/70B16.5 SKID 6196-274K2.

Include items 6-15HUB 6 BOLT 4 5/8 PILOT 3600 LB815-077C20.

04/09/13 - 47 - 150-290P

Table of Contents Part Number Index

6" Feeder Cup Assembly

(Applies to 1007NT only)

28427

150-290P - 48 - 04/09/13

Table of Contents Part Number Index

6" Feeder Cup Assembly

(Applies to 1007NT only)

Image No.dwg28427
SEED BOX DIVIDER HALF CLIP LH118-453D1.
2SNT SEED BOX DIVIDER CLIP118-341D2.
BOX DVDR 2.50 X 60DEG118-058D3.
4 13/16 BOX DVDR FOR 7 1/2 ROW118-339D4.
BOX DVDR 4.00 X 60DEG118-433D5.
BOX DIVIDER 3 1/2118-548D6.
3 BOX DIVIDER FOR 4 7/8 ROW118-431D7.
MACHINED ADJUSTMENT109-091D8.
6 5/8 BOX DVDER FOR 8 1/2 ROW118-432D9.
HHCS 1/4-20X3/4 GR5802-004C10.
SEED BOX DIVIDER HALF CLIP RH118-454D11.
1007-6" FEEDER CUP CHANNEL118-052D12.
HHCS 3/8-16X3/4 GR5802-014C13.
WASHER LOCK SPRING 3/8 PLT804-013C14.
WASHER FLAT 3/8 SAE PLT804-012C15.
5/8 SHAFT LOCKING COLLAR890-350C16.
SCREW SET 5/16-18 SKT KP X 3/8801-035C17.
NUT HEX WHIZ 1/4-20 PLT803-194C18.
SEED CUP ASSEMBLY817-075C19.
FEEDER CUP BRG ASSEMBLY118-226S20.
WASHER RETAINING804-031C21.
SPACER TUBE X 2.080118-054D22.
SPACER TUBE X 1.580118-055D23.
SPACER TUBE X 2.705118-057D24.
SPACER TUBE X 1.955118-056D25.
SPACER TUBE X 1.080118-053D26.
SCR SELF TAP 8X3/8 TYPE25 BT801-057C27.
SEED CUP WASHER RETAINER817-073C28.
NYLON WASHER-SPLIT817-004C29.
SEED CUP LEFT HALF817-068C30.
SEED CUP DOOR817-070C31.
SEED CUP RIGHT HALF817-069C32.
SEED CUP ADJUSTMENT HANDLE817-071C33.
EXPANSION PLUG 2 1/2800-071C34.
SNAP RING EXT BASIC 1.880800-004C35.
BRG 30IDX55OD MM822-103C36.
FEEDER CUP BRG HOUSING118-336D37.
BRG HUB 40A15118-508D38.
END WHEEL SEED HOSE816-055C39.
CLAMP HOSE 1 5/8 NO. 26800-009C40.
PM SEED CUP SPROCKET890-190C41.
SEED CUP SLEEVE817-074C42.
FEEDER CUP SHAFT 1007 6"118-051D43.
PIN ROLL 3/16X1 1/4 PLT805-023C44.

Metering

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 49 - 150-290P

Table of Contents Part Number Index

7 1/2" Feeder Cup Assembly

(Applies to 1007NT only)

21735

150-290P - 50 - 04/09/13

Table of Contents Part Number Index

7 1/2" Feeder Cup Assembly

(Applies to 1007NT only)

Image No.dwg21735
MACHINED ADJUSTMENT SPOOL109-091D1.

5 5/8 BOX DVDR FOR 7 1/2 ROW118-340D3.
2SNT SEED BOX DIVIDER CLIP118-341D4.
SPACER TUBE X 4.078118-346D5.
6 5/8 BOX DVDER FOR 8 1/2 ROW118-432D6.
BOX DVDR 4.00 X 60DEG118-433D7.
SPACER TUBE X 2.470118-436D8.
SEED BOX DIVIDER HALF CLIP LH118-453D9.
SEED BOX DIVIDER HALF CLIP RH118-454D10.
BOX DIVIDER 3 1/2118-548D11.
1006-7 1/2'" FEEDER CUP CHANNEL118-636D12.
1006 FEEDER CUP SHAFT118-638D13.
CLAMP HOSE 1 5/8 NO. 26800-009C14.
SCREW SET 5/16-18 SKT KP X 3/8801-035C15.
HFSS 1/4-20X5/8 GR5802-196C16.
HHCS 3/8-16X3/4 GR5802-014C17.
NUT HEX LOCK 1/4-20 FLG803-088C18.
WASHER FLAT 3/8 SAE PLT804-012C19.
WASHER LOCK SPRING 3/8 PLT804-013C20.
PIN ROLL 3/16X1 1/4 PLT805-023C21.
WASHER RETAINING804-031C22.
SEED CUP SLEEVE817-074C23.

PM SEED CUP SPROCKET890-190C25.
5/8 SHAFT LOCKING COLLAR890-350C26.
END WHEEL SEED HOSE816-055C27.
BEARING HUB 40A15118-508D28.
FEEDER CUP BEARING HOUSING118-336D29.
BRG 30IDX55OD MM822-103C30.
SNAP RING EXT BASIC 1 3/16800-004C31.
SNAP RING INTERNAL 2.165800-107C32.
SEED CUP ADJUSTMENT HANDLE817-071C33.
SEED CUP RIGHT HALF817-069C34.
SEED CUP DOOR817-070C35.
SEED CUP LEFT HALF817-068C36.
SCR SELF TAP 8X3/8 TYPE25 BT801-057C37.
NYLON WASHER-SPLIT817-004C38.
SEED CUP WASHER RETAINER817-073C39.

Metering

RevisionCommentsPart DescriptionPart No.Ref.

Includes 28-32FEEDER CUP BEARING ASSEMBLY118-226S2.

Includes 33-39SEED CUP ASSEMBLY817-075C24.

04/09/13 - 51 - 150-290P

Small Seeds Metering

(Applies to 1007NT only)

Table of Contents Part Number Index

28399

150-290P - 52 - 04/09/13

Table of Contents Part Number Index

Small Seeds Metering

(Applies to 1007NT only)

Image No.dwg28399
#40 CHAIN 60 PITCH W/CON.809-115C1.
SML SDS DRIVE SPKT HUB 27T123-834H2.
RUBBER LATCH 37-11-065-10816-112C3.
WASHER FLAT 1/4 SAE PLT804-007C4.
DRIVE SPROCKET HANGER BEARING817-026C5.
WASHER MACH 1.38 X .876 X .048804-044C6.
SNAP RING .875800-028C7.
HHCS 1/4-20X3/4 GR5802-004C8.
1006 7 1/2" SGS BOX SHAFT133-083D9.
SGS 6 BOX SHAFT133-104D9.
WASHER GRASS SEEDER CUP SHAFT804-042C10.
PIN COTTER1/8 X 3/4805-067C11.
GRASS SEEDER SLEEVE817-009C12.
SML SEED FEEDER CUP ASSY817-504C13.
NUT HEX 1/4-20 PLT803-006C14.
GRASS SEEDER SPROCKET817-010C15.
HFSS 1/4-20X1/2 GR5802-148C16.
WASHER LOCK SPRING 1/4 PLT804-006C17.
ADJUSTMENT HANDLE PIVOT123-050H18.
PIN COTTER5/32 X 1 PLT805-019C19.
3/8 SHAFT LOCKING COLLAR890-349C20.
SCREW SET 5/16-18 SKT KP X 3/8801-035C21.
SEED ADJUSTMENT SPOOL123-116D22.
WASHER FLAT 3/8 SAE PLT804-012C23.
REAR SEED RATE ADJ HANDLE WLD123-476H24.
NUT WING 5/16-18803-058C25.
LOCK TAB123-113D26.
RHSNB 5/16-18X3/4 GR5802-092C27.
GAUGE MOUNTING BRACKET123-410D28.
NUT HEX 8-32 BRASS803-035C29.
WASHER INTERNAL STAR #8 BRASS804-002C30.
WASHER FLAT #8 BRASS804-003C31.
NAME PLATE SEED ADJ. GUIDE819-087C32.
SCREW RD HD 8-32 X 3/8 BRASS801-001C33.
SMALL SEEDS CUP WIND SHIELD817-806C34.

Metering

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 53 - 150-290P

Fertilizer Metering

(Applies to 1007NT only)

Table of Contents Part Number Index

28400

150-290P - 54 - 04/09/13

Fertilizer Metering

(Applies to 1007NT only)

Image No.dwg28400
FERT DROP TUBE ASSEMBLY BOX141-011E1.
SLIDE STOPASSEMBLY141-041E2.
WASHER LOCK 1/4 SS804-033C3.
NUT HEX SS 1/4-20803-004C4.
FERTILIZER LATCH WELDMENT141-116H5.
COVER HANDLE CHAIN142-009D6.
PIN COTTER5/32 X 1 PLT805-019C7.
MF FERTTRAY END PLT WLDMT LH191-006H8.
MF FERTTRAY END PLT WLDMT RH191-007H9.
SPKT 40B30 X 3/4 HEXBORE W/ SS808-086C10.
HHCS 3/8-16X1 1/4 GR5802-079C11.
WASHER LOCK SPRING 3/8 PLT804-013C12.
BEARING 3-HOLE FLANGE 1 1/4822-083C13.
NUT HEX 3/8-16 PLT803-014C14.
RHSNB 3/8-16X1 3/4 GR5802-252C15.
SCREW SET 1/4-28 SH X 1/2 LG801-009C16.
MF FERT.75 HEX BORE BUSHING191-001D17.
FELT SEAL890-026C18.
TRAY BEARING SPACER141-084D19.
SEAL 5/16 X 3/4 DOR-TITE TRAY990-024R20.
RHSNB 1/4-20X3/4 SS802-089C21.
LATCH STRIKE800-032C22.
RIVET POP 3/32 .125 AD32BS800-056C23.
MF FERTTRAY SLIDE SUPPORT191-019D24.
MF FERTSTARRETAINER SIDE PLT191-018D25.
MF FERTHEX BORE PLASTIC BUSH191-002D26.
6 POINT FERT METERING WHEEL817-053C27.
13' EW FERT BEARING RETAINER175-102H28.
RHSNB 5/16-18X3/4 GR5802-092C29.
WASHER LOCK SPRING 5/16 PLT804-009C30.
NUT HEX 5/16-18 PLT803-008C31.
HHCS 1/4-20X3/4 SS802-001C32.
WASHER FLAT 1/4 SAE SS804-034C33.
NUT HEX SS 1/4-20 NYLOCK803-003C34.
FERT TRAY LATCH STRIKE142-273D35.

Table of Contents Part Number Index

Metering

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 55 - 150-290P

Table of Contents Part Number Index

Fertilizer Tray Adjustment Assembly

(Applies to 1007NT only)

10633

150-290P - 56 - 04/09/13

Table of Contents Part Number Index

Fertilizer Tray Adjustment Assembly

(Applies to 1007NT only)

Image No.dwg10633
FERTILIZER ADJUSTMENT ROD ASSY150-044S1.
KNOB P.W. ADJUSTMENT817-021C2.
FERTILIZER ADJUSTMENT GAUGE819-034C3.
SCREW RD HD 8-32 X 3/8 BRASS801-001C4.
NUT HEX 8-32 BRASS803-035C5.
WASHER INTERNAL STAR #8 BRASS804-002C6.
WASHER FLAT #8 BRASS804-003C7.
WASHER LOCK SPRING 1/4 PLT804-006C8.
NUT-HEX 1/4-20 PLT803-006C9.
SCREW RD HD 1/4-20 X 5/8801-018C10.
TENSION SPRING RETAINER122-065D11.
SPRING SCREW ADJ TENSION STRHT807-020C12.
WASHER LOCK SPRING 5/16 PLT804-009C13.
NUT HEX 5/16-18 PLT803-008C14.
RHSNB 5/16-18X3/4 GR5802-092C15.
ACME SLOTTED NUT150-051D16.
PIN COTTER7/64 X 1 LONG805-064C17.
FERTILIZER ADJ BRKT WELDMENT191-001H18.

Metering

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 57 - 150-290P

Table of Contents Part Number Index

Fertilizer Trays, Gates And Shafts

(Applies to 1007NT only)

12511

150-290P - 58 - 04/09/13

Table of Contents Part Number Index

Fertilizer Trays, Gates And Shafts

(Applies to 1007NT only)

Image No.dwg12511
1006-7 1/2'" FERT.TRAY WELD.142-881H1.
1007-6" FERT. TRAY WELDMENT142-270H1.
1006-7 1/2'" FERT.SLIDE WELD.142-884H2.
1007-6" FERT. SLIDE WELDMENT142-269H2.
1006 AGITATOR SHAFT118-647D3.

Metering

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 59 - 150-290P

Table of Contents Part Number Index

Native Grass Feeder Cup Assembly

(Applies to 1007NT only)

25092

150-290P - 60 - 04/09/13

Table of Contents Part Number Index

Native Grass Feeder Cup Assembly

(Applies to 1007NT only)

Image No.25092
NG CUP HI-RATE SPROCKET812-346C1.
1006 NG CUP SHAFT202-263D2.
GRASS SEED METER WHEEL COVER202-055D3.
1006-7 1/2'" NG TRAY WELDMENT202-512H4.
SCREW RD HD SLT10-24X1/2 PLT801-003C5.
HHCS 1/4-20X1 GR5802-005C6.
HHCS 5/16-18X1 GR5802-159C7.
NUT HEX 10-24 PLT803-001C8.
NUT-HEX 1/4-20 PLT803-006C9.
NUT HEX 5/16-18 PLT803-008C10.
WASHER INTERNAL STAR #10 PLT804-004C11.
WASHER LOCK SPRING 1/4 PLT804-006C12.
WASHER FLAT 1/4 SAE PLT804-007C13.
WASHER LOCK SPRING 5/16 PLT804-009C14.
WASHER FLAT 5/16 USS PLT804-010C15.
CASTING GRASS SEED FEEDER CUP812-054C16.
NG METER GASKET-WIDE816-539C17.
PLASTIC HOLE PLUG 7/16817-500C18.
BRG PB .75ID PILLOW BLOCK822-057C19.

CLAMP BAND 2 1/2800-067C20.
NATIVE GRASS SEED HOSE NO-TILL816-180C21.
NATIVE GRASS CUP GASKET816-540C22.
1006 NG AGITATOR SHAFT202-264D23.
LH NG SERIES 2 AGITATOR202-281D24.
RH NG SERIES 2 AGITATOR202-280D25.
DIVIDER AGITATOR LH202-284D26.
DIVIDER AGITATOR RH202-283D27.

Metering

RevisionCommentsPart DescriptionPart No.Ref.

ShownCLAMP HOSE 2 5/8 #42800-346C20.

04/09/13 - 61 - 150-290P

Seed Rate Handle

(Applies to 1007NT only)

Table of Contents Part Number Index

21737

150-290P - 62 - 04/09/13

Seed Rate Handle

(Applies to 1007NT only)

Image No.dwg21737
SEED RATE ADJ WLDMNT118-444H1.
SEED RATE ADJ HANDLE WLDMNT118-443H2.
ADJ LOCK PLATE ASS'Y - 1 1/2 W109-025H3.
NAME PLATE ADJ GAUGELONG819-001C4.
SCREW SET 5/16-18 SKT KP X 3/8801-035C5.
NUT WING 1/2-13 PLT803-016C6.
WASHER ADJ HANDLE BRG804-001C7.
BEARING ADJ HANDLE 6203 2RS822-008C8.
SNAP RING EXT 17 MM800-003C9.
HHCS 3/8-16X3/4 GR5802-014C10.
WASHER LOCK SPRING 3/8 PLT804-013C11.
WASHER FLAT 5/8 SAE PLT804-021C12.
WASHER MACH 1.00 X .625 X 18GA804-040C13.
PIN COTTER3/16 X 1 1/4 PLT805-016C14.
ADJUSTMENT HANDLE PIVOT109-069D15.
HHCS 5/16-18X3/4 GR5802-007C16.
WASHER FLAT 5/16 SAE PLT804-036C17.
WASHER LOCK SPRING 5/16 PLT804-009C18.
NUT HEX 5/16-18 PLT803-008C19.
SCREW RD HD 8-32 X 3/8 BRASS801-001C20.
WASHER FLAT #8 BRASS804-003C21.
WASHER INTERNAL STAR #8 BRASS804-002C22.
NUT HEX 8-32 BRASS803-035C23.
WASHER FLAT 3/8 SAE PLT804-012C24.
WASHER RETAINING804-031C25.
5/8 SHAFT LOCKING COLLAR890-350C26.
MACHINED ADJUSTMENT SPOOL109-091D27.
PIN ROLL 3/16X1 1/4 PLT805-023C28.
GRIP 1/4 X 1 1/2 X 3 LG816-509C29.

Table of Contents Part Number Index

Metering

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 63 - 150-290P

Ground Drive

(Applies to 1007NT only)

Table of Contents Part Number Index

28423

150-290P - 64 - 04/09/13

Ground Drive

(Applies to 1007NT only)

Image No.dwg28423
GROUND DRIVE WHEEL407-473D1.
PIN COTTER3/16 X 1 1/2 PLT805-104C2.
RHSNB 1/2-13X1 3/4 GR5802-331C3.

BRG, DUO-FACE W/SEAL LM67000LA822-240C5.
BRG CUP LM-67010822-020C6.
4BOLT HUB TAPPERED ROL BRG407-327D7.
GREASE ZERK STRAIGHT 1/4-28800-001C8.
WASHER LOCK SPRING 1/4 PLT804-006C9.
NUT HEX 1/4-20 PLT803-006C10.
WASHER LOCK SPRING 1/2 PLT804-015C11.
NUT HEX 1/2-13 PLT803-020C12.
FERT DRIVE SPKT WLMT407-229H13.
1007 DRIVE SIDE GUARD152-586D14.
HHCS 1/2-13X1 1/4 GR5802-034C15.
NUT HEX SLOTTED 3/4-16803-053C16.
1007 DRIVE UPPER GUARD152-587D17.
HHCS 1/4-20X3/4 GR5802-004C18.
WASHER FLAT 1/2 USS PLT804-017C19.
IDLER 1 PC 2.38X1.01X1.062817-406C20.
TUBE RND 1 OD X 7/32W X 2.13120-306D21.
HHCS 1/2-13X3 1/2 GR5802-041C22.
1007 DRIVE ARM WELDMENT152-318H23.
SPKT 40B30 X 3/4 HEXBORE W/ SS808-086C24.
PIN CLEVIS 1/2 X 1 3/4805-127C25.
PIN COTTER7/64 X 1 LONG805-064C26.
GND DRIVE SPRING ASY407-992S27.
SNAP RING INT 2.05 OD800-038C28.
BRG .755 HEX BORE W/S-S188-004V29.
3 BOLT PIVOT CAST W/BRG SEAT120-188D30.

HHCS 1/2-13X1 3/4 GR5802-082C32.
1007 DRIVE MOUNT WELDMENT152-319H33.
PIN CLEVIS 1/2 X 5 PLATED805-235C34.
HANDLE TUBE152-584D35.
HHCS 1/2-13X5 1/2 GR5802-046C36.
U-BOLT 5/8-11 X 4 1/32 X 5 1/2806-184C37.
NUT HEX FLANGE 5/8-18 PLT803-089C38.
PIN ROLL 1/4 X 1 1/2 LG PLT805-180C39.

40B19 X .75 HEX BORE W/2 SS152-187D41.
CHAIN RL #40 161 PITCHES136-165D42.
CHAIN RL #40 60 PITCHES136-093D43.
NUT HEX FLG. LOCK 1/2-13 PLT803-169C44.
HUB BOLT ON GROUND DRIVE WHL402-349H45.

Table of Contents Part Number Index

Includes items 5-84BOLT HUB ASY TAPPERED ROL BRG407-227S4.

Includes items 28-303 BOLT PIVOT BRG ASSY120-215S31.

Native GrassDrive1007 DRIVE HEX SHAFT RH152-588D40.
Main Drive (Shown)1007 DRIVE HEX SHAFT152-585D40.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 65 - 150-290P

LH Gearbox and Drive

(Applies to 1007NT only)

Table of Contents Part Number Index

28460

150-290P - 66 - 04/09/13

Table of Contents Part Number Index

LH Gearbox and Drive

(Applies to 1007NT only)

Image No.dwg28460
HHCS 1/2-13X3 1/2 GR5802-041C1.
NO. 40 12T IDLER SPKT.817-025C2.
WASHER FLAT 1/2 SAE PLT804-016C3.
NUT HEX JAM 1/2-13 PLT803-036C4.
40B19 X .75 HEX BORE W/2 SS152-187D5.
1007 ACREMETER891-015C6.
1007 HECTARE METER891-016C6.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C7.
SCR SELF TAPPING 3/8X1801-076C8.
SPKT 40B19 X 36T SPLINE BORE808-157C9.
GEAR BOX890-282C10.
SNAP RING EXT F/PEERLESS G.B.800-141C11.
NUT HEX 8-32 BRASS803-035C12.
WASHER INTERNAL STAR #8 BRASS804-002C13.
2SNT DRIVE TYPE PLATE819-045C14.
SCREW RD HD 8-32 X 3/8 BRASS801-001C15.
GEARBOX SHIFT HANDLE120-237D16.
WASHER FLAT 1/4 SAE PLT804-007C17.
WASHER LOCK SPRING 1/4 PLT804-006C18.
HHCS 1/4-28X3/8 GR5802-300C19.
CENTER GEARBOX COVER195-252D20.
HHCS 1/2-13X3 GR5802-039C21.
40B19 X .75 HEX BORE W/2 SS152-187D22.
FLANGETTE 47 MST822-041C23.
BRG INS 3/4HEXX1.85OD SPH822-128C24.
SPKT 40B18 3/4 HEX BORE W/SS808-353C25.
SCREW SET 5/16-18 SKT KP X 3/8801-035C26.
LOCK COLLAR 3/4 HEX BORE118-494D27.
RHSNB 5/16-18X1 GR5802-282C28.
WASHER FLAT 5/16 USS PLT804-010C29.
WASHER LOCK SPRING 5/16 PLT804-009C30.
NUT HEX 5/16-18 PLT803-008C31.
1007 DRIVE ASSEMBLYLH152-321L32.
SEED BOX DRIVE SHAFT151-230D33.
CHAIN RL #40 72 PITCHES136-109D34.
CHAIN RL #40 61 PITCHES136-060D35.
CHAIN RL #40 109 PITCHES136-044D36.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 67 - 150-290P

Table of Contents Part Number Index

Small Seeds Drive Assembly

(Applies to 1007NT only)

28468

150-290P - 68 - 04/09/13

Table of Contents Part Number Index

Small Seeds Drive Assembly

(Applies to 1007NT only)

Image No.dwg28468
SPKT 40B14 X 3/4 Hex Bore808-167C1.
CHAIN RL #40 190 PITCHES136-128D2.
NUT HEX JAM 5/8-11 PLT803-023C3.
WASHER LOCK SPRING 5/8 PLT804-022C4.
SPKT 40A17 IDLER808-046C5.
HHCS 5/8-11X3 1/2 FTHD802-436C6.
PIN COTTER7/64 X 1 LONG805-064C7.
WASHER FLAT 1/2 USS PLT804-017C8.
NO. 40 12T IDLER SPKT.817-025C9.
DRIVE IDLER WELDMENT152-258H10.

NUT HEX FLG. LOCK 1/2-13 PLT.803-169C12.
NUT HEX 1/2-13 PLT803-020C13.
WASHER LOCK SPRING 1/2 PLT804-015C14.
WASHER FLAT 1/2 SAE PLT804-016C15.
HHCS 1/2-13X1 1/2 GR5802-091C16.
HHCS 5/8-11X1 1/2 GR5802-051C17.
WASHER FLAT 5/8 USS PLT804-019C18.
NUT HEX 5/8-11 PLT803-021C19.
SGS DRIVE BRACKET133-085D20.
1006 AUXILLARY DRIVE SHAFT151-235D21.
SPKT 40B22 7/8 HEX BORE & SS808-194C22.
RHSNB 5/16-18X1 GR5802-282C23.
FLANGETTE 52 MST822-032C24.
BRG 7/8HEXX2.05OD SPH822-119C25.
WASHER LOCK SPRING 5/16 PLT804-009C26.
NUT HEX 5/16-18 PLT803-008C27.
SGS REAR DRIVE BRACKET133-086D28.
LOCK COLLAR, 7/8 HEX W/ SET SC402-025S29.
SPKT 40B12 7/8 HEX BORE W/SS808-143C30.
HHCS 1/2-13X3 GR5802-039C31.
NUT HEX JAM 1/2-13 PLT803-036C32.
CHAIN RL #40 103 PITCHES136-024D33.
CHAIN RL #40 60 PITCHES136-093D34.
RND SHAFT 3/4 X 13 3/8 W/KW120-234D35.
BRG FLG .75ID 2BOLT822-126C36.
SPKT 40B17 X 3/4BORE W/KW&SS808-170C37.
3/16 X 1 KEY168-127D38.
RHSNB 1/2-13X1 1/4 GR5802-214C39.
SLOTTED IDLER ARM 1/2 X 3 5/16123-832H40.
PIN COTTER1/8 X 3/4805-067C41.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

Includes Items 7,8,9 & 10IDLER ASSEMBLY152-267S11.

04/09/13 - 69 - 150-290P

Table of Contents Part Number Index

Small Seeds Drive With Fertilizer

(Applies to 1007NT only)

13742

150-290P - 70 - 04/09/13

Table of Contents Part Number Index

Small Seeds Drive With Fertilizer

(Applies to 1007NT only)

Image No.dwg13742
SPKT 40B17 X 3/4BORE W/KW&SS808-170C1.
SCREW SET SCKT HD 1/4-20X1/2801-015C2.
CHAIN RL #40 79 PITCHES136-014D3.
RND SHAFT 3/4 X 13 3/8 W/KW120-234D4.
RHSNB 5/16-18X1 GR5802-282C5.
BRG FLG .75ID 2BOLT822-126C6.
WASHER LOCK SPRING 5/16 PLT804-009C7.
NUT HEX 5/16-18 PLT803-008C8.
3/16 X 1 KEY168-127D9.
NUT HEX 1/2-13 PLT803-020C10.
WASHER LOCK SPRING 1/2 PLT804-015C11.
SLOTTED IDLER ARM 1/2 X 3 5/8133-051H12.
NO. 40 12T IDLER SPKT.817-025C13.
WASHER FLAT 1/2 USS PLT804-017C14.
PIN COTTER1/8 X 3/4805-067C15.
#40 CHAIN 60 PITCH W/CON.809-115C16.
RHSNB 1/2-13X1 1/4 GR5802-214C17.
HHCS 1/2-13X1 1/4 GR5802-034C18.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 71 - 150-290P

Native Grass Drive

(Applies to 1007NT only)

Table of Contents Part Number Index

28463

150-290P - 72 - 04/09/13

Native Grass Drive

(Applies to 1007NT only)

Image No.dwg28463
1007 HECTARE METER891-016C1.
1007 ACREMETER891-015C1.
WASHER FLAT 1/2 SAE PLT804-016C2.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C3.
NUT HEX JAM 1/2-13 PLT803-036C4.
NO. 40 12T IDLER SPKT.817-025C5.
HHCS 1/2-13X3 1/2 GR5802-041C6.
U-BOLT 1/2-13 X 4 1/32 X 4 3/4806-035C7.
SPROCKET STORAGE WELDMENT152-323H8.
NUT HEX FLANGE 1/2-13 GR G PLT803-193C9.
SPKT 40C24 X 7/8 HEX BORE808-151C10.
SPKT 40C15 X 7/8 HEX BORE808-147C10.
SPKT 40C16 X 7/8 HEX BORE808-338C10.
SPKT 40C17 X 7/8 HEX BORE808-148C10.
SPKT 40C18 X 7/8 HEX BORE808-249C10.
SPKT 40C19 X 7/8 HEX BORE808-149C10.
SPKT 40C20 X 7/8 HEX BORE808-276C10.
SPKT 40C21 X 7/8 HEX BORE808-222C10.
SPKT 40C22 X 7/8 HEX BORE808-250C10.
SCR SELF TAPPING 3/8X1801-076C11.
HHCS 1/2-13X3 GR5802-039C12.
GEAR BOX890-282C13.
SPKT 40B19 X 36T SPLINE BORE808-157C14.
SNAP RING EXT F/PEERLESS G.B.800-141C15.
CENTER GEARBOX COVER195-252D16.
2SNT DRIVE TYPE PLATE819-045C17.
SCREW RD HD 8-32 X 3/8 BRASS801-001C18.
GEARBOX SHIFT HANDLE120-237D19.
WASHER FLAT 1/4 SAE PLT804-007C20.
WASHER LOCK SPRING 1/4 PLT804-006C21.
HHCS 1/4-28X3/8 GR5802-300C22.
PIN LINCH 3/16 X 1 9/16 LONG805-240C23.
PIN ROLL 1/4 X 1 1/2 LG PLT805-180C24.
1007 NG AUXILIARY DRIVE SHAFT151-344D25.
RHSNB 5/16-18X1 GR5802-282C26.
FLANGETTE 47 MST822-041C27.
BRG INS 3/4HEXX1.85OD SPH822-128C28.
SCREW SET 5/16-18 SKT KP X 3/8801-035C29.
COLLAR LOCK 7/8 HEX402-058D30.
NUT HEX 5/16-18 PLT803-008C31.
WASHER LOCK SPRING 5/16 PLT804-009C32.
WASHER FLAT 5/16 USS PLT804-010C33.
SPKT 40B24 7/8 HEX BORE W/SS808-356C34.
1007 DRIVE ASSEMBLYRH152-322L35.
CHAIN RL #40 60 PITCHES136-093D36.
CHAIN RL #40 108 PITCHES136-150D37.
CHAIN RL #40 190 PITCHES136-128D38.

Table of Contents Part Number Index

Drive

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 73 - 150-290P

Agitator Drive

(Applies to 1007NT only)

Table of Contents Part Number Index

28474

150-290P - 74 - 04/09/13

Agitator Drive

(Applies to 1007NT only)

Image No.dwg28474
SPKT 40B14 X 3/4 HEX BORE808-167C1.
CHAIN RL #40 190 PITCHES136-128D2.
NUT HEX JAM 5/8-11 PLT803-023C3.
WASHER FLAT 5/8 USS PLT804-019C4.
SPKT 40A17 IDLER808-046C5.
HHCS 5/8-11X3 1/2 FTHD802-436C6.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C7.
WASHER FLAT 1/2 SAE PLT804-016C8.
PIN COTTER7/64 X 1 LONG805-064C9.
NO. 40 12T IDLER SPKT.817-025C10.
DRIVE IDLER WELDMENT152-258H11.
IDLER ASSEMBLY152-267S12.
NUT HEX 1/2-13 PLT803-020C13.
WASHER LOCK SPRING 1/2 PLT804-015C14.
WASHER FLAT 1/2 SAE PLT804-016C15.
HHCS 1/2-13X1 1/2 GR5802-091C16.
HHCS 5/8-11X1 3/4 GR5802-053C17.
WASHER LOCK SPRING 5/8 PLT804-022C18.
NUT HEX 5/8-11 PLT803-021C19.
NUT HEX 5/16-18 PLT803-008C20.
WASHER LOCK SPRING 5/16 PLT804-009C21.
FLANGETTE 52 MST822-032C22.
BRG 7/8HEXX2.05OD SPH822-119C23.
SGS DRIVE BRACKET133-085D24.
RHSNB 5/16-18X1 GR5802-282C25.
SPKT 40B22 7/8 HEX BORE & SS808-194C26.
LOCK COLLAR, 7/8 HEX W/ SET SC402-025S27.
1006 AUXILLARY DRIVE SHAFT151-235D28.
SGS REAR DRIVE BRACKET133-086D29.
NUT HEX JAM 1/2-13 PLT803-036C30.
HHCS 1/2-13X3 GR5802-039C31.
SPKT 40B12 7/8 HEX BORE W/SS808-143C32.
AGITATOR IDLER BOLT 5/8-11118-439H33.
HHCS 5/8-11X1 1/4 GR5802-050C34.
SCREW SET 5/16-18 SKT KP X 3/8801-035C35.
SPKT 40B17X3/4 HEXBR&LCK COLLR118-592H36.
SPKT 40A17 IDLER808-046C37.
CHAIN RL #40 103 PITCHES136-024D38.
CHAIN RL #40 105 PITCHES136-080D39.

Table of Contents Part Number Index

Drive

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 75 - 150-290P

Table of Contents Part Number Index

Fertilizer Drive Assembly

(Applies to 1007NT only)

28472

150-290P - 76 - 04/09/13

Table of Contents Part Number Index

Fertilizer Drive Assembly

(Applies to 1007NT only)

Image No.dwg28472
SPKT 40B14 X 3/4 HEX BORE808-167C1.
CHAIN RL #40 190 PITCHES136-128D2.
NUT HEX JAM 5/8-11 PLT803-023C3.
WASHER LOCK SPRING 5/8 PLT804-022C4.
SPKT 40A17 IDLER808-046C5.
HHCS 5/8-11X3 1/2 FTHD802-436C6.
PIN COTTER7/64 X 1 LONG805-064C7.
WASHER FLAT 1/2 USS PLT804-017C8.
NO. 40 12T IDLER SPKT.817-025C9.
DRIVE IDLER WELDMENT152-258H10.
IDLER ASSEMBLY152-267S11.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C12.
NUT HEX 1/2-13 PLT803-020C13.
WASHER LOCK SPRING 1/2 PLT804-015C14.
WASHER FLAT 1/2 SAE PLT804-016C15.
HHCS 1/2-13X1 1/2 GR5802-091C16.
HHCS 5/8-11X1 1/2 GR5802-051C17.
WASHER FLAT 5/8 USS PLT804-019C18.
NUT HEX 5/8-11 PLT803-021C19.
SGS DRIVE BRACKET133-085D20.
1006 AUXILLARY DRIVE SHAFT151-235D21.
SPKT 40B22 7/8 HEX BORE & SS808-194C22.
RHSNB 5/16-18X1 GR5802-282C23.
FLANGETTE 52 MST822-032C24.
BRG 7/8HEXX2.05OD SPH822-119C25.
WASHER LOCK SPRING 5/16 PLT804-009C26.
NUT HEX 5/16-18 PLT803-008C27.
SGS REAR DRIVE BRACKET133-086D28.
LOCK COLLAR, 7/8 HEX W/ SET SC402-025S29.
SPKT 40B12 7/8 HEX BORE W/SS808-143C30.
HHCS 1/2-13X3 GR5802-039C31.
NUT HEX JAM 1/2-13 PLT803-036C32.
CHAIN RL #40 103 PITCHES136-024D33.
CHAIN RL #40 56 PITCHES136-059D34.
3-SEC GRASS SEEDER JACKSHAFT123-234D35.
BRG FLG .75ID 2BOLT822-126C36.
SPKT 40B13 X 3/4 B W/KW & SS808-349C37.
SPKT 40B17 X 3/4BORE W/KW&SS808-170C38.
HHCS 1/2-13X4 GR5802-044C39.
3/16 X 1 KEY168-127D40.
NUT NYLOCK JAM NUT 1/2-13803-178C41.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 77 - 150-290P

Gearbox (890-282C)

(Applies to 1007NT only)

Table of Contents Part Number Index

12056

150-290P - 78 - 04/09/13

Gearbox (890-282C)

(Applies to 1007NT only)

Image No.dwg12056
SQ CUT RING P/T GEARBOX788051A1.
P/T FLANGED BUSHING FOR G-BOX780105A2.
P/T WASHER7800723.
P/T WASHER7800904.
P/T SPUR GEAR 19T7782735.
P/T WASHER7801086.
P/T SPUR GEAR 25T778123A7.
P/T SPUR GEAR 30T778124A8.
P/T SPUR GEAR 37T778207A9.
P/T CASE CASTING 910077011910.
P/T SHIFTER & OUTPUT SHAFT77637011.
P/T RETAINING RING INVERTED788078A12.
P/T SHIFT KEY79215913.
P/T SHIFT COLLAR78437114.
P/T SHIFT ROD & FORK ASSEMBLY78437215.
P/T SPRING79214216.
P/T BALL 3/8 DIA79213917.
P/T COVER CASTING 9100 4 SPD77213118.
1/4-20X 1 1/4 SCREW P/T G-BOX792073A19.
P/T OUTPUT SHAFT77639720.
P/T SPUR GEAR 12T77821121.
P/T SPUR GEAR 20T778126A22.
P/T SPUR GEAR 25T778127A23.
P/T SPUR GEAR 31 TEETH77816324.
P/T SPACER78608825.
P/T SPUR GEAR 36T77831926.
P/T INPUT SHAFT77636827.
P/T RETAINING RING79201728.
P/T WASHER78009529.
P/T RING SQUARE CUT78806930.
P/T PUSHNUT 1/279214531.

Table of Contents Part Number Index

Not ShownOBSOLETE REPLACEDBY 788067B78806731.
Not ShownP/T GASKET ELIMINATOR51033431.

Drive

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 79 - 150-290P

Coulter

(Applies to 1007NT only)

Table of Contents Part Number Index

28415

150-290P - 80 - 04/09/13

Coulter

(Applies to 1007NT only)

Image No.dwg28415
CLTR CASTING ASSY249-050S1.
CLTR SWING ARM WLMT249-051H2.
007 NARROW OPENER MOUNT202-299D3.
EYE BOLT 3/4-10X14 3/4 LG SP802-718C4.
COULTER SPRING GUIDE TUBE805-331C5.
GREASE ZERK STRAIGHT 1/4-28800-001C6.
HHCS 7/8-9X3 1/2 GR5802-126C7.
SNAP RING 3/4 EXTERNAL HEAVY800-164C8.
OIL SEAL DOUBLE LIP816-009C9.
NUT HEX SLOTTED 7/8-14 PLT803-029C10.
NUT HEX JAM 3/4-10 PLT803-048C11.
NUT HEX 7/8-9 PLT803-049C12.
BUSHING 1X3/4X1 1/8 FLG HD817-513C13.
BEARING CONE LM-67048822-021C14.
COULTER HUB & CUP ASSY200-039V15.
WASHER LOCK SPRING 7/8 PLT804-037C16.
WASHER MACH 1 7/8X1 1/4X 14GA804-165C17.
WASHER SPINDLE - 7/8804-055C18.
PIN COTTER3/16 X 1 3/4 PLT805-017C19.
SNAP RING EXT 1 1/4 HEAVY800-177C20.

SPRING 2.25 O.D. X .5 COIL149-559D22.
HUB GREASE CAP200-001D23.
COULTER SPRING WASHER149-558D24.
WASHER MACH 1 1/4X3/4X14GA804-156C25.
RHSNB 1/2-13X1 1/4 GR5802-214C26.
WASHER LOCK SPRING 1/2 PLT804-015C27.
NUT HEX 1/2-13 PLT803-020C28.
COULTER BLADE FLUTED820-018C29.
5/8 WAVY TURBO BLADE820-156C29.
U-BOLT 5/8-11 X 4 1/32 X 6806-105C30.

HHCS 1/2-13X1 3/4 GR5802-082C32.
OFFSET COULTER BRKT F/LH BOX197-010D33.

Table of Contents Part Number Index

S/N-18" COULTER SPRING BAR-PAINTED204-280D21.
Shown S/N+COULT SPR BAR 3/4 X 2 1/2 X 18807-300C21.

S/N-COULTERCLAMP BAR149-059D31.
Shown S/N+COULTER CLAMP 4 TUBE X 3/4 BAR149-590D31.

Openers

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 81 - 150-290P

Table of Contents Part Number Index

Native Grass Seed Tube

(Applies to 1007NT only)

28367

150-290P - 82 - 04/09/13

Table of Contents Part Number Index

Native Grass Seed Tube

(Applies to 1007NT only)

Image No.dwg28367
CLAMP BAND 2 1/2800-067C1.
NATIVE GRASS SEED HOSE NO-TILL816-180C2.
CLAMP HOSE 2 5/8 #42800-346C3.
SCREW HEX SLT 10-16X3/4PTHD CT801-172C4.
WASHER FLAT 1/4 SAE PLT804-007C5.
NATIVE GRASS TUBE817-507C6.

Openers

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 83 - 150-290P

Opener

(Applies to 1007NT only)

Table of Contents Part Number Index

28413

150-290P - 84 - 04/09/13

Opener

(Applies to 1007NT only)

Image No.dwg28413
U-BOLT 3/8-16 X 2 X 2 3/4806-004C1.
WASHER LOCK SPRING 3/8 PLT804-013C2.
NUT HEX 3/8-16 PLT803-014C3.
SPRING ROD CASTING CLIP121-025D4.
CASTING DOUBLE SPRING ROD812-012C5.
SPRING CASTING MTG ASS'Y121-011A6.
STRAIGHT ARM OPENER SPRING ROD121-133D7.
HHCS 1/4-20X3/4 GR5802-004C8.
WASHER LOCK SPRING 1/4 PLT804-006C9.
NUT HEX 1/4-20 PLT803-006C10.
SPRING COMP 13/16IDX.156WX19.5807-118C11.
DISC SPRING BAR WIRE CLIP107-027D12.
HFS 3/8-16X3 3/4 SPTHD802-427C13.
WASHER FLAT 3/8 SAE PLT804-012C14.
D.D. SLOTTED SCRAPER107-113D15.
RHSNB 3/8-16X1 GR5802-015C16.
NUT FLANGE LOCK 3/8-16 PLT803-209C17.
WASHER MACH 1.19 X .63 X 18GA804-040C18.
FLAT DISK BLADE-4MM THICK820-256C19.
BRG AA205DD188-001V20.
HSG RIBB FLG 6BOLTPLT890-466C21.
RIVET,BUTTON HEAD 1/4 X 1/2800-213C22.

DD BRG FLANGE DUST COVER107-111D24.
HHCS 5/8-11X1 1/2 GR5 NYL802-228C25.
007 NG OPENER WELDMENT202-329H26.
OPENER SEED TUBE, PLASTIC817-314C27.
SCREW HEX SLT10-16X1/2P.THD CT801-002C28.
CLAMP HOSE 1 1/2 NO. 24800-008C29.
END WHEEL SEED HOSE816-055C30.
CLAMP HOSE 1 5/8 NO. 26800-009C31.
RHSNB 1/2-13X6 1/4 GR5 SPTHD802-878C32.
PARALLEL ARM PIVOT BUSHING817-084C33.
007 OPENER PIVOT SPACER202-298D34.
NUT NYLOCK JAM NUT 1/2-13803-178C35.

HEX SEED FLAP MOUNTING CLIP121-164D37.
SEED FLAP, RUBBER, SEED-LOK816-302C38.
CLAMP BAND 2 1/2800-067C39.
NATIVE GRASS SEED HOSE NO-TILL816-180C40.
NATIVE GRASS TUBE817-507C41.
CLAMP HOSE 2 5/8 #42800-346C42.
WASHER FLAT 1/4 SAE PLT804-007C43.
SCREW HEX SLT 10-16X3/4PTHD CT801-172C44.

Table of Contents Part Number Index

Includes items 19-22DD W/205 BRG-PLD FLNG-4MM107-138S23.

Includes items 37 & 38SEED FLAP & HEX CLIP, SEEDLOK122-242S36.

Openers

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 85 - 150-290P

5" & 6" Seed Lok

(Applies to 1007NT only)

Table of Contents Part Number Index

21786

150-290P - 86 - 04/09/13

5" & 6" Seed Lok

(Applies to 1007NT only)

Image No.dwg21786
SEED-LOK ARM (1994)122-151D1.
WASHER INTERNAL STAR 3/8 PLT.804-078C2.
LHS CP 3/8-16X3/4 GR8 PLATED801-141C3.

RING SNAP EXTERNAL '"E'" 1/2800-093C5.
5 SEED-LOK WHL ARM PIVOTPIN122-120D6.
SS RMVBL SD-LOK MNT WLDMT122-173H7.
SPRING, 1 O.D.X.125WIREX 3 1/2807-101C8.
WASHER FLAT 3/8 SAE PLT804-012C9.
WASHER LOCK SPRING 3/8 PLT804-013C10.
HHCS 3/8-16X1 GR5802-017C11.

BEARING 203 SEED-LOK WITH PIN188-008V13.

RETAINER W/BONDED SEAL 4BLT816-173C15.
SCR PH THD FMG #10X1/2 TP ZP801-084C16.
WASHER FLAT 3/8 SAE PLT804-012C17.
SEED LOK HANGER SPRING800-310C18.
SEED LOK WHEEL CAP (LONG)206-021D19.

Table of Contents Part Number Index

5" Seed-lokSD-LK 203 BEARING WHEEL ASSY122-201S4.
6" Seed-lok6 SEED LOK ASSEMBLY206-014S4.

5" Seed-lok5/8 X 5 SEED FIRMING WHEEL817-134C12.
6" Seed-lok5/8 X 6 SEED LOK WHEEL817-191C12.

Includes 6 bearings.RPBY 188-008V122-231A14.

Openers

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 87 - 150-290P

Table of Contents Part Number Index

Small Seeds Hose Retainer

(Applies to 1007NT only)

28223

150-290P - 88 - 04/09/13

Table of Contents Part Number Index

Small Seeds Hose Retainer

(Applies to 1007NT only)

Image No.dwg28223
SMALL SEEDS TUBE WELDMENT123-939H1.
SCREW HEX SLT10-16X1/2P.THD CT801-002C2.
HOSE CLAMP NO.12 3/4 ID800-321C3.
SGS HOSE 122 RIBS816-358C4.

Openers

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 89 - 150-290P

Table of Contents Part Number Index

Fertilizer Hose Retainer and Dual Seed Placement

(Applies to 1007NT only)

21738

150-290P - 90 - 04/09/13

Table of Contents Part Number Index

Fertilizer Hose Retainer and Dual Seed Placement

(Applies to 1007NT only)

Image No.dwg21738
PLASTIC FERTILIZERTUBE817-346C1.
SCREW HEX SLT10-16X1/2P.THD CT801-002C2.
CLAMP HOSE 1 1/2 NO. 24800-008C3.
SEED HOSE 56 RIBS X 11 LONG816-239C4.
UPPER FERTHOSE CLAMP800-016C5.
SML SDS TB REINFORCEMENT RING133-065D6.
NG OPENER ADAPTER202-270D7.

Openers

RevisionCommentsPart DescriptionPart No.Ref.

04/09/13 - 91 - 150-290P

Table of Contents Part Number Index

1" x 12" Double Press Wheel

(Applies to 1007NT only)

21741

150-290P - 92 - 04/09/13

Table of Contents Part Number Index

1" x 12" Double Press Wheel

(Applies to 1007NT only)

Image No.dwg21741
PIN ROLL 5/32 X 5/8 PLT805-186C1.
HFS 1/2-13X3 3/4 GR5 SPTHD802-421C2.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C3.
SPRING .540 O.D.X 1 1/4 X.054W807-106C4.
PIN CLEVIS 3/8 X 2 1/8 USABLE805-154C5.
PRESS WHEEL PIVOT TUBE198-137D6.
PARALLEL ARM PIVOT BUSHING817-084C7.
NG 1X12 PRESS WHEEL ARM199-043H8.
WASHER LOCK SPRING 5/8 PLT804-022C9.
HHCS 1/4-20X1 GR5802-005C10.
PW ADJUSTMENT TRUNNION ASSY122-202S11.
TIRE RUBBER1 X 12814-034C12.
1 X 12 PRESS WHEEL RIM HALF817-330C13.
NUT HEX LOCK 1/4-20 FLG803-088C14.
HHCS 5/8-11X2 1/2 GR5802-058C15.
BRG .63ID PRESS WHL ASY822-170C16.

T-HANDLE ASSEMBLY817-328C18.
OPENER TRUNION817-347C19.

Press Wheels

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 9, 10 & 12-161 X 12 PRESS WHL ASSY-5203BRG814-174C17.

04/09/13 - 93 - 150-290P

Table of Contents Part Number Index

1.25" x 13.5" Double Press Wheel

(Applies to 1007NT only)

28324

150-290P - 94 - 04/09/13

Table of Contents Part Number Index

1.25" x 13.5" Double Press Wheel

(Applies to 1007NT only)

Image No.dwg28234
HHCS 5/8-11X2 1/2 GR5802-058C1.
WASHER LOCK SPRING 5/8 PLT804-022C2.

10HD DBL PW ARM WELDMENT RH199-088H4.
10HD DBL PW ARM WELDMENT LH199-089H4.
1 X 12 PRESS WHEEL RIM HALF817-330C5.

1.25 X 13.5 PRESS WHEEL TIRE814-244C6.
BEARING PRESS WHEEL ASSEMBLY822-170C7.
NUT HEX LOCK 1/4-20 FLG803-088C8.
HHCS 1/4-20X1 GR5802-005C9.
PARALLEL ARM PIVOT BUSHING817-084C10.
PRESS WHEEL PIVOT TUBE198-137D11.
PIN CLEVIS 3/8 X 2 1/8 USABLE805-154C12.
SPRING .540 O.D.X 1 1/4 X.054W807-106C13.
OPENER TRUNION817-347C14.
HFS 1/2-13X3 3/4 GR5 SPTHD802-421C15.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C16.
T-HANDLE ASSEMBLY817-328C17.
PIN ROLL 5/32 X 5/8 PLT805-186C18.
PW ADJUSTMENT TRUNNION ASSY122-202S19.

Press Wheels

RevisionCommentsPart DescriptionPart No.Ref.

Includes items 5-91.25 X 13.5 PRESS WHEEL ASSY814-238C3.

04/09/13 - 95 - 150-290P

Table of Contents Part Number Index

2" x 13" Smooth Crown Press Wheel

(Applies to 1007NT only)

21743

150-290P - 96 - 04/09/13

Table of Contents Part Number Index

2" x 13" Smooth Crown Press Wheel

(Applies to 1007NT only)

Image No.dwg21743
HFS 1/2-13X3 3/4 GR5 SPTHD802-421C1.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C2.
PRESS WHEEL PIVOT TUBE198-137D3.
PARALLEL ARM PIVOT BUSHING817-084C4.
NG UNIVERSAL PRESS WHEEL ARM202-189D5.
WASHER LOCK SPRING 5/8 PLT804-022C6.
HHCS 5/8-11X2 1/2 GR5802-058C7.

BRG .63ID PRESS WHL ASY822-170C9.
HHFS 1/4-20 X 1 1/2 GR 5802-617C10.
NUT HEX LOCK 1/4-20 FLG803-088C11.
2 X 13 PRESS WHEEL RIM HALF817-296C12.
2 X 13 PRESS WHEEL TIRE814-159C13.
PIN ROLL 5/32 X 5/8 PLT805-186C14.
PIN CLEVIS 3/8 X 2 1/8 USABLE805-154C15.
PW ADJUSTMENT TRUNNION ASSY122-202S16.
T-HANDLE ASSEMBLY817-328C17.
OPENER TRUNION817-347C18.
SPRING .540 O.D.X 1 1/4 X.054W807-106C19.

Press Wheels

RevisionCommentsPart DescriptionPart No.Ref.

Includes Items 9-132 X 13 PRESS WHEEL ASSEMBLY814-157C8.

04/09/13 - 97 - 150-290P

Table of Contents Part Number Index

3" x 13" V-Crown Press Wheel

(Applies to 1007NT only)

21742

150-290P - 98 - 04/09/13

Table of Contents Part Number Index

3" x 13" V-Crown Press Wheel

(Applies to 1007NT only)

Image No.dwg21742
HFS 1/2-13X3 3/4 GR5 SPTHD802-421C1.
NUT HEX FLG. LOCK 1/2-13 PLT.803-169C2.
PRESS WHEEL PIVOT TUBE198-137D3.
PARALLEL ARM PIVOT BUSHING817-084C4.
NG UNIVERSAL PRESS WHEEL ARM202-189D5.
WASHER LOCK SPRING 5/8 PLT804-022C6.
HHCS 5/8-11X2 1/2 GR5802-058C7.

BRG .63ID PRESS WHL ASY822-170C9.
HHFS 1/4-20 X 2 GR 5802-618C10.
NUT HEX LOCK 1/4-20 FLG803-088C11.
3 X 13 PRESS WHEEL RIM HALF817-297C12.
3 X 13 PRESS WHEEL TIRE814-160C13.
PIN ROLL 5/32 X 5/8 PLT805-186C14.
SPRING .540 O.D.X 1 1/4 X.054W807-106C15.
PIN CLEVIS 3/8 X 2 1/8 USABLE805-154C16.
PW ADJUSTMENT TRUNNION ASSY122-202S17.
T-HANDLE ASSEMBLY817-328C18.
OPENER TRUNION817-347C19.

Press Wheels

RevisionCommentsPart DescriptionPart No.Ref.

Includes Items 9-133 X 13 PRESS WHEEL ASSEMBLY814-158C8.

04/09/13 - 99 - 150-290P

Hydraulics

(Applies to 1007NT only)

Table of Contents Part Number Index

28425

150-290P - 100 - 04/09/13
