USER MANUAL
ITEM No.：GLM002-200 (5R 200W) and
GLM003 7R230W
-2-
Please read over this Manual before Operating the Light Fixture
First, thank you for purchasing our professional lighting equipments.
This manual includes important information about how to install and use the fixture safely. Please
install and operate it correctly as required, and keep the manual properly in case of need.
This moving head light is the perfect combination of humanity and industrial design with
beautiful modeling. The body of the light is made of aluminum alloy and high temperature
resistant engineering plastic materials with wonderful cooling effect. And the transmission
mechanism adopts electronic positioning technology. This product fully meets the CE standard
which employs the international standard signal control DMX512, and is widely used in TV station,
disco, dance hall, night club and other indoor or outdoor shows.
This product is in good condition and packed well before shipping. Please follow strictly the stated
warning and instructions when operating. It is not guaranteed by our company for any damage or
breakdown of the product caused by misuse the product before reading the operation manual.
Warnings:
Please check if there is any transportation damage before using. And if there is any damage,
please stop using it, and contact the distributor or manufacturer as soon as possible. Please keep it
away from Combustible materials, and unlock the X-, Y-axis before using. The fixture should be installed in
places with good ventilation, keep it away from the wall at least 10cm above, and then check if the fans are in
good conditions.
Please don’t project the light beam on the combustible directly, and keep the fixture at least 12m away from
the projection objects.
Please don’t look directly into the light source lest any damage to your eyes. And please make sure the
using power voltage is in accordance with the stated voltages before using.
Attention: Please power off before installing, repairing or cleaning the fixture.
1. Product introduction
1.1 Parameter
7R 230W
Power Consumption: 350W
Color Temperature: 8000K
Luminous flux:7950LM; Lifetime: 3000hrs
Channel: 16CH or 20CH
Focus: electronic automatic focus.
1 Color wheel and 1 gobo wheel.
-3-
Color Wheel:14 colors + white with water flowing effect.

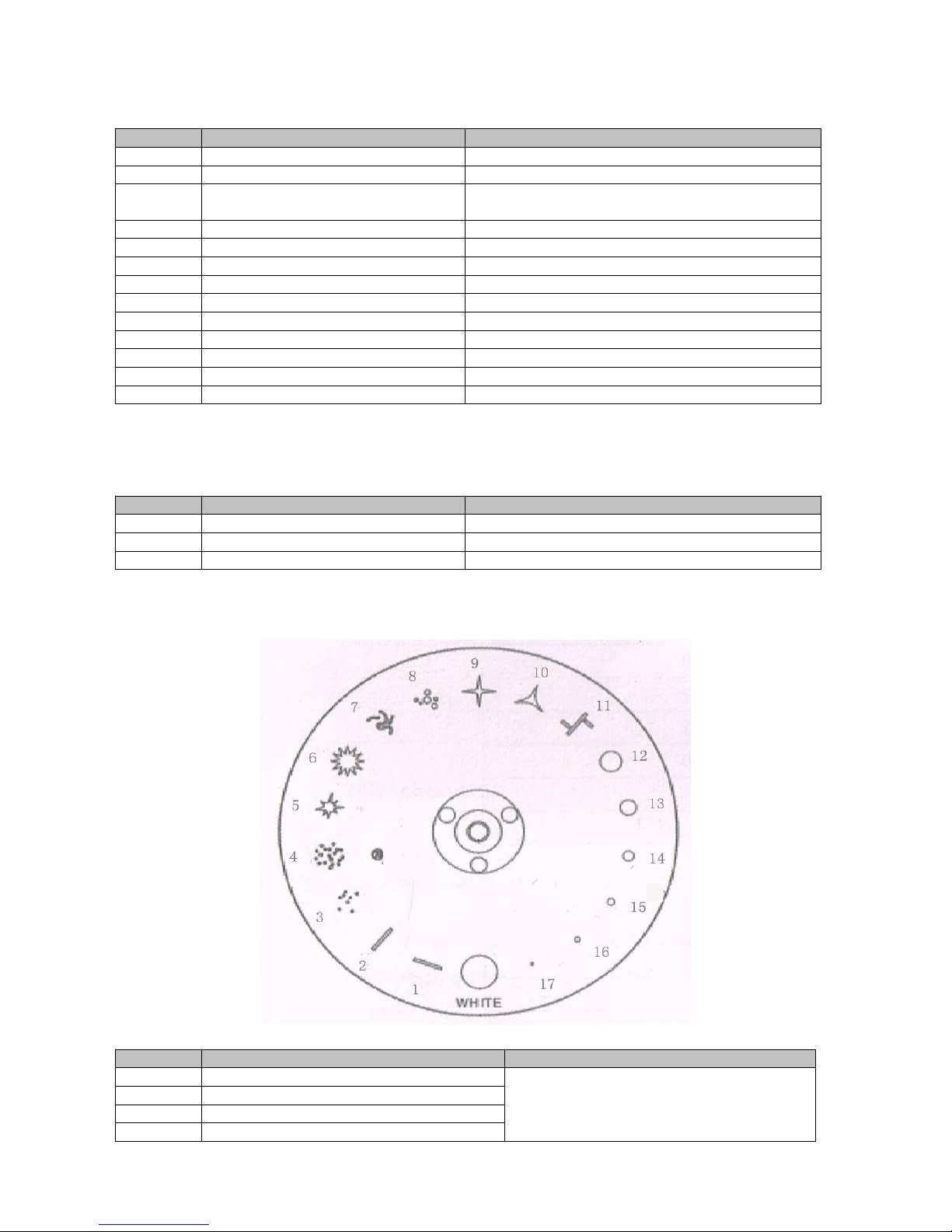

Gobo Wheel: 17 gobos + white with high speed shaking effect.
Prism: 8 facets or 3 facets prism(selectable).
Dimming: 0-100% linear dimming; Strobe: super speed strobe.
Display: LCD-TFT Touch Screen Display.
Pan: 270° Tilt: 540°
5R 200W
Voltage: AC110-240V/50-60Hz
Lamp: 5R 200W Philip lamp
Power Consumption: 300W
Output Power:189W ; Color Temperature: 8000K
Luminous flux:7950LM; Lifetime: 2000hrs
Channel: 16CH or 20CH
Focus: electronic automatic focus.
1 Color wheel and 1 gobo wheel.
Color Wheel:14 colors + white with water flowing effect.
Gobo Wheel: 17 gobos + white with high speed shaking effect.
Prism: 8 facets or 3 facets prism(selectable).
Dimming: 0-100% linear dimming; Strobe: super speed strobe.
Display: LCD Touch Screen Display.
Pan: 270° Tilt: 540°
N.W: 19kg
Size:48*42*56cm with one carton package
1.2 What’s include
● One beam light
● One power plug
● One set signal cable
● One pair brackets
● One pair clamps
● One safety cable
● User Manual
2. Operation Modes:
2.1 Function explanation:
Touch Screen
Turning Wheel
Function
“Up”button
Turn left
Select、Edit
“Down”button
Turn right
Select、Edit
“Ok”button
Press the wheel
Confirming
-4-
2.2 To explain well the operation of Touch screen, here we take example of “ how to change
DMX address? “
1. Please press “Set up” in the main interface to enter “Set up” interface.
2. There are 4 touch keys on the right side, naming “Up” “Ok” “Down” and “Back”.
3. Please press “Up” or “Down” keys to select “DMX address”.
4. Please press “Ok” to edit.
5. Please press “Up” or “Down” keys to change DMX address （ the new DMX address would be saved
automatically）
6. Please press “Ok” to exit editing.
7. Please press “Back” to exit from main menu.
2.3 If operate by turning wheel：
1. Under the main interface, turn the wheel to select “Set up” button
2. Please press the wheel to enter “Set up” interface.
3. Please turn the wheel to select “DMX address” under “Set up” interface.
4. Please press the wheel to edit.
5. Please turn the wheel to change the DMX address.
6. Please press the wheel to exit editing after the modification.
7. Please turn the wheel to select “Back”, and then press the wheel to return to the main interface.
3. Interface Instructions:
3.1. Main Interface
“Back”button
Press the wheel when
selecting “Back”
Return
-5-
The 3 buttons on the up right corner are for language switch and screen rotation.
The 4 buttons on the bottom are for sub-interfaces.
In this manual, we mainly introduce the operation of interface by Touch screen, for the operation of turning
wheel, please take reference as below form:
Touch screen
Turning wheel
“Up” button
Turn left.
“Down” button
Turn right
“Confirm” button
Press the wheel
3.2. “Set Up” Interface
Options
Instructions
Run Mode
DMX
Slave status：accept DMX signals from controller or Master machine.
Auto
Master-Slave ： running automatically, and send DMX signals to slave
machines.
Attention：If need to check the light effects, please power on the lamp first
and enter to auto running status. The lamp couldn’t be light up
automatically
DMX Address
1-512
Press “Confirm” button to edit. First is for “hundred's digit”, and press
“Up” and “Down” to change the address codes. Press “Confirm” button
the second time to edit “ten's digit”, and press again the “Confirm”
button to edit “unit's digit”. Please press it again to exit editing.
Channel Mode
16
17-20 CH Invalid
20
17-20CH to control speed（please refer to Channel chart）
Invert Pan
off
on
Invert Tilt
off
on
Swap Pan-Tilt
off
