EXPERT 24
CUTTING PLOTTER
User Manual
`
Great Computer Corporation ©
NOTICE
GCC reserves the right to modify the information contained in this user
manual at any time without prior notice; un-authorized modification, copying
distribution or display is prohibited. All comments, queries or
suggestions concerning this manual please consult with your local dealer.
Expert 24 user manual
Important Information
Important Information
Thank you for purchasing the Expert 24 Cutting Plotter.
Before you use the cutting plotter, please make sure that you have read the
safety precautions and instructions below.
Caution
!
SAFETY PRECAUTIONS!
¾ For safety concern, please always hold the cutter firmly from the bottom while moving
it. Do not move the cutter by clasping the depression area on both sides.
（ O ）
Correct Incorrect
（ X ）
¾ Do not shake or drop the blade holder, a blade tip can fly out.
¾ During an operation, do not touch any of the moving parts of this machine (such as the
carriage). Also be careful to make sure that clothing and hair do not get caught.
¾ Always connect the power cable to a grounded outlet.
¾ Always use the accessory power cable which is provided. Do not wire the power cable
so that it becomes bent or caught between objects.
¾ Do not connect the power cable to branching outlet to which other machines are also
connected, or use an extension cable. There is danger of overheating and of
mis-operation of the machine.
¾ Keep the tools away from children where they can reach.
¾ Always put the pinch rollers within the white marks.
Expert 24 user manual
Table of Contents
TTaabbllee ooff CCoonntteenntts
s
Important Information
1. General Information
1.1 Package Items 1-1
1.2 Product Features 1-1
1.3 The Appearance 1-2
2. Installation
2.1 Precaution 2-1
2.2 Stand & Flexible Media Support System 2-2
2.3 Blade Installation 2-5
2.4 Media Loading 2-7
2.5 Cable Connections 2-9
3.Operation
3.1 The Control Panel 3-1
3.2 VLCD 3-2
3.3 File Uploader 3-5
3.4 Data Transmission 3-6
4. Basic Maintenance
4.1 Cleaning the cutting Plotter 4-1
4.2 Cleaning the Grid Drum 4-1
4.3 Cleaning the Pinch Rollers 4-2
5. Trouble Shooting
5.1 What if Expert 24 cannot Operate? 5-1

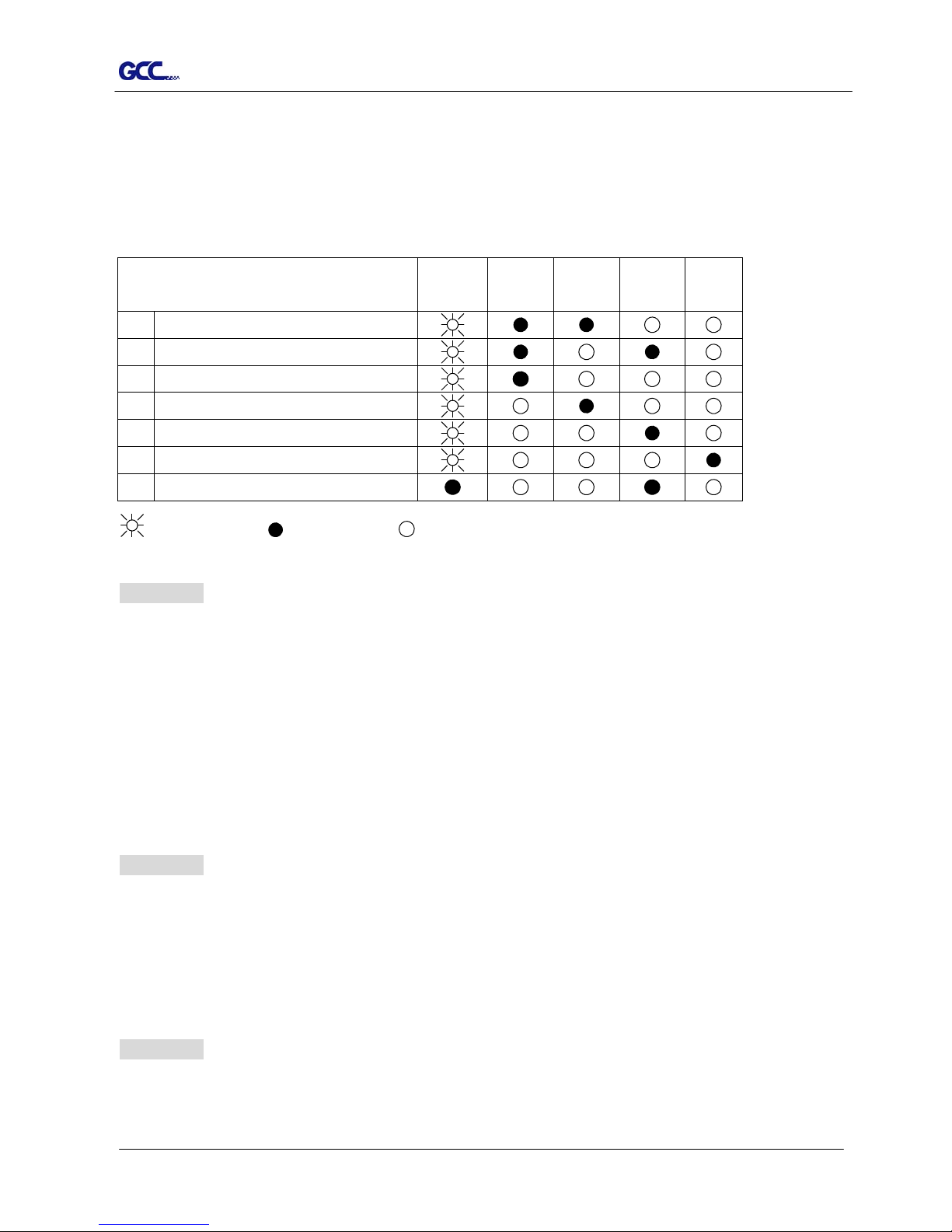

5.2 Light Indicators 5-1
5.3 Cutting Quality Problems 5-4
5.4 USB Connection problems 5-5
Appendix
I Expert 24 Specification A-I
Expert 24 user manual
General Information 1-1
1.1 Package Items
The package of Expert 24 contents the items listed below, please check carefully.
If you find any item missing, please consult your local dealer for further assistance.
Item Quantity
Cutting Plotter 1 Set
Accessories 1 Set
1. Installation CD 2. AC Power Cord 3. Desktop Support Brackets
4. Cutting Pad 5. USB Cable 6. RS-232 Cable
7. Tweezers 8. Paper Slicer
1. General Information
1.2 Product Features
The followings are the main features of the Expert 24 cutting plotters:
‧ Dual-port connectivity – USB & Serial interface.
‧ Up to 250 gram cutting force.
‧ Up to 40 mm/per second cutting speed.
Expert 24 user manual
General Information 1-2
1.3 The Appearance (EX-24)
1.3.1 The Front View
Object Description
A Primary Pinch Roller To help hold the media during cutting.
B Slicing Groove To help slice off media.
C Alignment Ruler To align media with clear guideline marks
D Tool Carriage To help perform cutting job with installed blade or pen.
E Blade Holder To hold the blade.
F Platen The surface for holding and supporting media in operation.
G Cutting Pad To protect blade and plate in operation.
H Control Panel To consist of 10 control keys and 6 LED lights.
1.3.2 The Back View
Object Description
J Grid Drum To move media back and forth in operation.
J
【Figure 1-2】
GFED
CBA
H
【Figure 1-1】
Expert 24 user manual
General Information 1-3
1.3.3 The Side Views
O
【Figure 1-4】
N
K L M
【Figure 1-3】
Object Description
K AC Power Connector To insert the AC power cord.
L Fuse 3Amp.
M Power Switch To turn on or off the machine.
N USB Connector To connect the machine and a computer through a
USB cable.
O Serial Interface Connector To connect the machine and a computer through a
RS-232 cable.
Expert 24 User Manual
Installation
2-1
2. Installation
2.1 Precaution
Please read below information carefully before you start installation.
Notice 1
z Make sure the power switch is off before installing the cutting plotter.
z Carefully handle the cutter to prevent any injuries.
Notice 2 Choosing a proper place before setting up the cutting plotter
Before installing your cutting plotter, select a suitable location, which meets the following
conditions.
z The machine can be approached easily from any direction.
z Keep enough space for the machine, accessories and supplies.
z Keep the working area stable, avoiding severe vibration.
z Keep the temperature between 15 and 30
℃
(60-86oF) in the workshop.
z Keep the relative humidity between 25% and 75% in the workshop.
z Protecting the machine from dust and strong air current.
z Preventing the machine from direct sunlight or extremely bright lighting.
Notice 3 Connecting the Power Supply
Check the plug of the power cord to see if it mates with the wall outlet. If not, please contact
your dealer.
z Insert the plug (male) into a grounded power outlet.
z Insert the other end (female) of power cord into the AC connector of cutting plotter.
Expert 24 User Manual
Installation
2-2
2.2 Stand & Flexible Media Support System
2.2.1 Stand Installation
Please follow the procedures below for assembling the stand and the media support system.
Step 1 Please examine the supplied items in the accessory box of the stand carton
before you install:
Stand is an optional item for Expert 24, Item List：
z 1 Left side vertical stand
z 1 Right side vertical stand
z 1 Support for left side
z 1 Support for right side
z 1 Stand Beam
z 2 Bottom Stands with wheels
z 2 Sliding brackets for paper take up
z 1 Hex Wrench (M5)Φ4
z 28 Socket flat head screws(M6*12L)
z 1 Installation Guide
Step 2
Position the Left side vertical stand perpendicularly to part Xand put the screws into the
holes and tighten them to form a left side T-stand (Figure 2-1). Repeat the same steps with the
Right side vertical stand.
Left side vertical stand
X Bottom Stand
Figure 2-1
Expert 24 User Manual
Installation
2-3
Step 3
Place the stand beam upright on the T-stand and put the screws into the holes but do not
tighten them at this step.
T-stand
Stand Beam
Figure 2-2
Step 4
Position both the left Support and right Support perpendicularly to the T-stand and put the
screws into the holes and tighten them as shown in Figure 2-3.
Support for right side
Support for left side
Figure 2-3
Expert 24 User Manual
Installation
2-4
Step 5
Remove the cutting plotter from the carton. Position the stand under the plotter, and insert the
screws into the holes on the bottom of the plotter but do not tighten them up as shown in
Figure 2-4.
Figure 2-4
Step 6
Tighten the screws of step 3 and step 5. Place the sliding brackets for paper takeup onto the
stand beam.
sliding brackets for paper takeup
Figure 2-5
Expert 24 User Manual
Installation
2-5
2.3 Blade Installation
Figure 2-6 is the illustrator of the blade
Pin
Adjustment depth knob
holder. Insert a blade into the bottom of
the blade holder and remove the blade by
pushing the pin. Make sure that your fingers
Outward ring
are away from the blade tip.
Figure 2-6
Step 1 Step 2
Install blade (Figure 2-7). Push the blade to the bottom of the blade
holder (Figure 2-8).
Figure 2-8
Figure 2-7
Step 3
Adjust the blade tip to suitable length by
screwing “Blade tip adjustment screw”
clockwise or count-clockwise. (Figure 2-9).
“The proper length” means the blade’s
length is adjusted 0.1mm more than film’s
thickness. That is, if the thickness of film is
0.5mm, then blade’s length is properly
adjusted 0.6mm and it can completely cut
through the film layer yet avoid penetrating
the backing.
Tips:
Figure 2-9
Expert 24 User Manual
Installation
2-6
Step 4
Insert the blade holder into tool carriage. Please note the outward ring of the holder must put
into the grooves of carriage firmly (see Figure 2-10), fasten the case (Figure 2-11).
Figure 2-10 Figure 2-11
Step 5
Use the reversing steps to remove the blade holder.
Step 6
Eject the blade: Push “Blade eject pin” to eject blade when the blade needs to be replaced.
9 If cutting quality is not as good as usual, you may need to replace a new
one.
9 If the material cannot be cut through by higher cutting force, you may need
to replace a new one.
9 If the blade is broken, you have to replace a new one.
Caution
The blade will lose its sharpness after a period of usage, the cutting quality
m
be affected. By increasing the cutting force, it might do the trick. However,
the blade is worn out and no longer provides a reliable cutting, you should re
p
a new one. The blade is consumable and must be replaced as often as nece
s
to maintain the cutting quality. The quality of the blade deeply affects c
u
quality. So be sure to use a high quality blade to ensure good cutting results.
Tips - When to replace a new blade:
Expert 24 User Manual
Installation
2-7
2.4 Media Loading

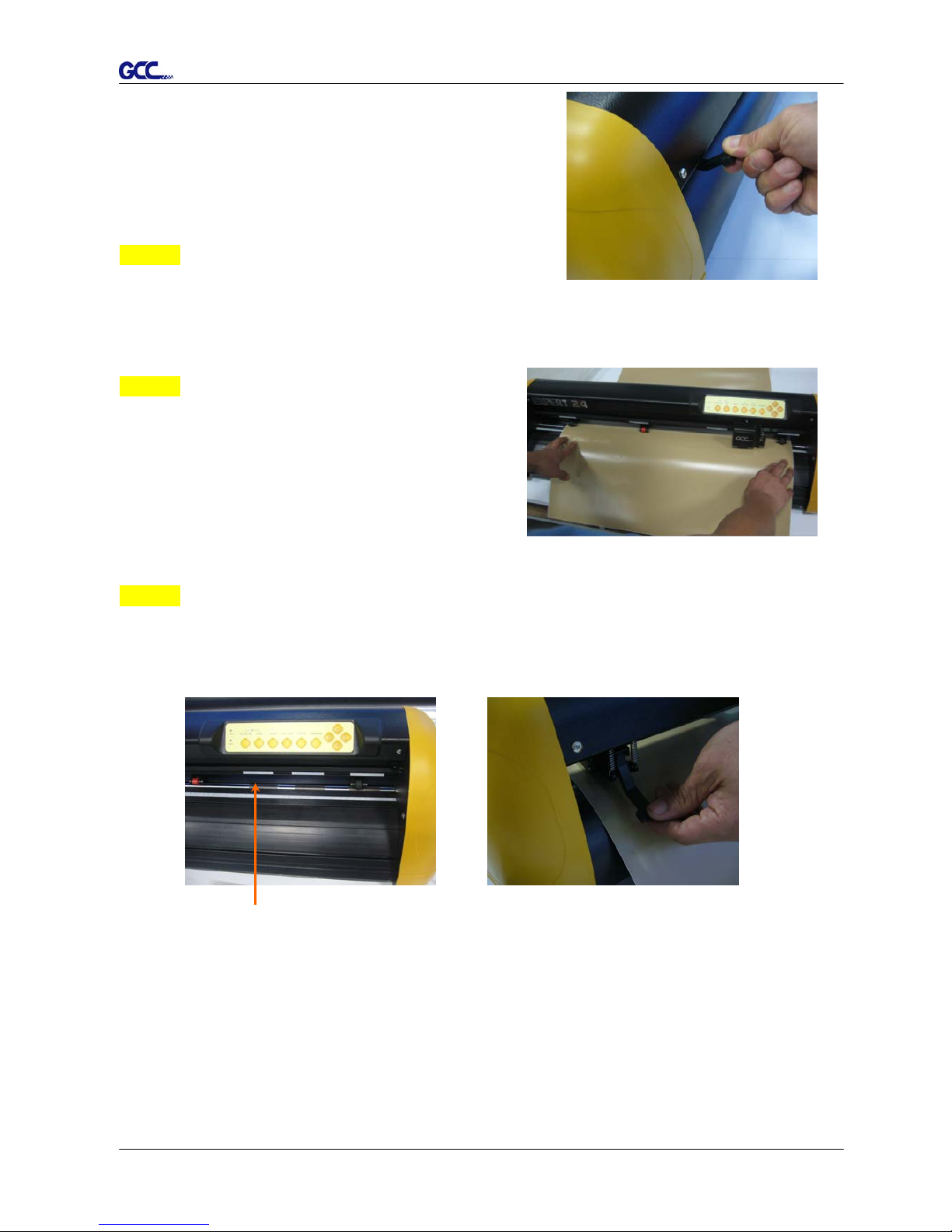

2.4.1 Loading the Sheet Media
To load the media properly, please follow the below
procedures:
Step 1
Figure 2-12
Figure 2-14
Figure 2-15
Lift the 2 levers at the back side of cutter to raise pinch
rollers (Figure 2-12).
Step 2
Load your media on the platen and slide it under
the pinch rollers from either the front side or the
backside. The alignment rulers on the platen
extension will help you to adjust the media
precisely (Figure 2-13).
Figure 2-13
Step 3
Then move the pinch rollers manually to the proper position. Be sure the pinch rollers must be
positioned above the grid drum. The white marks on the main beam will remind you where
the grid drums are (Figure 2-14).
White mark
Expert 24 User Manual
Installation
2-8
CAUTION!!!
9 Make sure the Primary and secondary pinch rollers are set to right positions.
9 Position the Primary Pinch Rollers at the right and left sides of media.
9 Position the Secondary Pinch Roller at the center of media.
(O)
Correct
Figure 2-16
Figure 2-17
(X)
Incorrect
Primary Pinch Roller
Secondary Pinch Roller
Step 4
Push the lever backward to lower down the pinch rollers (Figure 2-15).
Step 5
After turn on the power, the tool carriage will measure the size of the media automatically. And
the plotting cutter begins to work.
Expert 24 User Manual
Installation
2-9
Note:
ways adjust the position with the pinch rollers raised.
the pinch roller and moving it
nt rubber roller (Figure 2-19).
Figure 2-18 Figure 2-19
Correct Incorrect
.4.2 Loading the Roll Media
media support system. Please refer to Chapter 2.2 for
.5 Cable Connection
he cutting plotter communicates with a computer through a USB (Universal Serial Bus) or a Serial
(O) (X)
2
You can use the stand with flexible
hardware setup, and Chapter 2.4.1 for media loading.
2
T
port (RS-232C). This chapter shows you how to connect the cutting plotter to a host computer and
how to set up the computer/cutting plotter interconnection.
!! Notice: When USB connection is enabled, serial port will be diExpertd automatically.
9 Al
9 Please reposition the pinch roller by holding the center of
from the rear end of the machine. (Figure 2-18)
9 DO NOT move the pinch roller by holding its fro
Expert 24 User Manual
Installation
2-10
2.6.1 USB Interface
ace are based on the Universal Serial Bus Specifications

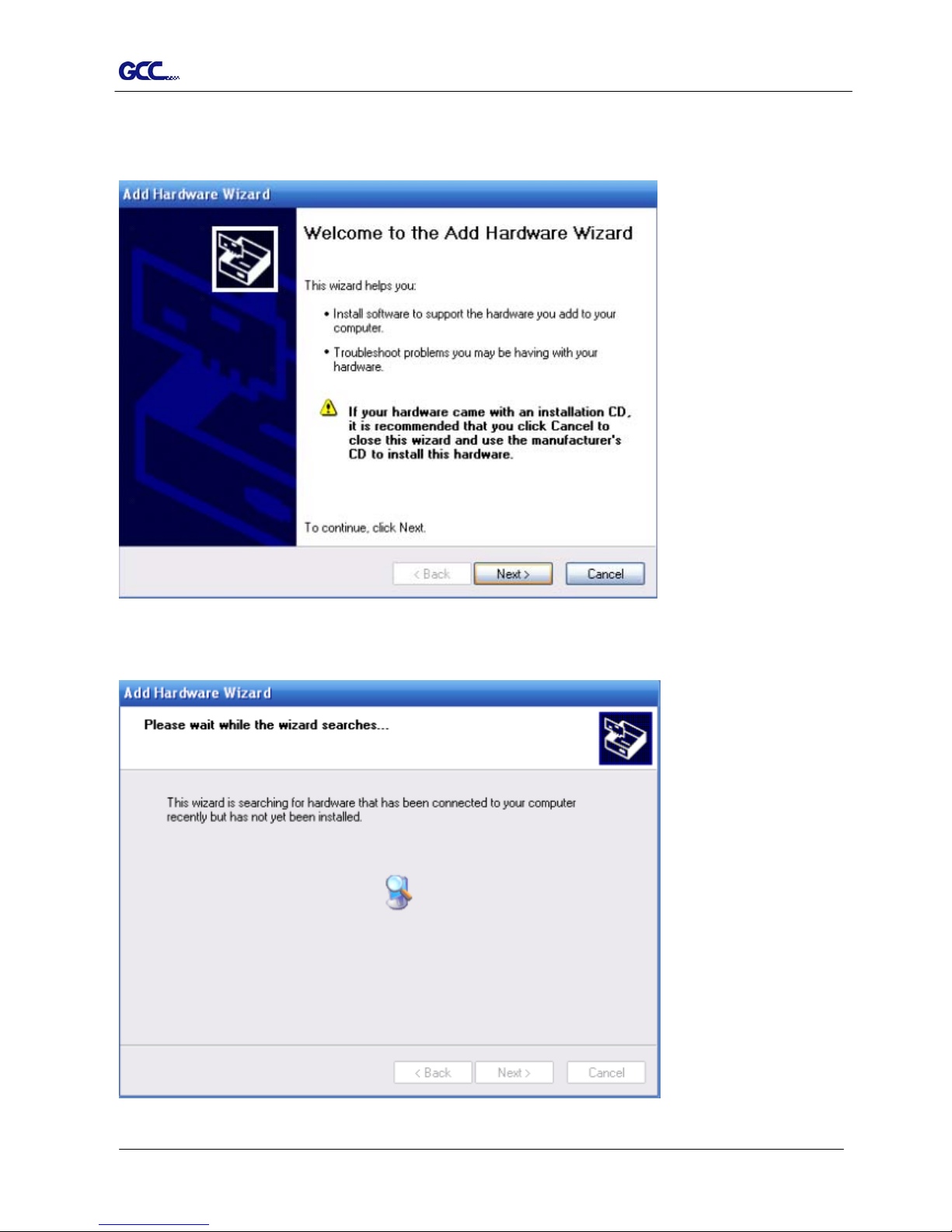

USB driver installation
a. Put USB cable aside (don’t plug it into Expert 24).
on “USB driver” from the pop-up
onnection
iver installed, plug the USB cable into Expert 24’s USB interface connector,
.6.2 RS-232 Interface
(Serial) Port
the
Expert 24 build-in USB interf
Revision 1.1. (Operation system of Windows 95, Windows NT don’t support USB ).
Caution!!
9 DO NOT plug USB cable into ANY GCC Cutter when install USB driver.
9 in your system,
9 If you are using Windows 2000 or XP as your operating system, make
sure you log in using the “Administrator” account.
If there’s an USB driver of previous version installed
please remove it and restart computer before installation.
b. Insert the Expert 24 Installation CD, and then click
menu to install.
C
After USB Dr
and the other end of the cable into PC’s USB interface connector.
2
Connecting to the RS-232
1. For IBM PC, PS/2 users or compatibles, connect the RS-232C cable to the serial
connector of the assigned serial port (COM1 or COM2) of your host computer.
2. Set up the communication parameters (Baud Rate and Data Bits/Parity) to match
setting of software package, refer to chapter 3 – “Misc” key description.
Expert 24 user manual
3. Operation
3.1 The Control Panel
3.1.1 The Outline of control panel
Figure 3-1
Key Function
POWER LED To indicate the power status ( light up: power on; light off: power off )
ERROR LED To indicate the error status ( light up: error; light off: normal )
ON/OFF LINE
To switch modes or stop cutting job( light up: on-line; light off: off-line )
While in on-line mode: only ON/OFF LINE and PAUSE keys activated
While in off-line mode: the settings in VLCD can be adjusted.
PAUSE To temporarily halt cutting process or to continue
REPEAT To repeat last job.
DATA CLEAR To clear up buffer memory.
CUT TEST To perform cutting tests in different ways.
ORIGIN SET To reset origin at a new position.
4 Arrow Keys To move carriage position, select function, or change setting.
3.1.2 Reset Origin
Note:
9 Make sure the machine is in off-line mode to enable this function.
Step 1 Move the carriage to a new position.
Step 2 Press the ORIGIN SET button to reset origin.
Operation
3-1
Expert 24 user manual
3.1.3 Cut Test
9 It’s recommended to keep performing this function until the cutting
quality meets your demand before executing the cutting job.
9 Make sure the machine is in off-line mode to enable this function.
Note:
Step 1 After sizing, press the ON/OFF LINE button to set as off-line mode.
Step 2 Move the carriage to a preferred position.
Step 3 Press CUT TEST button to perform.
3.1.4 Repeat
Note:
9 Make sure the machine is in off-line mode to enable this function.
Step 1 Press the ON/OFF LINE button to set as off-line mode.
Step 2 Press the REPEAT button to perform re-plot function starting at the position where
the carriage locates. It is also available to move carriage to a preferred position,
re-set origin, and then perform this function.
3.2 VLCD
“VLCD” is a computer program to help modify parameters of cutting functions.
3.2.1 Installation
Step 1 Copy the VLCD.exe file in the Accessories folder of the Expert 24 Installation
CD onto your local drive to finish installation.
Step 2 Launch VLCD by double-click on the icon.
9 There is media in the machine.
Note:
9 Make sure the machine is in on-line mode to enable this program.
Operation
3-2
Expert 24 user manual
Step 3 Choose the right port connected to your computer (Figure 3-2).
If you are using the USB cable, choose USB0 from the pull down menu. If you are
using a Serial cable, choose either COM1 or COM2. Make sure no other devices
are occupying the port that you are going to use.
Step 4 Press the Connect button to connect your computer and the cutter.
If the connection succeeds, the model info, firmware version, and adjustable
parameter columns will be showing (Figure 3-3).
Figure 3-2 Figure 3-3
3.2.2 Functions of VLCD
Below are the functions adjustable in VLCD for Expert 24.
Poll Size
Force
Media Weight
Offset
Auto Unroll
Update Setting
Poll Size
Click on the Poll Size button will reveal the X/Y values.
Operation
3-3
Expert 24 user manual
Operation
3-4
Figure 3-4
In the case, the maximum plotting length is
25100mm, and the distance between the
farthest two pinch rollers is 367.27mm (Figure
3-4).
Force
To adjust the blade force between 0 and 250 (Default = 50).
Media Weight
To choose different weights of media in two options: Heavy, and Light (Default).
Offset
To adjust the blade offset to ensure cutting quality in 8 options: 0.000, 0.175 (Default),
0.250, 0.275, 0.300, 0.500, 0.750, and 1.000.
Auto Unroll
To switch options for sheet media (Auto Unroll Off: Default) and roll media (Auto Unroll On).
Update Setting
To apply the changed setting onto the cutter by presses the Update Setting button.
Expert 24 user manual
3.3 File Uploader
3.3.1 Installation
9 “File Uploader” is a tool to help loading files for direct output.
9 The program ONLY supports HPGL format-files generated via GCC Cutter driver.
9 Copy the GCC File Uploader.exe file in the Accessories folder of the Expert 24’s
Installation CD onto your local drive to finish installation.
9 Launch GCC File Uploader by double-click on the icon (Figure 3-5).
Figure 3-5
Figure 3-6
3.3.2 Functions of File Uploader
Port setup
9 This function will be activated while choosing COM port for data transmission.
9 Press the Port setup button to pop up the setup window for parameter change (Figure
3-6).
Repeat
9 Activate this function by click on the Repeat’s checkbox.
9 Repeat Delay – the pause time between jobs; Unit: second.
9 Repeat Counts – the number of repeat jobs.
Operation
3-5
Expert 24 user manual
3.4 Data Transmission
There are two options to transmit the data from the computer to the cutting plotter:
Option 1: With proper interface settings, the data can be transmitted from your application
software package to the cutting plotters directly.
Option 2: Most cutting software packages are able to emulate HP-GL or HP-GL/2 commands,
therefore, Use DOS commands like TYPE or PRINT to output your file. As long as
the file is HP-GL or HP-GL/2 format, the cutting plotter can output the data precisely .
For example, a file with PLT extension generated by SignPal can be transmitted directly to the
plotter at the DOS prompt, and then be cut out. Before outputting at the DOS prompt, set up a
transmission protocol between your cutting plotter and computer by a DOS command, MODE.
Make sure that your PC has the same communication protocol as the cutter. For example:
MODE COM2: 9600, N, 8, 1, P
Then, use TYPE command to output via COM2 if COM2 is the assigned output port.
TYPE filename > COM2
Tip: Add the MODE command line to your system’s AUTOEXEC.BAT
to automatically execute MODE command every time you want to
output your data at the DOS prompt via serial connection. However,
values in a MODE command should comply with the related
requirements of your software. Refer to DOS manual for further
Operation
3-6
Expert 24 user manual
Basic Maintenance
4-1
4. Basic Maintenance
This chapter explains the basic maintenance (i.e. cleaning the cutting plotter) required
for the cutting plotter. Except 24 for the steps mentioned below, all the other
maintenances must be performed by a qualified service technician.
4.1 Cleaning the cutting plotter
In order to keep the cutting plotter under good conditions and have the best performance, you need to
clean the machine properly and regularly.
Precaution in Cleaning
Unplug the cutting plotter before cleaning.
Never use solvents, abrasive cleaners or strong detergents for
cleaning. They may damage the surface of the cutting plotter and
the moving parts.
Recommended Methods
Gently wipe the cutting plotter surface with a lint-free cloth. If necessary, clean it with a
water-rinsed or an alcohol-rinsed cloth. Wipe the cutting plotter to remove any residues on the
cutting plotter. Finally absorb water with a soft, lint-free cloth.
Wipe all the dust and dirt from the tool carriage rail.
Use a vacuum cleaner to clean any accumulated dirt and media residue beneath the pinch roller
housing.
Clean the platen, paper sensors and the pinch rollers with a water-rinsed cloth or alcohol-rinsed
cloth. Finally absorb water with a soft, lint-free cloth.
Use the same method mentioned above to clean dust and dirt from the stand.
4.2 Cleaning the Grid Drum
Turn off the cutting plotter, and move the tool carriage away from the area needed to be cleaned.
Raise the pinch rollers and move them away from the grid drum for cleaning.
Use a bristle (a toothbrush is also acceptable) to remove dust from the drum surface. It needs to
rotate the drum manually to clean the drum completely (Figure 4-1).
Expert 24 user manual
Basic Maintenance
4-2
Figure 4-1
4.3 Cleaning the Pinch Rollers
If the pinch rollers need a thorough cleaning, use a lint-free cloth or cotton swab to wipe away the
accumulated dust from the rubber portion of the pinch rollers. To prevent the pinch rollers from rotating
while cleaning, use your fingers to hold the pinch rollers in place.
Use a lint-free cloth or cotton swab rinsed with alcohol to remove the embedded or persistent dust.
Expert 24 user manual
Trouble Shooting
5-1
This chapter helps you to correct some common problems you may come across. Prior to
getting into the details of this chapter, please be sure that your application environment is
compatible with the cutting plotter.
Note:
Before contacting your local dealer, please make sure that the problems are coming from your
cutting plotter, not from the communication between the computer and cutting plotter or from a
malfunction in your computer or software.

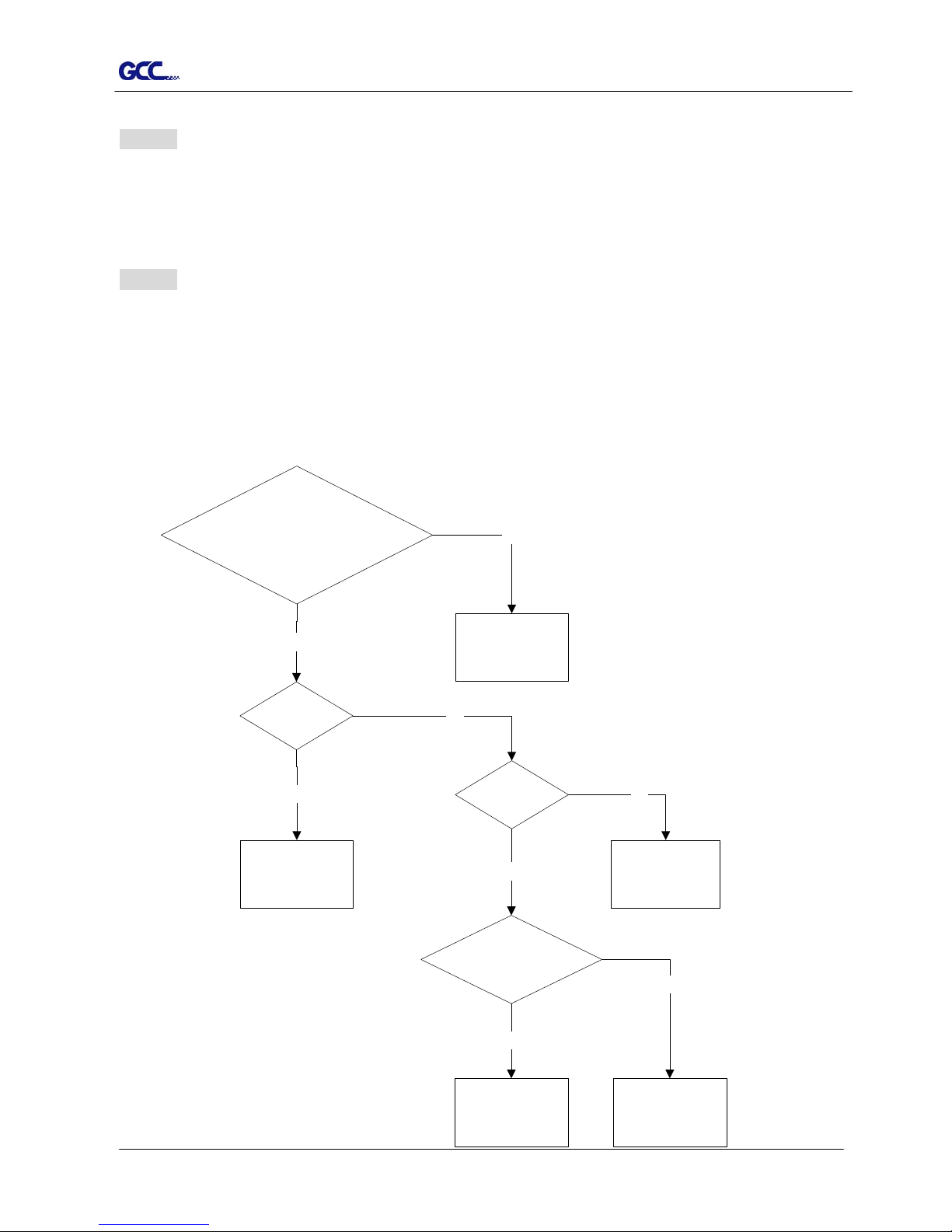

5.1 What if Expert 24 cannot operate?
If your cutting plotter doesn’t plot, please check the following items first:
Is the power cord plugged in properly?
Is the power cord connected to the power connector properly?
Is the power switch turned on properly?
Why doesn’t the cutting plotter operate?
5. Trouble Shooting
Solutions: If the POWER LED lights on, the cutting plotter should be in a normal condition.
Turn off the cutting plotter and turn it on again to see if the problem still exists.
If the POWER LED doesn’t light, please call your local dealer to resolve this problem.
5.2 Light Indicators
Some of the operating problems can be identified by the lights on the control panel.
When your cutting plotter stops operating or the lights are on or flashing unexpectedly, see the
following descriptions of the panel light patterns and the actions you should take.
Expert 24 user manual
Trouble Shooting
5-2
5.2.1 Warning Indicators
When the ERROR LED flashes (as shown below), take the necessary actions according to
the following instructions. When the problems are solved, the ERROR LED will turn off
automatically. Pressing the ON/OFF LINE button can also turn off the ERROR LED.
Warning Indicators
ERROR
ON/OFF
LINE
REPEAT
DATA
CLEAR
CUT
TEST
1 Graph was clipped
2 HPGL/2 command Error
3 Lever up or no media
4 Cannot repeat
5 Communication error
6 Width sensor error
7 Check media, drum or X motor
= flash = on = off
Warning 1 The graph is clipped
This condition indicates that the cutting graph is bigger than the cutting area.
You can solve the problem by:
1. Reload a wider or longer media.
2. Move the pinch rollers to widen the cutting area.
3. Re-scale the graph to a smaller size. Then send the cutting job again from your computer
to the cutting plotter.
Warning 2 HPGL/2 command error
If the cutting plotter cannot recognize the commands from your computer, please check the
commands applied to your cutting plotter in the HP-GL/2 or HPGL commands. Then send the
same job to the cutting plotter again.
If that doesn’t solve the problem, please contact your local dealer.
Warning 3 Lever up or no media
Check that you have lowered the lever down and make sure that you load the media before
cutting.
Expert 24 user manual
Trouble Shooting
5-3
Warning 4 Cannot repeat cutting
There are two possibilities:
1. There is no data in the buffer: please send the job again from your computer;
2. The buffer is full: please send the same job from your computer again.
Under both conditions, press the ON/OFF LINE key to clear the warning message.
Warning 5 Communication error
Check that the serial/USB/parallel cable has been connected to the cutting plotter and
computer properly.
If so, then check whether the interface settings are correct. Check that the communication
settings in your PC are the same as the ones on your cutting plotter (for example – 9600bps,
no parity, 8 bits, 1 stop bit). Then, press ON/OFF Line key to switch back to On Line mode.
Warning 6 Width sensor error
Check that the pinch rollers are positioned above the grid drum and reload the media again.
In order to identify the warning messages easily, please stick the warning
sticker (in accessory box) on the side cover of your cutting plotter.
Note:
5.2.2 Error Indicators
If some mechanical problems occur during the operation, the ERROR LED will turn on. Please
follow the instructions below to solve the problem. If the cutting plotter still cannot work,
please contact your local dealer and tell him or her about the error indicator.
Error Indicators
ERROR
ON/OFF
LINE
REPEAT
DATA
CLEAR
CUT
TEST
1 SRAM error
2 DRAM error
3 Check media, drum, or X motor
4 Check media or Y motor
= flash = on = off
Error 1 and 2
Please contact your local dealer to replace SRAM or DRAM.
Expert 24 user manual
Trouble Shooting
5-4
Error 3 Check the media, drum or X-motor (Drum driven motor)
This message indicates that there might be a problem on the X-axis.
Please check that the drums are working normally and see that the media is well loaded. Then turn on
the power and reboot the cutting plotter.
Error 4 Check the media, or Y motor (carriage driven motor)
This message indicates that there might be an obstruction to the carriage relating to a problem on the
Y-axis.
Please clear the obstruction and check that the carriage can move smoothly. Then turn on the power
and reboot the cutting plotter.
5.3 Cutting Quality Problems
Check pen installed correctly and the blade
holder fastened securely
Yes
Is the blade
broken?
Yes
Replace a new blade
No
Please refer to
Chpater 2.
No
Check tool force
setting
Yes
No
Please refer to 3.23 "
Cutting Test" to
adjust the tool force.
Is there any dirt adhered to
the blade
Yes
Remove the blade
and clean it
Please contact
customer service
persionnel for
technical support
No
Expert 24 user manual
Trouble Shooting
5-5
5.4 USB Connection Problems
Symptom:
1. Some customers report that the USB cannot be detected by computer when the USB
cable is connected and the plotter is turned on.
2. The USB port can only accept the original port that USB driver was installed. If user
connects USB on other USB port, then the computer cannot recognize it or will ask to
install driver again.
Solution:
Make sure that users install latest GCC USB driver. The latest USB driver can be downloaded
from GCC Club. After installation, computer can detect USB connected when plotter is on and
the USB cable is connected to computer.
When the USB driver was installed on one USB port and then the USB cable is re-connected
to another USB port on the same PC next time, most of computers will show the icon and will
ask user if they want to install USB driver again.
(In the bottom right corner of the screen by the clock (list of programs running) you will find
this icon below:)
But sometimes for some computers (laptop mostly), there is no reaction when the USB cable
is connected and the icon cannot be found in the bottom right corner of the screen. From GCC
experience, these computers may have hardware problem or the computer has virus and
cannot detect some new USB components.
If there is no reaction when the USB cable is connected, you can follow below steps to install
the GCC cutter.
Expert 24 user manual
Trouble Shooting
5-6
1: Select “Start” → ”Control Panel” → “Add Hardware”
2: Click “Next”.
3. It will take a few minutes to detect the USB port.
Expert 24 user manual
Trouble Shooting
5-7
4. Connect GCC cutter and select “Yes, I have already connected the hardware.”
5. Select “USB-PRINTER” and click “Next”
Expert 24 user manual
Trouble Shooting
5-8
6. Finish
7. Choose “ Install the software automatically(Recommended).
Expert 24 user manual
Trouble Shooting
5-9
8. Wait a few minutes.
9. Now you can drive GCC cutter.
Expert 24 user manual
Appendix A-I
Appendix - Expert 24 Specification
Model EX-24
Max. Cutting Width
600mm (23.6")
Max. Media Width
719mm (28.3")
Material Thickness
0.8mm
Max. Cutting Force
250g
Max. Cutting Speed(Diagonal)
400 mm /sec (15.7"/sec)
Software Resolution
0.025 mm
Repeatability
±0.1mm
Re-plot Memory
500 Kbyte
Interfaces
USB & RS-232
Commands
HP-GL, HP-GL/2
Configurable Origin
Yes
Control Panel
6 LEDs/10 Keys
Stand
Optional
Temperature 15°C~30°C / 60°F~86°F
Operation
Environment
Humidity
25% ~ 75%
z The above specification is subj ect to change without prior notice.
Loading...
