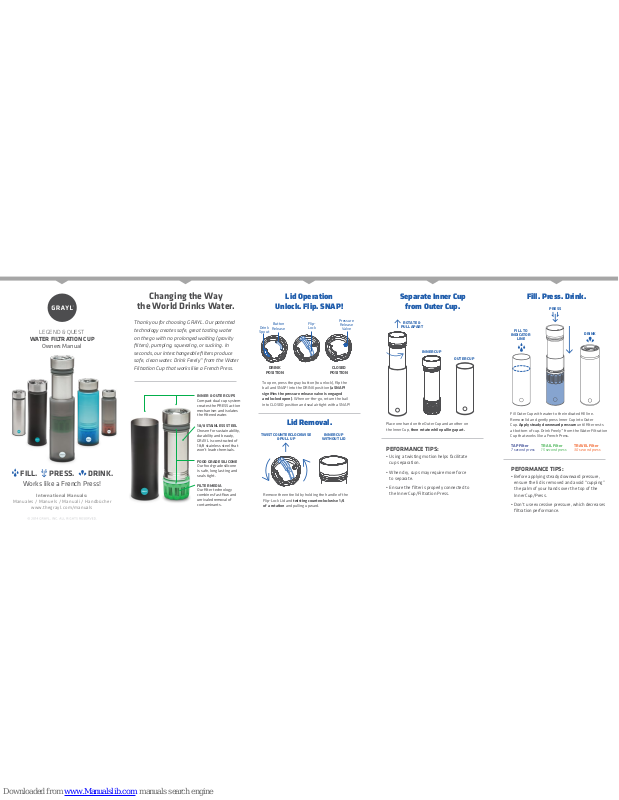

Grayl Legend, Quest Owner's Manual

LEGEND & QUEST

WATER FILTRATION CUP

Owners Manual

International Manuals:

Manuales / Manuels / Manuali / Handbücher

www.thegrayl.com/manuals

FILL.

PRESS.

DRINK.

Works like a French Press!

Thank you for choosing GRAYL. Our patented
technology creates safe, great tasting water
on the go with no prolonged waiting (gravity
filters), pumping, squeezing, or sucking. In
seconds, our interchangeable filters produce
safe, clean water. Drink Freely™ from the Water
Filtration Cup that works like a French Press.

Changing the Way

the World Drinks Water.

ROTATE &

PULL APART

INNER CUP

OUTER CUP

Fill. Press. Drink.Separate Inner Cup

from Outer Cup.

PEFORMANCE TIPS:

PEFORMANCE TIPS:

Place one hand on the Outer Cup and another on
theInner Cup, thenrotate while pulling apart.

Fill Outer Cupwith water to the indicated fill line.
Remove lid and gently pressInner Cup into Outer
Cup.Apply steadydownward pressureuntil filter rests
at bottom of cup.Drink Freely™ fromthe Water Filtration
Cup that works like a French Press.

• Before applying steady downward pressure,
ensure the lid is removed and avoid “cupping”
the palm of your hands over the top of the
Inner Cup/Press.

• Don’ t use excessive pressure, which decreases
filtration performance.

• Using a twisting motion helps facilitate
cup separation.

• When dr y, cups may require more force
to separate. 

• Ensure thefilter is properly connected to
the Inner Cup/Filtration Press.

TAP Filter

7 second press

TRAIL Filter

15 second press

TRAVEL Filter

30 second press

FILL TO

INDICATOR

LINE

PRESS

DRINK

Chosen for sustainability,
durability and beauty,
GRAYL is constructed of
18/8 stainless steel that
won’t leach chemicals.

Compact dual cup system
creates the PRESS action
mechanism and isolates
the filtered water.

INNER & OUTER CUPS

18/8 STAINLESS STEEL

FOOD GRADE SILICONE

FILTER MEDIA

Our food-grade silicone
is safe, long lasting and
seals tight.

Our filter technology
combines fast flow and
unrivaled removal of
contaminants.

CLOSED

POSITION

DRINK

POSITION

Button

Release

Drink
Spout

Flip­Lock

Pressure
Release

Valve

TWIST COUNTERCLOCKWISE

& PULL UP

INNER CUP

WITHOUT LID

Lid Operation

Unlock. Flip. SNAP!

Lid Removal.

To open, press the gray button (to unlock), flip the
bail and SNAP! into the DRINK position (a SNAP!

signifiesthe pressure release valve is engaged
and locked open).When on-the-go, return the bail

intoCLOSED position and seal airtight with a SNAP!

Remove the entire lid by holding the handle of the
Flip-Lock Lid and twisting counterclockwise 1/4
of a rotation and pulling upward.

Filter Removal

& Installation.

Cleaning, Maintenance,

and Storage.

Precautions

to keep in mind.

We have you

covered.

Locate filter lock tab at
bottom of inner cup. Pull out
filter lock tab and twist
filter clockwise.

Insert filter into inner cup/
press and rotate counter­clockwise. Screw filter until
filter lock tab clicks into filter
lock slot. Do not over tighten.

Before drinking, press water
through the system twice.
Discolored water (caused by
harmless activated carbon
dust) is normal during the
first few cycles.

Removal.

Installation.

Before first use.

Your GRAYL is easy to maintain by

following a few basic guidelines.

Take care of your cup and it will

take care of you.

Don’t use soap on filter.

Do not wash filter with soap or other
cleaning agents. You may rinse the filter
with clean water as needed.

Wash cups on top rack or by hand.

Your outer cup, inner press/cup, and
locking lid are top rack dishwasher safe,
otherwise wash by hand with warm,
soapy water. Wash before first use.

Storing your GRAYL.

When storing for an extended period,
separate, clean, and thoroughly dry all
parts before storing.

Filter Lifespan
The lifespan of the filter varies with the quality of your water
source. High levels of sediment in the water will shorten the
life span of the filter. When using clear water, the filter will last
about 300 cycles (40gal / 150L) – about three uses per day for
three months. Use beyond filter capacity diminishes filtration
eectiveness and may result in drinking unsafe water. If water
flow rate is noticeably slower than usual then the filter should
be replaced.

Warranty
Your GRAYL is accompanied by a one (1) year warranty covering
workmanship and materials. For replacement information
please contact us at: www.thegrayl.com/customer-service.

Care Between Uses
Cartridges can last up to a year after opening if cared for
properly between uses. Activated carbon, which removes many
chemicals and heavy metals, can degrade over time. To limit
the degradation of filter media, air dry completely and place in
an air-tight bag.

Parts and Contact Information
For replacement parts, filters, performance ratings, frequently
asked questions, or to contact us with questions or comments,
please visit us at, www.grayl.com

International Manuals
Manuales / Manuels / Manuali / Handbücher

www.thegrayl.com/manuals

• To prevent spills between uses, always SNAP!
the Flip-Lock into the CLOSED position.

• Filter water only (no other liquid).

• Choose your water source wisely. Always use
the cleanest, safest, and most reliable water
source possible. Do not expose/fill the inner
cup with untreated water.

• Before separating inner and outer cups, make
sure the inner cup is empty. When separating

cups for filtration, be aware that residual water
will drip from filter.

• Do not use boiling water or allow your GRAYL
Water Filtration Cup to freeze.

• Do not put any GRAYL components in
microwave or freezer.

DRINK POSITION CLOSED POSITION

SNAP!

thegrayl.com Seattle USA

Take control

of your water quality.

TAP

TRAIL

TRAVEL

Our unique interchangeable filter system provides
varying levels of protection. The TAP Filter removes
many chemicals and heavy metals, our TRAIL Filter
adds protection from bacteria & protozoan cysts, and
the TRAVEL Purifier provides the ultimate defense
against viruses while traveling in developing countries
or highly impacted wilderness areas.

Filter Media

ACTIVATED CARBON

The TAP Filter uses activated carbon fiber with an extremely
small micro pore structure and a capacity for absorption far
greater than conventional granular activated carbon.

G3+™ FILTRATION MEDIA

The TRAIL Filter and TRAVEL Purifier use patented G3+™
Filtration Media – three filtration technologies in one for added
protection: 1) A triple-charged mesh traps disease-causing
germs while allowing water to flow quickly, 2) Activated natural
carbon (made from coconut shells) attracts and traps many
heavy metals, industrial chemicals, 3) An integrated anti­microbial agent suppresses the growth of mold, mildew and
bacteria, keeping GRAYL fresh between uses.

For more Filter & Purifier information:

Review the filter manual included

inside your GRAYL Water Filtration Cup
