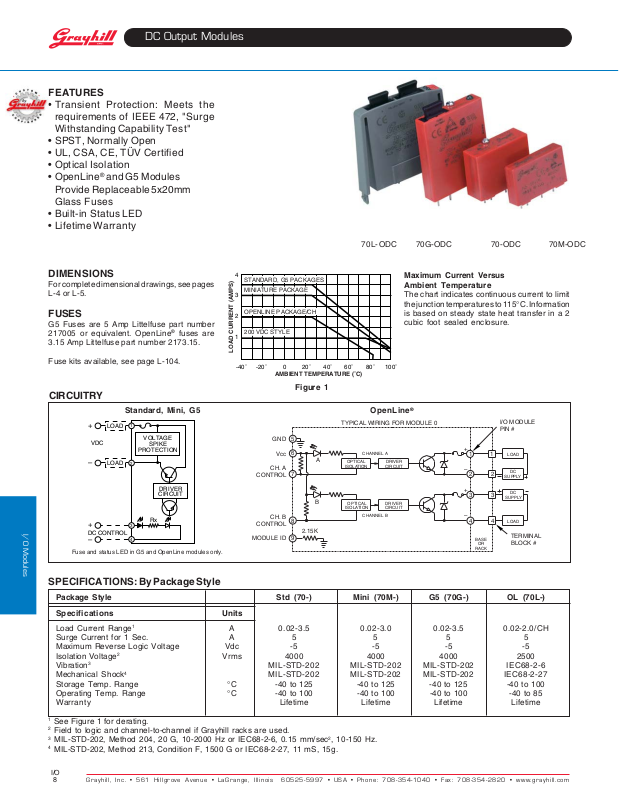

DC Output Modules
FEATURES
• Transient Protection: Meets the
requirements of IEEE 472, "Surge
Withstanding Capability Test"
• SPST, Normally Open
• UL, CSA, CE, TÜV Certified
• Optical Isolation
• OpenLine® and G5 Modules
Provide Replaceable 5x20mm
Glass Fuses
• Built-in Status LED
• Lifetime Warranty
70L-ODC 70G-ODC 70-ODC 70M-ODC
DIMENSIONS
For complete dimensional drawings, see pages
L-4 or L-5.
FUSES
G5 Fuses are 5 Amp Littelfuse part number
217005 or equivalent. OpenLine® fuses are
3.15 Amp Littelfuse part number 2173.15.
Fuse kits available, see page L-104.
CIRCUITRY
Standard, Mini, G5 OpenLine
LOAD
LOAD
1
VOLTAGE
SPIKE
PROTECTION
2
Rx
3
4
I/O Modules
+
VDC
–
+
DC CONTROL
–
Fuse and status LED in G5 and OpenLine modules only.
DRIVER
CIRCUIT
4
STANDARD, G5 PACKAGES
MINIATURE PACKAGE
3
OPENLINE PACKAGE/CH
2
200 VDC STYLE
1
LOAD CURRENT (AMPS)
-40˚ -20˚ 0 20˚ 40˚ 60˚ 80˚ 100˚
AMBIENT TEMPERATURE (˚C)
Figure 1
TYPICAL WIRING FOR MODULE 0
5
GND
Vcc
CH. A
CONTROL
CH. B
CONTROL
MODULE ID
6
A
7
B
8
2.15K
9
OPTICAL
ISOLATION
OPTICAL
ISOLATION
CHANNEL A
CHANNEL B
Maximum Current Versus
Ambient Temperature
The chart indicates continuous current to limit
the junction temperatures to 115°C. Information
is based on steady state heat transfer in a 2
cubic foot sealed enclosure.
®
I/O MODULE
PIN #
DRIVER
CIRCUIT
DRIVER
CIRCUIT
+
1
–
2
+
3
–
4
BASE
RACK
LOAD
1
DC
2
SUPPLY
DC
3
SUPPLY
4
LOAD
OR
TERMINAL
BLOCK #
SPECIFICATIONS: By Package Style
Package Style Std (70-) Mini (70M-) G5 (70G-) OL (70L-)
Specifications Units
Load Current Range
Surge Current for 1 Sec. A 5 5 5 5
Maximum Reverse Logic Voltage Vdc -5 -5 -5 -5
Isolation Voltage
Vibration
3
Mechanical Shock
Storage Temp. Range °C -40 to 125 -40 to 125 -40 to 125 -40 to 100
Operating Temp. Range °C -40 to 100 -40 to 100 -40 to 100 -40 to 85
Warranty Lifetime Lifetime Lifetime Lifetime
1
See Figure 1 for derating.
2
Field to logic and channel-to-channel if Grayhill racks are used.
3
MIL-STD-202, Method 204, 20 G, 10-2000 Hz or IEC68-2-6, 0.15 mm/sec2, 10-150 Hz.
4
MIL-STD-202, Method 213, Condition F, 1500 G or IEC68-2-27, 11 mS, 15g.
I/O
8
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
1
2
4
A 0.02-3.5 0.02-3.0 0.02-3.5 0.02-2.0/CH
Vrms 4000 4000 4000 2500
MIL-STD-202 MIL-STD-202 MIL-STD-202 IEC68-2-6
MIL-STD-202 MIL-STD-202 MIL-STD-202 IEC68-2-27
DC Output Modules
SPECIFICATIONS: By Part Number
Standard and Miniature Modules
Type/Function Grayhill Part Number
Miniature, Normally Open 70M-ODC5 70M-ODC5A 70M-ODC5B 70M-ODC15 70M-ODC15B 70M-ODC24 70M-ODC24B
Standard, Normally Open 70-ODC5 70-ODC5A 70-ODC5B 70-ODC15 70-ODC15B 70-ODC24 70-ODC24B
Specifications Units
Maximum Line Voltage Vdc 60 200 60 60 60 60 60
Load Voltage Range Vdc 3-60 4-200 3-60 3-60 3-60 3-60 3-60
Max. Off-State Leakage @ Max. Line mA 1.5 0.01 0.01 1.5 0.01 1.5 0.01
Maximum Turn-On Time µSec 20 75 75 20 75 20 75
Maximum Turn-Off Time µSec 50 750 500 50 500 50 500
Typ. Power Dissipation W/A 1 1.5 1 1 1 1 1
Clamping Voltage Vdc 80 360 80 80 80 80 80
Nominal Logic Voltage (Vcc) Vdc 5 5 5 15 15 24 24
Logic Voltage Range Vdc 2.5-10 2.5-9 2.5-10 10-18 10-18 15-30 15-30
Maximum Logic Supply Current
@ Nominal Vcc mA 14 18 14 9 9 9 9
Nominal Input Resistance (Rx) Ω 300 220 300 1800 1800 2700 2700
Minimum Drop Out Voltage Vdc 1 1 1 1 1 1 1
G5 and OpenLine® Modules
Type/Function
Fusible, Normally Open
Specifications Units
Maximum Line Voltage Vdc 60 200 60 60 60 60 60
Load Voltage Range Vdc 3-60 4-200 3-60 3-60 3-60 3-60 3-60
Max. Off-State Leakage @ Max. Line mA 1.5 0.01 0.01 1.5 0.01 1.5 0.01
Maximum Turn-On Time µSec 20 75 75 20 75 20 75
Maximum Turn-Off Time µSec 50 750 500 50 500 50 500
Typ. Power Dissipation W/A 1 1.5 1 1 1 1 1
Clamping Voltage Vdc 80 360 80 80 80 80 80
Nominal Logic Voltage (Vcc) Vdc 5 5 5 15 15 24 24
Logic Voltage Range Vdc 4-6 4-6 4-6 10-20 10-20 18-32 18-32
Maximum Logic Supply Current
@ Nominal Vcc mA 13 13 13 9 9 9 9
Nominal Input Resistance (Rx) Ω 150 150 150 1500 1500 2700 2700
Minimum Drop Out Voltage Vdc 1 1 1 1 1 1 1
70G-ODC570G-ODC5
70G-ODC5
70G-ODC570G-ODC5
70G-ODC5A70G-ODC5A
70G-ODC5A
70G-ODC5A70G-ODC5A
70G-ODC5B70G-ODC5B
70G-ODC5B
70G-ODC5B70G-ODC5B
Grayhill Part Number
70G-ODC1570G-ODC15
70G-ODC15
70G-ODC1570G-ODC15
70G-ODC15B70G-ODC15B
70G-ODC15B
70G-ODC15B70G-ODC15B
70G-ODC2470G-ODC24
70G-ODC24
70G-ODC2470G-ODC24
70G-ODC24B70G-ODC24B
70G-ODC24B
70G-ODC24B70G-ODC24B
OpenLine® Modules
Type/Function Grayhill Part Number
Dual, Fusible, Normally Open
Specifications Units
Maximum Line Voltage Vdc 60 200 60
Load Voltage Range Vdc 3-60 4-200 3-60
Max. Off-State Leakage @ Max. Line mA 1.5 .01 .01
Maximum Turn-On Time µSec 20 75 75
Maximum Turn-Off Time µSec 50 750 500
Typ. Power Dissipation WA 1 1.5 1
Clamping Voltage Vdc 80 360 80
Nominal Logic Voltage (Vcc) Vdc 5 5 5
Logic Voltage Range Vdc 4.5-28 4.5-28 4.5-28
Maximum Logic Supply Current
@ Nominal Vcc mA 7/CH 7/CH 7/CH
Module ID Resistance to Logic
Ground Ω 2.15K 2.15K 2.15K
Minimum Drop Out Voltage Vdc 1 1 1
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
70L-ODC 70L-ODCA 70L-ODCB
Available from your local Grayhill Distributor.
For prices and discounts, contact a local Sales
Office, an authorized local Distributor or Grayhill.
I/O
9
