Grayhill M1YY1021 User Manual

Grayhill DuraMaxH

Quick Reference Guide v0.03

Bulletin #NNNN

561 Hillgrove Avenue

LaGrange, IL 60525

Phone: (708) 354-1040

Fax: (708) 354-2820

On the Internet: http://www.grayhilloem.com

Grayhill Handheld Quick Reference Guide v0.21

responsibility for any errors, omissions, or suitability of its products for a particular application.

Warranty

Industrial Handheld Computers from Grayhill, Inc., (the “Product”) are warranted against defects in materials and workmanship under normal use, for a period of 1 year from the date of purchase. This warranty does not apply to units that have been abused or stressed beyond the published environmental and electrical specifications. In the event of a product failure due to materials or workmanship, Grayhill will repair or replace the defective product. This warranty is limited to the original purchase price of the unit and does not cover installation, labor or any other contingent costs. For warranty service, return the defective product to Grayhill, shipping prepaid, for prompt repair or replacement. The foregoing sets forth the full extent of Grayhill’s warranties regard the Product. Repair or replacement at Grayhill’s option is the exclusive remedy.

THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND GRAYHILL SPECIFICALLY DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL GRAYHILL, ITS SUPPLIERS OR LICENSORS BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS, OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. THEREFORE, THE FOREGOING EXCLUSIONS MAY NOT APPLY IN ALL CASES.

This warranty provides specific legal rights. Other rights which vary from state to state may also apply.

Ordering Guide

All programs and files on the CD included with this Product are protected by copyright. Grayhill, Inc. authorizes duplication of the contained programs and files as necessary for use by the licensee; however, general distribution of these programs and/or files is strictly forbidden without prior written consent from Grayhill, Inc.

Grayhill

Grayhill Product Part Number

Rugged Mobile Handheld VGA Display 1.3Mpix Camera M1YY1021-1 Rugged Mobile Handheld QVGA Display 1.3Mpix Camera M1YY1021-2 Rugged Mobile Handheld VGA Display M1YY1021-3 Rugged Mobile Handheld QVGA Display M1YY1021-4

Handheld Lithium Polymer Battery 21Whr M1YY1020-1 Handheld Lithium Ion Battery 10.5Whr M1YY1020-2 Handheld Lithium Polymer Battery 15.25Whr M1YY1020-3

Charging Cable with USB Host and USB Client Snap Version M1HH4151-1 Charging Cable with USB Host and USB Client Screw Version M1HH4151-2

Evaluation Kit – 1 Handheld QVGA Display (M1YY1021-4) DURAMAXEVT35

1 Handheld Lithium Ion Battery (M1YY1020-3), 1 Handheld Product CD,

1 Charging cable (M1HH4152-1)

Audience

This manual provides a quick reference source for information about the Grayhill Handheld. The information it provides is intended for qualified electrical personnel familiar with installing, programming, and maintaining industrial networks and industrial automation.

Grayhill Handheld Quick Reference Guide v0.21

Contents

Introduction .................................................................................................................................4

Summary of Features......................................................................................................................................4

Typical Uses...................................................................................................................................................4

Handheld Product Components......................................................................................................................4

Evaluation Kit Contents .................................................................................................................................5

Setting Up the Handheld.............................................................................................................5

Charge the Handheld......................................................................................................................................5

Turn On the Handheld....................................................................................................................................6

Align the Handheld Touch Screen..................................................................................................................6

Resetting.........................................................................................................................................................6

Using the Handheld ............................................................................................................. ........ 7

Handheld Buttons...........................................................................................................................................7

Connectivity...................................................................................................................................................8

Using the Stylus .............................................................................................................................................8

Task Bar and Start Menu................................................................................................................................8

Pre-Installed Programs...................................................................................................................................9

Using the Keyboard........................................................................................................................................9

Changing Handheld Settings........................................................................................................................10

Field Swapping the Battery..........................................................................................................................10

Storing Data ...............................................................................................................................10

Built-In Flash Memory.......................................................................................................... .......................11

Wired Communications ............................................................................................................11

Running ActiveSync.....................................................................................................................................14

Disconnecting ActiveSync...........................................................................................................................15

Wireless Communications.........................................................................................................15

WiFi (802.11x).............................................................................................................................................15

BlueTooth.....................................................................................................................................................15

Antennas.......................................................................................................................................................15

Regulatory Information............................................................................................................16

FCC Notices.................................................................................................................................................16

Warranty....................................................................................................................................17

Service Information...................................................................................................................17

Introduction

Grayhill Handheld Quick Reference Guide v0.21

The Grayhill Industrial Handheld Computer is a rugged handheld computer designed for use in heavy industrial or commercial applications. The Handheld provides wireless connectivity and mobile personal computing for personnel who work in extreme environments.

Summary of Features

Environmentally Sealed and Submersible Daylight Viewing Ability

3.5” VGA (640x480) or QVGA (320x240) Transflectiv e Display Ruggedness: Solid frame; industrial-strength high impact touch screen Dimensions: 7.6” x 3.3” x 1.7” Weight: 20oz. with battery Operating System: Windows CE 5.0

Processor: Intel XScale PXA260 416 MHz Long Battery Life: 8 hours at maximum power consumption 64 MB RAM and 64 MB Non-Volatile Flash Memory: No loss of data upon hard reset Auxiliary Storage Capabilities: Secure Digital / Compact Flash Multiple On Board Wireless Options: WiFi (802.11x), Bluetooth Wired Connections: Active Sync and USB via cable Audio: Speakers and Microphone

Typical Uses

Wireless communications solve difficult industrial and commercial communications problems. Communications using radio waves can be made over long distances, through the heat of blast furnaces and the cold temperatures and precipitation that may be present at outdoor sites.

Whether working in construction, manufacturing, mining, or other physically demanding jobs, field personnel will find the Grayhill Handheld useful not only because of its comprehensive communications options, but also because the Handheld can withstand hard knocks, dusty job sites, extreme temperatures, rain, snow, and even submersion in water.

Handheld Product Components

The portable Handheld product is housed in a 7.6” x 3.3” x 1.7” hard plastic frame that features a rubber boot for added durability , and provides an 3.5” VGA or QVGA display with a rugged 5 wire touch screen. The Handheld 2 keypads one for navigation and one for numeric entry.

Product items that accompany the Handheld product are a Lithium Ion battery or Lithium Polymer Batttery, an AC adapter that includes USB Active Sync and USB Host, and a companion CD with an electronic version of this guide.

Evaluation Kit Contents

The Handheld Evaluation Kit includes:

Table 1. Grayhill Handheld Evaluation Kit Components

Handheld Kit Components

1 Handheld Standard 1 Handheld Stylus 1 Handheld Lithium Ion Battery 1 Handheld AC Adapter with USB Active Sync

connection and USB Host Connection 1 Handheld Product CD

For more on the Handheld Evaluation Kit, see the section starting on page Error! Bookmark not defined..

Setting Up the Handheld

The Grayhill Handheld is shipped with its handle already attached and a rechargeable Lithium Ion battery already installed. However, some initial setup is required.

Grayhill Handheld Quick Reference Guide v0.21

Charge the Handheld

Before using your Handheld for the first time, charge its battery for about 3 hours, connectin g the Handheld to an electrical outlet using the Grayhill Charging cable.

A completely charged battery will power the Handheld for eight (8) hours of maximum power consumption depending on the type of battery ordered with the system.

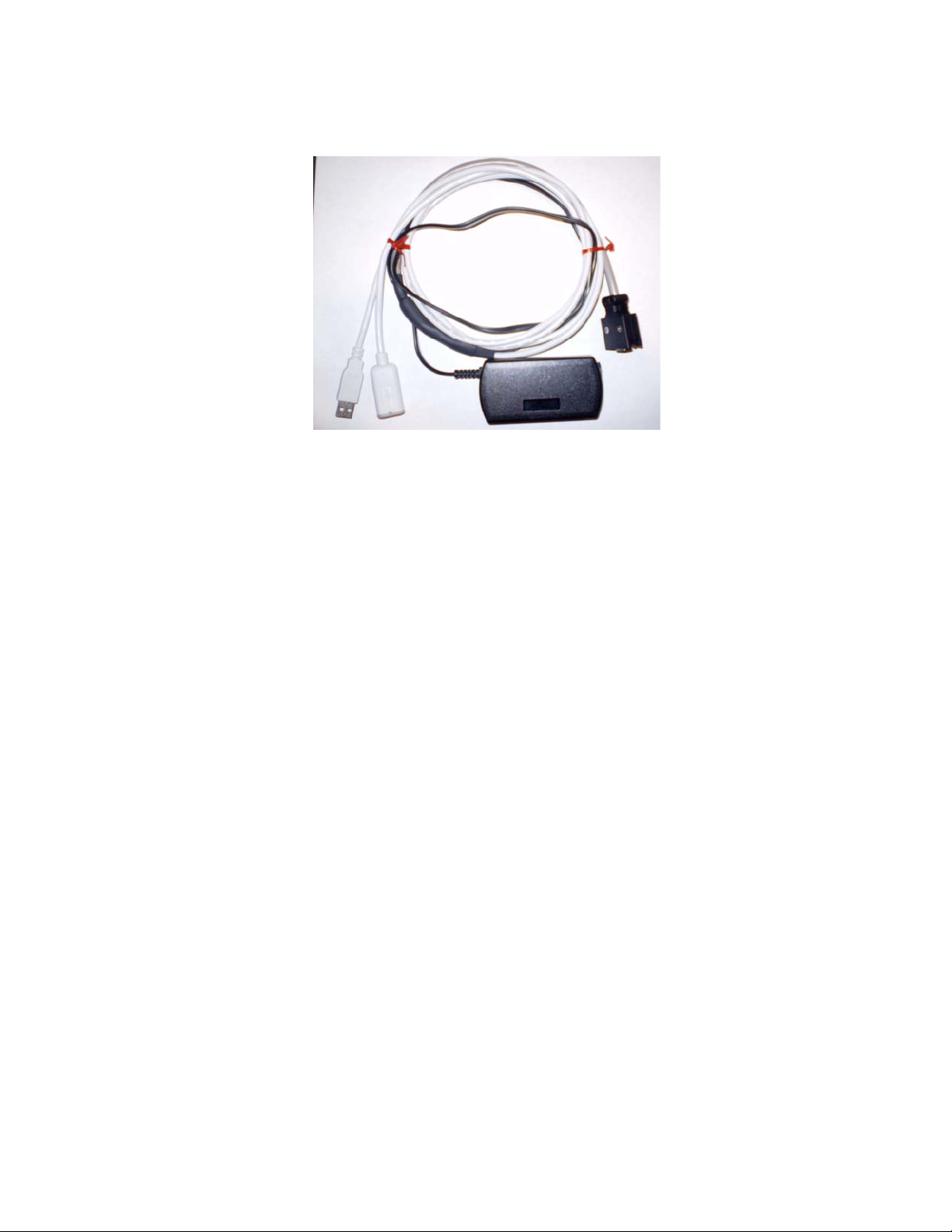

Charging the Battery Using the AC Adapter

Attach the AC adapter to the Handheld’s external connector, then connect the power cord to an electrical outlet.

WARNING: Use only a Grayhill-approved AC adapter with the Handheld. Use of another AC adapter may cause a fire or an explosion. Always connect the AC adapter first to the Handheld. Use the AC adapter with a properly grounded supply to avoid electrical shock. Before plugging the power cord into the wall socket, make sure its voltage and frequency match that of the AC adapter. If using an extension cord with the provided AC adapter, make sure the total current rating of the product does not exceed the current rating of the extension cord.

Grayhill Handheld Quick Reference Guide v0.21

LEDs

When the Handheld is fully charged, the green Power LED glows steadily Green. When the unit is unplugged from AC or the Battery is not charging the LED is off. While the battery is charging the LED is Amber. If there is a low battery the LED will flash Red. If there is a fault or no battery present the LED will be solid Red.

Turn On the Handheld

If your Handheld has been turned off turn it on by pressing the Power button, located on the upper right-left side of the Handheld’s frame. The first time you power on your Handheld, it will take about 45second.

Instant On/Off

After the initial power on, the Handheld instantly turns on when you press the Power button, and instantly turns off when you press the Power button again. The Grayhill Handh eld prov ides these Instant On and Instant Off features to facilitate your work under harsh conditions.

Align the Handheld Touch Screen

The Handheld’s touch screen may initially require calibration to align the cursor on the touch screen with the tip of your stylus. To calibrate your screen tap the center of each alignment target with the tip of the stylus.

Resetting

By default, the Handheld’s Instant Off feature causes it to immediately power down to a “sleep” mode where closed programs are still running, but the screen’s backlight is off. If no use is planned for the Handheld for the near future and batteries need to be removed, you can reconfigure the Instant Off feature to cause the Handheld to turn off completely instead of going to sleep. You’ll use the Power control panel in Settings to reconfigure Instant Off (see page ).

Pressing Power on a Handheld with Instant Off configured to completely turn off the Handheld causes a hard reset of the Handheld. When the Handheld is powered on again, all data saved to flash memory will still be present.

Soft resets of the Handheld are accomplished by selecting Restart on the Handheld’s Start menu, or by responding affirmatively to a request for a restart from an installer or other program.

To conduct a hard reset hold the power button down for 6-10 seconds. This will clear the Handheld's ram and reload the OS from Flash.
