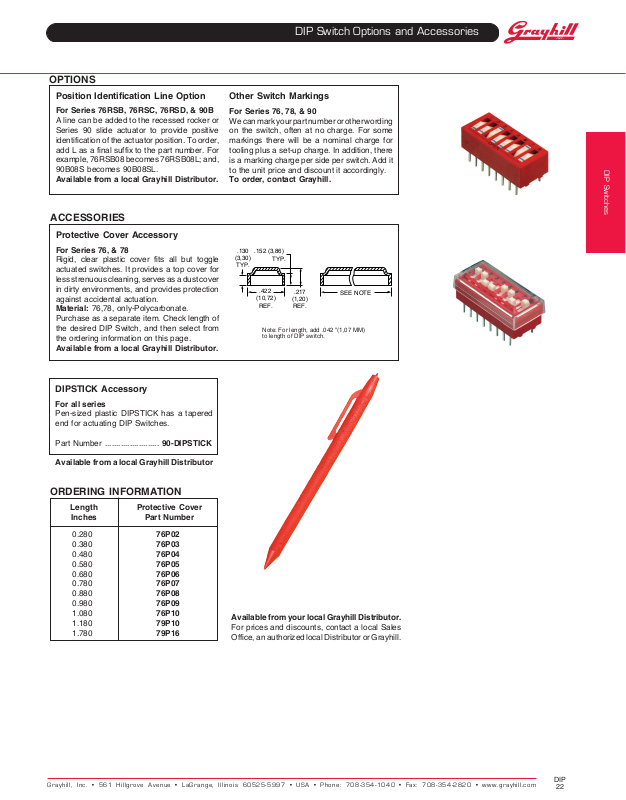

OPTIONS

Position Identification Line Option

For Series 76RSB, 76RSC, 76RSD, & 90B

A line can be added to the recessed rocker or
Series 90 slide actuator to provide positive
identification of the actuator position. To order,
add L as a final suffix to the part number. For
example, 76RSB08 becomes 76RSB08L; and,
90B08S becomes 90B08SL.

Available from a local Grayhill Distributor.

ACCESSORIES

Protective Cover Accessory

For Series 76, & 78

Rigid, clear plastic cover fits all but toggle
actuated switches. It provides a top cover for
less strenuous cleaning, serves as a dust cover
in dirty environments, and provides protection
against accidental actuation.
Material: 76,78, only-Polycarbonate.
Purchase as a separate item. Check length of
the desired DIP Switch, and then select from
the ordering information on this page.

Available from a local Grayhill Distributor.

DIP Switch Options and Accessories

Other Switch Markings

For Series 76, 78, & 90

We can mark your part number or other wording
on the switch, often at no charge. For some
markings there will be a nominal charge for
tooling plus a set-up charge. In addition, there
is a marking charge per side per switch. Add it
to the unit price and discount it accordingly.

To order, contact Grayhill.

.130

.152 (3,86)

(3,30)

TYP.

TYP.

.422

(10,72)

REF.

Note: For length, add .042 "(1,07 MM)
to length of DIP switch.

.217

(1,20)

REF.

SEE NOTE

DIP Switches

DIPSTICK Accessory

For all series

Pen-sized plastic DIPSTICK has a tapered
end for actuating DIP Switches.

Part Number ........................ 90-DIPSTICK

Available from a local Grayhill Distributor

ORDERING INFORMATION

Length Protective Cover

Inches Part Number

0.280 76P02

0.380 76P03

0.480 76P04

0.580 76P05

0.680 76P06

0.780 76P07

0.880 76P08

0.980 76P09

1.080 76P10

1.180 79P10

1.780 79P16

Available from your local Grayhill Distributor.

For prices and discounts, contact a local Sales
Office, an authorized local Distributor or Grayhill.
