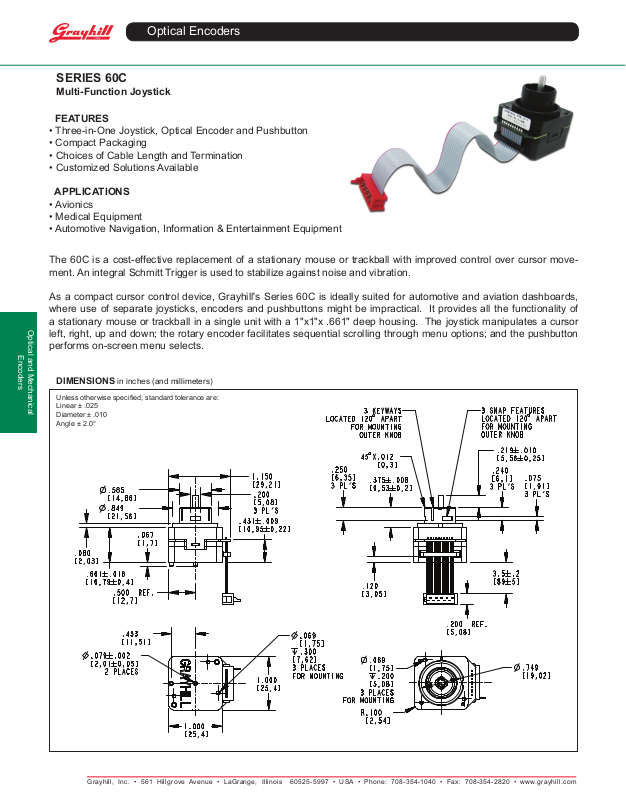

SERIES 60C

Multi-Function Joystick

FEATURES

• Three-in-One Joystick, Optical Encoder and Pushbutton

• Compact Packaging

• Choices of Cable Length and Termination

• Customized Solutions Available

APPLICATIONS

• Avionics

• Medical Equipment

• Automotive Navigation, Information & Entertainment Equipment

The 60C is a cost-effective replacement of a stationary mouse or trackball with improved control over cursor move­ment. An integral Schmitt Trigger is used to stabilize against noise and vibration.

As a compact cursor control device, Grayhill's Series 60C is ideally suited for automotive and aviation dashboards,
where use of separate joysticks, encoders and pushbuttons might be impractical. It provides all the functionality of
a stationary mouse or trackball in a single unit with a 1"x1"x .661" deep housing. The joystick manipulates a cursor

Optical and Mechanical

left, right, up and down; the rotary encoder facilitates sequential scrolling through menu options; and the pushbutton

Encoders

performs on-screen menu selects.

Optical Encoders

DIMENSIONS in inches (and millimeters)

Unless otherwise specied, standard tolerance are:

Linear ± .025
Diameter ± .010
Angle ± 2.0°

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: [phone] • Fax: [phone] • www.grayhill.com

MOUNTING DETAILS in inches (and millimeters)

FRONT MOUNTING REAR MOUNTING

Optical Encoders

JOYSTICK OPERATION + ENCODER WAVEFORM AND TRUTH TABLE Standard Quadrature 2-Bit Code

JOYSTICK

Optical and Mechanical

Encoders

ENCODER

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: [phone] • Fax: [phone] • www.grayhill.com

SWITCH SCHEMATIC

SPECIFICATIONS
Rotary
Electrical and Mechanical Ratings

Operating Voltage: 5.00 ± 0.25 Vdc
Supply Current: 35mA TYP at 5 Vdc
Power Consumption: 175mW TYP at 5Vdc
Output: Direct output from inverting Schmitt

trigger

Optical and Mechanical

Output Code: 2-Bit quadrature, channel A

Encoders

leads channel B by 90° in cw rotation

Logic Output Characteristics:

High: No less than 3.5 Vdc
Low: No greater than 1.0 Vdc

Mechanical Life: 500K rotational cycles
(through all positions and a full return)
Rotational Torque: medium torque option

3.00+2.00 in-oz, torque shall be within 50% of
initial value throughout life

Mounting Torque: 15 in-lbs. maximum
Shaft Push/Pull Out Force: 25 lbs minimum
Terminal Strength: 15 lbs terminal minimum

Joystick
Electrical and Mechanical Ratings

Operating Voltage: 5.00 ± 0.25 Vdc
Supply Current: 35mA at TYP at 5 Vdc
Power Consumption: 175mW TYP at 5Vdc
Output: Direct output from inverting Schmitt

trigger

Logic Output Characteristics:

High: No less than 3.5 Vdc
Low: No greater than 1.0 Vdc

Mechanical Life: 500K cycles
(through all positions and a full return)
Angle of Throw: 8° max. in all directions

Optical Encoders

Pushbutton
Electrical and Mechanical Ratings

Rating: 10 mA at 5 Vdc resistive
Contact Resistance: less than 10 ohms
Contact Bounce: < 4ms make, 10 ms break
Mechanical Life: 500K actuations minimum
Actuation Force: option 7 = 485 ± 115grams
Pushbutton Travel: 0.033 ± 0.015 inches to

contact; 0.075 inches maximum

Environmental Ratings

Operating Temperature Range: -40°C to

85°C
Storage Temperature Range: -55°C to
100°C
Relative Humidity: 96 hours at 90-95%
humidity at 40°C
Vibration: Harmonic motion with amplitude of
15g, within a varied 10 to 2000 Hz

Mechanical Shock:

Test 1: 100g for 6ms half-sine wave with a

velocity change of 12.3 ft/s

Test 2: 100g for 6ms sawtooth wave with a

velocity change of 9.7 ft/s
Thermocycle: 4 hours cycling between

-40°C to 85°C

Materials and Finishes

Bushing: Thermoplastic
Shaft Outer: Thermoplastic
Upper Housing: Thermoplastic
Pushbutton Rocker: Thermoplastic
Pushbutton Actuator: Thermoplastic
Inner Shaft Slide: Thermoplastic

Slider Plate: Thermoplastic
Backplate: Thermplastic
Lightpipe, Joystick: Thermoplastic
Lightpipe, 16 pos: Thermoplastic

Centering Prole: Thermoplastic

Shaft Inner: Aluminum
Pins: Stainless steel
Barbed Rivet: Stainless steel
Detent Balls: Carbon steel 100 with nickel

nish

Centering Balls: Carbon steel 100 with nickel

nish

Detent Springs: Tinned music wire
Centering Springs: Tinned music wire
Cable ASM: .050 round conductor at cable,

PVC coated. Conductors are stranded, top­coated wire

Solder: 95.5% SN, 4% AG, 0.5% CU
Dome: Stainless steel
PCB 16 Pos: NEMA grade FR-4. Plating is

gold or palladium over nickel

Infrared Emitter: Gallium aluminum arsenide
Phototransistor: Planar silicon
Resistor: Carbon lm
Schmitt Trigger: RoHS Compliant TSSOP,

14 pin

Lubricating Grease: Nyogel 774L
Label: TT406 Thermal transfer cast lm

OPTIONS

Contact Grayhill for custom terminations,
rotational torque, number of positions, shaft

congurations, and resolutions. Control knobs

are also available.

ORDERING INFORMATION

Series
Angle of Throw: 22= 22.5° or 16 positions
Rotation Torque: M= Medium torque
Pushbutton: 7= 485 grams
Joystick: 4= Four directions
60C22-M7-4-060S

Termination: 0.050" center ribbon cable with; C= Connector; S= 0.1" stripped end
Cable Length: 025 thru 250 in 1/2 inch increments, 060= 6.0 inch cable

Available from your local Grayhill Distributor. For prices and discounts, contact a local sales ofce, an authorized distributor, or Grayhill.
