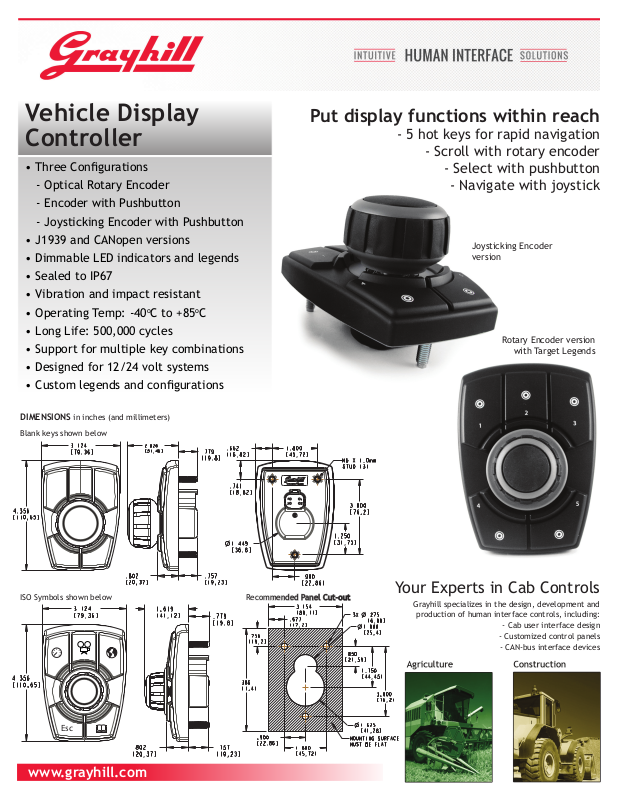

Grayhill 3J User Manual

Vehicle Display
Controller

• Three Congurations

- Optical Rotary Encoder

- Encoder with Pushbutton

- Joysticking Encoder with Pushbutton

Put display functions within reach

- 5 hot keys for rapid navigation

- Scroll with rotary encoder

- Select with pushbutton

- Navigate with joystick

• J1939 and CANopen versions

• Dimmable LED indicators and legends

• Sealed to IP67

• Vibration and impact resistant

• Operating Temp: -40oC to +85oC

• Long Life: 500,000 cycles

• Support for multiple key combinations

• Designed for 12/24 volt systems

• Custom legends and congurations

DIMENSIONS in inches (and millimeters)

Blank keys shown below

Joysticking Encoder
version

Rotary Encoder version

with Target Legends

ISO Symbols shown below

Esc

www.grayhill.com

www.grayhill.com

Recommended Panel Cut-out

Your Experts in Cab Controls

Grayhill specializes in the design, development and

production of human interface controls, including:

- Cab user interface design

- Customized control panels

- CAN-bus interface devices

ENVIRONMENTAL SPECIFICATIONS

Operating temperature ANSI/ASAE EP455 5.1.1

Storage Temperature ANSI/ASAE EP455 5.1.2

Thermal Shock ANSI/ASAE EP455 5.1.3 -40°C to 70°C at a rate of 4°C/

Altitude (Barometric Pressure) ANSI/ASAE EP455 5.2 101.3kPa to 18.6kPa

Sand and Dust ANSI/ASAE EP455 5.3 24 hours with 0.88g/m3

Solar Radiation ANSI/ASAE EP455 5.4 43 to 75W/m2 UV Radiation

Wash Down ANSI/ASAE EP455 5.6 Level 2 375 kPa and 8.3 L/min for 10

Ingress Protection IP67 1 meter submersion for 30

Humidity ANSI/ASAE EP455 5.13 96% Humidity at 35°C for 240

Salt Fog ANSI/ASAE EP455 5.9 5% aqueous solution of NaCl

Chemical resistance (Resis­tance to Solvents)

Thermal Cycling (Change of
Temperature)

Level 2

Level 2

ISO 16750-5 EP 455 (5.8.2)

ISO 16750-4 -40° to 85°C 2 hours at

-40°C for 4 hours to
+85°C for 11 hours

-40°C 4 hours to
+85°C 4 hours

min (1 hour at extremes)

(280 to 400nm wavelength)
for 300h

minutes @15°C Water temp

minutes

hours.

@ 35°C and a pH between 6.5
and 7.2 for 48 hours

extremes change rate = 1°C/
min (8 hours) repeat for 30
cycles.

ELECTROMAGNETIC COMPATIBILITY SPECIFICATIONS

ESD ANSI/ASAE EP455 5.12 +/- 25kV for 10 pulses, 5 of

Radiated Immunity ISO14982 6.6 10MHz-1000MHz Range 48mA

Conducted Emissions SAE J1113-41 Class 3

Broadband Radiated Emissions ISO14982 6.4 64dB to 54dB, 30MHz-75MHz

each polarity

Bulk Current Injection 100V/m

(linearly decreases) 54dB to
65dB, 75MHz-400MHz (linearly
increases) 65dB, 400MHz­1000MHz

CE COMPLIANCE

Agriculture and Forestry
Machinery EMC

Construction Machinery EMC EN 13309:2000 ESA

ISO 14982 ESA

MECHANICAL PERFORMANCE

Vibration, Random ANSI/ASAE EP455 5.15.1 2 hours each axis @ 52.4 m/s2

Vibration, Sinusoidal ANSI/ASAE EP455 5.15.2 A logarithmic sweep from 10Hz to

Shock / Crash Safety ANSI/ASAE EP455 5.14 A single 11ms half sine pulse of

Drop ANSI/ASAE EP455 5.14.2

Shipping integrity International Safe Transit

Level 1

Agency procedure 3A

RMS overall acceleration and
spectral power density of 2m2/s3
from 50Hz to 2000Hz

2000Hz to 10Hz over a period of
20 minutes for 4 hours in each of
3 orthogonal axes with amplitude
of 1.5mm from 10Hz to 40Hz and
a constant acceleration of 35m/s2
RMS from 40Hz to 2000Hz.

490 m/s2 in 3 perpendicular axes.

Drop component 400 mm onto a
hardwood benchtop on all
practical edges.

ELECTRICAL PERFORMANCE SPECIFICATIONS

Maximum load ANSI/ASAE EP455 5.1.1

Jump start forward voltage ISO 16750-2 36V for 60 minutes

Jump start reverse voltage ISO 16750-2 -36V for 60 minutes

Short circuit protection ISO 16750-2 All outputs to ground for 60s

Reverse polarity protection ISO 16750-2 28V for 60s

Starting prole ISO 16750-2 Class A

Battery-less operation ANSI/ASAE EP455 5.11.3

Load dump ISO 7637-2 Test Pulse 5b Class A

Switching spikes – negative ISO 7637-2 Test Pulse 3a Class A

Switching spikes – positive ISO 7637-2 Test Pulse 3b Class A

Wire harness inductance ISO 7637-2 Test Pulse 2a

+/- inductive load pulse ANSI/ASAE EP455 5.11.4 14-300e^(-t/.001)V 1Hz for 300

+/- mutual coupling ANSI/ASAE EP455 5.11.6

Alternator eld decay ANSI/ASAE EP455 5.11.2 Class A

Level 2

Level 2

and 2b

Level 2

-40°C 4 hours +85°C for 11 hours
max load applied

Apply 6+12.6sin(2*pi*f*t) f is
swept from 500Hz to 1.5kHz 5min

Class A

cycles

14+200e^(-t/14x10^-6)V 1Hz for
300 cycles

ORDERING INFORMATION

3JXXX5-200N

Series Code

Keypad Symbols

0 = Blank
1 = ISO Symbols
2 = Targets

Input Type

0 = Encoder
1 = Joystick Encoder

Center Pushbutton

0 = No pushbutton
1 = Pushbutton

(as shown in dimensional drawing)

(joystick always has pushbutton)

Configuration

5 = Default

Protocol

Blank = J1939
N = CANopen

Custom Designation

200 = Default

Grayhill, Inc.

561 Hillgrove Avenue phone: [phone]
LaGrange, Illinois 60525 fax: [phone]

www.grayhill.com

Bulletin 1124

Rev 06/14

CONNECTION

4 pin Deutsch DT
Connector. Power
with 8V to 32V
vehicle type inputs.

Pin 1 2 3 4

Signal Power Gnd CAN_H CAN_L

MOUNTING INFO

Use M6 Nut (1mm pitch)
Max Torque 25 in-lbs

Custom options available

Contact Grayhill or your local

Grayhill sales representative
