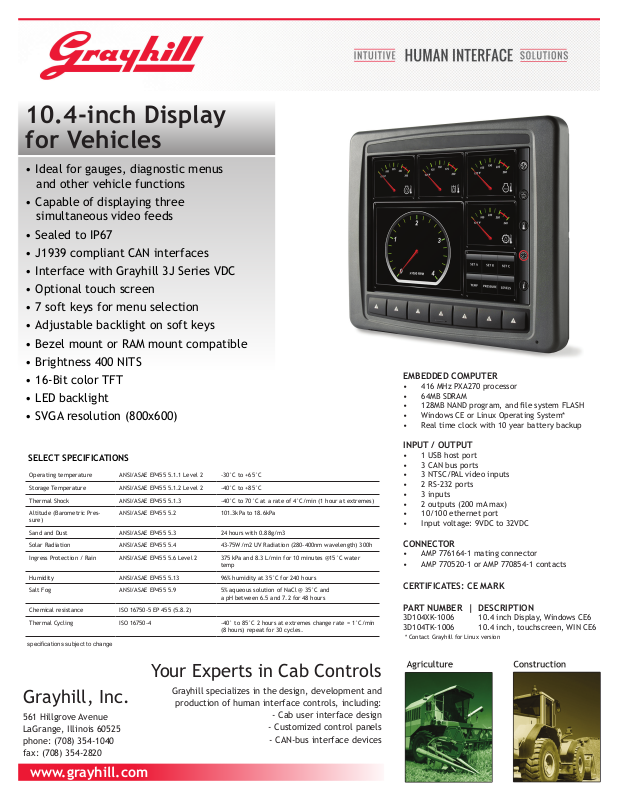

Grayhill 10.4-inch Display User Manual

10.4-inch Display
for Vehicles

• Ideal for gauges, diagnostic menus
and other vehicle functions

• Capable of displaying three
simultaneous video feeds

• Sealed to IP67

• J1939 compliant CAN interfaces

• Interface with Grayhill 3J Series VDC

• Optional touch screen

• 7 soft keys for menu selection

• Adjustable backlight on soft keys

• Bezel mount or RAM mount compatible

• Brightness 400 NITS

• 16-Bit color TFT

• LED backlight

• SVGA resolution (800x600)

EMBEDDED COMPUTER

• 416 MHz PXA270 processor

• 64MB SDRAM

• 128MB NAND program, and le system FLASH

• Windows CE or Linux Operating System*

• Real time clock with 10 year battery backup

SELECT SPECIFICATIONS

Operating temperature ANSI/ASAE EP455 5.1.1 Level 2 -30°C to +65°C

Storage Temperature ANSI/ASAE EP455 5.1.2 Level 2 -40°C to +85°C

Thermal Shock ANSI/ASAE EP455 5.1.3 -40°C to 70°C at a rate of 4°C/min (1 hour at extremes)

Altitude (Barometric Pres­sure)

Sand and Dust ANSI/ASAE EP455 5.3 24 hours with 0.88g/m3

Solar Radiation ANSI/ASAE EP455 5.4 43-75W/m2 UV Radiation (280-400nm wavelength) 300h

Ingress Protection / Rain ANSI/ASAE EP455 5.6 Level 2 375 kPa and 8.3 L/min for 10 minutes @15°C water

Humidity ANSI/ASAE EP455 5.13 96% humidity at 35°C for 240 hours

Salt Fog ANSI/ASAE EP455 5.9 5% aqueous solution of NaCl @ 35°C and

Chemical resistance ISO 16750-5 EP 455 (5.8.2)

Thermal Cycling ISO 16750-4 -40° to 85°C 2 hours at extremes change rate = 1°C/min

specications subject to change

ANSI/ASAE EP455 5.2 101.3kPa to 18.6kPa

temp

a pH between 6.5 and 7.2 for 48 hours

(8 hours) repeat for 30 cycles.

Your Experts in Cab Controls

Grayhill, Inc.

561 Hillgrove Avenue
LaGrange, Illinois 60525
phone: [phone]
fax: [phone]

Grayhill specializes in the design, development and

production of human interface controls, including:

- Cab user interface design

- Customized control panels

- CAN-bus interface devices

INPUT / OUTPUT

• 1 USB host port

• 3 CAN bus ports

• 3 NTSC/PAL video inputs

• 2 RS-232 ports

• 3 inputs

• 2 outputs (200 mA max)

• 10/100 ethernet port

• Input voltage: 9VDC to 32VDC

CONNECTOR

• AMP 776164-1 mating connector

• AMP 770520-1 or AMP 770854-1 contacts

CERTIFICATES: CE MARK

PART NUMBER | DESCRIPTION

3D104XK-1006 10.4 inch Display, Windows CE6
3D104TK-1006 10.4 inch, touchscreen, WIN CE6

* Contact Grayhill for Linux version

www.grayhill.com

www.grayhill.com

www.grayhill.com

DIMENSIONS

10.4

[264,16]

PANEL MOUNTING DETAILS

MAXIMUM TORQUE: 25 IN-LBS
NOMINAL PANEL/POCKET DIMENSIONS SHOWN MAY REQUIRE ADJUSTMENT
BASED UPON MANUFACTURING TOLERANCES OF CUSTOMER PANEL

WEIGHT

4.7 lbs.

ELECTRICAL PERFORMANCE SPECIFICATIONS

Maximum Load ANSI / ASAE EP455 Sec 5.1.1 T(min) = -40C, T(max) = +65C

Over-voltage ANSI / ASAE EP455 Sec 5.10.2 Level 1, extended to 36V

Reverse Polarity ANSI / ASAE EP455 Sec 5.10.3 extended to -36V

Short-circuit Protection ANSI / ASAE EP455 Sec 5.10.4 extended to 36V

Starting Prole ISO 16750-2 Sec. 4.6.3 12V, Code C / 24V Code E

Battery-less Operation ANSI / ASAE EP455 Sec 5.11.3 Level 1

Load Dump ISO 7637-2 Pulse 5b Us = 174V, Ri = 2 Ohms, Td = 350mS,

Switching Spikes ISO 7637-2 Pulse 3a and 3b Pulse 3a: Us = -200V, Pulse 3b: Us =

Wire Harness
Inductance

Motor Shutdown
Transients

Wire Harness
Inductance Switching

Inductive Load
Switching

Mutual Coupling
(Power)

Mutual Coupling
(Signal/ Input)

ISO 7637-2 Pulse 2a Us = 50V, t1 = 5s, 60 reps

ISO 7637-2 Pulse 2b Us = 20V, t1 = 5s, Ri < .05 Ohms,

ISO 7637-3 Pulse a and b Pulse a: –80V, Pulse b: 80V, Class

ANSI / ASAE EP455 Sec 5.11.4 Level 1

ANSI / ASAE EP455 Sec

5.11.6.1

ANSI / ASAE EP455 Sec

5.11.6.2

Us* = 70V

200V, 3000 reps

60 reps

A, 6 min.

Level 2

FOUR HOLE AMPS MOUNTING DETAILS

USE M6 NUT (1mm PITCH)

MAX TORQUE: 25 IN-LBS

POWER CONSUMPTION

11.5 W typical

ELECTRICAL PERFORMANCE SPECIFICATIONS (CONTINUED)

Alternator Field Decay ANSI / ASAE EP455 Sec 5.11.2

ESD ANSI / ASAE EP455 Sec 5.12 Level 2

Radiated Immunity ANSI / ASAE EP455 Sec 5.16 Level 1

Broadband Radiated
Emissions

Narrowband Radiated
Emissions

Conducted Emissions SAE J1113-41 Class 2

ISO 14982 Sec 6.4

ISO 14982 Sec 6.5

MECHANICAL PERFORMANCE

Vibration, Random ANSI/ASEA EP455 5.15.1 2h each axis @52.4m/s2 RMS overall accel-

Vibration, Sinusoidal ANSI/ASEA EP455 5.15.2 A logarithmic sweep from 10Hz to 2000Hz

Shock / Crash Safety ANSI/ASEA EP455 5.14 11ms half sine pulse of 490 m/s2 in 3

Drop ANSI/ASEA EP455 5.14.2

Level 1

eration and spectral power density of 2m2/
s3 from 50Hz to 2000Hz

to 10Hz over a period of 20 minutes for
4 hours in each of 3 orthogonal axes with
amplitude 1.5mm from 10Hz to 40Hz and a
constant acceleration of 35m/s2 RMS from
40Hz to 2KHz

perpendicular axes

Drop component 400 mm onto a hardwood
benchtop on all practical edges.

specications subject to change

Grayhill, Inc.

561 Hillgrove Avenue phone: [phone]
LaGrange, Illinois 60525 fax: [phone]

www.grayhill.com

www.grayhill.com

www.grayhill.com

Bulletin 1125

Rev 06/14
