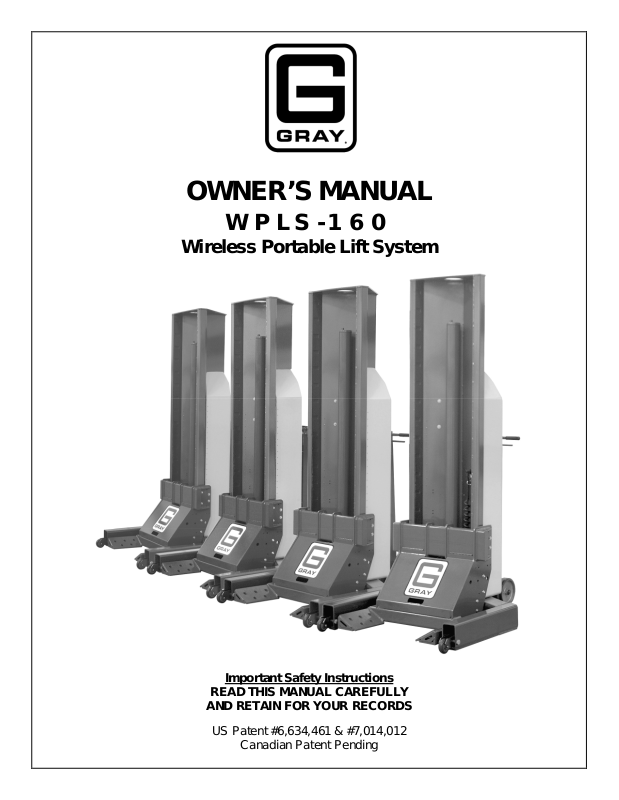

OWNER’S MANUAL
WPLS-160
Wireless Portable Lift System
Important Safety Instructions
READ THIS MANUAL CAREFULLY
AND RETAIN FOR YOUR RECORDS
US Patent #6,634,461 & #7,014,012
Canadian Patent Pending
Table of Contents
Signal Words ..................................................................................................................................ii
Receiving Inspection...................................................................................................................... 1
Introduction.................................................................................................................................... 1
Owner and / or Operator Responsibilities............................................................................................. 1
Specifications................................................................................................................................. 1
Component Identification............................................................................................................... 2
Safety Instructions ......................................................................................................................... 3
Operating Instructions.................................................................................................................... 5
Using the WPLS Lift System to Raise a Vehicle................................................................................... 5
Handle Operation................................................................................................................................. 8
Charging the Battery............................................................................................................................ 8
Emergency Procedures........................................................................................................................ 9
Channel Selector Switch on Control Box............................................................................................ 10
Small Wheel Adapters........................................................................................................................ 12
Maintenance Instructions............................................................................................................. 12
Annual Maintenance Requirements ................................................................................................... 12
Structural Inspection .......................................................................................................................... 13
Adding Hydraulic Fluid....................................................................................................................... 13
Periodic Lubrication for Wear Pads.................................................................................................... 14
Bleeding Air From Cylinder ................................................................................................................ 14
Electrical Components....................................................................................................................... 15
FCC Part 15 Statements for User's Manual……………………………………………………………16
Troubleshooting........................................................................................................................... 17
Notes ........................................................................................................................................... 19
Foreword
Thank you for your purchase. With Gray products, you take part in a long history of products engineered for
the transportation service industry. Company founder J. H. Gray applied for his first automotive jack patent
in 1921, and since 1952 Gray has been producing the highest quality hydraulic and pneumatic equipment
available for the professional service technician. Our purpose is to provide you with quality equipment that
makes your job easier and with exemplary service after the sale. Please call Gray's customer service, at 1800-821-7320 or 816-233-6121, with any comments or questions.
Signal Words
Signal words call attention to a safety message or messages, or a property damage message
or messages, and designates a degree or level of hazard seriousness. The signal words are
“DANGER”, “WARNING”, “CAUTION”, and “NOTICE”.
DANGER: Indicates a hazardous situation, which, if not avoided, will result in death or
serious injury. This signal word is to be limited to the most extreme situations.
WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a hazardous situation, which, if not avoided, could result in minor or
moderate injury. It may be used to alert against unsafe practices.
NOTICE: Indicates a property damage message.
ii
Receiving Inspection
Before attempting to operate these lifts, thoroughly read and understand this manual. Completely remove all tape and
packaging. Inspect each lift immediately upon delivery. If shipping damage is evident, inform the delivering carrier
immediately and contact customer service at the numbers and address printed on the back cover of this manual.
Introduction
Owner and / or Operator Responsibilities
The owner and / or user must have an understanding of the manufacturer’s operating instructions and warnings before
using these lifts. Personnel involved in the use and operation of equipment shall be careful, competent, trained, and
qualified in the safe operation of the equipment and its proper use when servicing motor vehicles and their components.
Warning information should be emphasized and understood.
The owner / manager must make this manual available to all personnel using these lifts at your direction. They must
read and understand the contents of this manual. If the operator is illiterate or is not fluent in English, the
manufacturer’s instructions and warnings shall be read to and discussed with the operator in a language the operator
understands by the purchaser / owner, making sure that the operator comprehends its contents and observes the proper
procedures for use of these lifts.
Owner and / or user must study and maintain for future reference the manufacturer’s instructions. Review the video to
familiarize yourself with the features and benefits of Gray’s “Wireless” Portable Lifting System. Owner and / or user
are responsible for keeping all warning labels and instruction manuals legible and intact. Replacement labels and
literature are available from the manufacturer.
Specifications
Max. Capacity per Unit 16,000 lbs (8 Tons) 7,258 kg.
Max. Capacity per set of 4 64,000 lbs (32 Tons) 29,030 kg.
Max. Capacity per set of 6 96,000 lbs (48 Tons) 43,545 kg.
Min. Wheel Diameter (w/adapter) 14” 356 mm
Maximum Wheel Diameter 24.5” 622 mm
Maximum Lift Height 67” 1,702 mm
Lift Speeds (varies with load) 50”/minute 1,270 mm/minute
Weight per Column 1,360 lbs. 617 kg.
Height 93” 2,362 mm
Height at full lift 148” 3,759 mm
Width 43” 1,092 mm
Length 58” 1,473 mm
Turning Radius 48” 1,219 mm
Operating Voltage 12 VDC nominal
Operating Peak Power 4 Hp 3.0 KWatts
Charger Voltage Required 120 VAC @ 60 Hz
Charger Amperage Required 1.1 Amps
1
Component Identification
Power Unit
Down Stop Assembly
Handle Assembly
Battery Case
Main On/Off Switch
Frame Base
On-Board Charger
Lift
Carriage
Battery &
Left
Cover
Latch
Major Components And Cover Locations
Down Stop
Assemblies
Right
Cover
Latch
Handle
Grip
Battery Case
and Battery
Linear
Sensor
Front
Cover
Open
Detent
Bar
2
Safety Instructions
WARNING
To avoid serious injury or death, read this manual carefully before operating this unit. Call customer
service at the numbers and address printed on the back cover of this manual if you have any questions.
Failure to understand and obey safety instructions may result in unsafe or improper use of this
product.
1. Use the Wireless Portable Lift System only on hard, level surfaces. Lifting on other than hard
surfaces with a slope of more than 3 degrees (5% grade) can result in lift instability and
possible loss of load.
2. DO NOT raise / lower one side of a vehicle.
3. DO NOT use the Wireless Portable Lift System to raise a vehicle by the frame or structural
member. Only use the wheels of the vehicle to lift with the lift system.
4. DO NOT raise one end of a vehicle if the opposite end is supported by stands.
5. DO NOT use the Wireless Portable Lift System in conjunction with any other equipment used
to raise a vehicle.
6. Lift only on same axle. Product is to be used only in sets of 2, 4 or 6 units, not as a single unit.
7. DO NOT place feet or any part of body between lift frame base and carriage. Personnel injury
can occur.
8. DO NOT place hands, other parts of body, or clothing between carriage slide pads and the
upright rails the carriage slides on vertically. These are potential pinch points that can injury
hands and fingers or possible grab clothing that can cause personal injury.
9. DO NOT use blocks, non-factory supplied adapters or cribbing devices with this lift.
10. Maximum capacity is listed on the ID decal. Do not use the lift as a stand to support more than
maximum capacity. DO NOT overload.
11. DO NOT use the Wireless Portable Lift System as a wheel dolly for the removal of tires.
12. No alterations shall be made to this product.
13. NEVER stand under the load or vehicle when it is being lifted or lowered.
14. NEVER stand either in or on the vehicle when it is being lifted or lowered.
15. DO NOT use the hoisting equipment to reach a lifted vehicle or to reach any part of the
vehicle.
16. Keep both the material and the surrounding area clean.
17. Before lowering a raised vehicle make sure there are no obstructions under the vehicle and the
lift carriages of the Wireless Portable Lift System.
18. Always keep the covers closed on the lifts.
19. DO NOT attempt to move the load horizontally when the vehicle is raised on the Wireless
Portable Lift System by any means.
20. Whenever the lifted vehicle is propped up and the lifting units are removed, use only the stands
intended for this purpose.
21. It is recommended that proper stands be used when the vehicle will be left in the raised
3
position for extended periods of time.
22. Do not use lifts outdoors when wind speeds exceed 20 mph.
23. NEVER start the vehicle motor when the vehicle is supported by the lifts or stands. Only start
engine when vehicle is standing on the ground.
24. Make sure there is adequate clearance above highest point of vehicle before lifting. Lift raises
67”.
25. NEVER use the battery and/or charger for any other purpose. NEVER use an unapproved
power source other than the battery to power the lift.
26. DO NOT expose the charger to rain or snow.
27. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when
disconnecting charger.
28. NEVER smoke or allow an open spark or flame in the vicinity of the battery.
29. Make sure cord is located so that it cannot be stepped on, tripped over, or otherwise subjected
to damage or stress.
30. Use of an attachment not recommended or sold by the battery charger manufacturer may result
in a risk of fire, electrical shock or injury to persons.
31. DO NOT operate the charger if it has received a sharp blow, been dropped, or otherwise
damaged in any way. Call the 800 customer service number on last page of manual.
32. DO NOT disassemble the charger. If it is in need of repair call the 800 customer service
number on the last page of manual.
33. To reduce risk of electrical shock, unplug the charger from an outlet before attempting any
maintenance or cleaning.
34. NEVER charge a frozen battery.
35. Be extra cautious to reduce the risk of dropping a metal tool onto the battery. It might spark or
short- circuit battery or other electrical part that may cause an explosion.
36. Have plenty of fresh water & soap nearby in case battery acid contacts skin, clothing, or eyes.
37. Wear complete eye protection and clothing protection. Avoid touching eyes while working
near battery.
38. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters
an eye, immediately flood with cold running water for at least 10 minutes and get medical
attention.
Failure to understand and obey these warnings may result in personal injury and / or property damage.
SAVE THESE INSTRUCTIONS!
4
Operating Instructions
Using the WPLS Lift System to Raise a Vehicle
This section discusses the appropriate and safe methods for using the WPLS Wireless Portable Lift System to raise
and lower a vehicle.
WARNING
Using the WPLS Lift System to raise a vehicle requires several steps that must be
followed each and every time the lift system is used:
1. Inspect each lift for signs of wear or damage.
2. Transport the lifts to the work area.
3. Locate appropriate support stands, if needed.
4. Prepare the surrounding area before using the lift system.
5. Identify vehicle axles to lift, examine the tires, and prepare the vehicle.
6. Raise the vehicle.
7. Lower the vehicle to the Ground.
Each of these steps is discussed in detail in the following sections. Failure to follow
all of these instructions can lead to serious injury or death.
1. Inspect the Lift for Signs of Wear or Damage
Before each use, you should inspect the lift for any visible signs of wear or damage. See the “Structural
Inspection” section for details about how to inspect the lift. WARNING! If you see any signs of wear or damage,
or if there is any indication that the lift is not performing normally, immediately take it out of service and call
customer service at 800-821-7320 or 816-233-6121. NEVER use a lift that appears damaged in any way.
2. Transport the Lifts to the Work Area
Transport the lift to the work area by either (a) wheeling it or (b) lifting and transporting it using the provided
forklift pockets. The lift can be wheeled to the work area over smooth surfaces and short distances—transport the
lifts if traveling over longer distances and/or rough surfaces. WARNING! Jolting caused by the wheels catching
on uneven surfaces can cause physical strain and personal injury.
See the “Handle Operation” section for details on how to properly maneuver the lift unit.
3. Locate Appropriate Support Stands, if needed
Gray Manufacturing Company, Inc. recommends the use of appropriate support stands when the vehicle to be
lifted is to be left elevated for an extended amount of time. Gray Manufacturing Company, Inc. manufactures
support stands that are made specifically for high rise supporting.
5
