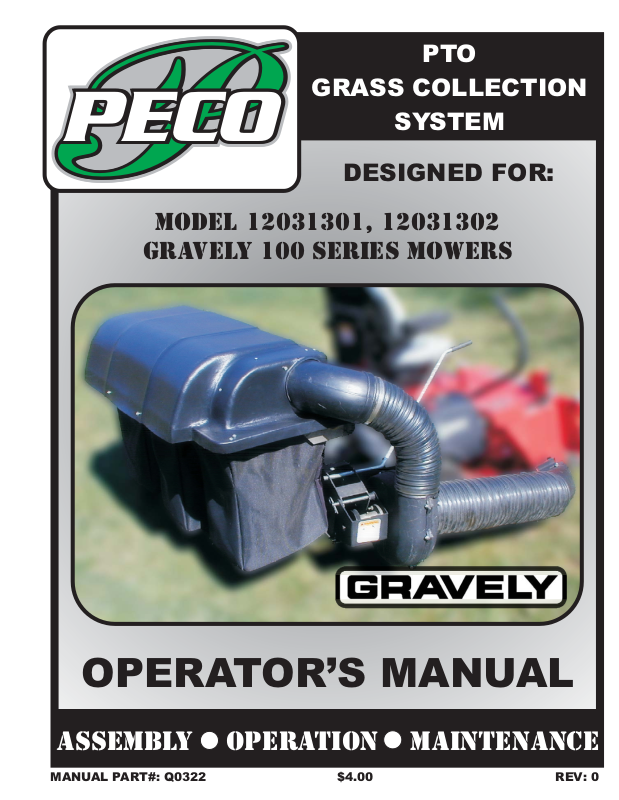

MODEL 12031301, 12031302
GRAVELY 100 SERIES MOWERs
PTO
GRASS COLLECTION
SYSTEM
DESIGNED FOR:
OPERATOR’S MANUAL
ASSEMBLY OPERATION MAINTENANCE
MANUAL PART#: Q0322 $4.00 REV: 0
PTO GRASS COLLECTION SYSTEM
TABLE OF CONTENTS
SECTION PAGE
Safety - ------------------------------2
Safety Alert Symbols----------------------3
Warranty -----------------------------4
I INTRODUCTION AND DESCRIPTION- - ------------5
1-1 Introduction - ------------------------5
1-2 Description - ------------------------5
II INSTALLATION FOR USE ----------------------5
2-1 Preparation Of Mower ------------------5
2-2 Attaching Muffler Guard -----------------6
2-3 Attaching Frame Mount Brackets -----------6
2-4 Saftey Interlock Connection- - - ------------7
2-5 Belt Installation -----------------------11
2-6 Cam Assembly Adjustment - - - ------------11
2-7 Attachment Of The Lower Frame To The Frame
Brackets------------------------------11
2-8
Attachment Of Upper Frame Assembly To The
Lower Frame
2-9 Attachment Of The Top Assembly To The Upper
Frame Assembly ------------------------12
2-10 Attachment Of The Boot To The Mower Deck - - 12
2-11 Adjustment Of The Lengths Of Hoses - ------13
---------------------------12
Safety
SECTION PAGE
2-12 Attachment Of The Upper Hose -----------13
2-13 Attachment Of The Lower Hose To The Blower
Cone - - ------------------------------13
2-14 Attachment Of The Lower Hose To The Boot ---13
2-15 Front Weight Assembly-----------------13
2-16 Installation/Removal Of Collection Bags ------14
2-17 Final Checks -----------------------15
III OPERATING INSTRUCTIONS - ------------------15
3-1 General Safety -----------------------15
3-2 Operation & Tips On Mowing- - ------------15
3-3 Disengagement Of The Blower ------------15
3-4 Unloading The Collection System -----------15
IV MAINTENANCE ----------------------------15
4-1 Maintenance Checklist ------------------15
4-2 Lubrication- - ------------------------16
V PARTS AND SERVICE ------------------------16
5-1 Parts And Service Information - ------------16
Safety Decals - - ------------------------17
Torque Specifications - - - ------------------18
Notes- - ------------------------------19
1.
Read the operator’s manual carefully and familiarize yourself with the proper use of your attachment. Do not allow
anyone who is not acquainted with the Safety Instructions to use your attachment.
2.
Know the controls and how to stop quickly. READ THE OPERATOR’S MANUAL!
3.
Do not allow children to operate the vehicle. Do not allow adults to operate it without proper instruction.
4.
Be especially watchful of children and pets darting into the area while operating.
5.
Keep your eyes and mind on your unit while mowing or operating your attachment. Don’t let others distract you.
6.
Do not attempt to operate your unit or mower when not in the driver’s seat.
7.
Always stop unit when emptying the container.
8.
Stop unit, shut off deck and attachment, set parking brake, shut off mower engine and remove spark plug wire
before removing clogs or removing or replacing hose, boot, blower cone, or performing any maintenance.
9.
Mow up and down the face of slopes (not steeper than 10 degrees); never across the face of the slope.
10.
It is recommended that the container be kept only half full when negotiating any slopes. Start mowing on slopes
when the container is empty.
11.
Inspect your lawn and remove any foreign objects before mowing. Never deliberately run the mower across any
foreign object.
12.
Wear ear protection if the noise level is offensive.
13.
Wear eye protection to prevent debris from damaging your eyes.
14.
Be alert for all other traffic when driving on public roads or highways.
15.
Moisture content in most grasses can damage mower and grass collector components. Also, dry grass and leaves
left in the bags can be a fire hazard. Always make sure the bags are completely empty and the blower and hoses are
fully cleaned before storage.
2
SAFETY
WARNING!
vacuum collector adapter are fastened securely in place.
WARNING!
blades and the blower impeller have stopped rotating.
WARNING!
STOPPING THE MOWER’S ENGINE AND WAITING FOR ALL MOVING PARTS TO COME TO A
COMPLETE STOP.
WARNING!
across the face. attempt to mow excessively steep slopes, and use caution when turning on any slope.
NEVER
Do not work around the mower deck boot or the blower area until you are certain that the mower
To avoid serious injury, perform maintenance on the vacuum collector;
Set the parking brake. Always remove the ignition key before beginning maintenance.
For your own personal safety, mow and the face of slopes and
NEVER
operate the unit unless the discharge guard and either the deflector assembly or the
ONLY AFTER
ALWAYS UP DOWN NEVER
Safety Alert Symbol
“ATTENTION! BECOME
!
This Safety Alert Symbol means:
ALERT! YOUR SAFETY IS INVOLVED!”
This symbol is used to call attention to safety precautions that
should be followed by the operator to avoid accidents. When
you see this symbol, carefully read the message that follows
and heed its advice. Failure to comply with safety precautions
could result in death or serious bodily injury.
Safety Signs
The signal words and are used on the equipment safety signs. These words are
intended to alert the viewer to the existence and the degree of hazard seriousness.
!
!
Black letters on ORANGE
!
Black letters on YELLOW
DANGER, WARNING, CAUTION
This signal word indicates a potentially hazardous situation which, if not
DANGER
White letters on RED
WARNING
CAUTION
avoided, will result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
It may also be used to alert against unsafe practices.
This signal word indicates a potentially hazardous situation exist which, if
not avoided, will result in minor or moderate injury.
It may also be used to alert against unsafe practices.
3
PECO LIMITED WARRANTY FOR NEW PRODUCTS
A. WHAT IS WARRANTED?
PECO extends the following warranties to the original purchaser of each new PECO consumer product subject
to the following limitations:
1. PRODUCT WARRANTY:
delivered to the purchaser will be repaired or replaced, as PECO elects, without charge for parts or labor, if the
defect appears within 12 months from the date of delivery of the product to the original purchaser.
DEFECTIVE PARTS MUST BE RETURNED TO PECO FOR INSPECTION TO DETERMINE
VALIDITY OF WARRANTY CLAIMS.
2. PARTS REPLACED DURING WARRANTY:
warranty and is defective in material or workmanship as delivered to the purchaser will be repaired or replaced,
as PECO elects, without charge if the defect appears within 90 days from the date of installation of such part or
before the expiration of the original warranty period, whichever is later.
B. SECURING WARRANTY ADJUSTMENTS.
Call PECO for Return Authorization. Damaged or broken parts, other than engines or batteries, must be
returned to PECO Inc., 100 Airport Road, Arden, NC 28704 before any warranty adjustment can be authorized.
At the time of requesting warranty adjustment, the purchaser must present evidence for date of delivery of the
product. The purchaser shall pay any charge for the product to and from Arden, NC.
C. ITEMS NOT COVERED BY PECO WARRANTY.
Engines and batteries attached to PECO products are covered under a separate warranty by the respective
manufacturer.
D. UNAPPROVED ALTERATION OR MODIFICATION.
All obligations of PECO Inc., under this warranty, shall be terminated if products are altered or modified in ways
not approved by PECO Inc..
E. ACCIDENTS AND NORMAL MAINTENANCE.
The warranty covers only defective material and workmanship. It does not cover depreciation or damage
caused by normal wear, accident, improper use or abuse of products. The cost of normal maintenance and
normal replacement of service items such as belts, cutting blades, hoses, etc., which are not defective shall be
paid for by the purchaser.
F. NO REPRESENTATIONS ADDITIONAL WARRANTIES, DISCLAIMER.
Neither PECO Inc. nor any company affiliated with it makes any warranties, representations or promises as to
the quality of performance of its products other than those set forth herein. Except as described above, PECO
Inc. makes no other warranties
WARRANTIES OF FITNESS AND MERCHANTABILITY.
G. ANY MACHINE USED FOR RENTAL PURPOSES ARE GUARANTEED FOR 45 DAYS FROM DATE
OF ORIGINAL SALE ONLY.
H. REMEDIED EXCLUSIVE.
The only remedies the purchaser has in connection with the breach or performance of any warranty on PECO
Inc. consumer products are set forth above. In no event will PECO be liable for special incidental or
consequential damages.
1. NO SERVICE CENTER WARRANTY.
The selling Service Center makes no warranty on his own on any item warranted by PECO Inc. unless he
delivers to purchaser a separate written warranty certificate specifically warranting the item. The dealer has no
authority to make any representation or promise on behalf of PECO or to modify the terms of this warranty in
any way.
Any part of any consumer product, which is defective in material or workmanship as
ALL
Freight and mailing will be borne by the customer.
Any new PECO part which is furnished in performance of this
AND SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED
4
SECTION I
INTRODUCTION AND DESCRIPTION
1-1 Introduction
We are pleased to have you as a PECO customer. Your
collection system has been designed to give you a low
maintenance, simple, and effective way to collect the
grass clippings from your mower. This manual is
provided to give you the necessary instructions to
properly mount and operate the collection system on
your mower. Please read this manual thoroughly.
Understand what each control is for and how to use it.
Observe all safety decal precautions on the machine and
noted throughout the manual.
NOTE:
or bottom are as viewed from the normal operator’s
position on the mower.
All references made to right, left, front, rear, top
1-2 Description
The collection system is designed for turf maintenance
where there is a need to collect the grass clippings as
the mower cuts the turf. It is also good for picking up
leaves and twigs in pre-season and post-season cleanup.
Section II
INSTALLATION FOR USE
2-1 Preparation Of Mower
Carefully dismantle shipping box from around the
components. Cut retaining straps and separate the
parts. The collection system will have various parts
located inside. Remove and sort all parts for easy
identification.
NOTE:
study the exploded drawings on pages 8,9 and 10.
From the underside of the mower engine remove the bolt
and bushing from the electric clutch assembly. Replace
these parts with the engine pulley assembly ,
7/16” lock washer P#(K0053) and 7/16”-20 x 4” HHCS
P#(K0359). The added pulley will power the collection
system. Note that the center of the hub that is extended
should be upward toward the engine . Torque
the bolt to 55 ft./lbs. Once pulley is secure, tie hydraulic
hoses (Figure 1) away from the pulley with (2) provided
zip ties to prevent pulley from making contact with the
hose.
Before each step of assembly it will help to
P#(A0419)
(Figure 1)
The blower, mounted on the right side of the unit, uses a
belt and gearbox system from the engine PTO shaft.
Drive train protection comes through belt slippage. The
blower draws grass clippings from the discharge area of
the cutter deck back to the 3 - 3.3 cubic foot collection
bags P#(G0002) at the rear portion of the mower frame.
The operator can engage the blower with a push of the
over-center linkage on the right side of the unit. Once the
bags are full with clippings, they can be released to
make for easy dumping.
Figure 1.
Zip Tie Hose
Parking Brake Setting
For the added weight of the collection system, the
parking brake must be re-adjusted. To do this, first
Remove the rear wheels from the mower. Once
removed, reset the spring and the stop gap per the
dimensions in the diagram (Figure 2). Replace the
wheels when completed and torque each bolt to 51-72
ft./lbs.
Figure 2.
1.432”
0.0” to 0.0625
Engine Pulley
7/16”-20 x 4” HHCS
5
2-2 Attaching Muffler Guard
.
Figure 4.
Locate the two exhaust diverters (P#J0251 w/ 1-1/4” ID,
P#J0250 w/ 1-3/8” ID) and clamp kit P#(X1046)
provided in the hardware bag. Fasten the correct size
exhaust deflector onto the mower’s exhaust and aim the
exhaust as shown in Figure 3. Next, fasten the exhaust
diverter by using the clamp kit.
Figure 3.
Mower’s Exhaust
3 Existing
Bolts Here
NOTE:
Figure 5.
Right
Left
Rear Of
Mower
Right and left views are as seen from drivers
perspective.
Left Frame
Mount Brkt.
Exhaust Diverter
2-3 Attaching Frame Mount Brackets
To mount the frame brackets which support the bagger
unit, you must first remove the existing rear bumper.
This can be done by removing the three bolts and nuts
attaching the bumper to each side. Set the nuts and
bolts aside as they will be used to mount the frame
brackets. See Figure 4 for bracket orientation. Mount the
left frame mount bracket (Figure 5) by using three of the
existing bolts and three of the existing nuts. Tighten nuts
and bolts. The right frame mount bracket will mount
along with the PTO arm assembly (Figure 6). Align the
hole pattern on the side of the PTO arm assembly to the
hole pattern on the right frame mount bracket and
mower frame. Place each of the three remaining bolts
one at a time through the PTO Arm assembly, the right
frame bracket and through the existing holes of the
mower frame. Fasten the upper hole by using (1) 3/8”-16
x 1” HHCS P#(K1191) and (1) 3/8”-16 flange nut
P#(K1215). Tighten nuts and bolts.
Figure 6.
Right Frame
Mount Brkt.
Fasten Here With
3/8” x 1” HHCS
3/8” Flange Nut
Use 3 Existing Bolts To Mount
PTO Assy. Along With
Right Frame Mount Brkt.
To Tractor’s Frame.
6
PTO Arm Assembly
Loading...
