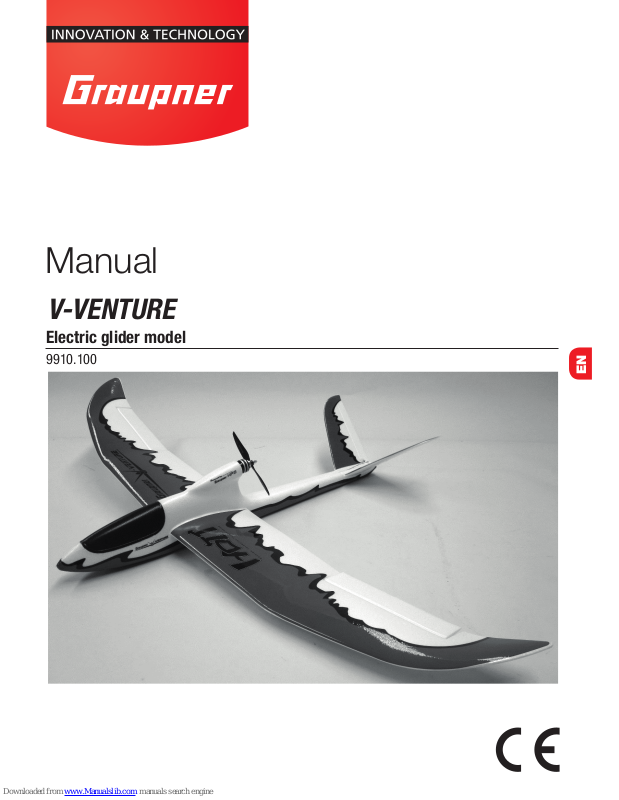

GRAUPNER V-VENTURE 9910.100, v-venture 9910.RTF User Manual

Manual

EN

9910.100

Electric glider model

V-VENTURE

2 / 16

9910.100_WD_V1

3 / 16

9910.100_WD_V1

Index

Introduction ............................................................................4

Service Centre ........................................................................4

Intended use .........................................................................5

Package content ....................................................................5

Technical data ........................................................................5

Symbols explication ................................................................6

Safety notes ...........................................................................6

Declaration of conformity ......................................................13

Notes on environmental protection .......................................14

Care and maintenance .........................................................14

Warranty ...............................................................................14

4 / 16

9910.100_WD_V1

Introduction

Thank you very much for purchasing the Graupner V-VENTURE.
This electric glider model is extremely versatile.

Read this manual carefully to achieve the best results with your
V-VENTURE and first of all to safely control your models. If you
experience any trouble during operation, take the instructions to
help or ask your dealer or Graupner Service Centre.

Due to technical changes, the information may be changed in
this manual without prior notice. Be always updated by check­ing periodically on our website, www.graupner.de to be always
uptodate with the products and firmwares.

This product complies with national and European legal require­ments.

To maintain this condition and to ensure safe operation, you must
read and follow this user manual and the safety notes before using
the product!

Note

This manual is part of that product. It contains important information
concerning operation and handling. Keep these instructions for future
reference and give it to third person in case you gave the product.

Service Centre

Graupner Central Service

Graupner/SJ GmbH
Henriettenstrasse 96
D-73230 Kirchheim / Teck

Servicehotline



(+49) (0)7021/722-130
Monday - Thursday
9:15 am - 5:00 pm
Friday
9:15 am - 1:00 pm

Graupner USA
OPENHHBBY LLC
3245 University Ave
Suite 1520
San Diego, CA 92104

Website: www.graupnerusa.com
Phone: [phone]
Email:[e-mail]

Graupner in Internet For the service centers outside Germany please refer to our web

site www.graupner.de

5 / 16

9910.100_WD_V1

Intended use

The V-VENTURE is a ready to fly, remote-controlled airplane
model.

The V-VENTURE is designed exclusively to be used as a bat­tery-powered, radio controlled model, any other use is not
allowed. For any improper use no warranty or liability is accepted.

Read through this entire manual before you attempt to install or
use the V-VENTURE.

Graupner/SJ constantly works on the development of all prod­ucts; we reserve the right to change the item, its technology and
equipment.

Target group

The product is not a toy. It is not suitable for children under 14
years. The installation and operation of the V-VENTURE must be
performed by experienced modellers. If you do not have suffi­cient knowledge about dealing with radio-controlled models,
please contact an experienced modeller or a model club.

Package content

 Ready fuselage with assembled V-tail and removable can-

opy

 Half-wing pair

 CF bayonet

 Manual

Technical Data

Wingspan approx. 1350 mm
Length o.a. approx. 860mm
Wing profile HQ 3,0/12
Elevator profile NACA 009
Wing area approx. 21,7 dm²
Tailplane area approx. 5,0 dm²
Total surface area approx. 26,7 dm²
Total surface load approx. 20,6 g/dm
Flight weight approx. 550 g
