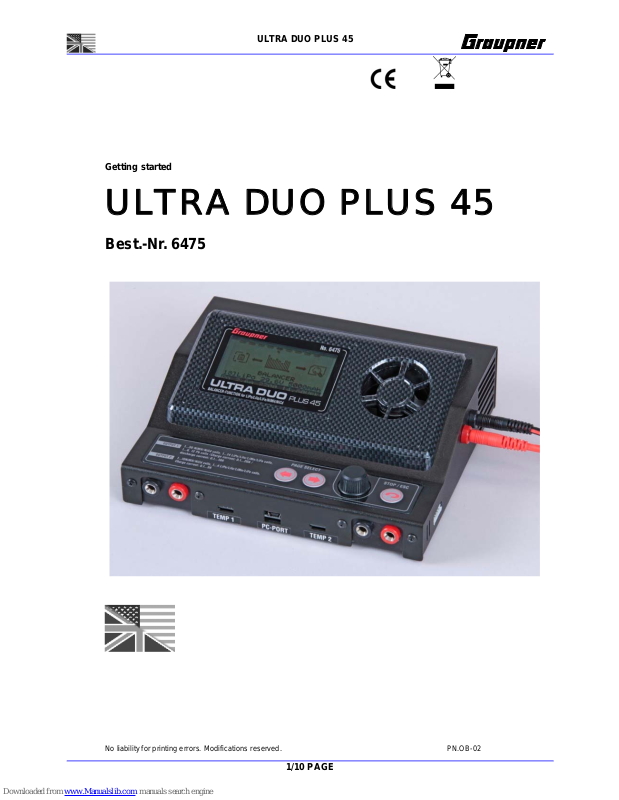

UL TRA DUO PLUS 45
1/10 PAGE
Getting started
ULTRA DUO PLUS 45
Best.-Nr. 6475
No liability for printing errors. Modifications reserved. PN.OB-02
UL TRA DUO PLUS 45
2/10 PAGE
WARNINGS AND SAFETY NOTES
• Please open the instruction file on the CD and read the complete instruction!
• This product is not designed for use by children under the age of 14; it is not a toy!
• Protect the charger from dust, damp, rain, heat (e.g. direct sunshine) and vibration. It should only be operated in dry
indoor conditions.
• The case slots serve to cool the charger, and must not be covered or enclosed; set up the charger with space round it,
so that cooling air can circulate unhindered.
•
The charger is designed to be powered by a 12 V DC car battery or power supply Order-No. 6460 or 6461. It is not
permissible to modify the charger in any way. You must not connect AC power to the DC input.
• The charger and the battery to be charged should be set up on a heat-resistant, non-inflammable and non-conductive
surface before use. Never place the charger directly on a car seat, carpet or similar. Keep all inflammable and volatile
materials well away from the charging area. Provide good ventilation. Defective batteries can explode or burn!
• Connect the charger ’s 12 V DC input directly to the car battery using the original cables and connectors supplied. The
car’s engine must be stopped all the time the ULTRA DUO PLUS 45 is connected to the car’s battery. Do not recharge
the car battery at any time when the ULTRA DUO PLUS 45 is connected to it.
• The charge output sockets and connecting leads must not be modified, and must not be inter-connected in any way.
There is a danger of short-circuit between the charge outputs and the vehicle’s bodywork when the charger is
connected to the car battery. The charge leads and connecting leads must not be coiled up when the charger is in use.
Avoid short-circuiting the charge output or the model battery with the car bodywork. For this reason the charger must
never be placed directly on the vehicle’s bodywork.
• Never leave the charger running or connected to the car battery unsupervised.
• Only one battery may be connected to the unit for charging at any one time.
• The following types of battery must not
be connected to the charger:
- Ni-Cd / Ni-MH batteries consisting of more than 18 cells, Lithium-Ion / Lithium-Manganese / Lithium-Polymer / LiFePO
4
(LiFe) batteries of more than 7 cells, or lead-acid batteries with a nominal voltage of more than 12V or 24V.
- Batteries which require a different charge method from Ni-Cd, Ni-MH, Lithium or lead-acid types.
- Faulty or damaged cells or batteries.
- Batteries consisting of parallel-wired cells, or cells of different types.
- Batteries consisting of old and new cells, or cells of different makes.
- Non-rechargeable batteries (dry cells). Caution: explosion hazard!
- Batteries which are not expressly stated by the manufacturer to be suitable for the currents which this unit delivers
during the charge process.
- Packs which are already fully charged or hot, or only partially discharged.
- Batteries or cells fitted with an integral charge circuit or charge termination circuit.
- Batteries installed in a device, or which are electrically connected to other components.
• To avoid short-circuits between the banana plugs fitted to the charge leads, please remember always to connect the
charge leads to the charger first, and only then to the battery to be charged. Reverse the sequence when disconnecting.
• As a basic rule always check that the charge quantity is approximately the same as you expected after
the charger has
indicated that the pack is fully charged. This is a simple method of detecting a problem reliably and in good time, should
the charge process be terminated prematurely for any reason. The likelihood of premature termination varies according
to many factors, but is at its highest with deep-discharged packs, low cell counts and particular cell types which are
UL TRA DUO PLUS 45
3/10 PAGE
known to cause problems.
• We recommend that you carry out a series of test charges to satisfy yourself that the automatic termination circuit is
working perfectly. This applies in particular when you are charging packs consisting of a small number of cells. If the
cells feature a poorly defined voltage peak, the charger may fail to detect the fully charged state.
• Before charging please check the following: have you selected the appropriate charge program for the battery?
Have you set the correct charge or discharge current? Have you set the important cut-off voltage when charging Ni-Cd
and Ni-MH packs? Are all connectors firmly inserted, or is there an intermittent contact at any point in the circuit? Please
bear in mind that it can be dangerous to fast-charge batteries. For example, if there is a brief interruption due to an
intermittent contact, the result is inevitably a malfunction such as a restart of the charge process, which would result in
the pack being massively overcharged.
• Be careful! Batteries may explode or burn if the charger develops a fault or if the user chooses the wrong
charging program and / or parameters.
“ The flow chart of ULTRA DUO PLUS 45 Charger ”
0-1. PRODUCT STUCTURE
Graph-LCDisplay
Fan2
Output1 Output2
Temperature sensor1 Temperature sensor2
Control keys
USB interface
Balancer connector
Output2
Fan1
Input1
Input2
Balancer connector 1-1 (cells 1…x) x=2…7
OUTPUT 1
Balancer connector 1-2 (cells x+1 …14)
OUTPUT 1
UL TRA DUO PLUS 45
4/10 PAGE

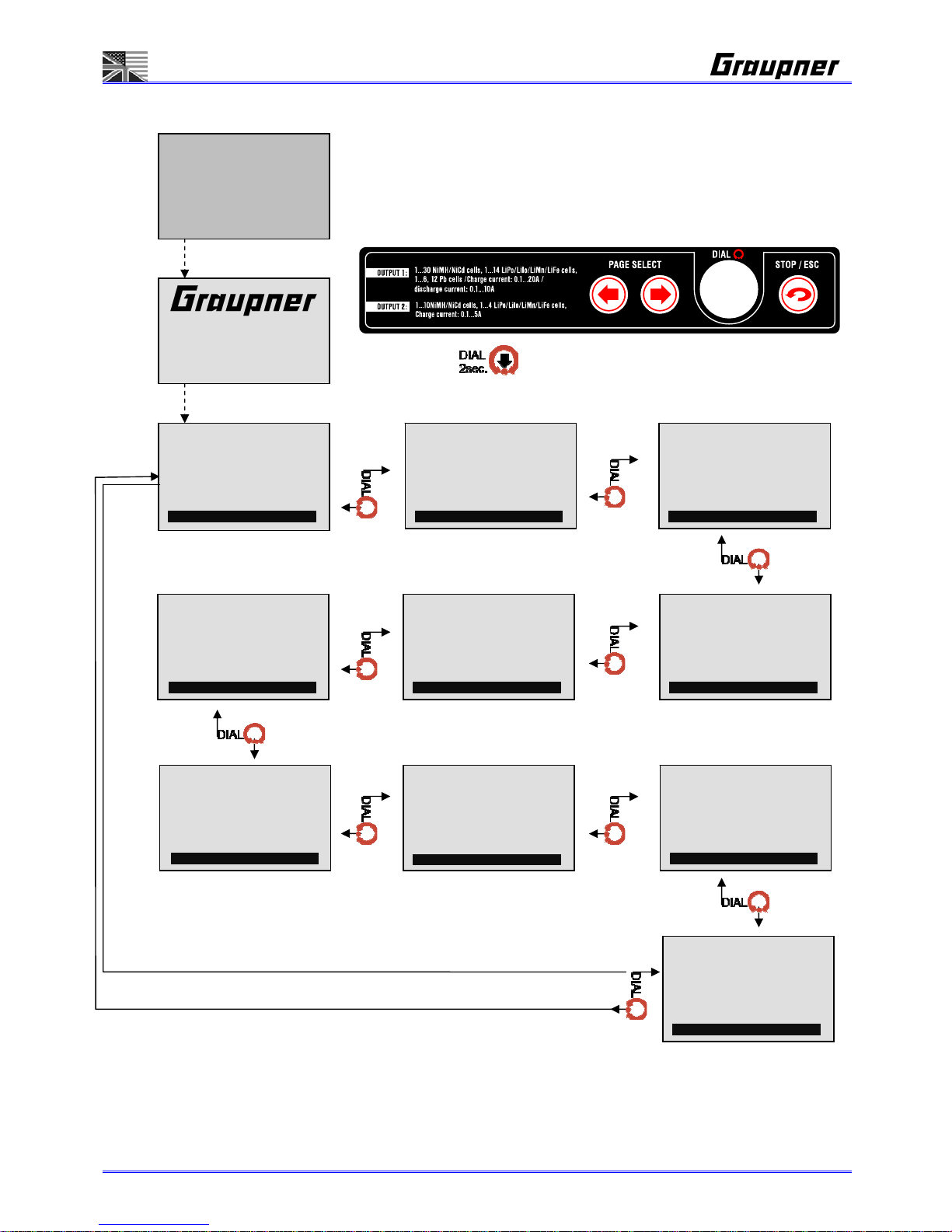

0-2. MAIN MENU FLOW
= press the ‚DIAL’ button for two seconds
CHARGE
01]NiCd 12.0V 4600mAh
Cd 3.0A 9999 12.00Vpk
DISCHARGE
01]NiCd 12.0V 4600mAh
Cd 3.0A 9999 12.00Vpk
ULTRA DUO PLUS 45
GRAUPNER #6475 V1.0
USER NAME
MEMORY [01]
NEW BATTERY NAME
Cd 3.0A 9999 12.00Vpk
CYCLE
01]NiCd 12.0V 4600mAh
Cd 3.0A 9999 12.00Vpk
STEP CHARGE
01]NiCd 12.0V 4600mAh
Cd 3.0A 9999 12.00Vpk
BALANCE
01]NiCd 12.0V 4600mAh
Cd +3.0A 9999+25.2Vpk
DATA VIEW
01]NiCd 12.0V 4600mAh
Cd+3.00A 9999 +12.10V
POWER & HEATER
__0m __0`CÆ__0m __0`C
Cd 3.0A 9999 12.00Vpk
MOTOR RUN
Cd 3.0A 9999 12.00Vpk
CONFIG
00/00/2000 am00:00:00
Cd 3.0A 9999 12.00Vpk
UL TRA DUO PLUS 45
5/10 PAGE
0-3. OUTPUT2 MENU/CHARGE FLOW
MEMORY [01]
NEW BATTERY NAME
Cd 3.00A 9999 1 2.0 0V
MEMORY [01]
NEW BATTERY NAME
Cd+3.00A 9999 +12.10V
Battery type
Cd :NiCd
MH :NiMH
Po :LiPo
Io :LiIon
Fe :LiFe
p
ack voltage
charge current
setup capacity
OUTPUT2 CHARGE
NiCd 7.2V _1000mAh
CHG CURRENT _1.0A
PEAK SENS _5mV/C
TRICKLE _AUTO
CUT-TEMP. 45°C
Opening screen (the latest charged battery type)
CHARGE START
[ NiMH ] BATTERY
-- CONNECT --
__ CHECK __
OUTPUT2 CHARGE
LiPo 11.1V _2500mAh
CHG CURRENT _2.5A
CHG VOLTAGE _4.2V/C
CUT-TEMP. 45°C
No heater connection
No battery connection Battery connection or Heater connection
HEATER START
-- CONNECT --
__ CHECK __
MEMORY [01]
NEW BATTERY NAME
HEAT 000m00s 00.0°C
charging display------- Cd+3.00A 9999 +12.10V
CHG 000m00s 00.0°C
charge end display---- Cd+0.10A 9999 +12.10V
**COMPLETED**________
END:DELTA-PEAK_______
charging display------ Po+3.00A 9999 +12.10V
4.12 4.12 4.12 4.12V
CHG 000m00s 00.0°C
charge end display---- Po+3.00A 9999 +12.10V
4.20 4.20 4.20 4.20V
**COMPLETED**________
Heating display(SET1)
HEAT 00m00s 00.0°C
SET T1: 00min 00.0°C
delay display---------- HEAT 00m00s 00.0°C
DELAY : Omin
Heating display(SET2)----
HEAT 00m00s 00.0°C
SET T2: 00min 00.0°C
Heater end display-------
HEATER *COMPLETED*
TEMPERATURE 00.0°C
HEATER
SET T1 :__0min __0°C
DELAY : __0min
SET T2 :__0min __0°C
CURRENT LIMIT _0.0A
Cd 3.0A 9999 +12.10Vpk
HEATER
SET T1 :__0min __0°C
DELAY : __0min
SET T2 :__0min __0°C
CURRENT LIMIT _0.0A
Cd 3.0A 9999 +12.10Vpk
UL TRA DUO PLUS 45
6/10 PAGE

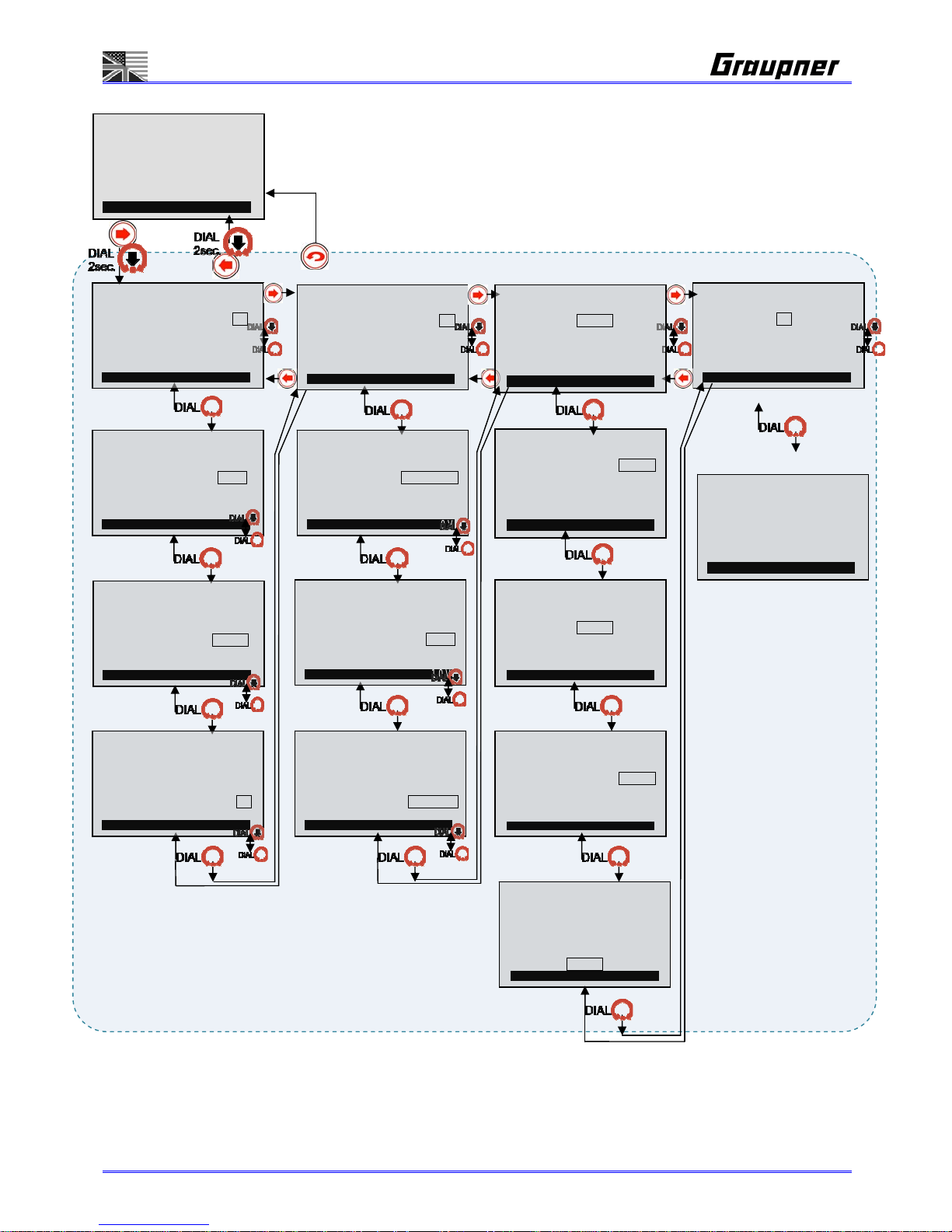

1. MEMORY AND BATTER Y SETUP MENU SCREEN
MEMORY [01]
NiMH GP 6N-4600
Cd+3.00A 9999 +12.10V
BATTERY SETUP <1/2>
TYPE NiMH
VOLTS _6CL _7.2V
CAPACITY _4600mAh
NEW 01/01/2008
Cd+3.00A 9999 +12.10V
BATTERY SETUP <1/2>
TYPE NiMH
VOLTS _6CL _7.2V
CAPACITY _4600mAh
NEW 01/01/2008
Cd+3.00A 9999 +12.10V
MEMORY SELECT
[01]NIMH 7.2V 4200mAh
↓
< NEW BATT NAME >
[01]NIMH 7.2V 4200mAh
< NEW BATT NAME >
BATT NAME SETUP<2/2>
01] NiMH GP 6N-4600
ABCDEFGHIJKLMNOPQR
STUVWXYZabcdefghijk
Lmnopqrstuvwxyz0123
456789-.'#_+/,aouee
Cd+3.00A 9999 +12.10V
BATT NAME SETUP<2/2>
01] NiMH GP 6N-4600
^
ABCDEFGHIJKLMNOPQR
STUVWXYZabcdefghijk
Lmnopqrstuvwxyz0123
456789-.'#_+/,aouee
Cd+3.00A 9999 +12.10V
BATTERY SETUP <1/2>
TYPE NiMH
VOLTS _6CL _7.2V
CAPACITY _4600mAh
NEW 01/01/2008
Cd+3.00A 9999 +12.10V
BATTERY SETUP <1/2>
TYPE NiMH
VOLTS _6CL _7.2V
CAPACITY _4600mAh
NEW 01/01/2008
Cd+3.00A 9999 +12.10V
BATTERY SETUP <1/2>
TYPE NiMH
VOLTS _6CL _7.2V
CAPACITY _4600mAh
NEW 01/01/2008
Cd+3.00A 9999 +12.10V
BATTERY SETUP <1/2>
TYPE NiMH
VOLTS _6CL _7.2V
CAPACITY _4600mAh
NEW 01/01/2008
Cd+3.00A 9999 +12.10V
BATTERY SETUP <1/2>
TYPE NiMH
VOLTS _6CL _7.2V
CAPACITY _4600mAh
NEW 02/01/2008
Cd+3.00A 9999 +12.10V
BATTERY SETUP <1/2>
TYPE NiMH
VOLTS _6CL _7.2V
CAPACITY _4600mAh
NEW 01/02/2008
Cd+3.00A 9999 +12.10V
BATTERY SETUP <1/2>
TYPE NiMH
VOLTS _6CL _7.2V
CAPACITY _4600mAh
NEW 01/01/2007
Cd+3.00A 9999 +12.10V
or
or
BATT NAME SETUP<2/2>
01] NiMH GP 6N-4600
^
ABCDEFGHIJKLMNOPQR
STUVWXYZabcdefghijk
Lmnopqrstuvwxyz0123
456789-.'#_+/,aouee
Cd+3.00A 9999 +12.10V
MEMORY COPY
[01]NIMH 7.2V 4200mAh
↓
< NEW BATT NAME >
[01]NIMH 7.2V 4200mAh
< NEW BATT NAME >
MEMORY COPY
[01]NIMH 7.2V 4200mAh
↓
< NEW BATT NAME >
[01]NIMH 7.2V 4200mAh
< NEW BATT NAME >
Sure? SETUP ONLY
MEMORY COPY
[01]NIMH 7.2V 4200mAh
↓
< NEW BATT NAME >
[01]NIMH 7.2V 4200mAh
< NEW BATT NAME >
Sure? SETUP+DATA
MEMORY COPY
[01]NIMH 7.2V 4200mAh
↓
< NEW BATT NAME >
[01]NIMH 7.2V 4200mAh
< NEW BATT NAME >
Sure? CANCEL
UL TRA DUO PLUS 45
7/10 PAGE
2. CHARGE SETUP MENU FLOW
CHARGE
01]LiPo 11.1V 2000mAh
Cd+3.00A 9999 +12.10V
CHARGE SETUP <1/2>
CHG CURRENT _4.6A
PEAK SENS _5mV/C
PEAK DELAY _3min
TRICKLE _AUTO
CUT-TEMP. _50°C
Cd+3.00A 9999 +12.10V
CHARGE SETUP <2/2>
MAX CAPACITY 125%
SAFETY TIMER _75min
FLAT CHECK _OFF
REPEAK CYCLE 1T
REPEAK DELAY _30min
Cd+3.00A 9999 +12.10V
CHARGE SETUP <1/1>
CHG CURRENT _2.1A
CHG VOLTAGE 4.20V/C
CUT-TEMP. 45°C
MAX CAPACITY 105%
SAFETY TIMER 140min
Cd+3.00A 9999 +12.10V
CHARGE SETUP <1/2>
CHG CURRENT _4.6A
PEAK SENS _5mV/C
PEAK DELAY _3min
TRICKLE _AUTO
CUT-TEMP. _50°C
Cd+3.00A 9999 +12.10V
CHARGE SETUP <1/2>
CHG CURRENT _4.6A
PEAK SENS _5mV/C
PEAK DELAY _3min
TRICKLE _AUTO
CUT-TEMP. _50°C
Cd+3.00A 9999 +12.10V
CHARGE SETUP <1/2>
CHG CURRENT _4.6A
PEAK SENS _5mV/C
PEAK DELAY _3min
TRICKLE _AUTO
CUT-TEMP. _50°C
Cd+3.00A 9999 +12.10V
CHARGE SETUP <1/2>
CHG CURRENT _4.6A
PEAK SENS _5mV/C
PEAK DELAY _3min
TRICKLE _AUTO
CUT-TEMP. _50°C
Cd+3.00A 9999 +12.10V
CHARGE SETUP <2/2>
MAX CAPACITY 125%
SAFETY TIMER _75min
FLAT CHECK _OFF
REPEAK CYCLE 1T
REPEAK DELAY _30min
Cd+3.00A 9999 +12.10V
CHARGE SETUP <2/2>
MAX CAPACITY 125%
SAFETY TIMER _75min
FLAT CHECK _OFF
REPEAK CYCLE 1T
REPEAK DELAY _30min
Cd+3.00A 9999 +12.10V
CHARGE SETUP <2/2>
MAX CAPACITY 125%
SAFETY TIMER _75min
FLAT CHECK _OFF
REPEAK CYCLE 1T
REPEAK DELAY _30min
Cd+3.00A 9999 +12.10V
CHARGE SETUP <1/1>
CHG CURRENT _2.1A
CHG VOLTAGE 4.20V/C
CUT-TEMP. 45°C
MAX CAPACITY 105%
SAFETY TIMER 140min
Cd+3.00A 9999 +12.10V
CHARGE SETUP <1/1>
CHG CURRENT _2.1A
CHG VOLTAGE 4.20V/C
CUT-TEMP. 45°C
MAX CAPACITY 105%
SAFETY TIMER 140min
Cd+3.00A 9999 +12.10V
CHARGE SETUP <1/1>
CHG CURRENT _2.1A
CHG VOLTAGE 4.20V/C
CUT-TEMP. 45°C
MAX CAPACITY 105%
SAFETY TIMER 140min
Cd+3.00A 9999 +12.10V
CHARGE SETUP <1/1>
CHG CURRENT _2.1A
CHG VOLTAGE 4.20V/C
CUT-TEMP. 45°C
MAX CAPACITY 105%
SAFETY TIMER 140min
Cd+3.00A 9999 +12.10V
NiMH CHARGE SETUP
LiPo CHARGE SETUP
CHARGE SETUP <2/2>
MAX CAPACITY 125%
SAFETY TIMER _75min
FLAT CHECK _OFF
REPEAK CYCLE 1T
REPEAK DELAY _30min
Cd+3.00A 9999 +12.10V
or
or
or
or
UL TRA DUO PLUS 45
8/10 PAGE
10. CONFIG SETUP SCREEN
CONFIG
01/01/2000 am00:00:00
Cd+3.00A 9999 +12.10V
... 2x
or
or
CONFIG SETUP <1/5>
TEMP SCALE °C
BU
FI
TTON SOUND __ON
NISH SOUND _0sec
FINISH MELODY _0
Cd+3.00A 9999 +12.10V
CONFIG SETUP <2/5>
LCD CONTRAST _0
LANGUAGES _ENGLISH
DISPLAY LAST
PCSETUP DISABLE
Cd+3.00A 9999 +12.10V
TIME SETUP <4/5>
SET DATE 17/05/2007
SET TIME am11:20
SET TIME FORMAT 12h
17/05/2007 am11:20:00
Cd+3.00A 9999 +12.10V
USER NAME <5/5>
01] GRAUPNER GmbH
ABCDEFGHIJKLMNOPQR
STUVWXYZabcdefghijk
Lmnopqrstuvwxyz0123
456789-.'#_+/,aouee
Cd+3.00A 9999 +12.10V
IN POWER SETUP <3/5>
IN1 [300W]12.0V 00.0A
IN2 [300W]12.0V 00.0A
OUT1 RATE OUT2
[204W]Å 80:20 Æ[ 50W]
Cd+3.00A 9999 +12.10V
CONFIG SETUP <1/5>
TEMP SCALE °C
BUTTON SOUND __ON
FINISH SOUND _0sec
FINISH MELODY _0
Cd+3.00A 9999 +12.10V
CONFIG SETUP <1/5>
TEMP SCALE °C
BUTTON SOUND __ON
FINISH SOUND _0sec
FINISH MELODY _0
Cd+3.00A 9999 +12.10V
CONFIG SETUP <1/5>
TEMP SCALE °C
BUTTON SOUND __ON
FINISH SOUND _0sec
FINISH MELODY _0
Cd+3.00A 9999 +12.10V
CONFIG SETUP <2/5>
LCD CONTRAST _0
LANGUAGES _ENGLISH
DISPLAY LAST
PCSETUP DISABLE
Cd+3.00A 9999 +12.10V
CONFIG SETUP <2/5>
LCD CONTRAST _0
LANGUAGES _ENGLISH
DISPLAY LAST
PCSETUP DISABLE
Cd+3.00A 9999 +12.10V
CONFIG SETUP <2/5>
LCD CONTRAST _0
LANGUAGES _ENGLISH
DISPLAY LAST
PCSETUP DISABLE
Cd+3.00A 9999 +12.10V
IN POWER SETUP <3/5>
IN1 [300W]12.0V 00. 0A
IN2 [300W]12.0V 00.0A
OUT1 RATE OUT2
[204W]Å 80:20 Æ[ 50W]
Cd+3.00A 9999 +12.10V
IN POWER SETUP <3/5>
IN1 [300W]12.0V 00.0A
IN2 [300W]12.0V 00.0A
OUT1 RATE OUT2
[204W]Å 80:20 Æ[ 50W]
Cd+3.00A 9999 +12.10V
IN POWER SETUP <3/5>
IN1 [300W]12.0V 00.0A
IN2 [300W]12.0V 00. 0A
OUT1 RATE OUT2
[204W]Å 80:20 Æ[ 50W]
IN POWER SETUP <3/5>
IN1 [300W]12.0V 00.0A
IN2 [300W]12.0V 00.0A
OUT1 RATE OUT2
[204W]Å 80:20 Æ[ 50W]
Cd+3.00A 9999 +12.10V
UL TRA DUO PLUS 45
9/10 PAGE
11. START SELECT MENU SCREEN
without bal. con.
3sec.
CHARGE
01]NiMH 7.2V 4600mAh
Cd+3.00A 9999 +12.10V
CHARGE START 5
PROCESS [ NORMAL ]
01]NiMH 7.2V 4600mAh
C: 4.6A d 5mV/C 50°C
Cd+3.00A 9999 +12.10V
with bal. con.
CHARGE START
[ NiMH ] BATTERY
-- CONNECT --
__ CHECK __
Cd+3.00A 9999 +12.10V
DISCHARGE
01]NiMH 7.2V 4600mAh
Cd+3.00A 9999 +12.10V
CYCLE
01]NiMH 7.2V 4600mAh
Cd+3.00A 9999 +12.10V
STEP CHARGE
01]NiMH 7.2V 4600mAh
Cd+3.00A 9999 +12.10V
CHARGE START 5
DELAY TIME ____OFF
EXPECT TIME __72min
EXP.FINISH am11:12:00
01/01/2008 am10:00:00
Cd+3.00A 9999 +12.10V
DISCHARGE START 5
PROCESS [ NORMAL ]
01]NiMH 7.2V 4600mAh
D:10.0A 1.1Vc/CL 50°C
Cd+3.00A 9999 +12.10V
STEP-CHG START 5
PROCESS [STEP-CHG ]
01]NiMH 7.2V 4600mAh
___0 ___0 ___0 ___0
Cd+3.00A 9999 +12.10V
DISCHARGE START 5
DELAY TIME ____OFF
EXPECT TIME __72min
EXP.FINISH am11:12:00
01/01/2008 am10:00:00
Cd+3.00A 9999 +12.10V
STEP-CHG START 5
DELAY TIME ____OFF
EXPECT TIME __72min
EXP.FINISH am11:12:00
01/01/2008 am10:00:00
Cd+3.00A 9999 +12.10V
DISCHARGE START
[ NiMH ] BATTERY
-- CONNECT --
__ CHECK __
Cd+3.00A 9999 +12.10V
STEP-CHG START
[ NiMH ] BATTERY
-- CONNECT --
__ CHECK __
Cd+3.00A 9999 +12.10V
CYCLE START
[ NiMH ] BATTERY
-- CONNECT --
__ CHECK __
Cd+3.00A 9999 +12.10V
*CONNECTED CHECK* 5
[00] cells are now
Connected at the
Balancing port
.......Right?
OUTPUT [ _0.000V ]
Cd+3.00A 9999 +12.10V
** BALANCER **
** CONNECTION
**
** ADVISED! **
Cd+3.00A 9999 +12.10V
*SELECT CELLS*
Select [00] cells
to be charged or
discharged.
.......Right?
OUTPUT [ _0.000V ]
Cd+3.00A 9999 +12.10V
[ NORMAL ] CHARGE
EXP.FIN. am00:00:00
0000mAh _0:00:00
_0.000V +_0.00A
RESISTANCE __0.0m
BATT TEMP __0.0°C
Cd+3.00A 9999 +12.10V
[ NORMAL ]DISCHARGE
EXP.FIN. am00:00:00
0000mAh _0:00:00
_0.000V +_0.00A
RESISTANCE __0.0m
BATT TEMP __0.0°C
Cd+3.00A 9999 +12.10V
[ 4 STEP ] CHARGE
STEP=01 [ ] 0000mAh
0000mAh _0:00:00
_0.000V +_0.00A
RESISTANCE __0.0m
BATT TEMP __0.0°C
Cd+3.00A 9999 +12.10V
[ NORMAL ] CHARGE
CYCLE D:C>D 0/10
0000mAh _0:00:00
_0.000V +_0.
RESISTANCE __0.0m
00A
BATT TEMP __0.0°C
Cd+3.00A 9999 +12.10V
CYCLE START 5
CHARGE [ NORMAL ]
DISCHG [ NORMAL ]
01]NiMH 7.2V 4600mAh
D:C>D _1T C_0/D_0min
Cd+3.00A 9999 +12.10V
3sec.
5sec.or
5sec.or
5sec.or
UL TRA DUO PLUS 45
10/10 PAGE
13. OPERA TION MENU SCREEN
< CHARGE, DISCHARGE OPERATION SECREEN >
[ NORMAL ] CHARGE [ NORMAL ] CHARGE
TIME _0:00:00 EXP.FINSH am11:12
CAPACITY 0000mAh
FINISH TIME **--:- CLOCK am10:00:01 VOLTAGE _0.000V
CURRENT +_0.00A DATE 01/01/2008
[204W]Å 80:20 Æ[ 50W]
BATT TEMP __0.0°C
Cd+3.00A 9999 +12.10V
Cd+3.00A 9999 +12.10V
TRACE DATA <3/4>
CHG DCHG
LAST ___0mAh _
Finish/END Displays:
"END:DELTA-PEAK "
"END:ZERO-PEAK "
"END:CC/CV "
"END:CUTOFF-VOLT"
"END:TEMPERATURE"
"END:CAPACITY "
"END:FLAT CHECK "
"END:TIMER "
"CHK:MATCHED "
0:00:00 0.00V GR=V
0.000Vc 0.000V=A 0x
BALANCE 0N=0.000V
0.000Vc 0.000Vy=A CL
Cd+3.00A 9999 +12.10V
CHARGE
C: 4.6A d 5mV/C 50°C
Cd+3.00A 9999 +12.10V
[ NORMAL ] CHARGE
END:DELTA-PEAK
TIME _0:00:00
CAPACITY 0000mAh
VOLTAGE _0.000V
CURRENT +_0.00A
BATT TEMP __0.0°C
Cd+3.00A 9999 +12.10V
RESISTANCE 2 <5/6>
8N _0.0m
12N _0.0m
9N _0.0m 13N _0.0m
10N _0.0m 14N _0.0m
11N _0.0m
Cd+3.00A 9999 +12.10V
RESISTANCE 1 <4/6>
1N _0.0m
5N _0.0m
2N _0.0m 6N _0.0m
3N _0.0m
7N _0.0m
4N _0.0m
Cd+3.00A 9999 +12.10V
BALANCE 2 <3/6>
8N 0.000V 13N 0.000V
9N 0.000V 14N 0.000V
10N 0.000V
12N 0.000V
Cd+3.00A 9999 +12.10V
BALANCE 1 <2/6>
1N 0.000V 5N 0.000V
2N 0.000V 6N 0.000V
3N 0.000V 7N 0.000V
4N 0.000V
Cd+3.00A 9999 +12.10V
BALANCE <1/6>
BATT CELLS _0CELL
PACK VOLTS _0.000V
AVG VOLTS _0.000V
GAP VOLTS _0.000V
MAX NO. 0 _0.000V
MIN NO. 0 _0.000V
Cd+3.00A 9999 +12.10V
__0mAh
_0mAh MAX. ___0mAh __
MIN. RES. __0.00m
TOTAL CHARGES __0
NEW 15/12/2007
Cd+3.00A 9999 +12.10V
CYCLE DATA [0] <2/4>
END.01/01/08 am1
CHG
0:00
DCHG
TIME 0:00:00 :00:00
VOLT 5.000Vp 0.000Va
CAP. ___0mAh __0mA
RES. __0.0m
h
__0.0m
Cd+3.00A 9999 +12.10V
DATA VIEW <1/4>
INPUT _0.000V
OUTPUT _0.000V
TEMPERATURE _00.0°C
HIGH TEMP __0.0°C
RESISTANCE __0.0m
Cd+3.00A 9999 +12.10V
Loading...
