GRAUPNER racing Micro Magic HoTT User Manual

Manual

racing Micro Magic HoTT

ARTR RC sail-boat with HoTT receiver

2014.HoTT

EN

2 - 20

2014.HottSVV1

Index

Introduction ........................................................................... 4

Service Centre ....................................................................... 4

Intended use ......................................................................... 5

Package content ................................................................... 5

Symbols explication ............................................................... 6

Safety notes .......................................................................... 6

Mounting Micro Magic ........................................................... 7

Declaration of conformity ..................................................... 17

Notes on environmental protection ......................................18

Care and maintenance ........................................................ 18

Warranty certificate .............................................................. 18

2014.HottSVV1

3- 20

Introduction

Thank you very much, for purchasing a Graupner MICRO MAGIC
HOTT . This 2014.HOTT is extremely versatile. This manual is valid

for all the models listed on the cover sheet.

Read this manual carefully to achieve the best results with your
Race Copter and first of all to safely control your models. If you
experience any trouble during operation, take the instructions to
help or ask your dealer or Graupner Service Centre.

Due to technical changes, the information may be changed in
this manual without prior notice. Be always updated by check­ing periodically on our website, www.graupner.de to be always
uptodate with the products and firmwares.

This product complies with national and European legal require­ments.

To maintain this condition and to ensure safe operation, you must
read and follow this user manual and the safety notes before using
the product!

Service Centre

Graupner in Internet

NOTICE

This manual is part of that product. It contains important infor­mation concerning operation and handling. Keep these instruc­tions for future reference and give it to third person in case you
gave the product.

Graupner Central Service

Graupner/SJ GmbH
Henriettenstrasse 96
D-73230 Kirchheim / Teck

Servicehotline

(+49) (0)7021/722-130
Monday - Thursday
9:15 am - 5:00 pm
Friday
9:15 am - 1:00 pm

For the service centres outside Germany please refer to our web
site www.graupner.de

4 - 20

2014.HottSVV1

Intended use

Package content

The MICRO MAGIC is a sailing model for use on waters.

The MICRO MAGIC is designed exclusively to be used as a bat­tery-powered, radio controlled model, any other use is not
allowed. For any improper use no warranty or liability is accepted.

Read through this entire manual before you attempt to program
or use the MICRO MAGIC.

Graupner/SJ constantly works on the development of all prod­ucts; we reserve the right to change the item, its technology and
equipment.

Target group

The item is not a toy. It is not suitable for children under 14 years.
The assembly and operation of the MICRO MAGIC must be per­formed by experienced modellers. If you do not have sufficient
knowledge about dealing with radio-controlled models, please
contact an experienced modeller or a model club.

2014.HottSVV1

5- 20

Symbols explication

Always follow the information marked with the CAUTION or

WARNING symbol. The signal word WARNING indicates the

potential for serious injury, the signal word

possibility of lighter injuries.

Notes and Attention warns you about potential damages to
objects.

CAUTION indicates

Safety notes

Gluing instructions

has to be used. Observe hazard warnings on the container.

This symbol indicates that super-glue (cyano)

General

This safety notes are intended to protect you and other people.
They are also used for safe handling the product. Therefore
please read this section very carefully before using the product!

Do not carelessly leave the packaging material lying around,
since it might become a dangerous toy for children.

 Persons, including children, with reduced physical, sensory

or mental capabilities, or lack of experience or knowledge,
or not capable to use safely the Micro Magic must not use
the Micro Magic without supervision or instruction by a
responsible person.

 Operation and use of radio-controlled models need to be

learnt! If you have never operated a model of this type before,
start carefully and make yourself familiar with the model’s
reactions to the remote control commands. Proceed respon­sibly.

6 - 20

 Before you start using the remote control model, you have

to check the further relevant laws and regulations. These
laws you must obey in every case. Pay attention to the pos­sibly different laws of the countries.

 The user must be sure prior to each application of RC model

from the functional safety and the proper condition of the RC
model.

 The insurance is mandatory for all kinds of model operation.

2014.HottSVV1

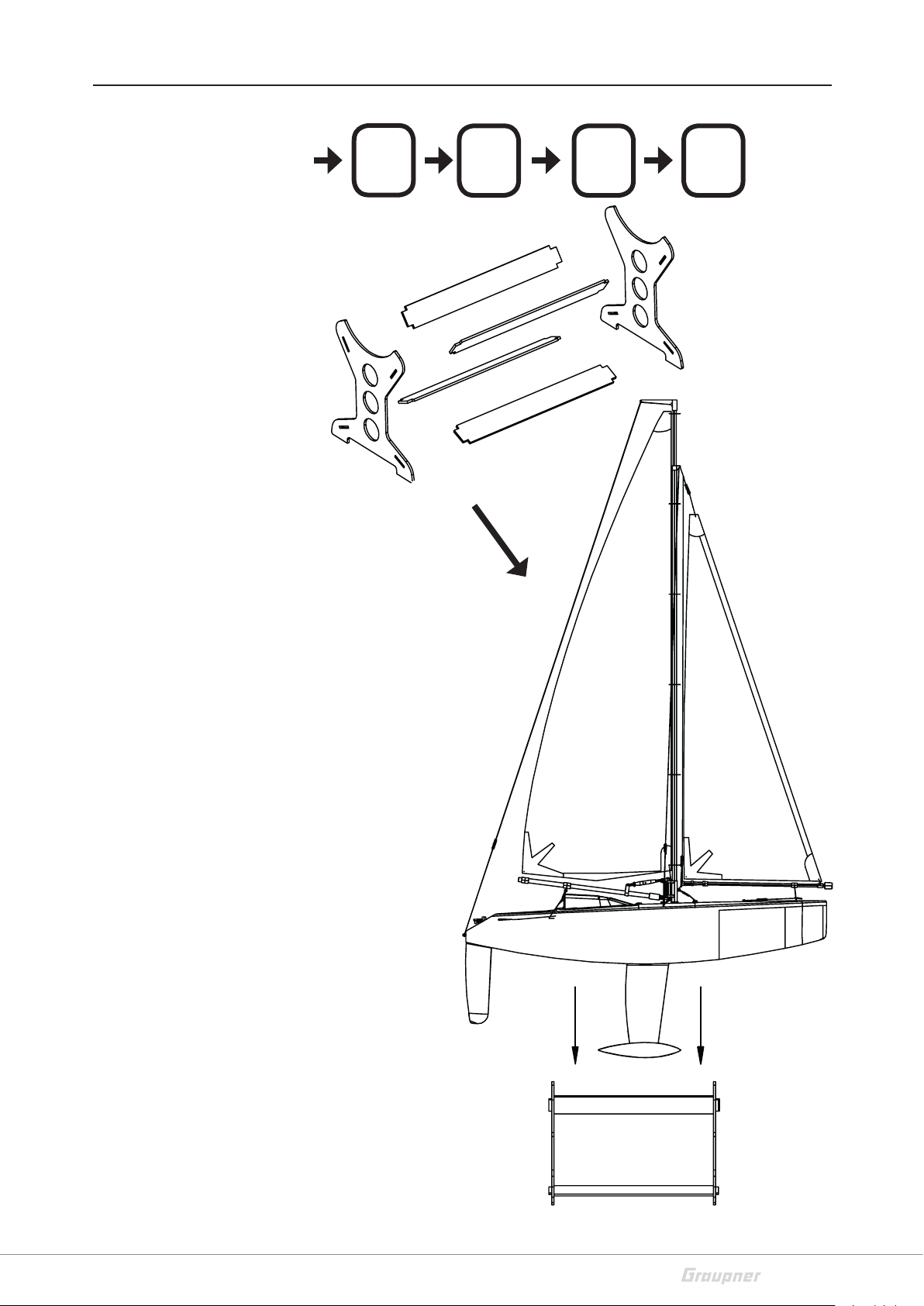

Mounting Micro Magic

1.

2. 3. 4.

...

2014.HottSVV1

7- 20

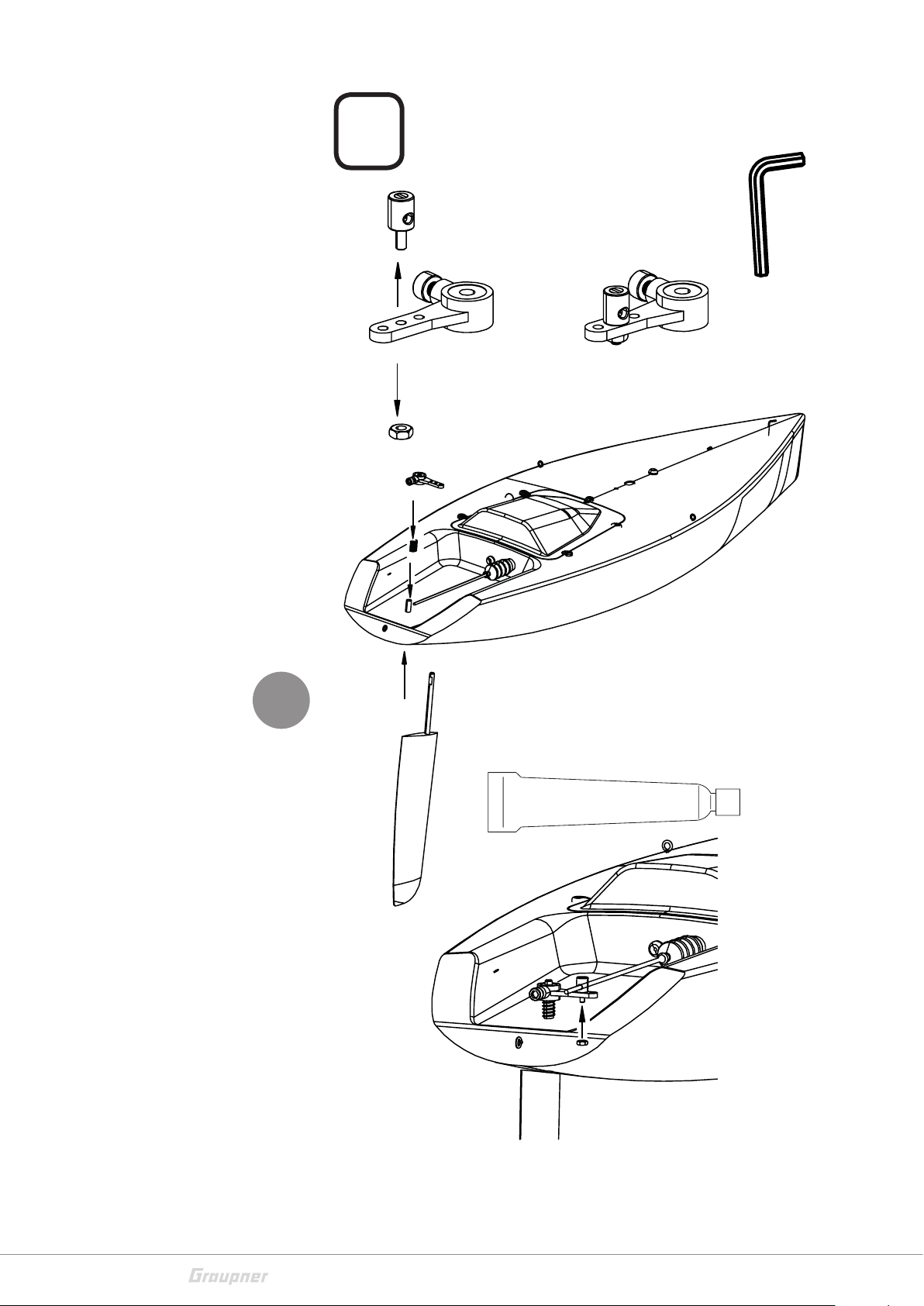

1.

P

For the mounting you will need a 2,5
mm and a 1,5 mm Allen key.

Notes, care Grease the rudder shaft slightly

and mount the helm along with the small com­pression spring and the tiller.

8 - 20

2014.HottSVV1

2.

For mounting you need a 3 mm
socket wrench.

2014.HottSVV1

Note, attention For competition use, the keel has to be shortened
to a length of 135 mm.

135mm

9- 20

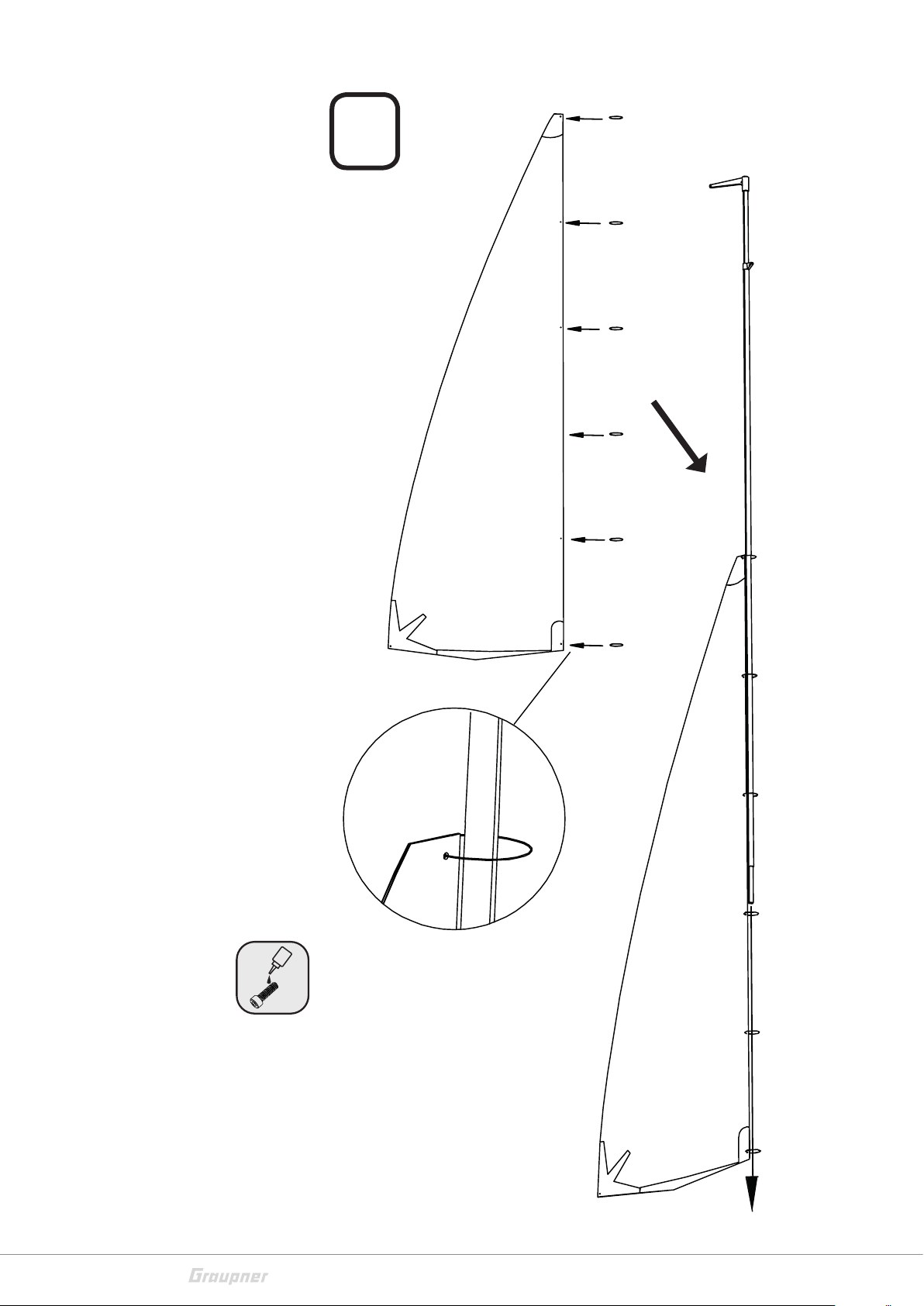

3.

10 - 20

Note You can back up the mast rings

with super glue (cyano) against opening.

2014.HottSVV1

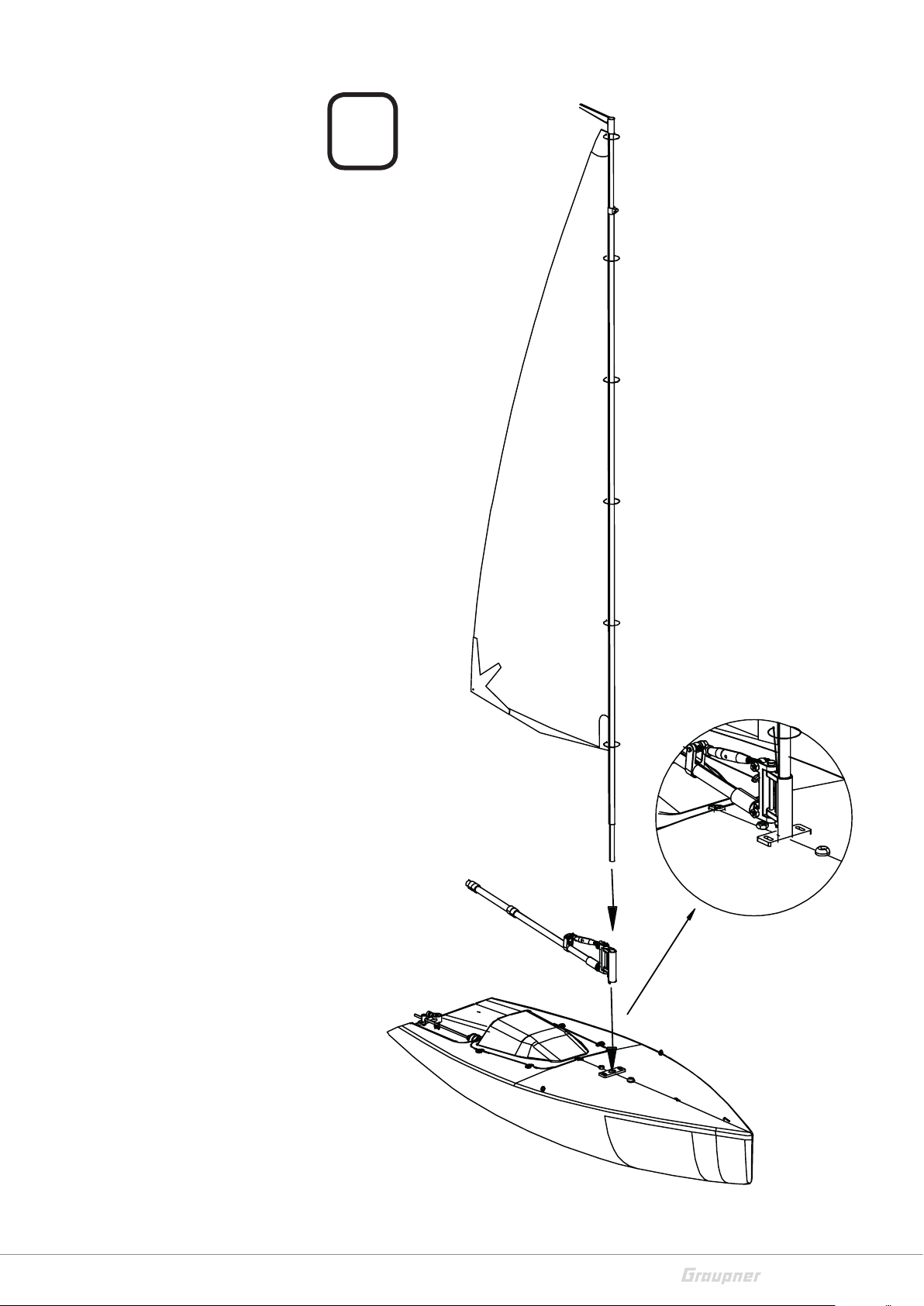

4.

2014.HottSVV1

11- 20

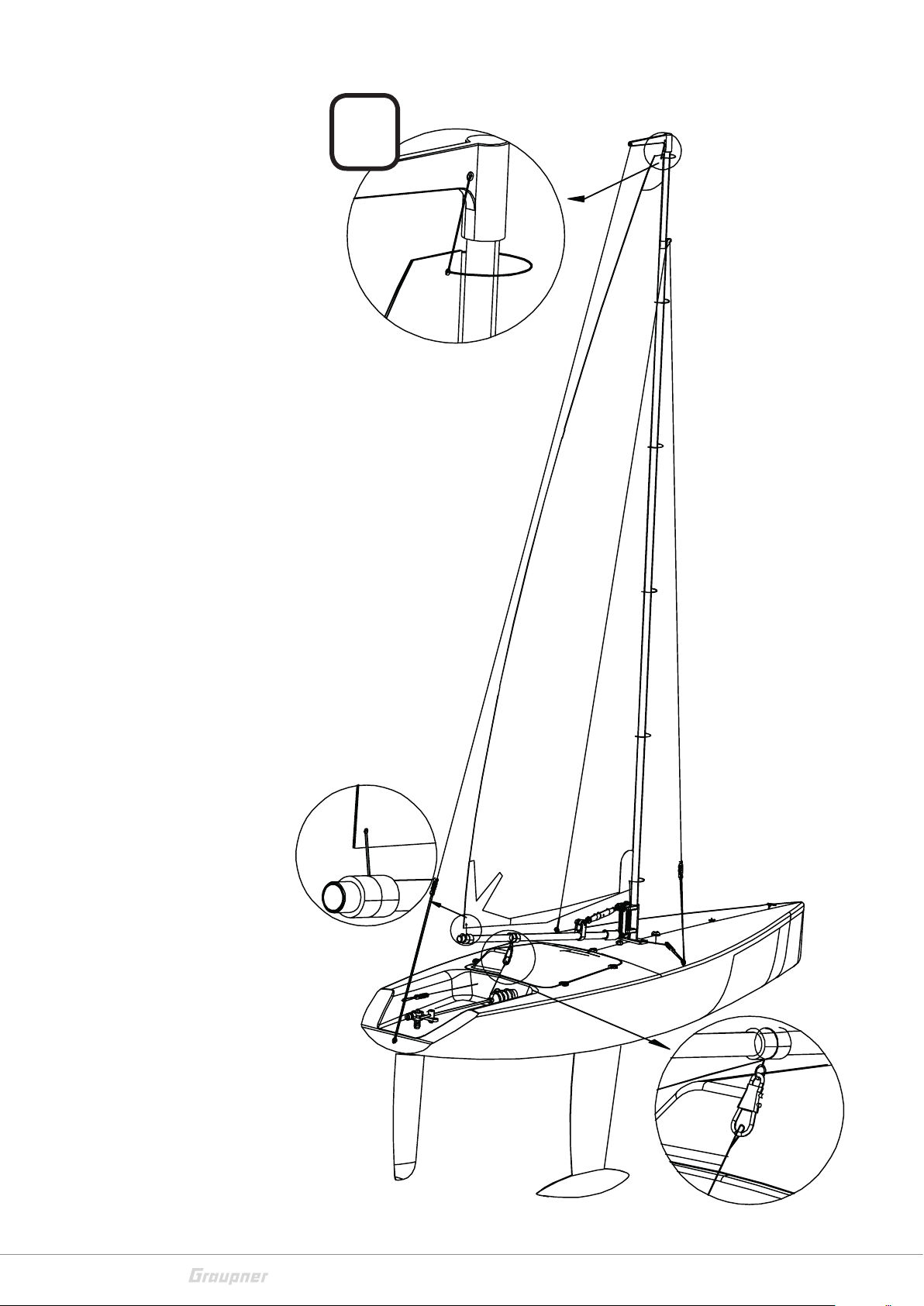

5.

12 - 20

2014.HottSVV1

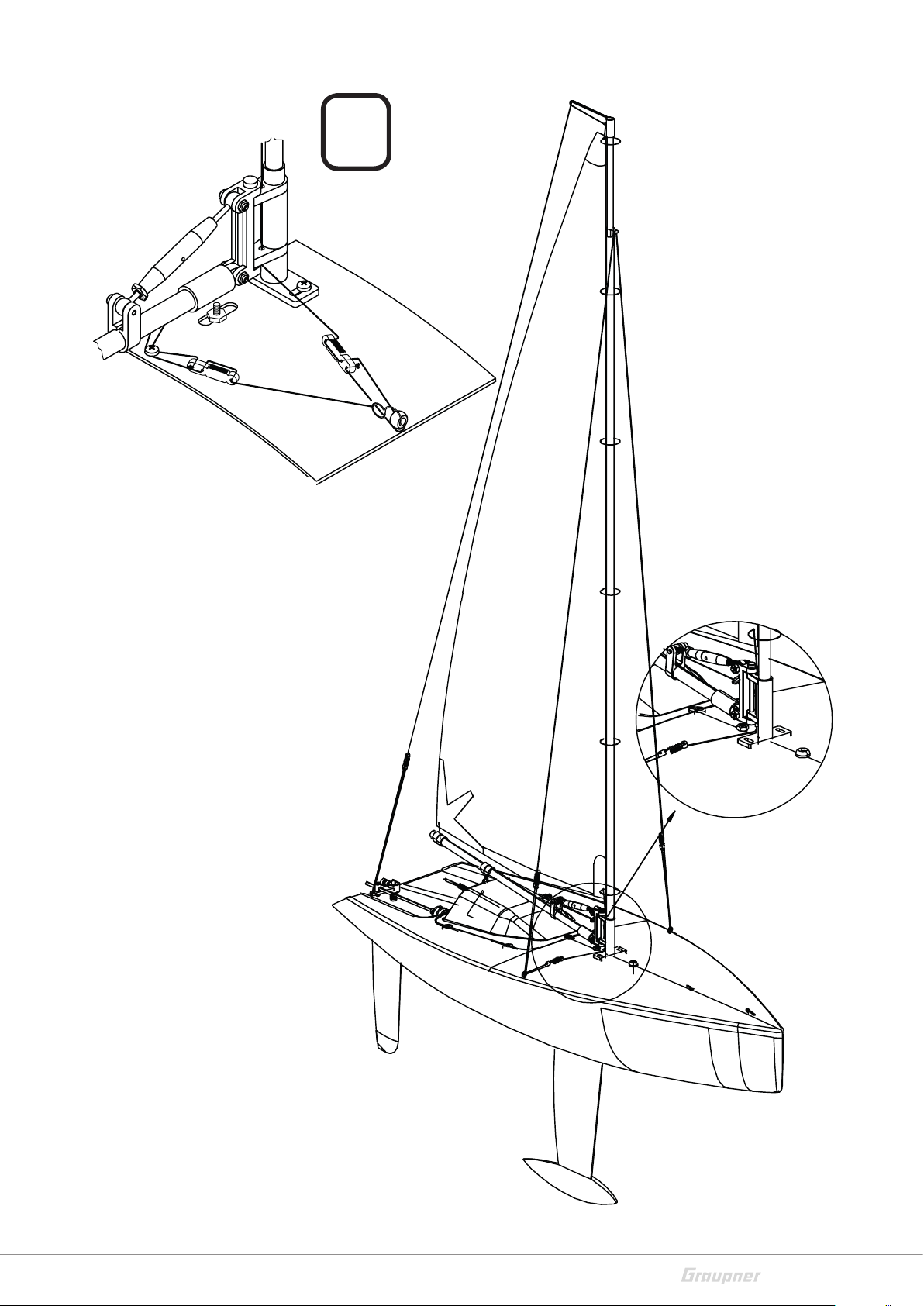

6.

2014.HottSVV1

13- 20

7.

14 - 20

2014.HottSVV1

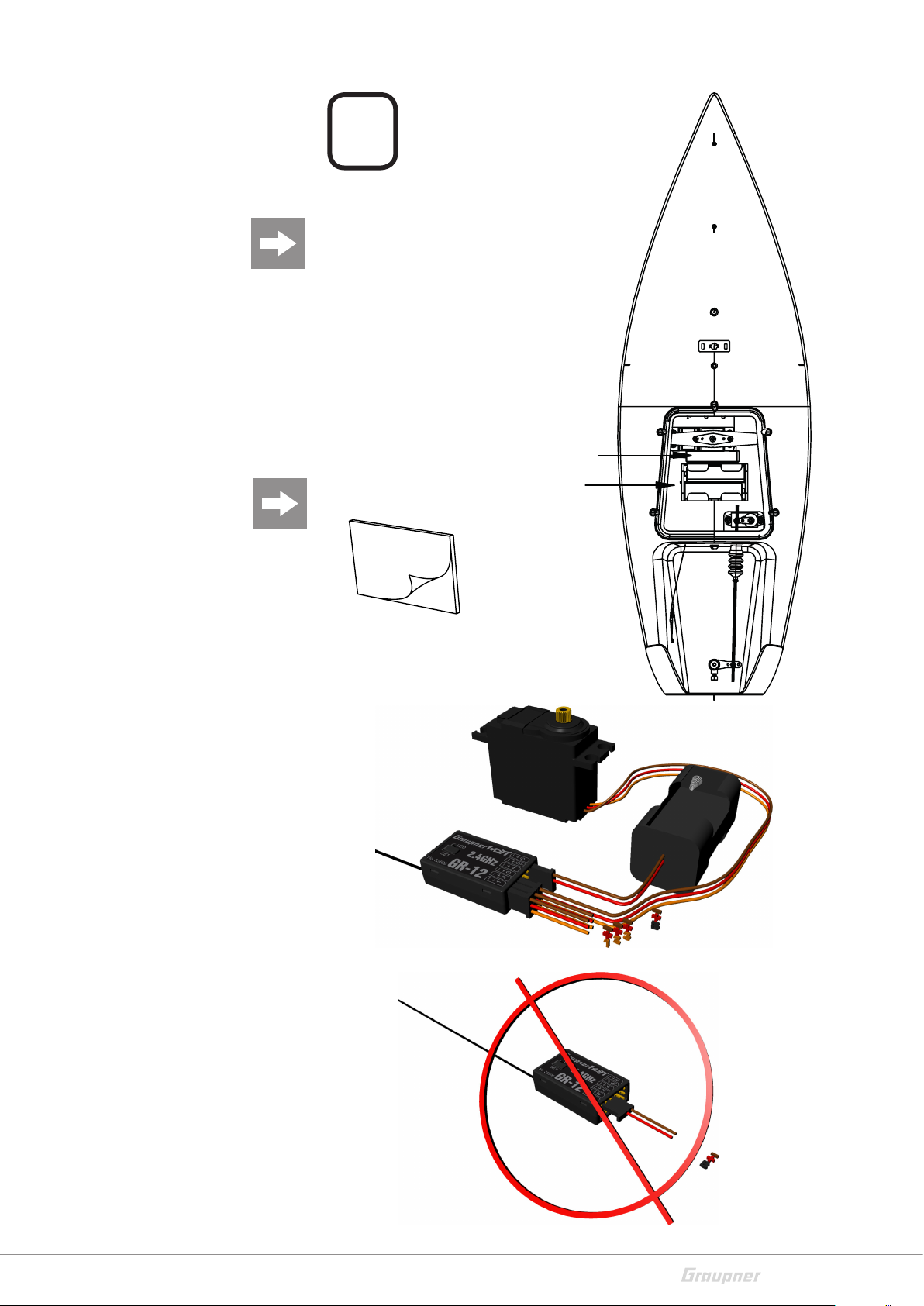

Note When installing the included

receiver please use double sided
adhesive tape.

8.

Note, attention Please read carefully
the manual included with the receiver
before installing and using it.

RECEIVER
BATTERY

Note. Receiver connections

Connect the servos into the
power strip on the right side of
the receiver. The connector sys­tem is polarized; note the small
slots. Never force the connec­tion, the plug should engage eas­ily. The sockets are labeled
accordingly, brown wire (-), red
(+) and orange (signal). The servo
sockets of Graupner HoTT 2.4
receiver are numbered. The con­nection with the label “6“ is pro­vided for the battery terminal.
Through a V or Y cable (No.

3936.11) it is possible to connect
also the servo with the power
supply. For other connection
options, please refer to the
instructions of Receiver GR-12
HoTT (No. 33506). Never plug
the connector system horizon­tally.

2014.HottSVV1

15- 20

CWL

Note, attention You should never have more tension than needed
in the sails

.

Technical data

Length: 535 mm
Width oa 170 mm
Total height approx 980 mm
Weight with RC system without battery 950 g

16 - 20

2014.HottSVV1

Spare parts

1x 2014.1
1x 2114.2
1x 2114.3
14x 686

CNC machined deep drawn parts
Keel
Rudder
Locking latch

1x 2114.4 Ballast
1x 2420 Main sail fitting
1x 2415
1x 2014.7
1x 2014.5
1x 2014.5C
1x 2014.2
1x 2014.3

Boom fitting
Hood with elastic cord
Sail set
Tuning sail set light orange
Tuning Keel
Tuning rudder blade

1x 2014.4 Tuning ballast
1x 2014.7C

Hood “Carbon” with rubber cord

1x 2014.7T Transparent hood
1x 2416
1x 2417
1x 2417
1x 2419

Clamping rings 4 and 6 mm
Clamping brackets 4 and 6 mm
Roll block
Mast fittings

Other interesting, actual accessories are available in the Accessories area for the
respective items on our website in the online shop: www.graupner. de

Suggested accessories

Ð 33112 Transmitter mx-12 HoTT 6 channel
Ð 3426 AA high capacity batteries VE4
Ð 570 High performance grease
Ð 968.50 Wet.Protect 50ml humidity protection

Declaration of conformity

racing Micro Magic HoTT

Graupner/SJ declares that the prod­uct is conform to CE norms.

EN 61000-6-1; EN 61000-6-3, EN
55014-1, EN 60950-1

33506 Receiver GR-12

Graupner/SJ declares that the prod­uct is conform to CE norms.

EN 60950:2006

EN 301 489-1 V1.7.1 EN 301 489-3
V1.4.1

2014.HottSVV1

EN 300 328 V1.7.1

17- 20

Notes on environmental protection

P

Disposal notes

This symbol on the product, user manual or packaging indicates
that this product must not be disposed of with other household
waste at the end of its life. It must be handed over to the appli­cable collection point for the recycling of electrical and electronic
equipment.

The materials are recyclable as marked. By recycling, material
reusing or other forms of scrap usage you are making an impor­tant contribution to environmental protection.

Batteries and accumulators must be removed from the device
and disposed of at an appropriate collection point. Please inquire
if necessary from the local authority for the appropriate disposal
site.

Care and maintenance

Notes on care

The product requires lubrication on the rudder trunk. This should
be done all 5 sails. Please protect the boat in your own interest
from dust, dirt and moisture!

Warranty certificate

Clean the model only with a dry cloth lightly rub (do not use
detergent!).

The Graupner, Henriettenstrassee 96, 73230 Kirchheim/Teck
grants from the date of purchase of this product for a period of
24 months. The warranty applies only to the material or opera­tional defects already existing when you purchased the item.
Damage due to wear, overloading, incorrect accessories or
improper handling are excluded from the guarantee. The legal
rights and claims are not affected by this guarantee. Please
check exactly defects before a claim or send the product,
because we have to ask you to pay shipping costs if the item is
free from defects.

The present construction or user manual is for informational pur­poses only and may be changed without prior notice. The cur­rent version can be found on the Internet at www.graupner.de on
the relevant product page. In addition, the company Graupner
has no responsibility or liability for any errors or inaccuracies that
may appear in construction or operation manuals.

18 - 20

No liability can be accepted for printing errors.

2014.HottSVV1
