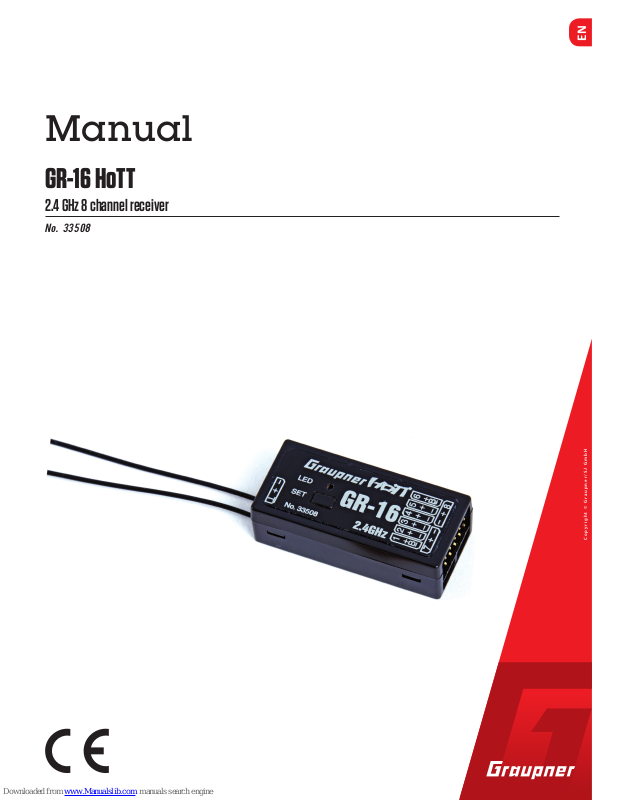

Page 1
EN
No. 33508
2.4 GHz 8 channel receiver
GR-16 HoTT
Manual
Copyright © Graupner/SJ GmbH
Page 2
2 / 16
33508_sh_V1
Page 3
3 / 16
33508_sh_V1
Index
Introduction .............................................................................. 4
Service centre ............................................................................ 4
Intended use.............................................................................. 5
Target group ....................................................................................5
Package content ........................................................................ 5
Technical data ............................................................................ 6
Symbol description .................................................................... 6
Safety notes ............................................................................... 6
For your safety by handling the transmitter and the receiver .......7
For your safety by handling the batteries ......................................8
Installation ................................................................................ 8
Connections ............................................................................... 8
Power supply ...................................................................................8
binding ...................................................................................... 9
Display and adjusting the receiver settings ................................ 9
Special features of the GR-16 HoTT receiver ...............................10
Firmware update ..................................................................... 12
Declaration of conformity ........................................................ 14
Notes on environmental protection ......................................... 14
Care and maintenance ............................................................. 14
Warranty ................................................................................. 15
Page 4
4 / 16
33508_sh_V1
Introduction
Thank you very much for purchasing the Graupner receiver GR -16
HoTT.
Read this manual carefully to achieve the best results with your HoTT
system and first of all to safely control your models. If you experience
any trouble during operation, take the instructions to help or ask
your dealer or Graupner Service Centre.
Due to technical changes, the information may be changed in this
manual without prior notice. Be always updated by checking periodically on our website, www.graupner.de to be always uptodate with
the products and firmwares.
This product complies with national and European legal requirements.
To maintain this condition and to ensure safe operation, you must
read and follow this user manual and all the safety notes before
using the product!
Note
This manual is part of that product. It contains important information concerning operation and handling. Keep these instructions for
future reference and give it to third person in case you gave the
product.
Service centre
Graupner Central Service
Graupner/SJ GmbH
Henriettenstraße 96
D-73230 Kirchheim/Teck
Servicehotline
(+49) (0)7021/722-130
Monday - Thursday:
9:15 am - 4:00 pm
Friday:
9:15 am - 1:00 pm
service@graupner.de
Graupner USA
3941 Park Dr Suite 20-571
El Dorado Hills, CA 95762
Website: www.graupnerusa.com
Phone: +1 855-572-4746
Email:service@graupnerusa.com
Graupner in Internet For the service centers outside Germany please refer to our web site
www.graupner.de.
Page 5
5 / 16
33508_sh_V1
Intended use
The receiver only be used for the purpose specified by the manufacturer for operation of remote control models without passengers.
Any other type of use is impermissible and may damage the system
and cause significant property damage and/or personal injury. No
warranty or liability is therefore offered for any improper use not
covered by these provisions.
In addition, it is explicitly pointed out that you must inform yourself
about the laws and regulations applicable at your respective starting
point before starting the remote control operation. Such conditions
may differ from state to state, but this must be followed in every
case.
Note
Read through this entire manual before you attempt to install or use
the transmitter.
Target group
The item is not a toy. It is not suitable for children under 14. The
installation and operation of the receiver must be performed by
experienced modellers. If you do not have sufficient knowledge
about dealing with radio-controlled models, please contact an experienced modeller or a model club.
Package content
• 8 channel receiver GR-16 HoTT 2.4 GHz
• Manual
Page 6
6 / 16
33508_sh_V1
Technical data
Antenna
2x cable 145 mm,
of which last 30 mm active
Operating voltage (2.5) 3.6 ... 8.4 V
Frequency range 2400 ... 2483.5 MHz
Modulation 2.4 GHz FHSS
Number of controls 8
Current consumption approx.
70 mAh
Temperature range -15 … +70°C
Dimensions approx. 46 x 21 x 14 mm
Weight approx. 12 g
Symbol description
Always observe the information indicated by these warning
signs. Particularly those which are additionally marked with the
words CAUTION or WARNING.
!
The signal word WARNING indicates the potential for serious injury,
the signal word CAUTION indicates possibility of lighter injuries.
The signal word Note indicates potential malfunctions.
Attention indicates potential damages to objects.
Safety notes
!
These safety instructions are intended not only to protect the product, but also for your own and other people’s safety. Therefore please
read this section very carefully before using the product!.
• Do not leave the packaging material lying around, this could be a
dangerous toy for children.
• Persons, including children, with reduced physical, sensory or
mental capabilities, or lack of experience or knowledge, or not
capable to use safely the receiver must not use the receiver without supervision or instruction by a responsible person.
• Operation and use of radio-controlled models needs to be learnt!
If you have never driven such a model, then start extra carefully
and make sure to be familiar with the reactions of the model to
the remote control commands. Proceed responsibly.
Page 7
7 / 16
33508_sh_V1
• First, always perform a range and function test on the ground (to
do so, hold your model tight), before you use your model. Repeat
the test with running motor and with short throttle bursts.
• Only use the components and spare parts that we recommend.
Always use matching, original Graupner plug-in connections of
the same design and material.
• Make sure that all of the plug-in connections are tight. When disconnecting the plug-in connections, do not pull the cables.
• Protect the receiver from dust, dirt, moisture and foreign parts.
It must be protected from vibration as well as excessive heat or
cold. The models may only be operated remotely in normal outside temperatures such as from -10°C to +55°C.
• Always use all your HoTT components only with the latest firmware version.
• If you have questions which cannot be answered by the operating manual, please contact us or another expert in the field.
For your safety by handling the transmitter and the receiver
!
WARNING
Also while programming the transmitter, make sure that a connected motor cannot accidentally start. Disconnect the fuel supply or drive battery beforehand.
!
CAUTION
Avoid every kind of short-circuit in all sockets of the transmitter!
Risk of fire! Use only the suitable connectors. In no case the electronic component of the transmitter or of the receiver may be
changed or modified. Due to licensing reasons, any reconstruction
and/or modification of the product is prohibited.
Note
During transport protect the model and the transmitter from damages.
Page 8
8 / 16
33508_sh_V1
For your safety by handling the batteries
!
CAUTION
• Protect the batteries from dust, dirt, moisture, heat and vibrations. Only use in dry locations.
• Do not use any damaged battery.
• Batteries may not be heated, burned, short-circuited.
• If handled improperly, there is a danger of fire, explosion, irritation and burns.
• Leaked electrolyte is caustic and should not be touched or
come into contact with your eyes. In case of emergency, rinse
with a large quantity of water and consult a Med. Doctor.
• Stock the batteries in dry and fresh conditions.
• Dispose of the battery in the proper disposal centers.
Installation
The receiver must be protected against dust, exhaust gases, splash
water, etc. in the model. When you install your receiver, make sure
that it is not excessively airtight to prevent it from overheating during
operation.
Servo cables may not be wound around antennas or run next to
them. Make sure that the cables cannot shift to lie directly adjacent
to antennas during flight.
In the case of carbon fibre fuselage, at least the last 35 mm of the
antennas shall be routed from the fuselage.
Connections
Connect the devices that have to be connected to the receiver to the
row of sockets on one end of the receiver. The servo connections of
the Graupner-HoTT receiver are numbered.
The polarity of the plug-in system cannot be reversed. Do not apply
force.
Power supply
For the battery connection are designated the ports 1 and 6, they
are also provided with an additional "B". In principle, however, you
can connect a battery to any free socket. By V- or Y-cable, but also
with any remote control component. We recommend that you connect the power supply to the socket(s) close to the servos already
connected to the receiver. If you wish to connect multiple separate
batteries, the batteries must be of the same nominal voltage and
capacity.
Page 9
9 / 16
33508_sh_V1
Never connect different battery types or batteries with strongly different charges since this can cause an effect similar to a short circuit.
In such cases for safety reasons, insert voltage stabilizing elements
such as PRX-5A (No. 4136) receiver power supplies between the batteries and receiver.
Attention
When selecting and connecting a power supply, be aware that
although the operating range of the receiver ranges from 3.6 to 8.4
V. However, practically all of the previously marketed servos, speed
controllers, gyros, etc. as well as many which are offered today have
a permissible operating voltage range of 4.8 to 6 V.
binding
To establish a connection with the transmitter, the Graupner HoTT
receiver must first be "bound" to at least one model memory in "its"
Graupner HoTT transmitter. This process is generally called "binding".
Binding step by step
1. Prepare the transmitter to be bound according to its instructions
for binding.
2. Switch the receiver power supply on.
The LED of the GR-16 HoTT receiver blinks in red with a slow
rhythm.
3. Push and hold for about three seconds the SET button on the
receiver.
After this time has elapsed, the LED flashes red and green simultaneously for a further approx. three seconds. During this time,
the receiver is in bind mode.
4. Start the transmitter-side binding according to the instructions
of the transmitter.
5. If the LED of the receiver starts to light constantly green within
approximately three seconds, the binding process has been completed successfully.
Your transmitter/receiver combination is ready for operation.
If the LED flashes slowly red, the "binding" has failed. Change the
positions of the associated antennas and try the entire procedure again.
Display and adjusting the receiver settings
The settings of the receiver can be displayed with a suitable HoTT
transmitter or the SMART-BOX and some can also be changed. Refer
to the "Telemetry" section for detailed descriptions.
TELEMETRIE
EINSTELLEN,ANZEIGEN
SENSOR
ANZEIGE HF STATUS
AUSWAHL ANSAGEN
RX DATA EIN
ALARMEINSTELLUNG
Page 10
10 / 16
33508_sh_V1
Special features of the GR-16 HoTT receiver
Connection 6
6CH FUNCTION
Depending on the settings in the "6CH FUNCTION" line of the "RX
DATAVIEW" page of the telemetry menu, the output 6 can be used
to connect RC components or a circuit for voltage measurement.
Carry out the changeover as described in the instructions for the
transmitter or the SMART-BOX.
• SERVO
The connection 6 is suitable for the operation of RC components.
• BATT V
After switching as described before, a DC voltage off max. 25,5 V
can be displayed instead of the receiver voltage. This way it is
possible to monitor the main battery voltage without using external sensors. The ESCs S3082 and S3083 have this switch already
included.
s + –
50 mm
100nF
2k7Ω
22kΩ
max. 25,5 V =
100 mm
–
+
Attention
Never connect a power supply with an output voltage higher than
8,4 V directly to a connection port of the receiver! The receiver and
all connected devices would be immediately destroyed.
RX DATAVIEW V6.39
S–STR100% R–TEM.+28°C
L PACK TIME 00010msec
R-VOLT :05.0V
L.R-VOLT:04.5V
S–QUA100%S–dBM–030dBM
6CH FUNCTION:SERVO
Page 11
11 / 16
33508_sh_V1
Connection 8
CH OUTPUT TYPE
Depending on the settings in the "CH OUTPUT TYPE" line of the "RX
SERVO TEST" page of the telemetry menu, the output 8 can be used
for different scopes. Carry out the changeover as described in the
instructions for the transmitter or the SMART-BOX.
By setting ...
• ONCE or SAME
to connect a servo, ESC, Gyro, etc...
ശ ONCE
The servo connections of the receiver are actuated sequentially. The receiver power supply is less stressed.
ശ SAME
The servo connections of the receiver are actuated in a 4 pcs
block synchronic. The simultaneous start-up of up to four servos has a noticeably higher load on the receiver power supply.
• SUMO, SUMI or SUMDHD08
to connect a sum signal cable
ശ SUMO
PPM modulated sum signal “OUT“ of the control channel 04
to max. 16.
ശ SUMI
Sum signal "IN" in case of satellite receiver
ശ SUMD
Digital sum signal of the control channel 04 to max. 16.
HD: Hold the last servo position in case of Fail-Safe
FS: Moving to the programmed positions in case of Fail-Safe
OF: (OFF) switch-off of the SUMD signal in case of Fail-Safe
RX SERVO TESTV6.39
ALL–MIN : 1000µsec
ALL–MAX : 2000µsec
ALARM VOLT : 3.8V
TEST : STOP
ALARM TEMP–:–10°C
ALARM TEMP+: 55°C
CH OUTPUT TYPE:ONCE
Page 12
12 / 16
33508_sh_V1
Firmware update
Updates to the receiver’s firmware are made via the receiver connection 5 using a PC running Windows 7 ... 10. You will also need a
USB interface, order no. 7168.6, and adapter lead, order no. 7168.6A
or 7168.S, which are available separately.
The programs and files required can be found in the Download area
for the corresponding products at www.graupner.de.
Connect the adapter lead to the USB interface. The polarity of the
plug-in system cannot be reversed. Note the small chamfers on the
sides. Do not use force, the plug should click into place easily.
Connect the other end of the adapter lead to the receiver's socket
labelled with "- + T". The polarity of the plug-in system cannot be
reversed. Do not apply force. The plug should be fully inserted.
The update is carried out via the "HoTT device" program section of
the program "Firmware_Upgrade_gr_Studio". Please follow the
notes of the software. The further procedure is also described in
detail in the manual contained in the data package. You can also
download these from the download page of the product at
www.graupner.de.
Differences of the offered firmware versions
• The version "FS_gr_rx8…" uses the original SUMD protocol with
Fail-Safe-Bit = 1 in case of Failsafe.
• The version "gr_rx8…" uses a SUMD protocol with Fail-Safe-Bit =
0 in case of Fail-Safe.
Some flybarless systems can only use this protocol. In this case,
the correct effect in the case of fail-safe must also be set in the
flybarless system and checked with disassembled blades.
Page 13
13 / 16
33508_sh_V1
Page 14
14 / 16
33508_sh_V1
Declaration of conformity
Graupner/SJ hereby declares that the GR-16 HoTT radio system
complies with Directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available at the
Internet address www.graupner.de.
Notes on environmental protection
If this symbol is on the product, instructions for use or packaging, it
indicates that the product may not be disposed with normal household waste once it has reached the end of its service life. It must be
turned over to a recycling collection point for electric and electronic
apparatus.
Individual markings indicate which materials can be recycled. You
make an important contribution to protection of the environment by
utilizing facilities for reuse, material recycling or other means of
exploiting obsolete equipment.
Care and maintenance
The product does not need any maintenance. Always protect it
against dust, dirt and moisture.
Clean the product only with a dry cloth (do not use detergent!) lightly
rub.
P
Page 15
15 / 16
33508_sh_V1
Warranty
Graupner/SJ GmbH, Henriettenstrassee 96, 73230 Kirchheim/Teck
grants from the date of purchase of this product for a period of 24
months. The warranty applies only to the material or operational
defects already existing when you purchased the item. Damage due
to misuse, wear, overloading, incorrect accessories or improper handling are excluded from the guarantee. The legal rights and claims
are not affected by this guarantee. Please check exactly defects
before a claim or send the product, because we have to ask you to
pay shipping costs if the item is free from defects.
These operating instruction are exclusively for information purposes
and are subject to change without prior notification. The current
version can be found on the Internet at www.graupner.de on the
relevant product page. In addition, the company Graupner/SJ has
no responsibility or liability for any errors or inaccuracies that may
appear in construction or operation manuals.
Not liable for printing errors.
Page 16
Loading...
