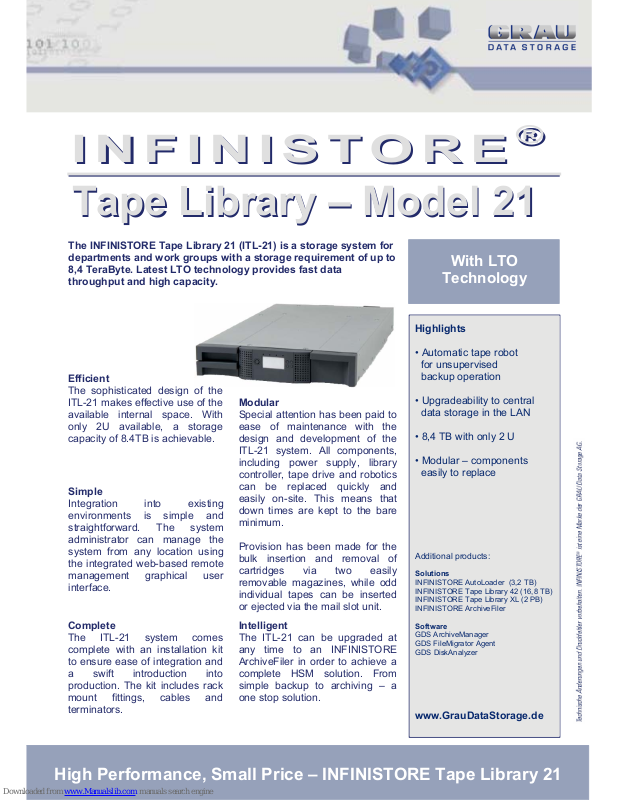

GRAU DATA INFINISTORE Tape Library 21 Specifications
INFINISTORE
®
INFINISTORE
®
The INFINISTORE Tape Library 21 (ITL-21) is a storage system for
departments and work groups with a storage requirement of up to
8,4 TeraByte. Latest LTO technology provides fast data
throughput and high capacity.
Tape Library – Model 21
Tape Library
–
Model 21
With LTO
Technology
Efficient
The sophisticated design of the
ITL-21 makes effective use of the
available internal space. With
only 2U available, a storage
capacity of 8.4TB is achievable.
Highlights
• Automatic tape robot
for unsupervised
backup operation
• Upgradeability to central
data storage in the LAN
• 8,4 TB with only 2 U
• Modular – components
easily to replace
Additional products:
Solutions
INFINISTORE AutoLoader (3,2 TB)
INFINISTORE Tape Library 42 (16,8 TB)
INFINISTORE Tape Library XL (2 PB)
INFINISTORE ArchiveFiler
Software
GDS ArchiveManager
GDS FileMigrator Agent
GDS DiskAnalyzer
www.GrauDataStorage.de
High Performance, Small Price – INFINISTORE Tape Library 21
Modular
Special attention has been paid to
ease of maintenance with the
design and development of the
ITL-21 system. All components,
including power supply, library
controller, tape drive and robotics
can be replaced quickly and
easily on-site. This means that
down times are kept to the bare
minimum.
Provision has been made for the
bulk insertion and removal of
cartridges via two easily
removable magazines, while odd
individual tapes can be inserted
or ejected via the mail slot unit.
Simple
Integration into existing
environments is simple and
straightforward. The system
administrator can manage the
system from any location using
the integrated web-based remote
management graphical user
interface.
Complete
The ITL-21 system comes
complete with an installation kit
to ensure ease of integration and
a swift introduction into
production. The kit includes rack
mount fittings, cables and
terminators.
Intelligent
The ITL-21 can be upgraded at
any time to an INFINISTORE
ArchiveFiler in order to achieve a
complete HSM solution. From
simple backup to archiving – a
one stop solution.
®
INFINISTORE
®
Tape Library – Model 21
Tape Library – Model
LTO
Technic ITL-21 (LTO-2) ITL-21 (LTO-3)
General
Type of tape drive HP LTO-2 Half Height (SCSI) HP LTO-3 Full Height (SCSI)
Type of media Ultrium 2 Ultrium 3
Media compatibility LTO-2 (R/W), LTO-1 (R) LTO-3 (R/W), LTO-2 (R/W), LTO-1 (R)
Type of interface Ultra160 LVD SCSI (HD68) Ultra160 LVD SCSI (HD68)
Form factor 19" Rack mount (2HE) 19" Rack mount (2HE)
Configuration
Number of tape drives 2 (Hot-Swap) 1 (Hot-Swap)
Number of slots 21 21
Number of I/E-slots 1 1
Number of magazines 2 2
Capacity
Native capacity 4,2 TB 8,4 TB
Compressed capacity (max) 8,4 TB ( 2:1 compressed) 16,8 TB ( 2:1 compressed)
Performance
Native data transfer rate 24 MB/s per drive 80 MB/s per drive
Compressed data transfer rate 48 MB/s per drive 160 MB/s per drive
Reliability
Robotic MCBF 500.000 media changes 500.000 media changes
Tape Drive MTBF >250.000 hours (100/ Duty Cycle) >250.000 hours (100/ Duty Cycle)
Access and Operation
Management - password protected LCD menu for
tape drive, media, configuration
and diagnostics
- Remote Management Utility (RMU)
with Fast Ethernet (RJ45)
connection for remote
administration and comfortable
maintenance via browser
- password protected LCD menu for
tape drive, media, configuration
and diagnostics
- Remote Management Utility (RMU)
with Fast Ethernet (RJ45)
connection for remote
administration and comfortable
maintenance via browser
Host interface Ultra160 LVD SCSI (HD68) Ultra160 LVD SCSI (HD68)
Scope of Delivery
Kit SCSI terminator and SCSI cable,
power cable, Quick Install Guide,
manual on CD-ROM
SCSI terminator and SCSI cable, power
cable, Quick Install Guide, manual on
CD-ROM
Power Supply
Type Internal power supply Internal power supply
Installed number 1 1
Required supply voltage Alternating current 100-240V (50-
60Hz)
Alternating current 100-240V (50-60Hz)
Power consumption during operation 80W 80W
System Environment
Noise <=5,8 B ("quiet office") <=5,8 B ("quiet office")
Max. vibrations 0,21 Grms 5-500 Hz in Operation 0,21 Grms 5-500 Hz in Operation
Temperature 10-35°C 10-35°C
Relative humidity in operation 20-80% with non-condensed
operating conditions
20-80% with non-condensed operating
conditions
Dimensions and Weight
Width 447,5 mm 447,5 mm
Depth 740 mm 740 mm
Height 87,6 mm 87,6 mm
Weight (without media) - 12 kg (without tape drive)
- 14,7 kg (with one tape drive)
- 12 kg (without tape drive)
- 14,7 kg (with one tape drive)
GERMANY
GRAU Data Storage AG
Marie-Curie-Straße 19
D-73529 Schwäbisch Gmünd
Phone: +49 71 71/187-0
Fax: +49 71 71/187-250
info@GrauDataStorage.de
www.GrauDataStorage.de
SWITZERLAND
GRAU Data Storage AG
Oberneuhofstrasse 8
CH-6340 Baar
Phone: +41 (0)41 740 27 01
Fax: +41 (0)41 740 27 02
info@GrauDataStorage.ch
www.GrauDataStorage.ch
FRANCE
GRAU DATA STORAGE
65, rue de la Garenne
92130 SEVRES
FRANCE
Phone: +33 (0) 155 389643
Fax: +33 (0) 155 607906
www.GrauDataStorage.fr
info@GrauDataStorage.fr
UNITED KINGDOM
Grau Data Storage Ltd.
Venture House,
2 Arlington Square
Bracknell, Berkshire RG12
1WA, UK
Phone: +44 (0)1344 742836
Fax: +44 (0)1344 742936
info@GrauData.co.uk
www.GrauData.co.uk
LTO
Maintenance
There are Basic (5 x 10), Business (5 x 24) and Premium (7 x 24) maintenance
contracts available for all Tape Library Systems.
Additional information about INFINISTORE Archive- and Storage Systems are
available on request. We are at your’s disposal for further questions by phone or
email under info@GrauDataStorage.
You will receive your personal INFINISTORE Tape Libraries quotation from your local
GRAU Data Storage Area Manager or directly over Sales@GrauDataStorage.de.
