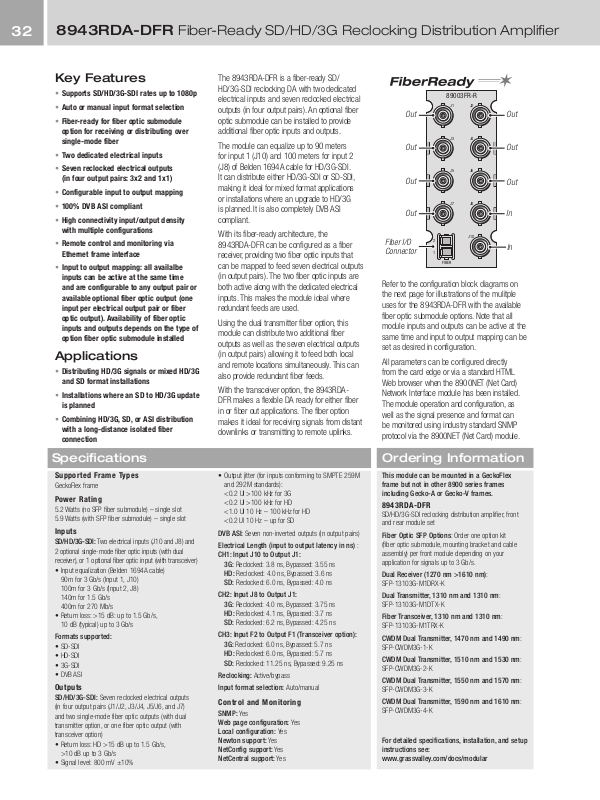

32 8943RDA-DFR Fiber-Ready SD/HD/3G Reclocking Distribution Amplifier
Key Features
•Supports SD/HD/3G-SDI rates up to 1080p
•Auto or manual input format selection
•Fiber-ready for fiber optic submodule option for receiving or distributing over single-mode fiber
•Two dedicated electrical inputs
•Seven reclocked electrical outputs (in four output pairs: 3x2 and 1x1)
•Configurable input to output mapping
•100% DVB ASI compliant
•High connectivity input/output density with multiple configurations
•Remote control and monitoring via Ethernet frame interface
•Input to output mapping: all availalbe inputs can be active at the same time and are configurable to any output pair or available optional fiber optic output (one input per electrical output pair or fiber optic output). Availability of fiber optic inputs and outputs depends on the type of option fiber optic submodule installed
Applications
•Distributing HD/3G signals or mixed HD/3G and SD format installations
•Installations where an SD to HD/3G update is planned
•Combining HD/3G, SD, or ASI distribution with a long-distance isolated fiber connection
Specifications
Supported Frame Types
GeckoFlex frame
Power Rating
5.2 Watts (no SFP fiber submodule) – single slot
5.9 Watts (with SFP fiber submodule) – single slot
Inputs
SD/HD/3G-SDI: Two electrical inputs (J10 and J8) and 2 optional single-mode fiber optic inputs (with dual receiver), or 1 optional fiber optic input (with transceiver)
•Input equalization (Belden 1694A cable)
90m for 3 Gb/s (Input 1, J10)
100m for 3 Gb/s (Input 2, J8)
140m for 1.5 Gb/s
400m for 270 Mb/s
•Return loss: >15 dB: up to 1.5 Gb/s,
10 dB (typical) up to 3 Gb/s
Formats supported:
•SD-SDI
•HD-SDI
•3G-SDI
•DVB ASI
Outputs
SD/HD/3G-SDI: Seven reclocked electrical outputs (in four output pairs (J1/J2, J3/J4, J5/J6, and J7) and two single-mode fiber optic outputs (with dual transmitter option, or one fiber optic output (with transceiver option)
•Return loss: HD >15 dB up to 1.5 Gb/s,
>10 dB up to 3 Gb/s
•Signal level: 800 mV ±10%
The 8943RDA-DFR is a fiber-ready SD/ HD/3G-SDI reclocking DA with two dedicated electrical inputs and seven reclocked electrical outputs (in four output pairs). An optional fiber optic submodule can be installed to provide additional fiber optic inputs and outputs.
The module can equalize up to 90 meters for input 1 (J10) and 100 meters for input 2 (J8) of Belden 1694A cable for HD/3G-SDI. It can distribute either HD/3G-SDI or SD-SDI, making it ideal for mixed format applications or installations where an upgrade to HD/3G is planned. It is also completely DVB ASI compliant.
With its fiber-ready architecture, the 8943RDA-DFR can be configured as a fiber receiver, providing two fiber optic inputs that can be mapped to feed seven electrical outputs (in output pairs). The two fiber optic inputs are both active along with the dedicated electrical inputs. This makes the module ideal where redundant feeds are used.
Using the dual transmitter fiber option, this module can distribute two additional fiber outputs as well as the seven electrical outputs (in output pairs) allowing it to feed both local and remote locations simultaneously. This can also provide redundant fiber feeds.
With the transceiver option, the 8943RDADFR makes a flexible DA ready for either fiber in or fiber out applications. The fiber option makes it ideal for receiving signals from distant downlinks or transmitting to remote uplinks.
•Output jitter (for inputs conforming to SMPTE 259M and 292M standards):
<0.2 UI >100 kHz for 3G <0.2 UI >100 kHz for HD
<1.0 UI 10 Hz – 100 kHz for HD <0.2 UI 10 Hz – up for SD
DVB ASI: Seven non-inverted outputs (in output pairs)
Electrical Length (input to output latency in ns) : CH1: Input J10 to Output J1:
3G: Reclocked: 3.8 ns, Bypassed: 3.55 ns HD: Reclocked: 4.0 ns, Bypassed: 3.6 ns SD: Reclocked: 6.0 ns, Bypassed: 4.0 ns
CH2: Input J8 to Output J1:
3G: Reclocked: 4.0 ns, Bypassed: 3.75 ns HD: Reclocked: 4.1 ns, Bypassed: 3.7 ns SD: Reclocked: 6.2 ns, Bypassed: 4.25 ns
CH3: Input F2 to Output F1 (Transceiver option): 3G: Reclocked: 6.0 ns, Bypassed: 5.7 ns
HD: Reclocked: 6.0 ns, Bypassed: 5.7 ns SD: Reclocked: 11.25 ns, Bypassed: 9.25 ns
Reclocking: Active/bypass
Input format selection: Auto/manual
Control and Monitoring
SNMP: Yes
Web page configuration: Yes
Local configuration: Yes
Newton support: Yes
NetConfig support: Yes
NetCentral support: Yes
89003FR-R
J1 |
J2 |
Out |
Out |
J3 |
J4 |
Out |
Out |
J5 |
J6 |
Out |
Out |
J7 |
J8 |
Out |
In |
Fiber I/O |
2 |
J10 |
|
In |
|||
Connector |
1 |
||
|
|||
|
|
FIBER |
Refer to the configuration block diagrams on the next page for illustrations of the mulitple uses for the 8943RDA-DFR with the available fiber optic submodule options. Note that all module inputs and outputs can be active at the same time and input to output mapping can be set as desired in configuration.
All parameters can be configured directly from the card edge or via a standard HTML Web browser when the 8900NET (Net Card) Network Interface module has been installed. The module operation and configuration, as well as the signal presence and format can be monitored using industry standard SNMP protocol via the 8900NET (Net Card) module.
Ordering Information
This module can be mounted in a GeckoFlex frame but not in other 8900 series frames including Gecko-A or Gecko-V frames.
8943RDA-DFR
SD/HD/3G-SDI reclocking distribution amplifier, front and rear module set
Fiber Optic SFP Options: Order one option kit (fiber optic submodule, mounting bracket and cable assembly) per front module depending on your application for signals up to 3 Gb/s.
Dual Receiver (1270 nm >1610 nm): SFP-13103G-M1DRX-K
Dual Transmitter, 1310 nm and 1310 nm: SFP-13103G-M1DTX-K
Fiber Transceiver, 1310 nm and 1310 nm: SFP-13103G-M1TRX-K
CWDM Dual Transmitter, 1470 nm and 1490 nm: SFP-CWDM3G-1-K
CWDM Dual Transmitter, 1510 nm and 1530 nm: SFP-CWDM3G-2-K
CWDM Dual Transmitter, 1550 nm and 1570 nm: SFP-CWDM3G-3-K
CWDM Dual Transmitter, 1590 nm and 1610 nm: SFP-CWDM3G-4-K
For detailed specifications, installation, and setup instructions see: www.grassvalley.com/docs/modular
8943RDA-DFR Fiber-Ready SD/HD/3G Reclocking Distribution Amplifier 33
8943RDA-DFR (without Fiber Optic option)
|
|
Reclock Bypass |
|
|
|
|
J10 |
Equalizer |
Reclocker |
|
J1 |
|
|
Input |
|
J2 |
|
|
||
|
|
|
Active Inputs |
Available Outputs |
||
|
|
|
Input to |
J3 |
||
|
|
|
BNC J10 |
|
||
|
|
|
J4 |
BNC pairs: J1/J2, J3/J4, J5/J6, J7 |
||
|
|
|
Output |
|||
|
|
Reclock Bypass |
J5 |
BNC J8 |
||
|
|
Mapping |
|
|||
|
|
|
|
|||
|
|
|
J6 |
|
|
|
|
|
|
|
|
|
|
J8 |
Equalizer |
Reclocker |
|
J7 |
|
|
|
|
|
|
|||
Input |
|
|
|
|
||
|
|
|
|
|
|
8943RDA-DFR (with Dual Receiver Fiber Optic option)
|
|
Reclock Bypass |
|
|
|
|
BNC J10 |
Equalizer |
Reclocker |
|
|
|
|
Input |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reclock Bypass |
|
J1 |
|
|
BNC J8 |
|
|
|
|
|
|
Equalizer |
Reclocker |
|
J2 |
|
|
|
Input |
|
|
Active Inputs |
Available Outputs |
||
|
|
|
J3 |
|||
|
|
|
Input to |
BNC J10 |
|
|
|
|
|
J4 |
BNC J8 |
|
|
|
|
Reclock Bypass |
Output |
BNC pairs: J1/J2, J3/J4, J5/J6, J7 |
||
|
|
|
Fiber 1 In |
|||
|
|
|
Mapping |
J5 |
|
|
Fiber 1 |
Fiber RX |
Reclocker |
|
Fiber 2 In |
|
|
|
J6 |
|
||||
Input |
|
|
|
|||
|
|
|
|
|
|
|
|
Dual |
|
|
J7 |
|
|
|
Receiver |
Reclock Bypass |
|
|
|
|
|
|
|
|
|
||
|
Option |
|
|
|
|
|
Fiber 2 |
Fiber RX |
Reclocker |
|
|
|
|
Input |
|
|
|
|
|
|
|
|
|
|
|
|
8943RDA-DFR (with Dual Transmitter Fiber Optic option)
|
|
Reclock Bypass |
|
|
J1 |
|
|
BNC J10 |
|
|
|
|
J2 |
|
|
Equalizer |
Reclocker |
|
|
J3 |
|
|
|
Input |
|
|
|
|
|||
|
|
|
|
J4 |
|
|
|
|
|
Reclock Bypass |
|
|
|
|
|
|
|
|
|
J5 |
|
|
|
|
|
|
Input to |
|
|
|
|
BNC J8 |
Equalizer |
Reclocker |
|
J6 |
Active Inputs |
Available Outputs |
|
Input |
Output |
|
|
BNC J10 |
BNC pairs: J1/J2, J3/J4, J5/J6, J7, |
||
|
|
|
J7 |
||||
|
|
|
Mapping |
|
BNC J8 |
Fiber 1 Out, Fiber 2 Out |
|
|
|
|
|
|
|||
|
|
|
|
Fiber TX |
Fiber 1 |
|
|
|
|
|
|
Output |
|
|
|
|
|
|
|
Dual |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Transmitter |
|
|
|
|
|
|
|
Option |
|
|
|
|
|
|
|
Fiber TX |
Fiber 2 |
|
|
|
|
|
|
Output |
|
|
|
|
|
|
|
|
|
|
8943RDA-DFR (with Transceiver Fiber Optic option)
|
|
Reclock Bypass |
|
|
|
|
BNC J10 |
Equalizer |
Reclocker |
|
|
|
|
Input |
|
|
|
J1 |
|
|
|
|
|
|
|
|
|
|
|
Reclock Bypass |
|
J2 |
|
|
|
|
|
|
|
|
|
BNC J8 |
Equalizer |
|
Input to |
J3 |
|
|
Reclocker |
J4 |
|
|
|||
Output |
|
|
||||
Input |
|
|
|
Active Inputs |
Available Outputs |
|
|
|
|
Mapping |
J5 |
||
|
|
Reclock Bypass |
BNC J10 |
|
||
|
|
|
J6 |
BNC pairs: J1/J2, J3/J4, J5/J6, J7, |
||
|
|
|
BNC J8 |
|||
|
|
|
|
|
Fiber 2 Ouptut |
|
|
|
Reclocker |
|
J7 |
Fiber 1 Input |
|
|
|
|
|
|||
|
|
|
|
|
|
|
Fiber 1 |
Fiber RX |
Transceiver Option |
Fiber TX |
Fiber 2 |
|
|
Input |
Output |
|
|
|||
|
|
|
|
|
