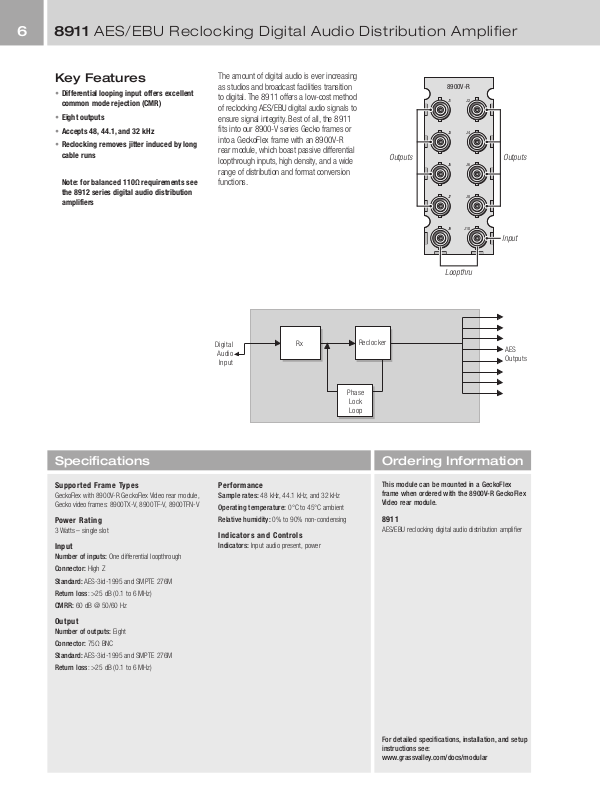

6 8911 AES/EBU Reclocking Digital Audio Distribution Amplifier
Key Features
•Differential looping input offers excellent common mode rejection (CMR)
•Eight outputs
•Accepts 48, 44.1, and 32 kHz
•Reclocking removes jitter induced by long cable runs
Note: for balanced 110Ω requirements see the 8912 series digital audio distribution amplifiers
The amount of digital audio is ever increasing |
|
|
|
as studios and broadcast facilities transition |
8900V-R |
||
to digital. The 8911 offers a low-cost method |
J1 |
J2 |
|
of reclocking AES/EBU digital audio signals to |
|
|
|
ensure signal integrity. Best of all, the 8911 |
|
|
|
fits into our 8900-V series Gecko frames or |
J3 |
J4 |
|
into a GeckoFlex frame with an 8900V-R |
|
|
|
rear module, which boast passive differential |
Outputs |
Outputs |
|
loopthrough inputs, high density, and a wide |
|||
J5 |
J6 |
||
range of distribution and format conversion |
|
|
|
functions. |
|
|
|
|
J7 |
J8 |
|
|
J9 |
J10 |
|
|
|
Input |
|
|
Loopthru |
Digital |
Rx |
Reclocker |
Audio |
|
AES |
|
Outputs |
|
Input |
|
|
|
|
|
|
|
Phase |
|
|
Lock |
|
|
Loop |
Specifications
Supported Frame Types
GeckoFlex with 8900V-R GeckoFlex Video rear module, Gecko video frames: 8900TX-V, 8900TF-V, 8900TFN-V
Power Rating
3 Watts – single slot
Input
Number of inputs: One differential loopthrough
Connector: High Z
Standard: AES-3id-1995 and SMPTE 276M Return loss: >25 dB (0.1 to 6 MHz) CMRR: 60 dB @ 50/60 Hz
Output
Number of outputs: Eight Connector: 75Ω BNC
Standard: AES-3id-1995 and SMPTE 276M Return loss: >25 dB (0.1 to 6 MHz)
Performance
Sample rates: 48 kHz, 44.1 kHz, and 32 kHz
Operating temperature: 0°C to 45°C ambient
Relative humidity: 0% to 90% non-condensing
Indicators and Controls
Indicators: Input audio present, power
Ordering Information
This module can be mounted in a GeckoFlex frame when ordered with the 8900V-R GeckoFlex Video rear module.
8911
AES/EBU reclocking digital audio distribution amplifier
For detailed specifications, installation, and setup instructions see: www.grassvalley.com/docs/modular
