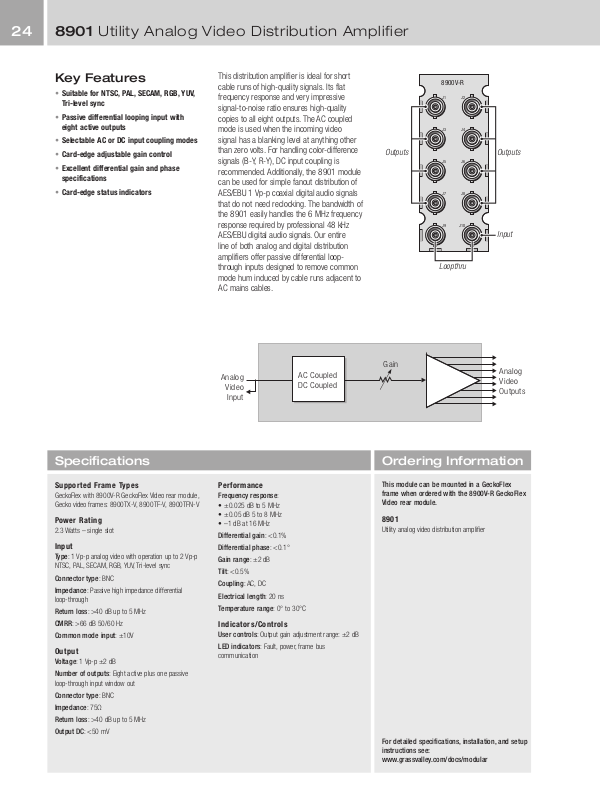

24 8901 Utility Analog Video Distribution Amplifier
Key Features
•Suitable for NTSC, PAL, SECAM, RGB, YUV, Tri-level sync
•Passive differential looping input with eight active outputs
•Selectable AC or DC input coupling modes
•Card-edge adjustable gain control
•Excellent differential gain and phase specifications
•Card-edge status indicators
This distribution amplifier is ideal for short |
8900V-R |
||
cable runs of high-quality signals. Its flat |
|||
|
|
||
frequency response and very impressive |
J1 |
J2 |
|
signal-to-noise ratio ensures high-quality |
|
|
|
copies to all eight outputs. The AC coupled |
|
|
|
mode is used when the incoming video |
J3 |
J4 |
|
signal has a blanking level at anything other |
|
|
|
than zero volts. For handling color-difference |
Outputs |
Outputs |
|
signals (B-Y, R-Y), DC input coupling is |
J5 |
J6 |
|
recommended. Additionally, the 8901 module |
|
|
|
can be used for simple fanout distribution of |
|
|
|
AES/EBU 1 Vp-p coaxial digital audio signals |
J7 |
J8 |
|
that do not need reclocking. The bandwidth of |
|
|
|
the 8901 easily handles the 6 MHz frequency |
|
|
|
response required by professional 48 kHz |
J9 |
J10 |
|
AES/EBU digital audio signals. Our entire |
|
Input |
|
line of both analog and digital distribution |
|
|
|
amplifiers offer passive differential loop- |
Loopthru |
||
through inputs designed to remove common |
|||
mode hum induced by cable runs adjacent to |
|
|
|
AC mains cables. |
|
|
|
|
Gain |
Analog |
Analog |
AC Coupled |
|
|
|
Video |
||
DC Coupled |
|
||
Video |
|
||
|
Outputs |
||
|
|
||
Input |
|
|
|
|
|
|
Specifications
Supported Frame Types
GeckoFlex with 8900V-R GeckoFlex Video rear module, Gecko video frames: 8900TX-V, 8900TF-V, 8900TFN-V
Power Rating
2.3 Watts – single slot
Input
Type: 1 Vp-p analog video with operation up to 2 Vp-p NTSC, PAL, SECAM, RGB, YUV, Tri-level sync
Connector type: BNC
Impedance: Passive high impedance differential loop-through
Return loss: >40 dB up to 5 MHz CMRR: >66 dB 50/60 Hz
Common mode input: ±10V
Output
Voltage: 1 Vp-p ±2 dB
Number of outputs: Eight active plus one passive loop-through input window out
Connector type: BNC Impedance: 75Ω
Return loss: >40 dB up to 5 MHz
Output DC: <50 mV
Performance
Frequency response:
•±0.025 dB to 5 MHz
•±0.05 dB 5 to 8 MHz
•–1 dB at 16 MHz
Differential gain: <0.1%
Differential phase: <0.1°
Gain range: ±2 dB
Tilt: <0.5%
Coupling: AC, DC
Electrical length: 20 ns
Temperature range: 0° to 30°C
Indicators/Controls
User controls: Output gain adjustment range: ±2 dB
LED indicators: Fault, power, frame bus communication
Ordering Information
This module can be mounted in a GeckoFlex frame when ordered with the 8900V-R GeckoFlex Video rear module.
8901
Utility analog video distribution amplifier
For detailed specifications, installation, and setup instructions see: www.grassvalley.com/docs/modular
