8900NET
NETWORK INTERFACE MODULE
Instruction Manual
SOFTWARE VERSION 3.2.2
071061203
JULY 2004
Contacting Grass Valley
Region Voice Fax Address Web Site
North America (800) 547-8949
Support: 530-478-4148
Pacific Operations +852-2585-6688
Support: 852-2585-6579
U.K., Asia, Middle East +44 1753 218 777 +44 1753 218 757
France +33 1 45 29 73 00
Germany, Europe +49 6150 104 782 +49 6150 104 223
Copyright © Thomson Broadcast and Media Solutions All rights reserved.
Grass Valley Web Site
Sales: (530) 478-3347
Support: (530) 478-3181
+852-2802-2996
Grass Valley
P.O. Box 599000
Nevada City, CA 959597900 USA
www.thomsongrassvalley.com
The www
Online User Documentation
.thomsongrassvalley.com web site offers the following:
— Current versions of product catalogs, brochures,
data sheets, ordering guides, planning guides, manuals, and release notes
in .pdf format can be downloaded.
FAQ Database
— Solutions to problems and troubleshooting efforts can be
found by searching our Frequently Asked Questions (FAQ) database.
Software Downloads
— Software updates, drivers, and patches can be down-
loaded.
2 8900NET Instruction Manual
Contents
Preface
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
8900NET Network Interface Module
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
8900NET Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Control Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Basic Network Design. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Module Placement in the Gecko 8900 Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Frame Health Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
RS-232 Communication Port Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Ethernet Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Monitor Module Indicator LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Alarms and SNMP Monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8900NET Module Alarm DIP Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SNMP Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Establishing Frame Network Identity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
NetConfig Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Good Networking Practices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Setting Frame Network Identity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Network Configuration Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Web Browser Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Web Browser Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Addressing the Frame URL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Default MAC (machine) Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using the 8900NET GUI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8900 Frame Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Frame Status Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Older and Legacy Module Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Frame Configuration Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Frame Power Supply Web Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8900NET Module Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8900NET Module Status Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8900NET Module Configuration Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8900 Module Slot Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8900NET Network Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Updating Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Software Update Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
8900NET Instruction Manual 3
Contents
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Troubleshooting GUI Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Temperature Sensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
ROM and RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Ethernet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
RS-232 Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Module Health Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Frame Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Module Present Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Fan Speed Control and Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
On-board Regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Appendix
Compatibility Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Control and Monitoring Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Control and Monitoring Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
8900–FLOAD–CBL Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
4 8900NET Instruction Manual
Preface
About This Manual
This manual describes the features of a specific 8900 module in the Gecko
Signal Processing System family. As part of this module family, it is subject
to Safety and Regulatory Compliance described in the Gecko 8900 Series
frame and power supply documentation (see the
tion Manual
Gecko 8900 Frames Instruc-
).
8900NET Instruction Manual 5
Preface
6 8900NET Instruction Manual
8900NET Network Interface Module
Introduction
The 8900 Network Interface module (8900NET) is designed to operate in all
Gecko 8900 Signal Processing frame versions.
Note
The 8900NET module provides control and monitor access to the frame and
its audio/video modules through a web browser graphical user interface
(GUI) and the Newton Control Panel. The 8900NET enables remote configuration and monitoring of the enhanced Gecko 8900 frame and its remote
control capable modules.
8900NET Features
The 8900NET module features:
• 10 Base-T Ethernet interface,
• Fan front cover power and control,
• Frame health monitoring,
• Support for the following:
• Software update downloading
•Newton Modular Control system control panels
The 8900TX-V/-A frame must be upgraded to a TF-V/-A frame (with fans)
before installing an 8900NET module.
• Frame Alarm
•Asset Tag identification
•HTML protocol
• Simple Network Management Protocol (SNMP) monitoring
•NetConfig Networking Configuration application
8900NET Instruction Manual 7
Introduction
Remote Control Panels
Basic Network Design
The 8900NET module with version 3.2.0 or later software allows the frame
to be remotely controlled by the Newton Control Panel via the Ethernet
port. Refer to the Newton Control Panel documentation for details.
The 8900NET module can be employed in either a point-to-point or local
area network (LAN) control/monitoring configuration. Figure 1 illustrates
a point-to-point configuration.
Figure 1. Point-to-point Configuration
LOCK
PS 1 PS 2
FAULT
8900TFN frame with
Network Interface Module
Figure 2 illustrates a typical LAN configuration.
Figure 2. Basic Network Configuration
LOCK
8900TFN frame with
Network Interface Module
LOCK
PS 1 PS 2
FAULT
LOCK
Ethernet cable, Category 5 Crossover
PC running:
Windows OS,
Unix, or Macintosh OS
Ethernet
0612-08
Netscape Navigator 4.x
or Internet Explorer 4.x
Ethernet cable: Category 5
PC running:
Windows OS, Unix,
or Macintosh OS
Ethernet
Netscape Navigator 4.x
or Internet Explorer 4.x
LAN Ethernet Hub
LOCK
LOCK
PS 1 PS 2
FAULT
8900TFN frame with
Network Interface Module
0612-07
8 8900NET Instruction Manual
Installation
Module Placement in the Gecko 8900 Frame
This section describes placing the module in the Gecko 8900 frame and
cabling the communications ports. Procedures for power-up, DIP switch
settings, and network configuration of the module are described in following sections.
There are ten cell locations in the frame to accommodate either analog or
digital modules. These are the left ten locations. Refer to Figure 3.
The two cells on the right are allocated for the power supplies. For additional information concerning the Power Supply module, refer to the 8900
Series Frames Instruction Manual .
Installation
The third cell from the right is allocated for the 8900NET Network Interface
or Frame Monitor module. For additional information concerning the
Frame Monitor module, refer to the
Manual
Figure 3. Gecko 8900 Series Frame
.
Any 8900 Module
Gecko 8900 Series Frames Instruction
Power
Supplies
Frame Monitor
or 8900NET Network
Interface Module (only)
(only)
0612-04r1
Note
8900NET Instruction Manual 9
The 8900NET module can be plugged in and removed from a Gecko 8900
Series frame with power on. When power is applied to the module, LED indicators reflect the initialization process (see Power Up on page 16).
Installation
1.
To install the 8900NET module in the frame:
Insert the module, connector end first (see Figure 4), with the
component side of the module facing to the right side of the frame.
Instead of an ejector tab, the 8900NET module has a connector tab with
a circular finger-hole for pulling the module.
2.
Verify that the module connector seats properly and securely against
the backplane.
Figure 4. Module/Frame Orientation
S1
321
4
65
1
7
8
432
5
76
8
Component side
Configuration DIP switches
0612 -16
10 8900NET Instruction Manual
Cabling
Installation
This section describes physical connections, the connectors and cables,
used for network communications. Setup procedures for each type of connection are described in Establishing Frame Network Identity on page 21.
An example of control and monitoring connectors on the 8900TFN frame
are illustrated in Figure 5.
Note
Figure 5. 8900NET Input/Output Connectors on 8900TFN Frame
J1 J2
There are several versions of frames in the Gecko 8900 Series. Refer to the
8900 Series Frames manual that came with your frame for the latest information on cabling.
ETHERNET
Frame Health Alarm
The Frame Health Alarm is accessed through pins 8 and 9 of the RS-232
connector. Details for connecting an external customer-supplied alarm are
given in the Gecko 8900 Series Frames Instruction Manual. The Frame
Alarm responds to conditions enabled on the 8900NET Network Interface
module with DIP switches S1 and S2 as given in Table 2 on page 19.
RS232
Frame Alarm
(Video – J102 pins 8 and 9)
(Audio – J7 pins 8 and 9)
Network configuration storage
Frame ID
(Frame MAC address storage)
0612_31
Note
Earlier version 8900 frames used a BNC connector labeled SMPTE ALARM to
access the alarm connection. For information concerning the SMPTE Alarm
bus cable, refer to the Gecko 8900 Frames Instruction Manual.
RS-232 Communication Port Cable
The nine-pin RS-232 connector is used to connect the frame to a PC to initially set the frame’s network communication parameters. After network
communication is established, subsequent changes to these parameters can
be made using the network GUI.
CAUTION The RS-232 cable should be removed after completing the initial frame setup.
Leaving a long serial cable connected to the frame without a connection at
the other end may freeze the 8900NET module startup routine.
8900NET Instruction Manual 11
Installation
8900TFN Frame
Note
The cable used for this connection is a DB-9F to DB-9M, straight-through
cable available from Grass Valley as part of cable kit model 8900CAB (10 ft./3
m length).
The communication parameters for the RS-232 connection are:
• Baud rate: 9600
•Data bits: 8
• Parity: none
• Stop bits: 1
• Flow control: none
The male end connects to J102–Video/BNC or J7–Audio RS-232 connector
on the 8900 TFN frame (see Figure 6) and the female end connects to either
Com1 or Com2 on the PC, depending upon the configuration of the computer’s I/O ports.
Figure 6. RS-232 to Initialization PC Cable and Pinout
PC running Hyperterm Terminal Emulation
RS-232
DB-9
Male
Comm. Parameters: 9600 baud, 8 bits, parity-none, 1 stop, flow-none
Pin Pin
1
2
3
4
5
6
7
8
9
1
2
3
4
5
Pin 1
6
7
8
Pin 5
9
Pin 9
Com1 or
Com2 port
DB-9
Female
0612 -09r1
12 8900NET Instruction Manual
Installation
If the PC uses a 25-pin RS-232 connector, use a cable adapter as shown in
Figure 7.
Note
The 25-pin adaptor is available from Grass Valley as part of cable kit model
8900CAB.
Figure 7. DB-9 Cable and DB-25 Cable Adaptor Pinout
25-pin 25-pin9-pin 9-pin9-pin
1
2 Tx
3 Rx
4
5
6
7
8
9
20
22
1
2
3
4
5
6
7
8
9
DB-9
Male
9-pin
1
Tx 2
Rx 3
4
5
6
7
8
9
DB-25
Female
1
8
2
3
3
2
4
20
5
7
6
6
7
4
8
5
9
22
DB-9
Female
0612 -11
8900NET Instruction Manual 13
Installation
Ethernet Cable
The 8900NET module enables the frame’s RJ-45 Ethernet connector.
Through this port the 8900 frame can connect to:
•A single PC with a network card (point-to-point), or
•A local area network (LAN) through a network hub.
Point-to-Point Connection
Figure 8 illustrates the crossover cable connection and pinout for a
point-to-point connection to the controlling PC.
8900TFN Frame
Ethernet
RJ-45
connector
Note
Figure 8. Point-to-Point RJ-45 Connection and Cable Pinout
Pin Pin
1
2
3
4
5
6
7
8
This Category 5, UTP Crossover Cable is available from Grass Valley as part
of cable kit model 8900CAB (10 ft./3 m length).
PC with network card and net browser software
To PC network card
RJ-45 connector
PinPin
1
2
3
4
5
6
7
8
Category 5, UTP Crossover Cable
3
1
6
2
1
3
5
4
4
5
2
6
8
7
7
8
Pin 1
RJ-45
connector
0612 -10r1
14 8900NET Instruction Manual
Installation
Local Area Network (LAN) Connection
Figure 9 illustrates the cable connection for a LAN connection to a network
hub.
8900TFN Frame
Ethernet
Note
Because of varying length requirements and ready availability from network
equipment suppliers, this cable is not supplied by Grass Valley.
Figure 9. LAN RJ-45 Connection and Cable
RJ-45
connector
Pin Pin
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
PinPin
1
2
3
4
5
6
7
8
Network Ethernet Hub (typical)
hp
1
2
3
4
5
6
7
8
Pin 1
8 7
6 5 4 3 2 1
To network hub
RJ-45 connector
10 BaseT
RJ-45
connector
0612 -15r1
Category 5, UTP Cable
8900NET Instruction Manual 15
Power Up
Power Up
NM - Network Interface Module (red)
The various front LED indicators and configuration switches are illustrated
in Figure 10. Upon power-up, all LEDs should light for the duration of the
initialization process. After initialization the Power LED will be on and the
red Network Module LED (labeled NM) should go off. All other LEDs
report detected conditions within the frame and the installed modules. If
the NM LED does not go off, the board needs servicing.
Figure 10. LEDs and Configuration Switches
TEMP - Temperature (red)
PS2- Power Supply 2 (red)
PS1 - Power Supply 1 (red)
FAN (red)
MOD - Module Health Bus (red)
FB - Frame Bus (red)
LED Color Key
Red = Fault
Green = OK
Yellow = Active
PWR - Power (green)
INHIB - Module Health Inhibited
(yellow)
FAULT - Frame Fault (red)
Configuration DIP switch S1
Table 1 on page 17 describes all the module’s LEDs and the conditions indi-
cated.
S1
COMM - Communication (yellow)
ETHER - Ethernet communiction
(yellow)
1
2
3
4
65
7
8
1
2
3
4
5
6
7
8
Configuration DIP switch S2
REM OVR - Remote Override
(yellow)
0612 -06r1
16 8900NET Instruction Manual
Monitor Module Indicator LEDs
The possible LED status and conditions indicated are shown in Table 1.
Table 1. Indicator LEDs and Conditions Indicated
LED LED State Condition
POWER
(green)
TEMP
(red)
PS2
(red)
PS1
(red)
FAN
(red)
MOD
(red)
Long continuous flashing One or more modules is reporting a configuration error
FB
(red)
INHIB
(yellow)
FAULT
(red)
COMM
(yellow)
ETHER
(yellow)
REM OVR
(yellow)
Off Power is off or on-board regulator has failed
On continuously Module is powered
Off Frame temperature is within specified parameters
On continuously Over-temperature condition detected in frame
Off Normal operation or alarm disabled
On continuously Power supply 2 is present and reporting an alarm condition
Off Normal operation or alarm disabled
On continuously Power supply 1 is present and reporting an alarm condition
Off Normal operation or alarm disabled
On continuously One or more fans in the front cover assembly is not rotating
Off Normal operation or alarm disabled
On continuously
Off Network module is communicating with modules on the frame bus
On Internal frame bus communication failure
Off Normal operation or alarm disabled
On continuously A non-compliant module in the frame has disabled the module health bus
Off Normal operation
On continuously One of the on-board fault LEDs is illuminated or flashing
Flashing Indicates the MOD (module health LED) is flashing
On Indicates module is polling the devices on the internal frame communication bus
On Indicates active communication detected on the Ethernet bus
Off All fault reporting is controlled by onboard configuration switches
On Software overrides onboard configuration switches
Module health bus is not disabled and one or more modules is reporting an internal
fault
Power Up
8900NET Instruction Manual 17
Alarms and SNMP Monitoring
Alarms and SNMP Monitoring
Faults and alarms from the 8900NET module can be reported to a Frame
Health Alarm connector on the rear of the frame (see
page 11) and/or to a networked SNMP monitoring system (see
Monitoring
8900NET Module Alarm DIP Switches
Two eight-position DIP switches (S1 and S2) enable or disable the overall
fault and alarm reporting functions of the module and control the variable
fan speed option (fan speed is controlled by temperature or set at maximum). The current status of these settings are reported on the 8900NET
Status web page (see
abling (or filtering) of fault reports can also be useful in isolating problems
in the frame.
The Frame Health Alarm on the rear of the Gecko 8900 Video and Audio
Series frames responds directly to the settings of the DIP switches. Some
8900 modules provide enabling/disabling of Frame reporting for Slot
Status on the Slot Config web page of the 8900 module. Refer to
Module Slot Configuration
on page 19).
8900NET Module Status Web Page
on page 38 for details.
Frame Health Alarm
SNMP
on page 33). Dis-
8900
on
Refer to Figure 11 for the location of S1 and S2 and Table 2 on page 19 for
the possible settings. A settings table is also silk-screened on the bottom of
the module.
Figure 11. Alarm Reporting DIP switches
S2S1
Power Supply #1
Power Supply #2
Temperature
Fan
Module
Frame Bus
Fan Speed
NM Control
12345678
Status
IP Address
Frame Control
Remote
Override
LED
8900NET
12345678
0612_28
18 8900NET Instruction Manual
Alarms and SNMP Monitoring
Table 2. 8900NET Configuration DIP Switch Settings
S1 Segment Left Position (open) Right Position (closed)
1 PS1 Fault Reporting Enabled PS1 Fault Reporting Disabled
2 PS2 Fault Reporting Enabled PS2 Fault Reporting Disabled
3 (Not used) Over Temp reporting is always enabled locally and through SNMP
4 Fan Fault Reporting Enabled Fan Fault Reporting Disabled
5 Module Fault Reporting Enabled Module Fault Reporting Disabled
6 Frame Bus Error Reporting Enabled Frame Bus Error Reporting Disabled
7 Fan Speed Controlled by Temperature Fan Speed Fixed at Maximum
8
S2 Segment Left Position (open) Right Position (closed)
1
2 IP Address (not currently supported)
3
4 – 8 (Currently Not Used)
Network Module Control Enabled (remote
control via GUI is enabled)
Status Enabled (enabled alarms are
reported over SNMP)
Frame Control Enabled (remote control via
GUI is enabled)
Network Module GUI is placed in read only
mode
SNMP Reporting is disabled except for
Over Temp alarm
GUI for the frame and all modules within is
placed in read only mode
Note Disabled faults are still detected by the network GUI but LEDs will be inactive.
SNMP Monitoring
The Thomson Grass Valley Modular Control and Monitoring System uses
the Simple Network Monitoring Protocol (SNMP) internet standard for
reporting status information to remote monitoring stations. The SNMP
reporting from the 8900NET module provides status reports (traps) for
various frame and module faults and warnings as described in Table 3 on
page 20.
Status reports (traps) are unsolicited reports sent from the SMMP Agent to
one or more SNMP Managers such as Thomson Grass Valley’s NetCentral.
Once an SNMP agent has been installed, the 8900 frame and each module
slot can be configured to enable or disable these reports through the 8900
web pages.
Note The DIP switches described in Table 2 must be enabled for corresponding
SNMP reporting of the system components.
8900NET Instruction Manual 19
Alarms and SNMP Monitoring
SNMP Trap severity can be one of three degrees:
•Warning – a limitation in the module’s intended performance,
•Alarm – a failure in communication with the module, or
• Informational – a configuration change such as a switch setting.
The enabled SNMP traps will be reported to any SNMP manager that is
identified as an SNMP Report Destination in 8900NET configuration (see
8900NET Module Configuration Web Page on page 34. Trap severity is
read-only hard-coded information that is interpreted and responded to by
the SNMP Manager software configuration.
The SNMP traps available on the Gecko 8900 frame and modules are outlined in Table 3. The web page location for the enable/disable controls are
listed as well as the SNMP trap reports available and their severity.
Table 3. 8900 Control System SNMP Traps Summary
Frame Power Supply 1 and 2 Power Supply Configuration
8900NET Module 8900NET Configuration
Media Modules Media Module Slot Config
Function Web Page Control SNMP Trap Report Trap Severity
8900 Frame Frame Configuration
Frame Bus Status Alarm
Cover Status Warning
Fan Status Alarm
Module Health Alarm
Power Supply Fault Alarm
Power Supply Removed Warning
Net Card Status Alarm
Hardware Switch Informational
Slot Fault Alarm
Module Removed Warning
Signal Loss Warning
Reference Loss Warning
For the latest MIB (Management Information Base) files for the modular
control system, go to the Thomson Grass Valley public ftp site at:
ftp://ftp.thomsongrassvalley.com/pub/modular/
20 8900NET Instruction Manual
Establishing Frame Network Identity
The initial configuration of the 8900NET module, using the RS-232 port
(refer to Figure 6 on page 12), establishes the frame’s network identity to
enable the operation of the Web-based GUI. A PC running a terminal emulation application is used to set the initial parameters for network communication. Once initial identity is established, the GUI can be used to make
subsequent changes to the networking parameters. Parameters established
include:
• Local IP Address,
•Gateway IP Address,
• Subnet Mask, and
•Default Route.
Note If the Gecko 8900 frame is to be connected point-to-point to a single PC
workstation, both the frame and the PC must be on the same Subnet.
Establishing Frame Network Identity
NetConfig Application
With this software release, Gecko 8900 Series frames can interface with NetConfig (Network Configuration Application). NetConfig is a PC software
tool for configuring and setting up NetConfig-enabled Grass Valley
devices. Refer to the NetConfig Manual or the 8900NET Release Notes for
current information on using this tool.
Good Networking Practices
The Local IP Address form of a URL can be used within an intranet to
address the Gecko 8900 frame’s web page. An intranet is set up and maintained within your facility and is isolated from the Internet.
Access from outside, through the Internet, may require the use of a Domain
Name and a firewall, depending upon your network architecture. Domain
Name Addressing requires a Domain Name Server located within the
intranet that maps the Domain Name to the frame’s IP Address. The
8900TFN frame has no knowledge of its assigned Domain Name. Network
traffic through a Domain Name Server can delay 8900NET response time.
Remote workstations are also subject to network traffic delays. Local PC
workstations should be used for real-time operation of the 8900NET.
The most direct and timely access to the frame is achieved by using a PC
workstation that is assigned to the same Subnet (see Figure 12 on page 22).
A workstation in a different Subnet, even when located on the same router,
will be subject to processing of the IP Gateway.
8900NET Instruction Manual 21
Establishing Frame Network Identity
Figure 12. Local IP and Subnet Addressing
Subnet 2
Subnet 1
LOCK
PS 1 PS 2
FAULT
8900TFN frame 127.1.2.3
LOCK
LOCK
PS 1 PS 2
FAULT
8900TFN frame 127.1.2.4
IP Gateway
Remote PC
182.1.2.2
182.1.2.1
LOCK
127.1.2.1
Router
Local PC
0612-17
127.1.2.5
FTP Server
127.1.2.6
Setting Frame Network Identity
After you have connected the PC to the RS-232 port (refer to RS-232 Com-
munication Port Cable on page 11) and established communication using the
terminal emulation application, press the enter/return key several times to
see the active prompt.
At the prompt enter:
setup
You will see:
-> setup
Here are the current parameters and their values:
Local IP Address: 192.158.211.83
Gateway IP Address: 192.158.211.1
Subnet Mask: 255.255.255.0
22 8900NET Instruction Manual
Establishing Frame Network Identity
If a change is made, it is necessary to reboot
this machine. This will occur automatically when
you have completed making changes.
Do you wish to change any of the values? y/n (n): y
For each parameter, you will be given the name of the
parameter and its current value in parenthesis. To
change it, just type in the new value. If you don't
wish to change it, just hit the Enter key.
If you make a mistake on a previous value, continue
with the remaining parameters; you will be given an
opportunity to modify the value again.
Please ensure that you change from Factory defaults
to your network parameters.
The local Ip Address is the Internet address of this
machine. It consists of four numbers separated by periods ('.'). Each number can be in the range of 0 to
255. For example: 192.167.221.45
There must an IP address.
IP Address (192.158.211.83):
The Default Route is the Internet address of the machine which routes network packets outside of the local network. It consists of four numbers separated by
periods ('.').
Each number can be in the range of 0 to 255.
For example: 192.167.221.1
If you respond with a single period (.),a default
route will not be assigned.
Default Route (192.158.211.1):
The Subnet Mask is used in the routing algorithm.
The Net Card will use the mask to determine if a address is in local net or to send the message to the
default. It consists of four numbers separated by periods ('.').
Each number can be in the range of 0 to 255.
For example: 192.167.221.1
If you respond with a single period (.),
a Subnet Mask will not be assigned.
Subnet Mask (255.255.255.0):
8900NET Instruction Manual 23
Web Browser Setup
Network Configuration Storage
8900NET software version 3.0.0 and later enables storage of the IP
addresses (network configuration) on the frame backplane on frames that
are equipped with storage capability (see Figure 5 on page 11). In earlier
versions of software and frame types with no storage capacity, the IP
addresses are stored on the 8900NET module and stay with the module
when it is moved to another frame.
There are a number of ways to determine what type of frame you have.
Table 4 lists all available frame types and how they can be identified. The
assembly number of the frame is identified on a label located inside the
frame inside the chassis.
Table 4. 8900 Frames Types IP Storage Capability
Model Number Backplane Assembly Number
8900TFN-A Audio backplane with 1 IC 610-0960-00 8900NET module
8900TFN Video backplane with 1 IC 630-0063-00 8900NET module
8900TFN-A Audio backplane with 2 ICs 610-0960-01 Frame backplane
8900TFN-V Video backplane with 2 ICs 610-0984-00 Frame backplane
Network Config
Storage
To determine what frame model you have and where IP addresses are
stored, you may also access the Frame Status page with the web browser
(see Figure 18 on page 33). All frames with 8900NET cards with software
version 3.0.0 and later will report a
the following:
•Network configuration stored on 8900NET module, or
•Network configuration stored on frame.
Web Browser Setup
The recommended Web browser for use with the 8900NET Control and
Monitoring System is either:
•Netscape Navigator 4.x or later, or
• Internet Explorer 4.x or later.
Versions 3.x or earlier of these browsers may cause undesirable results in
the presentation of HTML frames.
Network Config status message as one of
24 8900NET Instruction Manual
Web Browser Notes
• If applicable, configure the browser for direct HTTP requests to the
frame rather than addressing a Proxy Web Server. The Modular Frame
Web Server will typically be installed inside the firewall.
• For older Netscape browsers, the Cache should be configured to always
refresh.
Addressing the Frame URL
To address an 8900TFN frame from an internet browser, enter the frame’s
default URL into the URL line of the browser (“Location” in Netscape Navigator, “Address” in Internet Explorer). The URL will be the IP Address
given to the frame during initial setup (see Setting Frame Network Identity
on page 22), or a Domain name that has been mapped to the IP Address in
your Domain Name Server tables. The URL should look like this:
http://{Frame’s IP Address}/
Web Browser Setup
Example:
http://127.123.234.2/
Or:
http://{Frame’s Domain Name}/
Example:
http://frame1.xyz.com/
The correctly entered URL will call up the 8900 frame’s default first
page—Frame Status.
Default MAC (machine) Address
Each 8900TFN frame has a unique ethernet physical level MAC address
that is stored in the frame ID memory chip (see Figure 5 on page 11). If this
memory is missing, the 8900NET module will substitute a default MAC
address: 08-00-11-09-CD-AB. If more than one 8900 frame in your network
is assigned the default MAC address, network conflicts will occur. To verify
the frame has a unique MAC address refer to 8900NET Network Web Page
on page 41.
8900NET Instruction Manual 25
Using the 8900NET GUI
Using the 8900NET GUI
Once the frame’s first web page—Frame Status—has been accessed (see
Figure 13 on page 27), navigation can be done using the hypertext Link List
in the left column.
The Link List is a two-tier list with the frame’s devices at the highest tier
and sub-pages for each device in a secondary tier (sub-list) below the
parent device.
To navigate from device to device, click on a device link. This will open the
device’s Status web page and open the sub-list of device web pages. You
can also click on the slot icon in the content display to access a particular
module’s Status web page.
To navigate to one of the device’s web pages click on any of the device’s
sub-list of links. This will update the content display to the right.
Note To update status, html pages must be manually refreshed by clicking on the
Refresh button (to the right of the page title and shown at left). Changes
made at the frame or from other browsers on the network will not be displayed until the page is refreshed.
8900 Frame Interface
This section describes GUI functions for the 8900 frame.
Frame Status Page
The Frame Status web page (Figure 13 on page 27) displays an overall
status for the frame.
The top section reports the following for the frame:
•Model Number,
•Description,
• Frame Location (set in Frame Configuration),
•Temperature Status,
•Warning messages, and
•Front Cover status (Cover installed, No Cover)
The graphical content display shows:
•Module slot status,
• Power supplies installed (and empty slots),
•Presence of the 8900NET module (Net Card), and
•A clickable link to each device’s status page.
26 8900NET Instruction Manual
Using the 8900NET GUI
Figure 13. 8900NET GUI for Frame Control
The Links section lists the frame and its current modules. The selected link's Status
page is first displayed and the sub-list of links for the selection is opened. The sub-list
allows you to select a particular information page for the selected device.
Content display section displays the information page
for the selected frame or module (frame slot icons are also
active links).
Refresh button for manual
refresh of page
0612-12r2
Module Slot Status
Module Slot Status icons report one of the following (Table 5):
Table 5. Module Status Indicators
Icon
Color
White None Empty No module detected in slot.
Gray No Comm No Comm Slot contains a legacy module which was not designed to support Frame
Green Pass Module Slot contains a fully Frame Bus capable module.
Yellow Warning Module 8900NET has detected a warning condition in module due to lack of input
Red Fault Module 8900NET has detected a fault condition in module. Fault may have been
Module
Status
Icon
Text
Indication
Bus communications with an 8900NET module.
signal or incomplete support for remote monitoring and control. Ability of
module to perform intended operation is limited.
communicated over the Frame Bus, or may indicate a failure of the module
to respond over the Frame Bus.
8900NET Instruction Manual 27
Using the 8900NET GUI
During initial polling, modules that do not respond immediately may transition to a
porary status until a maximum number of sequential attempts fail and a
Fault is reported.
Note The first release of 8960DEC module code causes a Fault condition because
Note Early releases of the 8960ENC, 8950DAC, 8950ADC, 8920DAC, 8920ADC,
WARNING, MODULE NOT RESPONDING status. In this case, this is a tem-
it never responds on the Frame Bus. There is no way for the 8900NET module
to tell the difference between a fully functional early release of 8900DEC and
a module whose Frame Bus Interface has failed.
and the 8916 signal a warning condition due to limited capability over the
Frame Bus. All of these, except the 8916, can be upgraded by the user with
fully capable Frame Bus software.
Frame Properties
The Properties section on the Frame Status page reports:
•Vendor name,
•Number of media module slots,
• Software version (installed on the 8900NET module),
•Network Config (whether the network configuration is stored on the
8900NET module or on the frame backplane, depending on frame
model). Refer to Network Configuration Storage on page 24.
Older and Legacy Module Support
8900 and legacy Grass Valley modules that can reside in the 8900TFN frame
are supported to different degrees by the 8900NET module. A compatibility matrix describing the hardware versions, software update methods
required, and remote control features of the various modules supported by
the 8900 frames and 8900NET module is located in the Compatibility Matrix
on page 71.
Note When the 8900NET is first installed or when many modules are installed
simultaneously, it may take some time for the 8900NET to poll, update status
and build the HTML pages, especially if there are modules that do not
respond as expected, such as legacy modules. During these periods the
Frame Status Page may fall behind temporarily until the 8900NET board can
catch up and present a true current status.
28 8900NET Instruction Manual
Using the 8900NET GUI
Legacy Module Support
Installation of 8500 and 8800 modules shipped prior to November 15, 1999
will cause interruption of the 8900TFN frame communication bus.
Modules shipped after this date have pins removed in the rear connector to
provide compatibility. Compatible modules can be identified by the
absence of connector pins 10 and 50 (see Figure 14). Incompatible legacy
modules can be returned to Grass Valley for upgrade to the new connector.
Note If an unmodified legacy module is installed in the frame, the frame commu-
nication bus will be interrupted and all module icons in the frame status
display will be red. This problem occurs with legacy modules only and does
not occur with Gecko 8900 Series modules.
Figure 14. Modified Legacy Module Connector
Top of Module
Pin 2
Pin 10 Pin 50
Typical
Pin 50
Removed
0612-18
8900NET Instruction Manual 29
Using the 8900NET GUI
Frame Configuration Web Page
Use the Frame Configuration web page shown in Figure 15 to:
Use
this
link
•Activate the Locate Frame function,
• Save or recall a frame configuration to a default file,
•Assign the frame a name, index number, and location, and
• Enabling/disabling frame status reports for SNMP monitoring.
Figure 15. 8900 Frame Configuration Web Page
30 8900NET Instruction Manual
Using the 8900NET GUI
Locate Frame
Select the Flash radio button in the Locate Frame function to flash the front
LEDs on the 8900NET module to help locate the 8900 frame.
Save/Load Frame Configuration File
You may save a frame configuration to a file by clicking on the Save To
button. A frame configuration is saved to a default file (FrameConfigData.mcm) and the name cannot currently be changed. Follow the file
download instructions for saving the file. This file can be recalled on this or
any other networked 8900 frame to create a duplicate configuration.
Use the
path and file name into the display. Select the
selected configuration to the frame.
Browse button to locate a saved frame configuration file or enter a
Load button to load the
Frame Identification
Enter any name, an index number (for SNMP reporting), and a location
name to identify a frame. You may also use the factory default frame name
or location by selecting either
Default button.
Frame SNMP Trap Reports
The Frame Configuration web page allows you to enable the following
SNMP slot reports shown in Figure 15 on page 30:
• Frame Bus Status (Alarm)
• Fan Status (Alarm)
8900NET Instruction Manual 31
Using the 8900NET GUI
Frame Power Supply Web Pages
Use
this
link
Use
this
link
The frame power supply status and configuration pages provide:
• Power supply status – pass/fail status of each supply and fan in the
power supply sled (see Figure 16).
•SNMP slot report configuration.
Figure 16. Power Supply Slot Status Page
The Power Supply Configuration web pages for Power Supply 1 and 2
allow you to enable the following SNMP slot reports shown in Figure 17:
• Power Supply Fault (Alarm)
• Power Supply Removed (Warning)
Figure 17. Power Supply Slot Configuration Page
32 8900NET Instruction Manual
Use
this
link
Using the 8900NET GUI
8900NET Module Interface
This section describes GUI functions for the 8900NET module.
8900NET Module Status Web Page
The Status web page illustrated in Figure 18 displays 8900NET:
•Module identity, location and internal Net Card diagnostic
Pass/Fail /Warning, status,
•Hardware and software properties,
•Asset Tag identifier (set on 8900NET Configuration web page), and
• Status of on-board hardware configuration switches (set as described in
8900NET Module Alarm DIP Switches on page 18).
A Status LED icon on each module page changes color to report status of
network interface, frame bus, and internal diagnostics:
•Green indicates a Pass condition,
•Red indicates a Fail condition, and
•Yellow indicates a Warning condition.
Figure 18. 8900NET Module Network Status Page
8900NET Instruction Manual 33
Using the 8900NET GUI
8900NET Module Configuration Web Page
Use
this
link
The 8900NET Configuration web page provides the following:
•A
reboot button,
•SNMP Agent setup installation, and
•An Asset Tag identifier field.
Reboot Module
You may reboot the 8900NET module by selecting the reboot button at the
top of the page. A reboot can also be done on the Network web page.
SNMP Agent Installation
To use SNMP, the SNMP Agent software must be installed on the 8900NET
module. The Configuration web page shown in Figure 19 is displayed if the
agent software has not already been installed.
When SNMP Agent software is installed on the 8900NET module, enabled
status reports are sent to an SNMP Manager such as the Grass Valley’s NetCentral application. Refer to Alarms and SNMP Monitoring on page 18 for
more information.
Click on the
Figure 19. Configuring the 8900 Network Module for SNMP
Install SNMP Agent button to view the license agreement.
34 8900NET Instruction Manual
Using the 8900NET GUI
After reading the agreement, click on Accept to finish installing the SNMP
Agent (Figure 20). Clicking the
installation and return you to the Configuration web page.
Figure 20. Installing the SNMP Agent
Decline button will abort the SNMP Agent
When the SNMP Agent is successfully installed, the Configuration web
page will contain the setup items shown in Figure 21 on page 36.
Net Card SNMP Trap Reports
The following SNMP trap reports are provided for the 8900NET module:
•Net Card Status (Alarm)
•Hardware Switch (Informational)
SNMP Report Activation Modes
Each report destination has an activation control that can select one of the
following modes of operation:
•
CREATE – GO creates a new report destination that becomes active after
the next module reboot.
•
CREATE – WAIT creates a new report destination that remains out of
service until the user selects active and then reboots the module.
•
ACTIVE changes a NOT IN SERVICE report destination to active after the next
module reboot.
8900NET Instruction Manual 35
Using the 8900NET GUI
• NOT IN SERVICE changes an active report destination to inactive after the
next module reboot.
•
DELETE removes the report destination entry. If the entry was active it
remains active until the next module reboot.
Note Report destination status does not change until the 8900NET module is
rebooted.
Figure 21. Configuring the 8900 Network Module with SNMP Agent Installed
36 8900NET Instruction Manual
Using the 8900NET GUI
The status column to the left of the activation operation pull-down window
provides one of the following status reports:
•
<BLANK> – No entry has been applied.
•
ACTIVE – All new status reports will be sent to this destination.
•
NOT IN SERVICE – The destination has a valid definition but the user has
not activated it.
•
ACTIVE PENDING REBOOT – This entry indicates the report destination will
become active upon the next module reboot.
•
NOT IN SERVICE PENDING REBOOT – This entry indicates the report destina-
tion will become inactive upon the next module reboot.
•
NOT READY – The destination entry is invalid. The IP Address may not be
properly defined or there is no IP Address or Community entry.
Assign Asset Tag
The 8900NET module can be assigned as asset tag identifier by entering
numbers or text in the Asset Tag field. This information will appear on the
Status web page and in the module inventory when using the NetConfig
Network Configuration application.
8900NET Instruction Manual 37
Using the 8900NET GUI
8900 Module Slot Configuration
8900 module slots in the frame may be named to reflect specific functions
for that slot or module within the facility. The information on the Slot
Config web page is stored on the 8900NET module and travels with that
module if it is moved to another frame.
To assign a slot name you must access the specific module Slot Config web
page. An example for the 8964ENC is shown in Figure 22.
Figure 22. Media Module Slot Configuration Page
38 8900NET Instruction Manual
Using the 8900NET GUI
Locate Module
When Flash is selected in the Locate Module pulldown, the Locate Module
function flashes the yellow COMM and CONF LEDs on the front of the
module to locate in the frame.
Note Locate Module functionality depends on the module and software version.
Some modules will flash only one LED. Refer to the specific 8900 module
documentation for Locate Module functionality.
Slot Identification
You may identify the module by typing a specific name in the Name field.
The assigned name is stored on the 8900NET module and travels with the
8900NET module if it is moved to another frame. Select
factory default module name.
Default to enter the
Assign an Asset Tag number to the module in the
Note Not all 8900 modules have Asset Tag support.
Asset Tag field.
Slot Memory
The slot configuration for each media module is automatically saved periodically (once an hour) to the 8900NET module in that frame. You may also
select the
ration for this slot. The configuration is saved on the 8900NET module. If
the 8900NET module is removed or powered down, the stored configurations are not saved.
When the
saved to this slot is saved as slot memory. When the current module is
removed and another module of the same type is installed, the configuration saved to the 8900NET module will be downloaded to the new module.
The box must be checked before the current module with the saved configuration is removed.
Learn Module Config button at any time to save the current configu-
Restore upon Install box has been checked, the current configuration
Frame Health Reporting
This function is not used on this software release.
Hardware Switch Controls
This section is a read-only status report of 8900NET module switch settings
for Module Status Reporting and Asynchronous Status Reporting. These
functions must be enabled with the 8900NET module DIP switches for the
following Slot SNMP Trap Reports to function.
8900NET Instruction Manual 39
Using the 8900NET GUI
Slot SNMP Trap Reports
This section is displayed only when the SNMP Agent software has been
installed on the 8900NET module in the same frame as the 8900 module.
The following SNMP trap reports are provided for applicable 8900 modules:
• Slot Fault (Alarm)
•Module Removed (Warning)
• Signal Loss (Warning)
•Reference Loss (Warning)
Enable (select the checkbox) or disable (deselect the checkbox) for the
desired SNMP monitoring.
40 8900NET Instruction Manual
Use
this
link
Using the 8900NET GUI
8900NET Network Web Page
To view or change the module identity and currently assigned network
addresses for the 8900NET module access the Network web page illustrated in Figure 23.
Note Depending on the type of frame this module is installed in, this network con-
figuration is saved on either the 8900NET module or on the frame backplane.
Refer to Network Configuration Storage on page 24 for details.
Figure 23. 8900NET Module Network Identification Page
After initial frame network addressing is done using the RS-232 port, subsequent address changes may be made using the web page shown above.
Note SubNet Mask and Gateway IP Address are required.
Rebooting the NET Module
Reboot the module for changes to take effect. You can reboot the 8900NET
module from the Network page by clicking the
button can also be found on the Configuration page.
reboot button. A reboot
8900NET Instruction Manual 41
Using the 8900NET GUI
Updating Software
Overview
The following procedure describes the software download process for the
8900NET module running version 3.2.0 and later. For earlier 8900NET
releases, refer to the latest Release Notes for the 8900NET module, available
on-line. Software download procedures for modules residing in the networked Gecko 8900 frame will vary according to release date and hardware
version. Some 8900 modules can use the following procedure but many
require a special cable assembly as detailed in the Compatibility Matrix in
the Appendix on page 71.
The Modular Remote Monitoring and Control System is an extension of the
Grass Valley Signal Management System (SMS) routing system and uses
the same File Transfer Protocol (FTP) technique to download software.
Note This procedure assumes your Local FTP Server computer is a 32-bit
Windows host running Win95, 98, NT or later.
If you do not have an FTP server, Grass Valley provides a free FTP server
package that is easy to install and operate. This procedure assumes you will
use the Xitami FTPD provided. If you already have an FTPD available, you
can skip steps 3 through 5.
The software update process consists of the following steps:
1. Acquire the software update files and, if needed, the FTP Server
package.
2. Place the module software update files into an FTPD modular
directory.
3. Extract the FTP Daemon (Xitami FTPD).
4. Run the Xitami installation program.
5. Modify the FTPD configuration files to the Xitami directory.
6. Start the FTPD.
7. Use the 8900 GUI to initiate software updates.
Note When updating numerous Gecko 8900 modules, it is a good idea to dedicate
one frame for the update process to avoid interrupting communication with
active modules.
8. Verify the software update results.
42 8900NET Instruction Manual
Software Update Procedure
1. Acquire the software update files from Grass Valley (refer to Figure 24).
Software upgrade packages are available from the Grass Valley Customer Service FAQ site. The free FTP server software is also available.
a. You may connect to the Grass Valley FAQ site to access the latest
software and subscribe to software updates automatically at the
following URL (recommended):
http://gvg.custhelp.com
or, go directly to the Thomson Grass Valley ftp site to download the
software at the following location:
ftp://ftp.thomsongrassvalley.com/pub/modular
Here you will also find the free FTP server software.
b. Create a temporary download directory on your PC:
c:\temp\
Using the 8900NET GUI
LOCK
8900TFN frame with
Network Interface Module
FTP Daemon Installed
Create a password protected
Modular directory
c:\modular\8900xxx
LOCK
PS 1 PS 2
FAULT
Figure 24. Acquiring 8900 Software from Grass Valley FTP Site
Thomson Grass Valley ftp Site
ftp://ftp.thomsongrassvalley.com
Typical Update Download
1. Module file (example): 8900net_sw2.exe
2. FTP Server file: ftpd.exe
Internet
Resulting files
Ethernet
Local
FTP Server
In a temporary directory: C:\temp\
1. Module file (example): 8900net.exe
2. FTP Server files: xic3223c.exe
Resulting files
In Program directory: C:\Program Files\Xitami
1. FTP Server file: xic3223c.exe
defaults.cfg
ftpusers.sms
readftpd.text
defaults.cfg
ftpusers.sms
0612-24r1
Extract to
C:\modular\8900
Move to
Xitami
Directory
c. Using the web browser, select the desired files. Click to download
the file. You are queried to either
OPEN the file or SAVE AS. Select the
SAVE AS option and set the path to the temporary directory on your
computer.
This process will trigger the download of the file to your computer.
8900NET Instruction Manual 43
Using the 8900NET GUI
Note If you have access to an existing FTP Server’s directory, the module update
files can be downloaded directly into that directory.
2. Move or extract the module update files into an FTPD modular
directory.
The module software update files must reside in a directory that the
FTPD can access. The Grass Valley supplied FTPD is configured to
access a directory designated:
\modular\8900
The new software for the 8900 module will be either a binary file (.bin
extension) or a field update file (.fld extension). Binary files (.bin) are for
the 8900NET module updates and field update files (.fld) are for the
8900 Series modules.
a. Open Windows Explorer on the local server computer.
b. If one does not already exist, create a directory on the C drive:
c:\modular\8900
c. Double-click the module software.exe file (in the temporary
directory) and save it to the appropriate directory. The resulting file
will be a .bin or .fld:
c:\modular\8900\8900net_sw300a_fw1.fld
Note The file name shown indicates: 8900NET, software version 3.00, firmware
version 1.0.
3. Extract the FTPD (Xitami FTP Server) files.
Note This section is for facilities that do not already have an FTP Daemon (FTPD),
also known as a File Transfer Protocol (FTP) Server, installed on the Gecko
8900 frame’s network. For those facilities that already have an FTPD or other
FTP Service available in their network, go to step 6.
Grass Valley provides a free FTP server for those facilities that do not
have a local FTP service. The FTP server package is the same Xitami
Web Server-FTP package that is provided with the Grass Valley SMS
router upgrade package. The version of the Xitami Web-FTP server distributed with module software upgrades is for a 32-bit Windows host.
The FTP Daemon in the temporary directory is a self-extracting file
(ftpd.exe). To extract the files:
a. Open Windows Explorer and find the ftpd.exe file.
44 8900NET Instruction Manual
Using the 8900NET GUI
b. Double click on the .exe file and extract the files to the temporary
directory.
These files will be extracted:
• xic3223c.exe – the Xitami installation file,
• defaults.cfg – an FTPD configuration file that has been modified
specifically for Grass Valley software downloads, and
• ftpusers.sms – the FTPD’s admin file specifying user names and
passwords network access to files in the ftp server directories.
4. Run the Xitami installation program.
a. Double Click on xic3223c.exe. You will see the Xitami Welcome
(Figure 25).
b. Click on Next >.
Figure 25. Xitami Web Server Welcome
c. You will see Xitami Installation Notes.
d. Click on Next >.
8900NET Instruction Manual 45
Using the 8900NET GUI
e. You will see Select Destination Directory (Figure 26). Do not change
the default settings.
f. Click on Next >
Figure 26. Select Destination Directory
46 8900NET Instruction Manual
Using the 8900NET GUI
g. You will see the Select Program Group screen (Figure 27). Do not
change the default settings.
h. Click on Next >.
Figure 27. Select Program Group
8900NET Instruction Manual 47
Using the 8900NET GUI
i. You will see the Automatic Startup Query screen (Figure 28). Select
No.
j. Click on Next >.
Figure 28. Automatic Startup Query
48 8900NET Instruction Manual
Using the 8900NET GUI
k. You will see the Administration Password screen (Figure 29). Do
not enter anything in these fields.
l. Click on Next >.
Figure 29. FTPD Server Administration Password
8900NET Instruction Manual 49
Using the 8900NET GUI
m. You will see the Choose Server Profile screen (Figure 30). Select
Tiny - never block another task.
n. Click on Next >.
Figure 30. Choose Server Profile
o. You will see the Ready To Install screen. Click on Next >.
An installation meter box will appear, and upon completion, you
will see the Installation Complete! screen.
p. Click on Finish.
50 8900NET Instruction Manual
An Icon (see Figure 31) will have been created in the Program
Group window that was selected in Step g (see Figure 26 on
page 46).
Figure 31. FTPD Icon in Program Group Window
Using the 8900NET GUI
5. Move the FTP Daemon Start-up Configuration Files.
The FTP Daemon has now been installed and requires configuration files
be placed in the Xitami directory.
a. Open Windows Explorer.
b. From the Explorer window, return to the FTPD directory and move
the extracted defaults.cfg and ftpusers.sms files to the directory at:
c:\Program Files\Xitami
The defaults.cfg and the ftpusers.sms files contain default configuration instructions that the FTPD application reads at start-up.
8900NET Instruction Manual 51
Using the 8900NET GUI
6. Edit the ftpusers.sms file adding the user name information illustrated
at the bottom of Figure 32.
Figure 32. User Name and Password File ftpuser.sms
Note The FTPD configuration files themselves should be installed in a password
protected directory.
7. Start the FTPD.
If the Xitami Web Server (FTPD) is not already running, start it.
a. Click on the Start popup window on the PC.
b. Select Programs, then Internet Tools, and click on Xitami Web
Server – 32 bit console (Figure 31 on page 51).
52 8900NET Instruction Manual
The Xitami Console will open as a DOS window. There will be a log
of events, at least one of which will indicate it is accepting connections (see Figure 33).

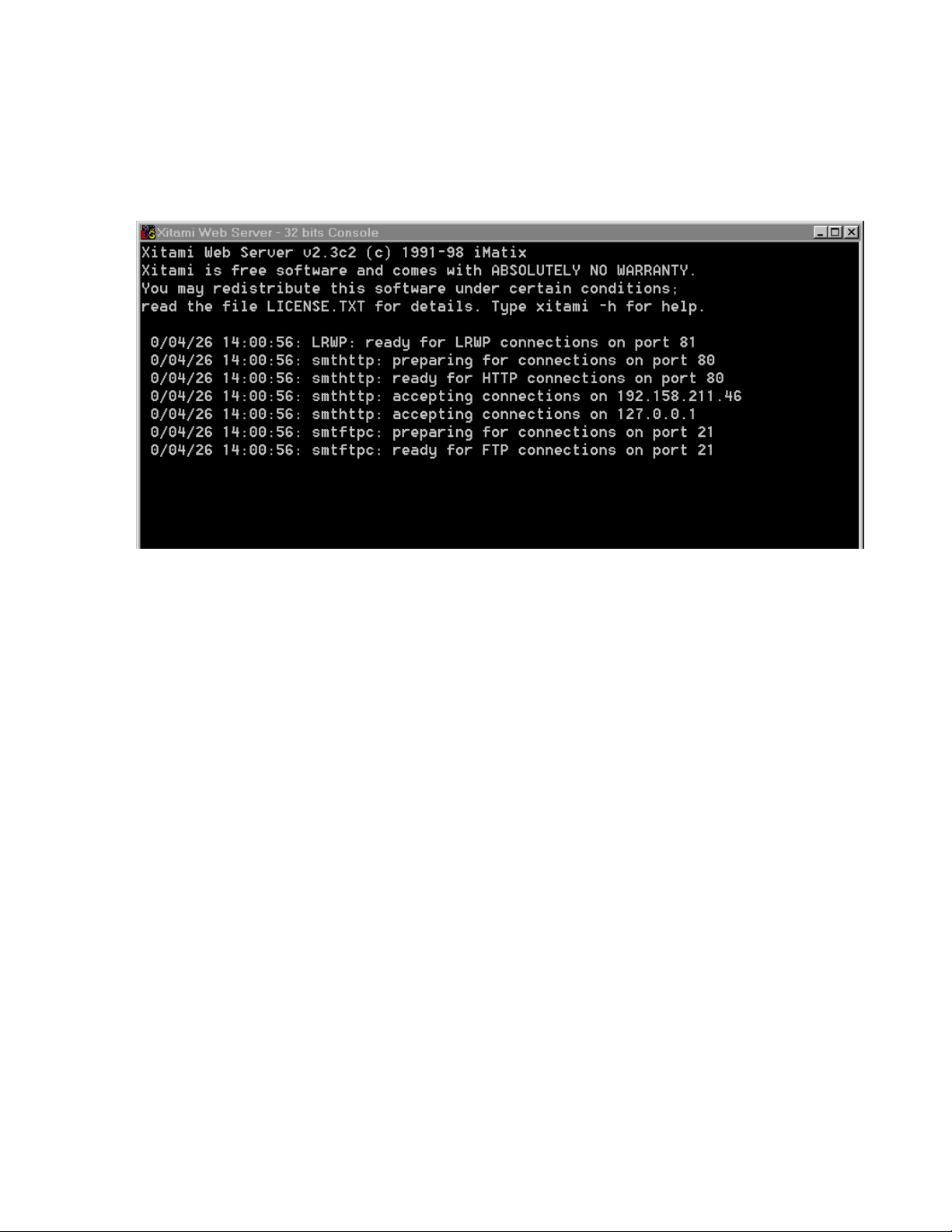

Figure 33. Typical FTPD Console Screen
Using the 8900NET GUI
The IP Address line should actually indicate the IP Address of the
PC you are using for the FTP server. This is the IP Address that will
be used to initiate the software update.
The line that verifies that the FTPD is running reads:
ready for FTP connections on port 21
8. With the FTPD running, use the 8900 GUI to initiate software updates.
Use the web-browser to:
•Access the appropriate Software Update page for a given module,
• Enter the required data into the HTML Form on that page, and
• Submit the form.
The 8900 frame uses the data in the form to contact the FTPD on the
server, download the update file, and reprogram the targeted module.
Note Prior to attempting update of software, refer to the target module’s manual
and confirm that the Remote/Local Only jumper is in the Remote position.
Note To monitor the progress of the download, use the serial port connection (see
Figure 34) with a computer running a terminal emulation application
8900NET Instruction Manual 53
Using the 8900NET GUI
8900TFN Frame
Figure 34. Serial Port Console and PC Network Connections
PC running Hyperterm Terminal Emulation
RS-232
8900TFN Frame
Serial Connection for console interface
Comm. Parameters: 9600 baud, 8 bits,
parity-none, 1 stop, flow-none
PC running web browser GUI
Comm 1 or
Comm 2 port
Ethernet
RJ-45
connector
To PC network card
RJ-45 connector
Ethernet Hub
0612 -29r1
54 8900NET Instruction Manual
Using the 8900NET GUI
a. Open a web browser on a PC that is connected over the network to
the Gecko 8900 frame.
b. Enter the URL of the frame where the module to be updated
resides. The frame’s main status page will appear.
c. Click on the module’s link and then click on Software Update (the
8900NET module link is shown at left).
Use
this
link
The module’s Software Update web page will appear as shown in
Figure 35. This form is the same for all 8900 modules that support a
network software update.
Figure 35. 8900NET Module Software Update Page
If the module does not support a network software update, the
page will appear as shown in Figure 36. Refer to the Release Notes
for the module for software update instructions.
Figure 36. 8900 Network Software Update Not Supported
8900NET Instruction Manual 55
Using the 8900NET GUI
d. In the FTP Server Address field, enter the IP Address of the PC that
has the FTPD installed and running.
e. You can enter the Host Name of the PC that has the FTPD running
into the FTP Server Name field. This is an optional step and can be
omitted.
f. Click on Apply to set the FTP Address.
The web page will refresh and the new FTP address should be displayed as the Current Settings.
g. In the File Path field, enter the file name of the software update file.
h. Submit the form and start the update process by entering the user
name and password and clicking on
Apply.
After you click on
itor. Wait a few seconds for the Progress Monitor to begin.
i. If the file entered in the file path is invalid or the file cannot be
found, a
Results line (Figure 37). Select the Software Download link or the
Refresh button to refresh the page to return to the download page
and re-enter the file name.
Figure 37. 8900NET Software Download Progress Monitor
File Not Found message will appear in the Progress Monitor
Apply, the web page will display a Progress Mon-
j. If the login password is incorrect, the Progress Monitor will report
with a
Software Download link or refresh the page to return to the
download page and re-enter the correct login.
Figure 38. Login Incorrect
56 8900NET Instruction Manual
Login Incorrect message as shown in Figure 38. Select the
Using the 8900NET GUI
k. Once the download has started and there are no error messages,
wait for the Success screen to appear, then click on Software Update
or the refresh button again to refresh the page.
Note Do not click anywhere on the web page while the download is in progress
unless you receive a File Not Found or Login Incorrect Results message.
Once the download is successful, the Progress Monitor will report
a Success message similar to Figure 39.
Figure 39. 8900NET Software Update Failure Notice
9. Verify the software update results by checking the Installed Software
Version in Properties portion of the 8900NET Status web page.
The software and firmware (if applicable) numbers should match that
indicated in the .bin or .fld file name (see Step 2 of this procedure for file
names and version numbers).
Update Processing Details
Upon receipt of a software update form from a module, the 8900NET
module will contact the FTP Server, requesting the specified path. The
8900NET will send the user name and password to FTP server to gain
access to the file.
Once the file has been successfully FTP’d from the FTP Server, the 8900NET
will begin the module software compatibility check and upgrade process.
The module software compatibility check uses compatibility information
included in the Field Update File to ensure that the new software was
intended for this module. In the event that there is a mismatch, the
8900NET will abort the upgrade.
If compatibility is okay, the download is performed and the subject module
is rebooted.
8900NET Instruction Manual 57
Specifications
Specifications
Table 6. 8900NET Specifications
Parameter Value
Recommended Software
Web browser Netscape 4.x or Internet Explorer 4.x or later
PC operating system Windows 95/98 or later
Terminal emulation Hyperterminal
Environmental
Frame temperature range 0 to 45° C
Operating humidity range 0 to 90% non-condensing
Non-operating temperature 0 to 45° C
Mechanical
Frame type 8900 Series
RS-232 connector DB-9 Female
Ethernet connector RJ-45
Frame alarm connector DB-9 Female or BNC (depending on frame model)
Power Requirements
Supply voltage +12 V, -12 V
Power consumption < 6 W
58 8900NET Instruction Manual
Service
Service
The 8900NET modules make extensive use of surface-mount technology
and programmed parts to achieve compact size and adherence to
demanding technical specifications. Circuit modules should not be serviced in the field.
If your module is not operating correctly, proceed as follows:
•Check frame and module power and signal present LEDs.
•Check network connections at the frame and network routing devices.
•Verify that all ethernet devices have a unique MAC and IP Address/
Domain Name.
•Reboot the 8900NET module (see Rebooting the NET Module on page 41).
Refer to Figure 10 on page 16 for the location of PWR LED and Table 1 on
page 17 for proper LED indications.
If the module is still not operating correctly, replace it with a known good
spare and return the faulty module to a designated Grass Valley repair
depot. Call your Grass Valley representative for depot location.
Refer to Contacting Grass Valley at the front of this document for the Grass
Valley Customer Service Information number.
Troubleshooting GUI Operation
The following is a list of possible 8900NET GUI and network problems and
logical steps for troubleshooting them.
Cannot Open Any of the Frame’s Web Pages
1. Check power to the frame.
a. Is at least one of the power supplies operating?
b. Is the 8900NET module’s PWR LED on?
2. Check that the frame is physically connected to the network.
a. Is a cable plugged into the RJ45 connector of the frame?
b. Is that cable also connected to a 10Base-T Ethernet hub?
c. Does the 8900NET module’s ETHER LED indicate network
activity?
d. Does the Ethernet hub have any indication that a link is established
to the frame?
8900NET Instruction Manual 59
Service
3. Is the correct IP Address/URL being used to address the frame?
If a Domain Name is being used to address the frame, try to connect
using the frame IP Address instead.
The Domain Name may not be properly assigned in the local Domain
Name Server or in the workstation’s host file.
The Domain Name Server may not be available to the workstation.
Check that the 8900NET module has been properly configured.
a. Is the correct IP Address or URL being addressed in the web
browser?
b. Was the 8900NET module configured over the serial connection
with the
c. Has the 8900NET module been assigned the correct IP Address in
SETUP (re-run setup over the serial connection)?
d. Is the workstation in the same subnet as the frame? If not:
Has the 8900NET module been assigned the correct Default
Routing Address?
SETUP command?
Has the 8900NET module been assigned the correct Subnet Mask?
e. Has the 8900NET module been rebooted since new IP Address,
Default Routing, or Subnet Mask were assigned or changed?
4. Check if the frame web pages can be opened from a different
workstation on the network.
5. Is the subject workstation physically connected to the network?
6. Check that the workstation and browser have been properly
configured.
a. Can the frame be opened from a different workstation?
b. Has the workstation been assigned a proper IP Address?
c. Has the workstation been assigned a Gateway Address?
d. Is the browser configured to connect to the correct port?
Is it attempting to connect through a modem when it should be connecting through a network interface module?
Some laptop have two separate network ports, one for stand-alone
operation, and the other for operation with a docking station. Is the
correct port being used?
60 8900NET Instruction Manual
Service
7. Check that network traffic can be routed between the workstation and
the frame.
a. If the workstation supports a network ping, ping the frame. For
example, using Windows NT:
Open a command prompt (DOS window)
In the DOS window, enter:
C:\> PING FRAME’S IP ADDRESS
The results will indicate if the ping reached the frame.
b. If the workstation does not support a network ping, ping the
workstation for the frame serial interface:
In the frame serial command window, enter:
->PING “WORKSTATION’S IP ADDRESS”
The workstation’s IP address must be inside the double quotes. The
results will indicate if the ping reached the workstation.
c. If the network ping failed, there may be a network problem
between the frame and the workstation. To ensure it is not the
frame, check the frame with a point-to-point connection:
Using a crossover Ethernet cable, connect the frame directly to a
workstation. The workstation should be assigned an IP Address on
the same Subnet as the frame. Attempt to load the frame’s web page
from a Browser on this workstation.
8. If the point-to-point connection attempt fails call Customer Service. If
the point-to-point connection attempt succeeds, the problem is
somewhere in the network between the original workstation and the
frame.
a. Check the connectivity to the frame from different locations in the
network to attempt to isolate physical disconnect problems.
b. Check the connectivity to the frame from inside and outside the
frame’s subnet to isolate IP Gateway routing problems.
8900NET Instruction Manual 61
Service
c. Check for possible Ethernet MAC Address collisions.
If the Frame ID Memory chip installed on the rear of the frame is
missing or has failed, the frame adopts the default Ethernet MAC
Address.
If more than one frame in the Network adopts the default Ethernet
MAC Address, there could be address resolution problems. Upon
power up the frame will indicate in the serial port console window,
either:
“MAC ADDRESS IS UNIQUE!” – THE FRAME HAS SUCCESSFULLY
RETRIEVED A UNIQUE ETHERNET MAC ADDRESS FROM THE FRAME ID
MEMORY CHIP
or
“MAC ADDRESS IS DEFAULT!” - THE FRAME IS USING THE DEFAULT
ETHERNET MAC ADDRESS. THE FRAME ID MEMORY CHIP IS MISSING OR
HAS FAILED. CALL GRASS VALLEY GROUP CUSTOMER SERVICE
Cannot modify parameters on Web Page
1. Check if parameters can be set for other modules.
If so, the module may be in a remote lockout state.
a. Check if the LOC/REM – LOCAL jumper on the module is set for
local control only. (Refer to that specific module’s manual for help.)
b. In version 2.0 and later of the 8900NET module software, the web
pages for a module in the remote lockout state will indicate that
module remote control is disabled and the module’s controls on the
web pages will be in read-only mode.
If other modules are not controllable, the entire frame may be in a
remote lockout state. In this state, software updates to the modules and
the 8900NET module are also locked out.
c. Check The 8900NET module’s status page if the frame remote
control is disabled.
If so, flip Switch 3 on the S2 DIP switch block (FRAME CNTRL) to
the enabled setting.
2. If it is only a specific parameter that is read-only, the module may be in
a mode assigning read-only operation to that parameter. Refer to the
module’s instruction manual.
3. If only the 8900NET module is read-only, the 8900NET module may be
in remote lockout mode.
a. Check the 8900NET module’s status page to see if the NET CARD
REMOTE CONTROL status is disabled.
b. If so, flip Switch 8 on the S1 DIP switch block (NM CNTRL) to the
enabled setting.
62 8900NET Instruction Manual
Service
Cannot Connect to the Frame From a VTECS1 VideoFrame Control Panel
1. Check that the frame is powered and configured with a 8900NET
module on the network.
2. Check that the 8900NET module in the frame is loaded with software
version 2 or later.
Version 1 software does not support the control panel connection.
3. Check that the control panel has been properly configured with IP
Address, Gateway IP Address, and Subnet Mask. (Refer to the control
panel’s help feature or instruction manual.)
4. Check that the frame’s correct IP Address has been configured in the
control panel’s frame address.
5. Check that the control panel is physically connected to the network.
a. Check that the control panel is connected to a port on an Ethernet
hub.
b. Check if the L LED (L for link) on the back of the control panel is on.
If the LED indicates no link (off), try a different hub port connection.
If the LED still indicates no link, change the cable.
If the LED still indicates no link, contact VideoFrame.
6. Check that the frame is addressable by the control panel.
a. Check if the T LED (T for transmit) on the back of the control panel
flashes upon the attempt to connect to the frame.
If T does not flash, contact VideoFrame.
b. Check if the R LED (R for receive) on the back of the control panel
flashes upon the attempt to connect to the frame.
If R does not flash, there may be a problem in the network path
between the frame and the control panel.
7. Check that the frame is addressable on the network from a Web
browser, refer to the steps on page 59.
a. Attempt to connect to a different frame.
If successful the problem may be with the original frame or the path
between the control panel and the original frame.
b. Check from a workstation connected to the same Ethernet hub as
the control panel. If unsuccessful, there may be a problem with the
network path between the frame and this hub.
8900NET Instruction Manual 63
Service
Event Messages From the Frame Are Not Being Displayed by NetCentral or
Another SNMP Manager Application
1. Check that the frame is powered on and configured with an 8900NET
module on the Network.
2. Check that the 8900NET module in the frame is loaded with software
version 2.1 or later.
Earlier versions of software do not support SNMP.
3. Check that the SNMP Agent has been installed and configured on the
8900NET module.
View the 8900NET module
figuration parameters, the
DESTINATIONS table.
If these are not visible, install the SNMP Agent per the instructions in
the manual.
4. Check that the IP Address and Community Name for the SNMP
Manager has been assigned in the
Active.
• If there is no entry for the SNMP Manager in the Table, the SNMP
manager’s IP Address and Community name must be entered (see
8900NET Module Configuration Web Page on page 34).
• If the entry for the SNMP Manager is incorrect, it must be corrected,
activated, and the 8900NET module must be rebooted.
• If the entry has been entered and the Status of the entry is reported
NOT IN SERVICE, the Active operation for that entry must be selected,
applied and the 8900NET module must be rebooted.
• If the entry has been entered and the Status of the entry is
the entry must be corrected, activated and the 8900NET module
must be rebooted.
CONFIGURATION page and note the event con-
NET CARD EVENT REPORTS form and REPORT
REPORT DESTINATIONS table and is
NOT READY,
• If the entry has been entered and the Status of the entry is
–PENDING REBOOT, the 8900NET module must be rebooted.
64 8900NET Instruction Manual
ACTIVE
5. Check that the particular event has been enabled in the frame.
• For all events, check that the STATUS switch (Switch 1) on the S2
DIP switch block of the 8900NET module is Enabled.
• For Module Failure-Fixed events:
Check that the MODULE switch (Switch 5) on the S1 DIP switch
block of the 8900NET module is Enabled, and
Service
Check that the
CONFIG page is Enabled.
SLOT STATUS REPORTING parameter on the slot’s SLOT
• For Power Supply Failure-Fixed events:
Check that the PS1 or PS2 switch (Switch 1 or 2) on the S1 DIP
switch block of the 8900NET module is Enabled, and
Check that the
power supply’s
• For 8900NET module Failure-Fixed events, check that the
STATUS REPORTING parameter on the 8900NET module’s CONFIGURATION page is Enabled.
• For Hardware Switch change events, check that the
SWITCH REPORTING parameter on the 8900NET module’s CONFIGURATION page is Enabled.
POWER SUPPLY STATUS REPORTING parameter on the
CONFIGURATION page is Enabled.
NET CARD
HARDWARE
• For Frame Bus Failure-Fixed events:
Check that the FRAME BUS switch (Switch 6) on the S1 DIP switch
block of the 8900NET module is Enabled, and
Check that the
frame’s
CONFIGURATION page is Enabled.
FRAME BUS STATUS REPORTING parameter on the
• For Front Cover Removed -Installed events, check that the
STATUS REPORTING parameter on the frame’s CONFIGURATION page is
COVER
Enabled.
• For Frame Bus Failure-Fixed events:
Check that the FRAME BUS switch (Switch 6) on the S1 DIP switch
block of the 8900NET module is Enabled, and
Check that the
frame’s
CONFIGURATION page is Enabled.
FRAME BUS STATUS REPORTING parameter on the
• For Cooling Fan Failure-Fixed events:
Check that the FAN switch (Switch 4) on the S1 DIP switch block of
the 8900NET module is Enabled, and
Check that the
FIGURATION page is Enabled.
FAN STATUS REPORTING parameter on the frame’s CON-
• For Module Health Failure-Fixed events,
Check that the MODULE switch (Switch 5) on the S1 DIP switch
8900NET Instruction Manual 65
Service
block of the 8900NET module is Enabled, and
Check that the
CONFIGURATION page is Enabled.
•Check that the SNMP Manager is properly configured to receive the
Event Messages.
Check that the SNMP Manager has been assigned the same community name as in the frame’s configuration.
6. Check the network connectivity between the SNMP Manager and the
frame as described in the steps on page 59.
MODULE HEALTH REPORTING parameter on the frame’s
66 8900NET Instruction Manual
Functional Description
Refer to the block diagram in Figure 40 while reading the following functional description.
Figure 40. 8900NET Block Diagram
Functional Description
+12 V
LEDs
User
Setup
Sw.
User
Setup
Sw.
On-board
Regulator
+5 V
+3.3 V
Temperature
Sensing
Microprocessor
Boot ROM
SDRAM
NVRAM
RS-232
Driver
10BaseT Ethernet
Module Health Bus
Frame Bus
Module
Present
Detection
SMPTE
Alarm
Signal
Processing
Ethernet/MAC Address
Alarm
Bus
RS-232 (9-pin D)
Ethernet (RJ-45)
M
o
t
h
e
r
b
o
a
r
d
Power Supply
Cells
Module Cells
Fan Speed
Control and
Rotation
Sensing
SMPTE
Relay
To Fan Assembly
SMPTE Alarm
(BNC)
0612-01
Temperature Sensing
Two temperature sensors on the module report to the microprocessor when
they detect:
• External ambient temperature above 50° C, or
• Internal frame temperature above 70° C.
The microprocessor will then report a temperature fault.
8900NET Instruction Manual 67
Functional Description
ROM and RAM
Ethernet Port
RS-232 Serial Port
Software updates can be made to the 8900NET ROM through the
Web-based interface. Non-volatile RAM is provided to store key setup
values when power is cycled.
The 10Base-T Ethernet port provides configuration and monitoring access
to the frame, frame modules and the 8900NET module using a Web
browser.
The RS-232 port is used to initialize the module with critical network
parameters including a static assigned IP Address. Ethernet MAC address
is stored on a serial EPROM on the frame. (The frame needs both MAC and
IP Addresses.)
Module Health Bus
The Module Health bus connects all the audio/video module cells to the
microprocessor. It is used to report module faults or data errors.
Frame Bus
The Frame Bus provides serial communication to each of the audio/video
modules for remote configuration and monitoring over a network.
Module Present Detection
Module Present lines from cells 1 through 10 and Present/Health lines
from cells 12 and 13 are monitored by the microprocessor using the Module
Present Detection circuitry. For cells 1 through 10, this circuit reports to the
processor whether a module is present and if it supports frame bus communications (control and monitoring). For cells 12 and 13, this circuit
reports if the power supply is present and if it is working properly.
68 8900NET Instruction Manual
Fan Speed Control and Monitor
The fan speed circuit controls the speed of the fans based upon the ambient
temperature in the area in which the frame is located. If the temperature is
30° C or lower, the fans are set to minimum speed. For temperatures above
30° C, the fan speed is set higher as the temperature increases. The fan
speed is set to maximum for ambient temperatures above 40° C. The
control circuit can be overridden so the fans are set to maximum speed,
using a jumper on the board.
On-board Regulator
+12 V supply voltage is regulated on-board to provide +5 V and +3.3 V to
the module.
Functional Description
8900NET Instruction Manual 69
Functional Description
70 8900NET Instruction Manual
Appendix
Compatibility Matrix
The compatibility matrix in Table 7 lists the modules that can reside in the
8900TFN frame, features that are supported, the module assembly
numbers and how software updates are handled. For the latest information
on any module, software available and the Release Notes and latest
Instruction Manual, visit the Support link on the Grass Valley web site
(refer to Contacting Grass Valley at the beginning of this manual).
Table 7. 8900 Software Compatibility Matrix
Model # Assembly #
8931 160169-00 no comm – n/a
8936 160170-00 no comm – n/a
8941 160171-00 no comm – 8900-FLOAD-CBL
671-4853-00 basic status Id defect, faults not reported Not upgradeable
8916
8920DAC
8920ADC
8920ADT 671-6326-00
8920DMX
8920MUX
8921ADT 671-6496-00 full c&m – ftp download
8921DAC 671-6497-00 full c&m – ftp download
671-4853-01
671-4853-02
671-4795-00
671-4795-01
671-4795-02
671-4795-03 –
671-4796-00
671-4796-01
671-4796-02
671-4796-03 full c&m –
671-6326-01
671-6291-00
671-6291-01
671-6291-02
671-6291-03
671-6290-00
671-6290-01
Control &
Monitoring
Support
full c&m – 8900-FLOAD-CBL
full c&m
basic status
full c&m – 8900-FLOAD-CBL
full c&m – 8900-FLOAD-CBL
full c&m – 8900-FLOAD_CBL
Control & Monitoring
1
Id defect, faults not reported
Id defect, faults not reported
Notes
Faults not reported
Faults not reported
2
Software
Update
8900-FLOAD-CBL
8900-FLOAD-CBL
3
3
3
3
3
3
3
8900NET Instruction Manual 71
Appendix
Table 7. 8900 Software Compatibility Matrix - (continued)
Model # Assembly #
671-4798-00
8950DAC
671-4798-01
671-4798-02
671-4798-03
671-4799-00
8950ADC
671-4799-01
Control &
Monitoring
Support
basic status faults not reported
full c&m –
basic status faults not reported
Control & Monitoring
1
Notes
2
Software
Update
8900-FLOAD-CBL
8900-FLOAD-CBL
671-4799-02 full c&m –
671-4664-00 no comm misleading status reported
8960DEC
671-4664-01
full c&m –671-4664-03
8900-FLOAD-CBL
671-4664-04
8960ENC 671-4698-00
671-4698-01
full c&m – 8900-FLOAD-CBL
8964DEC 671-6471-00 full c&m Requires 8900NET v3.2.0 ftp download
8964ENC 671-6477-00 full c&m Requires 8900NET v3.2.0 ftp download
8990ARC 671-5246-00 full c&m – 8900-FLOAD-CBL
8981FS
671-5023-00
671-5023-01
full c&m – 8900-FLOAD-CBL
8981NR 671-5023-10 full c&m – 8900-FLOAD-CBL
8500 Series
8800 Series
1
See Control and Monitoring Support on page 73 for definitions
2
See Control and Monitoring Notes on page 73 for definitions
3
See 8900–FLOAD–CBL Assembly on page 73 for information
For 8500 and 8800 Series module compatibility see Legacy Module Support on page 29.
3
3
3
3
3
3
3
72 8900NET Instruction Manual
Control and Monitoring Support
The following abbreviations are used to indicate the features supported or
not supported by the modules listed in Table 7:
•No comm — The module does not support any remote control or monitoring functions.
• Basic status — The module responds to only low-level probe from the
Network module and only returns model number and description.
Fault and signal presence are not reported. No control is supported.
• Full C&M — The module fully supports the control and monitoring
system. The module reports status of all settings. The module can be
configured remotely.
Control and Monitoring Notes
The following abbreviations are used in Table A-7 to indicate performance
limitations for the listed legacy modules:
Compatibility Matrix
•Comm problem — The module shorts out the frame communication
bus. When the problem module is installed, the NET module cannot
communicate with any of the modules in slots 1 through 10.
•ID defects — The module is susceptible to ESD (electro-static discharge) damage of the module ID lines. If this damage occurs, the
module will be reported as faulted on the frame status page and software download will not work.
• Faults not reported — The module may not report an error to the NET
module even though its fault LED is on. The LED gives the correct fault
status.
•Misleading status reported — The module does not support control
and monitoring but indicates through a motherboard connection that it
does. This module will show up as red on the frame status page even if
it is working correctly.
8900–FLOAD–CBL Assembly
Some modules require a cable assembly and software loading application
for the software update process. This cable assembly and CD–ROM containing update software files can be ordered from Grass Valley. Contact
your Grass Valley sales or service representative about ordering the
8900-FLOAD–CBL assembly.
8900NET Instruction Manual 73
Appendix
74 8900NET Instruction Manual
Index
Numerics
25-pin adaptor 13
8900 module
Slot Config web page
38
A
agent software (SNMP) 34
asset tag
assigning
37
B
backplane 10
baud rate 12
block diagram 67
C
cable
crossover
Ethernet 14
LAN 15
RS-232 11
cable kit 11
Comm 1 port 12
compatibility matrix 71
Configuration web page (8900NET module) 34
Configuration web page (Frame) 30
controller module 9
14
E
enable fault reports 18
environmental 58
Ethernet 14
F
fan speed option setting 18
FAQ database 2
fault condition 28
fault reports
filtering
faulty module 59
firewall 21
flow control 12
frame 9, 58
cell 9
upgrade 7
Frame Health Alarm
cabling
enabling and disabling alarms 18
frame ID 25
Frame Monitor Module 11
frame name and location 30
Frame Power Supply web pages 32
frame status page 25, 26
frame types 24
frequently asked questions 2
FTP server 42
ftp site 20
18
11
D
daemon 42
default MAC address 25
DIP switches
alarm control
disables 18
documentation online 2
domain name server 21
8900NET Instruction Manual 75
18
G
gateway IP address 41
Grass Valley web site 2
I
initial configuration 21
Index
Internet Explorer 24
IP Address
setting
storage 24
21
J
J102–RS-232 on Video frame 12
J7–RS-232 on Audio frame 12
L
LED indicators 16
link list 26
local area network (LAN) 8
Locate Frame function 31
locate module function 39
M
MAC (machine) address 25
module
installation
module compatibility 71
module slot names 38
9
O
on-board configuration switches 33
online documentation 2
P
parity 12
point-to-point 8, 14
point-to-point communication 21
power 58
power supply 9
power supply slot 32
power supply, frame
web pages
32
R
reboot 41
reboot button 34, 41
repair depot 59
RJ-45 14
RS-232 11, 21
S
N
navigation 26
NET module reboot 41
NetConfig 21
feature 7
Netscape Navigator 24
network addresses 41
network configuration storage 24
network conflicts 25
network identity 21
network parameters 21
establishing 21
network traffic delays 21
Network web page (8900NET module) 41
NIM LED 16
service information 59
Slot Config web page
8900 module
slot configuration
saving
slot memory 39
slot status icons 27
SMPTE Alarm BNC connector 11
SNMP monitoring
frame status reporting
overview 19
SNMP Trap Reports
2000NET module
8900 modules 40
frame 31
Frame Power Supplies 32
MIB (Management Information Base) 20
summary 20
software compatibility 71
software download 42
39
38
30
35
76 8900NET Instruction Manual
software download from web 2
Status web page (8900NET module) 33
Status web page (Frame) 26
stop bits 12
subnet 21
subnet mask 41
supported features 71
switch status 33
T
testpoints 59
troubleshooting 59
U
update status 28
updating 42
upgrade 7
URL 25
Index
V
variable fan speed 18
voltage 58
W
Web browser 24
web site documentation 2
web site FAQ database 2
web site Grass Valley 2
web site software download 2
8900NET Instruction Manual 77
Index
78 8900NET Instruction Manual
Loading...
