KRYSTAL 4300
Krystal 4300 builds on the
standards for high video quality,
superior effects creation and
system integration established by
Grass Valley. The following
description applies to the standard
Krystal 4300 product. The
integrated 2200-2i/Krystal 4300
will be discussed separately.
Enhanced Image Fidelity
Krystal features 10-bit serial digital
component inputs and outputs,
frame-based processing, with
bicubic interpolation, advanced
motion detection, superior digital
filtering, and Grass Valley
proprietary Enhanced Image
Fidelity to provide unsurpassed
video quality.
P
RODUCT
O
VERVIEW
Advanced User Interface
Krystal provides a powerful, new
generation control interface. The
user interface offers the
independent function timelines,
partial keyframing, macros, and
full-time on-line help. Basic control
system features are:
• Effects Creation
Krystal offers numerous tools for
effects creation including external
mask input, internal mask pattern
generator and advanced lighting
capabilities. A standard pattern
generator provides crops or
borders.
• System Integration
One to eight channel systems are
available. Channels can be
dedicated to a specific suite or
application or pooled between four
simultaneous users of up to four
channels each. Editor, Switcher,
and GPI interfaces are also
provided.
Standard Features
Krystal standard features include:
• Component Serial Digital
inputs and outputs
• 525/60 and 625/50 Switchable
session by session
• 4:3 or 16:9 Aspect ratios
• Frame-based picture
interpolation
• Partial Keyframing with
Independent Function
Timelines
• Variable perspective 3D
rotation
• Multiple independently
variable motion paths
• Corner pinning
• Internal and external keying
• Internal and external mask
• Adjustable box and pattern
borders/crops with modulated
wash
• Perspective Fade, Blur, Clip,
and Dim
• Video Reversal
• Posterization/Solarization
• Color Mixing
• Drop Shadow with opacity
• Key output with Z-depth
information
• Serial control for switchers
and editors
• General Purpose Interface
Inputs and Tally Inputs and
Outputs
• Disk drive for Effects storage,
macros, and software updates
• On-Line Help
• Color Correction
1
Krystal 4300 Ordering Guide
Architectural Overview
The Krystal 4300 is expandable
from single-user/single-channel up
to an eight-channel pool with four
simultaneous users controlling
from one to four channels each.
The Krystal system has three
primary components or building
blocks:
• Control Panels
• The Controller System
• The Video Processor
Various Krystal systems are offered
with these building blocks.
The Krystal Control
Each control panel includes a
floppy disk drive for effects storage
and retrieval. Users can develop
and store “macros” on disk to
automate often-repeated sequences.
Independent Function Timelines
give you the finest control of each
attribute of your effects. Clipboard
editing with CUT, COPY, PASTE
makes changes quick and precise.
Macro programming further speeds
operation by permitting often-used
key sequences to be learned and
replayed at the touch of a button.
The Krystal provides 3D control of
up to four channels. These may be
positioned using Source & Target
coordinates. Channels can be
assigned to either of two global
channels and can be transformed
independently. Camera channel
allows viewing from any
perspective.
The control panel can be installed
flush in a counter top or placed on
the counter surface. Refer to the
installation planning guide for
details.
The Grass Valley 2200-2i
production switcher which
contains a built-in Krystal control
panel, can control one or two
Krystal channels.
The Krystal control system
includes an Effects Manager for
each simultaneous user, providing
real-time microprocessor control.
Up to two Effects Manager modules
can be installed in a Krystal system.
The Krystal Video Processor
The Video Processor contains all
the video processing hardware
required to manipulate in real time
an individual image and key in 3D
space. One Video Processor Frame
is required for each video/key
channel.
Each channel includes two autotiming serial digital component
video inputs and two auto-timing
serial digital component key inputs
to facilitate A:B switching. Source
selection can be accomplished
using the data interface to Grass
Valley Model 2200, 3000, and 4000
production switchers. An unused
Key input can also be configured as
a mask input. Preview, Program
and Key outputs, are provided for
each channel.
Krystal is capable of 525 or 625 line
operation; selectable session by
session. 4:3 and 16:9 aspect ratios
are supported.
The editor interface permits Krystal
to be controlled using a tape
machine-protocol.
The auxiliary port handles
peripheral protocol for simple
learn, recall, and event triggers.
System Integration
Krystal is designed for integration
with the following Grass Valley
products:
• Model 2200, 3000, & 4000
Production Switcher
• Performer SD 10x1 Routers
• Model 200, Model 250, Model
1000 and Model 1200
Production Switchers
• Grass Valley Max and SMS
8000 (format conversion
products)
Model 2200-2i
The 2200-2i control panel provides
control of both the Krystal Video
Processor channels and the
production switcher. The 2200-2i
control panel functions as a Krystal
control point. Note that the 2200-2i
control panel is specifically
designed for control of Krystal.
Other 2200 models are not
configured for this purpose, but can
be upgraded to a 2200-2i.
Training and Service
Grass Valley offers Service options
including:
• On-Site Post-Installation
Testing
• On-Site Service Agreements
• Module Warranty Extensions
Grass Valley also offers complete
customer training in both servicing
and operations.
Ask your distributor for
information or contact the
Tektronix VND Training
Department at: (916) 478-3152
or write to:
Tektronix VND
Customer Training Department
P.O. Box 1114
Grass Valley, CA 95945
2
Krystal 4300 Ordering Guide
O
RDERING
A
K
RYSTAL
Steps to Ordering
The order guide has been organized
in a sequence of steps to facilitate
the configuration process when
ordering new systems. The
following steps are suggested in
configuring a new Krystal 4300
system for your applications.
1. Select one of the 4310 or
4340 system packages.
Standard-optioned and
fully-optioned packages are
available. 4310 is singleuser, single-channel and is
not expandable. 4340 can
be single-channel, singleuser, and is expandable up
to an 8-channel pool with
up to 4 simultaneous users
controlling from one to four
channels.
4300 S
2. Order additional channels
and options required for
each channel. Standard and
fully-optioned video
processor channels are
available.
3. Order additional user
options as required for
simultaneous user
capability. This includes
Effects Manager options for
control, and combiner
output options for signal
distribution.
4. Order additional combiner
inputs for video processor
pools larger than 4
channels.
YSTEM
Upgrading or Expanding an Existing System
4310 and 4320 models may be
upgraded to 4340 models.
Additional options like Video
Processors or Effects Managers can
be ordered at any time after the
system is installed.
Cables
Control cables and power cables
are included with the control
panel, video processor, and system
controllers. Both the TUV and UL
power cables are provided. These
items will not appear on the
packing slip or order.
3
Krystal 4300 Ordering Guide
4310 M
ODELS
4310 (1-Channel, 1-User System)
4310
Control
Panel
Effects Manager
Graphics Display
Memory Exp.
video, key, mask in
Video
Processor
Frame
Effects Manager
video, key out
Defocus
Kurl
Enhanced Video
Light Source
Single-Channel, Single-User Systems
Output Recursive
Input Recursive
Processor
Standard Option Package Single-Channel Single-User, No Control Panel
This Non-expandable Single Channel Single User Package
includes the following features:
• Single video processor channel
• Single User ready (Effects Manager)
• Graphics Display and Extended Memory for Effects Manager
• Enhanced Image Fidelity
• Input and Output Recursive Effects
• Defocus with Glow
• System Control Frame with Resource Manager and Tally
Control
• Qwerty Keyboard
Fully Optioned Package Single-Channel Single-User,
No Control Panel
4310SYSS
4310SYSF
This Non-expandable Single Channel Single User Package is the
same as the 4310SYSS plus the following:
• Kurl with Splash, and Dual Light Source
4
Krystal 4300 Ordering Guide
4340 M

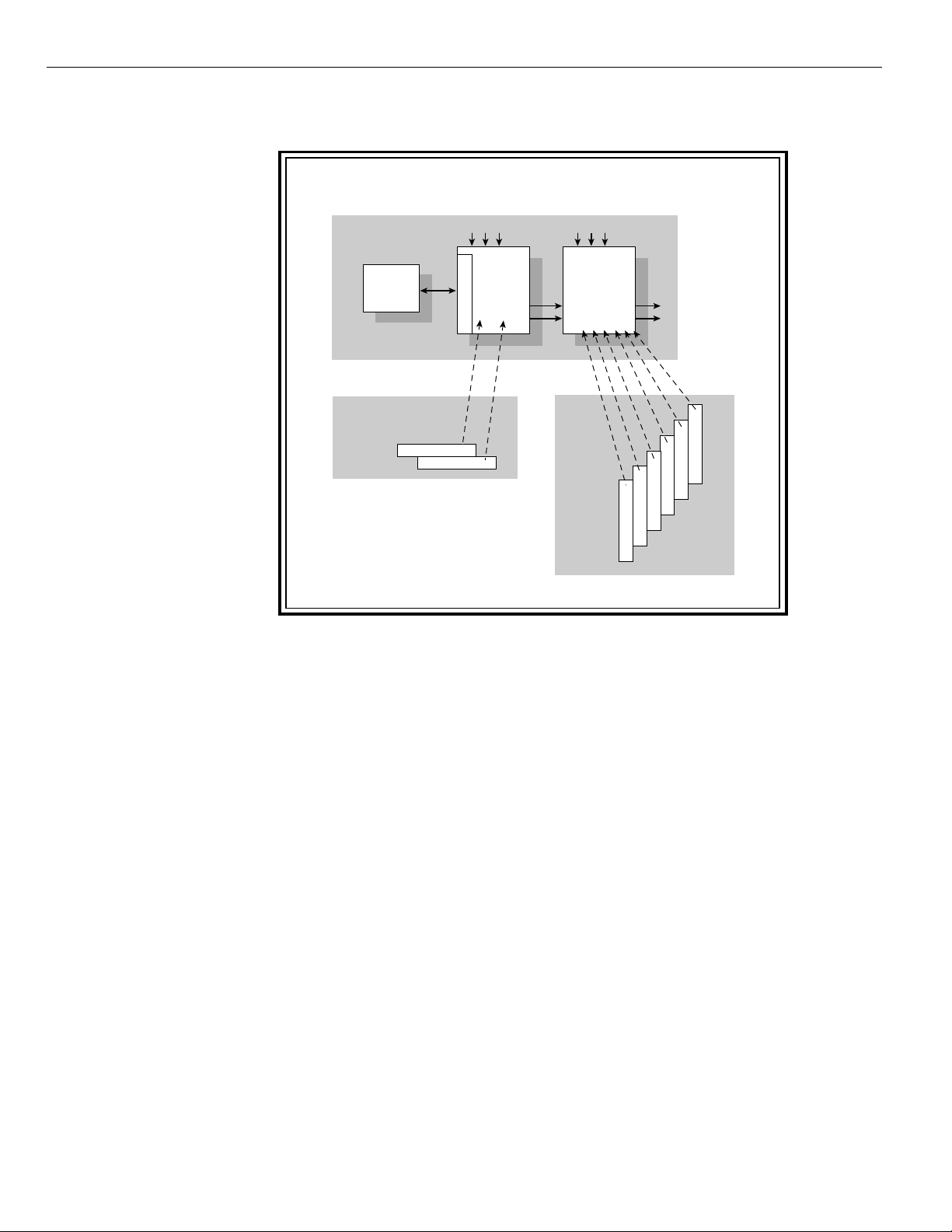

4340 Expandable System
video, key, mask in
Control
Panel
Effects Manager
Features
Graphics Display
Memory Exp.
ODELS
System
Controller
Frame
Effects Manager
video, key, mask in
Video
Processor
video, key out
Frame(s)
Processor
Features
video, key out
Defocus
Kurl
Output Recursive
Input Recursive
Enhanced Video
Light Source
4340 Packages for
Multiple-Users and/
or Multiple-Channels
The 4340 Packages may be configured for one to four
simultaneous users and a pool of from one to eight video
processing channels.
Additional channels can be added to the 4340 Packages, up to
eight channels. Each user on a 4340 system is capable of
controlling one to four channels. Each Video Processor comes
with cables required to interconnect with the additional channels
and to the system controller chassis.
Standard Option Package Single-Channel
Single-User, No Control Panel
This Expandable Standard Option Package includes the following
features:
• Single video processor channel
• Single User ready (Effects Manager)
• Graphics Display and Extended Memory for Effects Manager
• Enhanced Image Fidelity
• Input and Output Recursive Effects
• Defocus with Glow
• System Control Frame with Resource Manager and Tally
Control
• Qwerty Keyboard
4340SYSS
5
Krystal 4300 Ordering Guide
Full Option Package, 1-Channel, Single-User , System Control Frame without combiner or control panel
This Full Option Package consists of everything in the 4340SYSS,
plus the following features:
• Kurl and Dual Light Source
• Defocus with Glow
Standard Option Package, 4-Channel, Single-User ,
System Control Frame without combiner or control
panel
This package is configured with the Standard Option Package like
the 4340SYSS, plus the following features:
• Three additional 4300-102SS Standard Optioned video
processor channels
• One 4300-4x1 Combiner for up to four channels and one user
Fully-Optioned Package 4-Channel Single-User, No
Control Panel
This Expandable Four-Channel Single-User Package has the same
option mix as the 4340SYSF.
4340SYSF
4340SYS4
4340SYS4F
Control Panel
Control Cable and TUV
and UL power cables are
provided with each control
panel.
Standard Option package Extra Video Processor
Provides additional video
channel for 4320, 4320-22
and 4340 systems.
Krystal Control Panel
A control panel must be ordered for a Krystal package unless
system installation includes a Model 2200-2i control panel. Up to
eight control panels can be connected to the Krystal 4300 system.
Additional Video Processor Package
Pre-Configured with the following options:
• (1) 4300-102 Additional Video Processor
• (1) 4300-110 Input Recursive Option
• (1) 4300-111 Output Recursive Option
• (1) 4300-113 Defocus Option
• (1) 4300-115XL Enhanced Video Option
Additional Video Processor Fully-Optioned System
Package
This contains all options in the 4300-102SS, plus Kurl and Light
Source
4300-300
4300-102SS
4300-102SF
6
Krystal 4300 Ordering Guide
Power Cables for
Control Panel and
System Controller
In order to meet UL and TUV safety requirements, the appropriate
power cables must be used with each control panel and system
controller.
Both the TUV and the UL
power cables are provided
with each unit that
requires power.
Power Cable for Video Processor
UL Approved Power Cable
This option must be used on all units installed in the United
States, Canada, South America and South East Asia. A Standard
110 VAC power cable is supplied with each Control Panel and
System Controller. It has a molded grounding plug (NEMA 5-15P)
at one end and a molded grounding connector (IEC 320) at the
other end.
TUV Approved Power Cable
This option must be used on all units installed in Europe. The
Control Panel and System Controller power will be supplied with
a molded grounding connector (IEC 320) on one end with pigtails
on the other. Areas outside of Europe may or may not require a
TUV approved cable, please check local requirements and order
accordingly.
In order to meet UL and TUV safety requirements, the appropriate
power cables must be used with each video processor frame.
UL Approved Power Cables
This option must be used on all units installed in the United
States, Canada, South America and South East Asia. A Standard
110 VAC power cable is supplied with each video processor. It
has a molded grounding plug (NEMA 5-20P) at one end and a
molded grounding connector (IEC 320) at the other end.
Control Cable
TUV Approved Power Cables
This option must be used on all units installed in Europe. The
video processor power will be supplied with a molded grounding
connector (IEC 320) on one end with pigtails on the other. Areas
outside of Europe may or may not require a TUV approved cable,
please check local requirements and order accordingly.
A 50-meter control cable is included with every Krystal and
Model 2200-2i control panel.
The Krystal control system uses Ethernet 10 Base 2 thin net
system. This uses a 50 ohm RG-58 cable (Belden 9907
recommended). The entire network must not exceed 150 meters
total length. The control system must be dedicated to Krystal
control (i.e. isolated from other networks).
Each end of the network must be terminated. 50 ohm terminations
are supplied with the equipment. Equipment must be on a T
connector directly off the control network. Do not put equipment
on legs or spurs off the network. Ts are supplied with the
equipment.
7
Krystal 4300 Ordering Guide
Combiner Options
For configuring the system
according to the number of
video processor channels
and simultaneous users.
Additional User
Not Applicable to 4310
4x1 Combiner
Consists of the following options:
• (1) 4300-4x0 Auto-timed input for 4 video and key pairs
• (1) 4300-0x1 Additional Combiner Output
Provides four video and key inputs for up to 4 video processor
channels, a 4x1 combiner and one user output.
4x0 Additional Combiner Inputs
Consists of the following component:
• 4 video and key pairs, auto-timing input module
This option is to be used to expand a 4 input combiner to 8 inputs,
for channel pools of 5 to 8 video processors.
0x1 Additional Combiner Output
Consists of the following components:
• a four channel combiner
• Preview video
• program video and key outputs (primary and secondary) for
one user
• background video input
This option is required for each additional simultaneous user. An
Effects Manager is also required for each Combiner Output. If one
must be ordered, order either the 4300-220 (with C/P) or the 4300221 Additional User option.
The additional user options provide an additional Effects Manager
for Krystal 4340 Systems. This permits a second user to acquire
available Krystal Video Processors from the pool of channels in a
the system. One of the two options includes a Krystal control
panel.
The Effects Manager is installed in the system controller frame. A
total of four are allowed for up to four simultaneous users.
Up to eight control points are allowed on the network. If no
simultaneous use is required, only one Effects Manager is required
in the system and standalone control panels can be ordered for
each control point required.
4300-4x1
4300-4x0
4300-0x1
Additional User Option
The additional user option provides a second Control Panel and
Effects Manager for Krystal 4340 Systems.
Additional 2200-2i User Option
The additional 2200-2i user option provides an Effects Manager
for the Model 2200-2i Production Switcher (no additional Control
Panel)
8
4300-220
4300-221
Krystal 4300 Ordering Guide
Channel A
Channel B
Channel C
Channel D
Channel E
Channel F
Channel G
Video/Key
V/K
V/K
V/K
V/K
V/K
V/K
Effects Mgr.
Effects Mgr.
Effects Mgr.
Effects Mgr.
4x1 Combiner
Combiner Out
Combiner Out
Combiner Out
4 Additional
Inputs
options
graphics
display
V/K
graphics
display
V/K
graphics
display
V/K
graphics
display
V/K
Room 1
Room 22
Room 3
Room 4
Channel H
Effects Manager = 4300-220 or 221
4x1 Combiner = 4300-4X1
Combiner Out = 4300-0X1
4 Additional Inputs = 4300-4X0
V/K
System
Controller
Kurl and Light Source Option
Kurl
Provides non-linear transformation effects including Page Turn,
Page Roll, Ripples and Slits.
Light Source Option
Provides two independently adjustable light sources, plane, point
or bar, which may be located anywhere in 3D space. Provides
adjustable light color, specularity, diffusion and shading modes.
4300-KLT
9
Krystal 4300 Ordering Guide
Upgrades and Conversion
4340 Upgrade
Any existing Effects
Managers can to be used in
the new 4340 System
Controller Frame.
Upgrading Krystal 4310 or 4320 Models to 4340 Models
The Video Processor upgrade kit (4300-256) must be ordered for
each 4310 Video Processor being converted. The adapter kit
provides a new Video Processor interface card and interconnect
cables. The new Video Processor interface card provides
communications between the Video Processor and the System
Controller. It replaces the interface card used in single-channel
systems. The modules being replaced should be retained if
conversion back to a 4310 is anticipated in the future. There is no
return or exchange for the modules.
The System Controller is a 13 rack unit chassis which houses up
to four Effects Managers, the Resource Manager, Tally Module,
and the Combiner options. The Resource Manager and Tally
Module are included with the System Controller. When upgrading
a 4310 or 4320 model system, the existing Effects Manager module
sets must be moved from the Video Processors to the System
Controller. One to four Effects Managers can be installed in the
System Controller.
Upgrade from existing 4310 or 4320 systems to 4340
The 4340 Upgrade consists of the following components:
• One 4340 System Controller frame
• Resource Manager and Tally Control module
This upgrade kit allows you to upgrade from either a 4310 or a
4320 system.
4300-264
Video Processor Upgrade
One required for each
Video Processor being
upgraded
Manuals
Video Processor Upgrade Kit
Provides Video Processor interface module and control cables for
upgrading a single 4310 Model for use in a 4340 Model system.
Krystal Installation and Maintenance Manual
Manual set contains information required to install and maintain
Krystal.
Krystal OperatorÕs Manual
Manual set contains information required to operate and use the
features of Krystal.
4300-256
4300-410
4300-420
10
Krystal 4300 Ordering Guide
KRYSTAL 4300
ECHNICAL SPECIFICATIONS
T
Specifications are subject to change without notice.
System Performance
Video Standards
Serial Digital Component
525:SMPTE 259M SMPTE 125M
625: EBU Tech 3267
Sample Frequency : 13.5 MHz
Aspect Ratio: 4:3; 16:9
@ 13.5 MHz
Inputs
Serial Digital Component
Video: 2 (A and B)
Key: 2 (A and B)
Graphics background (option): 1
Type: BNC
Impedance: 75W
Return loss: >15 dB
5 Mhz to 270 MHz
Auto Timing Range: ±17 mS
Analog Reference
Source: Analog color black
Type: BNC
Impedance: 75W
Return loss: > 40 dB to 5 MHz
Outputs
Serial Digital Component
Video: 1 Pgm, 1 Pvw
Key: 1
Graphics Output (option): 1
Type: BNC
Impedance: 75W
Return loss: > 15 dB
5 MHz to 270 Mhz
System timing: ± 5 lines
Interfaces
GPI
GPI inputs4 user-programmable
Tally
Tally Inputs: 1 video & 1 key
Tally Outputs: 4
(video & key A/B)
28V, 100 ma resistive load
Serial Control
Number of ports: 3
Tributary-Switcher, Editor, Aux
Type: 9-pin D connector
Standard: RS-422 or RS-485
Control Panel
Type: BNC
Impedance: 50W
ANSI Standard 802.3 1985
150 meter maximum
network length
Power Requirements
Control Panel
Voltage: 100 to 240 VAC
Current: 1 Amp (fused 2 A)
Power: 50 W
Video Processor Frame
Voltage: 100 to 240 VAC
Current: 12Amp Max with options
(Breaker rated at 15 Amps)
Power: 400 to 800 W
System Controller Frame Power Requirements
Voltage: 100 to 240 VAC
Current: 3.5 Amps max
with options
(breaker rated at 6 amps)
Wattage: 300W to 500W
(depending on options)
Dimensions and Weights
Please refer to installation planning guide for more specific information including diagrams.
Control Panel
Height: 30.4 cm, 14"
Width: 43.8 cm, 17.25"
Depth: 36.2 cm, 14.25"
Weight: 11 kg., 25 lbs.
Processor Frame
Height: 57.8 cm, 22.75"
Width: Std 48 cm or 19" Rack
Depth: 55.2 cm, 21.375"
Weight: 76 kg., 167 lbs.
System Controller Frame
Height: 57.8cm 22.75”
Width: 43.8cm17.25”
Depth: 36.2cm14.25”
Weight: 68kg150lb*
*weight varies depending on installed options
Environmental Characteristics
Temperature Range at Frame:
0-40° C, 32-104°F
Relative Humidity: Up to 95%
(non-condensing)
11
Krystal 4300 Ordering Guide
TEKCARE SERVICE PRODUCTS
TekCare is a comprehensive portfolio of software and hardware
support services designed to ensure
that you get the best performance
from your Tektronix Video and
Networking Products.
Services include complimentary
basic support, hotline support,
extended warranties, on-site
service coverage, installation
support, customer training, and
software update support. Each
service can be customized to meet
specific organization and system
requirements.
With TekCare, Tektronix offers a
level of support and satisfaction
that only a worldwide service and
support organization can deliver.
For details, phone Service Sales at
1-800-547-8949 then press 3 and 1.
12
Krystal 4300 Ordering Guide
• Tektronix warrants that the
Video and Networking
Division hardware products
that it manufactures and sells,
will be free from defects in
materials and workmanship
for a period ending at the
earlier of one (1) year from the
date of installation or fifteen
(15) months from the date of
shipment. If any such product
proves defective during this
warranty period, Tektronix, at
its option, either will repair
the defective product or part
without charge for parts and
labor, or will provide a
replacement in exchange for
the defective product or part.
• In order to obtain service
under this warranty, Customer
must notify Tektronix of the
defect before the expiration of
the warranty period and make
suitable arrangements for the
performance of service.
Customer shall be responsible
for packaging and shipping
the defective product or part
to the service center
designated by Tektronix, with
shipping charges prepaid by
Customer. Tektronix shall pay
for the return of the product to
Customer.
• During the first ninety (90)
days of the warranty period,
warranty service will include
(i) reasonable telephone
support during Tektronix
normal business hours to
WARRANTY
assist with advanced level
problem resolution and (ii)
replacement of defective
modules by advance shipment.
• This warranty shall not apply
to any defect, failure or
damage caused by improper
use or improper or inadequate
maintenance and care.
Tektronix shall not be
obligated to reimburse
Customer for service provided
by personnel other than
Tektronix representatives or to
furnish service under this
warranty a) to repair damage
resulting from attempts by
personnel other than
Tektronix representatives to
install, repair or service the
product; b) to repair damage
resulting from improper use or
connection to incompatible
equipment; or c) to service a
product that has been
modified or integrated with
other products when the effect
of such modification or
integration increases the time
or difficulty of servicing the
product.
• Certain products and software
supplied by Tektronix and
manufactured by others may
be subject to the respective
manufacturer’s warranty and
software license agreement
copies of which are provided
with the product. Tektronix
assumes no warranty
obligation either express or
implied for such products and
software. Additional copies of
such warranties and software
license agreements may be
obtained by contacting
Tektronix VND Contract
Administration Department.
• THIS WARRANTY IS GIVEN
BY TEKTRONIX WITH
RESPECT TO THE
PRODUCTS IN LIEU OF ANY
OTHER WARRANTIES,
EXPRESS OR IMPLIED.
TEKTRONIX AND ITS
VENDORS DISCLAIM ANY
IMPLIED WARRANTIES OF
MERCHANTABILITY OR
FITNESS FOR A
PARTICULAR PURPOSE.
TEKTRONIX’
RESPONSIBILITY TO REPAIR
OR REPLACE DEFECTIVE
PRODUCTS IS THE SOLE
AND EXCLUSIVE REMEDY
PROVIDED TO THE
CUSTOMER FOR BREACH
OF THIS WARRANTY.
TEKTRONIX AND ITS
VENDORS WILL NOT BE
LIABLE FOR ANY INDIRECT,
SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL
DAMAGES IRRESPECTIVE
OF WHETHER TEKTRONIX
OR THE VENDOR HAS
ADVANCE NOTICE OF THE
POSSIBILITY OF SUCH
DAMAGE.
13
Copyright © Tektronix, Inc. All rights reserved. Printed in the U.S.A.
TEKTRONIX is a registered trademark and Grass Valley is a trademark
of Tektronix, Inc. All registered trademarks and trademarks are property
of their respective holders.
12/97 LM2951R2 2WW-3201-5
For further product and service
information or the sales office
nearest you, please contact:
Tektronix, Inc.
Video and Networking Division
P.O. Box 500
M.S. 58-965
Beaverton, OR 97077-0001
USA
No. America Phone: (800) 547-8949
No. America fax: (503) 627-7275
Europe fax: 33 (1) 69 07 0937
Asia fax: +852 2802 2996
Japan fax: +81 (3) 5992 9377
Latin America fax: (305) 477-5385
InfoFax: (800) 704-8843 (North America)
URL: http://www.tek.com/VND
Loading...
