Grass Valley 3-CCD CameraMan User Manual Rev.C

CameraMan
3ccd Presenter Camera System
Installation and Operations Manual
071838700 rev. C
JUNE 2005
Contacting Grass Valley
Region Voice Fax Address Web Site
North America (800) 547-8949
Support: 530-478­4148
Pacific Operations +852-2585-6688
Support: 852-2585­6579
U.K., Asia, Middle East +44 1753 218 777 +44 1753 218 757
France +33 1 45 29 73 00
Germany, Europe +49 6150 104 782 +49 6150 104 223
Copyright © Thomson Broadcast and Media Solutions All rights reserved.
Grass Valley Web Site
The www.thomsongrassvalley.com web site offers the fol- lowing:
Online User Documentation — Current versions of product cat-
alogs, brochures, data sheets, ordering guides, planning guides, manuals, and release notes in .pdf format can be downloaded.
Sales: (530) 478-3347 Support: (530) 478­3181
+852-2802-2996
Grass Valley P.O. Box 599000 Nevada City, CA 95959-7900 USA
www.thomson­grassvalley.com
FAQ Dat a b a se — Solutions to problems and troubleshooting
efforts can be found by searching our Frequently Asked Questions (FAQ) database.
Software Downloads — Software updates, drivers, and patches
can be downloaded.
CameraMan 3ccd Presenter Camera System Installation and Operations Manual

Table of Contents

List of Figures x
Meet Your Presenter System 1
Presenter System Components 3
Main Docking Station 6
Tracking Ring Package 8
Tracking System Keypad 10
Connect Your Presenter System 13
Installing the Camera System 13
Connecting to the Main Docking Station 16
Tracking Ring Power Pack Assembly 18
Configure Your Presenter System 21
Configuring the Main Docking Station 21
Configuring the Tracking System Keypad 22
Other Configurations 26
071838600 June 2005 viii
Use Your Presenter System 29
System Start Up 29
Using autoTRACK 32

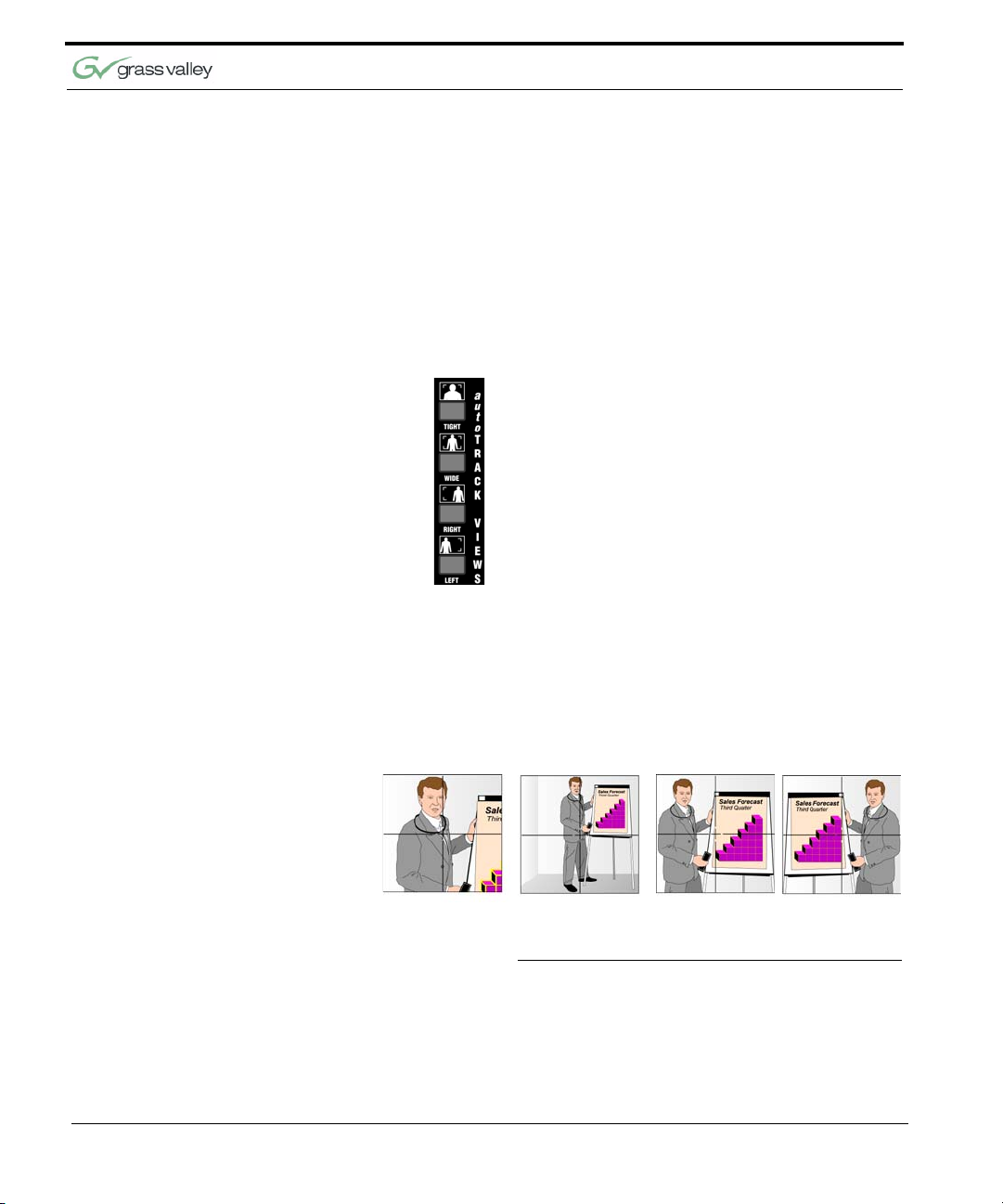

Using AutoTRACK Views 34
Using Subject Position and Pan/Tilt Arrows 38
Using AutoFIND and Tracking Freeze 40
Using Location Presets 41
Controlling the Zoom, Focus and IMAGE 43
Controlling the Camera Setup Mode 44
Appendix A
Specifications and Clearance Diagram 47
Appendix B
Troubleshooting 49
Appendix C
Pinout Connections 55
Appendix D
Typical System Diagram 57
Appendix E
Glossary of Terms 59
Appendix F
Warranty Information 61
Index 63
ix CameraMan 3-CCD Presenter Camera System Installation and Operations Manual

List of Figures

Main Docking Station 3 Tracking System Keypad 5 Main Docking Station Backpanel 6 Power Pack with Top View 8 Tracking Ring Assembly 9 Belt with Power Pack 9 Tracking System Keypad 10 Connector Block and CameraMan 13 Backpanel with Power Supply 14 Connecting Main Docking Station 16 Antenna Hanging Loosely 18 Front and Back Tracking Sensors 19 Sensor Blocked by Hair 19
o
360
of Coverage 20 Facing the CameraMan Camera 24 Facing with CameraMan Camera 25 Default PAN/TILT 26 AutoTRACK Window 27 Auxiliary Battery Pack Plugged In 31 (Left to Right) Tight, Wide, Left, Right AutoTRACK Views 34 Docking Station Clearance Diagram 48 Typical System Diagram 57
071838600 June 2005 x
List of Figures
xi CameraMan 3-CCD Presenter Camera System Installation and Operations Manual
Chapter 1 Meet Your Presenter System

Congratulations On Your Purchase

Your new Grass Valley Camera System uses proven automatic tracking technology to help improve your distance learning, telemedicine and videoconferenc­ing applications. You should use this manual in con­junction with the installation and operations manual that came with your CameraMan 3-CCD camera.
This manual covers the connection, configuration, and usage of your new Presenter Camera System. Along with basic pan, tilt, zoom, focus and IMAGE control of your CameraMan camera, the Presenter Camera System boasts advanced features and functionality. The system comes with an input/output Main Docking Station, the Tracking Ring Package with built-in microphone, and the wireless RF (or hard-wired) Tracking System Keypad from which autoTRACK Views and other tracking functions are controlled.
If you have questions regarding the installation or operation of your CameraMan 3-CCD General Pan/ Tilt camera, refer to the installation and operations manual included with the camera.
071838600 June 2005 1
Chapter 1
You’ll see three icons in this manual:
This icon alerts you to important instructions in the operation and maintenance of your Camera Control Keypad.
This icon alerts you to tips or noteworthy sugges- tions in the operation, use or maintenance of your Camera Control Keypad.
This icon refers you to the 3-CCD Camera Installa- tion and Operations Manual that came with your camera.
Your 3-CCD Presenter Camera System should include these components:
One 3-CCD Main Docking Station
One 10’ Main Docking Station Cable
One Tracking Power Pack
One Tracking Ring Sensor
One Tracking Ring Belt
One Power Pack Charger
One 3-CCD Tracking System Keypad
One 3-CCD Presenter Camera System Opera-
tions Manual
One 3-CCD Tracking Ring Package Quick Ref-
erence Card
One Tracking Ring Power Pack Pouch
CameraMan Keypad Cable (6-pin phone) - 25
feet
Two Rubber Duck Antennas
The terms Visibly Better, IMAGE, and Digital RF 900, are registered trademarks of Grass Valley, Inc. in the United States of America. The terms Camera­Man and Grass Valley are registered logos in the United States of America. Federal law prohibits any
2 C amera Man 3-CCD P resent er Came r a Syste m Instal lation a nd Oper a tions M anual
Meet Your Presenter System
commercial use of these registered trademarks and logos.
The manufacturer reserves the right to change specifications and warranty at any time without notice or obligation.
Refer all Warranty and Servicing to the Grass Valley Product Support listed in the back of the installation and operations manual that came with your Cam­eraMan camera.
No part of this manual may be copied or reproduced without express written consent of Grass Valley, Inc. © 1998 Grass Valley, Inc.
DURACELLÆ is a registered trademark of Duracell, Inc.

Presenter System Components

The Presenter Camera System comes with various pieces that, using both infrared (IR) and radio-fre­quency (RF) autoTRACK technology, assist the CameraMan in automatically following you around the room. If you have purchased this as an upgrade, then your package will include all the necessary components except the camera.

Main Docking Station

FIGURE 1.1 Main Docking Station
The Main Docking Station is the I/O center of your Presenter Camera System. It comes standard with
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 3
Chapter 1
two RF frequencies (alternate channels are avail­able for special order). After you connect it to your CameraMan camera, you can control the camera’s video and audio out, as well as its movement via the tracking ring, tracking keypad, or another external control device. The Main Docking Station consists of:
Main Docking Station with two antennas.
10’ multi-conductor cable with 37-pin D-sub con-
nectors.

Tracking Ring Package The Tracking Ring Package uses Grass Valley’s

patented autoTRACK technology to communicate with your CameraMan camera. By wearing the Tracking Ring, you can move freely throughout the room while the camera automatically follows your every move. This gives you the freedom to get up from the conference room table and walk to a flip­chart without depending on a human camera opera­tor or a system with a fixed- or static-view camera. The Tracking Ring Package consists of:
Tracking Ring with built-in microphone
Tracking Power Pack with a built-in 12 Hour
Rechargeable Battery
Tracking Power Pack Belt
4 C amera Man 3-CCD P resent er Came r a Syste m Instal lation a nd Oper a tions M anual
Meet Your Presenter System
Tracking Power Pack Pouch
Power Pack Charger

Tracking System Keypad

FIGURE 1.2 Tracking System Keypad
The Tracking System Keypad (7) lets you control camera features such as autoTRACK Views, loca­tion presets and manual pan/tilt functions in either a wireless RF, or hard-wired mode. With icons illus­trating every autoTRACK View button, you can eas­ily understand what each camera view should look like.

Also Available (Sold Separately)

Auxiliary Battery Pack
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 5

Main Docking Station

FIGURE 1.3 Main Docking Station Backpanel
Antenna RF receivers for the tracking
RF Channel Select
Chapter 1
power pack.
Used to select which RF channel the Main Docking Station will use to communicate with the Tracking Ring Package.
Audio Level Switch
Audio Level Adjust
S-Video Out Jack
Composite Video Out Jack
6 C amera Man 3-CCD P resent er Came r a Syste m Instal lation a nd Oper a tions M anual
Used to configure the level of the balanced audio (XLR) output, available for either LINE or MIC level, depending on the type of audio system interfacing with the CameraMan system. The unbalanced ouput is LINE only.
Used to fine tune the level of the audio outputs.
Provides direct S-Video video output through standard mini­DIN jack (cable not provided).
Provides direct composite video output through standard BNC­type jack (cable not provided).
Meet Your Presenter System
RS-485 IN and OUT Jacks
PVI COM Jack 6-conductor RJ-11 jack used for
RS-232 Port Standard DB-9 (female)
Auxiliary Communications Port A
Audio Balanced Jack
Audio Unbalanced Jack
4-position modular handset jacks used for RS-485 communications between the camera system and other CameraMan devices.
communication with the Tracking System Keypad in hard-wired mode.
connector provides RS-232 communications capability for devices like PCs or other vendor-control systems.
Provides communications to select CameraMan perpherals. Do not use unless otherwise specified.
Standard XLR-type connector provides balanced line or mic level audio output to connect to a standard mixer or similar audio equipment.
Standard RCA-type connector provides unbalanced, line level only mono audio output to connect to a standard mixer or similar audio equipment.
Base Unit Port 37-pin D-sub connector
provides communication between the Main Docking Station and the Camera System via a 10’ multi-conductor cable.
DC Power Power input for the Main
Docking Station.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 7

Tracking Ring Package

Power Pack

FIGURE 1.4 Power Pack with Top View
Power Switch Used to turn Power Pack and
Power Indicator LEDs
Tracking Ring Port
Auxiliary Battery Pack Port
Chapter 1
Tracking Ring on and off.
Lets you know when power is ON
(red) and when batteries are LOW (yellow).
Used to connect Tracking Ring to power pack, see “Tracking Ring Package” on page 29.
Used to connect the optional auxil­iary battery pack for extended use, see “Optional Auxiliary Battery Pack” on page 31.
Audio Switch Used to turn Tracking Ring’s micro-
phone on and off.
Charger Port Used to connect battery charger to
power pack.
RF Channel Switch
8 C amera Man 3-CCD P resent er Came r a Syste m Instal lation a nd Oper a tions M anual
Used to select the RF channel the power pack will use to communi­cate with the Docking Station (they should be the same).
Meet Your Presenter System

Tracking Ring Assembly

FIGURE 1.5 Tracking Ring Assembly
Back Sensor
Front Sensor
Tracking Ring Port Connector

Belt Assembly

FIGURE 1.6 Belt with Power Pack
Using the pouch, clip power pack on belt as shown.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 9

Tracking System Keypad

Next, take a look at the front of your Tracking Sys­tem Keypad. It is the control center for your Pre­senter Camera System and is composed of the following features.
Chapter 1
FIGURE 1.7 Tracking System Keypad
Used to recall preset locations. The HOME but-
ton is considered PRESET 1.
Used to change the position and perspective of
the presenter in the video frame while being tracked by the camera (choose between Tight, Wide, Right and Left).
10 CameraMan 3-CCD Presenter Camera System Installation and Operations
Meet Your Presenter System
Used to fine-tune the position of the subject
while in autoTRACK mode.
Illuminates when batteries are placed in the key-
pad or function buttons are pressed.
Used to disengage autoTRACK, and freeze the
camera’s movement while in autoTRACK mode.
Used in conjunction with other controls for key-
pad customization and camera setup.
Used to manually adjust visual clarity of the
video picture.
Used to brighten and darken the video picture.
Used, when pressed simultaneously with the
Setup Button, to turn the keypad’s Camera Setup Mode on and off.
Used to allow the camera to automatically adjust
brightness and darkness for each video picture.
Zoom (IN/OUT) - Used to control the tightness of
the camera view.
Menu - Used to toggle the on-screen menu dis-
play on and off.
Bars - Used to toggle the on-screen color bars
on and off.
Used to control the camera’s up/down, and left/
right movement.
Using the Pan/Tilt arrow buttons disengages the autoTRACK mode.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 11
This page was intentionally left blank.
Chapter 1
12 CameraMan 3-CCD Presenter Camera System Installation and Operations
Chapter 2 Connect Your Presenter System

Installing the Camera System

Now that you’ve identified the components of your Presenter Camera System, as well as their individ­ual buttons, ports and jacks, you can begin connect­ing them to your CameraMan camera.
Removing the Camera­Man Connector Block (Upgrade Only)
FIGURE 2.1 Connector Block and CameraMan
If you are performing an initial installation of a sys­tem package, as opposed to an upgrade, this is not necessary.
071838600 June 2005 13

Mounting the Main Docking Station

Chapter 2
Use the following procedure to remove the Camera­Man Connector Block:
1. Turn the POWER switch on the back of the Cam-
era OFF.
2. Disconnect all cables from the back of the cam-
era.
3. Remove the three screws that hold the connec-
tor block in place.
4. Pull the connector block out, unplugging it from
the DB-37 connector. The Main Docking Station cable plugs into this port.
FIGURE 2.2 Backpanel with Power Supply
You can mount the Main Docking Station with any orientation, but you must mount it within 10’ of the autoTRACK camera (use only the supplied Camera­Man cable to connect the two units). Mount the Main Docking Station using the following guidelines:
1. Mount the Main Docking Station in the desired
location. Be sure to leave enough space for access to the connections on the back panel.
2. Verify that the POWER switch is OFF on the
front of the Main Docking Station.
3. Mount or place the CameraMan Power Supply in
a convenient location near the autoTRACK Docking station.
4. Plug the 5.5mm female connector from the
power supply cord into the DC POWER jack in
14 CameraMan 3-CCD Presenter Camera System Installation and Operations
Connect Your Presenter System
the back of the docking station. Do NOT plug it directly into the back of the camera.
5. Plug the other end of the power supply into a
120 VAC outlet.
6. Connect the antennas to the appropriate con-
nectors and position them both to point vertically for optimum performance.
For best performance, locate the antenna in free space, at least 6’ from the camera or any wires, metal surfaces, wall, etc.
Make sure the Docking Station is at least 1 foot away from the camera unit.
See “Docking Station Clearance Diagram” on page 48.

Multi-Camera Applications

In a multi-camera application, refer to the multi-cam­era section of the General Pan/Tilt Operations Manual. Follow the appropriate procedure, using the RS-485 connections on the back of the Main Docking Station instead of the connections on the back of the camera.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 15

Connecting to the Main Docking Station

FIGURE 2.3 Connecting Main Docking Station
Now you can begin connecting your Main Docking Station to your CameraMan Camera System and your camera control devices.
Chapter 2

Connecting the CameraMan Cable

16 CameraMan 3-CCD Presenter Camera System Installation and Operations
The autoTRACK camera connects to the Main Docking Station using the supplied CameraMan 10’ multi-conductor cable with DB-37 connectors on both ends.
1. Verify that the POWER switch is turned OFF on
the front of the Main Docking Station before making this connection.
2. Connect the DB-37 male connector to the back
of the CameraMan camera and secure the con­nection using the two connector screws located on the cable connector. This ensures that the cable does not become dislodged due to the motion of the CameraMan camera.
3. Connect the other end of the CameraMan cable
to the BASE UNIT connector on the back of the Main Docking Station.
Verify that the CameraMan Cable is supported so that the camera does not drag the cable as it moves. If the camera drags the cable, then system perfor­mance may be compromised.
Connect Your Presenter System

Connecting a Keypad/ Controller

Connecting to the RS­232 Port
The Tracking System Keypad can be hard-wired to the Main Docking Station using a CameraMan Key­pad Cable (provided separately).
1. Connect one end of the cable to the RJ-11 type
jack located in the battery compartment of the keypad. (Remove batteries)
2. Connect the other end of the cable to the RJ-11
type jack to the back of the Main Docking Sta­tion, labeled PVI COM.
3. The LED on the keypad should illuminate
momentarily, indicating that the keypad is ready.
Using cable other than supplied cable for the PVI COM port may cause damage. The Tracking Sys­tem Keypad can be hard-wired up to a maximum distance of 250’.
The Presenter Camera System provides for RS-232 communications using the DB-9 jack on the back of the Main Docking Station, labeled RS-232. this RS­232 port can be used to control the CameraMan camera from external devices, such as a PC or other vendor control system (i.e., AMX or Crestron). Connect to this port using a standard computer cable with DB-9 connector. This port operates at 9600 Baud (19,200 with CameraMan SHOT Direc- tor), No Parity, and software hand-shaking using CameraMan High Reliability or Basic protocols (only High Reliability with SHOT Director). The LED located above the RS-232 port indicates communi­cation activity.
Verify which protocol is being used by checking the PROTOCOL switch (switch bank B- switch 1) on the back of the CameraMan camera, and which Baud rate (9600 or 19,200) is needed by checking switch bank A-7.
For more information on setting the PROTOCOL on your CameraMan camera, see the Installation and Operations Manual that came with the camera.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 17

Tracking Ring Power Pack Assembly

Now you’re ready to assemble the Tracking Ring Package and learn how to wear it properly to ensure that your CameraMan camera follows you around the room.
Chapter 2

Tracking Ring Power Pack Assembly

Using the Power Pack Pouch, attach the Tracking Power Pack directly to your clothing by clipping it to your waistline or skirt, or to the Tracking Ring Power Pack Belt.
The Tracking Power Pack must be worn so the antenna hangs loosely, like shown below. Do not place the Power Pack in your pocket. This interferes with the RF signal and may affect the audio and tracking capability.
FIGURE 2.4 Antenna Hanging Loosely

Tracking Ring Sensors 1. Identify the sensors:

Front Sensor: equipped with a built-in micro­phone and tracking sensor. It is identified by the main connector to the Power Pack. Back Sensor: equipped with the built-in tracking sensor only.
2. Slip the Tracking Ring around your neck.
3. Clip the Tracking Ring strap closed to form a
complete circle around your neck.
4. Verify that the Front Sensor is lying flat and cen-
tered just above chest level, and the back sensor is lying flat on the back of your collar.
5. Plug the main connector into the port on the top
of the Tracking Ring Power Pack.
18 CameraMan 3-CCD Presenter Camera System Installation and Operations
Connect Your Presenter System

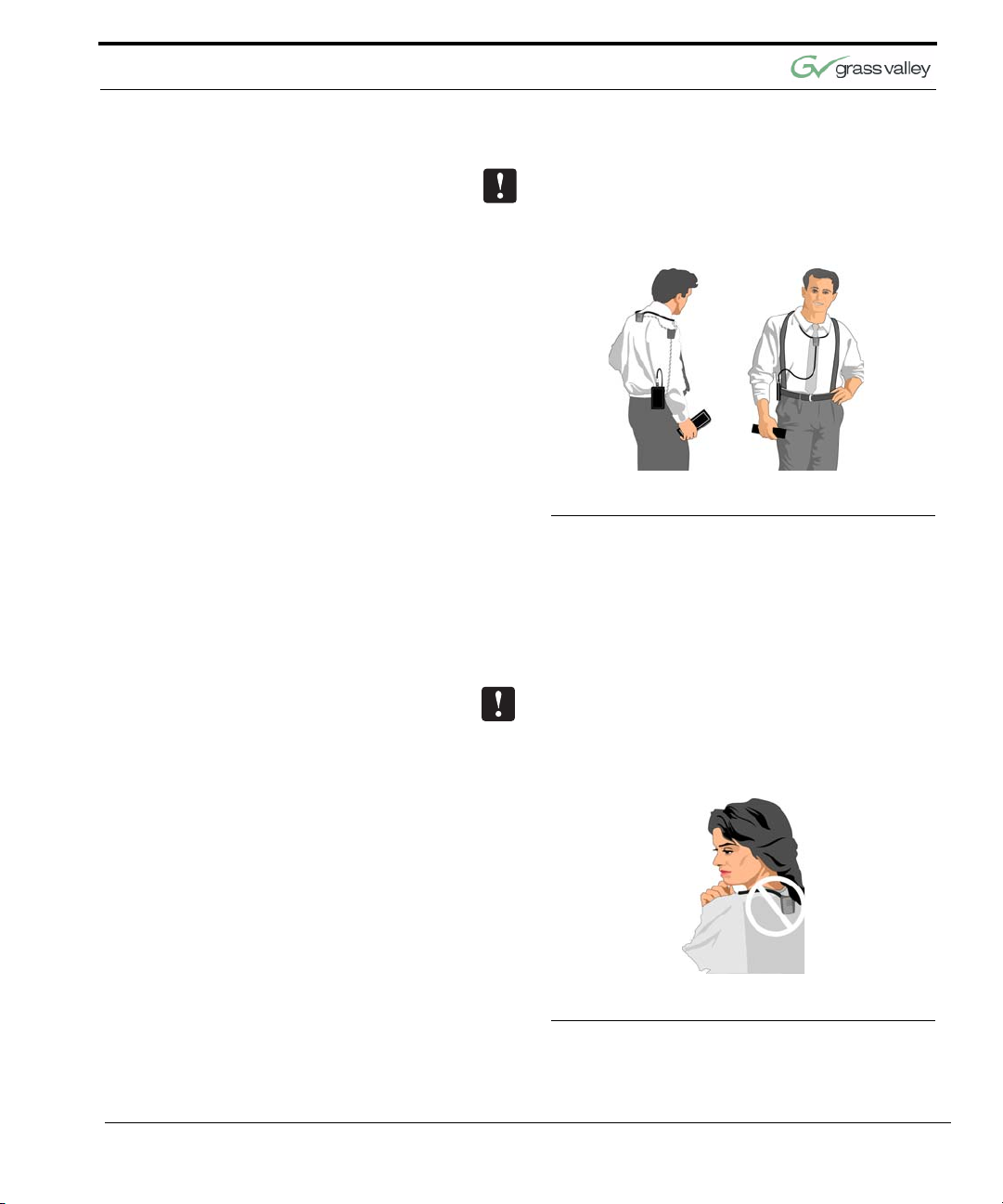

About the Sensors You should understand how the autoTRACK Track-

The Front and Back sensors require a direct line-of­sight link with the camera. The presenter must exer-
cise caution to ensure no clothing or hair covers either Sensor.
FIGURE 2.5 Front and Back Tracking Sensors
ing Sensors work to obtain the maximum perfor­mance levels. The autoTRACK mode is an exclusive Grass Valley feature that enables the sub­ject wearing the Tracking Ring Package to be tracked automatically by the camera.
Since the Tracking Sensors require a direct line-of- sight link with the camera, the subject must exercise caution to ensure no clothing or hair covers the Sen­sors. This ensures constant communication with the CameraMan camera.
FIGURE 2.6 Sensor Blocked by Hair
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 19
Chapter 2
The Front Sensor should be lying flat and centered on the body, just above the chest level. This Back Sensor should lie flat against the back of the collar or neck. When a presenter turns around to point to a flipchart, for example, the Back Sensor continues to receive the infrared tracking signal from the camera.
FIGURE 2.7 360
o
of Coverage
With the proper positioning of the sensors, the Cam-
o
eraMan camera provides 360
of coverage for the
presenter wearing the Tracking Ring.
20 CameraMan 3-CCD Presenter Camera System Installation and Operations
Chapter 3 Configure Your Presenter System

Configuring the Main Docking Station

Before you can begin to use your new Presenter Camera System, you need to configure its compo­nents.
There are two settings on the back of the Main Docking Station which must be set as follows:
1. Set the RF CHANNEL switch to the desired
channel. This must match the setting on the Tracking Ring Power Pack. If you experience any problems on one of the channels, switch both to the alternate channel. (Factory Default:
UP position/one dot)
2. Set the AUDIO LEVEL switch to the desired
audio output.
To have a mic-level audio signal, set this
switch to MIC.
To have a line-level audio output, set this
switch to LINE.
071838600 June 2005 21
Chapter 3
This switch setting will apply to the
balanced audio output only. (Factory Default: MIC)
3. Set the AUDIO LEVEL ADJUST to the desired
volume level.
Refer to Appendix A for specifications on the audio outputs.

Powering Up Before you can configure the rest of you Presenter

Camera System, you need to turn the system power ON.
Switch ON the POWER button on the front of the Main Docking Station. The CameraMan camera should automatically enter its position calibration
mode and then stop at the 0 Verify that the base is now facing in the direction you pointed the FRONT label when mounting.
For more information on mounting the CameraMan, see the Installation and Operations Manual that came with the camera.
o
Pan/0o Tilt position.

Configuring the Tracking System Keypad

Tracking System Keypad Check the KEYPAD ADDRESS rotary switch

(located in the battery compartment of the keypad) and verify that the selected setting corresponds to the setting of the BASE UNIT ADDRESS switch on the back of the autoTRACK camera. If the two are different, adjust them so that they correspond.
For more information on configuring the BASE UNIT ADDRESS on the camera and keypad, refer to the
CameraMan Camera Installation and Operations Manual that came with the camera.
If the Tracking System Keypad is being used in the wireless RF mode:
1. Install the supplied AA batteries in the Tracking
System Keypad by removing the battery door
22 CameraMan 3-CCD Presenter Camera System Installation and Operations
Configure Your Presenter System
and inserting the batteries into the battery com­partment.
2. After installing the batteries, replace the battery
door and press one of the pan keys.
3. Look to verify that the LED on the front of the
keypad illuminates. This indicates that the batter­ies are installed properly.
If the LED does not illuminate, the batteries may be installed backwards. Reverse the way the batteries are inserted, and try again.
If the batteries are inserted improperly, it will not damage the keypad, the keypad will simply not work.
If the Tracking System Keypad is being used in the hard-wired mode, connect the CameraMan Keypad Cable to the RJ-11 type jack located in the battery compartment of the Tracking System Keypad. Remove the batteries first.
You do not need batteries installed in the Tracking System Keypad when it is being used in the hard­wired mode.
Press the PAN and TILT arrows one at a time and verify that the camera is responding to the keypad. The COM LED on the front of the camera should flash with every command received by the camera. If the autoTRACK LED on the front of the camera is not illuminated, press one of the four autoTRACK
View buttons on the keypad. This should cause the autoTRACK LED to begin flashing.
Refer to page 32 through page 43 for details on using the Tracking System Keypad.
You can control the CameraMan camera’s panning motion with either the PAN/TILT arrows on the bot­tom, or, when using autoTRACK, the SUBJECT POSITION arrows on the top of your Tracking Sys­tem Keypad. Understanding how the camera moves will help you stay in control of your presentations.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 23
Chapter 3
Modification of the following features is not required for system operation, but they are available if needed.
For information on configuring your CameraMan camera, refer to the Installation and Operations Manual that came with the camera.

Understanding the Panning Motion

The PAN/TILT and SUBJECT POSITION arrows on your Tracking System Keypad are designed to help you maneuver the camera both in and out of autoTRACK mode.
FIGURE 3.1 Facing the CameraMan Camera
The default setting, shown above, is designed to operate as if you are facing the CameraMan cam­era. Some examples of applications that would ben­efit from the default settings are:
Distance Learning where you are the instructor.
Presentations where you are the presenter and
the audience members are watching you on a monitor.
Videoconferences where you are an on-screen
participant.
Any other application where you, the keypad
controller, need to be on camera.
24 CameraMan 3-CCD Presenter Camera System Installation and Operations
Configure Your Presenter System
FIGURE 3.2 Facing with CameraMan Camera
However, there are applications in which you do not need to face the camera, so the default setting will not work. In these cases, you can stand BEHIND the camera, as shown above. But when you want the camera to move right, the picture moves left. These applications require that you re-orient the PAN arrows. Some examples of applicaions that might benefit from this re-orientation are:
Presentations where you are not the presenter,
but are controlling the camera’s movement.
Videoconferences where you are a moderator,
but not an on-screen participant.
Applications where you are in a control room
controlling the camera.
Any other application where the keypad control-
ler does not need to be on camera.

Re-Orienting the Pan Arrows

CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 25
To re-orient (reverse) the default setting of the PAN arrows on your Camera Control Keypad, use the fol­lowing procedure:
Press and hold the TRACKING FREEZE and SETUP buttons simultaneously. The keypad will beep after about two seconds. Release the buttons.
This will also reverse the operation of the SUBJECT POSITION arrows.
Chapter 3
25

Other Configurations

The following configurations, like the panning orien­tation, would apply to your specific application need.
Before changing the autoTRACK Window size, you will need to power up the tracking ring package. See “Tracking Ring Package” on page 29.
FIGURE 3.3 Default PAN/TILT

Maximum Pan/Tilt Travel Once the CameraMan camera is installed, you can

configure the maximum PAN/TILT settings to the application. The camera has a maximum PAN range
o
of 359
, but comes programmed with factory default
settings of above. If desired, use the following procedure to change the maximum position settings:
1. Press and hold SETUP.
2. Press and hold one of the PAN /TILT arrows until
achieving the desired maximum position.
3. Release SETUP.
4. Listen for two beeps to indicate that the maxi-
mum position for that direction has been set.
o
of PAN and o of TILT, as shown
90±
±
26 CameraMan 3-CCD Presenter Camera System Installation and Operations
Configure Your Presenter System

AutoTRACK Windows

FIGURE 3.4 AutoTRACK Window
Each autoTRACK View includes a pre-pro­grammed window. This window is an invisible area around the presenter, as shown above, where the Tracking Ring’s movement does not cause Camera­Man to PAN or TILT. Once the presenter moves in a direction outside of the invisible autoTRACK win- dow, the CameraMan continues to autoTRACK. This eliminates unnecessary camera motion, pro­vides better picture quality for videotaping, and mini­mizes the amount of updating necessary at lower CODEC update rates in videoconferencing applica­tions.
Each autoTRACK View has a preprogrammed win­dow. Each window is set at a predetermined factory default, and in most applications does not need to be adjusted.
Proper window sizes are factory-determined for best results. Grass Valley recommends that you do not alter or adjust the window size.
If a change in Window size is absolutely necessary:
1. Press and release the desired autoTRACK
View.
2. Press and release both SETUP and the desired
SUBJECT POSITION arrow simultaneously as
follows:
Left Arrow Decrease Pan Window
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 27
Chapter 3
Right Arrow Increase Pan Window
Down Arrow Decrease Tilt Window
Up Arrow Increase Tilt Window
3. Press and hold the selected autoTRACK View
until you hear two beeps indicating that the new window size has been set.
28 CameraMan 3-CCD Presenter Camera System Installation and Operations
Chapter 4 Use Your Presenter System

System Start Up

Once all necessary connections and configurations are made, you are ready to start up the rest of the system.

Tracking Ring Package 1. Power ON the CameraMan camera with the

POWER switch on the Main Docking Station.
2. Set the Tracking Ring Power Pack’s Power
switch, located on the top of the unit, to ON. The Power ON LED on the Power Pack will illumi-
nate.
If the Power ON LED on the top of the Tracking Ring Power Pack does not illuminate, refer to the Troubleshooting section of this manual.
3. Verify that the TRACKING UNIT STATUS LED
on the camera’s display panel is illuminated, indicating the communication link between the camera and the Tracking Ring.
071838600 June 2005 29
Chapter 4
4. Press one of the four autoTRACK View buttons
on the keypad to activate the autoTRACK func­tionality of the Camera System (the camera will not track until one of the autoTRACK buttons is pressed). Once you are in autoTRACK mode, the autoTRACK LED on the camera’s display panel will illuminate.
If the autoTRACK LED on the CameraMan’s dis­play panel is blinking, CameraMan is in autoTRACK mode, but the link between CameraMan and the Tracking Ring is not active.
To establish this link, move into the CameraMan’s field-of-view (see the autoTRACK MODE or Trou- bleshooting sections of this manual for further assis­tance).

Rechargeable Battery The Tracking Ring Power Pack comes with a built-in

12-hour Rechargeable Battery. When the battery is running low, the Battery LOW LED on the top of the Tracking Ring Power Pack illuminates. At this time the Tracking Power Pack should be recharged or an Auxiliary Battery Pack should be attached to the Tracking Ring Power Pack.

To recharge the battery: 1. Turn OFF the Tracking Ring Power Pack.

2. Set the switch on the front of the Battery Charger
to TRACKING POWER PACK.
3. Plug the Battery Charger into an electrical outlet
and connect it to the Power Pack.
The Battery Charger takes two to three hours to recharge the Tracking Ring Power Pack.
30 CameraMan 3-CCD Presenter Camera System Installation and Operations
Use Your Presenter System
The LED on the Battery Charger indicates when the battery is fully charged. If a battery is very low, the LED on the charger flashes slowly. When the battery is fully charged, the LED on the charger flashes quickly.

Optional Auxiliary Battery Pack

An optional Rechargeable Auxiliary Battery Pack is available to connect with the Tracking Power Pack for extra long use. When attached to the Tracking Power Pack, the Auxiliary Battery Pack overrides the built-in 12-hour Battery. If you need more than 12 hours of use, connect the Auxiliary Battery Pack to the Tracking Power Pack, as shown below. This provides up to 24 hours of use.
FIGURE 4.1 Auxiliary Battery Pack Plugged In
To recharge the Auxiliary Battery Pack:
1. Turn OFF the Tracking Power Pack.
2. Set the switch on the front of the Battery Charger
to AUXILIARY BATTERY PACK.
3. Plug the Battery Charger into an electrical outlet
and connect the Auxiliary Battery Pack to the charger.
To get the maximum hours of use, use the 12-hour built-in battery first until the Battery LOW light illu­minates, and then attach the Auxiliary Battery Pack for an additional 24 hours, giving you a total of 36 hours of use.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 31

Audio Switch

To activate Audio:

Using autoTRACK

Chapter 4
The Battery Charger takes 4 to 6 hours to recharge the Auxiliary Battery Pack.
1. Set the AUDIO switch on the top of the Tracking
Ring Power Pack to ON.
2. Speak at a normal level.
If you decide not to use the Audio feature of the Tracking Ring Package, the AUDIO switch on the top of the Tracking Power Pack should be set to OFF.
Your Presenter Camera System’s ability to follow a presenter around the room is unmatched in the industry. Now that you’ve connected, configured, and powered up all the system components, you can begin to put them to use.

AutoTRACK Mode AutoTRACK mode enables the CameraMan camera

to follow a presenter who is wearing the Tracking Ring Package. To engage the autoTRACK mode, press one of the four autoTRACK View buttons on the Tracking System Keypad.
If you are using a Deluxe Camera System with Per­sonal Locator Keypads, use the following proce­dure:
1. When you are ready to begin autoTRACKing,
press LOCK on the Chairperson Locator Keypad to disable all Personal Locators from controlling the camera.
32 CameraMan 3-CCD Presenter Camera System Installation and Operations
Use Your Presenter System
2. Press one of the four autoTRACK View buttons
on the Tracking System Keypad.
3. when you are finished autoTRACKing, press
UNLOCK on the Chairperson Locator Keypad.
For more information on the Personal Locator Key­pads, see the CameraMan Personal Locator Sys- tem Operations Manual.
If the LOCK button is not used and a MY TURN but­ton is pressed while autoTRACKing, then the sys­tem disengages the autoTRACK mode and goes to the MY TURN position.
The autoTRACK mode’s operation requires the sub­ject to be in the field-of-view of the autoTRACK camera.
Once the subject enters the field-of-view, the cam­era moves to lock onto line-of-sight tracking.
If the subject becomes obscured from its line-of­sight, then the camera stops tracking and returns to the HOME position ( “Home (Preset 1)” on page 41). However, momentary breaks (e.g., someone walk­ing through the line-of-sight) has minimal effects to the tracking performance.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 33

Using AutoTRACK Views

One of the keys to your Presenter Camera System is its ability to not only track you around the room, but memorize various views and presets. These help you to make more effective and dynamic pre­sentations.

AutoTRACK Views Overview

You can choose from four autoTRACK Views to engage the autoTRACK mode. These Views can be stored and recalled from the Tracking System Key­pad by pressing one of the autoTRACK View but­tons.
Chapter 4
For example, when you make a presentation, you can change from a close head shot with the TIGHT autoTRACK View button, to emphasize facial expressions, to a full body shot by pressing the WIDE autoTRACK View button. Presenters can also share the video screen with a flipchart or other key presentation areas with the LEFT or RIGHT
autoTRACK View buttons.
FIGURE 4.2 (Left to Right) Tight, Wide, Left,
Each autoTRACK View stores and recalls a ZOOM perspective with an IMAGE and focus setting.
Right AutoTRACK Views
34 CameraMan 3-CCD Presenter Camera System Installation and Operations
Use Your Presenter System
Changes in the Subject Position within the video frame also can be stored. These functions enable the subject to fine-tune their position in each of the
autoTRACK Views.
For example, you may want to Zoom in slightly closer on the WIDE autoTRACK View or adjust your position in the video frame more to the left or right. This provides you with the flexibility to custom­ize each autoTRACK View to suit your needs.
The autoTRACK Views can be reset to accommo­date these changes using the following procedures.

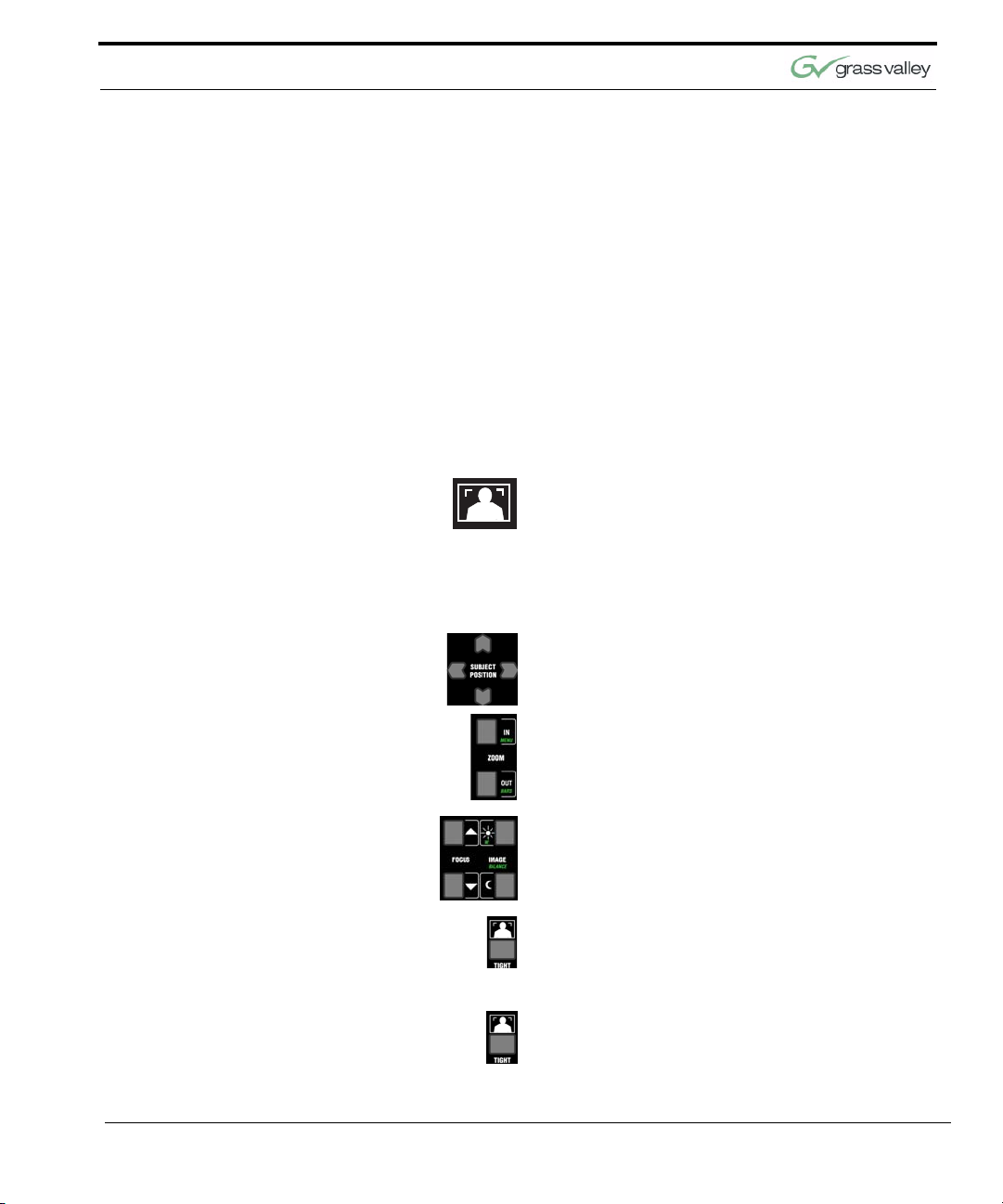

TIGHT AutoTRACK View

Press the TIGHT autoTRACK View button. The video frame should show a close head shot of you. This view is used to emphasize facial expressions. If you would like to alter your image in this view, you will need to reset the Tight View.
To SET or CHANGE the tight autoTRACK View:
1. After pressing TIGHT View, use the SUBJECT
POSITION arrows to position yourself in the mid-
dle of the video frame.
2. Use the manual ZOOM buttons to set the
needed Zoom perspective, if needed.
3. Use the manual FOCUS buttons to set the focal
point, if needed.
4. Use the manual IMAGE buttons to set the
needed light/dark contrast, if needed.
5. Press and hold TIGHT until you hear two beeps
indicating the new setting is stored.
To RECALL the tight autoTRACK VIEW:
Press and release TIGHT View. The camera recalls the information stored with the TIGHT button.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 35

WIDE AutoTRACK View

Chapter 4
Press the WIDE autoTRACK View button. The video frame should show a wide body shot of you. If you would like to alter your image in this view, you will need to reset the Wide View.
To SET or CHANGE the wide autoTRACK VIEW:
1. After pressing WIDE View, use the SUBJECT
POSITION arrows to position yourself in the mid-
dle of the video frame.
2. Use the manual ZOOM buttons to set the
needed Zoom perspective, if needed.
3. Use the manual FOCUS buttons to set the focal
point, if needed.
4. Use the manual IMAGE buttons to set the
needed light/dark contrast, if needed.

RIGHT AutoTRACK View

5. Press and hold WIDE until you hear two beeps,
indicating the new setting is stored.
To RECALL the wide autoTRACK VIEW:
Press and release WIDE View. The camera recalls the information stored in the WIDE button.
Press the RIGHT autoTRACK View button. Your image should now be offset to the right side of the video frame. This view is used when the presenter wants to share the video screen with key presenta­tion areas (a left-handed presenter may use this view while pointing to a flipchart). If you would like to alter your image in this view, you will need to reset the Right View.
36 CameraMan 3-CCD Presenter Camera System Installation and Operations
Use Your Presenter System
To SET or CHANGE the right autoTRACK VIEW:
1. After pressing RIGHT View, use the SUBJECT
POSITION arrows to position yourself in the mid-
dle of the video frame.
2. Use the manual ZOOM buttons to set the
needed Zoom perspective, if needed.
3. Use the manual FOCUS buttons to set the focal
point, if needed.
4. Use the manual IMAGE buttons to set the
needed light/dark contrast, if needed.
5. Press and hold RIGHT until you hear two beeps,
indicating the new setting is stored.
To RECALL the right autoTRACK VIEW:
Press and release RIGHT View. The camera recalls the information stored in the RIGHT button.

LEFT AutoTRACK View

Press the LEFT autoTRACK View button. Your image should now be offset to the left side of the video frame. This view is used when the presenter wants to share the video screen with key presenta­tion areas (a presenter who is right-handed may use this view while pointing to a flip chart). If you would like to alter your image in this view you will need to reset the Left View.
To SET or CHANGE the left autoTRACK VIEW:
1. After pressing LEFT View, use the SUBJECT
POSITION arrows to position yourself in the mid-
dle of the video frame.
2. Use the manual ZOOM buttons to set the
needed Zoom perspective, if needed.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 37
Chapter 4
3. Use the manual FOCUS buttons to set the focal
point, if needed.
4. Use the manual IMAGE buttons to set the
needed light/dark contrast, if needed.
5. Press and hold LEFT until you hear two beeps,
indicating the new setting is stored.
To RECALL the left autoTRACK VIEW:
Press and release LEFT View. The camera recalls the information stored in the LEFT button.

Using Subject Position and Pan/Tilt Arrows

This section is dependent upon the orientation of your panning arrows. We have used the default ori­entation for the examples.

Subject Position Arrows

In the autoTRACK mode, press any one of the four directional Subject Position arrows to adjust your location in the current autoTRACK View. Pressing the up, down, right or left arrow changes the sub­ject’s position in the video frame.
If the subject appears too low in the frame...
...press the UP arrow to lower the camera, and raise the subject’s position.
38 CameraMan 3-CCD Presenter Camera System Installation and Operations
Use Your Presenter System
If the subject appears too far to the right in the frame...
...press the LEFT arrow to move the subject’s posi­tion.

Manual Pan/Tilt Arrows

Press the up, down, right, or left PAN/TI LT arrows to pan or tilt the autoTRACK camera in that direction.
By pressing any of the PAN/TILT arrows in the Cam- era Control section of the Tracking System Keypad, you will disengage the autoTRACK mode.
To reactivate the autoTRACK mode, press any of the four autoTRACK View buttons. This will engage the autoFIND mode. When the presenter is in the field-of-view, CameraMan locks onto line-of-sight tracking in the view selected.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 39

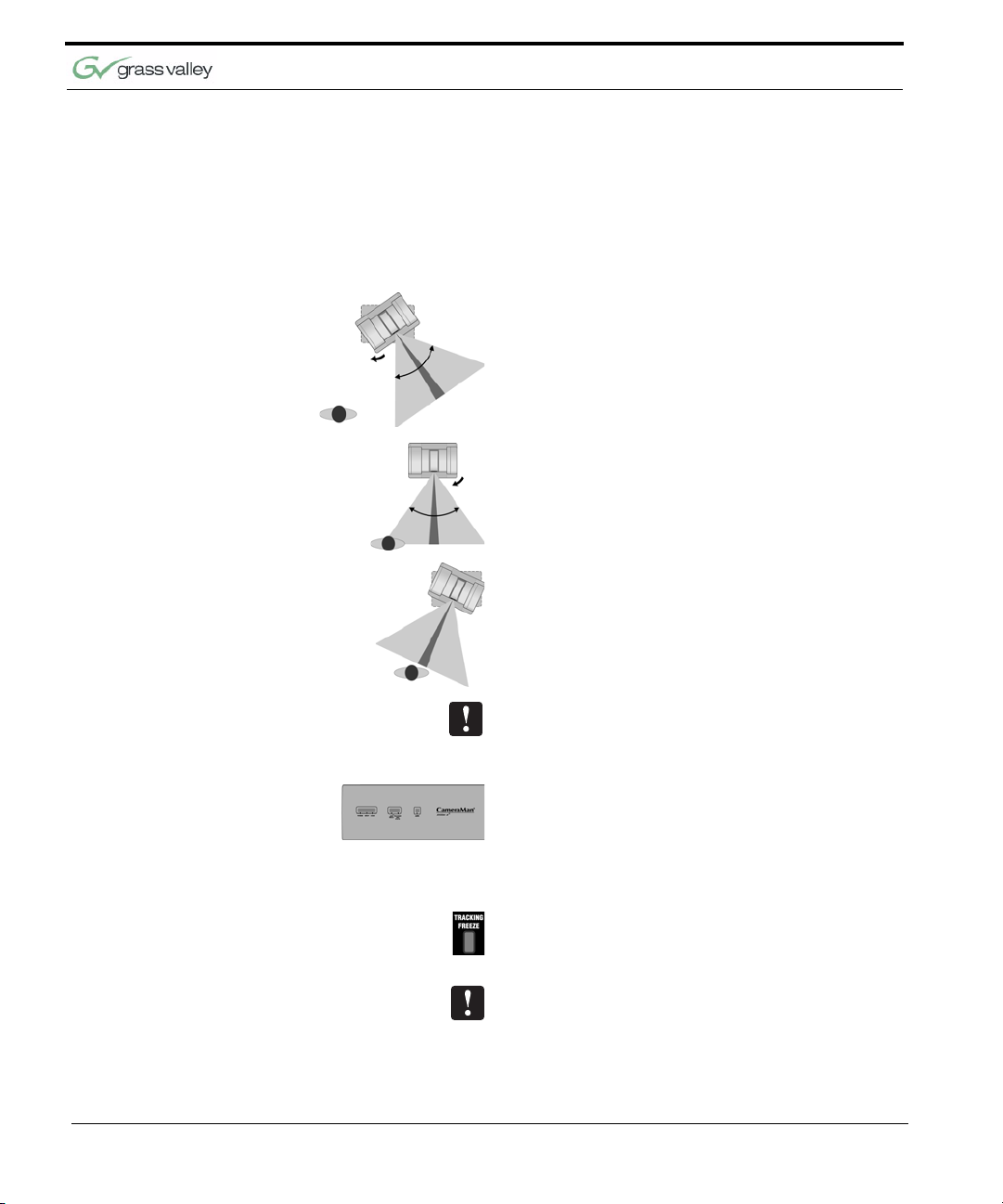

Using AutoFIND and Tracking Freeze

These Presenter Camera System features will help you take control of your presentations.

AutoFIND

When you press an autoTRACK View button to enable autoTRACK, the CameraMan will automati­cally begin panning toward the HOME position ( “Home (Preset 1)” on page 41), looking for the Tracking Ring Sensor. This process is known as autoFIND.
Once CameraMan reaches the HOME position, it will stop if you are not in the field-of-view. Once you enter the field-of-view...
... the camera moves to lock onto line-of-sight track­ing.
Chapter 4
If you are not in the autoTRACK mode and are out of the field-of-view, to activate the autoFIND feature you must press any of the four autoTRACK View buttons. The autoTRACK LED on the CameraMan’s display panel will then begin blinking until the cam­era moves to lock onto line-of-sight tracking. The light will then stay illuminated to indicate that you are in the camera’s line-of-sight.

Tracking Freeze

While in the autoTRACK mode, the presenter can stop or “freeze” the camera’s movement by pressing the TRACKING FREEZE button.
By pressing the TRACKING FREEZE button, the autoTRACK mode will disengage.
40 CameraMan 3-CCD Presenter Camera System Installation and Operations
Use Your Presenter System
For example, you may want to use this feature when making a presentation in front of a flipchart. You may be offset to the right or left autoTRACK View and be making notes on the flipchart.
Now you can press the TRACKING FREEZE button and walk away from the flipchart while still speaking. This enables the camera to freeze and lock on the flipchart so that those either attending the videocon­ference, or viewing the videotape, can continure to study it while you, the speaker, are no longer in the video frame.
To reactivate the autoTRACK mode, simply press any of the four autoTRACK View buttons. This will engage the autoFIND mode. When you are within field-of-view, Cameraman will lock onto line-of-sight tracking in the view selected.

Using Location Presets

Location Presets allow you to make your presenta­tions more effective by incorporating other media, such as maps, flipcharts, overheads, etc. Using the Presenter Keypad, you can store and recall a Pan/ TILT position, ZOOM perspective, FOCUS and an IMAGE for each Location Preset.

Home (Preset 1)

The first Location Preset position is the HOME posi­tion. This is the Preset Location that you will use most often.
For example, you may want to program the HOME position at a podium or the conference room table, where most of the speaking is likely to take place. This Preset can be recalled at any time during a vid­eoconference or videotaping session.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 41
Chapter 4
The HOME position is also used as a default posi­tion while in the tracking mode. This means that dur­ing tracking, if the line-of-sight between the camera and the Tracking Ring is obstructed, the camera will automatically return to the HOME position. See “AutoTRACK Mode” on page 32 and “AutoFIND” on page 40 for more information.
The Location Preset HOME button is factory set for the autoTRACK Camera to be facing straight ahead (in the direction of the “front” label on the bottom of the camera). This factory setting can be reset by the presenter to accommodate his or her needs.

Preset 2 and Preset 3 The other two Location Presets can be used to store

key presentation areas such as a map or other visual aids. These Presets can also be recalled at any time during a videoconference.
To SET or CHANGE Home, Preset 2, or Preset 3:
1. After selecting a Preset, use the Pan/TILT
arrows to move the camera to the desired loca­tion.
2. Only when desired, use the manual ZOOM but-
tons to set the needed Zoom perspective.
3. Only when desired, use the manual FOCUS but-
tons to set the focal point.
4. Only when desired, use the manual IMAGE but-
tons to set the needed light/dark contrast.
5. Press and hold any of the three Location Preset
buttons (HOME, PRESET2 or PRESET3) until you hear two beeps.
To RECALL a Location Preset:
Press and release the desired Location Preset but­ton (HOME, PRESET2 or PRESET3). The Camera­Man will then move to the memorized location and recall the information stored for that Preset.
42 CameraMan 3-CCD Presenter Camera System Installation and Operations
Use Your Presenter System
Pressing any of the Location Presets on the Track­ing System Keypad will disengage the autoTRACK mode.
To reactivate the autoTRACK mode, simply press any of the four autoTRACK View buttons. The cam­era will then go into the autoFIND mode until you are in the camera’s line-of-sight. The Camera will then begin tracking you in the view selected.

Controlling the Zoom, Focus and IMAGE

These control features help ensure that your video looks great... whether you control the image, or let the camera do it automatically.

Image Settings The IMAGE setting adjusts the picture brightness in

the video frame.
Manual Setting
By pressing either IMAGE button, the camera’s Image control will automatically become a manual adjustment.
To Manually Control Image:
Press the top IMAGE button to brighten the pic-
ture.
Press the bottom IMAGE button to darken the
picture.
The Image can be adjusted manually and can be stored in a Location Preset or an autoTRACK View.
For example, you may want to use the Manual Image setting when you are not fully satisfied that the video image is as dark or light as it should be. Otherwise, the Image setting will automatically adjust itself to the lighting conditions in all areas of the room.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 43
Chapter 4
Automatic Setting
In this mode, CameraMan will automatically adjust the Image (light & dark) for each camera view.
Press the autoIMAGE button to enable auto-
matic operation of the CameraMan’s Image func­tion.
The autoIMAGE can be stored in a Location Preset or an autoTRACK View.

Focus Setting The Focus setting adjusts the lens for visual clarity

of the video picture.
To control the focus:
Press the top FOCUS button to adjust the lens
for objects closer to the camera.
Press the bottom FOCUS button to adjust the
lens for objects farther from the camera.

Zoom Perspective To control the zoom:

Press the Zoom IN button for the camera to
zoom in for a tighter view.
Press the Zoom OUT button for the camera to
zoom out for a wider view.
The Zoom can be adjusted manually and can be stored in a Location Preset or an autoTRACK View.

Controlling the Camera Setup Mode

The Camera Setup Mode buttons (with green text) on your keypad allow you to adjust the camera’s set­tings via four on-screen menus. These adjustments should be made by qualified technical personnel only.
Important Note: If your system includes a Camera­Man SHOT Director, make these adjustments only with the SHOT Director. Do not use the keypad.
44 CameraMan 3-CCD Presenter Camera System Installation and Operations
Use Your Presenter System

Adjusting the Camera Setup Mode Settings

SETUP and MODE Buttons
To enter the camera setup mode:
Press and hold the SETUP and MODE buttons
simultaneously for 2.5 seconds. The keypad should beep once
Release both buttons.
The camera will flash, and an on-screen menu
will appear when it enters the camera setup mode.
MENU EDIT Arrows
To select a setting, or the value of a setting, use the PAN/TILT MENU EDIT left/right and up/down arrows on your keypad.
tilt UP: moves the on-screen cursor up.
tilt DOWN: moves the on-screen cursor down.
pan RIGHT: increases, or changes the setting.
pan LEFT: decreases, or changes the setting.
To change between the various on-screen set­tings menus:
Place the cursor on the first line of the menu
using the medu edit UP and DOWN arrows.
Select the menu page (1-4) using the menu edit
LEFT and RIGHT arrows.
For more information on the on-screen camera set­tings and their functionality, refer to the CameraMan installation and operations manual that came with your camera.
When accessing the on-screen camera settings, do not change the BAUD RATE as this may impact the camera’s communication links.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 45
Chapter 4
MENU Button
Press the MENU button to toggle between the on­screen settings menu and the video image.
BARS Button
Press the Bars button to toggle between the on­screen color bars and the video image.
White Balance Button
Press the button next to the W to automatically set the white balance in the camera setup mode.
Once all adjustments have been made, the camera must be returned to the system mode for normal operation. Just follow the same directions to enter camera setup mode (listed on page 45).
46 CameraMan 3-CCD Presenter Camera System Installation and Operations
APPENDIX A

Specifications and Clearance Diagram

Specifications

The following specifications are for the Main Dock­ing Station, Tracking Ring Package, and Tracking System Keypad. For specifications on your Camera­Man camera, refer to the installations and opera­tions manual that came with your camera.
Main Docking Station
Video Out (75 ohm)
Audio Out (80 db SPL into MIC)
RS-232 Port DB-9 (female) connector
Composite or S-Video
NTSC Y: VS 1.0 Vp-p Sync negative C: Burst 0.286 Vp-p VBS: 1.0 Vp-p Composite
PAL Y: 1.0 Vp-p Sync negative C: Burst 0.300 Vp-p VBS: 1.0 Vp-p Composite
Unbalanced (RCA) 0dBv +/- 6dBv into 40k ohms
Balanced (XLR) Line Level: 0dBm +/- 6dBm
into 600 ohms
Mic Level: -46dBv +/- 6dBv into 150
ohms
Power US: 120V, 60Hz AC power supply
INTL: 100-240V, 50-60Hz AC 100
W maximum consumption
Temperature
Humidity 0 to 95% non-condensing
Dimensions 11.64” L x 6.65” W x 2.6” H
Weight 10 lbs.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 47
o
to 100o F
32
Tracking Ring Package
Appendix A

Docking Station Clearance Diagram

Tracking Range
Wireless Audio
RF Tracking Frequency
Dimensions 4.6” L x 2.8” W x 1.0” H
Battery Life 12 hours per charge
Tracking System Keypad
RF Range 60’ from autoTRACK Camera
Hard-wired Range
Power (2) AA DURACELL batteries
Dimensions 7.0” L x 2.20” W x 0.85” H
Up to 60’ from autoTRACK Camera
60’ from Main Docking
Standard A/B: 209.3 MHz/212.5 MHz Special H/I: 213.0 MHz/207.6 MHz Special L/N: 212.0 MHz/207.1 MHz
24 hour auxiliary battery (optional)
(typical)
250’ from autoTRACK Camera (typical)
FIGURE A.1 Docking Station Clearance
More space is needed for the antennas
48 CameraMan 3-CCD Presenter Camera System Installation and Operations Manual
Diagram
APPENDIX B

Troubleshooting Should you have any problems with your Camera-

Man Presenter Camera System, please refer to the following guide. After referring to the guide, should you still have questions, please contact your autho­rized Grass Valley reseller, or call Grass Valley Sup­port direct.

Problem The CameraMan autoTRACK Camera will not fol-

low the Tracking Ring Package.

Solution

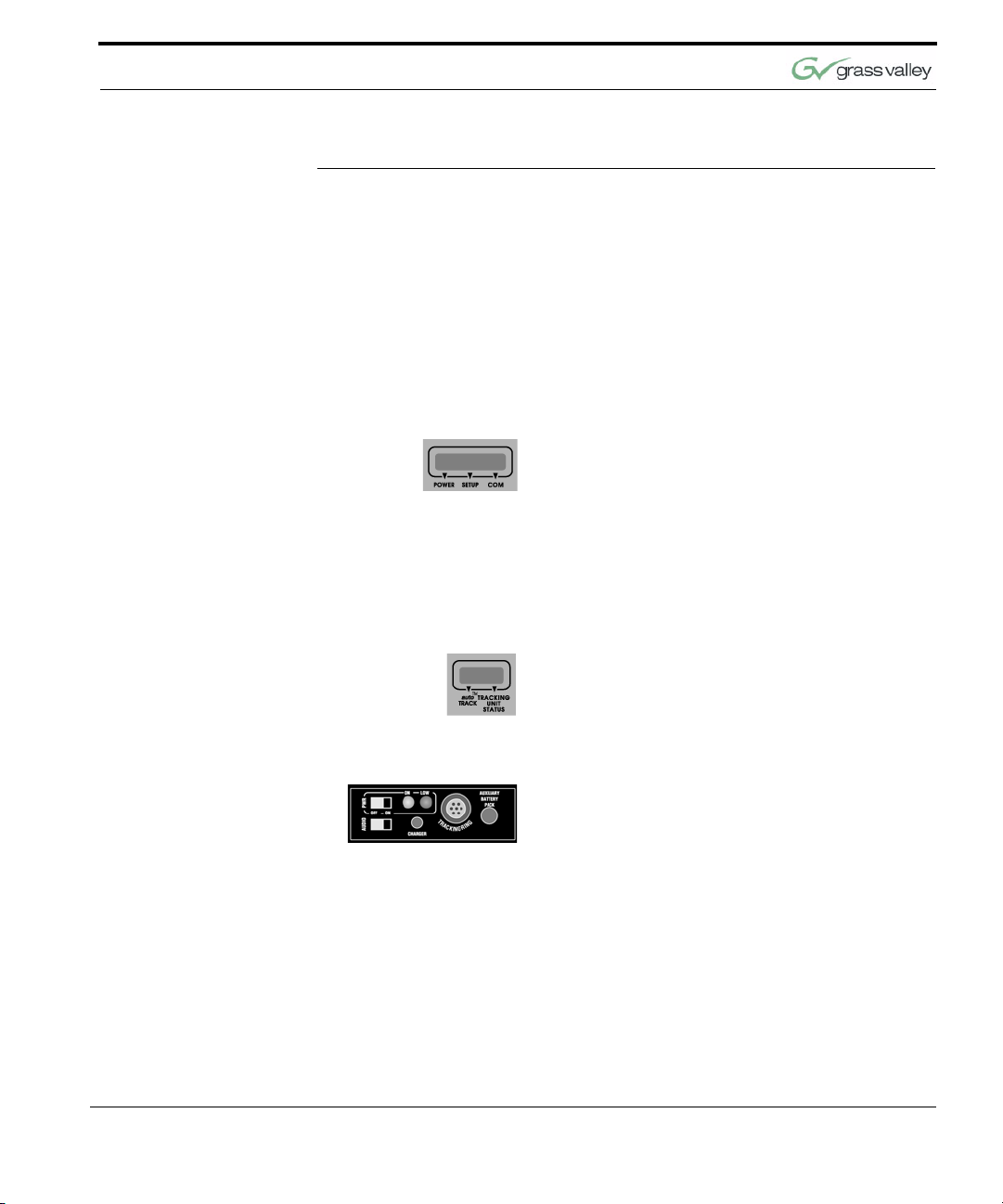

1. Is the POWER LED on the CameraMan’s front
panel illuminated?
If it is illuminated, proceed to step #2.
If it is not illuminated, make sure the Main
Docking Station is plugged in and its POWER switch located on the front panel is moved to the ON position. The POWER LED on the front of the Main Docking Station should be illuminated.
2. Is the TRACKING UNIT STATUS LED on the
camera’s front panel illuminated?
If it is ON, proceed to step #3.
If it is OFF, make sure the Tracking Ring
Power Pack is powered ON.
If it is still OFF, check the Battery LOW
LED on the top of the Tracking Ring Power
Pack. If the Battery LOW LED is illuminated, then the battery is low and needs to be recharged.
If both the ON LED and the LOW LED on
the top of the Power Pack are not illuminated, then the battery may be completely discharged and needs to be fully recharged.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 49
Appendix B
If the battery is fully charged and the
TRACKING UNIT STATUS LED is still OFF, check that the RF CHANNEL switch on the back of the Main Docking Station matches the position of the RF Channel switch on the back of the Tracking Ring Power Pack.
3. Is the autoTRACK LED on the camera’s display
panel illuminated or flashing?
If it is ON, proceed to step #4.
If it is OFF, use the Tracking System
Keypad to select one of the four autoTRACK View buttons.
4. If the POWER and the TRACKING UNIT STA-
TUS LEDs are illuminated, and the autoTRACK LED is blinking:
Check to make sure that the Tracking
Ring Sensors are attached properly and
are not covered by hair or clothing.
Be sure that you are standing in the field-
of-view of the camera.

Problem The CameraMan Camera’s autoTRACK opera-

tion is irregular.

Solution

1. Check the Battery LOW LED on the top of the
Tracking Ring Power Pack. If the LED is illumi­nated, the battery is low and needs to be recharged.
2. If the battery is charged, you may need to
change the RF frequency on which the Camera­Man is currently operating. To do this, change the position of the RF CHANNEL switch on the back of the Main Docking Station and RF CHAN­NEL switch on the back of the Tracking Ring Power Pack to the opposite setting (both switch positions must match).
3. Inspect the CameraMan Camera’s location to
verify that no obstructions, such as the main
50 CameraMan 3-CCD Presenter Camera System Installation and Operations Manual
Troubleshooting
power cable, are impeding its ability to freely pan left and right or tilt up and down.
4. Verify that both antennas are connected to the
Main Docking Station and that no wires or metal objects are touching either antenna.
5. Check the battery in the Tracking System Key-
pad.
Note: The Keypad takes (2) AA batteries with a lifespan of two to three months with average use. The Keypad will indicate that its battery is low with a long beep when any button is pressed. At that time, the battery should be replaced.

Problem The Tracking Ring Unit’s audio is not working.

Solution

1. Check to make sure that the AUDIO switch is
set to the ON position.
2. Check the top of the Tracking Ring Power Pack
to make sure the Tracking Ring is plugged into the port marked TRACKING RING.
3. Check to see if the AUDIO LED on the back of
the Docking Station illuminates when the micro­phone is receiving audio.
The LED will only illuminate while speaking into the Tracking Ring microphone.
4. If the AUDIO LED on the back of the Main Dock-
ing Station illuminates and you are still not receiving audio, you may have a wiring problem from the Main Docking Station to the audio sys­tem. If this is the case, please contact your Cam­eraMan System Installer.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 51
Appendix B

Problem The Tracking System Keypad will not control the

autoTRACK Camera when used in the wireless RF mode.

Solution

1. Verify that the batteries are installed in the key-
pad properly.
2. Verify that the BASE UNIT ADDRESS switch on
the back of the autoTRACK Camera, and the BASE UNIT ADDRESS switch in the battery compartment of the keypad are set to the same setting.
3. Veri fy RF command switch on the back of the
autoTRACK Camera is set to ENABLE (Switch Bank B-4).
4. Verify that the LED on the front of the Tracking
System Keypad illuminates for a few seconds when the battery is first installed.

Problem The Tracking System Keypad will not communi-

cate with the autoTRACK Camera in a “hard­wired” mode.

Solution

1. Verify that the CameraMan Keypad Cable is
connected from the PVI COM port on the back of the Main Docking Station to the RJ-11 jack in the battery compartment of the Tracking System Keypad.
2. Does the LED on the front of the keypad come
on for a few seconds when the keypad is first plugged in? If not, replace cable with a Grass Valley supplied cable only.

Problem The autoTRACK Camera’s Video is not working

properly.

Solution

1. Verify that the VIDEO SELECT switch on the
back of the autoTRACK Camera is set properly.
52 CameraMan 3-CCD Presenter Camera System Installation and Operations Manual
Troubleshooting
2. Verify that the appropriate video connection is
being used on the back of the Main Docking Sta­tion, either S-VIDEO or COMPOSITE VIDEO
OUT. (see “Main Docking Station” on page 3)
3. Veri fy a solid connection of the CameraMan
Cable to both the Main Docking Station and the autoTRACK Camera.

Problem No communications through the RS-232 port.

Solution 1. Verify that the cable being used is wired cor-

rectly.
2. Verify that the PROTOCOL SELECT switch
(Switch Bank B- Switch 1) and the Baud rate (9600 or 19,200) (Switch bank A-7) on the back of the autoTRACK Camera is set properly.
3. Does the COM LED next to the RS-232 port on
the back of the Main Docking Station blink when you send a command through this port?
If not, change the cable and retry.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 53
This page was intentionally left blank.
Appendix B
54 CameraMan 3-CCD Presenter Camera System Installation and Operations Manual
APPENDIX C

Pinout Connections You’ll find the following pinout connections on the

back of your Main Docking Station. These diagrams are for your reference.
Pin Signal
112v
212v
3 Ground
4 Signal A
5 Signal B
6 Ground
Pin Signal
1 Ground
2 Signal A
3 Signal B
4 Ground
Pin Signal
2 Transmit
3Receive
5Ground
1,4,6-9 Not Used
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 55
Pin Signal
1Common
2 Signal 1
3 Signal 2
1Y
2C
3 Y Ground
4 C Ground
1 Video (1Vpp)
2 Ground
Appendix C
1+ 18v DC
2 Ground
1Audio
2 Ground
56 CameraMan 3-CCD Presenter Camera System Installation and Operations Manual
APPENDIX D
Typical System Diagram Below is a typical setup for your Presenter Camera
System. The items in the diagram are not to scale.

FIGURE D.1 Typical System Diagram

1 Power Supply
2 Main Docking Station
3 CameraMan Cable (10 ft. max.)
4 CameraMan System II Camera
5 IR, line-of-sight tracking (up to 60 ft. max.)
6 RF link to CameraMan System II (60 ft. max.)
Note: The Tracking System Keypad, as an option, can be “hard-wired” to the Main Docking Station up to a maximum distance of 250 feet.
7 Tracking Ring
8 Tracking Ring Power Pack/ RF Transmitter
RF link to Docking Station = 60 ft. max. for commands & audio
9 CameraMan Tracking System Keypad
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 57
This page was intentionally left blank.
Appendix D
58 CameraMan 3-CCD Presenter Camera System Installation and Operations Manual
APPENDIX E

Glossary of Terms The following are terms used throughout the Pre-

senter Camera System Operations Manual that will assist you in understanding the use of the Camera­Man system.

autoFIND* A feature of the autoTRACK Camera which enables

the camera to automatically search for a Tracking Device worn or held by a presenter that is not in the camera’s field-of-view.

autoTRACK* An exclusive and patented technology of Grass Val-

ley which allows a presenter to be automatically tracked by a robotic motion control camera.

autoTRACK Mode* The exclusive mode of operation used by Grass Val-

ley’s autoTRACK camera system which automati­cally tracks a presenter’s movements.

autoTRACK Views* Any of four camera views selected by the presenter

where the presenter appears in either a close cam­era view, a wide angle camera view, a left-of-center camera view or a right-of-center camera view, while being automatically tracked by the camera.
CameraMan autoTRACK
Camera
A robotic, video tracking camera that uses a pat­ented technology called autoTRACK to automati­cally track a presenter’s movements in videoconferencing or videotaping applications.

Field-of-View The area in front of the autoTRACK Camera where

it can communicate with and locate the Tracking Device worn or held by the presenter.

Focus Adjusts the lens for visual clarity of the video frame.

IMAGE Adjusts picture brightness in the video frame.

Line-of-Sight An unobstructed line between the CameraMan

autoTRACK Camera and the Tracking Device worn or held by the presenter.

Location Preset A feature that allows a presenter to program a spe-

cific camera view and location that can be recalled at anytime at the touch of a button.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 59
Appendix E

Tracking System Keypad A hand-held keypad used by a presenter to control

camera functions and tracking features utilizing wireless radio frequency communications.
RF An abbreviation for Radio Frequency that is a tech-
nology used in wireless or hard-wired communica­tions.

Subject Position* The position or location of a presenter wearing or

holding the Tracking Device within the video frame while in the autoTRACK mode.

Tracking Freeze A feature of the CameraMan autoTRACK Camera

which enables a presenter to stop or freeze the camera’s automatic movements by pressing a but­ton on the Tracking System Keypad.

Tracking Ring Package* A ring or necklace worn by a presenter that receives

a signal through its sensors enabling the Camera­Man autoTRACK Camera to automatically track the presenter.

Window* An invisible area within each autoTRACK view in

which movement of the subject wearing a Tracking Ring will not cause the autoTRACK Camera to PAN or TILT, eliminating unnecessary movement.

Zoom Controls the camera perspective for a wider or

tighter view.
* Features with patents granted or patents pending.
60 CameraMan 3-CCD Presenter Camera System Installation and Operations Manual
APPENDIX F

Warranty Information

Grass Valley 90-day Lim­ited Warranty
Grass Valley warrants the end-user that this
product will be free from defects in material and/ or workmanship for a 90-day period commenc­ing the date of delivery, except where expressly noted.
Proof of Purchase: You are required to retain
Grass Valley’s authorized Dealer’s Dated Bill of Sale as evidence of the date of purchase and to
establish warranty eligibility.
Grass Valley will correct all defects in material or
workmanship, or any failure of the system to per­form to specifications during the warranty period, at no charge for parts and labor.
In the event of a defect in material or workman-
ship or failure of the system to perform to specifi­cations, the original purchaser must notify Grass Valley in writing before the warranty period has expired.
If damage occurs in the shipment from the Grass
Valley factory, you must notify Grass Valley within 5 working days of receipt of the product in order to make a claim.
Grass Valley is not obligated at any time to pro-
vide the purchaser with a substitute unit.
The warranty is not extended due to purchasing
new products and/or upgrading your original product.
The warranty is non-transferable.
Purchaser’s failure to make a claim as provided
above or continued use of the product shall con­stitute an unqualified acceptance of such product and waiver by purchaser of all claims.
CameraMan 3-CCD Presenter Camera System Installation and Operations Manual 61
This page was intentionally left blank.
Appendix F
62 CameraMan 3-CCD Presenter Camera System Installation and Operations Manual

Index

A
AutoFIND, 40 AutoTRACK, 32
mode, 3233 view
left, 37 right, 36 tight, 35 wide, 36
views, 34
AutoTRACK Windows, 27
B
Battery, 30
auxiliary pack, 31 recharge, 30
Belt Assembly, 9
C
Contacting Grass Valley, vi
F
Focus Setting, 44
071838600 June 2005 63
G
Glossary, 59
I
Image Settings, 43 Installing the Camera System
, 1315
L
Location Presets, 41
home (preset 1), 41 preset 2 and 3, 42
M
Main Docking Station
about, 3 clearance diagram components, 6 configuring, 2122 connecting, 1617 mounting, 14 pinout connections specifications, 47
, 48
, 55
Index
Multi-Camera Applications, 15
O
Other Configurations, 26
P
Pan/Tilt
arrows, 39 configuring, 26 re-orienting, 25 understanding, 24
Power Pack
assembly audio switch, 32 components, 8
Presenter System Components, 35
, 1820
S
Setup Mode, 44
adjusting settings, 45
Subject Position
, 38
arrows
System Diagram, 57
System Start Up, 29
T
Tracking Freeze, 40 Tracking Ring Assembly
components, 9
Tracking Ring Package
about, 4 components, 8 specifications, 48 start up, 29
Tracking System Keypad
, 5
about components, 10 configuring, 2225 specifications, 48
Troubleshooting, 4953
W
Warranty, 61 Website, vi
Z
Zoom Perspective, 44
64 CameraMan 3-CCD Presenter Camera System Installation and Operations Manual
Loading...
