Preface
About This Manual
This manual describes the features of a specific 2000 Series module in the
Kameleon Media Processing System. As part of this module family, it is
subject to Safety and Regulatory Compliance described in the 2000 Series
frame and power supply documentation (see the 2000 Series Frames
Instruction Manual).
2000NET Instruction Manual 5
Preface
6 2000NET Instruction Manual
2000NET Network Interface Module
Introduction
The 2000NET is designed to operate in 2000 Series Kameleon frames to
provide remote control and monitoring. The 2000NET enables a web
browser graphical user interface (GUI) and an optional remote Newton
Control Panel for remote configuration and monitoring of the frame and
remote control of its media modules.
2000NET Features
The 2000NET module features:
• 10 Base-T Ethernet interface,
• Save/load frame configuration files,
• Slot memory for each media module configuration, and
• Support for:
•HTML protocol support,
•Newton Control Panel,
•Asset Tag identification,
• Simple Network Management Protocol (SNMP) Agent,
•NetConfig Networking Configuration application, and
• Software update downloading.
2000NET Instruction Manual 7
Introduction
Basic Network Design
The 2000NET can be employed in either a point-to-point or local area
network (LAN) control/monitoring configuration. Figure 1 illustrates a
point-to-point configuration.
Figure 1. Point-to-point Configuration
FAULT/LOC
2000T3 frame with
Network Interface Module
Figure 2 illustrates a typical LAN configuration.
Figure 2. Basic Network Configuration
2000 WIDEBAND SERIES
PS1
FAULT/LOC
2000T3 frame with
Network Interface Module
UPPER
POWER
SUPPLY
PS2
PS1
LOWER
POWER
SUPPLY
PS2
2000 WIDEBAND SERIES
PS1
UPPER
POWER
SUPPLY
PS2
PS1
LOWER
POWER
SUPPLY
PS2
Category 5 Ethernet crossover cable
Category 5 Ethernet cable
PC running:
Windows OS,
Unix, or Macintosh OS
Ethernet
Netscape Navigator 4.x
or Internet Explorer 4.x
PC running:
Windows OS, Unix,
or Macintosh OS
Ethernet
Current Web Browser
8046-04
LAN Hub
2000 WIDEBAND SERIES
PS1
FAULT/LOC
UPPER
POWER
SUPPLY
PS2
PS1
LOWER
POWER
SUPPLY
PS2
2000T3 frame with
Network Interface Module
Ethernet
8046-05r1
8 2000NET Instruction Manual
Installation
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(15)
(13)
(1)
Slot (20)
8046-06
Network Interface Module
Frame Reference Slot
Front Media Modules
Slots 1-12
Module Placement in the Kameleon Frame
Installation
This section describes placing the module in the 2000 Series Kameleon
frame and cabling the communications ports. Procedures for power-up,
DIP switch settings, and network configuration of the module are
described in following sections.
There are two rows of six front media module slots in the frame to accommodate either analog or digital media modules. Between these rows are
slots for the 2000NET and Frame Reference modules. Refer to Figure 3.
The three slots on the right side of the frame are allocated for the power
supply sleds and the optional fan module. For additional information concerning the Power Supply module, refer to the
Manual
.
2000 Series Frame Instruction
Slot number 13 (top middle) is allocated for the 2000NET module.
Figure 3. 2000T3 Frame Front Module Locations
Note
The 2000NET module can be plugged in and removed from a 2000 Series
Kameleon frame with power on. When power is applied to the module, LED
indicators reflect the initialization process (see Power Up on page 17).
2000NET Instruction Manual 9
Installation
1.
2.
To install the 2000NET module in the frame:
Insert the module, connector end first (see Figure 4), with the
component side of the module facing up. Slide the module in until it
stops.
Press on the connector tab to seat the module in place. There will be a
positive click when the module is fully seated.
Figure 4. 2000NET Module/Frame Orientation
Component side up
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
8046-07
10 2000NET Instruction Manual
Cabling
This section describes physical connections, the connectors and cables,
used for network communications. Setup procedures for each type of connection are described in Establishing Frame Network Identity on page 22.
Control and monitoring connectors on the 2000T3 frame are illustrated in
Figure 5.
Installation
Configuration
serial port connector
(J101 Config)
Frame Health
DB9 connector
(J103 GPI)
Frame Health Alarm Connection
Note
Figure 5. 2000NET Input/Output Connectors
The frame health alarm connection provides a relay closure that will act as
an alarm trigger for a user-supplied alarm circuit. The relay is accessed
through connector J103 SER3/GPI. Complete details for cabling the Frame
Health Alarm are given in the Installation section of the 2000 Frame
Instruction Manual.
The cables and adapters illustrated below for connection to a PC are available
from Grass Valley as part of cable kit model 8900CAB. The standard Ethernet
cable is not included.
Network ethernet
RJ-45 connector
(J104 Main)
8046-08
The Frame Health Alarm responds to conditions enabled on the 2000NET
Network Interface module with DIP switches S1 and S2 as given in Table 3
on page 20. This information from the module is also available over the
network to an SNMP monitoring system as described in
on page 20.
2000NET Instruction Manual 11
SNMP Monitoring
Installation
Configuration Serial Port Cable
The nine-pin RS-232 serial port connector is used to connect the frame to a
PC for initial setup of the frame’s network communication parameters.
After network communication is established, subsequent changes to these
parameters can be made using the network GUI.
The communication parameters for the RS-232 connection are:
• Baud rate: 9600
•Data bits: 8
• Parity: none
• Stop bits: 1
• Flow control: none
The male end connects to J101 on the 2000T3 frame (see Figure 6) and the
female end connects to either Comm 1 or Comm 2 on the PC, depending
upon the configuration of the computer’s I/O ports.
Pin 5
Pin 1
DB-9
Male
Pinout
J101
RS-232
Pin 9
2000T3 Frame
DB-9
Male
Comm. Parameters: 9600 baud, 8 bits, parity-none, 1 stop, flow-none
Figure 6. RS-232 to Initialization PC Cable and Pinout
PC running Hyperterm Terminal Emulation
Only pins
2,3, & 5
are required
Pin Pin
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Pin 1
Pin 5
Pin 9
DB-9
Female
Pinout
Comm 1 or
Comm 2 port
DB-9
Female
8046 -09r1
If the PC uses a 25-pin RS-232 connector, use a cable adapter as shown in
Figure 7 on page 13.
12 2000NET Instruction Manual
Jumper J9
Front Panel functions (currently not used)
RS-232 configuration
functions (DIAGnostics)
RJ-45 Connector
8046 -29r1
Figure 7. DB-9 Cable and DB-25 Cable Adaptor Pinout
Installation
Pin 5
Pin 1
DB-9
Male
Pinout
25-pin 25-pin9-pin 9-pin9-pin
1
2 Tx
3 Rx
4
5
6
7
8
9
20
22
Pin 9
9-pin
1
Tx 2
Rx 3
4
5
6
7
8
9
Note: Only Tx, Rx and pin 5 (9-pin) to pin 7 (25-pin) are required.
Module Front RJ-45 Connector
When the 2000NET module is installed in a one rackunit 2000 Series frame,
the dual purpose RJ-45 connector on the front of the 2000NET module is
used as the Serial Configuration port for the module. The RJ-45 connector
is configured using the jumper positions shown in Figure 8. Use the RS-232
(
) jumper positions when connecting to a PC for initializing the
DIAG
2000NET module. The
1
2
3
4
5
6
7
8
9
Front Panel
DB-25
Female
1
8
2
3
3
2
4
20
5
7
6
6
7
4
8
5
9
22
DB-9
Female
Pin 1
Pin 13
Pin 14
DB-25
Female
Pinout
jumper configuration is for future use.
8046 -19r2
CAUTION This is not an Ethernet port. Damage can result from connecting Ethernet
equipment to this connector.
In the three rackunit 2000T3 frame, with the jumpers set in the DIAG position, the RJ-45 connector is in parallel with the Serial Configuration port on
the back of the frame (J101).
Note
Figure 8. Dual Purpose RJ-45 Connector and Jumpers
In the 2000T3 frame, the module front connector and rear frame connector
cannot be used at the same time.
2000NET Instruction Manual 13
Installation
Figure 9 shows the adapter and cable pinout required for the serial connec-
tion to a PC.
Figure 9. Module RJ-45 to PC Cable and Adapter Pinouts
2000NET with
dual purpose RJ-45 connector
(1)
(2)
RJ-45 RJ-45
Tx 1
RJ-45
connector
Pin 1
2
3
4
5
Rx 6
7
8
Cross-over cable
Category 5, UTP
PC running Hyperterm Terminal Emulation
(10)
(11)
(12)
(7)
(8)
(9)
9-pin
1
2 Tx
3 Rx
4
5
6
7
8
9
Note: For proper operation, only
Tx, Rx, & pin 5 can be connected.
RJ-45 RJ-45
1
2
3
4
5
6
7
8
-
9-pin
3
3
6
nc
1
nc
4
nc
5
5
2
2
7
nc
8
nc
-
nc
Comm 1 or
Comm 2 port
DB-9
to RJ-45
adapter
RJ-45
connector
Adapter pins 1, 4,
6, 7, & 8 should
be removed.
Pin 1
Pin 5
Pin 9
8046 -30
14 2000NET Instruction Manual
2000T3
Frame
Ethernet Cable
The 2000NET module enables the frame’s RJ-45 Ethernet connector.
Through this port the 2000 frame can connect to:
•A single PC with a network module (point-to-point), or
•A local area network (LAN) through a network hub.
Point-to-Point Connection
Figure 10 illustrates the crossover cable connection and pinout for a
point-to-point connection to the controlling PC.
Figure 10. Point-to-Point RJ-45 Connection and Cable Pinout
PC with network card and net browser software
Installation
To J104 Main
Ethernet connector
RJ-45
connector
Pin Pin
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Category 5, UTP Crossover Cable
PinPin
3
1
6
2
1
3
4
4
5
5
2
6
7
7
8
8
Pin 1
To PC network card
RJ-45 connector
RJ-45
connector
8046 -10r1
2000NET Instruction Manual 15
Installation
Local Area Network (LAN) Connection
Figure 11 illustrates the cable connection for a LAN connection to a
network hub.
2000T3
Frame
Note
Because of varying length requirements and ready availability from network
equipment suppliers, this cable is not supplied by Thomson Grass Valley.
Figure 11. LAN RJ-45 Connection and Cable
To J104 Main
Ethernet connector
RJ-45
connector
Pin Pin
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
PinPin
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
Network Ethernet Hub (typical)
hp
Pin 1
8 7
6 5 4 3 2 1
To network hub
RJ-45 connector
10 BaseT
RJ-45
connector
0612 -11
Category 5, UTP Cable
16 2000NET Instruction Manual
Power Up
The various front LED indicators and configuration switches are illustrated
in Figure 12. Upon power-up, all LEDs should light for the duration of the
initialization process. If all LEDs remain on, the module may not be fully
seated in its slot. After initialization the Power OK LED (PWR) will be on
and the red Network Module LED (NM) should go off. All other LEDs
report detected conditions within the frame and the installed modules. If
the NM LED does not go off, the board needs servicing.
Figure 12. LEDs and Configuration Switches
Power Suppy 2 (PS2) red
Ethernet Link (LNK) green
Ethernet (ETHER) yellow
Power OK (PWR) green
Remote Override (REM OVR) yellow
Temperature (TEMP) red
Power Suppy 4 (PS4) red
Power Up
Communication (COMM) yellow
Indicator LEDs
Bi-color
Frame Status LED
(STATUS) red/green
Front Panel (FP) red
Power Supply 1 (PS1) red
Power Supply 3 (PS3) red
Network Module (NM) red
Fan Health (FAN) red
Module Health (MOD) red
Frame Bus (FB) red
8046-02r1
The Frame Status LED is visible through the frame front cover. Table 1 and
Table 2 on page 18 describe the module LEDs and the conditions they indi-
cate.
The frame Status LED, visible on the front cover, reports the conditions
indicated in Table 1.
Table 1. Frame Status LED and Conditions Indicated
LED State Condition
Green Frame and all modules functioning properly. Frame locator is inactive.
Red One or more modules in the frame has detected an internal fault. Frame locator is inactive.
Long Flash Green
Long Flash Alternating
Frame locator – flashes when activated by a remote control device. Green indicates frame
and all modules functioning properly.
Frame locator – flashes when activated by a remote control device. Alternating color indicates one or more modules in the frame has detected an internal fault.
2000NET Instruction Manual 17
Power Up
The module LEDs and their possible status and indicated conditions are
shown in Table 2.
Table 2. Indicator LEDs and Conditions Indicated
LED LED State Condition
POWER OK
(green)
ETHER(NET)
(yellow)
LNK
(green)
PS1
(red)
PS2
(red)
PS3
(red)
PS4
(red)
TEMP
(red)
FP (Front Panel)
(red)
REM OVR
(yellow)
COMM
(yellow)
FAN
(red)
FB (Frame Bus)
(red)
MOD
(red)
NM (Net Module)
(red)
Off Power is off or on-board regulator has failed
On continuously Module is powered
Active Indicates communication taking place on the Ethernet bus
Active Indicates active link established with another device on the Ethernet bus
Off Power supply 1 is operating normally or is not installed
On continuously Power supply 1 is present and reporting output not within specified voltage range
Off Power supply 2 is operating normally or is not installed
On continuously Power supply 2 is present and reporting output not within specified voltage range
Off Power supply 3 is operating normally or is not installed
On continuously Power supply 3 is present and reporting output not within specified voltage range
Off Power supply 4 is operating normally or is not installed
On continuously Power supply 4 is present and reporting output not within specified voltage range
Off 2000NET sensors reading temperature within specified parameters
On continuously Over-temperature condition detected in frame
Off
On
Off Module settings match those set onboard by switches and jumpers
On
Active Indicates module is polling the devices on the internal frame communication bus
Off All fans in the frame are working properly
On continuously At least one fan in the frame is not rotating at its specified rate
Off Network module is communicating with modules on the Frame Bus
On Internal Frame Bus communication failure
Off None of the media or center communication/sync modules is reporting a fault
On continuously At least one of the media or center communication/sync modules is reporting a fault
Off Network Module is working properly
On continuously Network Module has detected an internal fault and is not functioning
Currently not used
One or more settings have been overridden by remote control system (see Table 3
on page 20)
Rebooting the Module
If you need to reboot the 2000NET module, either remove and replace the
module in the slot or use the GUI to access the Configuration or Network
pages. Both pages have a
page 33).
18 2000NET Instruction Manual
Reboot
button (see 2000NET Module Interface on
Alarms and SNMP Monitoring
Faults and alarms from the 2000NET module can be reported to a Frame
Health Alarm connector on the rear of the frame (see
Connection
(see
2000NET Module Alarm DIP Switches
Two eight-position DIP switches (S1 and S2) enable or disable the overall
fault and alarm reporting functions of the module. The current status of
these settings are reported on the Status web page of the 2000NET GUI
(
2000NET Status Web Page
reports can also be useful in isolating problems in the frame.
The Frame Health Alarm on the rear of the Kameleon 2000 Series frame
responds directly to the settings of the DIP switches. Some media modules
provide enabling/disabling of Frame Health reporting for Slot Status,
Signal Loss and Reference Loss on the Slot Config web page for the media
module. Refer to
on page 11) and/or to a networked SNMP monitoring system
SNMP Monitoring
Media Module Slot Configuration
Alarms and SNMP Monitoring
Frame Health Alarm
on page 20).
on page 33). Disabling (or filtering) of fault
on page 38 for details.
Power Supply #1
Power Supply #2
Power Supply #3
Power Supply #4
Fan
Module
Frame Bus
Asynchronous Status
NM Control
Frame Control
Refer to Figure 13 for the location of S1 and S2 and Table 3 on page 20 for
the possible settings. A settings table is also silk-screened on the bottom of
the module.
Figure 13. DIP Switches S1 and S2
12345678
S1
12345678
S2
8046_48
2000NET Instruction Manual 19
Alarms and SNMP Monitoring
Table 3. Configuration DIP Switches
2000NET S1 and S2 Functions and Settings
S1 Segment Left Position (open) Right Position (closed)
1 PS1 fault reporting enabled PS1 fault reporting disabled
2 PS2 fault reporting enabled PS2 fault reporting disabled
3 PS3 fault reporting enabled PS3 fault reporting disabled
4 PS4 fault reporting enabled PS4 fault reporting disabled
5 (Currently not used)
6 Fan fault reporting enabled Fan fault reporting disabled
7 Module fault reporting enabled Module fault reporting disabled
8 Frame Bus fault reporting enabled Frame Bus fault reporting disabled
S2 Segment Left Position (open) Right Position (closed)
1 Asynchronous Status Enabled (enabled alarms are reported over SNMP) SNMP Reporting is disabled except for Over Temp alarm
2 Net module remote control enabled Net module remote control disabled
3 (Currently not used)
4 Frame remote control enabled Frame remote control disabled
5-8 (Currently not used)
Note Disabled faults are still detected by the network GUI but LEDs will be inactive.
SNMP Monitoring
The Thomson Grass Valley Modular Control and Monitoring System uses
the Simple Network Monitoring Protocol (SNMP) internet standard for
reporting status information to remote monitoring stations. The SNMP
reporting from the 2000NET module provides status reports (traps) for
various frame and module faults and warnings as described in Table 4 on
page 21.
Status reports (traps) are unsolicited reports sent from the SMMP Agent to
one or more SNMP Managers such as Thomson Grass Valley’s NetCentral.
Once an SNMP agent has been installed, the 2000 frame and each module
slot can be configured to enable or disable these reports through the 2000
web pages.
Note The DIP switches described in Table 3 must be enabled for corresponding
SNMP reporting of the system components.
20 2000NET Instruction Manual
Alarms and SNMP Monitoring
SNMP Trap severity can be one of three degrees:
•Warning – a limitation in the module’s intended performance,
•Alarm – a failure in communication with the module, or
• Informational – a configuration change such as a switch setting.
The enabled SNMP traps will be reported to any SNMP manager that is
identified as an SNMP Report Destination in 2000NET configuration (see
2000NET Configuration Web Page on page 34. Trap severity is read-only
hard-coded information that is interpreted and responded to by the SNMP
Manager software configuration.
The SNMP traps available on the Kameleon 2000 frame and modules are
outlined in Table 4. The web page location for the enable/disable controls
are listed as well as the SNMP trap reports available and their severity.
Table 4. 2000/Kameleon Control System SNMP Traps Summary
Function Web Page Control SNMP Trap Report Trap Severity
2000 Frame Frame Configuration
Frame Bus Status Alarm
Fan Status Alarm
Always enabled, no disable Frame Over Temperature Alarm
Frame Power Sled 1 and 2 Power Sled Configuration
PS 1 Fault Alarm
PS 2 Fault Alarm
Sled Removed Warning
Fan Status Alarm
Fan Sled Fan Sled Configuration
Fan Sled Removed Warning
Fan Status Alarm
2000NET Module 2000NET Configuration
Net Card Status Alarm
Hardware Switch Informational
Media Modules Media Module Slot Config
Slot Fault Alarm
Module Removed Warning
Signal Loss Warning
Reference Loss Warning
For the latest MIB (Management Information Base) files for the modular
control system, go to the Thomson Grass Valley public ftp site at:
ftp://ftp.thomsongrassvalley.com/pub/modular/
2000NET Instruction Manual 21
Establishing Frame Network Identity
Establishing Frame Network Identity
The initial configuration of the 2000NET module, using the RS-232 port
(refer to Figure 6 on page 12), establishes the frame’s network identity to
enable the operation of the Web-based GUI. A PC running a terminal emulation application is used to set the initial parameters for network communication. Once initial identity is established, the GUI can be used to make
subsequent changes to the networking parameters. Parameters established
include:
• Local IP address,
•Gateway IP address, and
• Subnet Mask.
Note If the 2000 Kameleon frame is to be connected point-to-point to a single PC
workstation, both the frame and the PC must be on the same Subnet.
Good Networking Practices
The Local IP Address form of a URL can be used within an intranet to
address the 2000 Kameleon frame’s Web page. An intranet is set up and
maintained within your facility and is isolated from the Internet.
Access from outside, through the Internet, may require the use of a Domain
Name and a firewall, depending upon your network architecture. Domain
Name Addressing requires a Domain Name Server located within the
intranet that maps the Domain Name to the frame’s IP Address. The 2000
frame has no knowledge of its assigned Domain Name.
Remote workstations are also subject to network traffic delays. Local PC
workstations should be used for real-time operation of the 2000NET.
The most direct and timely access to the frame is achieved by using a PC
workstation that is assigned to the same Subnet (see Figure 14). A workstation in a different Subnet, even when located on the same router, will be
subject to processing of the IP Gateway.
22 2000NET Instruction Manual
Figure 14. Local IP and Subnet Addressing
Establishing Frame Network Identity
Subnet 2
Subnet 1
FAULT/LOC
2000T3 frame 127.1.2.3
FAULT/LOC
2000T3 frame 127.1.2.4
2000 WIDEBAND SERIES
PS1
UPPER
POWER
SUPPLY
PS2
PS1
LOWER
POWER
SUPPLY
PS2
2000 WIDEBAND SERIES
PS1
UPPER
POWER
SUPPLY
PS2
PS1
LOWER
POWER
SUPPLY
PS2
IP Gateway
127.1.2.1
FTP Server
127.1.2.6
182.1.2.1
Router
Remote PC
182.1.2.2
Local PC
127.1.2.5
8046-12
Setting Frame Network Identity
After you have connected the PC to the RS-232 port (refer to Configuration
Serial Port Cable on page 12) and established communication using the ter-
minal emulation application, press the
the active prompt.
At the prompt enter:
setup
You will see:
-> setup
Here are the current parameters and their values:
Local IP Address: 192.158.211.83
Gateway IP Address: 192.158.211.1
Subnet Mask: 255.255.255.0
If a change is made, it is necessary to reboot
2000NET Instruction Manual 23
enter/return key several times to see
Establishing Frame Network Identity
this machine. This will occur automatically when
you have completed making changes.
Do you wish to change any of the values? y/n (n): y
For each parameter, you will be given the name of the
parameter and its current value in parenthesis. To
change it, just type in the new value. If you don't
wish to change it, just hit the Enter key.
If you make a mistake on a previous value, continue
with the remaining parameters; you will be given an
opportunity to modify the value again.
Please ensure that you change from Factory defaults
to your network parameters.
The local Ip Address is the Internet address of this
machine. It consists of four numbers separated by periods ('.'). Each number can be in the range of 0 to
255. For example: 192.167.221.45
There must an IP address.
IP Address (192.158.211.83):
The Default Route is the Internet address of the machine which routes network packets outside of the local network. It consists of four numbers separated by
periods ('.').
Each number can be in the range of 0 to 255.
For example: 192.167.221.1
If you respond with a single period (.),a default
route will not be assigned.
Default Route (192.158.211.1):
The Subnet Mask is used in the routing algorithm.
The Net Card will use the mask to determine if a address is in local net or to send the message to the
default. It consists of four numbers separated by periods ('.').
Each number can be in the range of 0 to 255.
For example: 192.167.221.1
If you respond with a single period (.),
a Subnet Mask will not be assigned.
Subnet Mask (255.255.255.0):
24 2000NET Instruction Manual
Web Browser Setup
The recommended web browser for use with the 2000NET Control and
Monitoring System is either:
•Netscape Navigator 4.x or later, or
• Internet Explorer 4.x or later.
Note The use of Internet Explorer 4 with Windows NT has been found to be very
Versions 3.x or earlier of these browsers may cause undesirable results in
the presentation of HTML frames.
Addressing the Frame URL
To address a 2000 Kameleon frame from an internet browser, enter the
frame’s default URL into the URL line of the browser (
Navigator,
given to the frame during initial setup (see Setting Frame Network Identity
on page 23), or a Domain name that has been mapped to the IP address in
your Domain Name Server tables. The URL should look like this:
Web Browser Setup
slow.
LOCATION in Netscape
ADDRESS in Internet Explorer). The URL will be the IP Address
http://{Frame’s IP Address}/
Example:
http://127.123.234.2/
Or:
http://{Frame’s Domain Name}/
Example:
http://frame1.xyz.com/
The correctly entered URL will call up the 2000 frame’s default first
page—Frame Status.
Default MAC (machine) Address
Each 2000 Kameleon frame has a unique ethernet physical level MAC
address that is stored in the frame ID memory chip. If this memory has
failed, the 2000NET module will substitute a default MAC address:
08-00-11-09-CD-AB. If more than one 2000 frame in your network is
assigned the default MAC address, network conflicts will occur. To verify
the frame has a unique MAC address refer to 2000NET Network Web Page
on page 37.
2000NET Instruction Manual 25
Using the 2000NET GUI
Using the 2000NET GUI
Once you have accessed the 2000 Kameleon frame’s first web page, Frame
Status (see Figure 15 on page 27 for a 3 RU Frame Status web page or
Figure 16 on page 27 for a 1 RU Frame), use the hypertext Link List in the
left column to select the desired device.
The Link List is a two-tier list with the frame’s devices at the highest tier
and sub-pages for each device in a secondary tier (sub-list) below the
parent device.
To navigate from device to device, click on a device link. This will open the
device’s status web page and open the sub-list of device pages. You can also
click on the slot icon in the content display to access a particular module’s
status web page.
To navigate to one of the device’s pages click on any of the device’s sub-list
of links. This will update the content display to the right.
Using the web browser’s refresh function will always return you to the
Frame Status page. To refresh a particular page, always click on that page’s
Refresh button to the right of the page name.
Note To update status, HTML pages must be manually refreshed by clicking on the
Refresh button. Changes made at the frame or from other browsers on the
network will not be displayed until the page is refreshed.
26 2000NET Instruction Manual
Using the 2000NET GUI
Figure 15. 2000NET GUI for 3 RU Frame Control
The Links section lists the frame and its current modules. The selected link's Status
page is first displayed and the sub-list of links for the selection is opened. The sub-list
allows you to select a particular information page for the selected device.
Content display section displays the information page
for the selected frame or module (frame slot icons are also
active links).
Refresh button for manual
refresh of page
8046_13r2
Figure 16. 2000NET GUI for 1 RU Frame Control
2000NET Instruction Manual 27
Using the 2000NET GUI
Frame Interface
Frame Status Web Page
This section describes GUI functions for the frame.
Use
this
link
The Frame Status web page (Figure 15 on page 27 for a 3 RU frame and
Figure 16 on page 27 for a 1 RU frame) displays an overall status for the
frame. This includes status for each device, module, empty slot, power
supply, and the 2000NET and 2000GEN modules.
Note 2000 and legacy Thomson Grass Valley modules that can reside in the
2000T3 frame are supported to different degrees by the 2000NET module.
The status of modules, empty slots, power supplies, and the 2000NET
board are presented in icons arranged from left to right as they are in the
physical frame. Each icon also provides a clickable link to the device’s
status page.
Note When the 2000NET is first installed or when many modules are installed
simultaneously, it may take some time for the 2000NET to poll, update status,
and build the HTML pages. This is especially true if there are modules that fail
frame bus reporting. During these periods the Frame Status Page may fall
behind temporarily until the 2000NET board can catch up and present a true
current status.
During initial polling, modules that do not respond immediately may transition to a
WARNING, MODULE NOT RESPONDING status. In this case, this is a tem-
porary status until a maximum number of sequential attempts fail and a
Fault is reported.
Module Slot Status
Module Slot Status icons report one of the following:
Table 5. Module Status Indicators
Icon
Color
White None Empty No module detected in slot.
Grey No Comm No Comm Slot contains a legacy module which was not designed to support Frame
Green Pass Module Slot contains a fully Frame Bus capable module.
Yellow Warning Module 2000NET has detected a warning condition in module due to lack of input
Red Fault Module 2000NET has detected a fault condition in module. Fault may have been
28 2000NET Instruction Manual
Module
Status
Icon
Text
Indication
Bus communications with an 2000NET module.
signal or incomplete support for remote monitoring and control. Ability of
module to perform intended operation is limited.
communicated over the Frame Bus, or may indicate a failure of the module
to respond over the Frame Bus.
Use
this
link
Using the 2000NET GUI
Frame Configuration Web Page

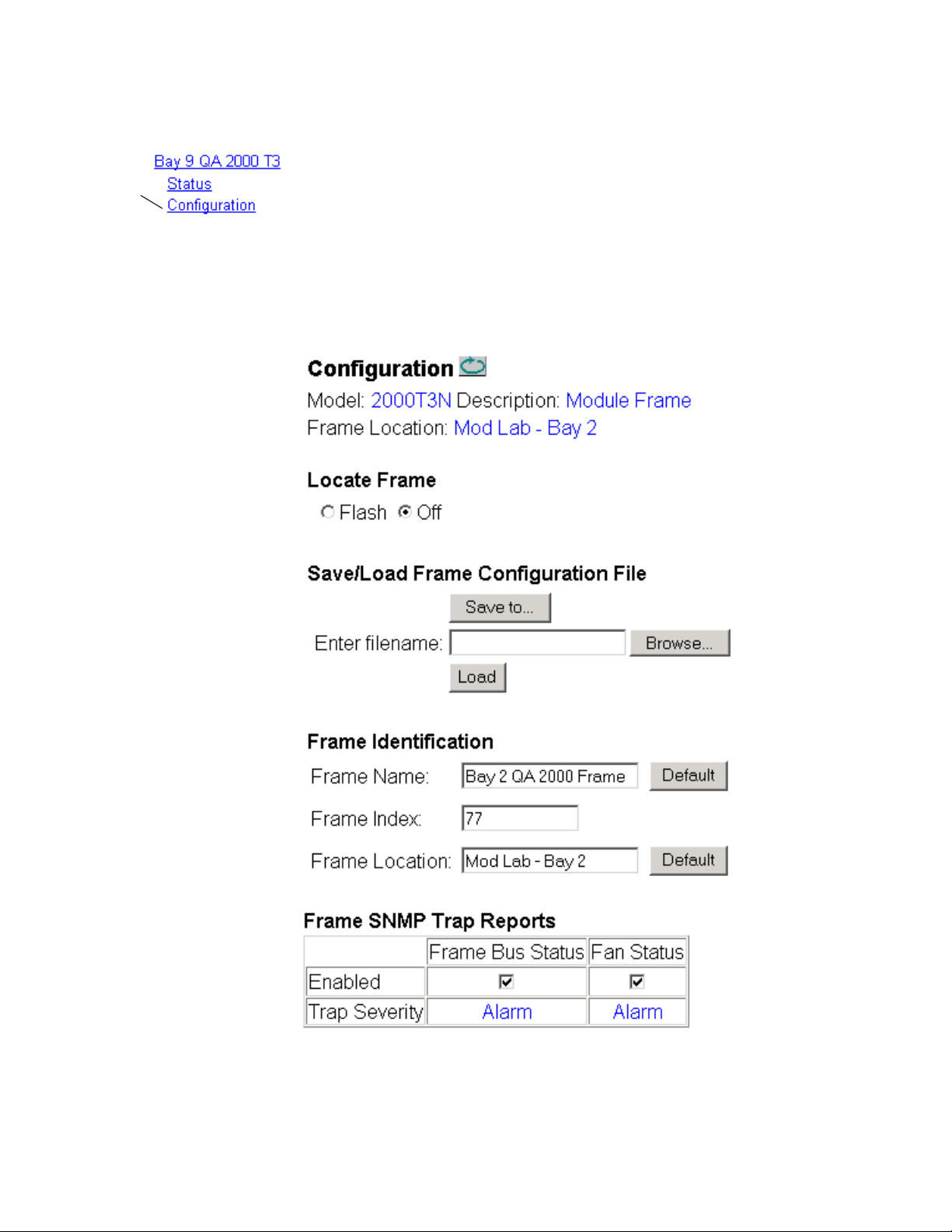

Use the Frame Configuration web page (Figure 17) to:
•Activate the flashing Locate Frame LED,
• Save a frame configuration file or browse and Load a previously saved
frame configuration file,
•Assign the frame a name, index, and location, and
• Enable/disable frame status reports for SNMP monitoring.
Figure 17. 2000 Frame Configuration Web Page
2000NET Instruction Manual 29
Using the 2000NET GUI
Locate Frame
Select the Flash radio button in the Locate Frame function to flash the front
LEDs on the 2000NET module to help locate the 2000 frame.
Save/Load Frame Configuration File
You may save a frame configuration to a file by clicking on the Save To
button. A frame configuration is saved to a default file (FrameConfigData.mcm) and the name cannot currently be changed. Follow the file
download instructions for saving the file. This file can be recalled on this or
any other networked 2000 frame to create a duplicate configuration.
Use the
path and file name into the display. Select the
selected configuration to the frame.
Browse button to locate a saved frame configuration file or enter a
Load button to load the
Frame Identification
Enter any name, an index number (for SNMP reporting), and a location
name to identify a frame. You may also use the factory default frame name
or location by selecting either
Default button.
Frame SNMP Trap Reports
The Frame Configuration web page allows you to enable the following
SNMP slot reports shown in Figure 17 on page 29:
• Frame Bus Status (Alarm)
• Fan Status (Alarm)
30 2000NET Instruction Manual
Use
this
link
Using the 2000NET GUI
Frame Power Sled Web Pages
The frame power supply sled status and configuration pages provide:
• Power sled status – pass/fail status of each supply and fan in the power
supply sled (see Figure 18).
•SNMP slot report configuration.
Figure 18. Power Supply Slot Status Page
Use
this
link
The Power Sled Configuration web pages allows you to enable the following SNMP slot reports shown in Figure 19:
• PS 1/PS 2 Fault (Alarm)
• Sled Removed (Warning)
• Fan Status (Alarm)
Figure 19. Power Supply Slot Configuration Page
2000NET Instruction Manual 31
Using the 2000NET GUI
Frame Fan Sled Web Pages
Use
this
link
Use
this
link
The fan sled slot status and configuration web pages provide:
• Fan sled status – pass/fail status of each fan in the fan sled (see
Figure 20), and
•SNMP slot report configuration.
Figure 20. Fan Sled Slot Status Page
The Fan Sled Configuration web pages allows you to enable the following
SNMP slot reports shown in Figure 21:
• Fan Sled Removed (Warning)
• Fan Status (Alarm)
Figure 21. Fan Sled Slot Configuration Page
32 2000NET Instruction Manual
Use
this
link
Using the 2000NET GUI
2000NET Module Interface
This section describes GUI functions for the 2000NET module.
2000NET Status Web Page
The 2000NET Status web page (Figure 22) provides:
•Module identity, frame location, and pass/fail status of module,
• Status icons reporting network interface, internal module state, and
frame communications bus health (see Table 5 on page 28),
•Hardware and solftware versions, module identification numbers, and
assigned Asset Tag number, and
•Current status of fault reporting enable switches. Refer to Alarms and
SNMP Monitoring on page 19.
Figure 22. 2000NET Module Status Web Page
2000NET Instruction Manual 33
Using the 2000NET GUI
2000NET Configuration Web Page
Use
this
link
The 2000NET Configuration web page provides the following:
•A
reboot button,
•SNMP Agent setup installation, and
•An Asset Tag identifier field.
Reboot Module
You may reboot the 2000NET module by selecting the reboot button at the
top of the page. A reboot can also be done on the 2000NET Network web
page.
SNMP Agent Installation
To use SNMP, the SNMP Agent software must be installed on the2000NET
module. The Configuration web page shown in Figure 23 is displayed if the
agent software has not already been installed.
When SNMP Agent software is installed on the 2000NET module, enabled
status reports are sent to an SNMP Manager such as the Grass Valley’s NetCentral application. Refer to SNMP Monitoring on page 20 for more information.
Figure 23. Configuring the 2000 Network Module for SNMP
34 2000NET Instruction Manual
Using the 2000NET GUI
After reading the agreement, click on Accept to finish installing the SNMP
Agent. Clicking the
Figure 24. Installing the SNMP Agent
When the SNMP Agent is successfully installed, the 2000NET Configuration web page will contain the setup items shown in Figure 25 on page 36.
Decline button will abort the SNMP Agent installation.
Net Card SNMP Trap Reports
The following SNMP trap reports are provided for the 2000NET module:
•Net Card Status (Alarm)
•Hardware Switch (Informational)
SNMP Report Activation Modes
Each report destination has an activation control that can select one of the
following modes of operation:
•
CREATE – GO creates a new report destination that becomes active after
the next module reboot.
•
CREATE – WAIT creates a new report destination that remains out of
service until the user selects active and then reboots the module.
•
ACTIVE changes a NOT IN SERVICE report destination to active after the next
module reboot.
•
NOT IN SERVICE changes an active report destination to inactive after the
next module reboot.
•
DELETE removes the report destination entry. If the entry was active it
remains active until the next module reboot.
Note Report destination status does not change until the 2000NET module is
rebooted.
2000NET Instruction Manual 35
Using the 2000NET GUI
Figure 25. 2000NET Module Configuration for SNMP
The status column to the left of the activation operation pull-down window
provides one of the following status reports:
•
<BLANK> – No entry has been applied.
•
ACTIVE – All new status reports will be sent to this destination.
•
NOT IN SERVICE – The destination has a valid definition but the user has
not activated it.
•
ACTIVE PENDING REBOOT – This entry indicates the report destination will
become active upon the next module reboot.
36 2000NET Instruction Manual
Use
this
link
• NOT IN SERVICE PENDING REBOOT – This entry indicates the report destina-
tion will become inactive upon the next module reboot.
•
NOT READY – The destination entry is invalid. The IP Address may not be
properly defined or there is no IP Address or Community entry.
Assign Asset Tag
The 2000NET module can be assigned as asset tag identifier by entering
numbers or text in the Asset Tag field. This information will appear on the
Status web page and in the module inventory when using the NetConfig
Network Configuration application.
2000NET Network Web Page
After initial frame network addressing is done using the RS-232 port, subsequent address changes may be made using the Network Parameter entry
fields on the 2000NET Network web page illustrated in Figure 26.
The 2000NET module must be rebooted before changes will take effect. You
can reboot the module from the Network web page by clicking the
button. The
Reboot button can also be found on the Configuration web page.
Using the 2000NET GUI
Reboot
Figure 26. Configuring the 2000 Network
Frame
Machine
Address
Enter and Apply
Network
Parameters
Note SubNet Mask and Gateway IP Address are required.
2000NET Instruction Manual 37
Using the 2000NET GUI
Media Module Slot Configuration
Use
this
link
The 2000NET module also provides functionality for the Slot Config web
page for each media module in the frame (Figure 27 on page 39). Media
module slots may be named to reflect specific functions for that slot or
module within the facility. The configuration for the module can also be
saved to slot memory on the 2000NET module.
Note Both frame and module names and configuration information can be saved
to file and recalled as necessary. This allows quick and easy reconfiguration
of the 2000NET module if it must be replaced or moved to another frame (see
Save/Load Frame Configuration File on page 30).
Slot Identification
You may identify the module by typing a specific name in the Name field.
The assigned name is stored on the 2000NET module and travels with the
2000NET module if it is moved to another frame. Select
factory default module name.
The module may also be assigned an asset tag identifier by entering text or
numbers into the Asset Tag field.
Default to enter the
Note Asset tag functionality not available on all 2000 media modules.
Locate Module
When enabled by selecting the Flash pulldown, the Locate Module function
flashes the yellow COMM and CONF LEDs on the front of the module to
make it easy to locate in the frame.
Note This function is not available on all Kameleon and 2000 modules.
Slot Memory
The slot configuration for each media module is automatically saved periodically to the 2000NET module in that frame. You may also select the
Module Config button at any time to save the current configuration for this
slot. The configuration is saved on the 2000NET module. If the 2000NET
module is removed or powered down, the stored configurations are not
saved.
When the
saved to this slot is saved as slot memory. When the current module is
removed and another module of the same type is installed, the configuration saved to the 2000NET module will be downloaded to the new module.
The box must be checked before the current module with the saved configuration is removed.
Restore upon Install box has been checked, the current configuration
Learn
38 2000NET Instruction Manual
Figure 27. Slot Configuration Page
Using the 2000NET GUI
2000NET Instruction Manual 39
Using the 2000NET GUI
Frame Heath Reporting
The reporting of Slot Fault, Signal Loss, and Reference Loss for the media
module can be enabled or disabled to the external Frame Health alarm connector, J103, on the rear of the Kameleon frame. Selecting or deselect the
corresponding checkbox to enable or disable alarm reporting.
Hardware Switch Controls
This section is a read-only status report of 2000NET module switch settings
for Module Status Reporting and Asynchronous Status Reporting. These
functions must be enabled for the following Slot SNMP Trap Reports to
function. Refer to Alarms and SNMP Monitoring on page 19.
Slot SNMP Trap Reports
This section is displayed only when the SNMP Agent software has been
installed on the 2000NET module in the same frame as the media module.
The following SNMP trap reports are provided for applicable 2000 and
Kameleon Series media modules:
• Slot Fault (Alarm)
•Module Removed (Warning)
• Signal Loss (Warning)
•Reference Loss (Warning)
Enable (select the checkbox) or disable (deselect the checkbox) for the
desired SNMP monitoring.
Note SNMP functionality varies on media modules depending on the type of
module and its software version.
40 2000NET Instruction Manual
Updating Software
There are currently three ways of updating software on Kameleon and 2000
series modules depending on the type of module and its current software
version.
• 2000NET (version 3.2.0 and later), Kameleon, and some applicable 2000
modules may be updated using the NetConfig Networking Application option available with modular and other Grass Valley products.
Refer to the NetConfig Instruction Manual available with the option
and on-line and the specific module release notes for complete details.
• If NetConfig is not available, 2000NET (all versions), Kameleon, and
some applicable 2000 modules may be updated using the FTP download method described in this manual (FTP Method Overview on
page 42).
• Some 2000 series modules do not support either of the above remote
software downloads. These modules require a special cable kit as
described in Unsupported Software Updates on page 55.
Using the 2000NET GUI
Acquiring Software Updates
Software upgrade packages are available from the Grass Valley Customer
Service FAQ site or the public FTP site. The free FTP server software is also
available.
You may connect to the Grass Valley FAQ site to access the latest module
and free FTP Server software and subscribe to software updates automatically at the following URL:
http://gvg.custhelp.com
The information provided here is the most up-to-date. Using this link is recommended so that when new versions of software are released, you are
notified by E-mail. It also provides information on module software
updating, including a list of the modules that do not support remote
upgrades.
To find the latest available 2000 software on the FAQ site, do the following:
1. Navigate to the FAQ site and click on the first FAQ in the list labeled
DOWNLOAD THE LATEST SOFTWARE?
2. Select the link to the correct module software.
If you cannot find the software you need you may also go directly to the
Thomson Grass Valley ftp site to download the software at the following
location:
ftp://ftp.thomsongrassvalley.com/pub/modular
2000NET Instruction Manual 41
Using the 2000NET GUI
FTP Method Overview
The Modular Remote Monitoring and Control System is an extension of the
Thomson Grass Valley Signal Management System (SMS) routing system
and uses the same File Transfer Protocol (FTP) technique to download software.
This procedure assumes your Local FTP server is a 32-bit Windows host
running Windows 95, 98, 2000, NT, or later.
If you do not have an FTP server, Grass Valley provides a free FTP server
package that is easy to install and operate. This procedure assumes you will
use the Xitami FTPD provided. If you already have an FTPD available, you
can skip steps 3 through 5.
The software update process consists of the following steps:
1. Acquire the software update files and, if needed, the FTP Server
package.
2. Extract the module software update files into an FTPD modular
directory.
3. Extract the FTP Daemon (Xitami FTPD).
4. Run the Xitami installation program.
5. Move the FTPD configuration files to the Xitami directory.
6. Start the FTPD.
7. Use the 2000 GUI to initiate software updates.
8. Verify the software update results.
42 2000NET Instruction Manual
FTP Software Update Procedure
2000 WIDEBAND SERIES
PS1
FAULT/LOC
2000T3 frame with
Network Interface Module
FTP Daemon Installed
Create a password protected
UPPER
POWER
SUPPLY
PS2
PS1
LOWER
POWER
SUPPLY
PS2
Modular directory
c:\modular\2000xxx
Using the 2000NET GUI
1. Acquire the software update files from Grass Valley (refer to Acquiring
Software Updates on page 41).
a. Create a temporary download directory on your PC:
c:\temp\
Figure 28. Acquiring 2000 Software from Thomson Grass Valley Download Site
Thomson Grass Valley ftp site
ftp://ftp.thomsongrassvalley.com/pub/modular
Typical Update Download
1. Module file (example): 2000net_sw2.exe
2. FTP Server file: ftpd.exe
Internet
Resulting files
Ethernet
Local
FTP Server
In a temporary directory: C:\temp\
1. Module file (example): 2000net.exe
2. FTP Server files: xic3223c.exe
defaults.cfg
ftpusers.sms
readftpd.text
Resulting files
In Program directory: C:\Program Files\Xitami
1. FTP Server file: xic3223c.exe
defaults.cfg
ftpusers.sms
Extract to
C:\modular
Move to
Xitami
Directory
8046-26r1
b. Using the web browser, select the desired files. Each file is a
self-extracting .exe file. Double-click to extract and download the
file. You are queried to either
As option and set the path to the temporary directory on your
Open the file or Save As. Select the Save
computer.
This process will trigger the download of the file to your computer.
Note If you have access to an existing FTP server directory, the module update files
can be extracted directly into that directory.
2. Extract the module update files into an FTPD modular directory.
The module software update files must reside in a directory that the
FTPD can access. The Thomson Grass Valley supplied FTPD is configured to access a directory designated:
2000NET Instruction Manual 43
Using the 2000NET GUI
\modular
The module update .exe files contain the new software for the 2000
module, either a binary file (.bin extension) or a field update file (.fld
extension). Binary files are for the 2000NET module updates and field
update files are for the Kameleon and applicable 2000 media modules.
a. Open Windows Explorer on the local server.
b. If one does not already exist, create a directory on the C drive:
c:\modular
c. Create a subdirectory using the model name of the file being
updated, for example:
c:\modular\2000NET
d. Double-click the module software .exe file (in the temporary
directory) and save it to the appropriate directory. The resulting file
will be a .bin or .fld.
3. Extract the FTPD (Xitami FTP Server) files.
Note This section is for facilities that do not already have an FTP Daemon (FTPD)
(also known as a File Transfer Protocol (FTP) server) installed on the 2000
frame’s network. For those facilities that already have an FTPD or other FTP
service available in their network, go to step 6.
Thomson Grass Valley provides a free FTP server for those facilities
that do not have a local FTP service. The FTP server package is the same
Xitami Web Server FTP package that is provided with the Thomson
Thomson Grass Valley SMS router upgrade package. The version of the
Xitami Web FTP server distributed with module software upgrades is
for a 32-bit Windows host.
The FTP Daemon in the temporary directory is a self-extracting file
(ftpd.exe). To extract the files:
a. Open Windows Explorer and find the ftpd.exe file.
b. Double click on the .exe file and extract the files to the temporary
directory.
These files will be extracted:
• xic3223c.exe – the Xitami installation file,
• defaults.cfg – an FTPD configuration file that has been modified
specifically for Thomson Grass Valley software downloads,
• ftpusers.sms – the FTPD admin file specifying user names and passwords for network access to files in the FTP server directories, and
•Readftpd.txt – a Readme file.
44 2000NET Instruction Manual
Using the 2000NET GUI
4. Run the Xitami installation program.
a. Double click on xic3223c.exe. You will see the Xitami Welcome
(Figure 29).
Figure 29. Xitami Web Server Welcome
b. Click on Next>. You will see Xitami Installation Notes.
c. Click on Next>
You will see Select Destination Directory (Figure 30).
2000NET Instruction Manual 45
Using the 2000NET GUI
Figure 30. Select Destination Directory
d. Do not change the default settings. Click on Next>. You will see the
Select Program Group screen (Figure 31).
Figure 31. Select Program Group
e. Do not change the default settings. Click on Next>. You will see the
Automatic Startup Query screen (Figure 32).
46 2000NET Instruction Manual
Figure 32. Automatic Startup Query
Using the 2000NET GUI
f. Select No, then click on Next>. You will see the Administration
Password screen (Figure 33).
Figure 33. FTPD Server Administration Password
g. Do not enter anything in these fields. Click on Next>. You will see the
Choose Server Profile screen (Figure 34).
2000NET Instruction Manual 47
Using the 2000NET GUI
Figure 34. Choose Server Profile
h. Select Tiny - never block another task. Click on Next>. You will see the
Ready To Install screen.
i. Click on Next>.
An installation meter box will appear, and upon completion, you will
see the Installation Complete! screen.
j. Click on Finish.
An Icon (see Figure 35) will have been created in the Program Group
window that was selected in Step d (see Figure 30 on page 46).
48 2000NET Instruction Manual
Figure 35. FTPD Icon in Program Group Window
Using the 2000NET GUI
5. Move the FTP Daemon Start-up Configuration Files.
The FTP Daemon that has been installed requires that configuration
files be placed in the Xitami directory.
a. Open Windows Explorer.
b. From the Explorer window, return to the FTPD directory and move
the extracted defaults.cfg and ftpusers.sms files to the directory at:
c:\Program Files\Xitami
The defaults.cfg and the ftpusers.sms files contain default configuration instructions that the FTPD application reads at start-up.
6. Start the FTPD.
If the Xitami Web Server (FTPD) is not already running, start it.
a. Click on the Start popup window on the PC.
2000NET Instruction Manual 49
Using the 2000NET GUI
b. Select PROGRAMS, then INTERNET TOOLS, and click on Xitami Web Server
– 32 bit console (Figure 35 on page 49).
The Xitami Console will open as a DOS window. There will be a log
of events, at least one of which will indicate it is accepting connections (see Figure 36).

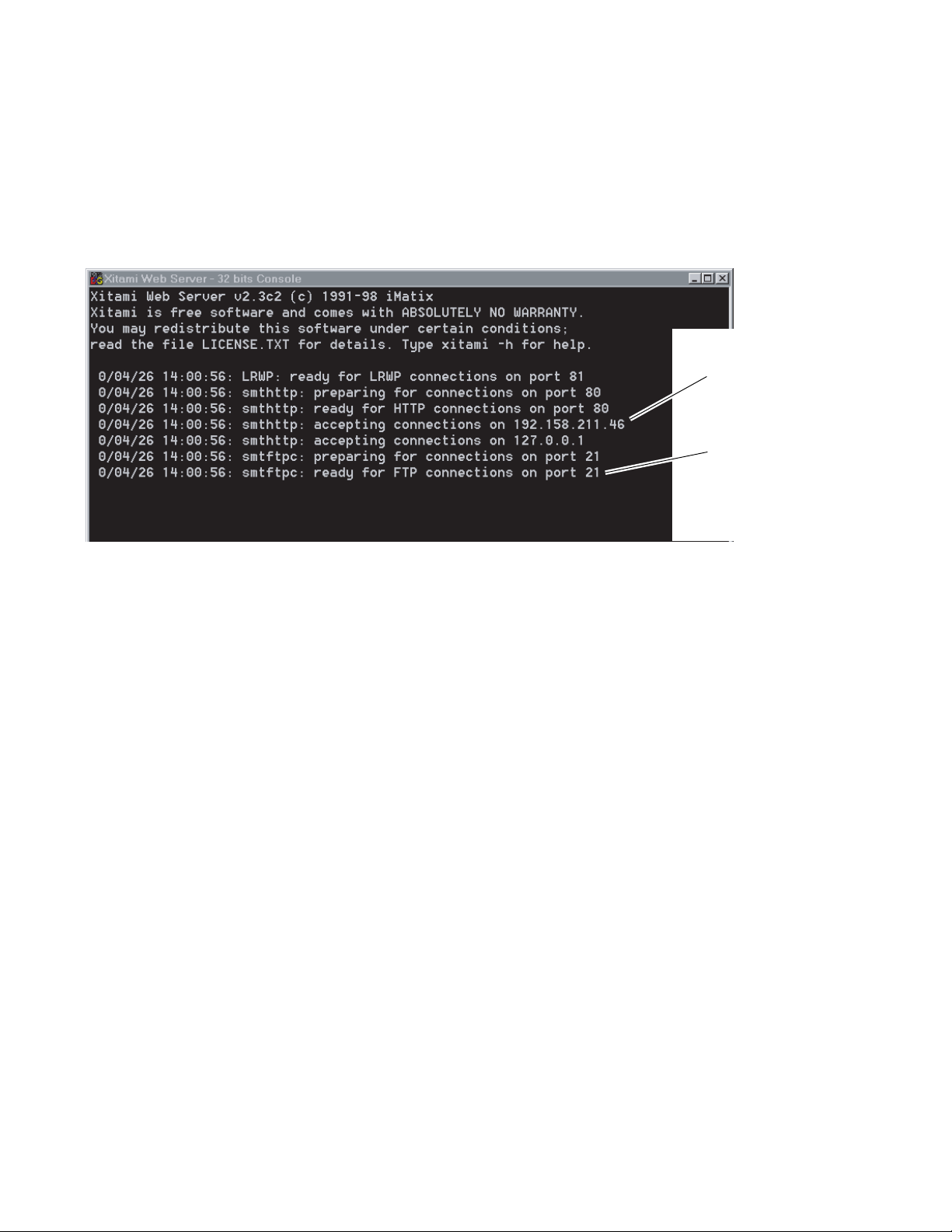

Figure 36. Typical FTPD Console Screen
Example. Actual
IP Address will be
the one assigned to
your FTP Server PC.
Ready message verifies
the FTPD is running.
The IP Address line should actually indicate the IP address of the
PC you are using for the FTP server. This is the IP Address that will
be used to initiate the software update.
The line that verifies that the FTPD is running reads:
ready for FTP connections on port 21
7. With the FTPD running, use the 2000 GUI to initiate software updates.
You will use the web-browser to:
•Access the appropriate Software Update page for a given module
slot,
• Enter the required data into the HTML form on that page, and
• Submit the form.
The 2000 Frame uses the data in the form to contact the FTPD on your
server, download the software update file, and reprogram the targeted
module.
Note Prior to attempting update of software, refer to the target module’s manual
and confirm that the Remote/Local Only jumper is in the Remote position.
a. Open a web browser on a PC that is connected over the network to
the 2000 frame.
b. Enter the URL of the frame where the module to be updated
resides. The frame’s main status page will appear.
50 2000NET Instruction Manual
Use
this
link
Using the 2000NET GUI
c. Click on the module’s link and then click on Software Update.
The module’s Software Update page will appear (Figure 37). This
form is the same for all 2000 modules that support network software update.
Figure 37. Network Module Software Update Web Page
d. In the FTP Server Address field, enter the IP Address of the PC that
has the FTPD installed and running.
e. You can enter the Host Name of the PC that has the FTPD running
into the FTP Server Name field. This is an optional step and can be
omitted.
f. Click on Apply to set the FTP Address.
The web page will refresh and the new FTP address should be displayed as the Current Settings.
g. In the File Path field, enter the FTP file path of the software update
file.
The FTP file paths use forward slashes. The directory name “/mod-
ular” is not needed in the path name.
2000NET Instruction Manual 51
Using the 2000NET GUI
h. Submit the form and start the update process by entering the user
name and password and clicking on
By default, the Xitami Server has been configured to accept a user
name of “moduser” and a password of “moduser” for the modular
root directory. This may be changed by modifying the ftpusers.sms
file in the C:\Program Files\Xitami directory (see Password Protec-
tion for Software Upgrades on page 53).
Apply.
After you click on
the Progress Monitor (Figure 38 on page 52).
If an incorrect file name or password is entered, the Progress
Monitor will report the condition and allow you to go back to the
Software download page and re-enter the correct information.
The module software compatibility check uses compatibility information included in the Field Update File to ensure that the new
software was intended for this module. In the event that there is a
mismatch, the Net Board will abort the upgrade.
Note Do not make any changes to the web page during the software download.
i. Once the download has started, wait for the Success message at the
end of the Progress Monitor screen to appear (Figure 38) and allow
the frame to reboot before making any web page changes. Click on
the
Software Update link again to refresh the page.
Figure 38. 2000NET Successful Software Download
Apply, the web page will be reloaded, displaying
8. Verify the software update results by checking the Installed Software
Version on the device’s Properties web page.
The software and firmware (if applicable) numbers should match that
indicated in the .bin or .fld file name (see Step 2 of this procedure for file
names and version numbers).
52 2000NET Instruction Manual
Using the 2000NET GUI
Password Protection for Software Upgrades
The FTPD distributed for software downloads provides user name and
password protection for 2000 module and 2000NET software updates. User
name and password entry is required in the Software Update web pages.
The assignment of User names and Passwords for a given FTP root directory is administered by editing the ftpuser.sms file included in the FTPD
distribution (see Step 3 of this procedure). This file initially contains the
default user name and password (user name: moduser, password:
moduser) for access to the modular root directory and instructions for
setting up an account.
The contents of the file are shown in Figure 39 on page 54. (The file also
includes the SMS7000 account for customers with Thomson Grass Valley
SMS routers.)
2000NET Instruction Manual 53
Using the 2000NET GUI
Figure 39. User Name and Password File ftpuser.sms
Modular product user name
Modular product password
Note The FTPD configuration files should be installed in a password protected
directory.
54 2000NET Instruction Manual
Unsupported Software Updates
If the 2000 module does not support network software updates, the Software Update web page will indicate software updating is not supported as
shown in Figure 40. These modules require a special cable kit
(8900-FLOAD-CBL with Instruction Manual) available from Grass Valley
Sales or Service to perform a software update. Details for the module will
be available in the specific module release notes that accompany the
upgrade.
Note Always read the Release Notes for the specific module for the latest software
download procedure before attempting to download software.
Figure 40. Software Update Not Supported
Using the 2000NET GUI
2000NET Instruction Manual 55
Specifications
Specifications
Table 6. 2000NET Specifications
Parameter Value
Recommended Software
Web browser Netscape 4.x or Internet Explorer 4.x or later
PC operating system Windows 95/98 or later
Terminal emulation HyperTerminal
Environmental
Frame temperature range 0 to 45° C
Operating humidity range 0 to 90% non-condensing
Non-operating temperature 0 to 45° C
Mechanical
Frame type 2000 Series
RS-232 connector DB-9 female
Ethernet connector RJ-45
SMPTE fault alarm connector BNC
Power Requirements
Supply voltage +24 V
Power consumption 5 Watts
56 2000NET Instruction Manual
Service
Service
The 2000NET modules make extensive use of surface-mount technology
and programmed parts to achieve compact size and adherence to
demanding technical specifications. Circuit modules should not be serviced in the field.
If your module is not operating correctly, proceed as follows:
•Check frame and module power and signal present LEDs.
• If frame power is okay but module power is absent, check Fuse F1 (see
Figure 41).
•Check network connections at the frame and network routing devices.
•Verify that all Ethernet devices have a unique MAC and IP Address/
Domain Name.
•Reboot the 2000NET module (see Rebooting the Module on page 18).
Refer to Figure 12 on page 17 for the location of PWR LED and Table 2 on
page 18 for proper LED indications.
If the module is still not operating correctly, replace it with a known good
spare and return the faulty module to a designated Thomson Grass Valley
repair depot. Call your Thomson Grass Valley representative for depot
location.
Refer to Contacting Grass Valley at the front of this document for the Cus-
tomer Service Information number.
Figure 41. 2000NET Module Fuse
Fuse: 2 A FAST, 125 VDipswitches
F1
8046 -01r1
2000NET Instruction Manual 57
Service
Troubleshooting GUI Operation
The following is a list of possible 2000NET GUI and network problems and
logical steps for troubleshooting them.
Cannot Open Any of the Frame’s Web Pages
1. Check power to the frame.
a. Is at least one of the power supplies operating?
b. Is the 2000NET module’s PWR LED on?
2. Check that the frame is physically connected to the network.
a. Is a cable plugged into the RJ-45 connector of the frame or 2000NET
module?
b. Is that cable also connected to a 10Base-T Ethernet hub?
c. Does the 2000NET module’s ETHER LED indicate network
activity?
d. Does the Ethernet hub have any indication that a link is established
to the frame?
3. Is the correct IP Address/URL being used to address the frame?
If a Domain Name is being used to address the frame, try to connect
using the frame IP Address instead.
The Domain Name may not be properly assigned in the local Domain
Name Server or in the workstation’s host file.
The Domain Name Server may not be available to the workstation.Check that the 2000NET module has been properly configured.
a. Is the correct IP Address or URL being addressed in the web
browser?
b. Was the 2000NET module configured over the serial connection
with the
c. Has the 2000NET module been assigned the correct IP Address in
SETUP (re-run setup over the serial connection)?
d. Is the workstation in the same subnet as the frame? If not:
Has the 2000NET module been assigned the correct Default
Routing Address?
SETUP command?
Has the 2000NET module been assigned the correct Subnet Mask?
e. Has the 2000NET module been rebooted since new IP Address,
Default Routing, or Subnet Mask were assigned or changed?
4. Check if the frame web pages can be opened from a different
workstation on the network.
58 2000NET Instruction Manual
Service
5. Is the subject workstation physically connected to the network?
6. Check that the workstation and browser have been properly
configured.
a. Can the frame be opened from a different workstation?
b. Has the workstation been assigned a proper IP Address?
c. Has the workstation been assigned a Gateway Address?
d. Is the browser configured to connect to the correct port?
Is it attempting to connect through a modem when it should be connecting through a network interface module?
Some laptops have two separate network ports, one for stand-alone
operation, and the other for operation with a docking station. Is the
correct port being used?
7. Check that network traffic can be routed between the workstation and
the frame.
a. If the workstation supports a network ping, ping the frame. For
example, using Windows NT:
Open a command prompt (DOS window)
In the DOS window, enter:
C:\> PING [frame’s ip address]
The results will indicate if the ping reached the frame.
b. If the workstation does not support a network ping, ping the
workstation from the frame serial interface:
In the frame serial command window, enter:
->PING [workstation’s IP address]
The workstation’s IP address must be inside the double quotes. The
results will indicate if the ping reached the workstation.
c. If the network ping failed, there may be a network problem
between the frame and the workstation. To ensure it is not the
frame, check the frame with a point-to-point connection:
Using a crossover Ethernet cable, connect the frame directly to a
workstation. The workstation should be assigned an IP Address on
the same Subnet as the frame. Attempt to load the frame’s web page
from a Browser on this workstation.
2000NET Instruction Manual 59
Service
8. If the point-to-point connection attempt fails call Customer Service. If
the point-to-point connection attempt succeeds, the problem is
somewhere in the network between the original workstation and the
frame.
a. Check the connectivity to the frame from different locations in the
network to attempt to isolate physical disconnect problems.
b. Check the connectivity to the frame from inside and outside the
frame’s subnet to isolate IP Gateway routing problems.
c. Check for possible Ethernet MAC Address collisions.
If the Frame ID Memory chip installed on the rear of the frame is
missing or has failed, the frame adopts the default Ethernet MAC
Address.
If more than one frame in the Network adopts the default Ethernet
MAC Address, there could be address resolution problems. Upon
power up the frame will indicate in the serial port console window,
either:
“MAC ADDRESS IS UNIQUE!” – THE FRAME HAS SUCCESSFULLY
RETRIEVED A UNIQUE ETHERNET MAC ADDRESS FROM THE FRAME ID
MEMORY CHIP
or
“MAC ADDRESS IS DEFAULT!” - THE FRAME IS USING THE DEFAULT
ETHERNET MAC ADDRESS. THE FRAME ID MEMORY CHIP IS MISSING OR
HAS FAILED. CALL THOMSON GRASS VALLEY CUSTOMER SERVICE
Cannot modify parameters on Web Page
1. Check if parameters can be set for other modules.
If so, the module may be in a remote lockout state.
a. Check if the LOC/REM – LOCAL jumper on the module is set for
local control only. (Refer to that specific module’s manual for help.)
b. In version 2.0 and later of the 2000NET module software, the web
pages for a module in the remote lockout state will indicate that
module remote control is disabled and the module’s controls on the
web pages will be in read-only mode.
If other modules are not controllable, the entire frame may be in a
remote lockout state. In this state, software updates to the modules and
the 2000NET module are also locked out.
c. Check The 2000NET module’s status page if the frame remote
control is disabled.
If so, flip Switch 3 on the S2 DIP switch block (FRAME CNTRL) to
the enabled setting.
60 2000NET Instruction Manual
Service
2. If only a specific parameter is read-only, the module may be in a mode
assigning read-only operation to that parameter. Refer to the module’s
instruction manual.
3. If only the 2000NET module is read-only, the 2000NET module may be
in remote lockout mode.
a. Check the 2000NET module’s status page to see if the NET CARD
REMOTE CONTROL status is disabled.
b. If so, flip Switch 2 on the S2 DIP switch block (NM CNTRL) to the
enabled setting (see
Table 3 on page 20).
Event Messages From the Frame Are Not Being Displayed by NetCentral or
Another SNMP Manager Application
1. Check that the frame is powered on and configured with an 2000NET
module on the Network.
2. Check that the 2000NET module in the frame is loaded with software
version 2.2.0 or later.
Earlier versions of software do not support SNMP.
3. Check that the SNMP Agent has been installed and configured on the
2000NET module.
View the 2000NET module
figuration parameters, the
DESTINATIONS table.
If these are not visible, install the SNMP Agent per the instructions in
the manual.
4. Check that the IP Address and Community Name for the SNMP
Manager has been assigned in the
Active.
• If there is no entry for the SNMP Manager in the Table, the SNMP
manager’s IP Address and Community name must be entered (see
2000NET Configuration Web Page on page 34).
• If the entry for the SNMP Manager is incorrect, it must be corrected,
activated, and the 2000NET module must be rebooted.
• If the entry has been entered and the Status of the entry is reported
NOT IN SERVICE, the Active operation for that entry must be selected,
applied and the 2000NET module must be rebooted.
CONFIGURATION page and note the event con-
NET CARD EVENT REPORTS form and REPORT
REPORT DESTINATIONS table and is
• If the entry has been entered and the Status of the entry is
the entry must be corrected, activated and the 2000NET module
must be rebooted.
• If the entry has been entered and the Status of the entry is
–PENDING REBOOT, the 2000NET module must be rebooted.
2000NET Instruction Manual 61
NOT READY,
ACTIVE
Service
5. Check that the particular event has been enabled in the frame.
• For all events, check that the STATUS switch (Switch 1) on the S2
DIP switch block of the 2000NET module is Enabled.
• For Module Failure-Fixed events:
Check that the MODULE switch (Switch 7) on the S1 DIP switch
block of the 2000NET module is Enabled, and
Check that the
CONFIG page is Enabled.
SLOT STATUS REPORTING parameter on the slot’s SLOT
• For Power Supply Failure-Fixed events:
Check that the PS1, PS2, PS3, or PS4 switch (Switch 1, 2, 3, or 4) on
the S1 DIP switch block of the 2000NET module is Enabled, and
Check that the
power supply’s
• For 2000NET module Failure-Fixed events, check that the
STATUS REPORTING parameter on the 2000NET module’s CONFIGURATION page is Enabled.
• For Hardware Switch change events, check that the
SWITCH REPORTING parameter on the 2000NET module’s CONFIGURATION page is Enabled.
POWER SUPPLY STATUS REPORTING parameter on the
CONFIGURATION page is Enabled.
NET CARD
HARDWARE
• For Frame Bus Failure-Fixed events:
Check that the FRAME BUS switch (Switch 6) on the S1 DIP switch
block of the 2000NET module is Enabled, and
Check that the
frame’s
CONFIGURATION page is Enabled.
FRAME BUS STATUS REPORTING parameter on the
• For Front Cover Removed -Installed events, check that the
STATUS REPORTING parameter on the frame’s CONFIGURATION page is
COVER
Enabled.
• For Frame Bus Failure-Fixed events:
Check that the FRAME BUS switch (Switch 6) on the S1 DIP switch
block of the 2000NET module is Enabled, and
Check that the
frame’s
CONFIGURATION page is Enabled.
FRAME BUS STATUS REPORTING parameter on the
• For Cooling Fan Failure-Fixed events:
Check that the FAN switch (Switch 4) on the S1 DIP switch block of
the 2000NET module is Enabled, and
Check that the
FIGURATION page is Enabled.
FAN STATUS REPORTING parameter on the frame’s CON-
• For Module Health Failure-Fixed events,
Check that the MODULE switch (Switch 5) on the S1 DIP switch
62 2000NET Instruction Manual
block of the 2000NET module is Enabled, and
Service
Check that the
CONFIGURATION page is Enabled.
•Check that the SNMP Manager is properly configured to receive the
Event Messages.
Check that the SNMP Manager has been assigned the same com-
munity name as in the frame’s configuration.
6. Check the network connectivity between the SNMP Manager and the
frame as described in the steps on page 58.
MODULE HEALTH REPORTING parameter on the frame’s
2000NET Instruction Manual 63
Functional Description
Functional Description
The 2000NET is designed to allow remote control and monitoring of
modules in a 2000 Series Kameleon frame. It communicates to remote
devices through an Ethernet connection. It communicates with modules in
the frame via the frame bus. It also performs the error monitoring of the
power supplies, modules, temperature and fans. It does error reporting
through on board LEDs, the front panel LEDs, and the frame alarm relay
(via a DB9 connector on the back of the frame).
Refer to the block diagram in Figure 42 while reading the following functional description.
Figure 42. 2000NET Block Diagram
SDRAM
16 MByte
FLASH
RAM
8 MByte
EEPROM
Flash
Boot
Module
Connector
CPU
Bus
Input
Port
Diagnostic
Display
Port
CPU
Temperature
Sensors
PA
PB
PC
PD
DIP switch
GP I/O
LEDs
I2C
SPI
RS232/RS422
Frame Bus
NET COM
A/D
Fan
Out
Rotation
Sel
Sensor
GPI
Optoisolators
Ser. A
Motherboard Connector
Multiplexer
Out
Sel
In
Ser. B
Ref.
Network
+5 V
+3.3 V
DC to DC
Converter
Regulators
Interface
8046 -28
Power In
64 2000NET Instruction Manual
Processor (CPU)
The 2000NET processor runs at 50 MHz. All 2000NET software runs on this
processor.
Memory
The 2000NET has three different memory types, SDRAM, FLASH and
non-volatile.
The SDRAM consists of two 4 Mb x 16 ICs for a total of 16 MB configured
as 4 Mb x 32. During boot-up, the program code is loaded into SDRAM and
the program executes out of SDRAM after boot-up.
The flash RAM consists of two 2 Mb x 16 ICs for a total of 8 MB configured
as 2 Mb x 32. The program code is stored in flash and loaded into SDRAM
at bootup.
The non-volatile memory consists of a single 8kb x 8 IC for a total of 8 kiloBytes. Various configuration information is stored in this memory.
Functional Description
Temperature Sensing
The module has two temperature sensors. One is located near the motherboard side of the module and is used to measure frame temperature. The
other is near the front cover side of the module and is used to measure
ambient temperature. The processor reads these temperature sensors
through an I2C bus.
DIP switches
The 2000NET module has two DIP switches (S1 and S2) for status report
enabling/disabling. The DIP switches are read by the processor through
the Input Port.
General Purpose (GP) I/O
The general purpose inputs and outputs are through two relays (K3 and
K4) that can be open or closed through software control.
There are two general purpose inputs. Each has two pins, and a current
must be passed through them for the processor to read a logic high.
2000NET Instruction Manual 65
Functional Description
LEDs
There are twenty LEDs on the module and support for an LED on the front
cover. DS1, DS2, DS5, and DS6 are for factory use only. The remainder of
the LEDs on the module provide status information to the user.
The power LED is DS20. This LED is driven directly by the 3.3V power rail.
The Ethernet activity LED (ETHR) is driven directly by a 100Base-T transceiver. It indicates when there is either transmit or receive traffic on the
Ethernet connection.
Note Note: The Ethernet activity LED will indicate receive activity even if the packet
is not addressed to the 2000NET module.
Processor driven LEDs include the following:
• MOD
•FB
• COMM
• PS1
• PS2
• PS3
• PS4
•FAN
• TEMP
•REM OVR
•NM
•FP
These LEDs are all controlled by the processor through a register. The
power-up state of these LEDs is on.
The bi-color LED is a right angle LED that is labeled STATUS. It powers on
in the red state, and can be shown red or green by the processor. It lines up
with a light pipe on the front cover and is visible when the front cover is on
the frame.
RS-232 Serial Port
The RS-232 port is used to initialize the module with critical network
parameters including a static assigned IP Address. The Ethernet MAC
address is stored on a serial EPROM on the frame. (The frame needs both
MAC and IP addresses.)
66 2000NET Instruction Manual
Frame Bus
The Frame Bus provides serial communication to each of the media
modules for remote configuration and monitoring over a network.
Multiplexer and A/D Converter
The Multiplexer and A-to-D converter circuit is used to read the following
lines:
•Media Module Present Lines (12 front media modules, 12 rear media
modules)
•Center module preset lines
• Power Supply/Fan Slots Module Preset
• Frame Version
• Frame Type
• Fan Rotation
Functional Description
•Front Panel Fault/Presence
• Power Supply Health
The circuitry consists of five multiplexers, an A/D converter, and miscellaneous passive circuitry. The processor selects the line to read then drives
the multiplexer to select a particular input of that multiplexer. The processor then waits a fixed amount of time for the circuit to settle and then
reads the level using the A/D converter. Most of the input lines are connected to ground through a resistor.
This circuit also has protection on most inputs. A 1 kΩ resistor and diodes
clamp each input (except fan rotation) to 3.3 V to prevent a bad input from
causing the whole circuit to fail.
The processor should get a value of between 2.1 V and 2.7 V when reading
power supply health.
Fan Rotation Sensor
The fan rotation circuit consists of a multiplexer and a one-shot IC followed
by an RC filter. The multiplexer is used to select one of the eight possible
fan rotation lines. When connected to a fan, these lines carry a square wave
with a frequency proportional to the fan speed. The one-shot circuit produces a DC output proportional to the frequency of the square wave. This
circuit requires about 1 second to settle once one of the lines is selected. The
fans used in the 2000 series frame have a rotation sense period of approximately 3.4 ms.
2000NET Instruction Manual 67
Functional Description
Network Interface
DC-to-DC Converter
Network Interface circuitry contains 100Base-T interface circuitry.
Although this circuitry will work at both 10Base-T and 100Base-T rates,
currently the 2000NET software works only in 10Base-T mode.
DC-to-DC Converter circuitry converts the +24 V into the board to +5 V. It
also contains a regulator that generates +3.3 V from the +5 V. Fuse F1 protects the +24 V rail.
68 2000NET Instruction Manual
Index
Numerics
25-pin adaptor 12
A
agent software (SNMP) 34
asset tag
assigning
37
B
baud rate 12
block diagram 64
C
cable
crossover
Ethernet 15
LAN 16
RS-232 12
cable kit 12
Comm 1 port 12
Configuration web page
2000NET module
15
34
F
fan sled slot 32
FAQ database 2
fault reports
filtering
faulty module 57
firewall 22
flow control 12
frame 56
Frame Configuration web page 29
Frame Fan Sled web page 32
Frame Health Alarm
cabling
enabling and disabling alarms 19
frame ID 25
Frame Monitor Module 11
frame name and location 29
Frame Power Sled web pages 31
frame status page 25, 26
Frame Status web page 28
frequently asked questions 2
ftp site 21, 41
19
11
G
D
default MAC address 25
DIP switches
alarm control
disables 19
documentation online 2
domain name server 22
19
gateway IP address 37
Grass Valley web site 2
I
initial configuration 22
Internet Explorer 25
J
E
enable fault reports 19
environmental 56
Ethernet 15
2000NET Instruction Manual 69
J101 11, 13
J102 12
Index
L
LED indicators 17
link list 26
local area network (LAN) 8
Locate Frame function 30
locate module 38
M
MAC (machine) address 25
module slot names 38
N
navigation 26
NET module reboot 37
Netscape Navigator 25
network conflicts 25
network identity 22
network parameters 22
network traffic delays 22
Network web page
2000NET module
NM LED 17
37
O
online documentation 2
P
parity 12
point-to-point 8, 15
point-to-point communication 22
power 56
power supply slot 31
RS-232 12, 22
S
serial configuration port 13
service information 57
Slot Config web page
media modules
slot configuration
saving
slot icons 28
slot memory 38
slot status icons 28
SNMP monitoring
overview
SNMP Trap Reports
2000NET module
Fan Sled 32
frame 30
media modules 40
MIB (Management Information Base) 21
Power Sled 31
summary 21
software download from web 2
Software Update web page
2000NET module
software updating
acquiring software
FTP method 42
modules not supported 55
Status web page
2000NET module
stop bits 12
subnet 22
subnet mask 37
38
20
38
35
51
41
33
T
testpoints 57
R
reboot 18
Reboot button 18, 34, 37
Refresh button 26
repair depot 57
RJ-45 connector 13, 15
70 2000NET Instruction Manual
troubleshooting 57
U
update status 28
URL 25
V
voltage 56
W
web site documentation 2
web site FAQ database 2
web site Grass Valley 2
web site software download 2
Index
2000NET Instruction Manual 71
Index
72 2000NET Instruction Manual
Loading...
