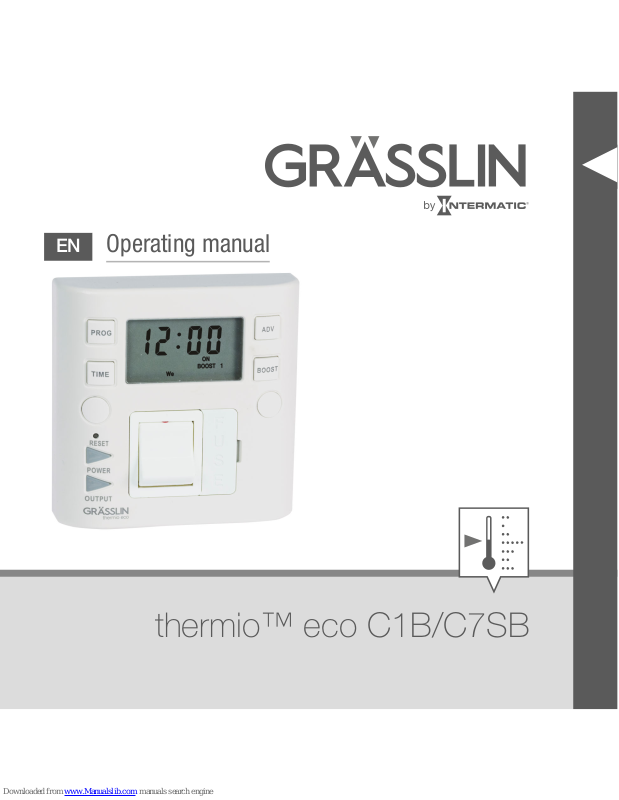

thermio™ eco C1B/C7SB
EN
Operating manual
Page 2
This manual ensures safe and efficient use of the
“thermio™ eco C1B” or “thermio™ eco C7SB” multitariff timer (referred to as “device” in the following). This
manual is a component of the device and must remain
accessible at all times for everyone who uses the device.
Everyone who uses the device must have read and
understood this manual before commencing any work.
The basic prerequisite for working safely is compliance
with all safety instructions and usage instructions specified in this manual. Furthermore, the local accident prevention regulations and the general safety regulations in
the area in which the device is operated apply.
2
Page 3
Copyright
This manual is copyright protected.
Handover of this manual to third parties, reproductions of
any type and form – including excerpts – and use and/or
disclosure of the content without the written permission
of Grässlin GmbH (referred to as “manufacturer” in the
following), except for internal purposes, is not permitted.
Violations will result in liability for compensation. The
manufacturer reserves the right to assert additional
claims.
The copyright is held by the manufacturer.
© Grässlin GmbH
Bundesstr. 36
EN
3
Page 4
78112 St. Georgen
GERMANY
Declaration of conformity and download instructions
The declaration of conformity for the device described in
this manual, a download of this manual, and the technical data can be found at
www.graesslin.de
.
4
Page 5
Overview................................................ 7
Safety................................................... 15
Installation............................................ 25
Operation............................................. 43
Programming the switching times.............. 43
Changing programmes............................... 52
Advance
[ADV]
............................................ 54
Boost
[BOOST]
............................................ 56
Replacing the fuse............................... 58
EN
5
Page 6
Disposal............................................... 62
6
Page 7
Overview
Fig. 1: Overview
EN
7
Page 8
1 Display, illuminated
2
[ADV]
button
3
[BOOST]
button
4 Fuse compartment (BS 1362 (1" x 1/4") 13 A)
5 Two-pole
[on/off]
switch
6 OUTPUT LED
7 POWER LED
8
[RESET]
button
9
[TIME]
button
10
[PROG]
button
8
Page 9
Description of function
The “thermio™ eco C1B” and “thermio™ eco C7SB”
multi-tariff timers are programmable timers with a fuseprotected, two-pole on/off switch. Switching times can
be programmed for both devices, during which connected loads are supplied with power.
In addition, the devices have an
[ADV]
button and a
[BOOST]
button. These buttons can be used to change
the current state of the device, regardless of the programming, or to activate the device for a specific time.
EN
9
Page 10
Controls
Button Function
[ADV]
The
[ADV]
button:
• Inverts the current state, permanently activates the device, permanently deactivates the device
• Acts as a plus button
[BOOST]
The
[BOOST]
button:
• Activates the device for 1 or 2 h
• Acts as a minus button
10
Page 11
Button Function
[PROG]
The
[PROG]
button is used to set the
programming.
[TIME]
The
[TIME]
button is used to set the
time.
[On/off]
switch
The
[on/off]
switch is used to open or
close the switching contacts.
[RESET]
The
[RESET]
button is used to reset the
timer to the factory settings.
EN
11
Page 12
Display elements
Display Function
[POWER]
LED
Displays status of device:
•
[POWER]
LED on = device switched
on
•
[POWER]
LED off = device switched
off
[OUTPUT]
LED
Displays status of programming:
•
[OUTPUT]
LED on = device acti-
vated
•
[OUTPUT]
LED off = device deacti-
vated
[Display]
• Current time
12
Page 13
Battery storage
The device has a built-in, rechargeable battery. In the
event of a power failure, the device saves the programmed settings for a maximum of 40 days.
The battery is charged during normal operation and does
not have to be replaced.
EN
13
Page 14
Contents
The following components are included in the contents:
Number Designation
1 Multi-tariff timer “thermio™ eco C1B”
or “thermio™ eco C7SB”
2 3.5 mm screws
2 Strain relief clamps
2 Screw covers
14
Page 15
Safety
Safety instructions
Safety instructions are indicated in this manual by symbols. The safety instructions are introduced by signal
words that express the extent of the danger.
WARNING!
This combination of symbol and signal word
indicates a potentially dangerous situation that
may result in death or severe injuries if the situation is not avoided.
EN
15
Page 16
NOTICE!
This combination of symbol and signal word
indicates a potentially dangerous situation that
may result in material damage if the situation
is not avoided.
ENVIRONMENT!
This combination of symbol and signal word
indicates potential dangers for the environment.
16
Page 17
Tips and recommendations
This symbol highlights useful tips and recommendations, as well as information for efficient
and fault-free operation.
Intended use
The “thermio™ eco C1B” and “thermio™ eco C7SB”
multi-tariff timers are programmable timers with a fuseprotected, two-pole on/off switch and are used for supplying power to connected devices in private and commercial areas. The connected devices must comply with
the limits specified in the technical data.
EN
17
Page 18
Areas of application:
• Electric radiators and heating elements
• Oil radiators
• Electric towel rails
• Heating systems
• Hotplates
• Fan heaters
• Lighting (not discharge lamps)
The intended use also includes compliance with all information specified in this manual.
Any use other than the intended use is considered incorrect use.
18
Page 19
Wire cross-section
WARNING!
Danger due to insufficient wire cross-section!
If wires with an insufficiently large cross-section are used, short circuits or fires may occur.
− Only use terminals with a cross-section
between 1 mm² and 2.5 mm² for flexible
wires.
EN
19
Page 20
WARNING!
Risk of injury due to uncontrolled behaviour of connected loads!
− Before starting the device, check whether
the connected load could cause hazardous situations for persons.
NOTICE!
Damage to the device due to unsuitable
installation location!
Installation at an unsuitable location can cause
damage to the device.
20
Page 21
− Only use the device in dry rooms and do
not install close to devices with inductive
discharge (motors, transformers, etc.).
Residual risks
The device is state-of-the art and designed in accordance with current safety requirements. However, residual
risks remain that require caution when using the device.
The residual risks, and the conduct and measures they
require, are listed in the following.
EN
21
Page 22
WARNING!
Danger to life due to electric shock!
Improper assembly and installation of the
device can lead to life-threatening electrical
voltages.
− Have assembly and connection performed
by a qualified electrician only.
22
Page 23
Personnel requirements
Qualified electrician
Professional training, knowledge and experience, and
knowledge of the relevant standards and regulations
allows the qualified electrician to perform work on electrical systems and to identify, and avoid, potential dangers of their own accord.
A qualified electrician is specifically trained for the work
environment in which they work, and are familiar with
the relevant standards and regulations.
EN
23
Page 24
User
The user is the person who uses and operates the device
in compliance with proper use, without any prior knowledge.
24
Page 25
Installation
Electric connection and installation
The device is installed on a flush-mounted socket (BS
4662 or BS 5733). The connection wire is either routed
out of the flush-mounted socket or it is routed to the
device on the wall.
In general, the following instructions apply to
both installation types. Where there are difference, the corresponding installation type is
specified before the instructions.
EN
25
Page 26
WARNING!
Danger to life due to electric shock!
Improper assembly and installation of the
device can lead to life-threatening electrical
voltages.
− Have assembly and connection performed
by a qualified electrician only.
26
Page 27
Personnel:
• Qualified electrician
Special tool:
• Phillips screwdriver
• Flat-head screwdriver
Materials:
• 3.5 mm screws
Prerequisite:
• The terminals for the flexible wires must have a
cross-section between 1 mm² and 2.5 mm².
• Make sure that the flush-mounted socket has been
installed correctly and is dust-free.
EN
27
Page 28
1. On-wall connection wires: Undo the strain relief
screws (Fig. 2/3) on the rear of the device and place
to one side.
2. Remove the plastic cover.
3. Strip the insulation from the connection wire.
• Stripping length: 8 mm
28
Page 29

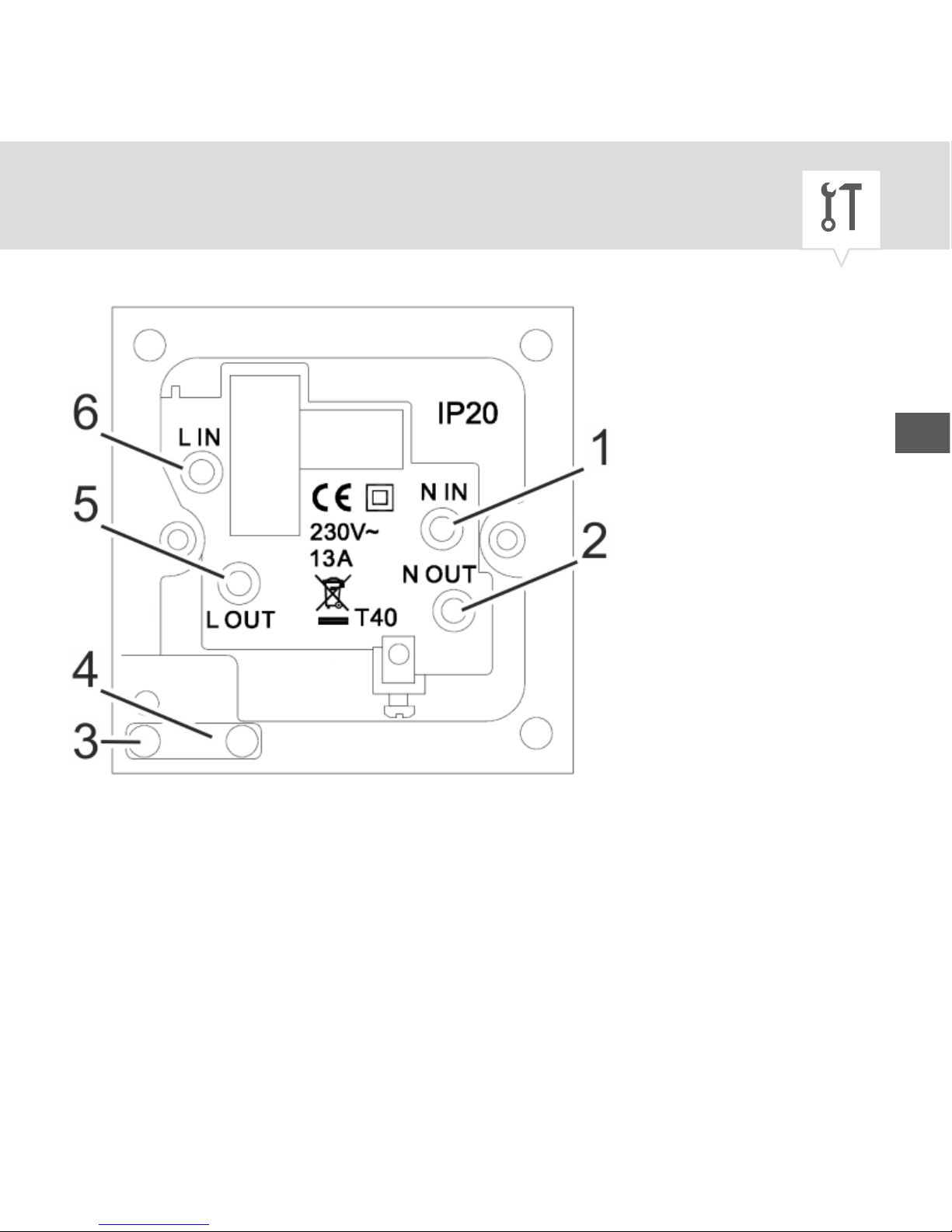

Fig. 2: Wiring diagram
EN
29
Page 30
1 Neutral (IN)
2 Neutral (OUT)
3 Screws for strain relief clamp
4 Cable feed-through
5 Switchable live wire (OUT)
6 Live wire (IN)
30
Page 31

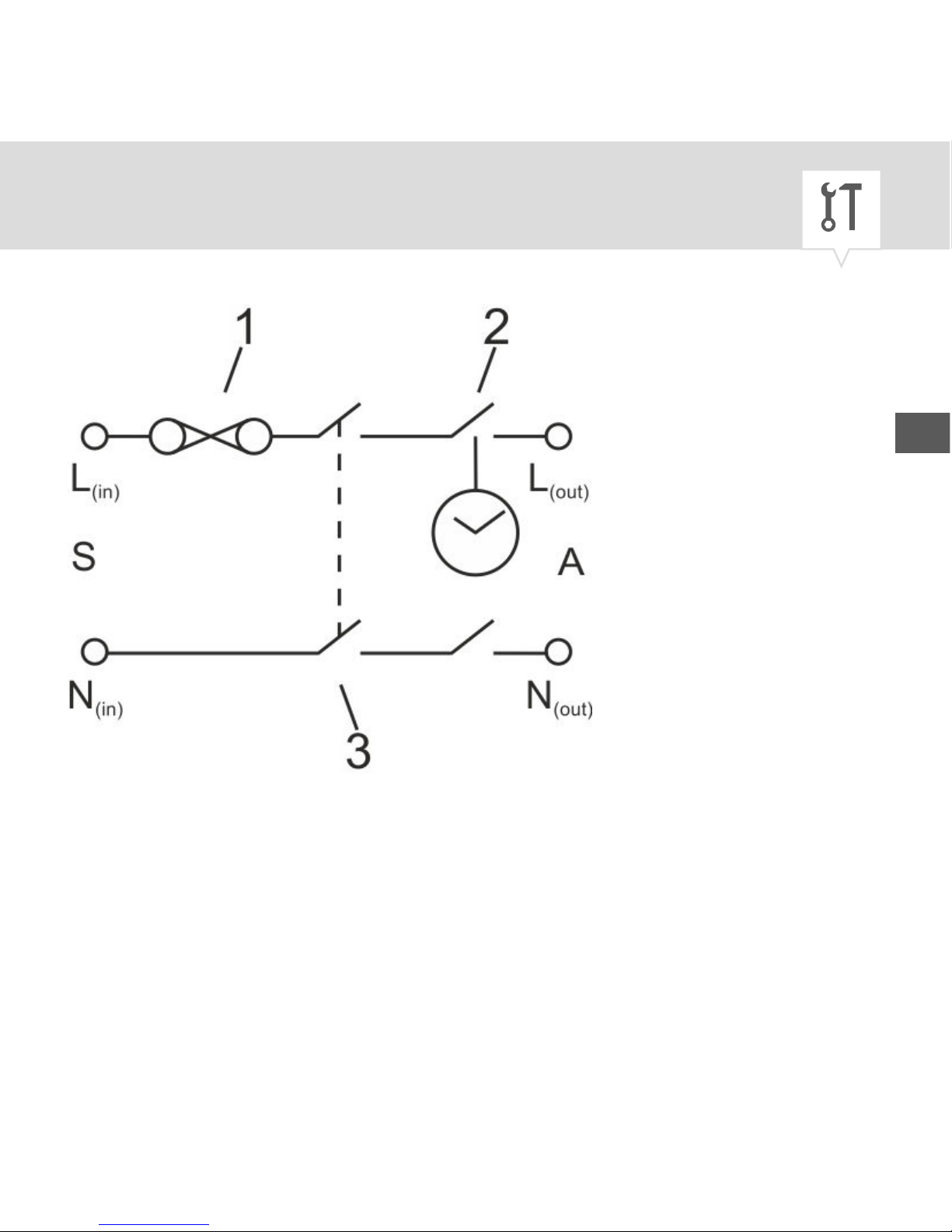

Fig. 3: Circuit diagram for two-pole on/off switch
EN
31
Page 32
1 BS 1362 fuse
2 Timer
3 Two-pole on/off switch
S Supply
A Connected load
4. Insert the connection wires into the corresponding
terminals in accordance with the wiring diagram
(Fig. 2).
5.
NOTICE!
Tightening torques
To avoid damage and faulty contacts,
tighten the terminals using a torque of
0.6 Nm.
32
Page 33
Tighten all the terminals.
6. On-wall connection wires: Thread the connection
wires into the device through the cable feed-through
(Fig. 2/4).
7. On-wall connection wires: Tighten the strain relief
clamp from the contents using the screws for the
strain relief clamp (Fig. 2/3).
EN
33
Page 34
NOTICE!
Danger of material damage to the wires!
When screwing the device tight, there is a risk
of pinching wires. This results in material
damage to the wires.
− To avoid damage and faulty contacts,
make sure that the wires are not pinched
when you insert the device into the flushmounted socket.
8. Fasten the device onto the flush-mounted socket
using the screws (3.5 mm).
34
Page 35
Initial commissioning
1. To switch on the device, flip up the
[on/off]
switch.
Before the first programming operation or
after the device has been disconnected
from the mains supply for more than
5 days, the device must first be fully
charged (4 hours) and then reset using
the Reset button.
EN
35
Page 36
2. Press the
[RESET]
button with a thin object, e.g. a
refill for a ballpoint pen.

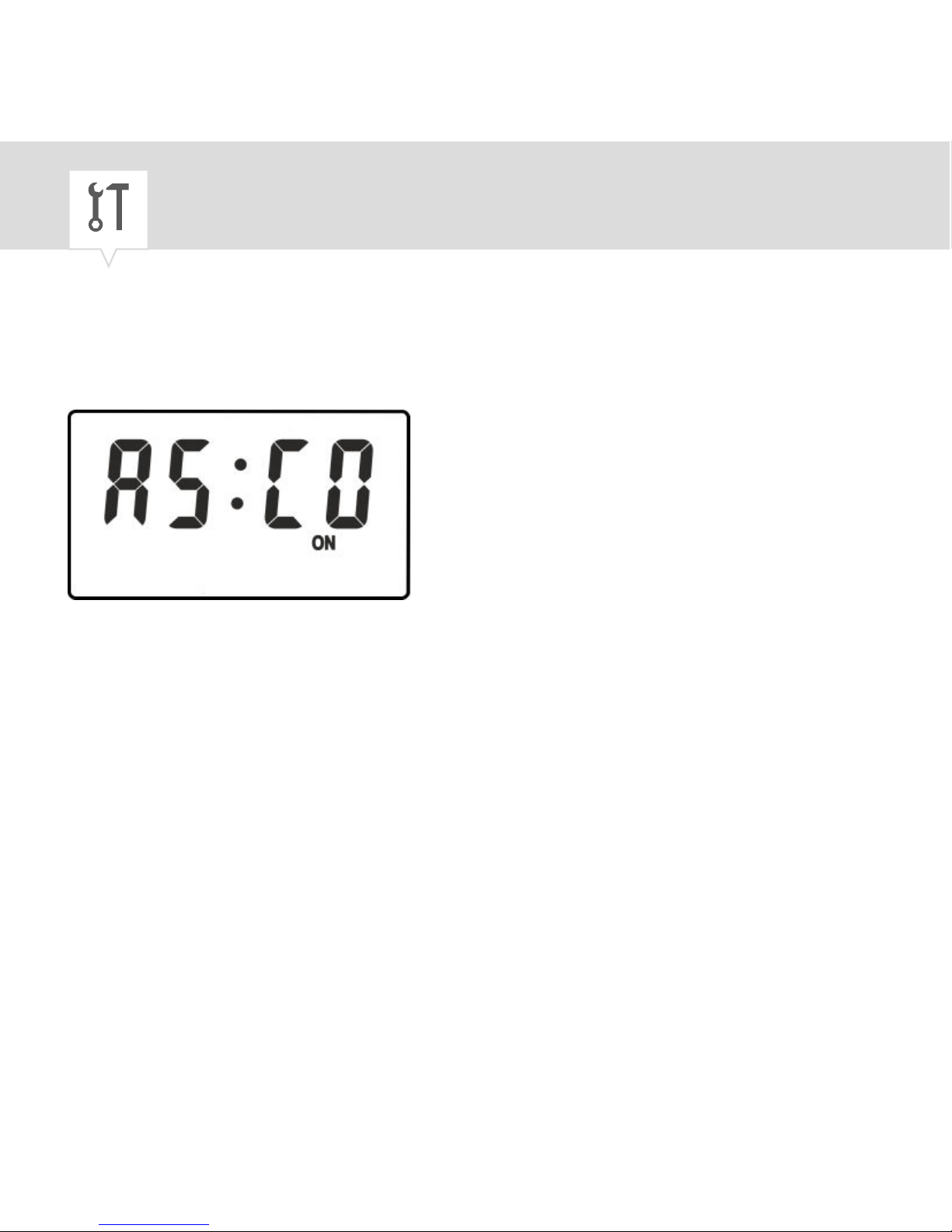

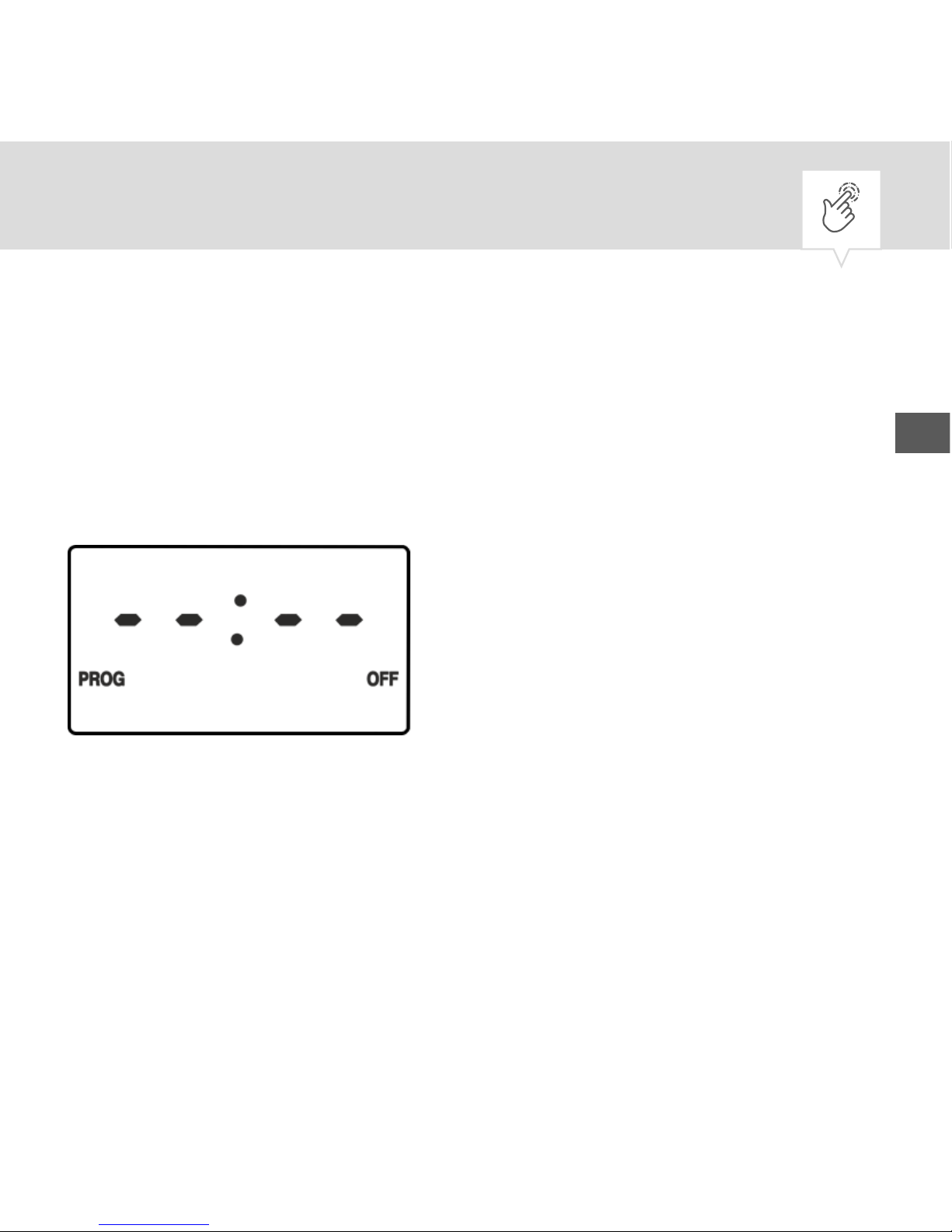

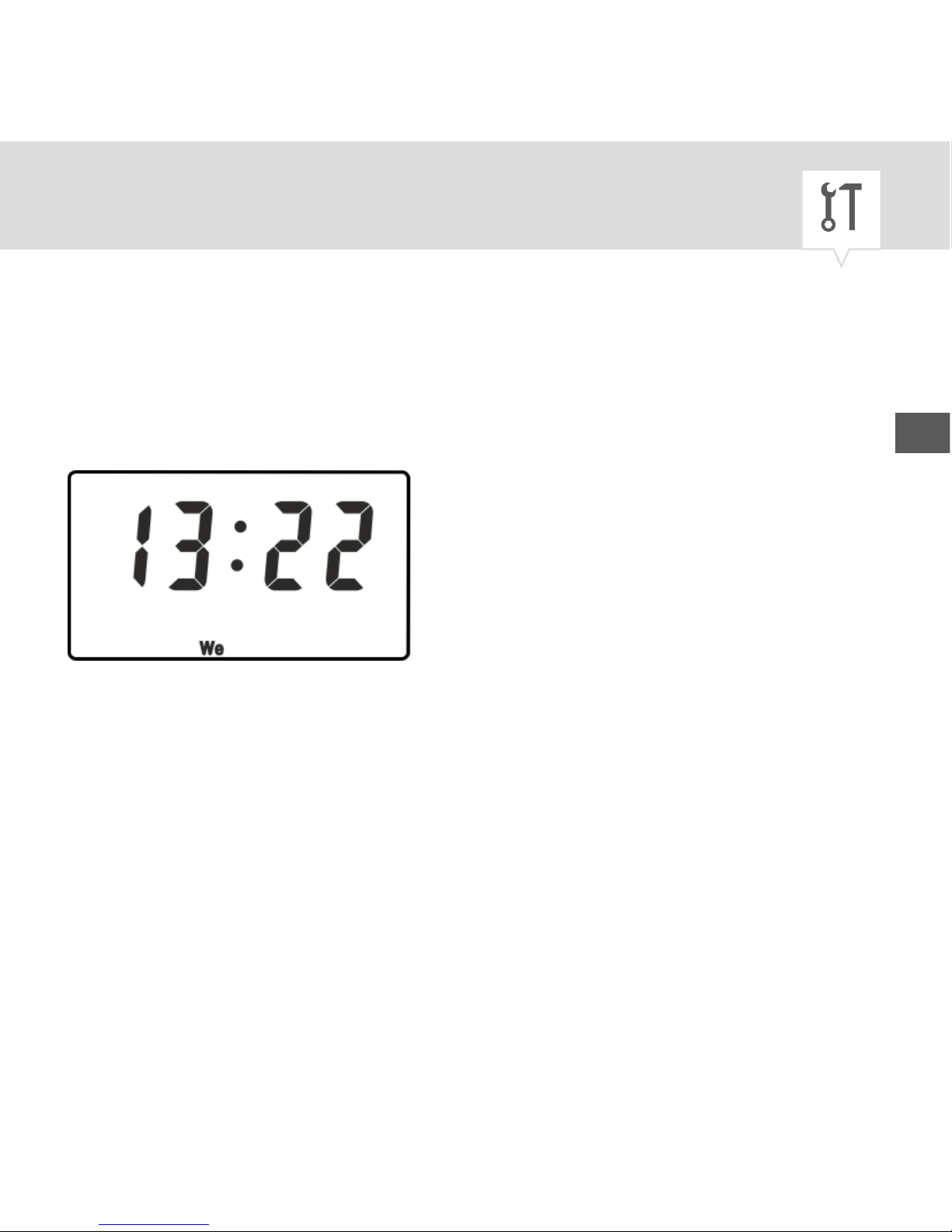

Fig. 4: Initial display
ð
All the display segments light up briefly and
the initial display (Fig. 4) appears.
3. Use the
[ADV]
button to set the daylight saving time
adjustment.
36
Page 37
• Switch on automatic daylight saving time = ON
• Switch off automatic daylight saving time =
OFF
4. Press and hold the button
[TIME]
button for 3 s to
save the settings.
ð
During those 3 s, HOLD appears on the display. Next, the preset year appears on the
display.
Fig. 5: Year display
EN
37
Page 38
5. Use the
[ADV]
or
[BOOST]
button to set the current
year.
Press and hold the
[ADV]
or
[BOOST]
button briefly to quickly increase or
decrease the set values.
6. Confirm the setting with the
[TIME]
button.
ð
The preset month appears on the display.

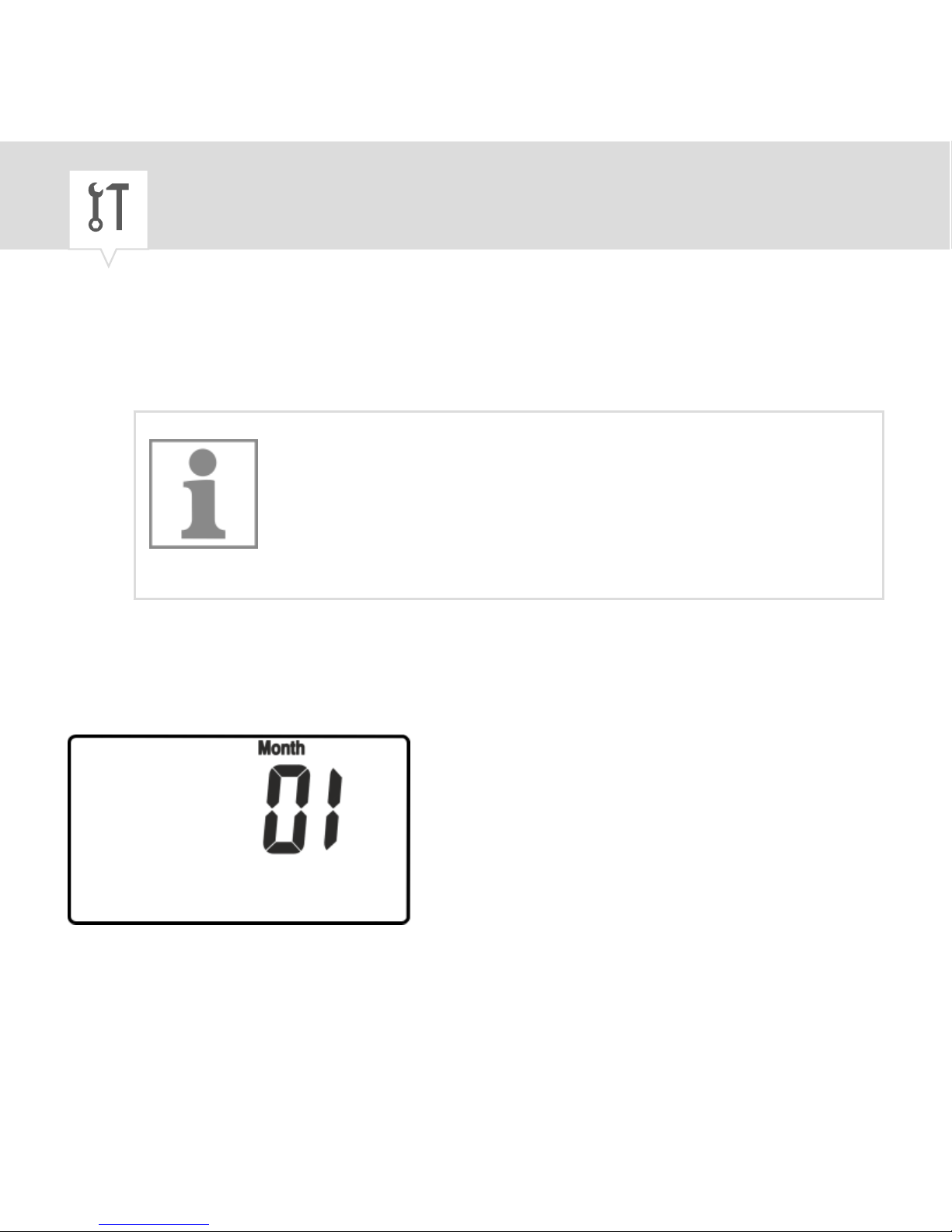

Fig. 6: Month display
38
Page 39
7. Use the
[ADV]
or
[BOOST]
button to set the current
month.
8. Confirm the setting with the
[TIME]
button.
ð
The preset day appears on the display.
Fig. 7: Day display
9. Use the
[ADV]
or
[BOOST]
button to set the current
day.
10. Confirm the setting with the
[TIME]
button.
ð
The preset time appears on the display.
EN
39
Page 40

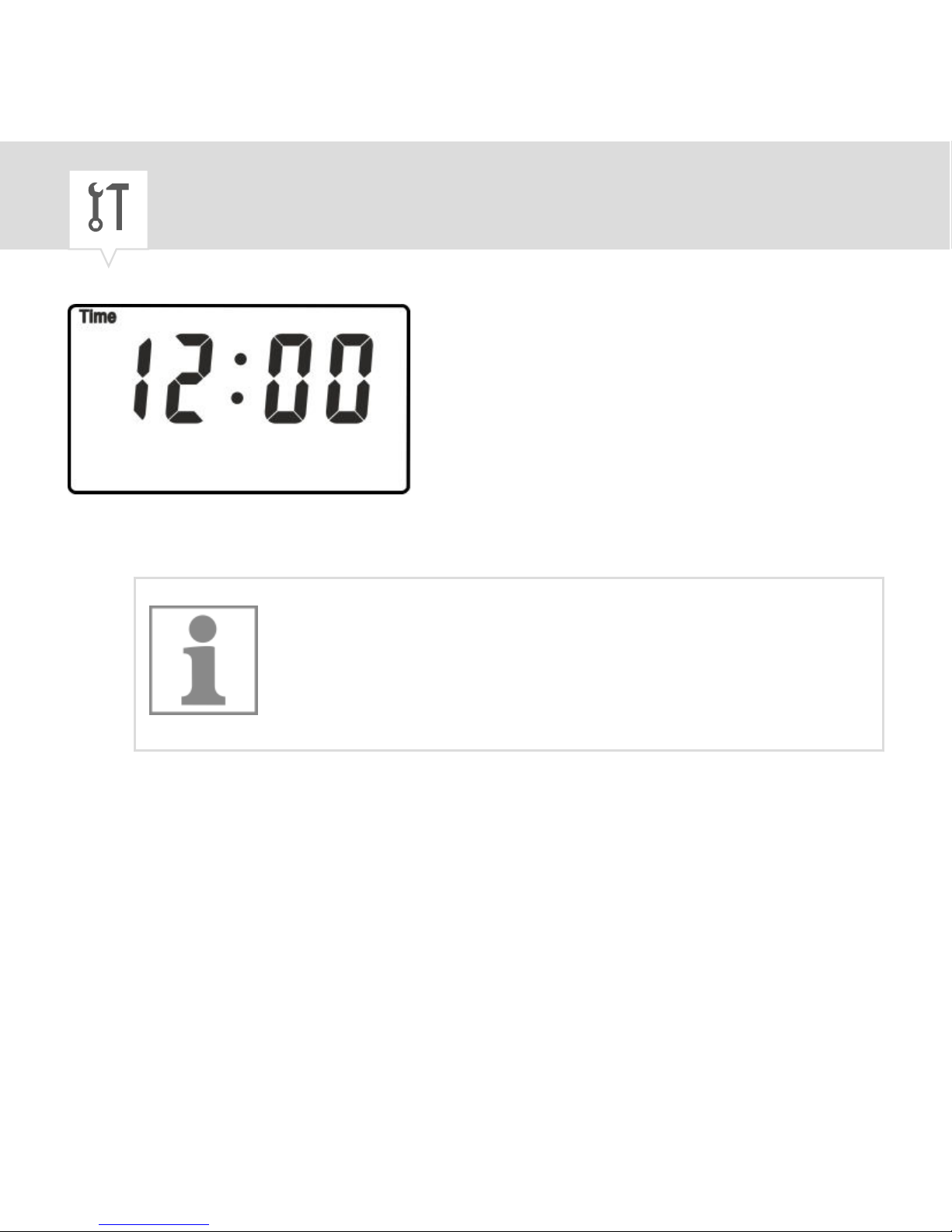

Fig. 8: Time display
11.
The time is displayed in 24 h format.
Use the
[ADV]
or
[BOOST]
button to set the current
hour.
12. Confirm the setting with the
[TIME]
button.
40
Page 41
13. Use the
[ADV]
or
[BOOST]
button to set the current
minutes.
14. Confirm the setting with the
[TIME]
button.
Fig. 9: Time display, set correctly
ð
The device switches to active mode and the
display shows the set time and (only for the
“thermio™ eco C7SB” multi-tariff timer) the
day of the week.
EN
41
Page 42
If you need to change only the time or only the
date, you can skip individual settings by
pressing the
[TIME]
button.
42
Page 43
Operation
Programming the switching times
The “thermio™ eco C7SB” multi-tariff timer has four
independently programmable time slots (ON/OFF) per
day. The days of the week can either be grouped
together or programmed individually; you have a choice
of three modes:
• All 7 days of the week with identical settings: Mo
Tu We Th Fr Sa Su
• 5 weekdays and 2 weekend days (5 + 2) with different settings for each: Mo Tu We Th Fr and
Sa Su
EN
43
Page 44
• Each day of the week individually:
MoTuWeThFrSaSu
The “thermio™ eco C1B” multi-tariff timer also has four
independently programmable time slots (ON/OFF) but it
does not offer different modes. The four time slots are
automatically applied to all seven days of the week.
44
Page 45
Note the following if programming beyond
midnight:
− Enter 00:00 as the end time of the last
time slot.
− Enter 00:00 as the start time of the first
time slot the next day.
− Enter the end time of the first time slot
the next day.
Personnel:
• User
Setting modes (C7SB only)
1. Press and hold the
[PROG]
button for 3 s.
EN
45
Page 46
ð
During those 3 s, HOLD appears on the display. Next, MODE appears on the display.
Fig. 10: Days of the week display
2. Use the
[ADV]
or
[BOOST]
button to set the desired
mode.
The following appears on the display:
• Mo Tu We Th Fr Sa Su
• Mo Tu We Th Fr and Sa Su
• MoMoTuWeThFrSaSu
46
Page 47
3. Confirm selection with the
[PROG]
button.
ð
The selection appears on the display and the
start time of the first time slot (ON) can be
set.
If you selected the “5 + 2” or
“each day of week individually”
mode, you have to repeat the following steps until all the time slots
have been set.
EN
47
Page 48
Setting the time slots (C1B and C7SB)
Fig. 11: Display start of first time slot (ON)
4.
Empty time slots (dashes) can be restored
by pressing the
[RESET]
button to reset
the device to the factory settings.
If time slots are not necessary, leave the
dashes unchanged and press
[PROG]
again.
48
Page 49
Use the
[ADV]
or
[BOOST]
button to set the hour.
5. Confirm the setting with the
[PROG]
button.
6. Use the
[ADV]
or
[BOOST]
button to set the minutes.
7. Confirm the setting with the
[PROG]
button.
Fig. 12: Display end of first time slot (OFF)
ð
You can set the end time of the first time slot
(OFF).
8. Use the
[ADV]
or
[BOOST]
button to set the hour.
EN
49
Page 50
9. Confirm the setting with the
[PROG]
button.
10. Use the
[ADV]
or
[BOOST]
button to set the minutes.
11. Confirm the setting with the
[PROG]
button.
12. Repeat steps 4 to 11 to set the remaining time slots.
50
Page 51
13. After you have entered the last time slot, press the
[PROG]
button.

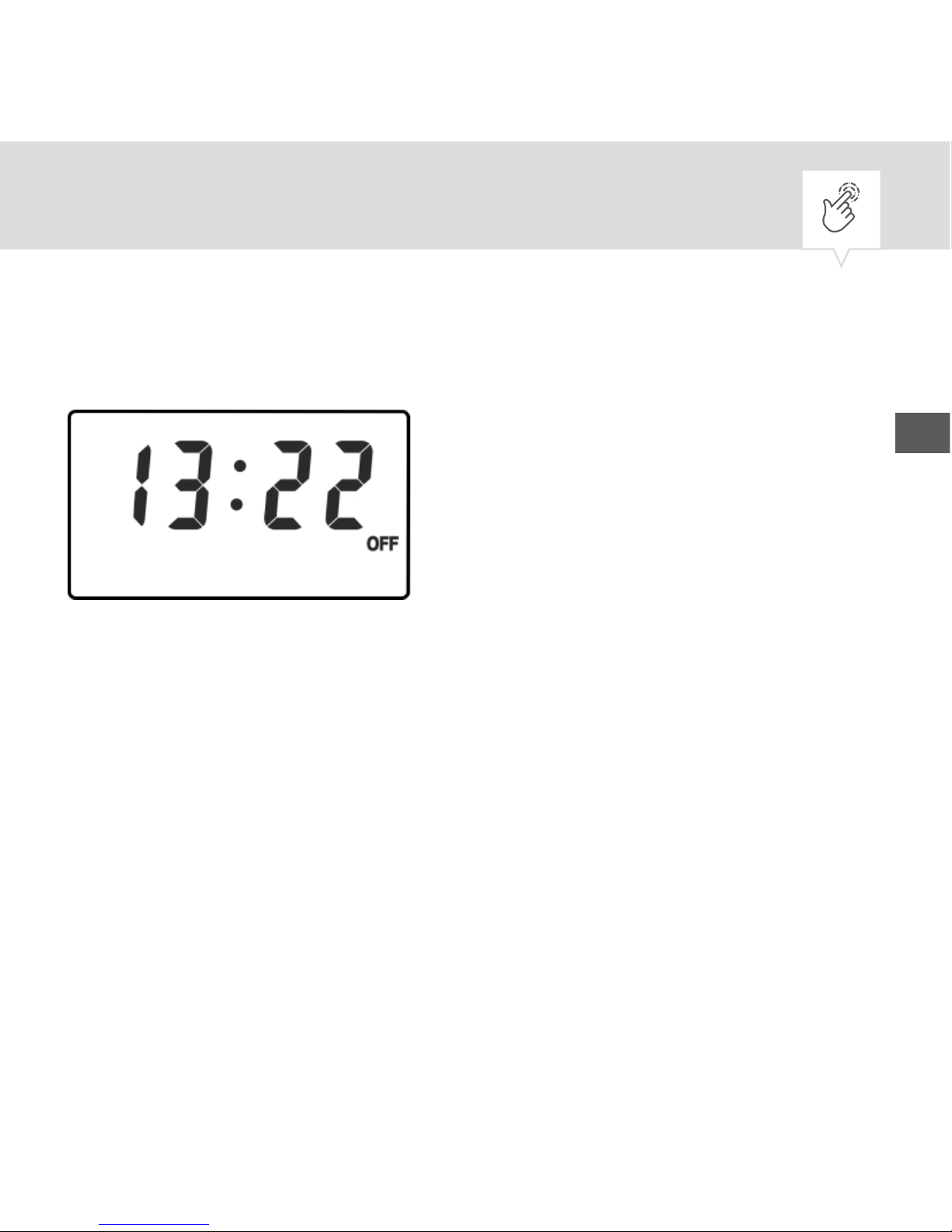

Fig. 13: Display during operation
ð
The device switches to the currently programmed state and the display shows the
current time slot, e.g. OFF (Fig. 13).
EN
51
Page 52
If the state shown on the display (e.g. OFF)
does not match the programmed time slots,
press the
[ADV]
button. The inverse state is
now activated and is retained until the programmed time slot specifies a change.
Changing programmes
Personnel:
• User
1. Press and hold the
[PROG]
button for 3 s.
ð
During those 3 s, HOLD appears on the display. Next, MODE appears on the display.
52
Page 53
2. If you want to keep the current mode unchanged,
press the
[PROG]
button.
If the mode is changed, all saved time
slots are deleted.
If you want to change the mode, use the
[ADV]
or
[BOOST]
button to set the desired mode and press
the
[PROG]
button to confirm.
3. If you do not want to change the mode, use the
[ADV]
or
[BOOST]
button to change the time slots
and press the
[PROG]
button to confirm.
EN
53
Page 54
If you change the mode, program the time slots
again Ä Chapter "Programming the switching
times" on page 43.
Advance
[ADV]
If the device is switched on, the
[ADV]
button changes
the current state. The state changes as follows,
depending on how many times you press the
[ADV]
button:
54
Page 55
• First time pressing
[ADV]
− The current state is inverted: The device is
either activated or deactivated, depending on
what state it was in previously. The new state
is retained until the next programmed time slot
or until the state is changed manually.
• Second time pressing
[ADV]
− The device is permanently activated, regardless
of the current state. Programmed time slots are
ignored, the device has to be deactivated manually.
EN
55
Page 56
• Third time pressing
[ADV]
− The device is permanently deactivated, regardless of the current state. Programmed time
slots are ignored, the device has to be activated
manually.
• Fourth time pressing
[ADV]
− The
[ADV]
setting is ended manually.
Boost
[BOOST]
If the device is switched on, the
[Boost]
button enables a
short ON-period lasting one to two hours. Programmed
time slots are unchanged and are ignored during this
time.
56
Page 57
• First time pressing
[BOOST]
− The device is activated for 1 h.
• Second time pressing
[BOOST]
− The device is activated for 2 h.
• Third time pressing
[BOOST]
− The
[BOOST]
period is ended manually.
EN
57
Page 58
Replacing the fuse
The fuse is an overcurrent protection device. If the fuse is
tripped by a current peak, the fuse has to be replaced.
The current rating required for the new fuse
can be found on the old fuse.
58
Page 59
Personnel:
• Qualified electrician
• User
Special tool:
• Flat-head screwdriver
Materials:
• Fuse BS 1362 (1" x 1/4") 13 A
EN
59
Page 60
Fig. 14: Opening the fuse compartment
1. Prise open the fuse compartment from the groove
on the left-hand side, using a flat-head screwdriver.
2. Pull out the fuse compartment.
3. Pull the fuse out to the right, using your fingers.
4. Insert a new fuse with the same current rating.
5. Push the fuse compartment closed.
60
Page 61
If the connected load still does not function
after the fuse has been replaced, either the
device or the connected load is damaged.
EN
61
Page 62
Disposal
ENVIRONMENT!
Incorrect disposal presents an environmental danger.
Incorrect disposal could result in environmental dangers.
− Electric scrap and electronic components
must be disposed of correctly, i.e. the
parts for disposal must be sorted into
material groups.
62
Page 63
− Disposal must be environmentally responsible and must employ state-of-the-art
environmental protection, recycling and
disposal technology.
EN
63
Page 64
80.10.1479.7/0217/V01
Grässlin GmbH
Bundesstrasse 36
78112 St. Georgen
GERMANY
Telephone: +49 7724 933-0
Fax: +49 7724 933-240
www.graesslin.de
Loading...
