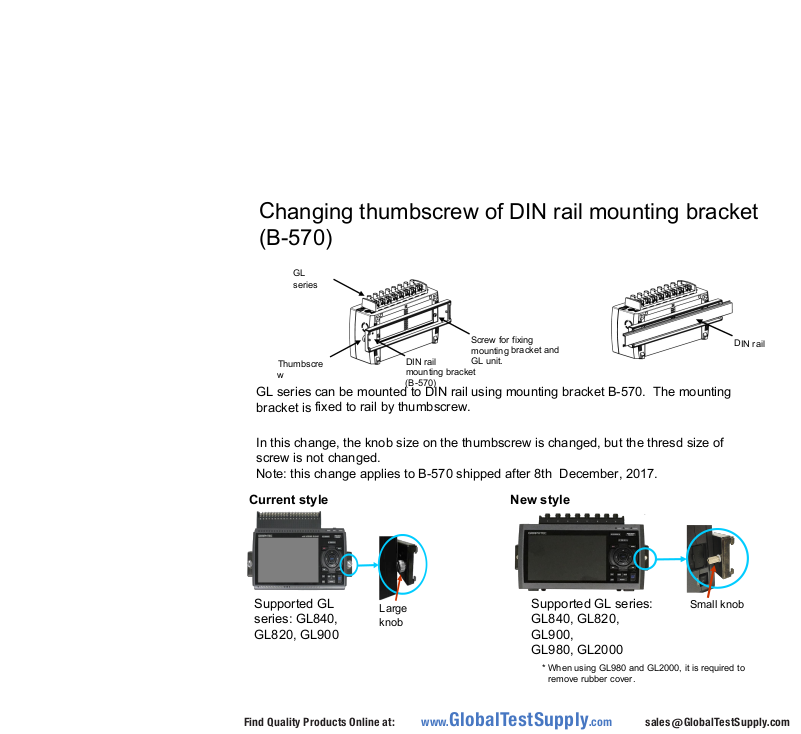

C
hanging thumbscrew of DIN rail mounting bracket
(B-570)
D
IN rail
C
urrent style
Supported GL
series: GL840,
GL820, GL900
Large
knob
New style
Supported GL series:
GL840, GL820,
GL900,
GL980, GL2000
Small knob
* When using GL980 and GL2000, it is required to
remove rubber cover.
G

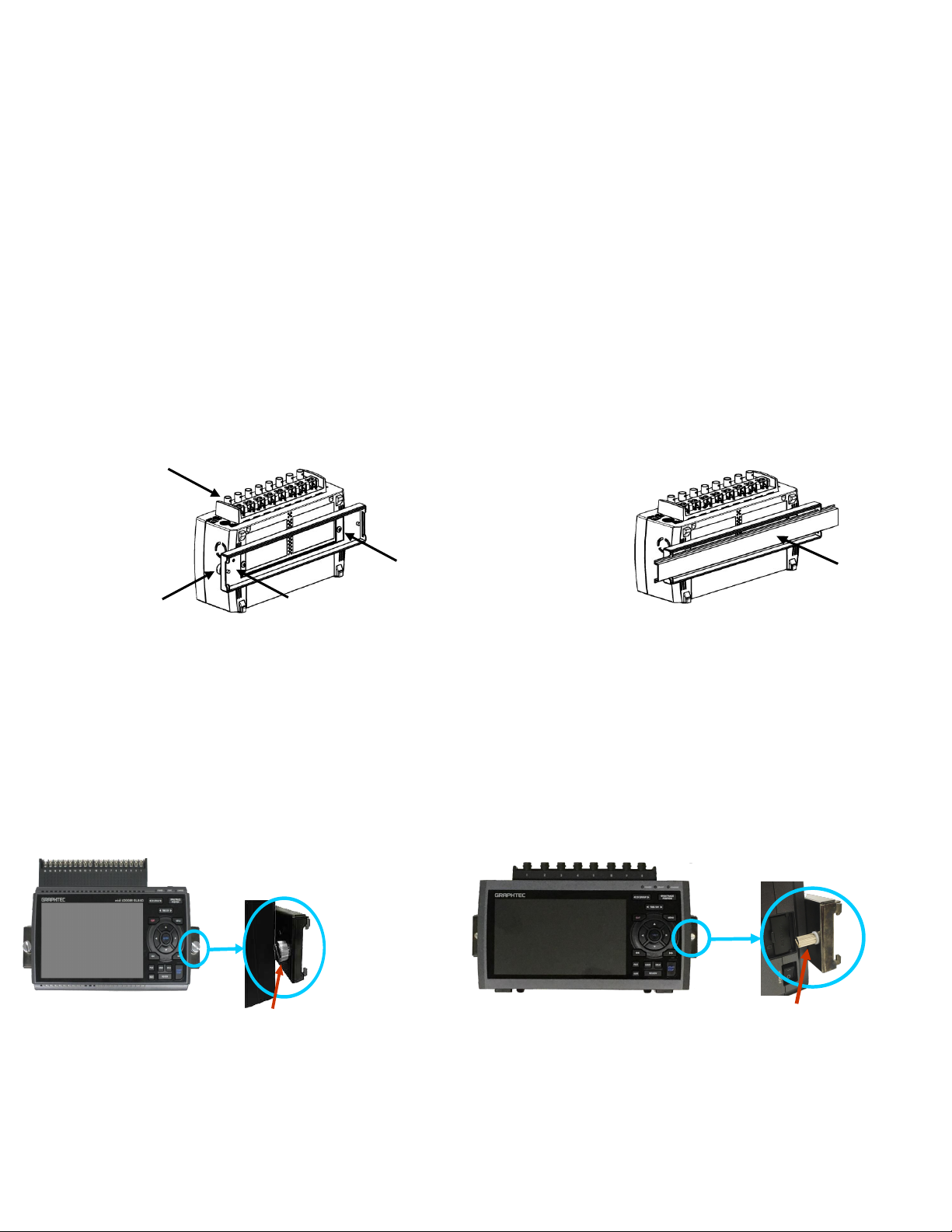

L series can be mounted to DIN rail using mounting bracket B-570. The mounting
bracket is
fixed to rail by thumbscrew.
In this change, the knob size on the thumbscrew is changed, but the thresd size of
screw is not changed.
Note: this change applies to B-570 shipped after 8th December, 2017.
D
IN rail
mounting bracket
(B-570)
Thumbscre
w
GL
series
S
crew for fixing
mounting
bracket and
GL unit.
