USER’S MANUAL

MANUAL NO.GL240-UM-153

To Ensure Safe and Correct Use

To ensure safe and correct use of the GL240, read this manual thoroughly before use.

•

After having read this manual, keep it in a handy location for quick reference as needed.

•

Do not permit small children to touch the GL240.

•

The following describes important points for safe operation. Please be sure to observe them strictly.

•

Conventions Used in This Manual

To promote safe and accurate use of the GL240 as well as to prevent human injury and property damage,

safety precautions provided in this manual are ranked into the ve categories described below. Be sure you

understand the difference between each of the categories.

This category provides information that, if ignored, is

DANGER

highly likely to cause fatal or serious injury to the operator.

WARNING

CAUTION

HIGH TEMPERATURE

ELECTRICAL SHOCK

Description of Safety Symbols

The symbol indicates information that requires careful

attention (including warnings). The specic point requiring

attention is described by an illustration or text within or next to the symbol.

This category provides information that, if ignored, is likely to cause fatal or serious injury to the operator.

This category provides information that, if ignored, could cause physical damage to the GL240.

This category provides information that, if ignored, is likely to cause burns or other injury to the operator due to contact with high temperature.

This category provides information that, if ignored, is likely to expose the operator to electrical shock.

The symbol indicates an action that is prohibited. Such prohibited action is described by an illustration or text within or

next to the symbol.

The symbol indicates an action that must be performed. Such imperative action is described by an illustration or text

within or next to the symbol.

Safety Precautions

WARNING

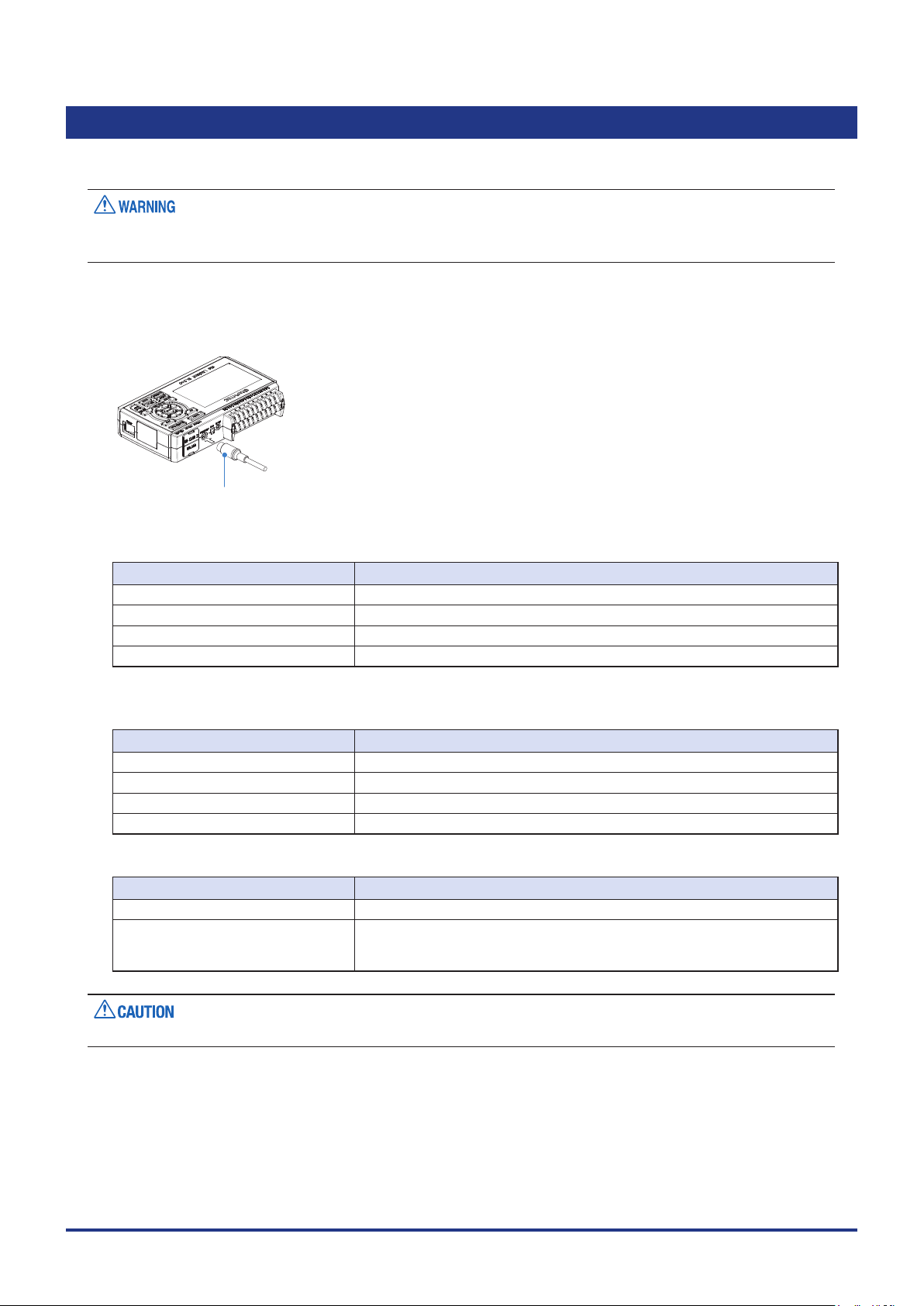

Be sure to securely connect the GL240's GND terminal.

After checking that the power switch is turned off, connect

•

the power cord’s female plug to the GL240 and then connect its male plug into the electrical socket.

For grounding, use a ground wire with a diameter of at least

•

0.75 mm2. When using the GL240 in an environment where grounding is not possible, ensure measured is no greater than 50 V (DC or rms).

Before turning on the GL240, ensure that the electric

socket’s supply voltage conforms to the GL240’s

power rating.

Use of a different supply voltage may cause damage to the

•

GL240 or a fire hazard due to electrical shock or current leakage.

If the GL240 generates smoke, is too hot, emits a strange odor, or otherwise functions abnormally, turn off its power and unplug its power cord from the electrical socket.

Use of the GL240 in such status may result in a fire hazard

•

or electrical shock.

After checking that smoke is no longer being generated,

•

contact your sales representative or nearest Graphtec vendor to request repair.

Never try to perform repair yourself.

•

Repair work by inexperienced personnel is extremely dangerous.

Use prohibited

Never disassemble or remodel the GL240.

Such action may cause a fire hazard due to electric shock

•

or current leakage. Contact with a high-voltage component inside the GL240

•

may cause electric shock. If repair is required, contact your

•

sales representative or nearest Graphtec vendor.

Use prohibited No disassembly

Avoid using the GL240 in extremely dusty or humid places.

Such use may cause a fire hazard due to electrical shock or

•

current leakage.

Use prohibited

Prevent dust or metallic matter from adhering to the power supply connector.

Adhesion of foreign matter may cause a fire hazard due to

•

electrical shock or current leakage.

Watch out for

electrical shock

Avoid using the GL240 in places where it may be exposed to water such as bathrooms, locations exposed to wind and rain, and so on.

An electrical shock or fire may be caused due to current

•

leakage.

Avoid water

Never use a damaged power cord.

Use of a damaged cord may result in a fire hazard due to

•

electrical shock. If the cord becomes damaged, order a new one to replace

•

it.

Watch out for

electrical shock

Use prohibited

Watch out for

electrical shock

Unplug the power

cord from the socket

Safety Precautions

CAUTION

Safety Precautions

Do not use or store the GL240 in a location exposed to direct sunlight or the direct draft of an air conditioner or he ate r.

Such location may impair the

•

GL240’s performance.

Use prohibited

Do not use the GL240 in a location subject to excessive mechanical vibration or electrical noise.

Such location may impair the GL240’s performance.

•

Use prohibited Use prohibited

If uid or foreign matters enters inside the GL240, turn

off the power switch and disconnect the power cord from the electrical socket.

Use in such status may cause a fire hazard due to electrical

•

shock or current leakage.

Contact your sales representative or

•

nearest Graphtec vendor to request repair.

Do not place the receptacles containing uid onto this

device or close to this device.

Fluid spilling inside the GL240 may cause a fire hazard due

•

to electrical shock or current leakage.

To insert or disconnect the power cord or a signal

input cable, grasp the power cord’s plug or the signal input cable’s connector.

Pulling the cord/cable itself damages the cord/cable,

•

resulting in a fire hazard or electrical shock.

Do not use the AC power supply and the DC power

supply other than the specied supply voltage for this

device.

Such action may cause a fire hazard due to electric shock

•

or current leakage.

Avoid water

Watch out for

electrical shock

Unplug the power

cord from the socket

Do not attempt to lubricate the GL240’s mechanisms.

Such action may cause the GL240 to break down.

•

Use prohibited

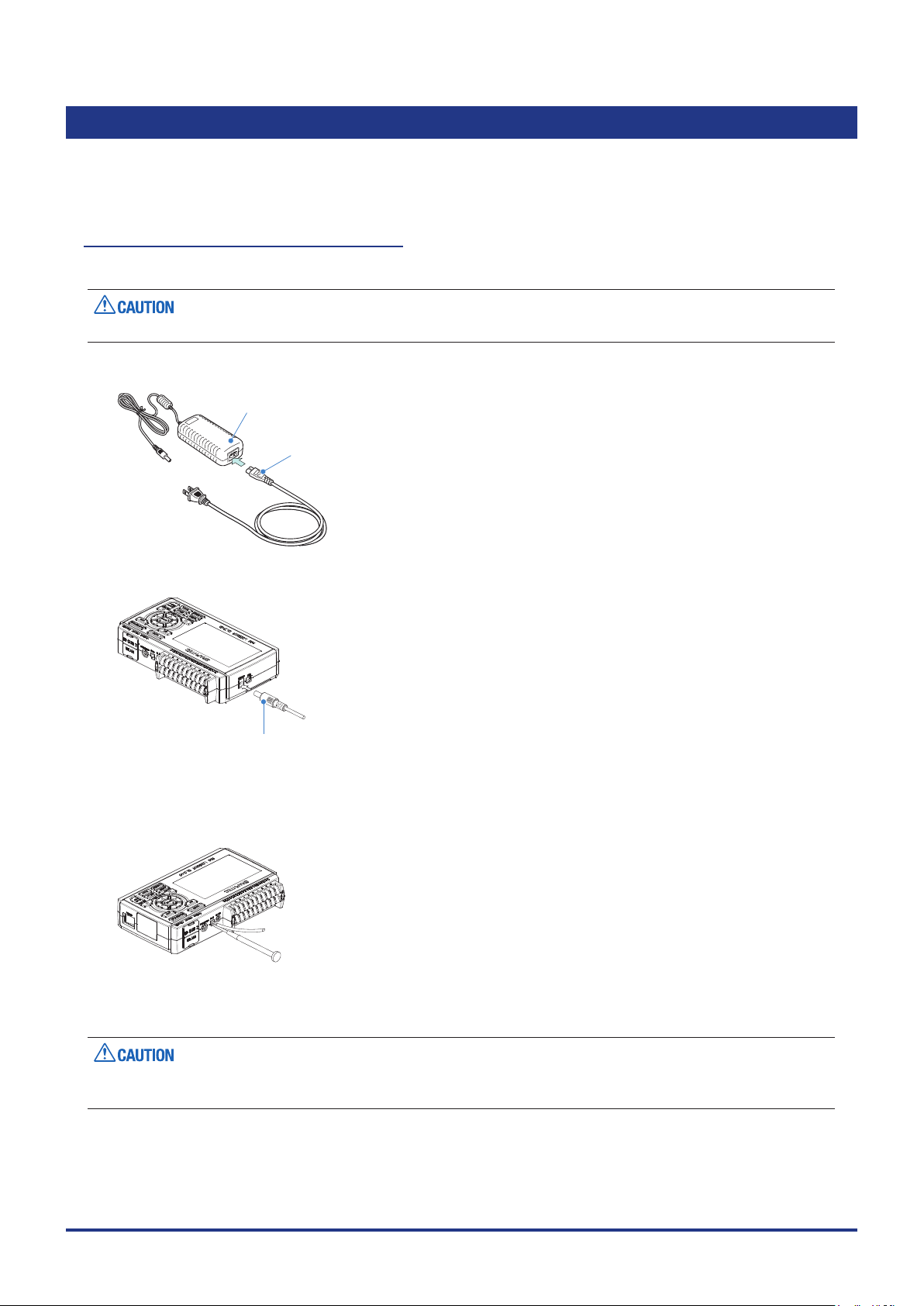

Be sure to use the Graphtec-supplied AC adapter.

It will damage this device.

•

Use prohibited

Never clean the GL240 using a volatile solvent (such as thinner or benzine).

Such action may impair the GL240’s performance.

•

Clean off any soiled areas using a soft dry cloth.

•

Use prohibited

iii

Safety Precautions

Strict observance

Use prohibited

Strict observance

Safety Precautions

CAUTION

Do not touch the input terminals after the signal cable is connected to the measuring objects that are containing the voltage.

It will cause the electric shock.

•

Ensure that the GL240’s power source is positioned so that

•

it can easily be disconnected.

Watch out for

electrical shock

Do not touch the device with wet hands.

This can cause an electrical shock or malfunction.

•

Don't touch

with wet hands

Conrm the power of supplier of signal is turned

off before connecting the input cables to the input terminal of this device to prevent the electric shock.

It will cause the electric shock.

•

Watch out for

electrical shock

Be careful of static electricity.

Static electricity may damage the device. To prevent this

•

from happening, touch a different metal object to discharge any built-up static electricity before touching the GL240.

CAUTION

Do not input the voltage that is exceeding the

specication of this device.

If a voltage exceeding the specified value is input, the

•

semiconductor relay in the input section will be damaged. Never input a voltage exceeding the specified value even for a moment.

Have an enough margin from the specification of

•

withstanding voltage when using this device, it have to consider a noise and change of the measurement voltage.

CAUTION

It will cause the fire or the electric shock when the voltage is

•

input to the defective device.

Do not block the air vent on the GL240.

This device will get damage when there is abnormal heat in

•

this device.

HIGH

TEMPERATURE

Conrm this device is not broken before the input

cable is connected to the input terminal.

It will cause the fire or the electric shock when the voltage is

•

input to the defective device.

Safety Precautions

Strict observance

CAUTION

Safety Precautions

When using the wireless LAN unit (optional), please note the following:

If you have an implantable pacemaker or implantable

•

defibrillator installed, radio signals from the device may have an effect on the operation of your implantable pacemaker or implantable defibrillator.

When using the wireless LAN unit (optional), please note the following:

Turn off the device in places where wireless radio signal

•

use is restricted, such as on aircrafts and in hospitals. The device can have an effect on electronic devices, medical devices, etc., and may cause malfunctions.

Use prohibited

When using the wireless LAN unit (optional) in a medical establishment, please note the following rules:

Please turn off the power of this product in hospital wards.

•

Each medical institution has its own usage prohibitions in

•

various areas. Be sure to follow these.

When using the wireless LAN unit (optional), please note the following:

In the event that the device has an effect on automatic

•

electronic devices such as cars or elevators, immediately turn off the GL240.

Use prohibited

Do not use the device in any way not specied in this

manual. There is a danger that protective provisions will have not been put in place.

Use prohibited

This GL240 is not meant for use with lifesaving devices or devices with mission-critical high reliability or

high safety requirements (medical devices, aerospace devices, shipping devices, nuclear power devices,

etc.). In the event that this GL240 causes injury or property damage when used under these circumstances,

the maker assumes absolutely no responsibility and is not liable.

The module connection terminal is for use only with separately sold sensors and modules. Do not connect any other devices. Doing so may damage the GL240.

Use prohibited

Introduction

Thank you for purchasing the GL240 midi LOGGER.

Please read this manual thoroughly before attempting to use your new product to ensure that you use it correctly and to its full potential.

Notes on Use

Be sure to read all of the following notes before attempting to use the GL240 midi LOGGER.

1. Note on the CE Marking

The GL240 midi LOGGER complies with the following standards.

• EN 61326-1 Class A standard based on the EMC directive (2014/30/EU)

• EN 61010-1:2010 3rd standard based on the LVD directive (2014/35/ EU)

• EN 301 489-17/-1, EN 300 328 standards based on the R&TTE directive (1999/5/EC)

Although the GL240 complies with the above-mentioned standards, be sure to use it correctly in accordance with the instructions and notes provided in this manual.

Moreover, use of the GL240 by incorrect procedures may result in damage to the GL240 or may invalidate its

safeguards. Please conrm all of its notes regarding use and other related information to ensure correct use.

2. Warning

This is a Class A product according to the EMC directive. In a domestic environment, this product may cause radio interference or may be affected by radio interference to the extent that proper measurement cannot be performed.

3. Notes on Radio Law

When using the GL240 midi LOGGER in the wireless LAN unit (optional), please note the following:

Do not remove the technical standards compliance label. Do not use the device if it does not have a label

on it.

This GL240 uses the 2.4GHz frequency band.

The following devices and transmitters use the same frequencies and should not be used near this GL240:

• Microwave ovens

• Pacemakers and other industrial, science, and medical devices

• Radio transmitters used in mobile body identication devices on factory production lines, etc. (transmitters

requiring licensing)

• Specied low-power radio transmitters (transmitters not requiring licensing)

Communications may become slower or impossible due to radio interference.

The signal may be weak or communications may become slower or impossible depending on the

circumstances this GL240 is used in. Take particular note of steel-reinforced, metal, concrete, and other structural materials that can inhibit radio waves.

Introduction

CCAB15LP4220T2

This GL240 is meant for use in Japan, the US, Europe,Taiwan,China and Korea. It has not been certied

for use under any other country’s radio laws. The following are each region’s certication marks.

Japan

R 003WWA100913

Contains FCC ID: ANSBP3591

Europe

CE Mark

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION

Change or modications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

Taiwan

Contains NCC ID:

China

CMIIT ID: 2015DJ5376

Korea

MSIP-CRI-KTM-B-568

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

4. Notes for Safe Operation

(1) Be sure to use the Graphtec-supplied AC adapter. In environments where there is a lot of noise or where

the power supply is unstable, we recommend that you ground the GL240.

(2) When a high-voltage signal cable has been connected to the main unit’s analog signal input terminal,

avoid touching the leads of the input terminal’s signal cable to prevent electrical shock due to high voltage. (3) Ensure that the GL240’s power source is positioned so that it can easily be disconnected. (4) Do not input the voltage that is exceeding the specication of this device.

• If a voltage exceeding the specied value is input, the semiconductor relay in the input section will be damaged. Never input a voltage exceeding the specied value even for a moment. It will cause the re.

• Have an enough margin from the specication of withstanding voltage when using this device, it have to

consider a noise and change of the measurement voltage.

• Conrm this device is not broken before the input cable is connected to the input terminal.

• Please take care of the static electricity when the connecting the input cables or the thermocouples.

• Do not touch the tip of thermocouples with bare hand after the thermocouples are connected to the terminal of this device when the tip of thermocouples is not insulated. The static electricity of a human body will cause damage to this device.

• Do not put the tip of thermocouples to the object which is containing the static electricity when the tip of thermocouples is not insulated. The static electricity of object will cause damage to this device.

• Do not put the tip of thermocouples to the object which is containing the leaked high voltage of chassis or metal etc. when the tip of thermocouples is not insulated. The leaked high voltage of object will cause damage to this device.

• We recommend that the insulation tape puts on the tip of thermocouples before connecting the thermocouples to the input terminals. This will protect this device from the static electricity and the leaked high voltage.

5. Notes on Functions and Performance

(1) Be sure to connect the main unit to an AC or DC power supply that conforms to the rated range.

Connection to a non-rated power supply may cause the main unit to overheat and break down.

(2) Do not block the vent on the main unit.

Continued operation with the vent blocked may cause the main unit to overheat and break down.

(3) To avoid malfunctions and other damage, avoid using the GL240 in the following locations.

• Places exposed to high temperature and/or high humidity, such as in direct sunlight or near heatingequipment.

(Allowable temperature range: 0 to 45°C (0 to 40°C when a battery pack is mounted, 15 to 35°C when

battery is being charged), Allowable humidity range: 5 to 85%R.H., non-condensing)

• Locations subject to excessive salt spray or heavy fumes from corrosive gas or solvents.

• Excessively dusty locations.

• Locations subject to strong vibrations or shock.

• Locations subject to surge voltages and/or electromagnetic interference.

(4) If the main unit becomes soiled, wipe it off using a soft, dry cloth. Use of organic solvents (such as thinner

or benzene) causes deterioration and discoloration of the outer casing.

(5) Do not use the GL240 in the vicinity of other devices which are susceptible to electromagnetic

interference.

(6) Measured results may not conform to the stated specications if the GL240 is used in an environment

which is subject to strong electromagnetic interference.

(7) Insofar as possible, position the GL240 input signal cables away from any other cables which are likely to

be affected by electromagnetic interference.

(8) For stabilized measurement, allow the GL240 to warm up for at least 30 minutes after turning it on.

(9) When you want to use in combination of the Petit LOGGER GL100-WL (separately sold) and various

modules (such as GS sensor and terminal / adapter), please refer to the GL100 User’s Manual.

When using in combination described above, please be careful to the operating environment because

•

the environmental conditions of the GL240 midi LOGGER are applied. It may cause abnormal operation or damage.

• Allowable temperature range: 0 to 45°C, Allowable humidity range: 5 to 85%R.H, non-condensing. (0 to 40°C when battery-powered / 15 to 35°C when charging)

Introduction

III

Introduction

Notes on the Use of This Manual

any form or by any means, without the prior written permission of Graphtec Corporation.

(2) The specications and other information in this manual are subject to change without notice.

(3) While every effort has been made to supply complete and accurate information about this product, please

address any inquiries about unclear information, possible errors, or other comments to your sales representative or nearest Graphtec vendor.

(4) Notwithstanding the preceding paragraph, Graphtec Corporation assumes no liability for damages resulting

from the use of the information contained herein or of the product.

About Registered Trademarks

Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and elsewhere.

Other company names and product names included in this manual are registered trademarks or trademarks of their respective companies.

All copyrights regarding this manual belong to Graphtec Corporation.

CONTENTS

To Ensure Safe and Correct Use ................................................i

Safety Precautions ...........................................................ii

Introduction .................................................................I

Notes on Use .................................................................I

Notes on the Use of This Manual ............................................... IV

About Registered Trademarks .................................................. IV

CHAPTER 1 General Description

1.1 Overview .............................................................1-2

1.2 Features .............................................................1-2

1.3 Operating Environment .................................................1-3

Ambient Operating Conditions ................................................. 1-3

Warming-up Before Use ..................................................... 1-3

Conguration When in Use ................................................... 1-4

1.4 Notes on Temperature Measurement .....................................1-5

CONTENTS

1.5 Notes on Using the Monitor .............................................1-5

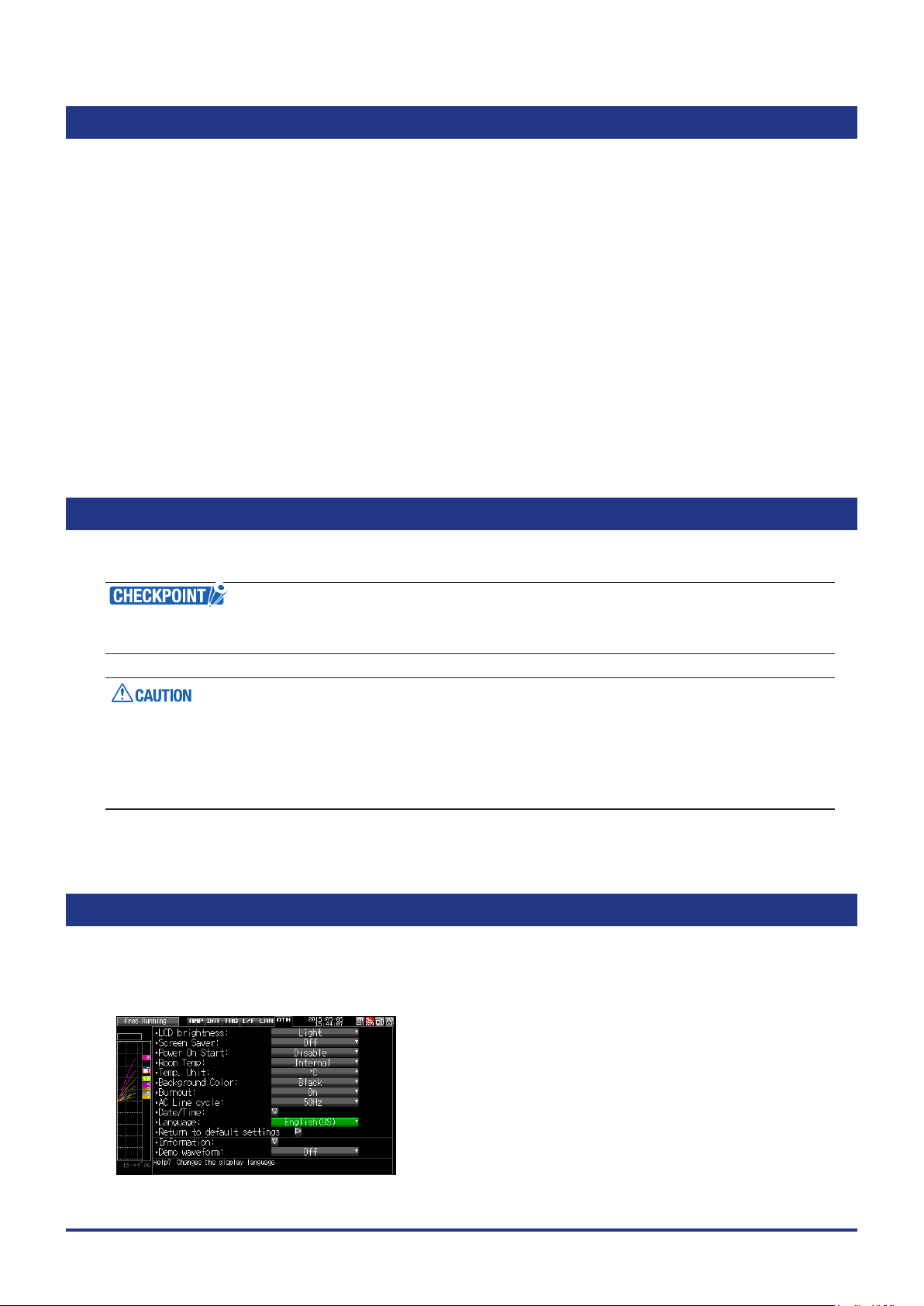

1.6 Changing the Display Language .........................................1-5

CHAPTER 2 Checks and Preparation

2.1 Checking the Outer Casing ..............................................2-2

2.2 Checking the Accessories ..............................................2-2

Standard Accessories ....................................................... 2-2

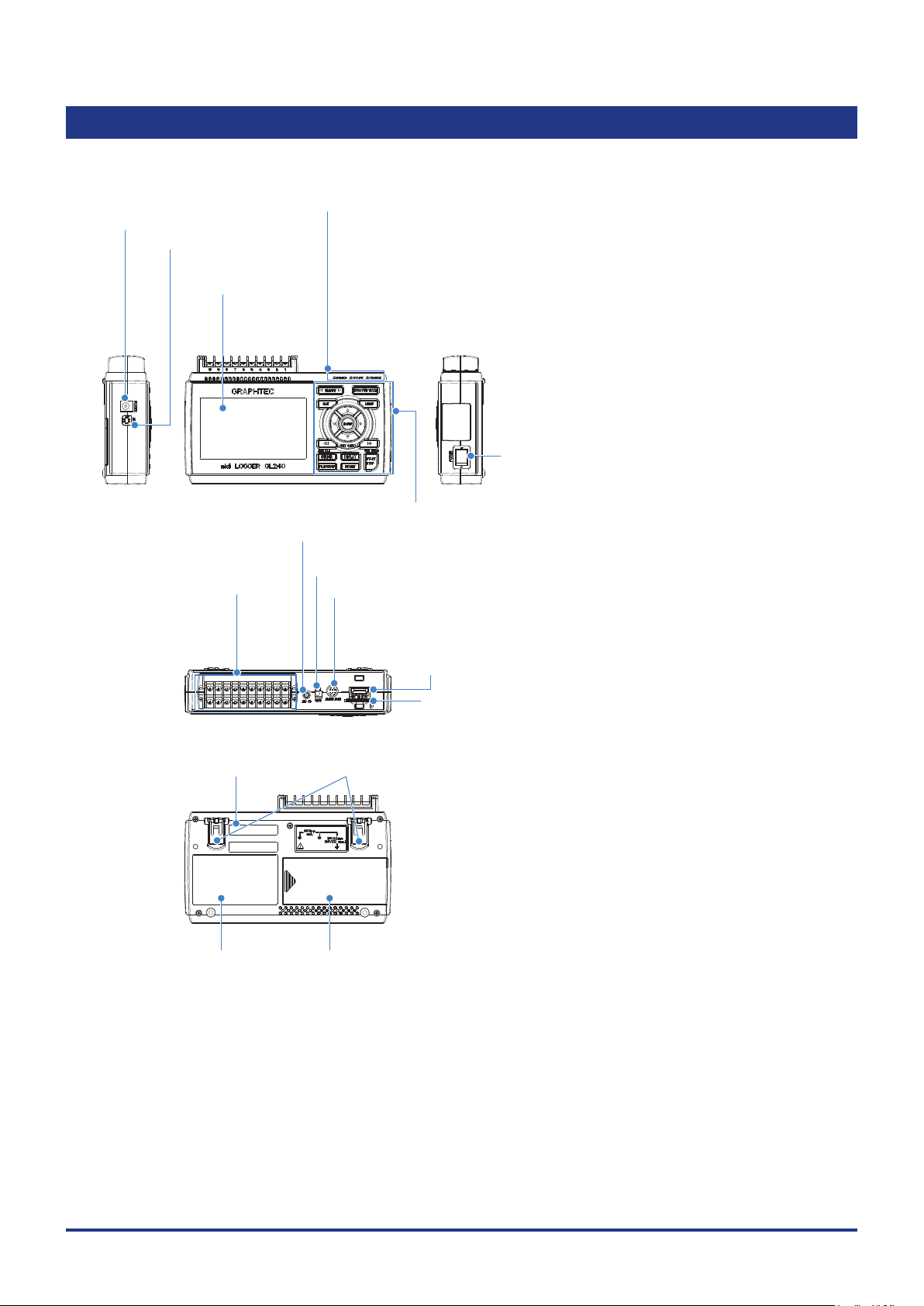

2.3 Nomenclature and Functions ............................................2-3

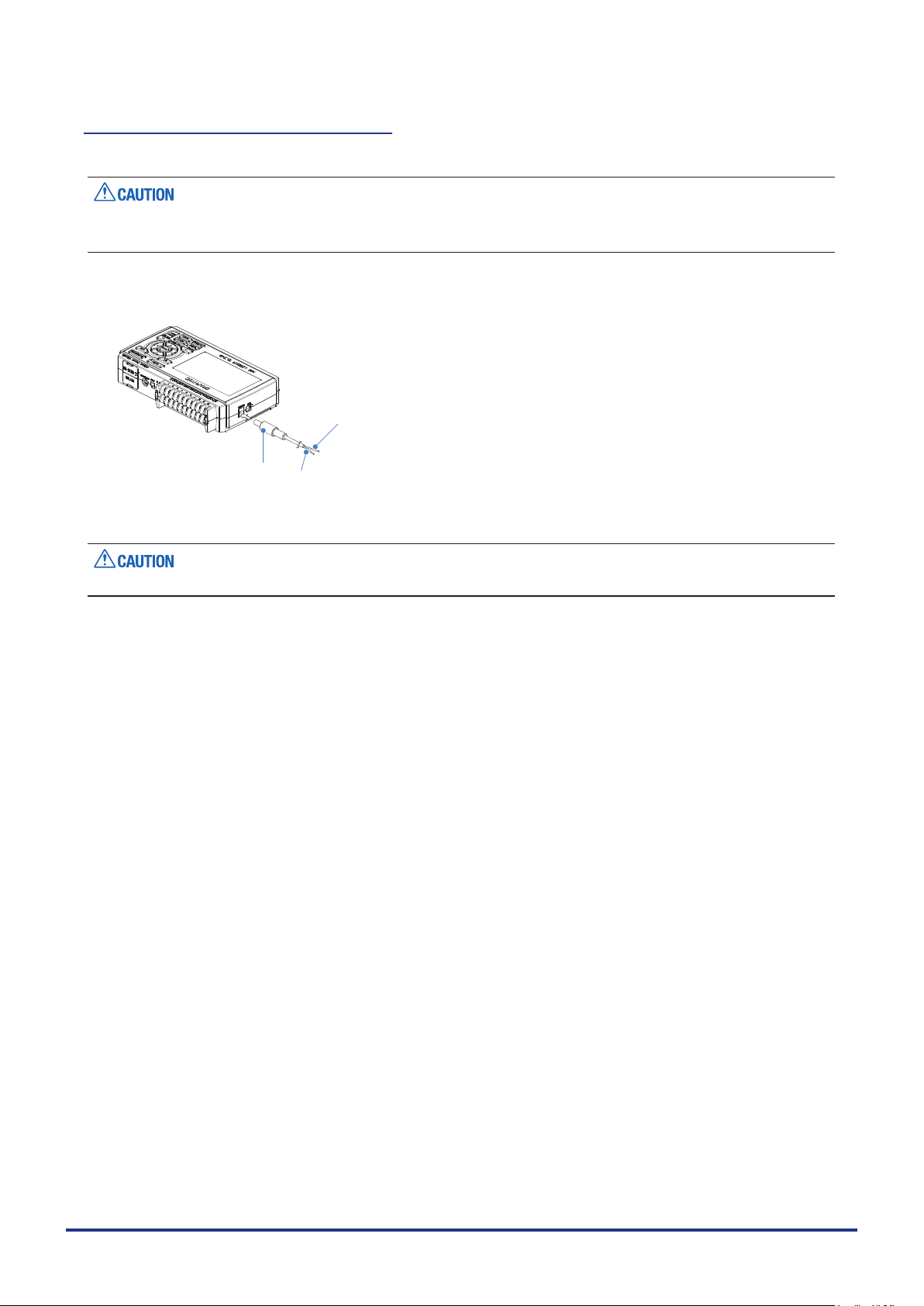

2.4 Connecting the Power Cable and Turning on the Power ..................... 2-4

2.5 Connecting the Signal Input Cables ..................................... 2-6

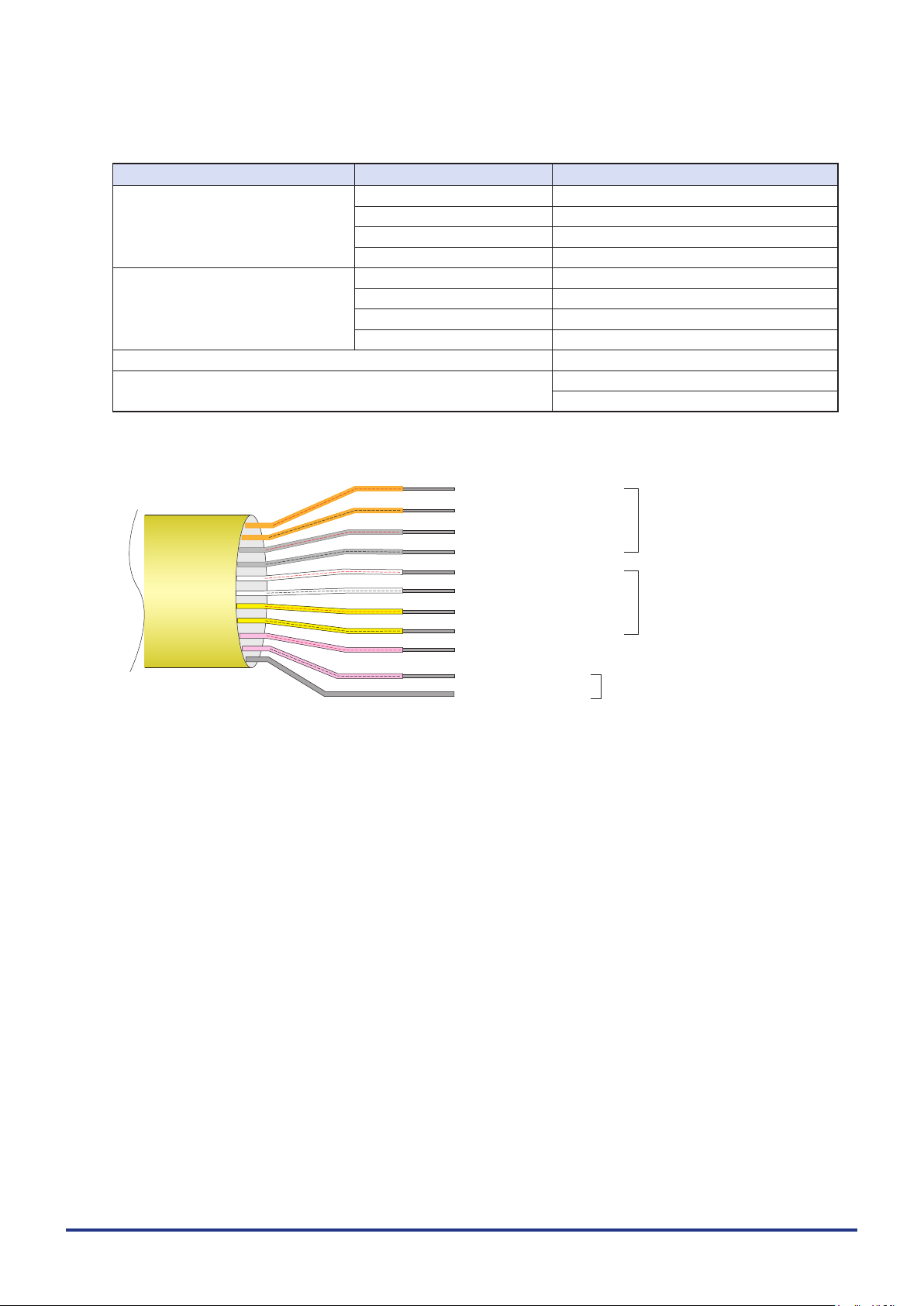

2.6 Logic Alarm Cable Connection and Functions ..............................2-7

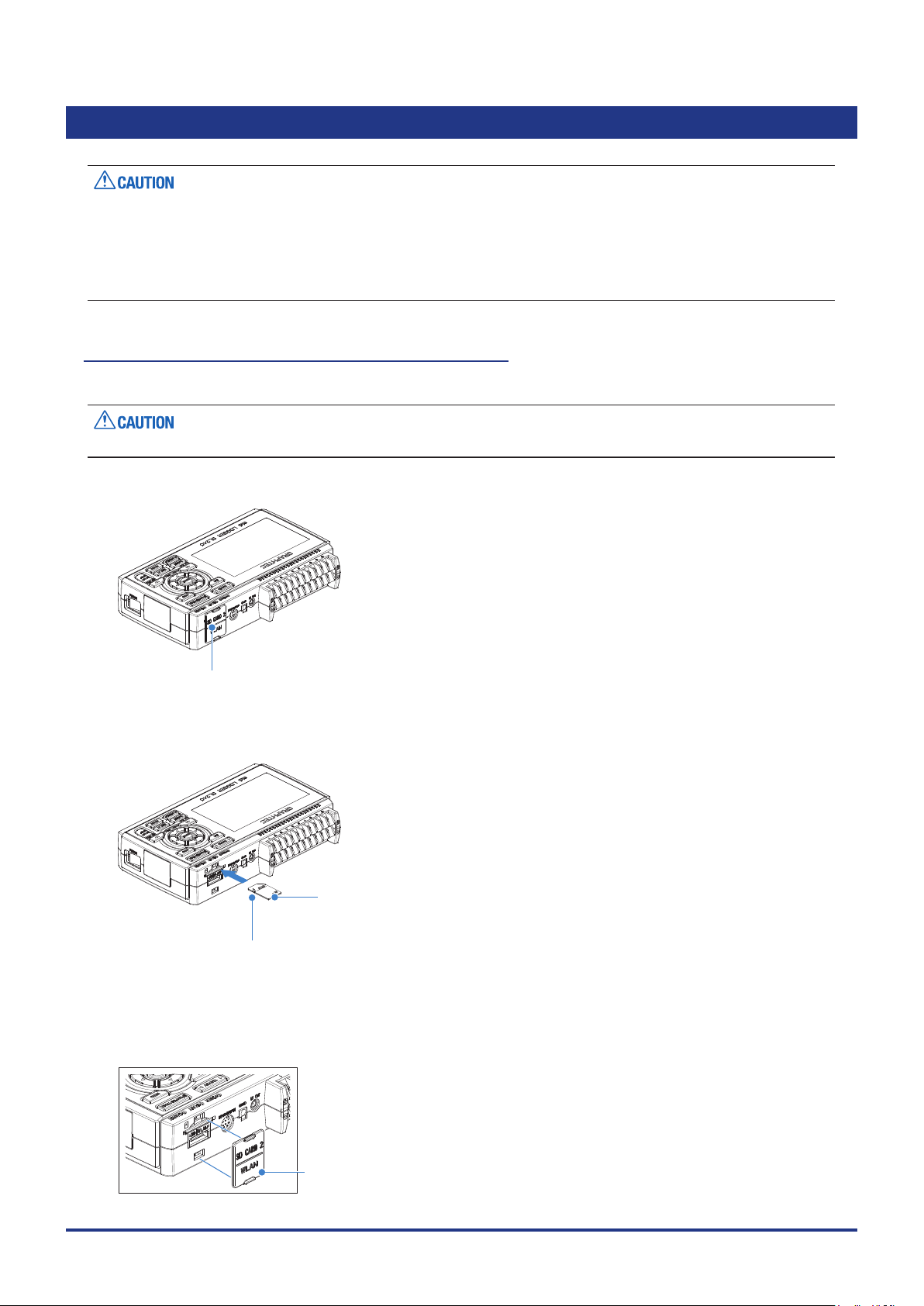

2.7 Mounting the SD Memory Card .........................................2-10

2.8 Installing the Wireless LAN Unit (B-568: Option) ...........................2-12

2.9 Connecting to a PC ...................................................2-14

2.10 Using the Battery Pack (B-569 : Option) ..................................2-16

2.11 Connecting the Humidity Sensor (Optional) ...............................2-18

2.12 Precautions to Observe When Performing Measurement ....................2-19

2.13 Noise Countermeasures ...............................................2-21

2.14 Setting the Date and Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-22

C-1

CONTENTS

CHAPTER 3 Settings and Measurement

3.1 Window names and functions ...........................................3-2

3.2 Key Operation ....................................................... 3-8

3.3 Operation Modes .....................................................3-16

3.4 Setting Menus .......................................................3 -19

(1) AMP settings ............................................................ 3-19

(2) DATA settings ...........................................................3-43

(3) TRIG settings ...........................................................3-48

(4) Interface settings ........................................................3-54

(5) LAN setting ............................................................. 3-55

(6) OTHER settings ......................................................... 3-67

(7) FILE menu ............................................................. 3 -71

(8) File box ................................................................3-76

(9) Text input ..............................................................3-78

(10) Data replay menu ....................................................... 3-79

(11) Integrated bar graph display ...............................................3-82

(12) Quick setting ...........................................................3-86

(13) To cancel key lock by password ............................................3-87

3.5 WEB Server Function ................................................ 3-88

3.6 List of Error Codes .................................................. 3-92

CHAPTER 4 Specication

4.1 Standard Specications ................................................4-2

Standard Specications ...................................................... 4-2

Memory devices ............................................................ 4-3

PC I/F .................................................................... 4-3

Monitor ................................................................... 4-3

Input Unit Specications ..................................................... 4-4

4.2 Function Specications ............................................... 4-5

Function Specications ...................................................... 4-5

Trigger/Alarm Functions ...................................................... 4-6

External Input/Output Functions ............................................... 4-6

4.3 Accessories/Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7

Control Software ........................................................... 4-7

Accessories ............................................................... 4-7

Wireless Unit B-568 (Option) .................................................. 4 -7

Battery Pack B-569 (Option) .................................................. 4-8

Humidity Sensor B-530 (Option) ............................................... 4-8

List of Options ............................................................. 4-9

4.4 External Dimensions ..................................................4 -10

INDEX ..............................................I -1

C-2

CHAPTER 1 General Description

This chapter provides a general description of the GL240 and its features.

PRODUCT SUMMARY

1.1 Overview

1.2 Fe atures

1.3 Operating Environment

1.4 Notes on Temperature Measurement

1.5 Notes on Using the Monitor

1.6 Changing the Display Language

1-1

CHAPTER 1 General Description

1.1 Overview

The GL240 with color monitor is a compact, lightweight data logger.

The GL240 can save the high-capacity measurement data directly in the internal memory or SD memory card.

In addition, the setting, measuring and data capturing can be performed in online by connecting to the

computer with the USB cable.

1.2 Features

Input

Adoption of an M3 screw type terminal facilitates wiring.

•

The GL240 enables settings to be made using dedicated keys and interactive menus, using just one

•

hand.

Display

With the GL240’s high-resolution 4.3-inch TFT color liquid crystal display, you can conrm the waveforms

•

of measured data and each channel’s settings at a glance.

Easy operation is achieved through a straightforward menu structure and key allocation which resembles

•

mobile phones.

Data Capture

The high-capacity measurement data can be saved directly in the internal memory or SD memory card.

•

Because the SD memory card is used as an external memory, you can measure a long period of time with

•

peace of mind while data backup.

* When the optional wireless LAN unit is installed, the SD memory card cannot be inserted into the SD

CARD2 slot.

Because disk image can be used for the internal memory, multiple data can be saved.

•

The new ring memory capture function maintains latest data even after capturing for a long term. (You

•

need to set how long you want to keep data.)

For voltage, temperature and humidity measurements, data can be captured at sampling rates of up to

•

10 ms per channel by using fewer measuring channels. (Temperature measurement can be done at sampling rates of 100 ms and higher.)

The GL240 is equipped with the relay recording function, and 2GByte or more data can be saved by

•

switching the to the other le without data missing. (When the capacity of one le reaches 2GByte, the le

is switched.)

Data Control & Processing

The application software provided lets you set conditions and monitor data on on a computer using the

•

USB interface.

The application software allows you to control multiple GL240 units from a single computer to easily

•

perform multi-channel measurements.

The USB drive mode function enables the internal memory and SD memory card to be recognized as an

•

external drive by the PC. (Connect the GL240 to the PC and turn on the GL240 power while holding down the [START] key.)

Captured data can be read from the application software to les and displayed for processing.

•

When optional wireless LAN unit is installed, the data capture can be performed remotely by controlling

•

the G L10 0 -WL .

1-2

CHAPTER 1 General Description

1.3 Operating Environment

This section explains the operating environment for the GL240.

Ambient Operating Conditions

(1) Ambient temperature and humidity (the GL240 must be operated within the following ranges.)

• Temperature range: 0 to 45°C (0 to 40°C when a battery pack is mounted, 15 to 35°C when battery is being charged)

• Humidity range: 5 to 85%R.H.

(2) Environment (do not use in the following locations.)

• A Location such as being exposed to direct sunlight

• Locations exposed to salty air, corrosive gases, or organic solvents

• Dusty locations

• Locations subject to vibration or impact

• Locations subject to voltage surge or electromagnetic interference such as lightning or electric furnaces

(3) Installation category (over-voltage category)

• The GL240 belongs to Installation Category II dened in IEC60664-1.

• Never use the GL240 for Installation Category III or IV.

(4) Measurement category

• The GL240 belongs to Measurement Category O dened in IEC61010-1.

• The GL240 cannot be used for Measurement Category II, III, or IV.

•If condensation occurs...

Condensation occurs in the form of water droplets on the device surfaces and interior when the GL240

is moved from a cold to a warm location. Using the GL240 with condensation will cause malfunctioning. Wait until the condensation has disappeared before turning on the power.

Warming-up Before Use

The GL240 should be allowed to warm up with the power turned on for approximately 30 minutes to ensure

that it operates according to the specied performance.

1-3

CHAPTER 1 General Description

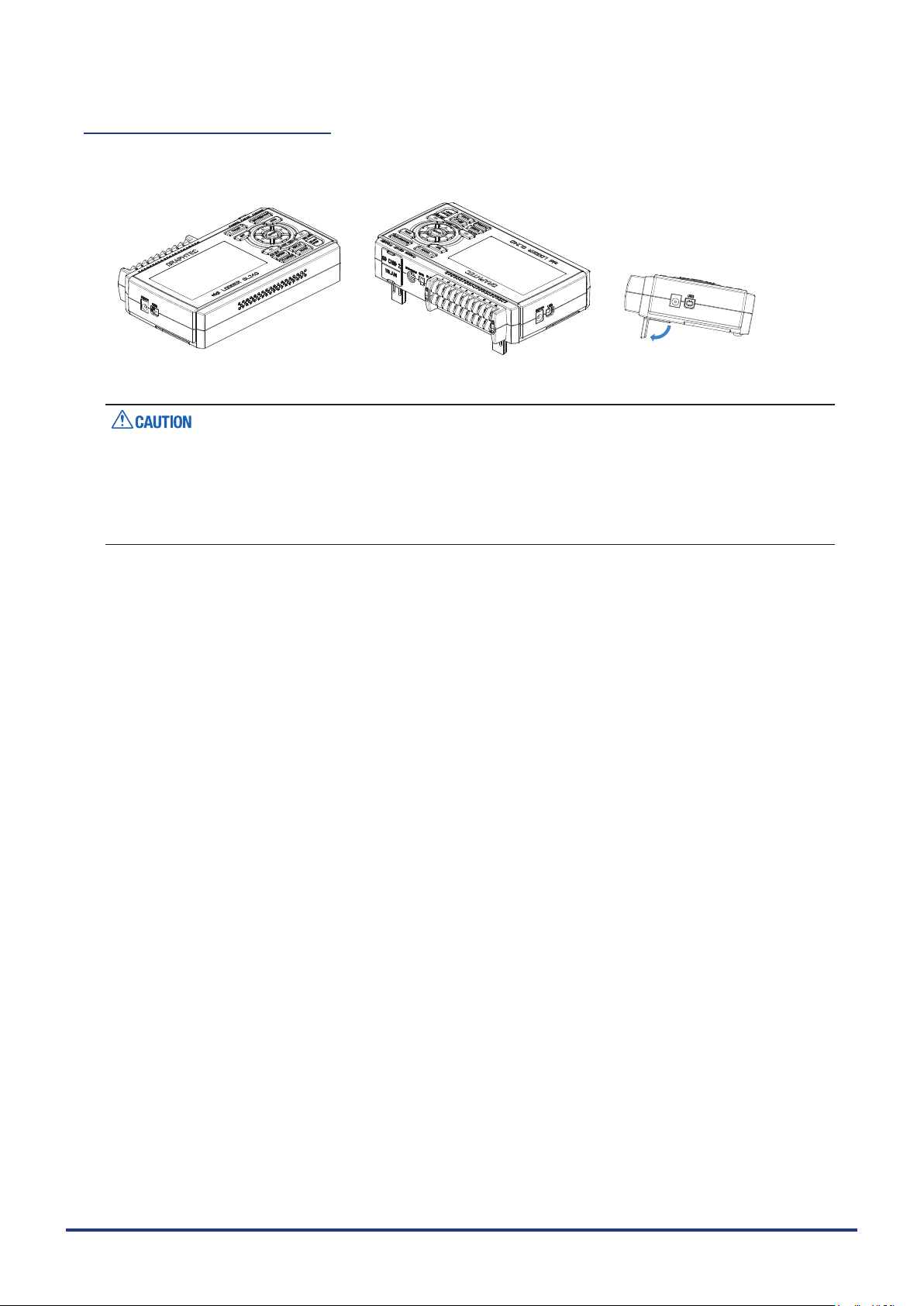

Conguration When in Use

Do not use the GL240 standing upright or at an angle. It must always be laid at or inclined on the stands. <Usage Conguration>

Laid at Inclined on the stands Opening the stands

Do not block the air vent on the GL240, as this will cause malfunctioning.

Measurement accuracy may not be satisfactory if the system is used in a condition other than described

above.

To prevent possible toppling, use both of the stands of the GL240 when you place it inclined.

Use the GL240 with both of the two stands open as shown in the gure above.

1-4

CHAPTER 1 General Description

1.4 Notes on Temperature Measurement

Please observe the following precautions when performing temperature measurement.

Do not block the air vents. Always provide a space of at least 30 cm on all sides of the GL240.

•

For stabilized temperature measurement, allow the GL240 to warm up for at least 30 minutes after turning

•

it on.

Exposure of the input terminals to direct drafts, direct sunlight, or abrupt changes in temperature may

•

impair the equilibrium of the input parts and result in measurement errors. To measure temperature in such an environment, take appropriate countermeasures such as changing the installation site of the GL240.

To conduct measurement in noisy environments, connect the GL240’s GND terminal to ground (Refer to

•

“2.15 Noise Countermeasures”.).

If measured values uctuate due to noise, set to a slower sampling speed (Refer to “(2) DATA setting” in “3.4

•

Setting Menus”.).

1.5 Notes on Using the Monitor

The monitor is an LCD display unit, and so the display will vary depending on the operating environment.

If the screen saver function is used, it will operate and clear the screen if no operations are performed

during the preset time. If the screen saver operates, press any key to restore the display.

Condensation may form on the LCD screen if the GL240 is moved from a cold to a warm location. If this

•

occurs, wait until the LCD screen warms up to room temperature.

The LCD screen is manufactured to extremely high precision. Black dots may appear, or red, blue, and

•

green dots may not disappear. Likewise, streaks may appear when viewed from certain angles. These phenomena are due to the LCD screen construction, and are not signs of a fault.

1.6 Changing the Display Language

You can choose the language displayed on the screen. The default display language is set to English when the GL240 is shipped overseas. To change the display language, see the instructions in "OTH (OTHER menu :Language".

1-5

CHAPTER 2 Checks and Preparation

This chapter explains how to check the main module's external casing and accessories, and how to prepare the main module for operation.

PRODUCT SUMMARY

2.1 Checking the Outer Casing

2.2 Checking the Accessories

2.3 Nomenclature and Functions

2.4 Connecting the Power Cable and Turning on the Power

2.5 Connecting the Signal Input Cables

2.6 Logic Alarm Cable Connection and Functions

2.7 Mounting the SD Memory Card

2.8 Installing the Wireless LAN Unit (B-568: Option)

2.9 Connecting to a PC

2.10 Using the Battery Pack (B-569 : Option)

2.11 Connecting the Humidity Sensor (Optional)

2.12 Precautions to Observe When Performing Measurement

2.13 Noise Countermeasures

2.14 Setting the Date and Time

2-1

CHAPTER 2 Checks and Preparation

2.1 Checking the Outer Casing

After unpacking, check the GL240's outer casing before use. In particular, please check for the following:

Surface scratches

•

Other aws such as stains or dirt

•

2.2 Checking the Accessories

After unpacking, check that the following standard accessories are included.

Standard Accessories

Item Remarks Quantity

Quick Start Guide GL240-UM-85x 1 CD-ROM User's Manual, Application software 1 AC cable/AC adapter 100 to 240 VAC, 50/60 Hz 1 Ferrite core Used to attach to the USB cable. 1

2-2

2.3 Nomenclature and Functions

This section describes the names and function of parts of the GL240.

Operation status LED

AC adapter jack

USB interface terminals

Monitor

• POWER ON when t he powe r is ON Blinking while a ccessing to th e

memory

• START ON durin g data capture

• CHARGE ON while the ba tter y is charging

Power switch

CHAPTER 2 Checks and Preparation

Analog signal input terminals

Label Tilt foot

Control panel keys

Power jack for humidity sensor

Humidi ty sen sor (Opt ion: whe n using t he B- 530)

GND terminal

External input/output terminals

• LOGIC/PULSE

• EXT TRIG/SAMP LE

• ALARM Input /output cable for GL (Cable is the option B-513)

Wireless LAN conne ction terminal

Wirel ess uni t (Option: when using the B -568)

SD CARD2

Label

Battery cover

Two battery pack c an be installed (Batt ery pa ck is the o ption B -56 9)

2-3

CHAPTER 2 Checks and Preparation

2.4 Connecting the Power Cable and Turning on the Power

This section describes how to connect the power cable and turn on the power. The connection method will vary depending on the type of power supply used.

Connecting to an AC Power Supply

Use the AC cable and AC adapter that are provided as accessories.

Be sure to use the AC adapter that is supplied as a standard accessory.

(1) Plug the AC cable into the AC adapter.

AC adapter

AC cable

(2) Connect the output side of the AC adapter to the connector on the GL240.

AC adapter cable

(3) Using the at-blade screwdriver, press against the minus (-) button above the GND terminal, while

connecting the grounding cable to the GL240.

Connect the other end of the cable to ground.

(4) Plug the AC cable into the mains power outlet.

(5) Press the power switch on the GL240 to the ON side to turn on the power.

Always connect the GND terminal and refer to the safety precautions.

The GL240 must be grounded even when connected to other devices and sharing a common ground level.

2-4

CHAPTER 2 Checks and Preparation

Connecting to a DC Power Supply

Use the optional DC drive cable (B-514).

Use a power supply within the 8.5 to 26.4 VDC range.

•

For DC drive cable, please be sure to use the B-514.

•

(1) Congure the tip of the DC drive cable (B-514: 2m) to enable it to be connected to the DC power supply.

(2) Connect the DC output side to the power supply connector on the GL240.

Shielded le ad (- side)

DC drive cable

(B-514: Option)

(3) Connect the DC input side to the DC power supply.

Be sure to check the polarity of the wire tips when performing wiring.

(4) Press the power switch on the GL240 to the ON side to turn on the power.

White (+ side)

2-5

CHAPTER 2 Checks and Preparation

2.5 Connecting the Signal Input Cables

This section describes how to connect the signal input cables.

During wiring, conrm that the signal's supply source is turned OFF to prevent electrical shocks.

Also, position the GL240 input cable away from any power lines and ground cables.

Terminal Conguration and Signal Types

Terminal assignment of standard terminal and Withstand high-voltage high-precision terminal is common.

CH1 CH10

Connection diagram

DC voltage input Thermocouple input

Voltage input

Resistance temperature detector input

not available

Current input

DC current

Compensationcopper wire

Shunt resister

Ex: The current is converted to the voltage in the shunt register.

For 4 to 20mA curre nt input, installing 250 ohms (0.1%) resister for converting 1 to 5V.

* 250 ohms shunt re gister is the option B5 51.

+ .....................................High-voltage terminal (terminal for high-voltage input signals)

- ......................................Low-voltage terminal (terminal for low-voltage input signals)

Item Description

Input conguration Isolated input, scanning Measurement range 20, 50, 100, 200, 500 mV/F.S.; 1, 2, 5, 10, 20, 50, 100 V/F.S.; 1-5V Thermocouples K, J, E, T, R, S, B, N, W (WRe 5-26) A/D resolution 16-bit (Effective resolution: Approx. 1/40,000 of the +/- range) Filter Off, 2, 5, 10, 20, 40

Filter operation is on a moving average basis. The average value of the set sampling count is used. If the sample interval exceeds 5 seconds, the average value of data obtained in a sub-sample (5 seconds) is used.

2-6

CHAPTER 2 Checks and Preparation

2.6 Logic Alarm Cable Connection and Functions

This section describes how to connect the logic alarm cables and the functions of cable.

During wiring, conrm that the signal's supply source is turned OFF to prevent electrical shocks.

Also, position the GL240 input cable away from any power lines and ground cables.

The Input/output cable for GL (B-513: Option) enables logic/pulse input, external trigger input, and alarm signal output.

Connect the Input/output cable for GL (B-513: Option) to the external input/output terminal as shown below.

Input /output cable for GL (B-513: Option)

Logic/Pulse Input Specications

Item Description

Number of input channels 4 Input voltage range 0 to +24V max. (single-ended ground input) Threshold level Approx. +2.5V Hysteresis Approx. 0.5 V (+2.5 to +3 V)

* Switch between logic and pulse input.

Trigger Input/External Sampling Input Specications

Item Description

Number of input channels 1 Input voltage range 0 to +24V max. (single-ended ground input) Threshold level Approx. +2.5V Hysteresis Approx. 0.5 V (+2.5 to +3 V)

Alarm Output Specications

Item Description

Number of Output channels 4 Output format Open collector output

+5 V, 10 KΩ pull-up resistance

* See the next page for details on alarm output

When the power is turned OFF or ON, the GL240 temporarily becomes the alarm state.

2-7

CHAPTER 2 Checks and Preparation

Internal equivalent circuit of I/O circuit

Alarm output

•

+5 V

Maxim um ratings of the transi stor for alarm ou tput VCEO (Coll ector-em itte r voltag e) : 30 V IC (Coll ector current) : 0.5A PC (Collector d issipation) : 0.2W * The maximum ratings mu st not be exceeded.

10K Ω

2SC2411K

Logic/Pulse input

•

LOGIC/PULSE

GND

Example of external connection

ALARM

Load

GND

+5 V +5 V

10 K Ω

68 K Ω

22 0 K Ω

Required for a n induc tive load such as a rel ay

(5 to 24V)

Comparator

Trigger input /External sampling input

•

+5 V

10 K Ω

TRIGGER/SAMPLE

GND

68 K Ω

+5 V

Comparator

22 0 K Ω

0.01μ F

2-8

CHAPTER 2 Checks and Preparation

Wiring

Cable tips are bare tips. Perform wiring for the necessary functions.

Signal Name Channel Number Wire Color

Logic/Pulse input 1 Orange with red dotted line

2 Orange with black dotted line 3 Grey with red dotted line 4 Grey with black dotted line

Alarm output 1 White with red dotted line

2 White with black dotted line 3 Yellow with red dotted line

4 Yellow with black dotted Trigger input/External sampling input Pink with red dotted line GND Pink with black dotted line

Shielded

* Switch between logic and pulse.

Orange with red dotted line : 1

Orange with black dotted line : 2

Grey with red dotted line : 3

Grey with black dotted line : 4

White with red dotted line : 1

White with black dotted line : 2

Yellow with red dotted line : 3

Yellow with black dotted line : 4

Pink with red dotted line : Trigger input/External sampling input

Pink with black dotted line

Shielded

Logic/Pulse input

Alarm output

GND

2-9

CHAPTER 2 Checks and Preparation

2.7 Mounting the SD Memory Card

When the SD memory card is inserted, make sure that the card is not locked. If locked, the data cannot be

•

captured.

Please do not remove the SD memory card while accessing to the SD memory card (Device Access display

•

is displayed in "red" and POWER LED is blinking.). The captured data may be damaged.

When inserting the large capacity SD memory card, it may take some time to recognize it.

•

How to insert the SD memory card (SD CARD2)

Insert the SD memory card into the SD CARD2 slot.

When the optional wireless LAN unit is installed, the SD memory card cannot be inserted.

(1) Remove the SD CARD2 protective cover.

Protective cover

(2) Insert the SD memory card until it clicks and is locked.

* Make sure that the SD memory card is not locked.

Lock

SD CARD

x GB

* Make sure that the SD memory card

is not locked.

SD memory card

(3) Insert and close the protective cover into the upper hole and lower hole for the SD CARD2 protective

cover.

2-10

Protective cover

CHAPTER 2 Checks and Preparation

How to remove the SD memory card (SD CARD2)

(1) Make sure that the SD memory card displayed on the screen is green, and then remove it.

POWER LED

(2) Open the SD CARD2 protective cover.

(3) The SD memory card is unlocked by pushing gently the SD memory card. Then, remove the SD memory

card.

The SD CARD2 is displayed in red while accessing to the SD memory card (Device Access display is

displayed in "red" and POWER LED is blinking.). Remove the SD memory card only when the SD CARD2 is displayed in green.

2-11

CHAPTER 2 Checks and Preparation

2.8 Installing the Wireless LAN Unit (B-568: Option)

To connect the GL240 to the wireless LAN, insert the wireless LAN unit in the SD CARD2 slot.

When the SD memory card has been inserted into the SD CARD2 slot, please remove the SD memory card.

•

When the wireless LAN unit has been inserted, the SD memory card cannot be inserted into the SD CARD2

•

slot.

When inserting the wireless LAN unit, please make sure that the power is turned OFF and then install the

•

unit.

When using the wireless LAN, please check the "3. Notes on Radio Law" in the “Notes on Use” described

•

above.

How to insert the wireless LAN unit

Insert the wireless LAN unit into the SD CARD2 slot.

Wireless LAN unit (Option: B-568)

(1) Turn OFF the GL240’s power.

(2) Remove the SD CARD2 protective cover.

* Please keep so as not to lose the SD CARD2 protective cover.

Protective cover

(3) When the SD memory card has been inserted, remove the SD memory card.

* The SD memory card is unlocked by pushing gently the SD memory card. Then, remove the SD memory card.

2-12

Lock

SD CARD

x GB

SD memory card

CHAPTER 2 Checks and Preparation

(4) Align the wireless LAN unit to the wireless LAN connection terminal and the xed guide and then insert

the wireless LAN unit until the unit is locked.

Wireless LAN unit

When the wireless LAN unit has been inserted, please be careful when handling so as not to hit and drop.

Removing the wireless LAN unit

Turn OFF the power and then remove the wireless LAN unit.

(1) Push the lock part (2 places) on the wireless LAN unit to unlock, and then remove it.

Lock part

(2) After removing it, mount the SD CARD protective cover to protect the connectors.

Protective cover

2-13

CHAPTER 2 Checks and Preparation

2.9 Connecting to a PC

Use the USB cable to connect the GL240 to a PC.

Connection Using a USB Cable

(1) This GL240 complies with the EMC Directive in the state when the supplied ferrite core is attached to the

USB cable. To connect to the PC with the USB cable, attach the supplied ferrite core to the USB cable as shown in

the following gure.

USB cable

(2) Connect between the GL240 and PC with the USB cable.

If the USB cable is used, the USB driver must be installed in your PC. Please refer to “USB Driver

Installation Manual” in the supplied CD-ROM for the installation procedure.

Lock part

USB cable

Ferrite core (Supplie d item)

Use the cable with A and B connectors to connect the GL240 to a PC.

•

A connector B connector

2-14

CHAPTER 2 Checks and Preparation

Connection through the wireless LAN (optional)

Insert the wireless LAN unit (optional). For the insertion, refer to “2.8 Installing the Wireless LAN Unit (B-568:

Option)”.

1. Access point (operating as a base unit):

When connecting the GL240 to the GL100-WL (up to 1 units) or PC/Smartphone via the wireless LAN, the following devices and the operating environment are required.

• PC and Smartphone which can connect to the wireless LAN

Wireless connection

PC: Child unit

GL1 00 -W L

Smartphone: Child unit

Wireless connection

GL240: Base unit

Wireless connection

When the GL100-WL is connected through the wireless LAN, the PC cannot be connected to the GL240

through the wireless LAN.

2. Stations (operating as a child unit):

When connecting to the commercially available wireless LAN base unit and controlling multiple GL240s from PC, the following devices and the operating environment are required.

• PC and Smartphone which can connect to the wireless LAN with the dedicated software

• Wireless LAN base unit (equipped with the functions of Wi-Fi authenticated wireless LAN base unit.)

• Internet environment for Internet connection (Internet provider’s contracts and mobile carrier’s

contracts)

• Internet connection and e-mail send/receive environment (Internet provider and Web mail, etc.) when sending/receiving e-mail.

PC: Child unit

Smartphone: Child unit

Wireless connection

Wire-line connection

Base unit

Wireless connection Wireless connection

Wireless connection

GL240: Child unit

2-15

CHAPTER 2 Checks and Preparation

2.10 Using the Battery Pack (B-569 : Option)

The B-569 (optional) is the only battery type that can be used with the GL240.

•

Refer to “4.3 Accessories/Optional Accessories” for information on the battery run time.

•

The operating temperature ranges of the GL240 with a battery pack mounted are as follows:

•

Running on battery : 0 to 40°C

Battery being charged : 15 to 35°C

Mounting the Battery Pack

(1) While lightly pushing the grip of the battery cover, slid the cover in the direction indicated by the arrow.

Grip

(2) Attach the battery pack (B-569).

2 1

Battery pack

(3) Attach the battery cover.

2-16

CHAPTER 2 Checks and Preparation

Charging the Battery

Expected time required for charging: approx. 4.5 hours

The battery pack is charged by mounting it in the GL240, attaching AC adapter to the GL240.

(1) Mount the battery pack in the GL240 (see "Mounting the Battery Pack" in the previous page for the

mounting procedure.).

(2)

Turn on the power to the GL240. (Please see "2.4 Connecting the Power Cable and Turning on the Power").

(3) The CHARGE LED lights.

CHARGE LED

GL240 is equipped with a temperature monitor function which starts automatic charging as soon as

•

it is cooled down. Therefore, depending on the internal temperature, charging may not be performed immediately.

The operating temperature range during charge is from 15 to 35°C.

•

When charging is attempted while the power is ON, charging may not be performed immediately even if

•

the temperature environment conforms to the specication. In such a case, set the Screen Saver settings

to ON or perform charging while the power is OFF.

During data capture, when the battery capacity is lower, the le is closed automatically.

•

When using with the AC adapter, the GL240 is automatically battery-powered in case of power outage.

•

During the power is supplied directly from the DC power without using the AC adapter, when the DC

•

voltage is 16V or less, the battery charge is disabled.

The running time depends on the operating environment.

•

When the empty battery is charged in the GL220/820/900, the charging in about 80-90% will stop. Once disconnect and connect the AC adapter, or remove and insert the battery pack. The battery pack charging is started in order to charge up to 100%. (It depends on the remaining capacity.)

2-17

CHAPTER 2 Checks and Preparation

2.11 Connecting the Humidity Sensor (Optional)

Connect the + and - lead wires of the humidity sensor (the B-530: Option) to the desired terminals, and then

insert the round connector into the 5V OUT connector on the GL240.

Brown

Humidity Sensor

White

Connected to the 5V OUT terminal.

Humidity sensor (B-530: Option)

Do not use the sensor in a strong electrolyte envronment. Measured results may not satisfy to the stated.

•

The optional humidity sensor power BOX (B-542) is required to use 2 to 10 humidity sensors.

•

5V OUT terminal on the GL240 is available for only one humidity sensor.

•

2-18

CHAPTER 2 Checks and Preparation

2.12 Precautions to Observe When Performing Measurement

Please be sure to read the following carefully in order to prevent electric shocks or shorts.

Do not apply radio-frequency signals with high voltage (50 KHz or above).

•

Be sure to use only the AC adapter provided as a standard accessory. The rated power supply range for

•

the adapter is 100 to 240 VAC, and the rated frequency is 50/60 Hz. Do not use any other voltages.

Do not input the voltage that is exceeding the specication of this device.

•

· If a voltage exceeding the specied value is input, the semiconductor relay in the input section will be damaged. Never input a voltage exceeding the specied value even for a moment. It will cause the re.

· Have an enough margin from the specication of withstanding voltage when using this device, it have to

consider a noise and change of the measurement voltage.

· Conrm this device is not broken before the input cable is connected to the input terminal.

· Please take care of the static electricity when the connecting the input cables or the thermocouples.

· Do not touch the tip of thermocouples with bare hand after the thermocouples are connected to the terminal of this device when the tip of thermocouples is not insulated. The static electricity of a human body will cause damage to this device.

· Do not put the tip of thermocouples to the object which is containing the static electricity when the tip of thermocouples is not insulated. The static electricity of object will cause damage to this device.

· Do not put the tip of thermocouples to the object which is containing the leaked high voltage of chassis or metal etc. when the tip of thermocouples is not insulated. The leaked high voltage of object will cause damage to this device.

· We recommend that the insulation tape puts on the tip of thermocouples before connecting the thermocouples to the input terminals.

This will protect this device from the static electricity and the leaked high voltage.

Maximum input voltage

•

If a voltage exceeding the specied value is input, the semiconductor relay in the input section will be damaged. Never input a voltage exceeding the specied value even for a moment. < Between +/– terminals (A) >

• Maximum input voltage : 60Vp-p (Range of 20mV to 1V)

110Vp-p (Range of 2V to 100V)

Maximum input voltage : 60Vp-p

Withstand voltage : 350Vp-p at 1 minute

Maximum input voltage : 60Vp-p Withstand voltage : 350Vp-p at 1 minute

[ Voltage measuring ]

[ Temperature measuring ]

Thermocouple

GND

2-19

CHAPTER 2 Checks and Preparation

Input Circuit Diagram for Analog Input (Voltage, Thermocouples)

•

Channel Switching Relay

50Ω

500kΩ

50Ω

0.05μF

Capacitors have been incorporated into the input circuit to increase the noise elimination capability.

After voltage measurement, when the inputs have been disconnected, there will still be some electric

charge remaining.

Before starting another measurement operation, short-circuit the + and - terminals to enable self-

discharge.

The GL240 has a scan system.

While in the status (open) in which signals are not input to the input terminal, measured results may be

inuenced by signals from other channels. In such a case, turn OFF the input setting or short circuit +/-.

If signals are input correctly, measured results are not inuenced by other channels.

2-20

CHAPTER 2 Checks and Preparation

2.13 Noise Countermeasures

Be sure to connect the chassis GND of the measurement object.

•

It may become effective by ensuring that the chassis GND wire of the measurement object is connected to a good ground.

GL240

Connect the signal chassis GND to the measurement device chassis ground.

•

Use a short, thick lead to connect the chassis GND of the measurement object to the GL240’s chassis

GND. It will become even more effective if the ground potentials are the same.

Measurement device chassis

GL240

Vin

Z1 Z2

GND GND

Noise countermeasures

•

If measured values uctuate due to extraneous noise, conduct the following countermeasures.

(Results may differ according to noise type.)

Ex 1 : Connect the GL240’s GND to ground. Ex 2 : Connect GL240’s GND to measurement object’s GND. Ex 3 : In the AMP settings menu, set lter to any setting other than “OFF”. Ex 4 : Set the sampling interval which enables GL240’s digital lter.

Use the “OTHER” menu to set the commercial power frequency you use.

Refer to "3.4 Setting Menus" for details.

2-21

CHAPTER 2 Checks and Preparation

2.14 Setting the Date and Time

If you are using the GL240 for the rst time, charge the internal rechargeable battery and then make the date

and time settings.

If the GL240 is not used for a period of approximately six months, the internal rechargeable battery may

be discharged and the date and time may revert to the initial settings. If this happens, recharge the battery before using the GL240.

How to Recharge the Rechargeable Battery

Using the AC adapter provided, connect the GL240 to a mains power outlet, turn on the power switch, and then leave the GL240 connected for at least 24 hours.

How to Set the Date and Time

Press the [MENU] key, display the “OTHER” screen, and then set the date and time at the Date/Time

Settings sub-menu. For details, refer to “Date/Time” in “3.4 Setting Menus”.

2-22

CHAPTER 3 Settings and Measurement

This chapter describes the setting and measurement procedures for the GL240.

PRODUCT SUMMARY

3.1 Window names and functions

3.2 Key Operation

3.3 Operation Modes

3.4 Setting Menus

3.5 WEB Server Function

3.6 List of Error Codes

3-1

CHAPTER 3 Settings and Measurement

3.1 Window names and functions

1. Simpli ed me ssage display

2. Time/DIV display are a

3. Status mark

4. Wireless sensor display

5. Devi ce access display (Internal memory)

6. Devi ce access display (SD mem ory ca rd 2 / wire less L AN disp lay)

7. Remote lamp

8. Key loc k displ ay

9. Clock display

20. Data capture bar

19. Scal e upper limit

18. Wavefo rm displ ay area

17. Scale lowe r limit

16. File name disp lay are a

15. Time stamp

14. Pen dis play

13. Alarm d isplay a rea

10. AC/Battery status indicator

11. Digital display area

12. Quic k sett ings

1. Simplied message display

Displays the operation status of the GL240.

: Appears in the start up status or when data is not being captured.

: Appears while waiting for trigger generation after measurement is started.

* : Displayed when the data is captured to the internal memory (SD1).

* : Displayed when the data is captured to the SD memory card (SD2).

* : Displayed when performing the capturing stop process.

: Appears when the GL240 waits for you to press the [START/STOP] key to stop it

after data capture.

* : Displayed when the data in the internal memory (SD1) is replayed.

* : Displayed when the data in the SD memory card (SD2) is replayed. : Appears when backup fails (e.g. when the SD memory card specied as the backup

destination has been removed).

: Appears when a demo waveform is being displayed, not measurement data.

Refer to "(3) TRIG settings" in "3.4 Setting Menus" for details on the data capture such as a trigger and repeat.

* Refer to “(2)-2 Captured data le name” in “3.4 Setting Nemus” for details on data capture setting.

Please do not turn off the power when the “ * “ status icon is displayed or the device is being accessed.

The data that has been captured or is being captured is may be damaged.

Please start the operation after making sure that the status mark is switched to "STOP".

The internal memory is displayed as the SD1 or SD CARD1.

3-2

CHAPTER 3 Settings and Measurement

2. Time/DIV display area

Displays the current time scale.

3. Status mark

: Appears when neither capture nor replay is in progress.

* : Displayed when saving the captured data in the internal memory (SD1) or SD memory card

(SD2).

* : Appears when waiting for a trigger during capturing and the stop key after capturing.

* : Displayed when replaying the captured data in the internal memory (SD1) or SD memory

card (SD2).

Please do not turn off the power when the “ * “ status icon is displayed or the device is being accessed.

The data that has been captured or is being captured is may be damaged.

Please start the operation after making sure that the status mark is switched to "STOP".

4. Wireless sensor display

Displayed in the case of wireless connection.

: When the connection of wireless sensor is recognized, the display color is changed to

orange.

5. Device access display (Internal memory)

: Not accessed to the internal memory (SD1).

* : Accessed to the internal memory (SD1).

During accessing to the internal memory (SD1), the POWER LED blinks.

Please do not turn off the power when the “ * “ status icon is displayed or the device is being accessed.

The data that has been captured or is being captured is may be damaged.

Please start the operation after making sure that it is not being accessed on the display.

3-3

CHAPTER 3 Settings and Measurement

6. Device access display (SD memory card 2 / wireless LAN display)

: The SD memory card is not inserted into the SD CARD (SD2) slot.

: The SD memory card is inserted into the SD CARD (SD2) slot, but it is not accessed.

* : The SD memory card in the SD CARD (SD2) slot is accessed. Do not remove the SD

memory card. During accessing to the SD memory card, the POWER LED blinks.

: Displayed when connecting to the wireless LAN.

Please do not turn off the power when the “ * “ status icon is displayed or the device is being accessed.

The data that has been captured or is being captured is may be damaged.

Please start the operation after making sure that it is not being accessed on the display.

7. Remote lamp

: Indicates local mode. Operations can be conducted on the GL240.

: Indicates remote mode. With some exceptions, operations must be conducted on a PC.

When you cancel the connection on the application (GL100_240_840-APS), the GL240 is

automatically sent back to local mode. If local mode is not entered, press the [QUIT] key.

8. Key lock display

: Not in key lock status. Normal operations are enabled.

: Key lock status. All the keys are locked.

Refer to “(13) To cancel key lock by password” in “3.4 Setting Menus” for details on the key

lock.

9. Clock display

Displays the current date and time.

Refer to “(6) OTHER settings” in “3.4 Setting Menus” for details on date and time settings.

3-4

CHAPTER 3 Settings and Measurement

10. AC/battery status indicator

: Running on AC or DC power supply.

: Running on the battery. The remaining battery power is 100 to 91%.

: Running on the battery. The remaining battery power is 90 to 61%.

: Running on the battery. The remaining battery power is 60 to 31%.

: Running on the battery. The remaining battery power is 30 to 11%.

: Running on the battery. The remaining battery power is 10% or below.

Data capture automatically stops when the remaining battery power drops to 10% or below during data

•

capture.

The power is automatically turned off when the remaining battery power is 0%.

•

Please use the remaining battery display as a guide.

•

This indicator does not guarantee the operating time with battery.

11. Digital display area

Displays the input value of each channel and span. Use the [SPAN/POSI/TRACE] keys to switch the display.

Use the key to select the channel you want to activate (enlarged display).

The waveform of the active channel is displayed at the top.

: Displays the input value.

: The span of the active channel can be changed using the keys.

: The position of the active channel can be changed using the keys.

: The ON or OFF of the active channel display can be changed using the keys.

Refer to “(1) SPAN/POSI/TRACE” in “3.2 Key Operation” for details.

As described below, the CH indicating the calculation mark is the channel which calculation between the CHs is enabled (On).

Calculation mark

12. Quick settings

The settings of the sampling interval and the division of waveform display can be changed. Use the keys to activate the Quick setting and the keys to change values.

For details, refer to “(12) Quick setting” in “3.4 Setting Menus”.

* The "SAMPLE" item cannot be changed during data capture.

13. Alarm display area

Displays the alarm output terminal status.

The number with which an alarm has occurred is displayed in red. The channel with the alarm cause has the red digital display area.

3-5

CHAPTER 3 Settings and Measurement

14. Pen display

Displays the each channel signal position, trigger position, and alarm range.

Trigger position Alarm range

Rising Falling Win In Win Out

Stop position Start position

15. Time stamp

Displays the time stamp of a currently displayed waveform as time.

This ind icator shows that the measu reme nt data was capt ured at 16:35: 44.

16. File name display area

(1) During data capture

A capture le name is displayed during capture.

* If the ring recording setting is ON, a le name displayed during capture ends with "_RINGx" (x

represents a number) but the actual le name does not include "_RINGx".

In the above gure, if the ring recording is set to ON, the le name during capture will be displayed,

for example, as "<SD1>150520\150520-133932_RING4.GBD" but the actually created le will be "<SD1>150520\150520-133932.GBD".

* Refer to “(2) DATA settings” in “3.4 Setting Menus” for details.

(2) During data replay

Information on the time axis of the cursor is displayed during replay.

Time to wh ich the c ursor points

Selected cursor

Time differ ence b etwe en Cursors A and B

17. Scale lower limit

Displays the scale lower limit of the currently active channel.

3-6

CHAPTER 3 Settings and Measurement

18. Waveform display area

Displays the waveform of the input signal.

19. Scale upper limit

Displays the scale upper limit of the currently active channel.

20. Data capture bar

(1) During data capture

Displays the elapsed time and the internal memory and SD memory card usage status.

Elapsed time Remai ning tim e for dat a capture

Amount o f internal mem ory and SD me mory card used

Total amount of inte rnal me mory a nd SD me mory c ard

Amount o f internal mem ory an d SD mem ory card rema ining

If, for example, 4 GB SD memory card is inserted and about 100 MB is used before data capture, the total amount of memory is 4 GB, the amount of SD memory card used is about 100 MB, and the amount of SD memory card remaining is about 3.9 GB. As time elapses during data capture, the amount of used

SD memory card increases and the amount of remaining memory decreases.

The remaining time for data capture shows a length of time during which data capture is available with the

amount of remaining SD memory card. If the amount of remaining SD memory card is more than 2 GB, however, this part shows remaining time during which data capture is available with one 2 GB le.

* Remaining time more than 99999 hours is displayed as "++++:++:++".

(2) During data replay

Displays the display position, cursor position, and trigger position graphically.

Cursor A position Cursor B position

Name of  le being replayed

All capture data

Range for which a waveform i s currently displayed

3-7

CHAPTER 3 Settings and Measurement

3.2 Key Operation

This section describes key operation.

(2) TIME/ DIV (1) SPAN /POSI/ TRACE

(4) QUI T

(11) CURSOR

(ALARM CLEAR)

(12) FILE/GROUP

(1) SPAN/POSI/TRACE

(3) MENU

(5) Direction Keys

(6) ENTE R

(7) FAST F ORWARD key (KEY LOCK)

(8) START/S TOP (US B DRIVE)

(9 ) D IS PLAY

(10) REV IEW

Switches the information in the digital display. Used to change the settings related to waveform display during Free Running (when stopped), data capture and data replay. Pressing this key will switch displays as shown below.

MONITOR SPAN POSITION TRACE

Displays digital values (default status)

Allows ch anging of t he span value (waveform amplitude)

• Channel change : keys

• Amplitu de change : keys

• Change av ailabl e : Voltage 8 st eps/ Temperature 6 steps

Allows ch anging of t he position (waveform up/down position)

• Range ca n be change d in units of 10%

• Channel change : keys

• Positio n change : keys

• Change av ailabl e : 10% steps o f range

Allows tur ning ON / OFF of the w aveform display

• Channel change : keys

• ON/O FF switch : keys

• Change av ailabl e : ON/O FF * Data is c apture d even

if OFF is se t.

* When ALL is set, setting values for CH1 is reected on other channels.

When CH1 is OFF, ALL cannot be set.

3-8

(2) TIME/DIV

(3) MENU

CHAPTER 3 Settings and Measurement

Press the left/right key of the [TIME/DIV] key to change the time axis display width.

TIME/DIV display

Open the settings window to capture data. For details on settings, refer to “3.4 Setting Menus” .

(4) QUIT (LOCAL)

This key is primarily used for the following operations.

• To cancel a setting during menu conguration.

• To return to the MONITOR screen when the SPAN/POSITION/TRACE screen is displayed.

• To cancel remote status (in which keys are disabled) through interface control.

• To close the menu screen.

• To quit data replay.

3-9

CHAPTER 3 Settings and Measurement

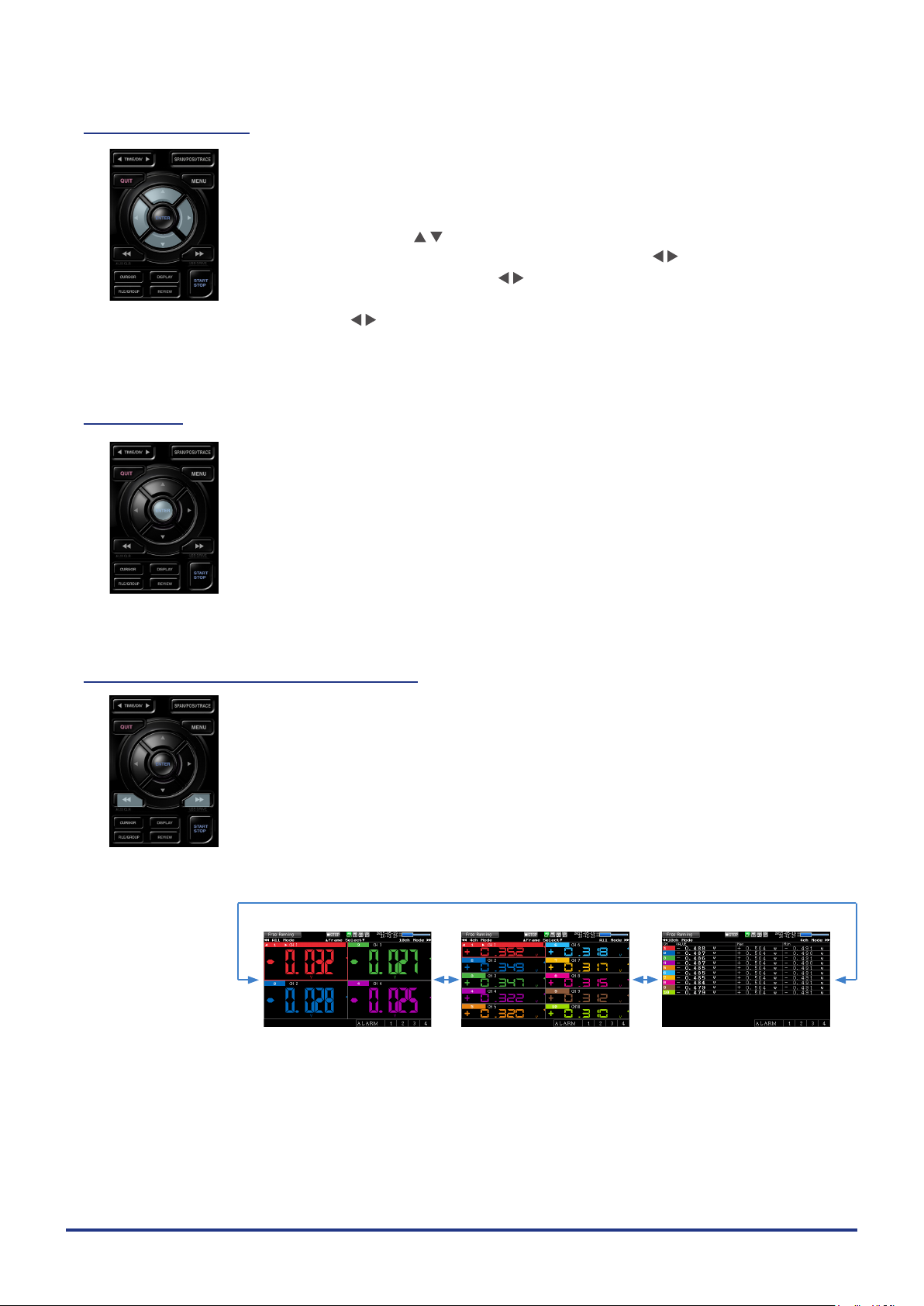

(5) Direction Keys

This key is primarily used for the following operations.

• To move a menu or setting item during menu conguration.

• To move the cursor during replay.

• To move the active channel in the Waveform + Digital and Digital + Calculation Display screens ( keys).

• To change the setting of SPAN/POSITION/TRACE ( keys).

• To change the Quick setting ( keys).

• To change the channel to be displayed in the Digital + Calculation Display screen ( keys).

(6) ENTER

This key is primarily used for the following operations.

• To nalize setting items during menu conguration or open submenus.

(7) FAST FORWARD key (KEY LOCK)

This key is primarily used for the following operations.

• To move the cursor at high speed during replay.

• To change the operation mode in the le box.

• To set key lock (Hold down the left/right FAST FORWARD key for at least two seconds. Press again to unlock)

A password for canceling the key lock can be specied.

Refer to “(13) To cancel key lock by password” in “3.4 Setting Menus” for

details.

• To change the display mode in the Digital + Calculation Display screen.

4ch Mode 10ch Mode A ll Mode

3-10

CHAPTER 3 Settings and Measurement

(8) START/STOP (USB Drive Mode)

This key performs the following two operations:

• During Free Running, starts capture.

• During capture, stops capture.

USB Drive Mode Operation Procedure

In the “USB Drive Mode”, the internal memory (SD1) and SD memory card (SD2) can be check on a PC as

an external storage device.

When two SD memory cards are inserted into the SD CARD 2 (SD2) respectively, they are recognized as two external storage media.

Since the SD memory card is recognized as a removal disk, this mode facilitates le manipulation such as

transfer and deletion.

1. Use a USB cable to connect the GL240 and a PC.

2. While pressing the GL240 [START/STOP] key, turn the power ON.

3. The external storage media is recognized by the PC and data exchange becomes possible.

* In USB Drive Mode, the display becomes as follows:

To exit USB Drive Mode, turn off and on the power again.

•

In USB Drive Mode, no operation including data capture and data replay is available.

•

3 -11

CHAPTER 3 Settings and Measurement

(9) DIS PL AY

This key is used to switch the screen mode. You can switch the window mode during Free Running (when capturing is stopped) and Capturing. Pressing this key switches the screen display as follows:

Displays the waveform and the digital values (when MONITOR is set.). The setting can be changed using the [SPAN/POSI/TRACE] key.

< Replay screen display> <2-screen replay display> <Integrated bar graph display>

Displays only the waveform expanded in full screen mode.

Displays digital values and two calculation results in large letters. The calculation settings can be made using the Data menu. Refer to “(2) DATA setting” in “3.4 Setting Menus”.

Use the

FAST FORWARD keys to change the display

mode. The calculation results are displayed only when switched to "All Mode". Refer to “(7) FAST FORWARD key (KEY LOCK)” in “3.2 Key Operation” for details on ” All Mode”.

For CSV-formatted data, only the data captured by this GL240 can be replayed.

Also, when the data captured in CSV format is replayed, the unit of the temperature data is displayed in “deg

C” rather than “°C”.

Only when the integrated CH is included in the data, the integrated bar graph can be displayed. For details,

please refer to “(11) Integrated bar graph display” in “3.4 Setting Menus”.

3-12

(10) REVIEW

CHAPTER 3 Settings and Measurement

This key is used to replay captured data.

• During Free Running, captured data is replayed.

The screen used to specify the data replay source le appears; specify the le

you want to replay.

• While capturing data, recently captured data is replayed in 2-screen.

<2-screen replay display>

Captured data Current data

To exit the replay display, press the [QUIT] key.

For CSV-formatted data, only the data captured by this GL240 can be replayed.

Also, when the data captured in CSV format is replayed, the unit of the temperature data is displayed in “deg

C” rather than “°C”.

3-13

CHAPTER 3 Settings and Measurement

(11) CURSOR (ALARM CLEAR)

• This key is used to switch between cursors A and B during replay.

Pressing this key switches between cursor A and B.

Refer to “(10) Data replay menu” in “3.4 Setting Menus” for details on cursor

operation.

Cursor A Cursor B

The selected cursor turns white, and the other one turns gray.

• When the alarm setting is “Hold generated Alarm”, the maintained alarm is cleared.

Cursor B Cursor A

(12) FILE/GROUP

Alarm-generated channels

Alarm output terminal status

• Black : Alarm is no t issue d

• Red : Ala rm is issued

This key is used to perform the settings for the le and the channel group.

• When the wireless LAN unit is connected, switch to the GL100-WL channel group.

• Performs the operations (copy and delete, etc.) for the internal memory (SD1) and SD memory card (SD2).

• Performs the screen copy

• Saves all data or data between cursor A and cursor B during replay (can be

set during replay only)

• Saves or reads the currently set condition into the USB device. (can be set

during Free Running only).

• Replaces the SD memory card (SD2) during data capture (Settable when capturing or backing up to the SD memory card).

Refer to “(7) FILE menu” in “3.4 Setting Menus” for details on le operation.

3-14

CHAPTER 3 Settings and Measurement

Basic Procedures Used in Settings

The following are basic operation procedures for settings.

1. Press the [MENU] key to open each menu.

2. Use the

3. Press the [ENTER] key to display a list of setting values.

4. Use the

5. Press the [ENTER] key to conrm the value.

The above explanation shows the basic procedure that may be used for each setting.

The setting procedure varies depending on each setting item. Please set in accordance with the instructions displayed in the menu.

key to move the cursor to the items you want to set.

key to select a setting value.

3-15

CHAPTER 3 Settings and Measurement

3.3 Operation Modes

You can check the system operation status in the status message display.

< Free Run ning >

< Captur ing >

< Replaying >

Operation Description Simple message display

Free Running Startup status, or data is not being captured. Free Running

Capturing The data is being captured. Recording SD1 or Recording SD2

Replaying while capturing data

Replaying the data during capture and displaying the current waveform

Recording SD1 or Recording SD2

Replaying Captured data is being replayed SD1 Memory Review or SD2 Memory Review

Operation status transition

[START/STOP] key [REVIEW] key

[START/STOP] key

Free Running

[QUIT ] key

ReplayingCapturing

3-16

[REVIEW] key

Replay while capturing

[QUIT ] key or [REVIEW] key

[D I SP LAY] ke y

2-screen replaying display

[D I SP LAY] ke y

Integrated bar graph display

* Only when there is the in tegrated CH .

CHAPTER 3 Settings and Measurement

(1) Free Running

The selecte d channel is enlarged.

The display cha nnel can be switch ed by ope rating the

The scale of the selected channel is indicated.

The selecte d channel is di splaye d without color ation .

In free-running, you primarily perform the settings for data capture.

You can check the currently input signal in the waveform or digital value.

The information in the screen display is changed by switching the channel.

The operation of screen display can be performed during free-running, capturing, and replaying.

Main operations available during Free Running

Measuement parameters settings The [MENU] key is used to change various setting items in conguration

SPAN/POSITION/TRACE The [SPAN/POSI/TRACE] key is used to change settings.

Display mode The [DISPLAY] key is used to change the display mode. File operations The [FILE/GROUP] key is used to perform le-related operations.

Data replay The [REVIEW] key is used to replay the captured data.

Time axis change The [TIME/DIV] key is used to change the time axis scale..

menus.

keys.

(2) Capturing

The remainin g capac ity of memor y

Time of Capturing

Capture dest ination and le name

The captured data is saved in the internal memory (SD1) or SD memory card (SD2) during data capture.

You cannot use the [MENU] key to change the setting.

Operations available during capture

SPAN/POSITION/TRACE change Change the settings with the [SPAN/POSI/TRACE] key.

Screen display mode switch Used to change the screen mode with the [DISPLAY] key.

Replay while capturing The [REVIEW] key is used to replay captured data in two windows at the

Save to device While data is replayed in two windows, the [FILE/GROUP] key is used to

Setting check Display the setting information with the [MENU] key.

Time axis change Change the time axis with the [TIME/DIV] key.

(Rema ining time more t han 99 999 h ours is displayed as "++++:++:++".)

same time.

save data to a device.

3-17

CHAPTER 3 Settings and Measurement

(3) Data replaying during capture

Displ ays the voltage at a p oint indicated by Cu rsor A or B or the selected cursor.

Displ ays the me asure ment t ime at a point in dicated by Curs or A or B or th e selected cursor.

The captured data while capturing can be replayed by pressing the [REVIEW] key.

You can switch between the 1-screen (replayed data) and 2-screen (replayed data during data capture) by pressing the [DISPLAY] key.

Use the Direction keys ( ) to move the cursor and captured data to check digital values.

Main operations to replay during data capture

Cursor movement The [CURSOR] key is used to switch between cursors A and B.

The or

Save to device The save to the device can be performed from the [FILE/GROUP] key.

(The data up to the present or between the cursors can be saved in a

separate le during data capture.)

Screen copy Copy the screen with the [FILE/GROUP] key.

Switching between screen You can switch between 1-screen and 2-screen during data replaying by

pressing the [DISPLAY] key.

Time axis change Change the time axis with the [TIME/DIV] key.

keys are used to move the cursors.

(4) Captured data replaying

Displ ays the voltage at a p oint indicated by Cu rsor A or B or the selected cursor.

Displ ays the me asure ment t ime at a point in dicated by Curs or A or B or th e selected cursor.

Displays the captured data.

Main operations to replay captured data

SPAN/POSITION/TRACE replay Change the settings with the [SPAN/POSI/TRACE] key.

Operation in the menu during data capture Perform cursor movement, data search, and calculation setting with the

Cursor movement Switch between Cursor A and B with the [CURSOR] key.

Data save Save all the data or data between cursors withy the [FILE/GROUP] key.

Time axis change Change the time axis scale with the [TIME/DIV] key. File operation Using the [FILE/GROUP] key, perform le-related operations.

Display copy Copy the screen with the [FILE/GROUP] key.

[MENU] key.

Using the or

keys, move the cursor.

For CSV-formatted data, only the data captured by this GL240 can be replayed.

Also, when the data captured in CSV format is replayed, the unit of the temperature data is displayed in “deg

C” rather than “°C”.

3-18

CHAPTER 3 Settings and Measurement

3.4 Setting Menus

When you press the [MENU] key during Free Running, the following menu screens appear.

LAN OTHI/FTRGAMP DAT

OTHRI/FTRIGAMP DATA

(1) AMP settings

This menu is used to specify input signal-related settings.

The GL100-WL+GS sensor shown below is required to install the optional wireless unit.

For more information about the GL240 and GL100-WL wireless connection, refer to "(5) LAN setting” and

the operation procedure example in "3.4 Setting Menus”.

Setting Selections available

Input Range [Voltage] 20, 50, 100, 200, 500mV; 1, 2, 5, 10, 20, 50, 100V; 1-5V

Temperature and humidity sensor (G L100 - WL+ G S TH)

3-axis acceleration / temperature sensor (GL100WL+GS - 3 AT )

4ch voltage / temperature te r m i n a l (GL10 0 WL+GS- 4VT)

4ch thermistor (G L100 - WL+ G S 4TSR)

[Temperature] Sensor Thermocouple: TC-K, TC-J, TC-T, TC-R, TC-E, TC-B, TC-S, TC-N,

Range 2000°C xed

[Humidity] 100% xed

Filter Off, 2, 5, 10, 20, 40

Range [Temperature] / [Dew-point

temperature] / [Accumulated temperature]

[Humidity] 100% xed

Filter None

Range [Acceleration] Sensor Peak / Ave. / RMS

Range 2, 5, 10G; 20, 50, 100m/s2

[Humidity] 100% xed

Filter None

Range [Voltage] 20, 50, 100, 200, 500mV; 1, 2, 5, 10, 20, 50V; 1-5V

[Humidity] Sensor Thermocouple: TC-K , TC-T

Range 2000°C xed

Filter None

Range [Humidity] Sensor Thermistor: TSR-A, TSR-J

Range 200°C xed

Filter None

TC-W

100°C xed

3-19

CHAPTER 3 Settings and Measurement

Setting Selections available

Illumination / ultraviolet sensor (G L100 - WL+ G S LXUV)

CO2 sensor (G L100 - WL+ G S CO2)

Adapter for AC current sensor (G L100 - WL+ G S DPA -AC)

EU (Scaling settings)

Misc. Annotation text string Enter text (Max. 31 characters)

Range [Illuminance] / [Accumulated

Filter None Range 5000ppm xed

Filter None

Range AC clamp mode AC 1P2W, AC 1P3W, AC 3P3W

Filter None

Function Off, On

Meas. Value

EU output Upper limit Set numeric value

Dec pt EU output upper limit x 0.01, x 1, x 10, x 100, x 1000

Select Cur, Length, Area, Volume, Velocity, Accel, Freq, Mass, Energy,

Unit (The selections vary depending on the unit selected in the above.)

Arbitrary unit Enter text (Max. 8 characters)

InterCH Op Settings

Span settings

Waveform color setting 0 to 31 for each of red, green, blue (RGB)

Line Thickness Setting 1 to 8 dots

Trace setting Off, On

Perform Auto Zero ADJ. * When using the GS-3AT, the auto

balance is performed.

Reset Auto Zero ADJ. * When using the GS-3AT, the auto zero

is released.

illuminance]

[Ultraviolet] / [Accumulated ultraviolet]

[Current] 50, 100, 200A

[Power] / [Accumulated power]

Upper limit Set numeric value

Lower limit Set numeric value

Function Off, On

Operation CH-X (+, -, x, /) CH-Y

Scaling /1000000, /1000, ×1, ×1000, ×1000000

Upper/Lower limit Set numeric value

Dec pt ×1, ×10, ×100, ×1000, ×10000

Select Cur, Length, Area, Volume, Velocity, Accel, Freq, Mass, Energy,

Unit (The selections var y depending on the unit selected in the above.)

Arbitrary unit Enter text

Upper limit Set numeric value

Lower limit Set numeric value

2000, 20000lx, 200klx

30mW/cm2 xed

(20, 50, 100kW) Change in synchronization with the current range.

* When measuring the humidity, “On” is xed.

Pressure, Flow , Temp, Strain, Brightness,Concentration

Press right key to execute.

* This function is not available for the temperature setting.

Press right key to execute.

* This function is not available for the temperature setting.

3-20

Setting Selections available

Logic/Pulse Off, Logic, Pulse

[Logic] Filter Off, On

Misc. Waveform

color setting

Trace setting

[Pulse] Input Off, Revolution counts, Counts, Inst.

Filter Off, On

Slope H, L

EU Function Off, On

Meas. Value Set numeric value

EU output value

Select Cur, Length, Area, Volume, Velocity, Accel, Freq, Mass, Energy,

Unit (The selections vary depending on the unit selected in the above.)

Arbitrary unit

Misc. Waveform

color setting

Line Thickness Setting

Trace setting

Number of pulses per revolution

0 to 31 for each of red, green, blue (RGB)

Off, On

Set numeric value

Pressure, Flow , Temp, Strain, Brightness,Concentration

Enter text

0 to 31 for each of red, green, blue (RGB)

1 to 8 dots

Off, On

1 to 10000

CHAPTER 3 Settings and Measurement

3-21

CHAPTER 3 Settings and Measurement

Switching displays

Analog and logic/pulse can be switched as shown below.

• Displ ay Logic /Pulse Dat a

• Display Analog Data

Analog settings

Species the conditions for analog signals.

When you use CH ALL to set an input, range and lter, all channels are set to the same values if the input

is the same. Range is set only for the same input channels. However, the range of a channel is not changed if its EU (scaling) is set to On.

Span All Settings is set only for the same range channels.

* If the rst channel in a channel group (CH1 if CHs 1 to 10 are displayed) has an input that is set to Off, the

input of CH ALL is set to Off.

(1) -1 Input

This is used to select input condition

Selection item Description

Off Input signal measurement is disabled. No waveform or digital value is displayed.

DC Used for measuring direct-current voltage.

TEMP Used for measuring temperature. RH Used for measuring humidity with the humidity sensor B-530.

In this case, the voltage range will become 1 V, and the EU settings will not be available.

(1)-2 Sensor

This is used to select the type of the thermocouple to be connected when the temperature is input.

Sensor setting Description

TEMP TC-K, TC-J, TC-T, TC-R, TC-E, TC-B, TC-S, TC-N, TC-W

3-22

(1)-3 Range

This is used to select the range of measurement.

Input item Description

DC 20, 50, 100, 200, 500 mV; 1, 2, 5, 10, 20, 50, 100V 1-5 V TEMP No selection (2000°C xed) RH No selection (100% xed)

Available SPAN Settings

Range Maximum SPAN Minimum SPAN Minimum Resolution

20mV

50 mV

100 mV

20 0mV

50 0mV

10V

20V

50V

100V

1-5V

22.000 to +22.000mV 0.200mV 0.001mV

55.00 to +55.00mV 0.5 0mV 0.01mV

110 . 0 0 t o +110.00 mV 1.00 mV 0.01mV

220.00 to +220.00mV 2 .0 0 mV 0 .01mV

550.0 to +550.0mV 5.0mV 0.1mV

1.1000 to +1.1000V 0.0100V 0.0001V

2.2000 to +2.2000V 0.0200V 0.0001V

5.500 to +5.500V 0.050V 0.0 01V

11.000 to +11.000V 0.10 0V 0 .00 1V

22.000 to +22.000V 0.200V 0.001V

55.00 to +55.00V 0.50V 0.01V

110 . 0 0 t o +110.00V 1.000V 0.01V

5.500 to +5.500V 0.050V 0.0 01V

CHAPTER 3 Settings and Measurement

Range Maximum SPAN

K -270 to +2000℃ 50℃ -200 to +1370℃ 0.1℃

J -270 to +2000℃ 50℃ -200 to +1100℃

T -270 to +2000℃ 50℃ -200 to +400℃

R -270 to +2000℃ 50℃ 0 to +1600℃

E -270 to +2000℃ 50℃ -200 to +800℃

B -270 to +2000℃ 50℃ +400 to +1820℃

S -270 to +2000℃ 50℃ 0 to +1760℃ N -270 to +2000℃ 50℃ -200 to +1300℃ W -270 to +2000℃ 50℃ 0 to +2000℃

Range Maximum SPAN Minimum SPAN (p-p) Minimum Resolution

100% 0 to +110% 1. 0% 0.1%

Minimum SPAN

(p-p)

Measurement

Range

Minimum

Resolution

3-23

CHAPTER 3 Settings and Measurement

(1)-4 Filter

Selects the range to be measured.

Selection item Description

Off No moving average is calculated.

2 A moving average is calculated 2 times per sampling interval.

5 A moving average is calculated 5 times per sampling interval.

10 A moving average is calculated 10 times per sampling interval.

20 A moving average is calculated 20 times per sampling interval.

40 A moving average is calculated 40 times per sampling interval.

<Filter processing> Filter processing performed on the GL240 is the moving average shown in the following gure.

n-4

n-3

n-2

n-1

If the lter setting i s 5,

The moving avera ge is “D =((n- 4)+(n-3)+(n-2) +(n-1)+ n)÷ 5”.

If the sample interval exceeds 5 seconds, the average value of data obtained in a sub-sample (5 seconds)

is used.

3-24

CHAPTER 3 Settings and Measurement

Setting example: For voltage input

Setting example: For temperature input

(1)-5 EU (Scaling settings)

This is used to convert the measured signals to other units.

(1)

(2) (3) (4)

(5) (6) (7)

Setting Description

(1) EU Function Sets the scaling function to ON or OFF.

(2) Meas. Value (Upper/Lower) Sets the upper and lower limits of values to be converted.

* For temperature input, there is no distinction between upper and lower limits. See the

setting examples shown below for details.

(3) EU Output Value (Upper/

Lower)

Sets the upper/lower limit output values after conversion. * For temperature input, there is no distinction between upper and lower limits. See the

setting examples shown below for details.

(4) Dec pt Sets the decimal point position for an EU output value. (5) Select Selects a specic engineering unit classication. (The following are available.)

Cur, Length, Area, Volume, Velocity, Accel, Freq, Mass, Energy, Pressure, Flow , Temp,

Strain, Brightness,Concentration

(6) Unit Selects a unit to be used after conversion. A unit displayed in this eld belongs to the

classication selected in "Select." To set a unit not displayed in this eld, set arbitrary text in "Arbitrary unit." The setting selected in this eld is displayed in "Arbitrary unit."

(7) Arbitrary Unit Sets a unit to be used after conversion.

Arbitrary text consisting of alphabetical characters and numerical values can be set as a unit. (For the character input, refer to “(9) Character string input” in “3.4 Setting Menus”.)

When “Select Unit” or “Unit” is specied, it is reected in here.

(8) Reads the current temperature

measurement value

Substitutes the current measurement value into (2) Measurement value and (3) EU output value. * The value is not substituted when burnout occurs or the scale is exceeded.

(1)

(2) (3)

(8)

If a message window opens, follow the instruction in the message to change the setting value.

•

The Scaling function performs calculation using a ratio of the Meas. Value and EU Output Value settings.

•

The digital display shows “++++/----” when the converted value cannot be processed by the GL240.

•

The span may be changed depending on the Scaling settings.

•

For temperature input, the offset setting for an input value is used.

•

+5 V

CH.1 10V

-5 V

Meas. Value

+5.000Upper limit

-5.000Lower limit

EU Output Value

+20.00

-20.00

+ 20.00 rpm

CH.1 Scaling 1

- 20.00 rpm

Dec pt

+ xx.xx

Choose

rpm

Meas. Value

22.0℃

3°C is always added to the measurement value

EU Output Value

25.0℃

3-25

CHAPTER 3 Settings and Measurement

(1)-6 Misc.

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

The information varies depending on GL240 amplier and GS sensor or terminal/adapter (settable when it is

connected through the wireless sensor). * Please check the setting target and the information of the item number in the table below.

Setting object Setting Description

Voltage, humidity, acceleration settings

(1) Annotation Settings Set the annotation (comment) displayed in the CH.

(2) Inter-CH Op Settings Set what to do in calculation between channels.

(3) Span Settings Set the upper and lower limits of values of a span in which a waveform

(4) Waveform Color Setting 0 to 31 for each of red, green, blue (RGB)

(5) Line Thickness Setting Setting 1 to 8 dots

(6) Trace This is used to set the waveform display.

(7) Perform Auto Zero ADJ.

(Auto balance in the case of acceleration)

(8) Reset Auto Zero ADJ. Reset the zero point voltage value (acceleration value).

(9) Set Zero Point as: The zero point voltage value (acceleration value) is displayed.

Four arithmetic operations (+, -, x, ÷) can be set as calculation between channels.

should be displayed.

The current input voltage (acceleration value) is calculated as a zero point voltage value (acceleration value). Automatic adjustable voltage range is within ±10% of set range.

* When the temperature is set, this function is not available.

When GS sensor and terminal/addapter are used

For the number in the setting items in the following table, refer to the voltage, humidity and acceleration

settings described above.

Setting object Setting Description

Temperature setting

Logic setting (5), (6) Same content as the voltage.

Pulse setting (4), (5), (6) Same content as the voltage.

CO2 setting (1), (2), (3), (4), (5), (6) Same content as the voltage.

AC clamp setting (1), (2), (3), (4), (5), (6) Same content as the voltage.

(1), (2), (3), (4), (5), (6) Same content as the voltage.

Accumulated reference temperature

Accumulated polarity Set High/Low accumulated polarity.

Number of pulses per revolution Set the number of pulses per revolution.

CO2 calibration Set the CO2 calibration.

Voltage (Power only) Set the measurement voltage value to calculate the power within the

Power factor (Power only) Set the power factor to calculate the power within the range of 0.30 to 1.00.

Auto zero adjustment Display the input voltage after releasing the zero point voltage value.

Zero adjustment reset Display the zero point voltage value. (Display only)

Set the reference temperature accumulated within the range of -20 to +85°C for the temperature and humidity sensor.

range of 90 to 264V.

3-26

CHAPTER 3 Settings and Measurement

(1) (2) (3)

(4) (5) (6) (7 ) (8)

Setting Description

(1) Inter-CH Op Settings Function Off, On

(2) Operation CH-X (Function) CH-Y

(3) Scaling /1000000, /1000, ×1, ×1000, ×1000000

Operations span

(4) Upper/Lower limits Sets the upper and lower limits of values of a span in which a waveform should be displayed.

(5) Dec pt Sets the decimal point position for a span setting.

(6) Scaling setting Selects the unit after conversion.

(7) Select Selects the unit which indicates the calculation results.

(8) Unit Sets a unit to be used after conversion.

If this setting is ON, the channel has a calculation mark in the digital display, etc.

Calculation mark

CH-X CH1 to CH10

Function Four arithmetic operation functions (+, -, x, /)

CH -Y CH1 to CH10

Sets the scaling factor for a calculation result.

In the case of calculation result = 0.001 In the case of calculation result = 1000

Calculation result ×1 = 0.001 Calculation result ×1 = 1000

Calculation result ×1000 = 1 Calculation result / 1000 = 1

Calculation result ×1000000 = 1000 Calculation result / 1000000 = 0.001

The setting value is in reference to a calculation result.

The unit displayed here is the unit selected in the "Unit select". When using the unit not displayed here, set any character in the “Arbitrary unit”. Also, the contents set here is displayed in the “Arbitrary unit”.

Cur, Length, Area, Volume, Velocity, Accel, Freq, Mass, Energy, Pressure, Flow , Temp,

Strain, Brightness,Concentration

Arbitrary text consisting of alphabetical characters and numerical values can be set as a unit. (For the character input, refer to “(9) Character string input” in “3.4 Setting Menus”.)

When “Select Unit” or “Unit” is specied, it is reected in here. When "Select" or "Choose" is used, the setting is reected in this eld.

Calculation results are displayed in volts.

•

The calculation result for 100 mV + 100 mV is 0.2.

Use Scaling to display this result as 200 mV.

Logic and Pulse settings

Makes settings related to digital input.

3-27

CHAPTER 3 Settings and Measurement

(1)-7 Logic/Pulse

This is used to select the processing method for digital input.

Selection item Description

Off Digital input measurement is disabled.

Logic Digital input is processed as logic signals.

Pulse Digital input is processed as pulse signals.

(1)-8 Input

This is used to set the pulse measurement mode. This setting is available only if Pulse is selected in (1)-7.

Selection item Description

Off Pulse input measurement is disabled.

Revol. The number of pulses per sample interval is counted and converted to the number of revolutions per

Counts Captures the cumulative number of pulses for each sampling interval from the start of measurement.

Inst. Captures the number of pulses for each sampling interval.

minute.

(1)-9 Filter

This is used to set the lter for input.

Selection item Description

Off Disables hardware lter. On Enables hardware lter. It is effective in a noisy environment.

The lter is approximately 30 Hz (-3 dB).

(1) -10 Pulse Slope

This is used to set the slope (direction) to count the number of pulses. This setting is available only if Pulse is selected in (1)-7.

Selection item Description

H Counts the rising edges of pulses.

L Counts the falling edges of pulses.

Allocation of CH number of logic and pulse data is as shown below.

•

MSB LSB

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

3-28

Bit 4 to 7: Wire less s ensor data

Bit 0 to 3: Ma in unit da ta

CHAPTER 3 Settings and Measurement

(1) -11 EU (Scaling settings)

This is used to convert the measured signals to other units. This setting is available only if Pulse is selected in (1)-7.

(1)

(2) (3) (4) (5) (6)

Setting Description

(1) EU Function Sets the scaling function to ON or OFF.

(2) Meas. Value Sets a value to be converted.

(3) EU Output Value Sets an output value after conversion. (4) Select Selects a specic engineering unit classication.(The following are available.)

(5) Unit Selects a unit to be used after conversion.

(6) Arbitrary Unit Sets a unit to be used after conversion.

Cur, Length, Area, Volume, Velocity, Accel, Freq, Mass, Energy, Pressure, Flow , Temp,

Strain, Brightness,Concentration

A unit displayed in this eld belongs to the classication selected in "Select." To set a unit not displayed in this eld, set arbitrary text in "Arbitrary unit." The setting selected in this eld is displayed in "Arbitrary unit."

Arbitrary text consisting of alphabetical characters and numerical values can be set as a unit. (For the character input, refer to “(9) Character string input” in “3.4 Setting Menus”.)

When “Select Unit” or “Unit” is specied, it is reected in here. When "Select" or "Unit" is used, the setting is reected in this eld.

If a message window opens, follow the instruction in the message to change the setting value.

•

The Scaling function performs calculation using a ratio of the Meas. Value and EU Output Value settings.

•

The digital display shows “++++/----” when the converted value cannot be processed by the GL240.

•

The span may be varied depending on the scaling settings.

•

Setting example

EU Output ValueMeas. Value

8001000

2000

1000

CH.1

Dec pt

+ xx.xx

800

CH.1 Scaling 1

Choose

rpm

(1)-12 Misc.

(1) (3)

Setting Description

(1) Waveform Color Setting 0 to 31 for each of red, green, blue (RGB)

(2) Line Thickness Setting 1 to 8 dots

(3) Trace This is used to set the waveform display.

(4) Number of pulses per

revolution

1 to 10000 When setting the pulse input to the number of revolutions, set the number of pulses per revolution. As the number of pulses per revolution set here is 1 revolution, the number of revolutions per minute (RPM) is calculated.calculated. For example, if “100” is set, 1 rotation is judged when 100 pulses have been input.

Number of revolutions (RPM) = Pulse input frequency ÷ Number of pulses per revolution x 60 (1 minute)

Number of pul Pulse input: 1000 Hz (1000 pulses per sec.) Number of revol

ses per revolution: 100 (1 rotation is judged when 100 pulses have been input.)

utions: 600 RPM (600 revolutions per 1 minute)

(1)

(2)

(3)

(4)

3-29

CHAPTER 3 Settings and Measurement

Wireless sensor (GL100-WL: optional) setting

The GL240 can receive the optional wireless type (GL100-WL) and the data by installing the optional

wireless LAN unit (B-568).

For the wireless LAN setting method, refer to “(5) LAN setting” in “3.4 Setting Menus”.

For the GS sensor and terminal/addapter connecting to the GL100-WL, refer to the GL100 User’s Manual.

For the operations after connecting the wireless unit, refer to “

* The

symbols indicate the abbreviation of name (model).

*****

The following gure is the AMP setting screen when the GL100-WL+GS-LXUV are connected.

After connecting the wireless sensor, use the [MENU] key to change the CH1-CH10 displayed on the AMP setting screen to the WL1-WL8, or use the [FILE/GROUP] key to change the channel group to the WL1-WL8, and then use the [MENU] key to display the “Wireless sensor setting” screen.

CH display part

• WL Disp lay: Displayed when the w ireless sensor is co nnected.

• GS Disp lay: Displayed when the G S sensor and te rmiona l/ad dapte r are co nnected.

Wireless sensor connection display

AMP Se tting screen

Wireless LAN connection display

Channel group switching

setting” described above.

*****

AMP Se tting screen

When the wireless sensor is not enabled, the wireless sensor setting cannot be performed.

Make sure that the connected wireless sensor is in the wireless LAN status.

(1) Wireless sensor display

The WL an d CH are di splaye d.

(2) Mea surem ent module 1

The info rmati on of GS se nsor an d terminal/a ddapter con nected to the GL100 -WL is dis played.

(3) Mea surem ent module 2

The info rmati on when t wo typ es of GS sensor and terminal/ addap ter ar e conne cted w ith GL100 -WL+GS-D PA (Branch adapter for GS) is d isplaye d.

The information of the Setting screen varies depending on the type of GS sensor and terminal/addapter to be connected.

When the data is captured in the GL100-WL, a few of the data may be delayed by reason of the data

processing of the GL100-WL and the connected GL sensor and terminal/adapter.

Please consider the data lag when the data is tried to conrm and replay.

For details on the wireless connection between the GL240 and GL100-WL, refer to “(5) LAN setting” in “3.4

Setting Menus” and the example of operating procedures.

3-30

CHAPTER 3 Settings and Measurement

Temperature and humidity sensor of the wireless sensor setting: optional

(G L10 0 -WL+GS -TH)

Perform the settings for the temperature and humidity sensor input of wireless sensors.

When the wireless sensor and temperature and humidity sensors are connected, the setting screen is displayed.

(1)-13 Input settings

Setting Description

Off The input signal is not measured. The waveform and digital display also are not performed.

1ch TEMP Used to measure the temperature

2ch RH Used to measure the humidity.

3ch DEW Used to measure the dew-point temperature.

4ch ACC. TEMP Used to measure the accumulated temperature.

5ch to 8ch No AMP When connecting the two GS series and terminal / addapter using a branch adapter for GS, the

following combination is displayed.

Combination CH1 to 4 CH5 to 8

TH+LXUV TH LXUV

TH+CO2 TH CO2

LXUV+ CO2 LXUV CO2

Symbols in the table are as follows: TH: Temperature and humidity sensor LXUV: Illumination / ultraviolet sensor CO2: CO2 sensor

(1)-14 Range settings

This is used to select the voltage range to be measured. The temperature range is xed.

Setting Description

TEMP 100℃ xed range RH 100% xed range

(1)-15 EU setting

The offset of temperature/dew point temperature only can be adjusted.

Refer to “EU Function, Meas. Value, EU Output Value, and Reads the current temperature measurement value” in “(1)-5 EU (Scaling settings)” in “3.4 Setting Menus”.

Even if the scaling setting is applied to the original measured value of CH, the accumulated temperature is

not reected in the accumulated temperature CH.

3-31

CHAPTER 3 Settings and Measurement

(1)-16 Other setting

The following settings can be performed.

Setting Description

Annotation text string Set the annotation (comment) displayed in the CH.

Program Inter-CH calculation

Span setting Set the upper and lower limits of the span which the waveform is displayed. Waveform color setting 0 to 31 for each of red, green, blue (RGB)

Line Thickness Setting 1 to 8 dots

Trace This is used to set the waveform display.

Reference temperature (Accumulated temperature only)

Reference temperature polarity (Accumulated temperature only)

Set the contents of Program Inter-CH calculation Four arithmetic operations (addition (+), subtraction (-), multiplication (x), division (÷)) can be used for the Program Inter-CH calculation

Set the reference temperature accumulated within the range of -20 to +85°C

Set High/Low accumulated polarity.

3-axis Acceleration / Temperature Sensor of the wireless sensor setting: optional

(G L10 0 -WL+GS - 3AT )

Perform the settings for the 3-axis acceleration / temperature sensor input of wireless sensors.

When the wireless sensor and 3-axis acceleration / temperature sensor are connected, the setting screen is displayed.

(1)-17 Input setting

This is used to select the input conditions.

Setting Description

Off The input signal is not measured. The waveform and digital display also are not performed. 1ch TEMP The temperature is measured with the xed temperature sensor inside the sensor part.

2ch to 4ch ACC. X (Y, Z) Measure XYZ direction of the acceleration inside the sensor part.

5ch to 8ch No AMP Because the other wireless sensor cannot be installed, the “No AMP” is displayed.

* 2ch: X-axis, 3ch: Y-axis, 4ch: Z-axis direction

(1)-18 Sensor setting

This is used to select the data processing method of the acceleration sensor.

Setting Description

1ch None

2ch to 4ch Peak The maximum value of the data is displayed.

Ave. The mean value is displayed.

RMS The root mean square value is displayed.

3-32

CHAPTER 3 Settings and Measurement

(1)-19 Range setting

This is used to select the range to be measured. 1ch is used for temperature only, 2ch to 4ch are used for acceleration range.

Setting Description

1ch 100°C xed range

2ch to 4ch 2, 5, 10G; 20, 50, 100m/s

Do not change the range through the GL100-WL after setting the range of the GL240.

The displayed values of the GL240 may not match the measured values.

(1)-20 EU setting

The offset of temperature can be adjusted. It is converted into the unit of acceleration.

In the case of Temperature, perform operations of “EU Function, Meas. Value, EU Output Value, and Reads the current temperature measurement value” in “(1)-5 EU (Scaling settings)” in “3.4 Setting Menus”.

In the case of Acceleration, refer to “<Setting example: For voltage input>”.

(1)-21 Other setting

The following settings can be performed.

The zero adjustment is a function to adjust the current static acceleration value to zero level. Make sure to

rmly mount the sensor beforehand.

Setting Description

Annotation text string Set the annotation (comment) displayed in the CH.

Program Inter-CH calculation

Span setting Set the upper and lower limits of the span which the waveform is displayed. Waveform color setting 0 to 31 for each of red, green, blue (RGB)

Line Thickness Setting 1 to 8 dots

Trace This is used to set the waveform display.

Perform Auto Zero ADJ. The current input voltage (acceleration value) is calculated as a zero point voltage value (acceleration

Reset Auto Zero ADJ. Reset the zero point voltage value (acceleration value).

Set Zero Point as: The zero point voltage value (acceleration value) is displayed.

Set the contents of Program Inter-CH calculation Four arithmetic operations (addition (+), subtraction (-), multiplication (x), division (÷)) can be used for the Program Inter-CH calculation

val ue). Automatic adjustable voltage range is within ±10% of set range.

* When the temperature is set, this function is not available.

3-33

CHAPTER 3 Settings and Measurement

4ch Voltage / Temperature Terminal of the wireless sensor setting: optional

(G L10 0 -WL+GS - 4V T)

Perform the settings for the 4ch voltage / temperature terminal input of wireless sensors.

When the wireless sensor and 4ch voltage / temperature terminal are connected, the setting screen is displayed.

(1)-22 Input setting

This is used to select the input conditions.

Setting Description

1ch to 4ch Off The input signal is not measured. The waveform and digital display also are not performed.

DC Used to measure the direct-current voltage.

TEMP Used to measure the temperature.

5ch to 8ch No AMP Because the other wireless sensor cannot be installed, the “No AMP” is displayed..

(1)-23 Sensor setting

This is used to select the sensor type to be used.

Setting Description

TC-K Set when the thermocouple to be connected is K-type.

TC -T Set when the thermocouple to be connected is T-type

(1)-24 Range setting

Setting Description

DC 20, 50, 100, 200, 500mV; 1, 2, 5, 10, 20, 50V; 1-5V TEMP 2000°C xed range

Do not change the range through the GL100-WL after setting the range of the GL240.

The displayed values of the GL240 may not match the measured values.

(1)-25 EU setting

This is used to unit-convert the measurement signal.

Refer to “EU Function, Meas. Value, EU Output Value, and Reads the current temperature measurement value” in “(1)-5 EU (Scaling settings)” in “3.4 Setting Menus”. In the case of Voltage, refer to “<Setting

example: For voltage input>”.

3-34

CHAPTER 3 Settings and Measurement

(1)-26 Other setting

Annotation text, Inter-CH calculation, span, line width, trace, and zero point, etc. can be set.

Refer to “(1)-6 Misc.” in “3.4 Setting Menus”.

(1)-27 Logic / Pulse setting

This is used to perform the setting related to the digital input to the GL240.

Refer to “(1)-7 Logic/Pulse” in “3.4 Setting Menus”.

However, for Group settings, LOGIC5 to LOGIC8 and PULSE5 to PULSE8 are displayed.

When the pulse is measured by the GL100-WL, the pulse measurement is executed by GL100-WL.

The fastest sampling speed of the GL100-WL is 500 ms.

When the sampling speed of the GL240 is faster than 500 ms, there is a possibility that the error between

the value captured in 500 ms by the GL100-WL and the pulse captured by the GL240 may occur, in order to execute the calculation processing within the sampling interval of GL240.

4ch Thermistor Terminal of the wireless sensor setting: optional

(G L10 0 -WL+GS - 4TS R)

Perform the settings for the 4ch thermistor terminal input of wireless sensors.

When the wireless sensor and 4ch thermistor terminal are connected, the setting screen is displayed.

(1)-28 Input setting

This is used to select the input conditions.

Setting Description

1ch to 4ch Off The input signal is not measured. The waveform and digital display also are not performed.

TEMP Used to measure the temperature.

5ch to 8ch No AMP Because the other wireless sensor cannot be installed, the “No AMP” is displayed.

3-35

CHAPTER 3 Settings and Measurement

(1)-29 Sensor setting

This is used to select the sensor type to be used.

Setting Description

TSR-A Set when the thermistor is GS-103AT-4P.

TSR-J Set when the thermistor is GS-103JT-4P.

(1)-30 Range setting

The temperature range is xed at 200°C.

(1)-31 EU setting

This is used to unit-convert the measurement signal.

Refer to “EU Function, Meas. Value, EU Output Value, and Reads the current temperature measurement value” in “(1)-5 EU (Scaling settings)” in “3.4 Setting Menus”.

(1)-32 Other settings

Annotation text, Inter-CH calculation, span, line width, and trace, etc. can be set.

Refer to “(1)-6 Misc.” in “3.4 Setting Menus”.

(1)-33 Logic / Pulse setting

This is used to perform the setting related to the digital input to the GL240.

Refer to “(1)-7 Logic/Pulse” in “3.4 Setting Menus”.

However, for Group settings, LOGIC5 to LOGIC8 and PULSE5 to PULSE8 are displayed.

When the pulse is measured by the GL100-WL, the pulse measurement is executed by GL100-WL.

The fastest sampling speed of the GL100-WL is 500 ms.

When the sampling speed of the GL240 is faster than 500 ms, there is a possibility that the error between

the value captured in 500 ms by the GL100-WL and the pulse captured by the GL240 may occur, in order to execute the calculation processing within the sampling interval of GL240.

3-36

CHAPTER 3 Settings and Measurement

Illuminance / Ultraviolet Sensor of the wireless sensor setting: optional

(GL100-WL+GS-LXUV)

Perform the settings for the illumination / ultraviolet sensor input of wireless sensors.

When the wireless sensor and illumination / ultraviolet sensor are connected, the setting screen is displayed.

(1)-34 Input setting

This is used to select the input conditions.

Setting Description

Off The input signal is not measured. The waveform and digital display also are not performed.

1ch ILLUM. Used to measure the illuminance

2ch UV Used to measure the ultraviolet.

3ch ACC. ILLUM. Used to measure the accumulated illuminance.

4ch ACC. UV. Used to measure the accumulated ultraviolet.

5ch to 8ch No AMP When connecting the two GS series and terminal / addapter using a branch adapter for GS, the

following combination is displayed.

Combination CH1 to 4 CH5 to 8

TH+LXUV TH LXUV

TH+CO2 TH CO2

LXUV+ CO2 LXUV CO2

Symbols in the table are as follows: TH: Temperature and humidity sensor LXUV: Illumination / ultraviolet sensor CO2: CO2 sensor

(1)-35 Range setting

This is used to select the illuminance range to be measured. The ultraviolet and accumulated ultraviolet ranges

are xed.

Setting Description

ILLUM. 2000, 20000lx, 200klx (operates in conjunction with 3ch)

UV 30mW/cm2 xed range

ACC. ILLUM. 2000, 20000lx, 200klx (operates in conjunction with 1ch)

ACC. UV. 30mW/cm2 xed range

Do not change the range through the GL100-WL after setting the range of the GL240.

The displayed values of the GL240 may not match the measured values.

3-37

CHAPTER 3 Settings and Measurement

(1)-36 EU setting

The unit of Illumination/ultraviolet is converted.

Refer to “(1)-5 EU (Scaling settings)” in “3.4 Setting Menus”.

There is no “EU Function” for accumulated illuminance and accumulated ultraviolet.

Even if the scaling setting is applied to the original measured value of CH, the accumulated illuminance is

not reected in the accumulated illuminance CH.

(1)-37 Other setting

The following settings can be performed.

Setting Description

Annotation text string Set the annotation (comment) displayed in the CH.

Program Inter-CH calculation

Span setting Set the upper and lower limits of the span which the waveform is displayed. Waveform color setting 0 to 31 for each of red, green, blue (RGB)

Line Thickness Setting 1 to 8 dots

Trace This is used to set the waveform display.

Auto zero adjustment The current input value is calculated as a zero point.

Zero adjustment reset Reset the zero point.

Zero point voltage value Display the zero point.

Set the contents of Program Inter-CH calculation. Four arithmetic operations (addition (+), subtraction (-), multiplication (x), division (÷)) can be used for the Program Inter-CH calculation.

* For details, refer to “<Inter-CH Op Settings>” in “(1)-6 Misc.” in “3.4 Setting Menus”.

3-38

CHAPTER 3 Settings and Measurement

CO2 sensor of the wireless sensor setting: optional

(G L10 0 -WL+GS - C O 2)

Perform the settings for the CO2 sensor input of wireless sensors.

When the wireless sensor and CO2 sensor are connected, the setting screen is displayed.

(1)-38 Input setting

This is used to select the input conditions.

Setting Description

Off The input signal is not measured. The waveform and digital display also are not performed.

1ch CO2 Used to measure the CO2.

2ch to 4ch No AMP Used to measure the ultraviolet.

5ch to 8ch No AMP When connecting the two GS series and terminal / addapter using a branch adapter for GS, the

following combination is displayed.

Combination CH1 to 4 CH5 to 8

TH+LXUV TH LXUV

TH+CO2 TH CO2

LXUV+ CO2 LXUV CO2

Symbols in the table are as follows: TH: Temperature and humidity sensor LXUV: Illumination / ultraviolet sensor CO2: CO2 sensor

(1)-39 Range setting

The CO2 range is xed.

Setting Description

CO2 5000ppm xed range

(1)-40 EU setting

This is used to unit-convert the measurement signal.

Refer to “(1)-5 EU (Scaling settings)” in “3.4 Setting Menus”.

3-39

CHAPTER 3 Settings and Measurement

(1)-41 Other settings

The following settings can be performed.

Setting Description

Annotation text string Set the annotation (comment) displayed in the CH.

Program Inter-CH calculation

Span setting Set the upper and lower limits of the span which the waveform is displayed. Waveform color setting 0 to 31 for each of red, green, blue (RGB)

Line Thickness Setting 1 to 8 dots

Trace This is used to set the waveform display.

CO2 calibration Set the CO2 calibration.

Set the contents of Program Inter-CH calculation. Four arithmetic operations (addition (+), subtraction (-), multiplication (x), division (÷)) can be used for the Program Inter-CH calculation.

* For details, refer to “<Inter-CH Op Settings>” in “(1)-6 Misc.” in “3.4 Setting Menus”.

In this calibration, the minimum value within a certain period of time based on the reference value should be corrected. This is useful in the environment CO2 concentration is low.

Adapter for AC current sensor of the wireless sensor setting: optional

(G L10 0 -WL+GS - DPA -AC)

Perform the settings for the adapter for AC current sensor input of wireless sensors.

When the wireless sensor and adapter for AC current sensor are connected, the setting screen is displayed.

(1)-42 Input setting

This is used to select the AC clamp mode.

Setting Description

AC 1P2W Set when measured with the single-phase 2-wire.

AC 1P3W Set when measured with the single-phase 3-wire.

AC 3P3W Set when measured with the triple -phase 3-wire.

This is used to select the input conditions.

Setting Description

Off The input signal is not measured. The waveform and digital display also are not performed.

1ch Current Used to select the CH1 current.

2ch Power CH1 power is displayed. The range is linked to the current. Settable only when measured with

ACC. POWER

3ch Current Used to select the CH2 current.

4ch Power CH2 power is displayed. The range is linked to the current.

ACC. POWER

5ch to 8ch No AMP Because the amplier cannot be installed, the “No AMP” is displayed.

* Power = Measured current × Voltage × Power factor

* Power = (Measured current (ch1) × Measured current (ch2) x Voltage × Power factor

* Power = ((Measured current (ch1) + Measured current (ch2)) ÷ 2) x Voltage ×√3 x Power factor

CH1 accumulated power is displayed. The range is linked to the current.

CH2 accumulated power is displayed. The range is linked to the current.

the single-phase 2-wire. Off when measured with the singlephase 3-wire and 3-phase 3-wire.

3-40

CHAPTER 3 Settings and Measurement

(1)-43 Range setting

Select the range of the current (power) to measure.

Setting Description

Current 50, 100, 200A

Power (20, 50, 100kW) It is linked to the current range.

Do not change the range through the GL100-WL after setting the range of the GL240.

The displayed values of the GL240 may not match the measured values.

(1)-44 EU setting

This is used to unit-convert the measurement signal.

Refer to “<Setting example: For voltage input>” in “(1)-5 EU (Scaling settings)” in “3.4 Setting Menus”.

Even if the scaling setting is applied to the original measured value of CH, the accumulated power is not

reected in the accumulated power CH.

(1)-45 Other setting

The following settings can be performed.

Setting Description

Annotation text string Set the annotation (comment) displayed in the CH.

Program Inter-CH calculation

Span setting Set the upper and lower limits of the span which the waveform is displayed. Waveform color setting 0 to 31 for each of red, green, blue (RGB)

Line Thickness Setting 1 to 8 dots

Trace This is used to set the waveform display.

Voltage value (Power only)

Power factor (Power only) Set the power factor to calculate the power within the range of 0.30 to1.00.

Auto zero adjustment The current input current value is calculated as a zero point current value.

Zero adjustment reset Reset the zero point current value.

Zero point voltage value Display the zero point current value.

Set the contents of Program Inter-CH calculation. Four arithmetic operations (addition (+), subtraction (-), multiplication (x), division (÷)) can be used for the Program Inter-CH calculation.

* For detaols, refer to “<Inter-CH Op Settings>” in “(1)-6 Misc.” in “3.4 Setting Menus”.

Set the measurement voltage value to calculate the power within the range of 90 to 264V.

* This function is not applied to power measurement.

3-41

CHAPTER 3 Settings and Measurement

Branch adapter for GS of the wireless sensor setting: optional

(G L10 0 -WL+GS - DPA )

When the wireless sensor and the branch adapter for GS are used, the composite measurements with combination of three ways can be performed.

Combined GS sensor list

Temperature and humidity sensor (GS-TH) Illumination / ultraviolet sensor (GS-LXUV)

Temperature and humidity sensor (GS-TH) CO2 sensor (GS-CO2)

CO2 sensor (GS-CO2) Illumination / ultraviolet sensor (GS-LXUV)

As an example, the setting screen of temperature or humidity sensor (GS-TH) and illumination / ultraviolet sensor (GS-LXUV) is displayed.

When the temperature and humidity sensor (GS-TH) or illumination / ultraviolet sensor (GS-LXUV) are connected to the wireless sensor and the branch adapter for GS, the setting screen is displayed.

(1)-46 Input setting

This is used to select the input conditions.

When the two types of sensors are connected, the information that can be input to the 1ch to 4ch and 5ch to 8ch is displayed.

In the case of this example, 1ch to 4ch correspond to the temperature and humidity sensor, and 5ch to 8ch correspond to the illumination / ultraviolet sensor.

Setting Description

Off The input signal is not measured. The waveform and digital display also are not performed.

1ch TEMP Used to measure the temperature.

2ch RH Used to measure the humidity.

3ch DEW Used to measure the dew-point temperature.

4ch ACC. TEMP Used to measure the accumulated temperature.

5ch ILLUM Used to measure the illuminance.

6ch UV Used to measure the ultraviolet.

7ch ACC. ILLUM Used to measure the accumulated illuminance.

8ch ACC. UV Used to measure the accumulated ultraviolet.

The following shows the CH allocation when connecting a plurality of sensors.

For the setting for each sensor, refer to “Option setting (wireless sensor ****) described above.

* The

Temperature and humidity sensor (GS-TH) + Illumination / ultraviolet sensor (GS-LXUV)

Temperature and humidity sensor (GS-TH) + CO2 sensor (GS-CO2) TH (GS-TH) CO2 (GS-CO2)

CO2 sensor (GS-CO2) + Illumination / ultraviolet sensor (GS-LXUV) LXUV (GS-LXUV) CO2 (GS-CO2)

symbols indicate the abbreviation of name (model).

*****

Combination CH1 to 4 CH5 to 8

TH (GS-TH) LXUV (GS-LXUV)

3-42

CHAPTER 3 Settings and Measurement

(2) DATA settings

This is used to specify capture-related items and calculations.

Setting Selections available

Sampling 10, 20, 50, 100, 125, 200, 250, 500ms, 1, 2, 5, 10, 20, 30s, 1, 2, 5, 10, 20, 30min,

Capture destination SD1 (Internal memory), SD2 (SD memory card)

File Name * See the description of a captured data le name given below.

Ring/Relay capture Off, Ring, Relay

Ring capture Number of recording points

AC Line Filter Off, On

Backup Backup Interval Off, 1, 2, 6, 12, 24 hours

Backup Destination SD1 (Internal memory), SD2 (SD memory card), FTP

Save Folder Folder name

Calc. Settings 1 Off, Average, Max, Min, Peak, RMS

Calc. Settings 2 Off, Average, Max, Min, Peak, RMS

1h; External * Available sampling intervals var y depending on the input settings and the number of

channels to be used.

* Refer to "(2)-1 Sampling Interval" for details.

Captured data le name

Setting Selections available

Folder (File) Capture destination : SD1 (Internal memory), SD2 (SD memory card)

Na m e Ty p e Auto, Arbitrary, Sequential number Fi l e Ty p e Binary (GBD), Text (CSV)

Folder : Text input (if the naming method is Auto) File : Text input (if the naming method is Arbitrary or Sequential number)

(2)-1 Sampling interval

This is used to set the sampling interval for data capture. The table below shows the number of measuring channels*1 and sampling interval values that can be set.

If data uctuate due to noise, set the sampling interval to a value which enables the digital lter function.

Number of Measuring

Channels*

3CH to 5CH 50ms or slower *

6CH to 10CH 100ms or slower 500ms or slower

1CH 10ms or slower *

2CH 20ms or slower *

Allowed Sampling Interval

*1: "Number of Measuring Channels" is the number of channels in which input settings are NOT set to "OFF".

(CHs in sensor and wireless sensor connected through the wireless unit are not included.)

*2:

When the temperature setting is performed in 10, 20, or 50 ms sampling interval, the data capture cannot be performed.

Sampling Interval which enables

Digital Filter

50ms or slower

125ms or slower

250ms or slower

When using the digital lter, the AC power frequency to be used must be set accurately. Please perform

the setting accurately in reference to “(6)-8 AC Line Frequency”.

3-43

CHAPTER 3 Settings and Measurement

(2)-2 Captured data le name

This is used to select the name of a le or folder to which you want to save capture data.

(1) (2) (3)

(5)

Setting Description

(1) File Type Sets the le format used to save data.

(2) Name Type Sets how a data le should be named.

(3) Folder Species the le in the capture destination (or save destination. For details, refer to “(8) File

(4) File Species the le in the capture destination (or save destination. For details, refer to “(8) File

(5) Ring/Relay capture Perform the Ring/Relay capture setting. For details, refer to “(2)-3 Ring/Relay capture

GBD : Creating a data le in Graphtec's proprietary binary format

* It is not possible to change the data.

CSV : Creating a data le in text format

Auto : Automatically supplies the le name. Example: 20050101-123456_UG.GBD

Number part : File creation date

* The le is created on January 1, 2005, 12:34:56 in this example. Arbitrary : Data is captured to a le with an entered le name. Sequential number : A le is created with an arbitrary le name that has been entered,

Example: If the le name is "TEST" First le : TEST_SER1.GBD Second le : TEST_SER2.GBD Third le : TEST_SER3.GBD

* If the same le name already exists, _CP* is added to the end of a le name to prevent

overwriting. The asterisk (*) represents a number.

Example: TEST_CP1.GBD

box”.

box”..

setting”.

followed by a sequential number.

(1) (2) (3) (4) (5)

The le should be saved in the folder you created. When the data les are continued to be saved in the root

folder, the data le may be not saved regardless of the memory remaining capacity due to the limitations of the le system.

Changing the sampling interval, capture destination, number of measuring channels (number of channels

for which the input is not Off), etc. will change the Capture Space and Capture Time on the screen.

If nd that the measurement time exceeds the Capture Time, take one of the following measures:

• Change the sampling interval.

• Delete unnecessary les.

• In the case of SD CARD2, change to the SD memory card with more free space.

Capture Space : Displays the amount of memory space available for data capture.

Capture Time : Displays time available for at the SD memory card.

* The Capture Time is calculated for 2 GB at the maximum.

The Capture Time more than 366 days is displayed as 366 day over.

3-44

CHAPTER 3 Settings and Measurement

(2)-3 Ring capture setting

Ring Capture Function

•

(1) (2) (3)

Setting Description

(1) Ring Capture Set the capture function.

(2) Number of Ring Capture

Points

(3) Ring Capture Time Display the measurement time that can be recorded in one le when the ring recording

Start capturing data

Captured data is saved into the File 1.

Off: The capture function is disabled.

Ring: Perform the ring recording. (For details, refer to the following gure.) Relay: The data is continuously saved in 2GB-separated les without missing data.

To use the ring recording function, specify the number of data points per one le. (For details, refer to the following gure.)

function is enabled (On).

When the specified number of data are saved into the File 1, the captured data is saved into the File 2. The number of data is specified in the “Ring Capture Points” menu.

When the specified number of data are saved into the File 2, the captured data is saved into the File 3.

File 1 is deleted at this point.

When the specified number of data are saved into the File 3, the captured data is saved into the File 4.

File 2 is deleted at this point.

When the specified number of data are saved into the File 4, the captured data is saved into the File 5.

File 3 is deleted at this point.

* Repeat this action.

Stop capturing data

File1 File2 File3 File4 File5

When capturing is stopped at the STOP point in the above, the File4 and the File 5 are remained. These files are consolidated into one file and it is saved. Then the ring catpuer is completed.

File4 File5 Filexx••• : Saved

Twice as many les as the Number of Ring Capture Points will be created at the maximum.

•

If ring capture is On, the backup function is not available.

•

Relay Capture Function

•

Without missing data, the data is continuously captured in 2GB-separated les. (Maximum capture capacity in one le is 2GB.)

3-45

CHAPTER 3 Settings and Measurement

(2)-4 External sampling

This is used to enable or disable or disables external sampling.

When the external sampling function is enabled, data is captured at the shortest intervals and retained

temporarily.

This retained data is updated at the shortest intervals.

On receiving an external sampling pulse, the retained data is written to the internal memory (SD1) or SD memory card (SD2). (See the following gure.)

Therefore, the maximum error in time between the actually captured data and the external sampling pulse

is the same as the shortest interval.

* Refer to the next section, "(2)-5 AC line lter" for details on the shortest interval.

Input signal

Shortest interval

External Sampling pulse

Capture data

If the external sampling function is ON, the external input cannot be selected for the trigger setting.

•

If the external input has already been set, the trigger will be set to Off.

When you measure signals with high noise levels, set the AC line lter described in the next section to ON.

•

Sampling interval

Data for this Data for this

(2)-5 AC line lter

This is used to enable or disable or disables the AC line lter while external sampling is enabled. Enable this setting to enable the digital lter. When you use external sampling and measure signals with high noise levels, set the AC line lter to ON.

The shortest interval is displayed under the settings.

Shortest interval

The shortest interval is as shown in the following table:

Number of Measuring

Channels *

3CH to 5CH 50ms 1s

6CH to 10CH 100 ms 1s

*1 The Number of Measuring Channels is the number of channels for which the input setting is not OFF.

1CH 10ms 200ms

2CH 20ms 500ms

AC line lter (Digital lter) OFF AC line lter (Digital lter) ON

Shortest interval

3-46

CHAPTER 3 Settings and Measurement

to the internal memory (SD1) or SD CARD2 (SD2)

(2)-6 Backup setting

The GL240 has a function that periodically backs up captured data. (See the gure below)

Automatic backup to an FTP server

GL240

Measurement input

Setting Description

Backup interval Sets the backup interval for captured data.

Backup destination Sets the backup destination for captured data.

Off, 1, 2, 6, 12, 24 hours

SD1 (Internal memory)

SD2 (SD CARD2)

FTP Backs up data to an FTP server on the network.

[Backup] Sets the folder for saving a backup le.

Backs up the captured data to the internal memory (SD1).

This is used only when recording to the SD memory card 2.

Back up the data to the SD memory card in the SD CARD2 (SD2) slot.

This is used only when recording to the internal memory (SD1).

* The FTP server settings must be made using the FILE menu.

(Refer to “(4)-5 FTP/WEB server settings”.) * The wireless unit B-568 (optional) is required.

* This must be a folder on the internal memory (SD1), SD memory card (SD2)

or an FTP server.

FTP server

Lock

SD CARD

x GB

Ethernet

The data is backed up automatically

If ring capture is On, the backup function is not available.

•

When the le is CSV format, it can not be backed up.

•

The memory that is the same as the capture destination cannot set as the backup save folder.

•

(2) -7 Statistical calculation setting

Two types of calculations can be performed on all channels.

This section explains setting what to do in statistical calculation.

Setting Description

Off Calculation is not performed.

Average Displays the simple average value of the data during data capture.

Max Displays the maximum value of the data during data capture.

Min Displays the minimum value of the data during data capture.

Peak Displays the peak value of the data during data capture.

RMS Displays the RMS value of the data during data capture.

Calculation results are displayed in the Digital + Statistical Calculation Display screen. Use the [DISPLAY]

•

key to switch to the Digital screen, and then use the , key to set to All Mode.

At power-on, calculation is started; The result is cleared when you press the [QUIT] key or the [START/

•

STOP] key to start measurement.

The calculation formula is as follows:

* D: data. n: number of data

3- 47

CHAPTER 3 Settings and Measurement

(3) TRIG settings

This is used to specify trigger conditions and alarms.

* When the GL100-WL+GS sensor is connected, the level alarm can be set as well.

Setting Selections available

Start Side Source Setting Off, Level, Alarm, External Input, Date, Weekly, Time

[Level] Mode Analog: Off, H, L, Window In, Window Out

Combination Level OR, Level AND, Edge OR, Edge AND

Level Set numeric value

[Alarm] Alarm port

[Date] Date Fr om 200 5.1.1 to 2035.12.31

[Weekly] Day of week Off or On setting for each of Sunday through Saturday

[Time] From 0:0:1 to 9999:59:59

Stop Side Source Setting Off, Level, Alarm, External Input, Date, Weekly, Time

[Level] Mode Analog: Off, H, L, Window In, Window Out

[Alarm Alarm port

[Date] Date Fr om 200 5.1.1 to 2035.12.31

[Weekly] Day of week Off or On setting for each of Sunday through Saturday

[Time] From 0:0:1 to 9999:59:59

Repeated Capturing Off, On

Alarm Level Settings

Mode Analog: Off, H, L, Window In, Window Out

Level Set numeric value

Output 1, 2, 3, 4, WL1

Detection Method Level, Edge

Alarm Hold Held or Not held Send Burnout Alarm Sent or not sent

number

Time From 0:0:0 to 23:59:59

Combination Level OR, Level AND, Edge OR, Edge AND

Level Set numeric value

number

Time From 0:0:0 to 23:59:59

Logic: Of f, H, L Pulse: Off, H, L, Window In, Window Out

1, 2, 3, 4, WL1

Logic: Of f, H, L Pulse: Off, H, L, Window In, Window Out

1, 2, 3, 4, WL1

Logic: Of f, H, L Pulse: Off, H, L, Window In, Window Out

3-48

CHAPTER 3 Settings and Measurement

(3)-1 Start side source setting

This is used to specify trigger conditions to start data capture.

Selection item Description

Off Starts capturing data unconditionally when you press the [START/STOP] key. Level Starts capturing data when a specied level is reached.

Alarm Starts capturing data when an alarm is generated in the specied alarm port.

External Input Starts capturing data when an input signal is received from an external trigger terminal.

Date Starts capturing data when specied date and time arrives. Weekly Starts capturing data at the specied time on days of week for which On is set.

Time Starts capturing data when a specied length of time elapses.

-> When Level is selected, the condition for each channel must be set.

Refer to “Trigger Level Settings/Alarm Level Settings” desdcribed below.

* A trigger is established at a transition from 5 V (open) to 0 V (shorted to the ground).

A falling edge operation occurs.

Example: On is set for Mon, Tue, Wed, Thu, and Fri, Off is set for Sun and Sat, and 9:00 is

set as the time. Starts capturing data at 9:00 on weekdays. Does not start capturing data on Sat and Sun.

(3)-2 Stop side source setting

This is used to specify trigger conditions to stop data capture.

Selection item Description

Off Stops capturing data unconditionally when you press the [START/STOP] key. Level Stops capturing data when a specied level is reached.

Alarm Stops capturing data when an alarm is generated in the specied alarm port.

External Input Stops capturing data when an input signal is received from an external trigger terminal.

Date Stops capturing data when specied date and time arrives. Weekly Stops capturing data at the specied time on days of week for which On is set.

Time Stops capturing data when a specied length of time elapses.

When External Input is used as the trigger source, no stop trigger is accepted for 50 ms after capture is

•

started.

When the start trigger is External Input, data is captured at sampling intervals (xed to 5 seconds if they

•

are more than 5 seconds) and retained temporarily.

This retained data is refreshed at sampling intervals (xed to 5 seconds if they are more than 5 seconds).

Since the external trigger input operation conducts detection at 10 ms intervals asynchronously from

sampling, the retained data becomes the rst point when an external trigger is detected. Starting from

this point, data is captured at sampling intervals.

Even when the stop trigger is sent from an external device, the detection is executed in 10 ms. The data

•

capture is stopped when the stop trigger is received.

-> When Level is selected, the condition for each channel must be set.

Refer to “Trigger Level Settings/Alarm Level Settings” desdcribed below.

* A trigger is established at a transition from 5 V (open) to 0 V (shorted to the ground).

A falling edge operation occurs.

Example: On is set for Mon, Tue, Wed, Thu, and Fri, Off is set for Sun and Sat, and 9:00 is

set as the time. Stop capturing data at 9:00 on weekdays. Does not stop capturing data on Sat and Sun..

3-49

CHAPTER 3 Settings and Measurement

(3)-3 Repeated capturing

This is used to enable or disable the repeat function to conduct repeated capturing.

Selection item Description

Off The repeat function is disabled.

On The repeat function is enabled.

After one capture is ended, the next capture is started (If the start side source setting is not Off, the GL240 waits for a trigger).

Also, when setting to the specied time, the date and time must be set. However, when the repeat function is enabled (On), the specied time is changed to the time display. It occurs

the trigger once a day.

(3)-4 Alarm level settings

This is used to set alarm generation conditions, output destination, etc.

When the conditions specied here are met, the alarm output terminal (for which an output destination number must be specied for each channel) outputs an alarm.

For the CH condition settings, refer to “Trigger Level Settings/Alarm Level Settings” described below.

(3)-5 Alarm hold

If "Alarm retention" is selected here, once the established conditions have been met the alarm status will not be cleared, regardless of whether or not the conditions continue to be met (Pressing the [CURSOR] key will clear it.)

(Press the [CURSOR] key to cancel it).

(3)-6 Send burnout alarm

The alarm is output from the alarm output terminal by selecting “Sent” when the burnout occurs (Refer to “(6)-7

Burnout) described below.

3-50

CHAPTER 3 Settings and Measurement

Trigger level settings/Alarm level settings

Species detailed conditions for each channel when the start and stop side source settings are Level. The conguration of the level trigger is as shown in the gure below.

CH n

Pulse n

Logic n

* Pulse and Logic are switchable.

Mode Level

Mode Level Trigger

Mode

(2)

Lower-Level-Upper

Place the curso r here a nd press the [EN TER] key to open th e following set ting sc reen.

Combination

(1) (3)

CH n

Pulse n

Logic n

* Pulse and Logic are switchable. * Specify an alarm output destination for each channel and Pulse/Logic. Each of the alarms is ORed at the output destination. Example: If you specify 1 as the output destination of 1CH and 2CH and 2 as that of 3CH and 4CH, Alarm Output 1 occurs when one of 1CH and 2CH meets the conditions, and Alarm Output 2 occurs when one of 3Ch and 4CH meets the conditions.

Mode Level

Mode Level Alarm output n

Mode Level

(2)

Place the curso r here a nd press the [EN TER] key to open th e following set ting sc reen.

(1) (3)

Setting Description

(1) Combination

Sets a combination of trigger conditions set for each channel.

Level OR : Starts (stops) capturing data when at least one of the specied trigger conditions

is met.

Each condition is Level operation.

Level AND : Starts (stops) capturing data when all of the specied trigger conditions are met.

Each condition is Level operation.

Edge OR : Starts (stops) capturing data when at least one of the specied trigger conditions

is met.

Each condition is Edge operation.

Edge AND : Starts (stops) capturing data when all of the specied trigger conditions are met.

Each condition is Edge operation.

Detection method

Level: Each condition is Level operation. Edge: Each condition is Edge operation.

(2) Mode Sets a trigger comparison mode for each channel.

Off : Disables triggers for the setting channel.

H (rising) : A trigger is generated when the input signal exceeds the specied level. L (falling) : A trigger is generated when the input signal falls below the specied level.

Win In : Used to specify the upper and lower limits for each channel.

When the input signal level is (or comes) between these limits, a trigger is generated. * This setting is not available for Logic CH.

Win Out: : Used to specify the upper and lower limits for each channel.

When the input signal level is (or goes) out of these limits, a trigger is generated. * This setting is not available for Logic CH.

(3) Level Sets a trigger comparison level. If the mode is H (rising) or L (falling), set one comparison

level. If the mode is Win In or Win Out, set two comparison levels.

3-51

CHAPTER 3 Settings and Measurement

Trigger generation area

Example: Rising Example: Rising Edge And for 1CH and 2CH

Level operation.

Input signal

Measurement starts (alarm generated)

Trigger (alarm) generation area

Measurement starts (alarm generated)

Trigger (alarm) generation area

Input signal

Measurement starts (alarm generated)

Trigger (alarm) generation area

Level and Edge operations

In the Level operation, a trigger is assumed to be generated if the trigger conditions are met when the [START] key is pressed.

In the Edge operation, even if the trigger level achieves to the trigger generation level when the [START] key

is pressed, it is not considered the trigger condition is satised if the level does not exceed the set level.

A trigger is assumed to be generated when the trigger conditions, after not being met, are met again.

* A trigger is still assumed to be generated even if the trigger conditions are met once in the Edge operation

and then are no longer met.

Measurement is immediately started in the

If the START key is pressed here If the START key is pressed here

1CH

An edge exceeding the setting level is required.

Measurement is started from here in the Edge operation.

Setting level

For 1CH, a trigger is generated here.

2CH

For 1CH, a trigger is assumed to be generated here, too.

For 2CH, a trigger is generated here

Measrement is started here.

Trigger and Alarm operations

Rising : A trigger/alarm is generated when the input signal is higher than the specied level.

Falling : A trigger/alarm is generated when the input signal is lower than the specied level.

Setting level

Input signal

Setting level

Win In : Used to specify the upper and lower limits for each channel. When the input signal level comes (or

is) between these limits, a trigger/alarm is generated.

Upper limit level

Lower limit level

Win Out : Used to specify the upper and lower limits for each channel. When the input signal level goes (or

is) out of these limits, a trigger/alarm is generated.

Trigger (alarm) generation area

Input signal

Measurement starts (alarm generated)

Upper limit level

Lower limit level

3-52

CHAPTER 3 Settings and Measurement

Trigger (alarm) point

• Level setting value 1% of negative range

Trigger (alarm) level

Trigger (alarm) point

• Level setting value 1% of positive range

Trigger (alarm) level

Dead zones of trigger and alarm levels

Trigger and alarm levels are provided with a dead zone in order to prevent false detection due to noise.

The following gure shows the dead zone. <Mode: Rising>

Dead zone level Dead zone level

(1V range: Level setting value -0.01V) <Temperature>

• Level setting value -0.3°C

<Mode: Falling>

<Mode: Rising> <Mode: Rising>

(1V range: Level setting value +0.01V) <Temperature>

• Level setting value +0.3°C

The upper limit values within the mode range and the lower limit values out of the mode range are dead

•

zone level as well.

When the detected alarm drops below the dead zone level, it is cleared. (When the alarm is not retained)

•

<Example>When measuring temperature, the level released after the alarm generated is shown below.

• Rising setting: Setting value -0.3℃

• Falling setting: Setting value +0.3°C

In the case of pulse, dead zone is not provided.

•

3-53

CHAPTER 3 Settings and Measurement

(4) Interface settings

This menu is used to specify conditions for PC connection.

Setting Selections available

Selections availableNew Line code CR + L F, L F, C R USB settings USB ID 0 to 9

(4)-1 New Line code

Species the line feed code.

Selection item Description

CR+LF Starts a new line with CR+LF code (default value).

LF Starts a new line with LF code.

CR Starts a new line with CR code.

(4)-2 USB settings

Sets the USB ID number of GL240.

Specify a number from 0 to 9 (default value: 0).

To control more than one GL240 unit with one PC, assign a unique USB ID to each of them.

3-54

CHAPTER 3 Settings and Measurement

(5) LAN setting

Perform the I/F wireless LAN unit setting and the wireless sensor registration. * When optional wireless LAN is not installed in the GL240, this screen is not displayed.

Setting Selections available

Wireless LAN Off, station, access point Station setting SSID input Character string input

SSID search Press right key to execute

Other setting (When the station is set)

Access point setting

Reection of

setting (When the Access point is set)

Automatic setting (WPS)

Encryption method None, WEP, WPA-PSK/WPA2-PSK 11n Off, On Reection of setting Press right key to execute Connect / disconnect Press right key to execute ST-IP setting

SSID input Character string input Automatic

setting (WPS)

Encryption method None, WEP, WPA-PSK/WPA2-PSK Channel 1ch to 13ch Stealth Of f, On 11n Off, On Reection of setting Press right key to execute AP-IP setting IP address 0 to 255.0 to 255.0 to 255.0 to 255

Wireless sensor setting

WPS system Push button method / PIN method WPS execute Press right key to execute

IP address automatic acquisition IP address 0 to 255.0 to 255.0 to 255.0 to 255

Subnet mask 0 to 255.0 to 255.0 to 255.0 to 255

Port number 1024 to 65535 Gateway 0 to 255.0 to 255.0 to 255.0 to 255

DNS address 0 to 255.0 to 255.0 to 255.0 to 255

Server setting Perform each server setting.

Reection of setting Press right key to execute

WPS system Push button method / PIN method WPS execute Press right key to execute

Subnet mask 0 to 255.0 to 255.0 to 255.0 to 255

Port number 1024 to 65535 Server setting Perform each server setting.

Reection of setting Press right key to execute Connection Off, On Module name Character string input Search Press right key to execute AMP1 Display the set sensor. AMP2 Display the set sensor.

Not used or used

(only when the IP address automatic acquisition is not used.)

For details, refer to “(5)-6 Server setting”.

(only when the IP address automatic acquisition is not used.)

For details, refer to “(5)-6 Server setting”.

3-55

CHAPTER 3 Settings and Measurement

Access point (operating as base unit)

•

This is used to set when connecting between the GL240 and sold separately Petit LOGGER GL100-WL (1

unit) through the wireless LAN.

Station (operating as child unit)

•

This is used to set the control from the PC and the data transfer to the PC when the sold separately

wireless LAN base unit is connected.

(5) -1 Wireless LAN setting

This is used to set the conditions when connecting the GL240 to wireless LAN.

(1) Perform the wireless LAN settings.

Selection item Description

Off The wireless LAN is not used.

Station The GL240 is set to the child unit

Access point The GL240 is set to the base unit.

(2) Restart the wireless LAN.

When restarting after selecting the wireless LAN, the information of the station or the access point is displayed.

It takes some time to display.

After executing "Wireless LAN restart" once, the wireless LAN cannot selected. When the wireless LAN

selection is changed, the restart is enabled.

"Disconnect" "Wireless LAN restarting" "TCP-IP restarting" are executed.

3-56

CHAPTER 3 Settings and Measurement

(5)-2 Station setting

When connecting to the commercially available wireless LAN base unit and controlling multiple GL240s from PC, the e-mail send/receive function of the GL240 and Internet connection are available. (The following conditions is required to use them.)

• PC connectable to Wireless LAN.

• Wireless LAN base unit (Wi-Fi-authenticated devices equipped with wireless LAN base unit functions)

• Internet connection environment when connecting to the Internet.

(Internet provider’s contracts and mobile carrier’s contract, etc.)

Internet connection and e-mail send and receive environments when sending and receiving the e-mail.

(E-mail and Web mail must be able to send and receive in the SMTP and POP3 via the Internet provider.)

Each station function must be set when the GL240 operates as a child unit.

When the station is selected in the wireless LAN settings and the wireless LAN is restarted, the following screen is displayed.

Selection item Selection item

Station setting SSID input Perform the GL240 SSID (access point identication name) setting.

SSID search The list of the wireless connections is displayed by searching the SSID. When the

Automatic setting (WPS)

Encryption method

WEP key This is displayed when the encr yption was set. Perform the key setting

11n Select whether or not to use the wireless standard 11n.

Reection of

setting

Other setting Connect /

disconnect

ST-IP setting Perform the IP address automatic acquisition of the station or the IP address manual

Up to 32 characters of the alphanumeric characters and symbols can be entered.

wireless connection is selected from the list, it is displayed in the SSID input.

This function allows you to perform the settings of the connection and security for wireless LAN unit easily. Select the Push button method / PIN method and then start the WPS automatic setting.

Perform the encryption setting. WEP: Set the WEP key to 10 digits alphanumeric characters and symbols for the WEP64 and to 26 digits alphanumeric characters for the WEP128. WPA-PS/WPA2-PSK: Set the password in 8 to 63 alphanumeric characters and symbols.

Reect the settings of the encryption method, WEP key, and password.

Perform the connection or disconnection to/from the base unit.

setting of the station. After setting the wireless LAN unit, press the "Apply settings" ( key) to restart. The setting is completed. For details, refer to “(5)-6 Server setting”.

3-57

CHAPTER 3 Settings and Measurement

(1) Select the station, and then execute the wireless LAN restart.

The “Wireless LAN restarting” is displayed and the restart is executed by the station setting.

(2) Set the SSID.

Enter in accordance with the procedure of "(9) Text input" described below.

Also, to enter the SSID, follow the procedure in “(9) Text input”. Also, after searching the SSID in the following (3), you can select it from the list.

(3) Search the SSID.

Press the key. The searched SSID list is displayed after searching the SSID.

In Step (2), when the SSID is selected from this list, the SSID will be automatically reected.

(4) Set the automatic setting (WPS).

The wireless LAN is automatically set in the WPS system by pressing the key.

(5) Set the encryption method. (In the case of manual setting)

WEP or WPA-PSK/WPA2-PSK settings can be performed. When this setting is selected, the “WEP key” is displayed. Enter in accordance with the procedure of "(9) Text input" described below.

(6) Set the wireless standard 11n.

When the IEEE802.11n is used, set to "ON".

(7) When the above settings are nished, press the key to execute the "Apply settings".

The settings are saved.

(8) The wireless LAN is enabled by executing the “Connect/Disconnect” in the “Other settings”.

Effect ive display

(5)-3 Other setting

When connecting to the wireless LAN after setting the station, by pressing the [Connect/Disconnect] key, the “Restart TCP-IP” is displayed and then the connection is established.

To disconnect the wireless LAN during the connection, press the [Connect/Disconnect] key again.

When you want to change the connection conditions, perform the "ST-IP setting".

• When the “IP Addr Auto Acq.” is used, select the “On”.

• When the “IP Addr Auto Acq.” Is not used, select the “Off” and then set the IP address, Subnet masuk, and Port number, etc.

After the above setting, press the Key of "Apply settings" in the “ST-IP setting”. The “Restart TCP-IP” is displayed and the setting operation is completed.

3-58
