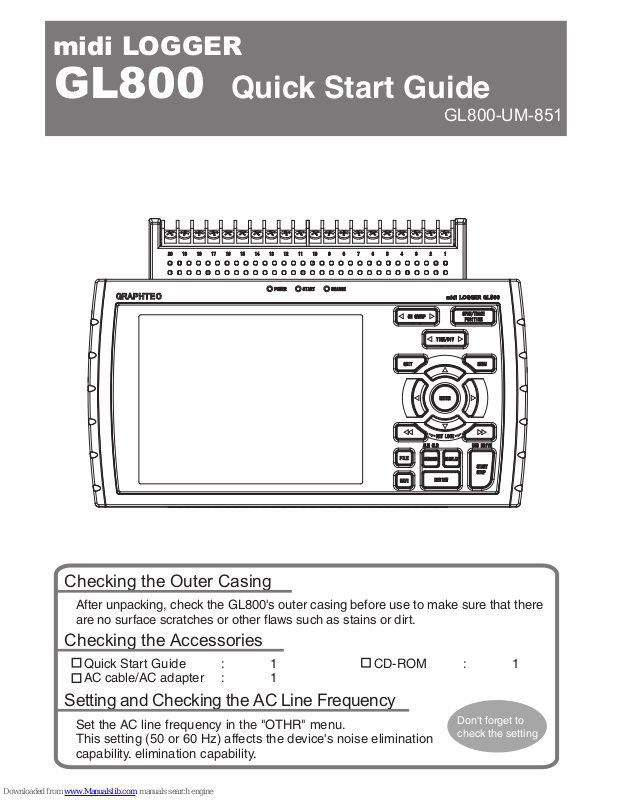

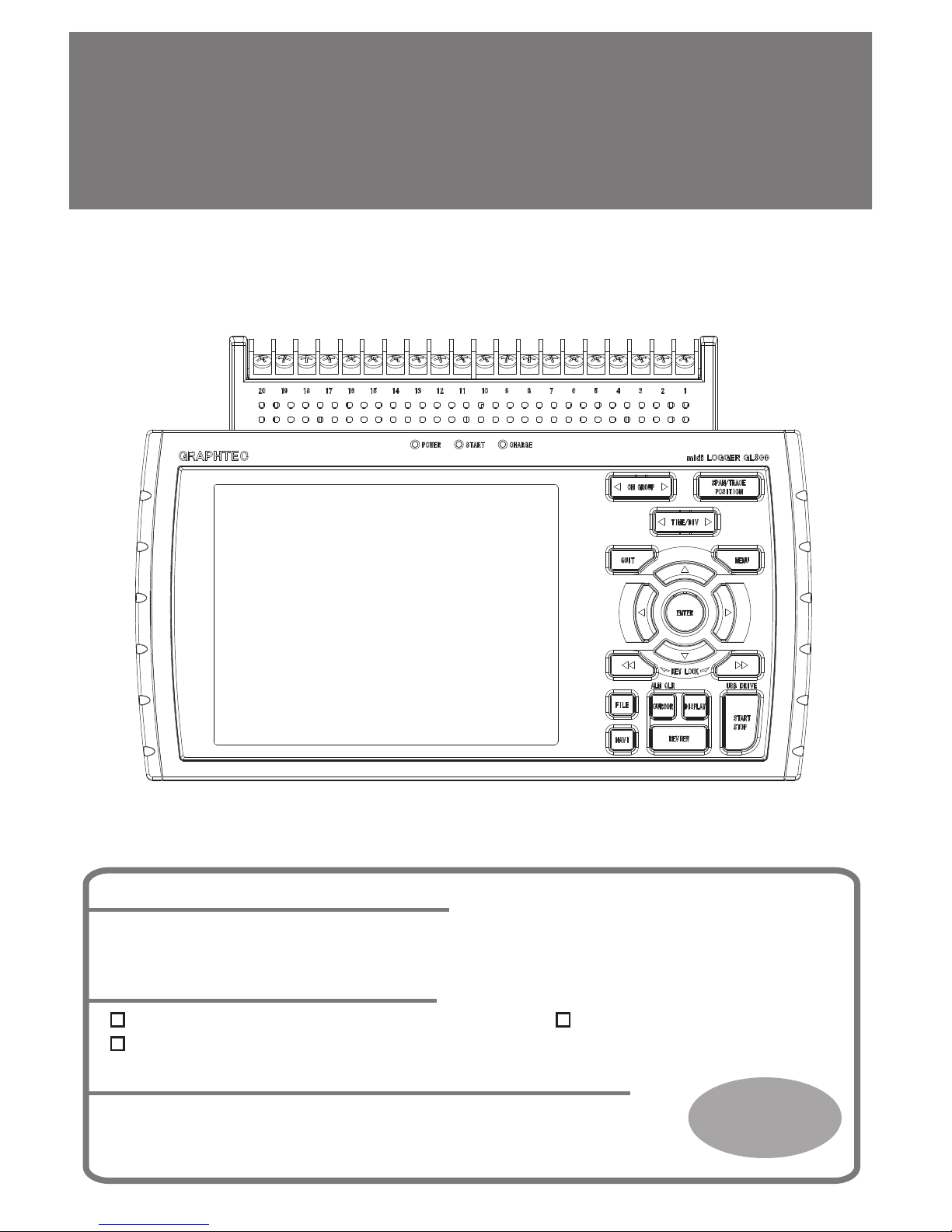

GL800 Quick Start Guide
midi LOGGER
GL800-UM-851
Checking the Outer Casing
Checking the Accessories
Setting and Checking the AC Line Frequency
Quick Start Guide : 1 CD-ROM : 1
AC cable/AC adapter :
1
Set the AC line frequency in the "OTHR" menu.
This setting (50 or 60 Hz) affects the device's noise elimination
capability. elimination capability.
After unpacking, check the GL800's outer casing before use to make sure that there
are no surface scratches or other flaws such as stains or dirt.
Don't forget to
check the setting
GL800 Contents
Part Names............................................................................. 2
Connection Procedures....................................................... ... 3
Precautions to Observe When Performing Measurement...... 4
Descriptions of the Control Panel Keys............................... ... 5
Descriptions of the Menu Screens......................................... 8
Measurement Procedure........................................................ 9
1.
Preparations : How to Make the Preparations Required for Data Capture
.......... 9
2.
Setup : How to Make the Settings for Temperature Measurement
............. 10
3.Data Capture : How to Measure the Temperature
.......................... 13
4.Data Replay : How to Replay Captured Data
.............................. 14
Convenient Functions........................................................... 15
Trigger Functions to Control Data Capture Start/Stop Operations
....... 15
Span, Position and Trace Functions to Adjust the Waveform Display
.............. 17
Specifications..................................................................... 18
Standard Specifications
.......................................................... 18
External Input/Output Functions
................................................. 18
Input Unit Specifications
.......................................................... 19
Installation Guide............................................................... 20
1

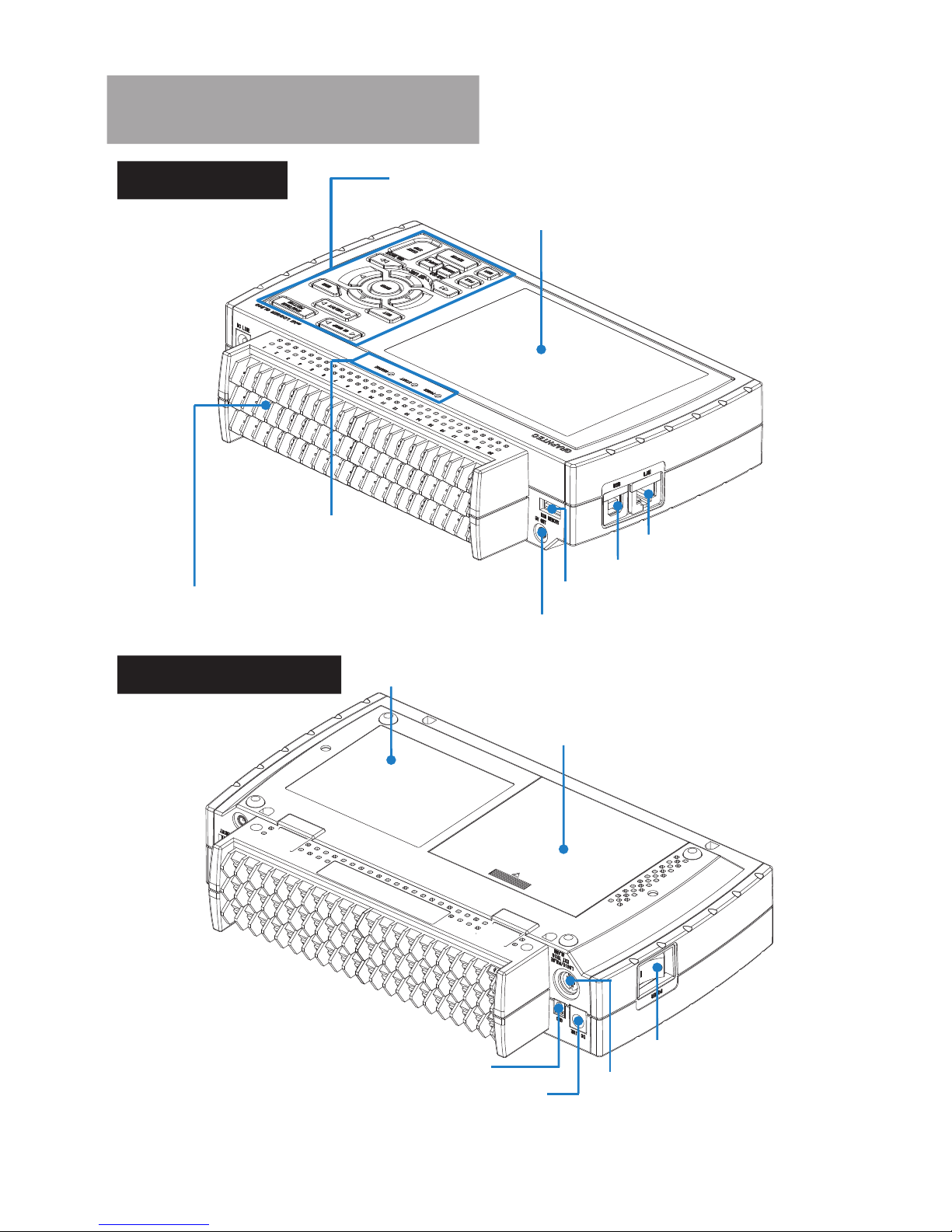

GL800 Part Names
Top Panel
Bottom Panel
Monitor
Battery cover
2
Control panel keys
Analog signal input terminals
LAN interface terminal
USB interface terminal
USB memory terminal
Power jack for the humidity sensor
Operation status LED
・POWER
・START
・CHARGE
Model imprint and others
GND terminal
AC adapter jack
External input/output terminals
・LOGIC/PULSE
・EXT TRIG
・ALARM
Power switch

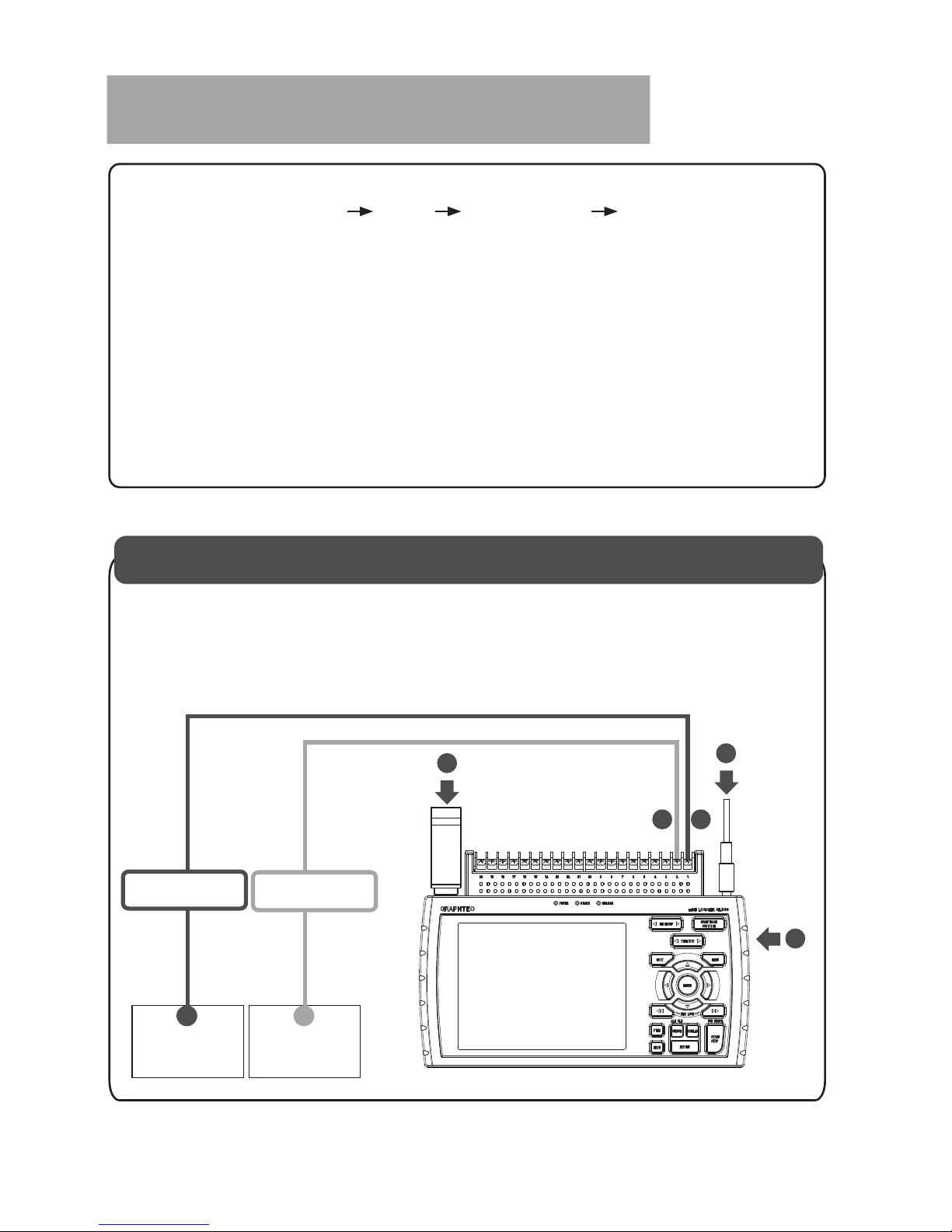

GL800 Connection Procedures
Connecting the AC Adapter
Connecting the Grounding Cable
Making Connections to the Analog Input Terminals
Making Connections to the External Input/Output Terminals（Using B-513）
3

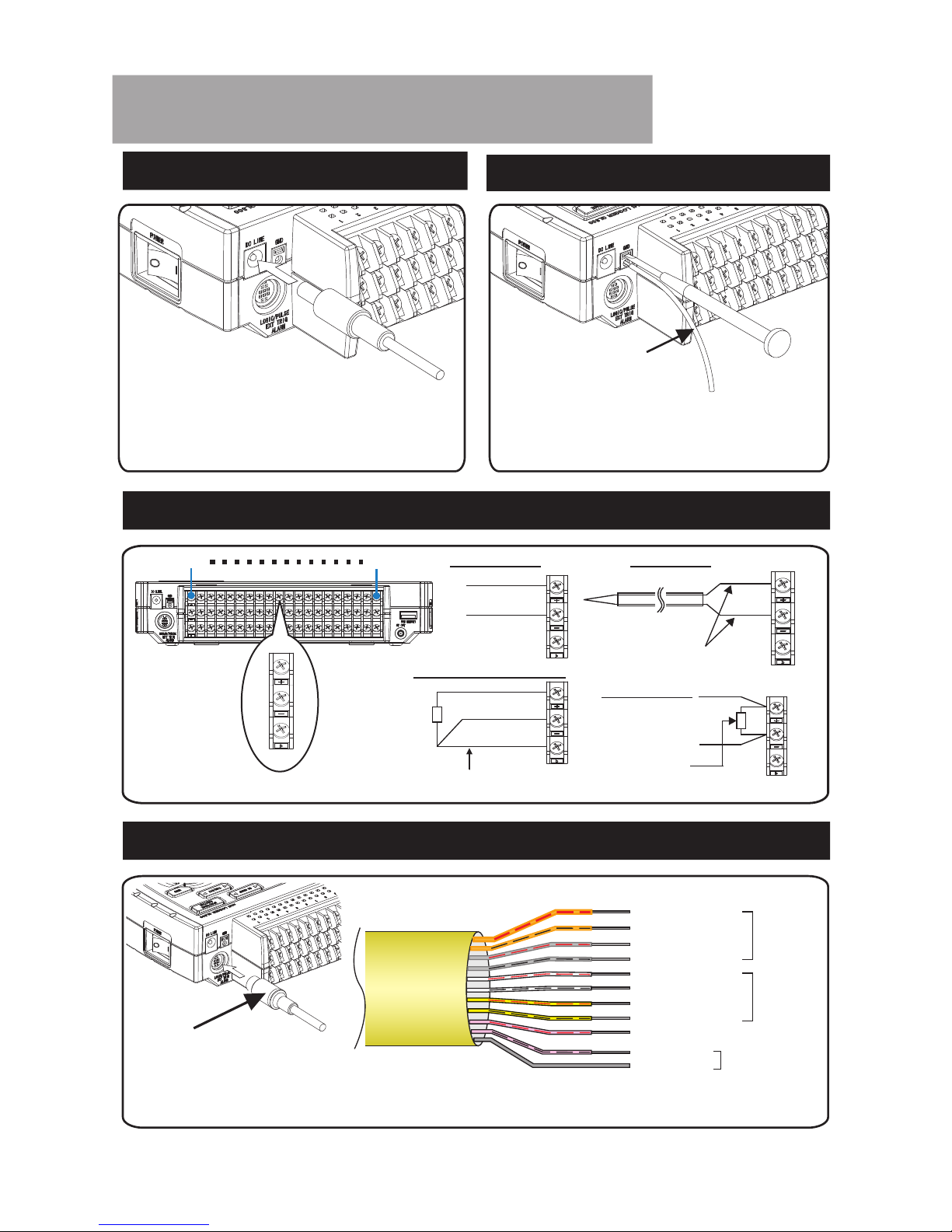

Connect the output side of the AC adapter to the
connector indicated as “DC LINE” on the GL800.
Use a flathead screwdriver to push the button
above the ground terminal while connecting the
grounding cable to the GL800. Connect the other
end of the cable to ground.
CH1 CH20
+
-
b
+
+
-
+
-
+
-
-
b
Direct voltage
Direct voltage input
Thermocouple input
Direct current input
Resistance temperature detector input
A
B
b
Compensation copper wire
Direct current
Orange with red dotted line ： 1
Orange with black dotted line
： 2
Grey with red dotted line
： 3
Grey with black dotted line ： 4
White with red dotted line
： 1
White with black dotted line ： 2
Yellow with red dotted line ： 3
Yellow with black dotted line
： 4
Pink with red dotted line
： Trigger input
Pink with black dotted line
Shielded
GND
Logic/pulse input
Alarm output
*B-513 (sold separately) cable is required for external input/output.
(For logic/pulse input, alarm output, trigger input
<Connection diagram>
Grounding cable
B-513
Lead wire resistance should be 10 Ω or below per wire, and
equivalent among the three wires.
Shunt resistance
Ex: for current in the 4 to 20 mA range,
apply a resistance of 250
Ω (±0.1%) and
perform measurement in the 1 to 5 V range.
• Avoid electrical shock and short circuit accidents
・Do not apply voltage of AC33 Vrms or 60 VDC or above between the
analog input section and main unit (GND terminal), or to between each
analog channel.
・ Do not apply voltage of AC33 Vrms or 60 VDC or above to analog input
section (between + and - terminals).
・ Do not apply radio-frequency signals.
• Warming-up
The GL800 should be allowed to warm up with the power turned on for
approximately 30 minutes to achieve operation according to the specified
performance.
• Unused channels
Capacitors have been incorporated into the analog input circuit to increase the noise
elimination capability.
Therefore, if input terminal is open, or signals are not input to the terminal,
measured results may be influenced by signals from other channels. In such a case,
set input setting to “Off” or short circuit the + and – terminals.
If signals are input correctly, measured results are not influenced by other channels.
Precautions to Observe When Performing Measurement
10 channels or less
11 to 20 channels
21 to 50 channels
51 to 100 channels
101 to 200 channels
500 msec or above
1 sec or above
2 sec or above
5 sec or above
10 sec or above
• Noise countermeasures
If measured values fluctuate due to extraneous noise, conduct the following
countermeasures.
(Results may differ according to noise type.)
Ex 1: Connect the GL800’s GND to ground.
Ex 2: Connect GL800’s GND to measurement object's GND.
Ex 3: Operate GL800 with batteries (B-517).
Ex 4: In the AMP settings menu, set filter to any setting other than “OFF”.
Ex 5:
Set the sampling interval which enables GL800’s digital filter (see table below).
Number of Measuring
Channels*
Sampling Interval which enables Digital Filter
*”Number of Measuring Channels” is the number of channels in which
input settings are NOT set to “OFF”.
4

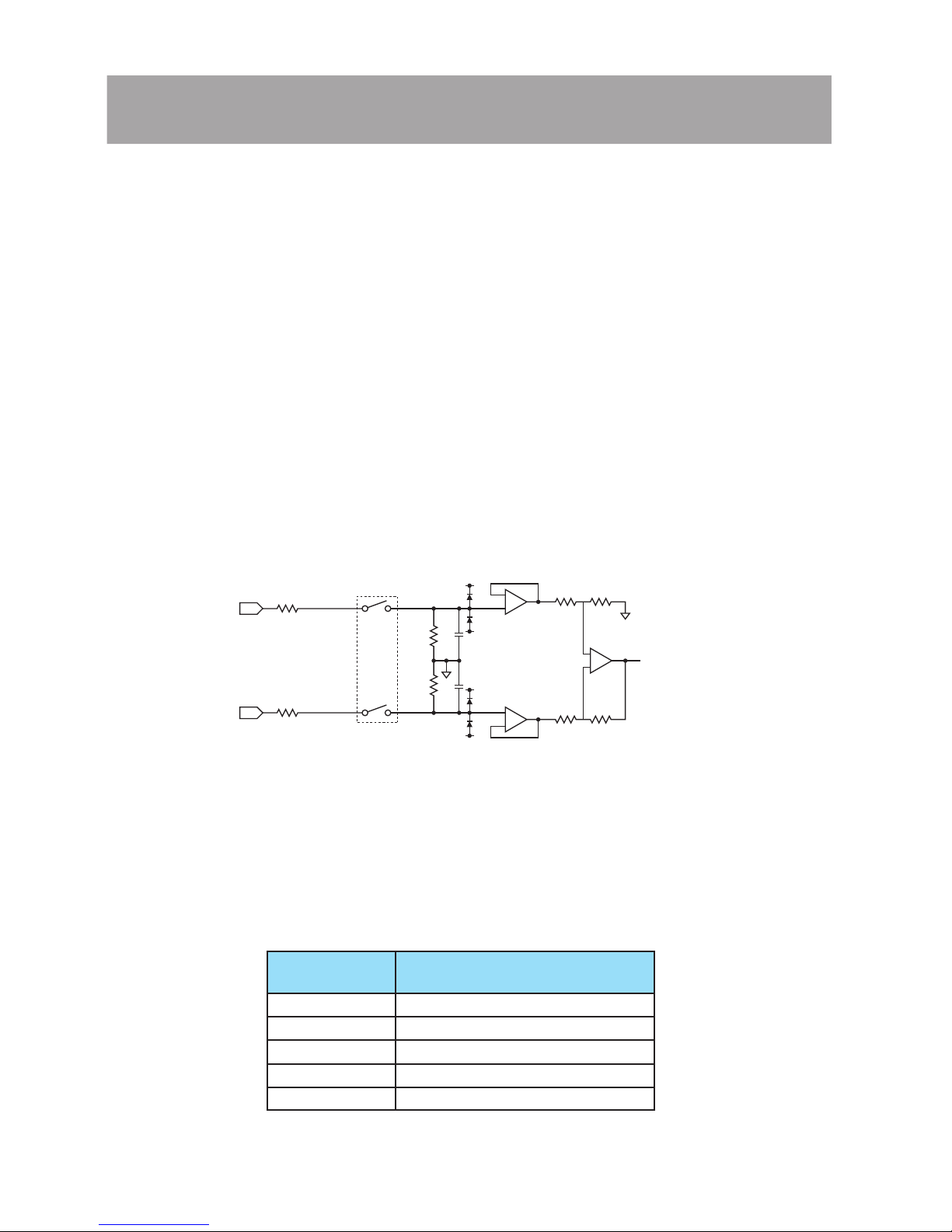

50Ω
50Ω
500k
Ω
500kΩ
0.05
μF
0.05
μF
＋
－
Channel switching relay
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
GL800 Descriptions of the Control Panel Keys

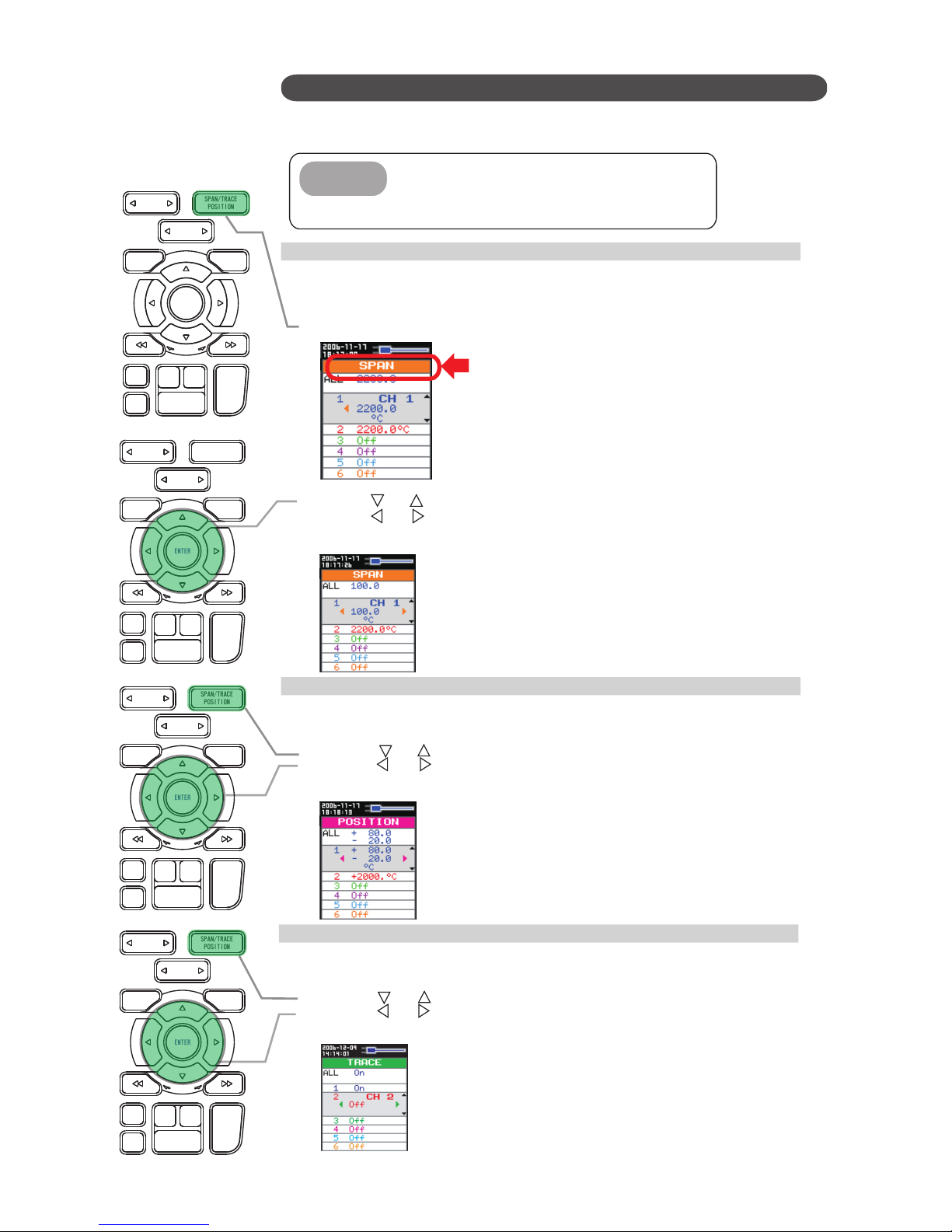

1. SPAN/TRACE/POSITION
2 TIME/DIV

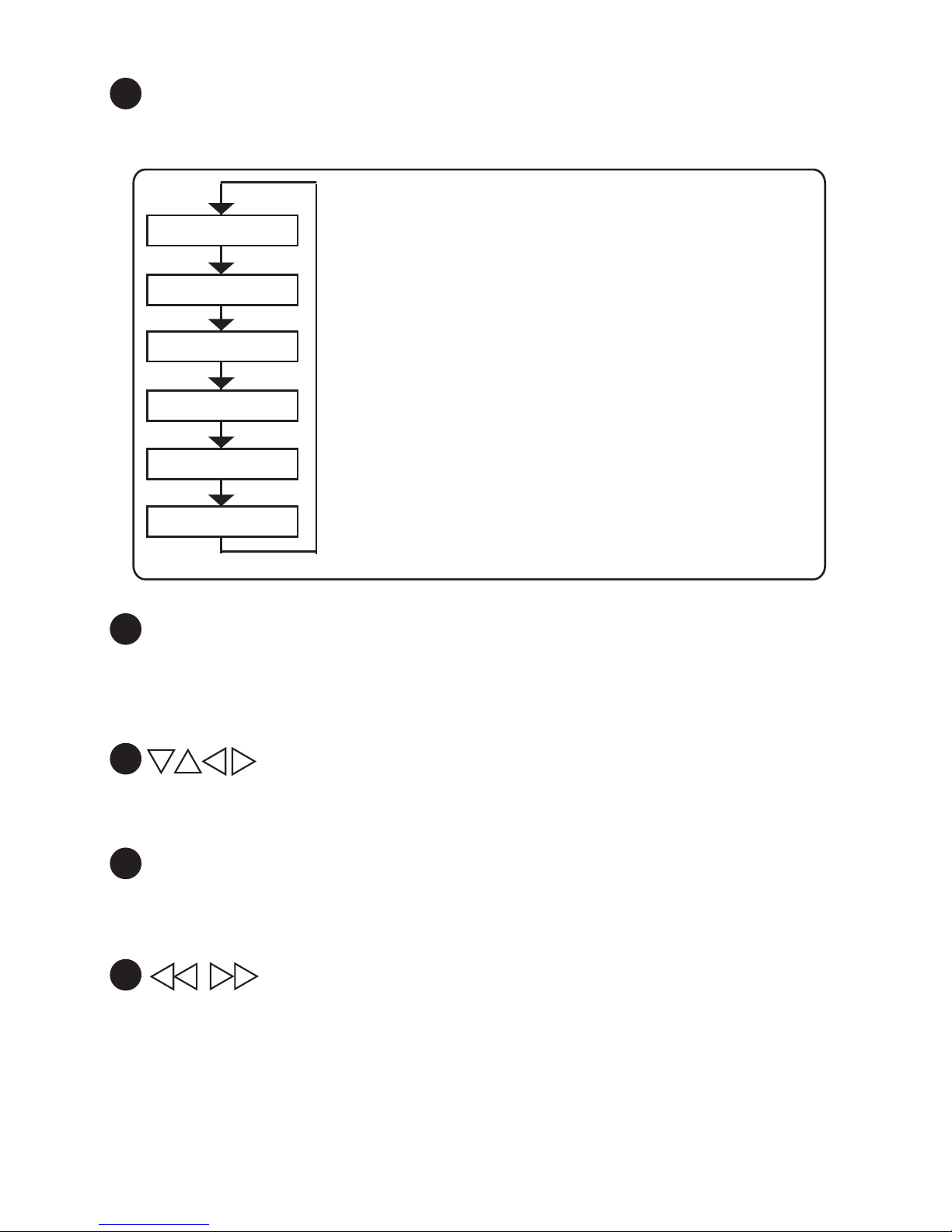

Press the TIME/DIV key to change the time axis display range on the waveform screen.
This key enables SPAN, POSITION, and TRACE settings to be made independently for each
channel. Each time this key is pressed, the mode displayed in the waveform operation display
area changes in the sequence shown below. Use the and keys to select the channel, and
the and keys to change the setting values.
Press this key to switch to the next group consisting of 10 channels.
Press the side to switch to the group consisting of the next 10 channels with a smaller number.
Press the side to switch to the group consisting of the next 10 channels with a larger number.
MONITOR
SPAN
POSITION
TRACE
2
1. CH GROUP
1
3
(1)CH GROUP
(2)SPAN/TRACE/POSITION
(3)TIME/DIV
(4)MENU
(5)QUIT
(6)DIRECTION KEYS
(7)ENTER
(8)FAST FORWARD KEY (KEY LOCK)
(9)START/STOP(USB DRIVE)
(10)REVIEW
(11)DISPLAY
(12)CURSOR (ALARM CLEAR)
(13)FILE
(14)NAVI
1 to 10 191 to 20011 to 20
5
Displays digital values (default).
Used to make span settings (change the waveform
amplitude).
Used to make position settings (adjust the upper and
lower values of the waveform).
Used to make trace settings (set the waveform display to
On or Off).
Note: If the QUIT key is pressed when the GL800 is in the SPAN, POSITION, or
TRACE mode, the display returns to MONITOR mode.
3. MENU

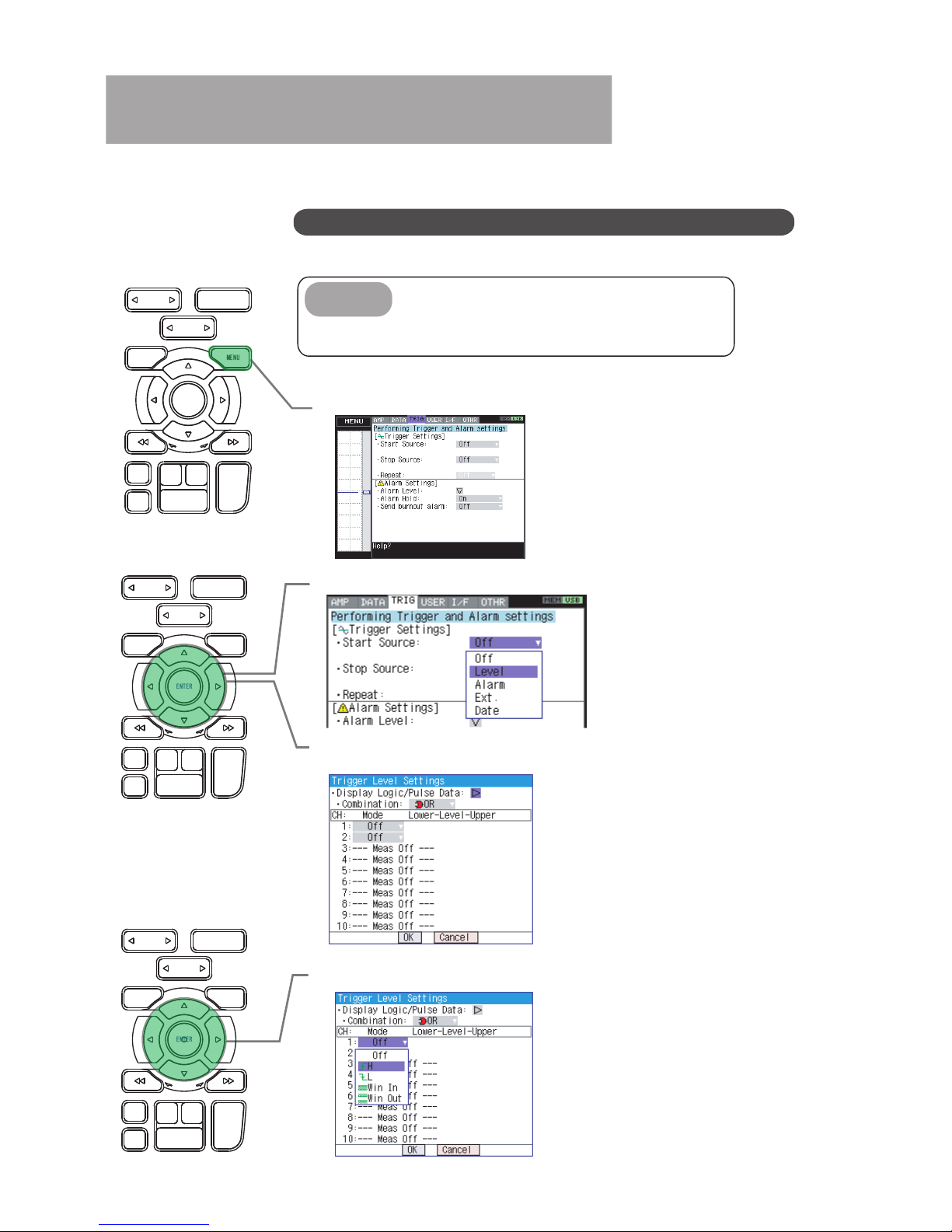

Press the MENU key to open a setup menu. Each time this key is pressed, the setup screen
tabs change in the sequence shown below.
AMP
DATA
TRG
USER
I/F
OTHR
4
4 QUIT (LOCAL)
5
6 ENTER
7
keys (DIRECTION KEYS)
5.
6
6.
keys (KEY LOCK)
8
6

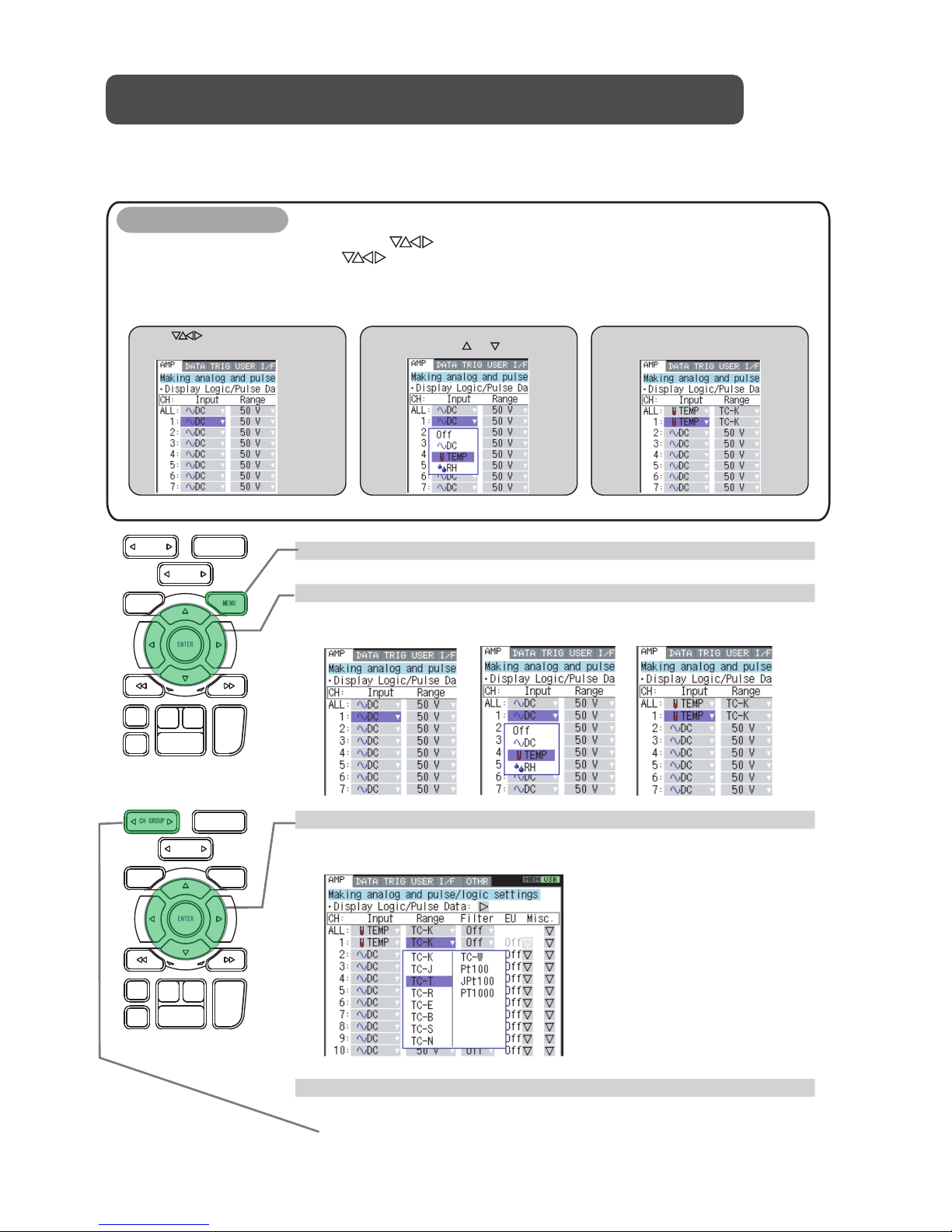

• AMP Settings
Used to make the input, range, filter and other settings.
• Data Capture Settings
Used to make settings such as the sampling interval, data capture
destination, and calculations during data capture.
• Trigger Settings
Used to specify data capture start and stop conditions, and alarm conditions.
• User Settings
Used to set the names of the users of this device, and to change from one
user to another.
• Interface Settings
Used to set USB ID numbers and LAN IP addresses.
• Other Settings
Used to make settings such as screen brightness and AC frequency.
Press the QUIT key to cancel the settings and return them to their default status. If the device
is in the Remote (Key Lock) status, namely the external operating status via the interface, press this key
to return the device to the normal operating status (Local).
These keys are used to select menu setup items, to make span settings in the digital display area, to
move the cursors during a data replay operation, and so forth.
Press the ENTER key to enter the settings made in the setup menus, and to confirm your settings.
These keys are used to move the cursor at high speed during a data replay operation, and to
change the operation mode in the file settings box. Hold down both keys simultaneously for at
least two seconds to enable key lock status. To cancel key lock status, press them again for at
least two seconds. The key lock status can be confirmed by the status of the key lock lamp on
the monitor.
8. REVIEW key
9 DISPLAY key
1 CURSOR (ALM CLR) key
FILE key
NAVI key
Digital + Calc.
Waveform + Digital
Expanded Waveform
7. START/STOP (USB DRIVE) key
9
10
11
12
13
14
7

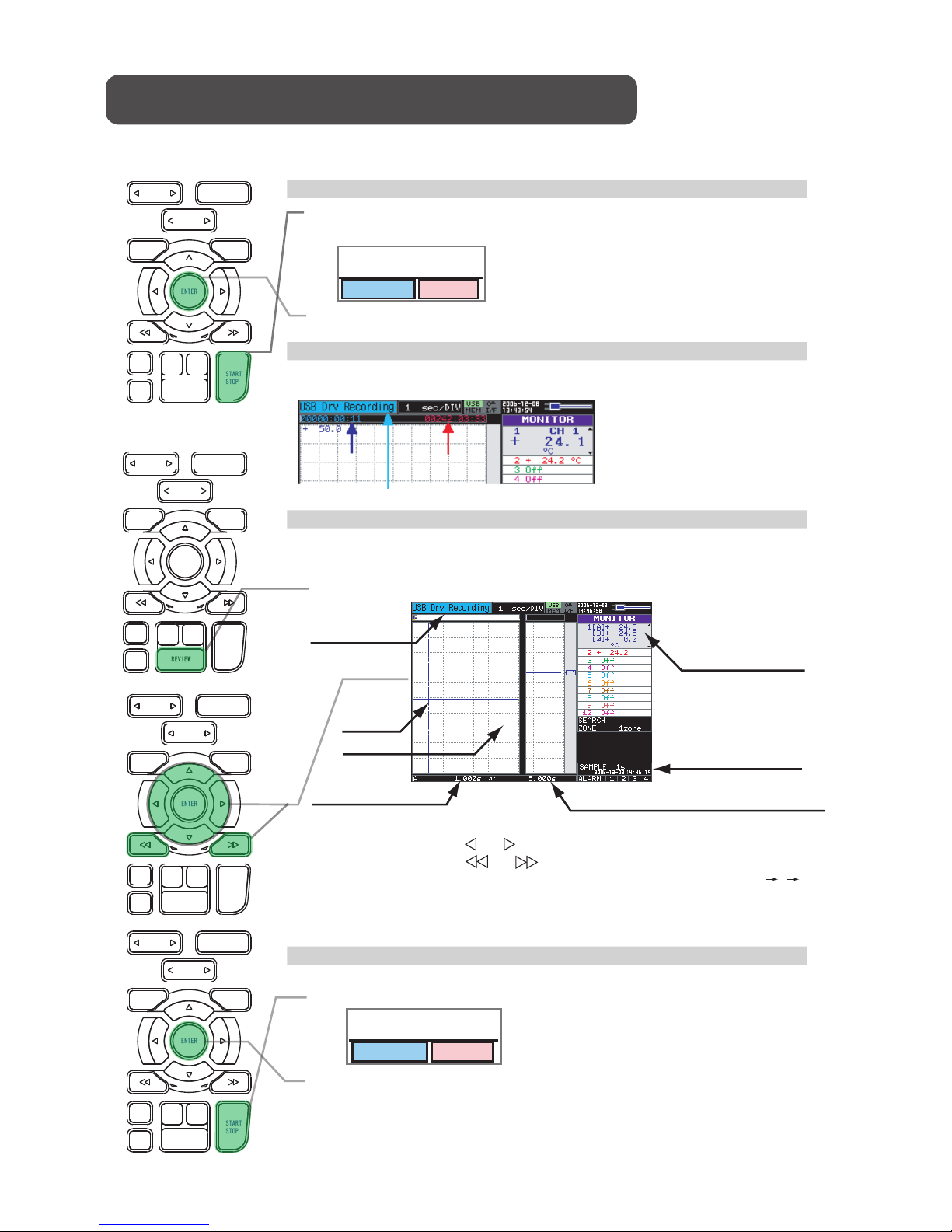

Press the START/STOP key to perform a data capture start operation while the GL800 is
in the Free Running status, and a data capture stop operation when data capture has
ended. If this key is held down while the power to the GL800 is turned on, the GL800
goes into USB Drive Mode.
Press the REVIEW key to perform a data capture start operation while the GL800 is in
the Free Running status, and a data capture stop operation when data capture has
ended. If this key is held down while the power to the GL800 is turned on, the GL800
goes into USB Drive Mode.
Note: A data replay operation will not be performed if data has not been captured.
Press the DISPLAY key
Press the CURSOR key to switch between the A and B cursors during a data replay
operation. If the Alarm setting has been specified as "Alarm Hold", press this key to clear
the alarm. The alarm settings are made in the "TRIG" menu.

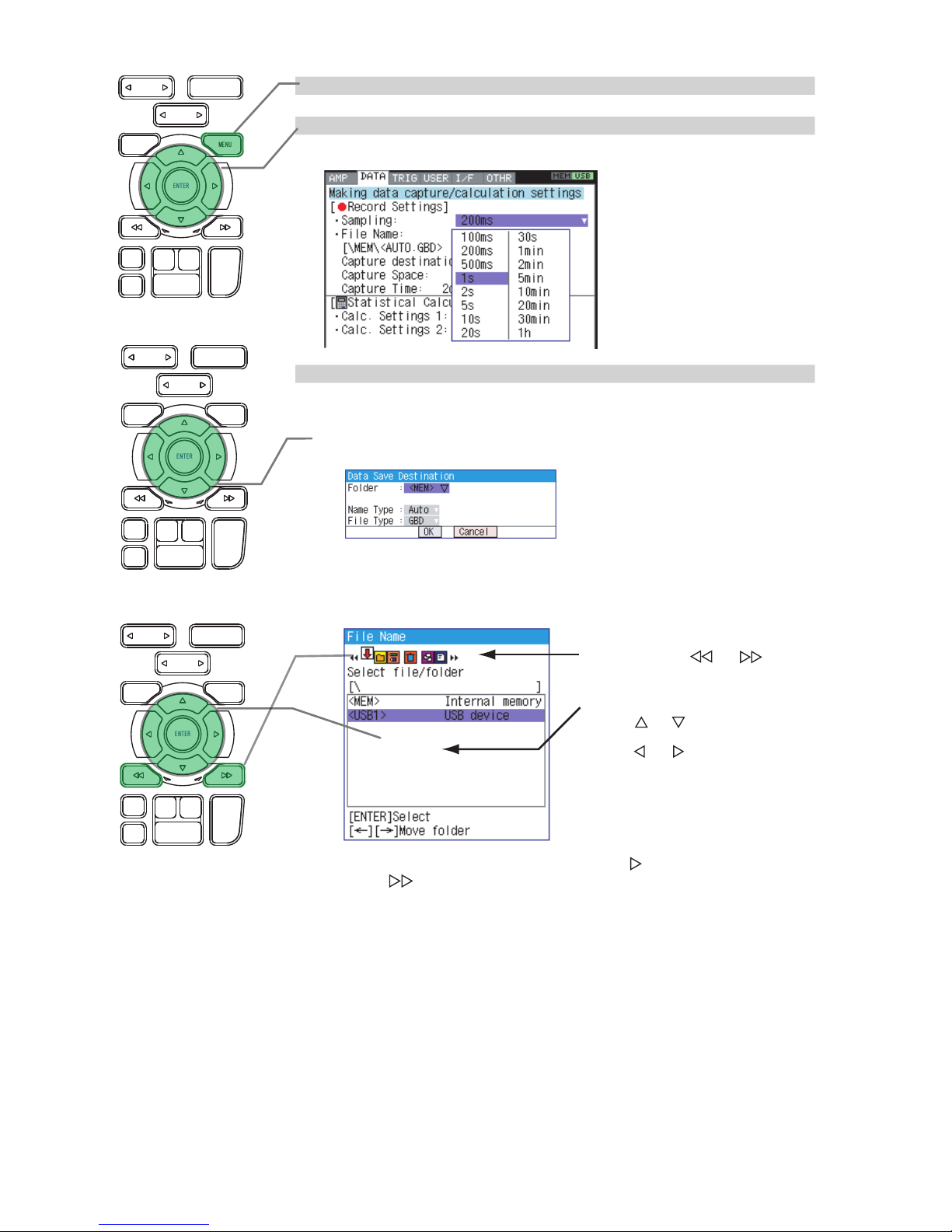

Press the FILE key to save data to the GL800's internal memory and to a USB memory
device.
Press the NAVI key to display operational descriptions during the Free Running status,
and during data capture and data replay operations.
• Waveform + Digital
This is the default screen when the GL800 is turned on, and both
waveforms and digital values are displayed. The screen settings
can also be changed by using the SPAN/POSITION/TRACE key.
• Expanded Waveform
Displays waveforms only.
• Digital + Calc.
Displays large-size digital values and two types of
calculation processing results. The calculation settings are
made in the "DATA " menu.
GL800
Descriptions of the Menu Screens
Start side
Rising
trigger
Falling
trigger
Within
the range
Outside
the range
Alarm rangeTrigger position
Stop side
8

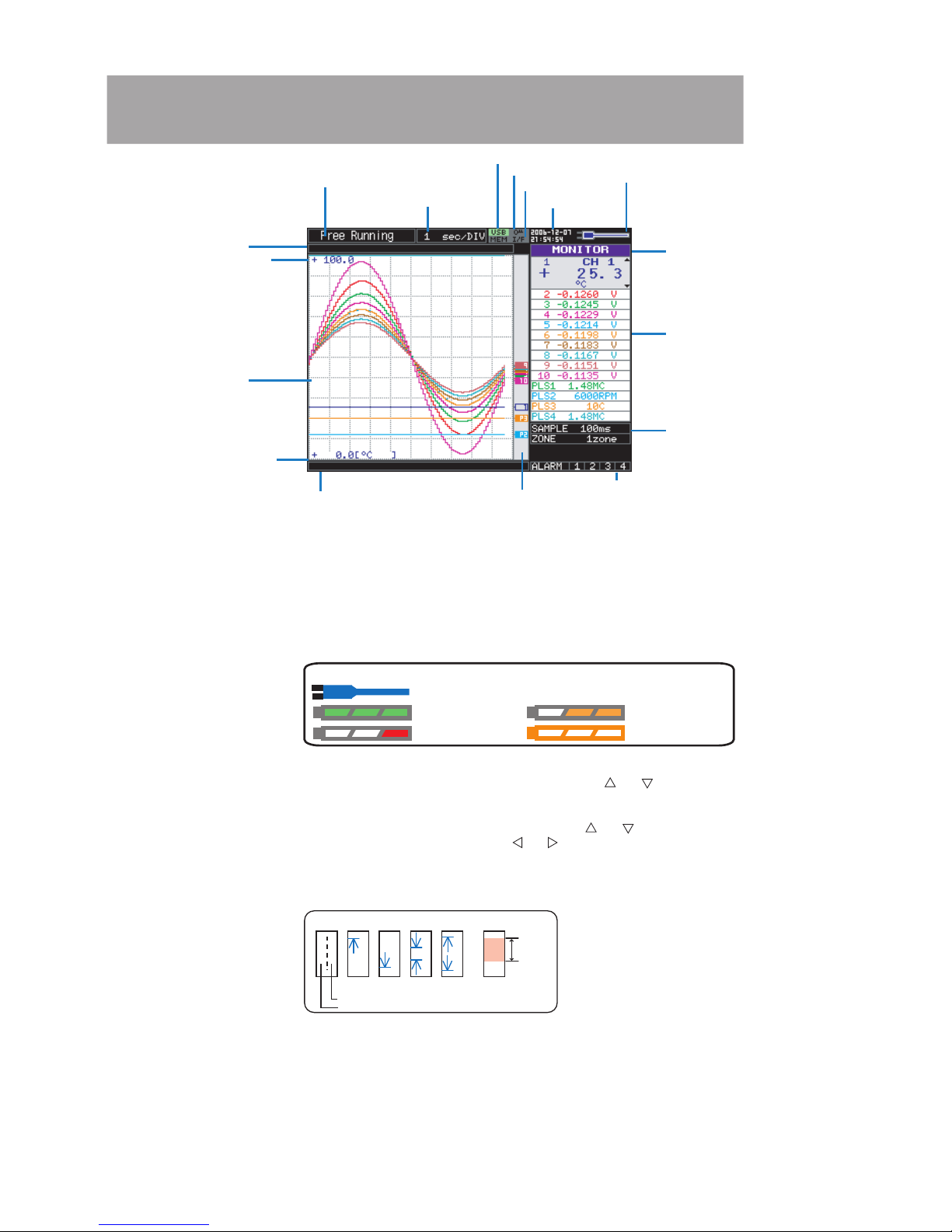

1.Simplified message display area
2.Time/DIV display area
3.Device access lamp
4.Key lock lamp
5.Remote lamp
6.Clock display
7.AC/Battery status indicator
8.Waveform operation display area
9.Digital display area
10.Quick settings
11.Alarm display area
12.Pen display13.File name display area
14.Scale lower limit
15.Waveform display area
16.Scale upper limit
17.Data capture bar
1.Simplified message display area ：Displays the operating status.
2.Time/DIV display area
：Displays the current time scale.
3.Device access lamp
：Turns red when USB memory is accessed.
When the GL800’s internal memory is being accessed, the MEM lamp turns red.
4.Key lock lamp
：Displays the key lock status. (Yellow = keys locked, white = not locked)
5.Remote lamp:
：Displays the remote status. (Yellow = Remote status, white = Local status)
6.Clock display
：Displays the current date and time.
7.AC/Battery status indicator
：Displays the following icons to indicate the operating status of the AC power supply and
the battery.
8.Waveform operation display area
：Displays the mode selected by the SPAN/POSITION/TRACE key.
9.Digital display area
：Displays the input values for each channel. The and keys can be used to select the
active channel (enlarged display). Moreover, the selected active channel is displayed at the
very top of the waveform display.
10.Quick settings
：Displays items that can be easily set. The and keys can be used to make a Quick
settings item active, and the and keys to change the values.
11.Alarm display area
：Displays the status of the alarm output terminal. (Red = alarm generated, white = alarm
not generated)
12.Pen display
：Displays the signal positions, trigger positions, and alarm ranges for each channel.
13.File name display area:
：Displays the data capture file name during the data capture operation. During a data
replay operation, the name of the data replay file is displayed.
14.Scale lower limit:
：Displays the lower limit of the scale of the currently active channel.
15.Waveform display area: ：The input signal waveforms are displayed here.
16.Scale upper limit:
：Displays the upper limit of the scale of the currently active channel.
17.Data capture bar
：During a data capture operation, this bar displays the remaining memory capacity of
the device used for data capture. When data is being replayed, the display position
information is displayed here.
AC/Battery Indicator
Battery power: Full
When the AC power supply is being used
Battery power: Medium
Battery power: Low
Battery power: Very low
GL800 Measurement Procedure
1. Preparations : How to Make the Preparations Required for Data Capture
Measurement
object 1
Measurement
object 2
CH 1
T thermocouple
CH 2
T thermocouple
1.Connect measurement object 1 to the CH 1 terminal.
2.Connect measurement object 2 to the CH 2 terminal.
3.Connect the AC power supply.
4.Insert the USB memory device.
5.Turn on the power supply.
12
3
4
5
9
In this section we will provide a simple explanation of the data capture
procedure: Preparations Setup Data Capture Data Replay.
T thermocouples will be used here to perform temperature measurement.
• Purpose of data capture : To measure the temperature of the target objects
• Measurement points : 2 locations
• Sampling interval : 1 second
• Data save destination : USB memory device
• Important point : We want to check captured data even during a data capture
operation.
• Items that must be supplied : T thermocouples, USB memory device
Note: If you do not have a USB memory device, capture data to the
GL800's internal memory instead.
2. Setup : How to Make the Settings for Temperature Measurement
Basic Setup Menu Operation
Examples of selection menu operations (AMP screen)
Note: For voltage measurement, select "DC".
10
Make the settings required for data capture. Here we will make only those settings that
are absolutely necessary. The other settings will be left as the default settings (the
settings made prior to shipment from the factory)
Points to Remember
The keys used on the menu screens are the keys, the ENTER key, and the QUIT key. The current cursor
position is displayed in blue. Use the keys to move the cursor. If you press the ENTER key at the cursor
position, a selection menu or a box for inputting numeric values and so forth is displayed. If you press the QUIT key,
the screen closes and the ettings are canceled.
1. Press the MENU key to display the setup menu screen.
2. Select "TEMP." for the Input parameter for CH 1 and CH 2.
3. Select "TC-T" for the Range parameter for CH 1 and CH 2.
(a) Move the cursor to the input parameter opposite CH 1 and select "TEMP."
(b) Make the same setting for CH 2.
(a) Move the cursor to the Range parameter opposite CH 1 and select "TC-T".
(b) Make the same setting for CH2.
4. Select "Off" for all the other channels.
(a) Using the procedure described above, select "Off" for CH 3 to CH 10.
(b) Use the CH GROUP key to switch to the CH11 to CH20 group.
1.Use the keys to move the cursor to the
Inputparameter opposite CH 1 and then press the
ENTER key.
2.A selection menu is displayed when the ENTER
key is pressed. Use the and keys to select
"TEMP."
3. Press the ENTER key to confirm your selection.
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
11
5.Press the MENU key and open the "DATA" menu.
6.Set the sampling interval to "1s".
7.Specify the Capture Destination file name.
Move the cursor to "Sampling" and then select "1s".
(c) The file settings box shown in the following screen opens.
This box is used to specify file names for the GL800's internal memory and
for the USB memory device.
(d) Move the cursor to <USB1> and then press the key.
(e) Press the key to move the cursor to "Create new folder" and then press
the ENTER key.
Use the high-speed and keys to
change the operation mode.
In the Select file/folder screen displayed,
• Use the and keys to move the cursor
up or down.
• Use the and keys to move to the
Folder level.
• Use the ENTER key to confirm your
setting.
• Use the QUIT key to cancel your setting .
Here we will create a folder named "TEST" in the USB memory device, and then
make the settings required to enable data to be captured to the TEST folder.
(a) Move the cursor to the File Name parameter and then press the ENTER key.
(b) With the cursor on the <MEM> item in the following screen, press the ENTER key.
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
12
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER

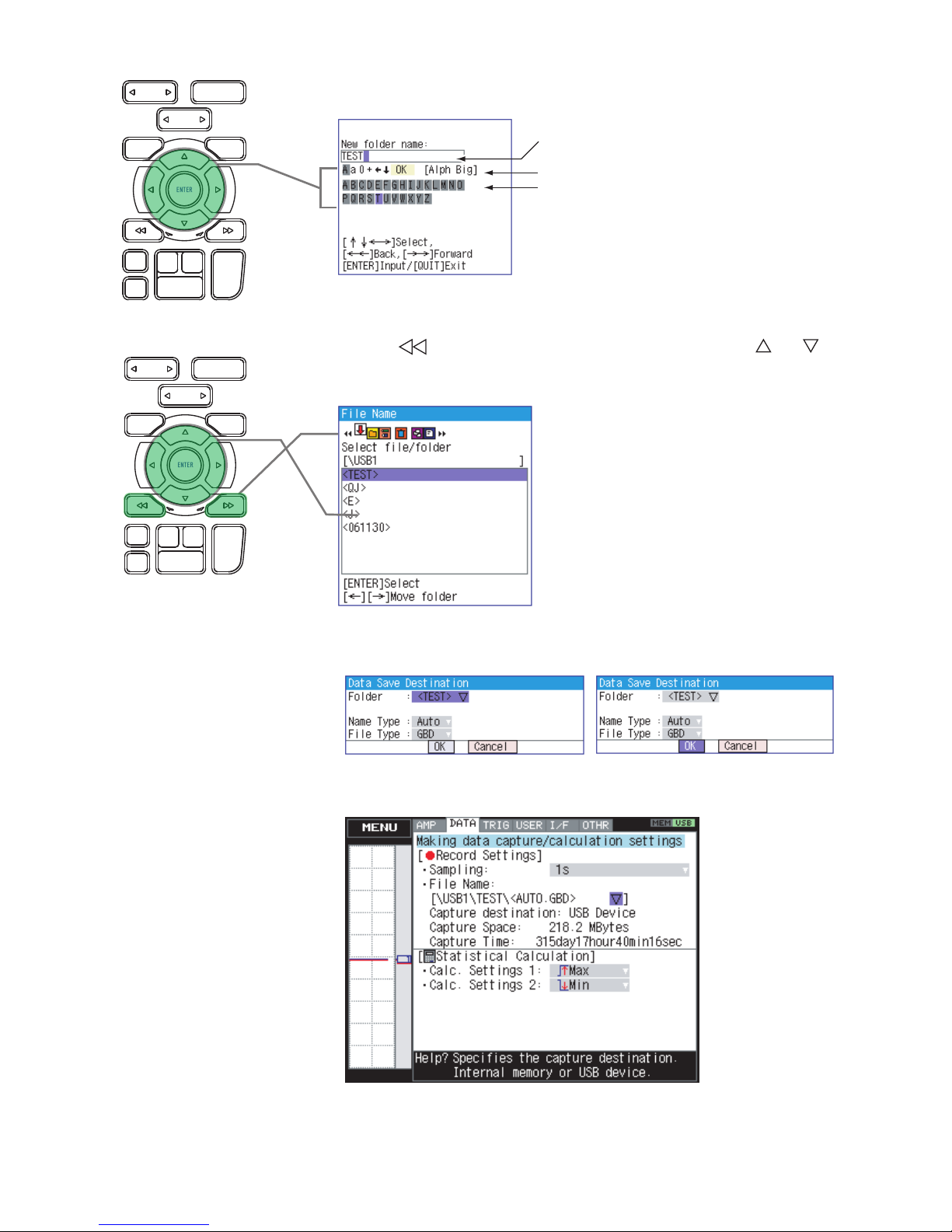

(f) A text input box is displayed. Let's create a folder named "TEST".
Text input box
Select the text type; delete; insert; confirm
Select the text
(g) Input "TEST", move the cursor to "OK", and then press the ENTER key to
confirm your setting.
(h) As shown in the following screen, a folder named <TEST> has been created.
Press the key to align the cursor with "Select file/folder", use
the and
keys to align the cursor with the <TEST> folder, and then press the ENTER
key.
(i) Check that "<TEST>" appears opposite "Folder", move the cursor to the OK
button, and then press the ENTER key.
(j) In the screen displayed below, we can check the capture destination, the
amount of data that can be captured, and the allowable data capture time.
This completes all the settings required for data capture.
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
3. Data Capture : How to Measure the Temperature
Start recording ?
[ENTER]Yes [QUIT]No
elapsed time
Display position
Cursor A
Cursor B
Cursor A temperature value
Cursor B temperature value
Difference between the A and B values
Sampling interval
Time difference between A and B
Selected cursor time
Stop recording ?
[ENTER]Yes [QUIT]No
13
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR DISPLAY
REVIEW
START
STOP
ENTER
Now that all the data capture settings have been made, we will start actual data capture.
During the data capture operation, let's also replay some data that was captured previously.
1. Starting data capture
2. Screen status during data capture
3. Now, let's replay some data that was captured previously (2-screen replay).
4. Stopping data capture
This completes the data capture operation.
Once data capture has started, the elapsed time and the allowable data
capture time are counted.
Data that was captured in the past can be replayed while new data is being
captured to the GL800. In addition, the past data can be compared with the
current input waveform in a 2-screen format.
Press the START/STOP key to end the data capture operation.
(a) Press the START/STOP key.
(b) A confirmation message is displayed. Press the ENTER key.
(c) Data capture ends, and the GL800 goes into the Free Running status.
<Main operations>
• Use the and keys to move the cursor
• Use the and keys to move the cursor at high speed
• Use the CURSOR key to change your cursor selection (A B A)
(a) Press the START/STOP key.
(b) A confirmation message is displayed.
(c) Press the ENTER key to start data capture.
(a) Press the REVIEW key to display the data in a 2-screen format.
(b) Move the cursor as desired to check the captured waveforms, date/time,
and so forth.
allowable data
capture time
capturing message
4. Data Replay : How to Replay Captured Data
Stop replaying？
[ENTER]Yes [QUIT]No
14
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
Now that data capture has been completed, let's replay some of that captured data.
The data has been captured to the <TEST> folder that was created in the USB memory
device in Step 7 of Section 2, "Setup". The file name is appended automatically, and
therefore the name of the file that was created is "Year/month/date-time_UG.gbd". The
year/month/date and time are those that were in effect when data capture started.
This completes our simple explanation of how to use the basic GL800 functions.
The GL800 has many other convenient functions. Please see the next five pages for
further details.

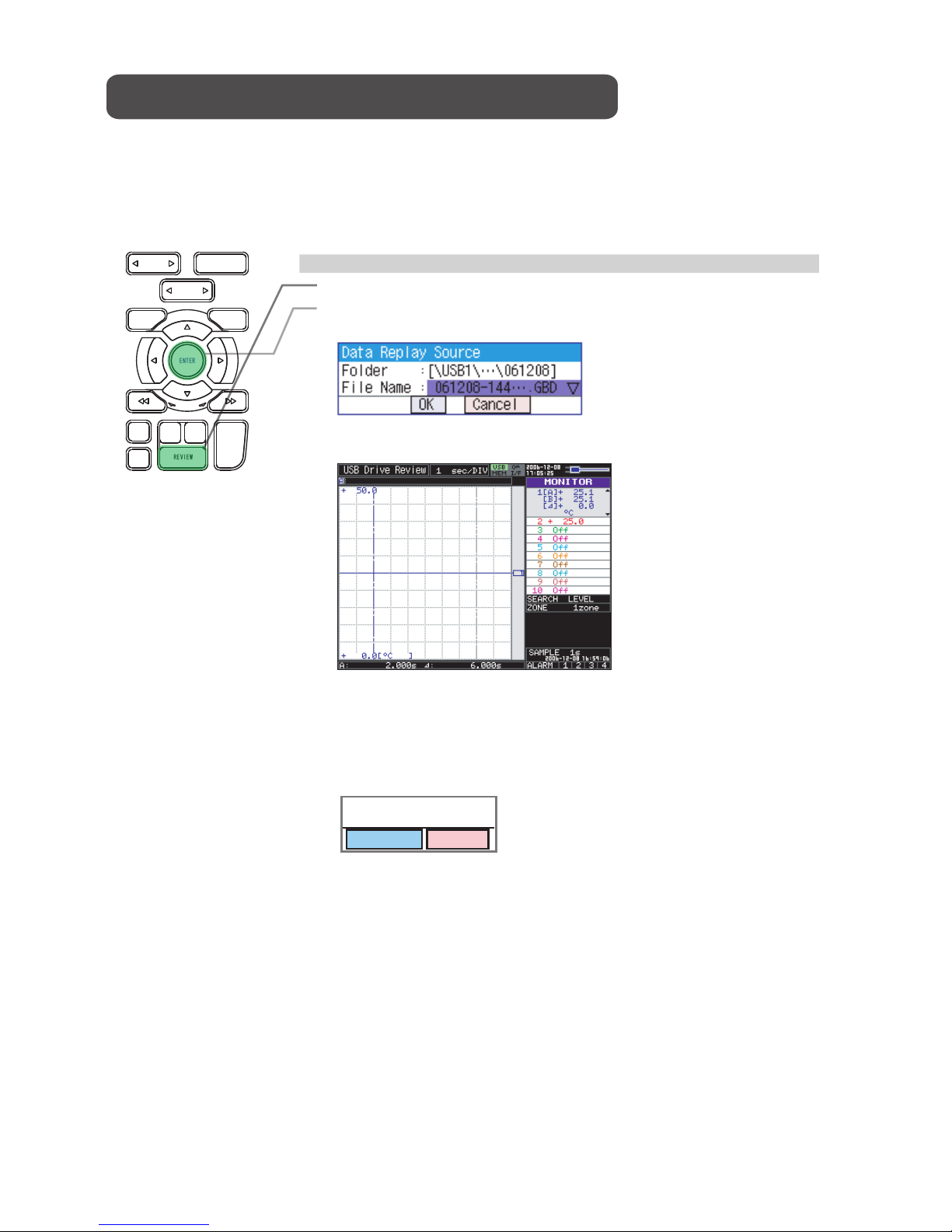

1. Selecting a file to replay
(a) Press the REVIEW key.
(b) Since the file you want to replay has the file name that was appended
automatically when the data was captured, move the cursor to the OK
button and then press the ENTER key.
(d) Move the cursor as desired to check the captured waveforms, date/time,
and so forth. The SPAN/POSITION/TRACE key can also be used in the
Replay screen to change the span, position trace, zone and other
displayed settings.
(e) Press the QUIT key to end the data replay operation.A confirmation
message is displayed. Press the ENTER key.
(f) Data replay ends, and the GL800 goes into the Free Running status.
(c) The Replay screen opens.
See Step 3 of Section 3, "Data Capture".
GL800 Convenient Functions
15
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
The GL800 is provided with various functions that enable it to be used more effectively.
We have selected three of those functions to describe in further detail.
Trigger Functions to Control Data Capture Start/Stop Operations
Trigger functions can be used to control the timing of the start of a data capture
operation, and the timing of the end of a data capture operation.
Here we will specify the condition as "Start data capture when the CH 1
temperature exceeds 20°C".
(1) Press the MENU key and open the "TRIG" menu.
(2) Move the cursor to "Start Source" and select "Level".
(3) Align the cursor with "Level" and then press the ENTER key to open the
"Trigger Level Settings" screen.
(4) Move the cursor to the "Mode" parameter opposite CH 1, and then select " H".
For example...
You can use trigger functions to perform operations such as
the following:
• Start data capture when the voltage exceeds 1 V
• Stop data capture at 1:00 pm
• Perform control via external input
Points to
Remember
Numerical value input box
Waveform area for confirmation
Lower limit, upper limit
•Use the and keys to change the values.
•Use the and keys to move to the next digit.
•Use the ENTER key to input the name.
•Use the QUIT key to cancel your setting .
16
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER

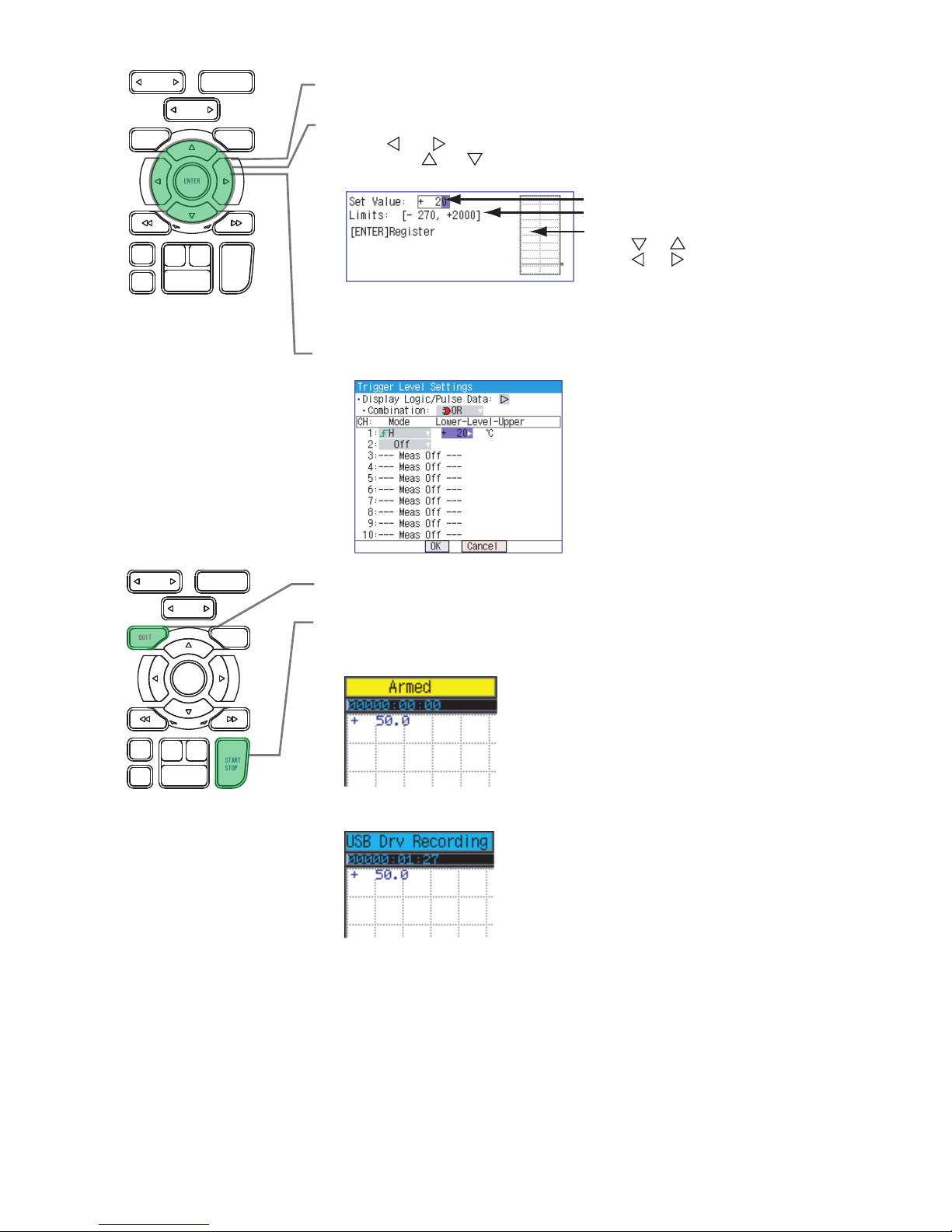

(5) Move the cursor to the "Level" parameter next to the "Mode"
If the trigger condition has not been satisfied, the GL800 goes into
the "Armed" status as shown on the following screen.
When the trigger condition has been satisfied, data capture starts.
(6) The input box shown in the following screen is displayed. Select "20".
Use the and keys to move to the cursor to the second digit from the
right, and the and keys to change the value. Press the ENTER key.
(7) When the screen changes to the following screen, move the cursor to the
OK button and then press the ENTER key.
(8) The screen returns to the TRIG menu screen. Press the QUIT key to return
the GL800 to the Free Running status.
(9) Now let's press the START/STOP key to start data capture.
Points to
Remember
17
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
CH GROUP
SPAN/TRACE
POSITION
TIME/DIV
QUIT
MENU
KEY LOCK
USB DRIVEALM CLR
FILE
NAVI
CURSOR
DISPLAY
REVIEW
START
STOP
ENTER
Span, Position and Trace Functions to Adjust the Waveform Display
These functions enable you to make adjustments in order to view individual
channels more easily, and to delete waveforms that you do not need to view.
The span, position and trace operations can be performed
while the GL800 is in the Free Running status, while it
capturing data, and while it is replaying data. The changes
made are applied to the displayed data only, and so the
original data is not affected in any way.
The currently selected mode (SPAN, POSITION or TRACE)
can be checked by looking at the "Waveform Operation
Display Area".
1.How to Make a Span setting.
2.How to make a Position setting.
3.How to make a Trace setting.
The Span parameter is used to adjust the amplitude of the input waveform.
This setting is made in the aforementioned Free Running status.
(a) Adjust the span display width for CH 1 to 100°C.
(b) Press the SPAN/POSITION/TRACE key to select the SPAN mode.
The Position parameter is used to adjust the zero position's upper and lower
positions for the input waveform.
(a) Press the SPAN/POSITION/TRACE key to select the POSITION mode.
(b) Use the and keys to make CH 1 active (enlarged display).
(c) Use the and keys to set the Position value to "+80°C to -20°C".
When this setting has been made, the waveform screen scale will be set to "+80˚C to
-20˚C".
The Trace parameter can be used to specify the waveform display of
selected channels as On or Off.
(a) Press the SPAN/POSITION/TRACE key to select the TRACE mode.
(b) Use the and keys to make CH 2 active (enlarged display).
(c) Use the and keys to select Off.
When this setting has been made, the CH 2 waveform is not displayed.
(c) Use the and keys to make CH 1 active (enlarged display).
(d) Use the and
keys to change the Span value. Here we will set the value to 100˚C.
When this setting has been made, the waveform screen scale will be set to "+100.0 to +0.0".
*1: Excluding the AC adapter and battery. Including one terminal unit.
GL800 Specifications
Standard Specifications
External Input/Output Functions
Item Description
Number of analog terminal units
1 unit (20 channels) or extension unit (maximum 200 channels)
External input and output functions
Trigger input, Logic input, Pulse input, Alarm output
PC interface
Ethernet (10BASE-T/100BASE-TX), USB (HighSpeed supported) provided as standard features
Built-in memory device Internal memory : Approx.12MB
USB memory slot (FullSpeed supported) is provided as a standard feature
Sampling interval 100ms/10CH MAX
100・200・500ms・1・2・5・10・20・30sec
1・2・5・10・20・30min・1hour
Back-up functions Setup parameters: EEPROM/Clock: Lithium secondary battery
Clock accuracy
±0.002% (approx. 50 seconds per month)
(ambient temperature 23°C)
Operating environment
0 to 45°C, 5 to 85% RH(15 to 40°C when using batteries)
Power supply AC adapter : 100 to 240 VAC, 50 to 60 Hz
DC input : 8.5 to 24 VDC
Battery pack (option)
: 7.2 VDC (2200 mAh), 2 packs mountable
Power consumption •
AC power consumption (when using the AC adapter provided as a standard accessory)
No Condition Normal
During battery recharge
1 When the LCD is on 16VA 28VA
2
When the screensaver is operating
11VA 22VA
•
DC current consumption
No Condition Normal
During battery recharge
1
+24V
When the LCD is on 0.3A 0.7A
2
When the screensaver is operating
0.2A 0.6A
3
+12V
When the LCD is on 0.55A
Recharging not possible
4
When the screensaver is operating
0.3A
5
+8.5V
When the LCD is on 0.8A
Recharging not possible
6
When the screensaver is operating
0.45A
*Normal status is when LCD brightness is set to MAX.
External dimensions 232×152×50mm
Weight
*1
990g
Vibration-tested conditions
Equivalent to automobile parts Type 1 classification
Item Description
Input specifications Maximum input voltage : 0 to +24 V (single-ended ground input)
(pulse/logic, trigger) Input threshold voltage
: approx. +2.5 V
Hysteresis : approx. 0.5 V (+2.5 V to +3 V)
Alarm output specifications
Output format :
Open collector output (5 V, 10 KΩ pull-up resistance)
:
Contact capacity 5 V to 24 V, 100 mA or below
18
Input Unit Specifications
Item
Description
Number of input channels M3 screw type, 20 channels (maximum 200 channels with extension unit)
Method
Photo MOS relay scanning system, all channels isolated, balanced input
Measurement Voltage
20・50・100・200・500mV、1・2・5・10・20・50、1-5VF.S.
ranges
Temperature Resistance temperature detector ： K、J、E、T、R、S、B、N、W(WRe5-26)
Humidity
：
Pt100、JPt100、Pt1000(IEC751
)
Thermocouples 0 to 100% (voltage 0 V to 1 V scaling conversion) *with B-530 (option)
Measurement Voltage
±0.1% of F.S.
accuracy*1
Temperature
•Thermocouple
(23°C±3°C)
Type
Measurement Temperature Range
Measurement Accuracy
R/S
0≦TS≦100 ±5.2°C
・
When 30 minutes or
100＜TS≦300 ±3.0°C
more have elapsed after
R：300＜TS≦1600 ±（0.05% of rdg +2.0°C
）
power was switched on
S：300＜TS≦1760 ±（0.05% of rdg +2.0°C
）
・Sampling 1 s/20 ch
B
400≦TS≦600 ±3.5°C
・Filter ON (10)
600＜TS≦1820 ±（0.05% of rdg +2.0°C
）
・GND connected
K
-200≦TS≦-100 ±（0.05% of rdg +2.0°C
）
-100＜TS≦1370 ±（0.05% of rdg +1.0°C
）
E
-200≦TS≦-100 ±（0.05% of rdg +2.0°C
）
-100＜TS≦800 ±（0.05% of rdg +1.0°C
）
T
-200≦TS≦-100 ±（0.1% of rdg +1.5°C
）
-100＜TS≦400 ±（0.1% of rdg +0.5°C
）
-200≦TS≦-100 ±2.7°C
J -100
＜
TS≦100 ±1.7°C
100
＜
TS≦1100 ±（0.05% of rdg +1.0°C
）
N 0≦TS≦1300 ±（0.1% of rdg +1.0°C
）
W 0≦TS≦2315 ±（0.1% of rdg +1.5°C
）
Reference contact compensation accuracy
±0.5°C
•Resistance temperature detector
Type
Measurement Temperature Range
Applied current Accuracy
Pt100 -200～850°C 1mA ±1.0°C
JPt100 -200
～
500°C 1mA ±0.8°C
Pt1000 -200～500°C 0.2mA ±0.8°C
A/D converter 16Bit
(out of which 14 bits are internally acknowledged)
Temperature coefficient
Gain
：
0.01% of F.S./ °C
Input resistance 1M
Ω±5%
Allowable signal source resistance
Within 300 Ω
Maximum input voltage Between +/- terminals, each channels, CH-GND ：
60 Vp-p
Withstand voltage
Between each input channels, and CH-GND ：
1 minute at 350 Vp-p
Insulation resistance CH-GND ： At least 50M Ω (at 500 VDC)
Common mode rejection ratio
At least 90 dB (50/60 Hz; signal source 300 Ω or less)
Noise At least 48 dB (with +/- terminals shorted)
19
*1: Thermocouple diameters T: 0.32 Φ, others: 0.65 Φ
GL800 Installation Guide
This section explains how to install the environment settings tool and
GL800 application software.
<System Requirements>
<To Install the USB Driver>
<To Install the USB Driver>
This software can be installed on a PC which fulfills the following conditions.
OS : Windows 2000, XP
CPU : Pentium4, 1.7 GHz or higher
Memory : 256 MB or more (512 MB recommended)
HDD : 100 MB (1 GB recommended) additional space required for
installing the application software
Display : Resolution 1024 x 768 or higher, 65535 colors or above (16 Bit or
higher)
Others : CD-ROM drive (for installing from CD), USB port required
To install the USB driver, follow the directions below.
(1) Insert the accompanying midi LOGGER GL800 CD-ROM in the PC’s CD
drive.
(2) Connecting the PC and GL800.
Connect the PC and GL800 via a USB cable and power on the GL800.
(3) Installing the USB driver
The “Found New Hardware” message appears, followed by the Install New
Hardware wizard for the environment settings tool.
Follow the directions displayed by the installer.
Choose “USB Driver” for driver selection.
The driver is located in the “USB Driver”.
To install the application software which sets and controls the GL800, follow
the directions below.
(1) Insert the accompanying midi LOGGER GL800 CD-ROM in the PC’s CD
drive.
(2) Select [Start] ? [Run] to open the [Run] window.
(3) In the [Open:] field, type in “D:\Japanese\midi LOGGER
Software\SETUP.EXE” and press [OK]. The installer starts.
(“D:” represents the CD-ROM drive. Change this letter to the drive letter
representing your CD-ROM drive, if necessary.)
(4) Follow all directions displayed by the installer to continue.
20
●Specifications are subject to change without notice.
GL800 Quick Start Guide
(GL800-UM-851)
March 1, 2007
1st edition-01
GRAPHTEC CORPORATION
Loading...
