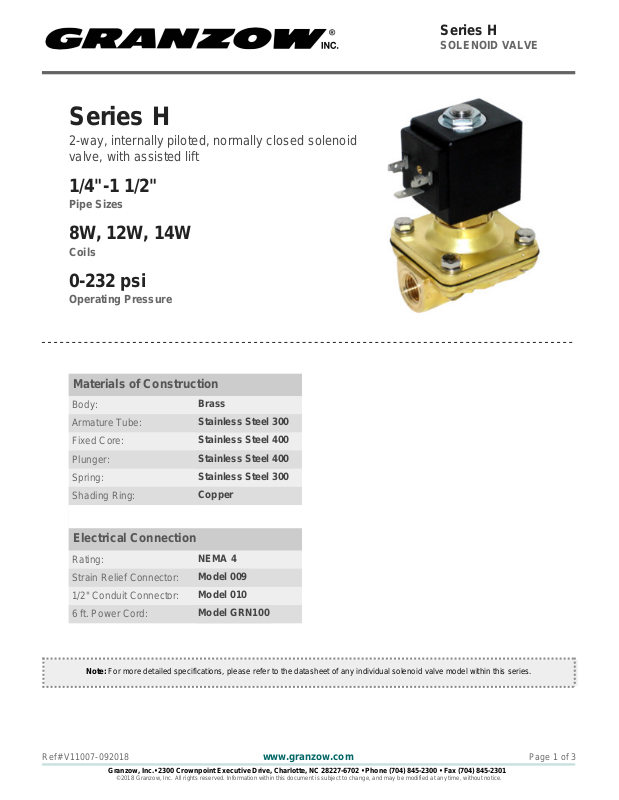

Series H
2-way, internally piloted, normally closed solenoid
valve, with assisted lift
1/4"-1 1/2"
Pipe Sizes
8W, 12W, 14W
Coils
0-232 psi
Operating Pressure
Materials of Construction
Body:
Brass
Armature Tube:
Stainless Steel 300
Fixed Core:
Stainless Steel 400
Plunger:
Stainless Steel 400
Spring:
Stainless Steel 300
Shading Ring:
Copper
Electrical Connection
Rating:
NEMA 4
Strain Relief Connector:
Model 009
1/2" Conduit Connector:
Model 010
6 ft. Power Cord:
Model GRN100
Note: For more detailed specifications, please refer to the datasheet of any individual solenoid valve model within this series.
Ref# V11007-092018 www.granzow.com Page 1 of 3
Granzow, Inc.• 2300 Crownpoint Executive Drive, Charlotte, NC 28227-6702 • Phone (704) 845-2300 • Fax (704) 845-2301
©2018 Granzow, Inc. All rights reserved. Information within this document is subject to change, and may be modified at any time, without notice.
Series H
SOLENOID VALVE
Page 2
NBR + PA* 14°- 195° F Air, Inert gas, Water
Sealing Material Temperature Range Medium Examples
Series "H" solenoid valve models, with NBR + PA sealing:
Model #
Pipe Size
(Inch)
Orifice Size
(Inch)
Flow Factor
(CV)
Watt Rating
(W)
Min. Pressure
(PSI)
Max. Pressure
(AC/DC)
H2XXX-00Y 1/4" 7/16" 1.40 8 0 200/75
H2XXX-00Y 1/4" 7/16" 1.40 12 0 200/200
H2XXX-00Y 1/4" 7/16" 1.40 14 0 200/200
H3XXX-00Y 3/8" 7/16" 1.40 8 0 200/75
H3XXX-00Y 3/8" 7/16" 1.40 12 0 200/200
H3XXX-00Y 3/8" 7/16" 1.40 14 0 200/200
H4XXX-00Y 1/2" 5/8" 2.80 8 0 200/35
H4XXX-00Y 1/2" 5/8" 2.80 12 0 200/160
H4XXX-00Y 1/2" 5/8" 2.80 14 0 200/200
H5XXX-00Y 3/4" 5/8" 2.80 8 0 200/35
H5XXX-00Y 3/4" 5/8" 2.80 12 0 200/160
H5XXX-00Y 3/4" 5/8" 2.80 14 0 200/200
H6XXX-00Y 1" 1" 8.30 8 0 116/0
H6XXX-00Y 1" 1" 8.30 12 0 200/22
H6XXX-00Y 1" 1" 8.30 14 0 200/85
H7XXX-00Y 1 1/4" 1 3/8" 18.63 8 0 232/0
H7XXX-00Y 1 1/4" 1 3/8" 18.63 12 0 232/0
H7XXX-00Y 1 1/4" 1 3/8" 18.63 14 0 232/87
H8XXX-00Y 1 1/2" 1 9/16" 19.32 8 0 232/0
H8XXX-00Y 1 1/2" 1 9/16" 19.32 12 0 232/0
H8XXX-00Y 1 1/2" 1 9/16" 19.32 14 0 232/87
*PA = polyamide
