SYS8F377VGGA-3OM Quick Installation Guide
SYS8F377VGGA-3OM 简易说明书

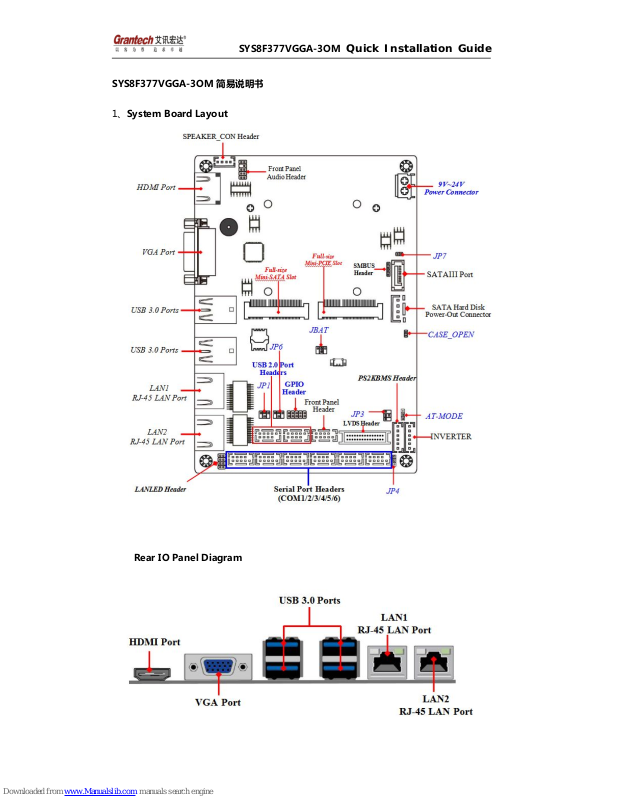

1、System Board Layout
Rear IO Panel Diagram
Page 2
SYS8F377VGGA-3OM Quick Installation Guide
2、Connectors:
3、Connectors
Header Name Description
FP_AUDIO Front PanelAudio Header 9-pin Block
SPEAK_CON Speaker Header 4-pin Block
JW_FP Front Panel Header(PWR LED/ HDD
LED/Power Button /Reset)
9-pin Block
F_USB1/F_USB2 USB 2.0 Header X2 9-pin Block
LANLED LAN Activity LED Header 8-pin Block
COM1/2 RS232/422/485 Serial Port Header X2 9-pin Block
COM3/4/5/6 RS232 Serial Port Header X4 9-pin Block
GPIO _CON GPIO Header 10-pin Block
SMBUS1 SMBUS Header 4-pin Block
PS2_CON PS/2Keyboard & Mouse Header 6-pin Block
INVERTER1 LVDS Inverter Connector 6-pin Block
LVDS 24-bit LVDS Header 30-pin Block
3、Jumper List
Jumper Name Description
JP1 COM1 Header Pin9 Function Select 4-Pin Block
JP6 COM2 Header Pin9 Function Select 4-Pin Block
JP3 LVDS VDD 3.3V/5V/12V Select 4-Pin Block
JP4 INVERTER VCC 5V/12V Select 3-Pin Block
JBAT Clear CMOS RAM Settings & RTC_RST
Function Select
4-Pin Block
AT_MODE AT/ATX Mode Function Select 3-Pin Block
COPEN Case Open Message Display Function 2-Pin Block
JP7 TXE Unlock Select 2-Pin Block
Connector Name
*DCIN1 9V~24V DC-in Power Jack Connector
SATA1 SATAIII Port Connector
SATAPW1 SATAPower out Connector
HDMI HDMI Port Connector
VGA CRT VGA Port Connector
USB1/USB2 USB 3.0 Port Connector X4
LAN1/LAN2 RJ-45 LAN Port Connector X2
MINI_CRD Full-size Mini-PCIE Connector
MSATA Full-size MSATA Connector
Page 3
SYS8F377VGGA-3OM Quick Installation Guide

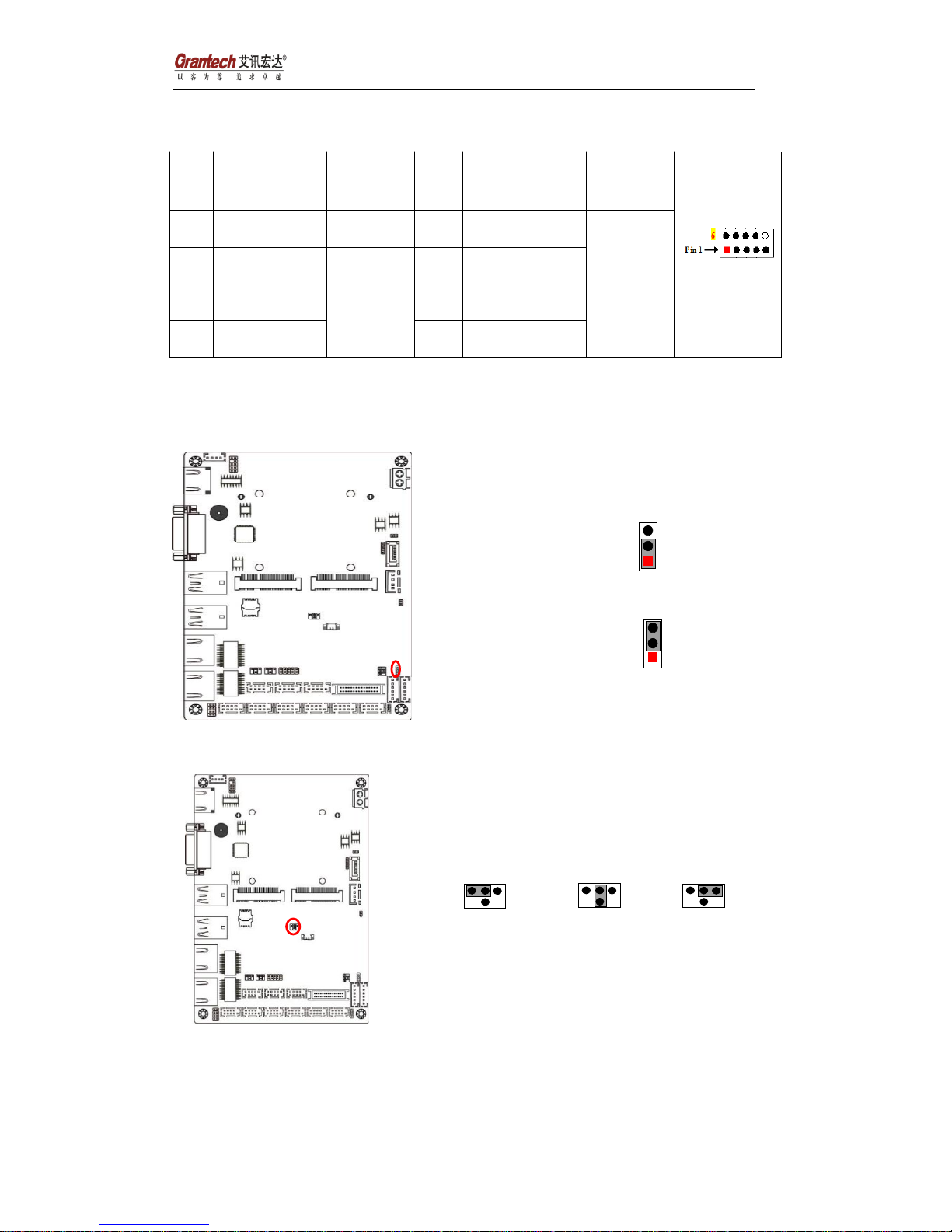

4、Front Panel Connector setting :
Pin Define Function Pin Define Function
JPANEL1
1 HDD LED+ N/A 6 Power LED+
Power
LED
2 HDD LED- HDD LED 7 Power LED-
3 Reset GND
Reset
Button
8 Power Button
Power
Button
4 Reset Button 9 Power GND
5、Jumper Setting:
1、AT_MODE (3-pin): AT Mode/ATX Mode Select
1
3
1
3
AT_MODE→ATX/AT Mode Select
1-2 Closed：ATX Mode Selected;
2-3 Closed：AT Mode Selected.
2、JBAT (4-pin): Clear CMOS RAM Settings & RTC_RST Function Select
JBAT→ ClearCMOS RAM/RTC_RST
4-6Closed
:
RTC_RST
Function Selected.
642
3-4Closed
:
Normal(Default);
2-4Closed
:
Clear CMOSRAM
Settings;
315
1 3
524
6
1 3
5
2 4 6
Page 4
SYS8F377VGGA-3OM Quick Installation Guide

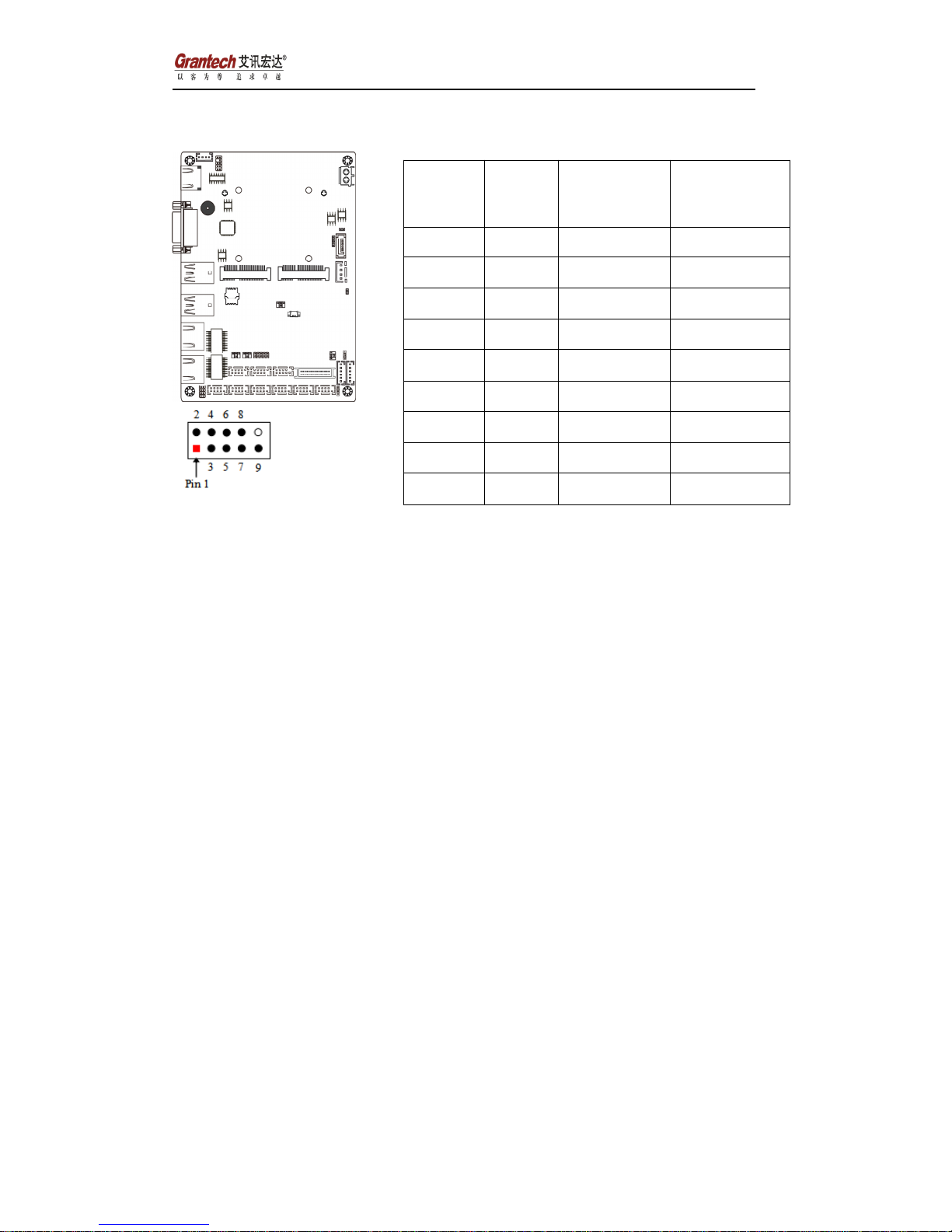

3、COM1/2: RS232/422/485 Header;
Checklist:
Ø SYS8F377VGGA-3OM Mainboard*1pcs
Ø Utility CD for SYS8F377VGGA-3OM*1pcs
Ø
Installation Guide*1pcs
Ø SATA Cable *1pcs;
Ø COM cable and Print cable*6pcs
Ø
USB cable and Print cable*2pcs
Pin NO. RS232 *RS422
(for COM1/2)
*RS485
(for COM1/2)
Pin 1 DCD TX- DATA-
Pin 2 RXD TX+ DATA+
Pin 3 TXD RX+ NC
Pin 4 DTR RX- NC
Pin 5 GND GND GND
Pin 6 DSR NC NC
Pin 7 RTS NC NC
Pin 8 CTS NC NC
Pin 9 RI NC NC
